Accurate completion of any dredge job
The positioning visualisation system offers the dredge master a real-time overview of the exact location of the drag head, cutter unit or suction head. The system keeps track of the soil that has already been dredged on the survey map, bringing a halt to costly underdredging or overdredging.
Fit for any dredger
Whether a stationary suction dredger, a Trailing Suction Hopper Dredger or an excavator, accurate dredging is the way to a profitable dredge job. Using angle transmitters and GPS positioning, the exact position of the digging tool can be calculated. This position is then mapped in a predefined environment, allowing the dredge master to accurately dredge as per the contract terms.
Knowing the exact location of the suction head
Customised positioning packages
Easy job preparation
Put your vessel on a chart
Mapping the position of your dredger on a predefined chart, ensures that the dredge operator knows exactly what to do. The chart shows real-time performance by changing colour when the chart depth has been reached, and when the dredge master still has to clear a layer of soil. As a result the efficiency of the dredge operation can be increased.
Retrofit or newbuild

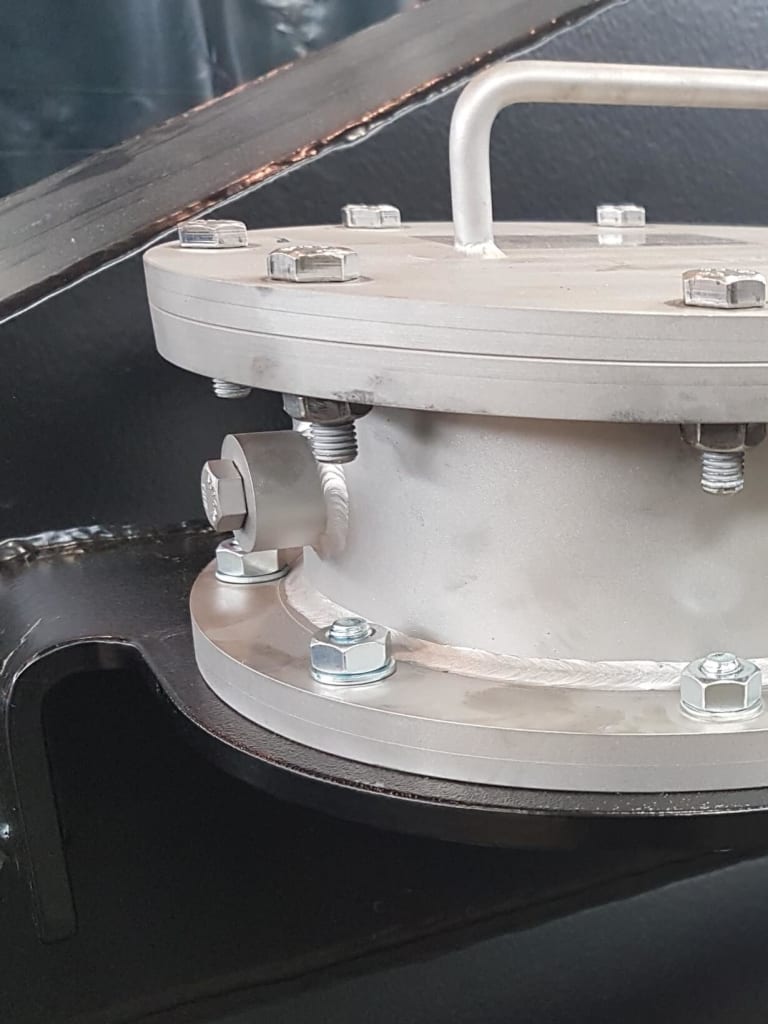

Customised packages are available, including the software package with an industrial PC, plus a number of optionals. These may include inclinometers, angle transmitters or draught transmitters which are required for the calculation of the exact 3D position of the suction head.
At your fingertips
The dredge operator can monitor the progress of the dredge job on screen. Various views are available to facilitate different jobs. The survey map on the screen clearly shows the predefined dredging area, the boundaries and area topography.
Optimised hydrographic system
The configuration of the hydrographic presentation and the positioning system can be optimised to suit your dredger and the job at hand perfectly. It can be used for various types of dredging works, plus dumping and ground levelling jobs.
GPS with reference signals
The dredger is pinpointed on the map through a DGNSS Global Positioning System or a DGNSS-RTK position receiver. The RTK reference signals can be used to increase position accuracy.
Do you want to boost your operational efficiency?
Let’s discuss the best solution for you!
Your partner in dredging
Dredging requires more than just shipping a dredge instrumentation package. It requires more gear such as a dredge pump to do the job, and it requires crew training and project management to bring the works to a successful conclusion. Damen can assist you during the full lifecycle of your dredger.
Dredging instrumentation can be supplied as a single item, or as a complete system or package. For a retrofit or newbuild, dedicated dredge monitoring equipment will assist you doing your dredge job in the most efficient way.
As well as shipping the required dredge instrumentation to your yard, we can also send over our Field Service Engineer to assist the crew with installation and calibration. This will shorten the installation time, and give an opportunity for crew training.
For additions to your dredge systems, spares and repair requests our Service team is available 24/7.
