Damen Marine Services

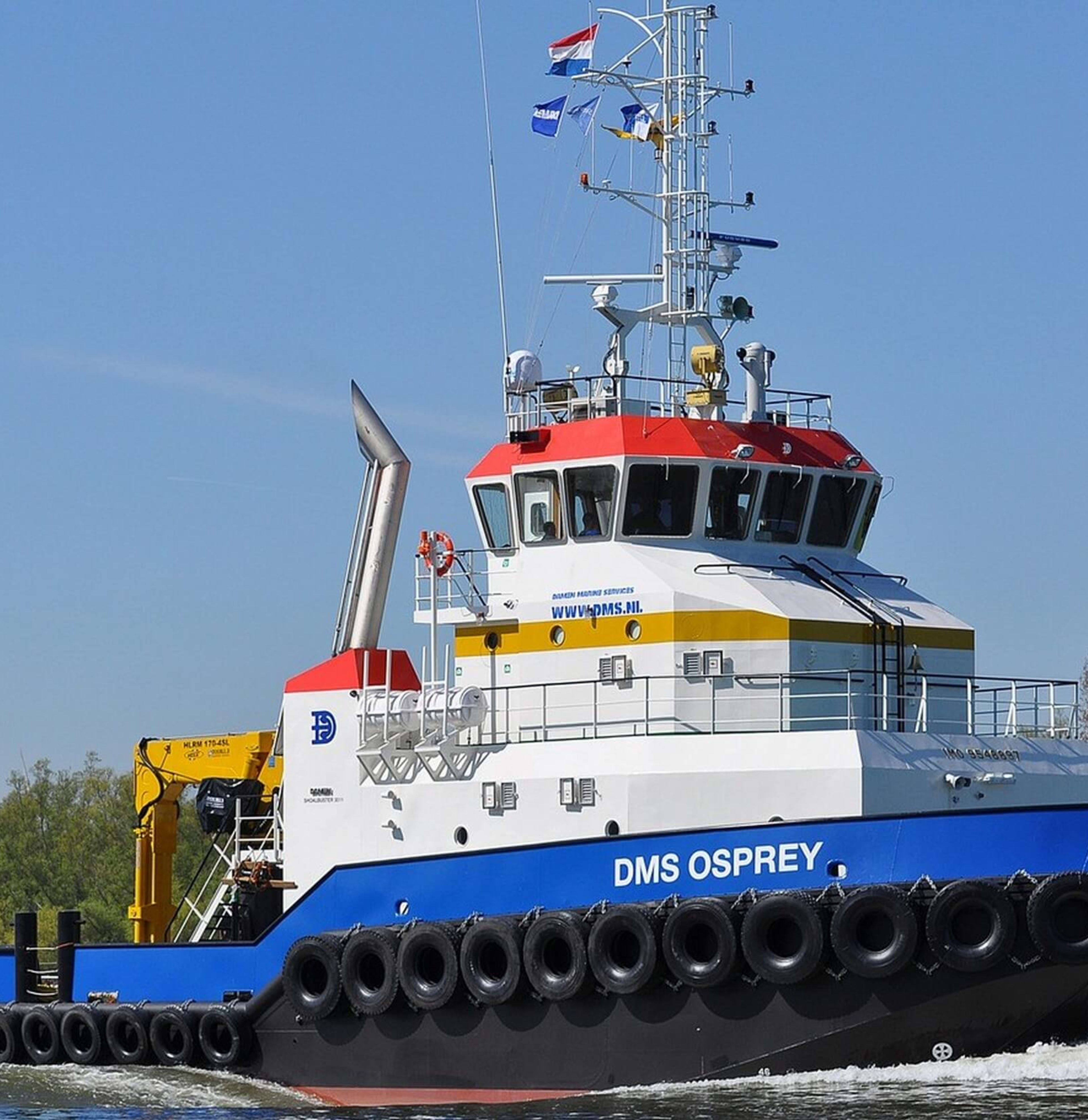

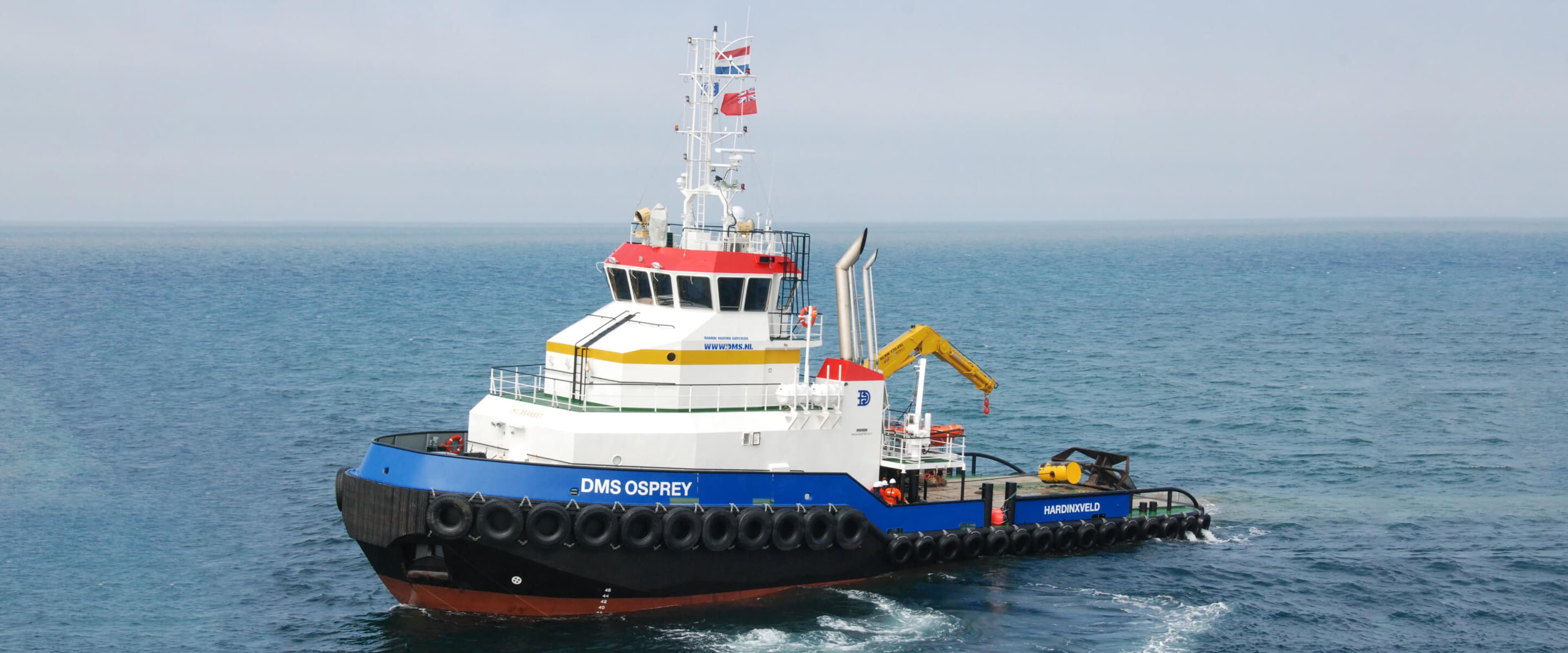

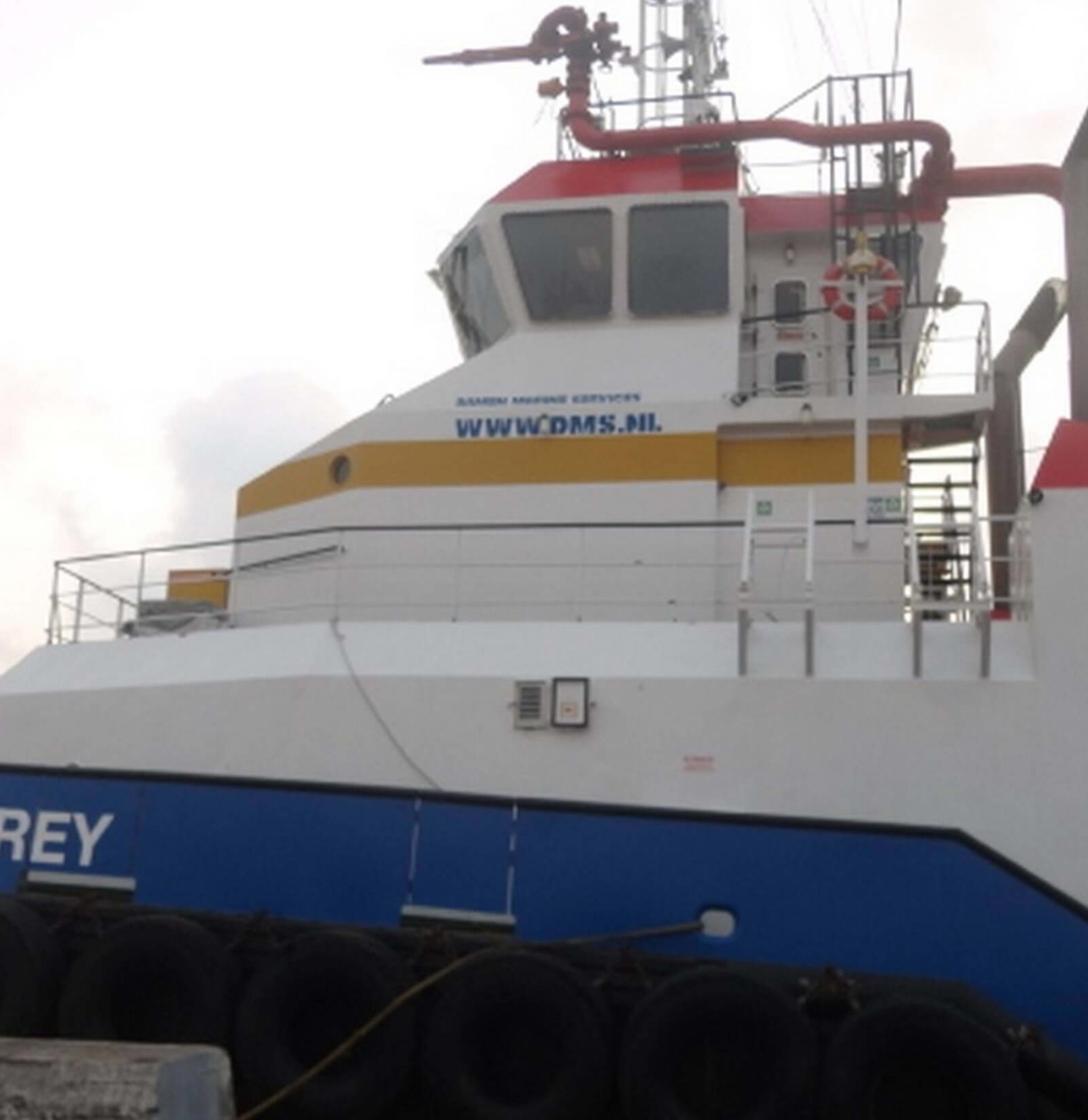

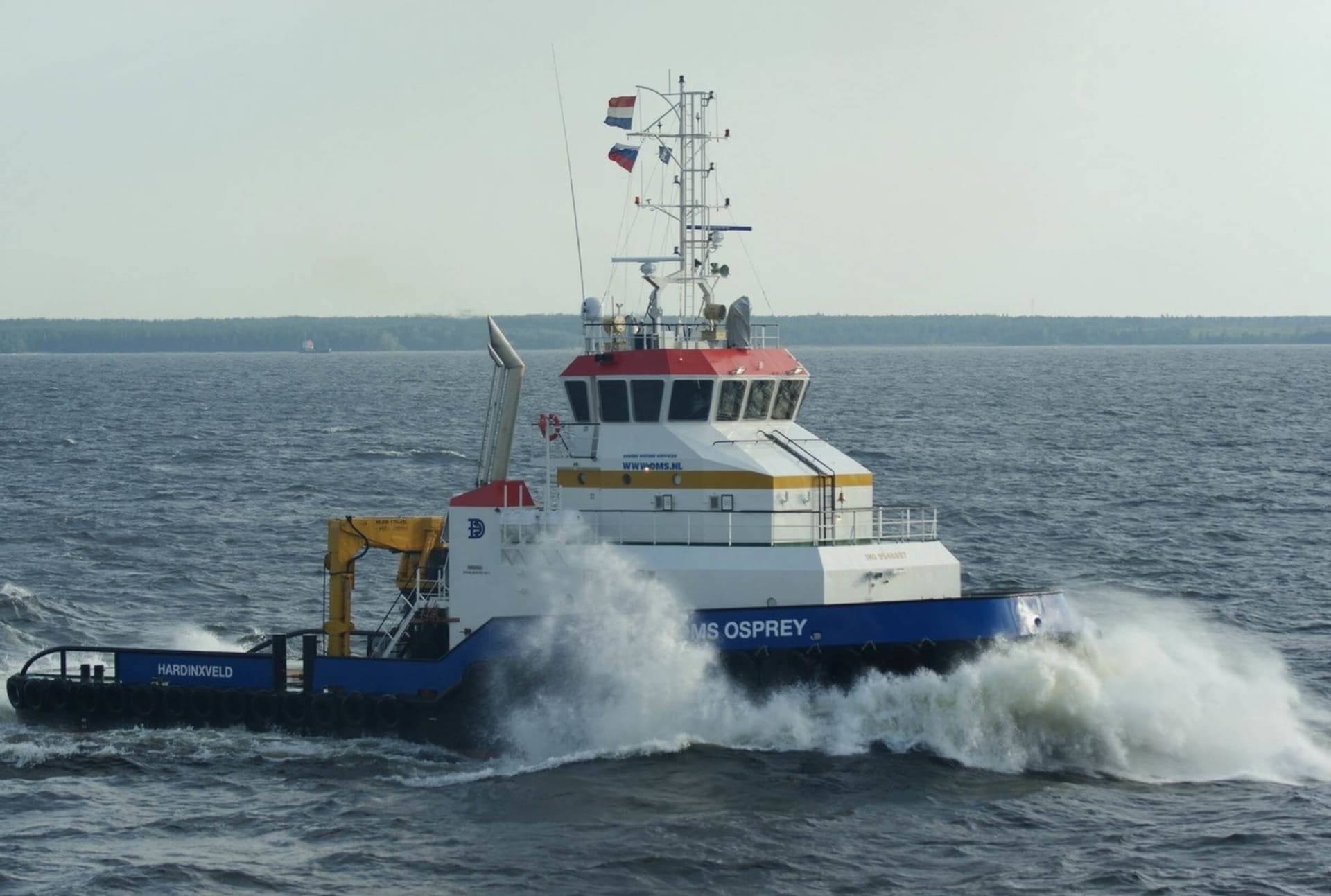

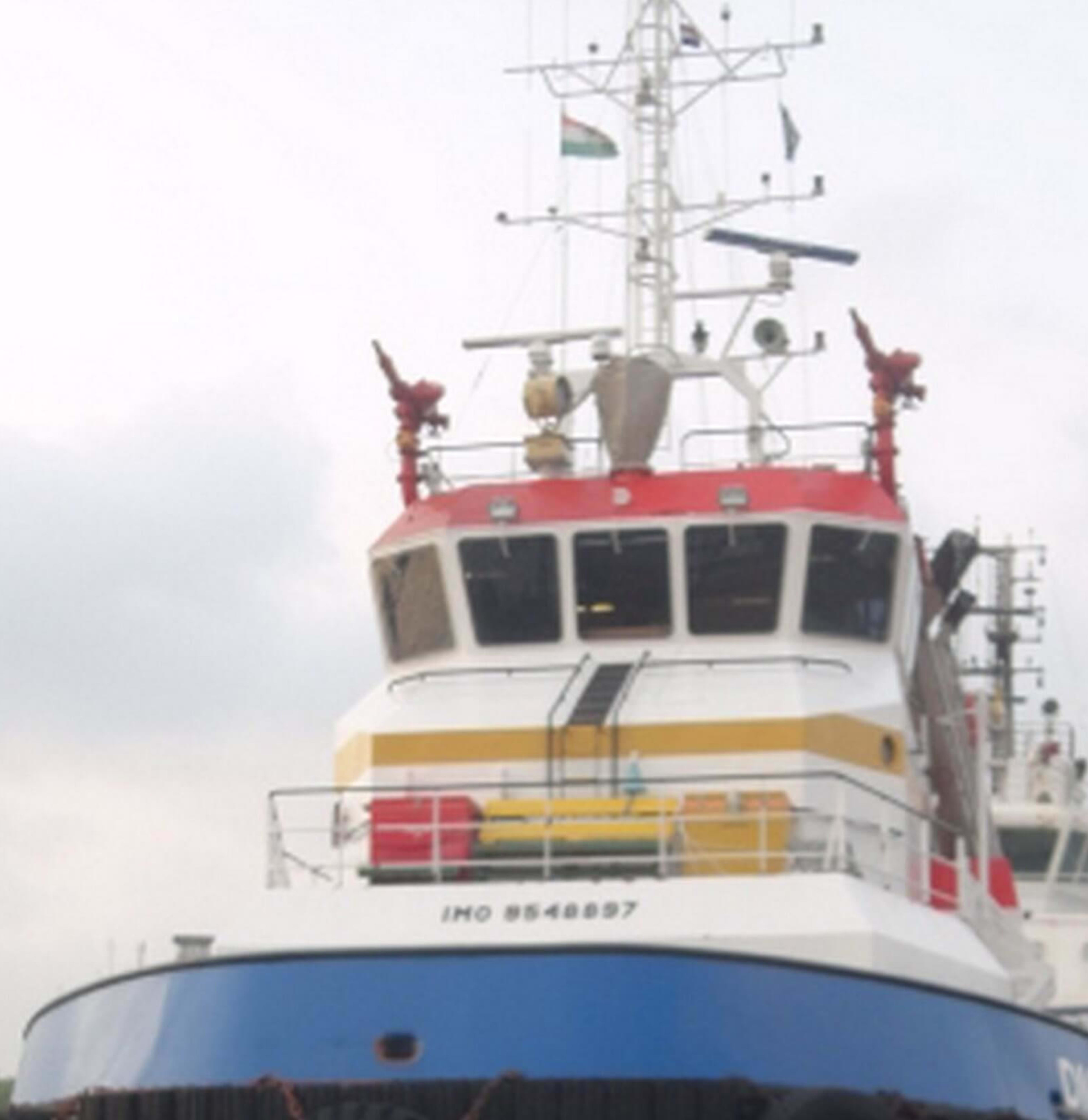

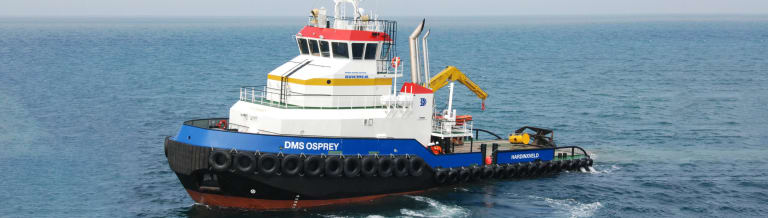

Damen Shoalbuster 3511 'DMS Osprey'
Shoalbuster 'DMS Osprey'
70.9
35.25
11.60
11.6
Available for charter multi-functional vessel for areas of limited manoeuvrability in shallow and deep waters.
Specifications
- Delivery date
- 2010
- Classification
- Bureau Veritas
- Flag
- Dutch
- Bollard pull ahead
- 70,9 t
- Speed
- 11.6 kts
- Beam overall
- 11.60 m
- Draught
- 4,4 m
- Deckspace
- 90,65 m²
- Displacement
- n/a
- Fuel oil
- 374.4 m³
- Fresh water
- 42.0 m³
- Main engines
- 2x Caterpillar, type 3516 B TA
- Total power
- 3840 kW (5150 hp) at 1600 rpm
- Propulsion
- 2x fixed pitch propellers in nozzles
- Genset
- Leroy Somer, type LSAM 46.2 M5
- Deck equipment
- Deck crane: Heila 170-4S-L, remote controlled, Capacity: 18,2 tons at 8,03 m 7,9 tons at 15,93 m Tugger winch: Brevini, 8 tons at 4.5 m/min. Towing pins: Karm Fork, 160 tons SWL Towing wire storage reel: Electrical driven, 500 m x 48 mm wire Stern roller: 5000 mm x 980 mm, 100 tons SWL
- Nautical equipment
- All systems and equipment according to GMDSS Area 3
- Accommodation
- Heated and air-conditioned living spaces for 15 persons
