New Damen CSD 350
07845
New
26

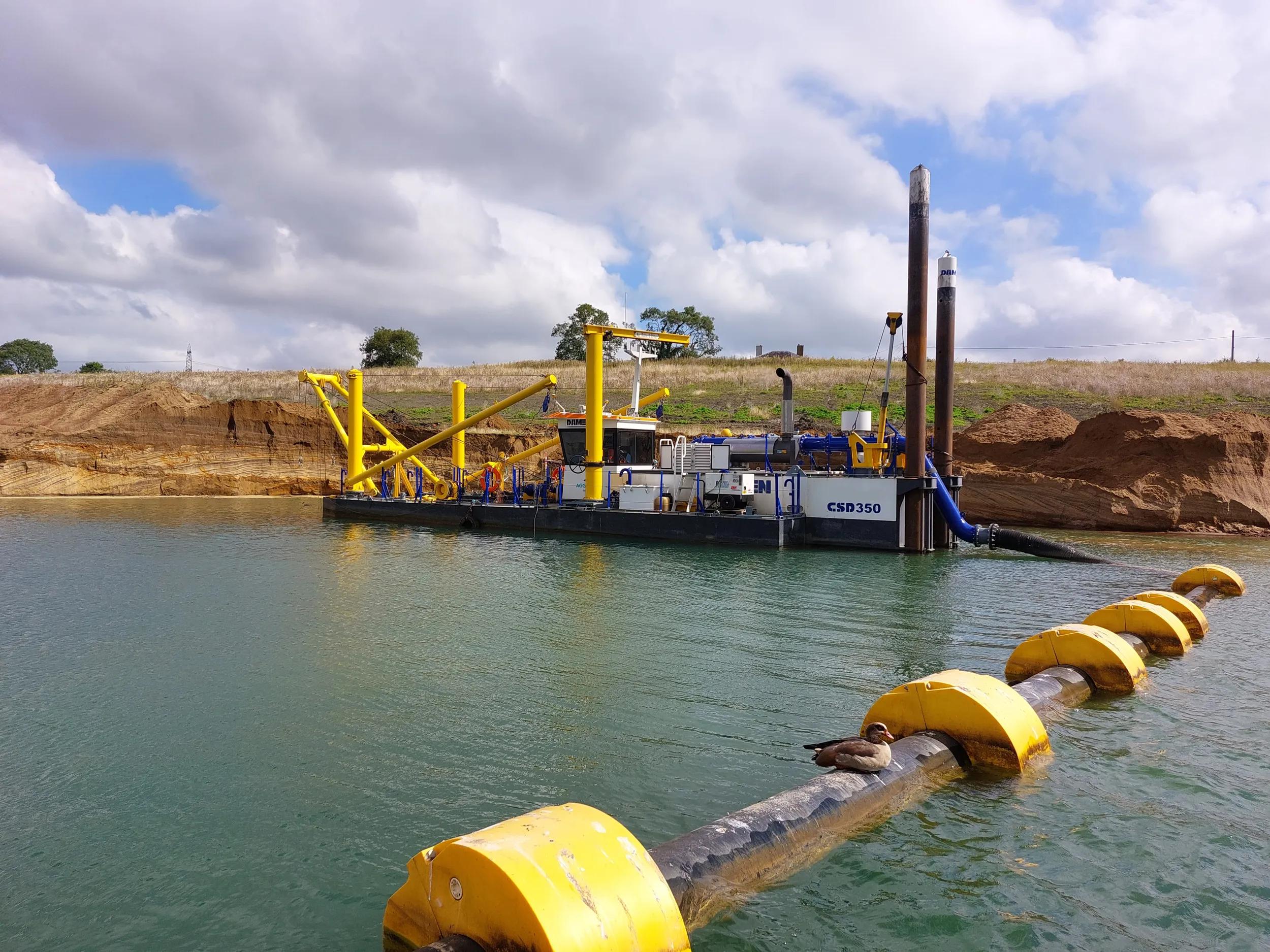

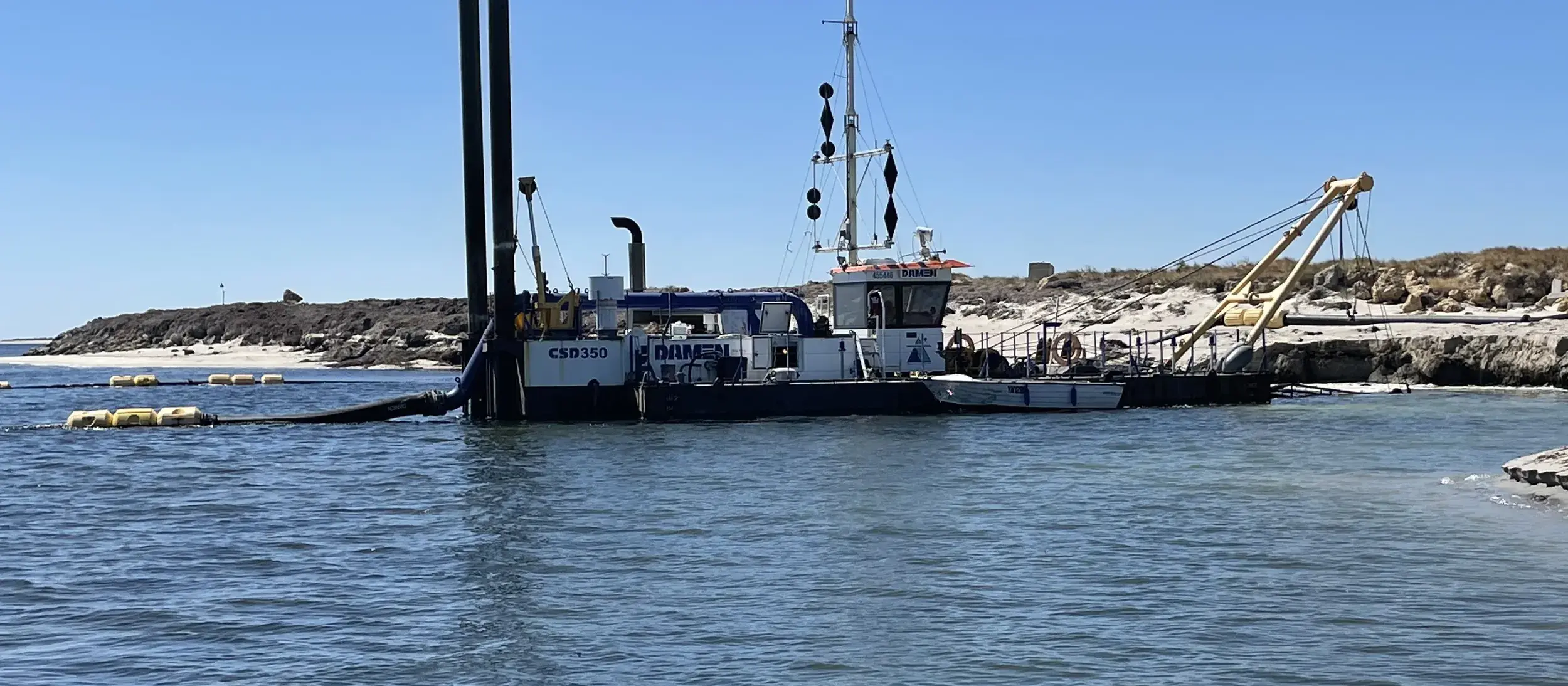

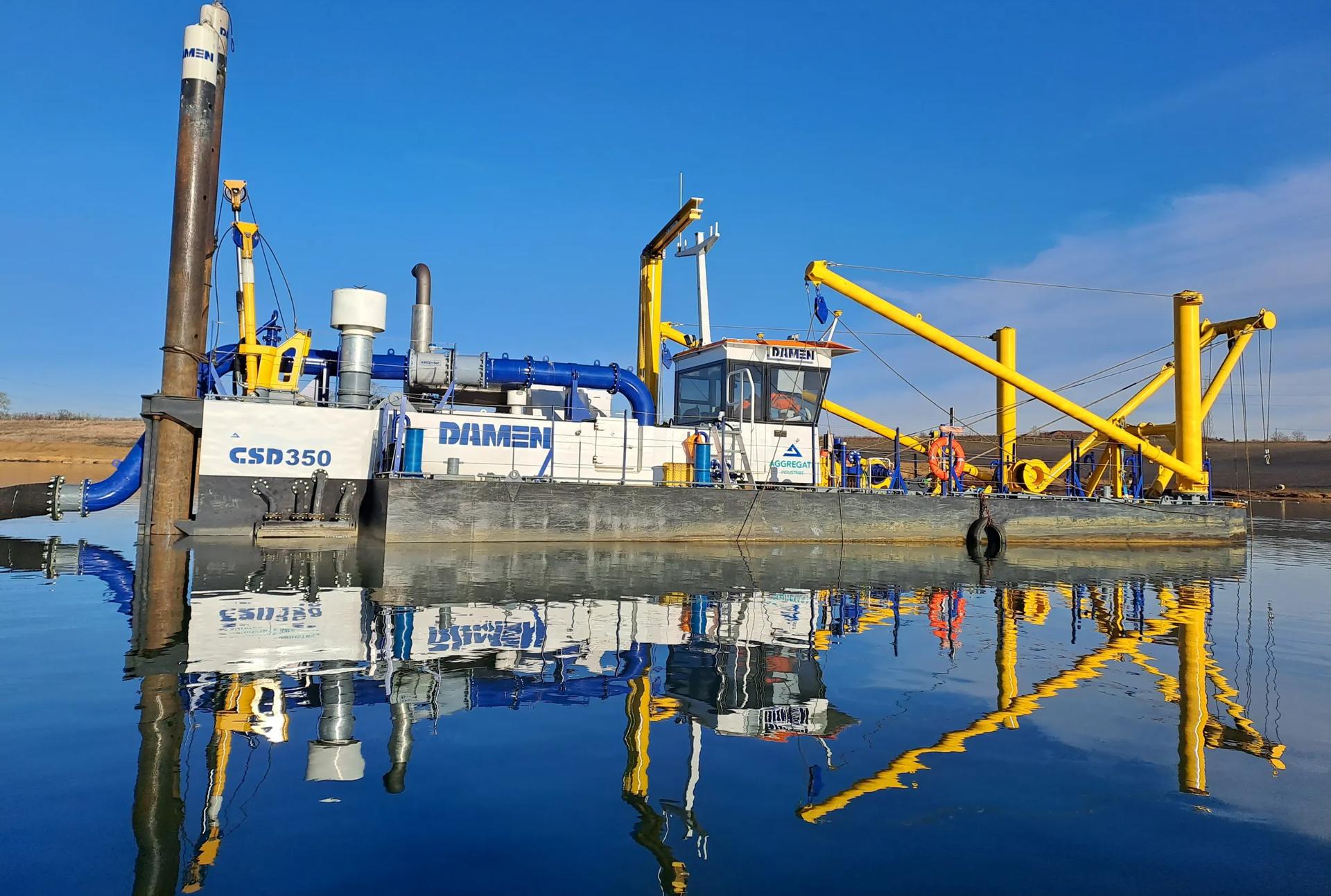

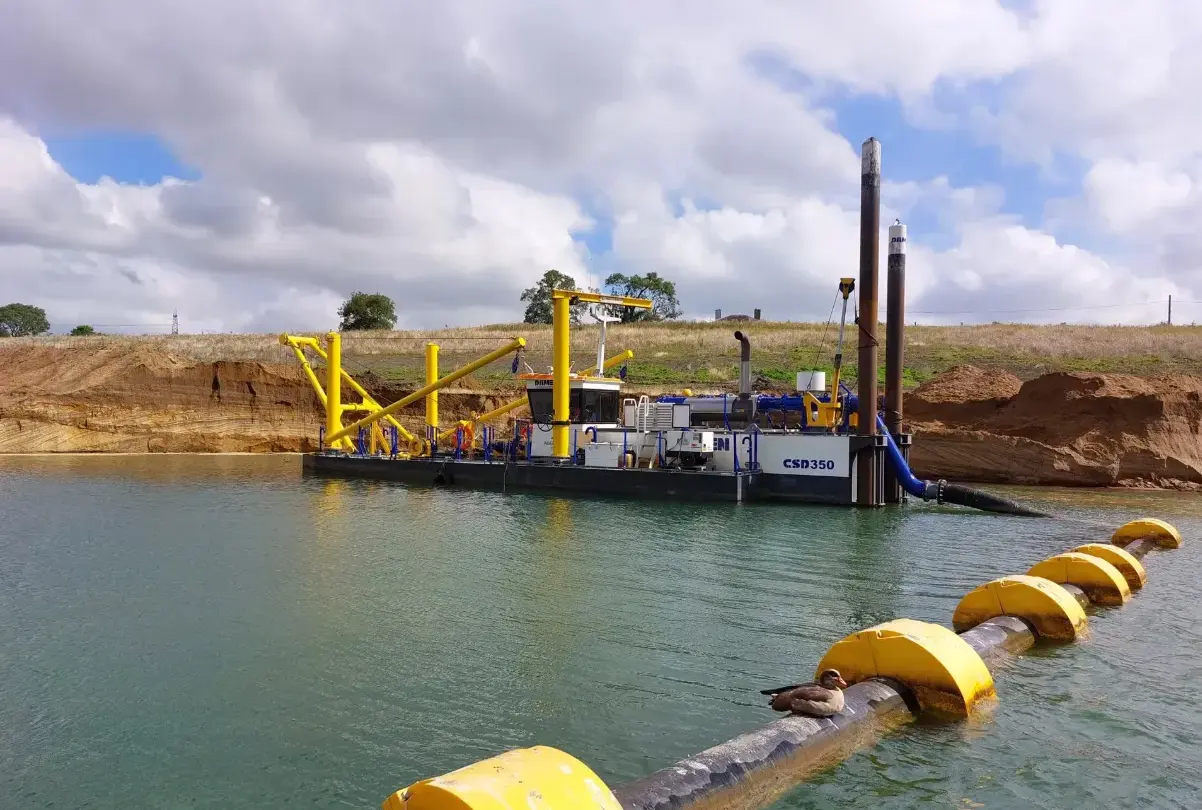

Damen Cutter Suction Dredger 350

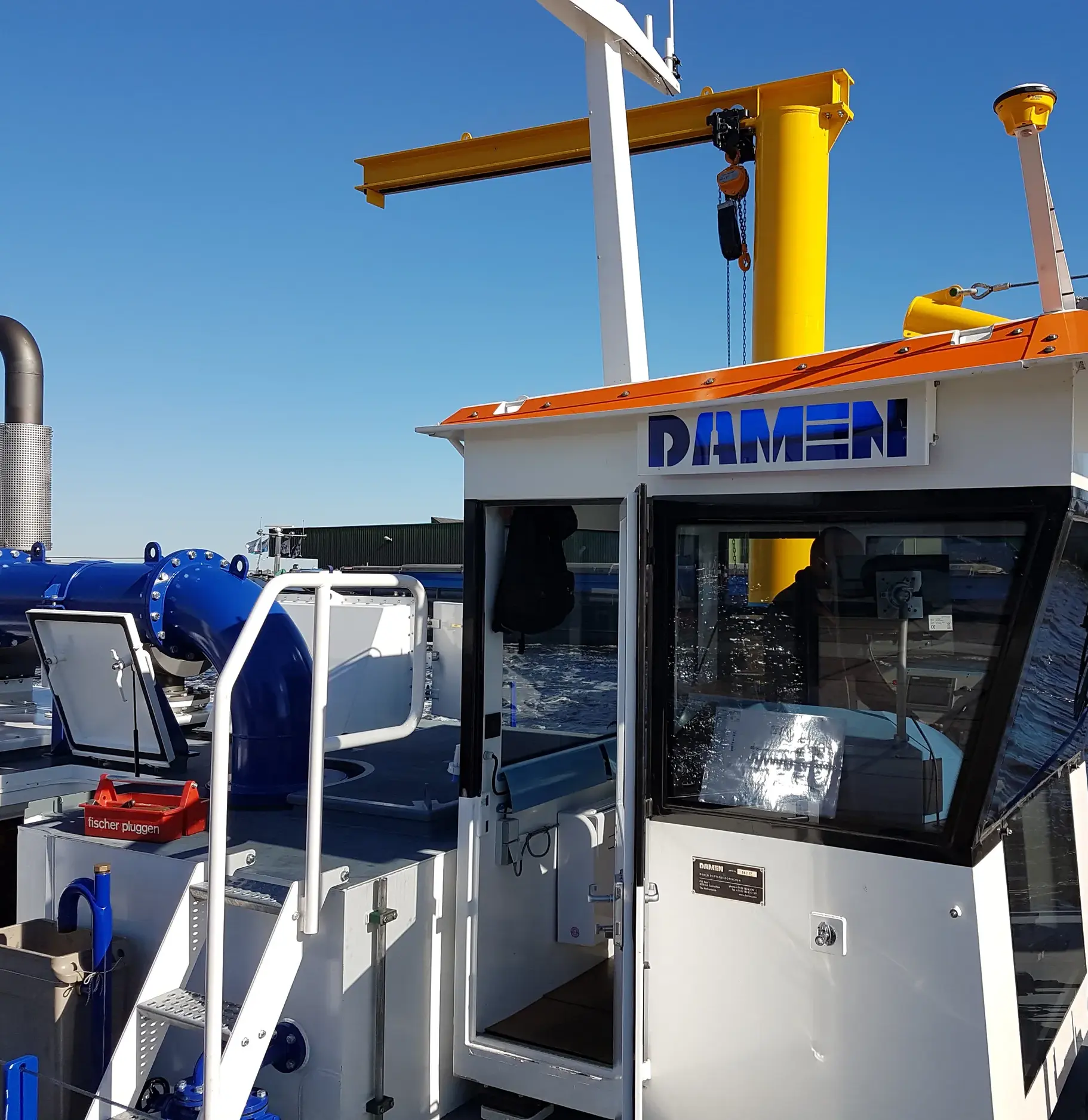

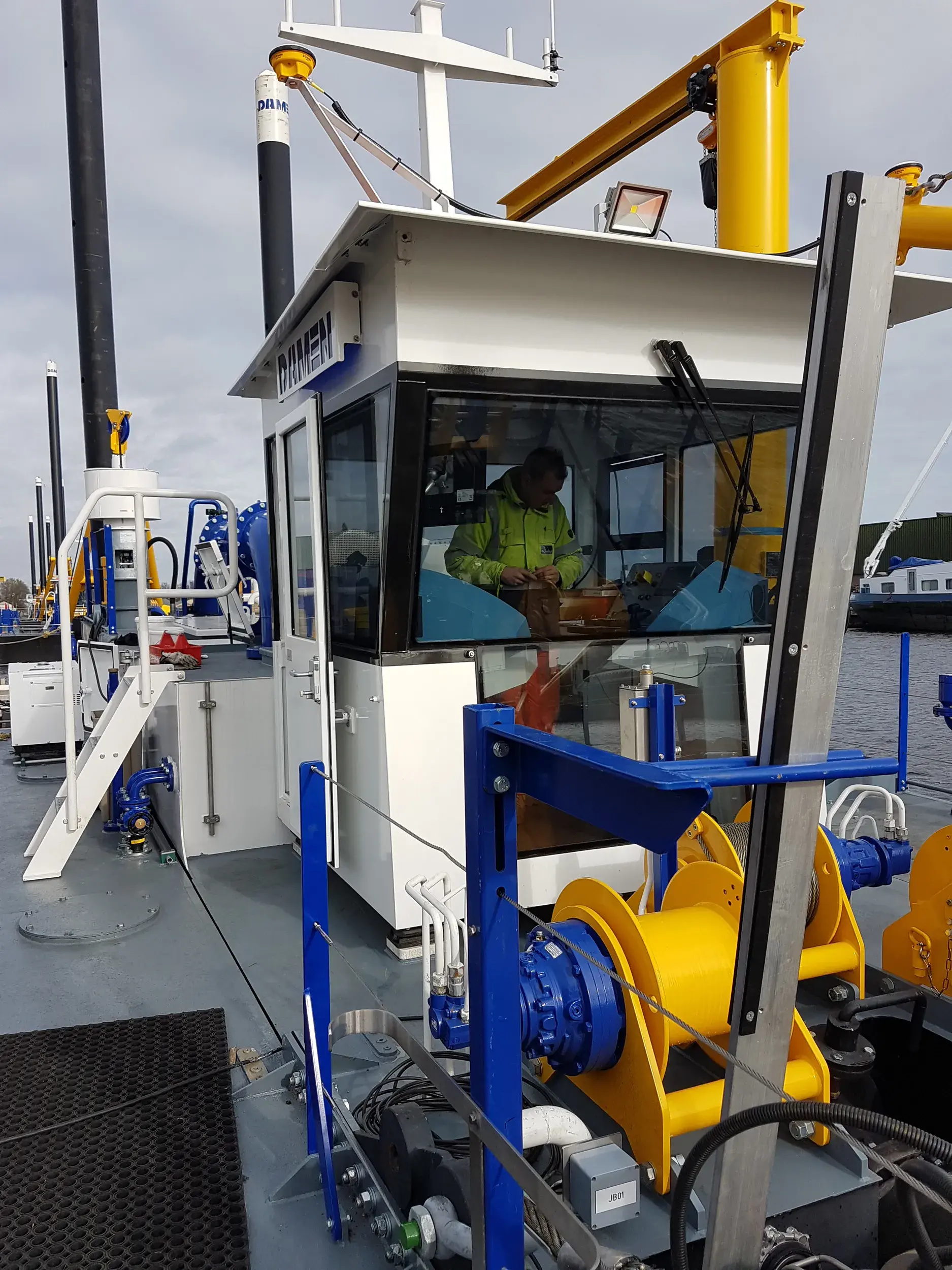

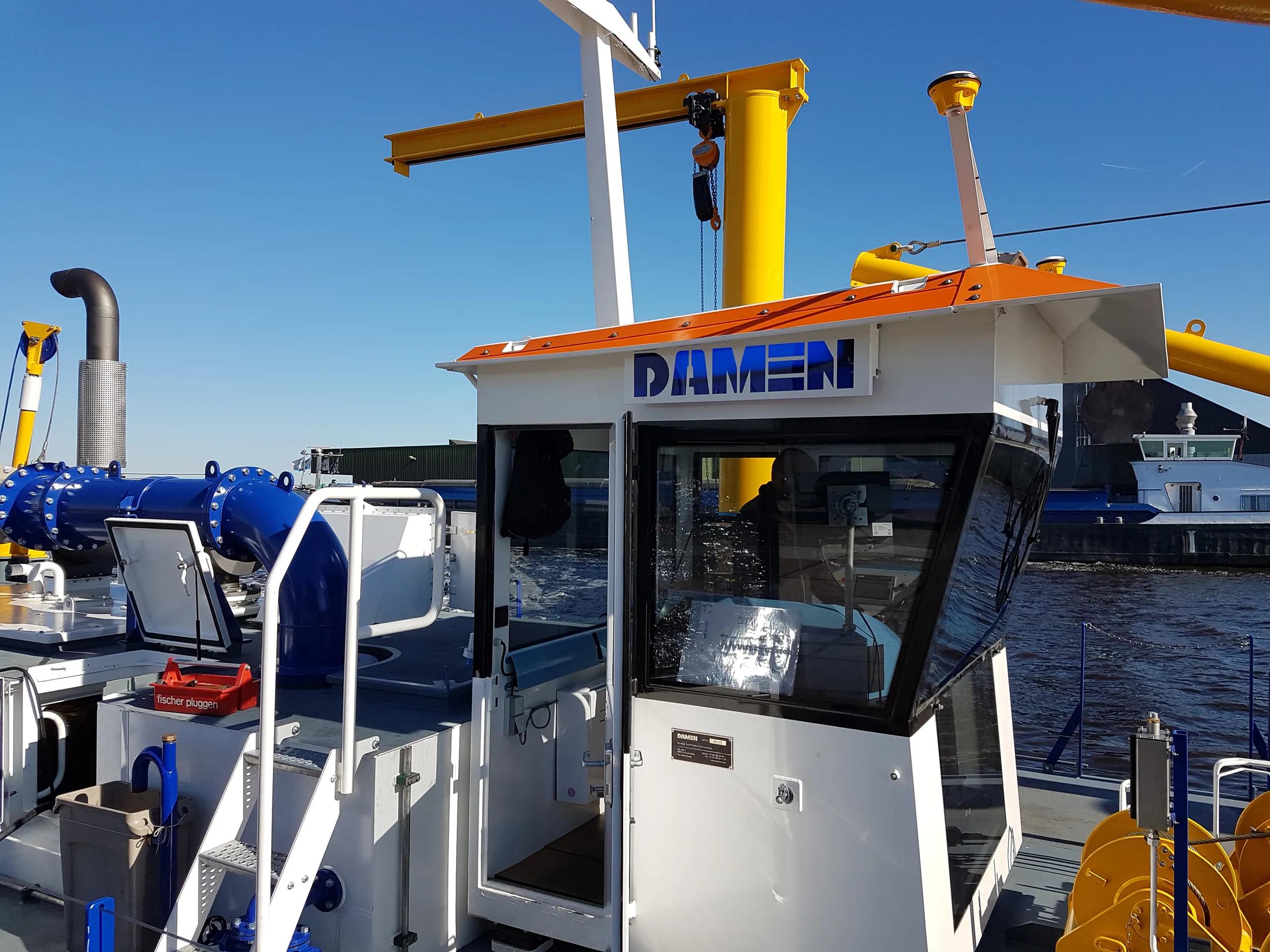

This cutter suction dredger is suitable for capital, mining and maintenance dredging. The dismountable design allows transport by road. It has a spacious ergonomic designed control cabin and engine room. One operator can control the entire dredger from the control cabin.
Specifications
- Built
- New, never used
- Dimensions
- 26.00 x 6.00 x 1.50 m, draft 0.80 m
- Length hull
- 16.5 m
- Air draft
- 4.70 m
- Total weight
- 55 tonnes
- Maximum dredging depth
- 9 m
- Swing width
- 27.00 m (at max. depth)
- Dredge pump
- Damen BV3530MD
- Diameter dredge pipe
- 350 mm
- Spherical passage pump
- 150 mm

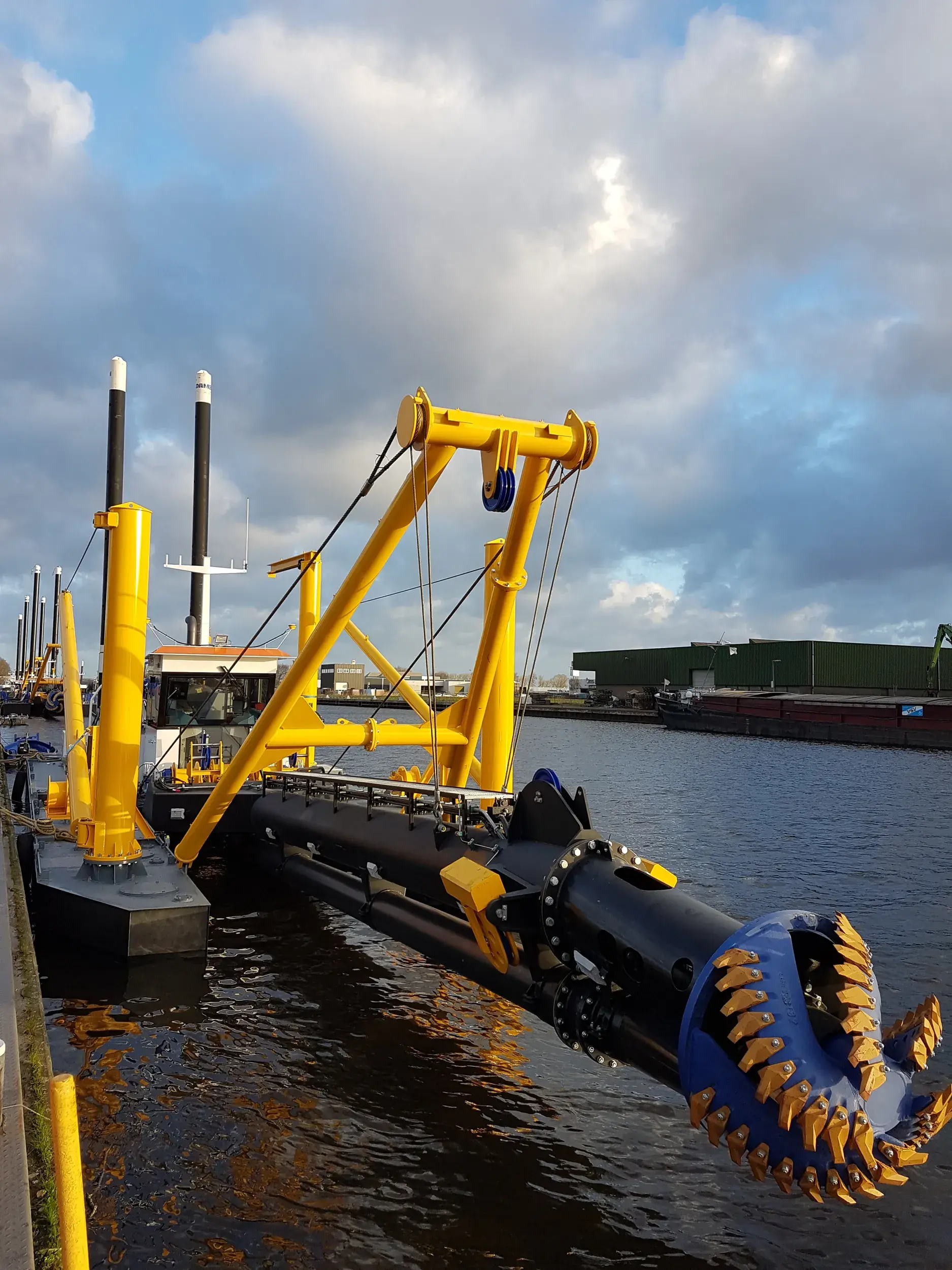

- Cutter type
- Crown model (changeable cutter teeth)
- Cutter power
- 55 kW
- Cutter diameter
- 1150 mm
- Diesel engine
- CAT C18 TA, 447 kW
- Emission certification
- IMO TIER II
- Hydraulic installation
- Driving cutter, winches and cylinders
- Electrical installation
- 24 V DC
- Options
- Various options available
- Position
- The Netherlands
- Price range (€)
- On request
