New Damen CSD 500
07846
New
38.5

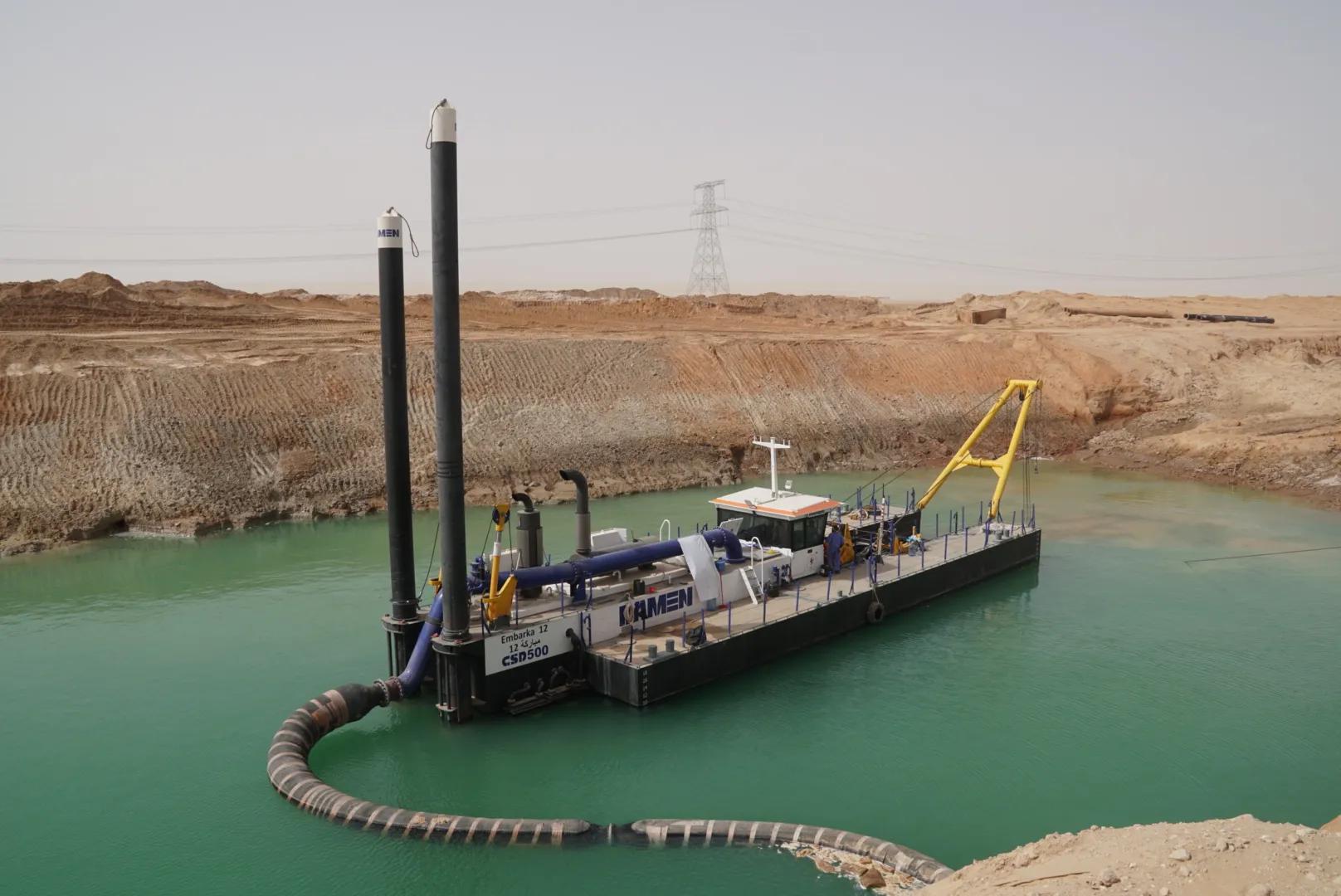

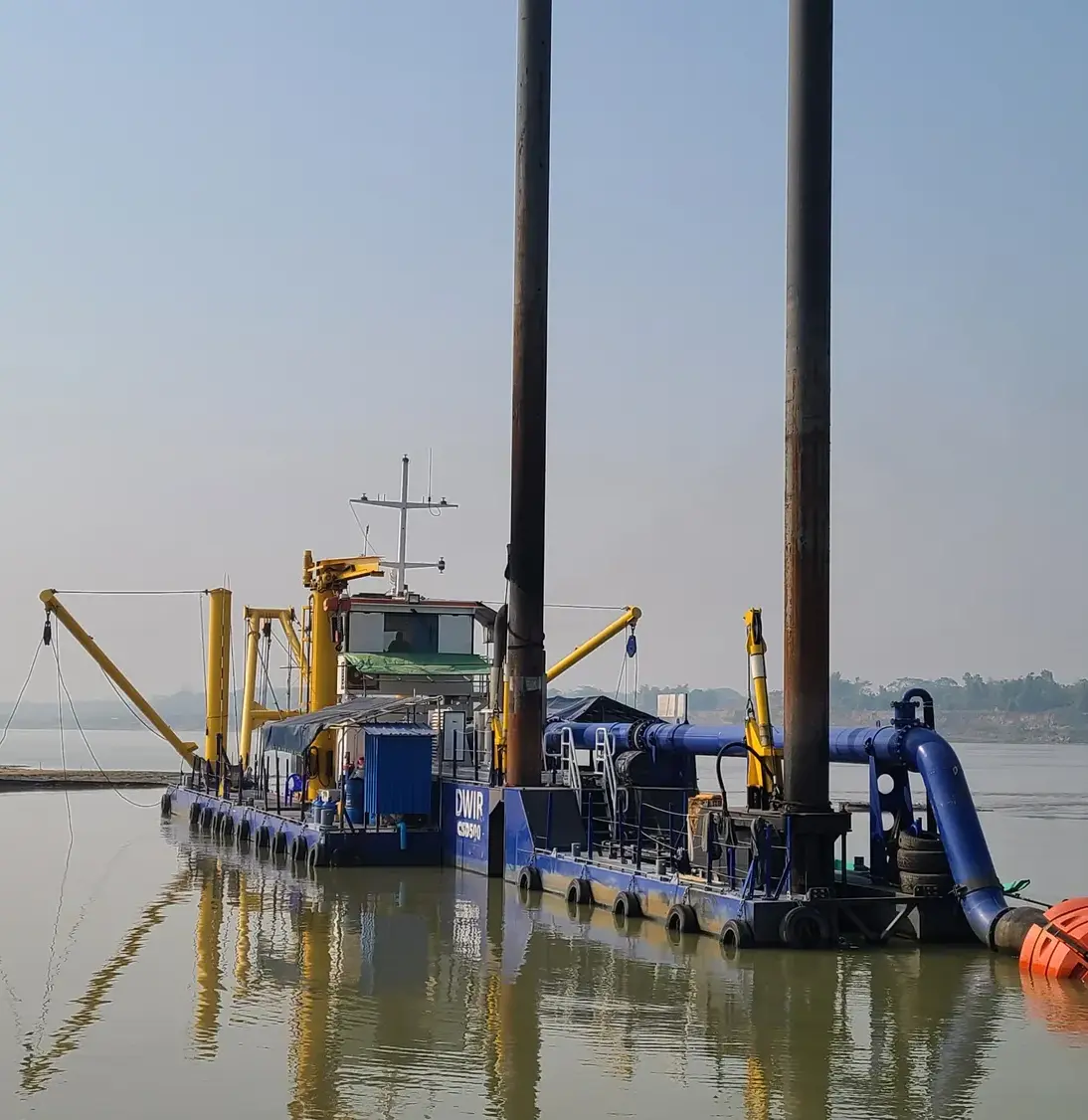

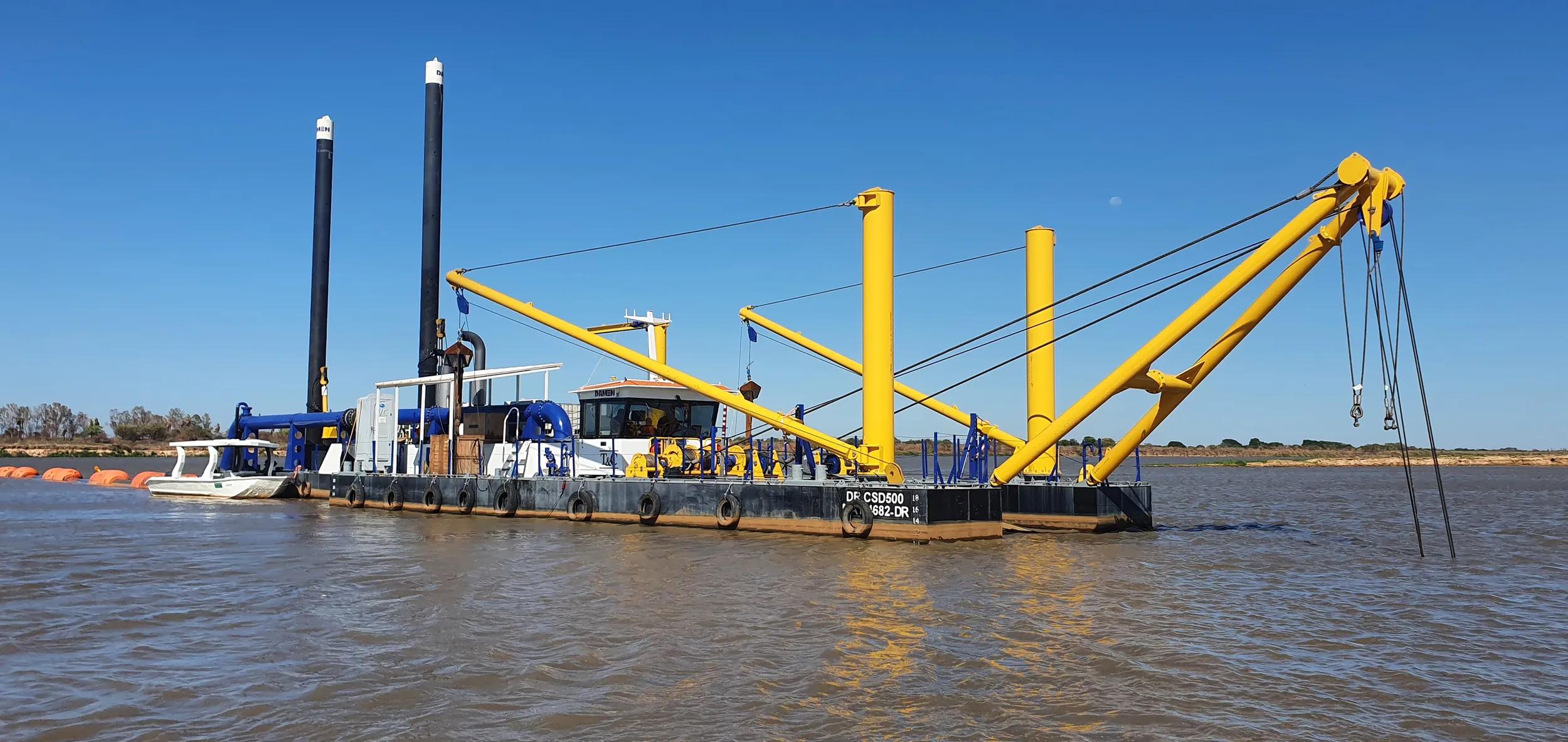

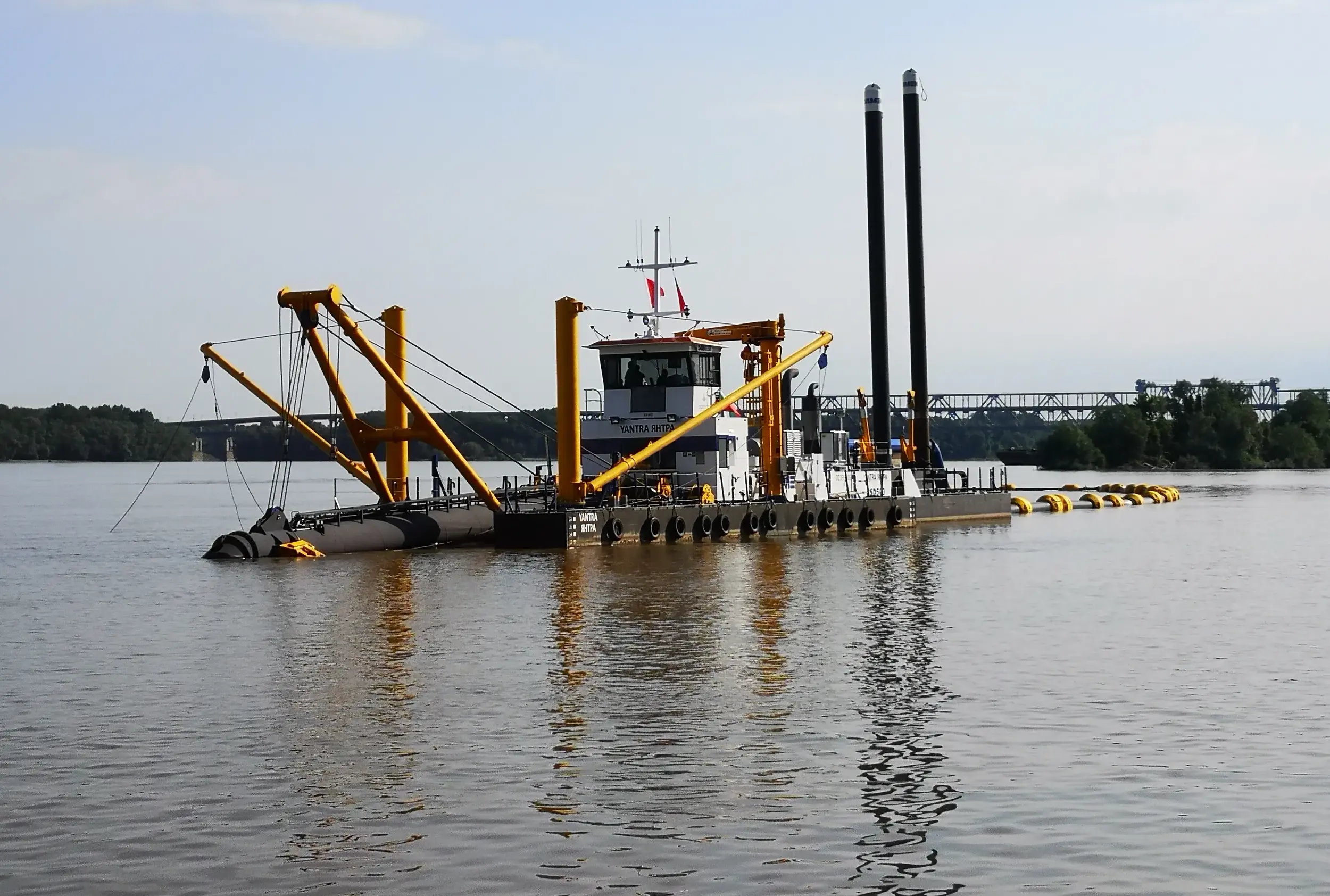

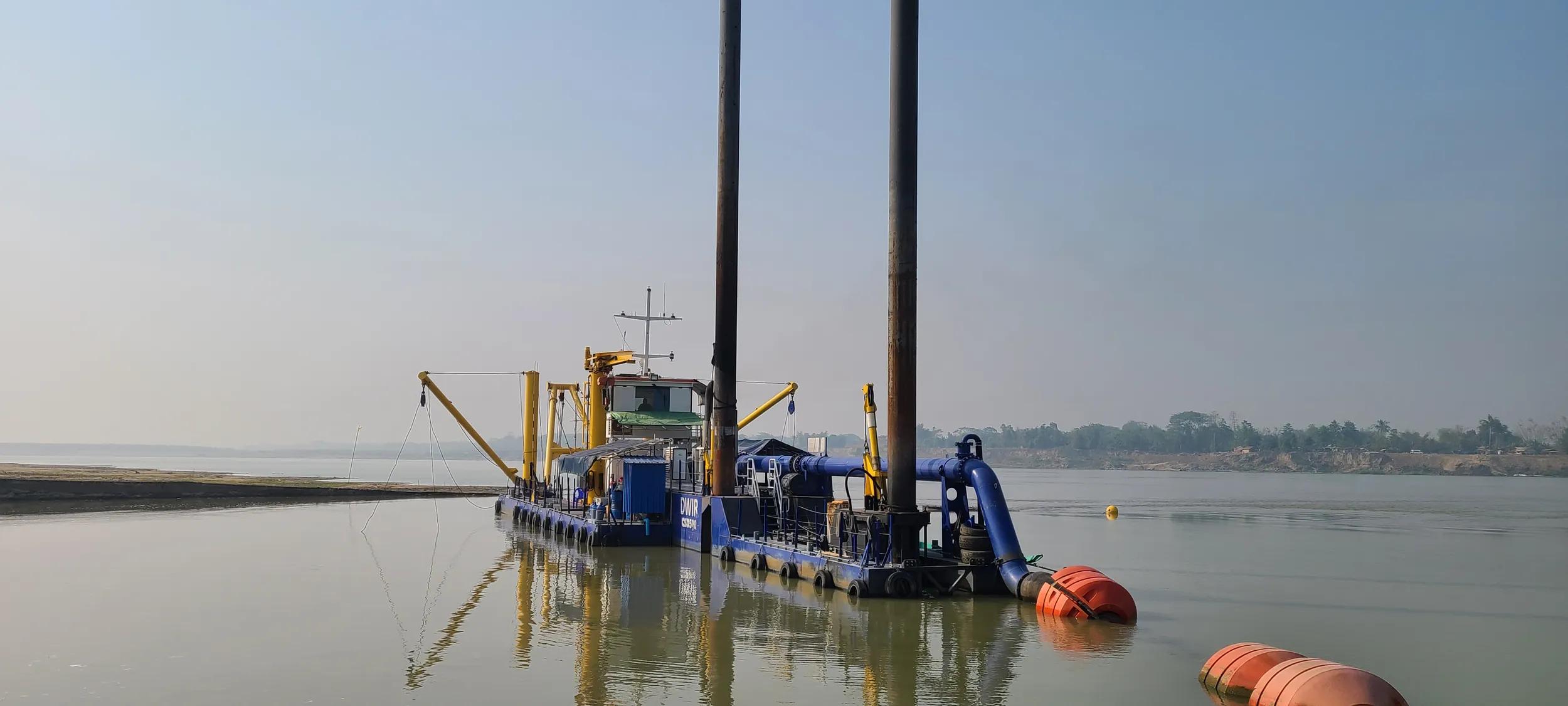

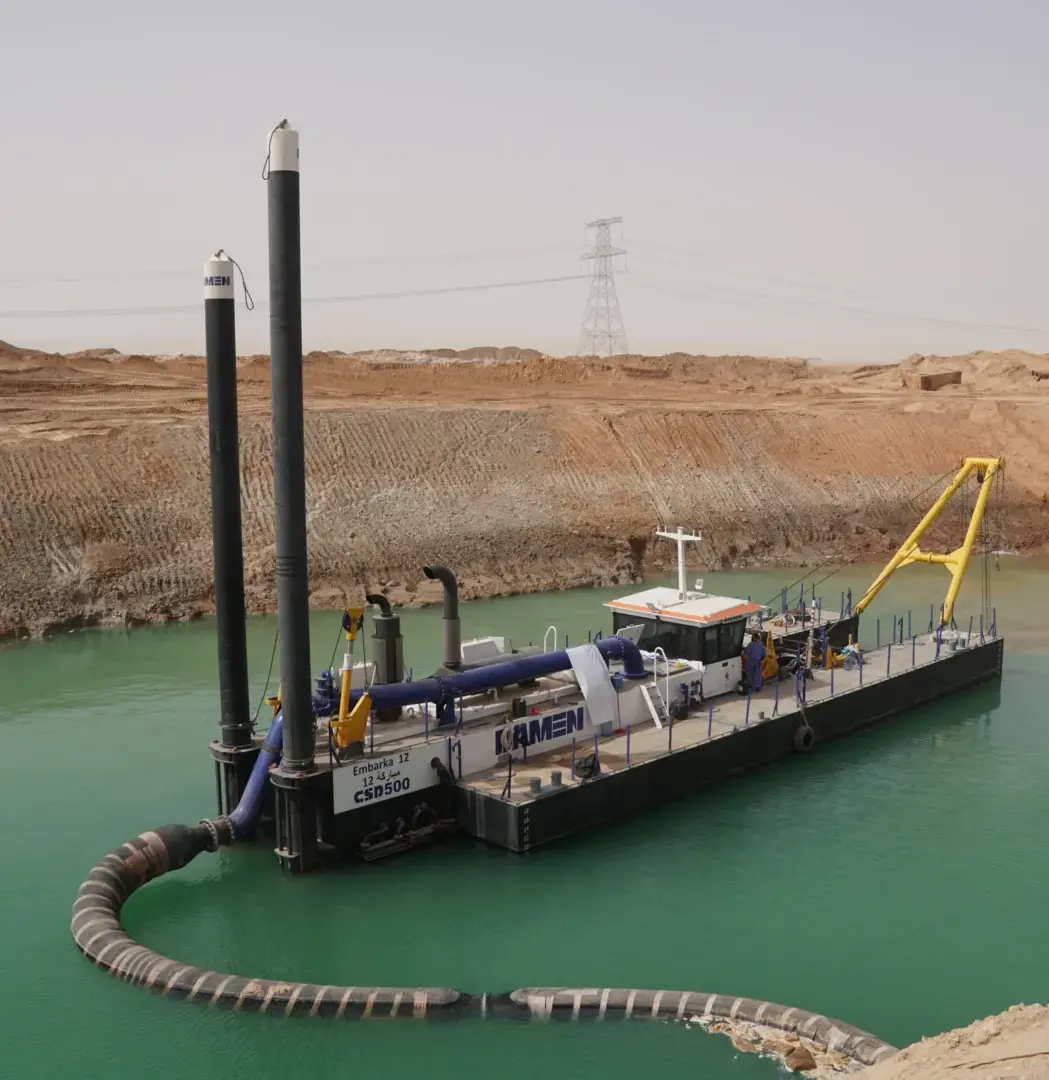

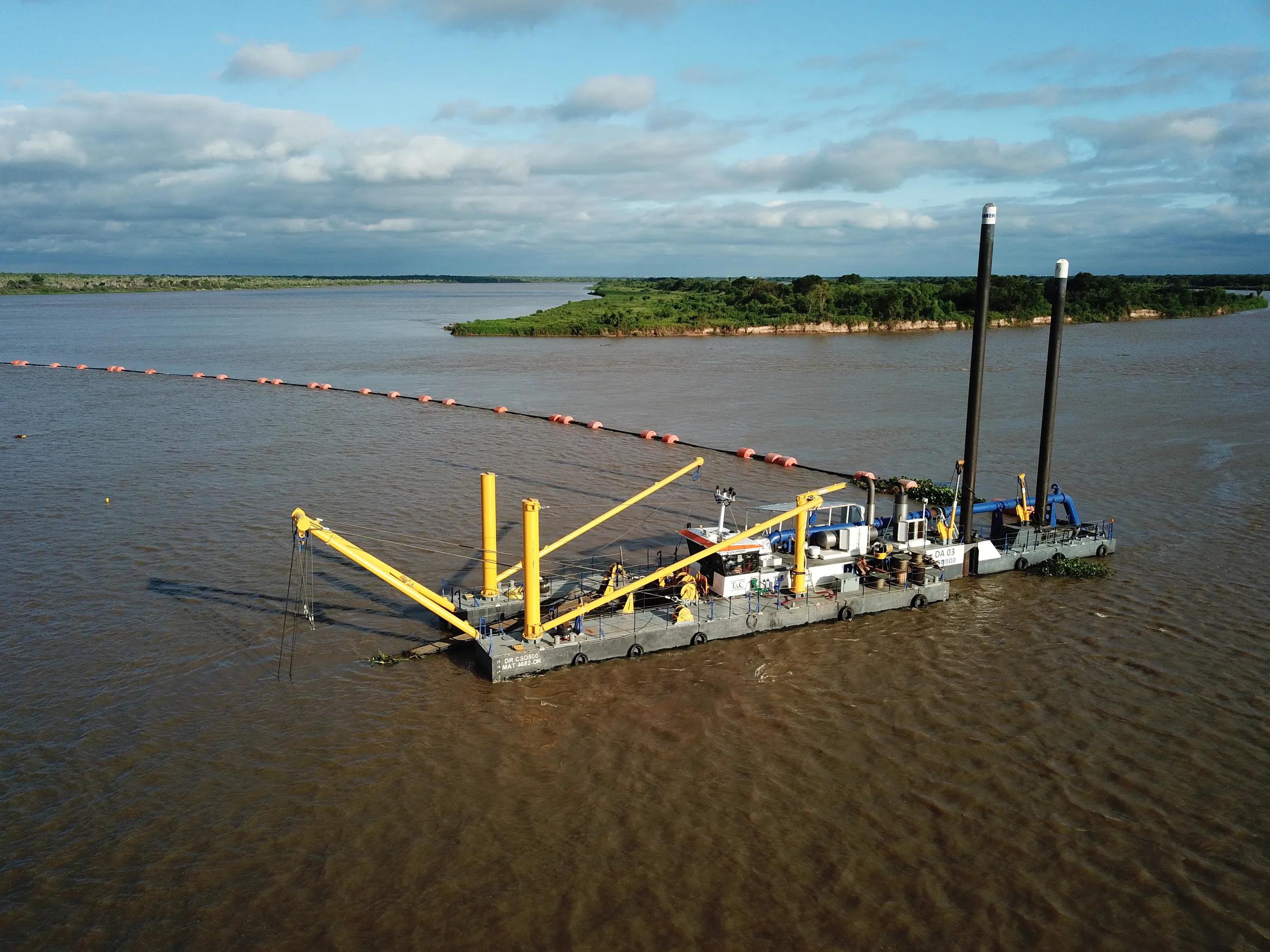

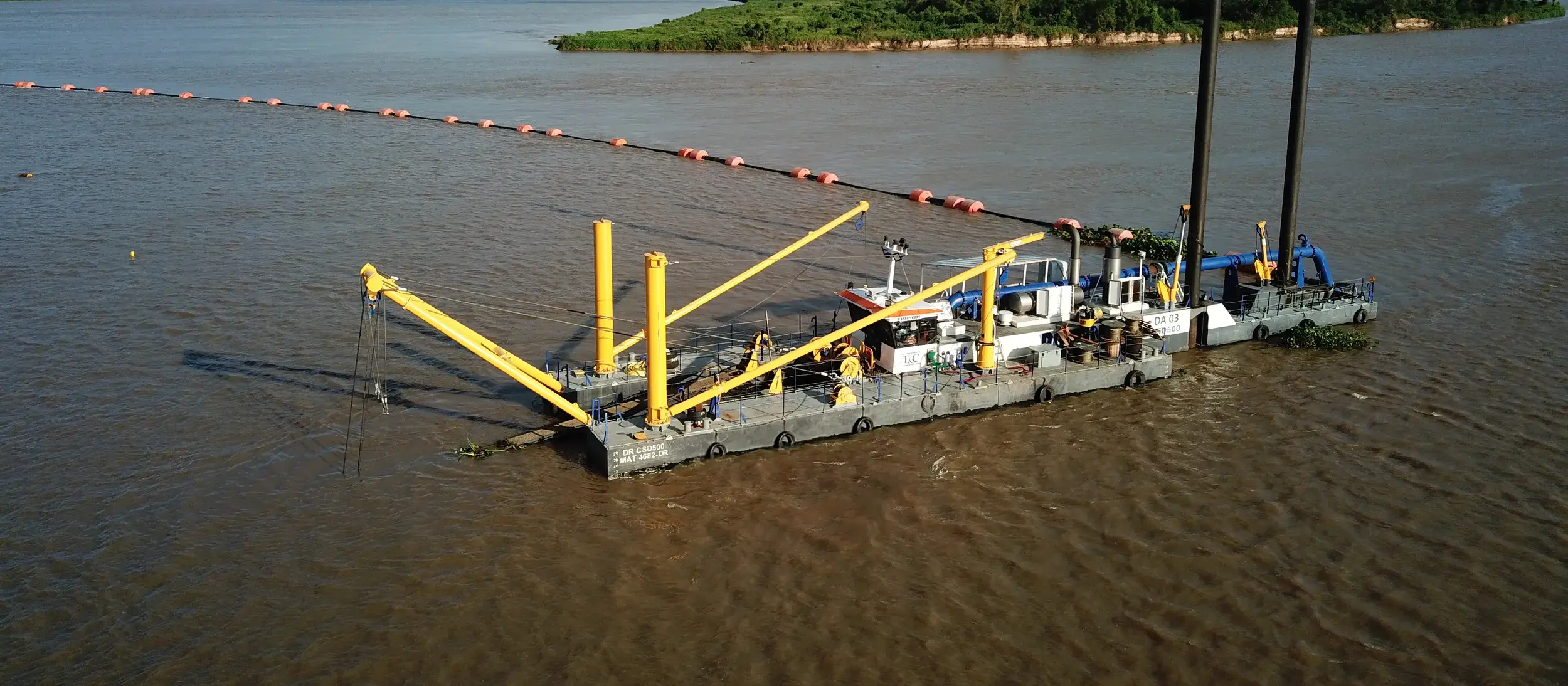

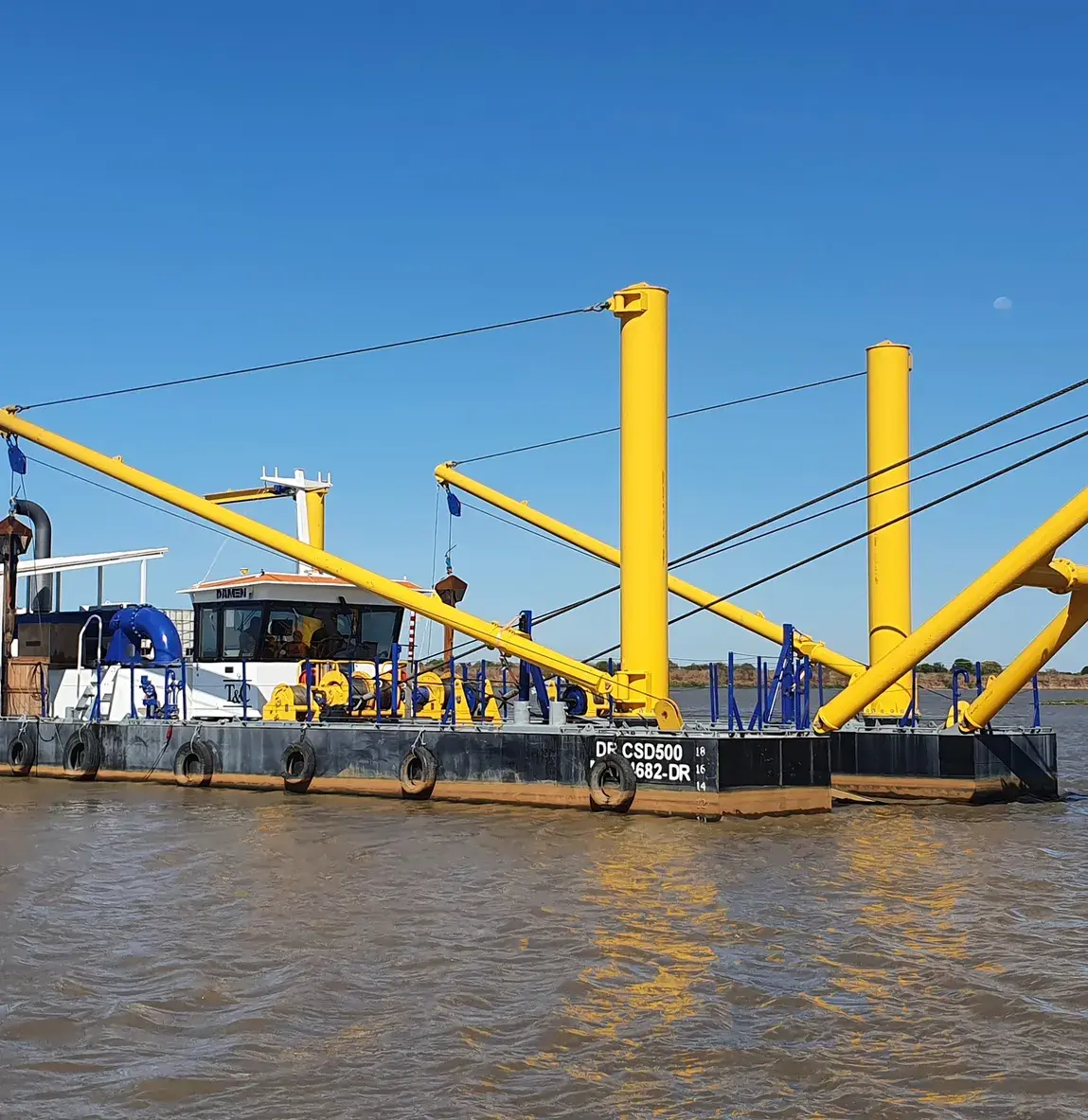

Damen Cutter Suction Dredger 500
This cutter suction dredger is suitable for capital, mining and maintenance dredging. The dismountable design allows transport by road. It has a spacious ergonomic designed control cabin and engine room. One operator can control the entire dredger from the control cabin.
Specifications
- Built
- New, never used
- Dimensions
- 38.50 x 7.95 x 2.00 m
- Length hull
- 25.5 m
- Air draft
- 6.40 m
- Total weight
- 140 tonnes
- Maximum dredging depth
- 14 m
- Swing width
- 39.60 m (at max. depth)
- Dredge pump
- Damen BP5045
- Diameter dredge pipe
- 500 mm
- Spherical passage pump
- 230 mm
- Cutter type
- Crown model (changeable cutter teeth)
- Cutter power
- 180 kW
- Cutter diameter
- 1625 mm
- Diesel engine
- CAT 3512C TA, 954 kW
- Emission certification
- IMO TIER II
- Hydraulic installation
- Driving cutter, winches and cylinders
- Electrical installation
- 24 V DC and 230/400 V AC
- Options
- Various options available
- Position
- The Netherlands
- Price range (€)
- On request
