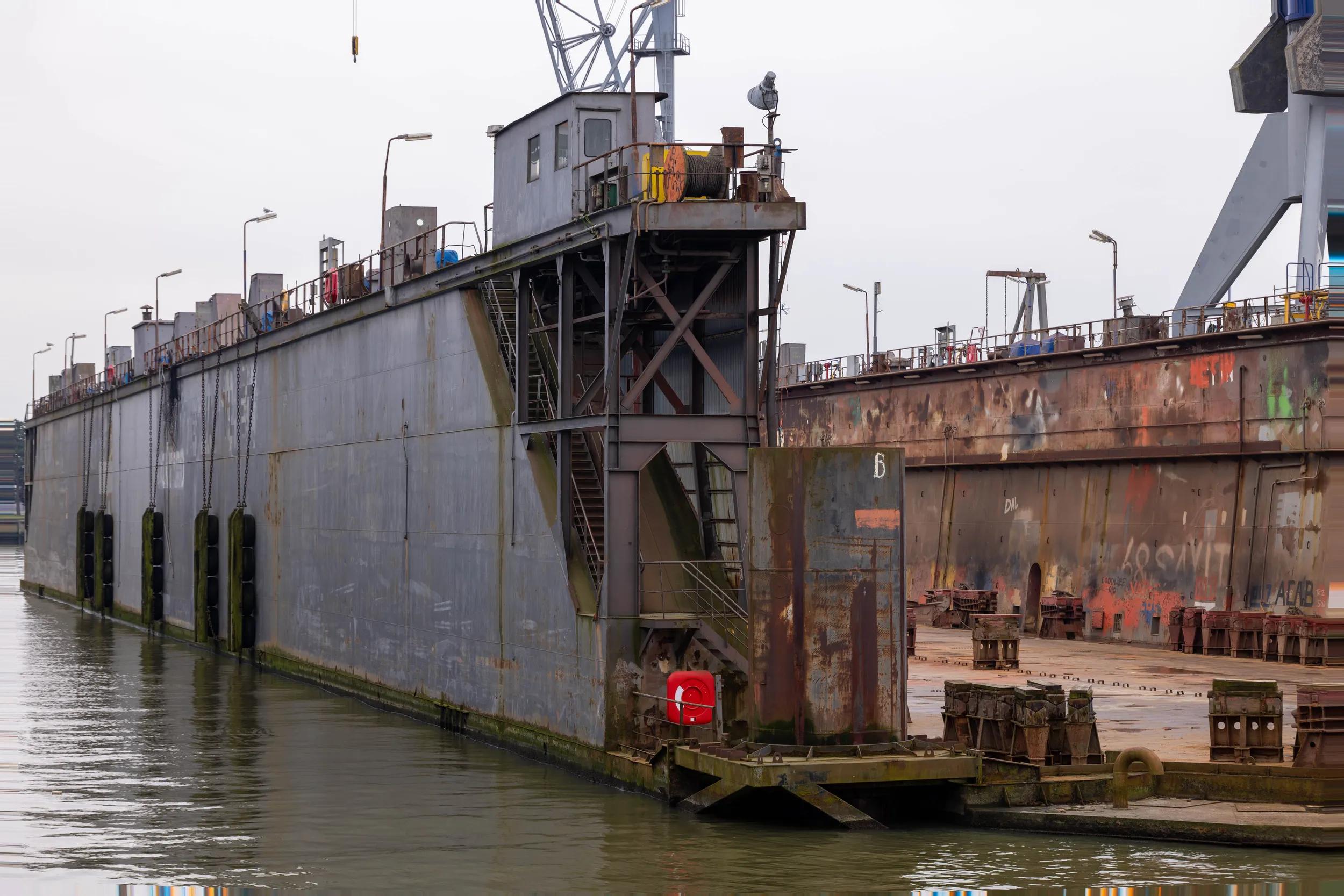

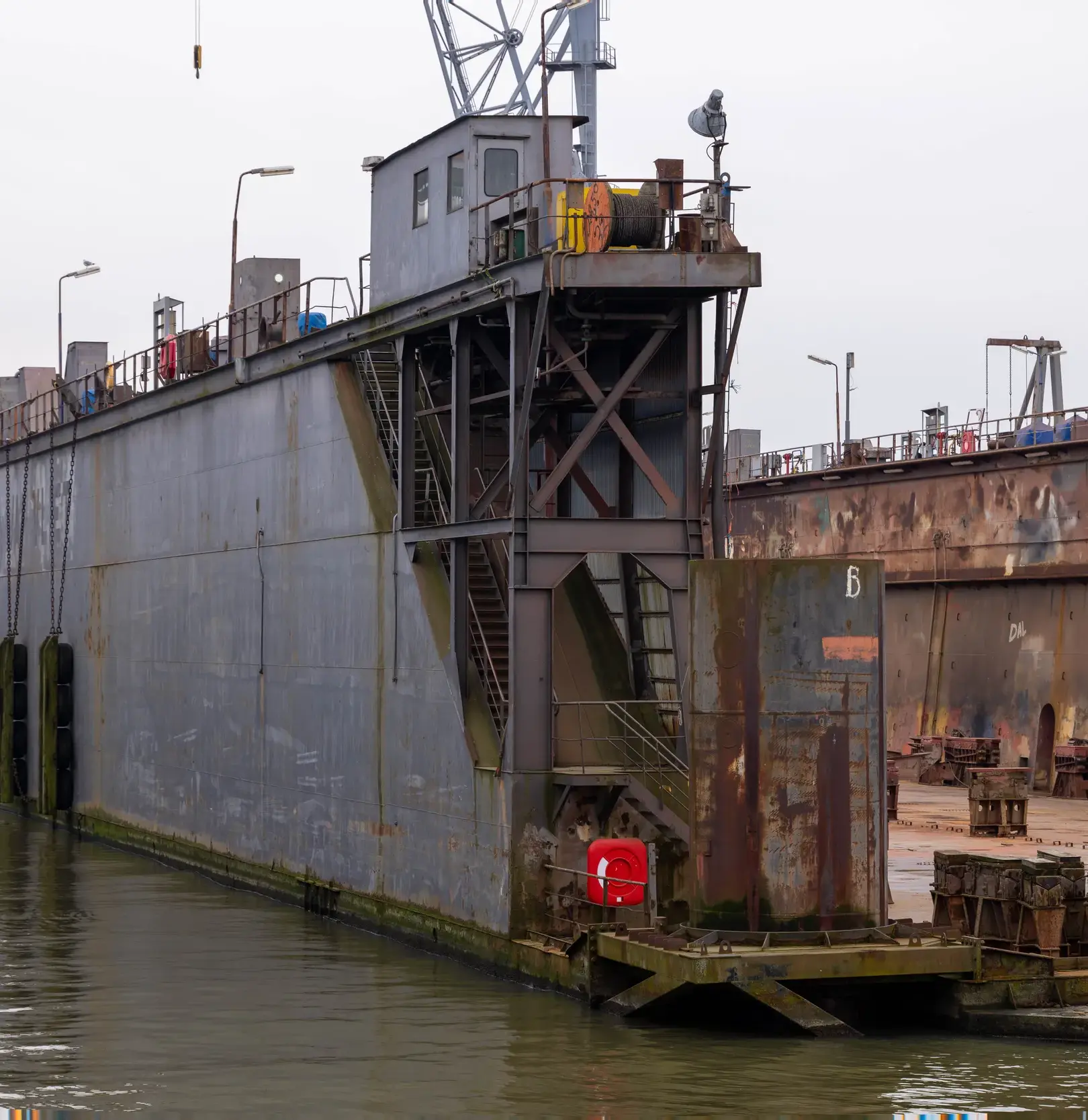

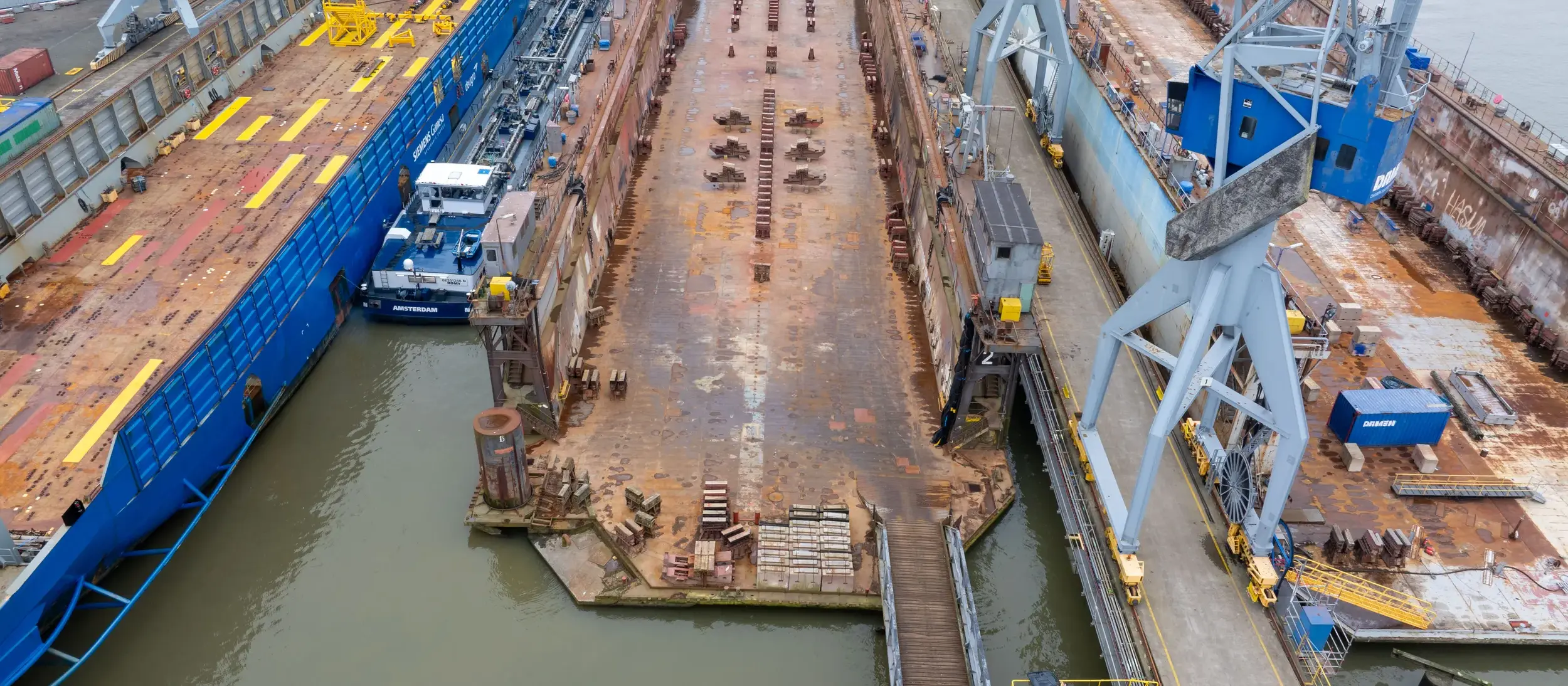

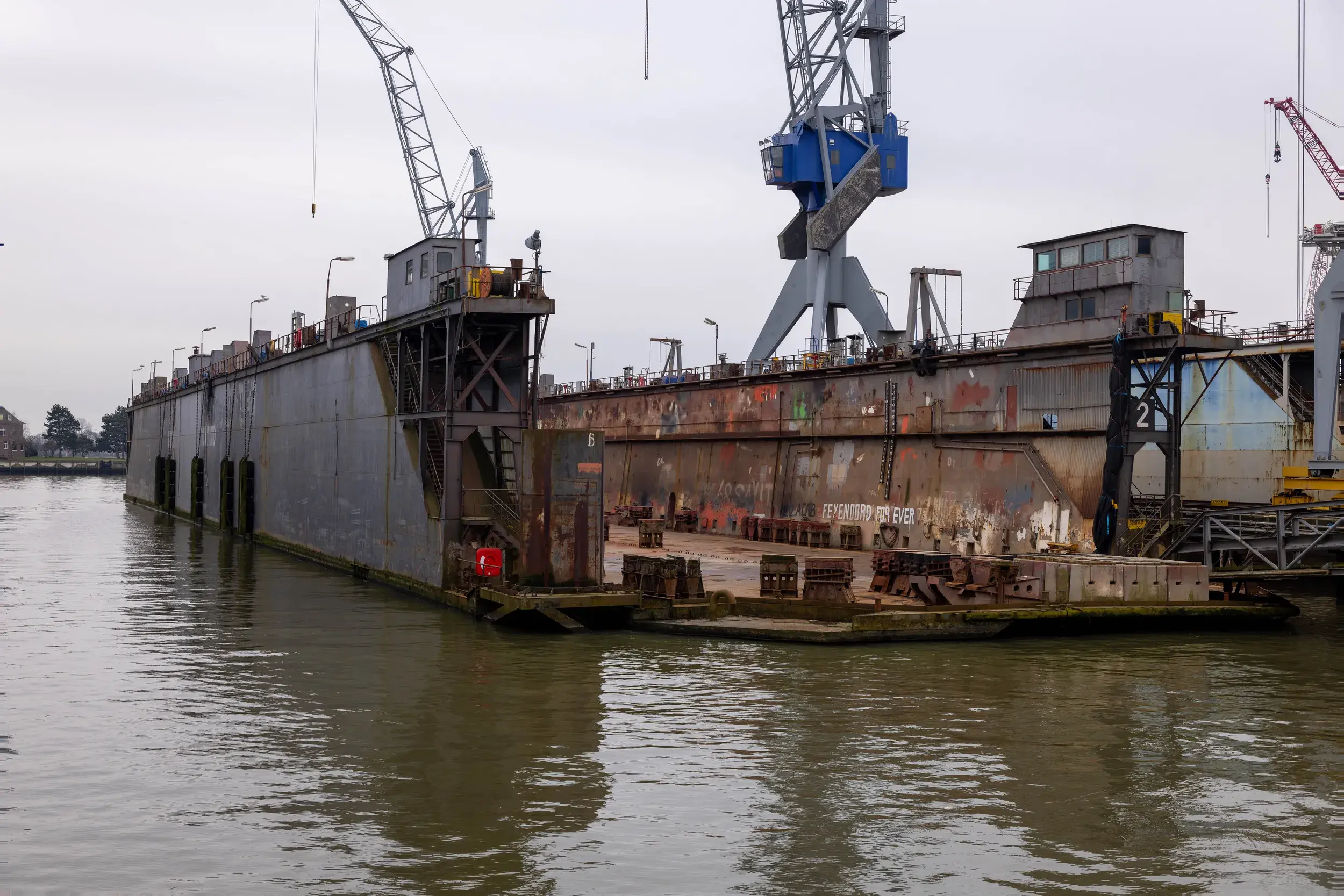

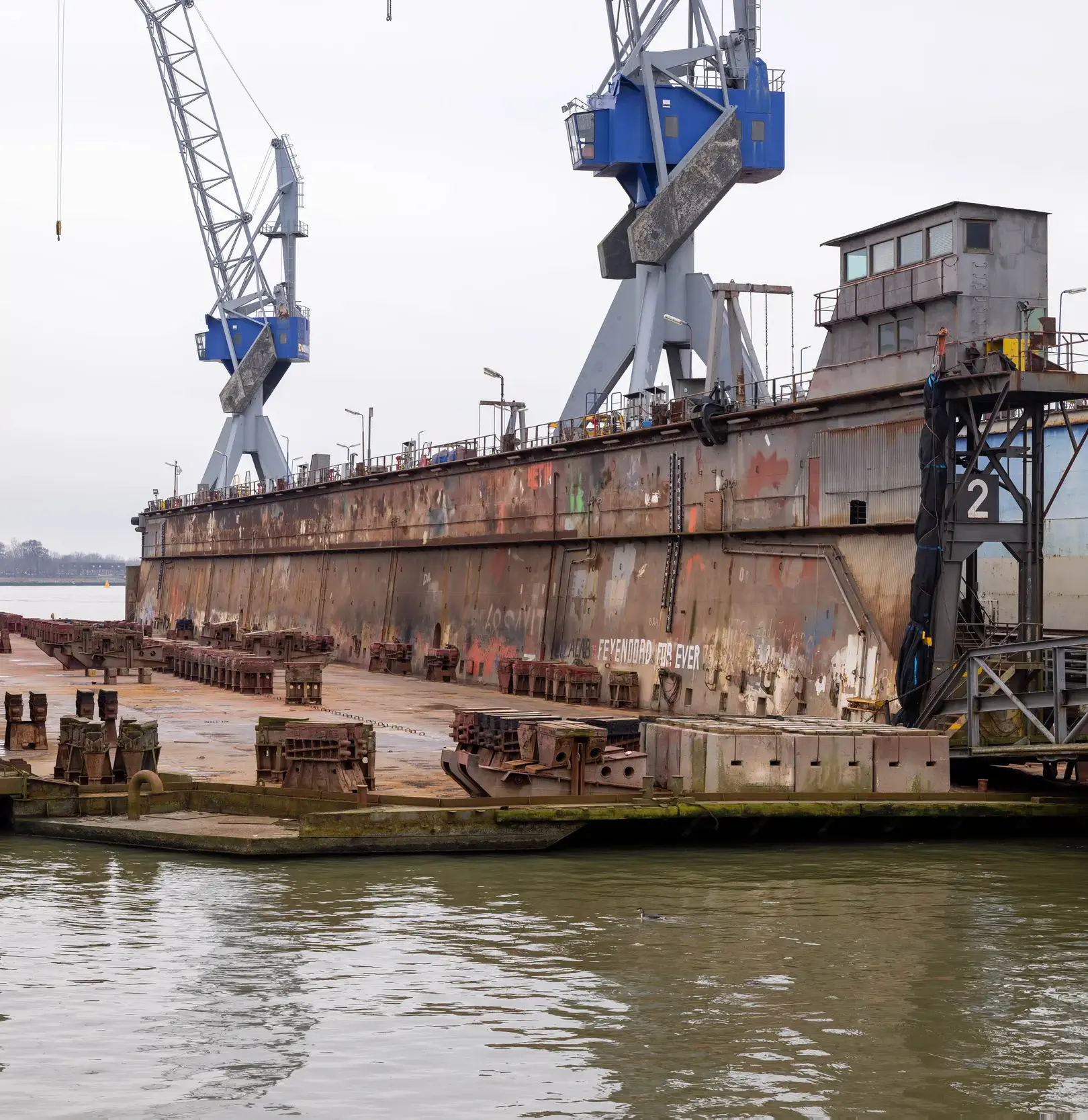

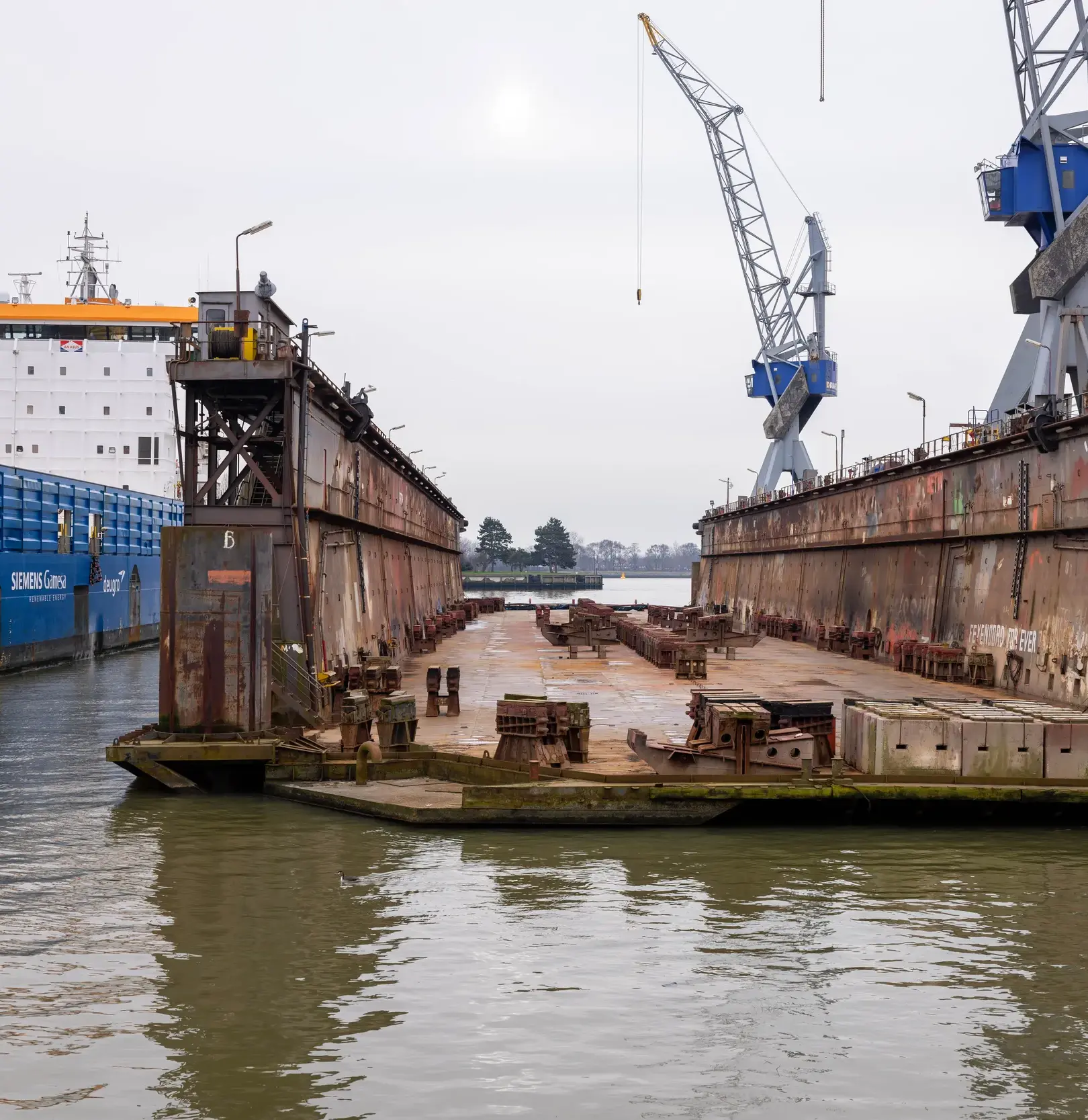

Used floating drydock
07769
1969
159.36
9.5

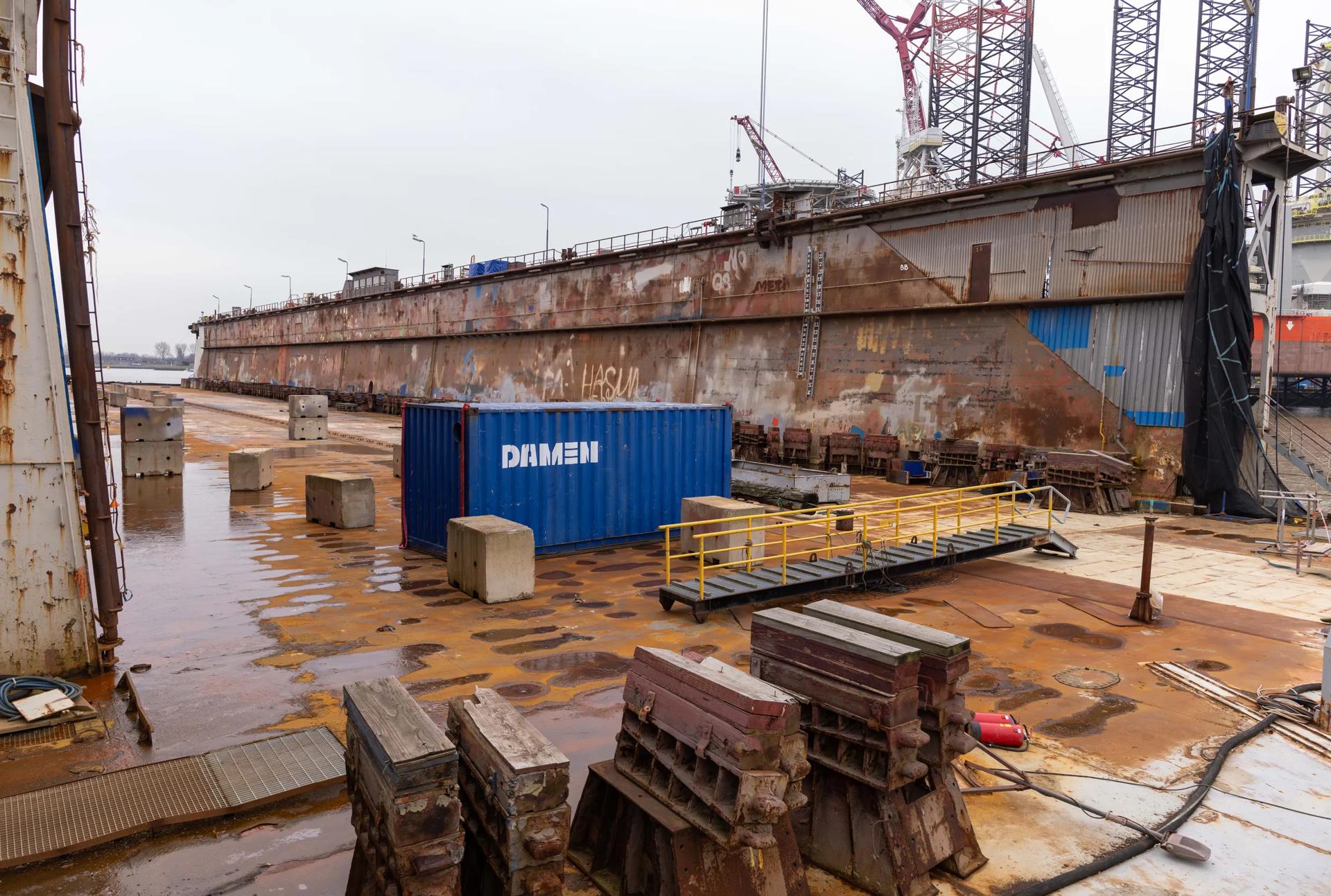

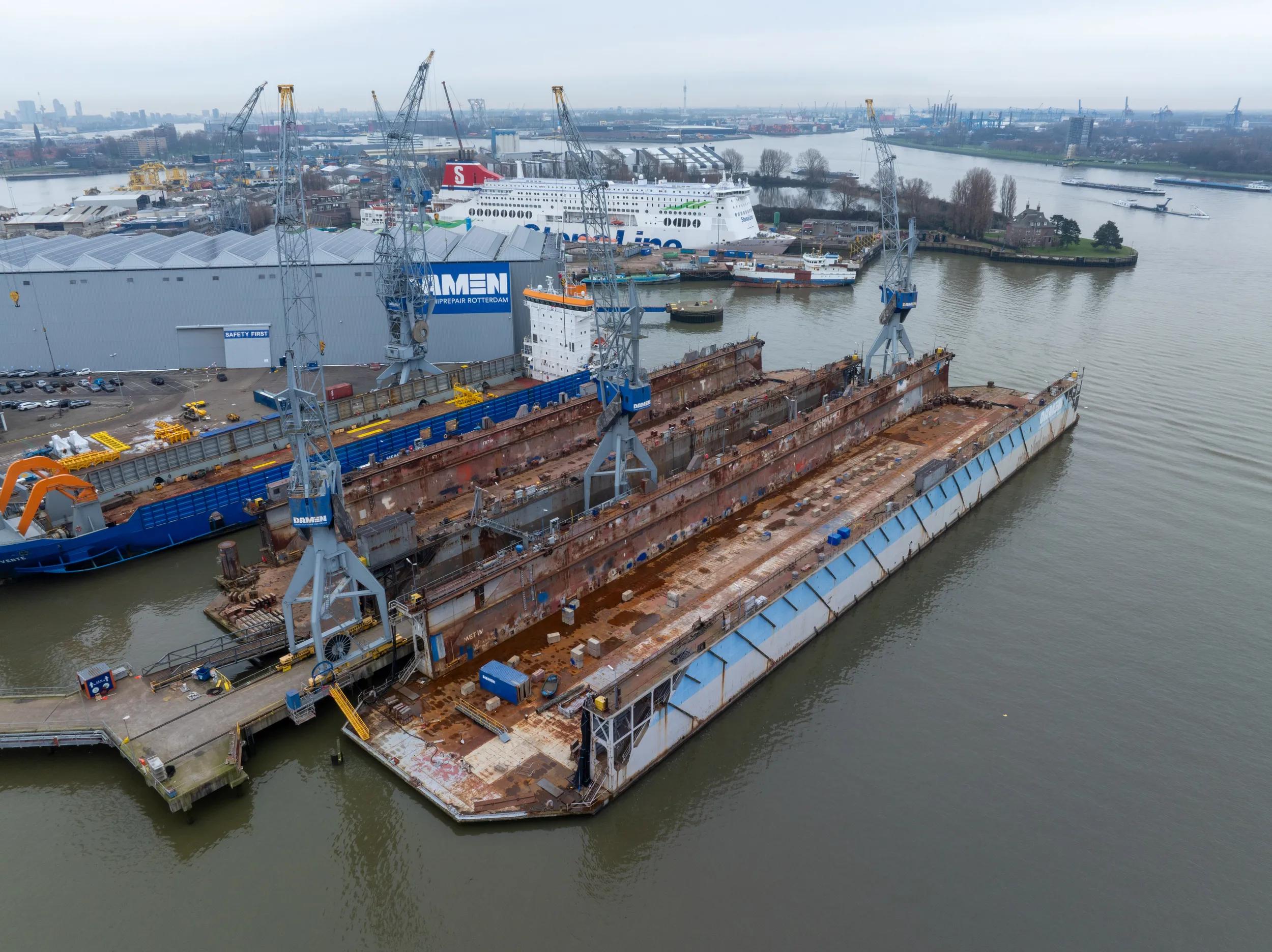

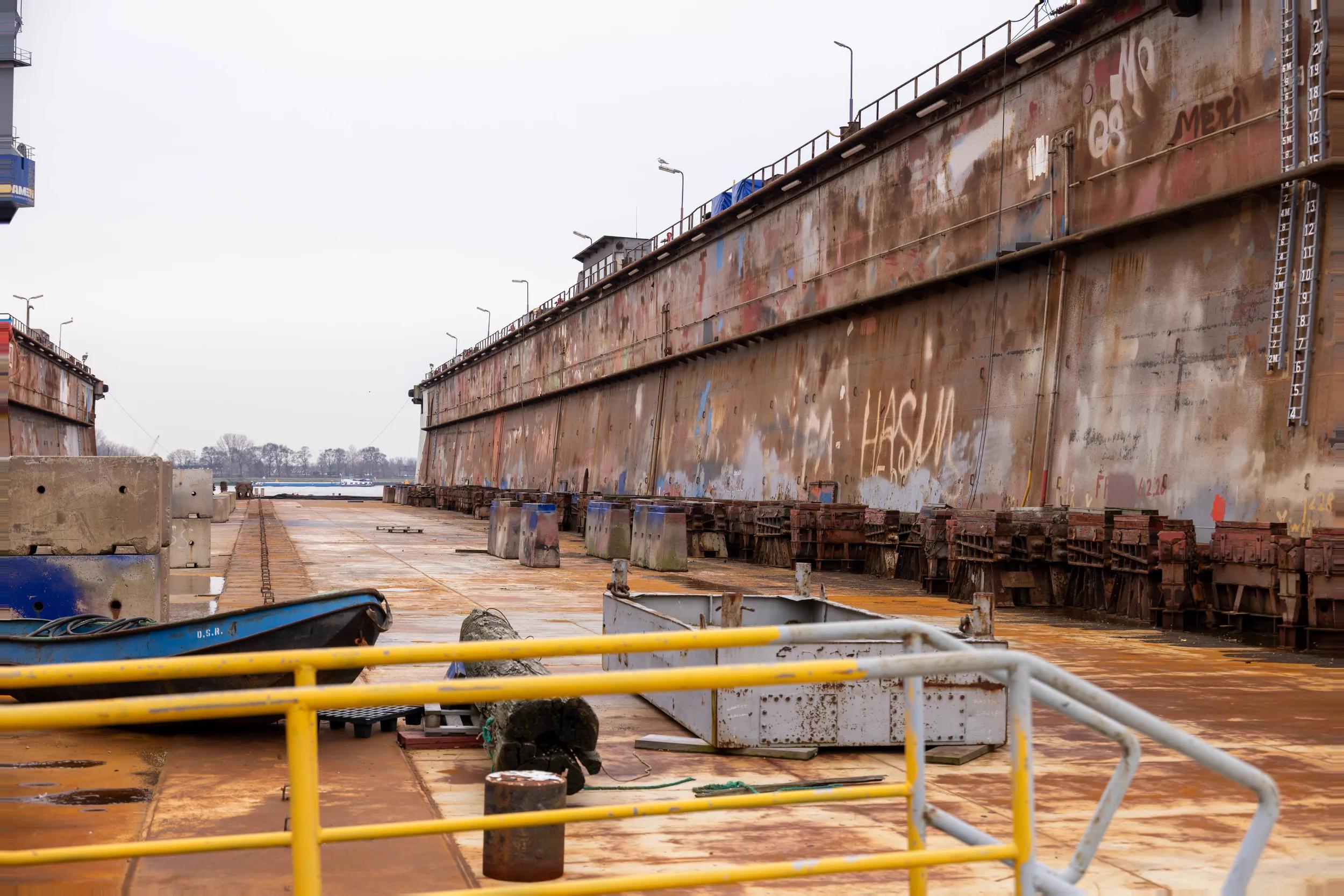

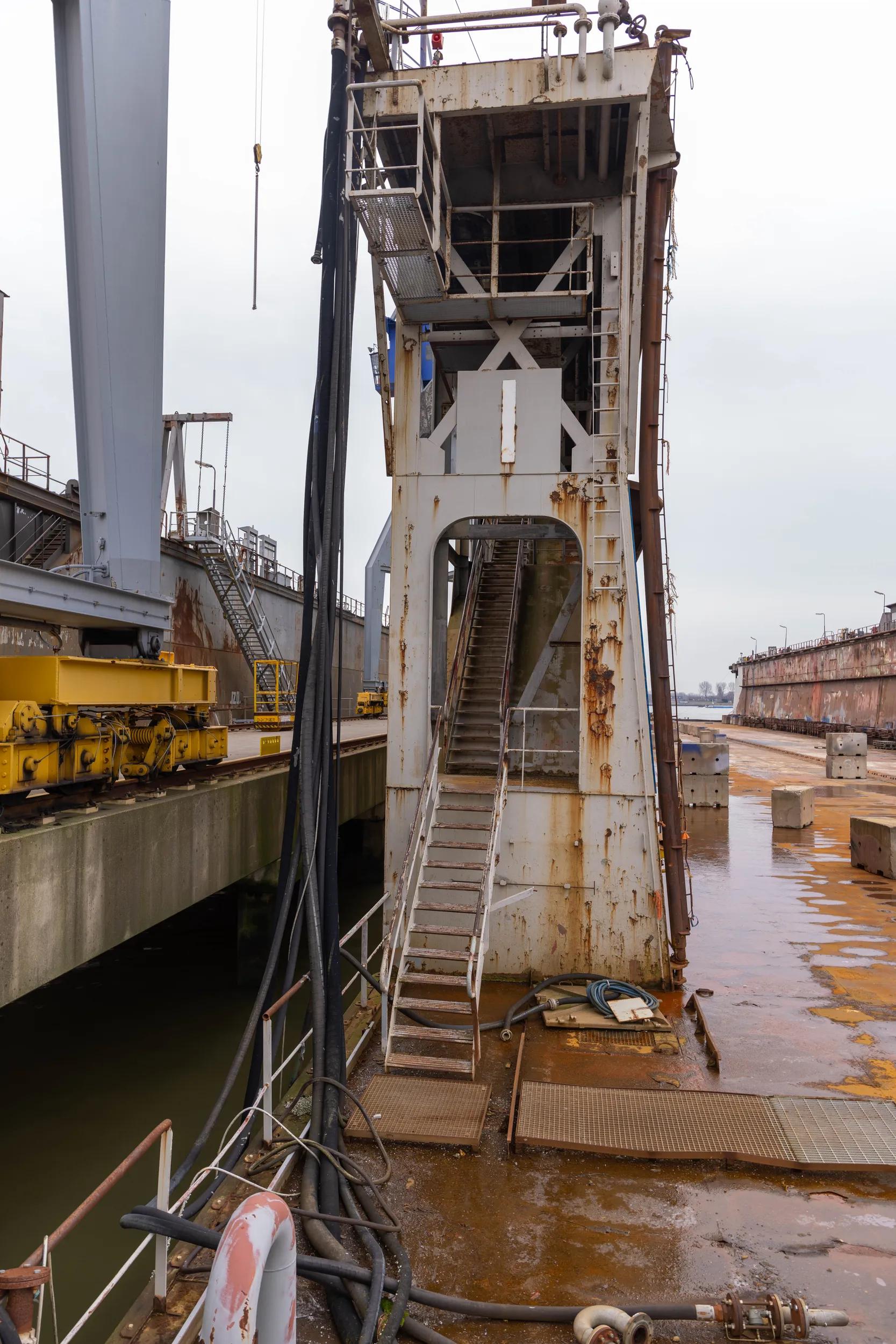

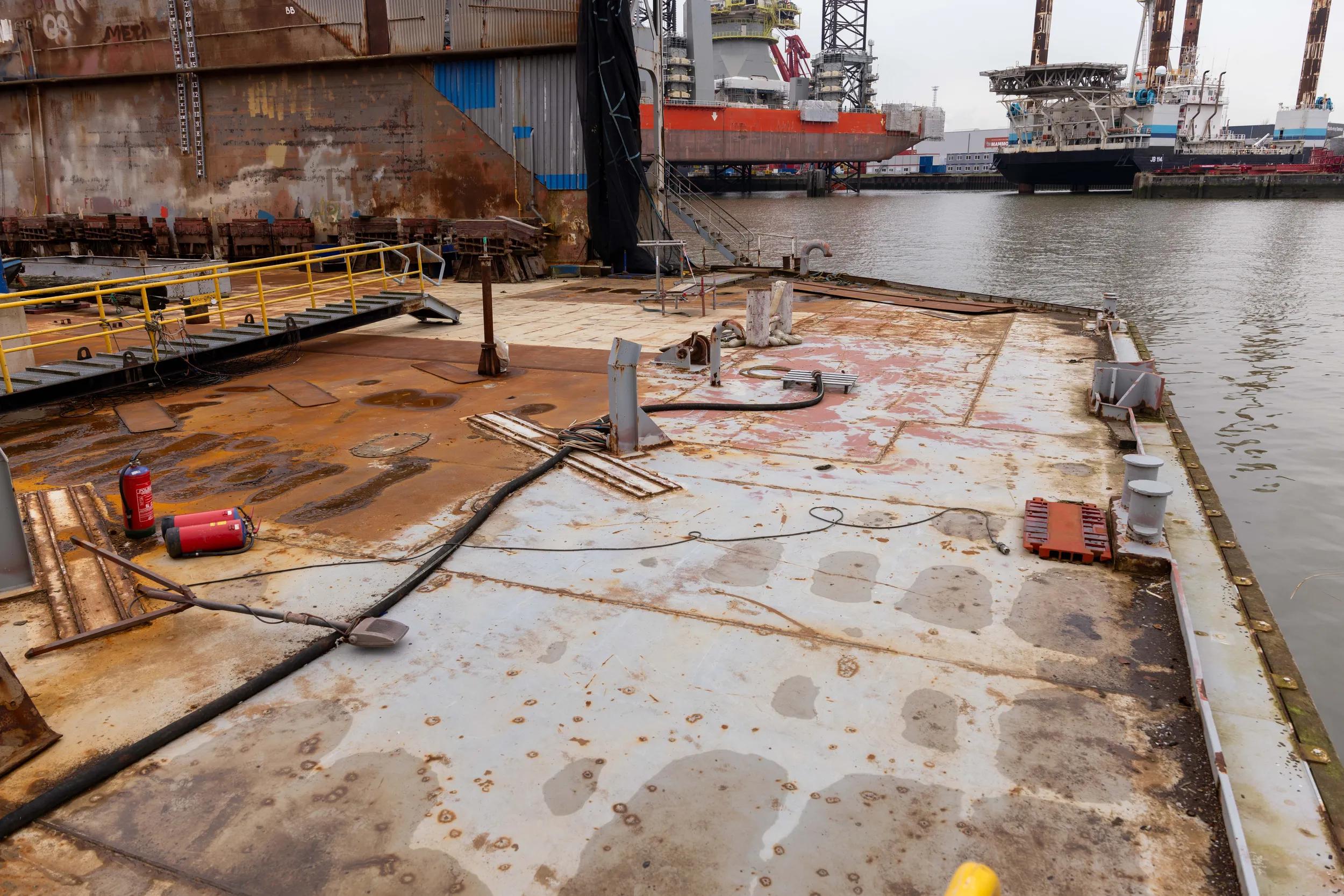

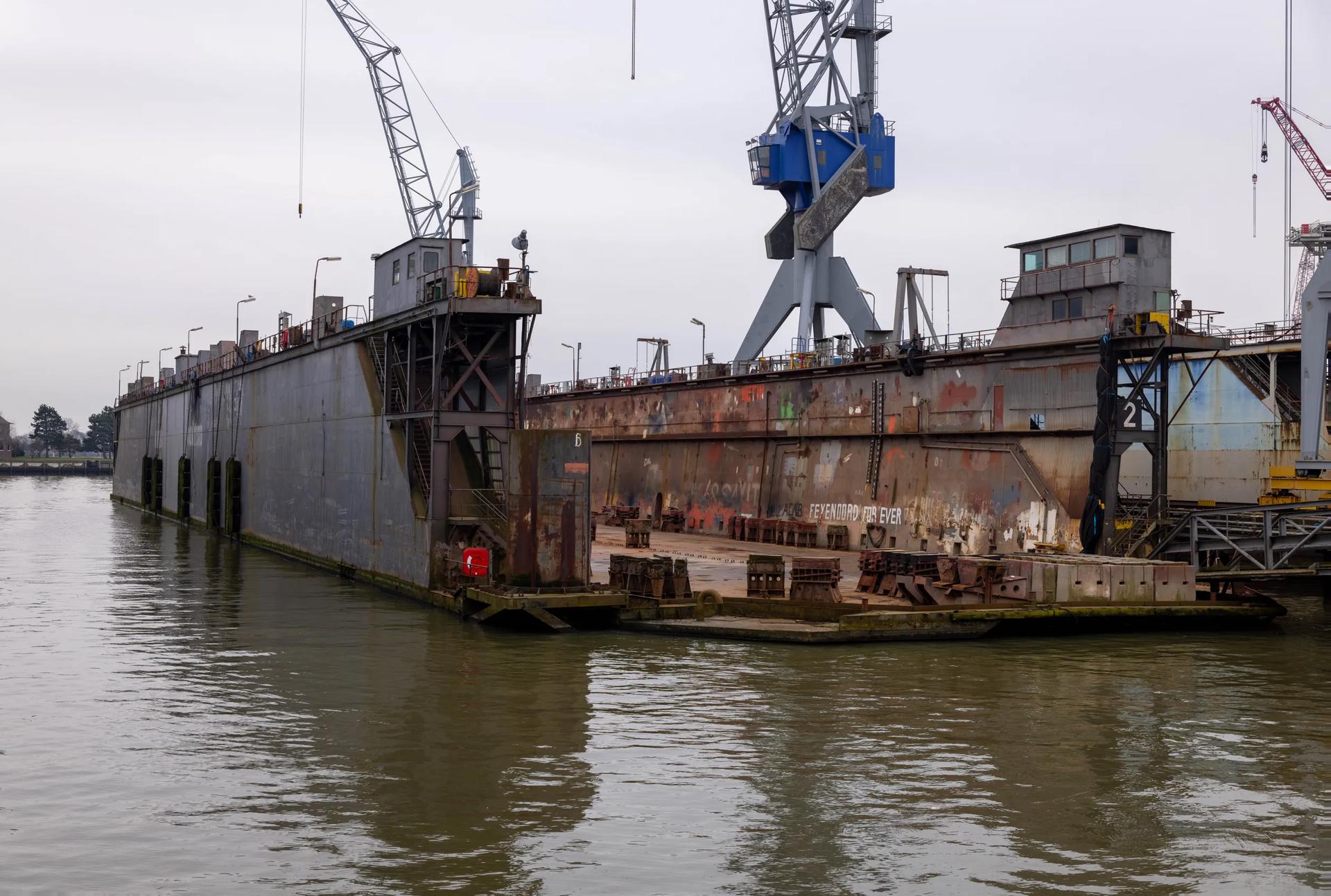

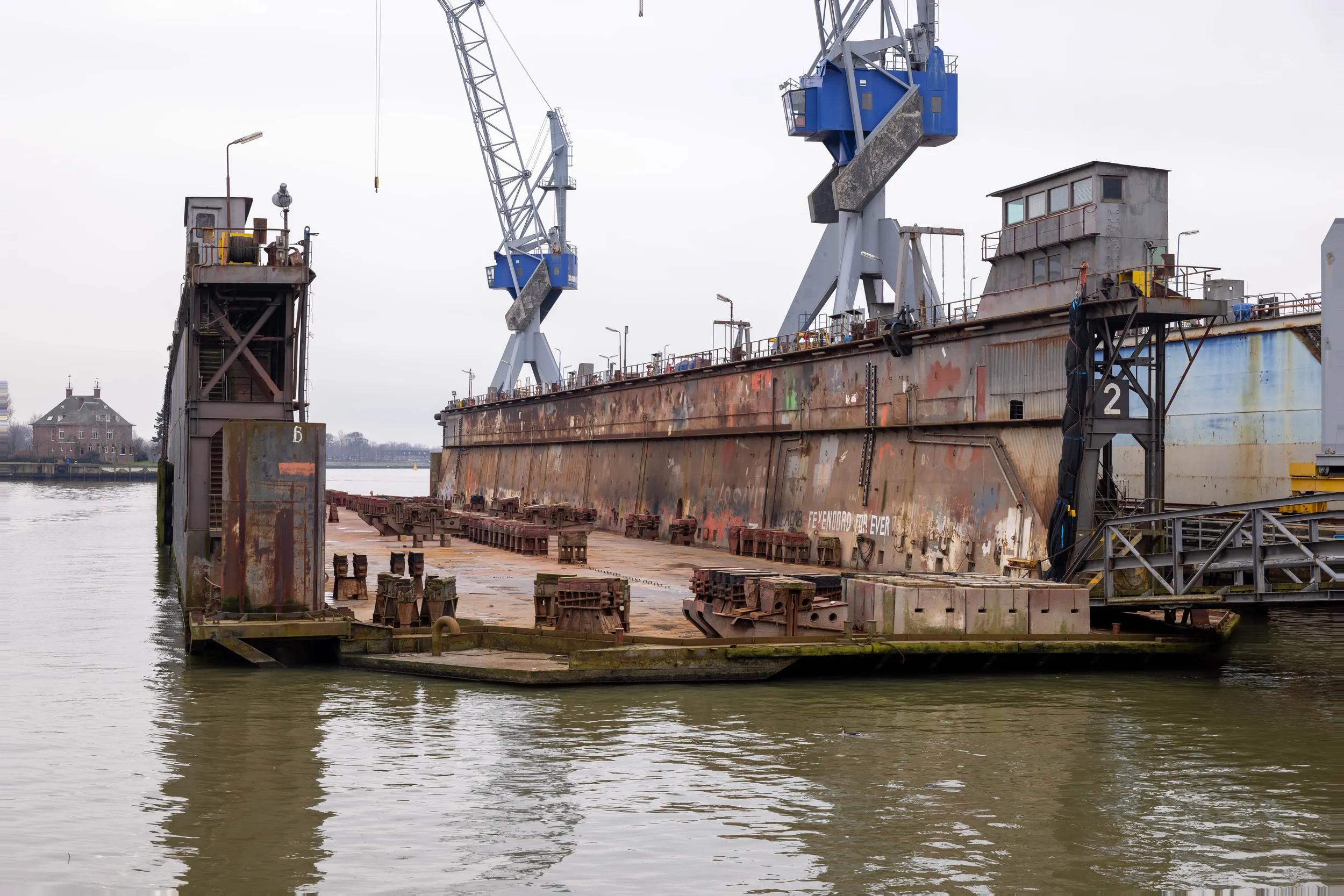

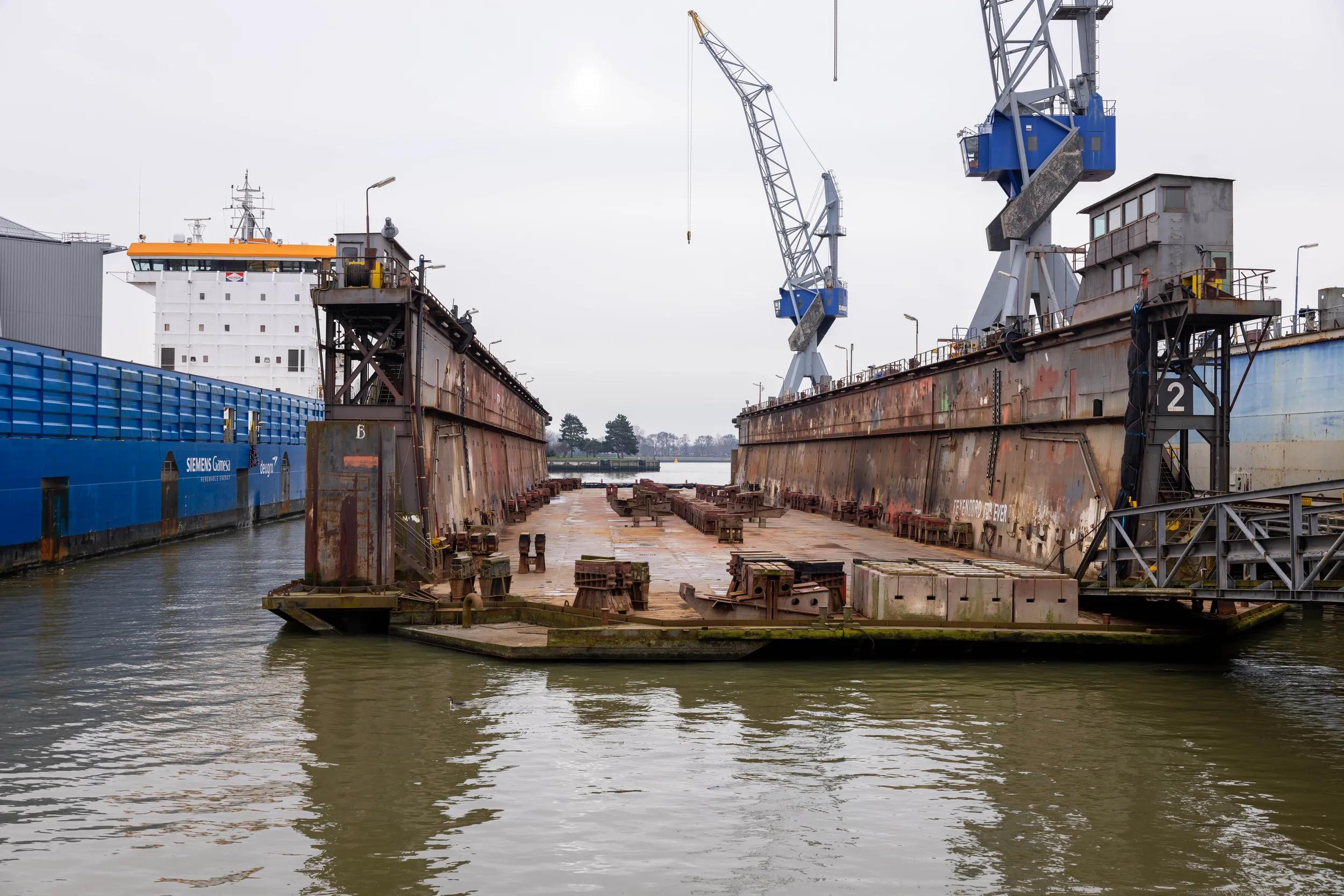

Steel welded floating drydock, for vessels up to 9.500t and up to 75t/m keel load. Equipped with Control Room, 11kV shore connection, guide winch system.
Specifications
- Type
- Floating drydock
- Built
- 1969, the Netherlands
- Length o.a.
- 159.36 m
- Beam o.a.
- 30.62 m
- Length over keel blocks
- 149.50 m
- Internal width at upper deck level
- 23.80 m
- Max. length vessel in dock
- 155.00 m
- Max. width vessel in dock
- 23.25 m
- Max. displacement
- 9.500 t
- Max. draught vessel in dock (on keel blocks)
- 6.70 m
- Max. draught vessel in dock (on drydock floor)
- 8.00 m
- Max. lifting capacity
- 9.500 t (0,3m freeboard to dock floor)
- Total no of keel blocks
- 129 Pcs approx.
- Lightship weight of drydock
- 2.843 T
- Minimum drydock own draft
- 0.63 m
- Ballast volume pontoon
- ± 14.900 m³
- Ballast volume side walls
- 5.140 m³
- Voltage
- 400 V/50Hz
- Remark
- In operational condition.
- Position
- The Netherlands
- Price range (€)
- 4.000.000 - 6.000.000
