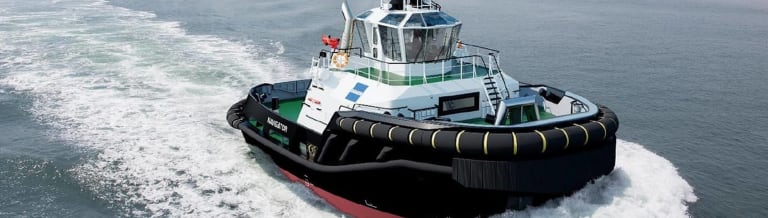

Damen ASD Tug 2312 'Navigator'

ASD Tug 'Navigator'

70.0

22.80

12.03

13.0

The Navigator (ASD 2312) delivers a powerful 70 tonnes of bollard pull while the patented Twin Fin skeg plus twin Azimuth thrusters ensure excellent manoeuvrability. An obstacle-free working deck ensures a safe working environment for the six crew members, as does the powerful covered winch which handles both forward and aft operations. The Navigator is outfitted with: FiFi 1, Winterization package and is IMO Tier III certified.


Specifications

Delivery date
Q3 2022
Classification
Bureau Veritas I ✠ HULL ● MACH Escort Tug (Bollard pull = 70 t, maximum steering force = 65 t, maximum braking force = 49 t, maximum escort speed = 10 kn) Unrestricted Navigation AUT UMS Inwater Survey Fire Fighting Ship 1 Green Passport EU
Flag
The Netherlands
Bollard pull ahead
70.0 t
Speed
13.0 kn
Beam overall
12.03 m
Draught
5.40 m
Deckspace
n/a
Displacement
485 t
Fuel oil
54,6 m³
Fresh water
7.8 m³
Main engines
2x Caterpillar 3512C TA HD/D
Total power
3804 bkW (5102 bhp) at 1800 rpm
Propulsion
Clutches (on-off type): Kongsberg Maritime ‘built in’ type or equal Azimuth thrusters: Kongsberg Maritime US 205 Propeller diameter: 2800 mm
Genset
2x Caterpillar C4.4 TA, 400 V, 103 kVA, 50 Hz
Deck equipment
Anchors: 2x 360 kg Pool (High Holding Power) Anchor winches: 10 m/min Towing winch: Hydraulically driven double drum, pull up to 35 ton and speed up to 40 m/min on second layer, 175 ton brake holding force Fendering: D-fender at sides, cylindrical fender at transom corners, cylindrical and W-block bow fender
Nautical equipment
Searchlights: 2x Norselight SH470 2000 W Radar system: Furuno FAR 1518-BB ECDIS: Furuno FMD-3200 Compass: Cassens & Plath Reflecta 11 Satellite compass/GPS: Simrad GN70/HS80A Autopilot: Simrad AP-70
Accommodation
For 6 persons (MLC 2006 compliant)
