HDPE pontoon
42
32.2
5.5
116

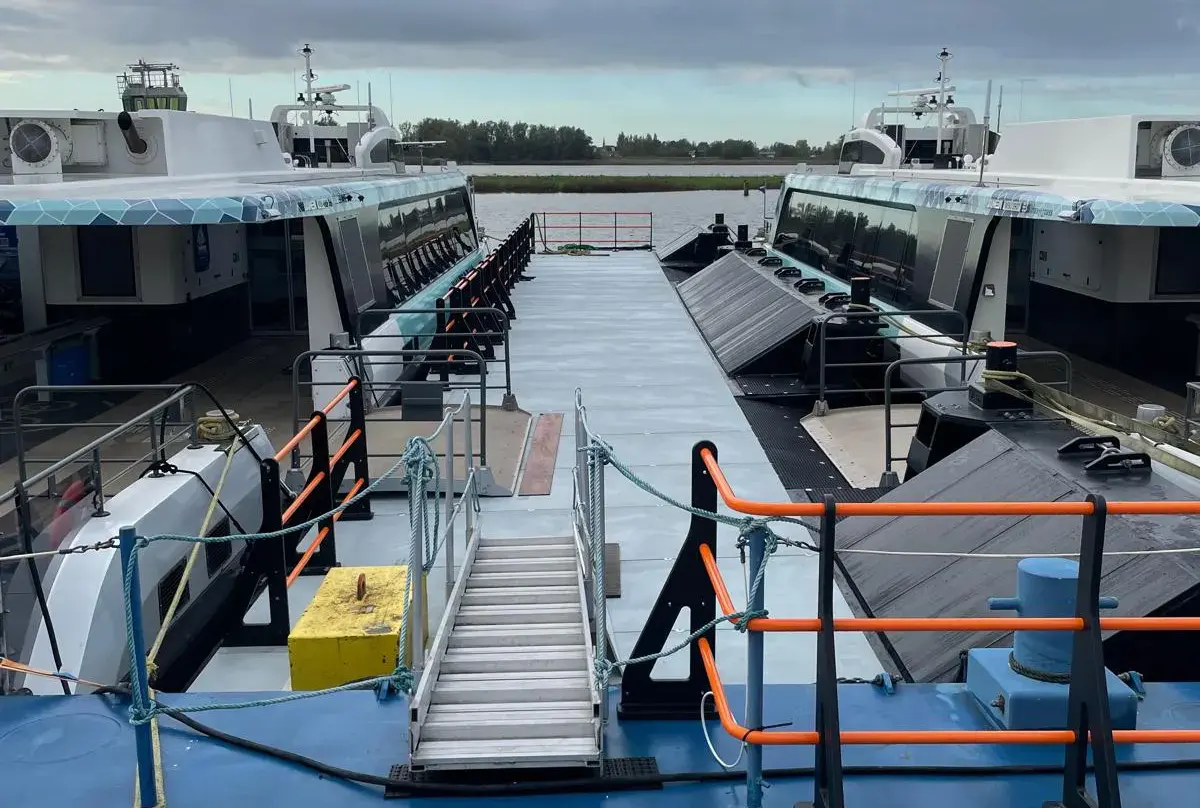

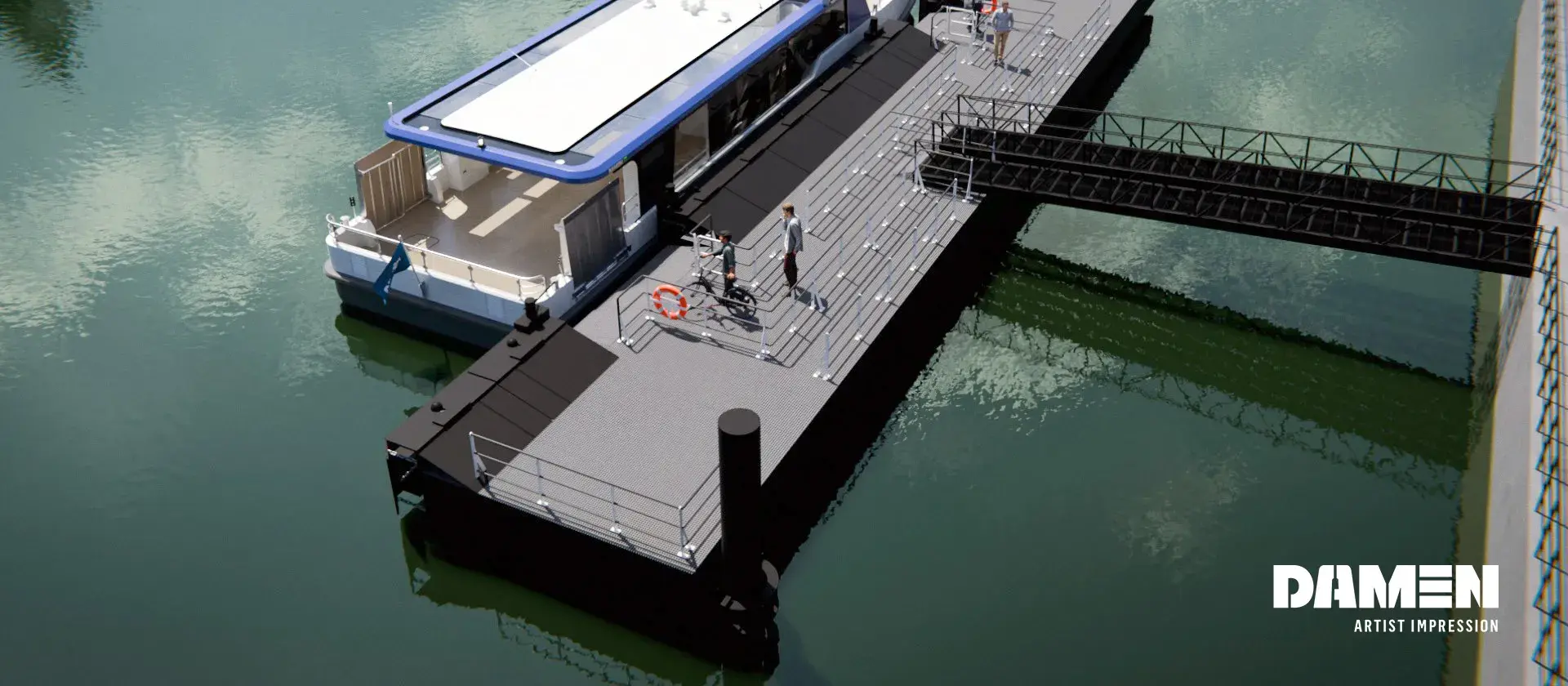

This jetty is suitable to use in coastal waters, harbours and inland waters.
Specifications
- Built
- 2025
- Classification
- No classification certificates
- Dimensions
- 32.20 x 5.50 x 1.80 m, draft 0.50 m
- Freeboard
- 1.30 m
- Free deck space
- 116 m²
- Deadweight max.
- 42 tonnes
- Deck load
- 0.5 tonnes/m²

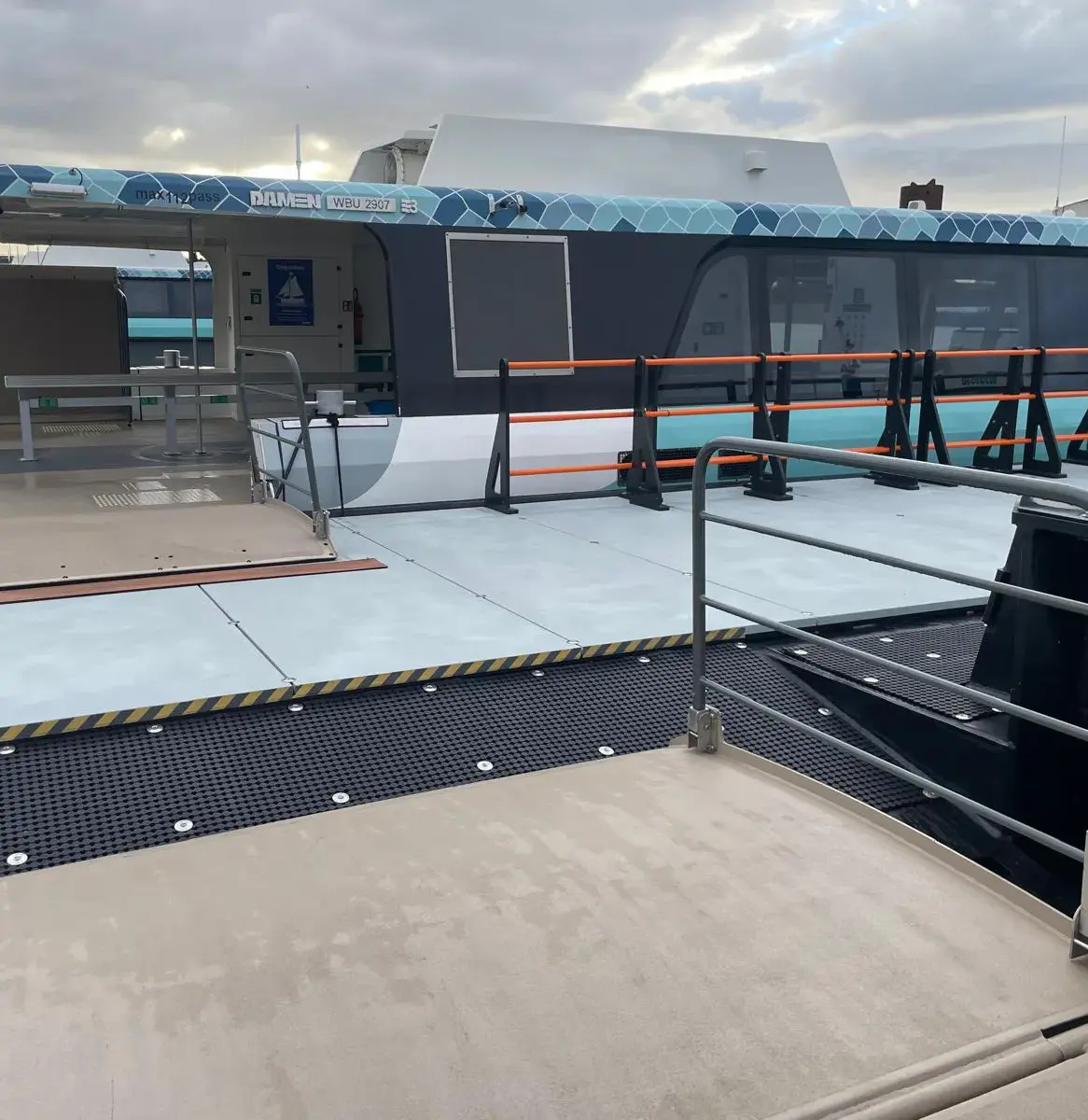

- Deck
- GRP grating or anti-slip
- Sea water conditions
- 0°C +35°C
- Outside air temperature
- -40 °C +60 °C
- Wave height
- 0.60 m (zone 3 EU inland)
- Towing brackets
- One aft, one forward
- Bollards
- 4 pcs. max. 8 tonnes load
- Boarding platform
- A wearing plate on top of the HDPE deck
- Spud pole foundations
- 2x

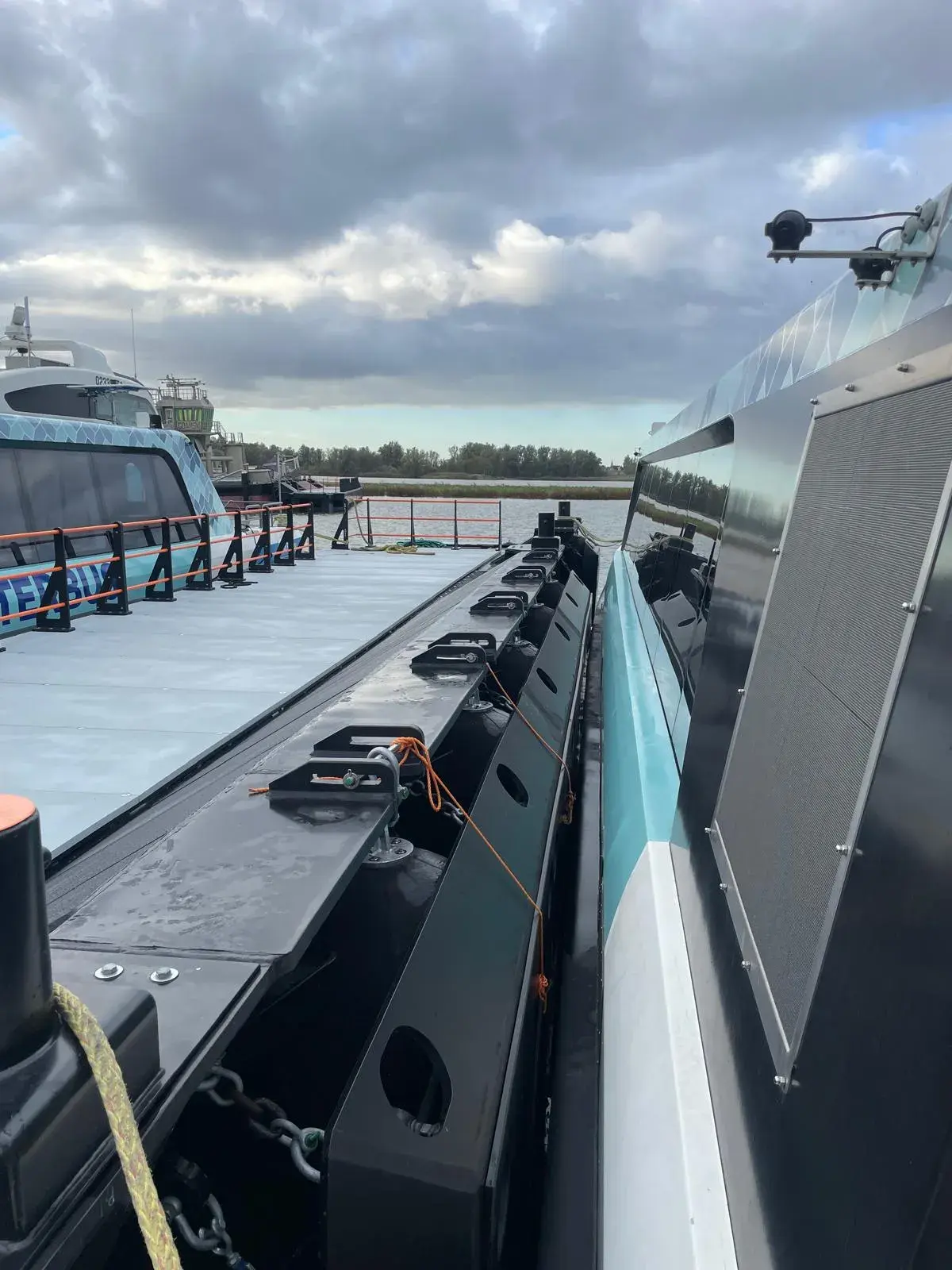

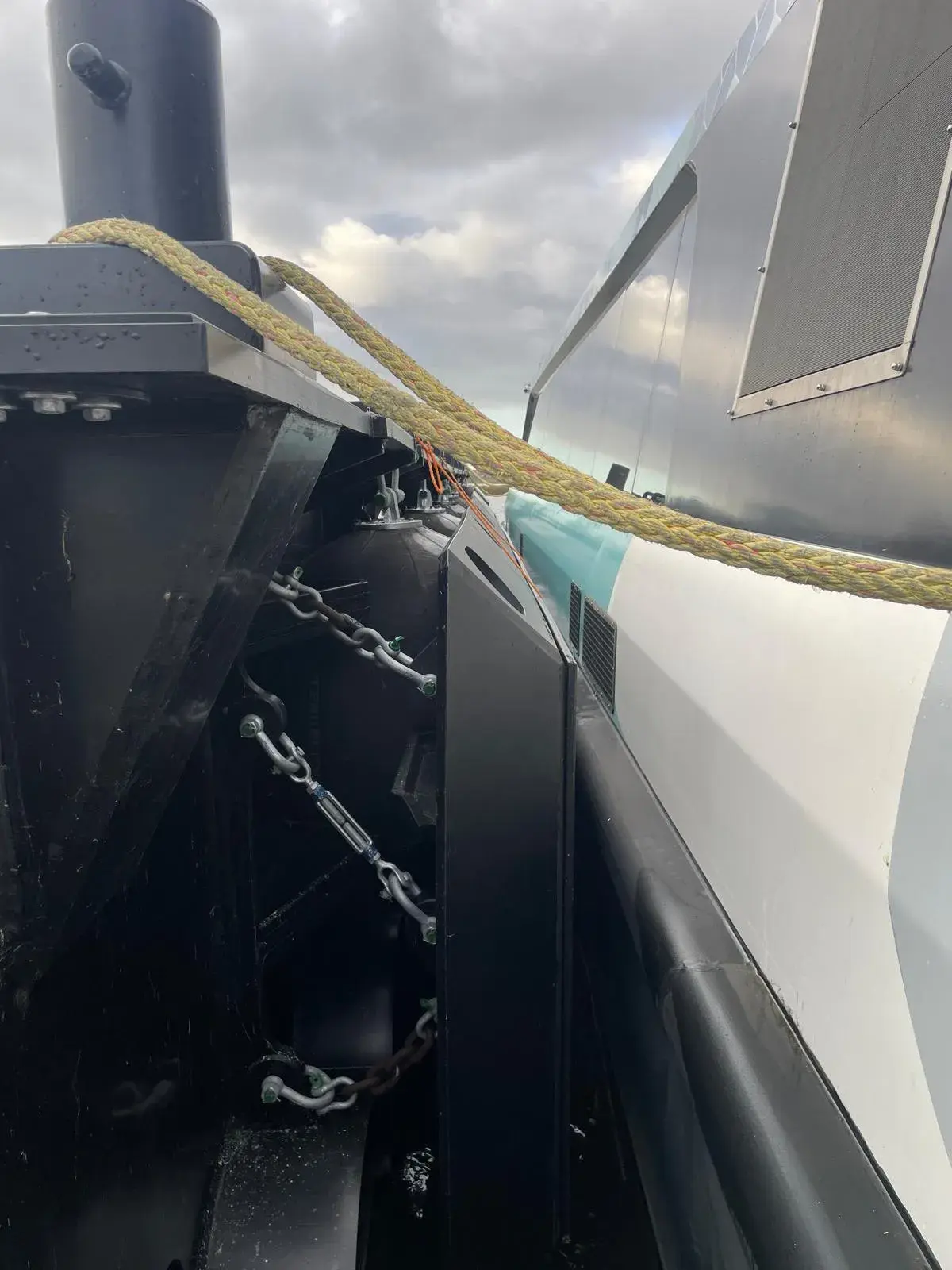

- Fendering
- Combination of HDPE and pneumatic rubber fender
- Flooring
- High-traffic wear-resistant anti-slip solution
- Remark
- New and never used
