Damen Marine Services
RSD Tug 2513 'DMS 50'
RSD Tug 'DMS 50'
72.6
24.73
13.13
12.9
Tugboat suitable for towing, mooring and firefighting operations.
Specifications
- Built
- 2019
- Classification
- Bureau Veritas I ✠HULL •MACH Tug Unrestricted Service AUT UMS INWATER SURVEY COMF-NOISE3, COMF-VIB 3 Fire Fighting Ship 1 - Waterspray
- Dimensions
- 24.73 x 13.13 x 4.95 m, 5.50 m draft aft
- Propulsion
- 2x Rolls Royce thrusters, type US 2555
- Main engines
- 2x MTU, 6008 bhp total at 1800 rpm
- Exhaust emission
- IMO Tier III compliant
- Speed
- ± 12.9 knots ahead, ± 12.6 knots astern
- Bollard pull
- ± 72.6 tonnes ahead, ± 68.0 tonnes astern
- Displacement
- 525 tonnes (98% consumables)
- Anchor winch
- Hydraulic 10 m/min.
- Towing winch
- Hydr. driven split drum 31 ts pull up to 11 m/min., reduced pull up to 38 m/min., 175 ts brake
- Fendering
- Cylinder + block bow fender, D-fender side/aft

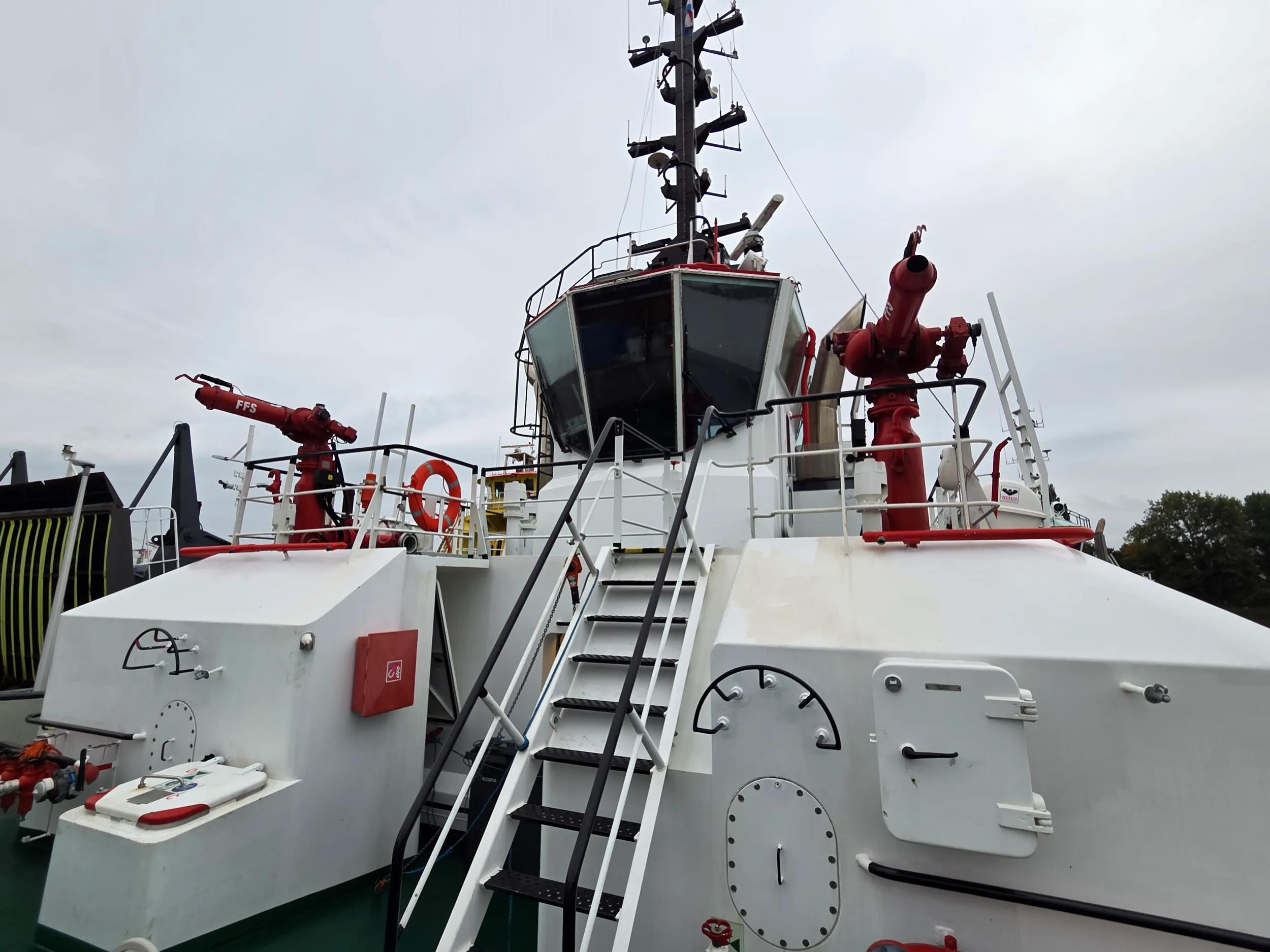

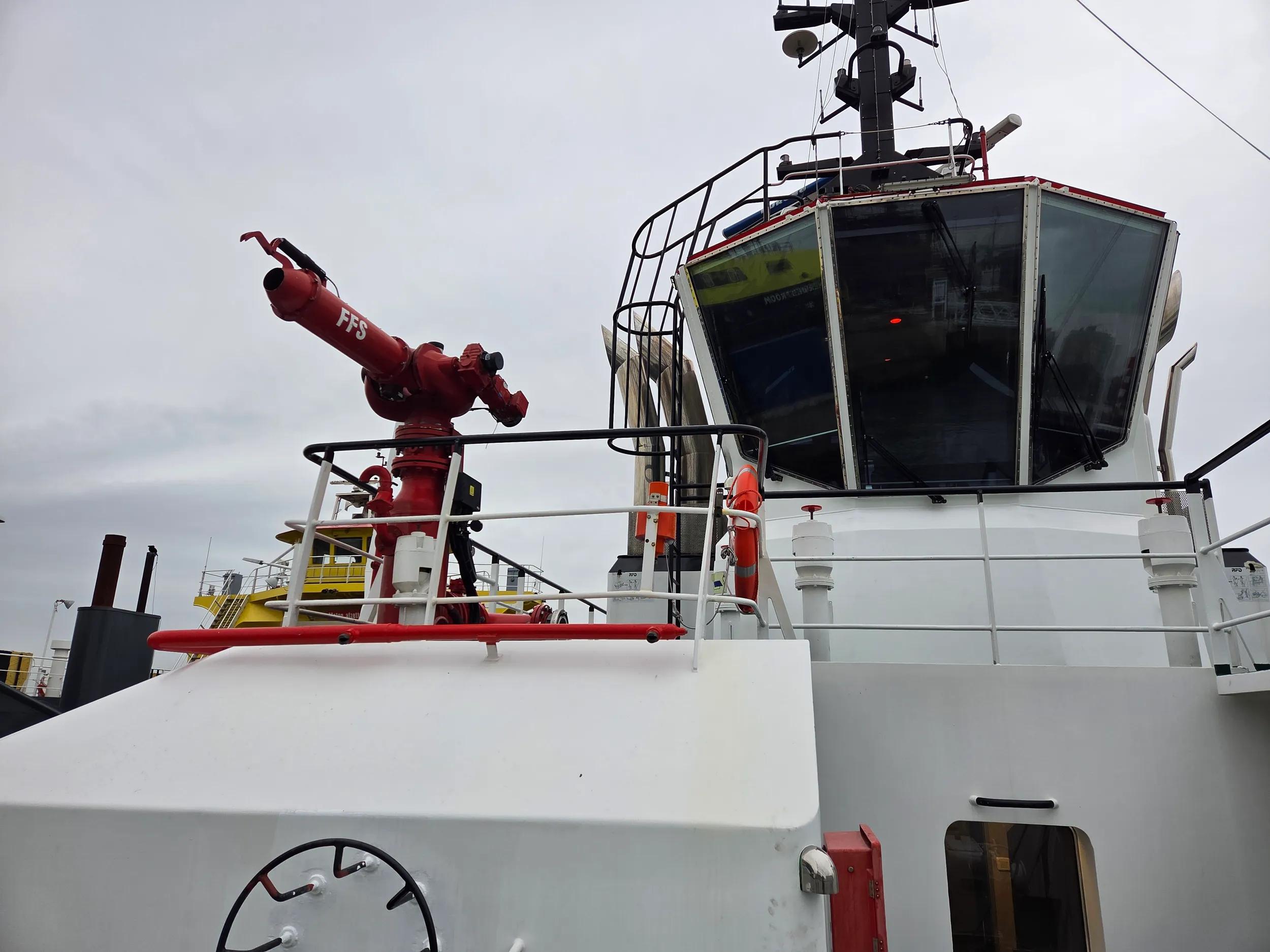

- Fifi equipment
- 2 monitors, 1200 m³/hr each
- Accommodation
- For 4 persons, superstructure is mounted resiliently to reduce noise levels
