Damen Marine Services
Damen Shoalbuster 2308 'DMS Toucan'

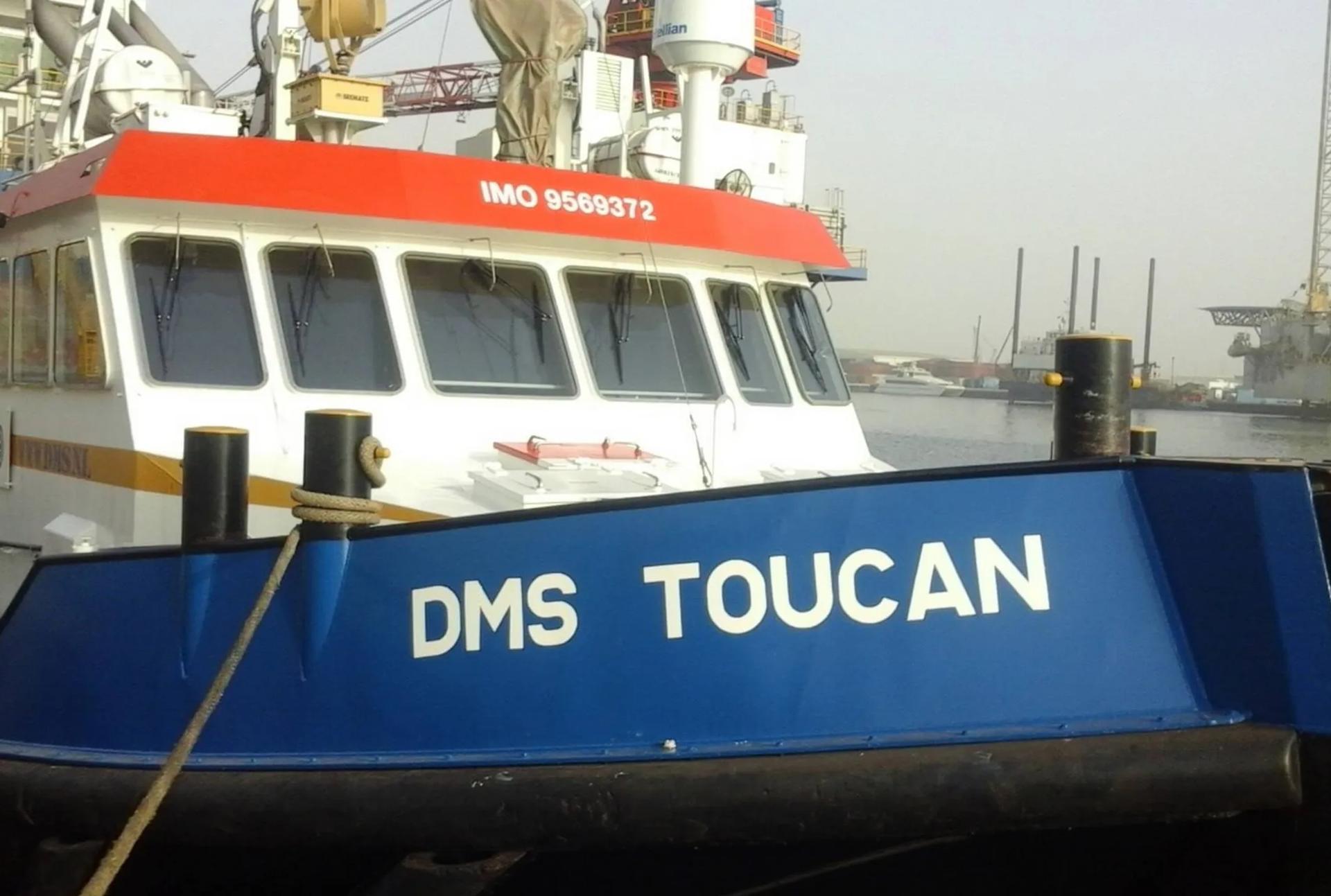

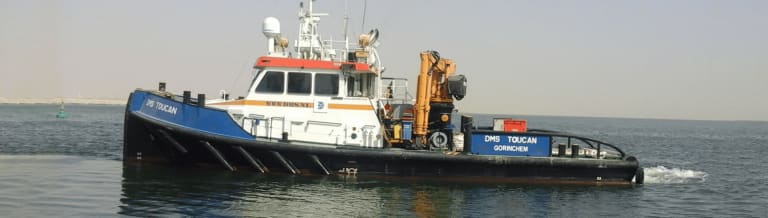

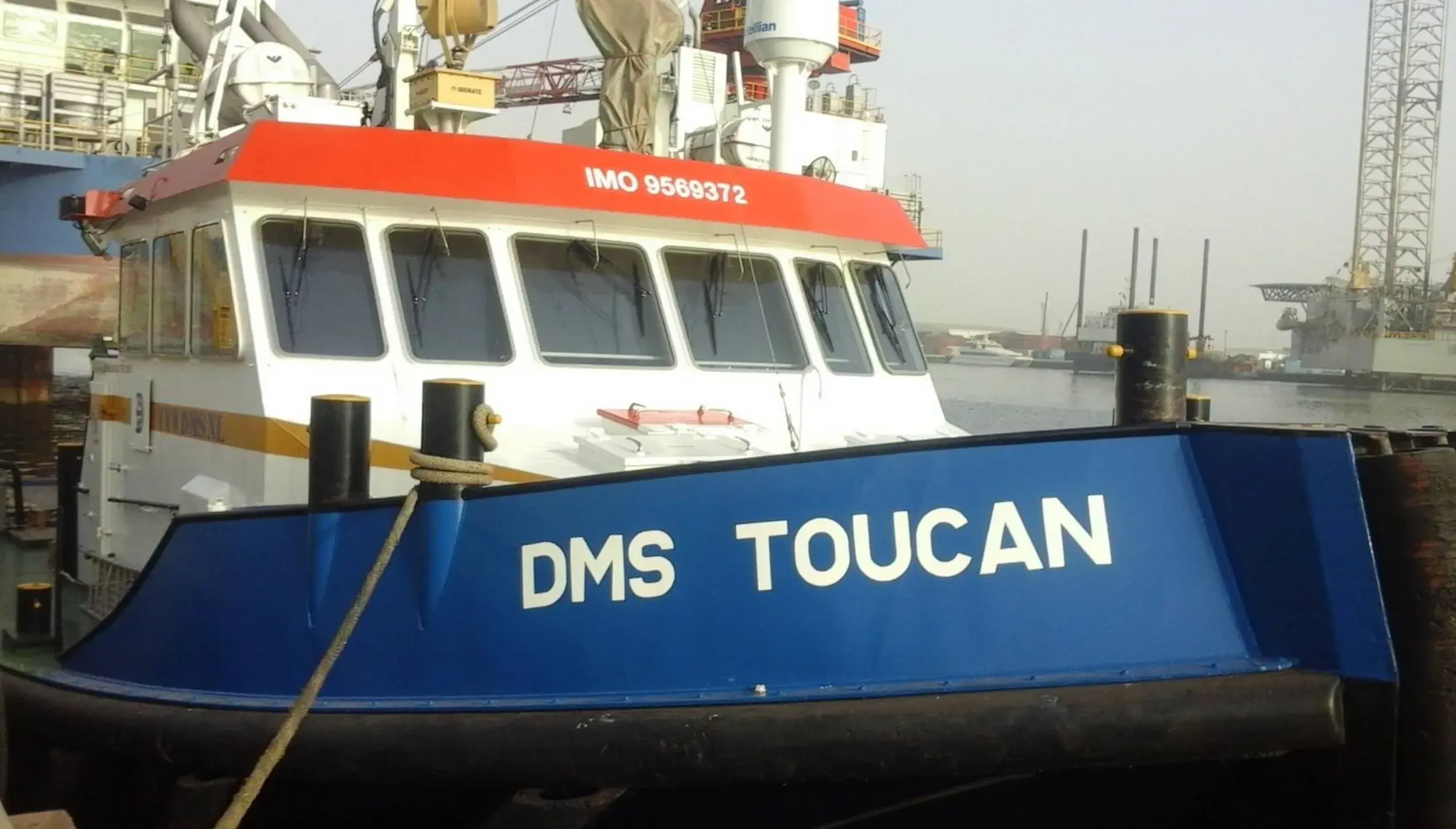

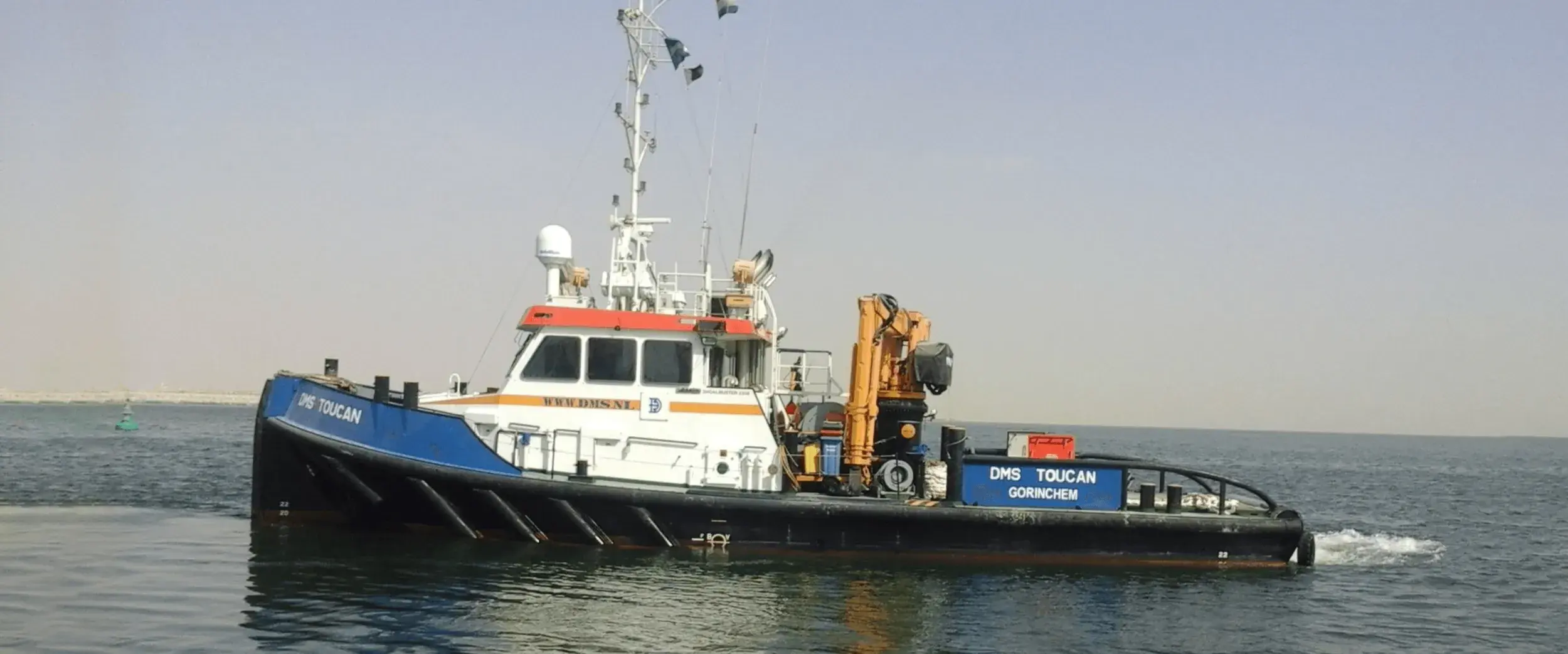

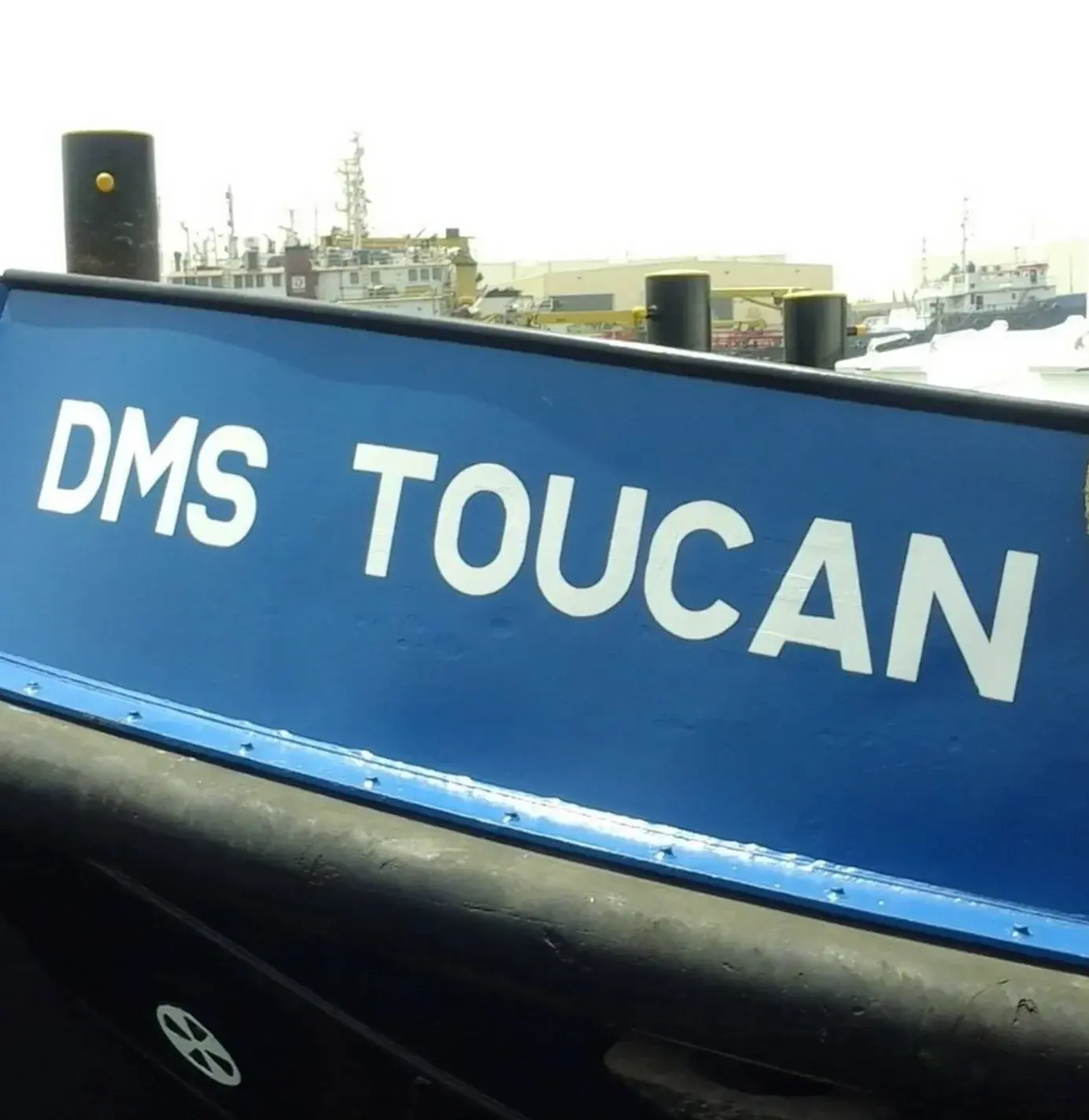

Shoalbuster 'DMS Toucan'
24
23.35
8.00
11.1
The DMS Toucan is a multipurpose, shallow draught workboat which is defined by its heavy-duty construction and large work deck which may feature a deck crane as well as a broad scope of towing / anchorhandling equipment. Designed for multiple roles in diverse working environments.
Specifications
- Delivery date
- 2013
- Classification
- Bureau Veritas I HULL MACH Tug Unrestricted Navigation, AUT-UMS
- Flag
- Dutch
- Bollard pull ahead
- 24 t
- Speed
- 11.1 kts
- Beam overall
- 8.00 m
- Draught
- 2,10 m
- Deckspace
- n/a
- Displacement
- n/a
- Fuel oil
- 45,5 m³
- Fresh water
- 13,9 m³
- Main engines
- 2x Caterpillar, type 3412D TTA
- Total power
- 1696 hp total at 1800 rpm
- Propulsion
- 2x fixed pitch propellers in nozzles
- Genset
- Leroy Somer LSAM

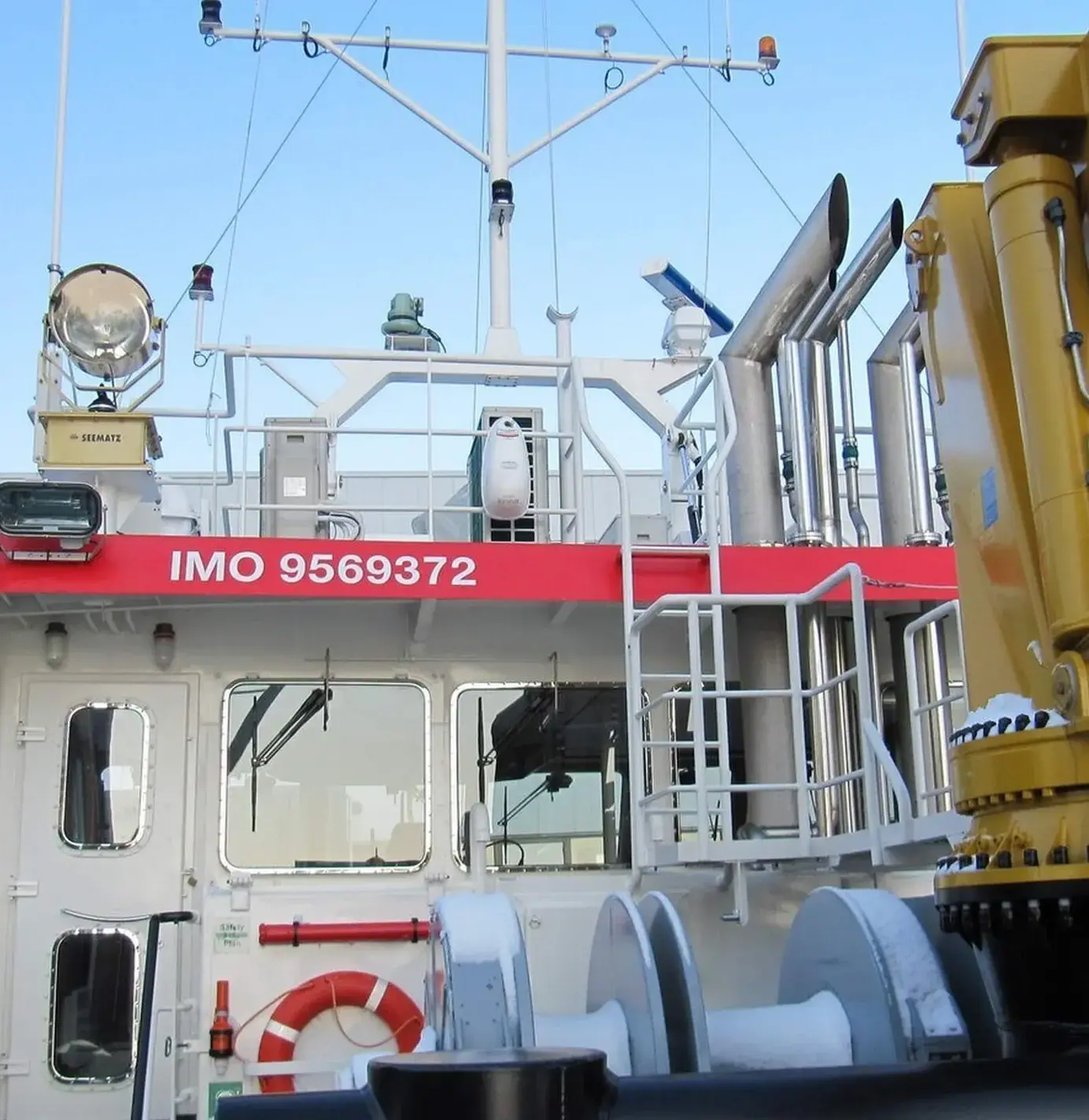

- Deck equipment
- Deck Crane: Heila HLRM 80–3 S, capacity: 5.3 tons at 12.04 m 11.6 tons at 6.27 m Tugger winch: Brevini, BWC-080, capacity: 8.0 tons at 4.5 m/min. Towing pins: WK Hydraulics, three in a row, 35 tons SWL
- Nautical equipment
- Searchlights: 2x 2000 W Navigation equipment: Magnetic compass, gyro compass, radar, GPS, autopilot, echo sounder, speedlog, bridge watch alarm Communication: 2x VHF, 2x handheld VHF, Navtex, SSB, Inmarsat-C, AIS, intercom.
- Accommodation
- Heated and air-conditioned living spaces for 5 persons
