Damen Marine Services

Damen Shoalbuster 3209 'DMS Parrot'

Shoalbuster 'DMS Parrot'

Prompt available, Sharjah, UAE

47.3

32.08

9.10

11.5

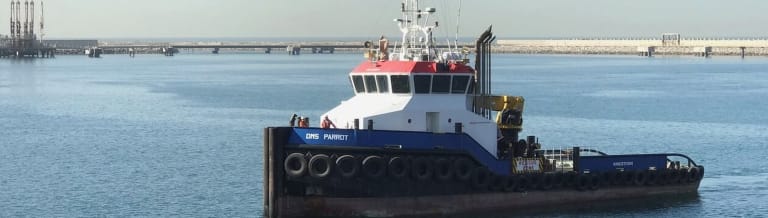

The DMS Parrot is a multipurpose, shallow draught workboat which is defined by its heavy-duty construction and large work deck which may feature a deck crane as well as a broad scope of towing / anchorhandling equipment. Designed for multiple roles in diverse working environments.


Specifications

Delivery date
2013
Classification
Bureau Veritas I 3/3 Hull • Mach Tug Unrestricted Navigation AUT- UMS
Flag
Dutch
Bollard pull ahead
46.9 t
Speed
11.5 kts
Beam overall
9.10 m
Draught
3.20 m
Deckspace
n/a
Displacement
n/a
Fuel oil
220.00 m³
Fresh water
40.0 m³
Main engines
2x Caterpillar Type 3512C-TA
Total power
2610 bkW (3498 bhp) @ 1600 rpm
Propulsion
2x Fixed pitch propellor in Optima nozzles, 2250 mm
Genset
2 x Caterpillar C4.4 TA
Deck equipment
ANCHOR: 2x 360 kg Pool (HHP) CHAIN: 19 mm stud-link anchor chain 220 m ANCHOR WINCH: DMT, hydraulically driven AW 200-H19Q2 DECK CRANE: Heila HLRM 170-4SL, 7.9 ton(m) @ 15.93 m TOWING WINCH: DMT, WATW-H 1000 kN 50 tons (m) @ 12 m/min (pull)
Nautical equipment
Searchlights 2x Pesch 2000W Magnetic Compass 1x Cassens & Plat, Reflecta 1 Gyro Compass 1x Anschuetz 22 Watch Alarm 1 Marble 421 Radar 1x Furuno, FAR-2117
Accommodation
Heated and air-conditioned living spaces for 7 persons
