Damen Marine Services

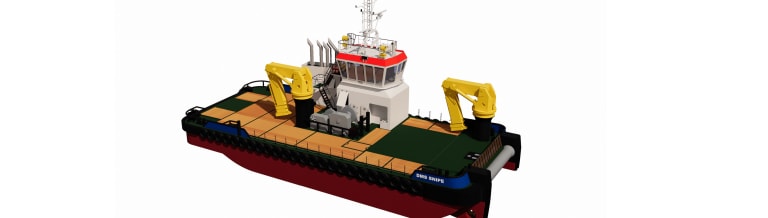

Damen Multi Cat 3313 ‘DMS Snipe’

Multi Cat 3313 ‘DMS Snipe’

Available Q1 ‘23

25.0

32.80

13.40

10.0

The DMS Snipe offers a triple propelled design which is purposely made to operate in shallow waters. The vessel features accommodation, a deck store, two deck cranes, bow thruster and a towing & anchor handling winch. A spacious wheelhouse is provided.


Specifications

Delivery date
2023
Classification
Bureau Veritas I Hull Mach Offshore support vessel Tug (design bollard pull = 25 ton), Anchor handling vessel, Unrestricted navigation, AUT-UMS
Flag
SVG
Bollard pull avg.
25.0 t
Speed
10,0 kn
Beam overall
13,40 m
Draught
2,20 m
Deckspace
200 m²
Displacement
n/a
Fuel oil
125.0 m³
Fresh water
40.0 m³
Main engines
3x Cat C18 SCAC ACERT
Total power
1599 bkW (2145 bhp) at 2100 rpm
Propulsion
3x Promarin fixed pitch propellers in Optima nozzles, Ø 1600 mm
Genset
2x Cat.C-04.4, 86 ekW, 107 kVA each, 50 Hz
Deck equipment
Anchor: 1x 400 kg high holding power Anchor winch: 1x Hydraulically driven, Kraaijeveld KAB-1-H-19D Deckcrane fore: Heila HLRM 230-4SL/HD, 11,3 t @ 16,5 m – 24,4 t @ 7,89 m Winchkit 5 ton Deckcrane aft: Heila HLRM 230-4SL/HD, 11,3 t @ 16,5 m – 24,4 t @ 7,89 m
Nautical equipment
Search lights: 2x Pesch 2000 W Radar system: 2x Furuno, FAR-1518BB Magnetic Compass: 1x Cassens & Plath, Reflecta 1 Gyro compass: 1x Anschuetz, Standard 22
Accommodation
Comfortable heated and air-conditioned accommodation for nine (9) persons in three double and three single cabins.
