Crane Barge 360

    Crane Barge 360

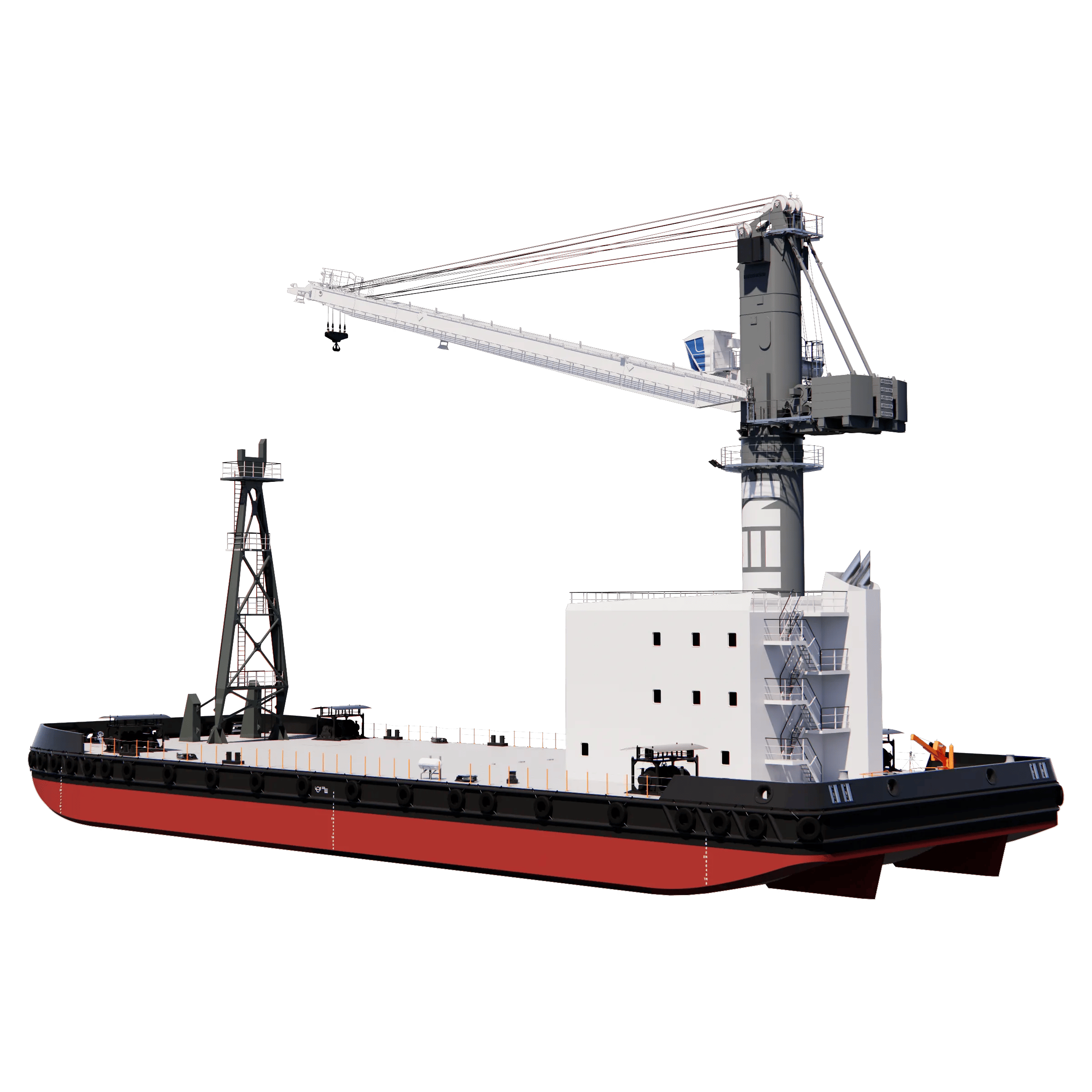

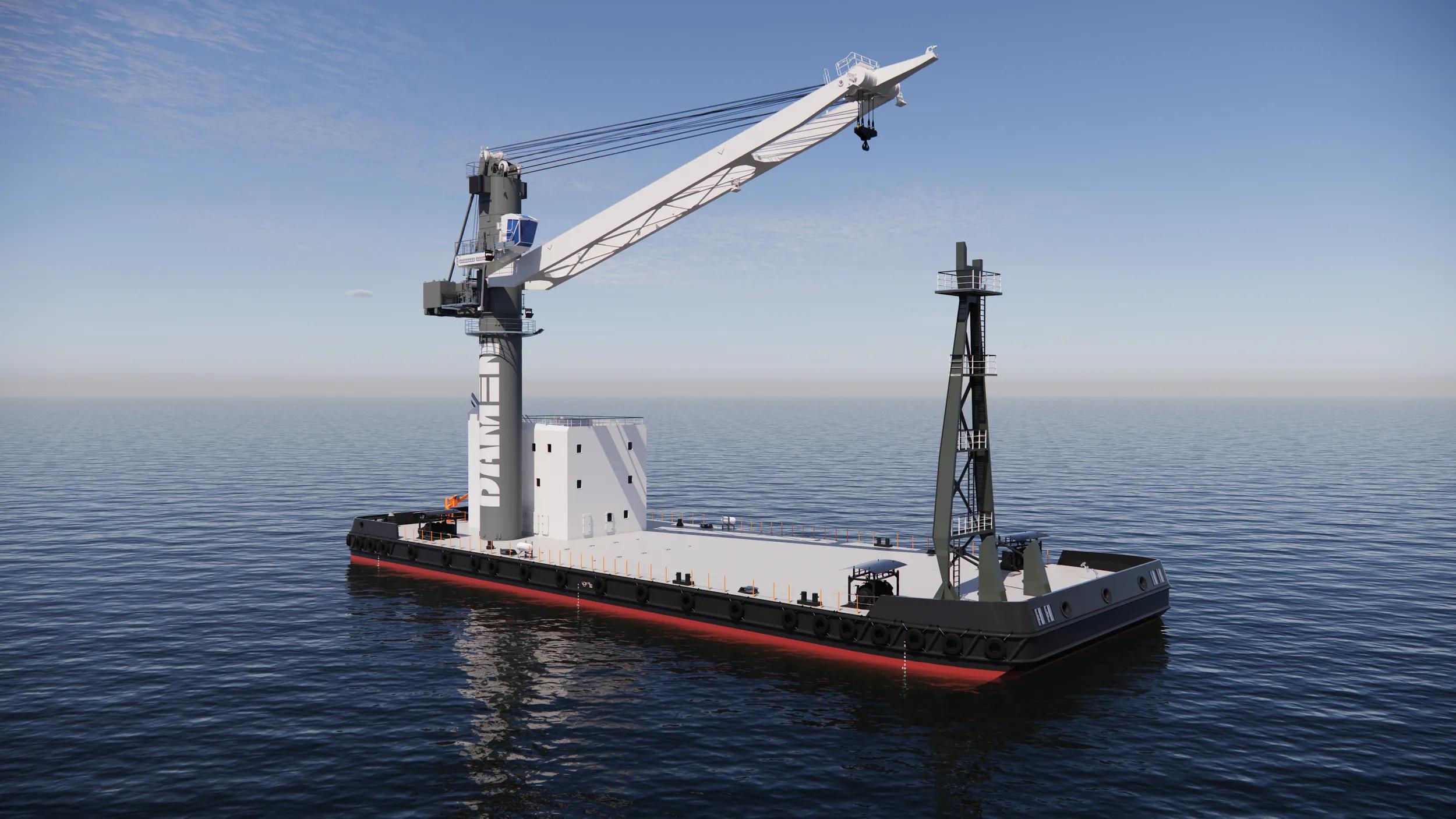

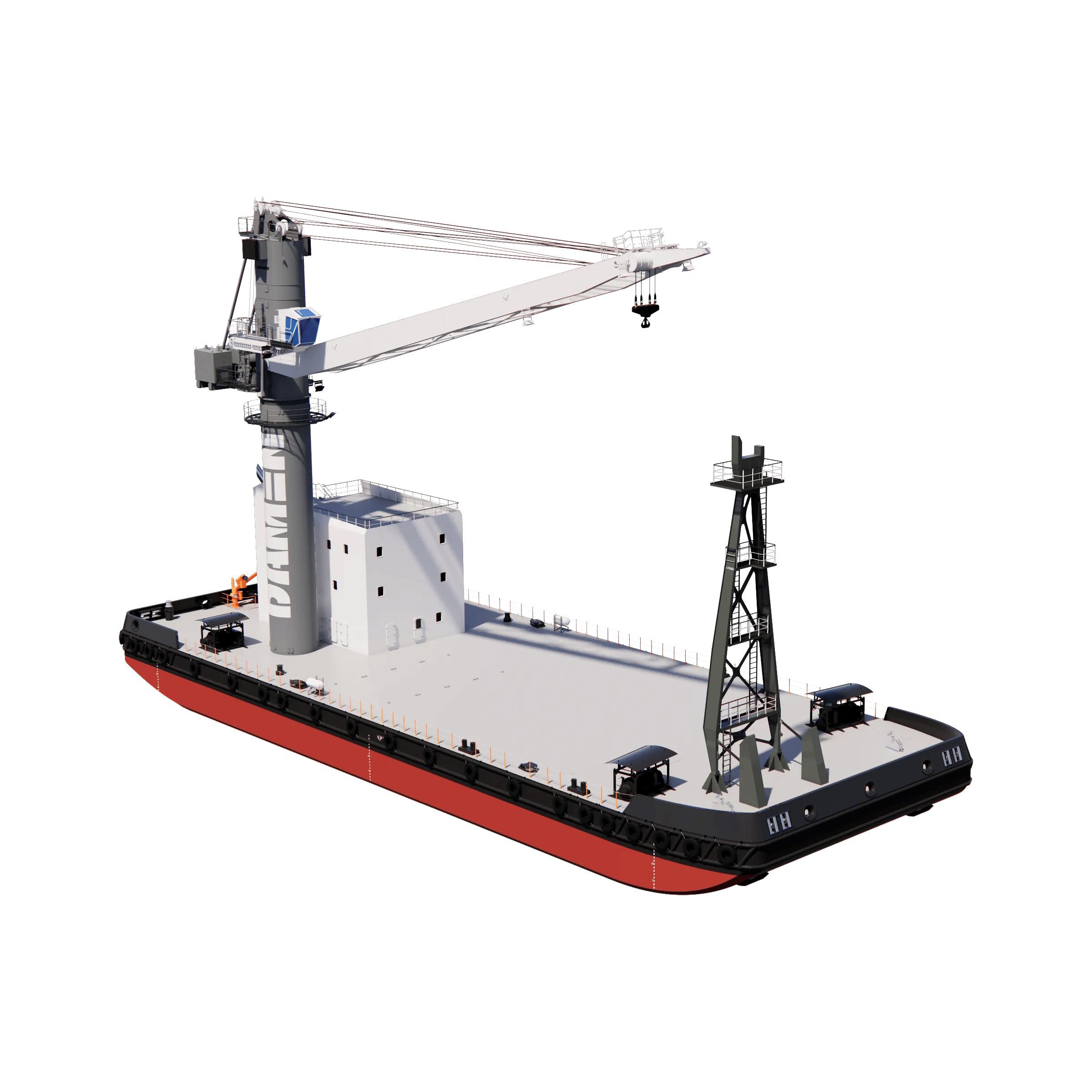

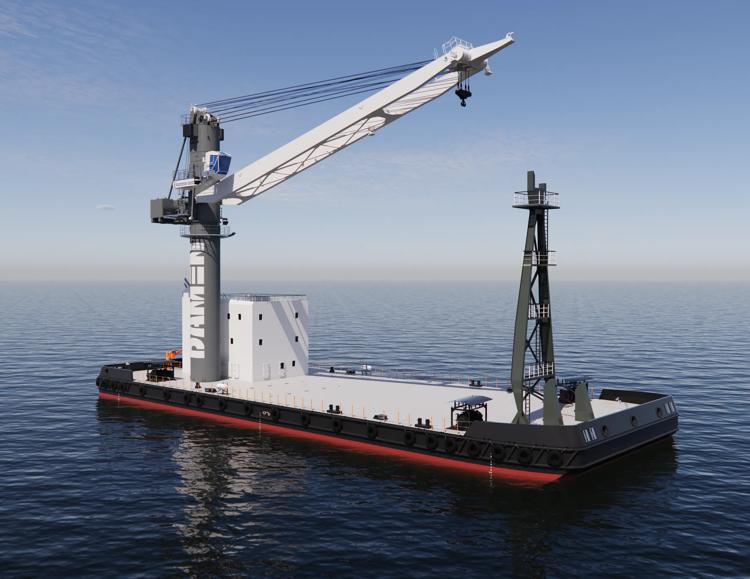

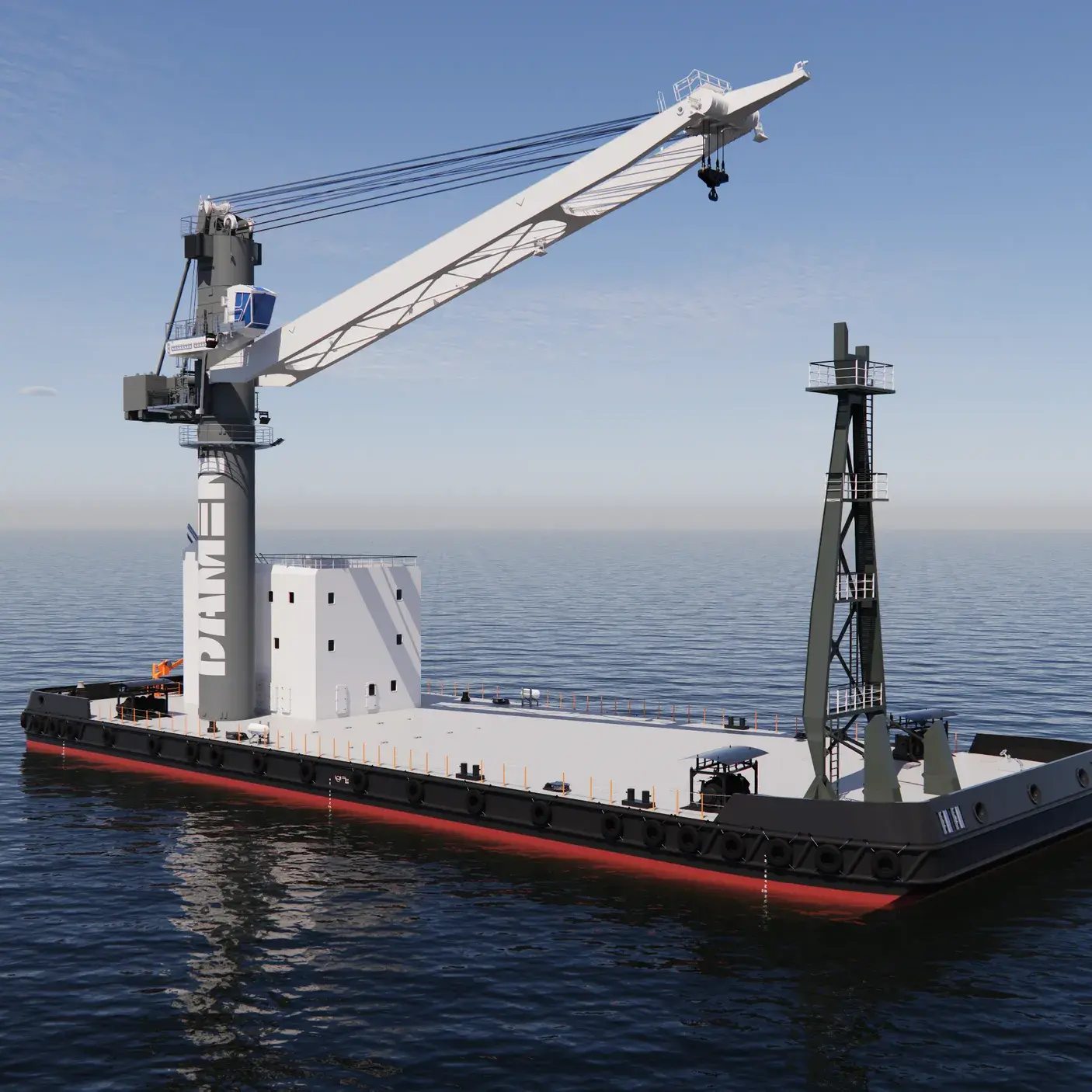

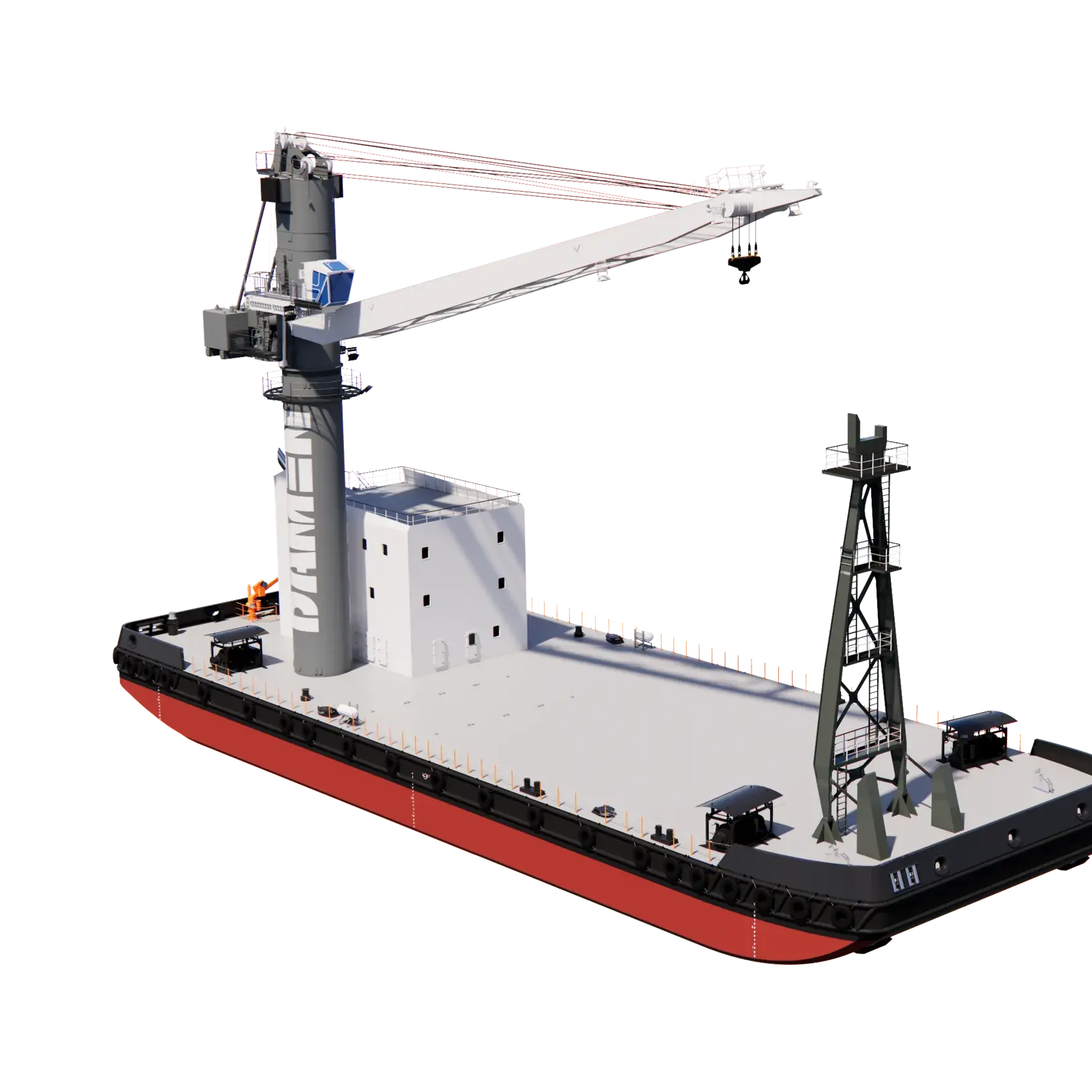

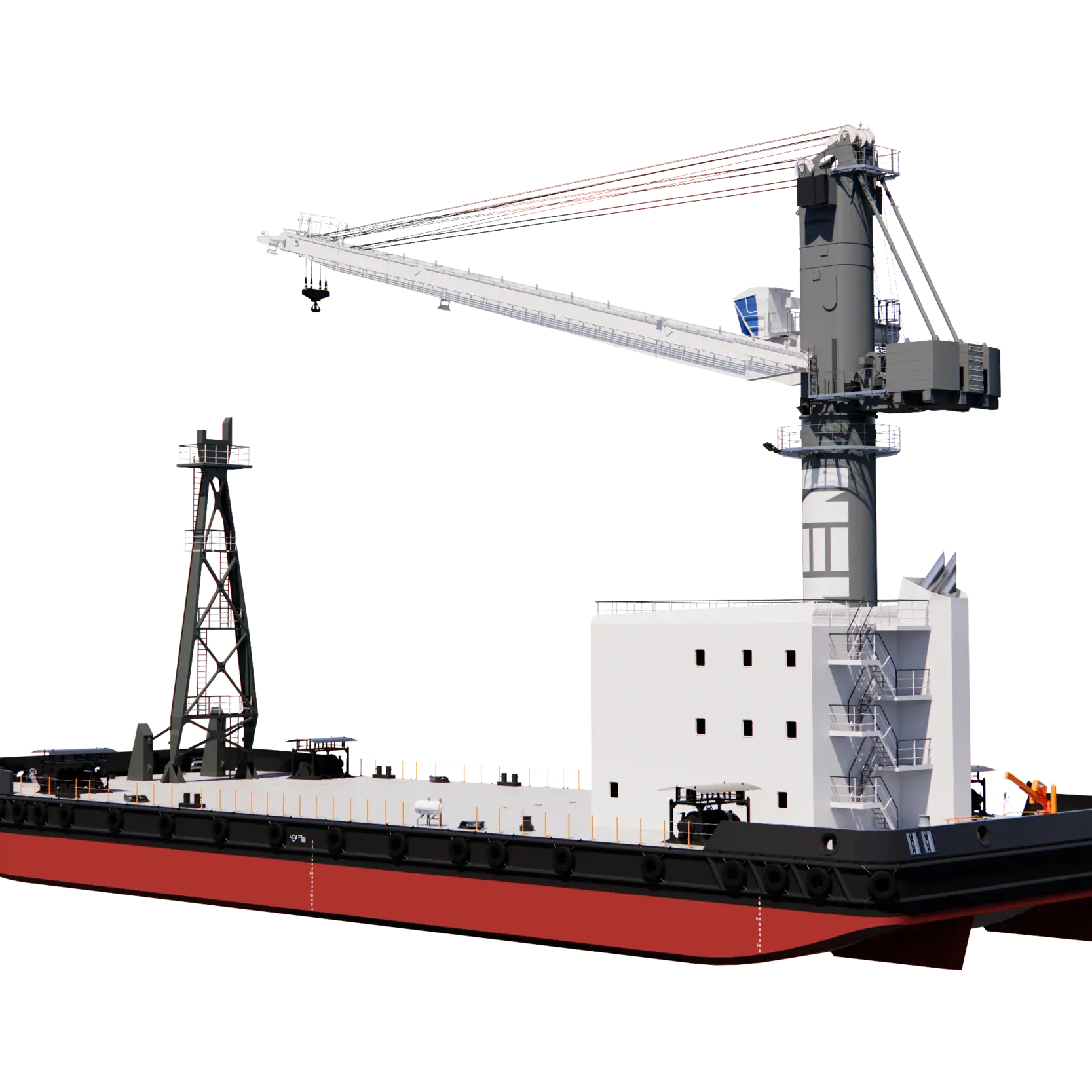

    The Damen Crane Barge 360 (CRBA 360) is specifically designed to function as a Transshipment Barge. The barge can be operated in inland waters, harbours and coastal waters.
    • Slim design jib rest
    • 45 t crane capacity for reliable cargo handling
    • Large deck space for flexible storage of various equipment like grabs and bobcats
    • Advanced mooring system for precise vessel positioning

    Key figures

    63.2

    2500

    23.5

    4.5

    Dimensions

    Length overall
    63.2 m
    Beam moulded
    23.5 m
    Depth at side moulded
    4.5 m
    Summer draught (above base)
    3 m
    Deadweight (at summer draught)
    2500 t
    Deck area
    800 m²

    Tank capacities

    Fuel oil
    231 m³
    Fresh water
    87 m³
    Sewage
    80 m³
    Lubrication oil
    5 m³
    Dirty oil
    10 m³
    Bilge water
    5 m³
    Ballast water
    1715 m³
    Crane Barge 360
    Crane Barge 500-O
    Crane Barge 500-S
    Length (m)63.275.256.45
    Deadweight (t)250033002100
    Beam (m)23.52524
    Depth (m)4.55.24.5
    ---
