Crane Barge 500-O

    Crane Barge 500-O

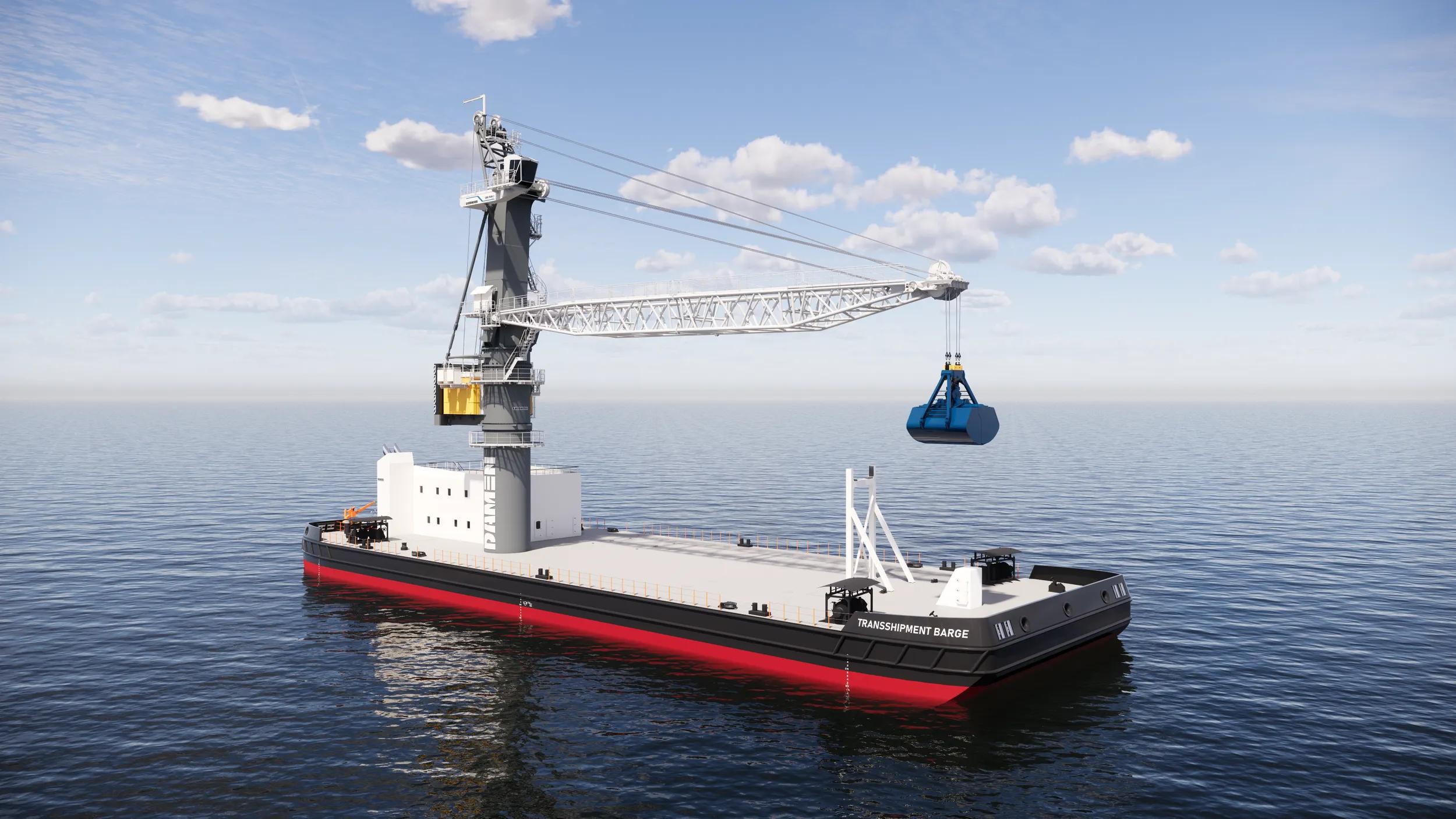

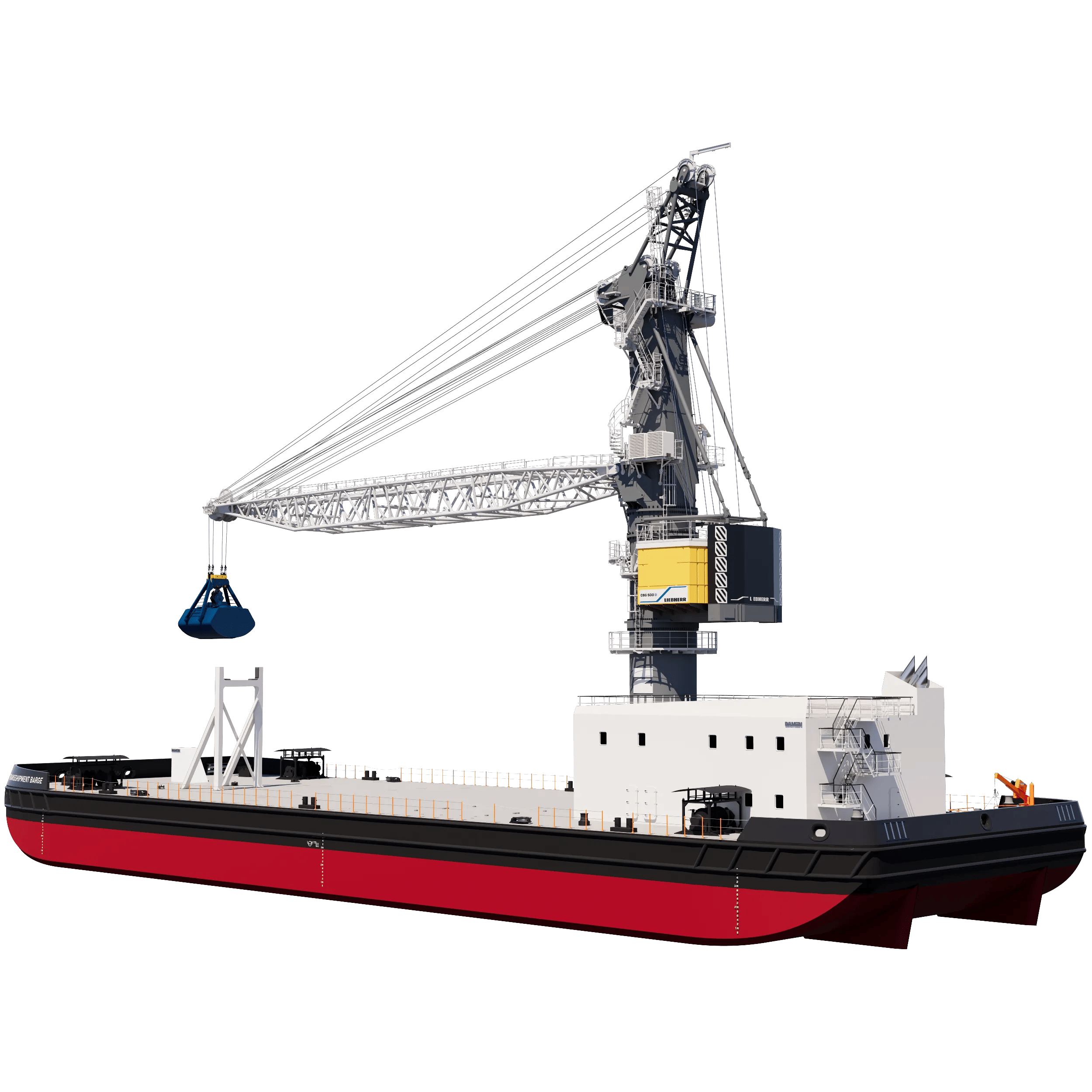

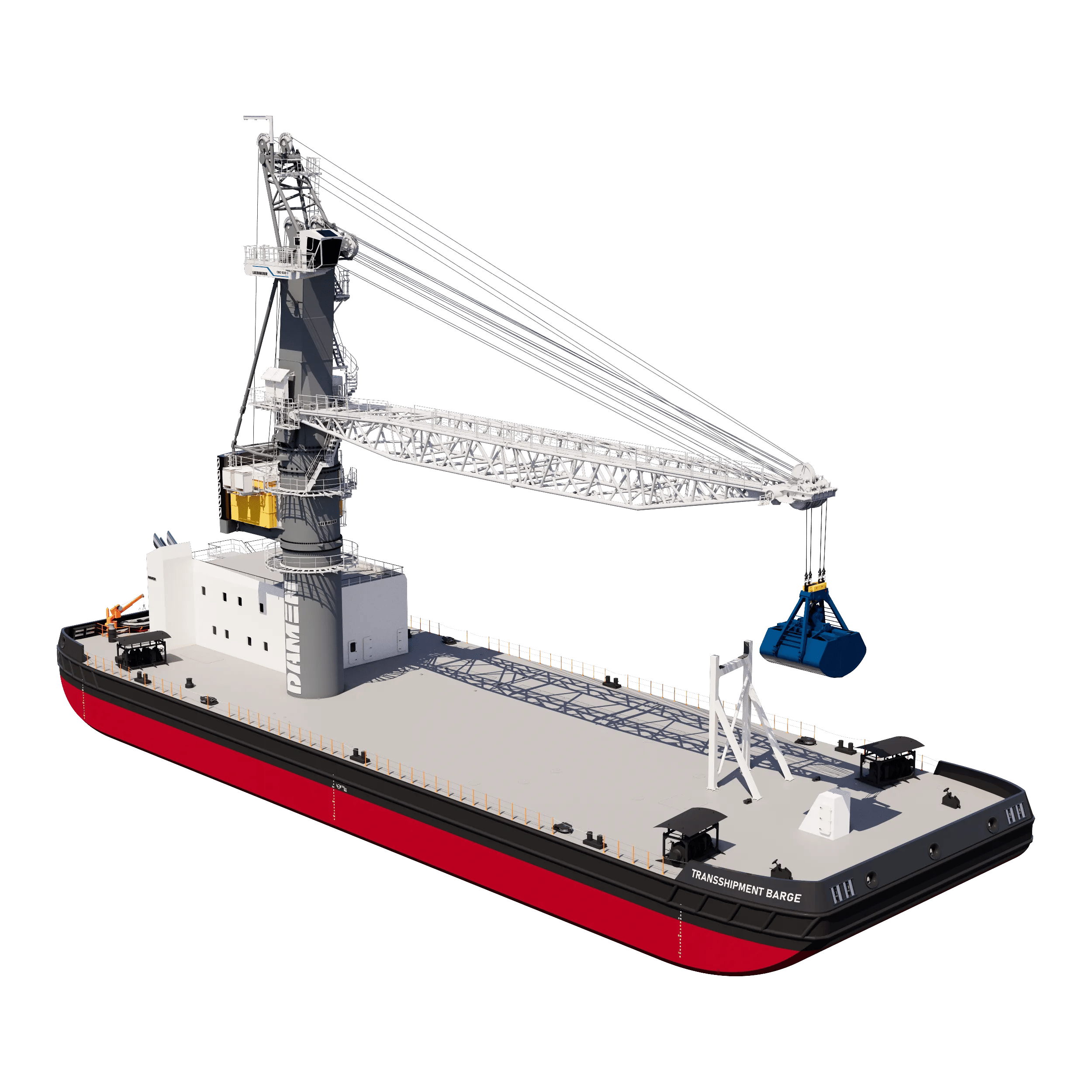

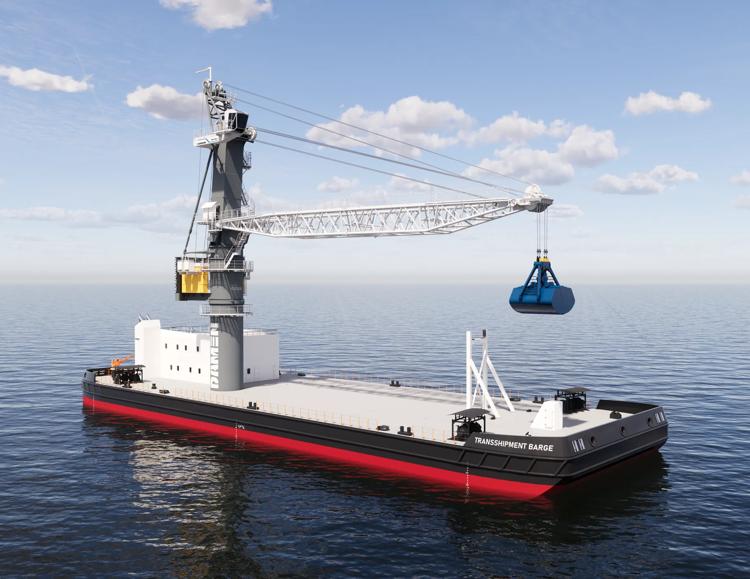

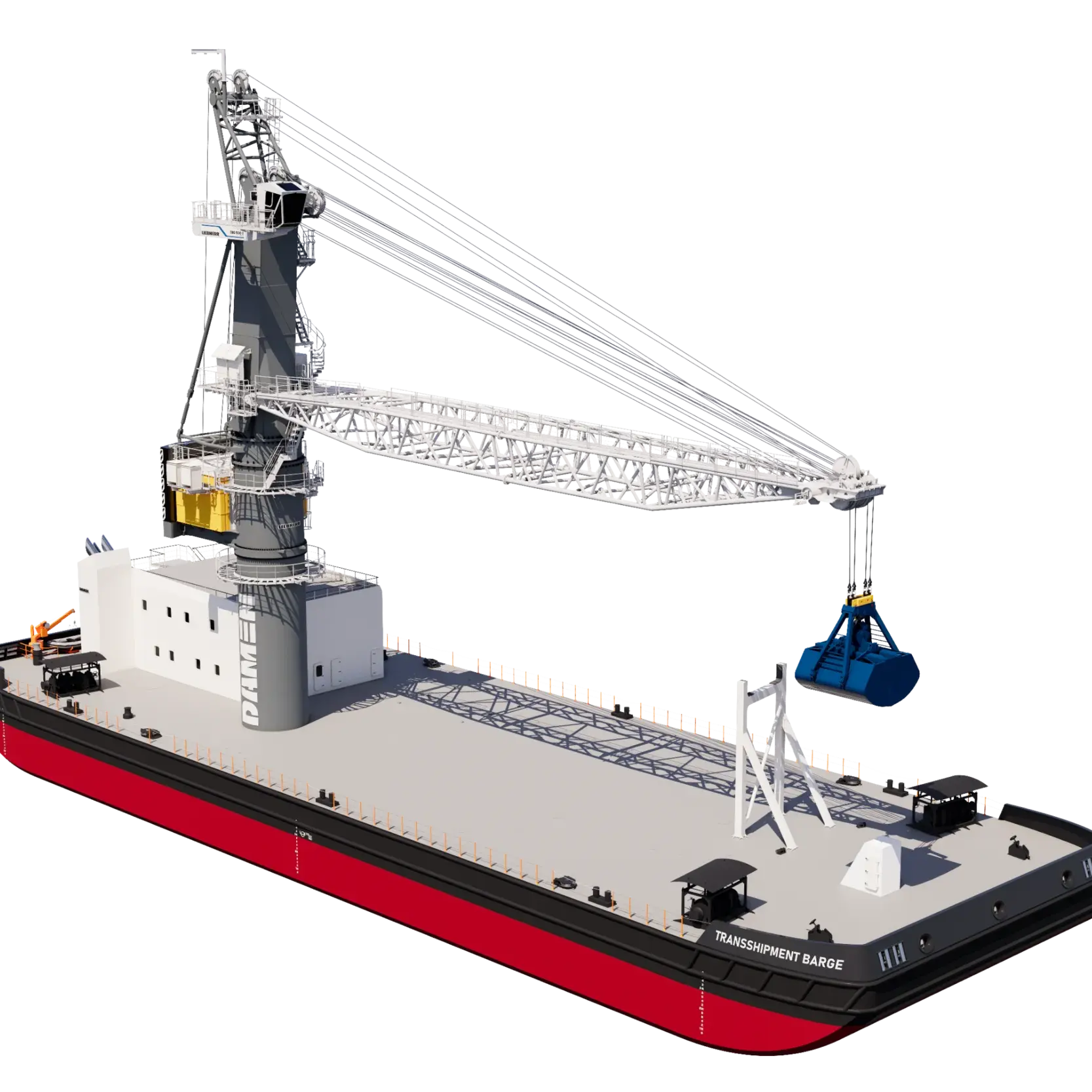

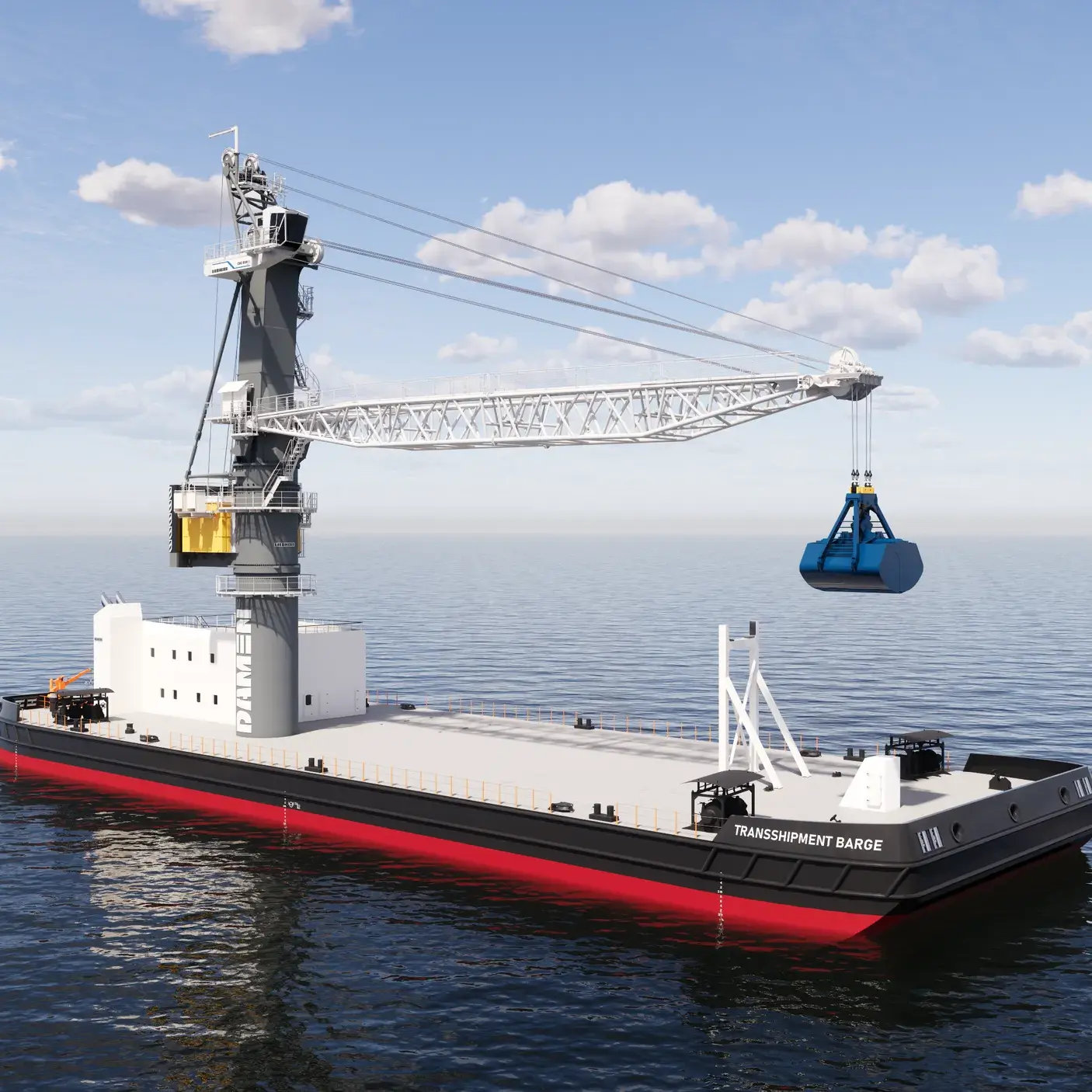

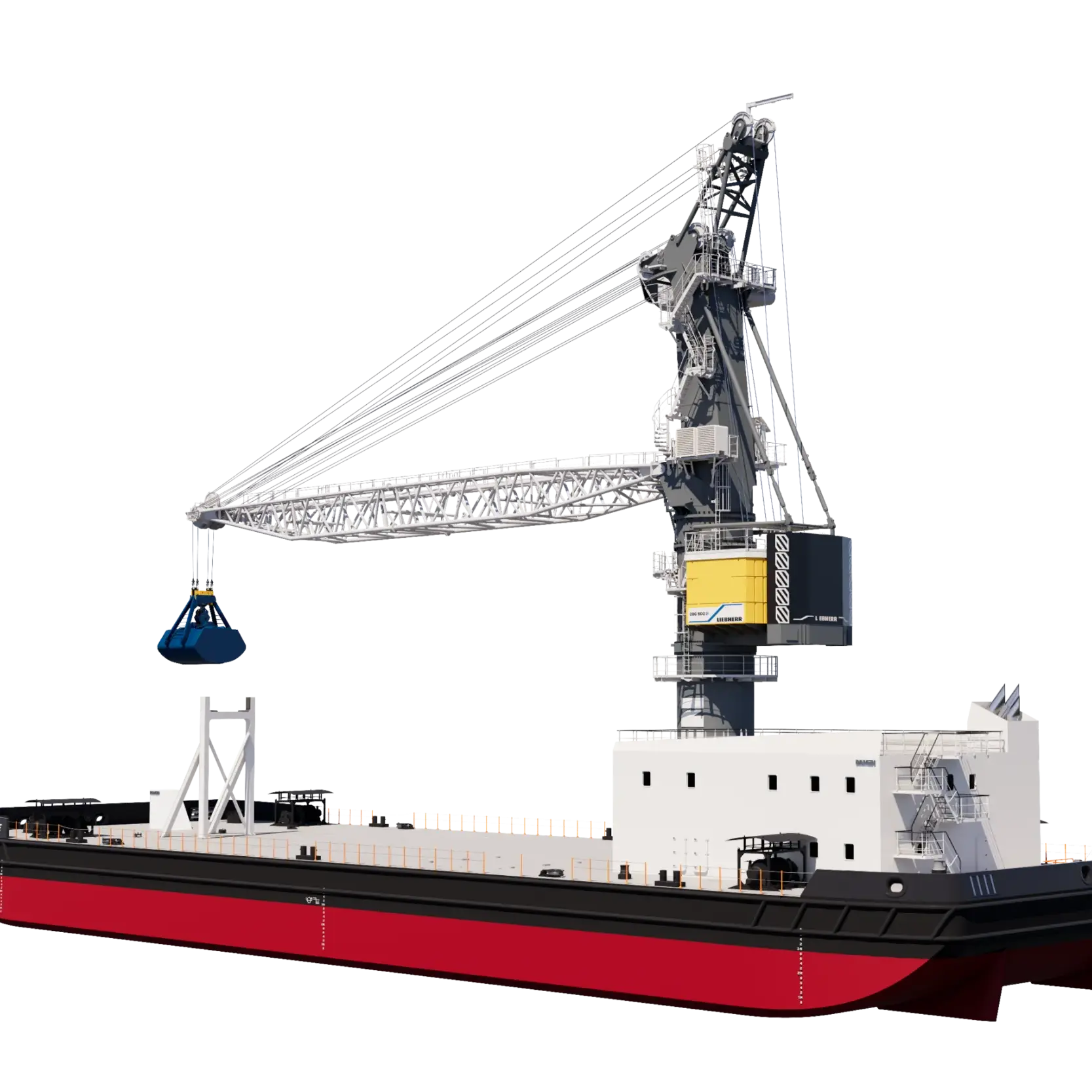

    The Damen Crane Barge 500-O is designed for open waters. The barge can be operated in inland waters, harbours and coastal waters.
    • Open water crane barge for high-volume transshipment
    • 65 t crane capacity for heavy cargo operations
    • Large deck space for flexible storage of various equipment like grabs and bobcats
    • 3300 t deadweight for large-scale cargo handling

    Key figures

    75.2

    3300

    25

    5.2

    Dimensions

    Length overall
    75.2 m
    Beam moulded
    25 m
    Depth at side moulded
    5.2 m
    Summer draught (above base)
    3.2 m
    Deadweight (at summer draught)
    3300 t
    Deck area
    800 m²

    Tank capacities

    Fuel oil
    346 m³
    Fresh water
    90 m³
    Sewage
    71 m³
    Lubrication oil
    7 m³
    Dirty oil
    23 m³
    Bilge water
    23 m³
    Ballast water
    3264 m³
    Do you want to know more?

    Compare similar Crane Barges

    Length (m)Deadweight (t)Beam (m)Depth (m)
    Crane Barge 500-O75.23300255.2
    Crane Barge 500-S56.452100244.5
    Crane Barge 36063.2250023.54.5
    Crane Barge 500-O
    Length (m)
    75.2
    Deadweight (t)
    3300
    Beam (m)
    25
    Depth (m)
    5.2
    Crane Barge 500-S
    Length (m)
    56.45
    Deadweight (t)
    2100
    Beam (m)
    24
    Depth (m)
    4.5
    Crane Barge 360
    Length (m)
    63.2
    Deadweight (t)
    2500
    Beam (m)
    23.5
    Depth (m)
    4.5
