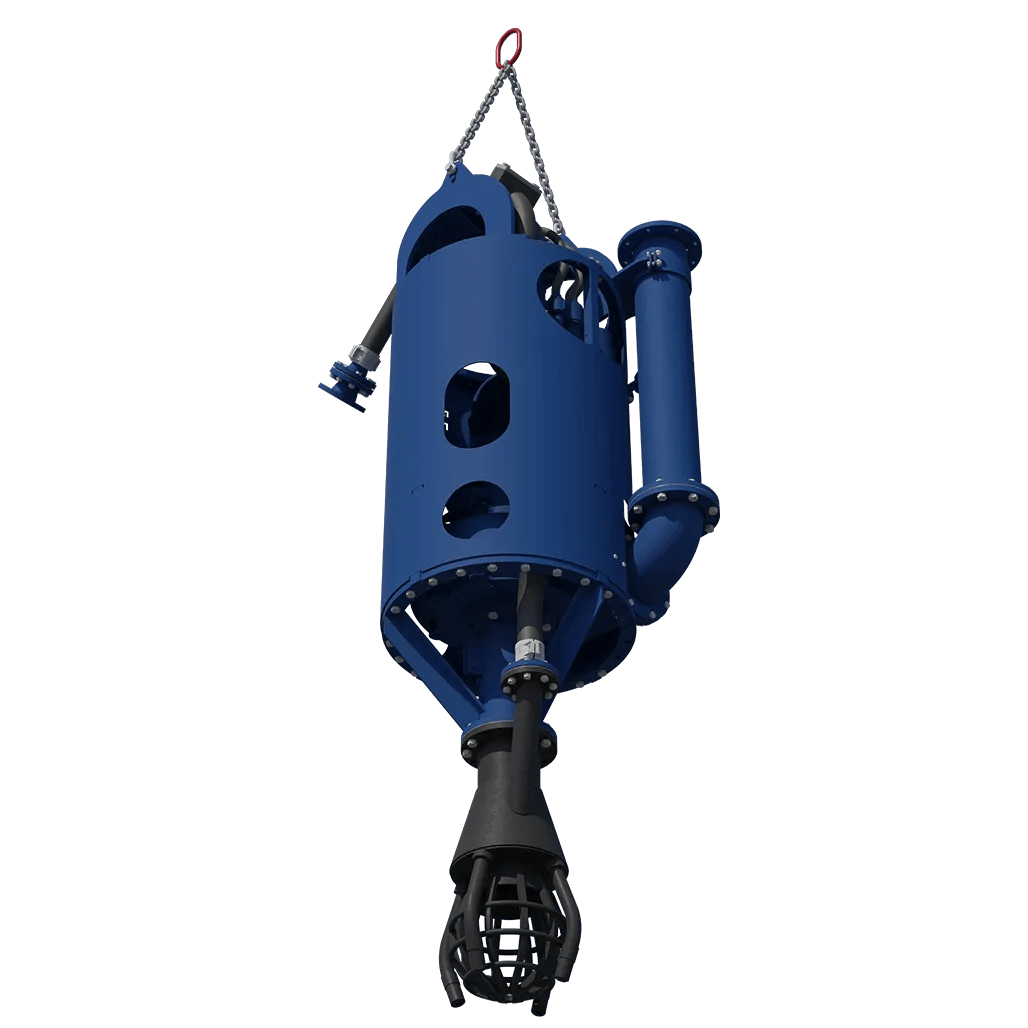

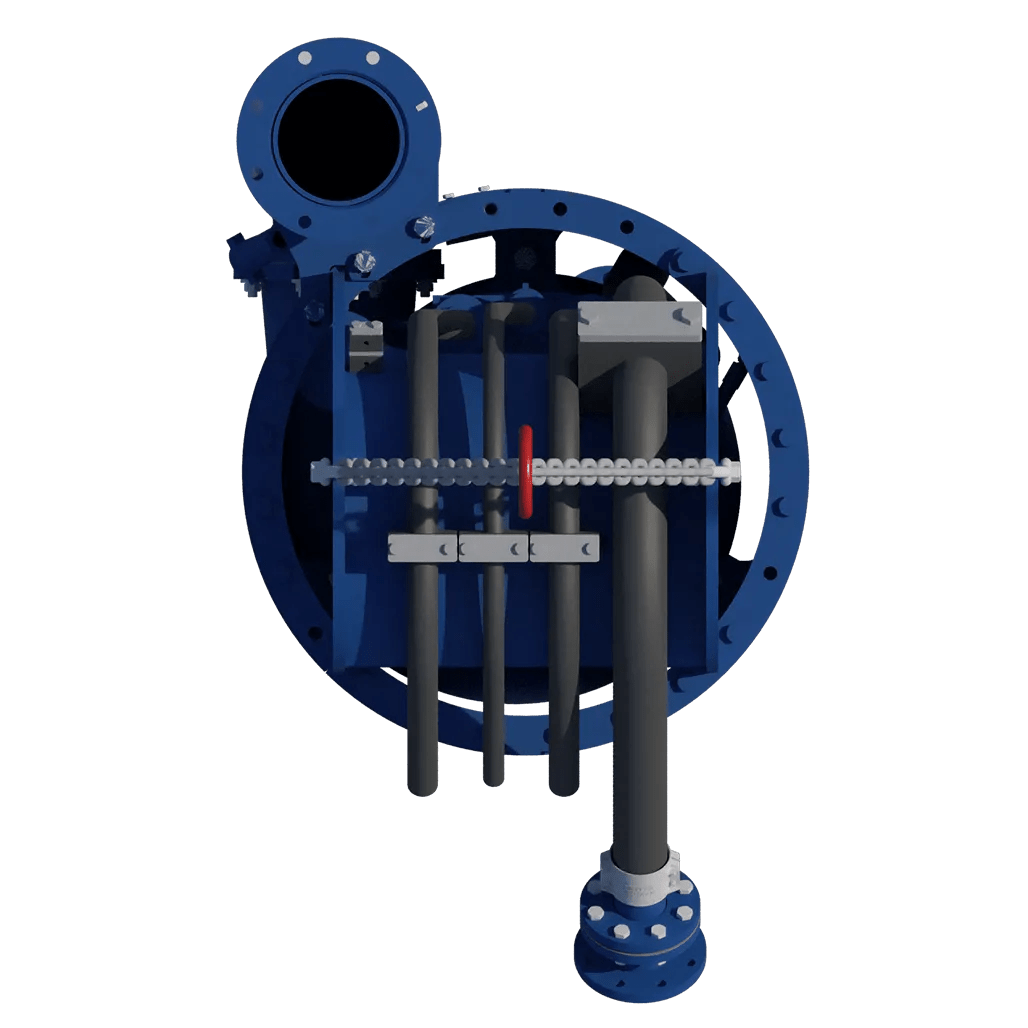

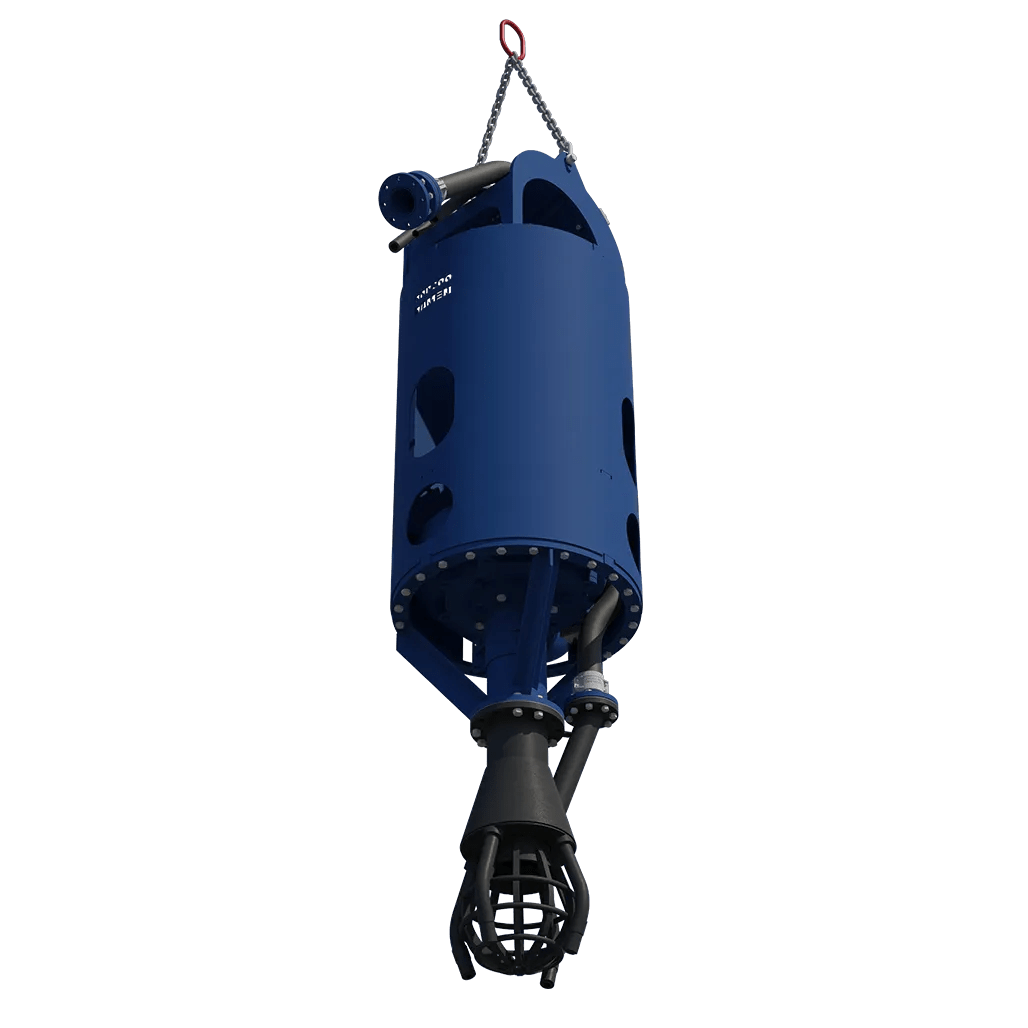

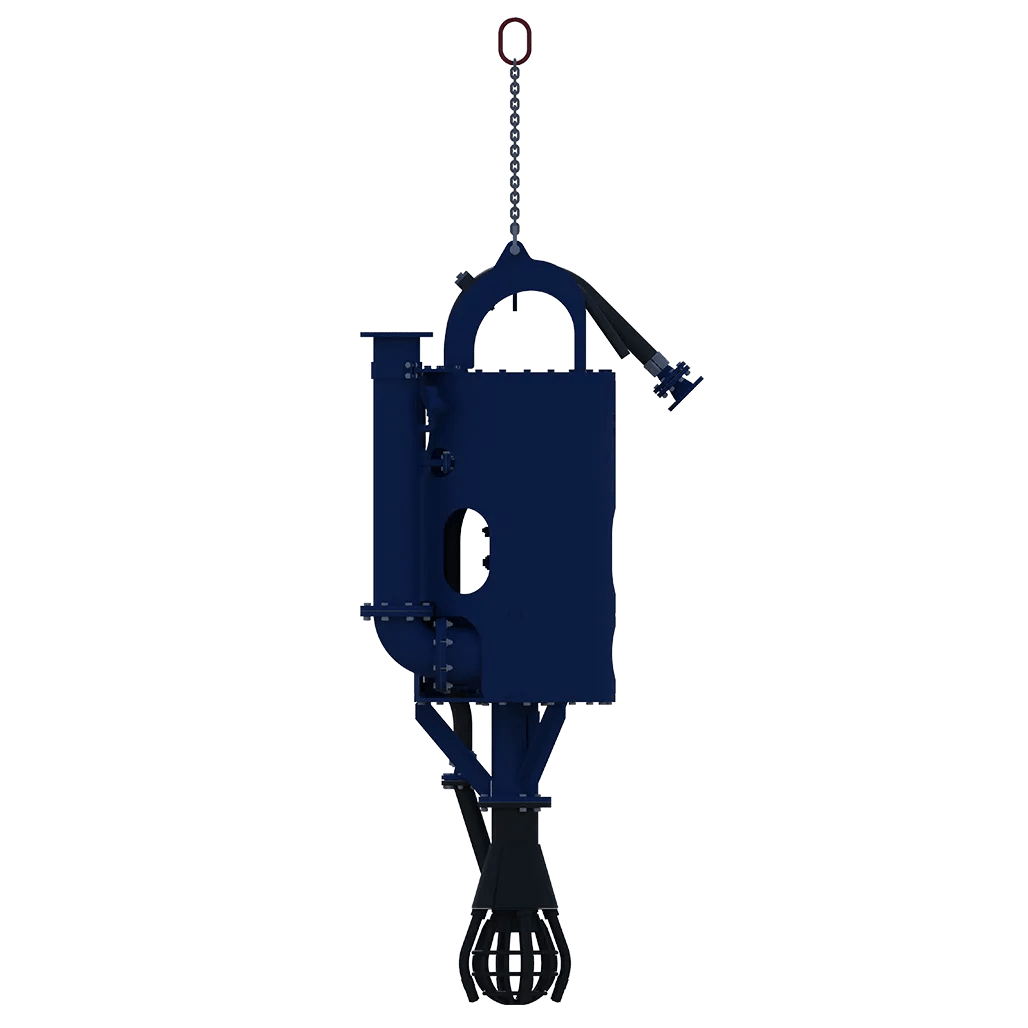

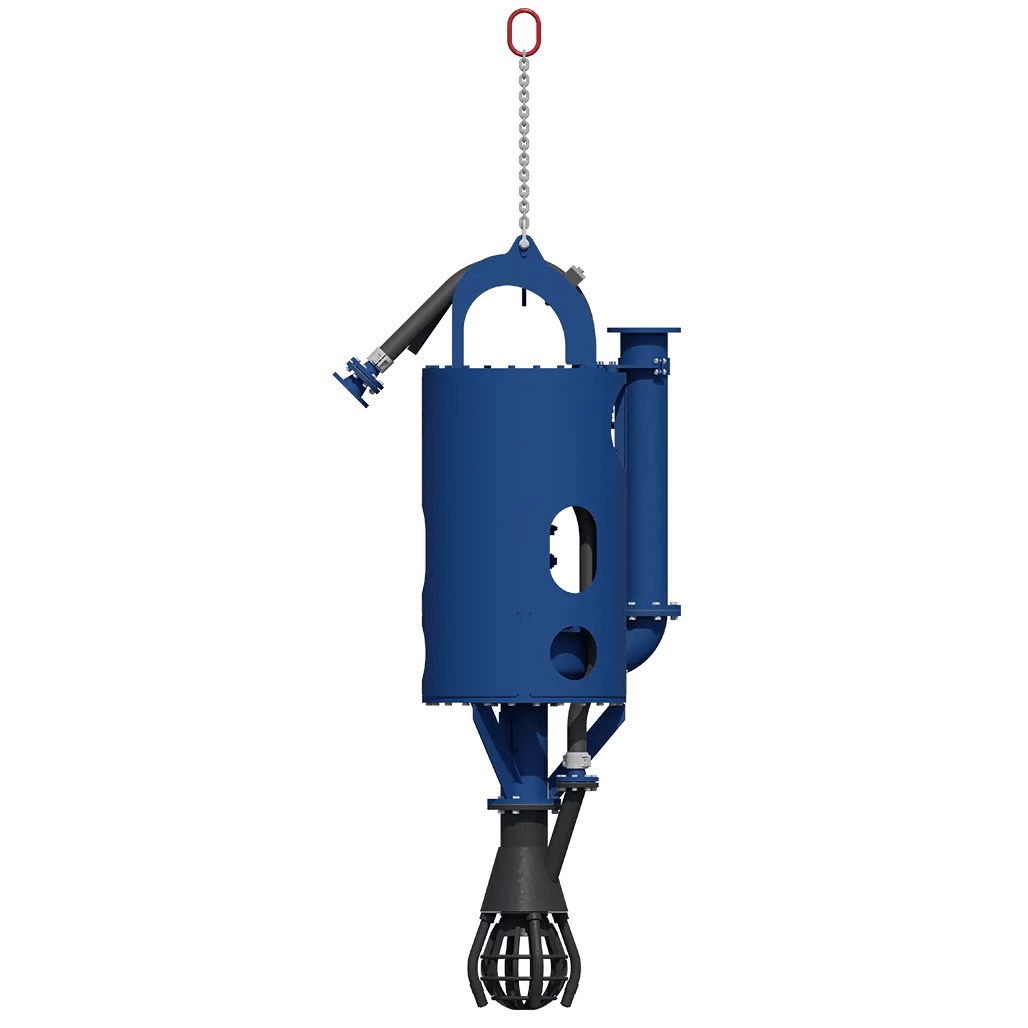

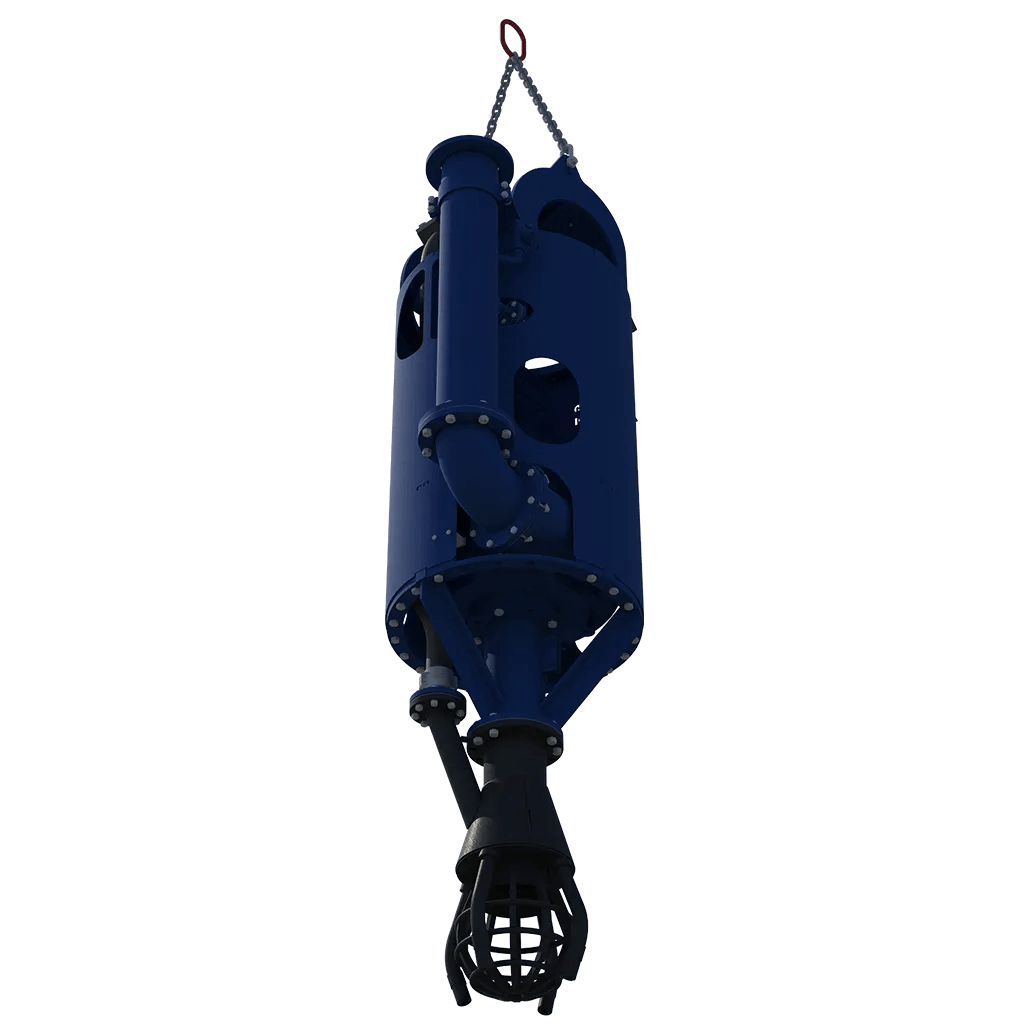

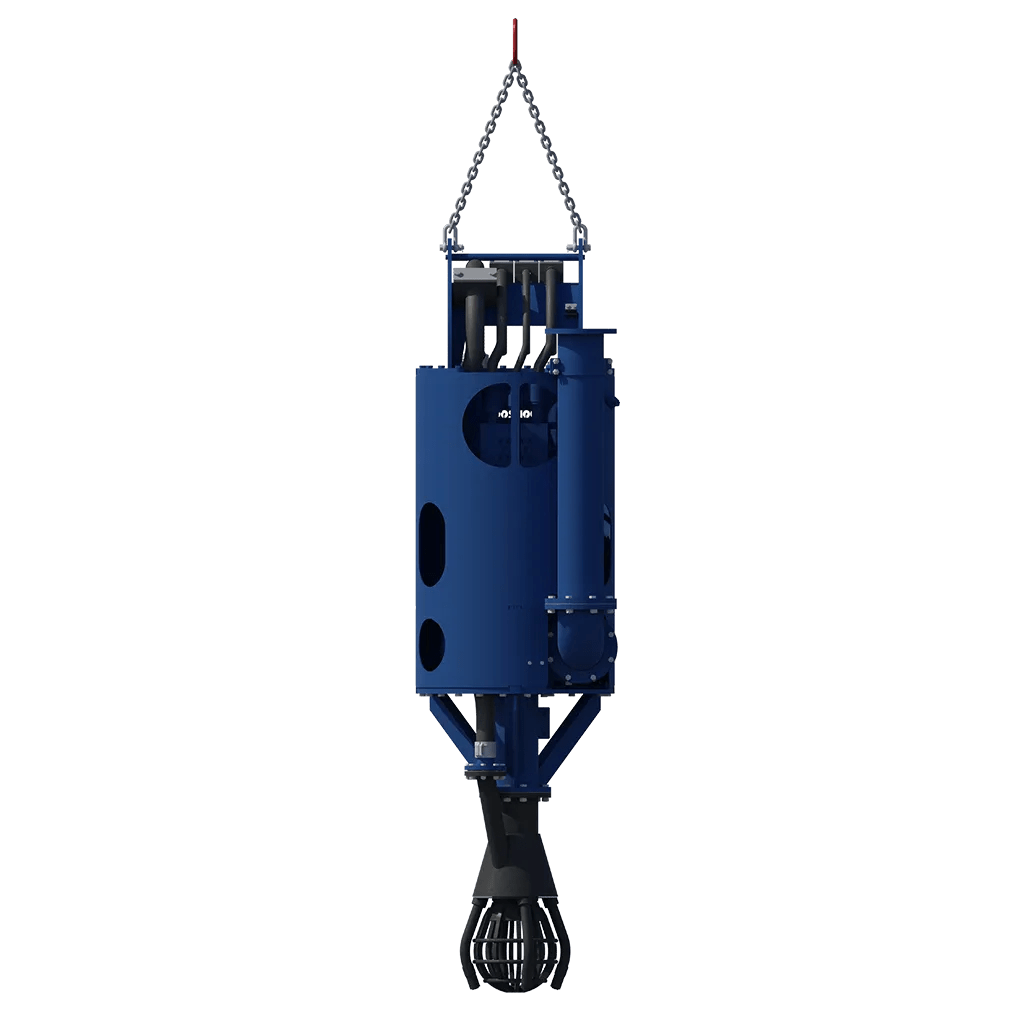

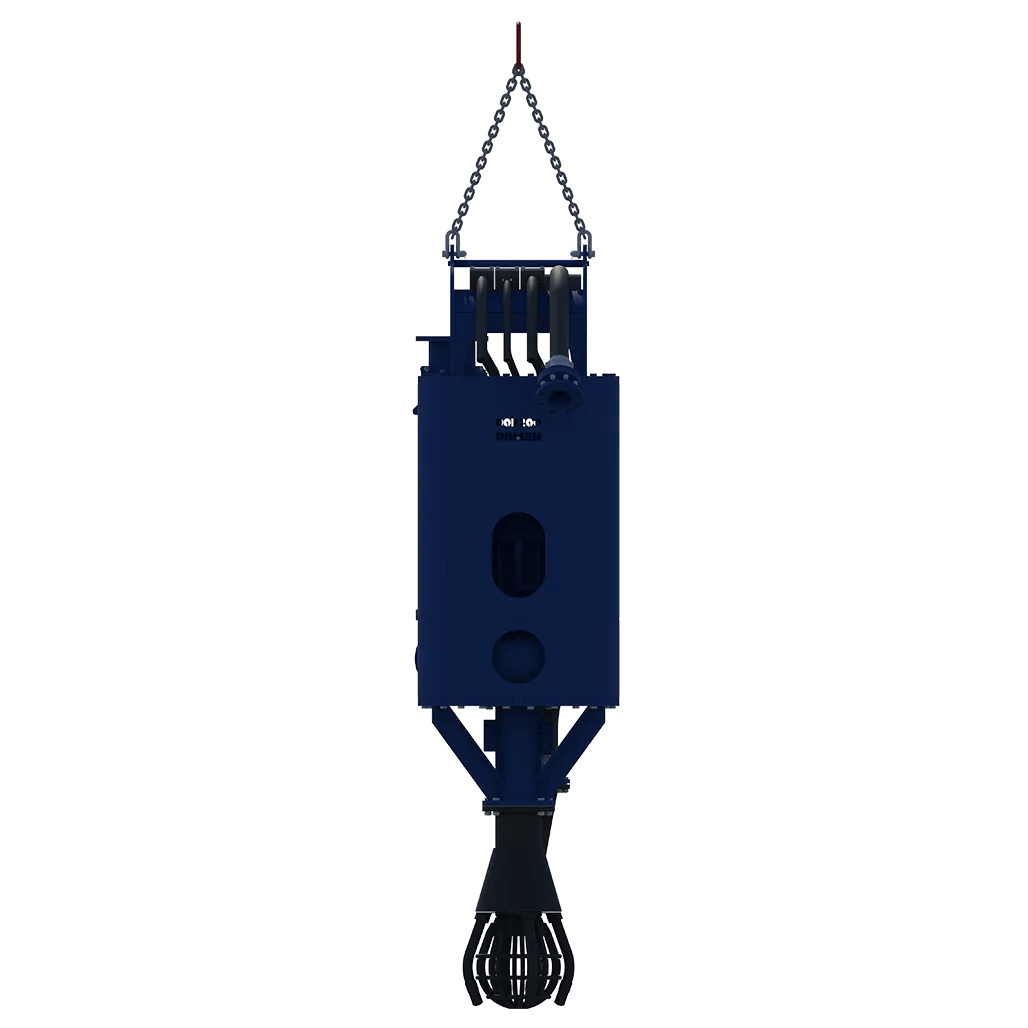

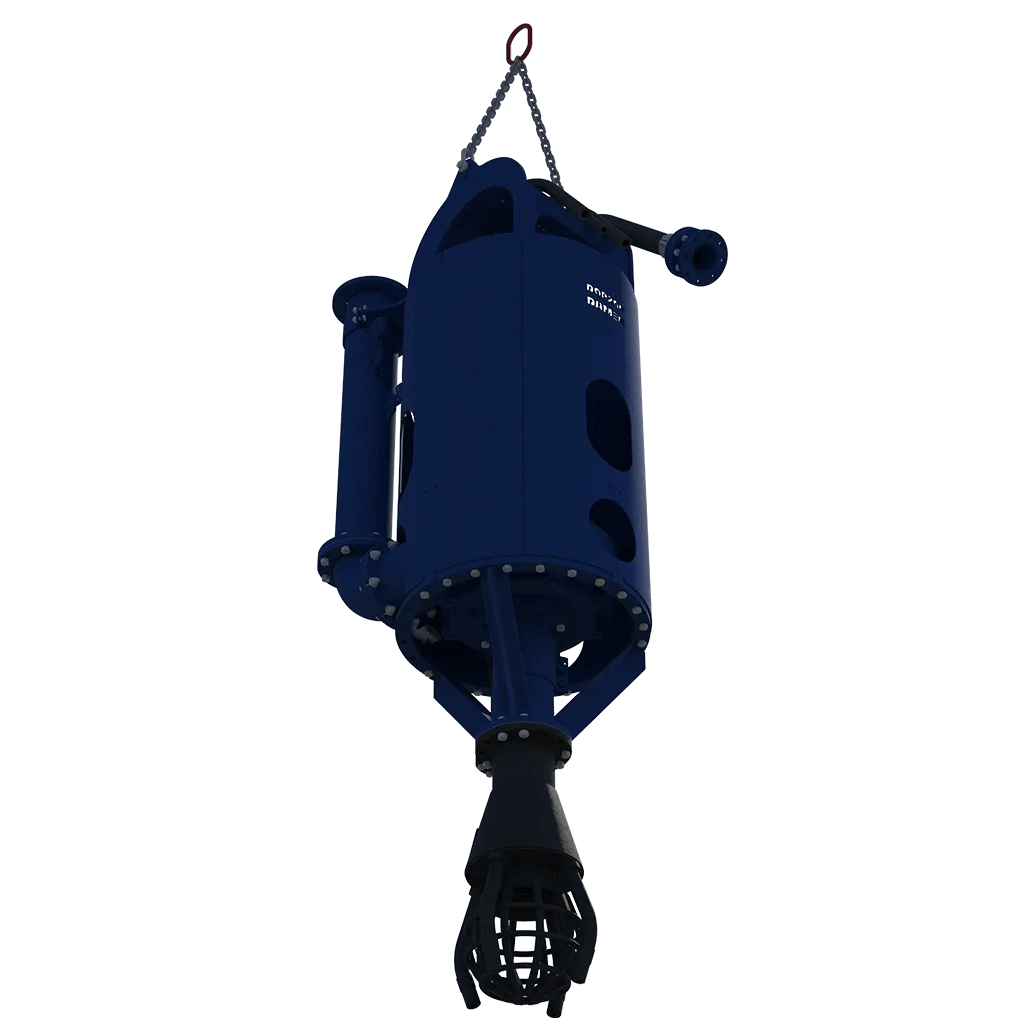

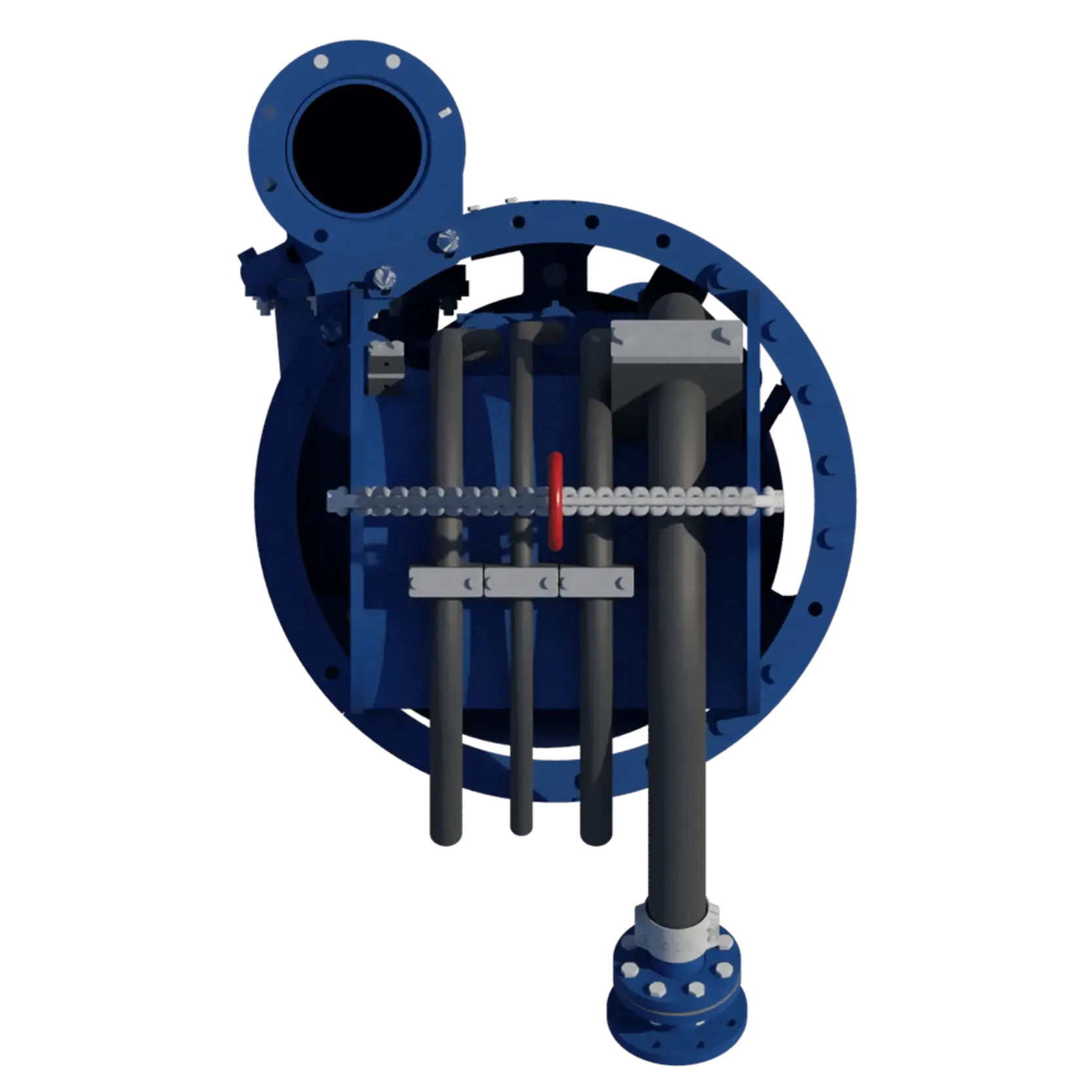

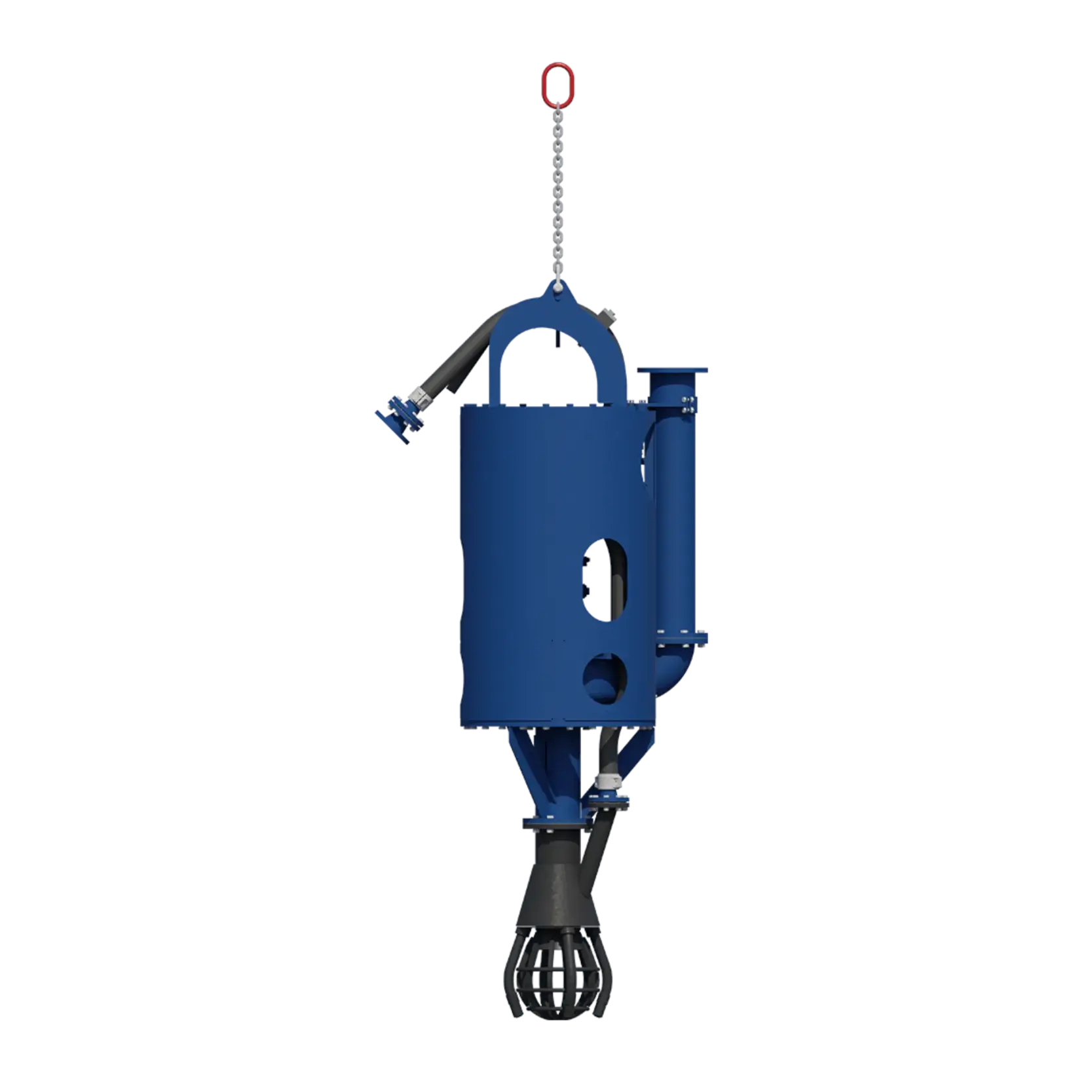

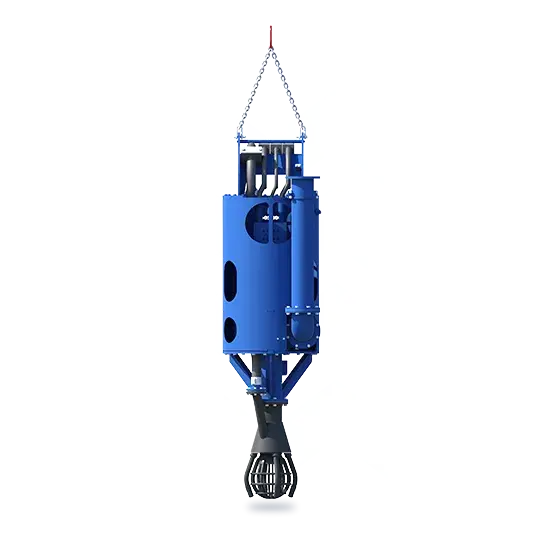

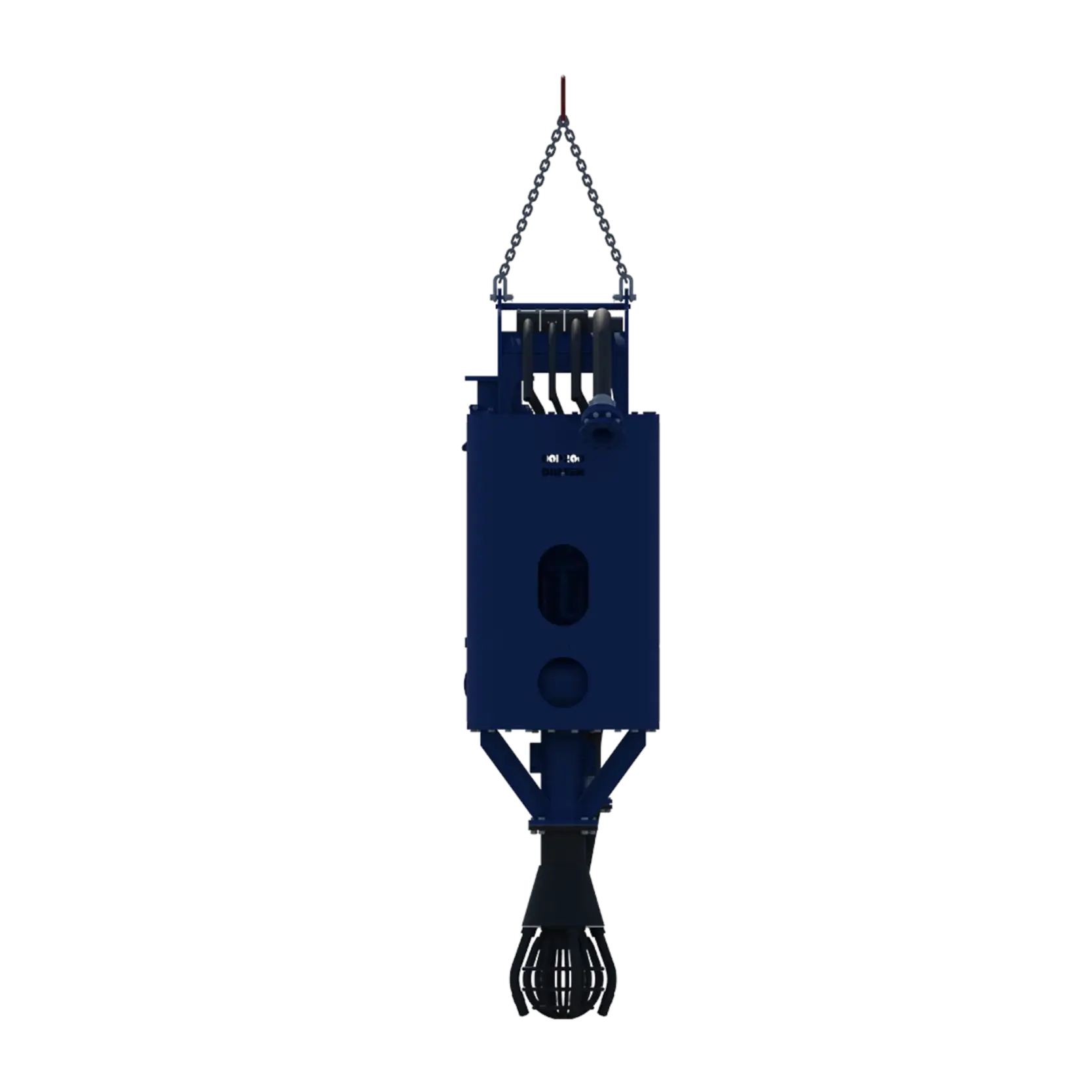

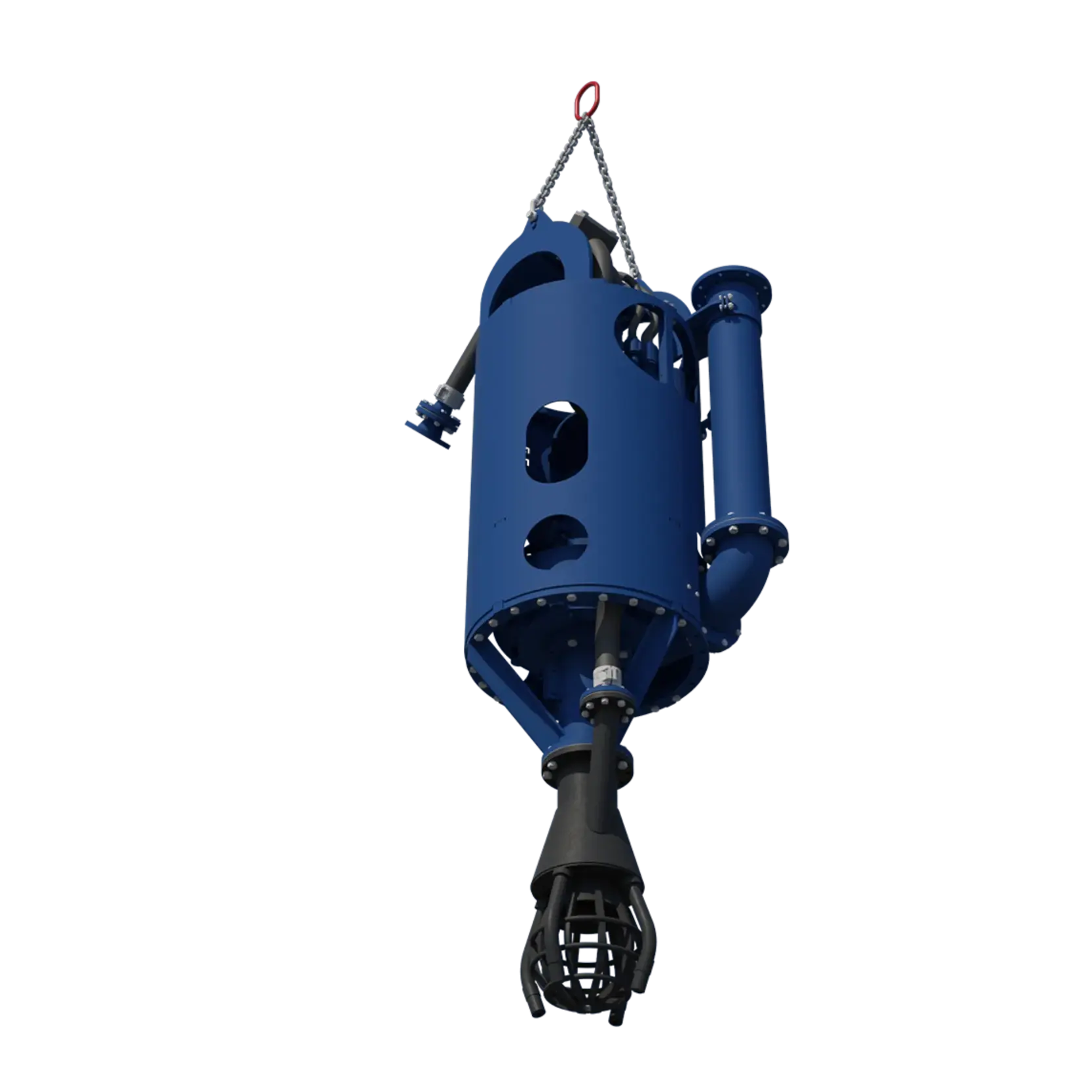

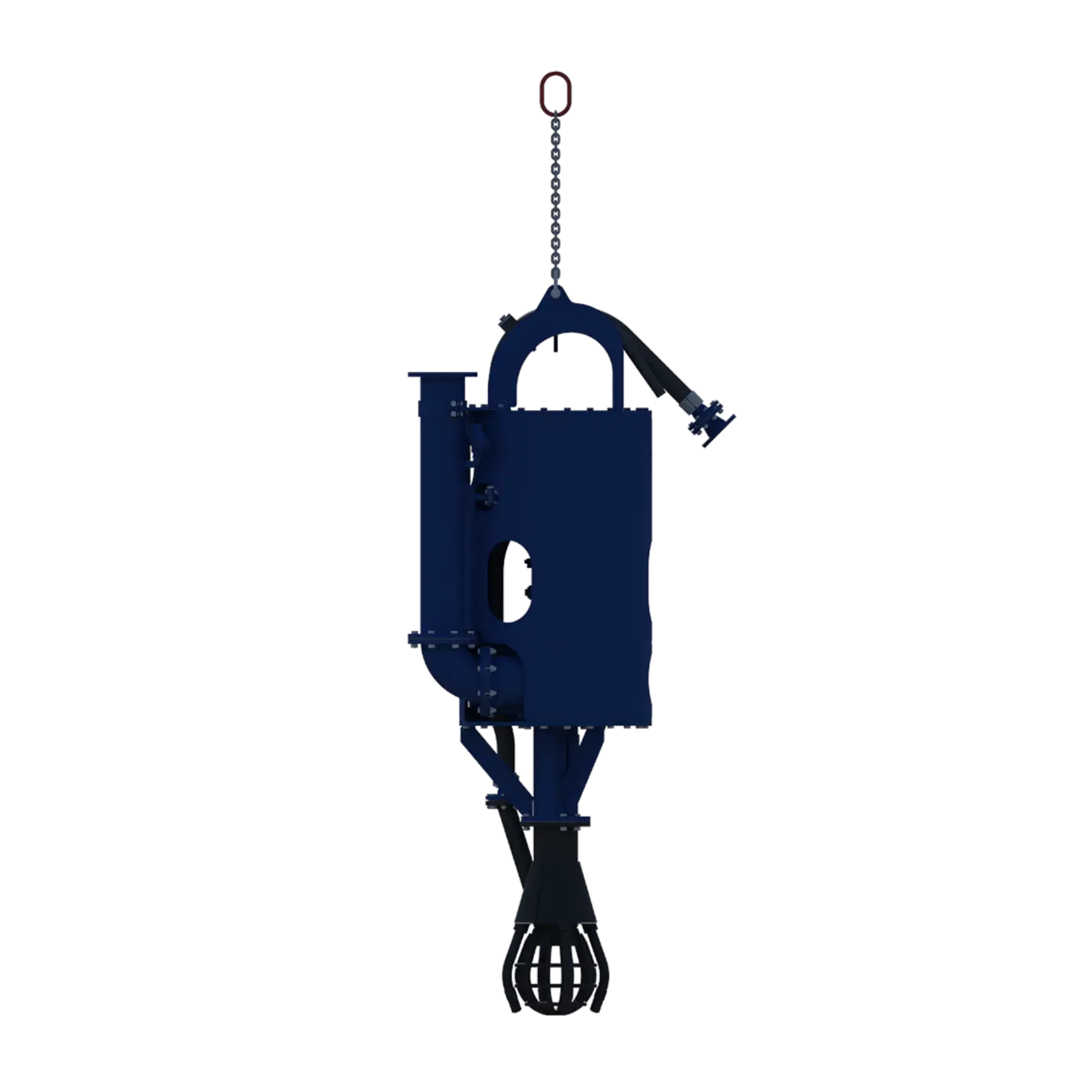

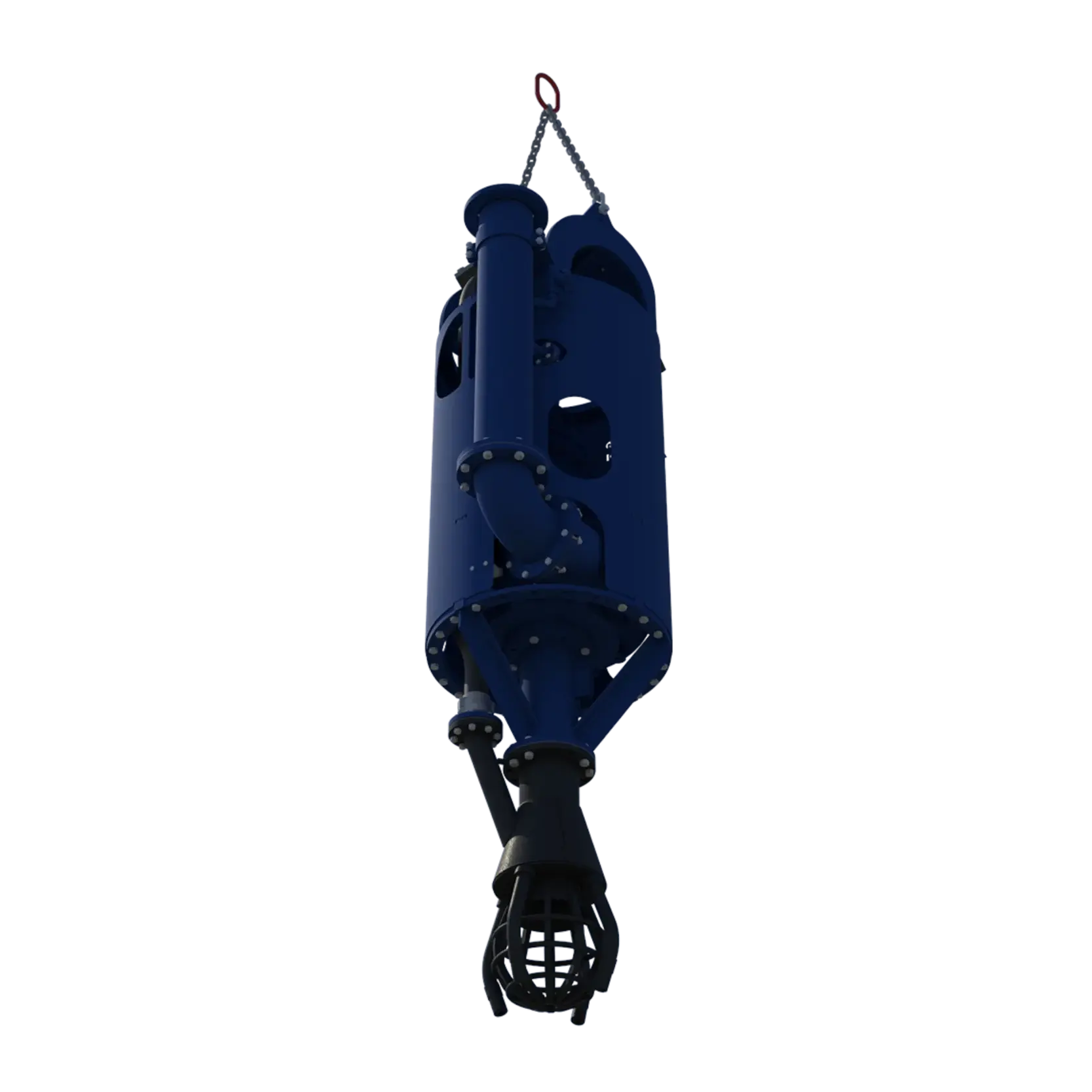

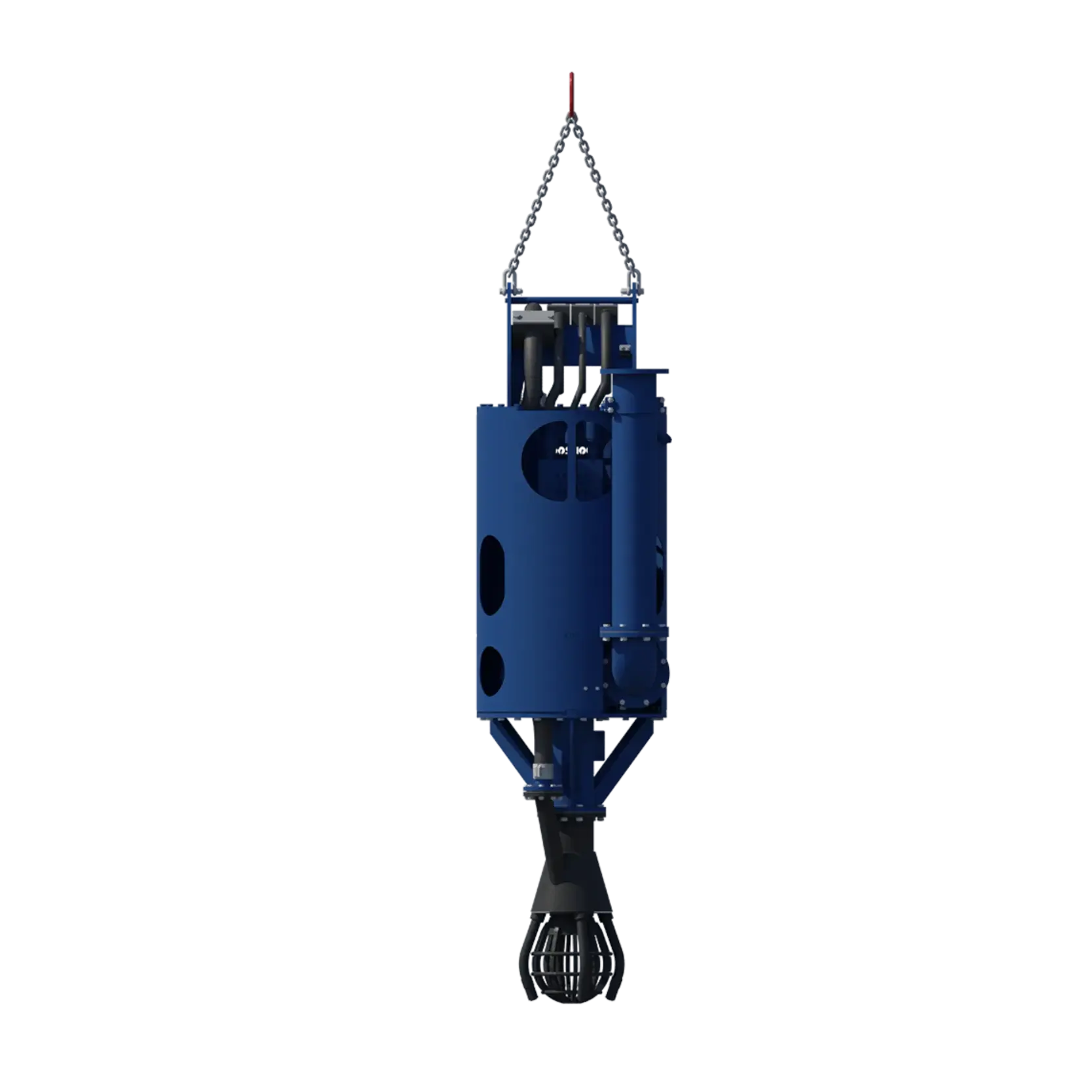

DOP submersible dredge pump DOP200

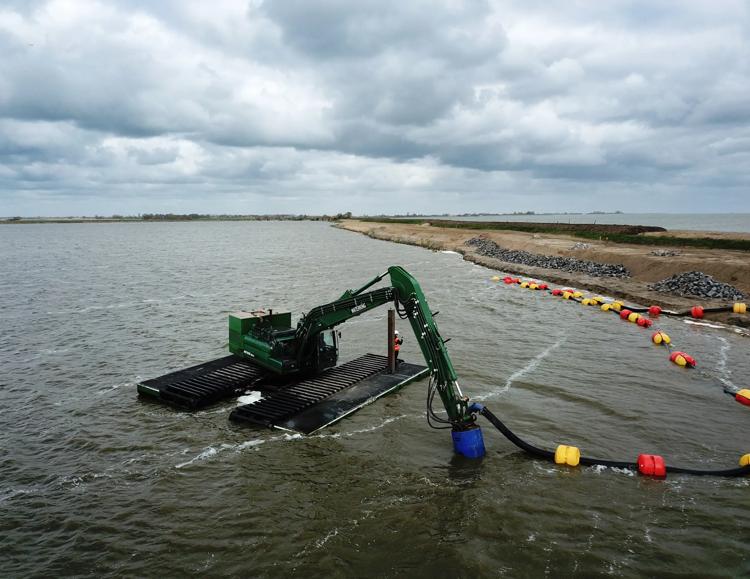

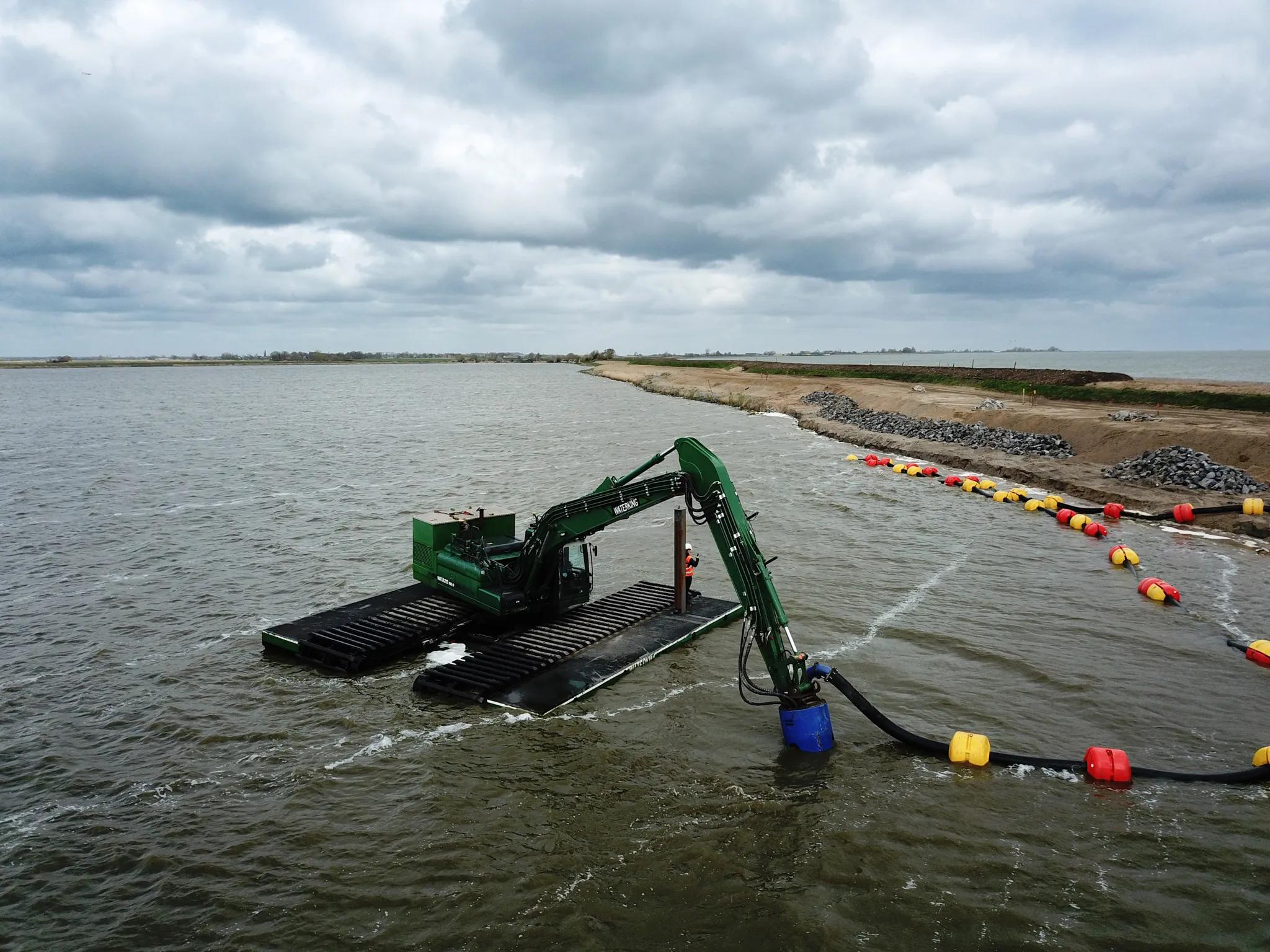

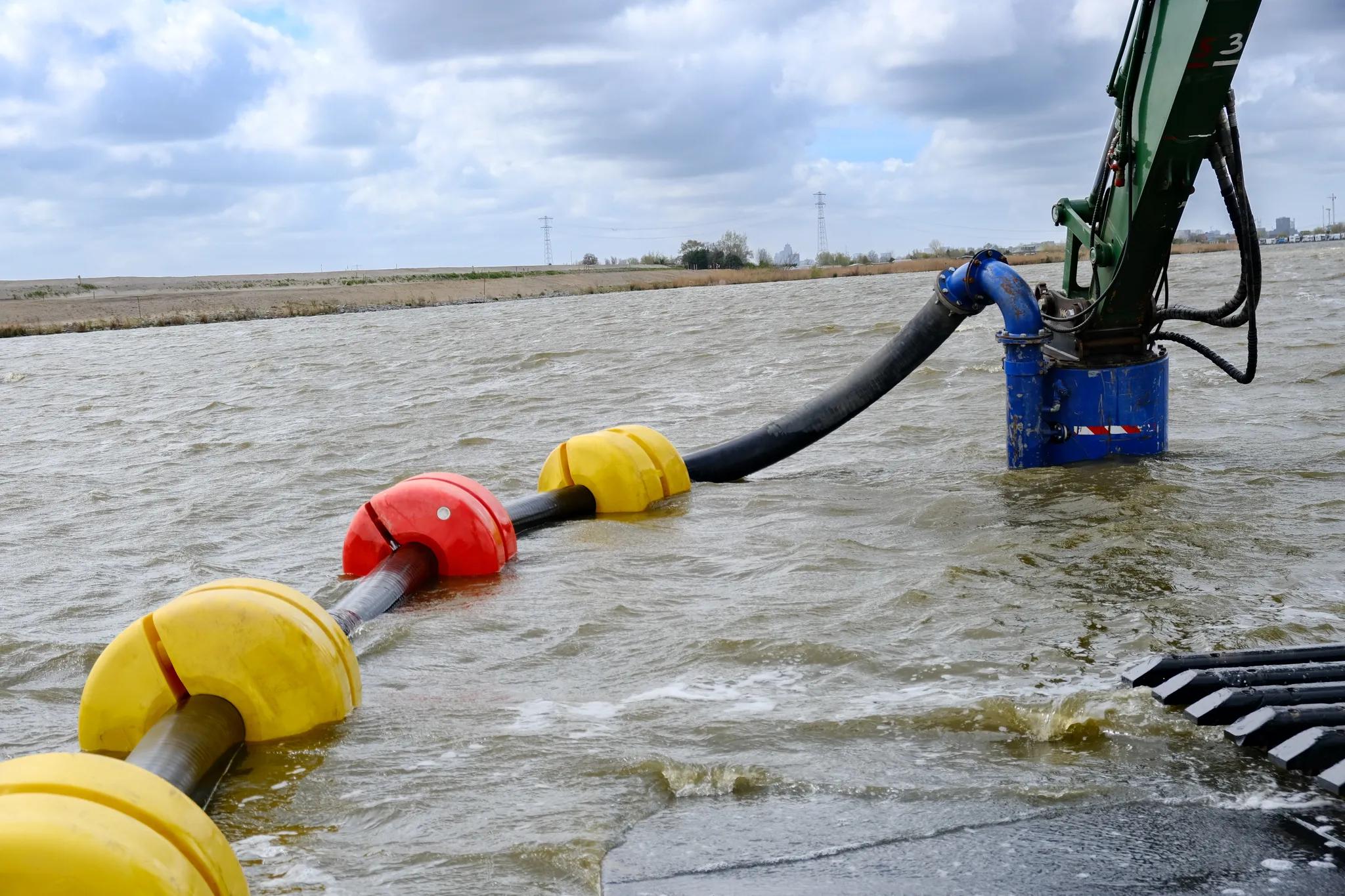

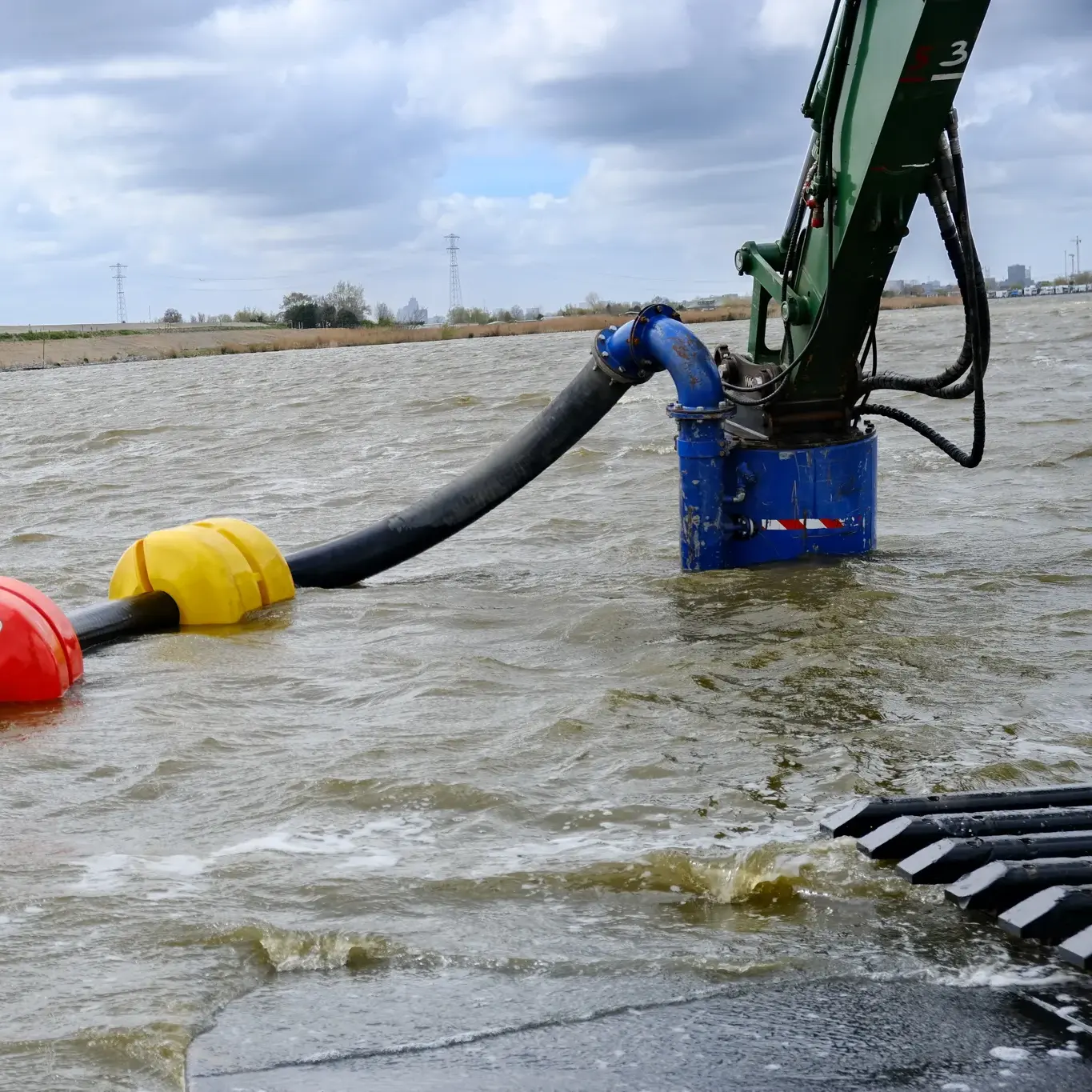

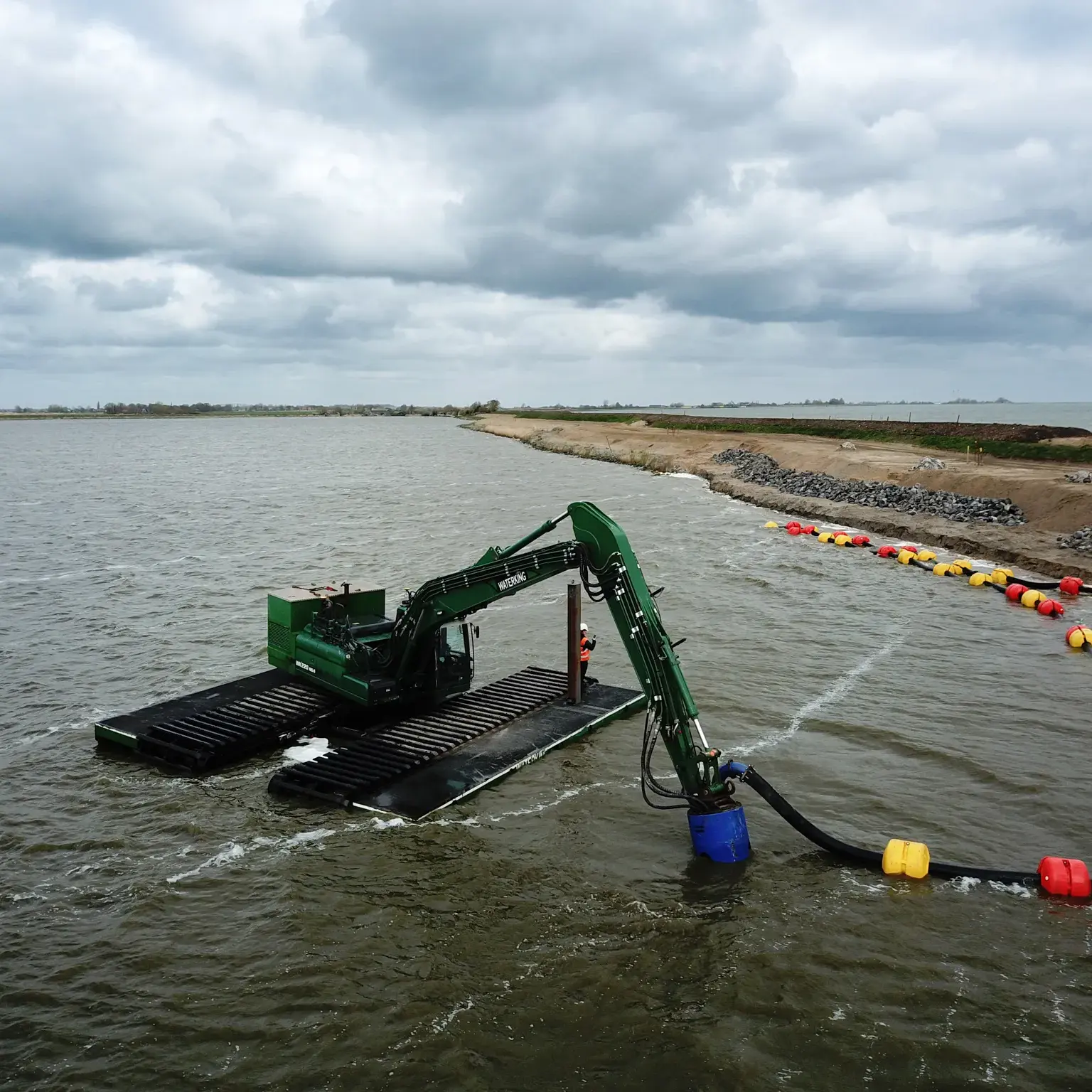

The DOP200 is a wear-resistant sub pump fit for excavator mounting due to its limited size and weight. The heavy-duty design maximises uptime in the rough dredging environment. Additionally, the large array of easy exchangeable suction heads ensures that the submersible dredge pump can be used in a wide array of civil engineering and mining jobs.
- Power packs
- Discharge hoses
- Jet packs
- Hydraulic hoses
Fuel flexible
- Diesel
- Electric
- Wear resistant white cast iron wear parts
- Large ball passage maximising uptime

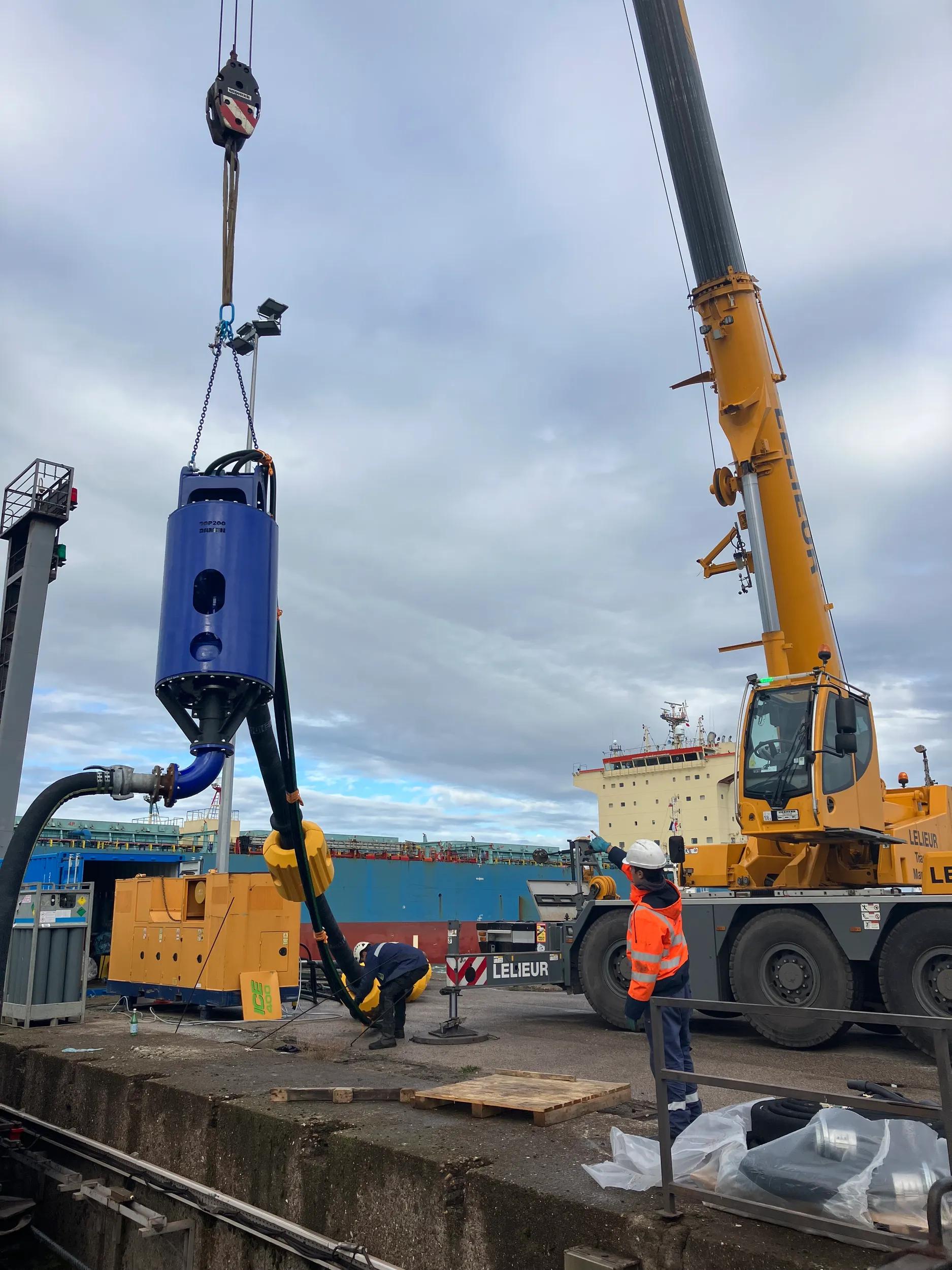

- Easy to handle and quick mobilisation

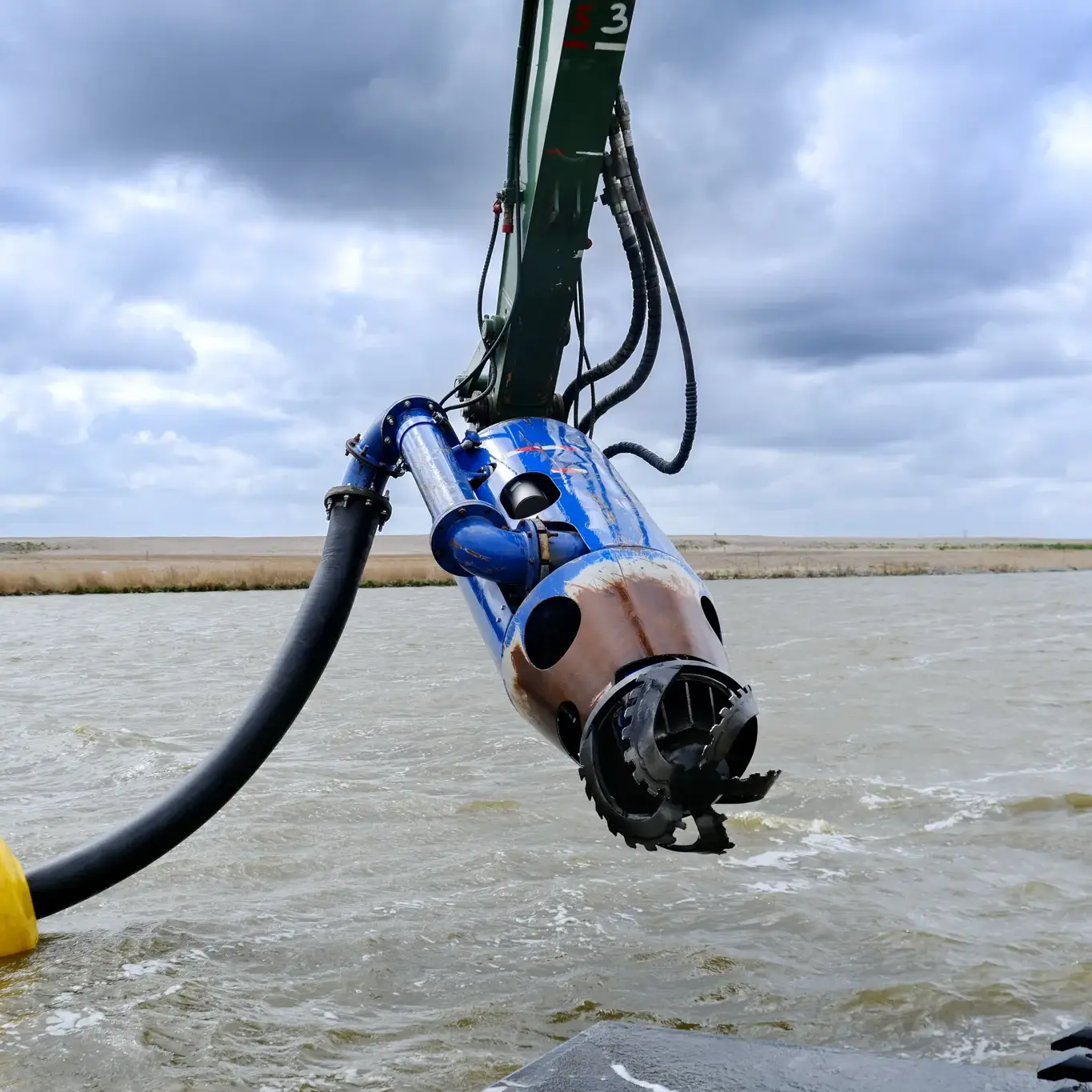

- Adaptable to any dredging job by changing the suction head
Key figures
800
5.0
200
1.36
125
Performance
- Mixture capacity
- 800 m³/h
- Max head
- 5 bar
- Max pump speed
- 1200 rpm
- Max power
- 120 kW
Requirements
- Hydr oil flow
- 300 l/min
- Hydr oil pressure
- 250 bar
- Jet water
- 180 m³/h
- Jet water pressure
- 8 bar
Dimensions
- Suction diameter
- 200 mm
- Discharge diameter
- 200 mm
- Max sphere passage
- 125 mm
- Unit weight
- 1360 kg
Compare similar DOP pumps
| Production (m³/h) | Max head (bar) | Pipe diameter (mm) | Weight (t) | Max sphere passage (mm) | ||
|---|---|---|---|---|---|---|
| DOP submersible dredge pump DOP200 | 800 | 5.0 | 200 | 1.36 | 125 | |
| Electrical DOP submersible dredge pump E-DOP200 | 800 | 5.0 | 200 | 2.2 | 125 | |
| DOP submersible dredge pump DOP250 | 1250 | 5.3 | 250 | 2.43 | 130 |
DOP submersible dredge pump DOP200
- Production (m³/h)
- 800
- Max head (bar)
- 5.0
- Pipe diameter (mm)
- 200
- Weight (t)
- 1.36
- Max sphere passage (mm)
- 125
- Production (m³/h)
- 800
- Max head (bar)
- 5.0
- Pipe diameter (mm)
- 200
- Weight (t)
- 2.2
- Max sphere passage (mm)
- 125
- Production (m³/h)
- 1250
- Max head (bar)
- 5.3
- Pipe diameter (mm)
- 250
- Weight (t)
- 2.43
- Max sphere passage (mm)
- 130
