Soil Pumping Station SPS2015
Soil Pumping Station SPS2015

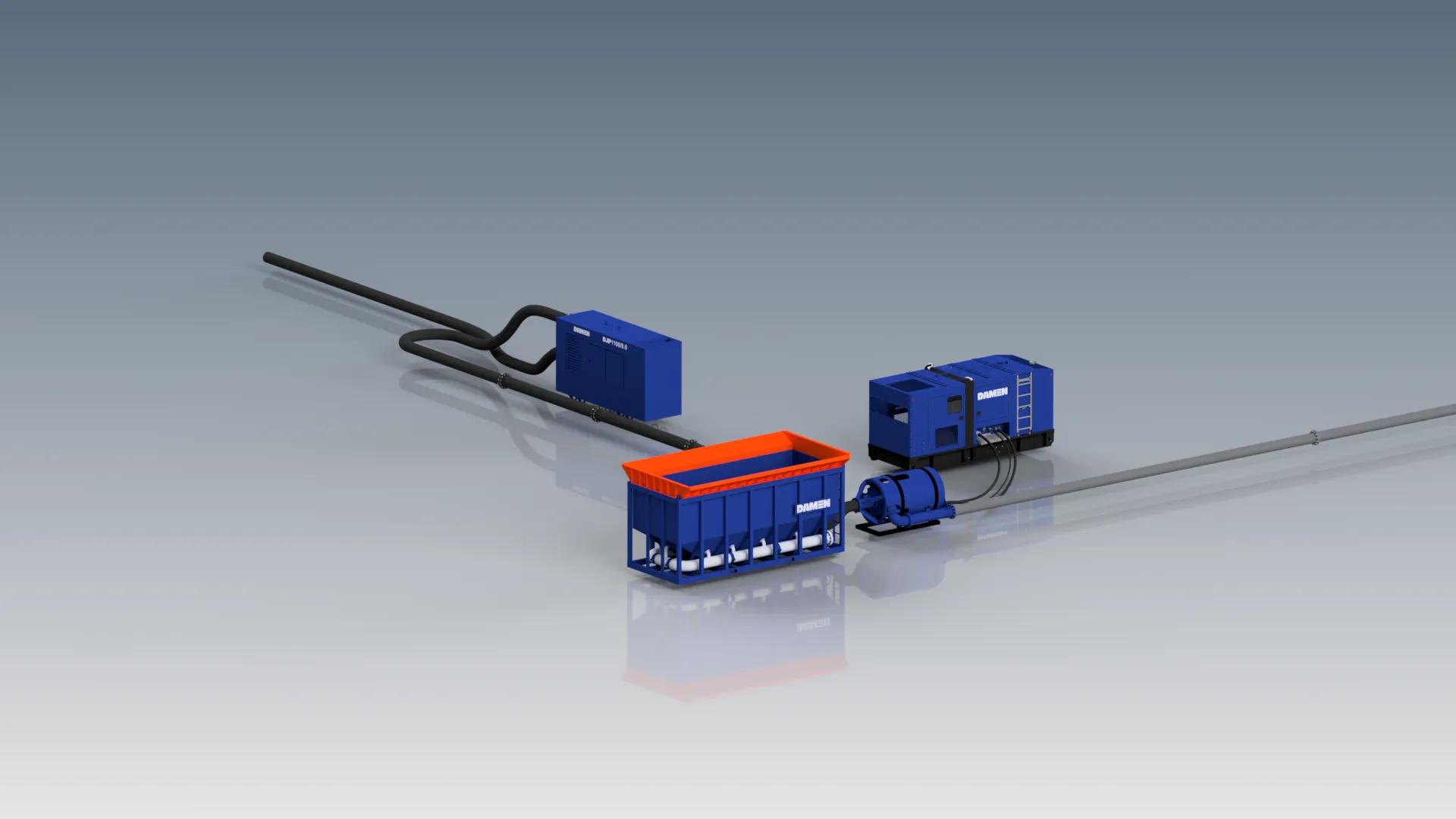

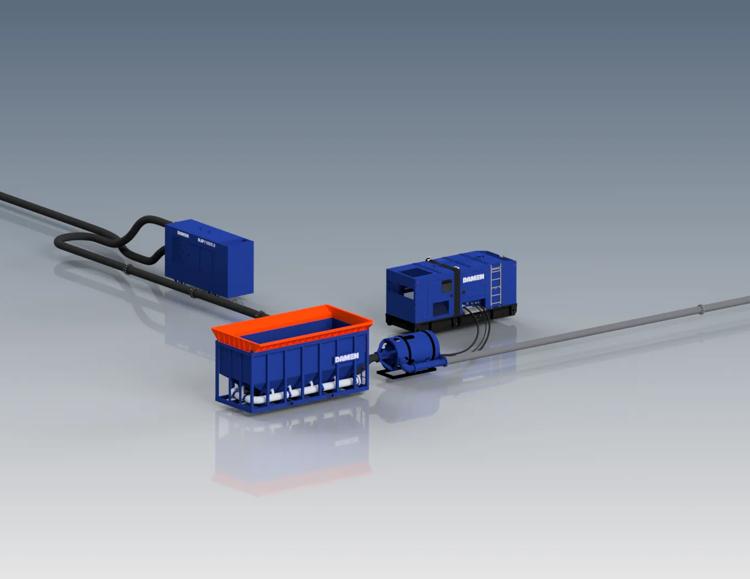

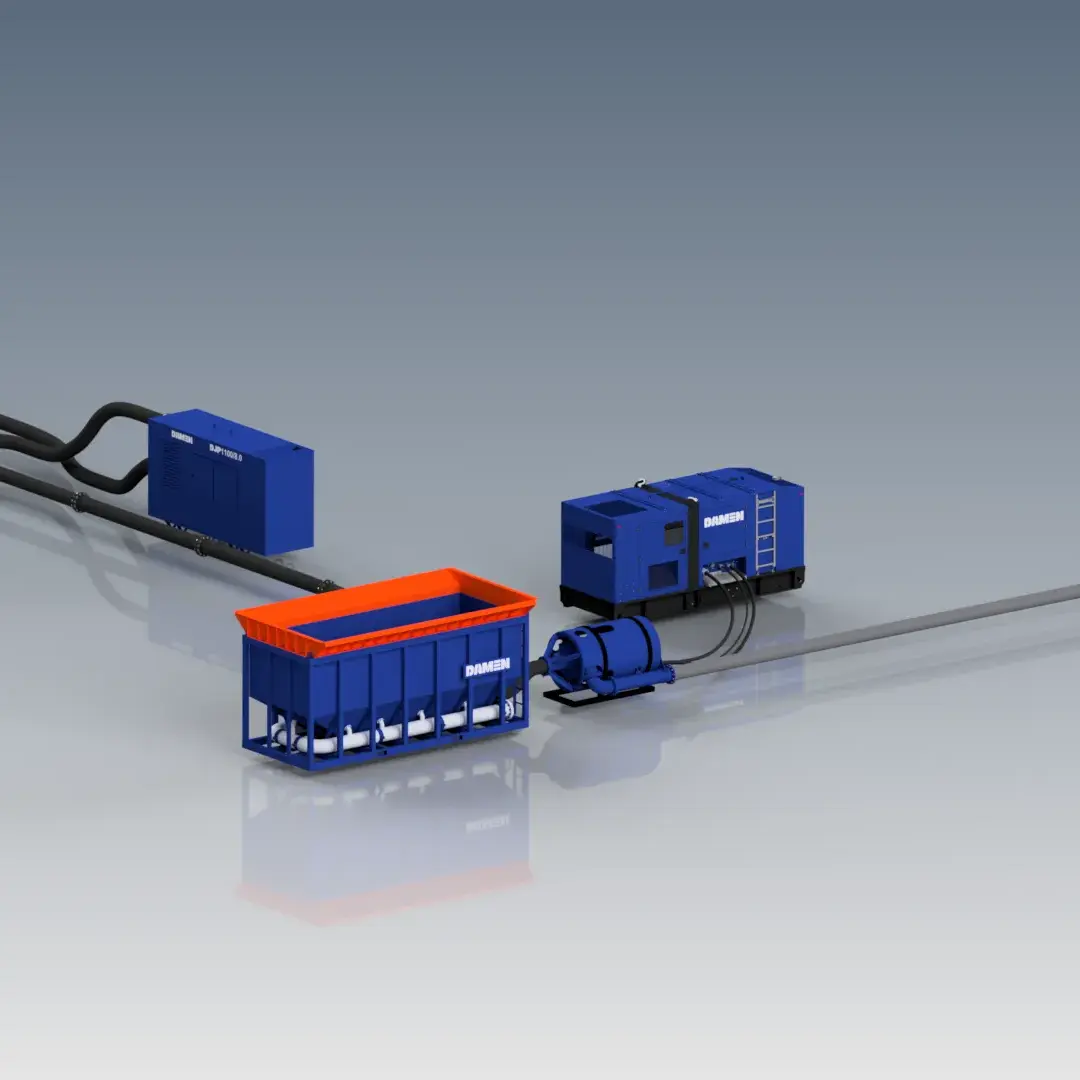

Large quantities of mined material such as sand, soil and tailings can be moved efficiently using a Soil Pumping Station. The production rate of solids is determined by the dumper trucks or shovels filling the hopper hold of the slurrification unit. The dredge pump and its pipeline ensure cost effective tailings transport through a single pipe line. The flexibility of the set-up is evident as the slurrification unit, its jet pack for water supply and DOP dredge pump for slurry removal can be relocated easily. The Soil Pumping Station bridges the gap between mechanical dredging by excavators and hydraulic dredging by using dredge pumps.
- Top grid
- Sled frame for easy relocation
- Water monitor
- Work platform
- Container-sized for practical transport
- Dismountable plug and play design
- Plenty of jet nozzles for good soil fluidisation
- Replaces dozens of trucks by a single pipeline
Key figures
180
150
22
600
20

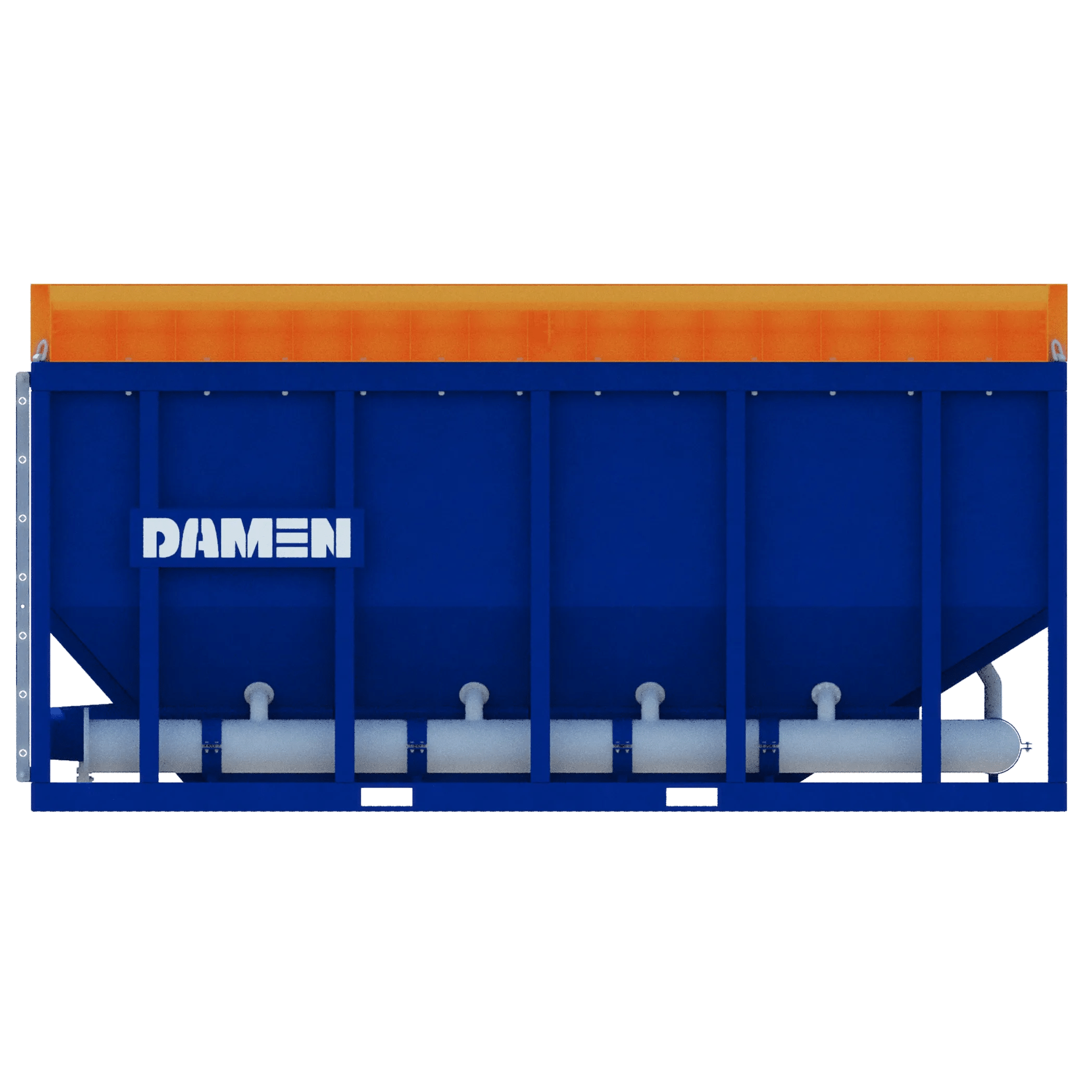

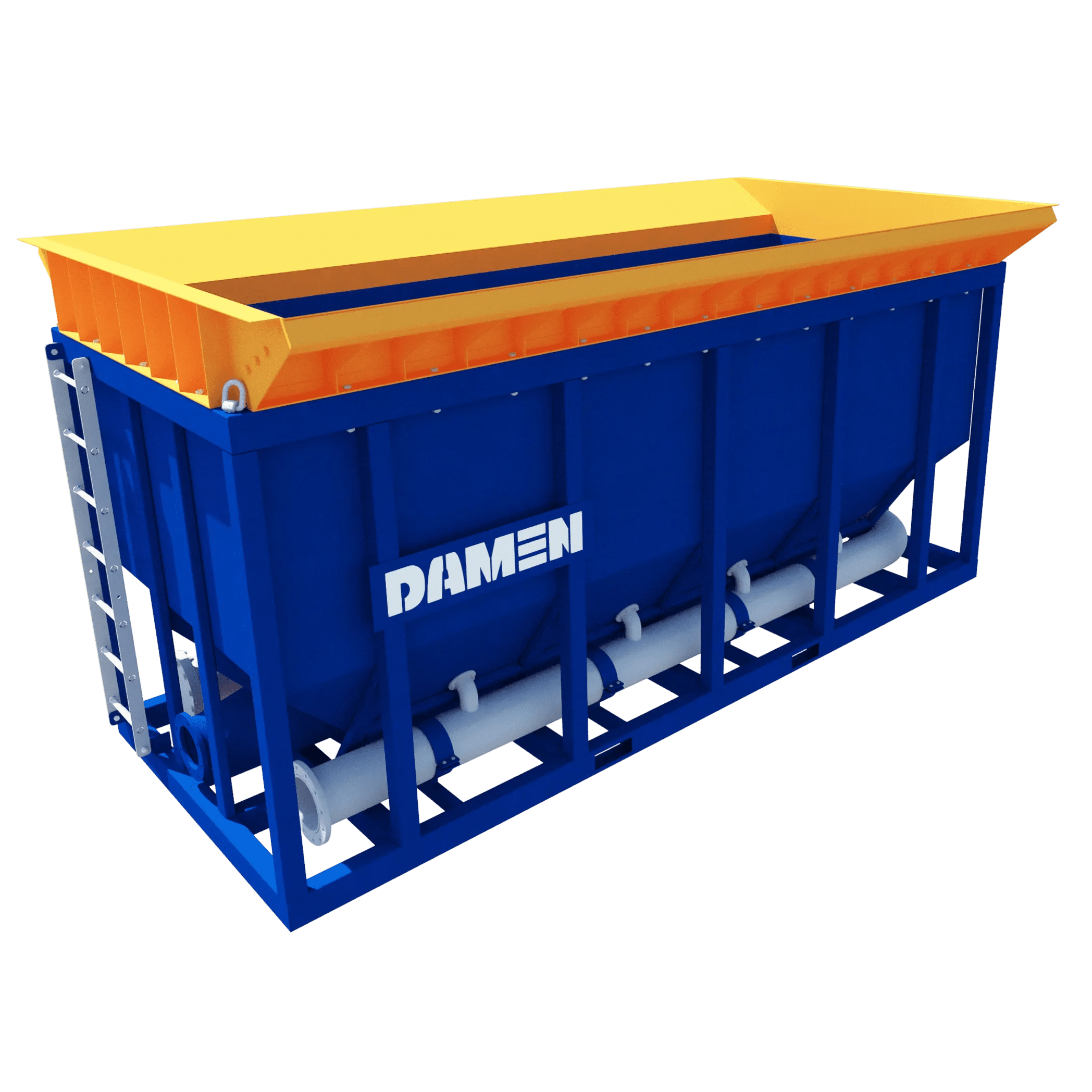

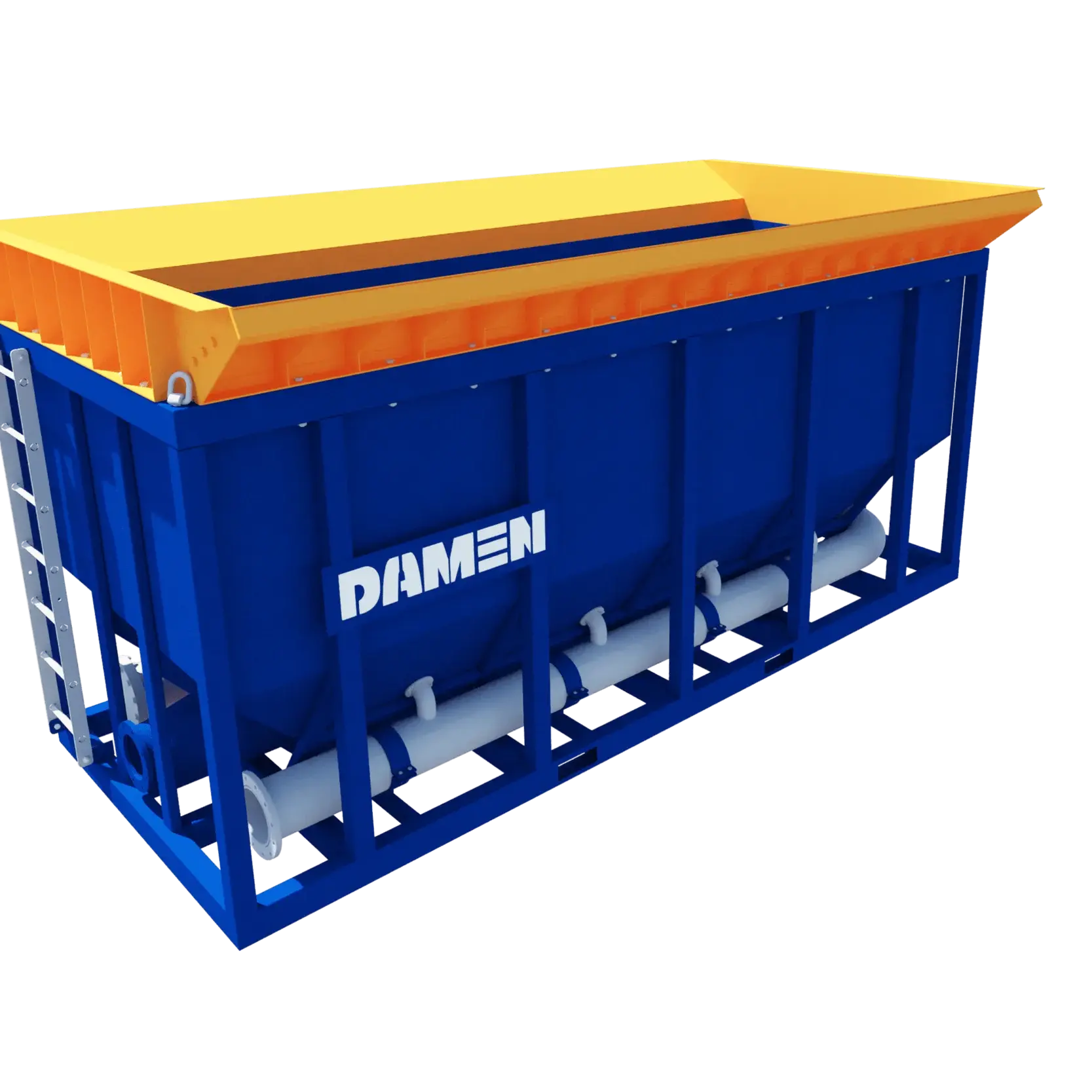

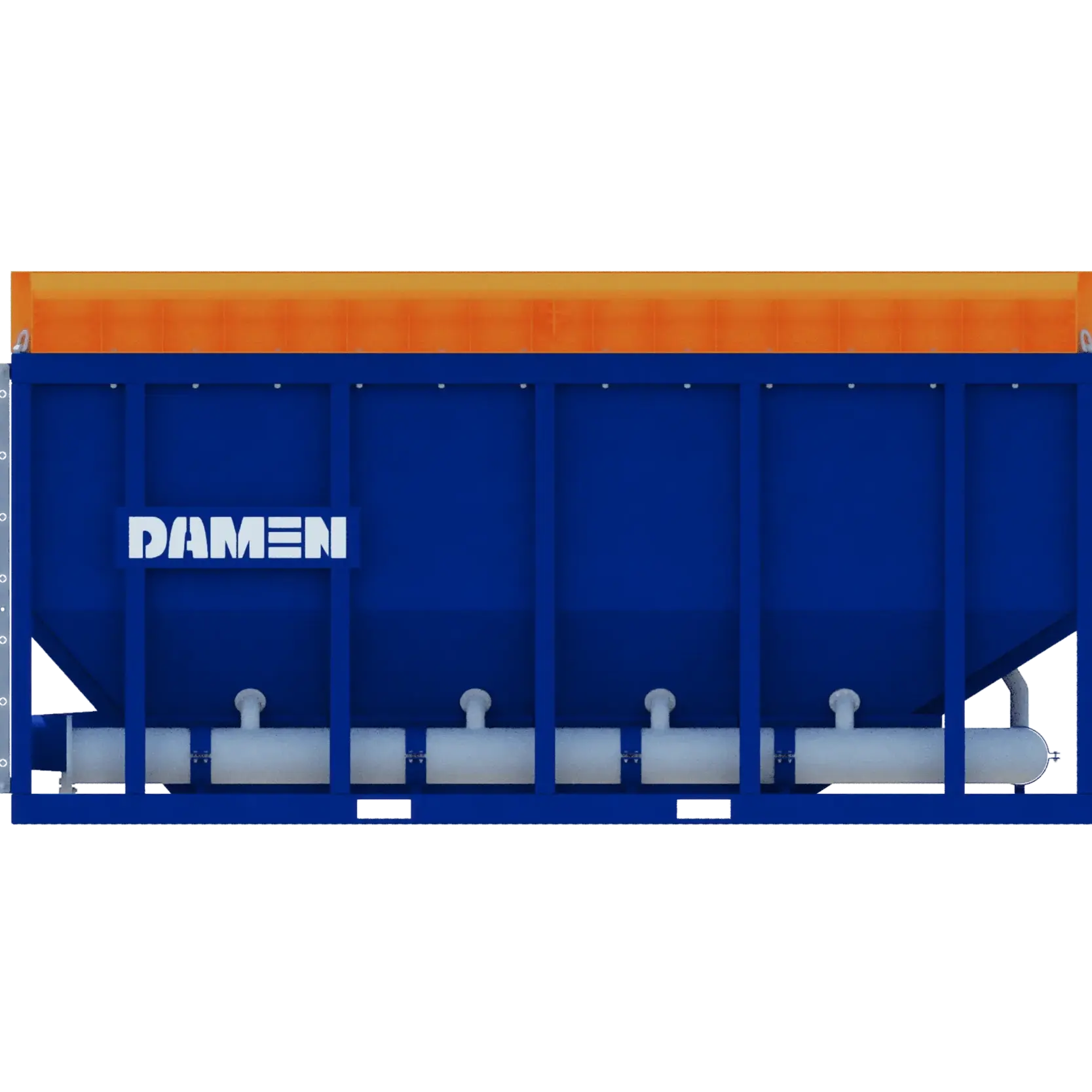

Sand box data
- Container dimension
- 20 feet
- Hopper capacity
- 22 m³
- Suction diameter
- 150 mm
- Empty weight
- 5.5 t
Dredge pump data
- Dredge pump
- DOP150
- Dredge pipe diameter
- 150 mm
- Dredge pump drive
- 80 kW
- Total weight
- 1.1 t
Jet pump data
- Jet pack
- DJP600/9.4
- Jet pipe diameter
- 200 mm
- Max flow
- 600 m³/h
- Max pressure
- 9.4 bar
Do you want to know more?
Compare similar sand pumping stations
| Sand production (m³/h) | Dredge pipe diameter (mm) | Hopper capacity (m³) | Jet water pump (m³/h) | Container size (ft) | ||
|---|---|---|---|---|---|---|
| Soil Pumping Station SPS2015 | 180 | 150 | 22 | 600 | 20 | |
| Soil Pumping Station SPS4025 | 375 | 250 | 48 | 1100 | 40 | |
| Soil Pumping Station SPS2020 | 240 | 200 | 22 | 600 | 20 |
Soil Pumping Station SPS2015
- Sand production (m³/h)
- 180
- Dredge pipe diameter (mm)
- 150
- Hopper capacity (m³)
- 22
- Jet water pump (m³/h)
- 600
- Container size (ft)
- 20
- Sand production (m³/h)
- 375
- Dredge pipe diameter (mm)
- 250
- Hopper capacity (m³)
- 48
- Jet water pump (m³/h)
- 1100
- Container size (ft)
- 40
- Sand production (m³/h)
- 240
- Dredge pipe diameter (mm)
- 200
- Hopper capacity (m³)
- 22
- Jet water pump (m³/h)
- 600
- Container size (ft)
- 20
