Soil Pumping Station SPS2020
Soil Pumping Station SPS2020

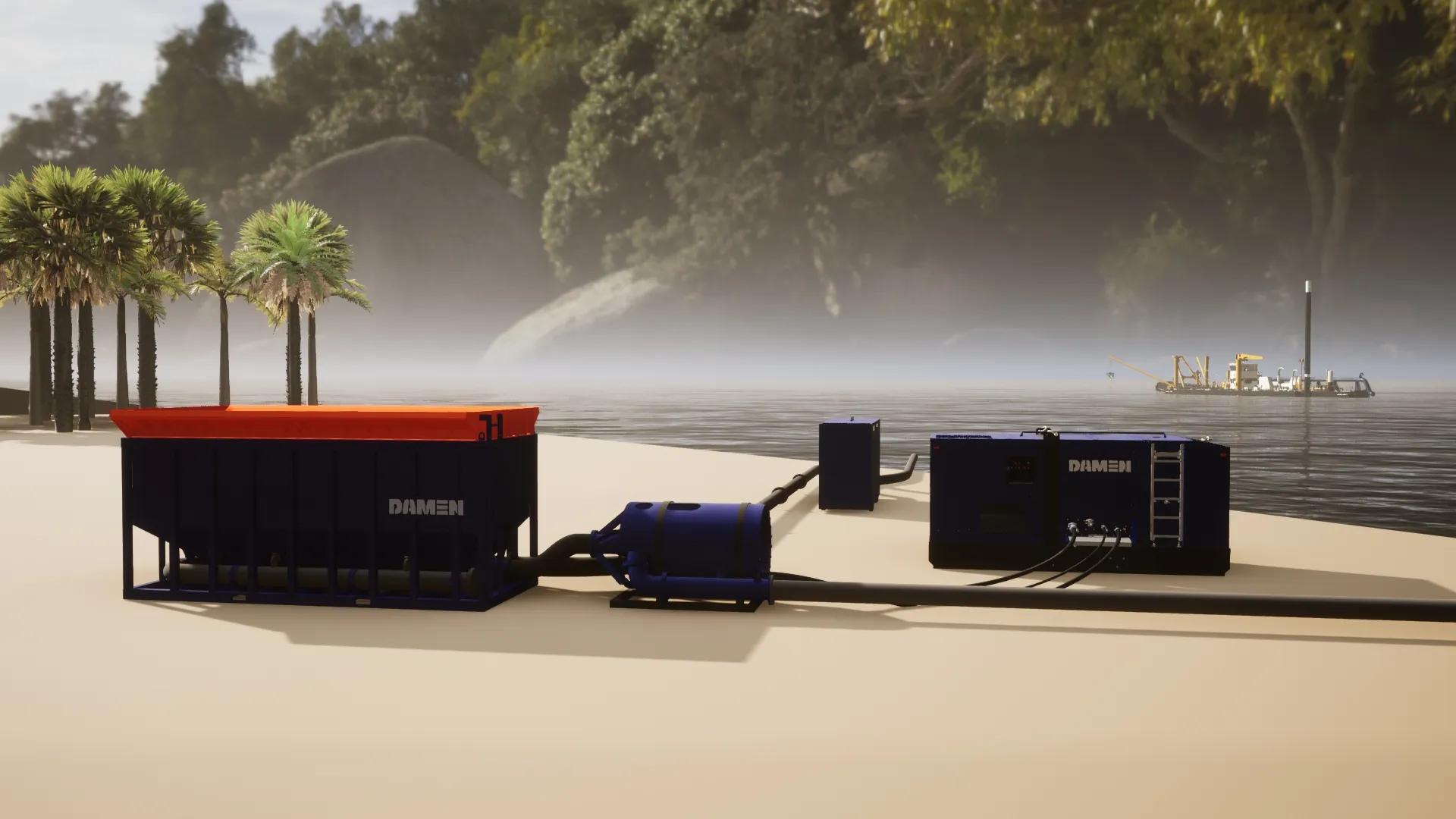

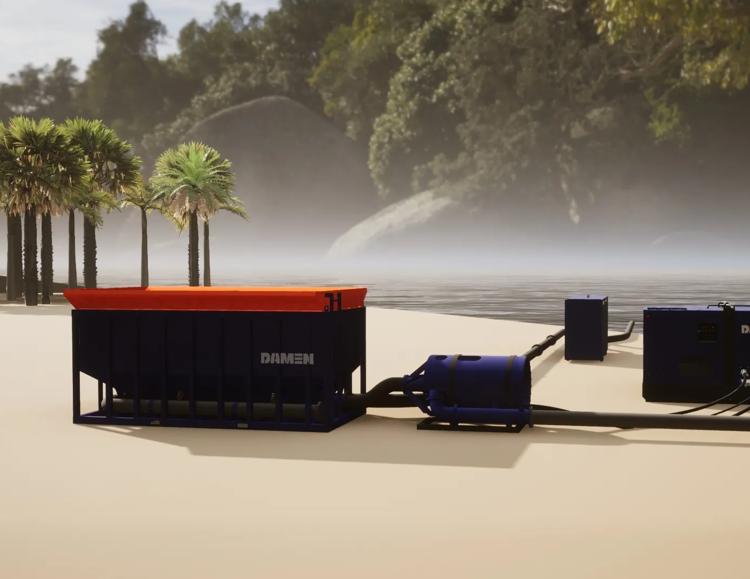

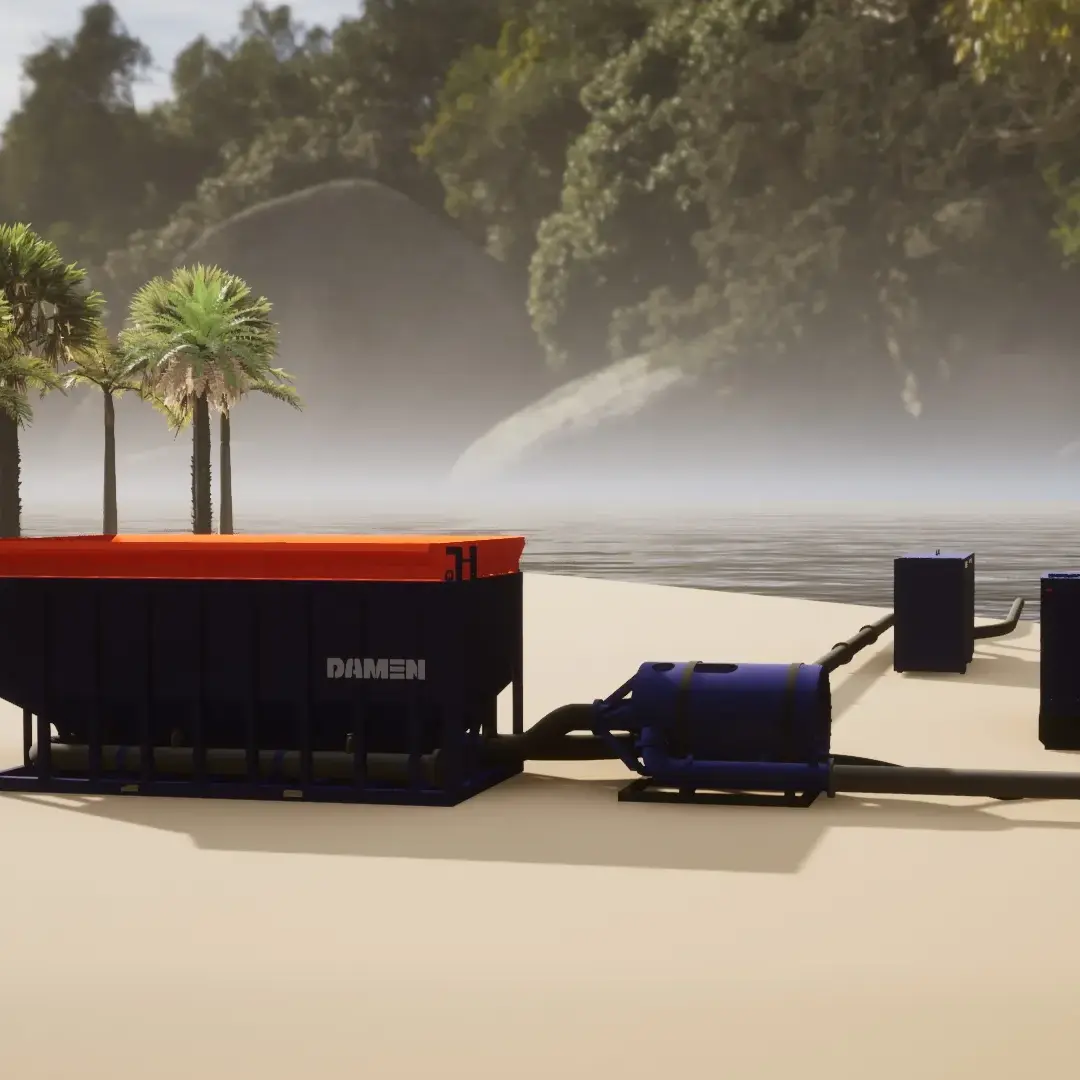

The Soil Pumping Station SPS2020 is based on a 20-foot container, fitted out with everything required for dumping dry mined material in, and pumping a fluidised mixture out. The fully mobile unit can be relocated easily, as can its matching separate water supply unit, dredge pump and drive. These standard units are a turnkey solution, all built for heavy duty operations in the dredging and mining industries. The sand pumping station is the linking pin between dry mining and tailings transported by dredge pump through a pipeline. Pipeline transport significantly reduces the levels of dust and noise, and can completely replace truck and conveyer haulage. Road safety will also improve dramatically as the constant flow of dumper trucks are no longer required. The throughput rates of mined tailings will remain high.
- Top grid
- Sled frame for easy relocation
- Water monitor
- Work platform
- Container-sized for practical transport
- Dismountable plug and play design
- Plenty of jet nozzles for good soil fluidisation
- Replaces dozens of trucks by a single pipeline
Key figures
240
200
22
600
20

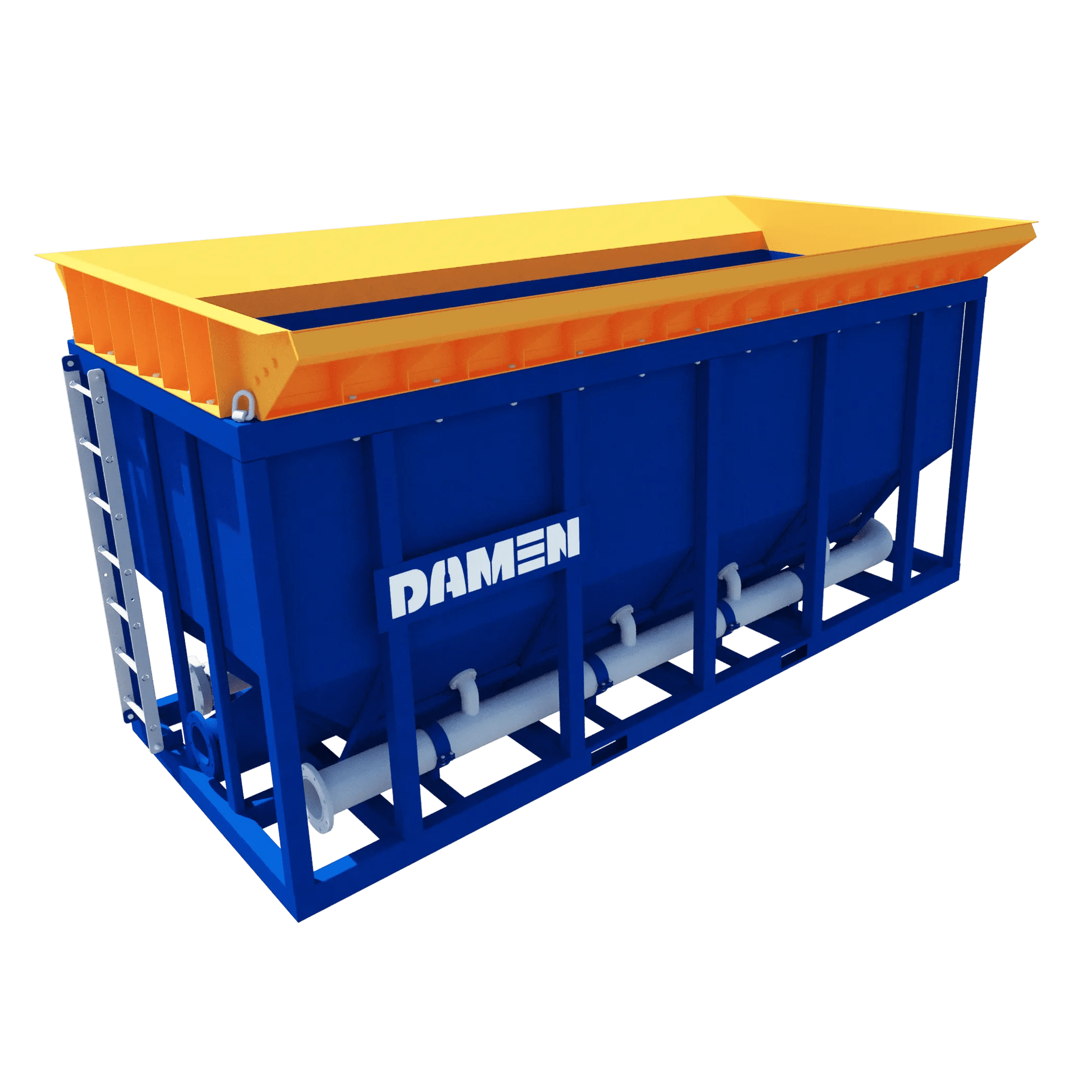

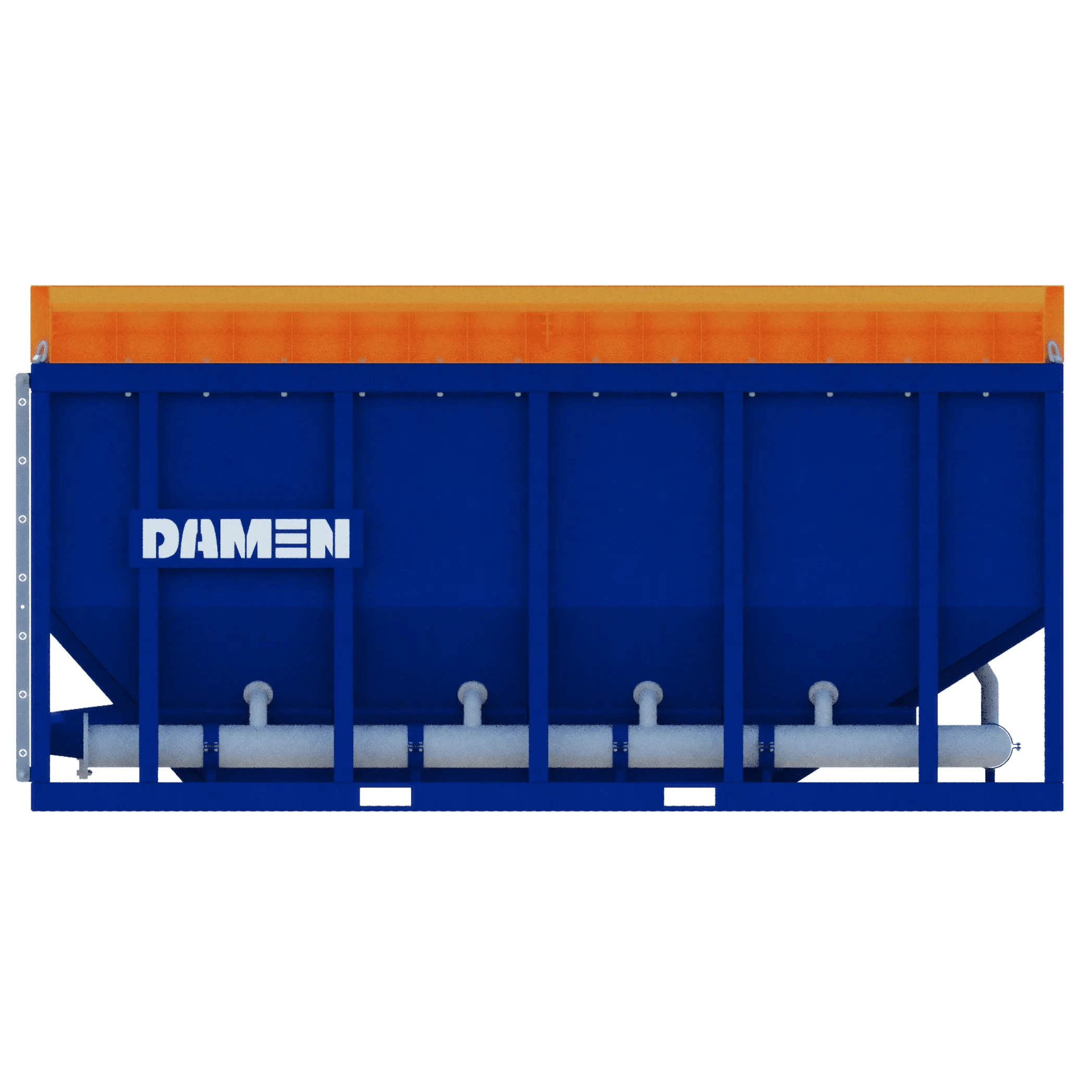

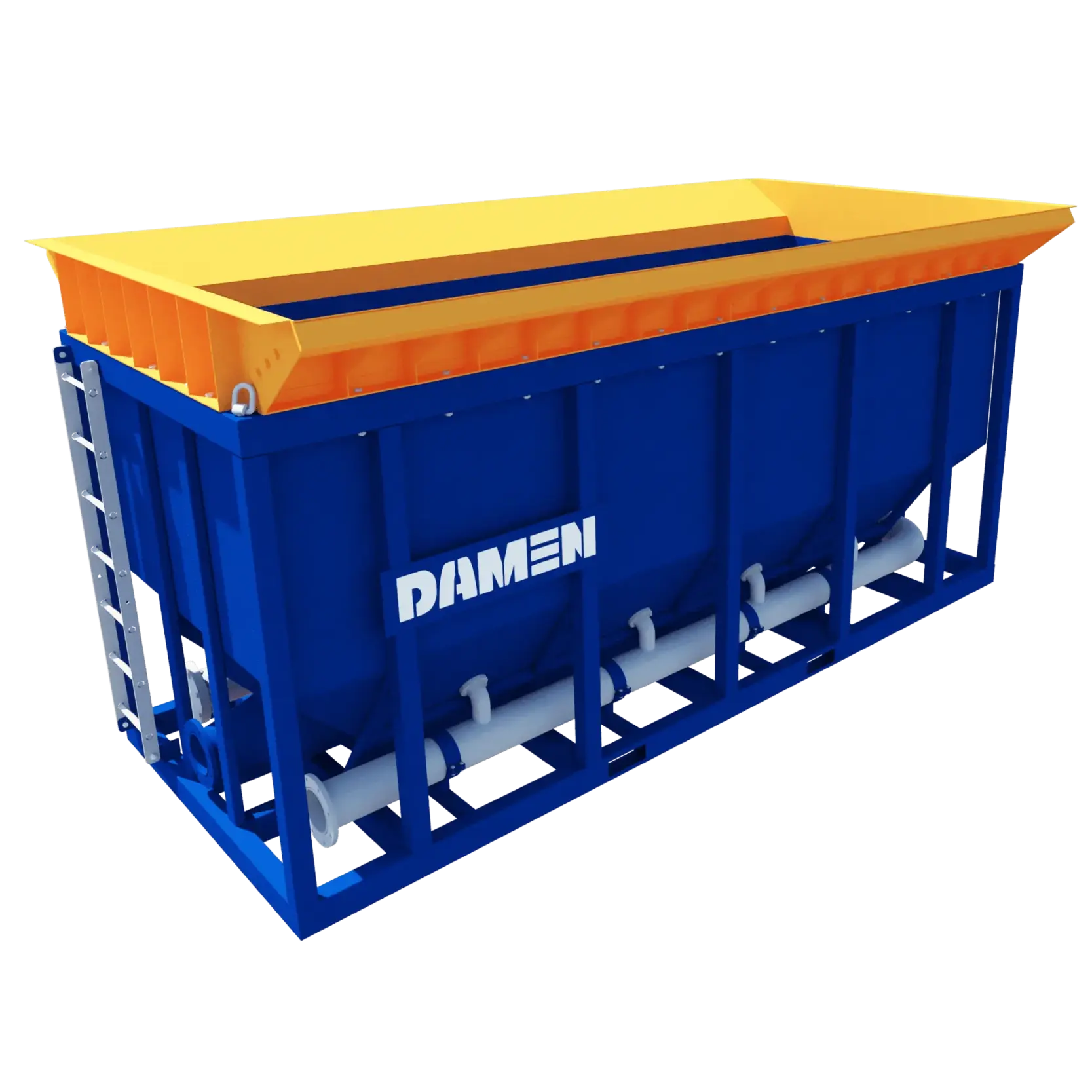

Sand box data
- Container dimension
- 20 feet
- Hopper capacity
- 22 m³
- Suction diameter
- 200 mm
- Empty weight
- 5.5 t
Dredge pump data
- Dredge pump
- DOP200
- Dredge pipe diameter
- 200 mm
- Dredge pump drive
- 120 kW
- Total weight
- 1.4 t
Jet pump data
- Jet pack
- DJP600/9.4
- Jet pipe diameter
- 200 mm
- Max flow
- 600 m³/h
- Max pressure
- 9.4 bar
Do you want to know more?
Compare similar sand pumping stations
Sand production (m³/h) | Dredge pipe diameter (mm) | Hopper capacity (m³) | Jet water pump (m³/h) | Container size (ft) | ||
---|---|---|---|---|---|---|
Soil Pumping Station SPS2020 | 240 | 200 | 22 | 600 | 20 | |
Soil Pumping Station SPS4025 | 375 | 250 | 48 | 1100 | 40 | |
Soil Pumping Station SPS2015 | 180 | 150 | 22 | 600 | 20 |
Soil Pumping Station SPS2020
- Sand production (m³/h)
- 240
- Dredge pipe diameter (mm)
- 200
- Hopper capacity (m³)
- 22
- Jet water pump (m³/h)
- 600
- Container size (ft)
- 20
- Sand production (m³/h)
- 375
- Dredge pipe diameter (mm)
- 250
- Hopper capacity (m³)
- 48
- Jet water pump (m³/h)
- 1100
- Container size (ft)
- 40
- Sand production (m³/h)
- 180
- Dredge pipe diameter (mm)
- 150
- Hopper capacity (m³)
- 22
- Jet water pump (m³/h)
- 600
- Container size (ft)
- 20
