Soil Pumping Station SPS4025
Soil Pumping Station SPS4025

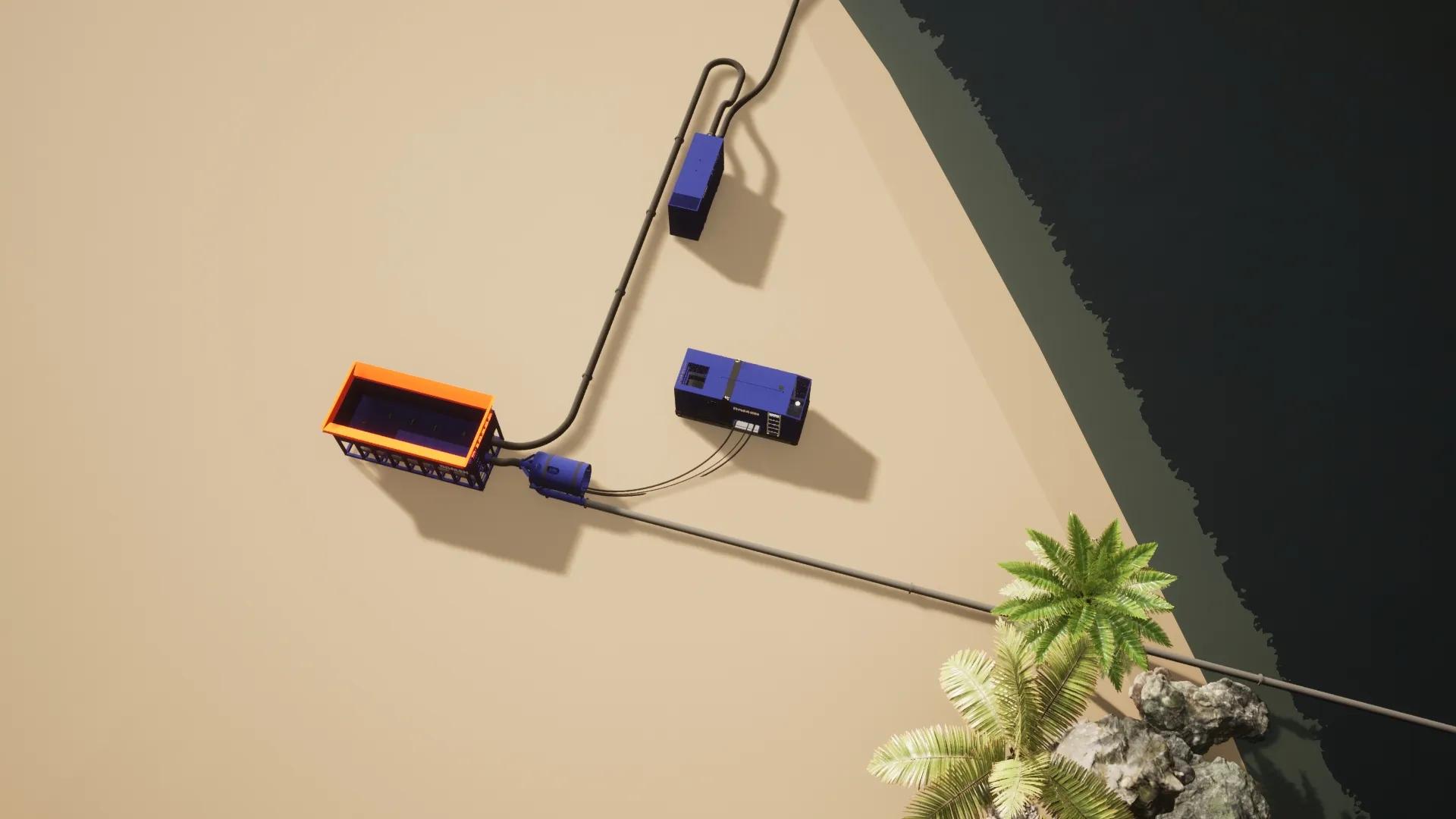

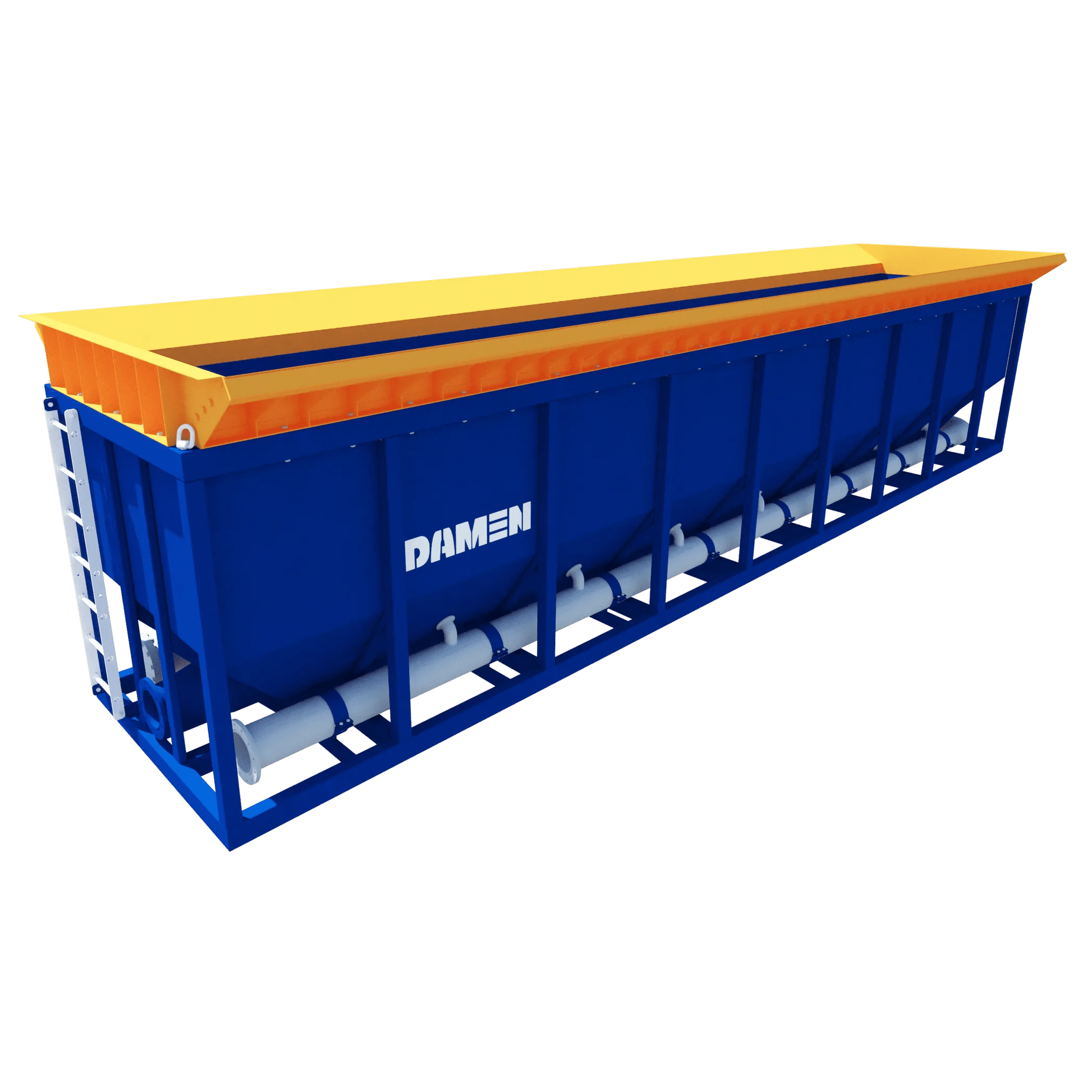

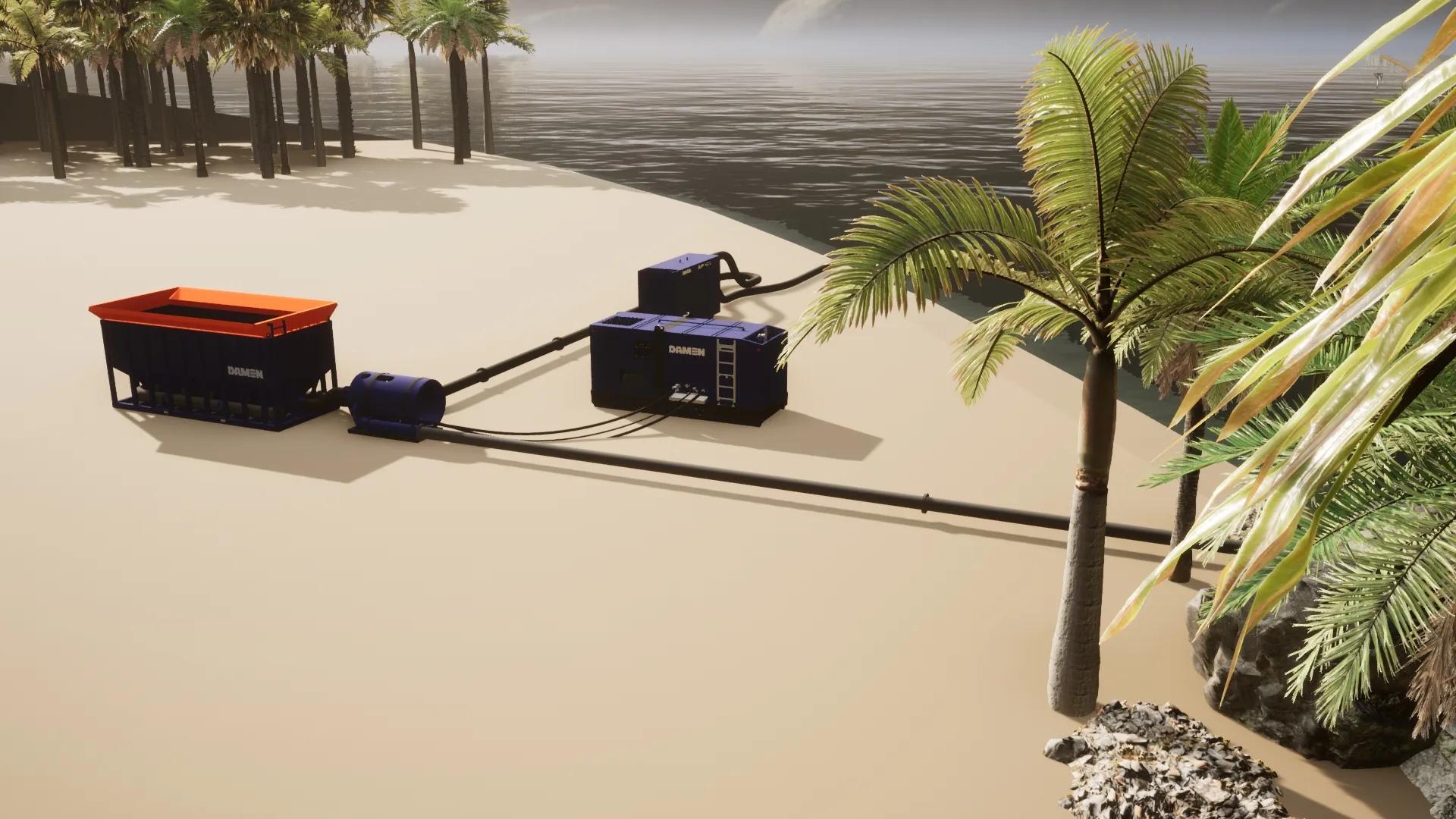

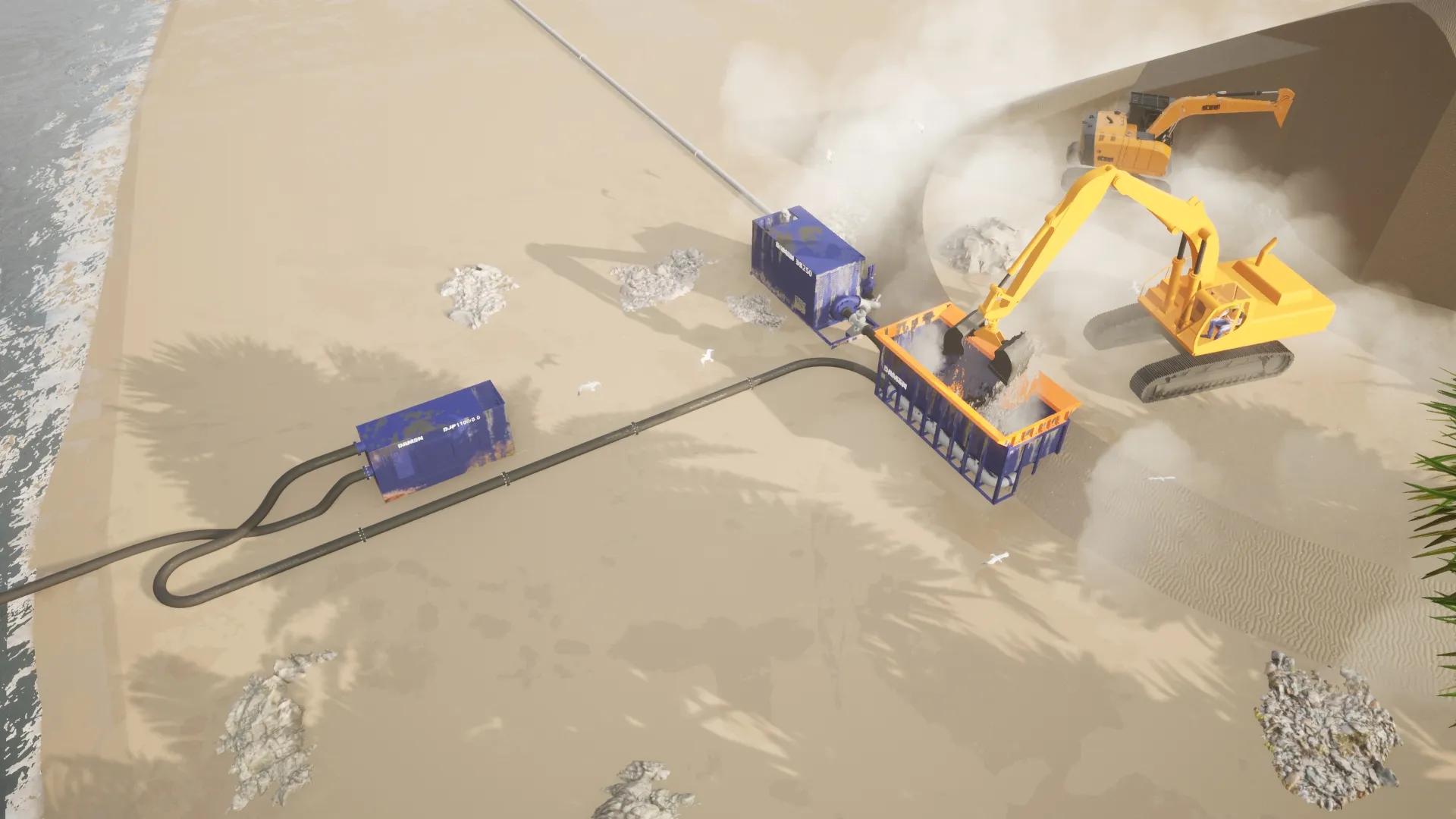

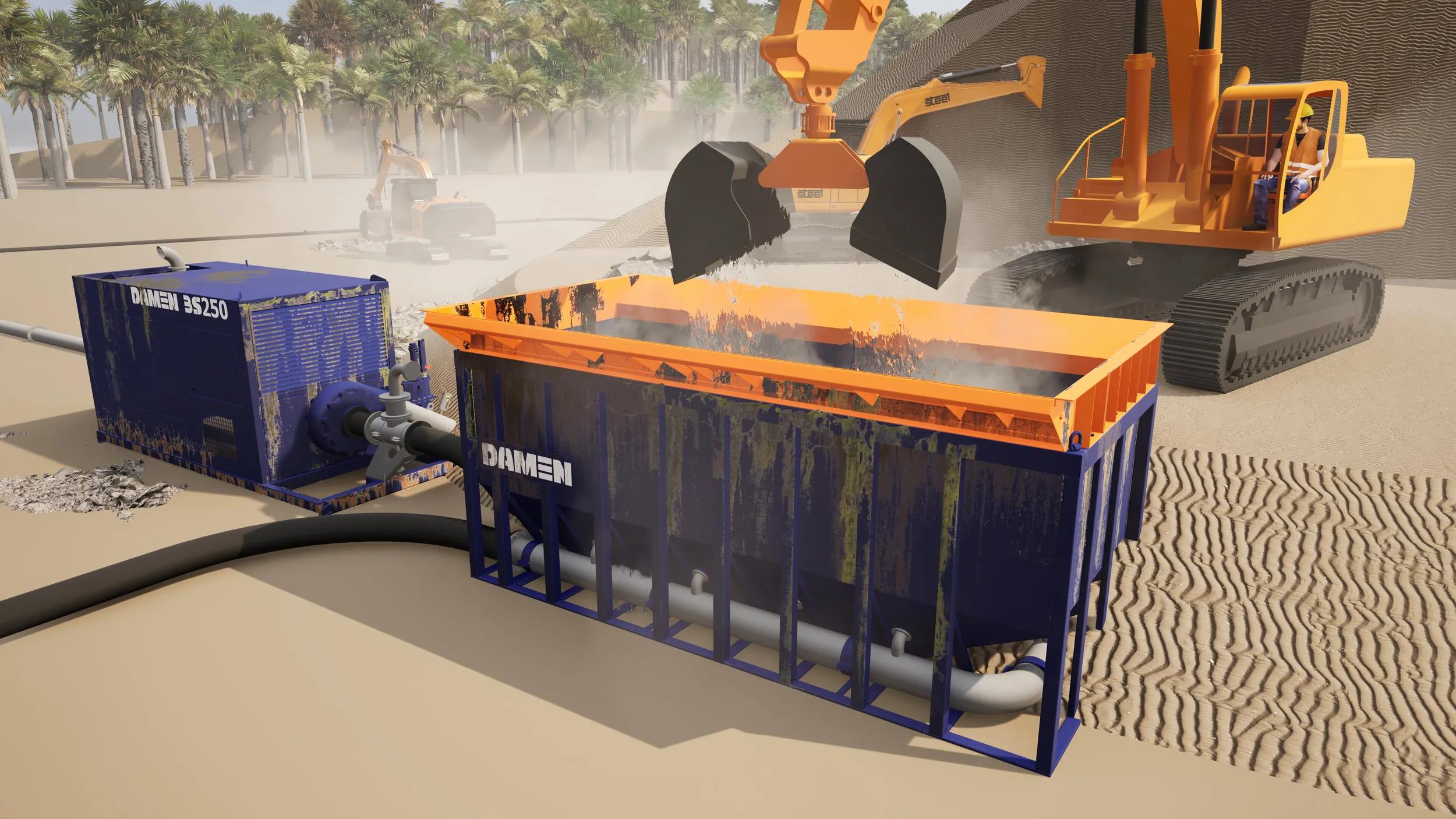

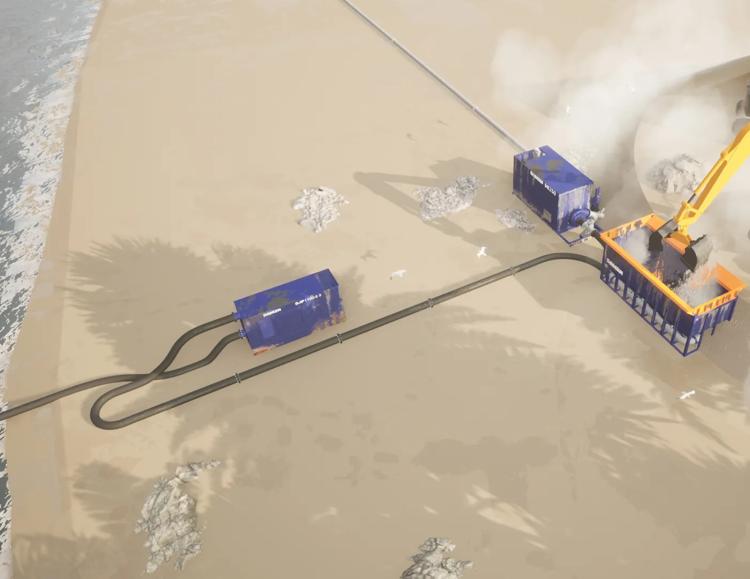

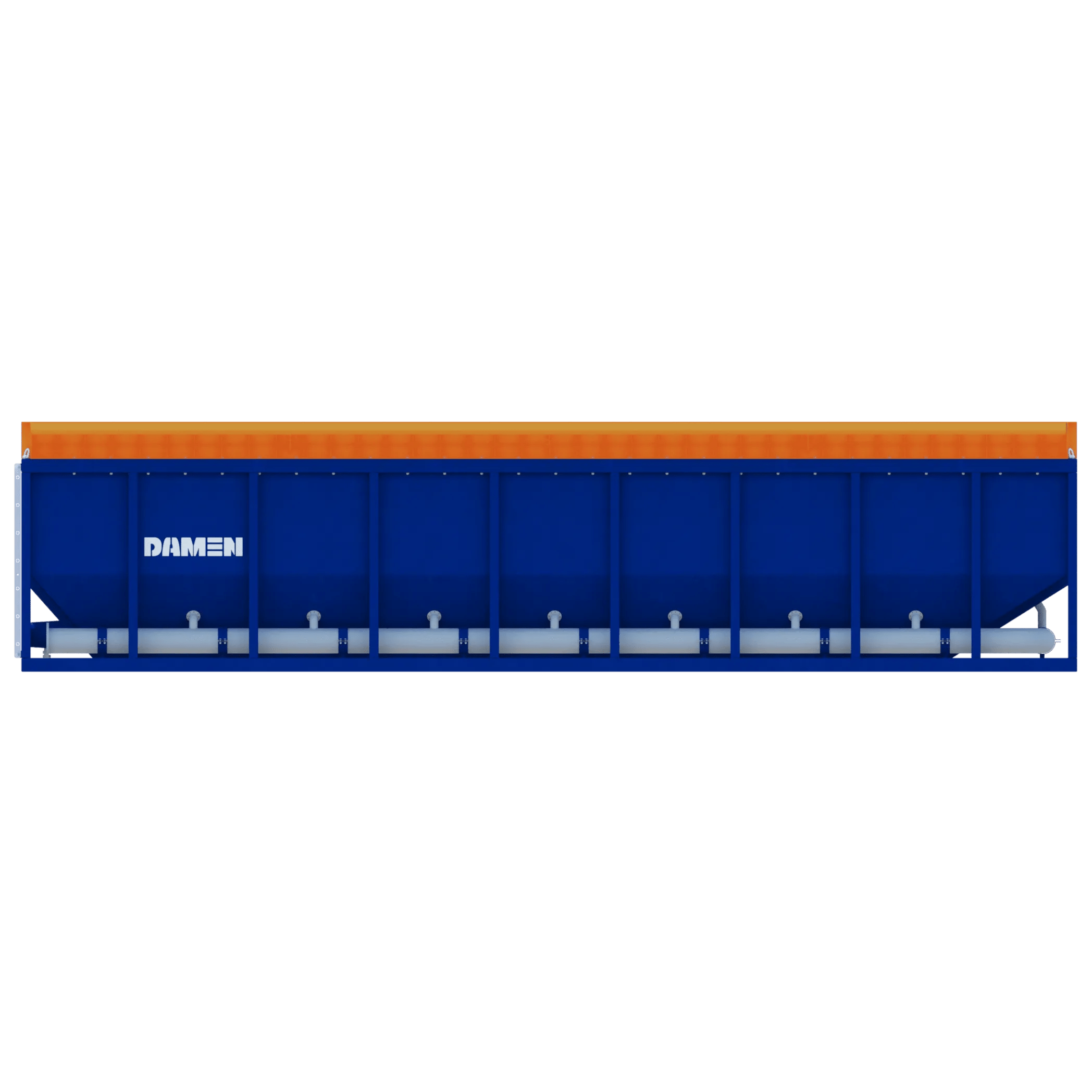

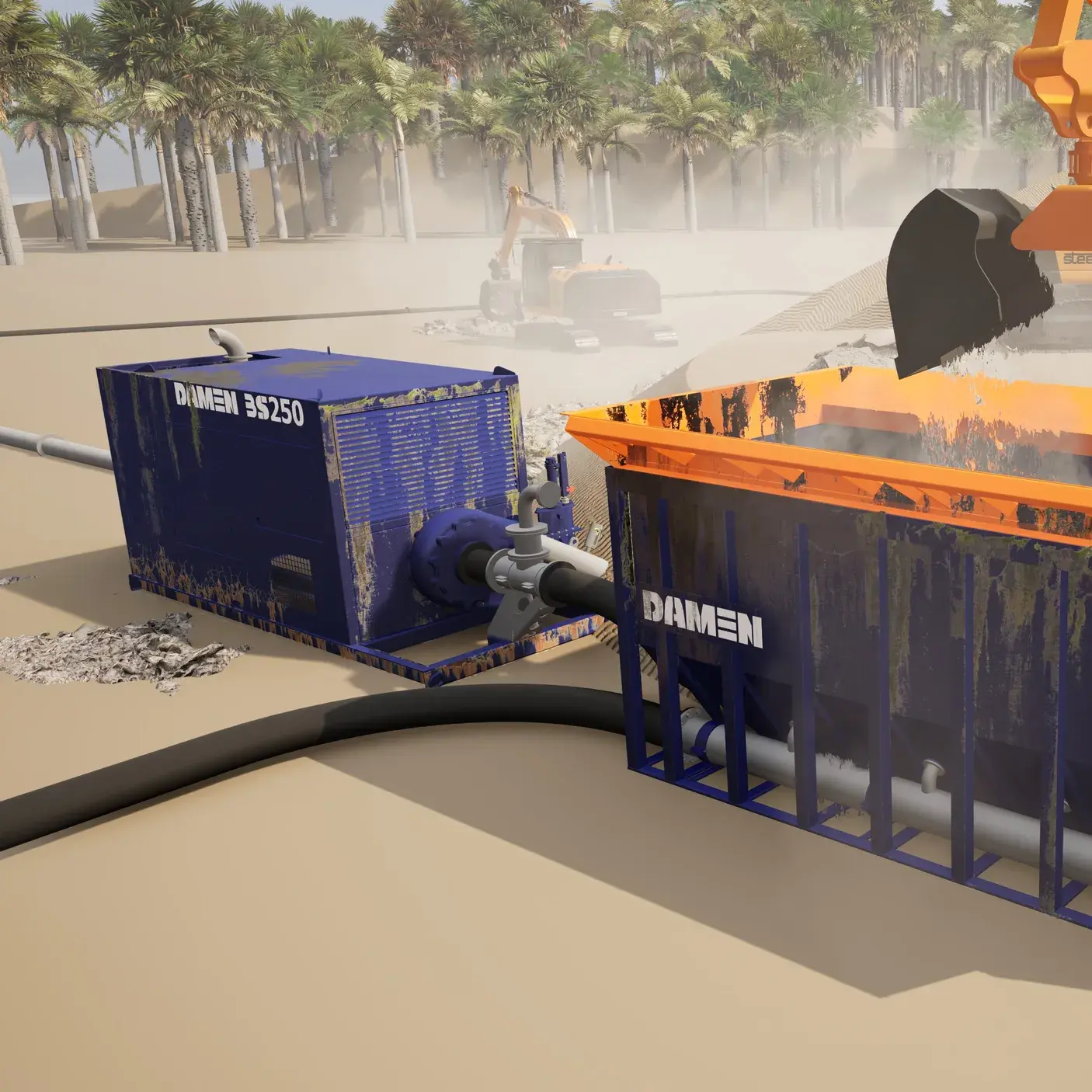

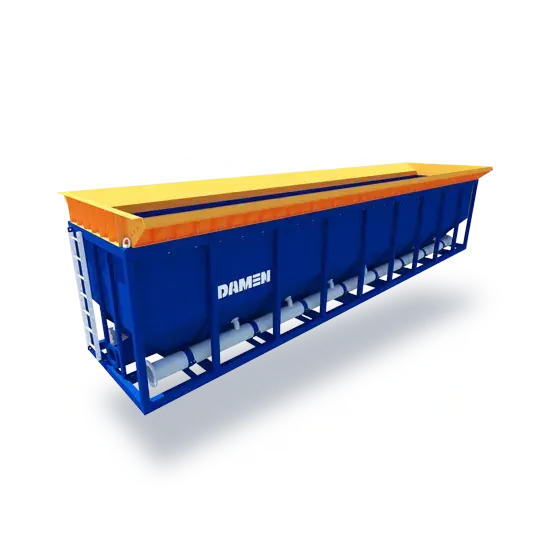

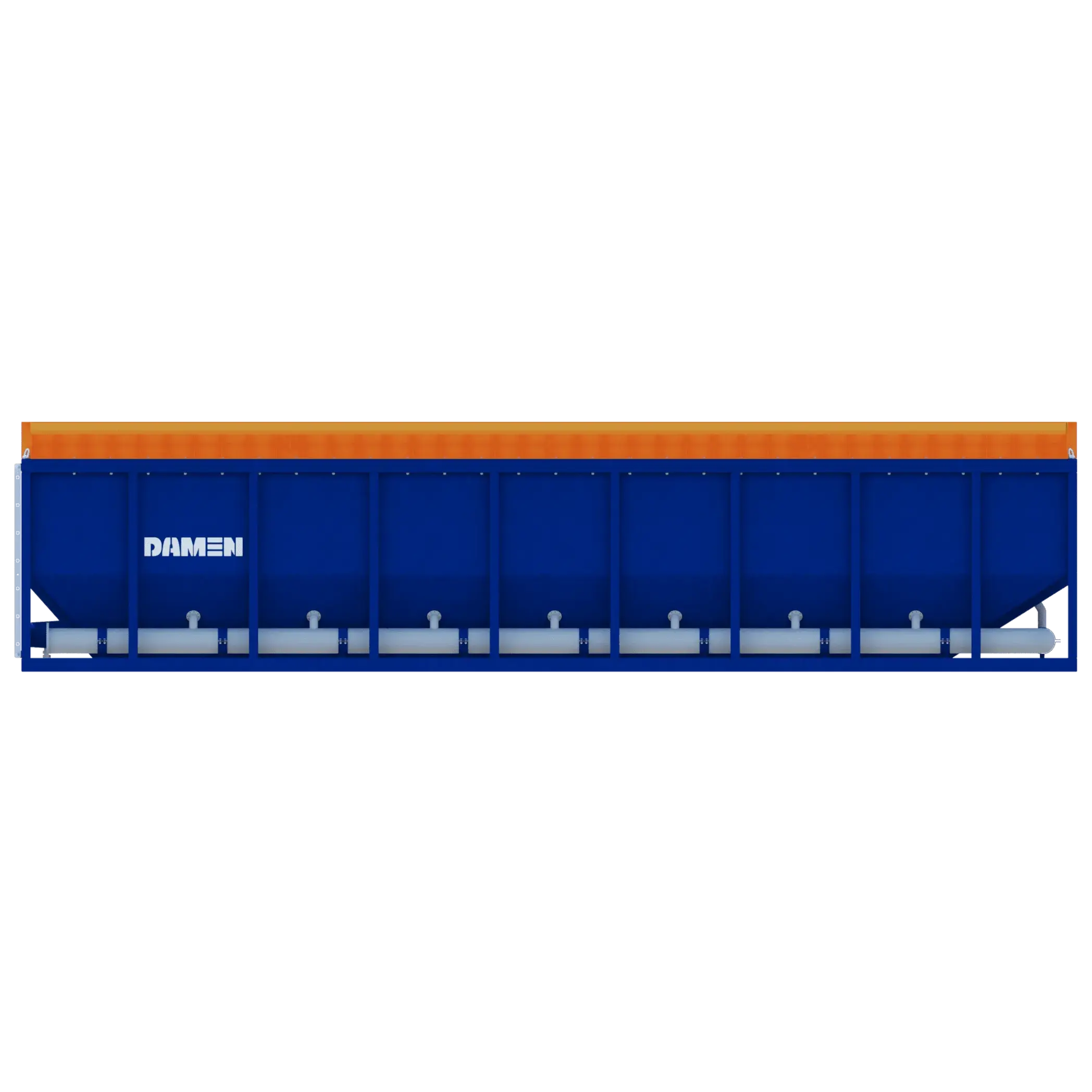

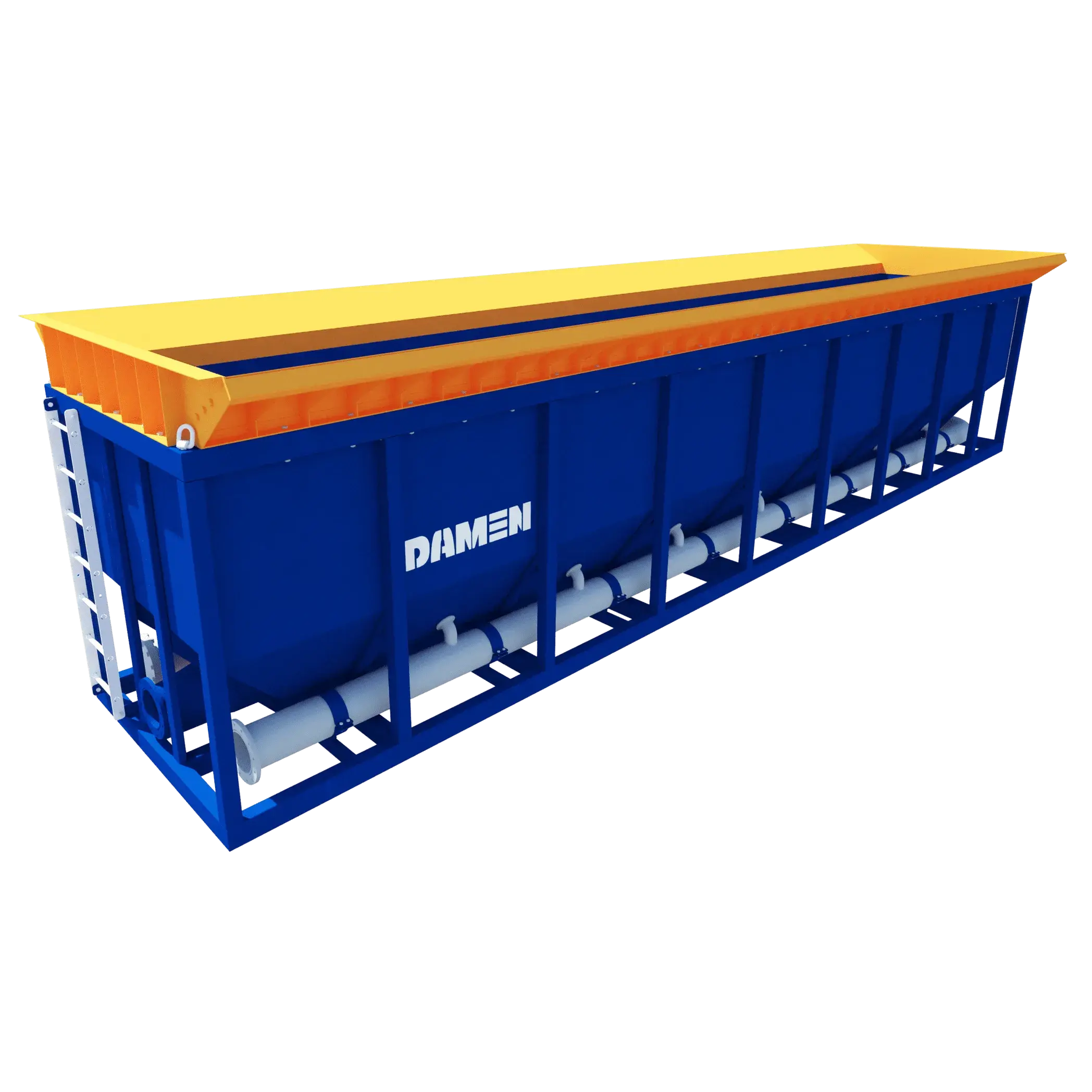

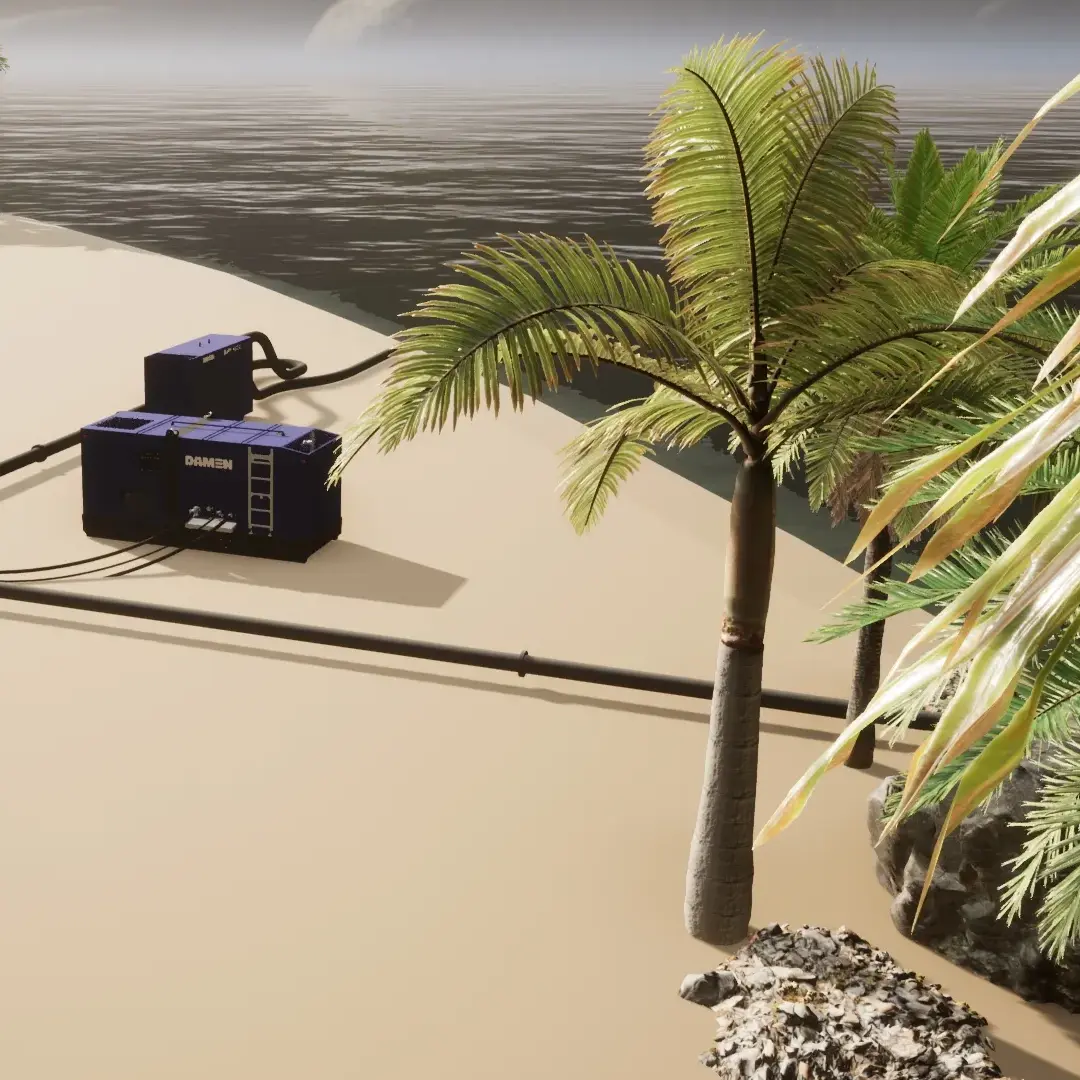

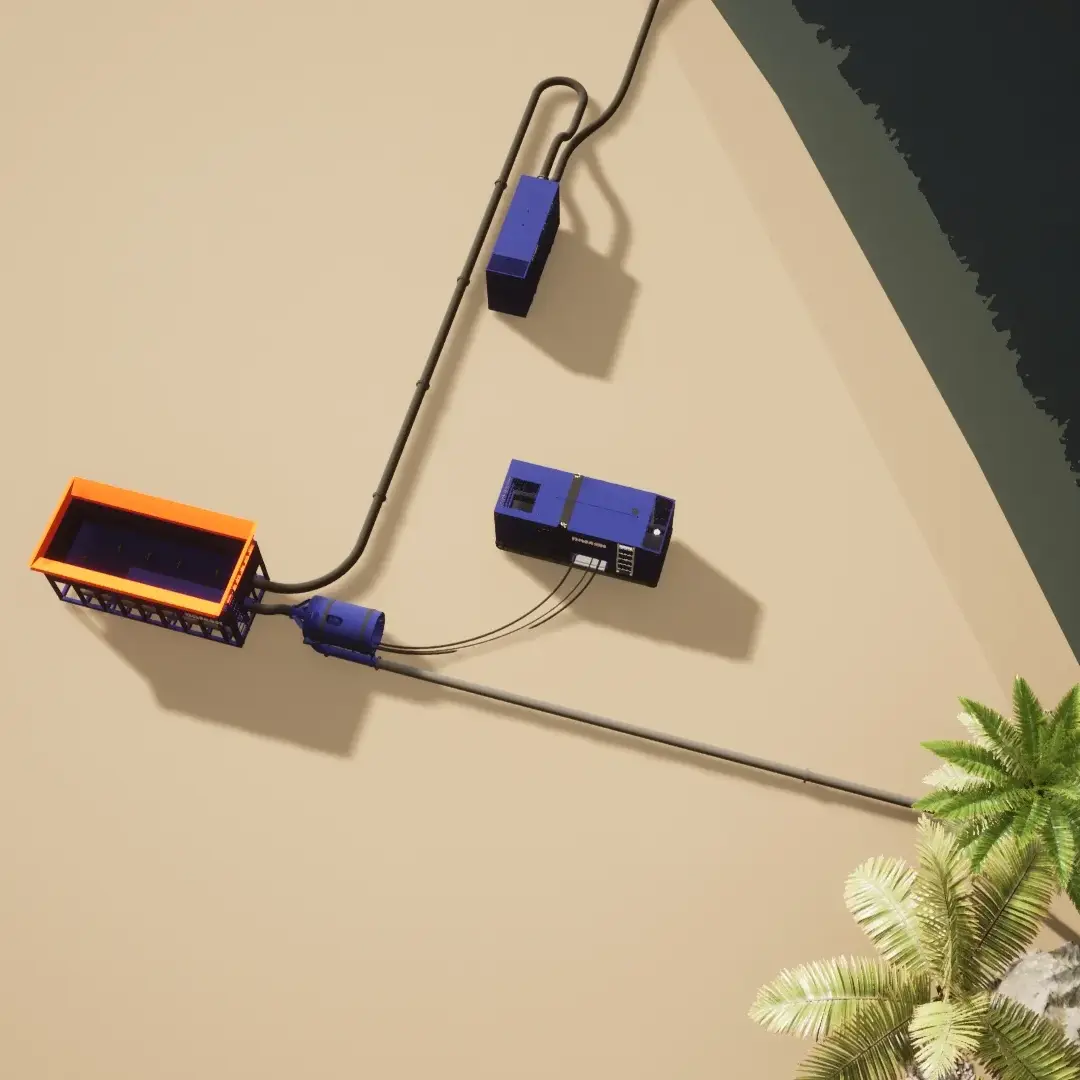

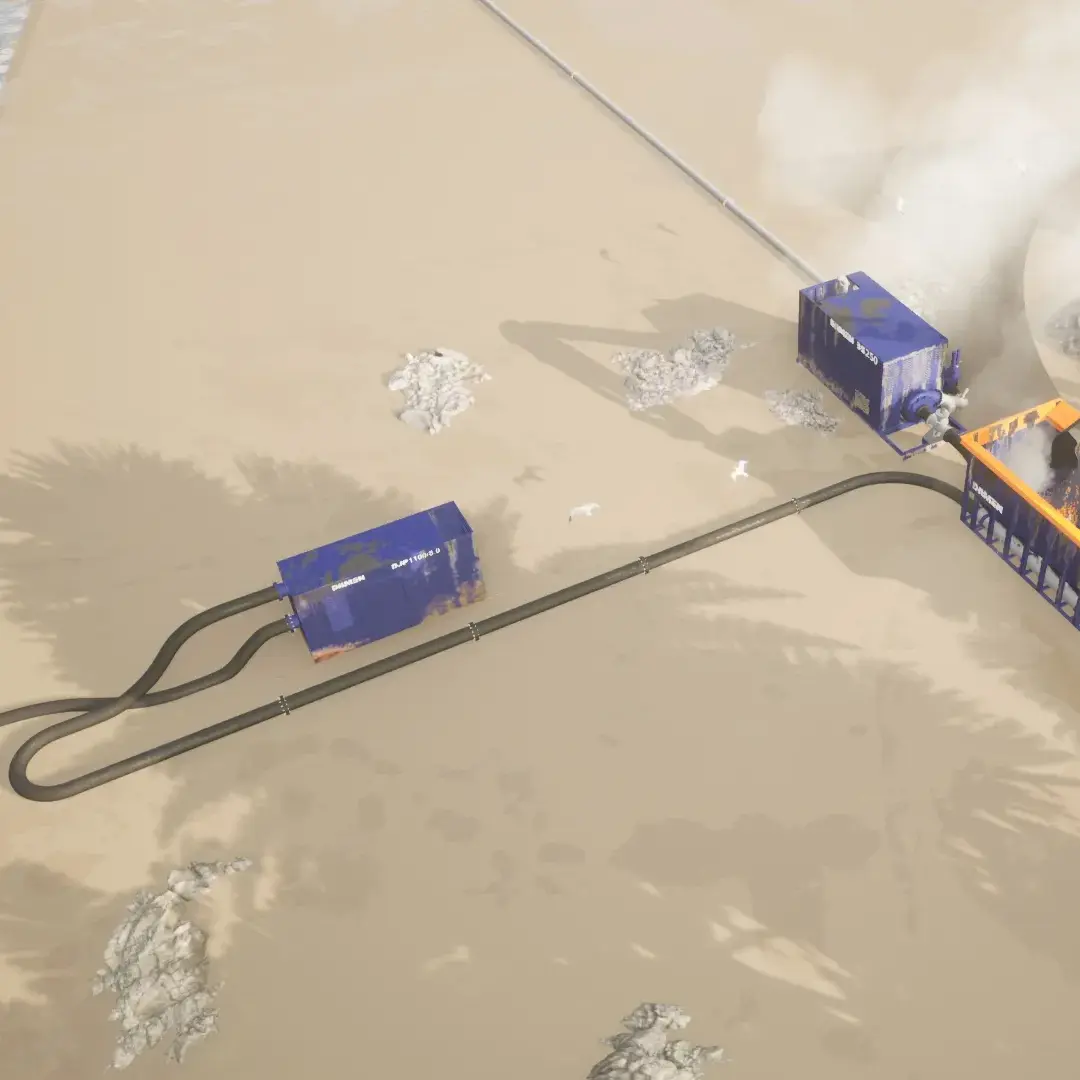

The Soil Pumping Station type SPS4025 consists of a hopper hold which is built into a 40’ open top container. At the bottom of the cargo hold, jet water piping and nozzles continuously fluidise the mined sand, tailings and minerals. A separate diesel-driven jet water pack, available as a standard component, can also provide the fluidisation water. A standard DOP250 submersible dredge pump ensures the continuous evacuation of the slurry from the tailings slurrification unit into the dredge pipeline. The mining unit’s hopper hold is continuously fed by earth-moving machines such as excavators, wheel loaders or shovels, and can be relocated easily if the operations require so.
- Top grid
- Sled frame for easy relocation
- Water monitor
- Work platform
- Container-sized for practical transport
- Dismountable plug and play design
- Plenty of jet nozzles for good soil fluidisation
- Replaces dozens of trucks by a single pipeline
Key figures
375
250
48
1100
40
Sand box data
- Container dimension
- 40 feet
- Hopper capacity
- 48 m³
- Suction diameter
- 250 mm
- Empty weight
- 10.2 t
Dredge pump data
- Dredge pump
- DOP250
- Dredge pipe diameter
- 250 mm
- Dredge pump drive
- 285 kW
- Total weight
- 7 t
Jet pump data
- Jet pack
- DJP1100/8.0
- Jet pipe diameter
- 250 mm
- Max flow
- 1100 m³/h
- Max pressure
- 8 bar
Do you want to know more?
Compare similar sand pumping stations
Sand production (m³/h) | Dredge pipe diameter (mm) | Hopper capacity (m³) | Jet water pump (m³/h) | Container size (ft) | ||
---|---|---|---|---|---|---|
Soil Pumping Station SPS4025 | 375 | 250 | 48 | 1100 | 40 | |
Soil Pumping Station SPS2020 | 240 | 200 | 22 | 600 | 20 | |
Soil Pumping Station SPS2015 | 180 | 150 | 22 | 600 | 20 |
Soil Pumping Station SPS4025
- Sand production (m³/h)
- 375
- Dredge pipe diameter (mm)
- 250
- Hopper capacity (m³)
- 48
- Jet water pump (m³/h)
- 1100
- Container size (ft)
- 40
- Sand production (m³/h)
- 240
- Dredge pipe diameter (mm)
- 200
- Hopper capacity (m³)
- 22
- Jet water pump (m³/h)
- 600
- Container size (ft)
- 20
- Sand production (m³/h)
- 180
- Dredge pipe diameter (mm)
- 150
- Hopper capacity (m³)
- 22
- Jet water pump (m³/h)
- 600
- Container size (ft)
- 20
