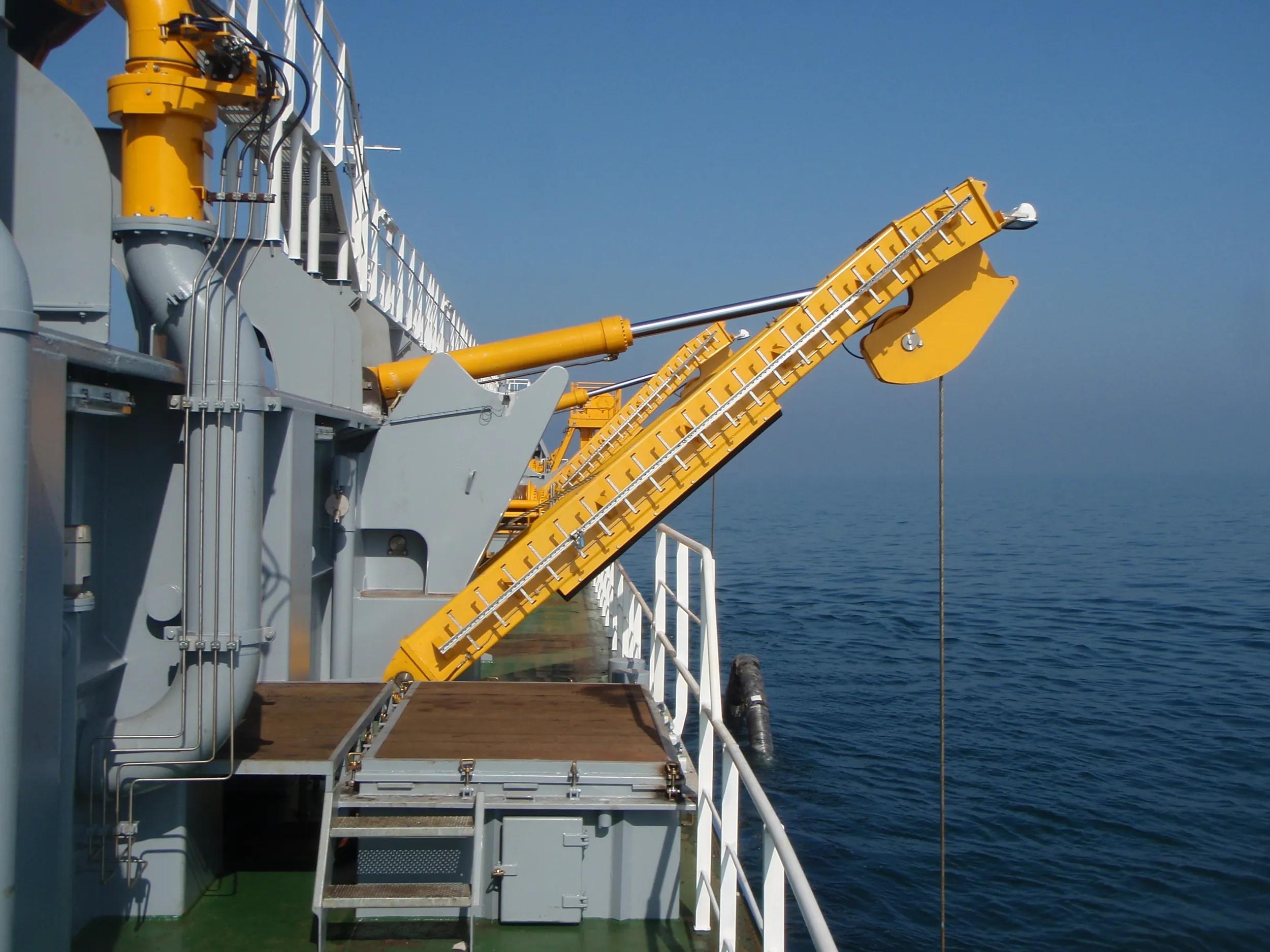

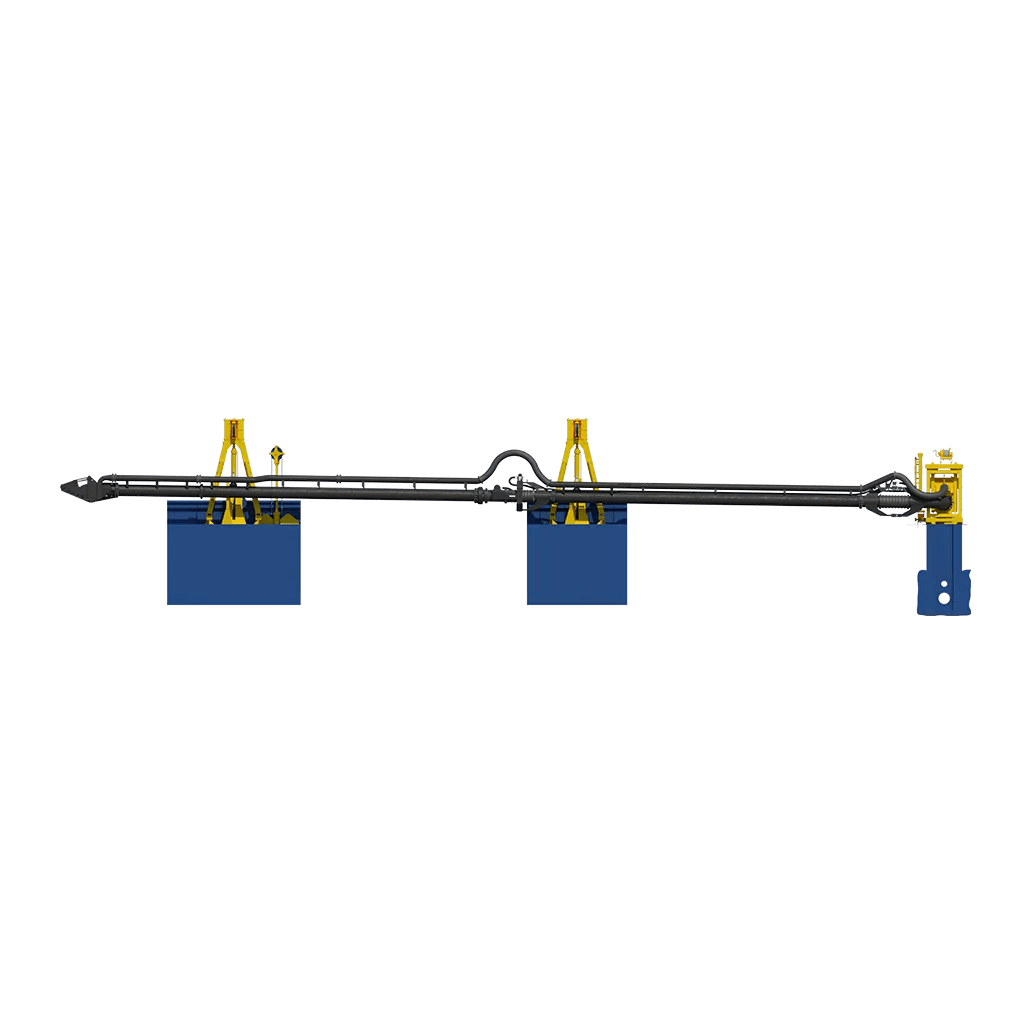

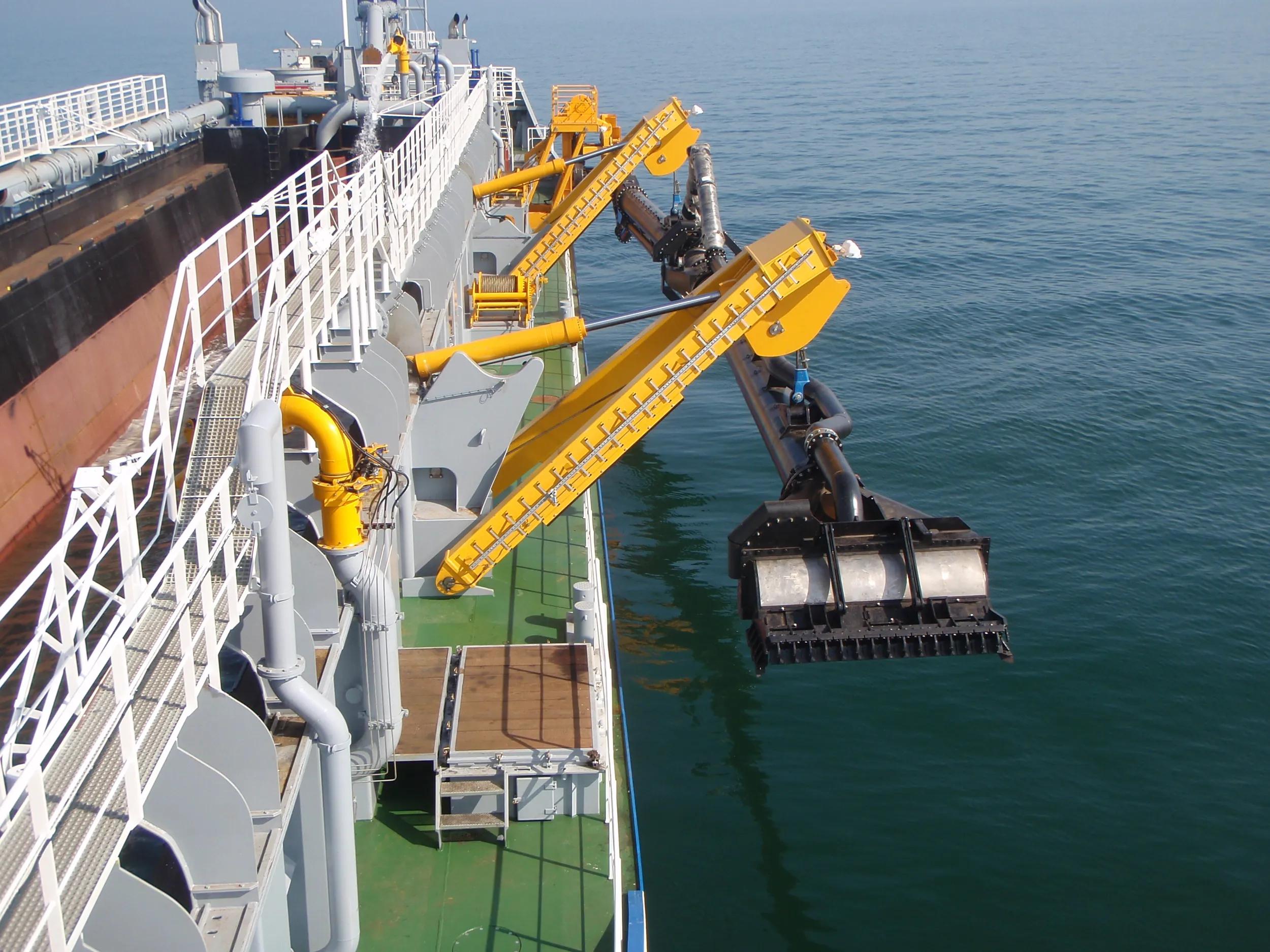

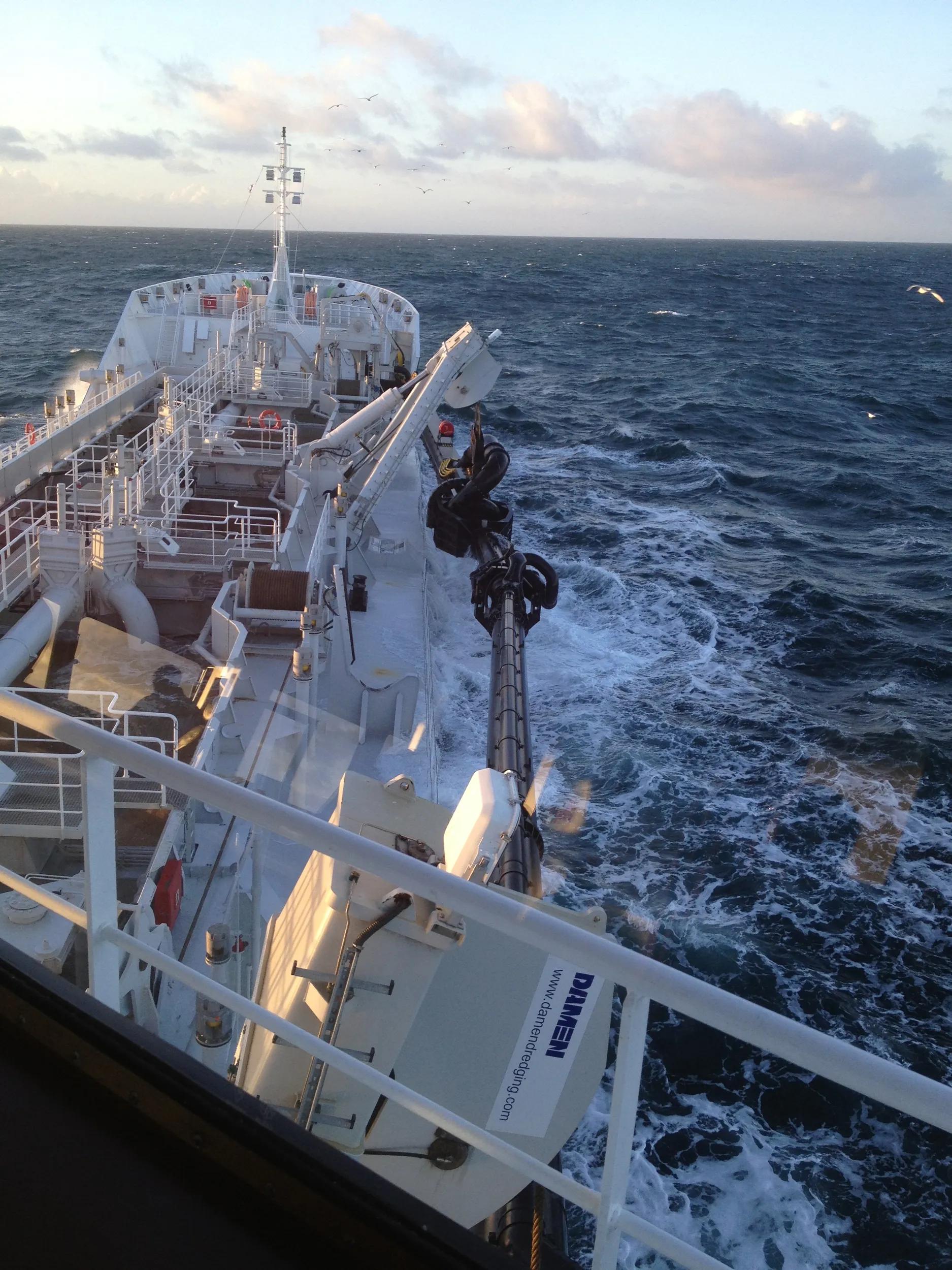

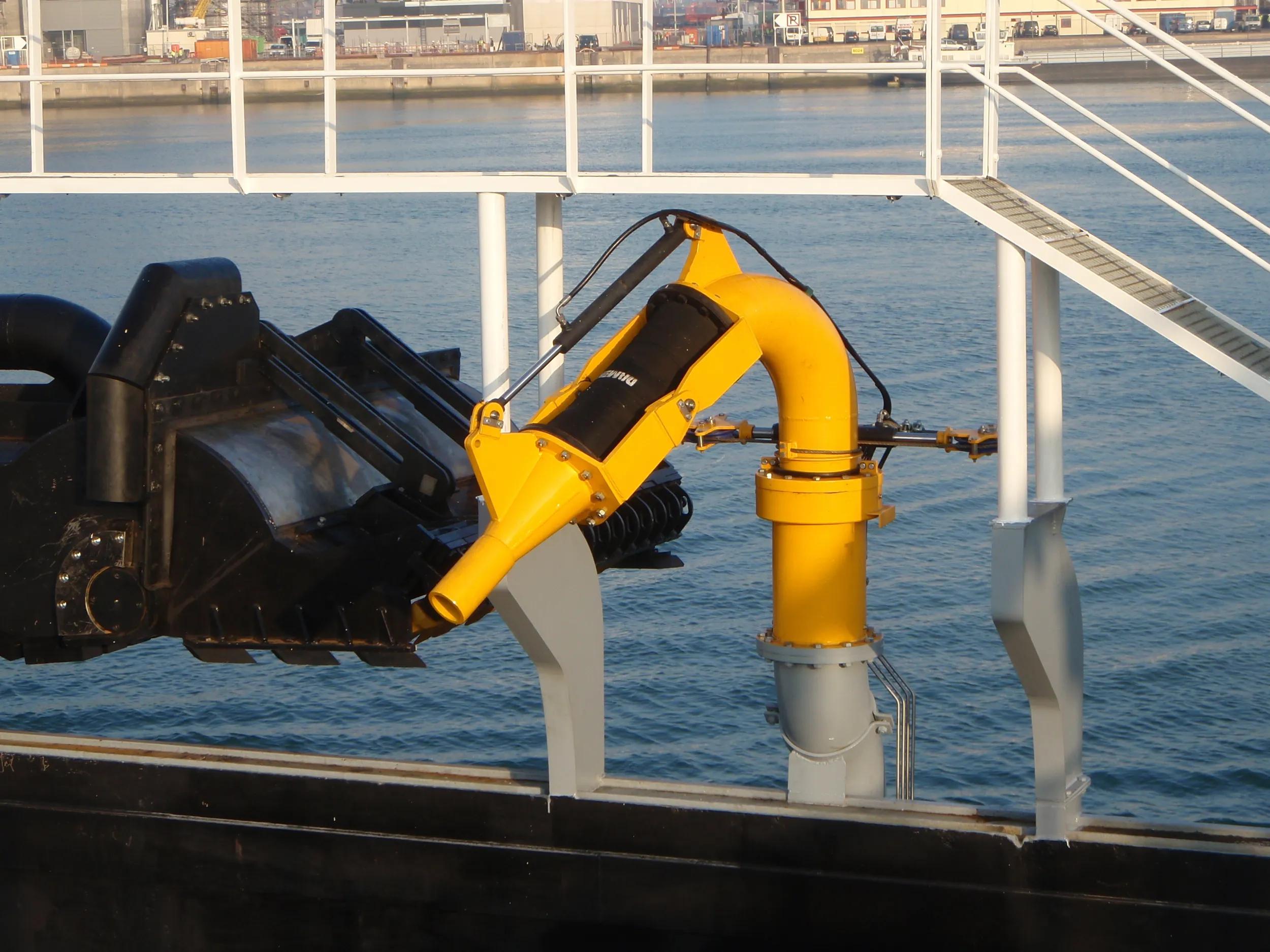

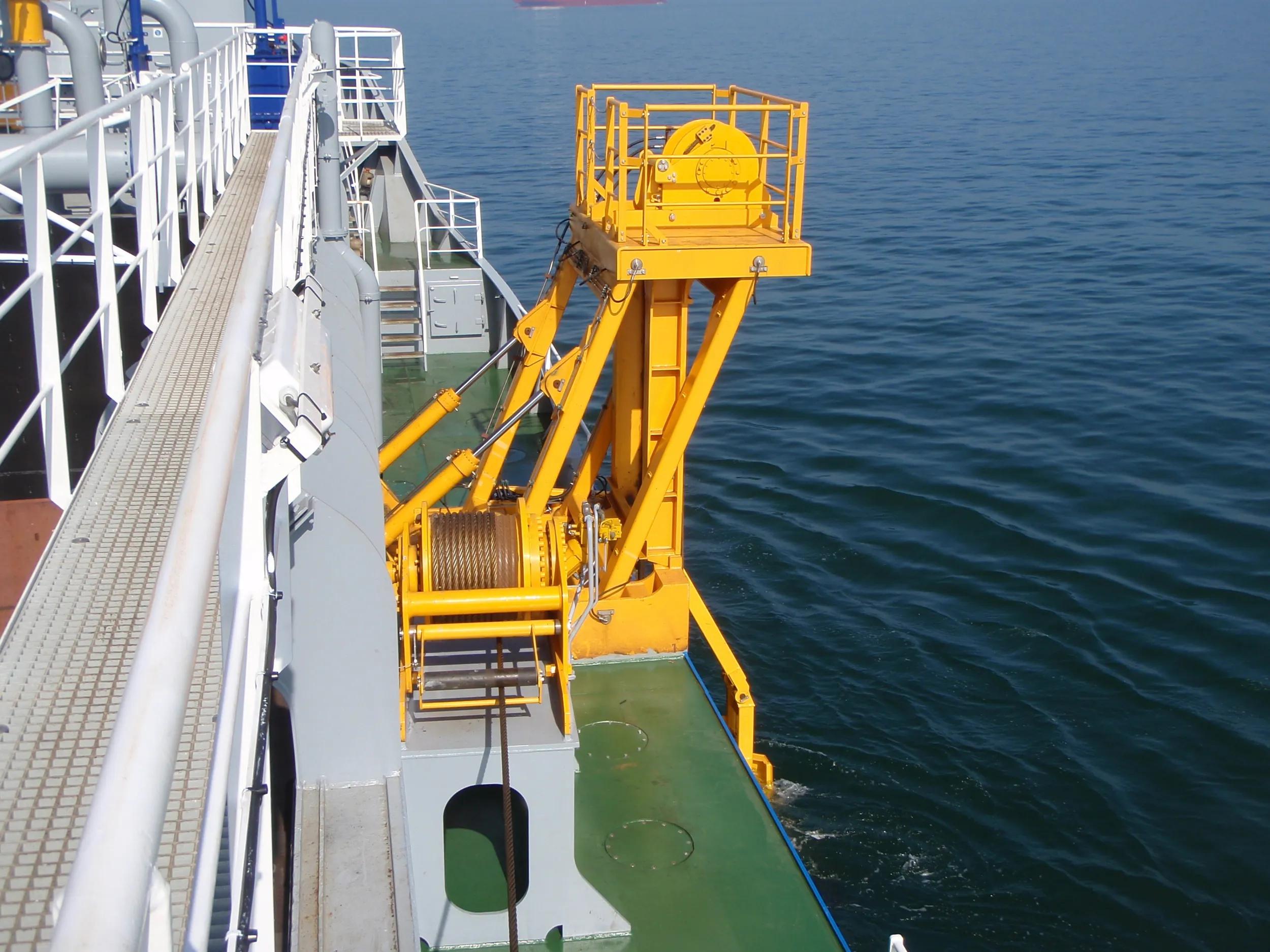

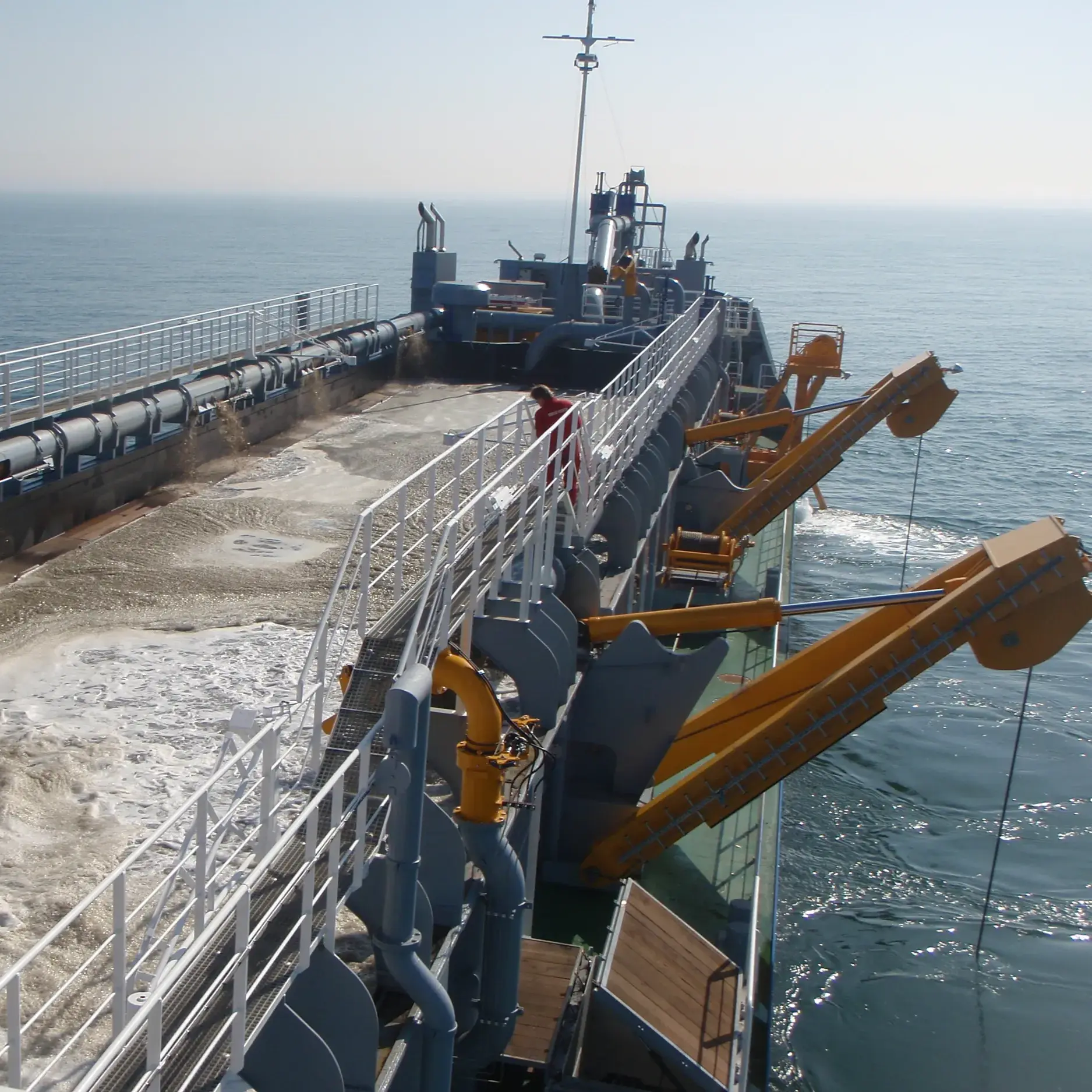

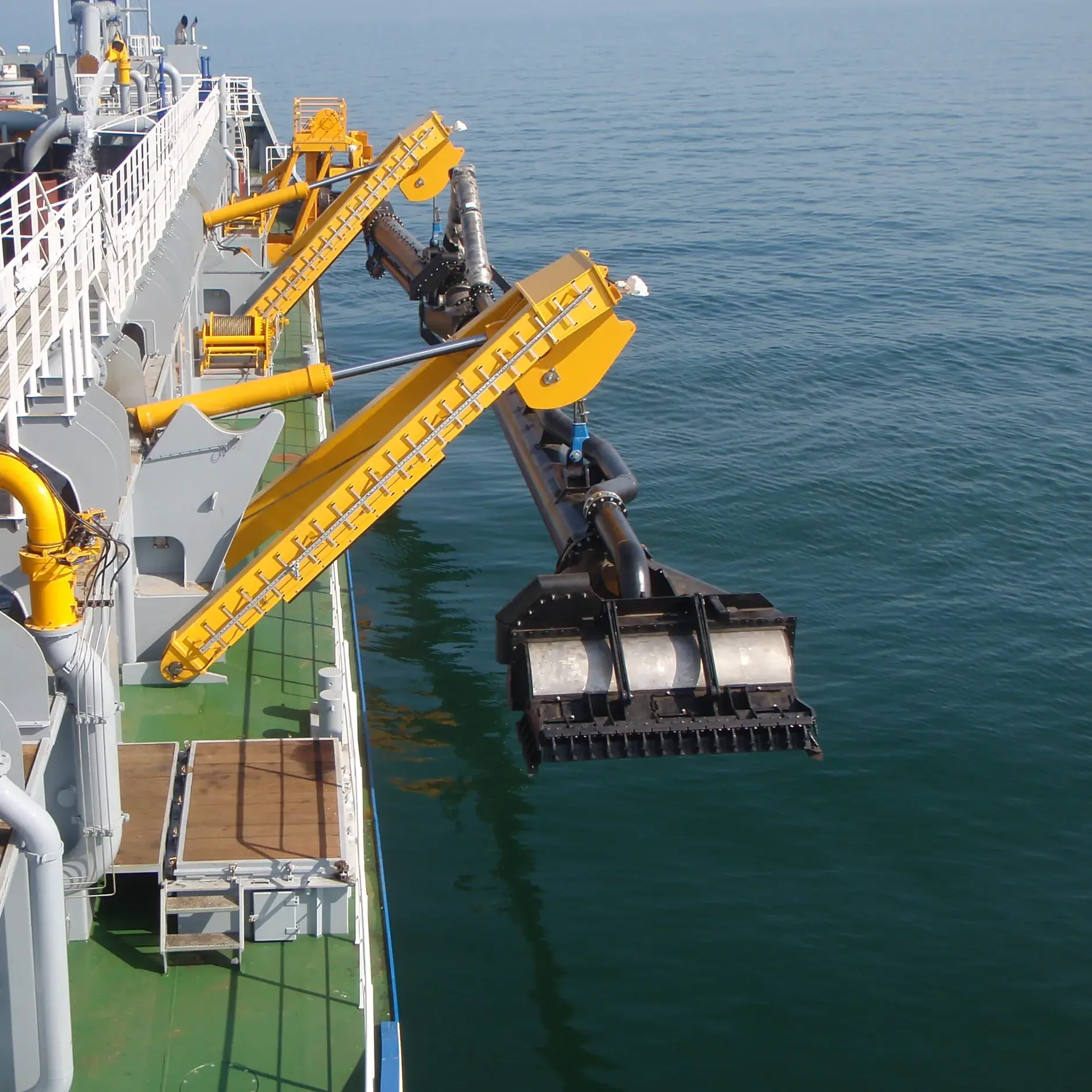

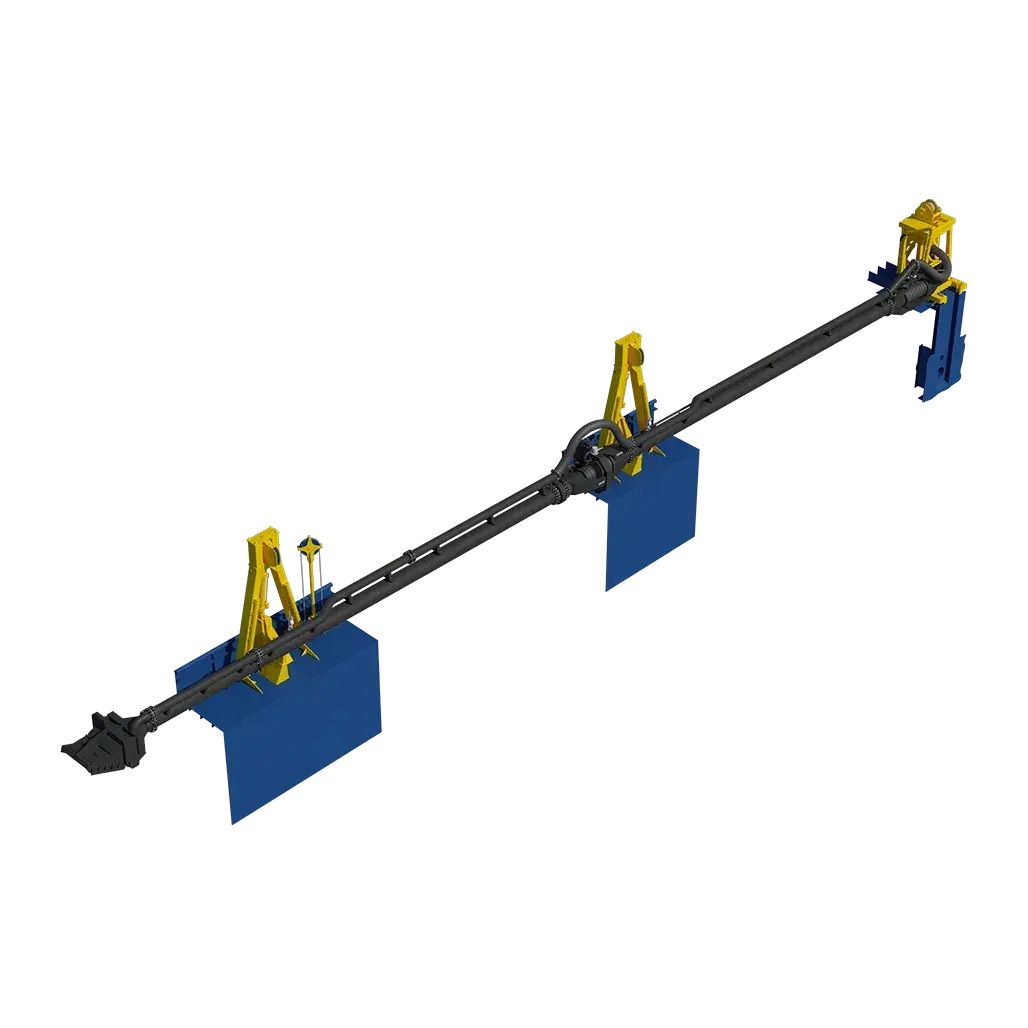

Trailing Suction Pipe TSP700
Trailing Suction Pipe TSP700

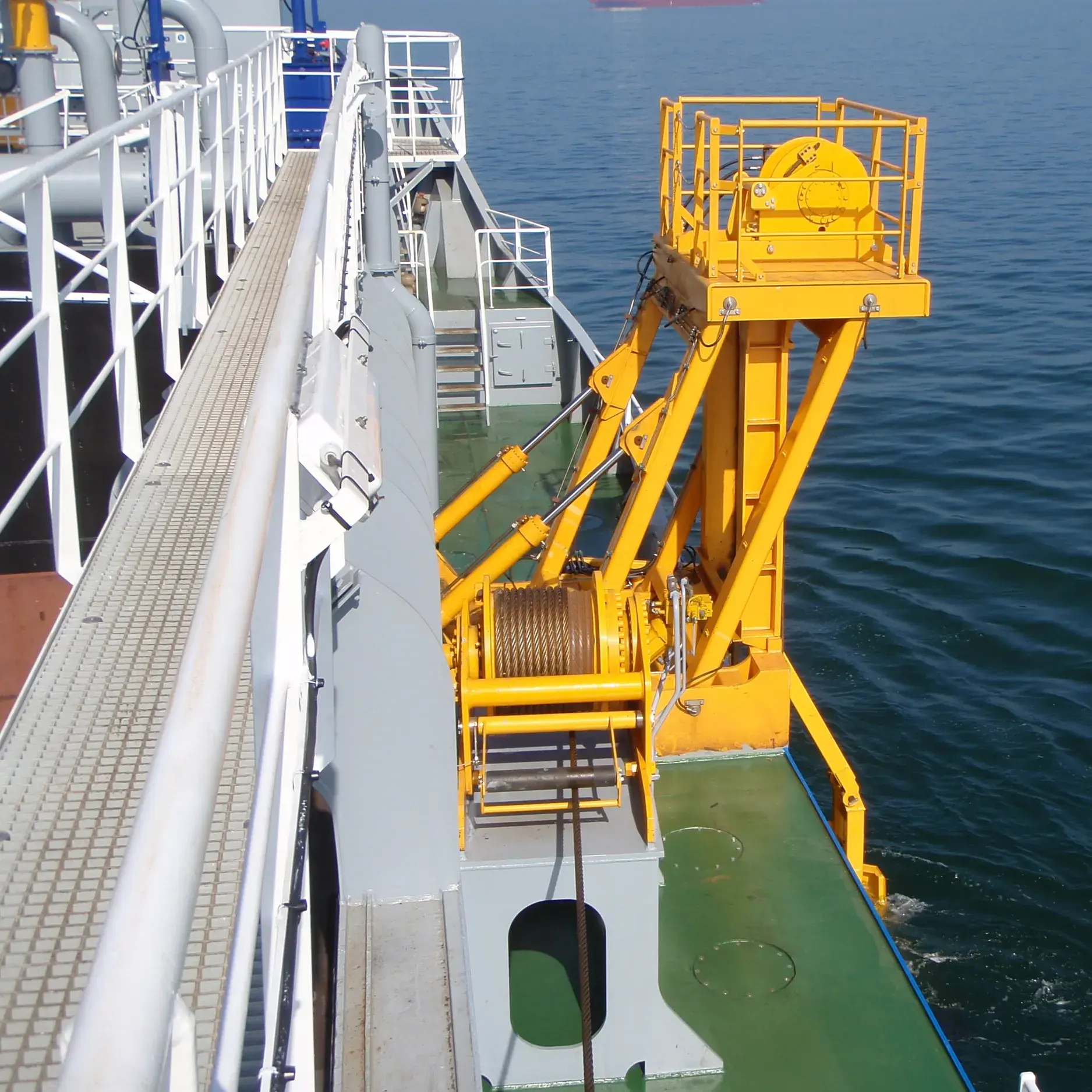

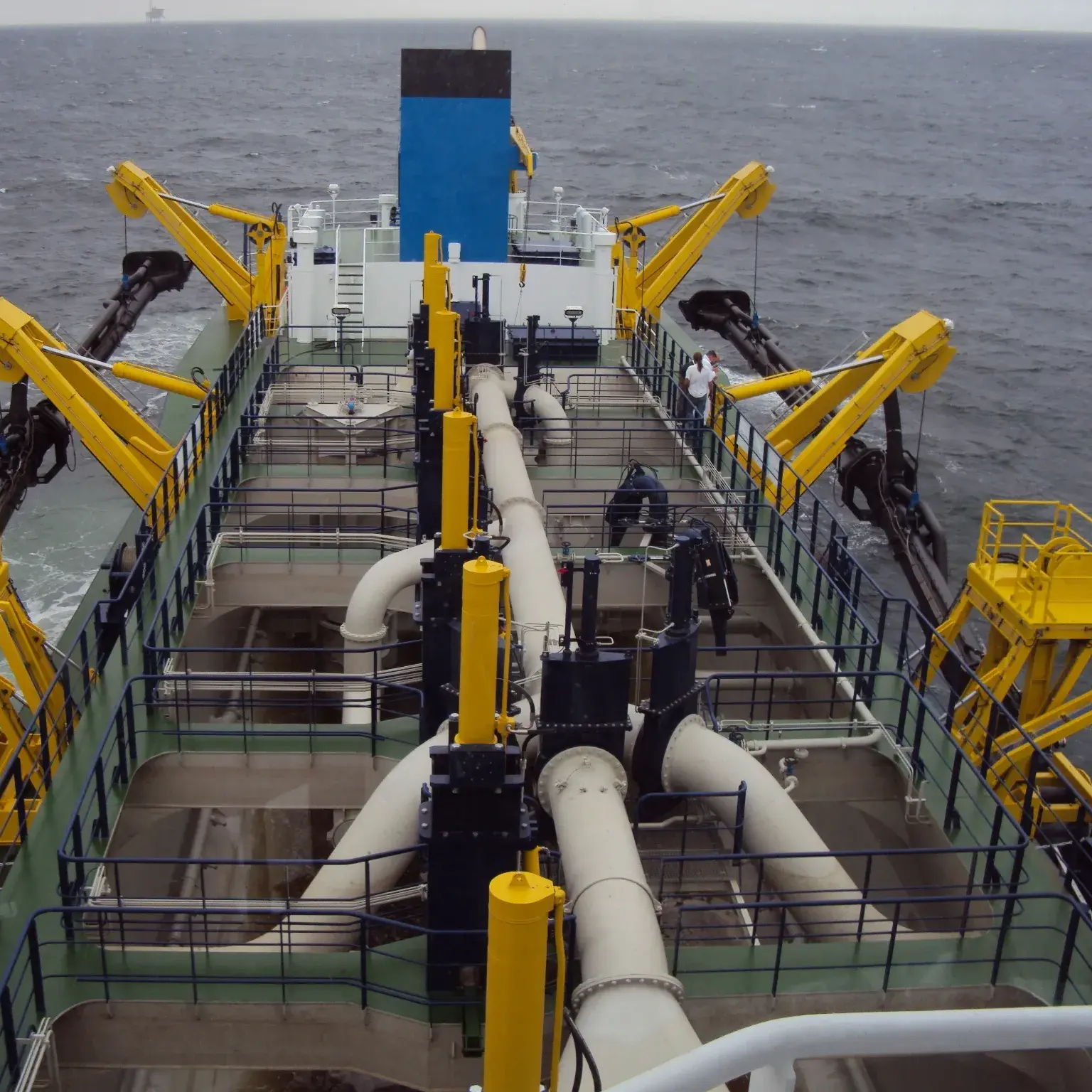

For TSHD newbuilds or dredge renovations, Damen offers a complete package of dredging components. This dredge package includes the trailing suction pipe, one or two dredge pumps, and hopper loading and discharging gear such as overflows and dredge valves. All components are integrated into the dredge yards’ vessel design. The tailor-made dredge kit ensures a fit-for-purpose dredging system and a cost-efficient dredger built with proven dredging equipment.
- Dredge valves
- Dredge pumps
- Overflows
- Dredging instrumentation

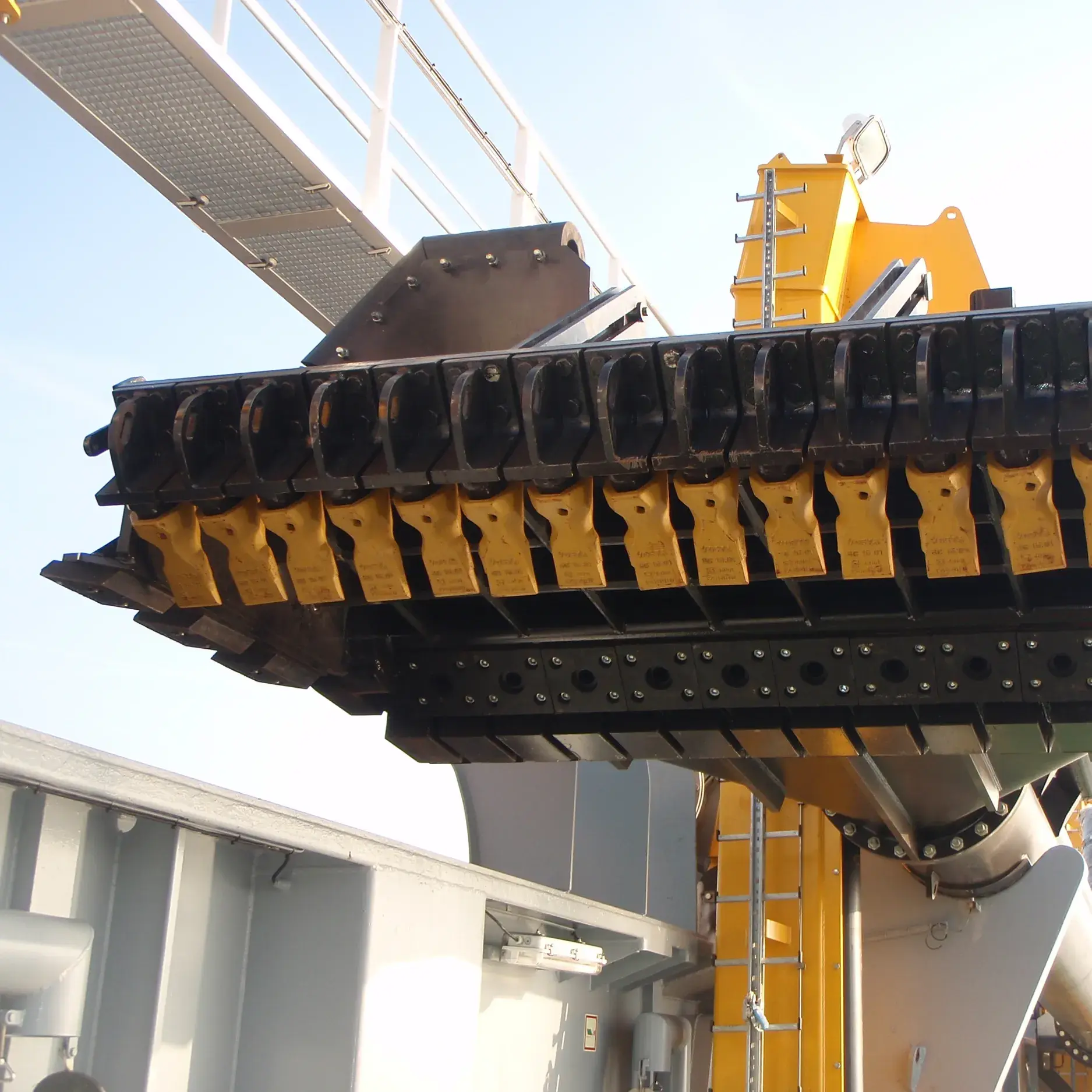

- Reliable drag head control
- Efficient installation on board
- Complete upgrade kits for barge renovation
- Service engineers and crew training available
Key figures
700
25
6950
2000
Dimensions
- Dredge pipe diameter
- 700 m
- Dredge pump
- BP7065LD
- Max wave height
- 3 m
Capacities
- Pump capacity
- 6950 m³/h
- Hopper capacity
- 2000 m³
- Loading time
- 20 minutes
Dredging depth
- Minimum depth
- - 9 m
- Average depth
- - 25 m
- Maximum depth
- - 45 m
Do you want to know more?
Compare similar suction pipe systems
| Dredge pipe diameter (mm) | Av dredging depth (m) | Mixture capacity (m³/h) | Hopper capacity (m³) | ||
|---|---|---|---|---|---|
| Trailing Suction Pipe TSP700 | 700 | 25 | 6950 | 2000 | |
| Trailing Suction Pipe TSP600 | 600 | 20 | 5100 | 1500 | |
| Trailing Suction Pipe TSP750 | 750 | 25 | 7950 | 2500 |
Trailing Suction Pipe TSP700
- Dredge pipe diameter (mm)
- 700
- Av dredging depth (m)
- 25
- Mixture capacity (m³/h)
- 6950
- Hopper capacity (m³)
- 2000
- Dredge pipe diameter (mm)
- 600
- Av dredging depth (m)
- 20
- Mixture capacity (m³/h)
- 5100
- Hopper capacity (m³)
- 1500
- Dredge pipe diameter (mm)
- 750
- Av dredging depth (m)
- 25
- Mixture capacity (m³/h)
- 7950
- Hopper capacity (m³)
- 2500
Damen solutions
Lifecycle supportFrom delivery onwards, Damen Services supports you, every step of the way.Learn more
Trade-in your current vesselExplore our options for vessel trade-in at Damen Trading. Our in-house shipbroker.Learn more
Transform your TSHD
Dredging solutions
Dredging equipment to boost your dredger’s operation.
Dredging news & insights
8 Jan 2025
Damen signs contract with New Zealand’s Port Otago and partner Napier Port for delivery of TSHD 1000
7 Nov 2023

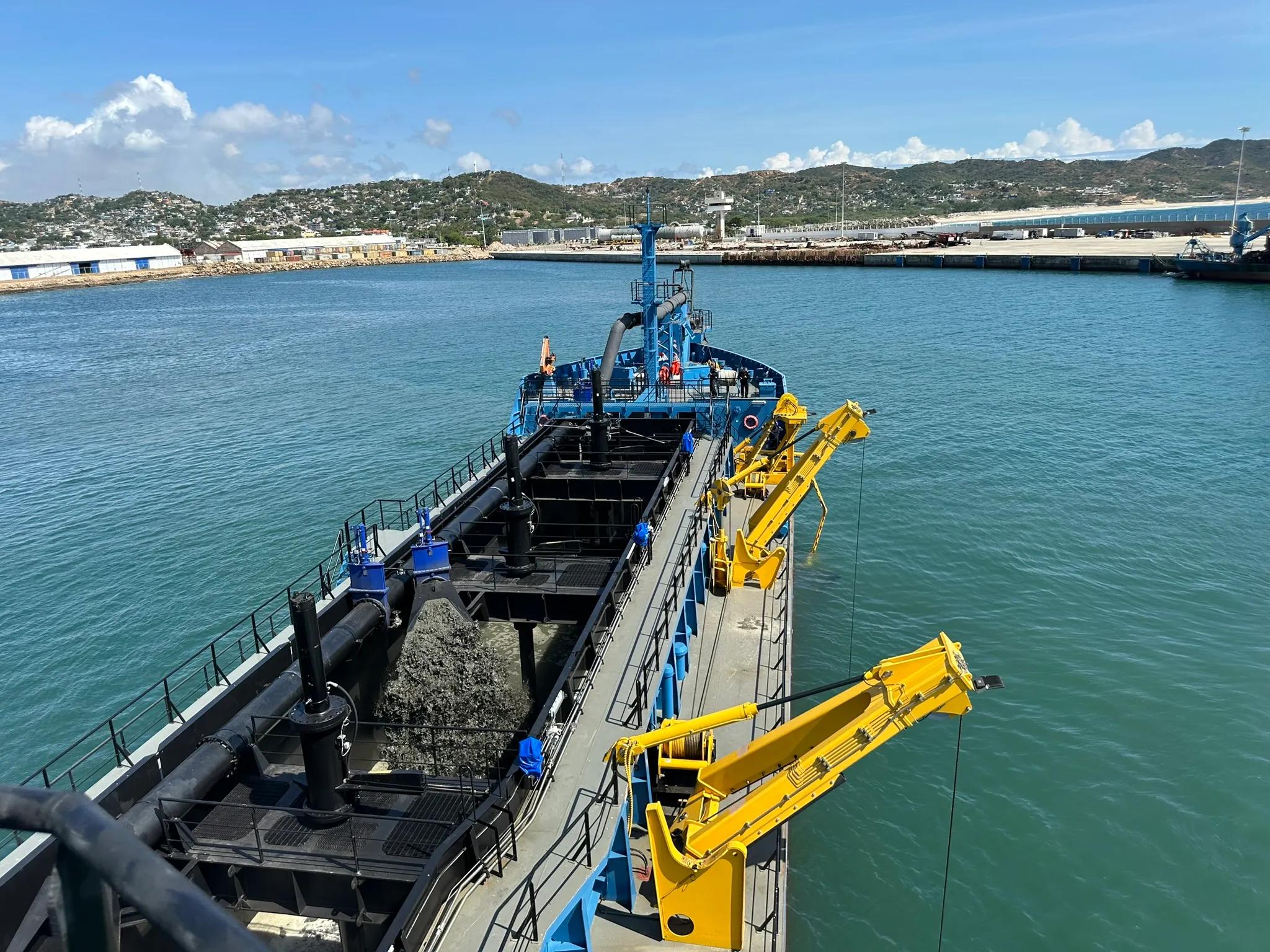

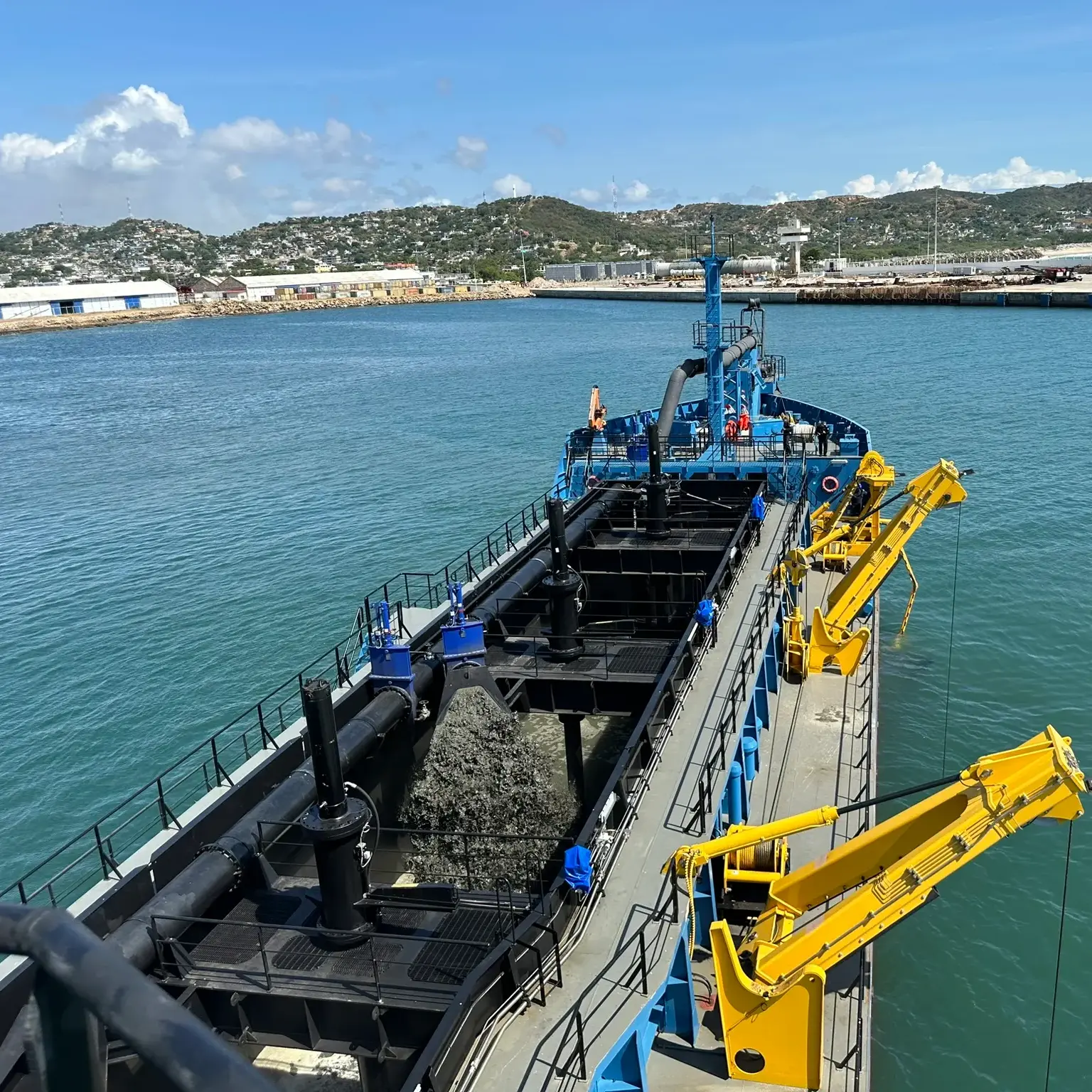

Damen delivers dredge packages to Mexico
16 Sep 2022

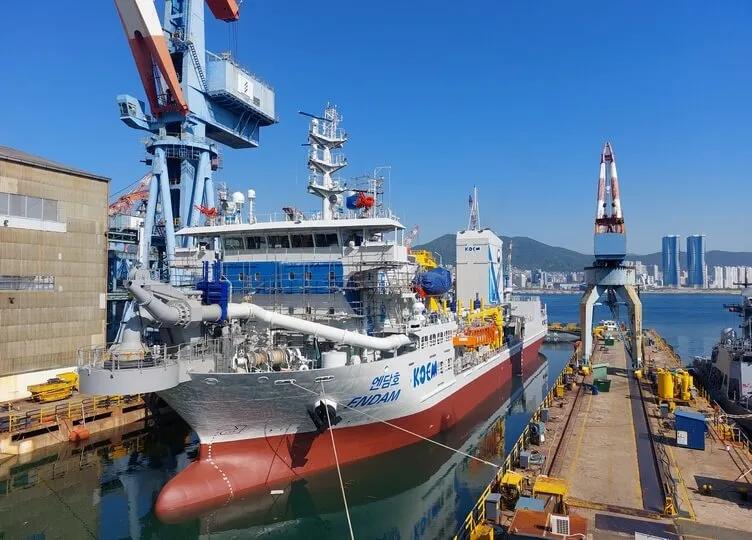

Damen delivers complete mission equipment package for KOEM multipurpose vessel
