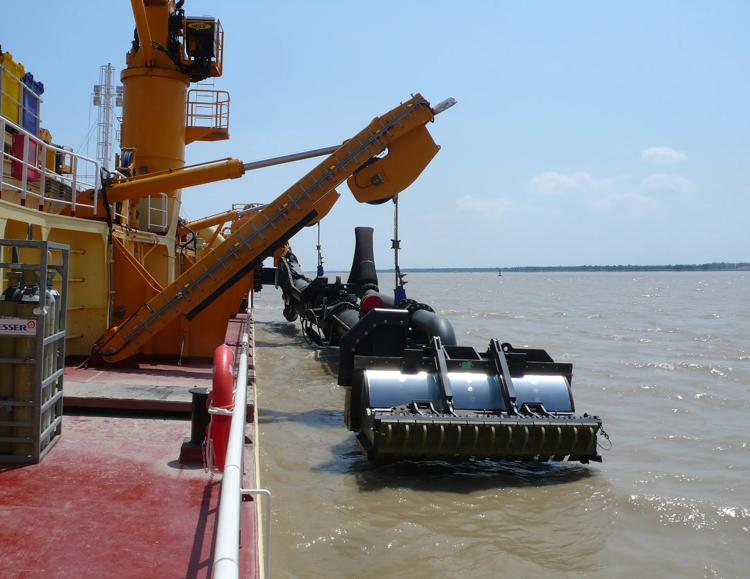

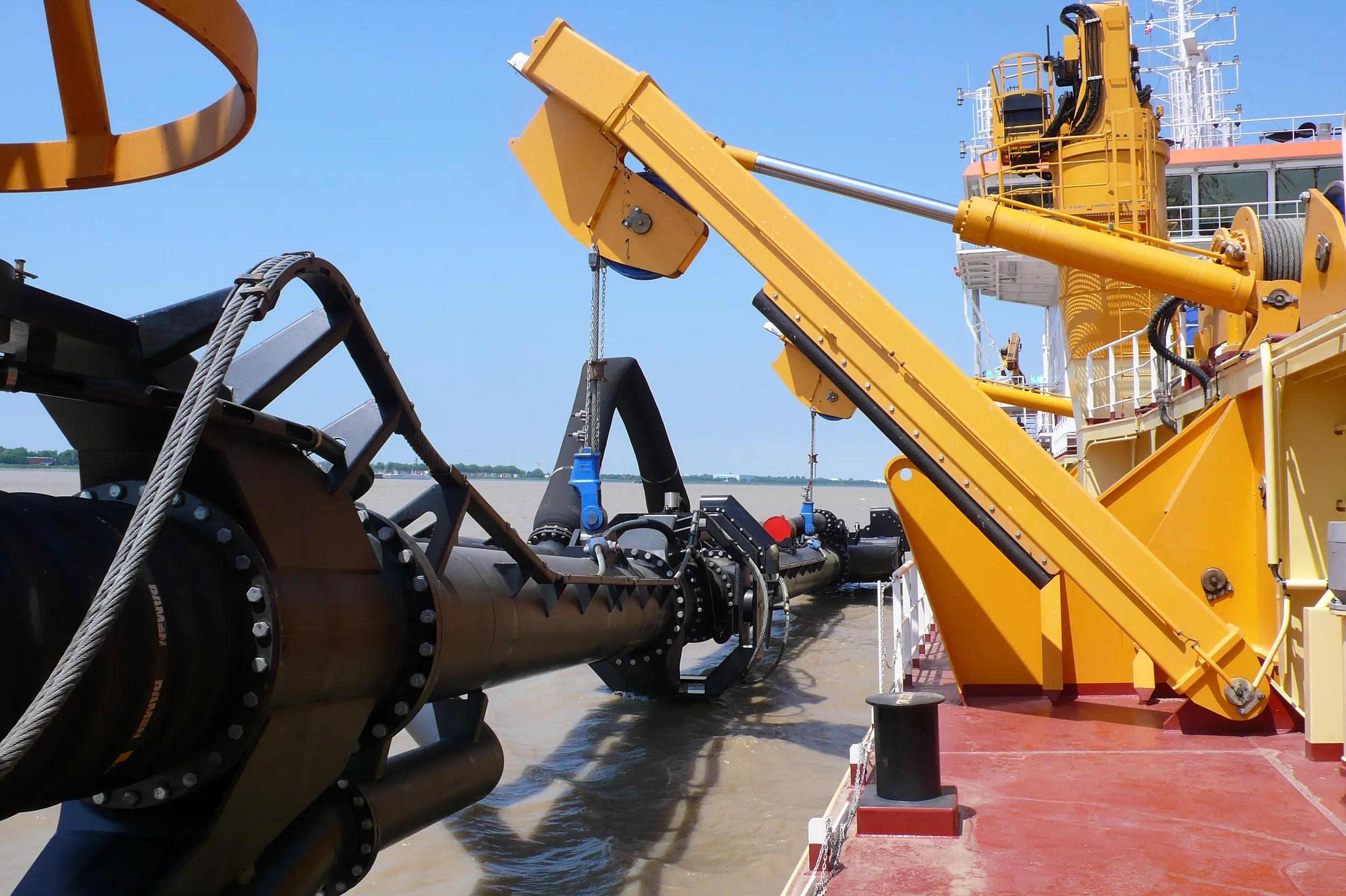

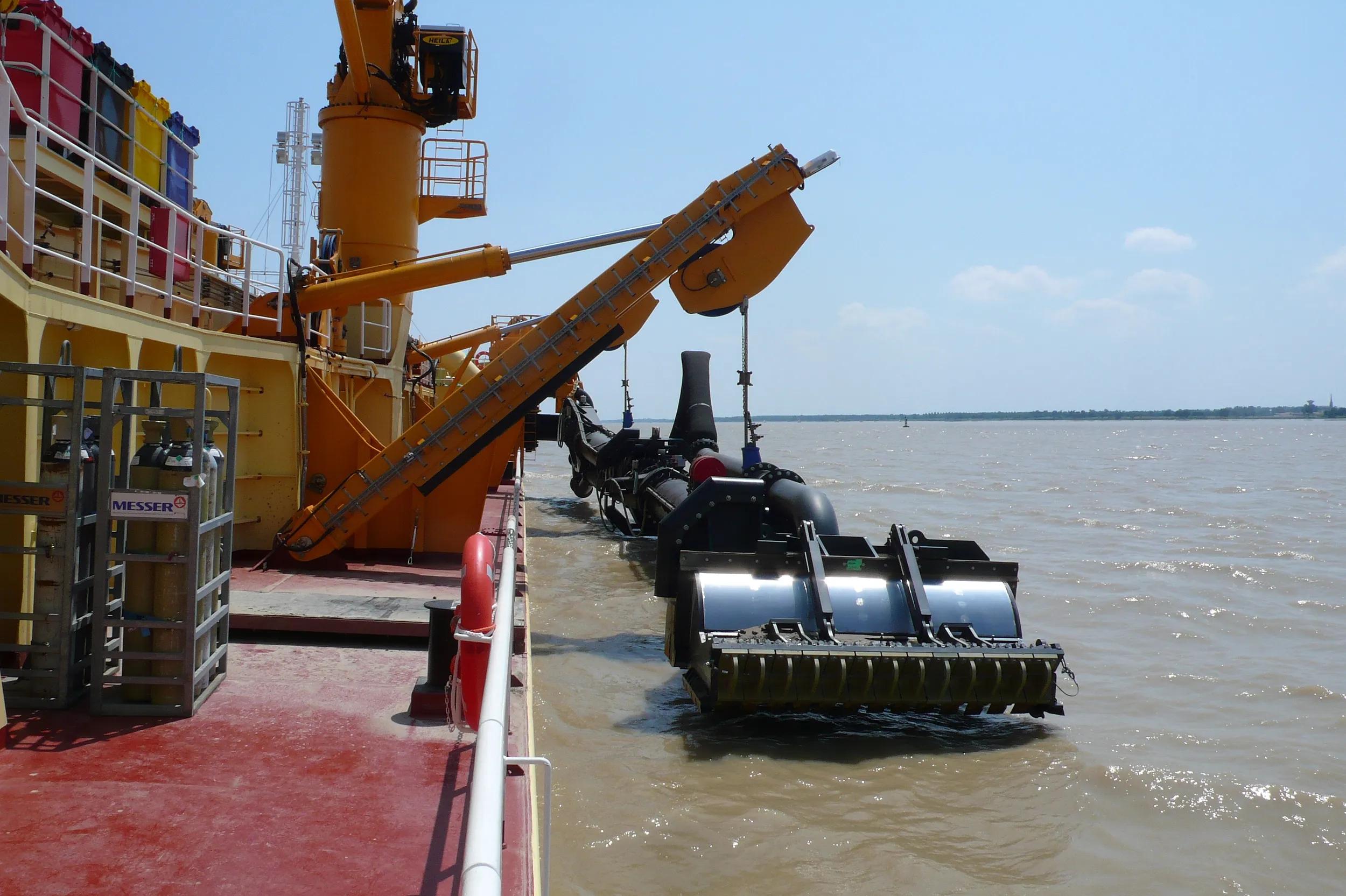

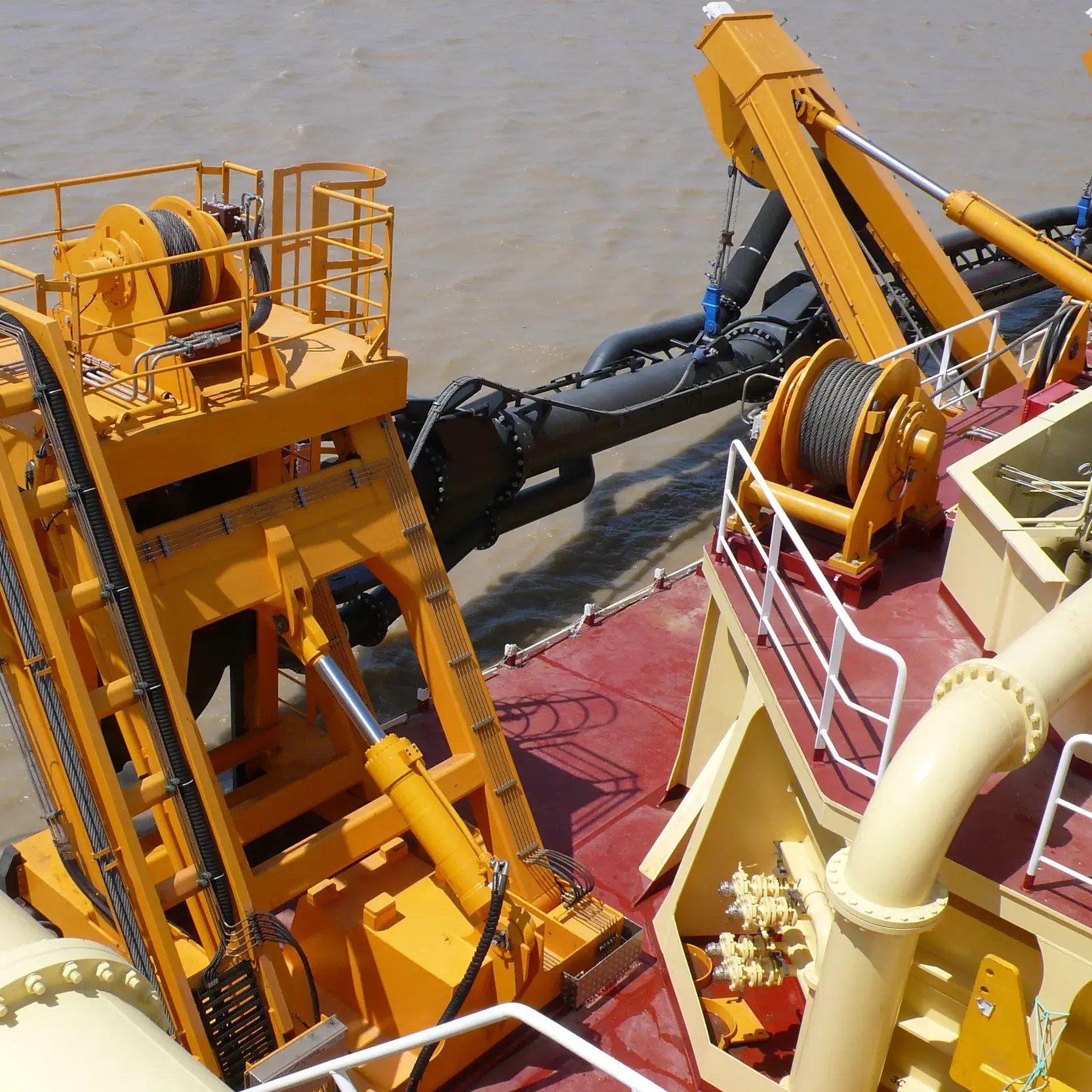

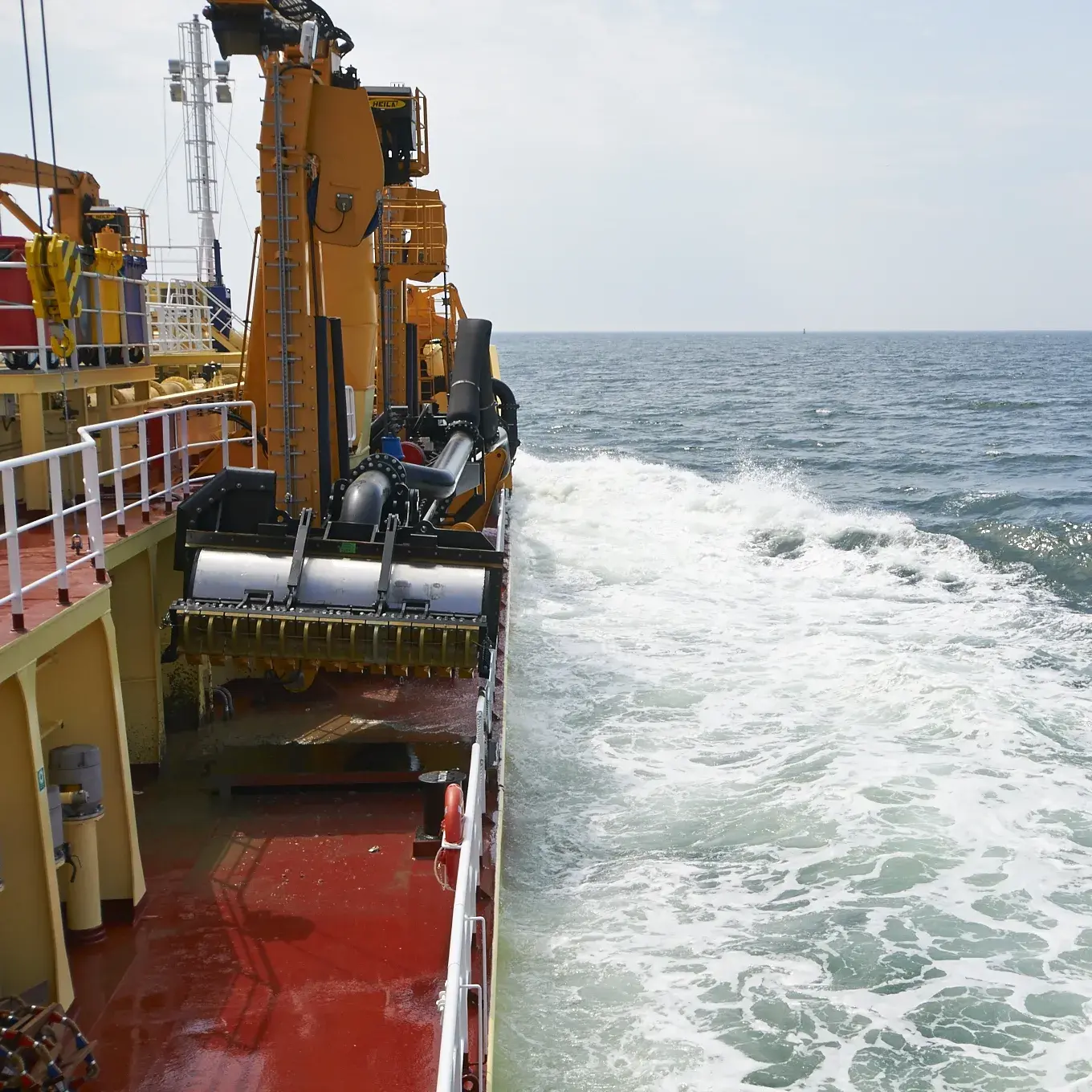

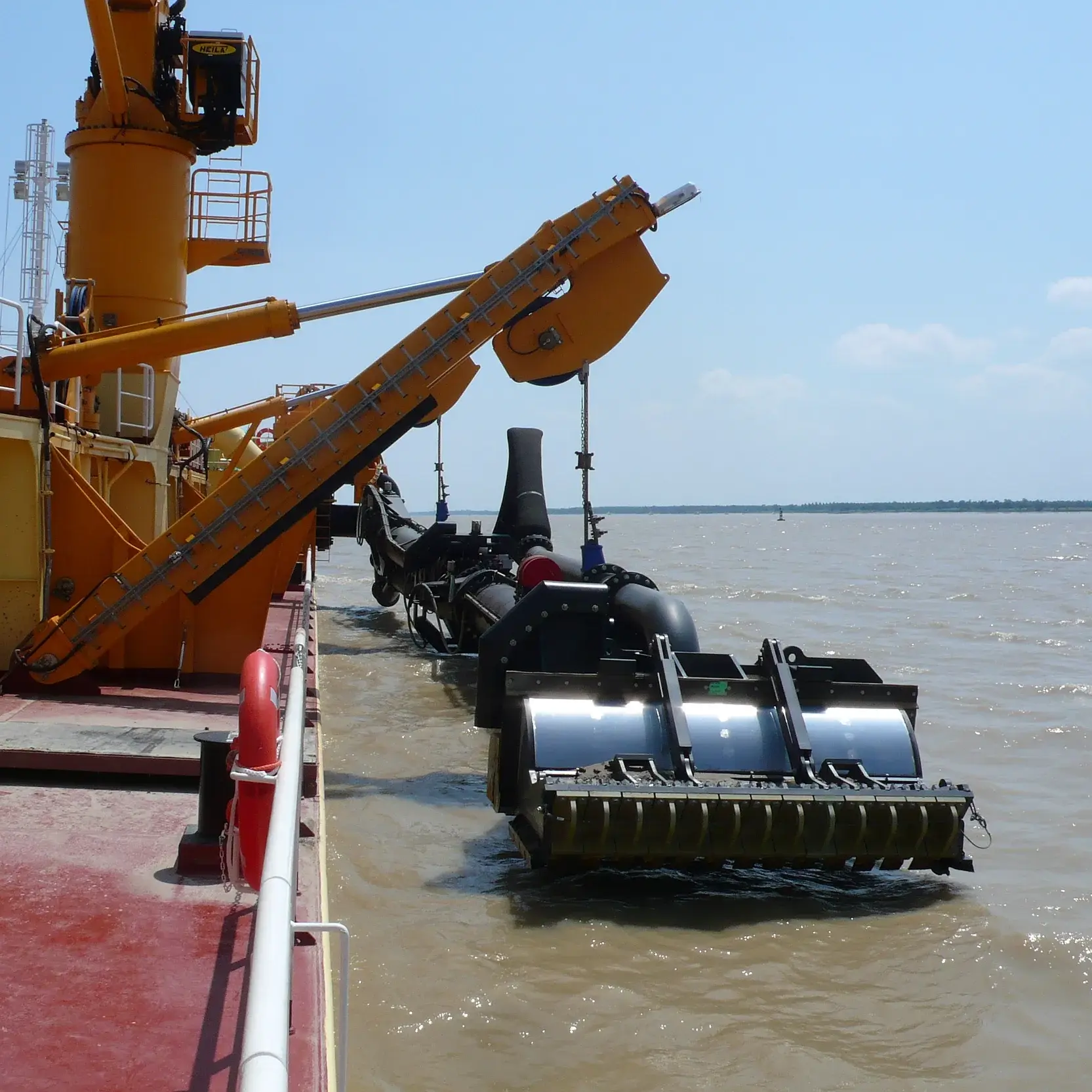

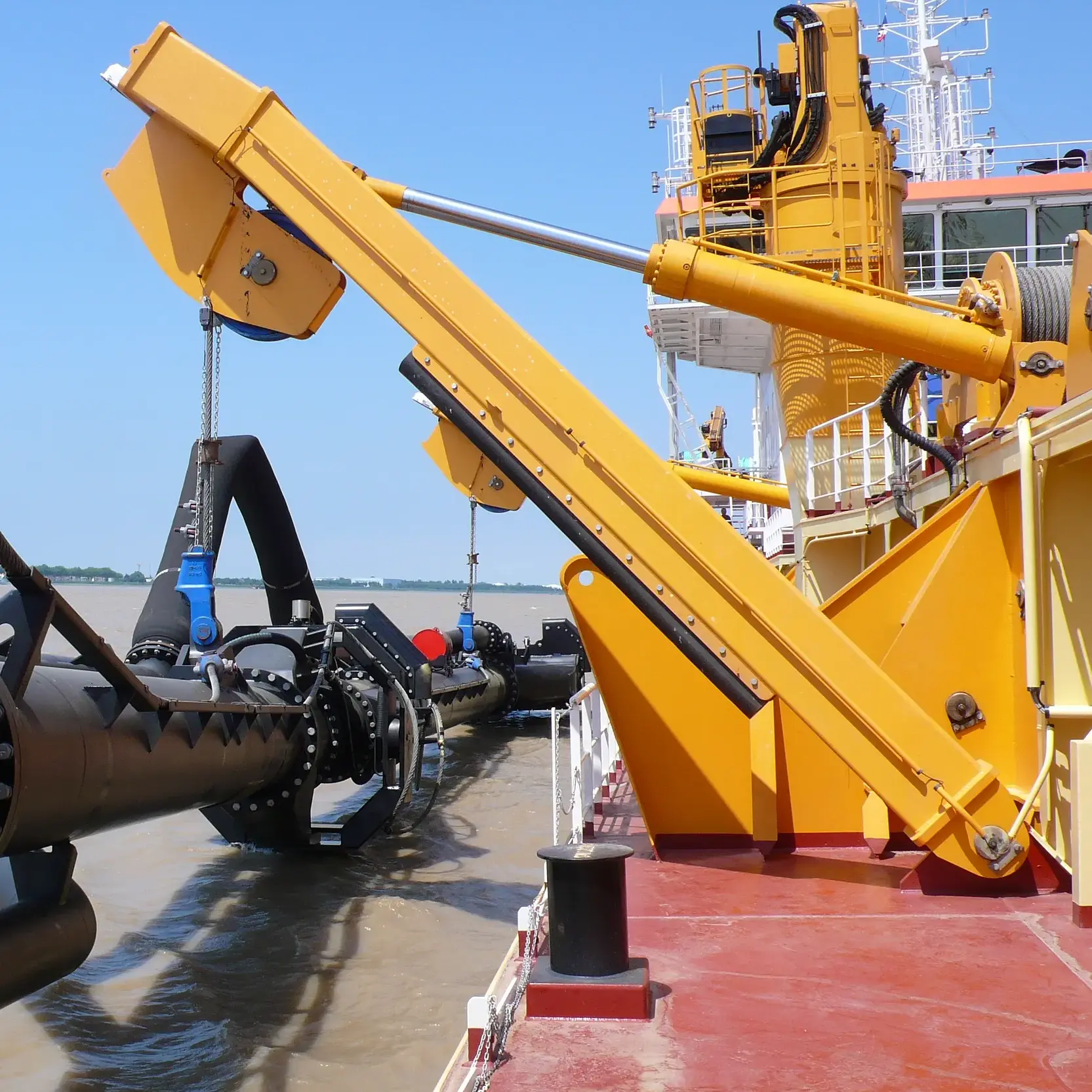

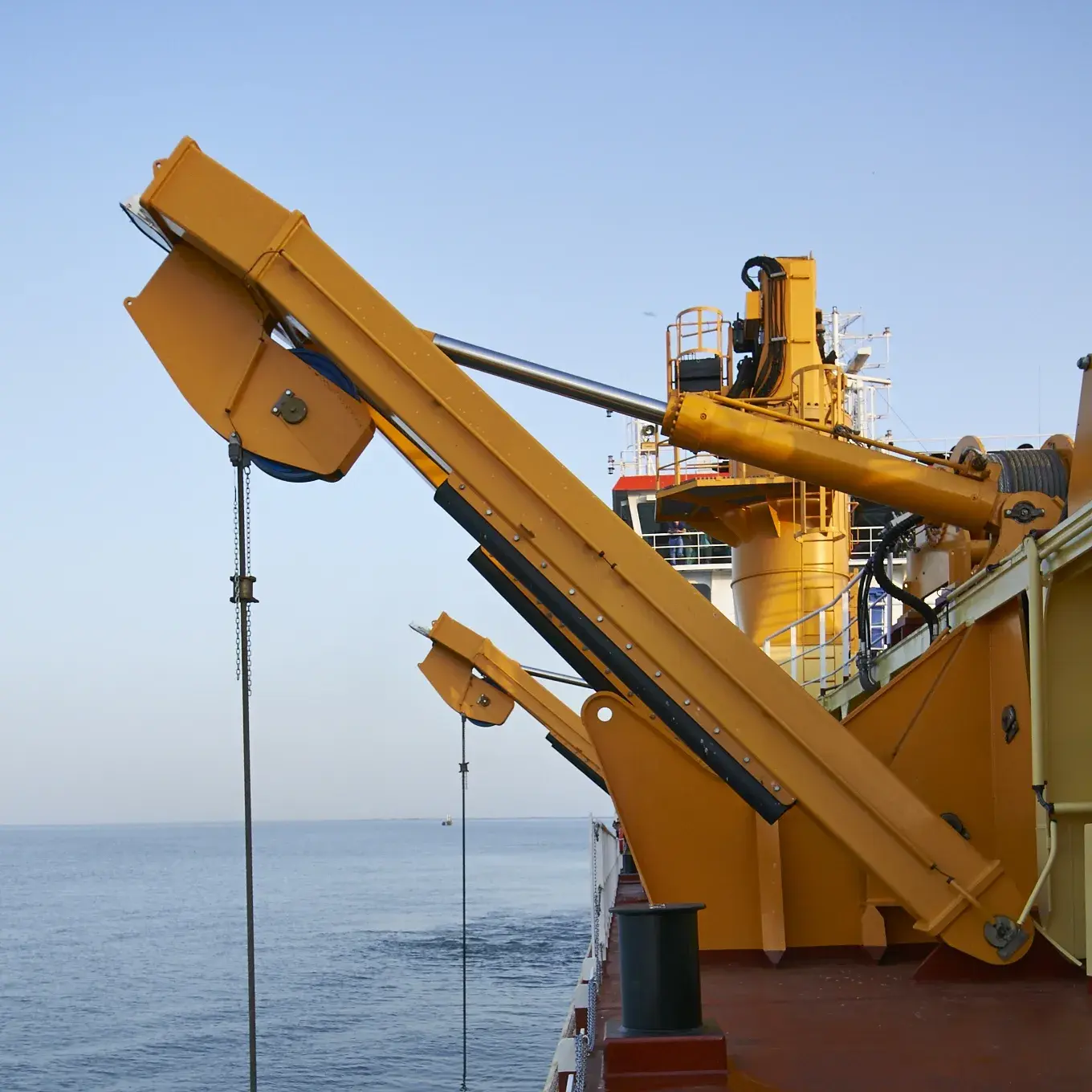

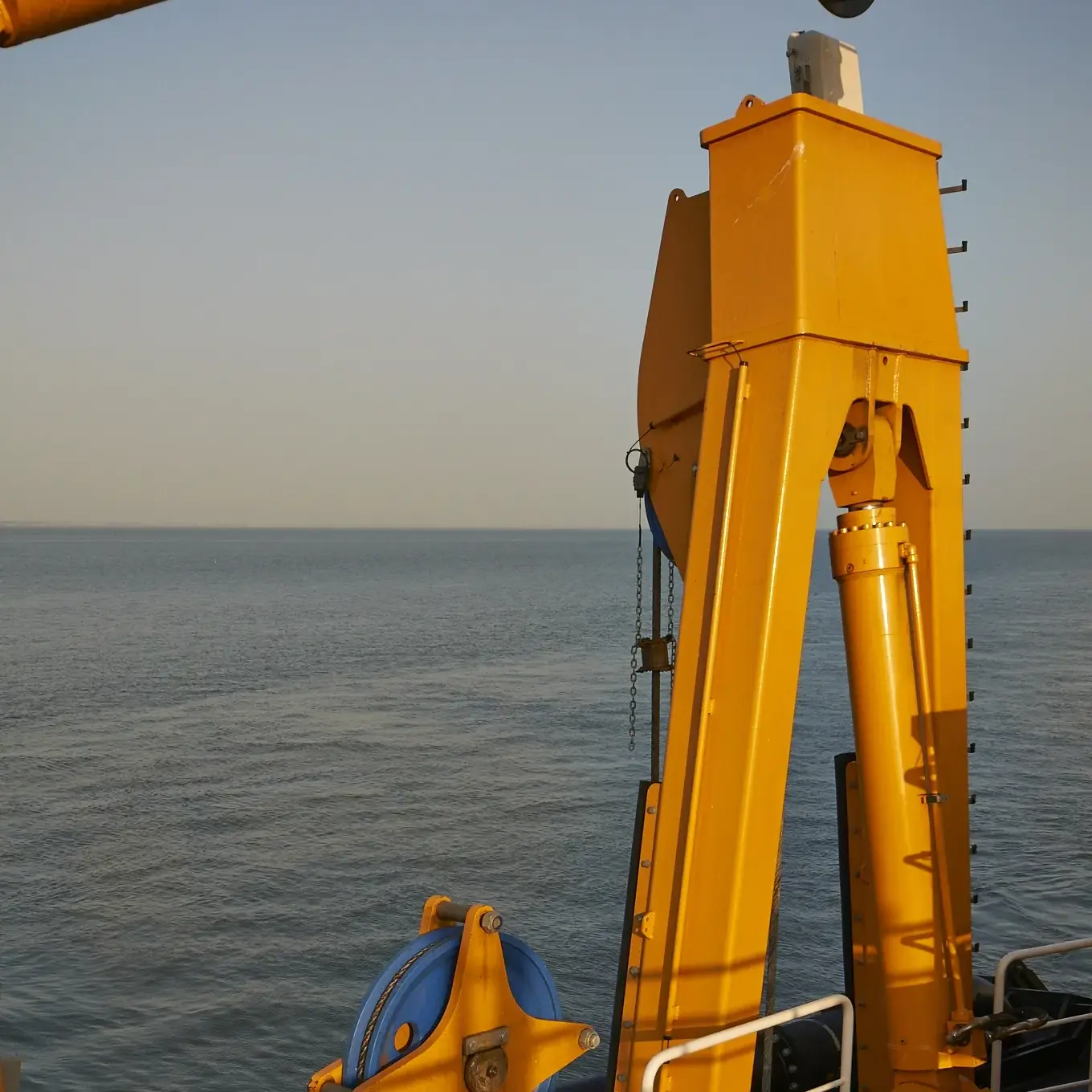

Trailing Suction Pipe TSP800
As each trailing pipe package is customised, your dredging depth or hopper volume may differ. Your dredge requirements may be off-standard. Whatever your requirements are, the proposed design will be a dedicated solution fitting your operational situation. A dredging equipment package may include – apart from the trailing suction pipe and dredge pump – various pieces of loading and discharging equipment. Examples are overflows, jet water monitors, dredge valves, dredging instrumentation and much more. Damen delivers a complete dredging system, seamlessly integrated into your hopper dredger.
- Dredge valves

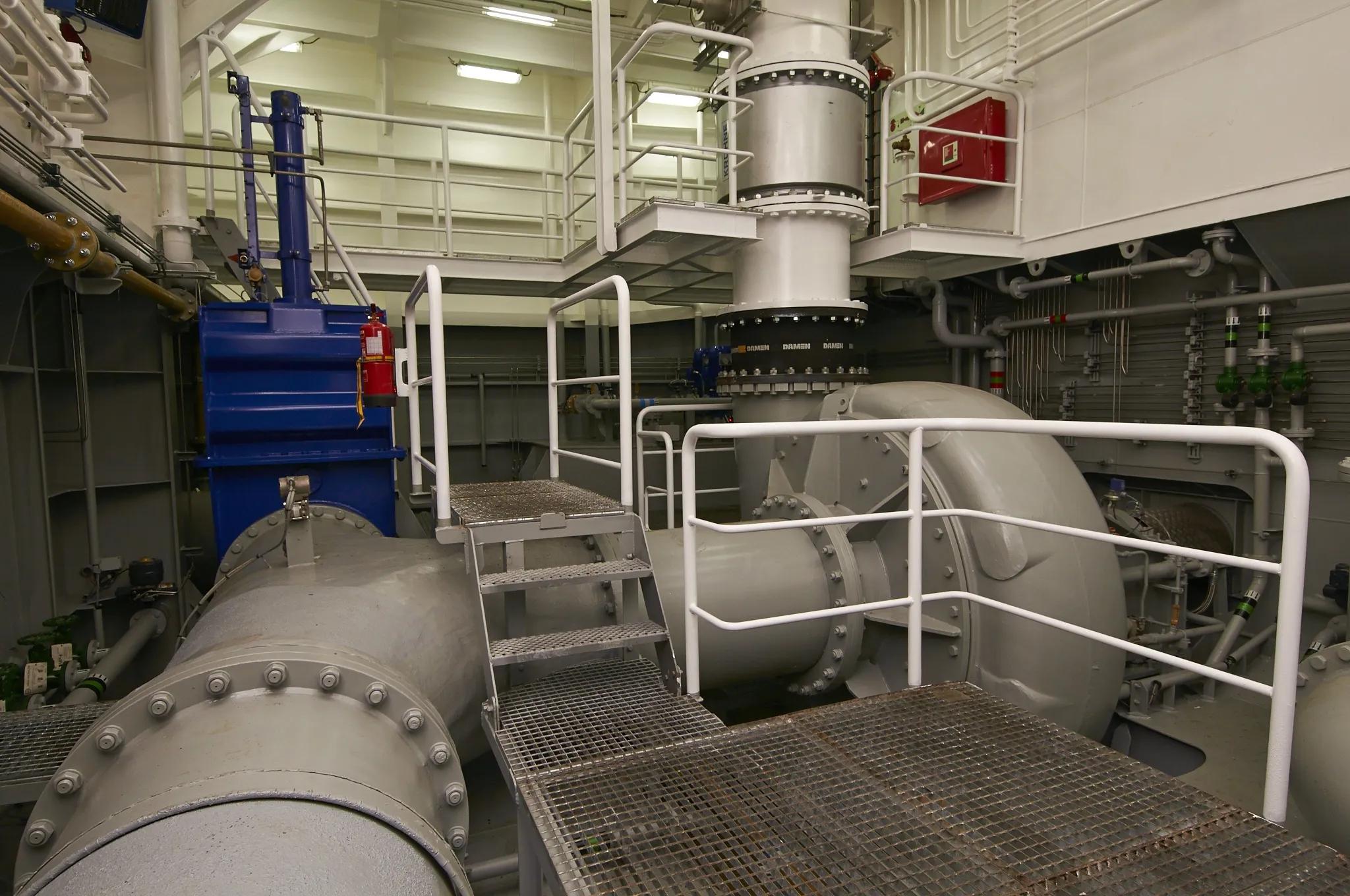

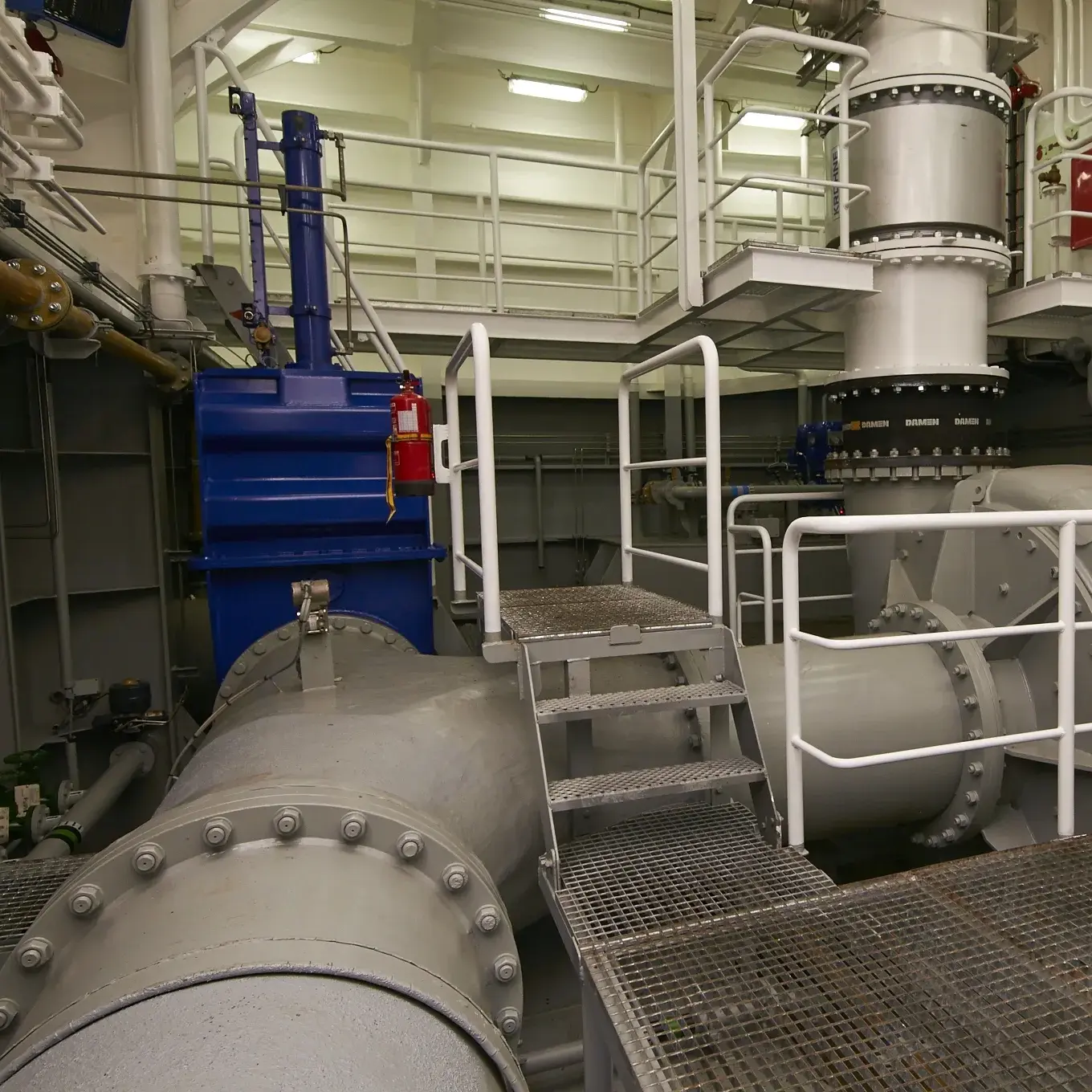

- Dredge pumps

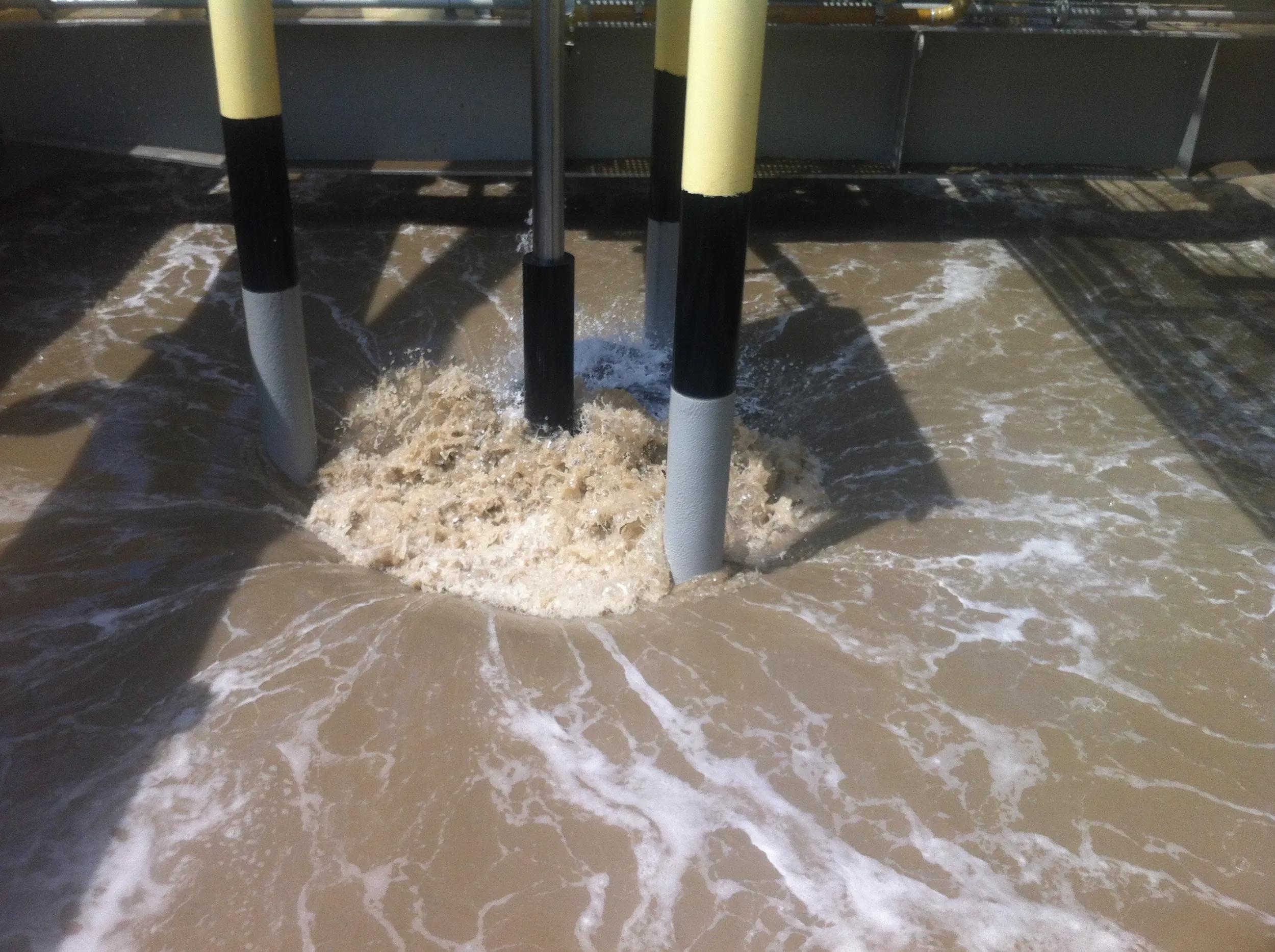

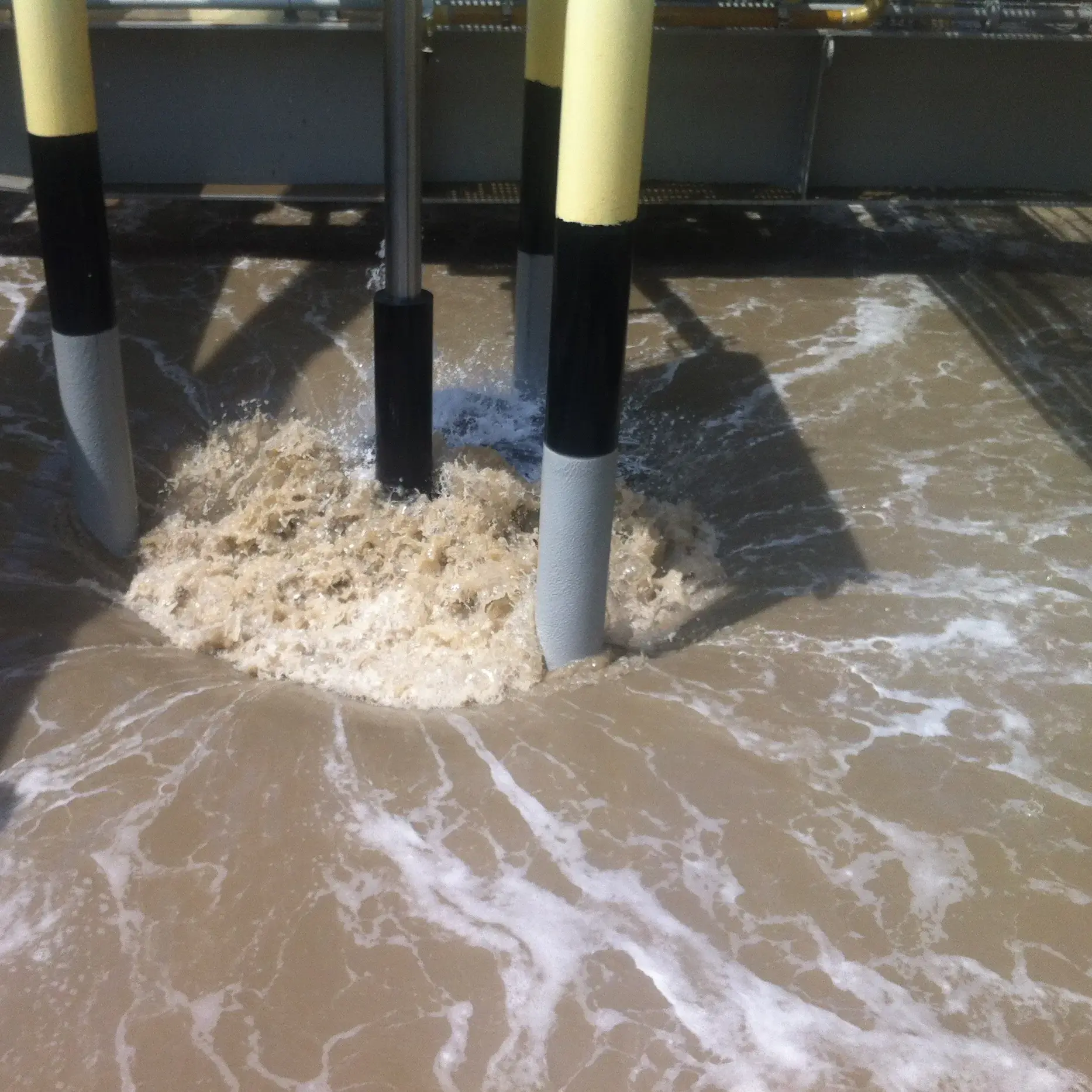

- Overflows
- Dredging instrumentation
- Customised for a perfect fit
- Smart vessel integration
- Complete hopper dredger package
- Reliable and robust dredge component designs
Key figures
800
30
9050
3000
Dimensions
- Dredge pipe diameter
- 800 m
- Dredge pump
- BP8075LD
- Max wave height
- 3.5 m
Capacities
- Pump capacity
- 9050 m³/h
- Hopper capacity
- 3000 m³
- Loading time
- 20 minutes
Dredging depth
- Minimum depth
- - 11 m
- Average depth
- - 30 m
- Maximum depth
- - 55 m
Do you want to know more?
Compare similar suction pipe systems
| Dredge pipe diameter (mm) | Av dredging depth (m) | Mixture capacity (m³/h) | Hopper capacity (m³) | ||
|---|---|---|---|---|---|
| Trailing Suction Pipe TSP800 | 800 | 30 | 9050 | 3000 | |
| Trailing Suction Pipe TSP900 | 900 | 30 | 11450 | 4000 | |
| Trailing Suction Pipe TSP750 | 750 | 25 | 7950 | 2500 |
Trailing Suction Pipe TSP800
- Dredge pipe diameter (mm)
- 800
- Av dredging depth (m)
- 30
- Mixture capacity (m³/h)
- 9050
- Hopper capacity (m³)
- 3000
- Dredge pipe diameter (mm)
- 900
- Av dredging depth (m)
- 30
- Mixture capacity (m³/h)
- 11450
- Hopper capacity (m³)
- 4000
- Dredge pipe diameter (mm)
- 750
- Av dredging depth (m)
- 25
- Mixture capacity (m³/h)
- 7950
- Hopper capacity (m³)
- 2500
