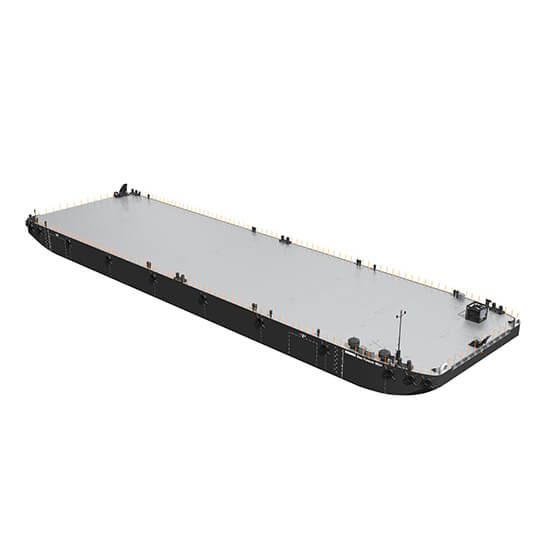

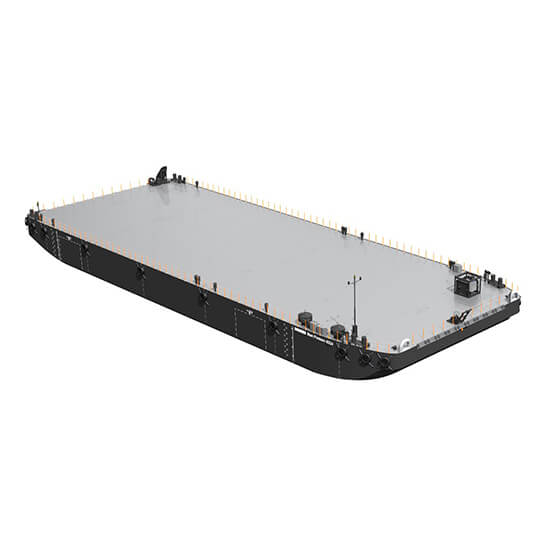

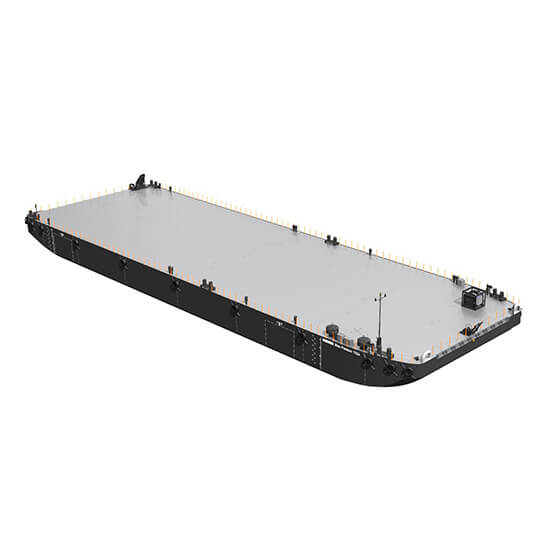

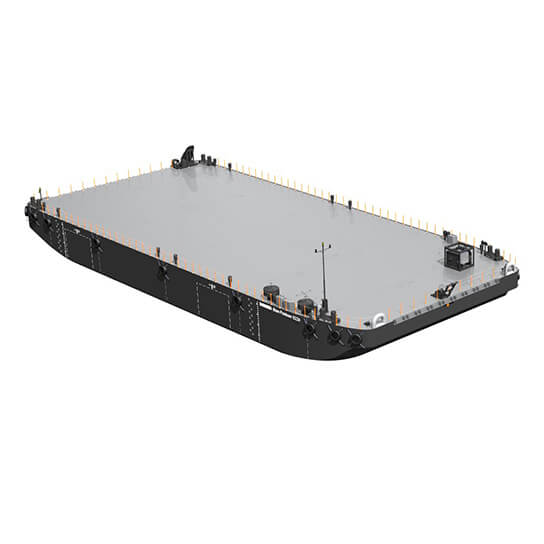

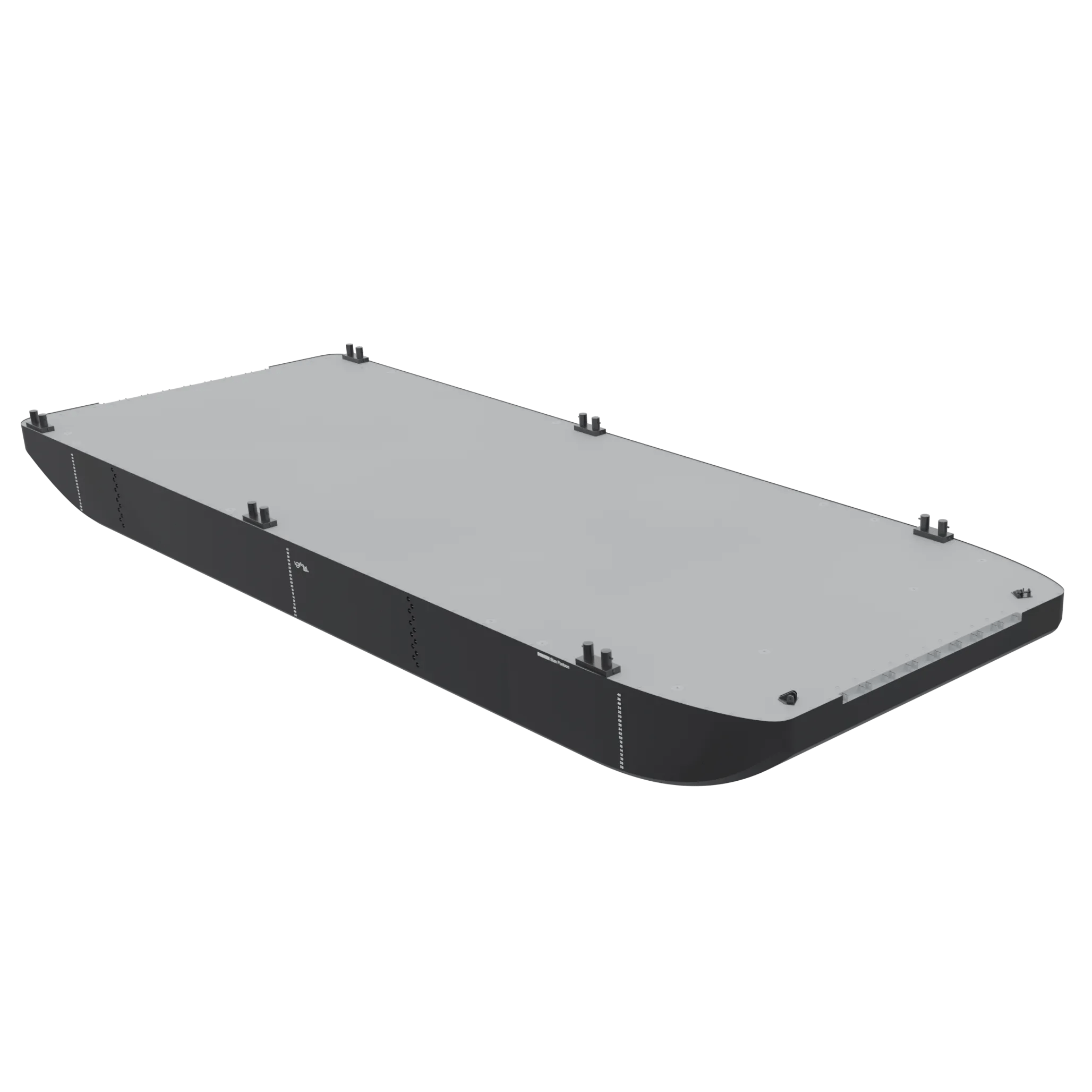

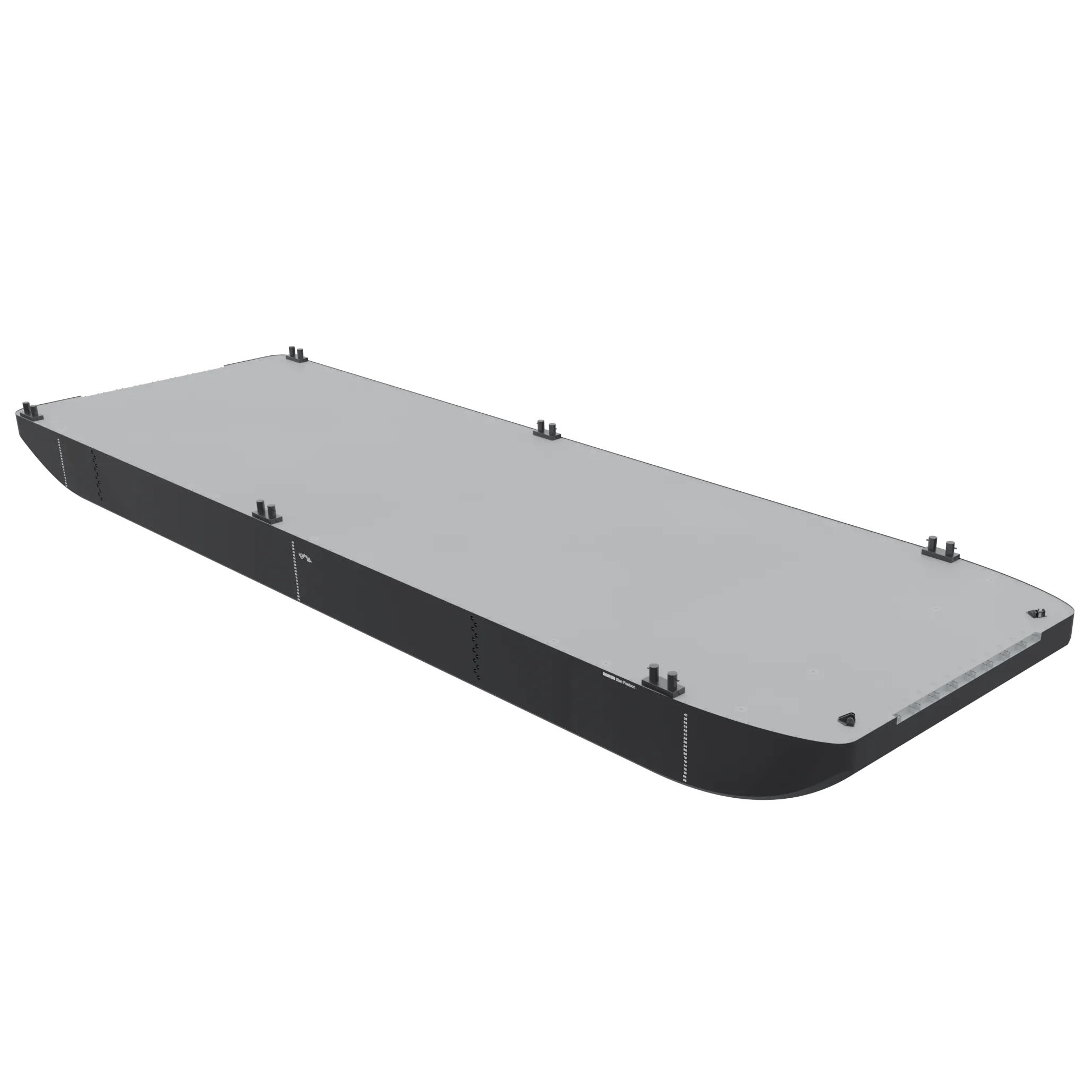

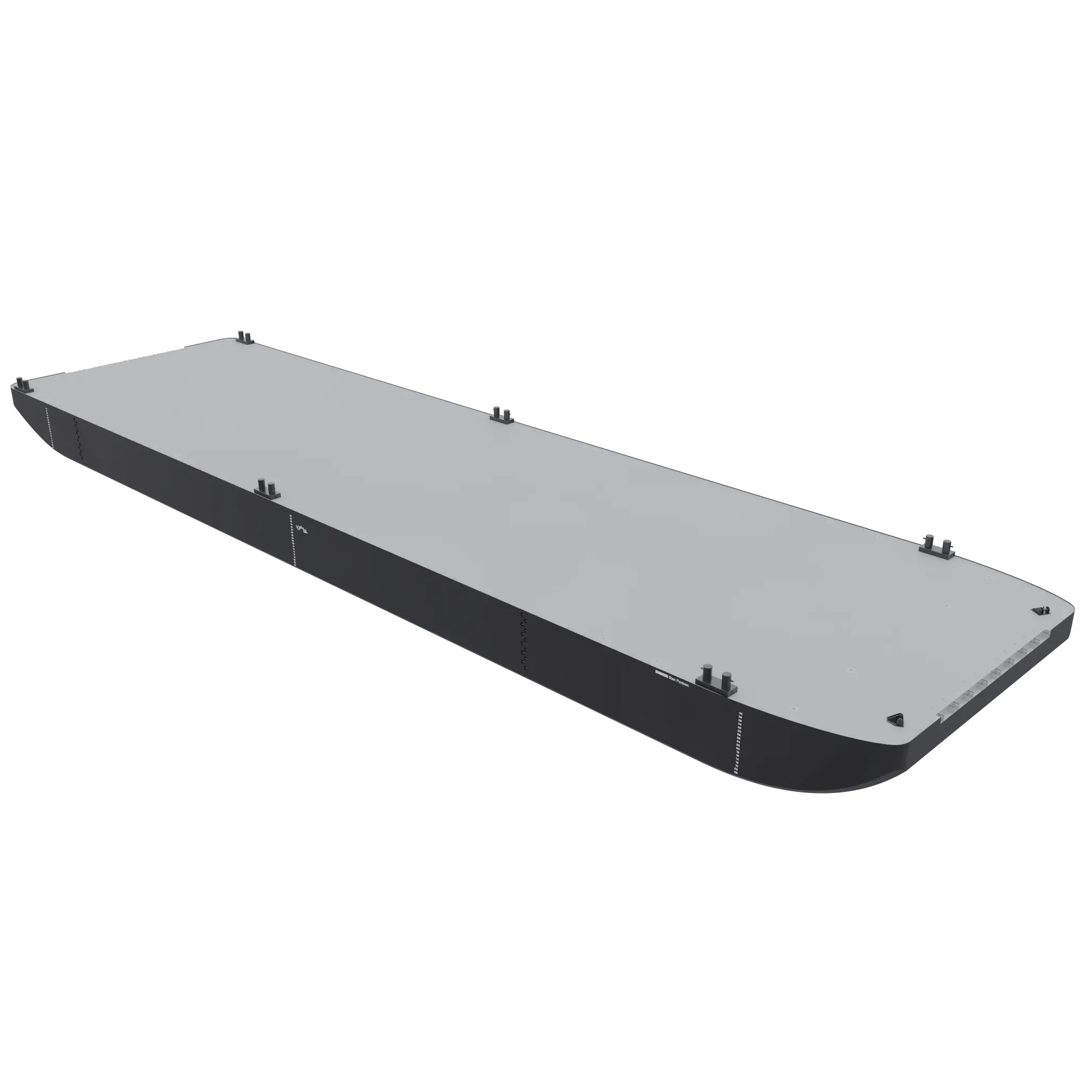

Stan Pontoon B24
Stan Pontoon B24
Like all Damen products the Stan Pontoon B24 is built to the highest quality standards. Ballast system and ramp panels are fit-for-purpose options to use with RoRo operations. Because many of the options are plug-and-play they can be installed or removed easily, depending on the type of operation. The modular building process ensures that all components are kept permanently in stock, enabling us to offer very short delivery times.
- Plug-and-play features
- Modular construction
- Short delivery times
- Quality, gained by standardization
Key figures
63 - 74 - 86
24
4138 - 4819 - 5242
1435 - 1705 - 1970
20
Dimensions
- Length
- 63 - 74 - 86 m
- Beam
- 24 m
- Draught max
- 3,63 - 3,52 - 3,36 m
- Depth moulded
- 4,50 m
Capacities
- Deck load
- 20 t/m²
- Deck thickness
- 16 mm extra heavy deck
- Void spaces
- 15 x - 17 x - 19 x
Do you want to know more?
Compare similar pontoons
| Length (m) | Beam (m) | Deadweight max (t) | Deck space (m²) | Deck load (t/m²) | ||
|---|---|---|---|---|---|---|
| Stan Pontoon B24 | 63 - 74 - 86 | 24 | 4138 - 4819 - 5242 | 1435 - 1705 - 1970 | 20 | |
| Stan Pontoon B20 | 50 - 61 - 72 | 20,00 | 2437 - 2944 - 3344 | 1000 - 1220 - 1430 | 20 | |
| Stan Pontoon B27 | 91 | 27 | 9733 | 2480 | 20 |
Stan Pontoon B24
- Length (m)
- 63 - 74 - 86
- Beam (m)
- 24
- Deadweight max (t)
- 4138 - 4819 - 5242
- Deck space (m²)
- 1435 - 1705 - 1970
- Deck load (t/m²)
- 20
- Length (m)
- 50 - 61 - 72
- Beam (m)
- 20,00
- Deadweight max (t)
- 2437 - 2944 - 3344
- Deck space (m²)
- 1000 - 1220 - 1430
- Deck load (t/m²)
- 20
