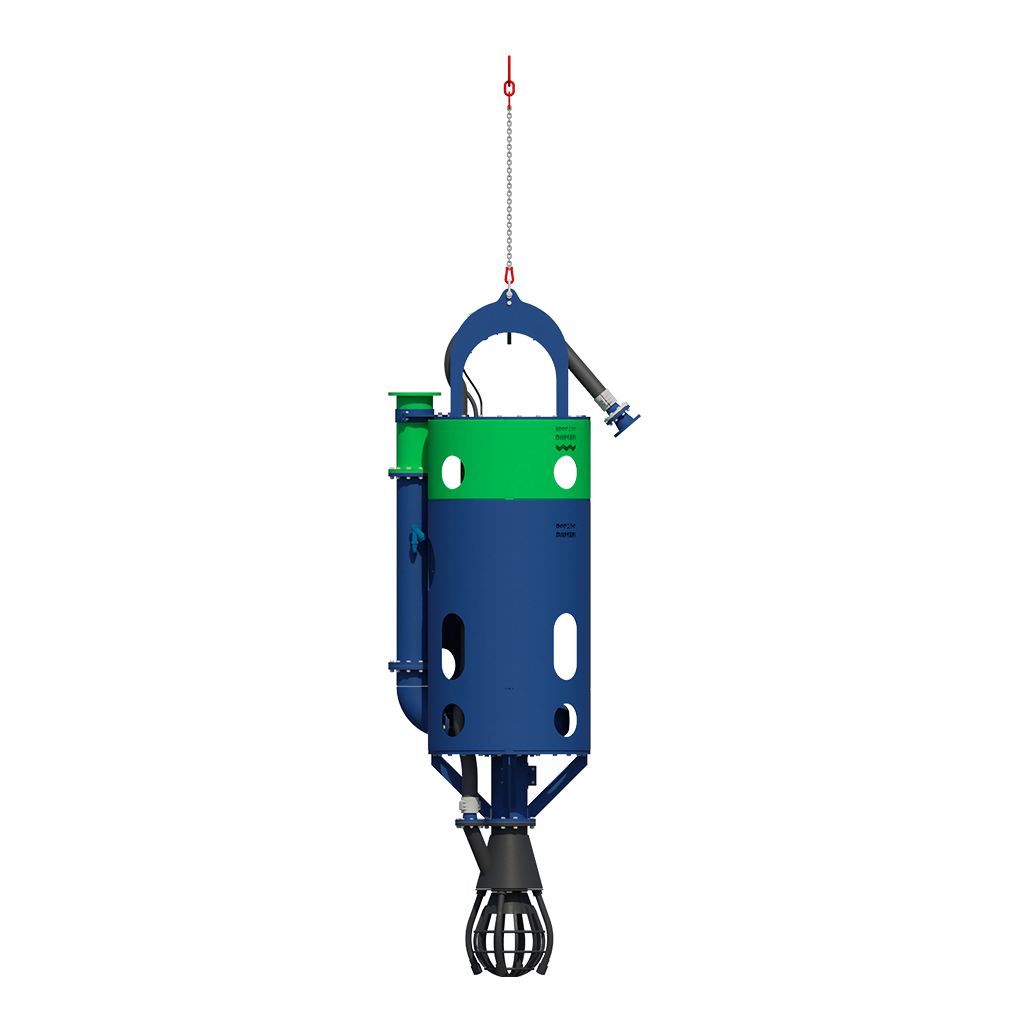

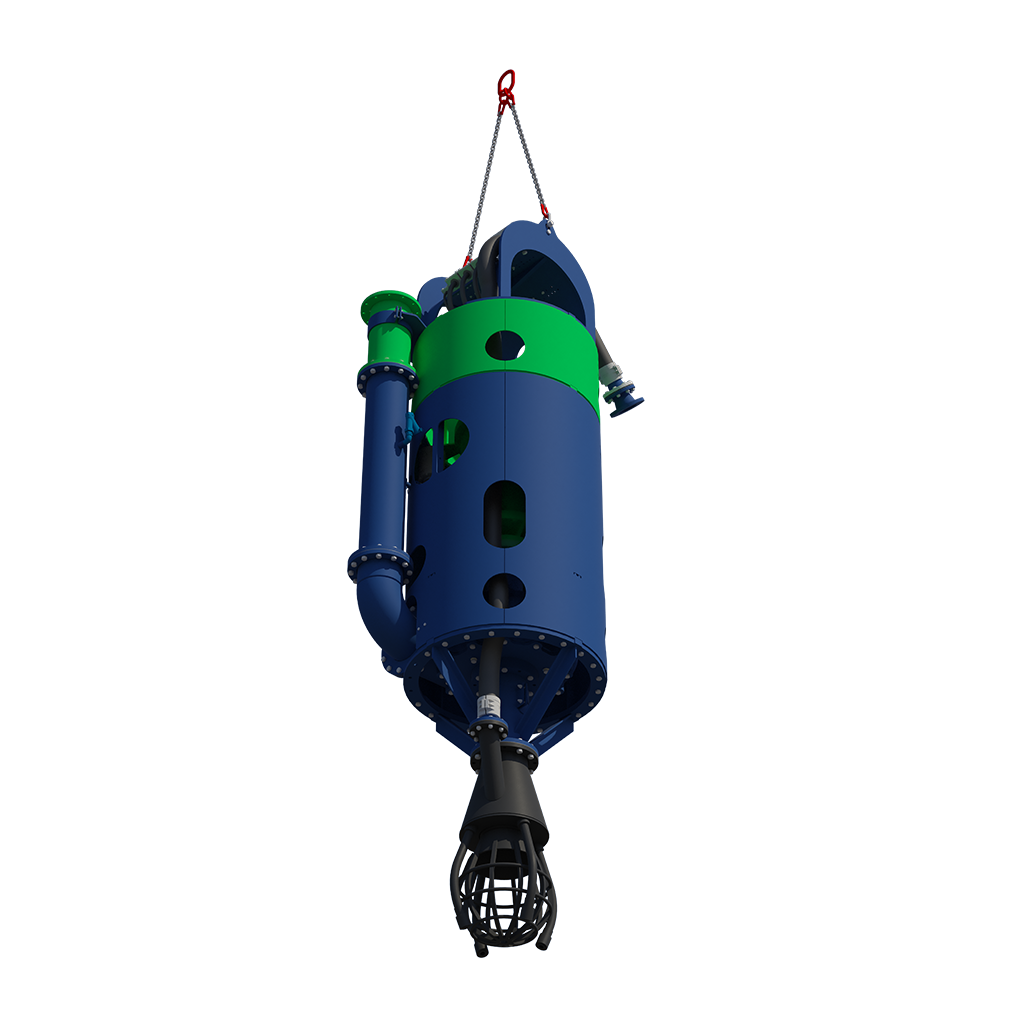

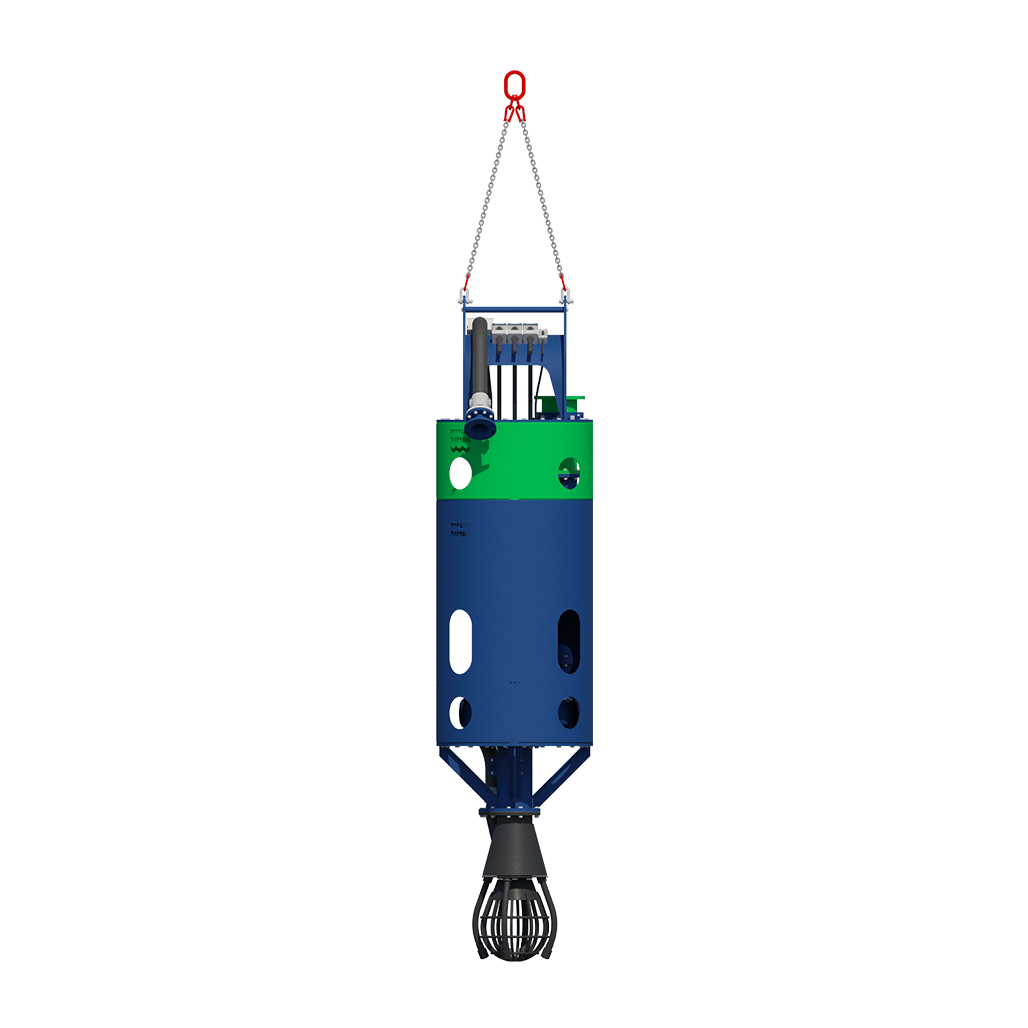

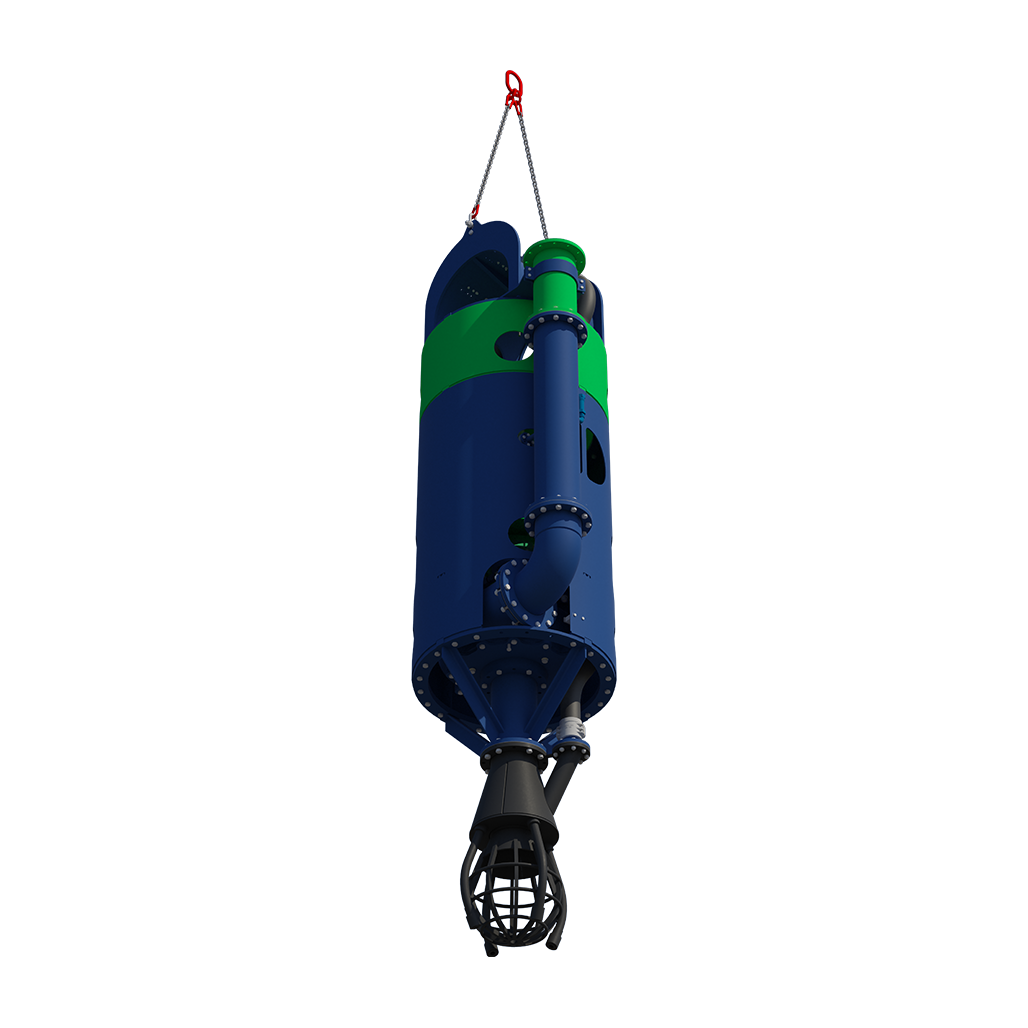

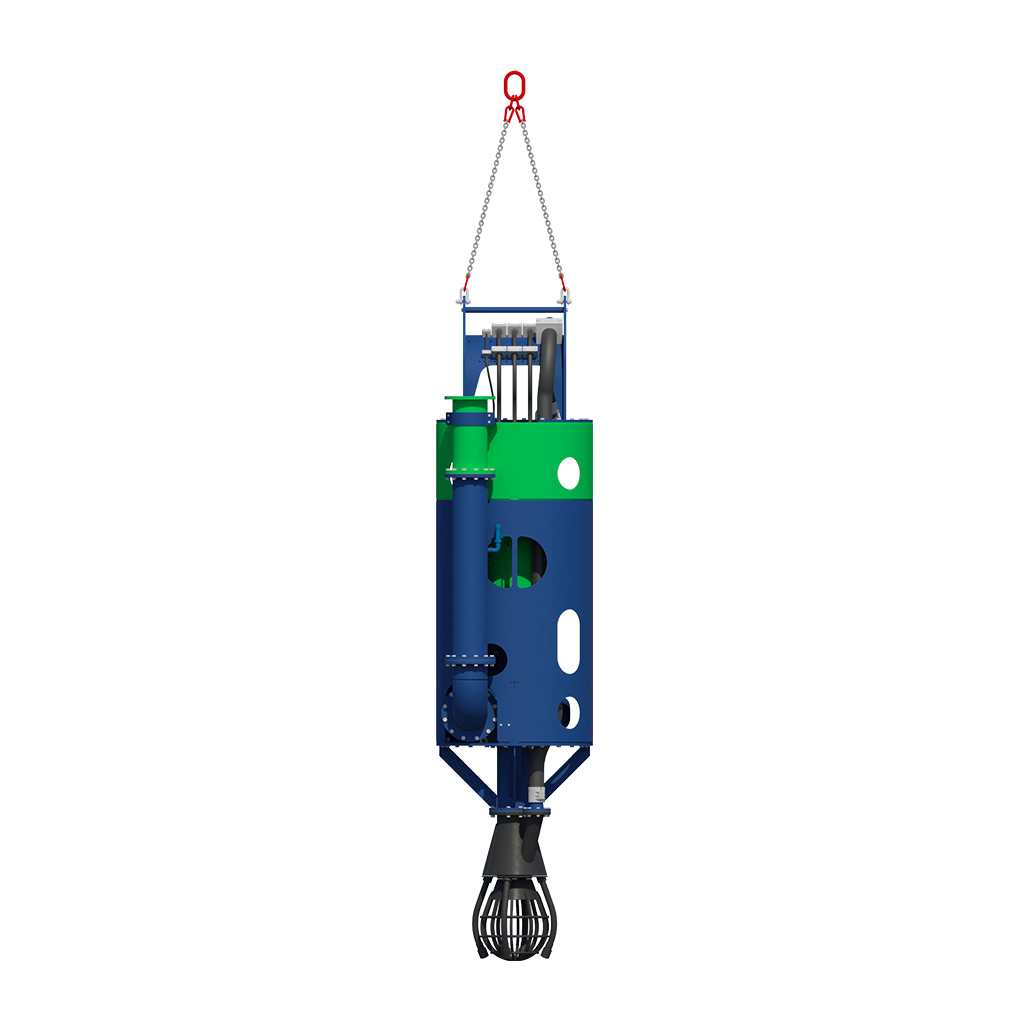

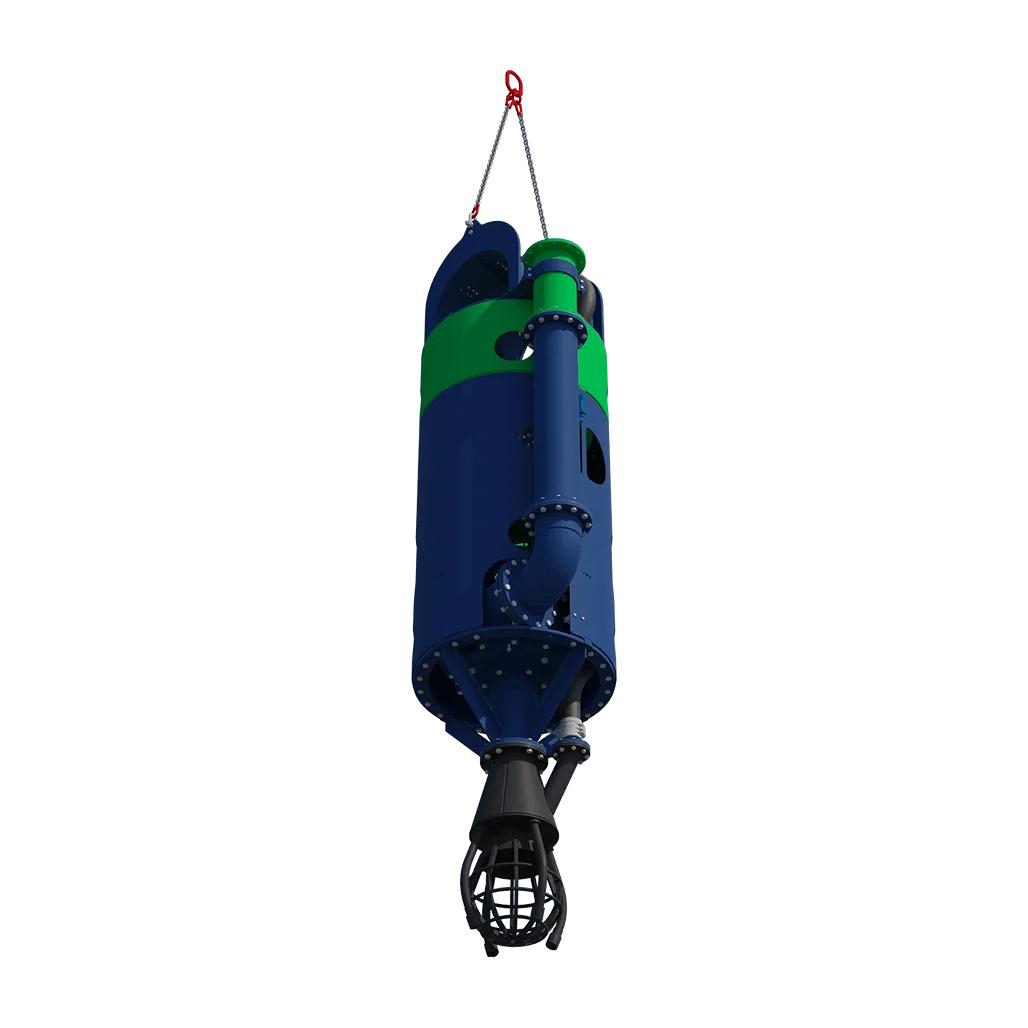

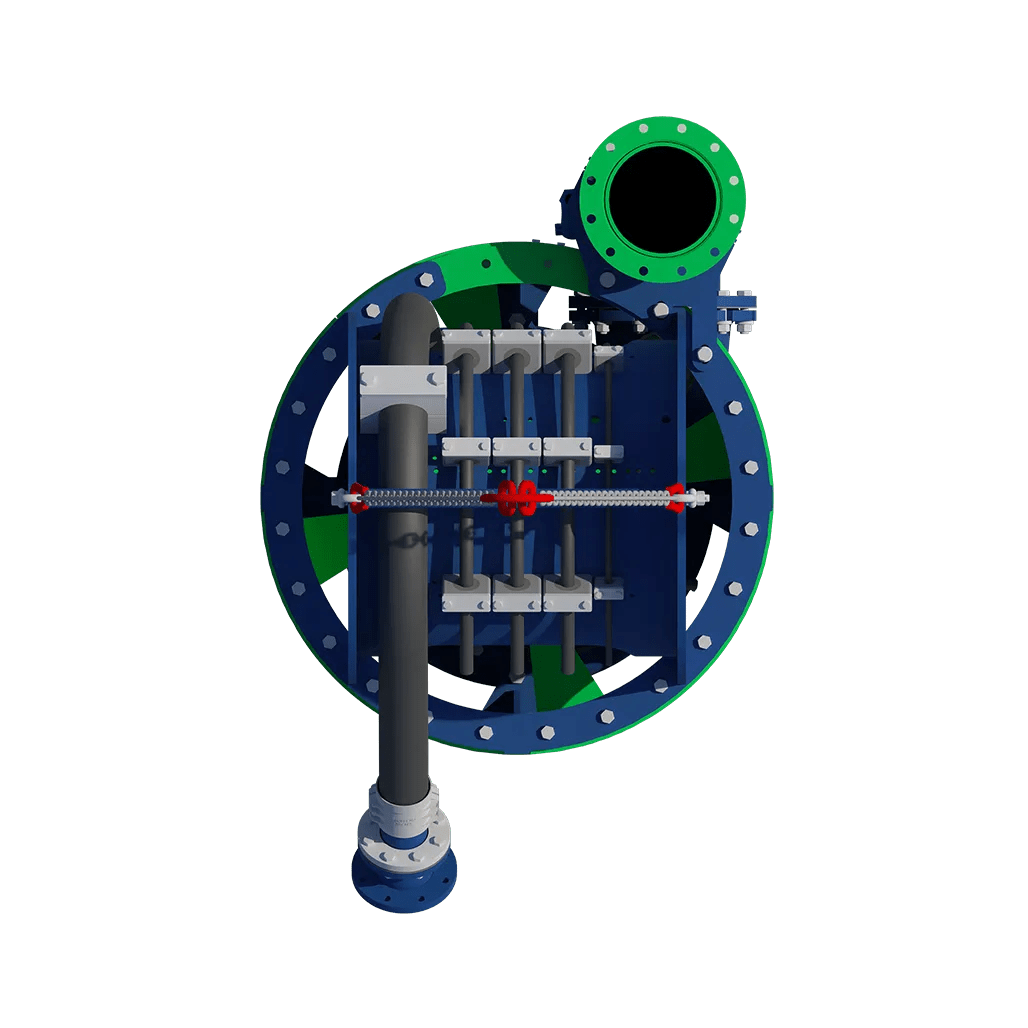

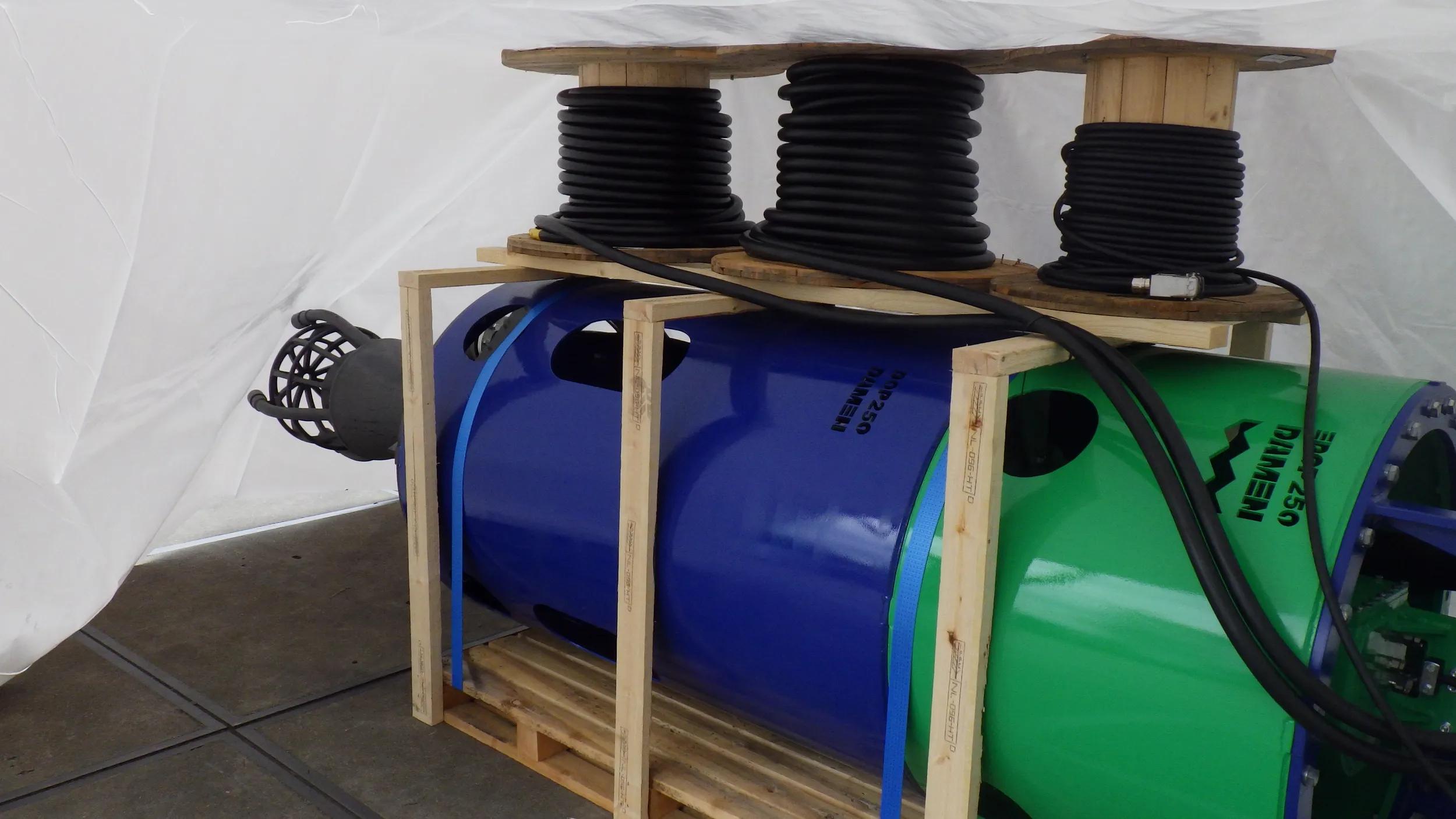

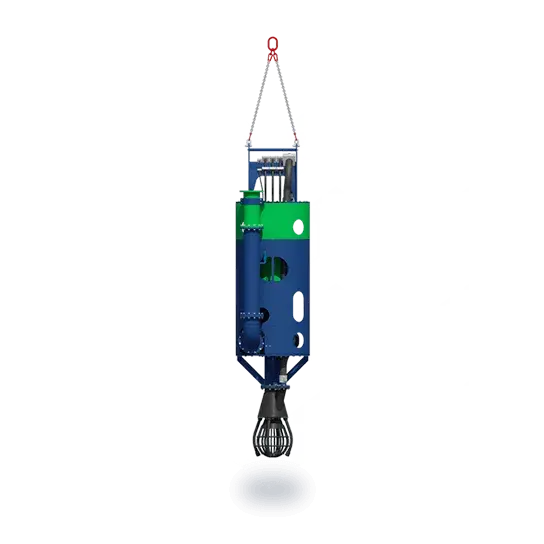

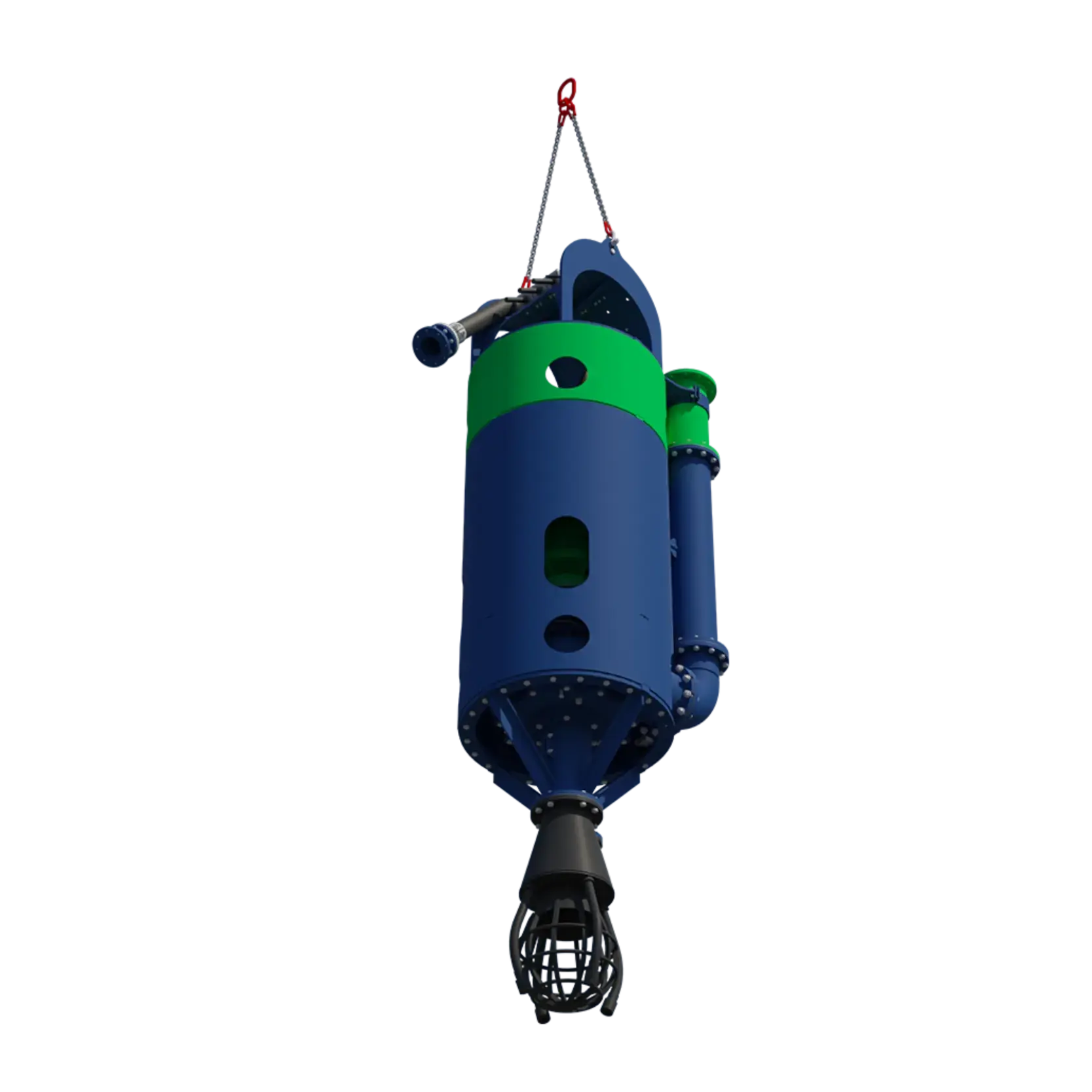

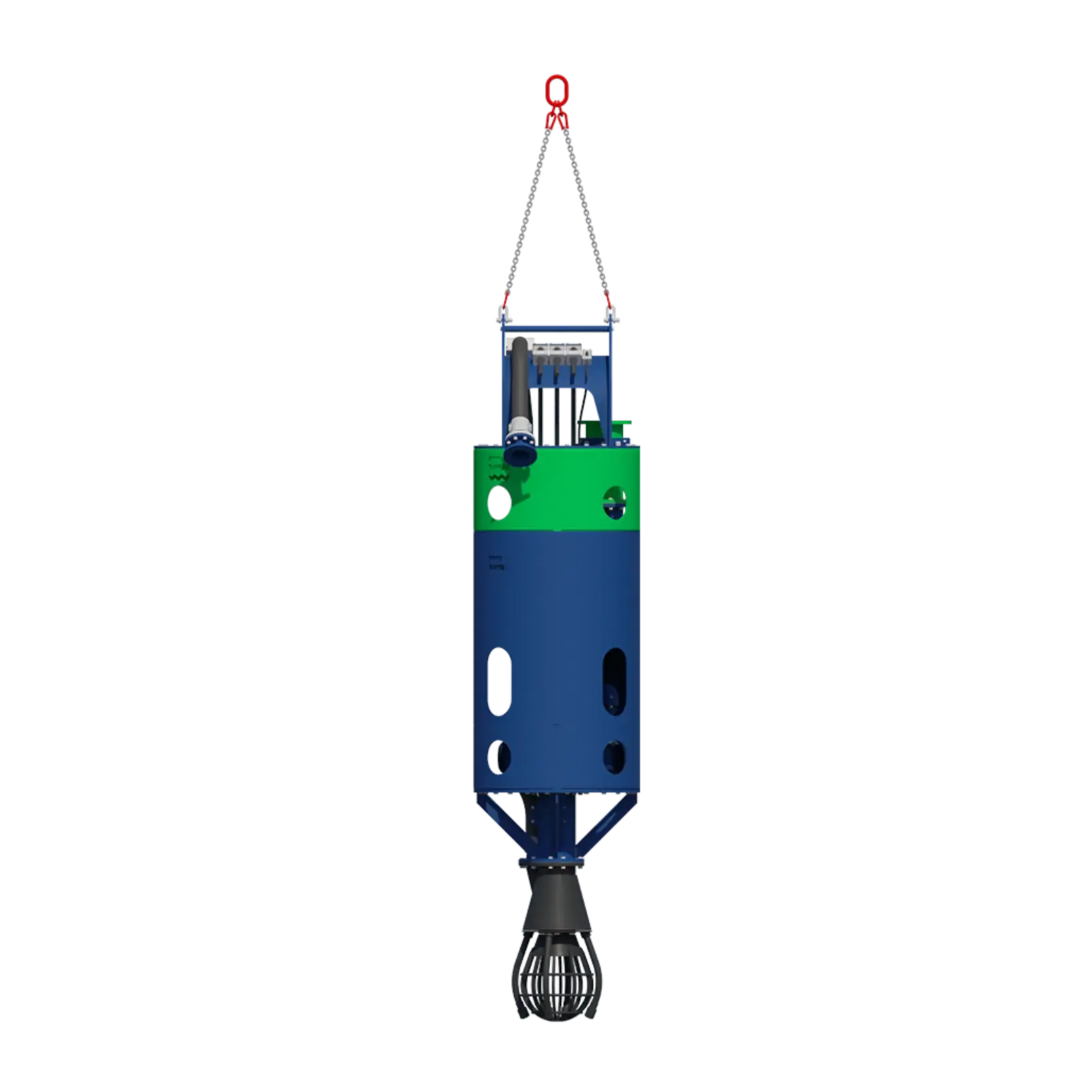

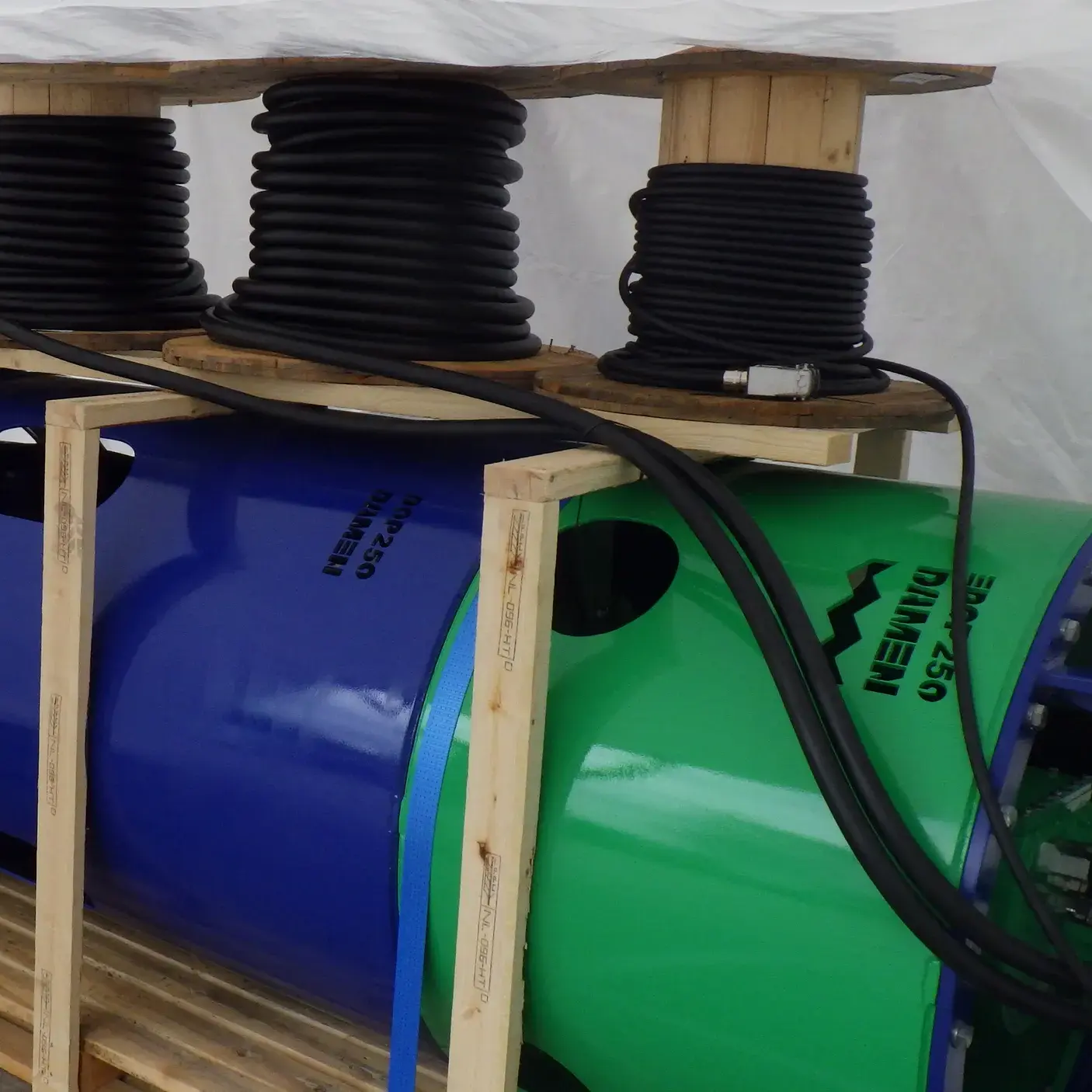

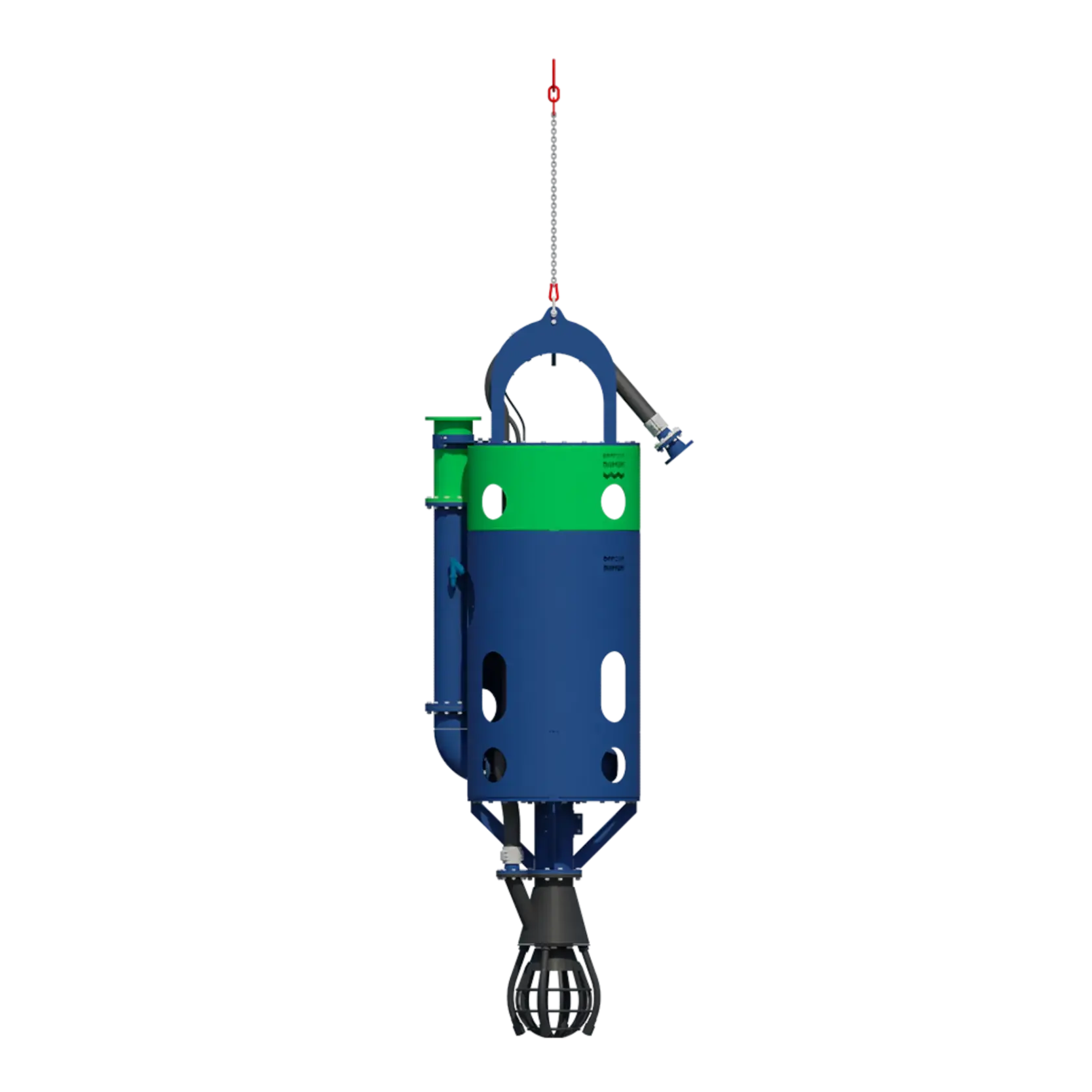

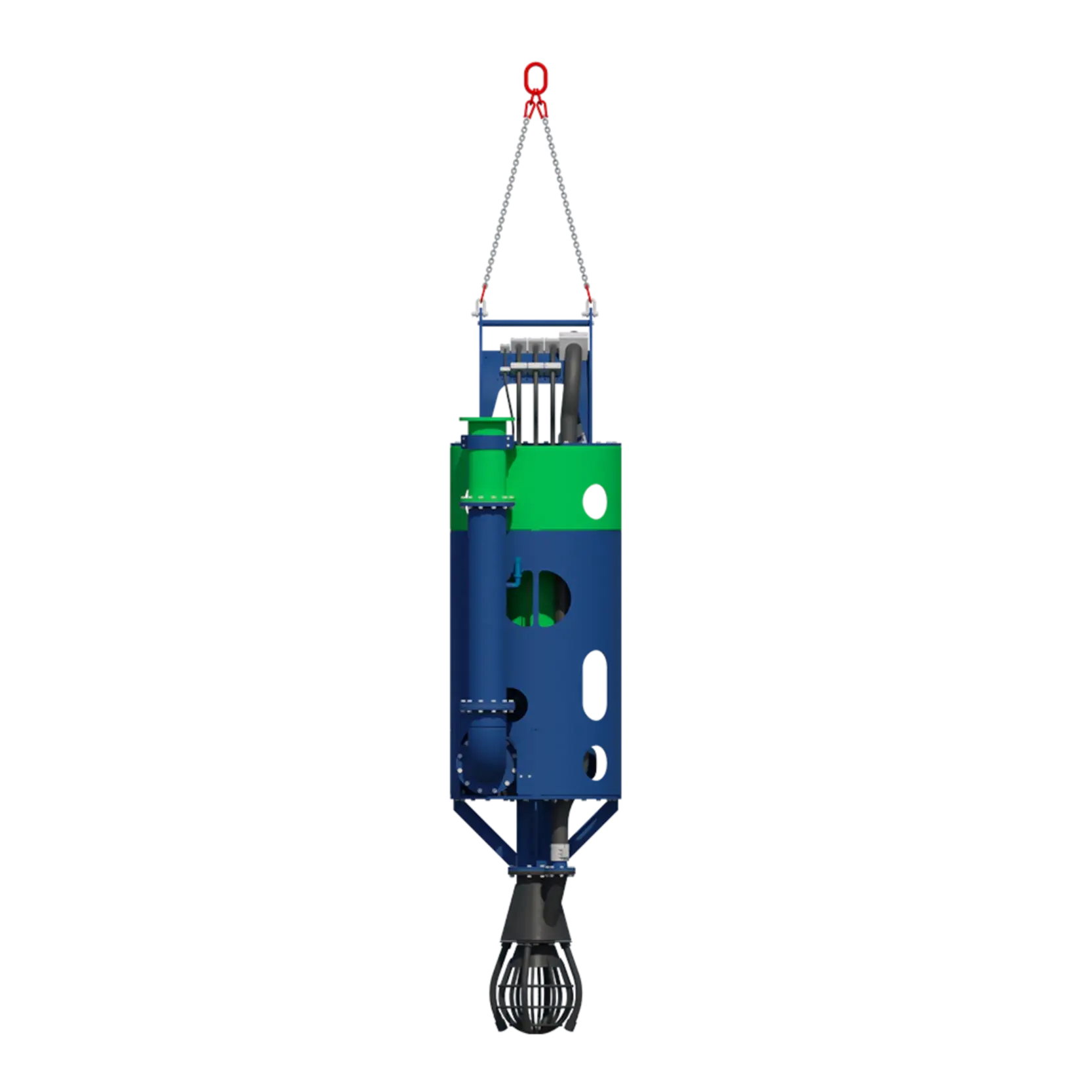

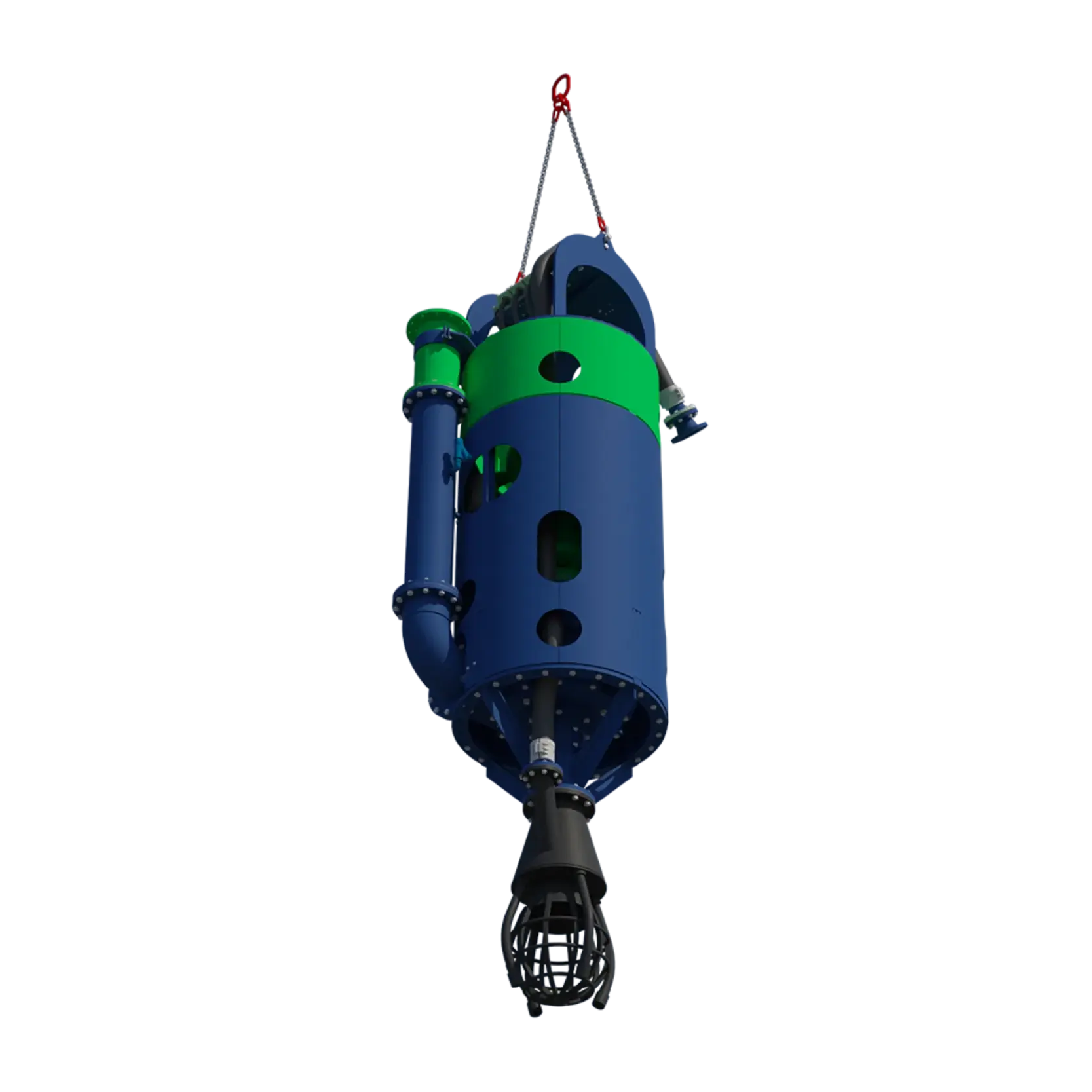

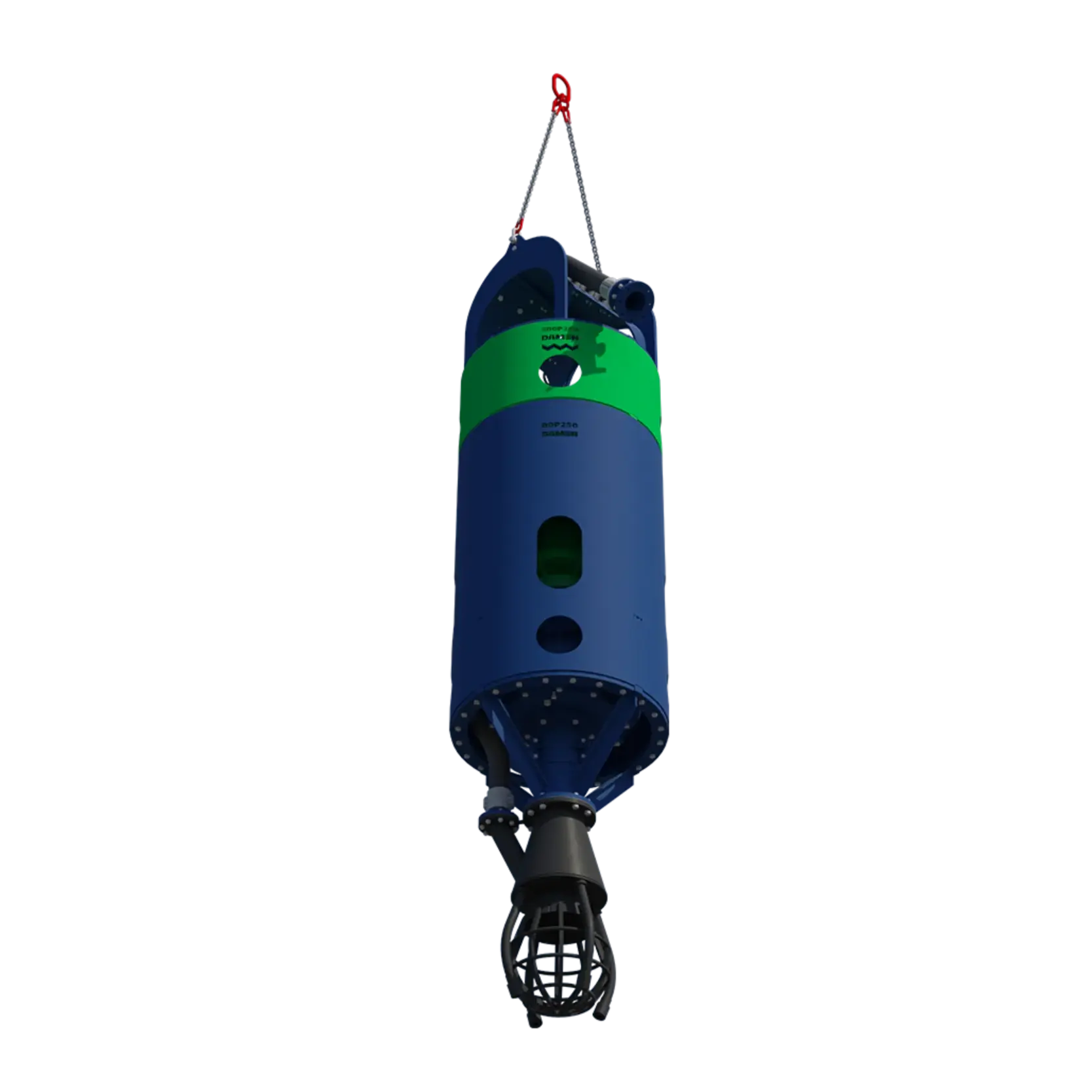

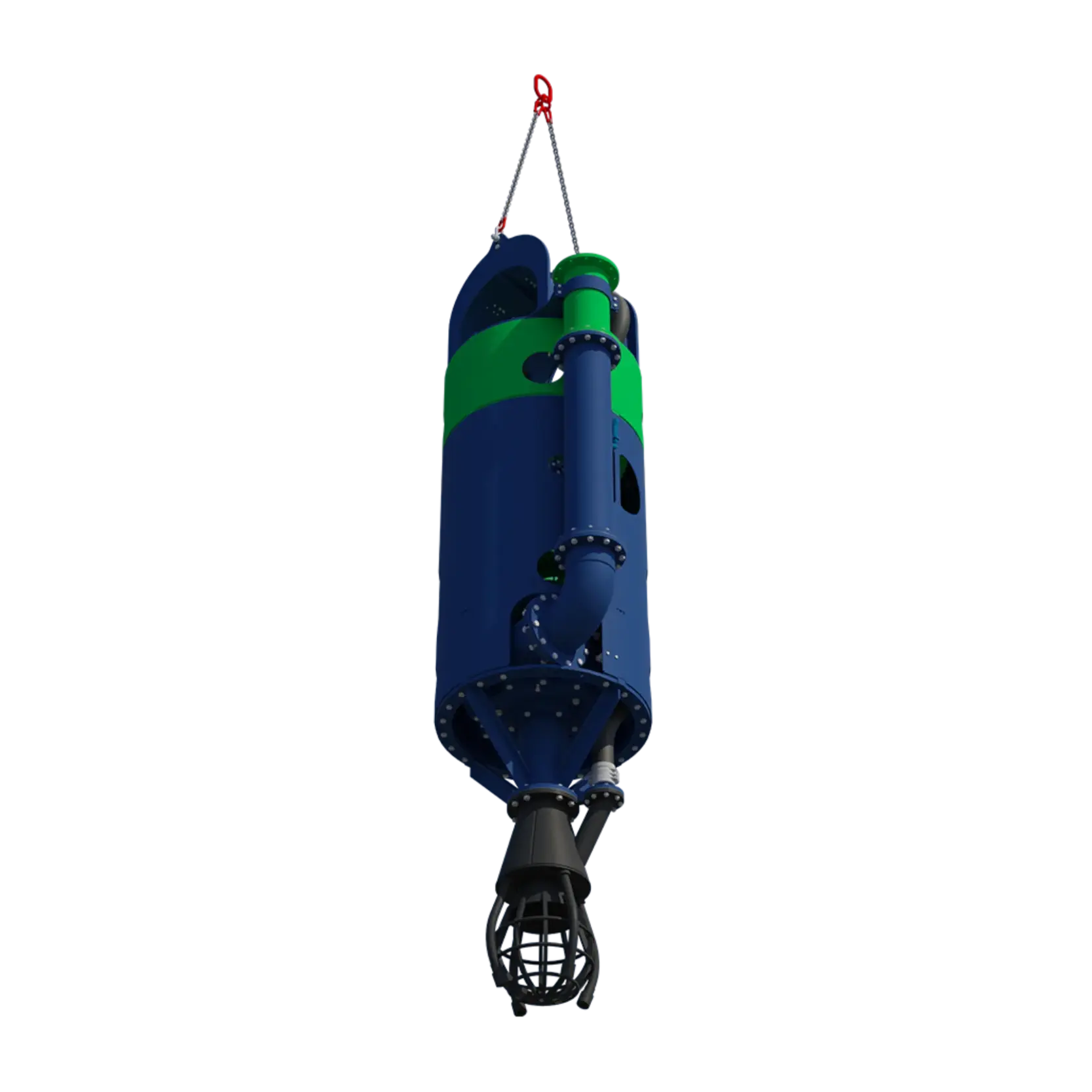

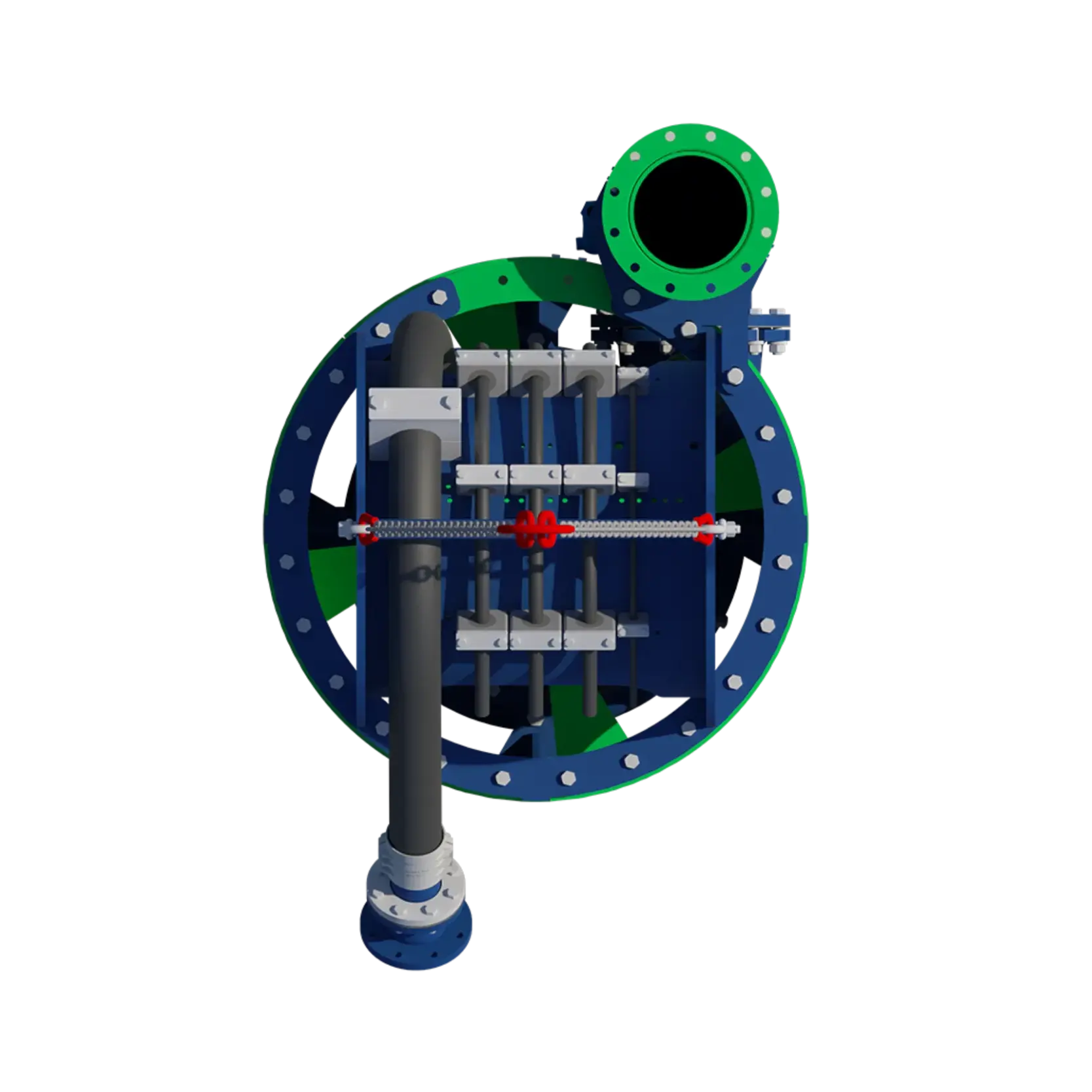

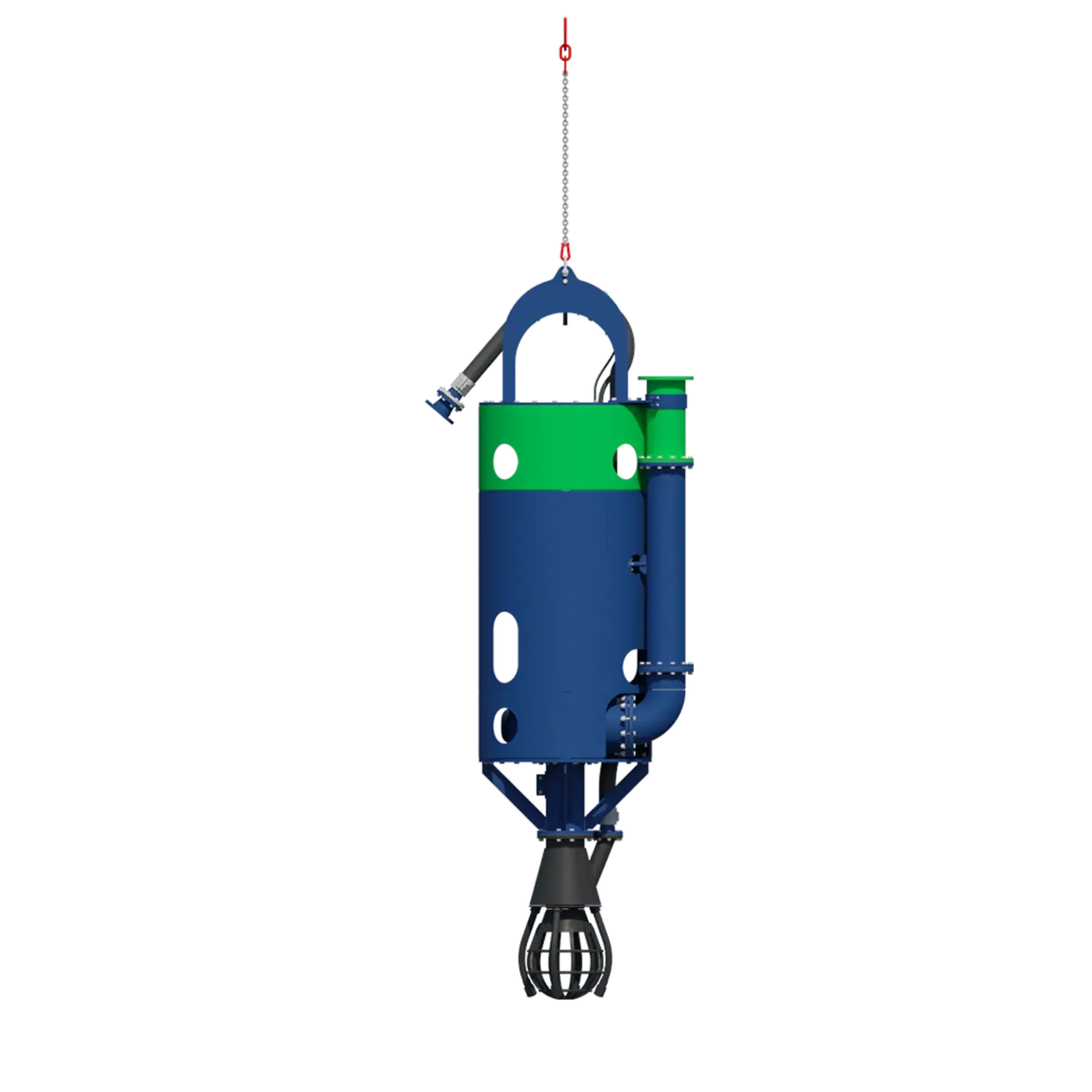

Electrical DOP submersible dredge pump E-DOP250
Electrical DOP submersible dredge pump E-DOP250

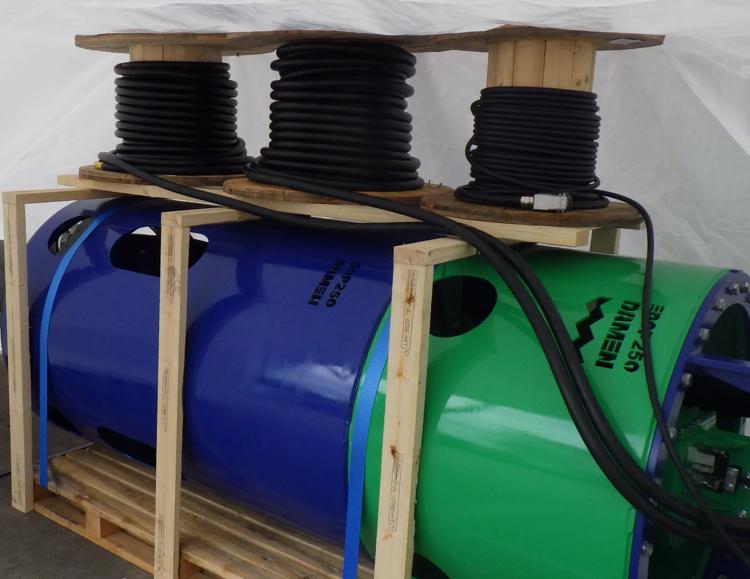

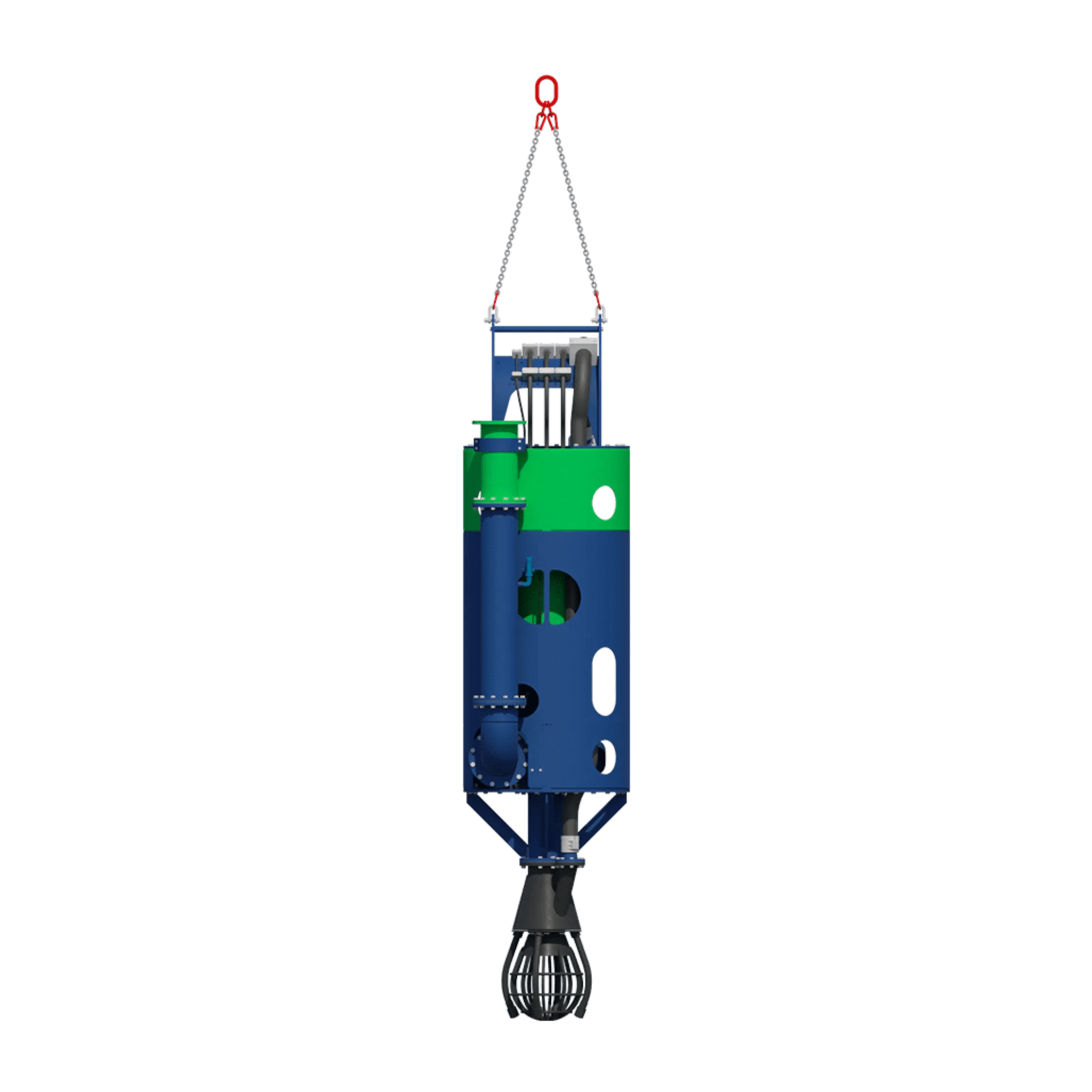

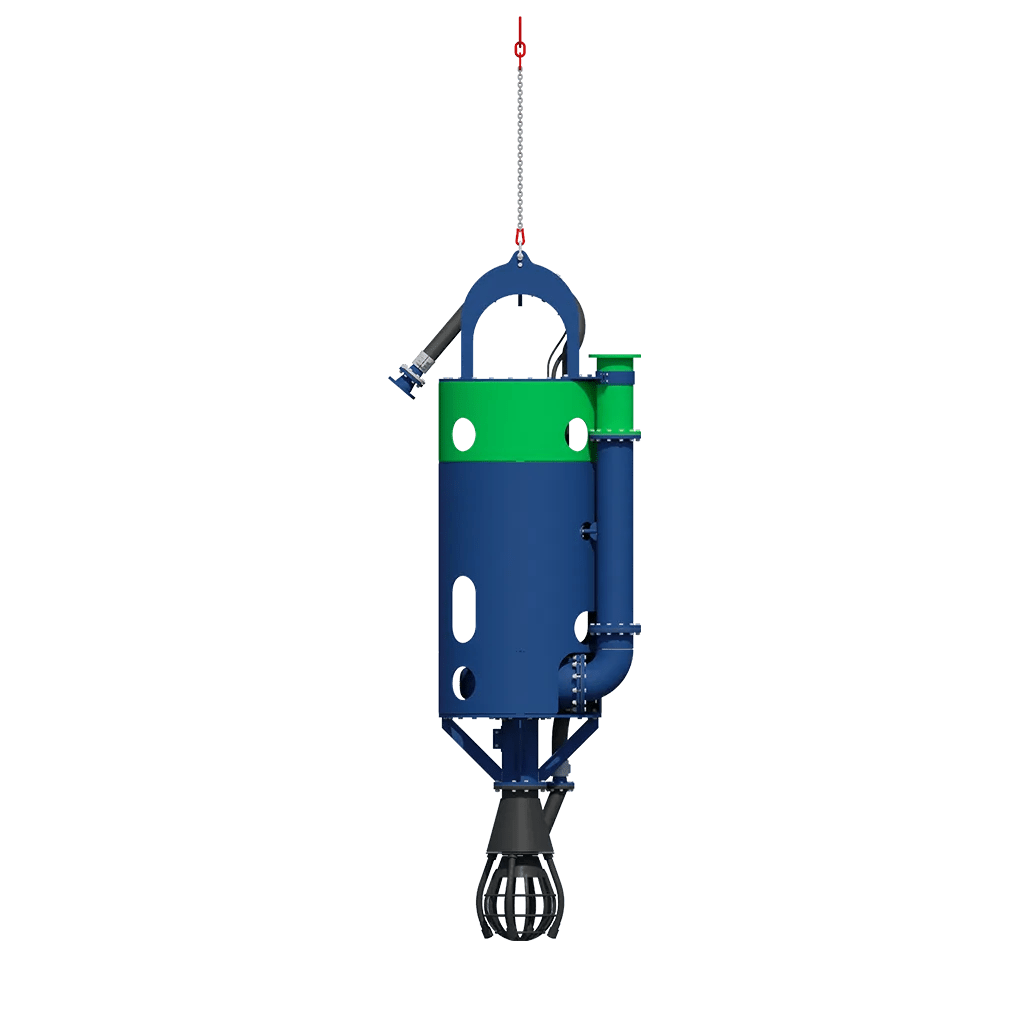

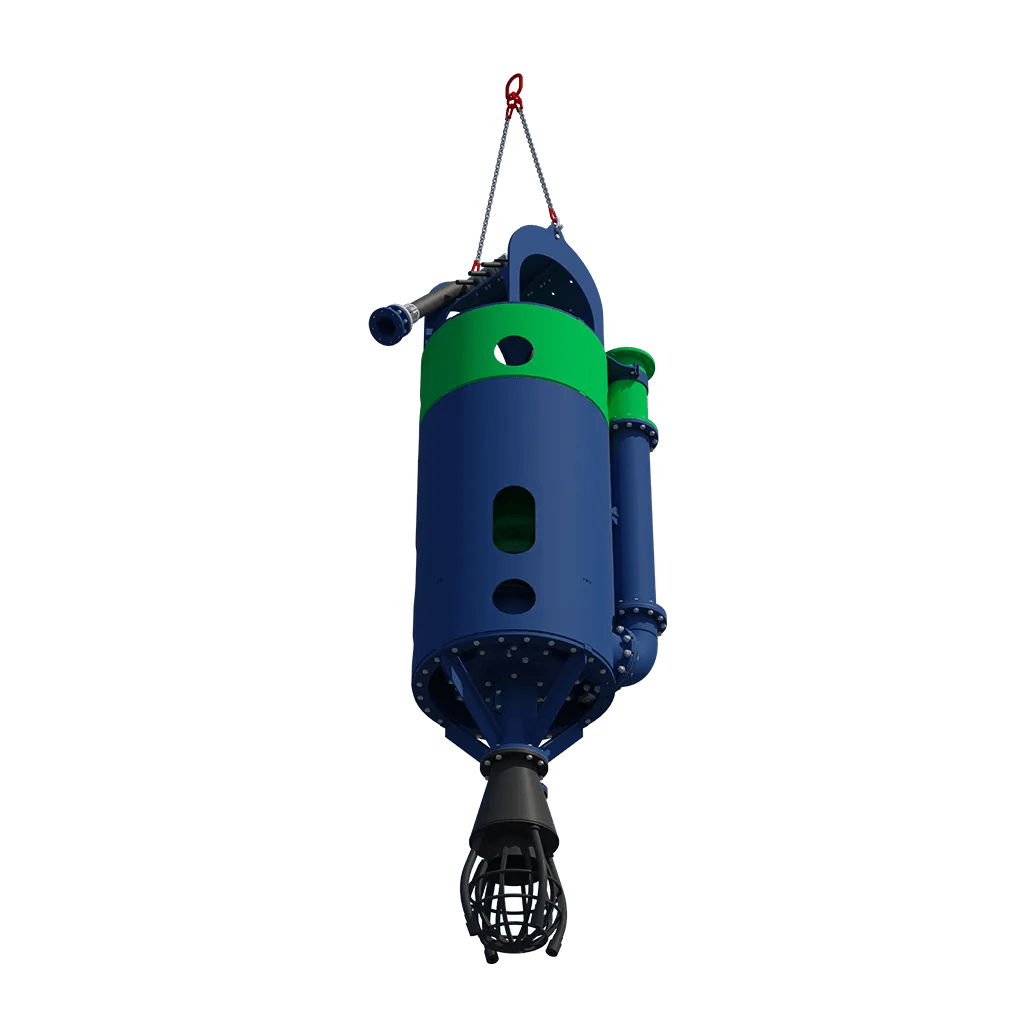

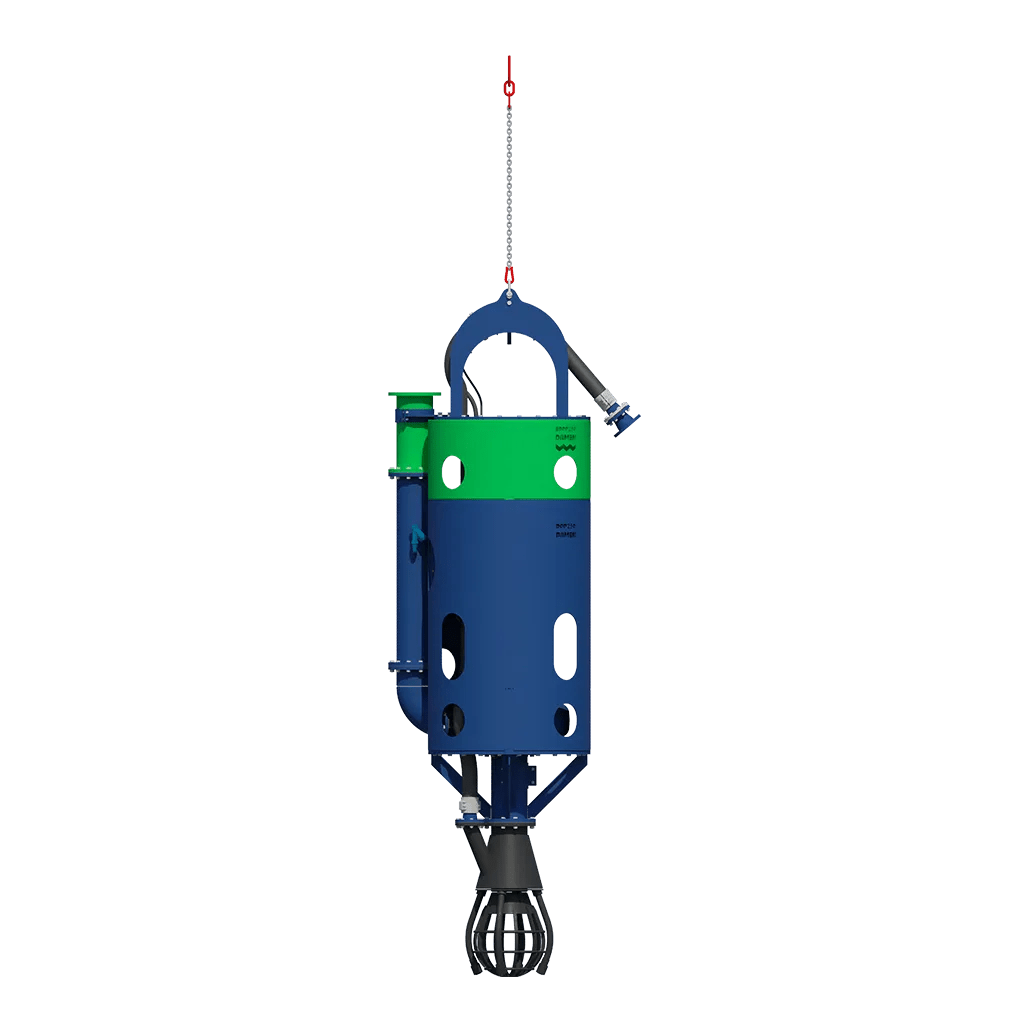

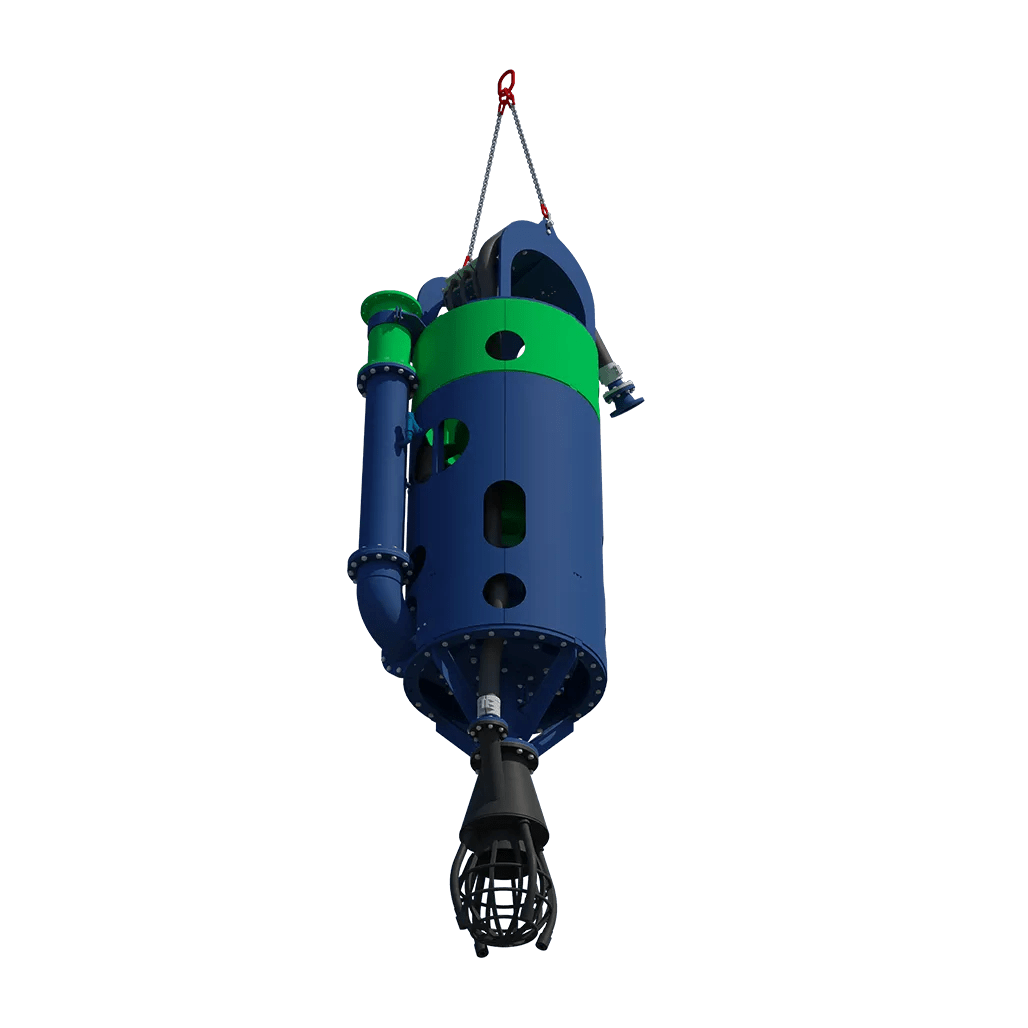

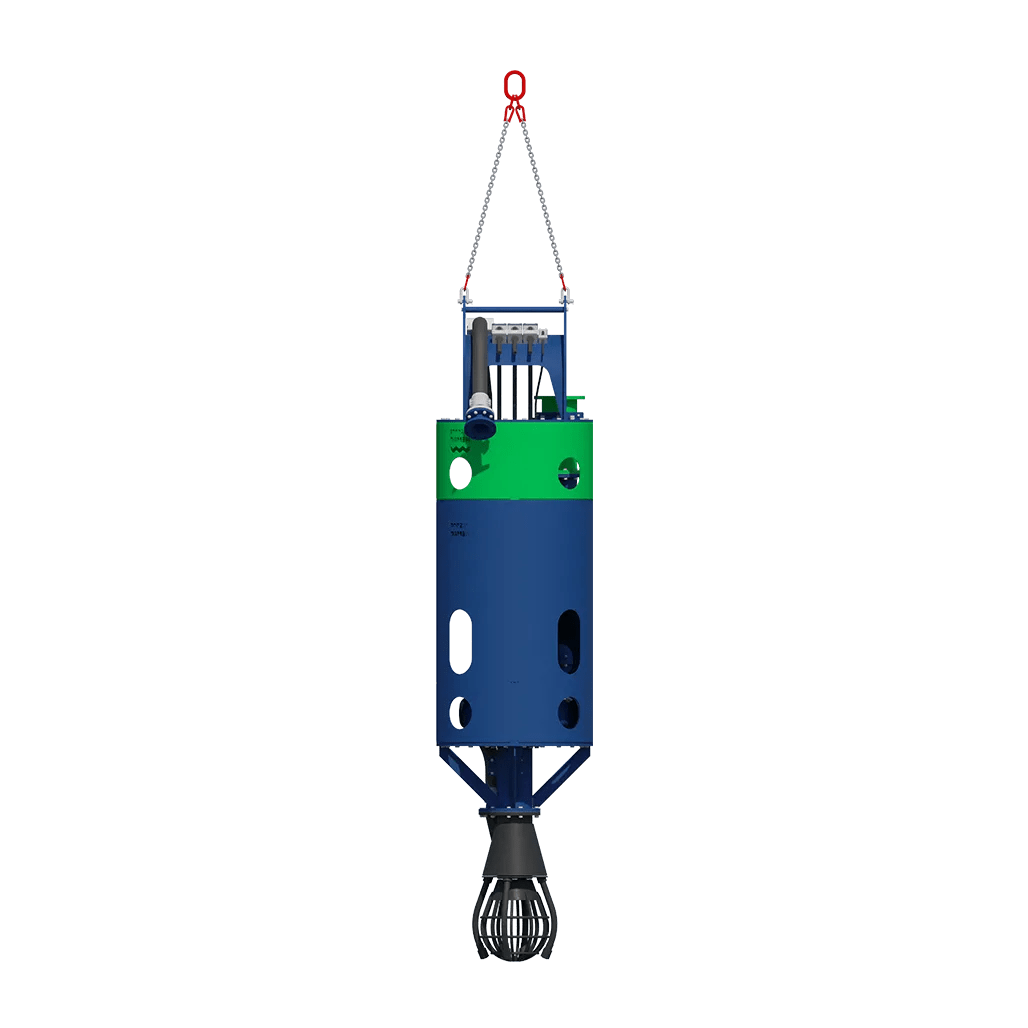

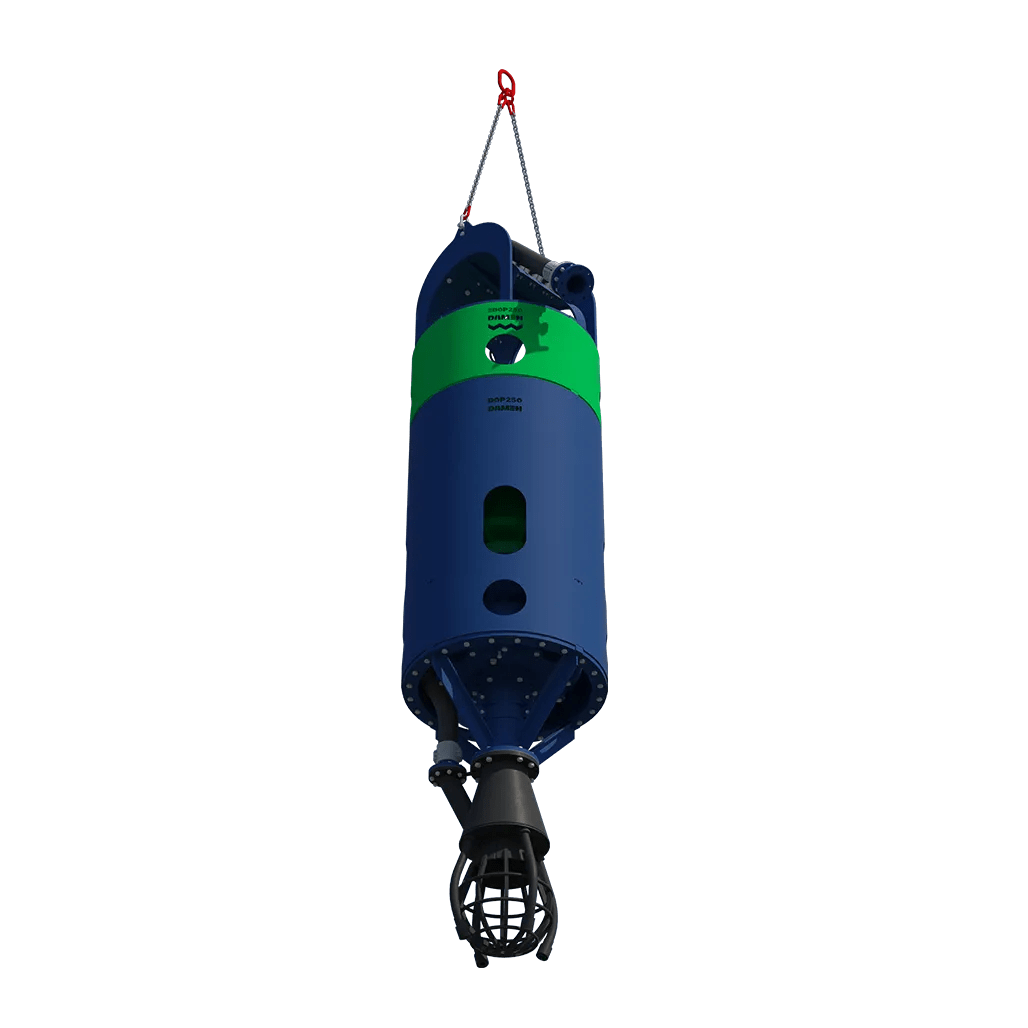

The electrically driven submersible dredge pump unit type E-DOP250 is the solution for silent and zero emission dredging. The flexible dredge pump set up ensures rapid mobilisation and easy operation. Additionally, the array of exchangeable suction heads optimises operational efficiency for any dredge job.
- Discharge hoses
- Electrical jet pack
- Jet water hoses
- Dredging instrumentation
Fuel flexible
- Diesel
- Electric
- Powered by the grid
- Silent and clean operations
- Most efficient dredge pump on the market
- Low maintenance due to few moving parts
Key figures
1250
5.3
250
3.975
130
Performance
- Mixture capacity
- 1250 m³/h
- Max head
- 5.3 bar
- Max pump speed
- 900 rpm
- Max power
- 195 kW
Requirements
- Voltage
- 380-440 Vac
- Advised gen power
- 265 kVa
- Jet water
- 300 m³/h
- Jet water pressure
- 8 bar
Dimensions
- Suction diameter
- 250 mm
- Discharge diameter
- 250 mm
- Max sphere passage
- 130 mm
- Unit weight
- 3975 kg

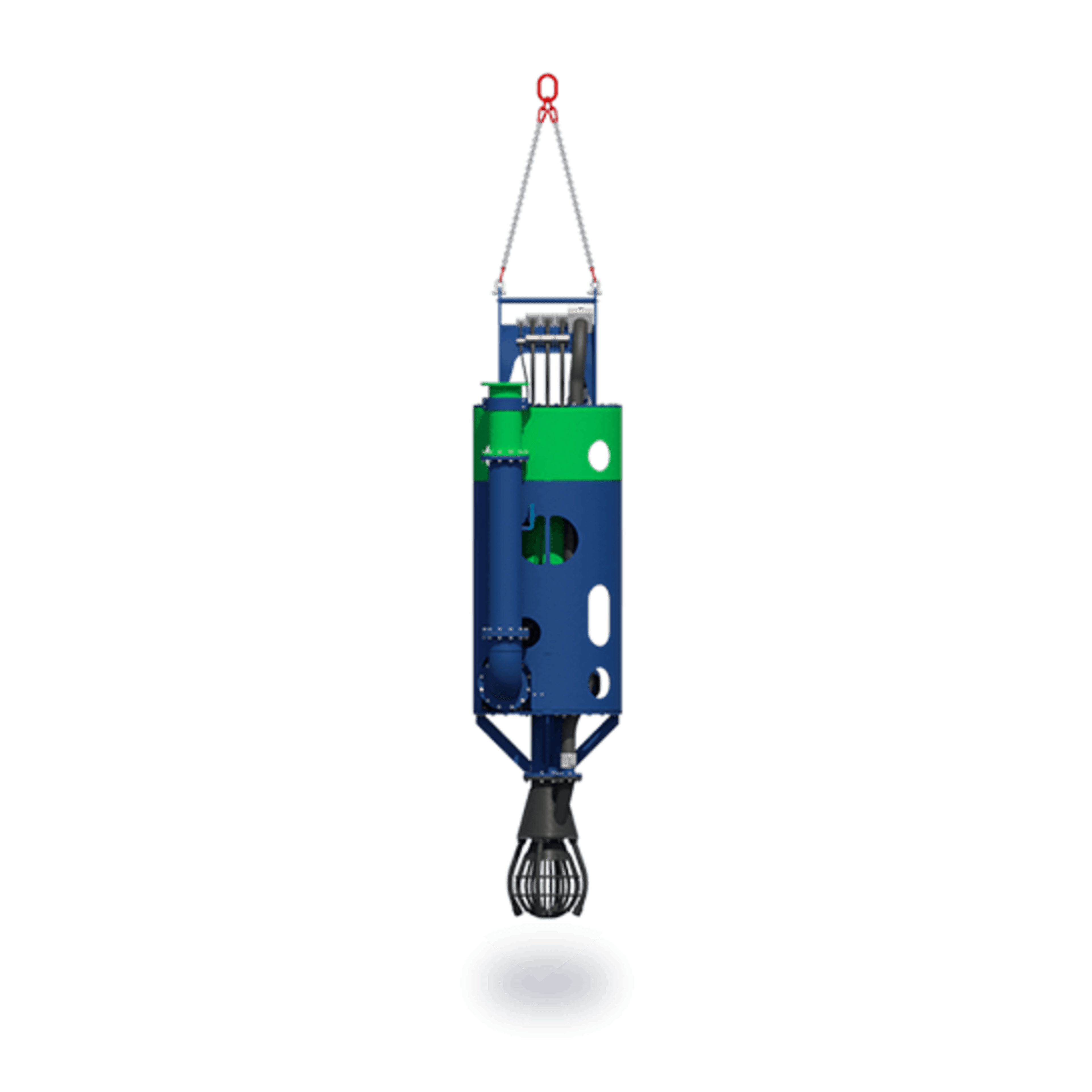

Do you want to know more?
Compare similar DOP pumps
| Production (m³/h) | Max head (bar) | Pipe diameter (mm) | Weight (t) | Max sphere passage (mm) | ||
|---|---|---|---|---|---|---|
| Electrical DOP submersible dredge pump E-DOP250 | 1250 | 5.3 | 250 | 3.975 | 130 | |
| DOP submersible dredge pump DOP250 | 1250 | 5.3 | 250 | 2.43 | 130 | |
| Electrical DOP submersible dredge pump E-DOP350 | 2400 | 4.6 | 350 | 7.31 | 150 |
Electrical DOP submersible dredge pump E-DOP250
- Production (m³/h)
- 1250
- Max head (bar)
- 5.3
- Pipe diameter (mm)
- 250
- Weight (t)
- 3.975
- Max sphere passage (mm)
- 130
- Production (m³/h)
- 1250
- Max head (bar)
- 5.3
- Pipe diameter (mm)
- 250
- Weight (t)
- 2.43
- Max sphere passage (mm)
- 130
- Production (m³/h)
- 2400
- Max head (bar)
- 4.6
- Pipe diameter (mm)
- 350
- Weight (t)
- 7.31
- Max sphere passage (mm)
- 150
