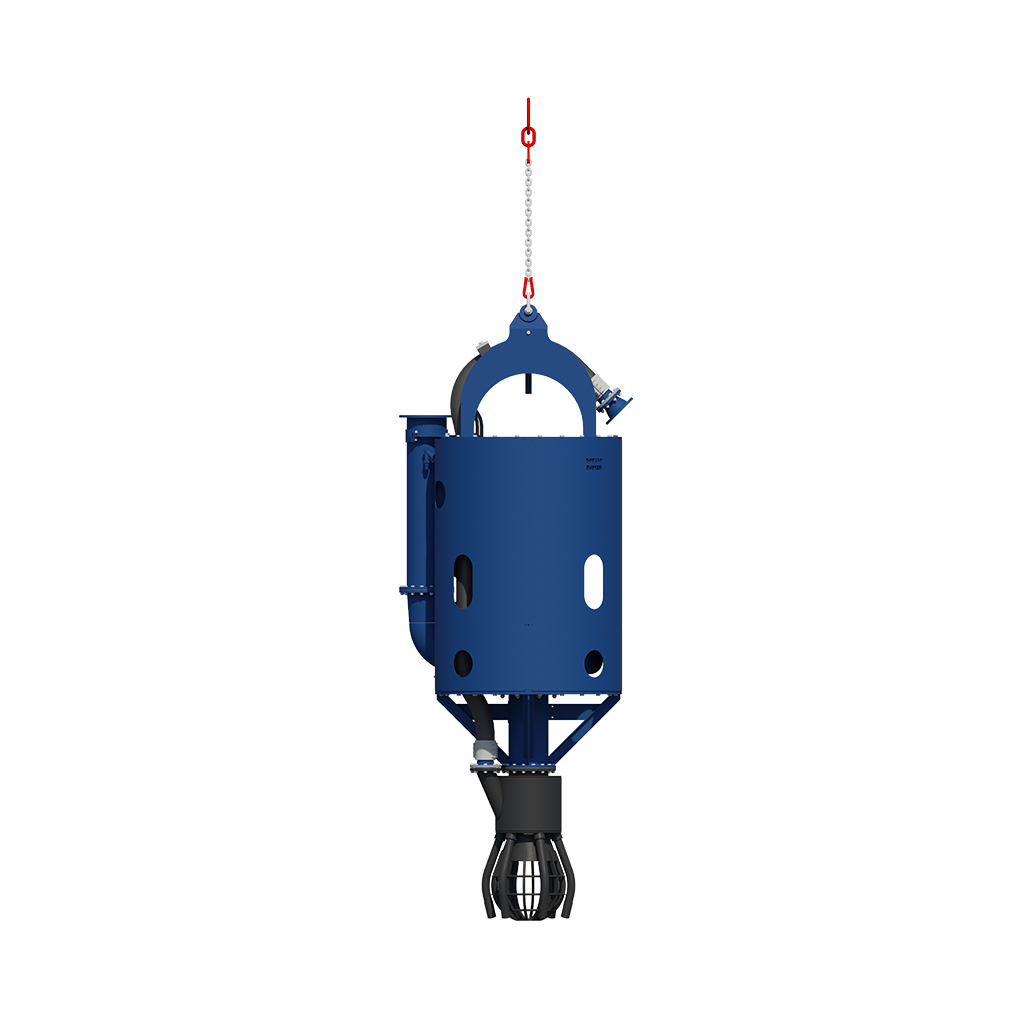

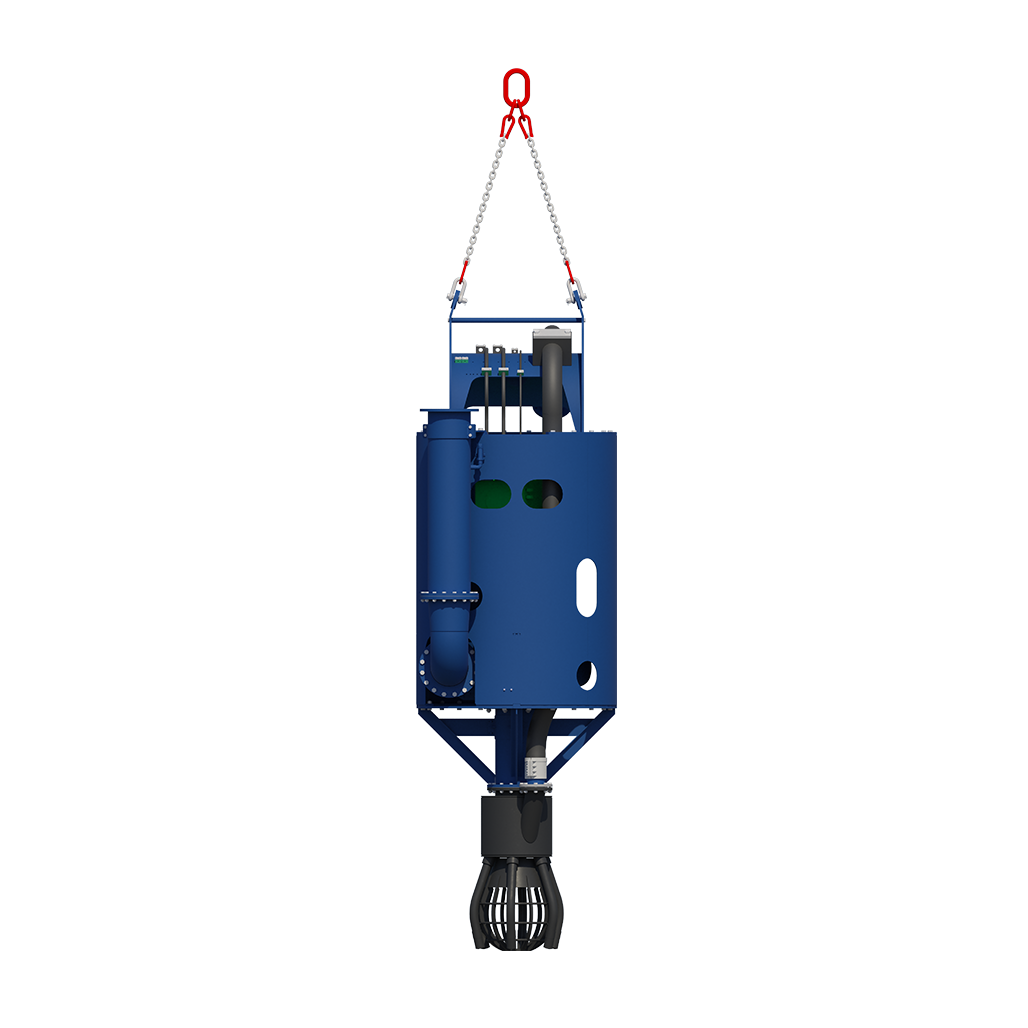

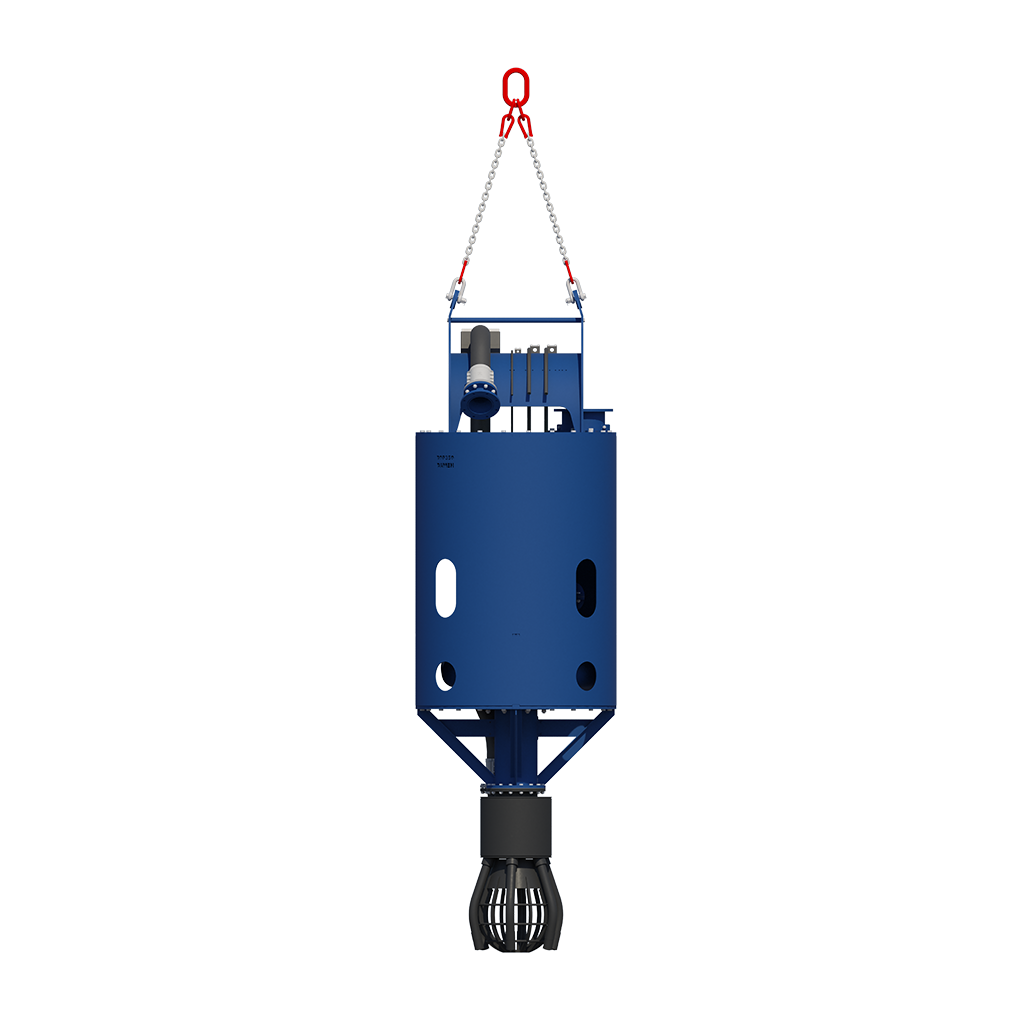

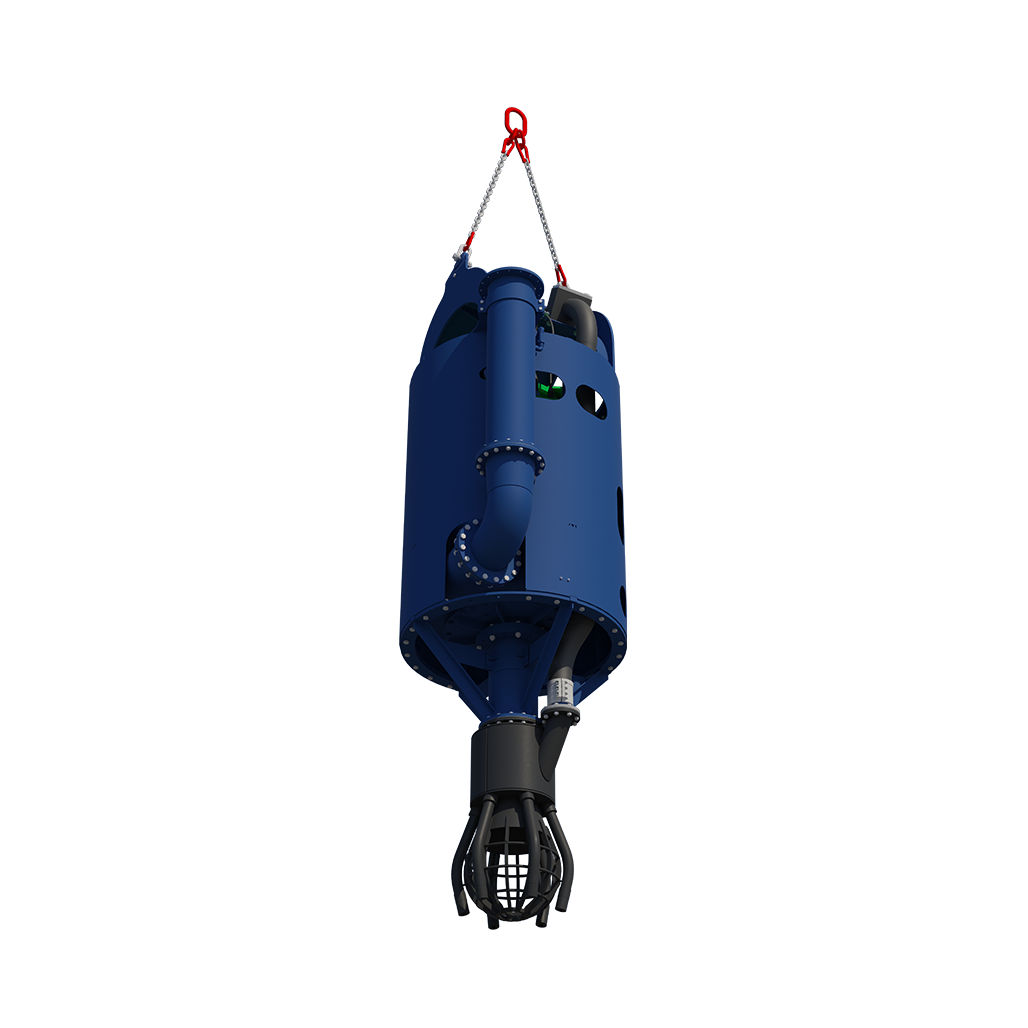

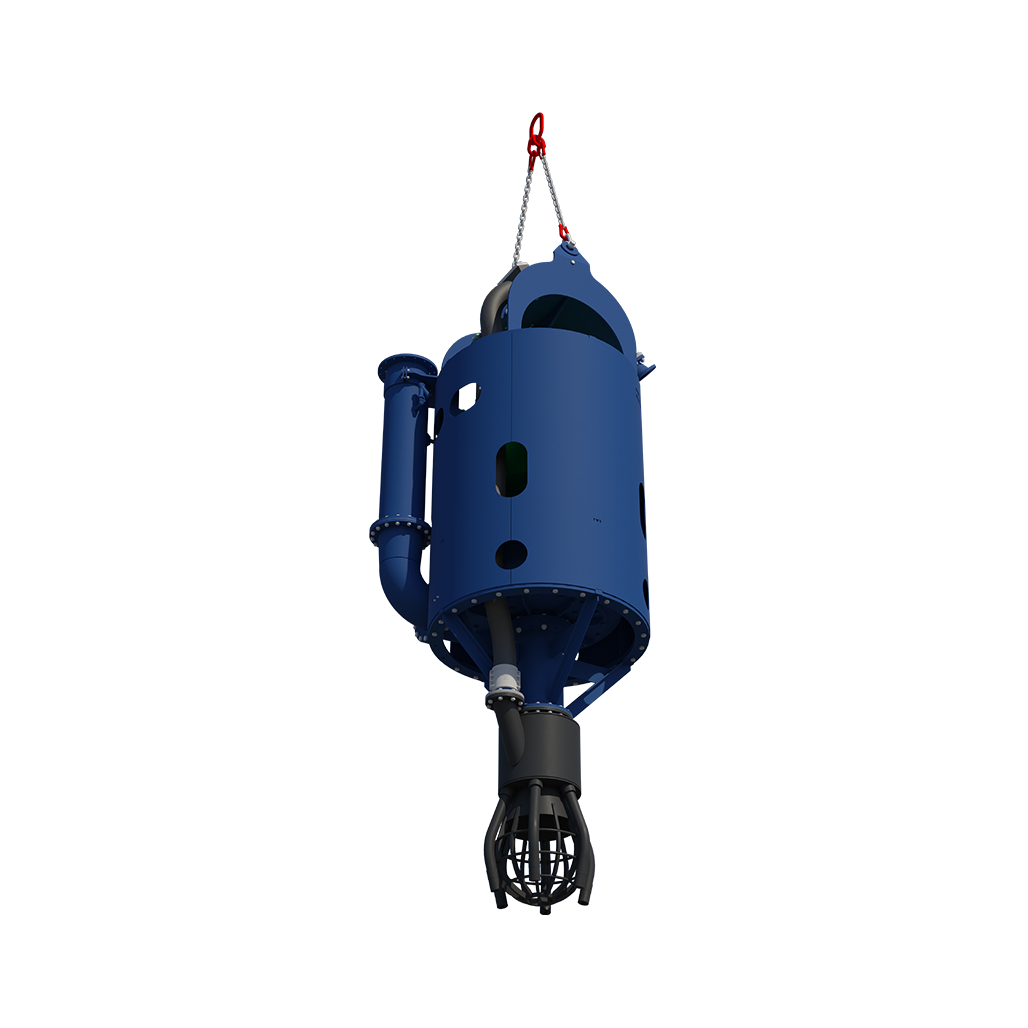

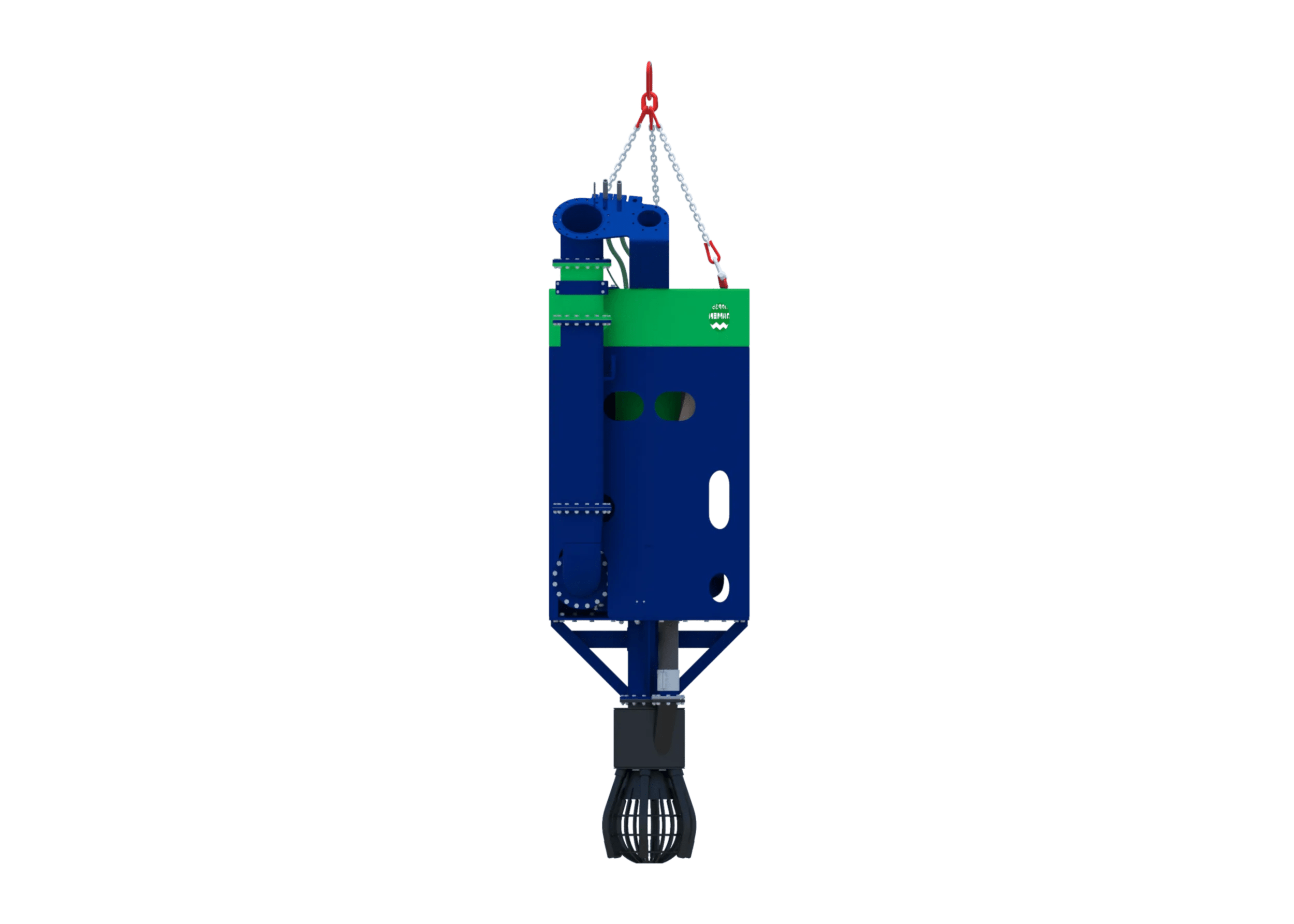

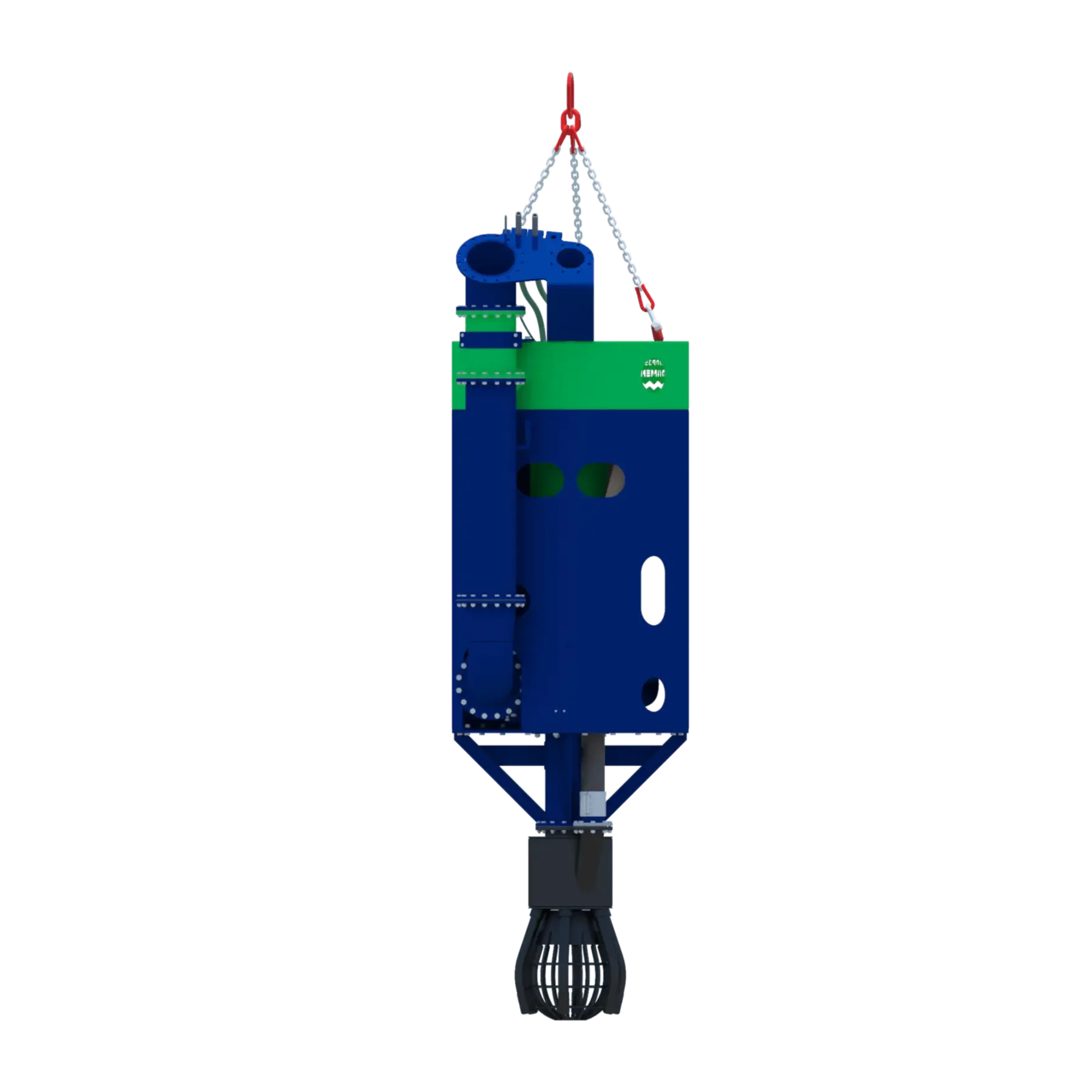

Electrical DOP submersible dredge pump E-DOP350
Electrical DOP submersible dredge pump E-DOP350
Easy to mobilise, practical in operation: the compact yet powerful E-DOP350 is the perfect multifunctional dredge tool to add to your fleet. The fully electrically driven dredge pump enables dredging contractors to comply with the latest zero emission dredging requirements. At the heart of the operation is a reliable, wear resistant white iron submersible dredge pump.
- Discharge hoses
- Electrical jet pack
- Jet water hoses
- Dredging instrumentation
Fuel flexible
- Diesel
- Electric
- Silent and clean operations
- Most efficient dredge pump on the market
- Low maintenance due to few moving parts
- Powered by the grid
Key figures
2400
4.6
350
7.31
150
Performance
- Mixture capacity
- 2400 m³/h
- Max head
- 4.6 bar
- Max pump speed
- 580 rpm
- Max power
- 360 kW
Requirements
- Voltage
- 380-440 Vac
- Advised gen power
- 480 kVa
- Jet water
- 600 m³/h
- Jet water pressure
- 8 bar
Dimensions
- Suction diameter
- 350 mm
- Discharge diameter
- 350 mm
- Max sphere passage
- 150 mm
- Unit weight
- 7310 kg
Do you want to know more?
Compare similar DOP pumps
| Production (m³/h) | Max head (bar) | Pipe diameter (mm) | Weight (t) | Max sphere passage (mm) | ||
|---|---|---|---|---|---|---|
| Electrical DOP submersible dredge pump E-DOP350 | 2400 | 4.6 | 350 | 7.31 | 150 | |
| DOP submersible dredge pump DOP350 | 2400 | 4.8 | 350 | 5.33 | 150 | |
| Electrical DOP submersible dredge pump E-DOP350L | 2400 | 3.3 | 350 | 6.17 | 200 |
Electrical DOP submersible dredge pump E-DOP350
- Production (m³/h)
- 2400
- Max head (bar)
- 4.6
- Pipe diameter (mm)
- 350
- Weight (t)
- 7.31
- Max sphere passage (mm)
- 150
- Production (m³/h)
- 2400
- Max head (bar)
- 4.8
- Pipe diameter (mm)
- 350
- Weight (t)
- 5.33
- Max sphere passage (mm)
- 150
- Production (m³/h)
- 2400
- Max head (bar)
- 3.3
- Pipe diameter (mm)
- 350
- Weight (t)
- 6.17
- Max sphere passage (mm)
- 200
