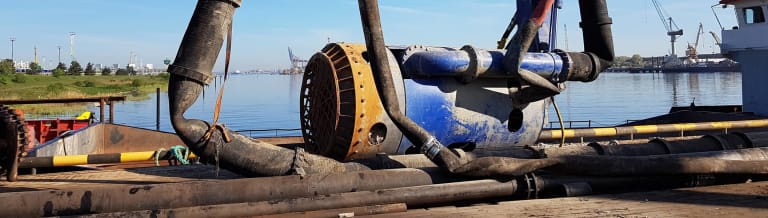

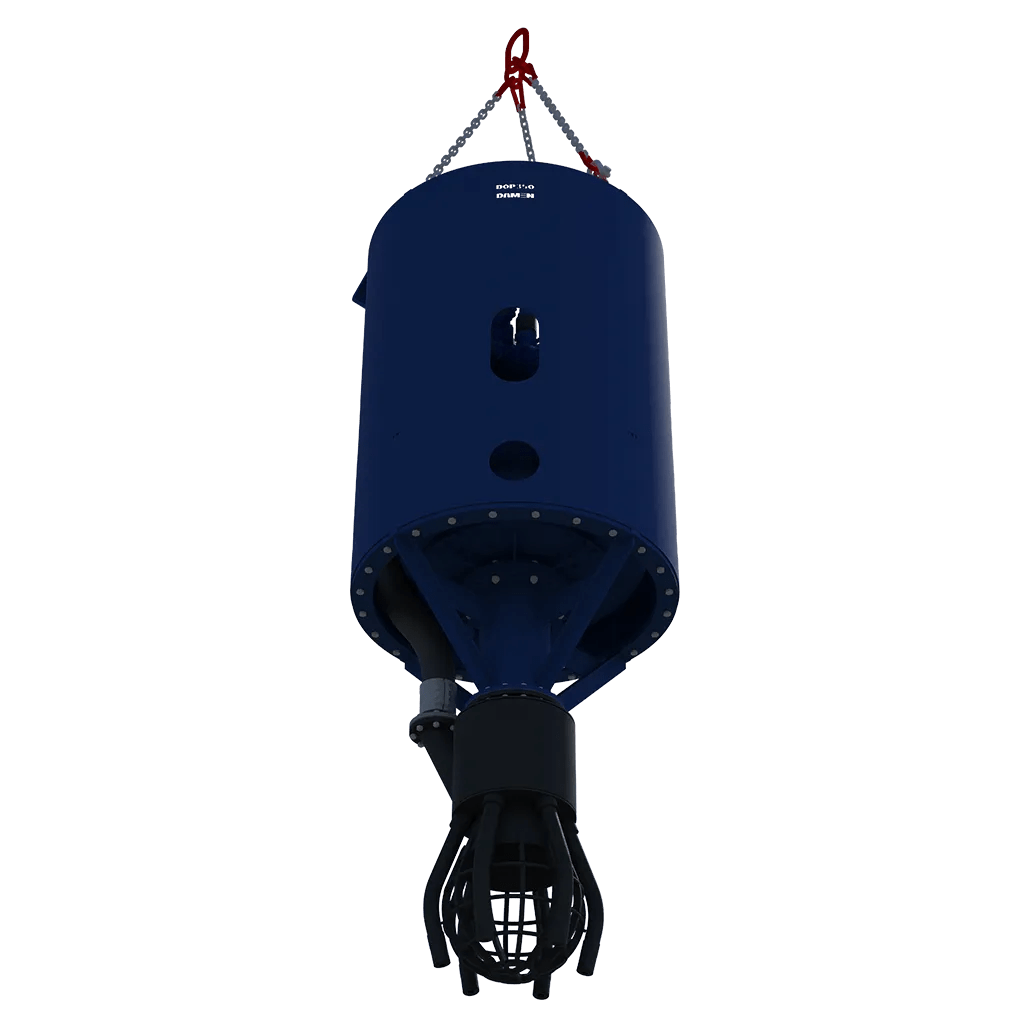

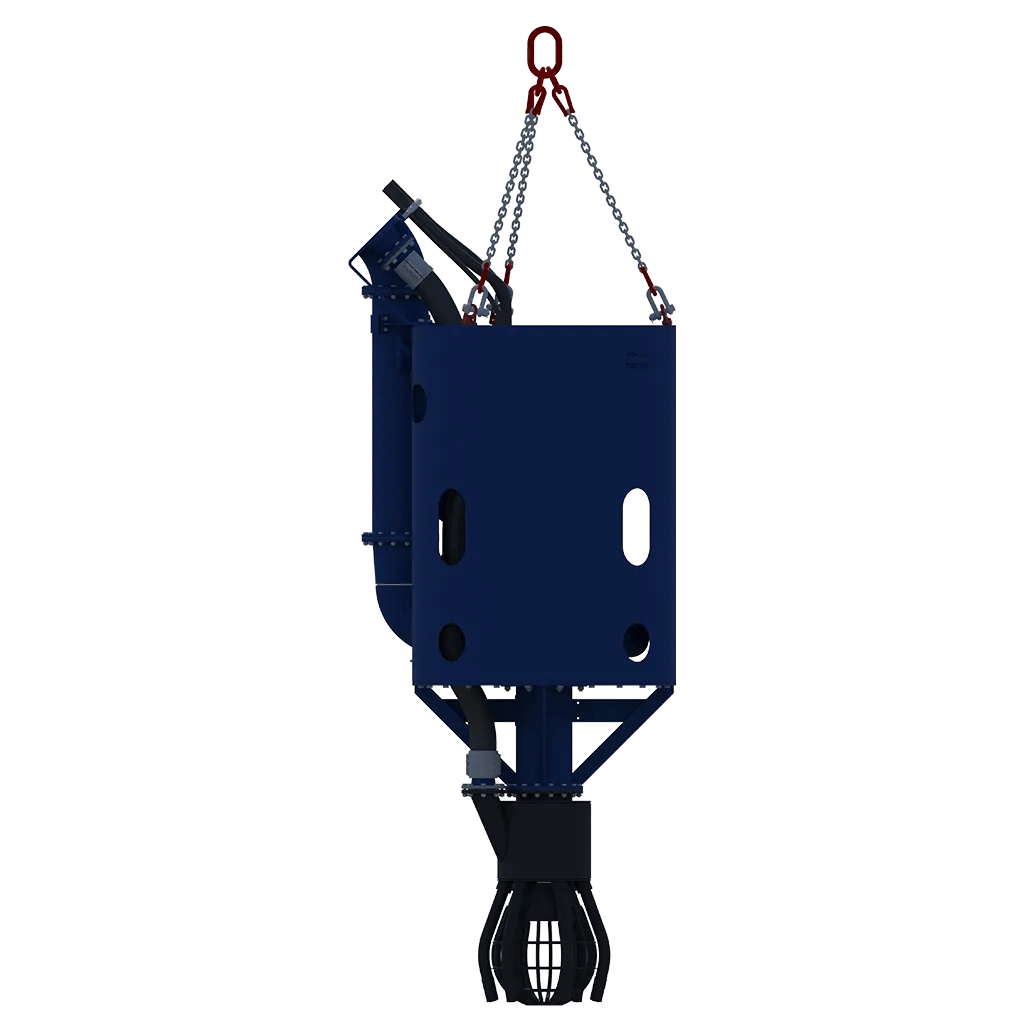

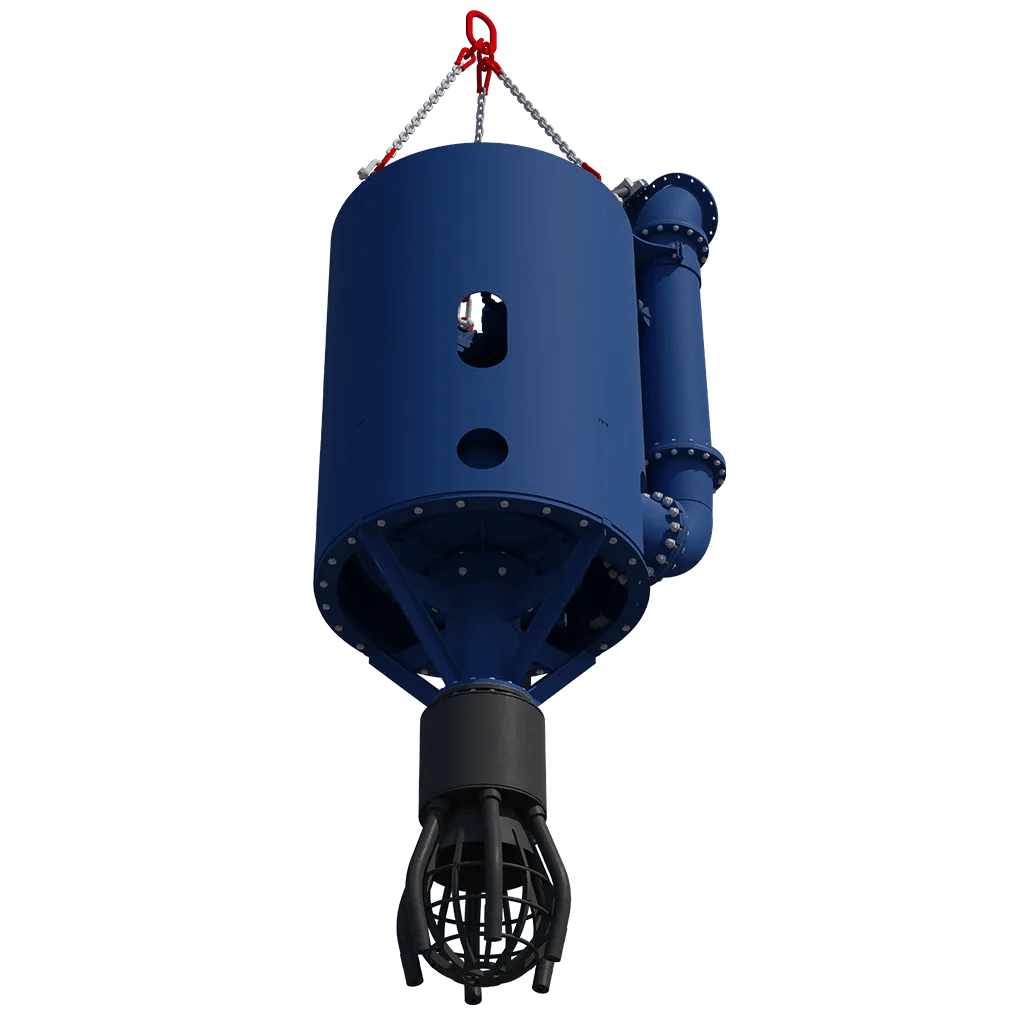

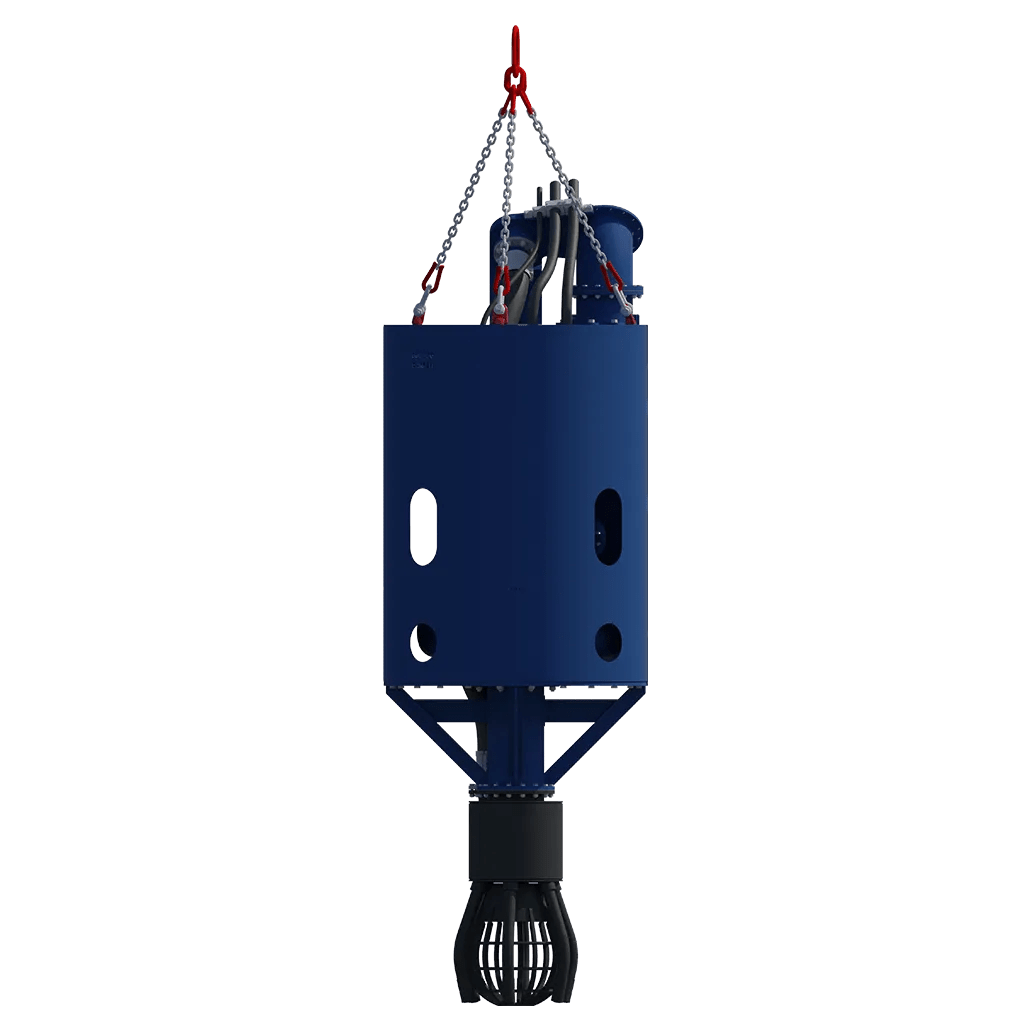

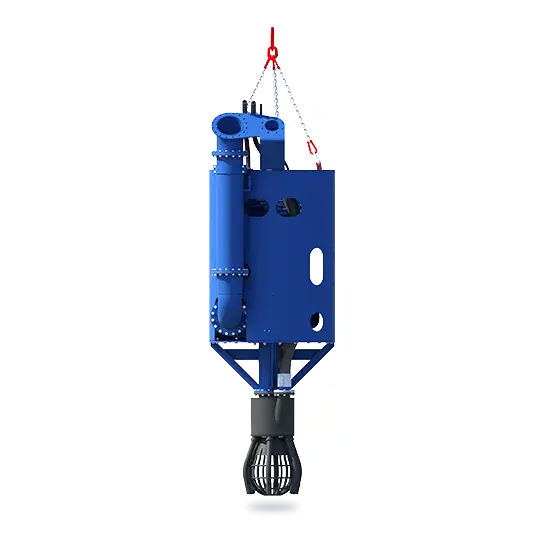

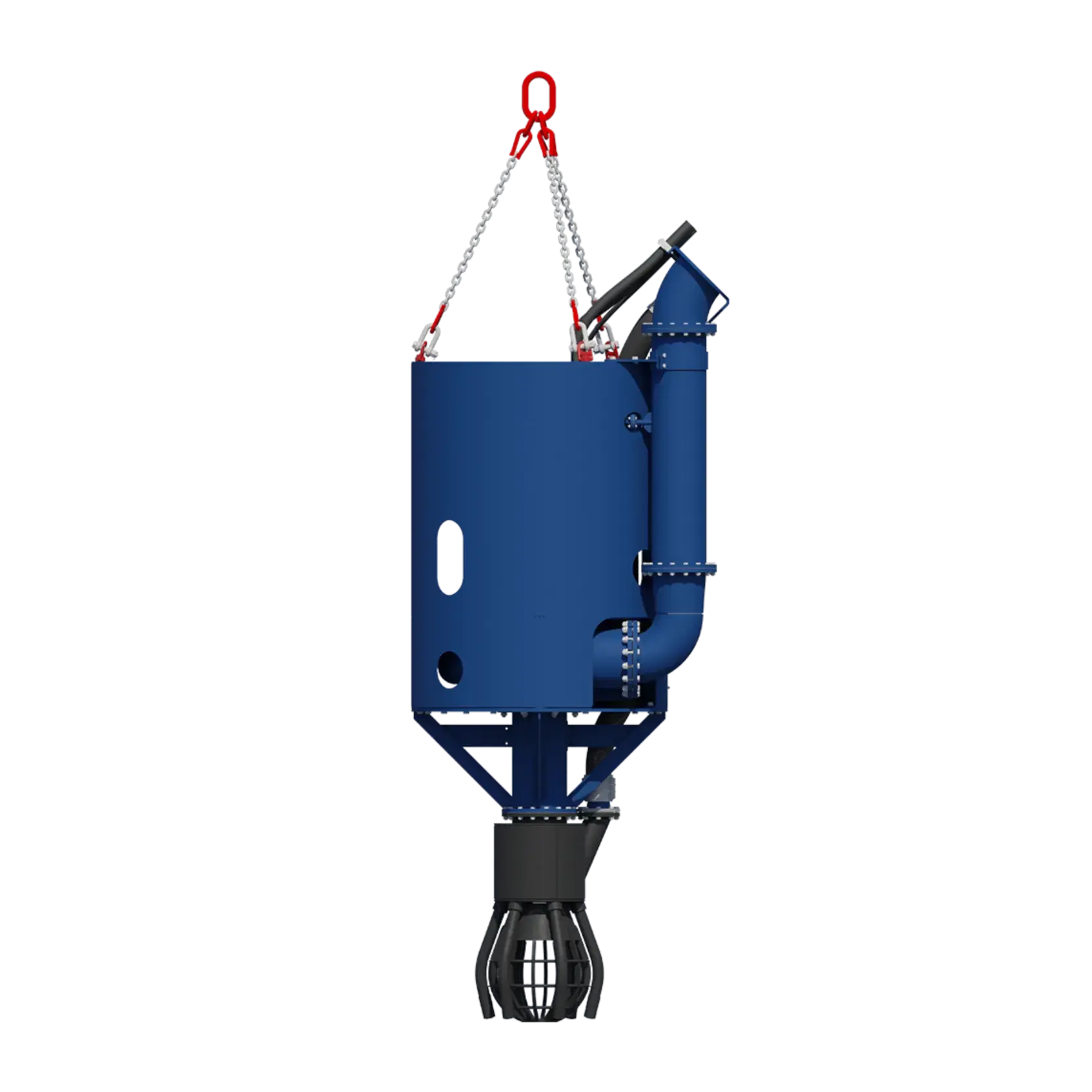

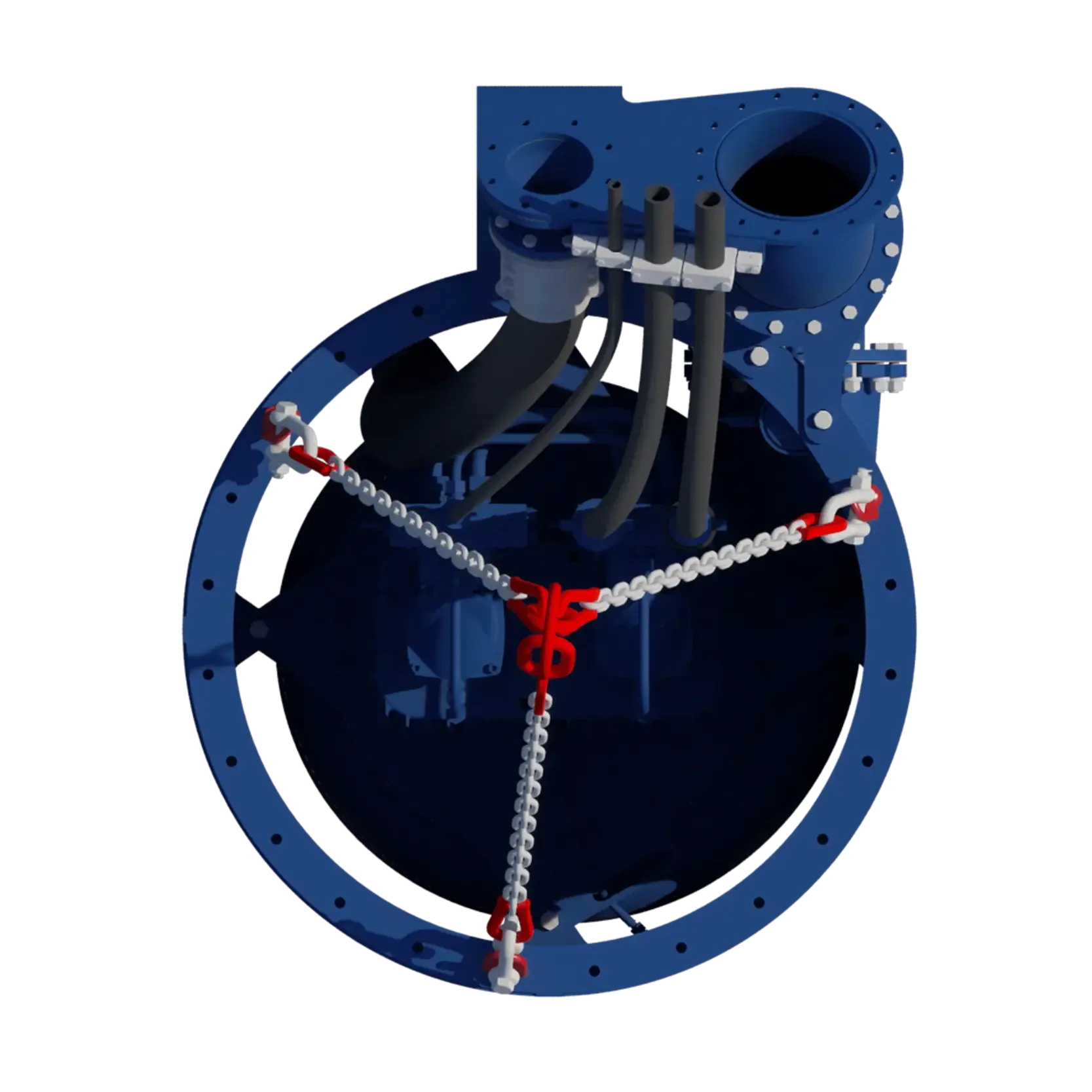

DOP submersible dredge pump DOP350
DOP submersible dredge pump DOP350

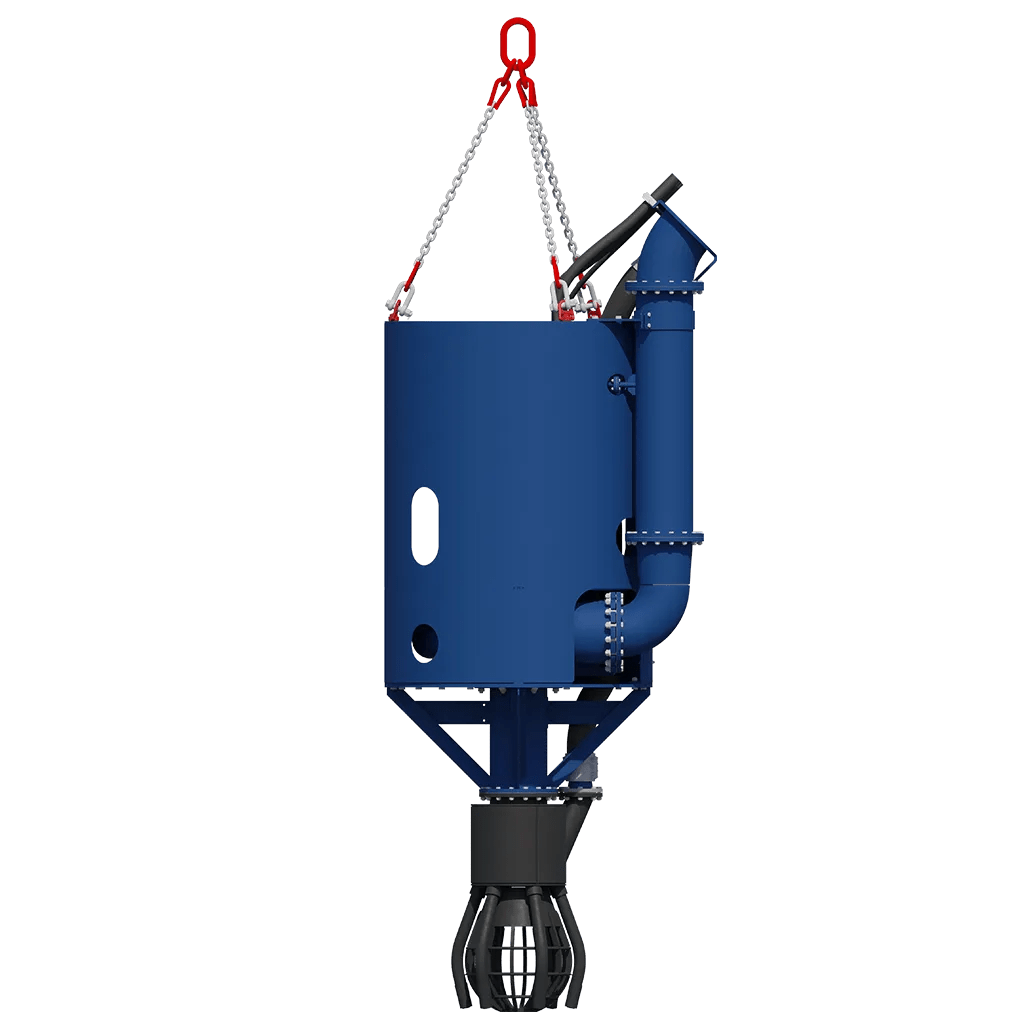

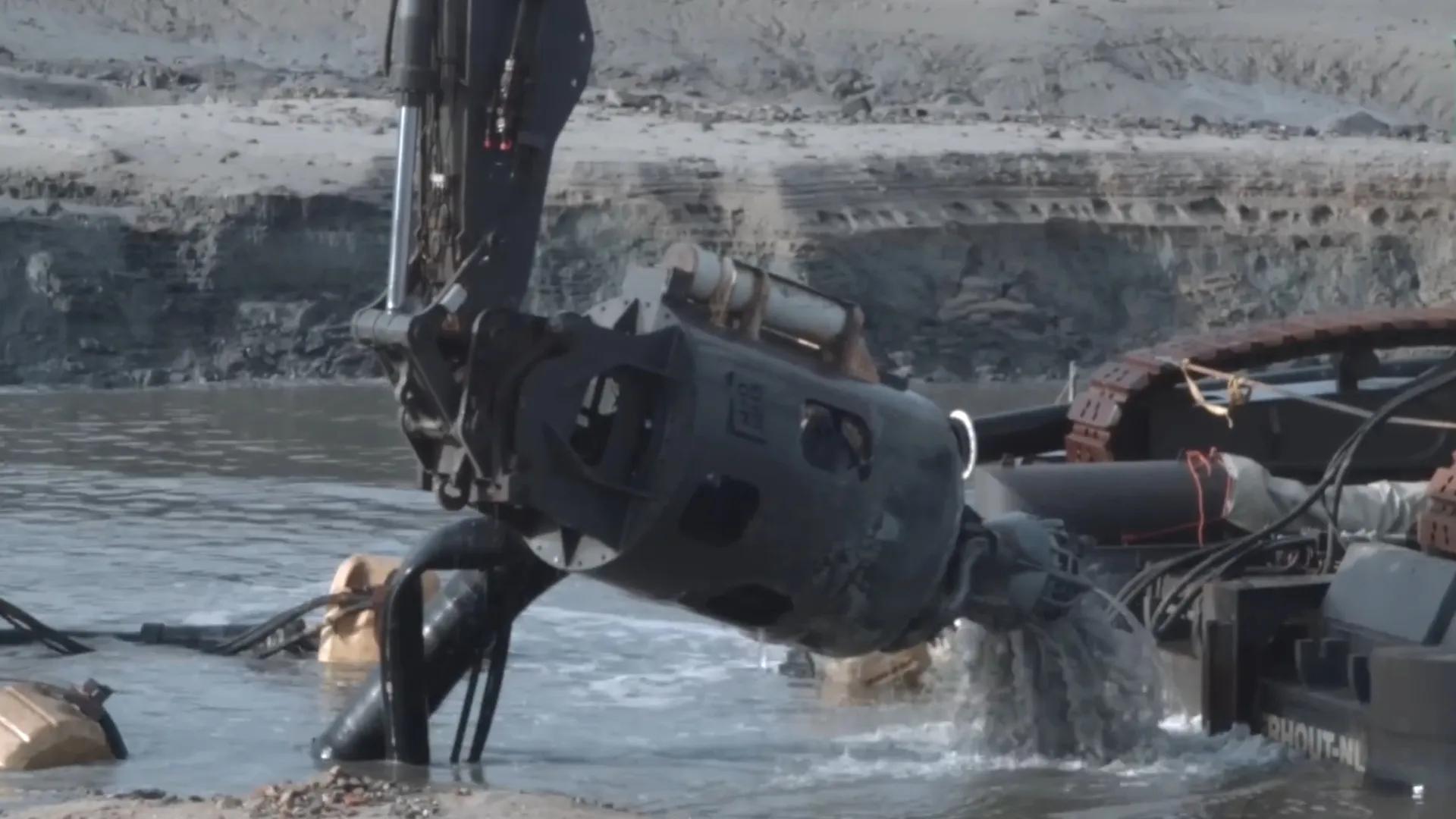

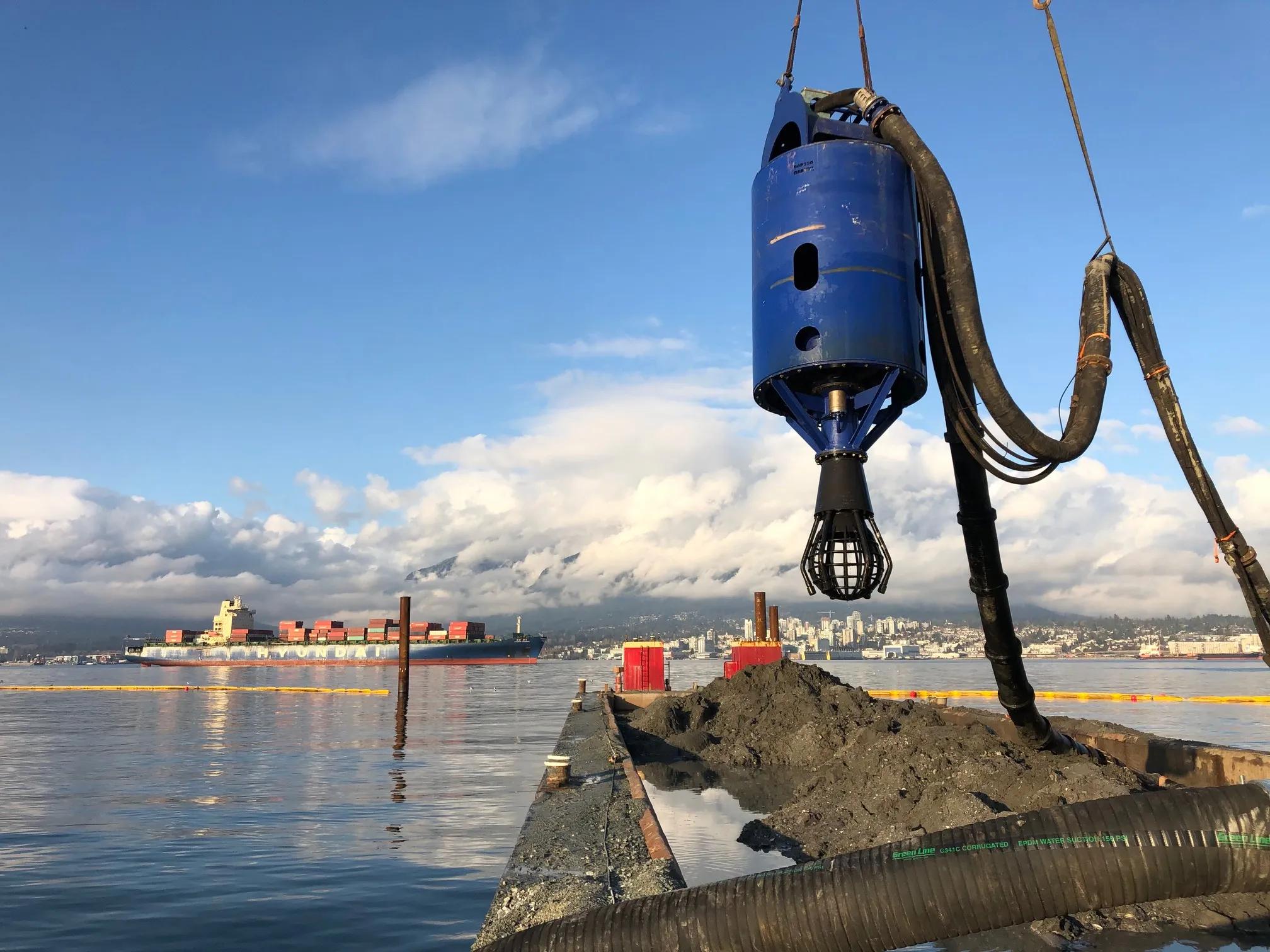

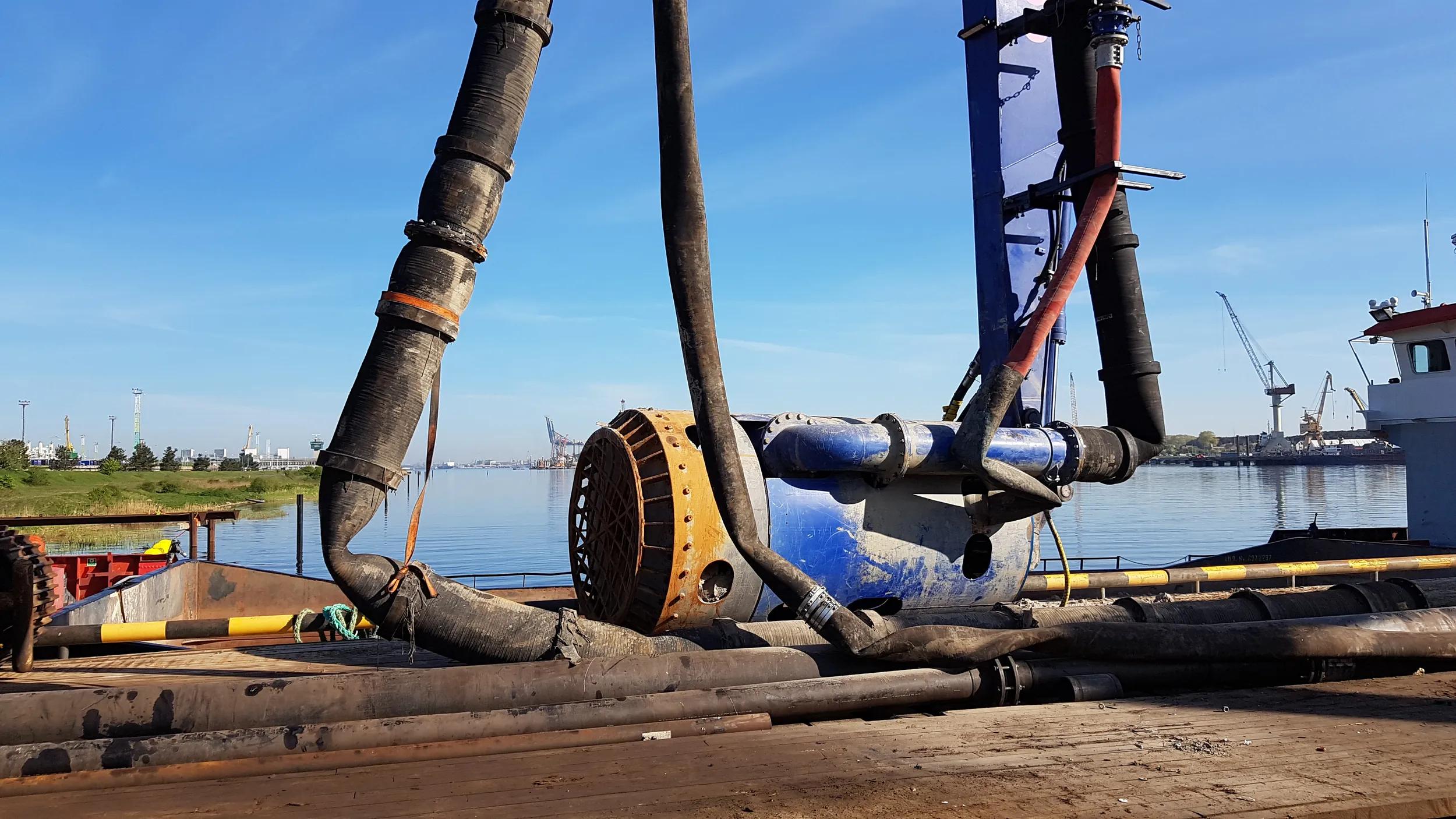

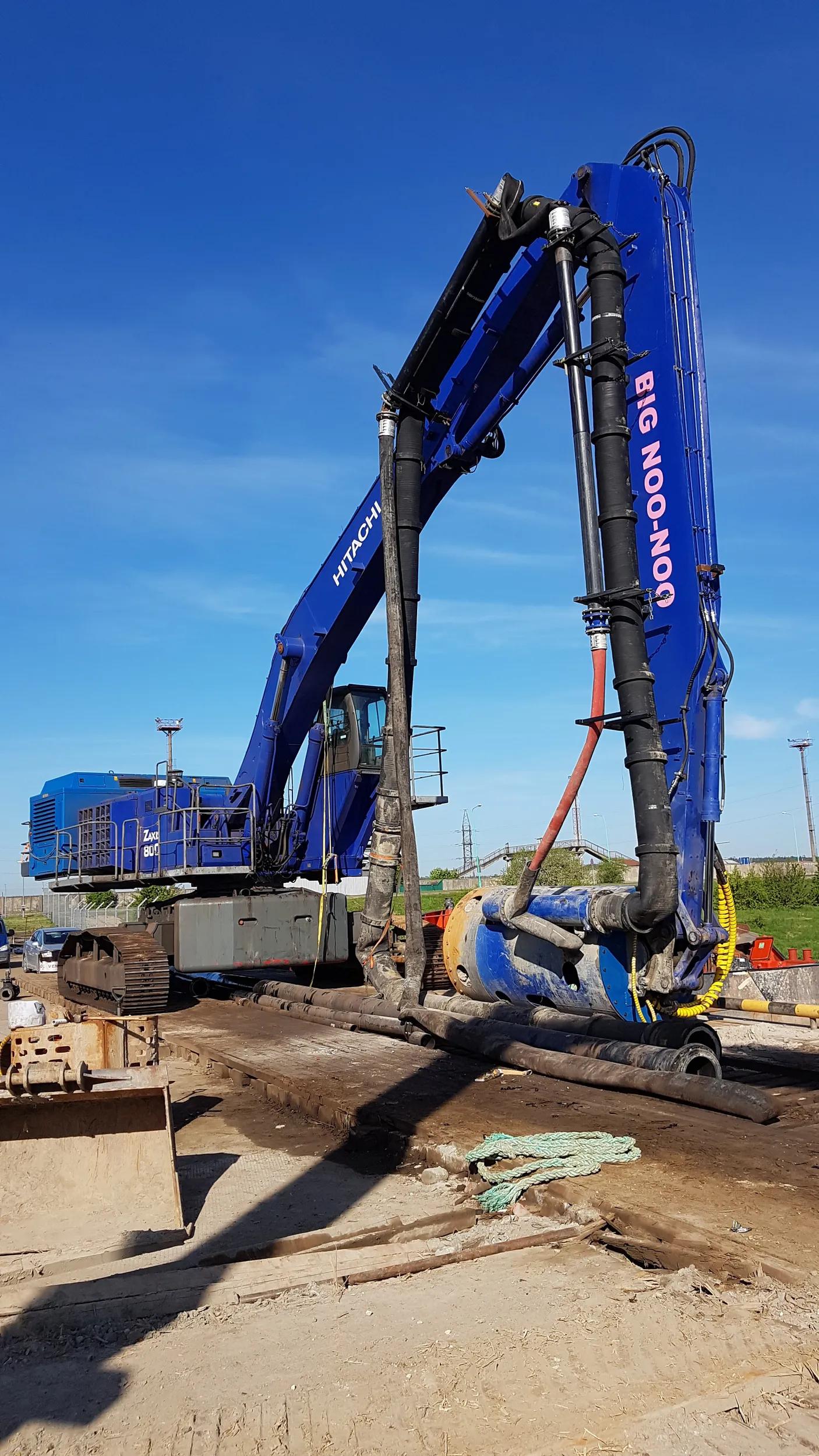

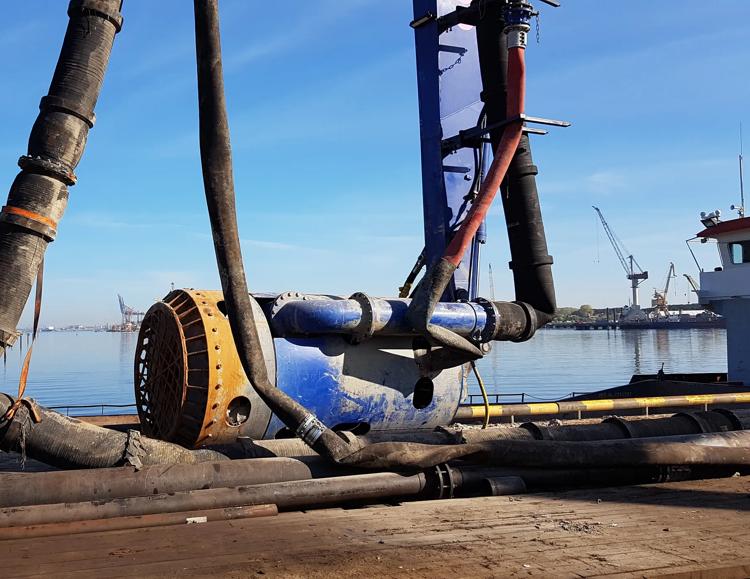

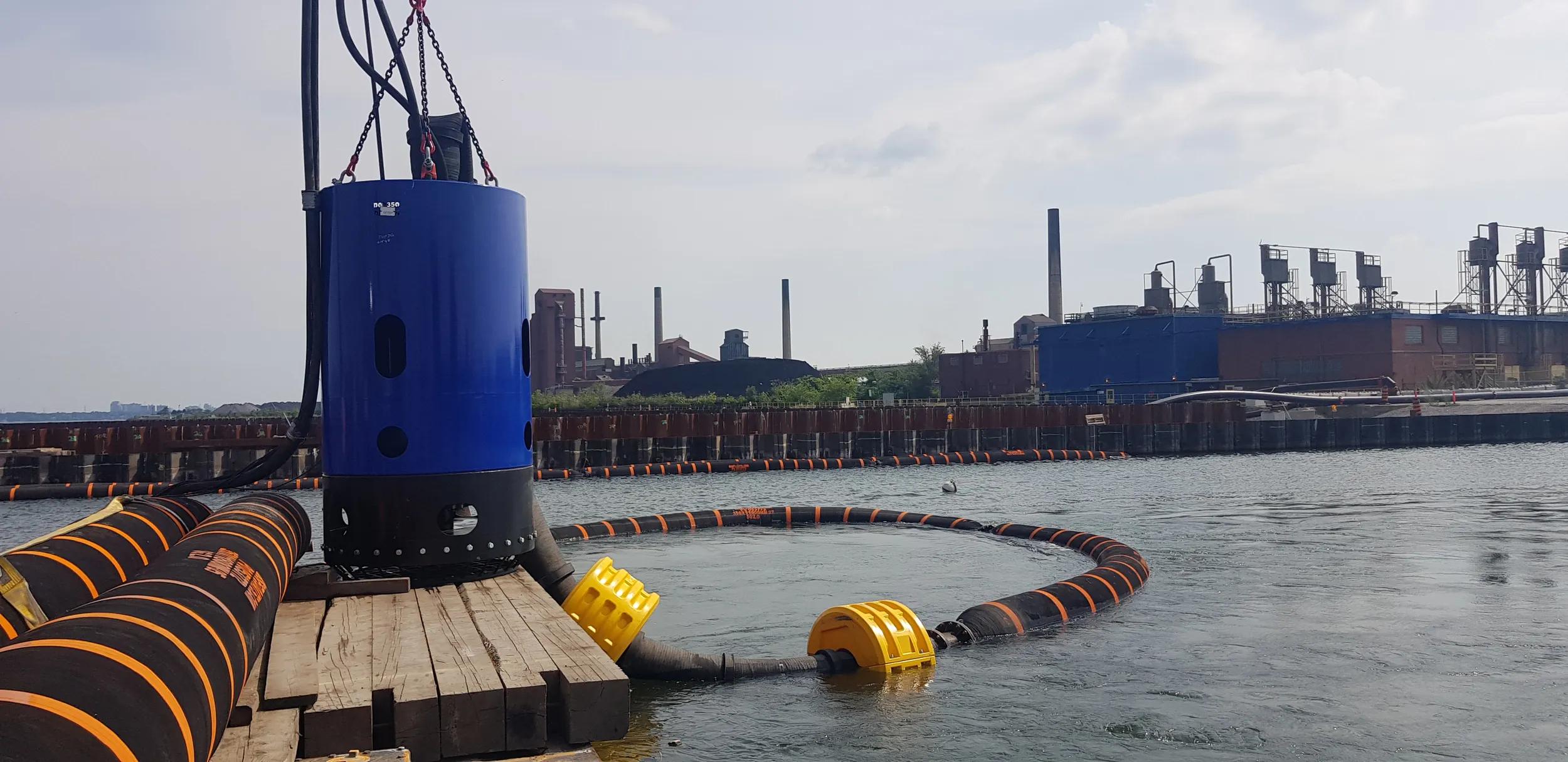

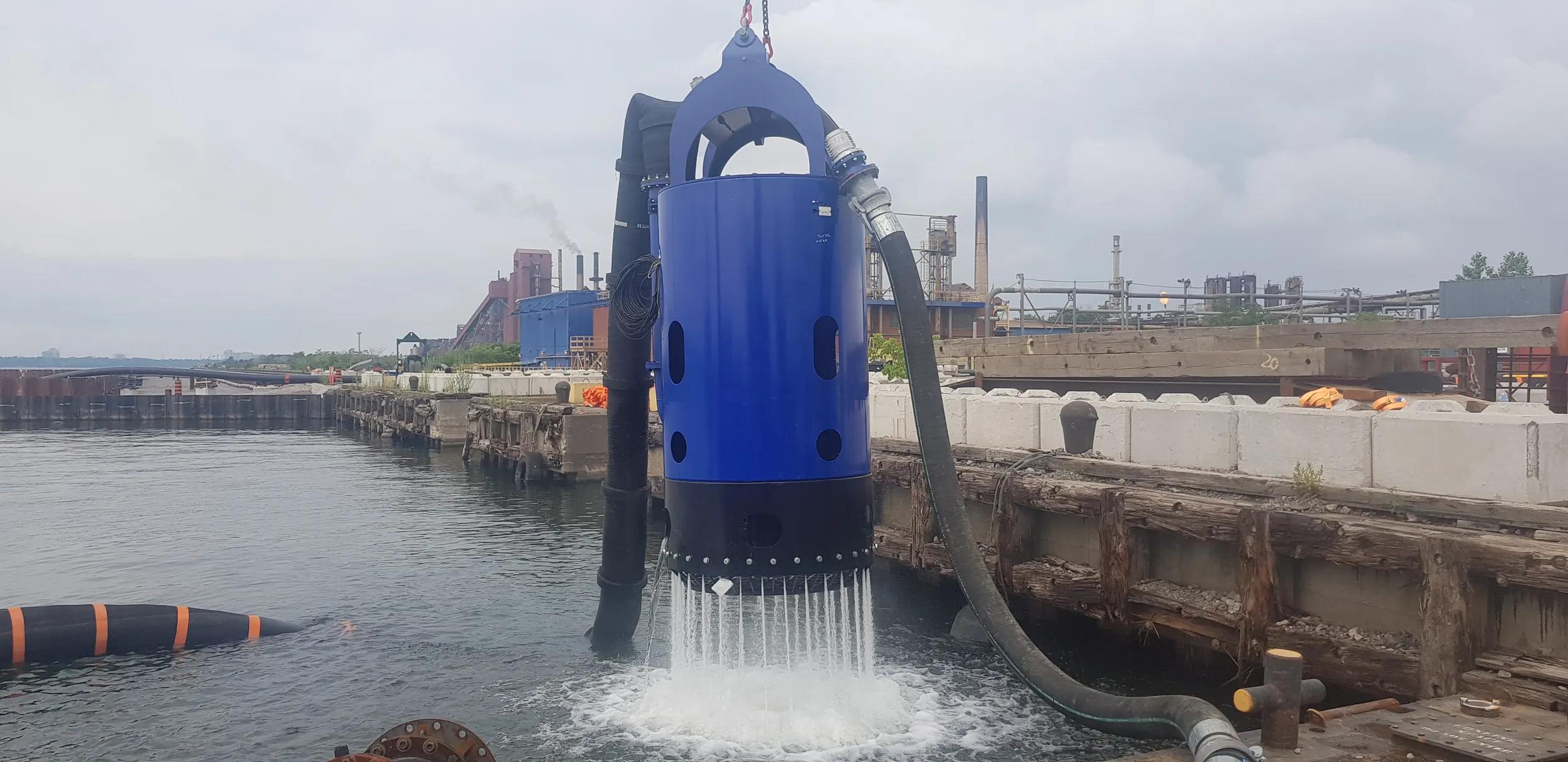

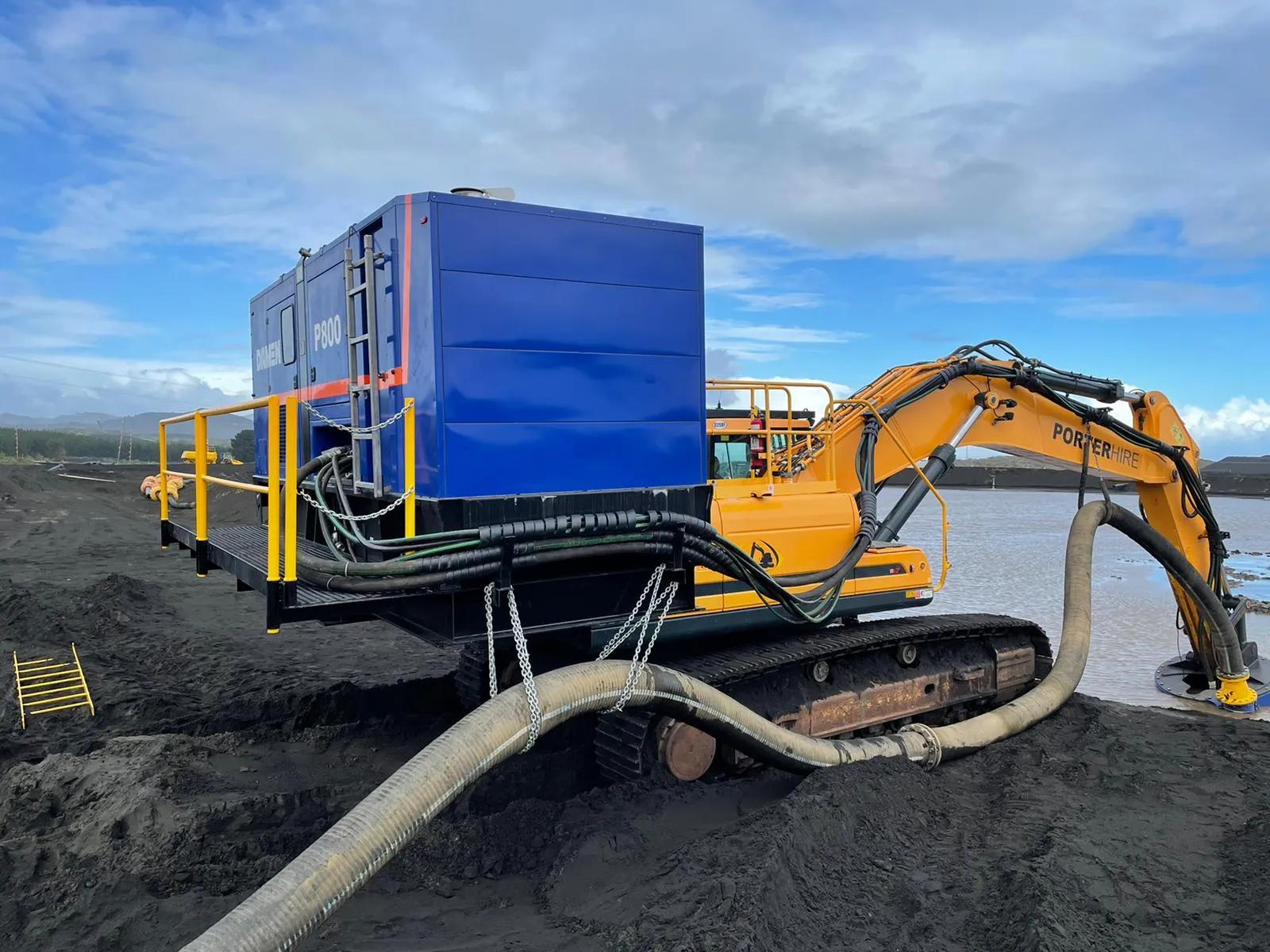

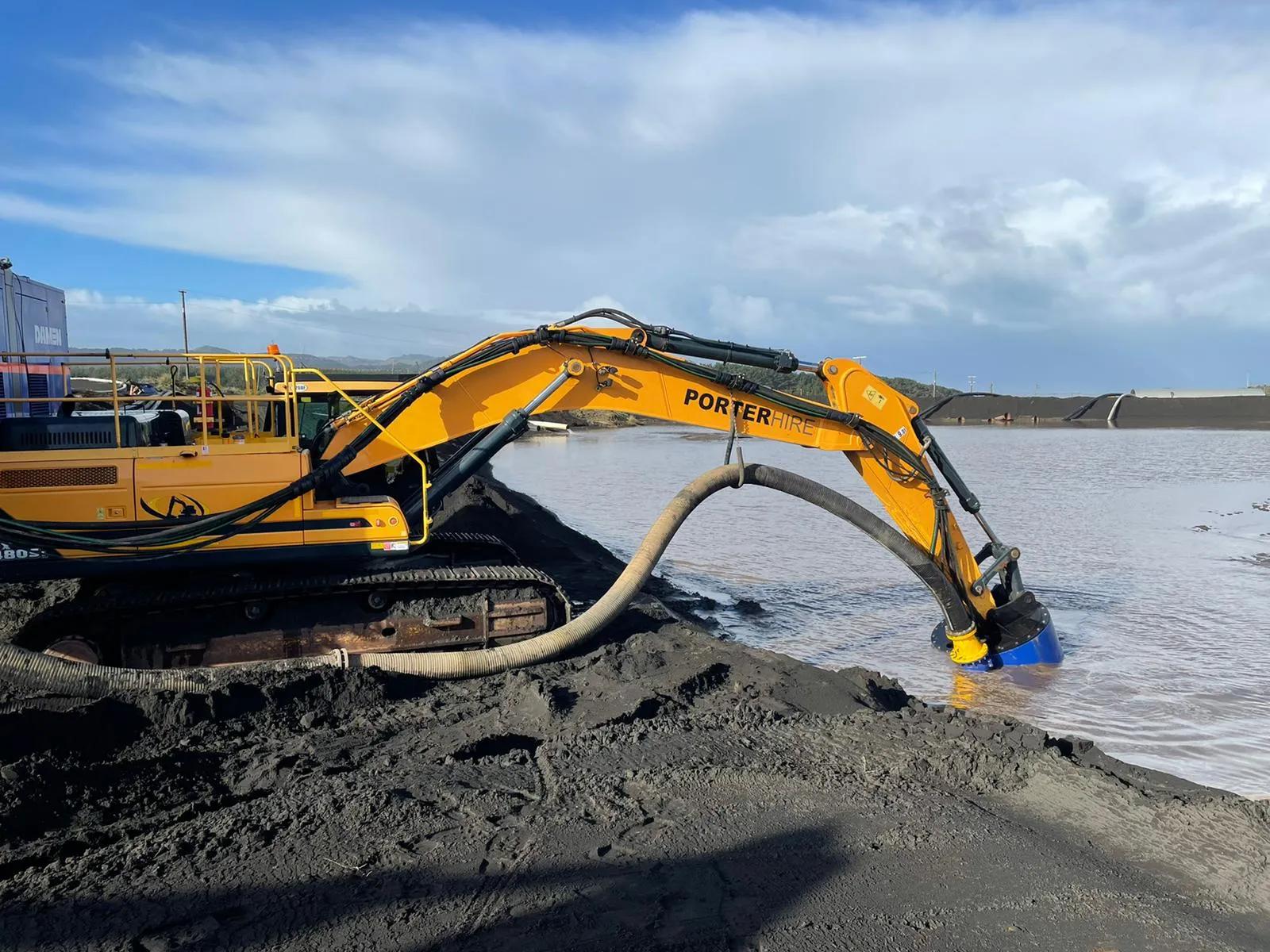

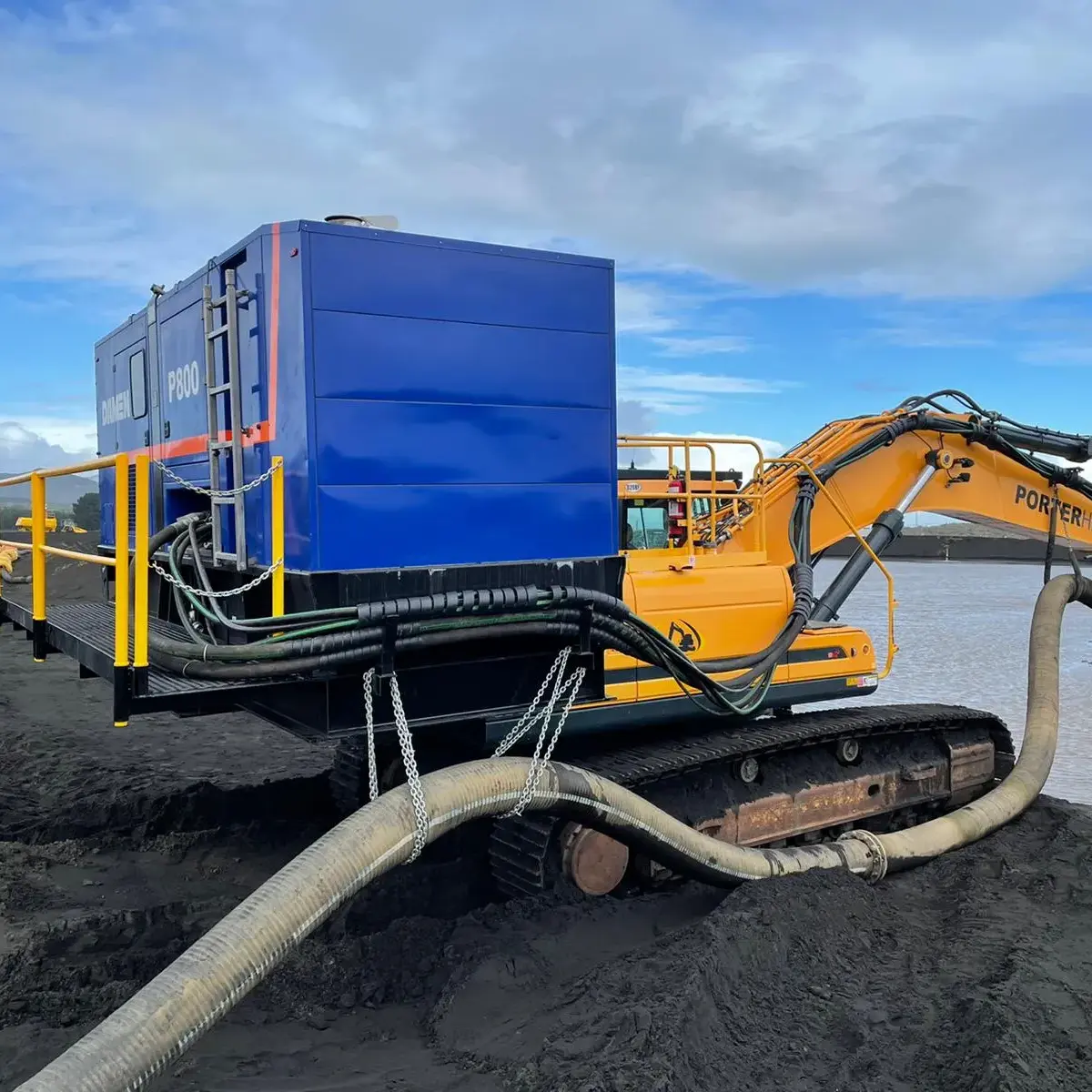

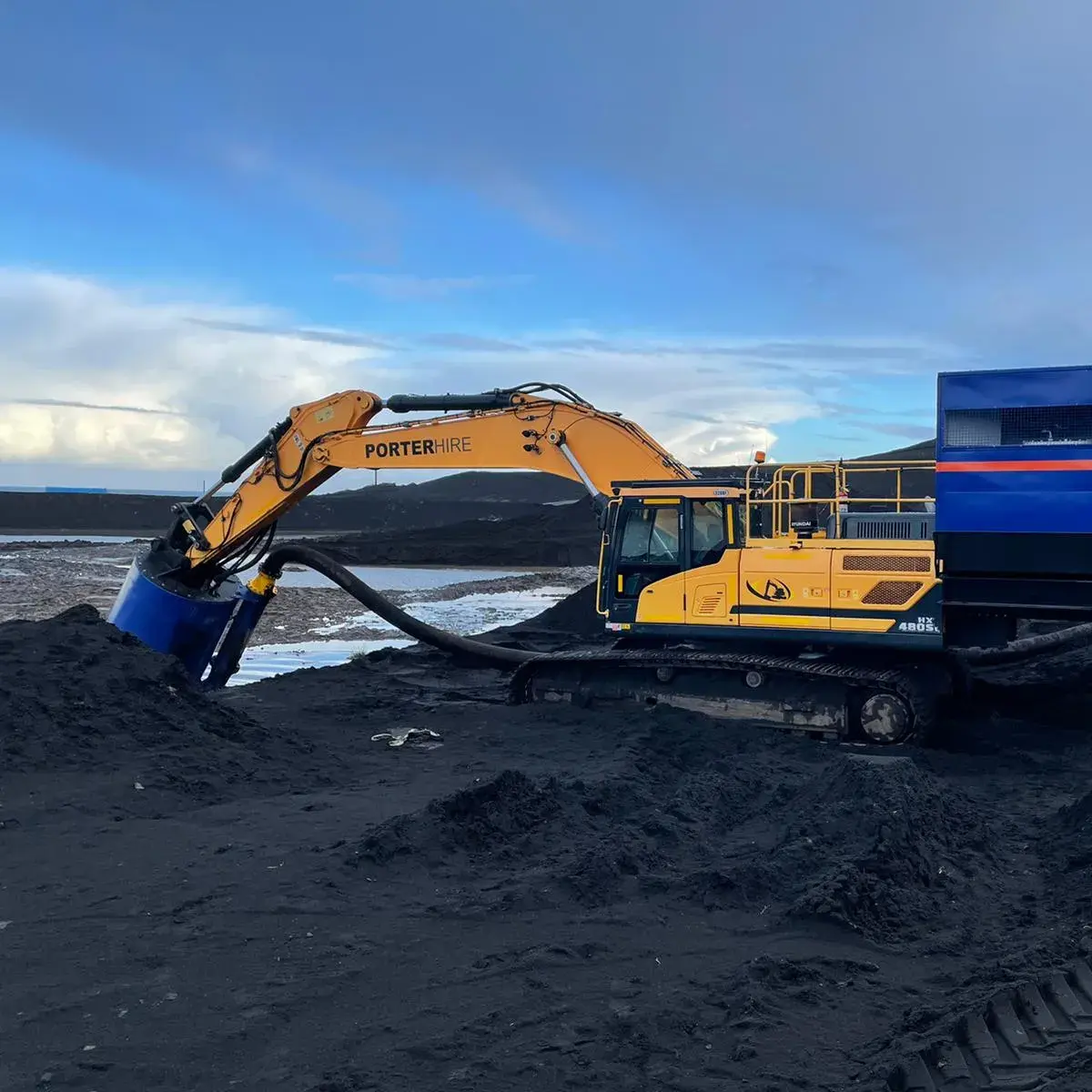

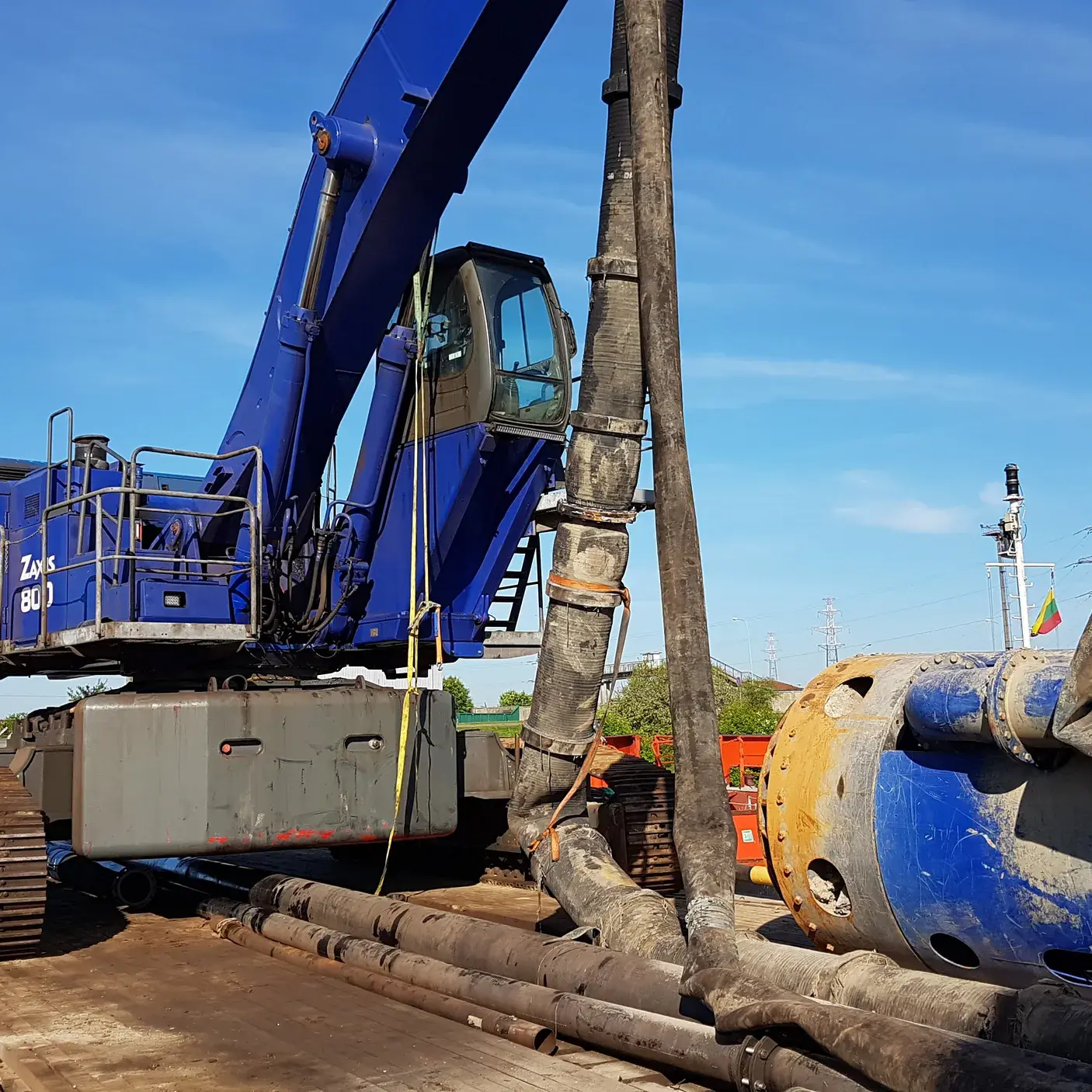

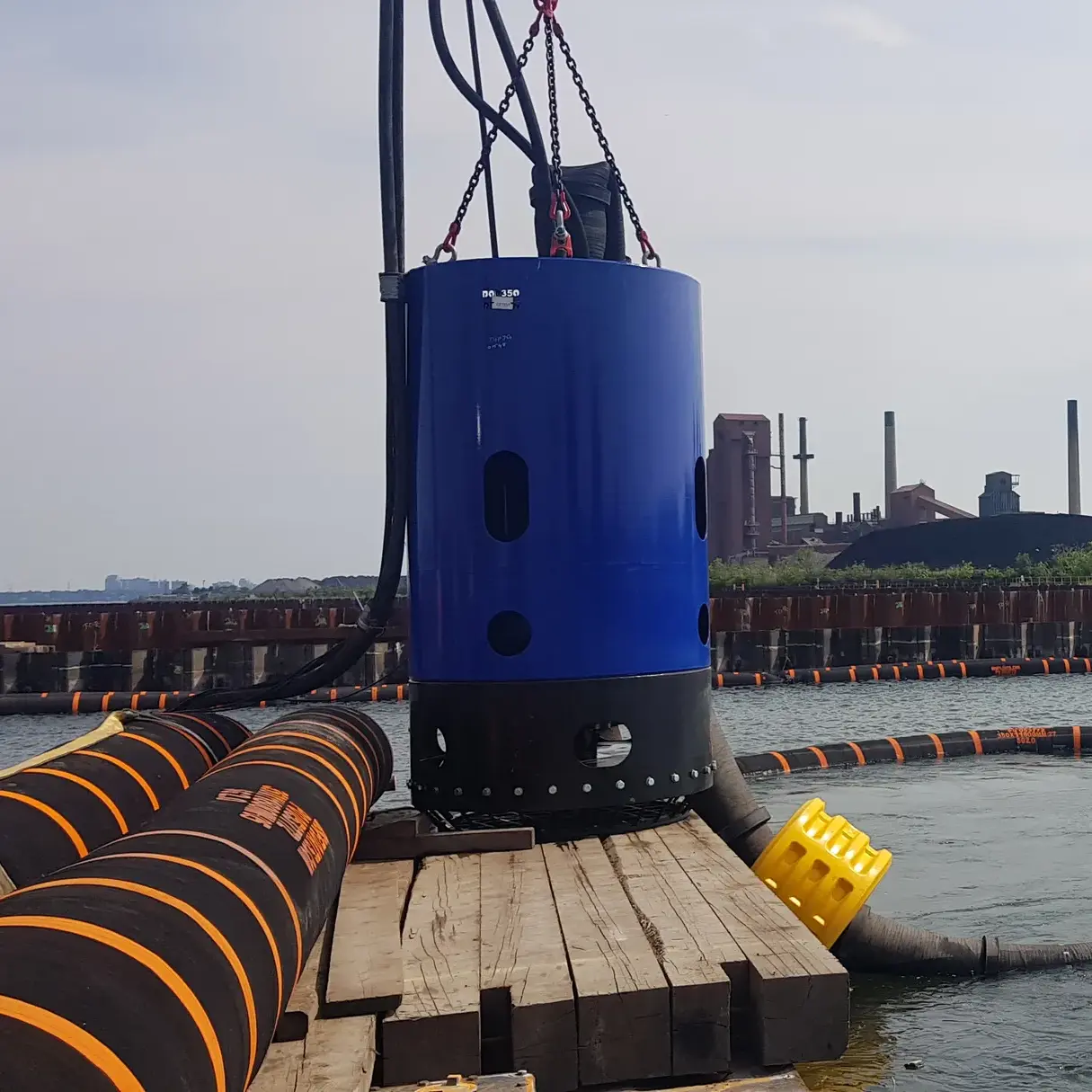

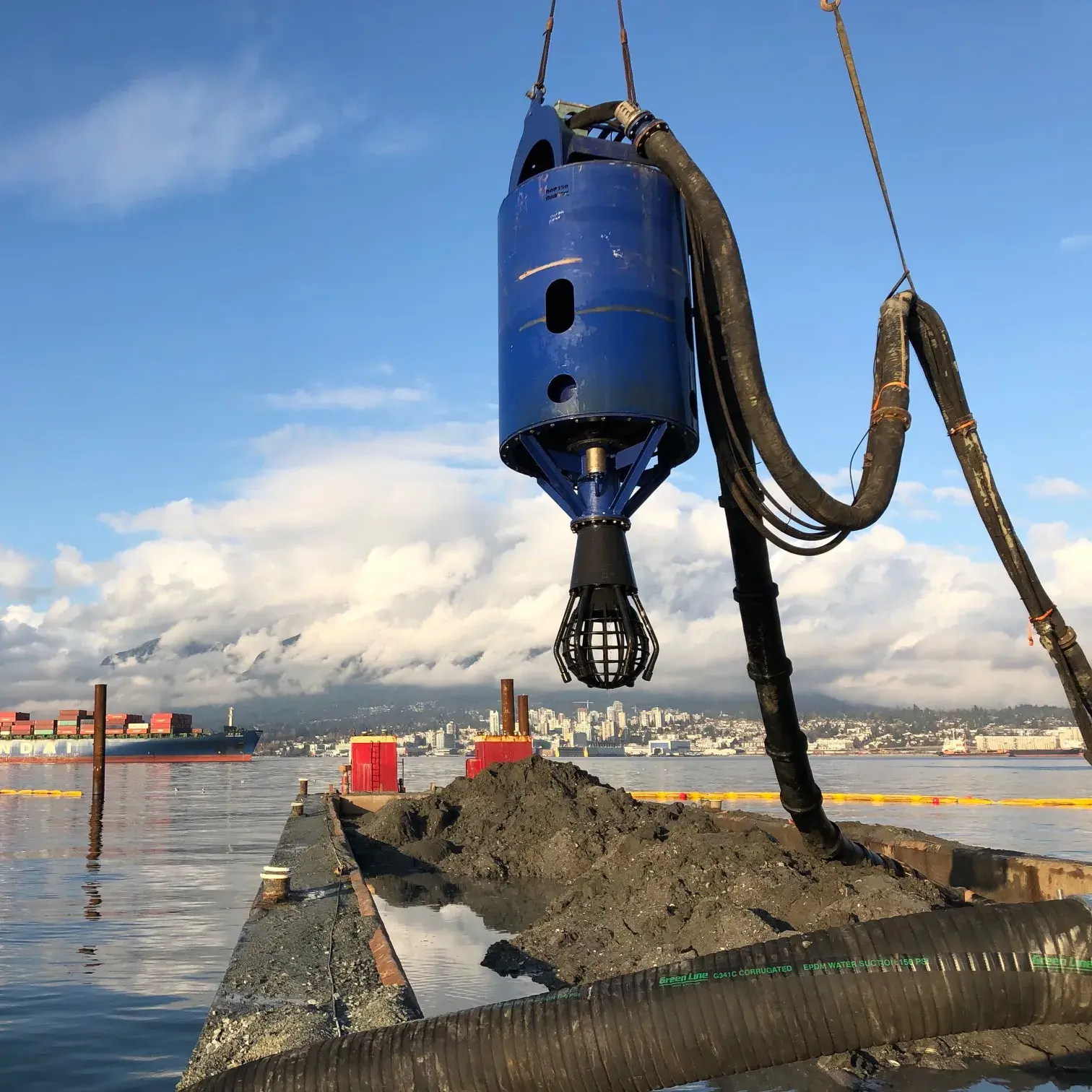

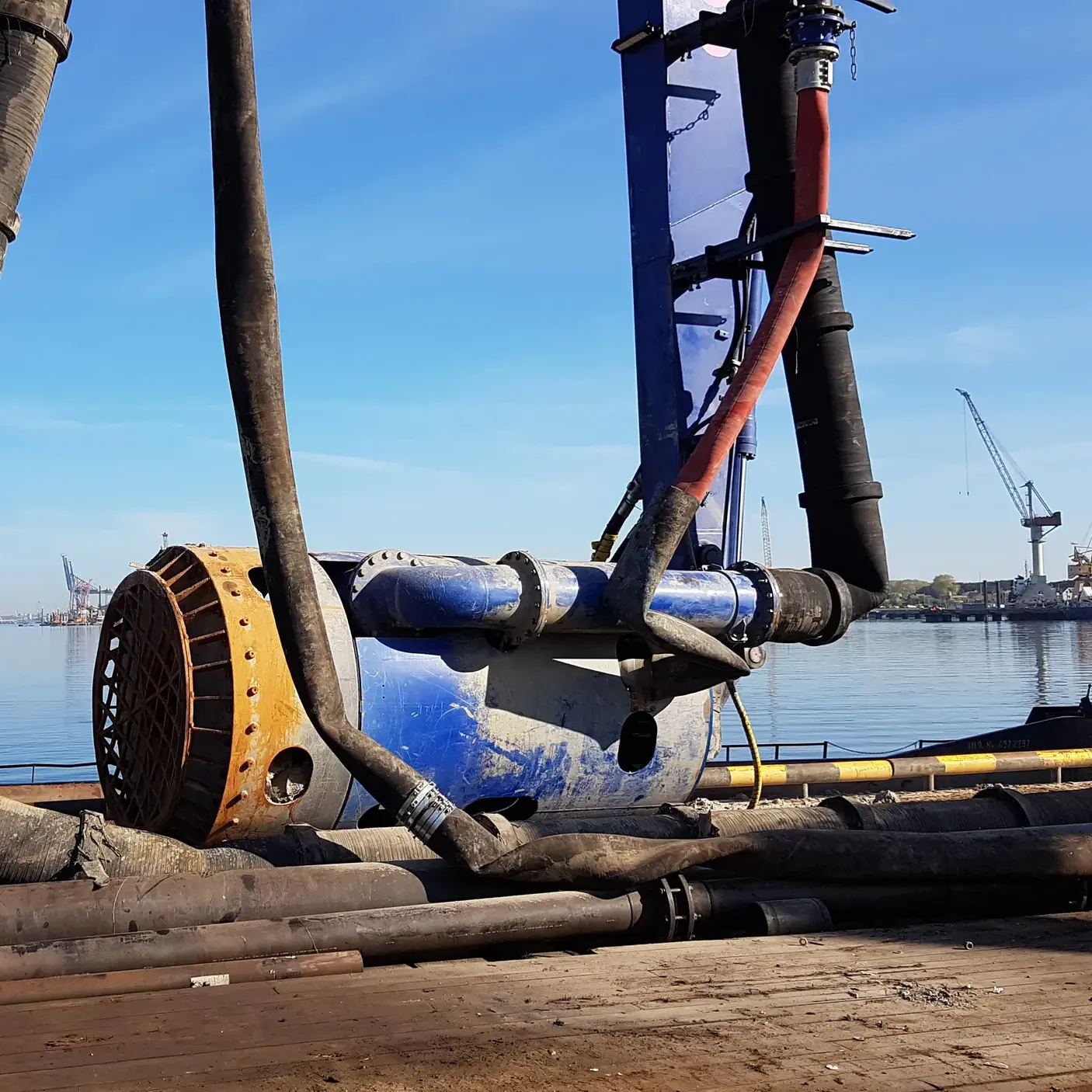

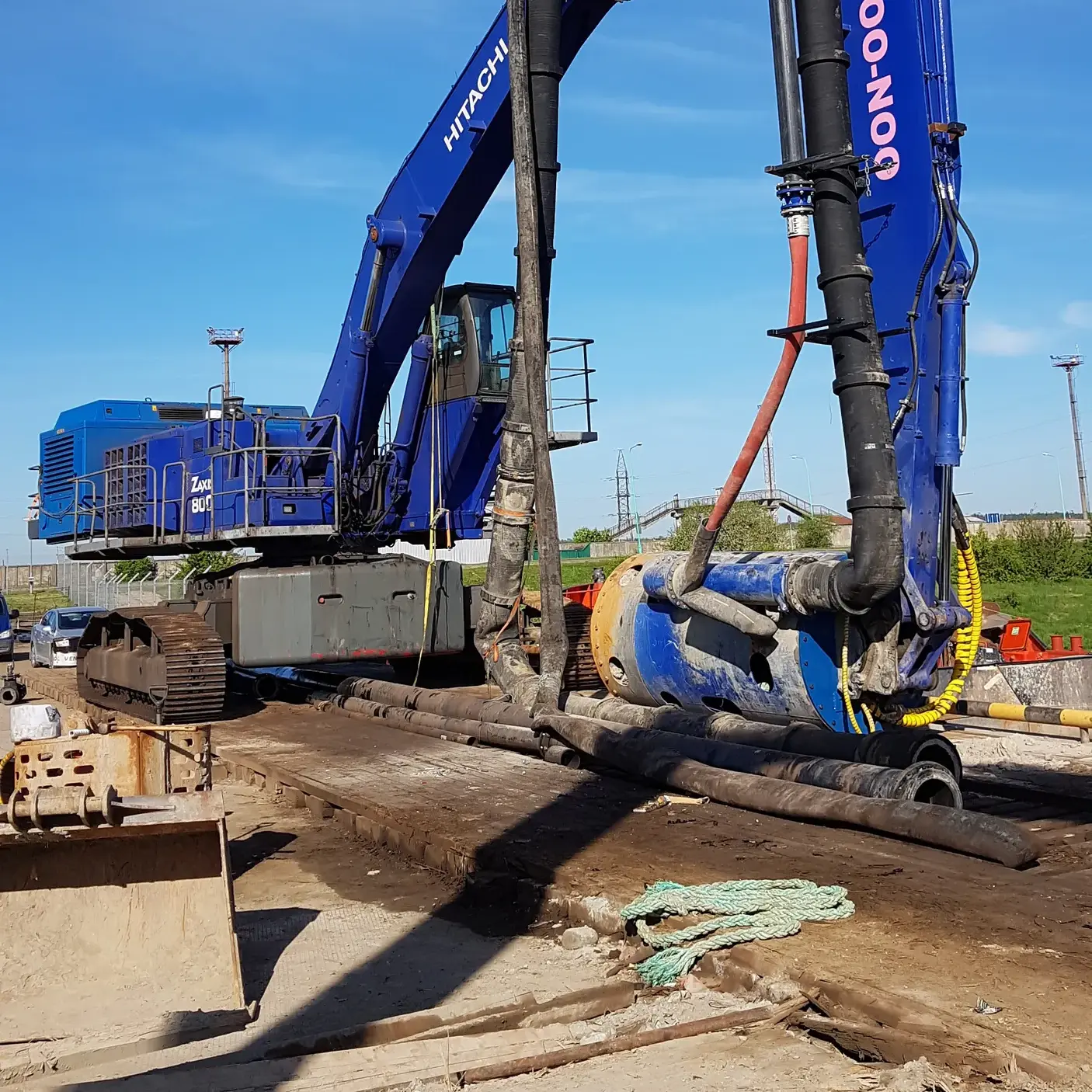

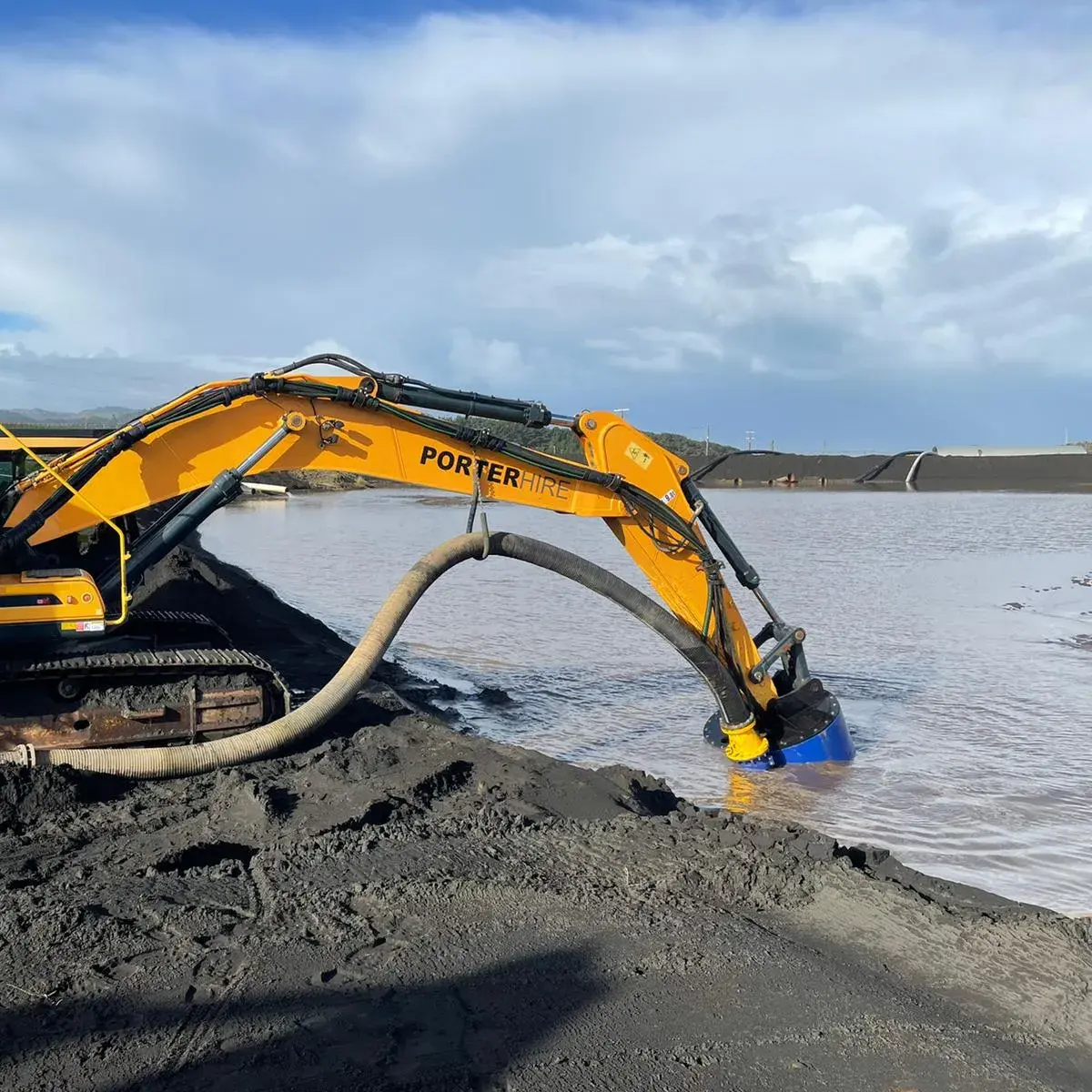

The DOP350 has been designed to efficiently dredge a sand/water mixture. It is fitted out with its own built-in hydraulic motor, which can be powered by an excavator or by a separate diesel-hydraulic power pack. Different types of suction heads can be easily exchanged as they are flange mounted on the lower casing rim. The sludge pump’s practical design ensures a fast mobilisation.
- Power packs
- Discharge hoses
- Jet packs
- Hydraulic hoses
Fuel flexible
- Diesel
- Electric
- Adaptable to any dredging job by changing the suction head
- Wear resistant white cast iron wear parts
- Large ball passage maximising uptime
- Easy to handle and quick mobilisation
Key figures
2400
4.8
350
5.33
150
Performance
- Mixture capacity
- 2400 m³/h
- Max head
- 4.8 bar
- Max pump speed
- 580 rpm
- Max power
- 360 kW
Requirements
- Hydr oil flow
- 900 l/min
- Hydr oil pressure
- 250 bar
- Jet water
- 600 m³/h
- Jet water pressure
- 8 bar
Dimensions
- Suction diameter
- 350 mm
- Discharge diameter
- 350 mm
- Max sphere passage
- 150 mm
- Unit weight
- 5330 kg
Do you want to know more?
Compare similar DOP pumps
| Production (m³/h) | Max head (bar) | Pipe diameter (mm) | Weight (t) | Max sphere passage (mm) | ||
|---|---|---|---|---|---|---|
| DOP submersible dredge pump DOP350 | 2400 | 4.8 | 350 | 5.33 | 150 | |
| DOP submersible dredge pump DOP350L | 2400 | 3.2 | 350 | 4.58 | 200 | |
| Electrical DOP submersible dredge pump E-DOP350 | 2400 | 4.6 | 350 | 7.31 | 150 |
DOP submersible dredge pump DOP350
- Production (m³/h)
- 2400
- Max head (bar)
- 4.8
- Pipe diameter (mm)
- 350
- Weight (t)
- 5.33
- Max sphere passage (mm)
- 150
- Production (m³/h)
- 2400
- Max head (bar)
- 3.2
- Pipe diameter (mm)
- 350
- Weight (t)
- 4.58
- Max sphere passage (mm)
- 200
- Production (m³/h)
- 2400
- Max head (bar)
- 4.6
- Pipe diameter (mm)
- 350
- Weight (t)
- 7.31
- Max sphere passage (mm)
- 150
