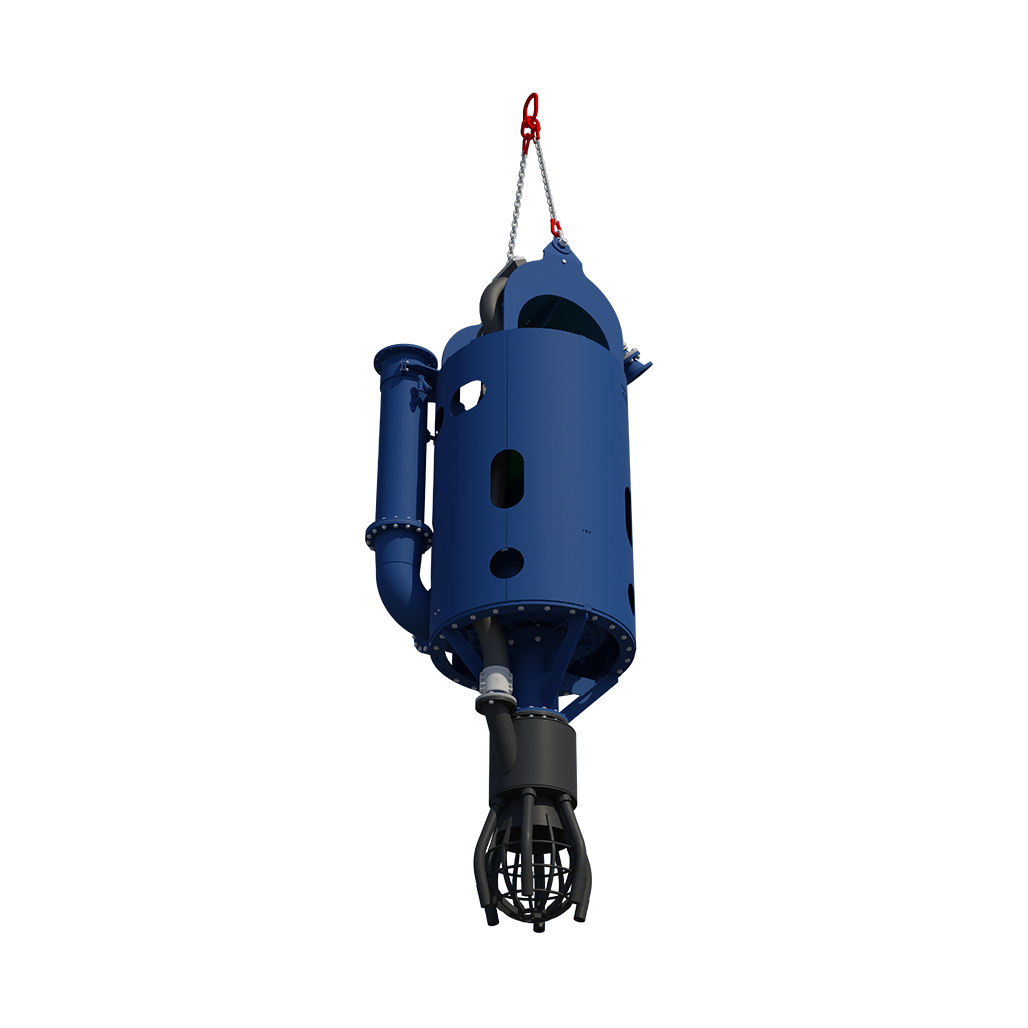

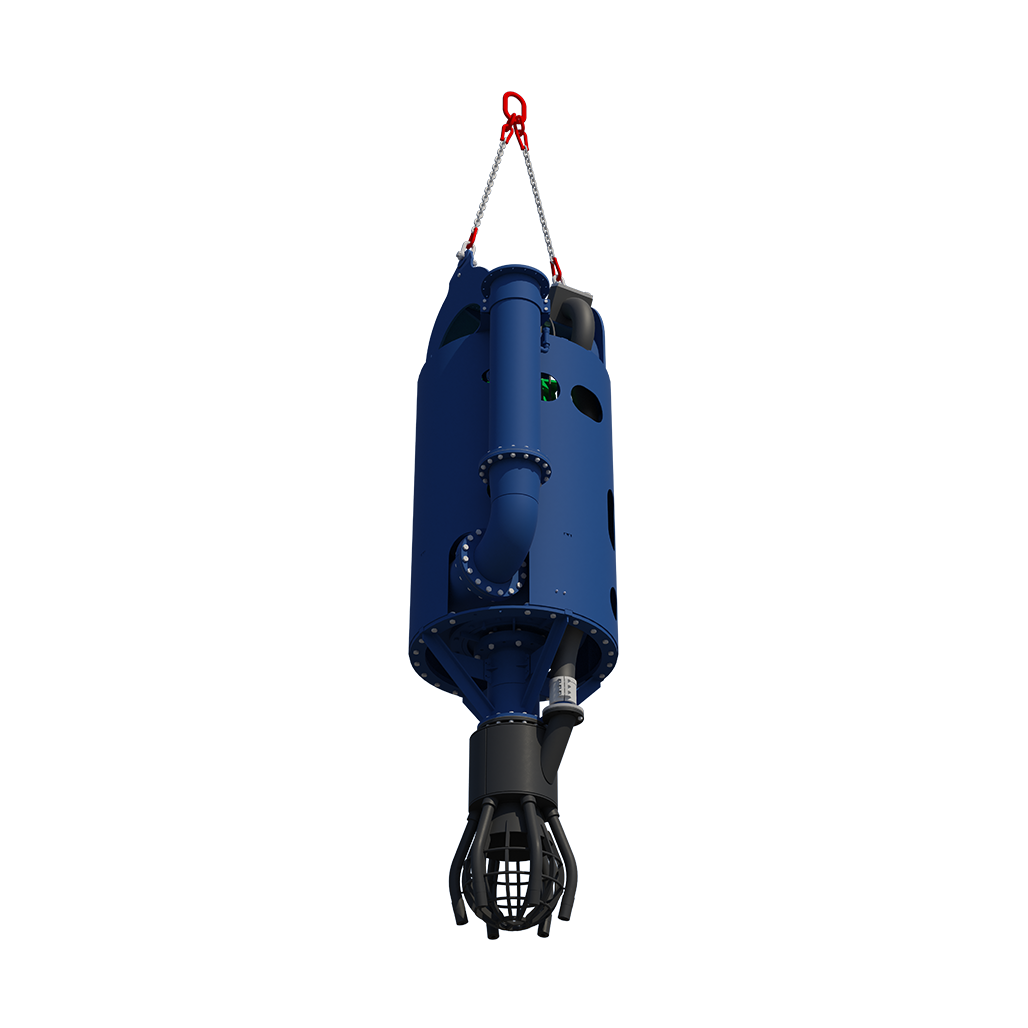

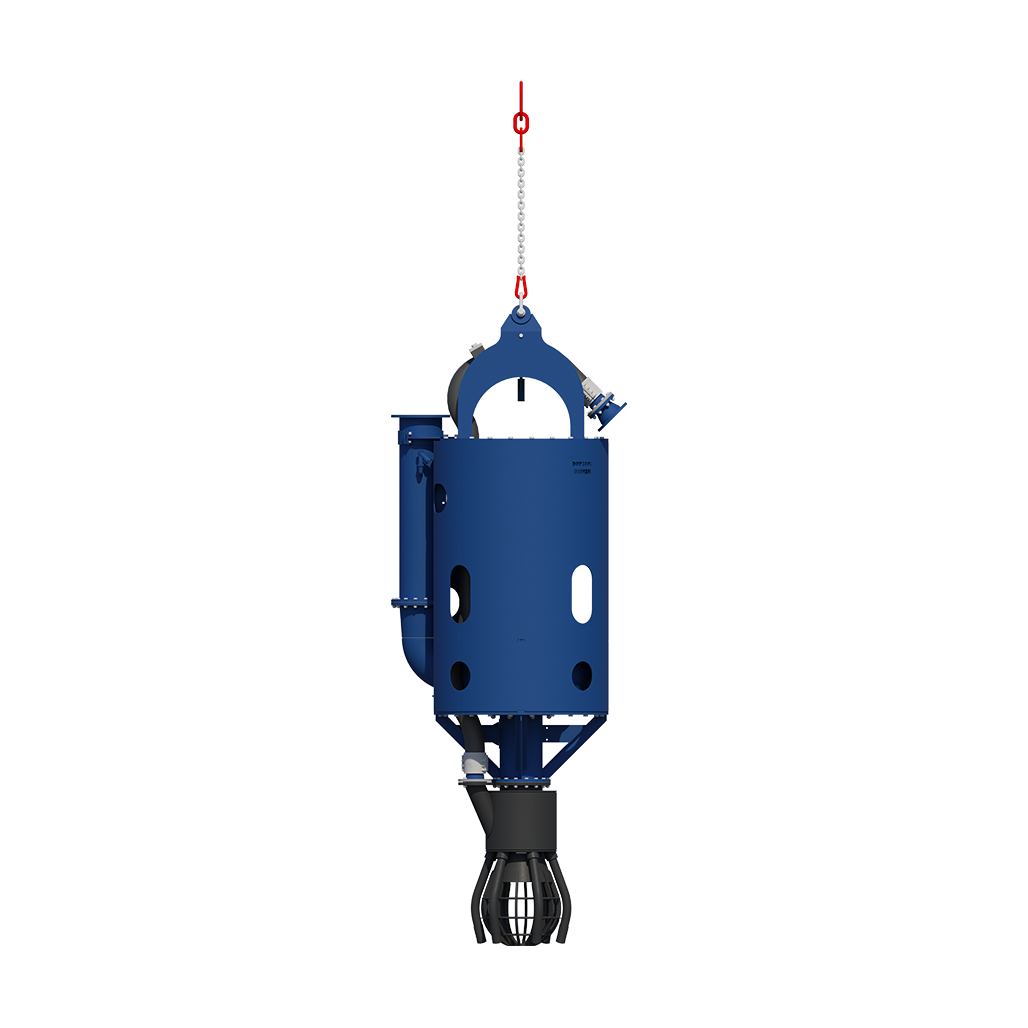

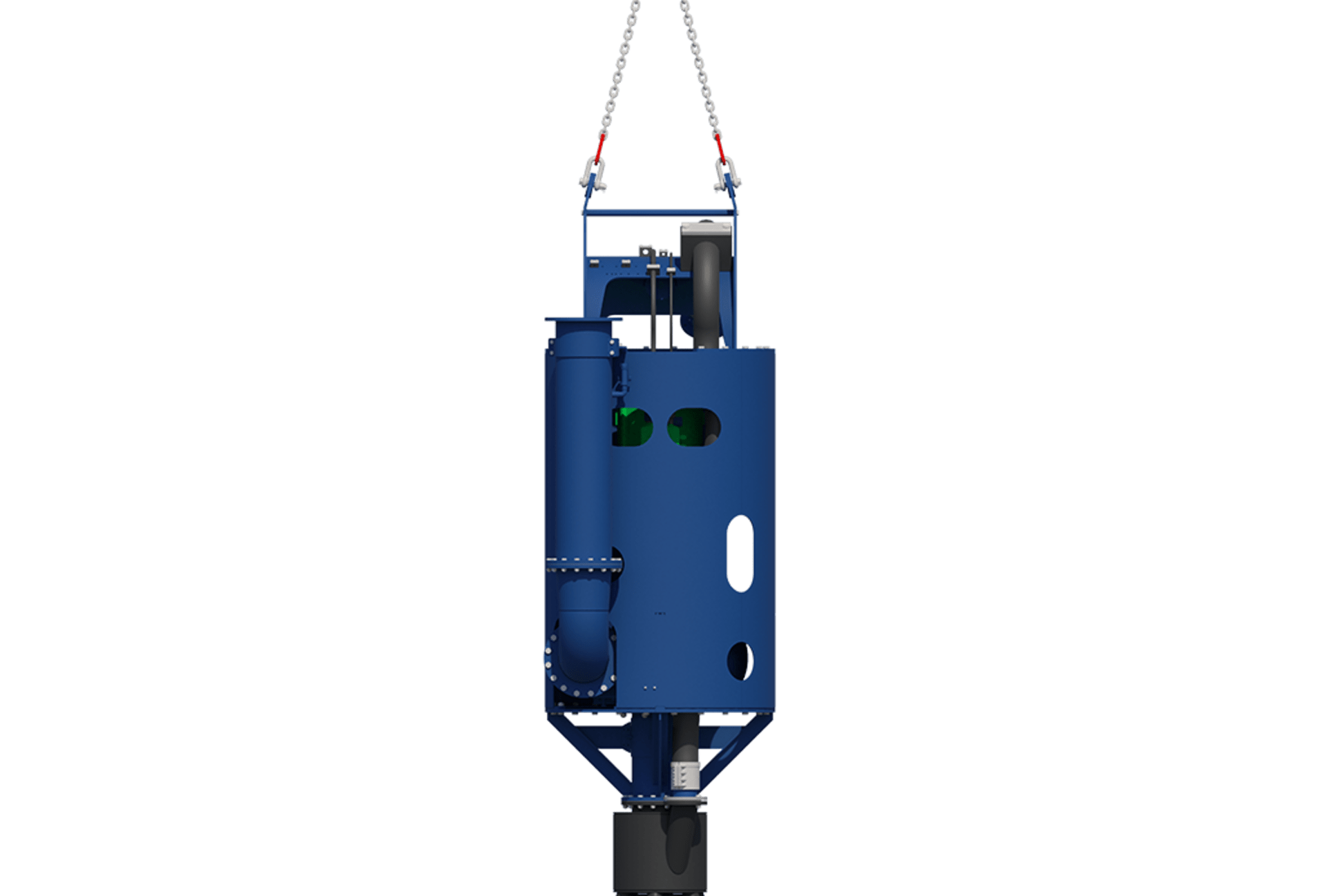

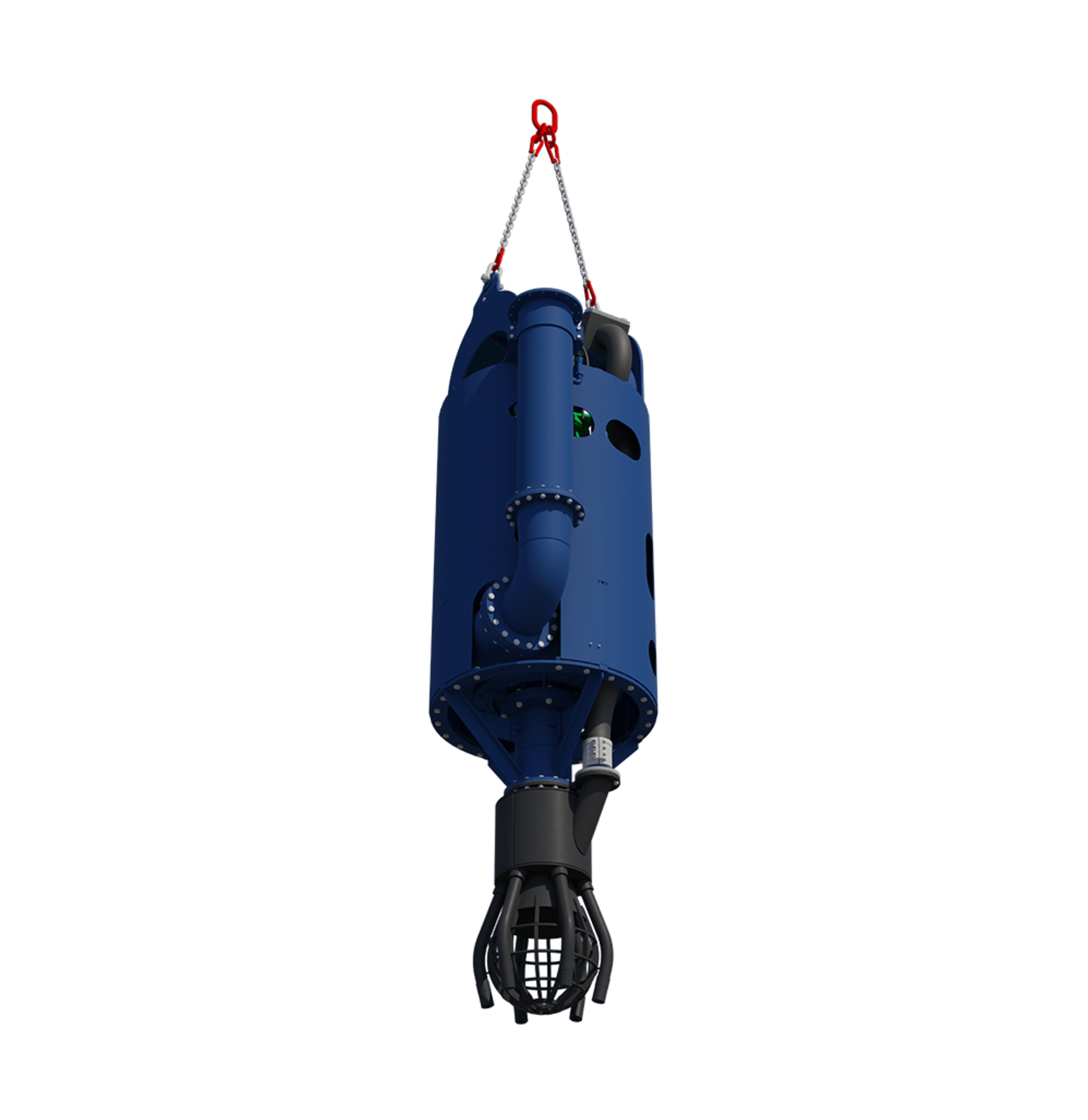

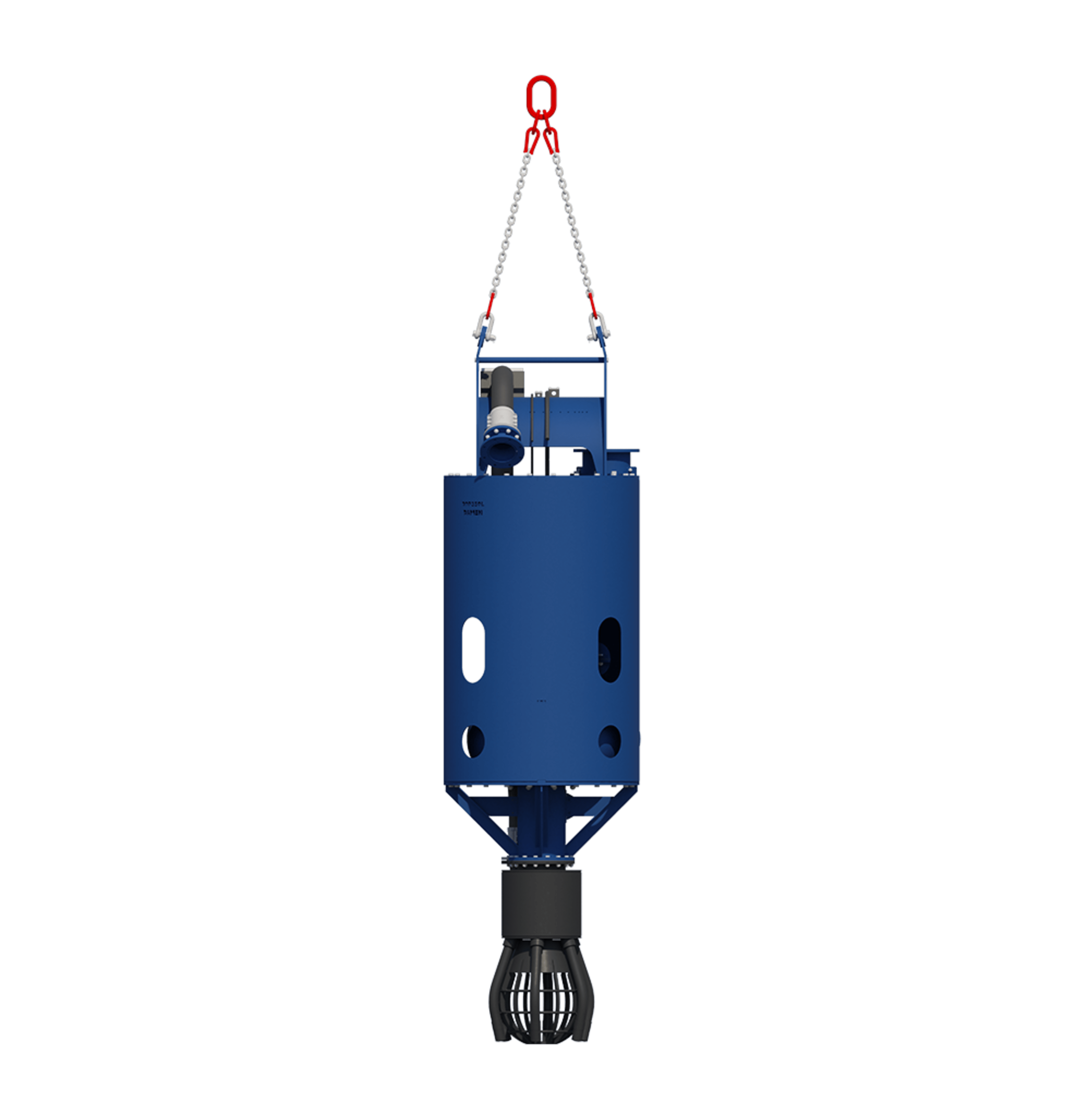

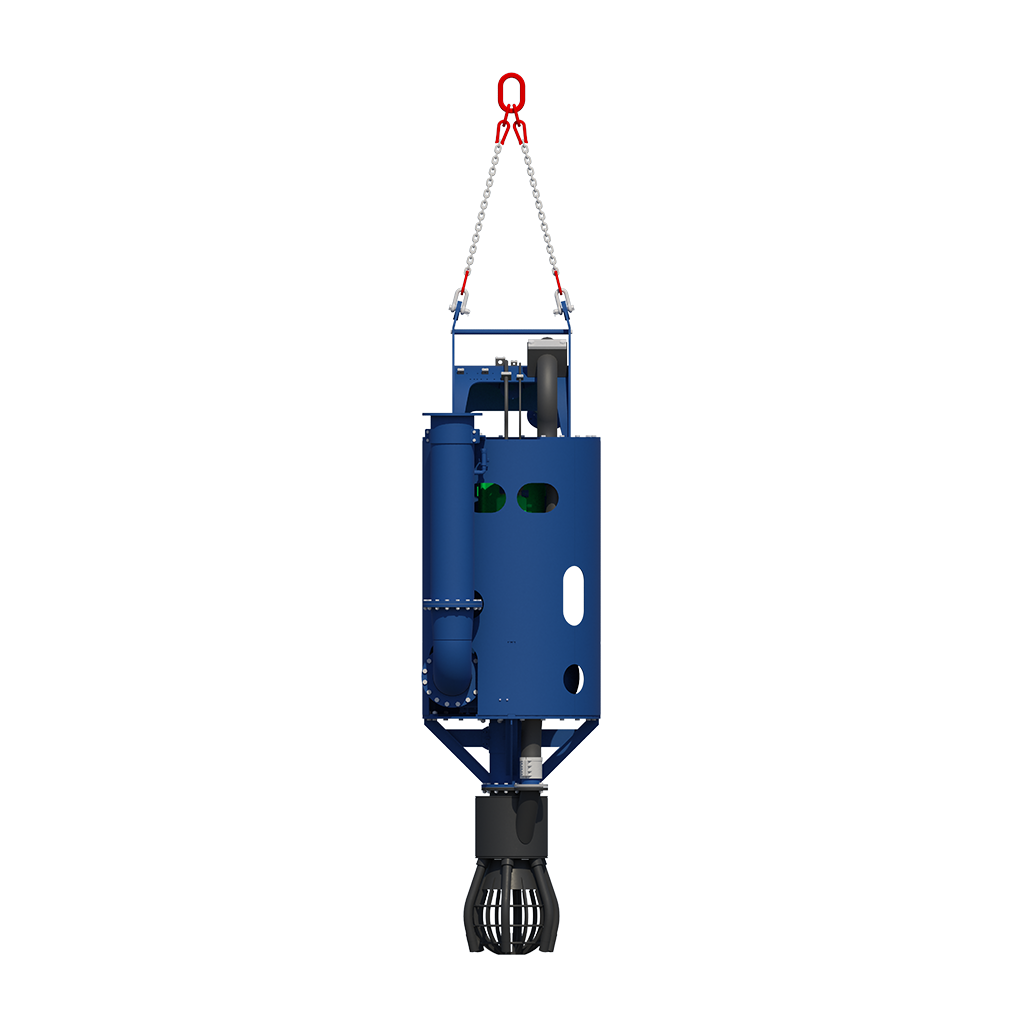

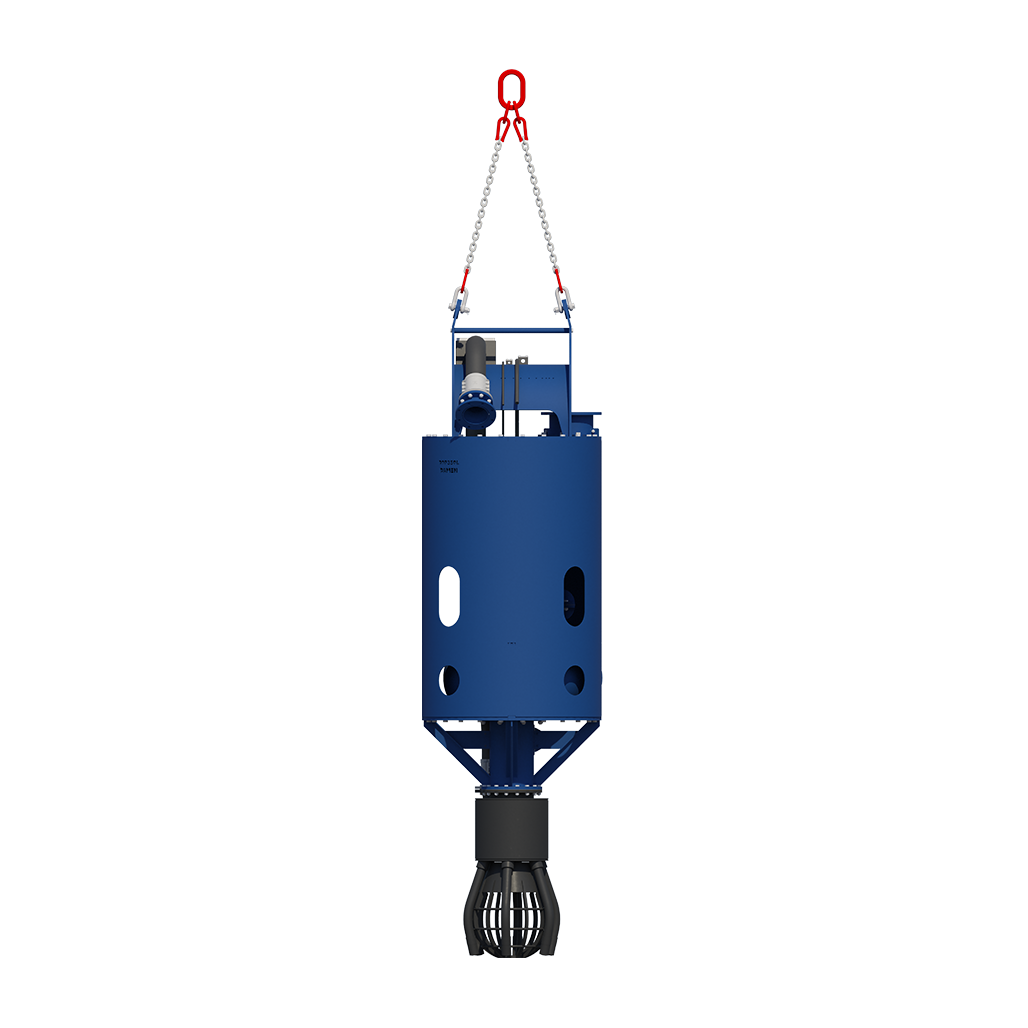

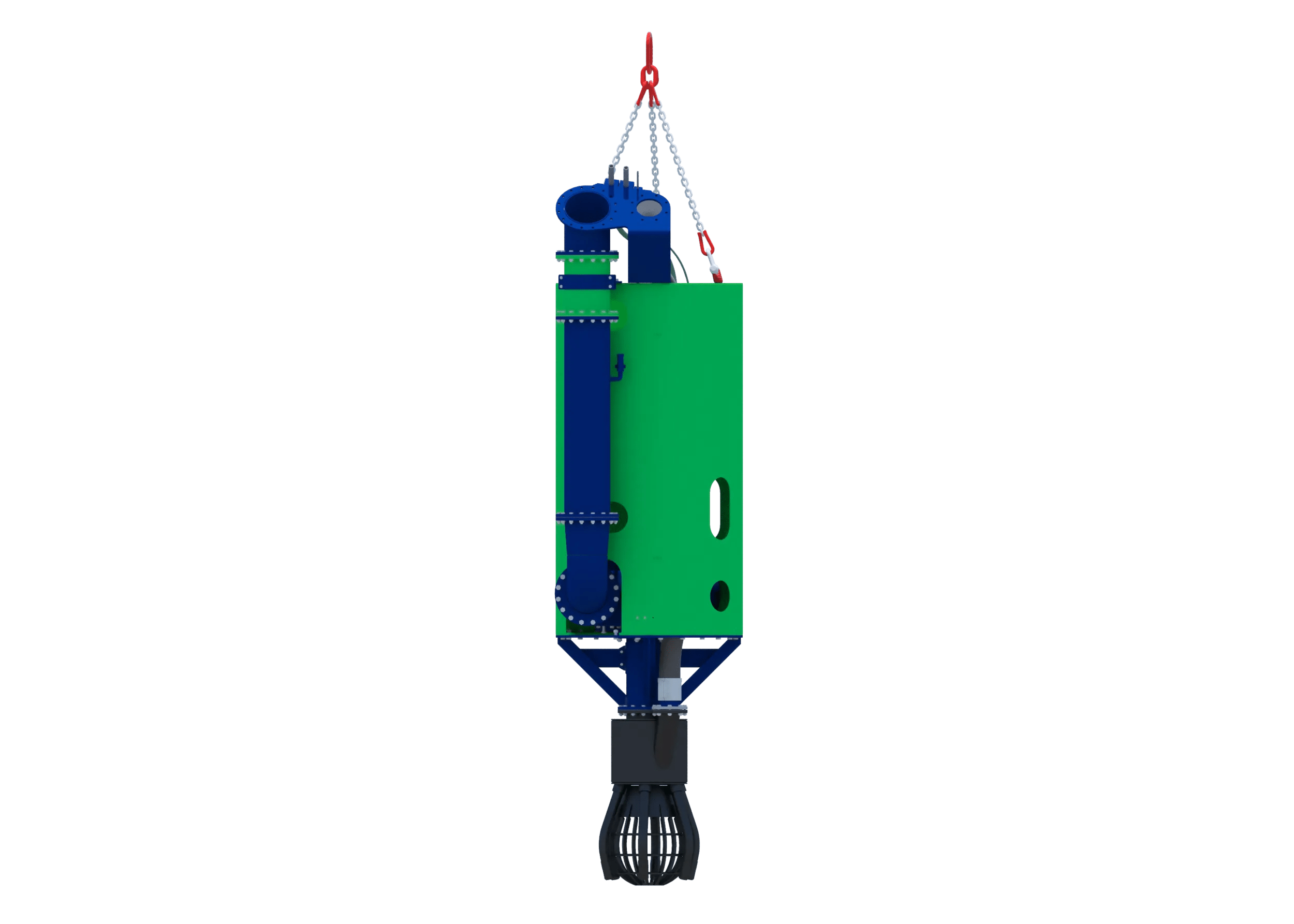

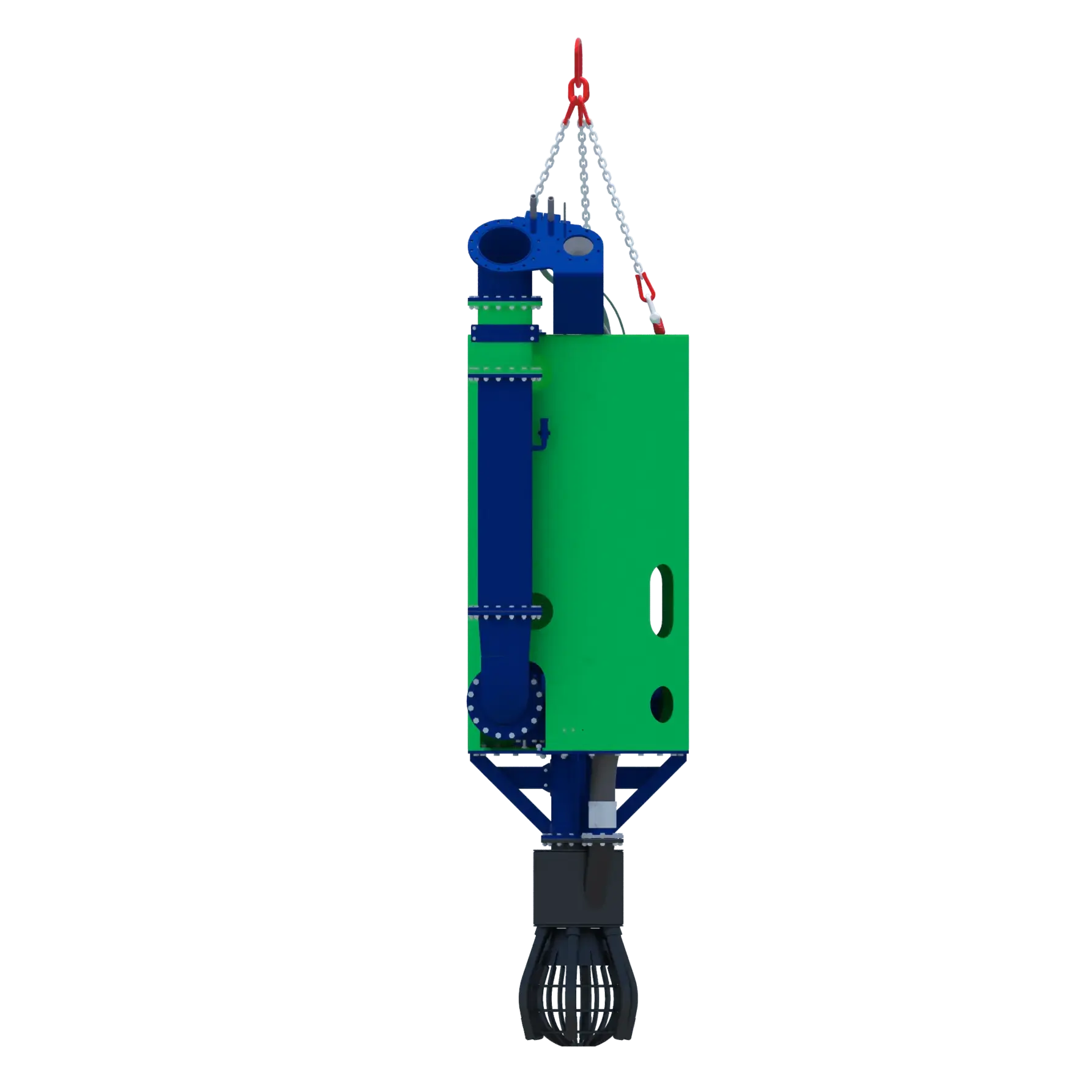

Electrical DOP submersible dredge pump E-DOP350L
The E-DOP350L is a low pressure, high ball passage submersible dredge pump with an integrated electric drive. The pump and E-drive are built into a protective steel outer casing. Dredge hoses and different suction heads are flange mounted for practical operations. At the heart of the operation is a wear resistant white iron dredge pump, with a no flush mechanical shaft seal maximising uptime.
- Discharge hoses
- Electrical jet pack
- Jet water hoses
- Dredging instrumentation
Fuel flexible
- Diesel
- Electric
- Most efficient dredge pump on the market
- Low maintenance due to few moving parts
- Powered by the grid
- Silent and clean operations
Key figures
2400
3.3
350
6.17
200
Performance
- Mixture capacity
- 2400 m³/h
- Max head
- 3.3 bar
- Max pump speed
- 625 rpm
- Max power
- 240 kW
Requirements
- Voltage
- 380-440 Vac
- Advised gen power
- 320 kVa
- Jet water
- 600 m³/h
- Jet water pressure
- 8 bar
Dimensions
- Suction diameter
- 350 mm
- Discharge diameter
- 350 mm
- Max sphere passage
- 200 mm
- Unit weight
- 6170 kg
Compare similar DOP pumps
| Production (m³/h) | Max head (bar) | Pipe diameter (mm) | Weight (t) | Max sphere passage (mm) | ||
|---|---|---|---|---|---|---|
| Electrical DOP submersible dredge pump E-DOP350L | 2400 | 3.3 | 350 | 6.17 | 200 | |
| DOP submersible dredge pump DOP350L | 2400 | 3.2 | 350 | 4.58 | 200 | |
| Electrical DOP submersible dredge pump E-DOP450L | 4000 | 3.5 | 450 | 9.4 | 165 |
Electrical DOP submersible dredge pump E-DOP350L
- Production (m³/h)
- 2400
- Max head (bar)
- 3.3
- Pipe diameter (mm)
- 350
- Weight (t)
- 6.17
- Max sphere passage (mm)
- 200
- Production (m³/h)
- 2400
- Max head (bar)
- 3.2
- Pipe diameter (mm)
- 350
- Weight (t)
- 4.58
- Max sphere passage (mm)
- 200
- Production (m³/h)
- 4000
- Max head (bar)
- 3.5
- Pipe diameter (mm)
- 450
- Weight (t)
- 9.4
- Max sphere passage (mm)
- 165
