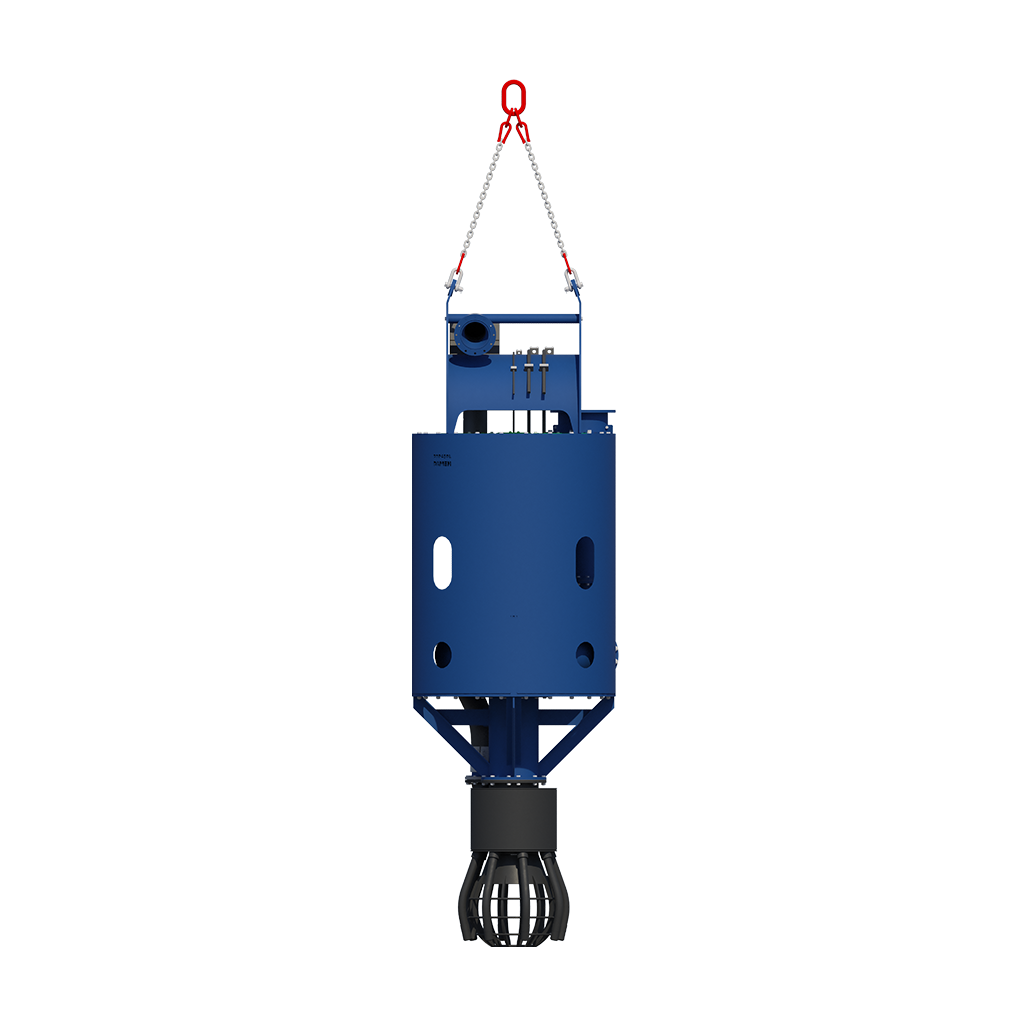

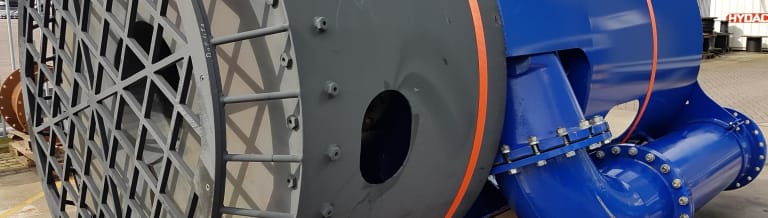

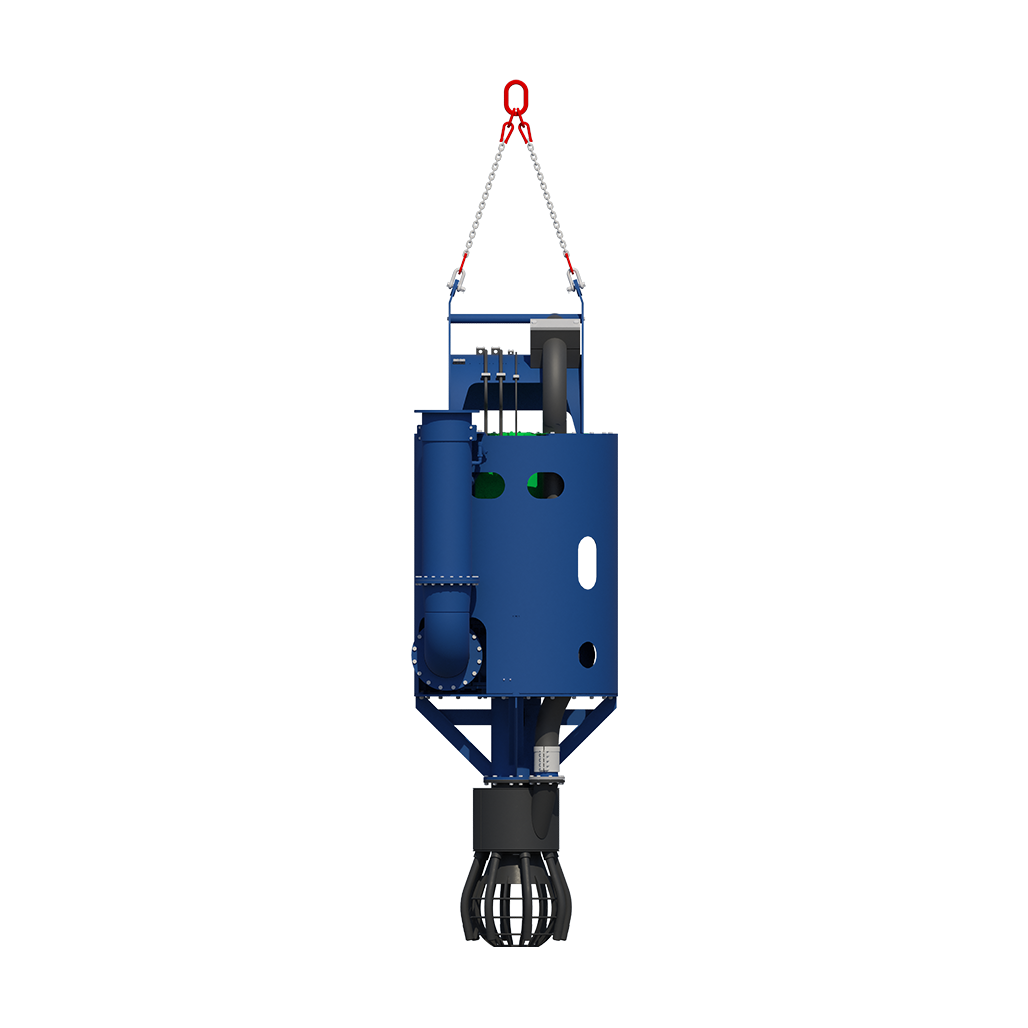

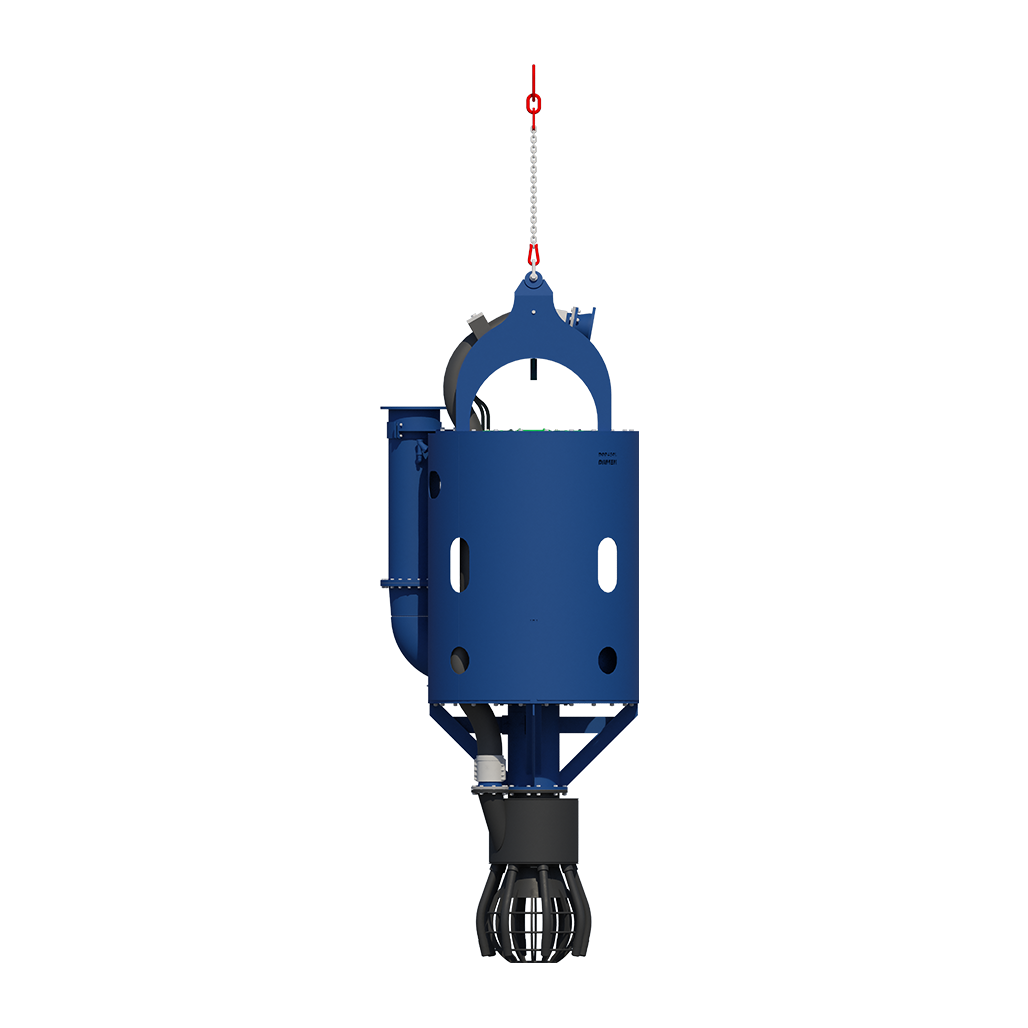

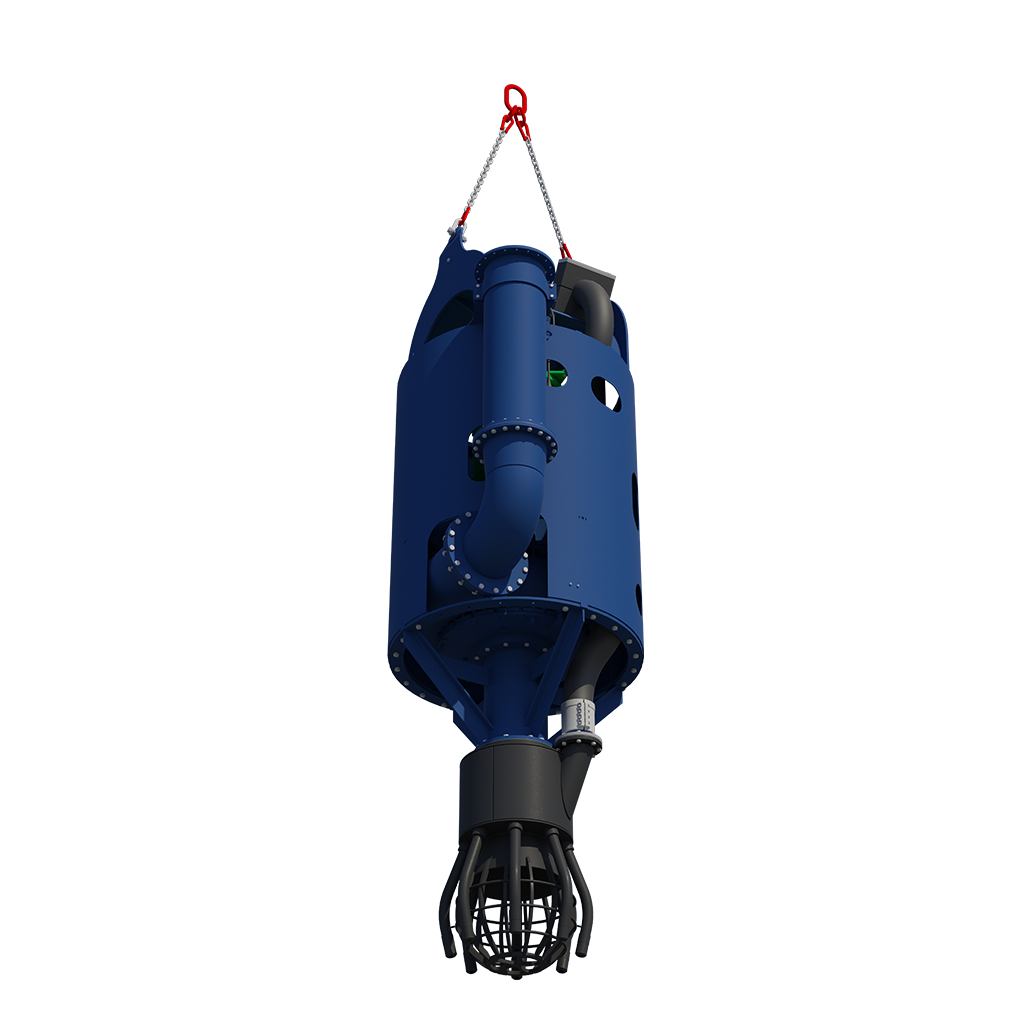

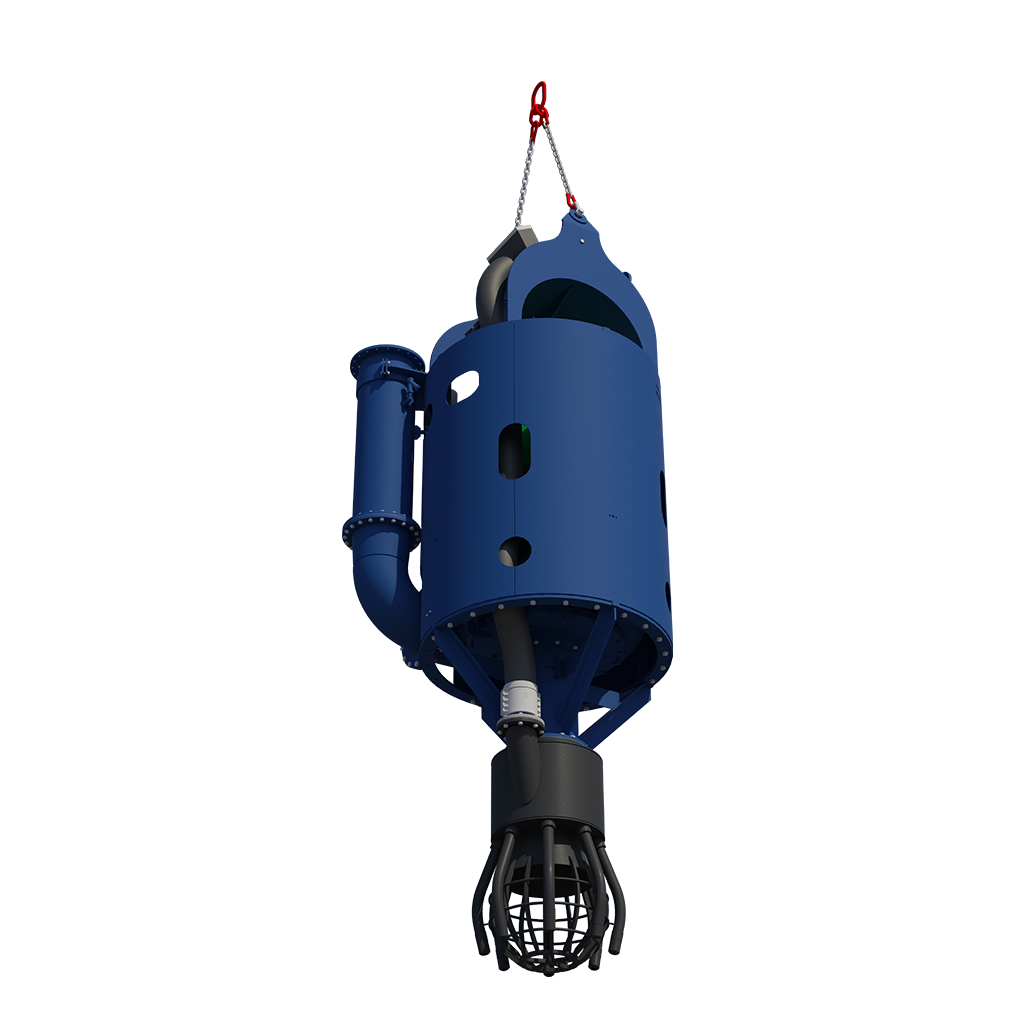

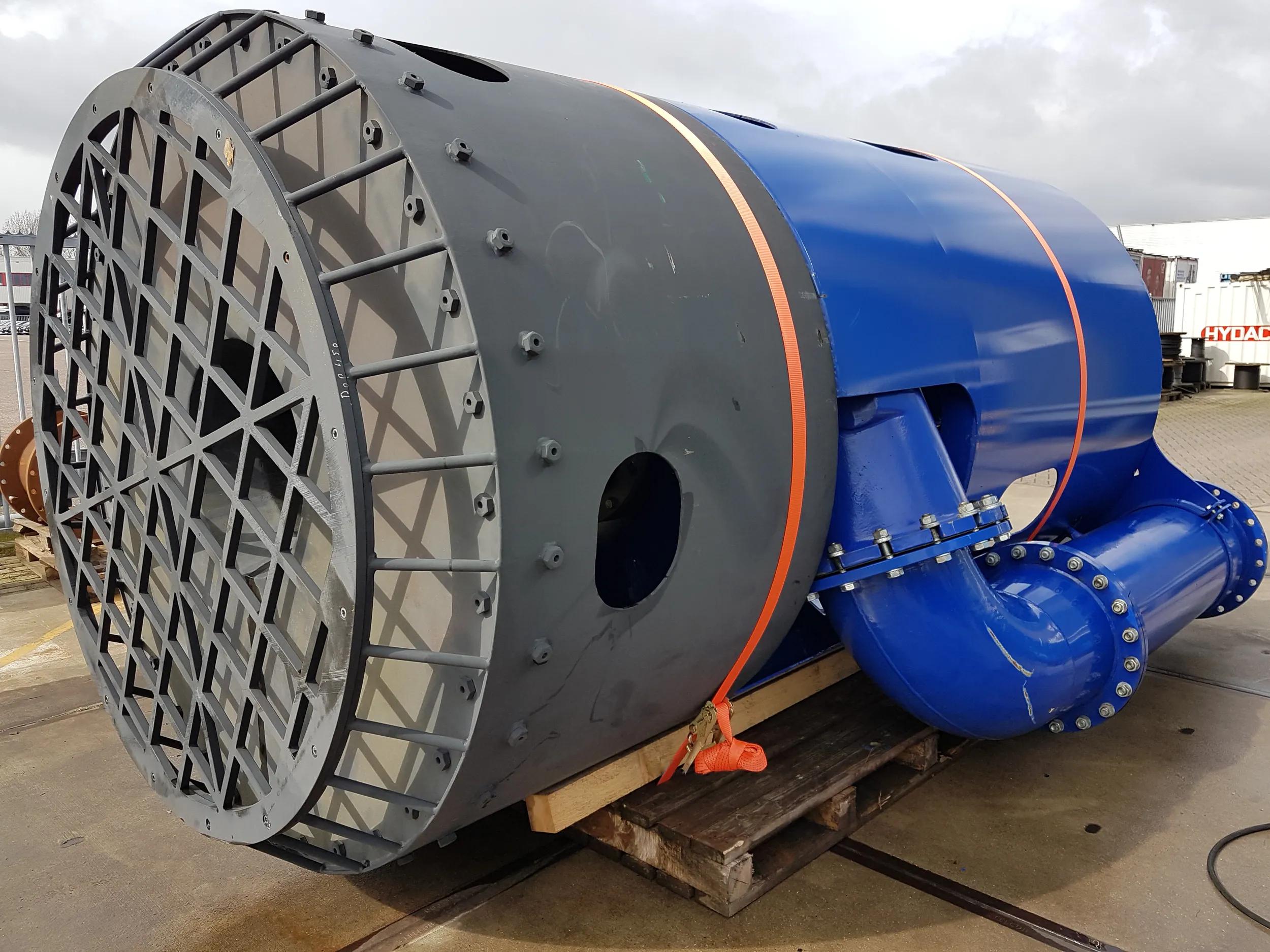

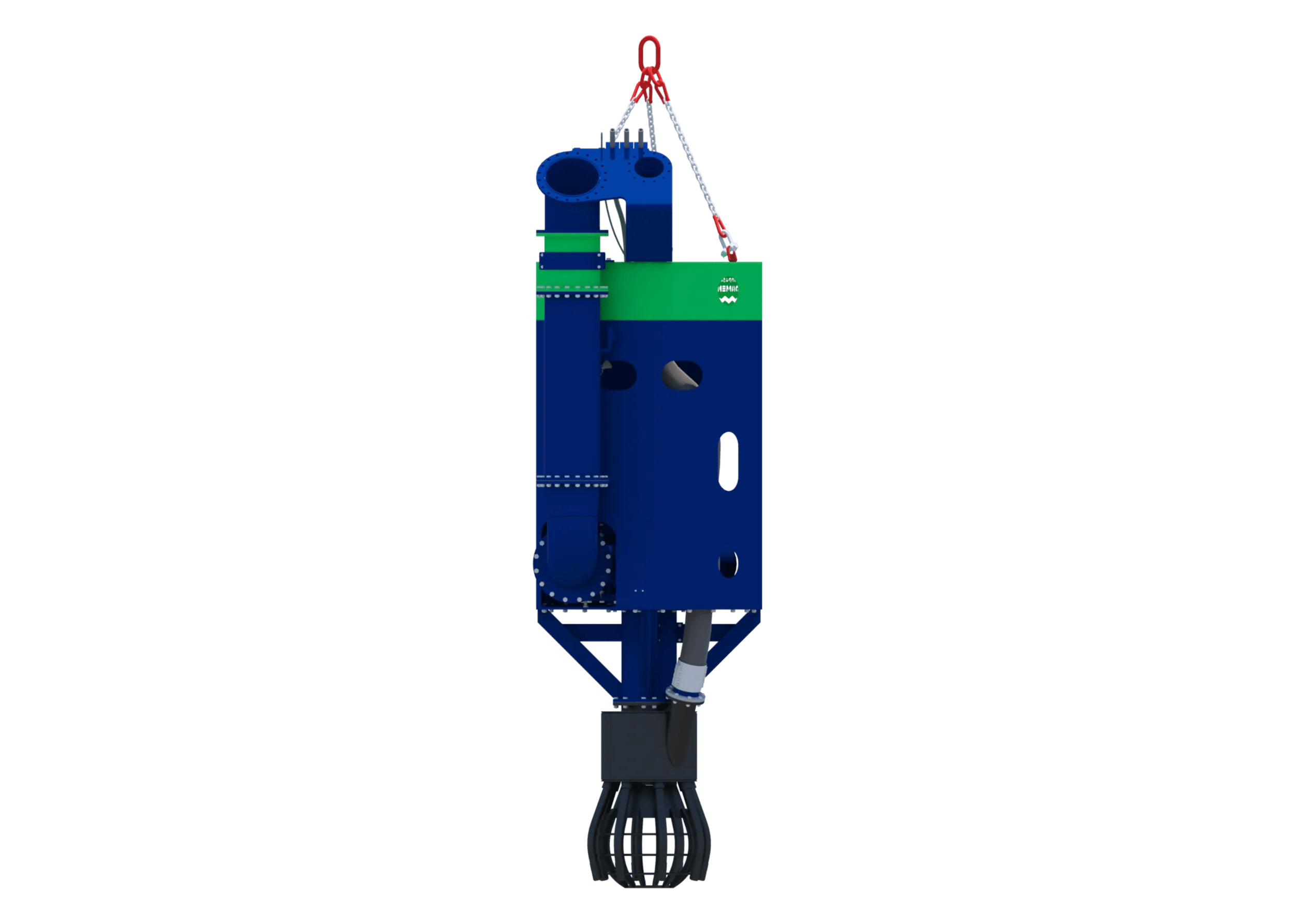

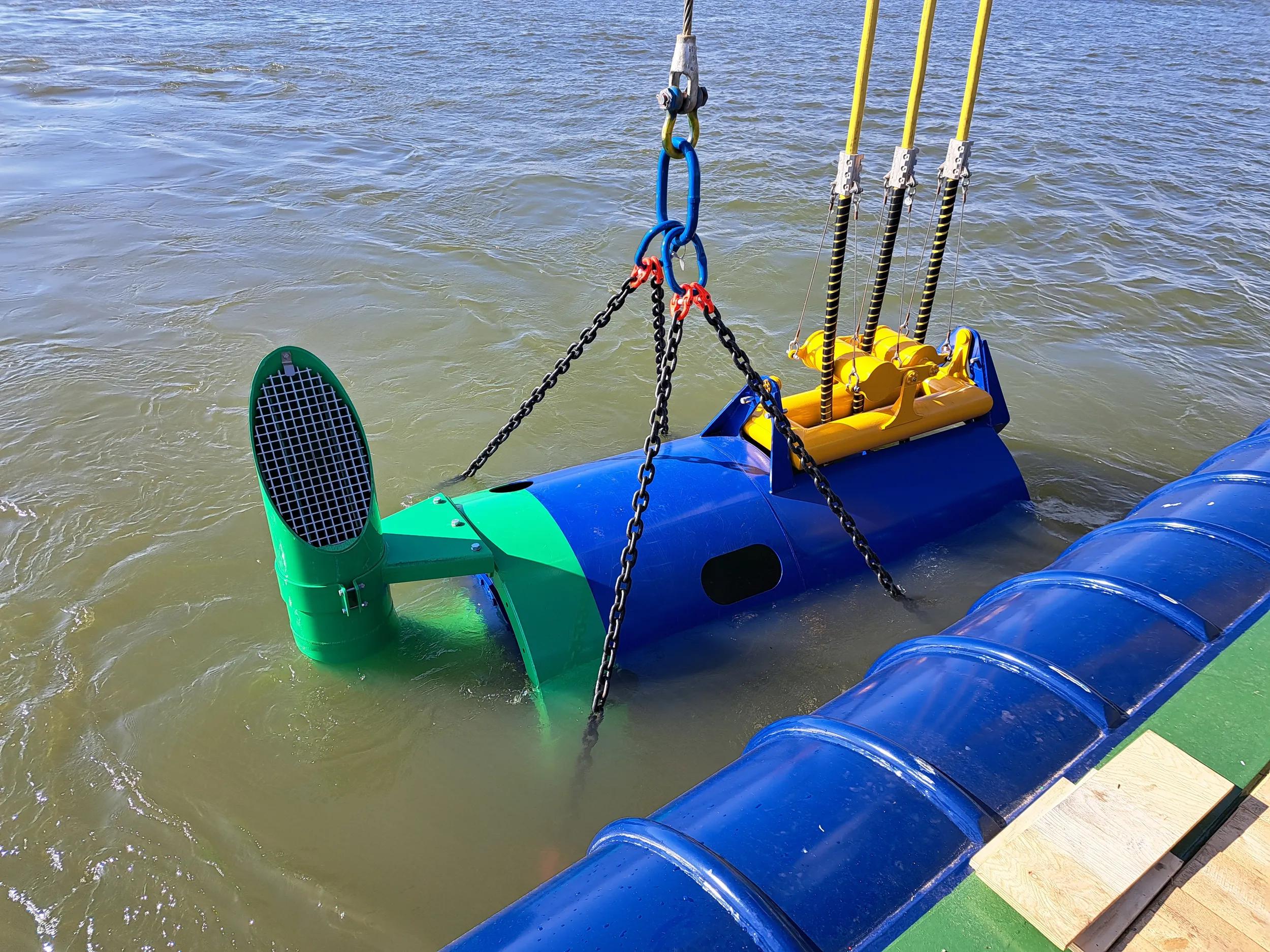

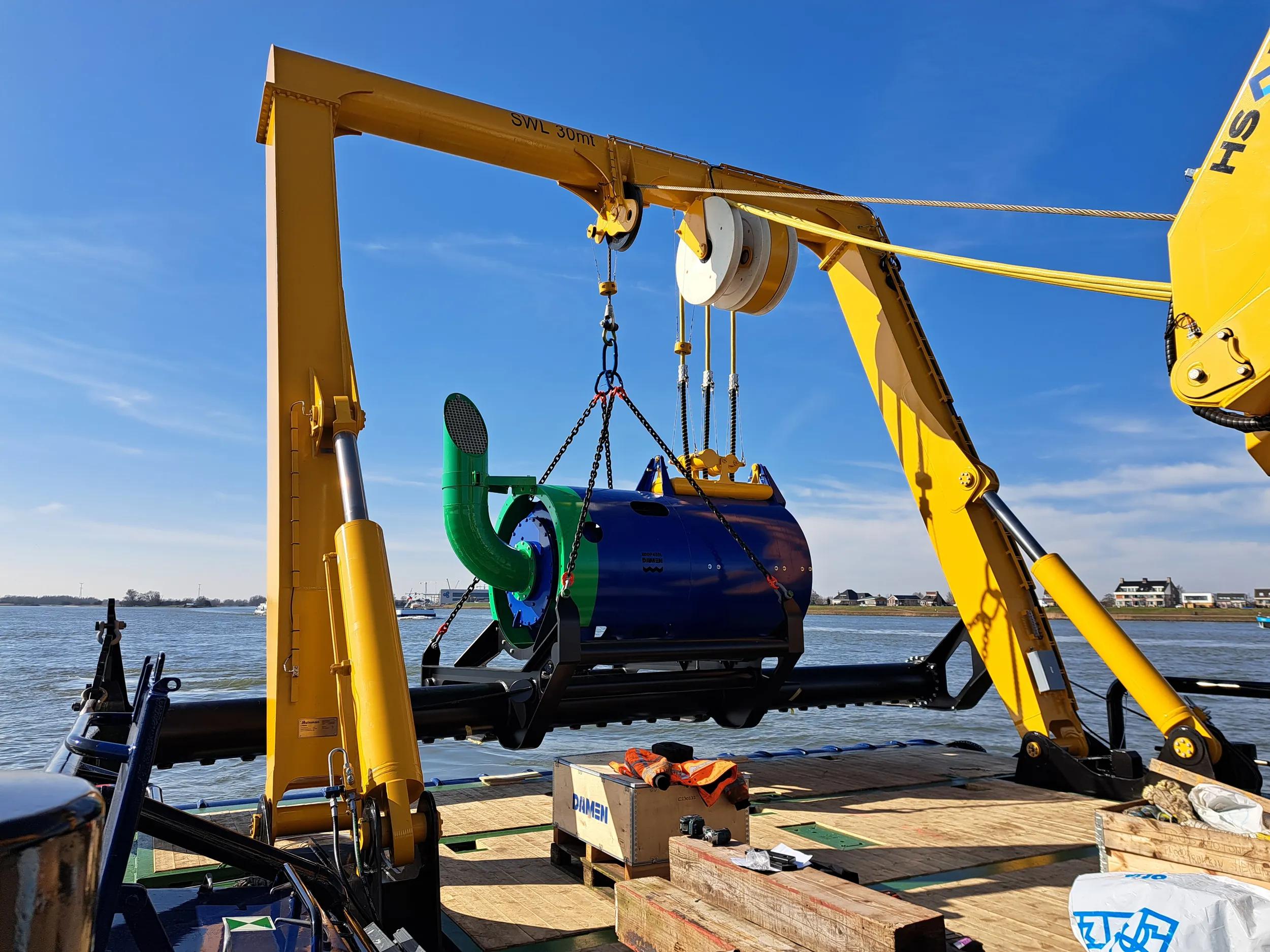

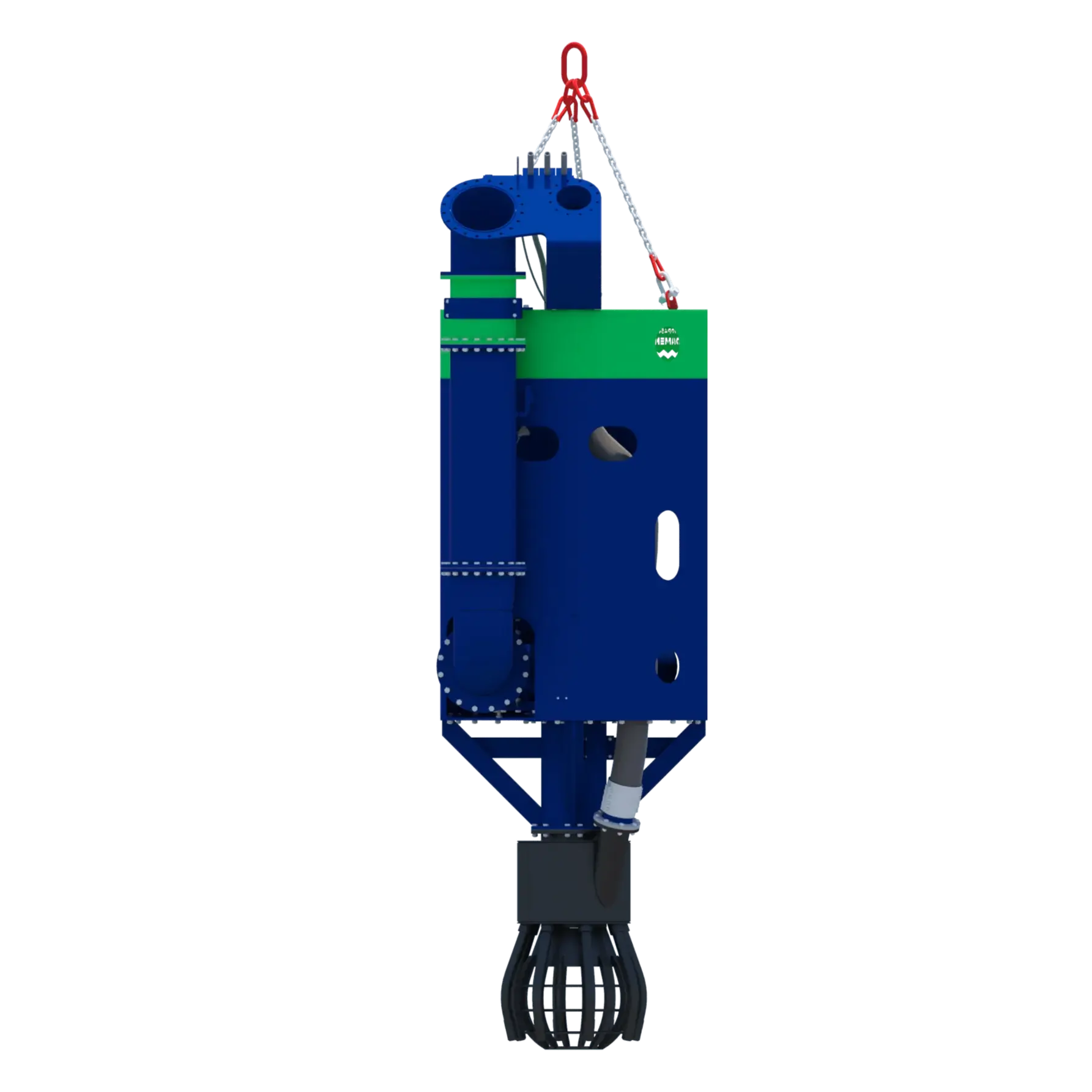

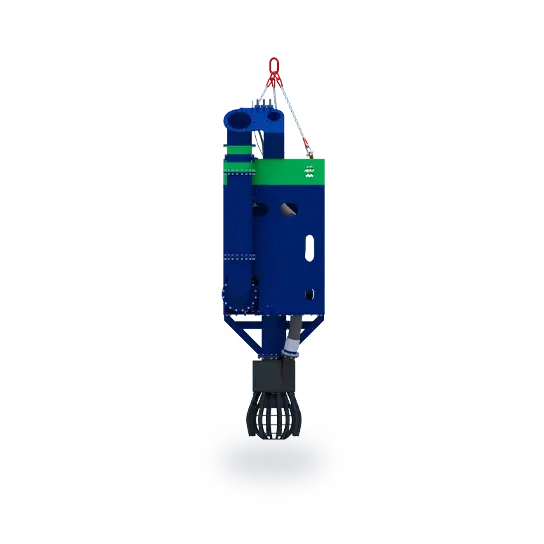

Electrical DOP submersible dredge pump E-DOP450L

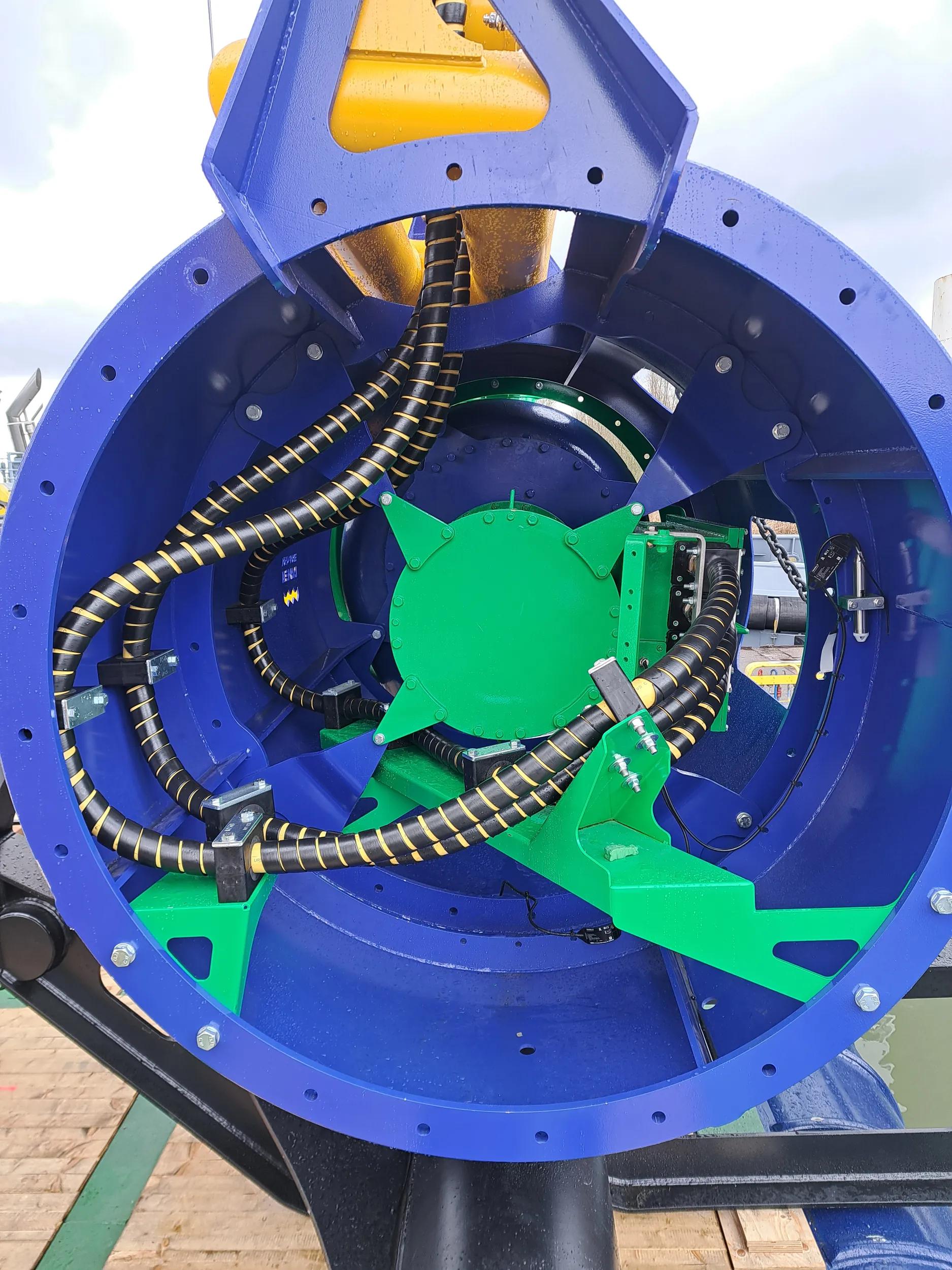

The E-DOP450L is the largest of a series of compact and multifunctional dredging pumps. As a low pressure submersed dredge pump it has a high production rate of solids and a big sphere passage. This highly efficient pump has low operating costs and can be powered by either a generator or the local grid for silent and clean dredging. The direct electrical drive is integrated into the steel casing.

Discharge hoses
Electrical jet pack
Jet water hoses
Dredging instrumentation

Fuel flexible

Diesel
Electric

Low maintenance due to few moving parts
Powered by the grid
Silent and clean operations
Most efficient dredge pump on the market

Key figures

4000

Production (m³/h)

3.5

Max head (bar)

450

Pipe diameter (mm)

9.4

Weight (t)

165

Max sphere passage (mm)

Performance

Mixture capacity: 4000 m³/h
Max head: 3.5 bar

Max pump speed: 470 rpm
Max power: 400 kW

Requirements

Voltage: 380-440 Vac
Advised gen power: 540 kVa

Jet water: 1100 m³/h
Jet water pressure: 8 bar

Dimensions

Suction diameter: 450 mm
Discharge diameter: 450 mm

Max sphere passage: 165 mm
Unit weight: 9400 kg

Compare similar DOP pumps

	Production (m³/h)	Max head (bar)	Pipe diameter (mm)	Weight (t)	Max sphere passage (mm)
Electrical DOP submersible dredge pump E-DOP450L	4000	3.5	450	9.4	165
DOP submersible dredge pump DOP450L	4000	3.5	450	7.4	165
Electrical DOP submersible dredge pump E-DOP350L	2400	3.3	350	6.17	200
