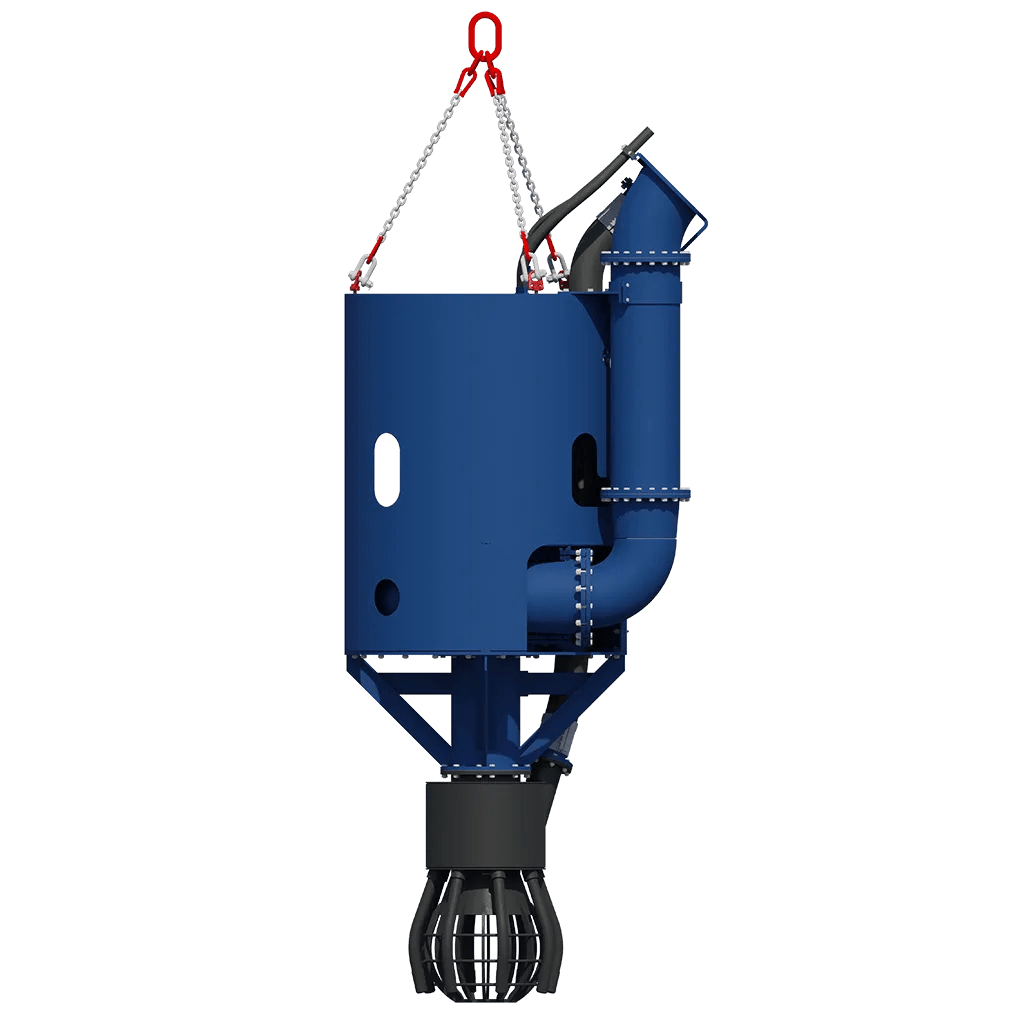

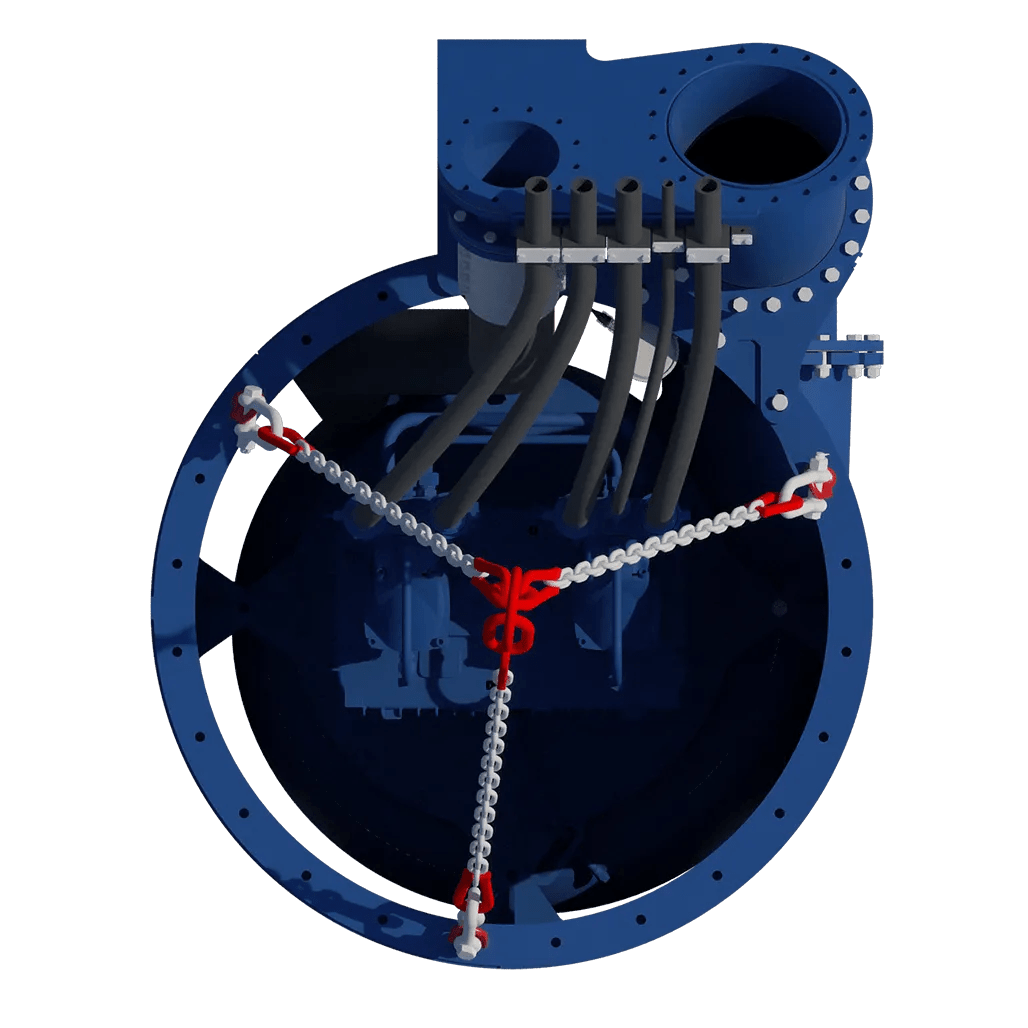

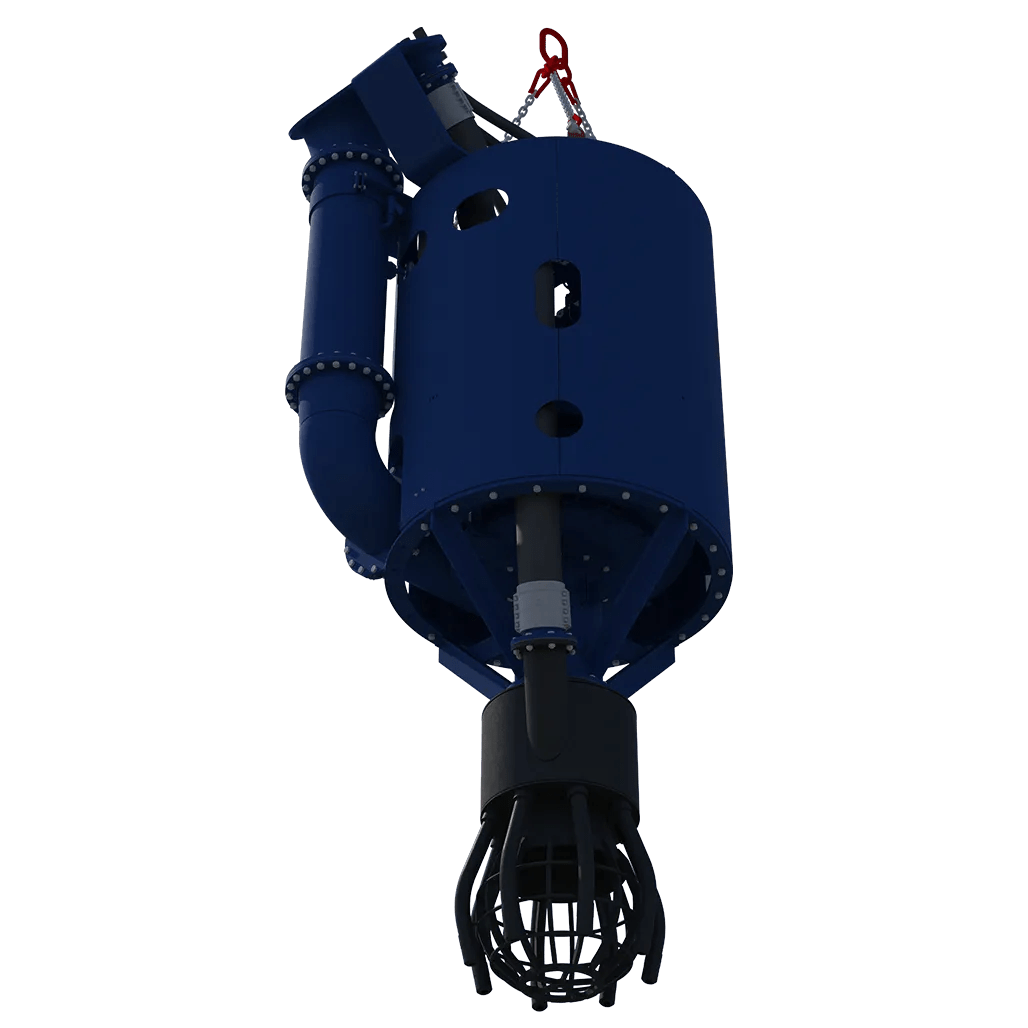

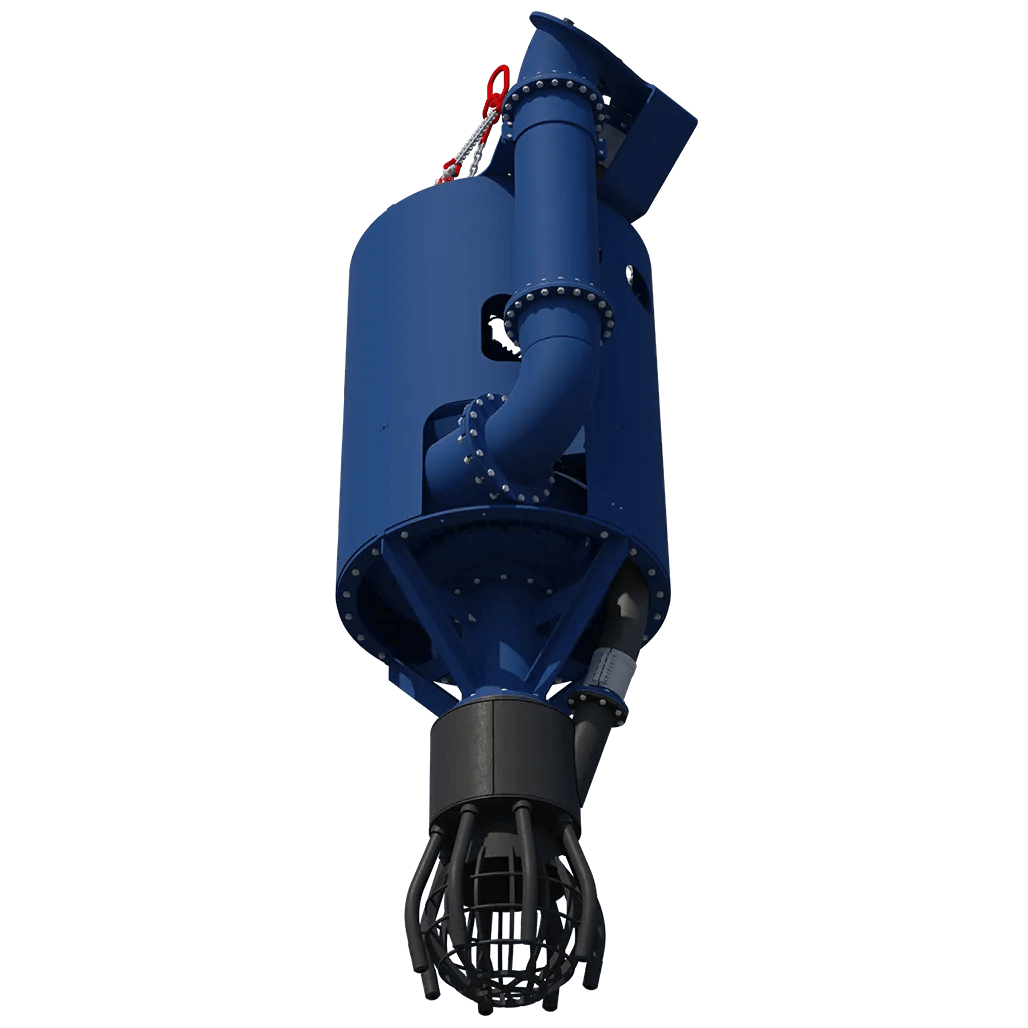

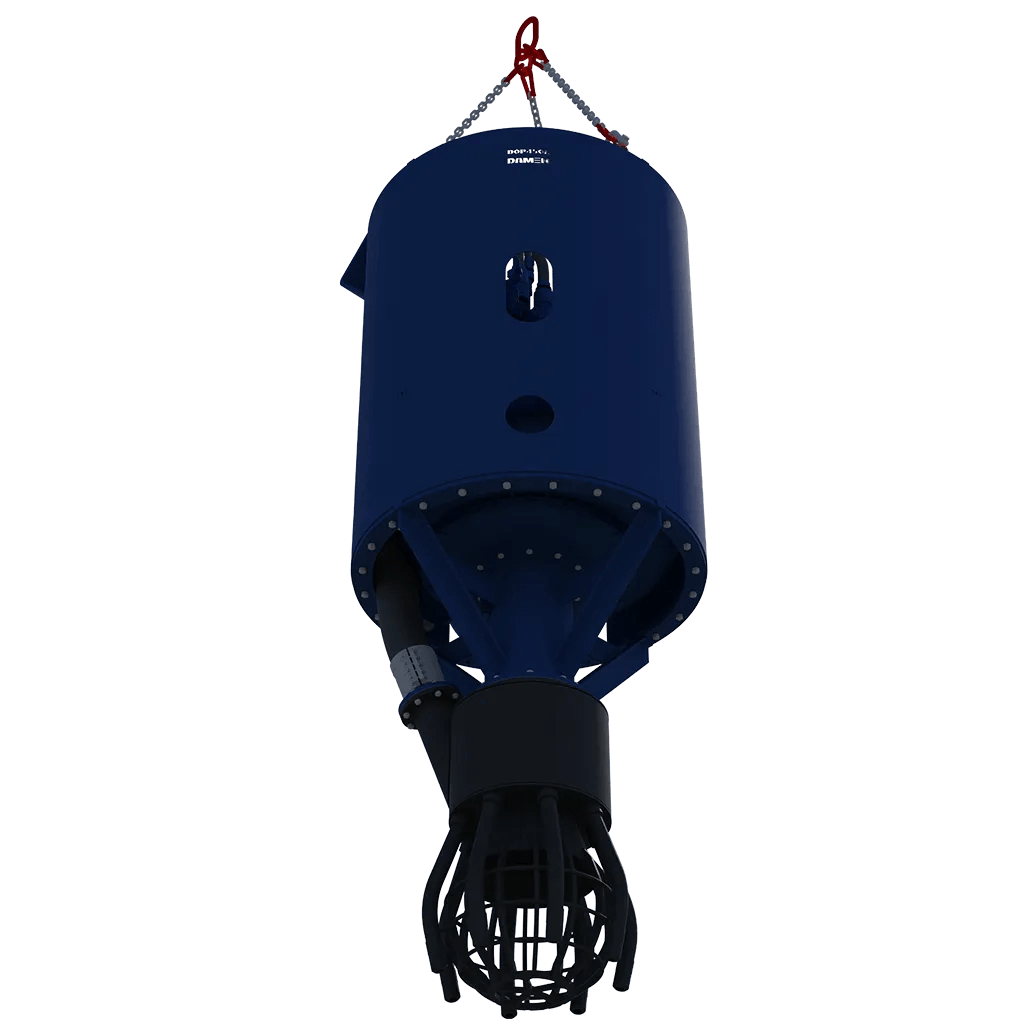

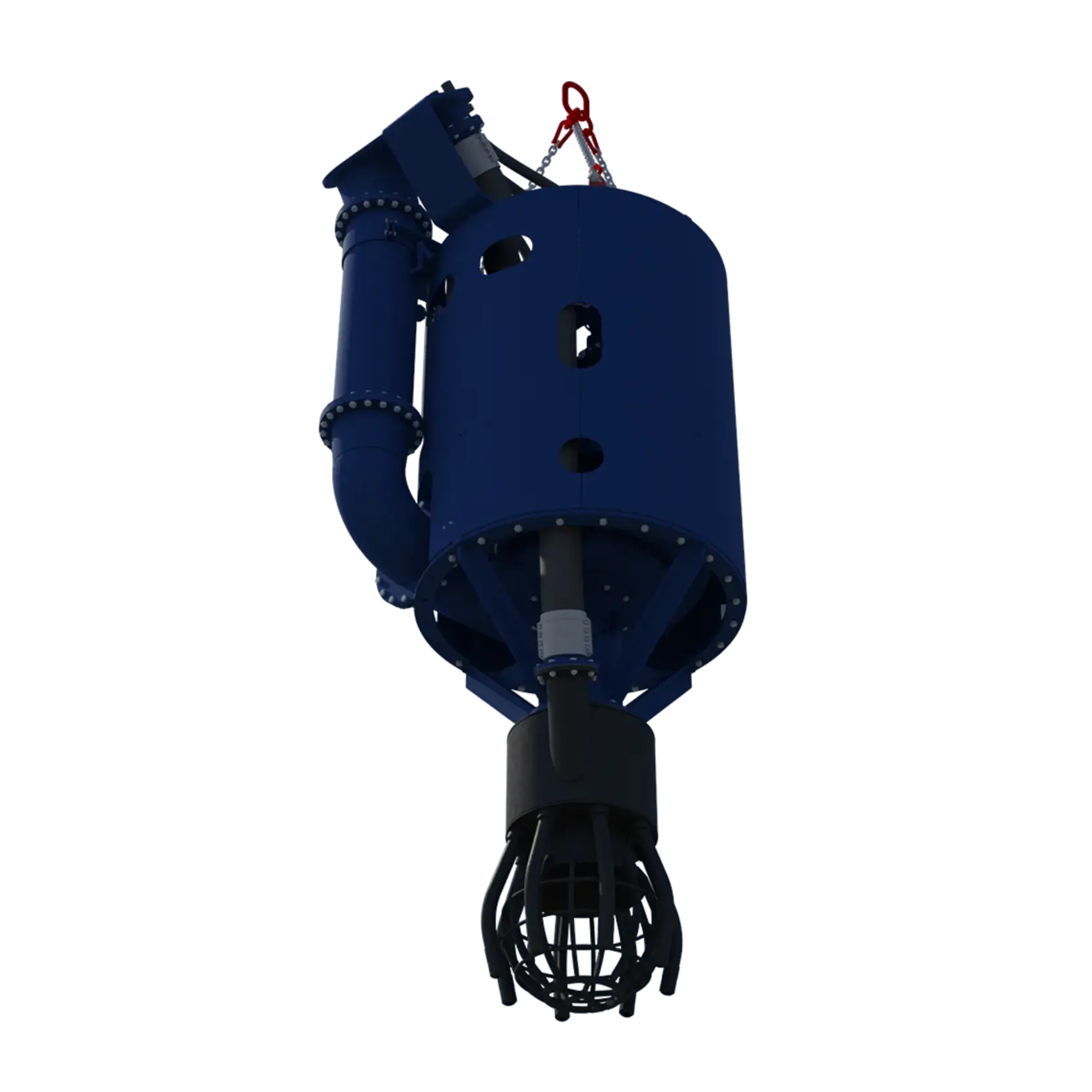

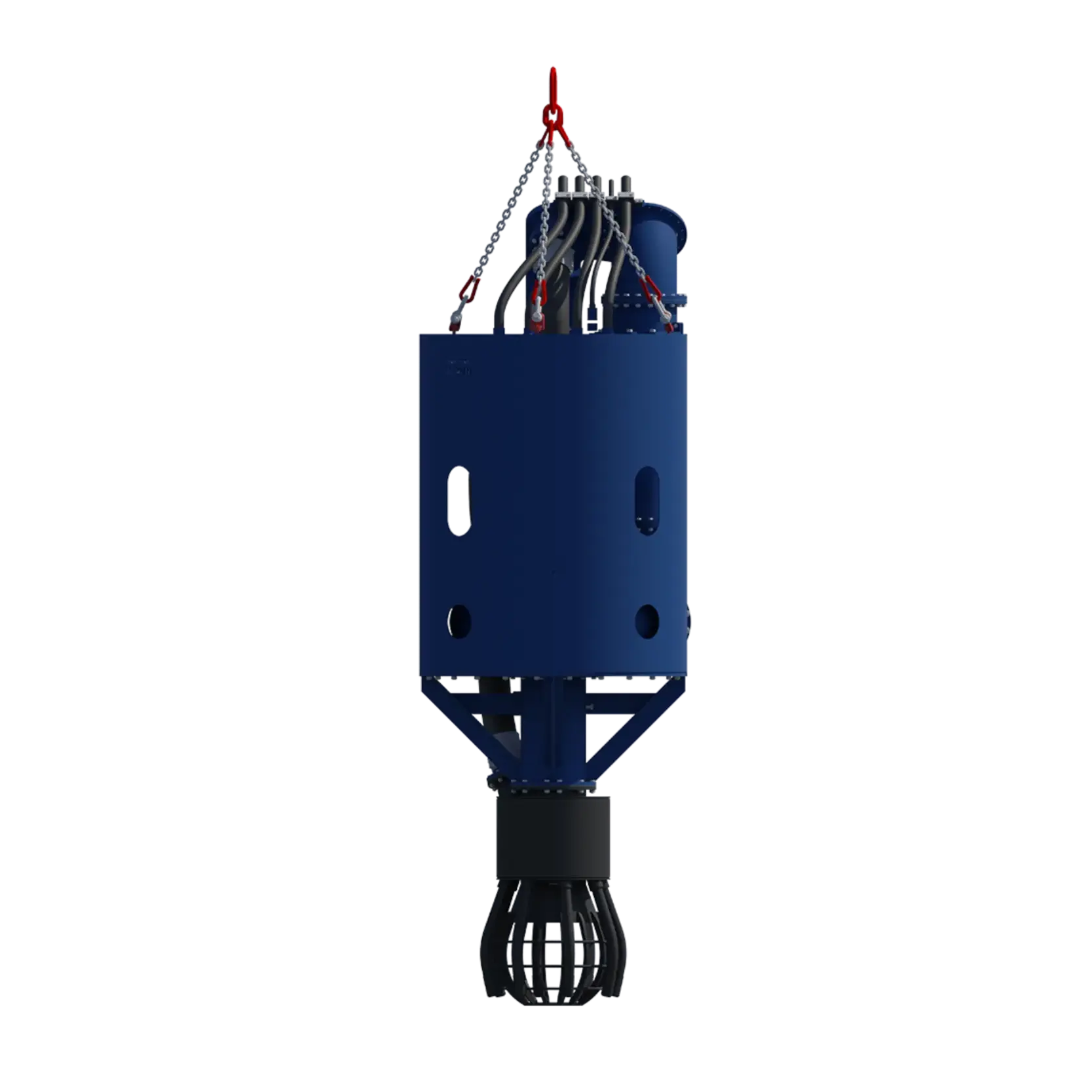

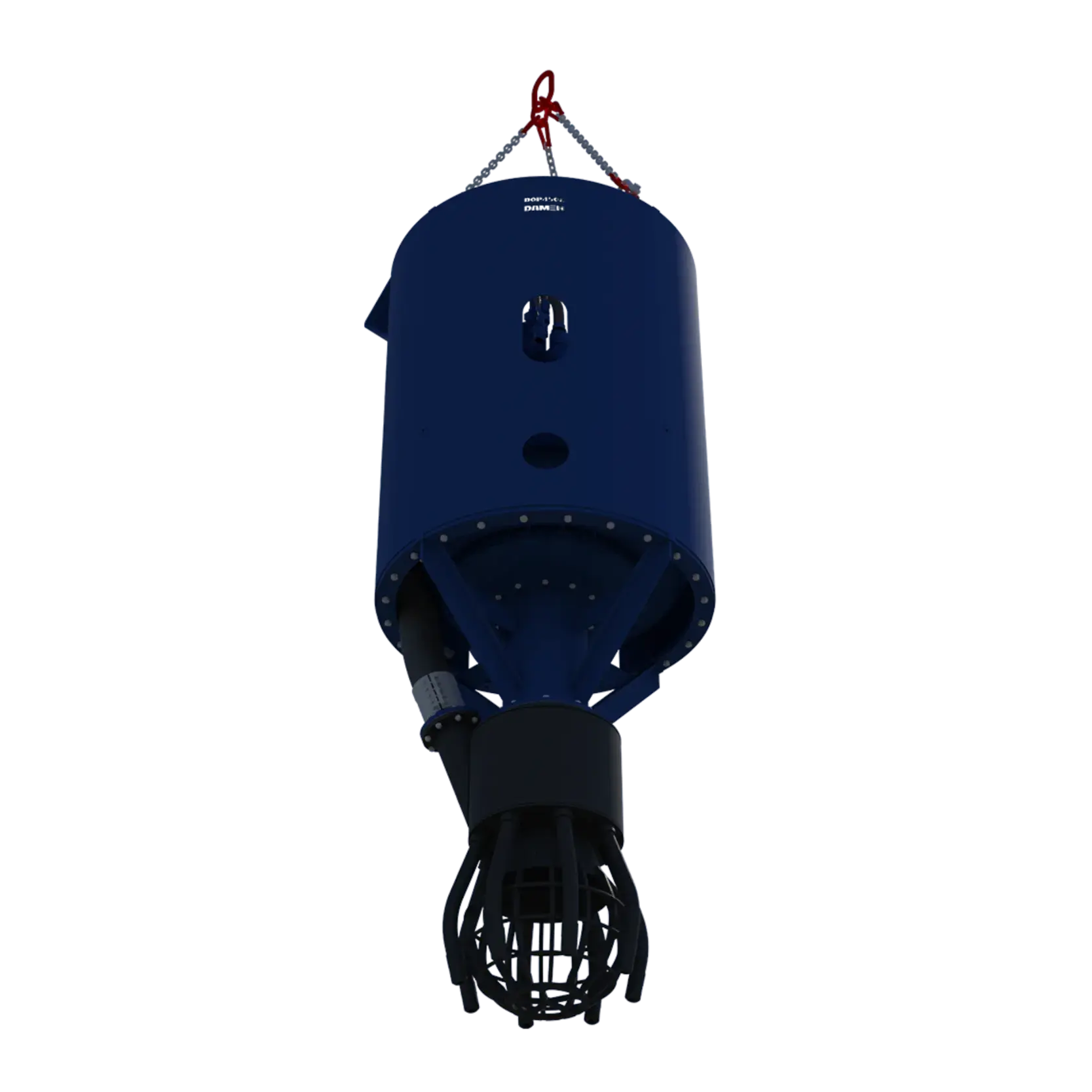

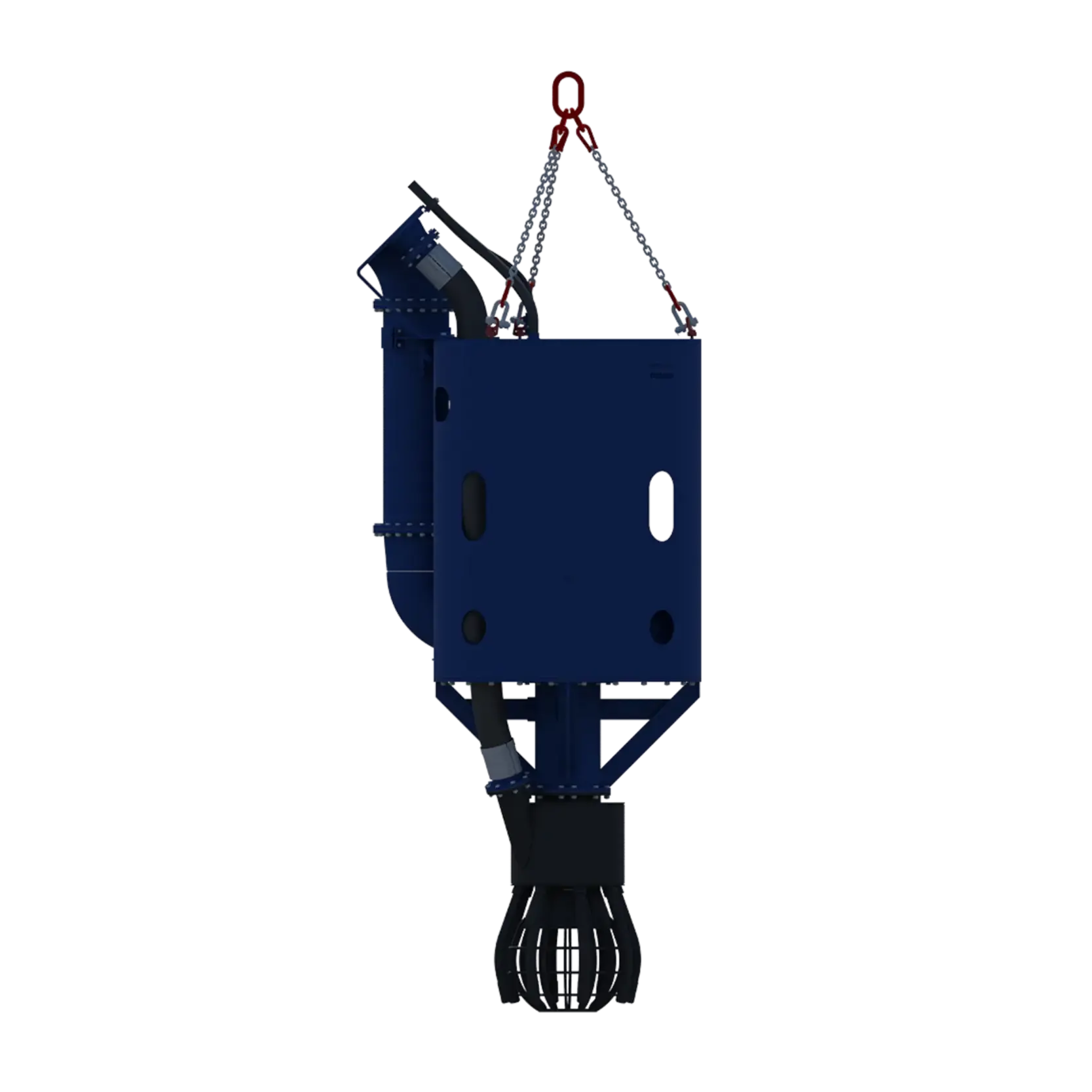

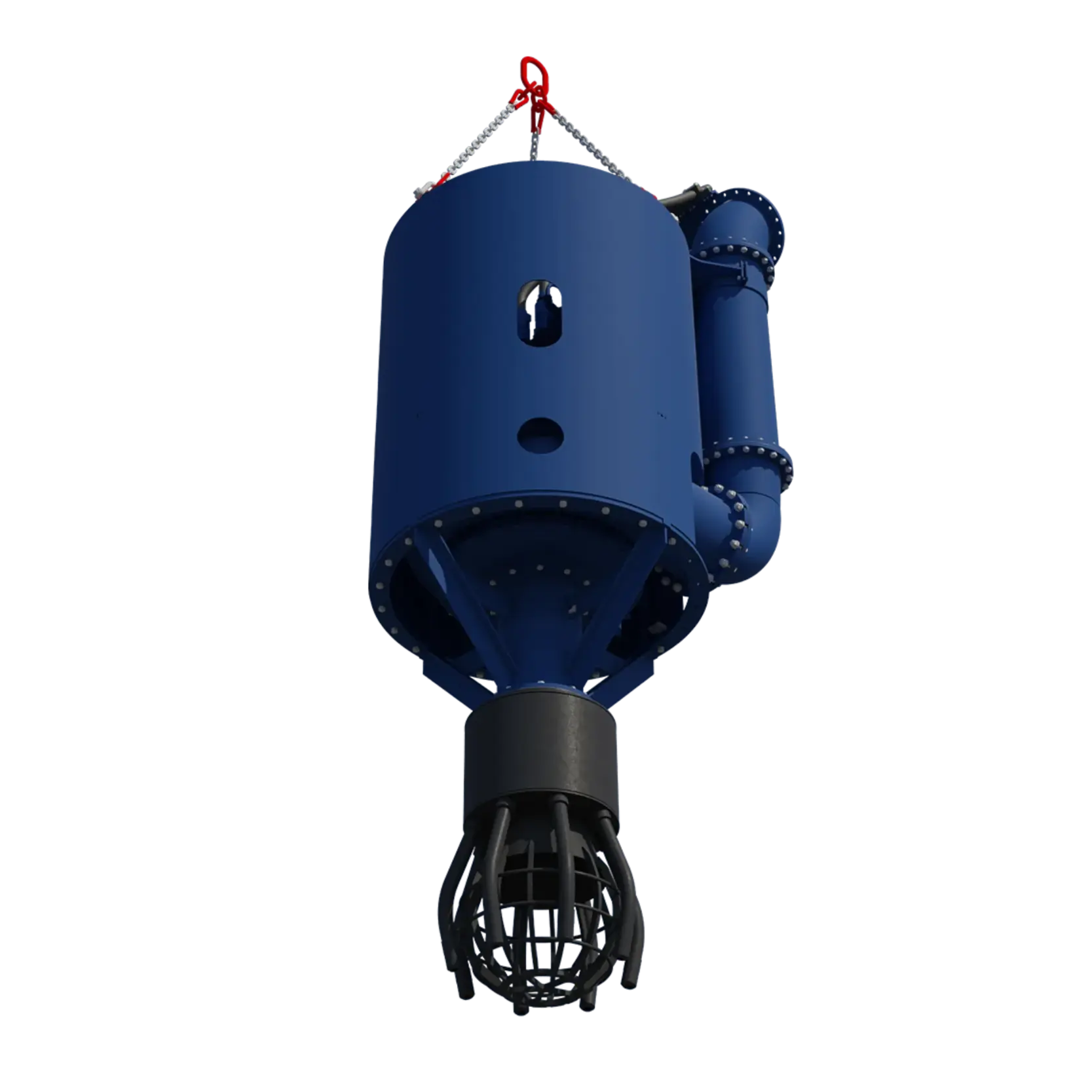

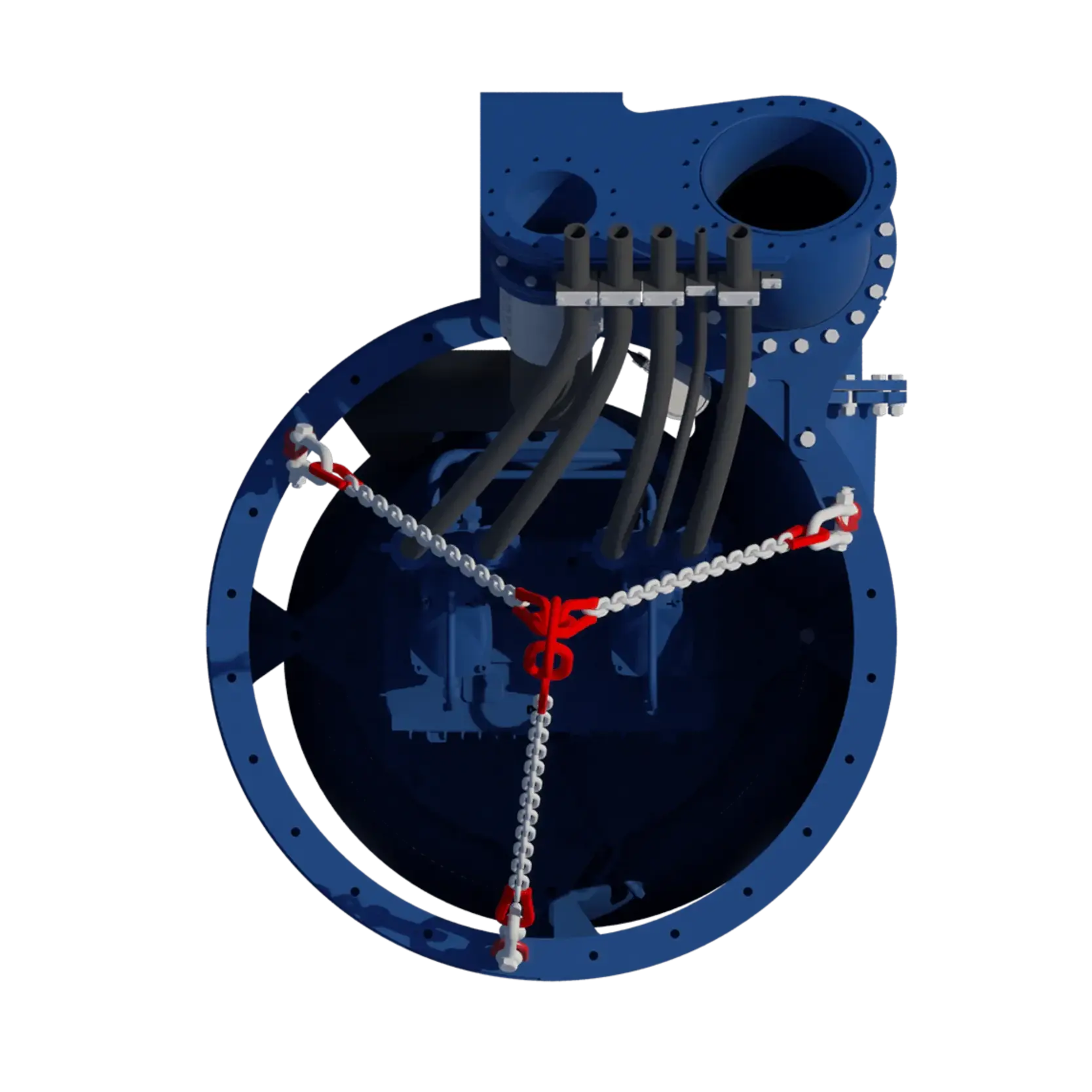

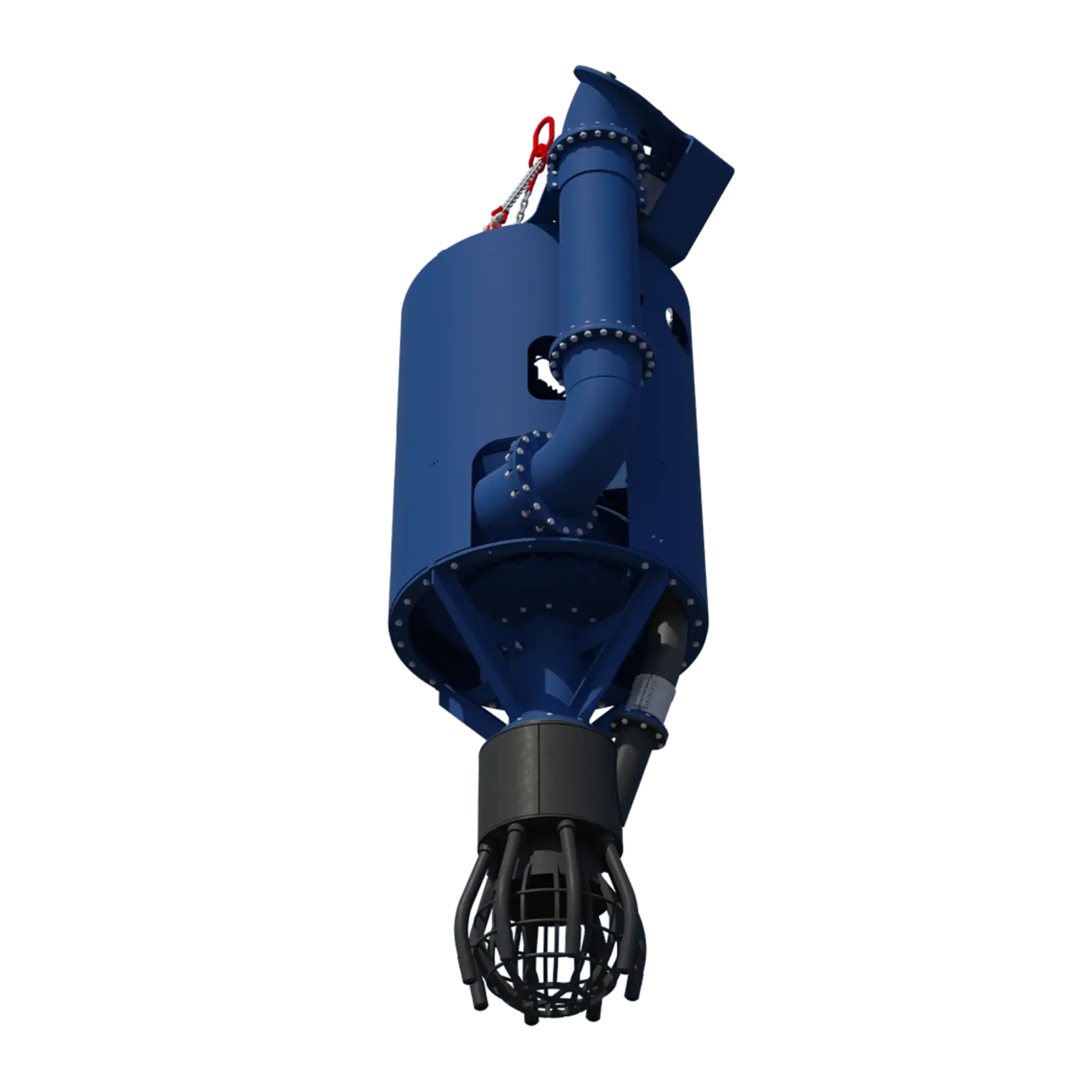

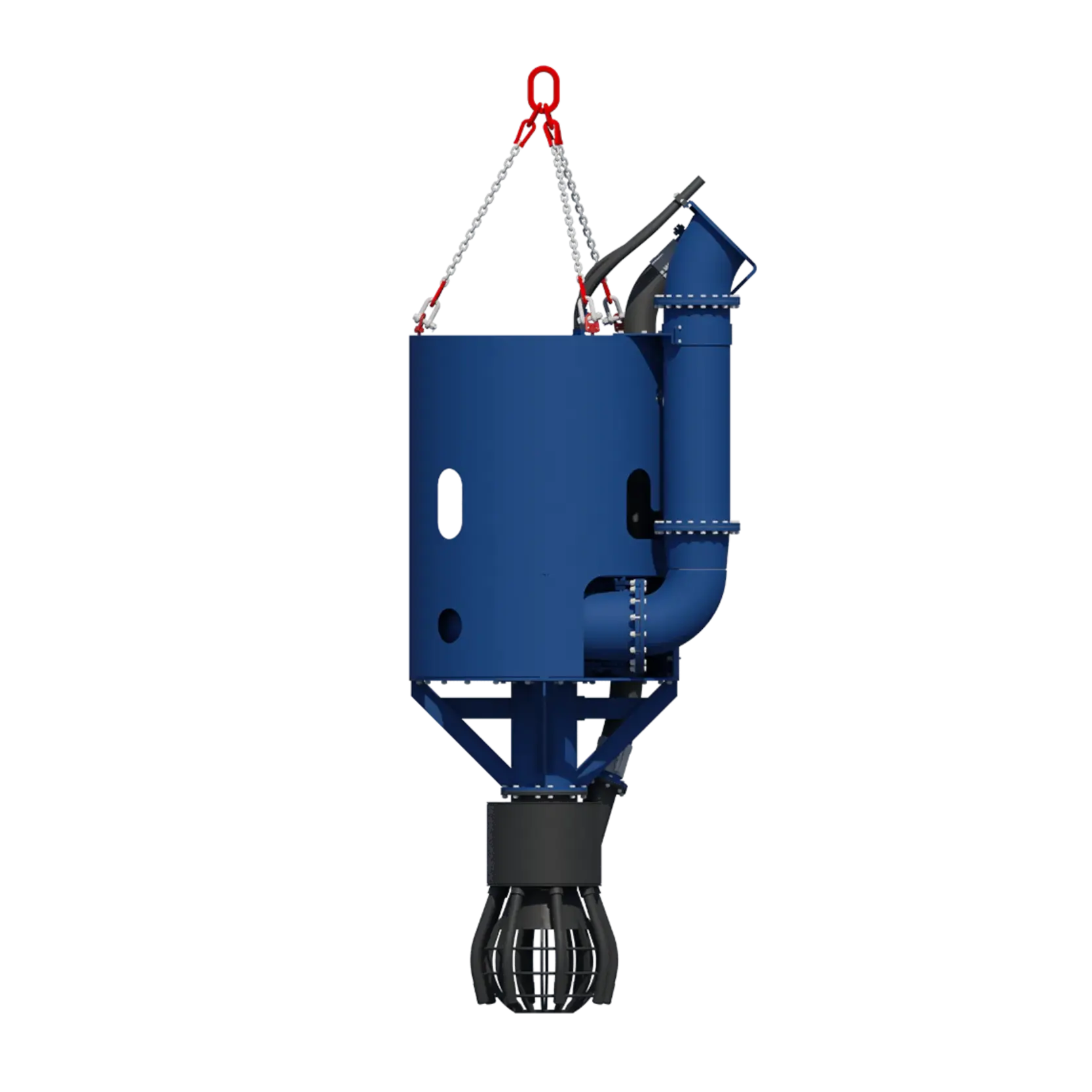

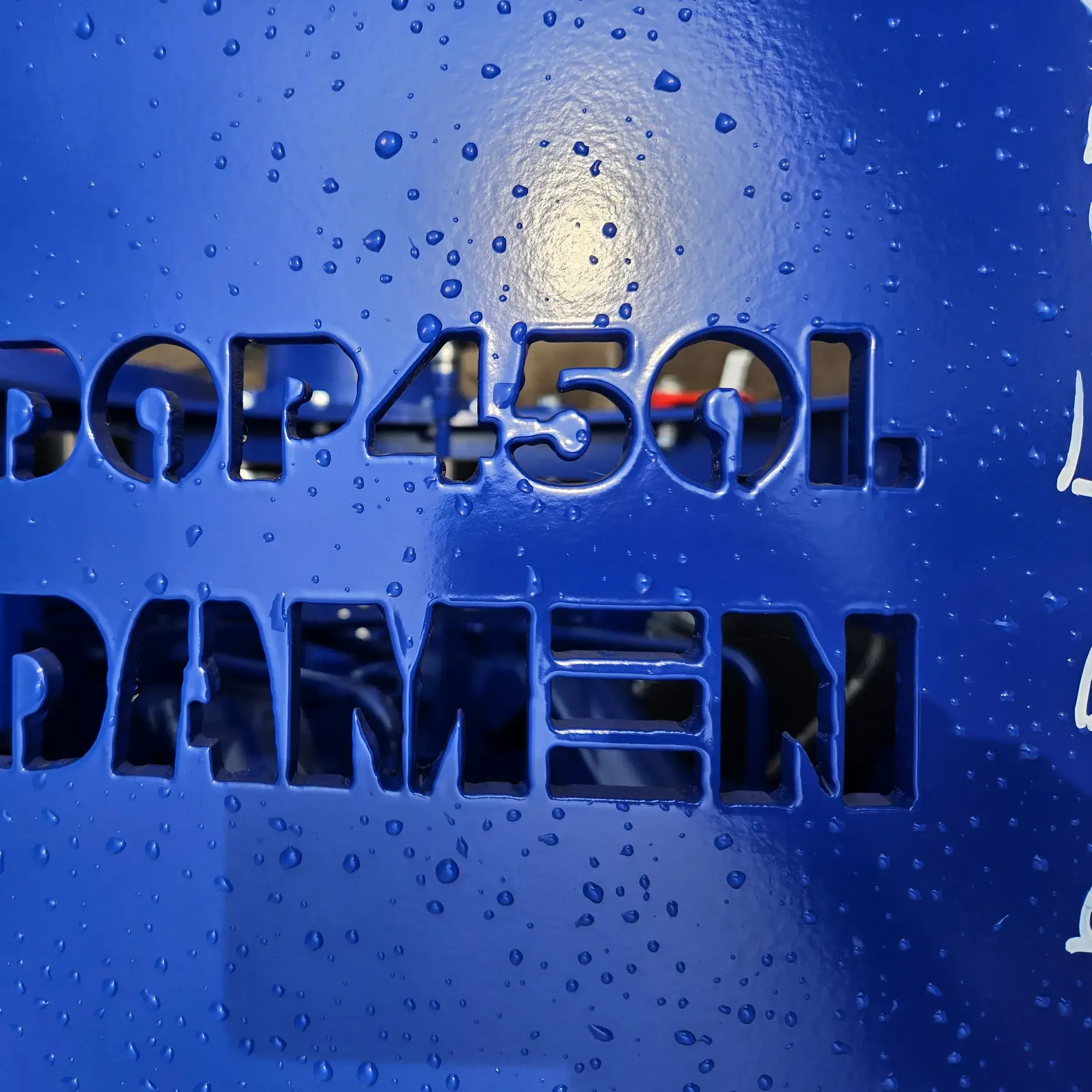

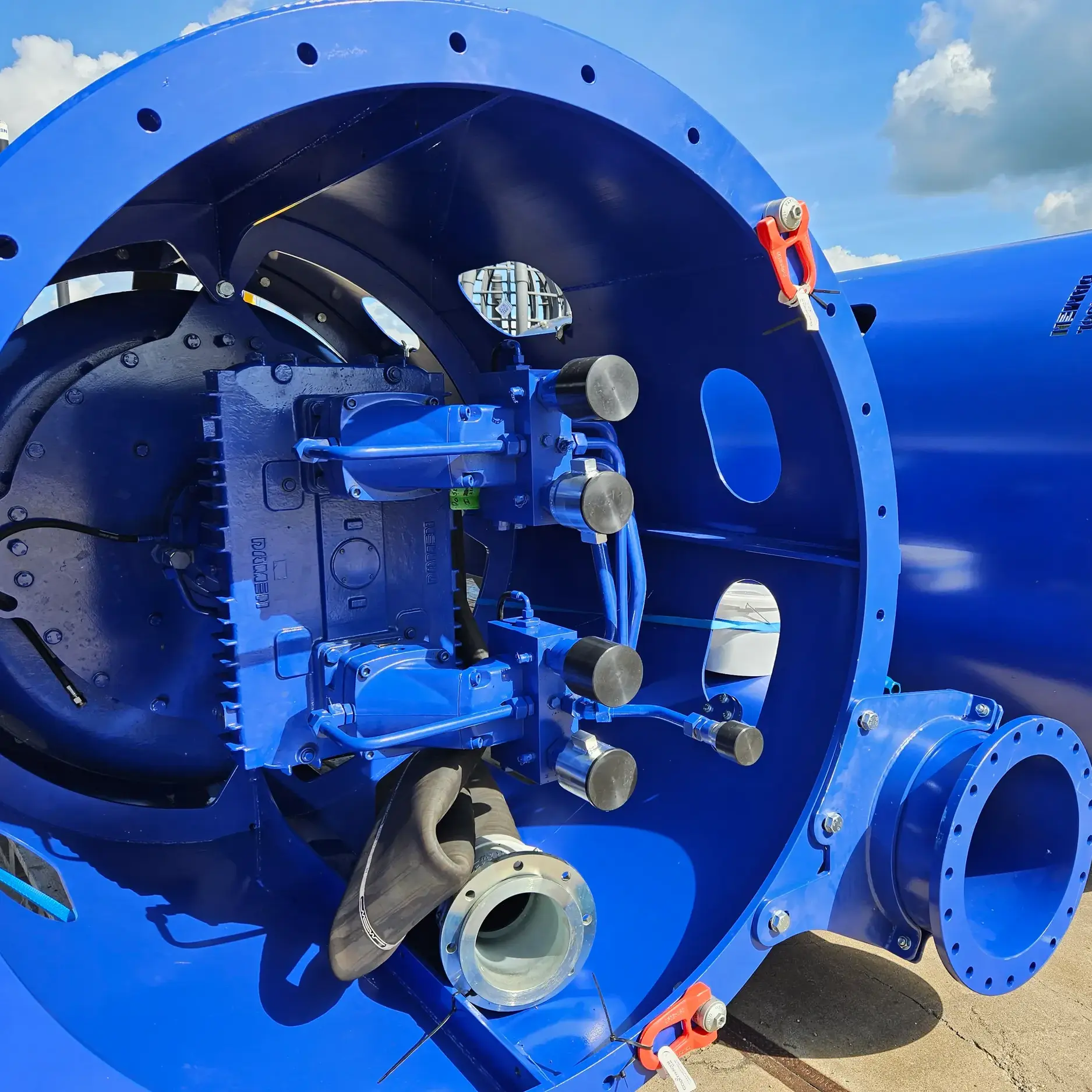

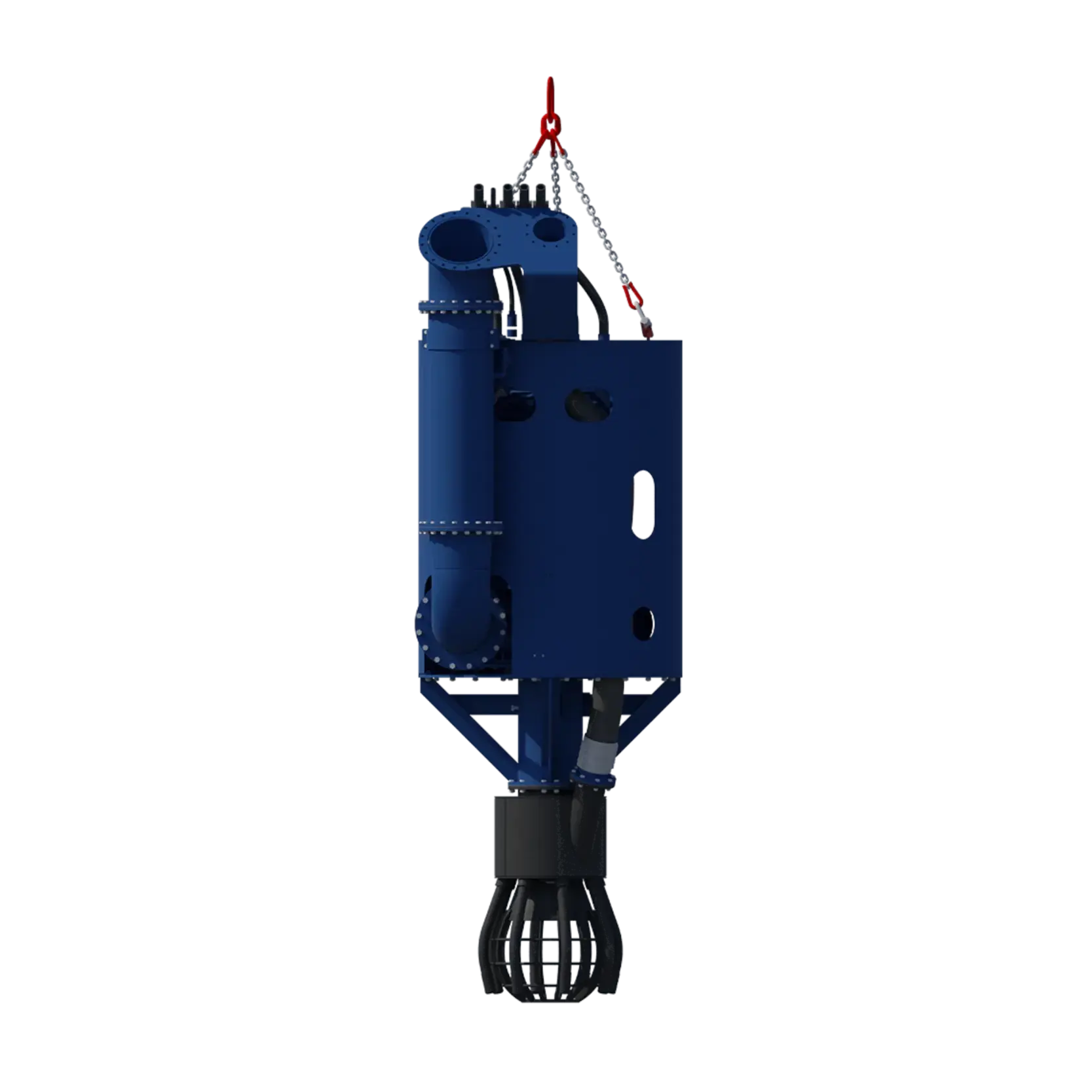

DOP submersible dredge pump DOP450L
DOP submersible dredge pump DOP450L

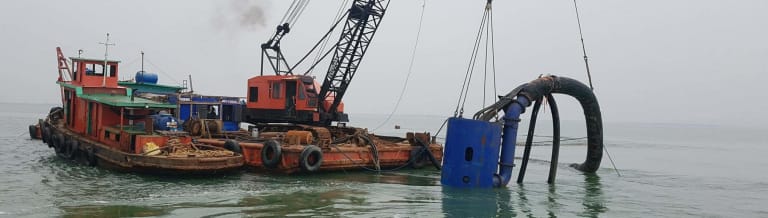

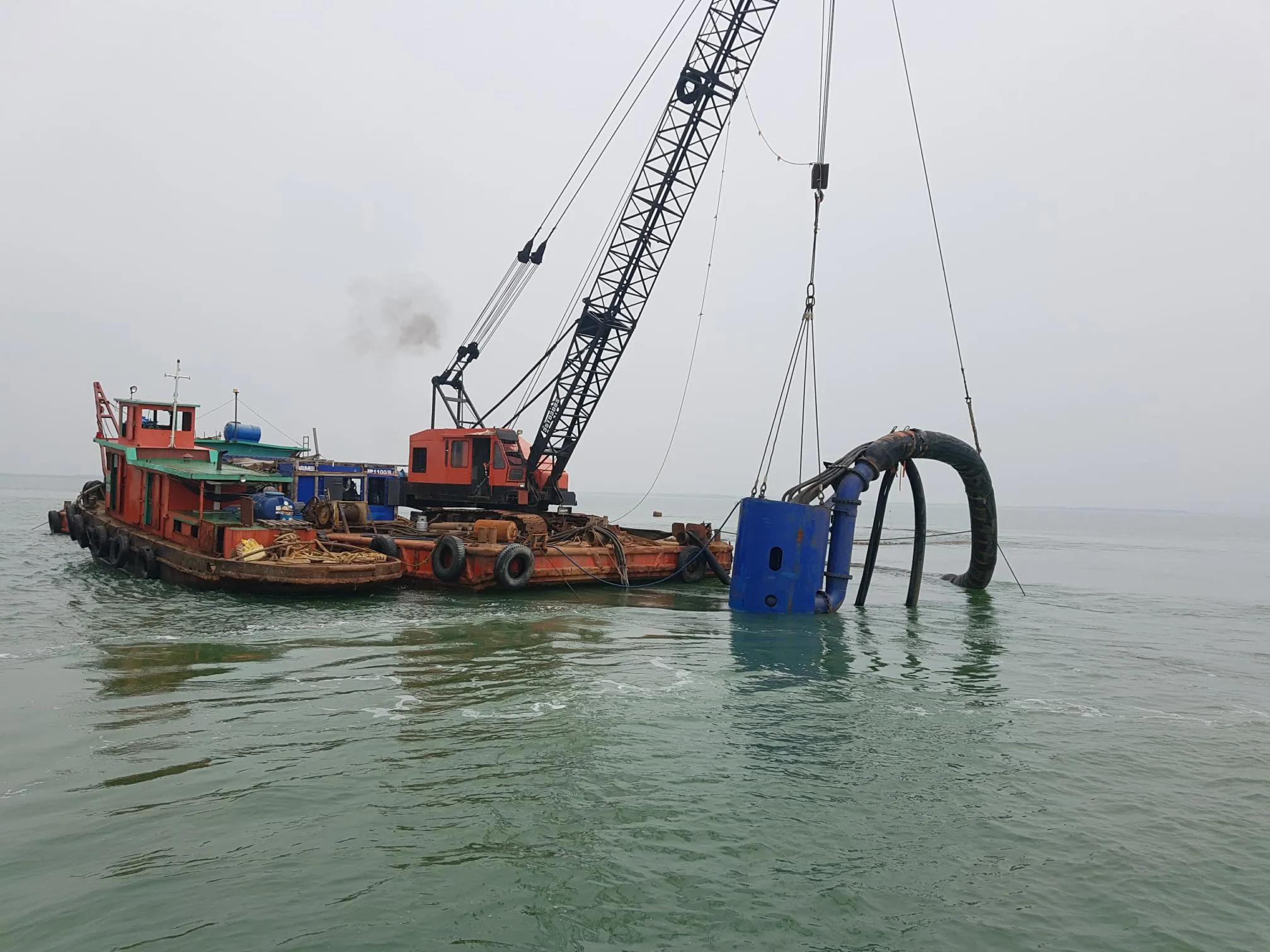

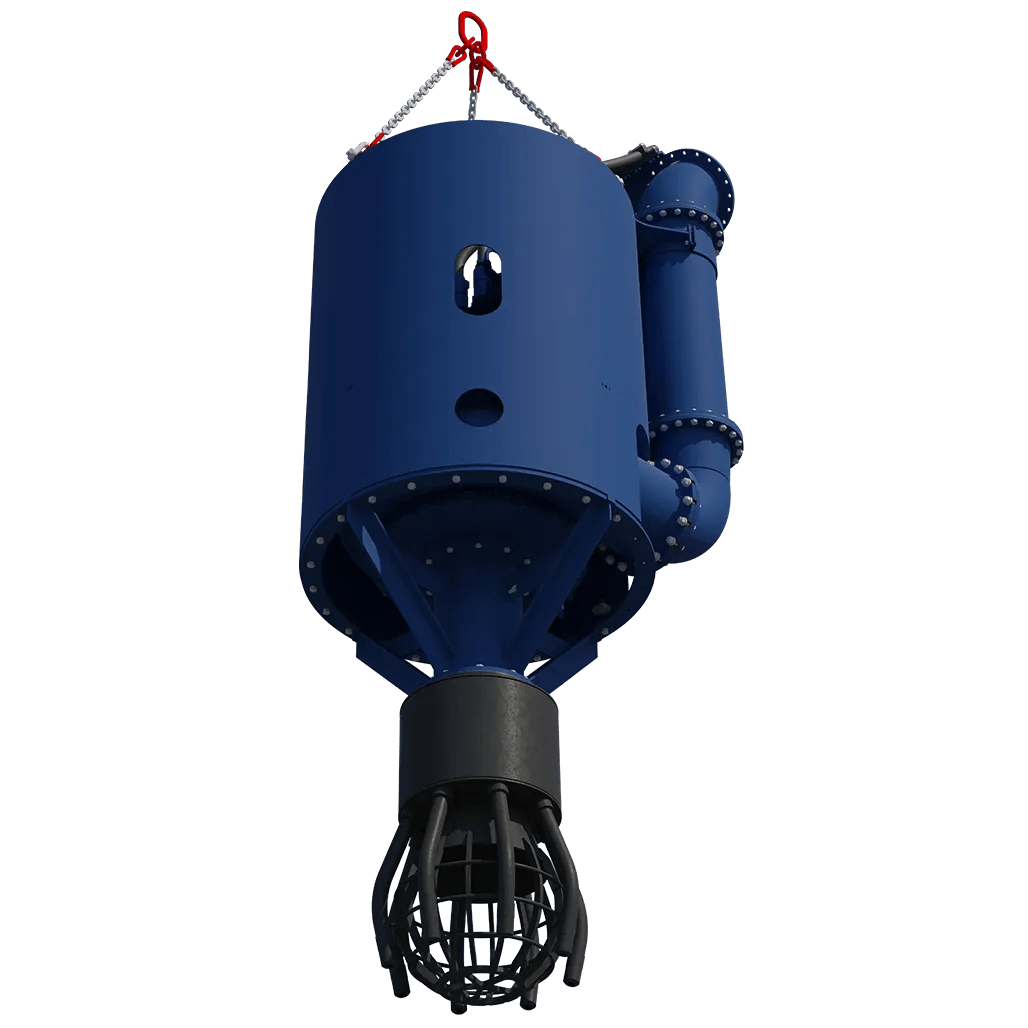

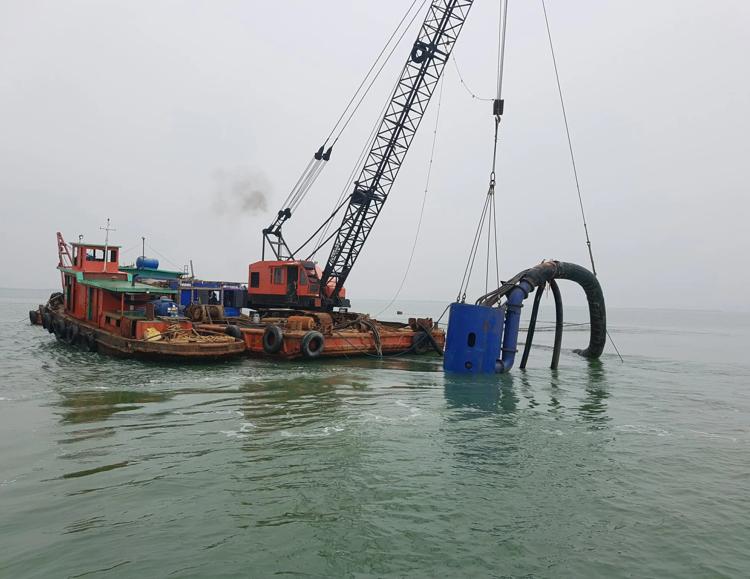

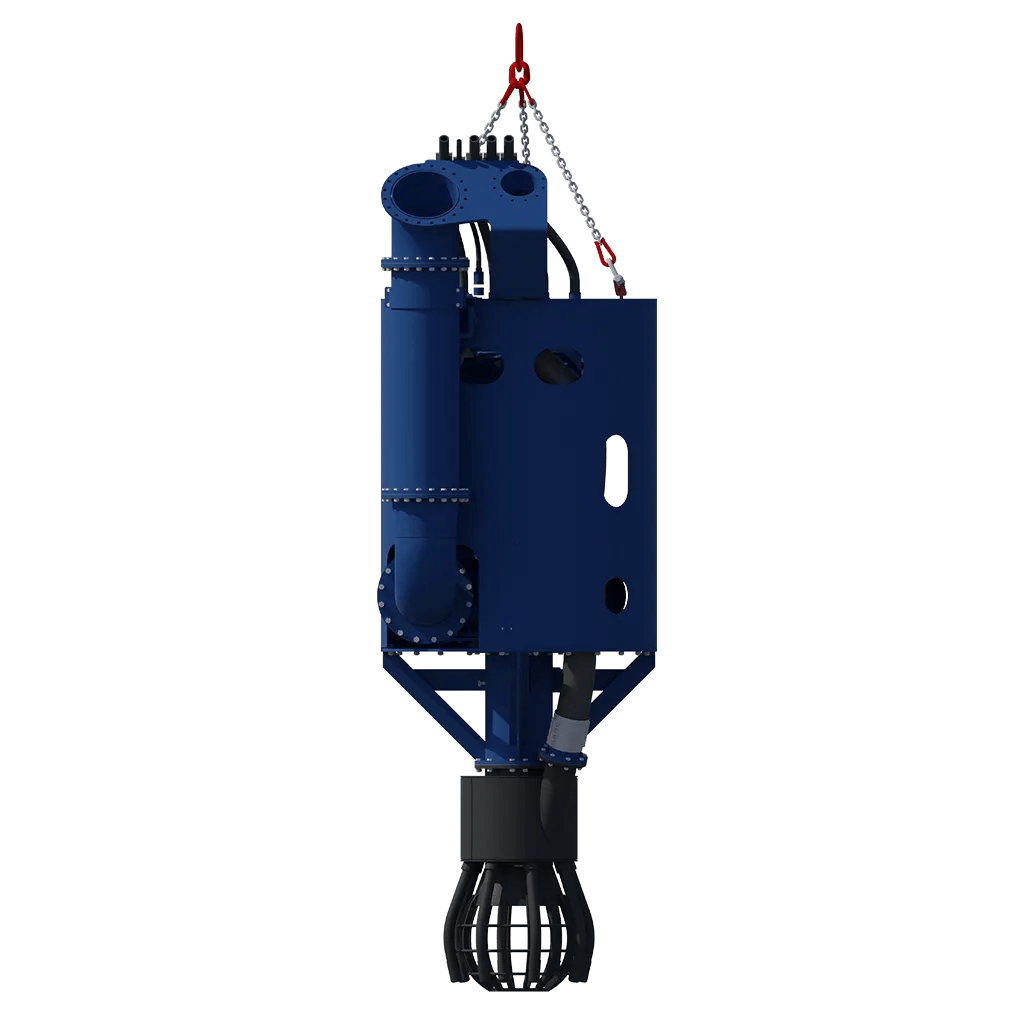

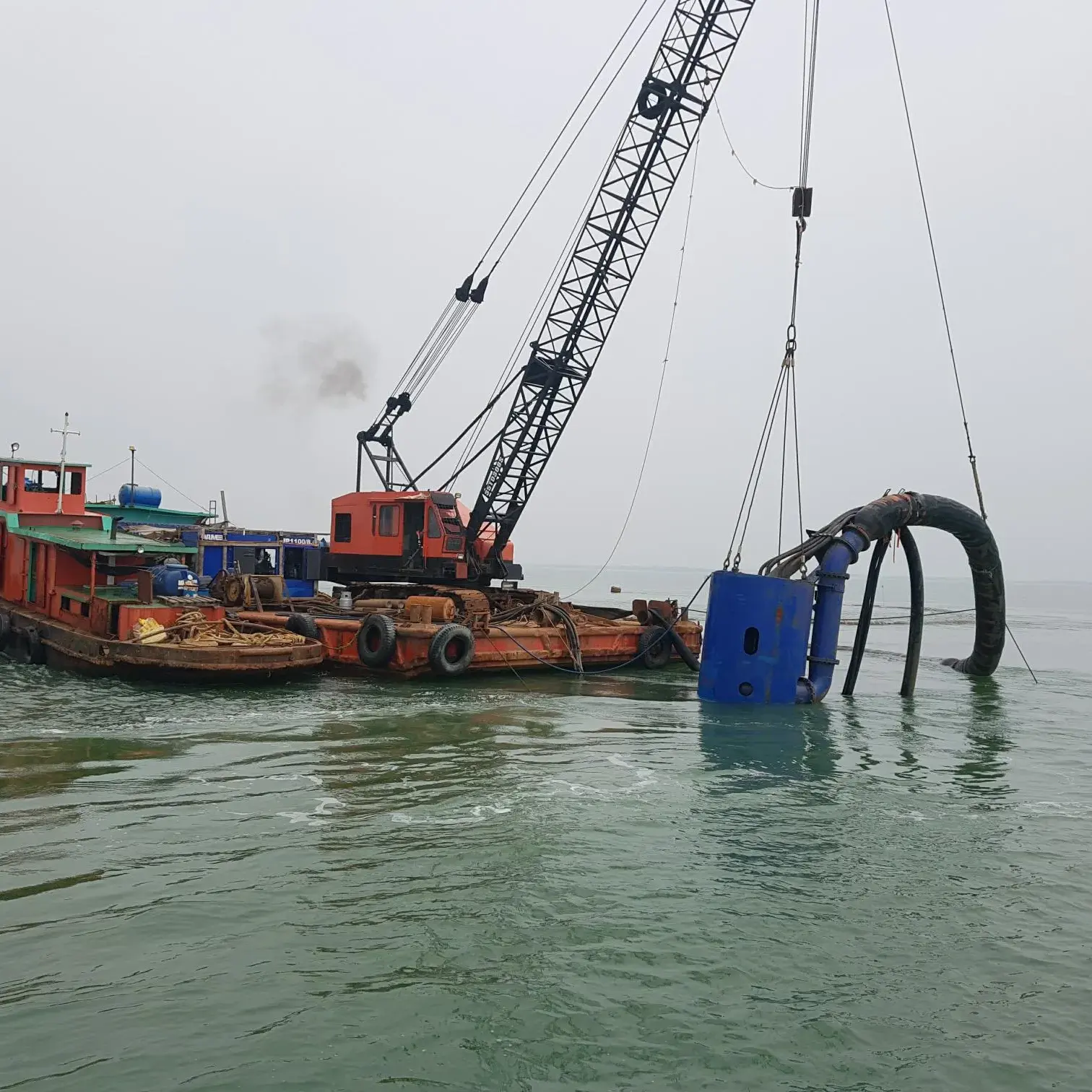

As the largest of the submersible dredge pump series, the DOP450L boasts an impressive mixture capacity of some 4,000 m³/h. The high efficiency dredge pump has been designed for harsh sand mining and a dredging environment where easily replaceable wear parts and a no-flush mechanical shaft seal are required.
- Power packs
- Discharge hoses
- Jet packs
- Hydraulic hoses
Fuel flexible
- Diesel
- Electric
- Wear resistant white cast iron wear parts
- Large ball passage maximising uptime
- Easy to handle and quick mobilisation
- Adaptable to any dredging job by changing the suction head
Key figures
4000
3.5
450
7.4
165
Performance
- Mixture capacity
- 4000 m³/h
- Max head
- 3.5 bar
- Max pump speed
- 470 rpm
- Max power
- 400 kW
Requirements
- Hydr oil flow
- 1000 l/min
- Hydr oil pressure
- 250 bar
- Jet water
- 1100 m³/h
- Jet water pressure
- 8 bar
Dimensions
- Suction diameter
- 450 mm
- Discharge diameter
- 450 mm
- Max sphere passage
- 165 mm
- Unit weight
- 7400 kg

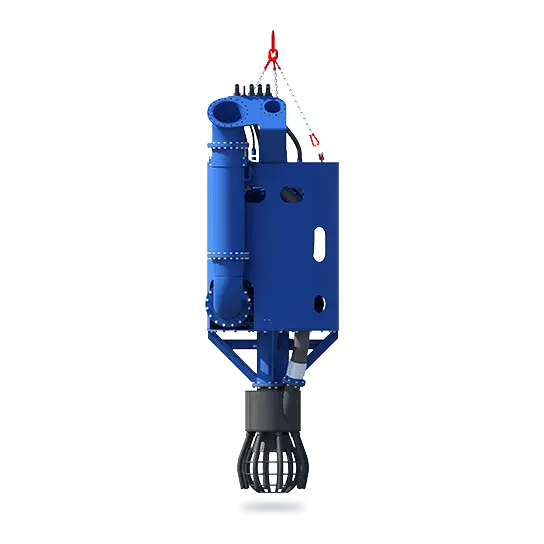

Do you want to know more?
Compare similar DOP pumps
| Production (m³/h) | Max head (bar) | Pipe diameter (mm) | Weight (t) | Max sphere passage (mm) | ||
|---|---|---|---|---|---|---|
| DOP submersible dredge pump DOP450L | 4000 | 3.5 | 450 | 7.4 | 165 | |
| DOP submersible dredge pump DOP350L | 2400 | 3.2 | 350 | 4.58 | 200 | |
| Electrical DOP submersible dredge pump E-DOP450L | 4000 | 3.5 | 450 | 9.4 | 165 |
DOP submersible dredge pump DOP450L
- Production (m³/h)
- 4000
- Max head (bar)
- 3.5
- Pipe diameter (mm)
- 450
- Weight (t)
- 7.4
- Max sphere passage (mm)
- 165
- Production (m³/h)
- 2400
- Max head (bar)
- 3.2
- Pipe diameter (mm)
- 350
- Weight (t)
- 4.58
- Max sphere passage (mm)
- 200
- Production (m³/h)
- 4000
- Max head (bar)
- 3.5
- Pipe diameter (mm)
- 450
- Weight (t)
- 9.4
- Max sphere passage (mm)
- 165
