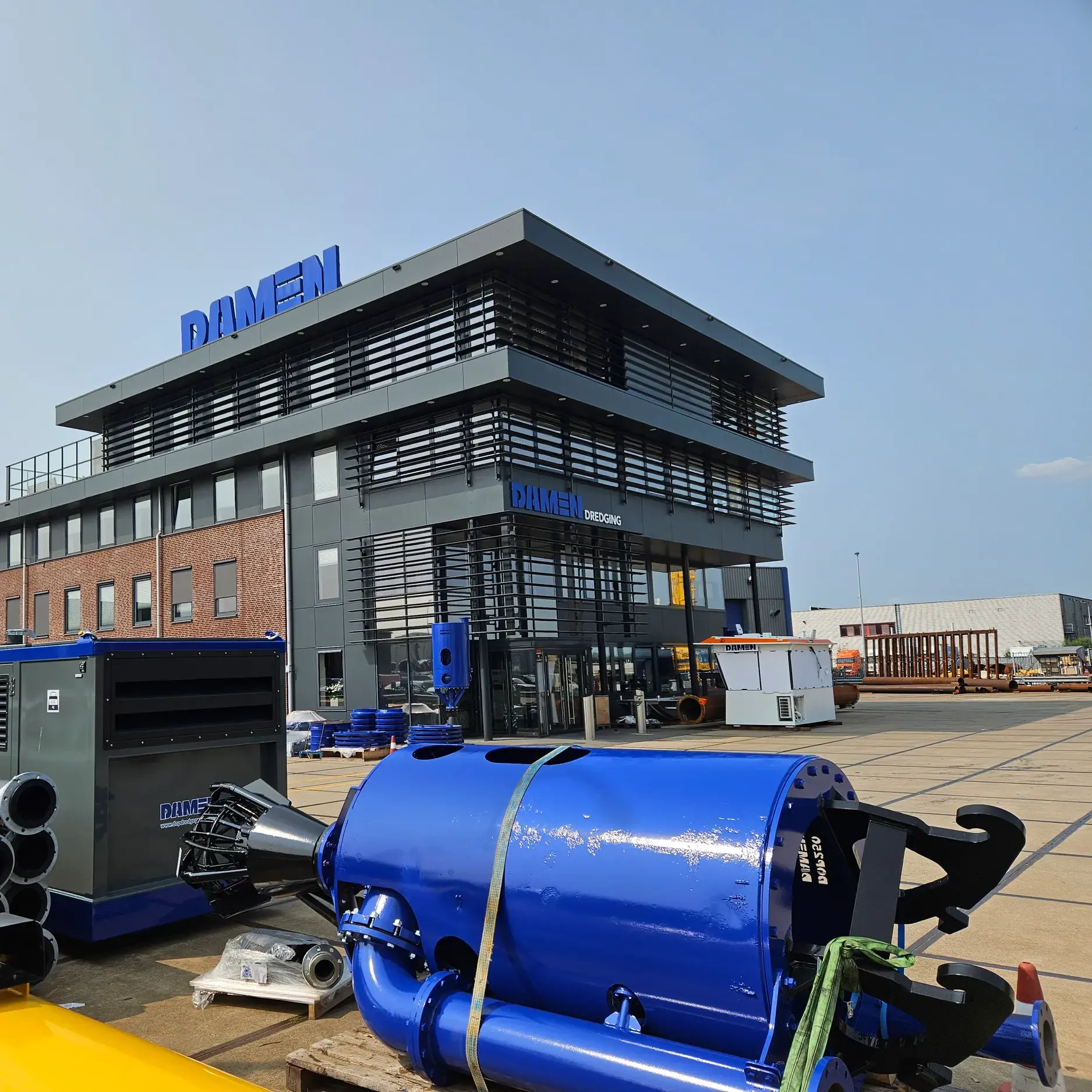

DOP submersible dredge pump DOP250

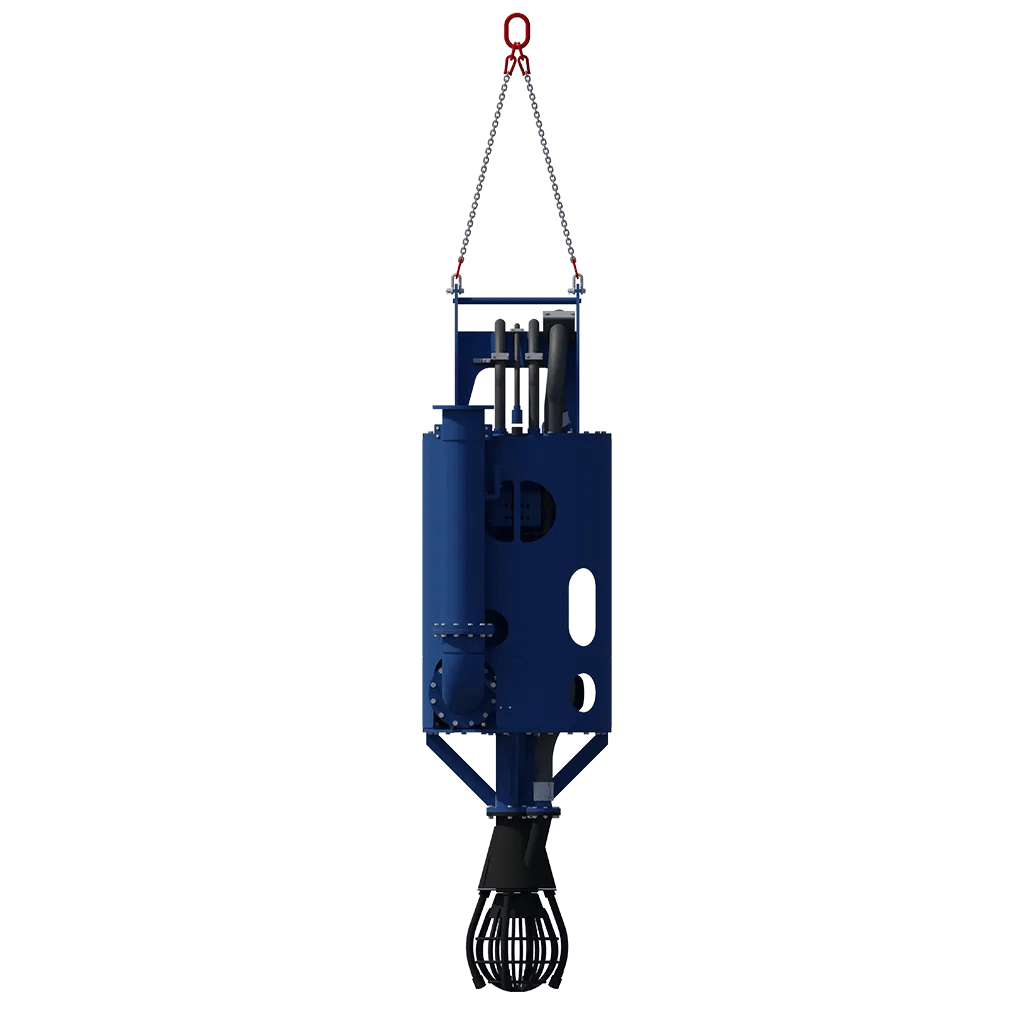

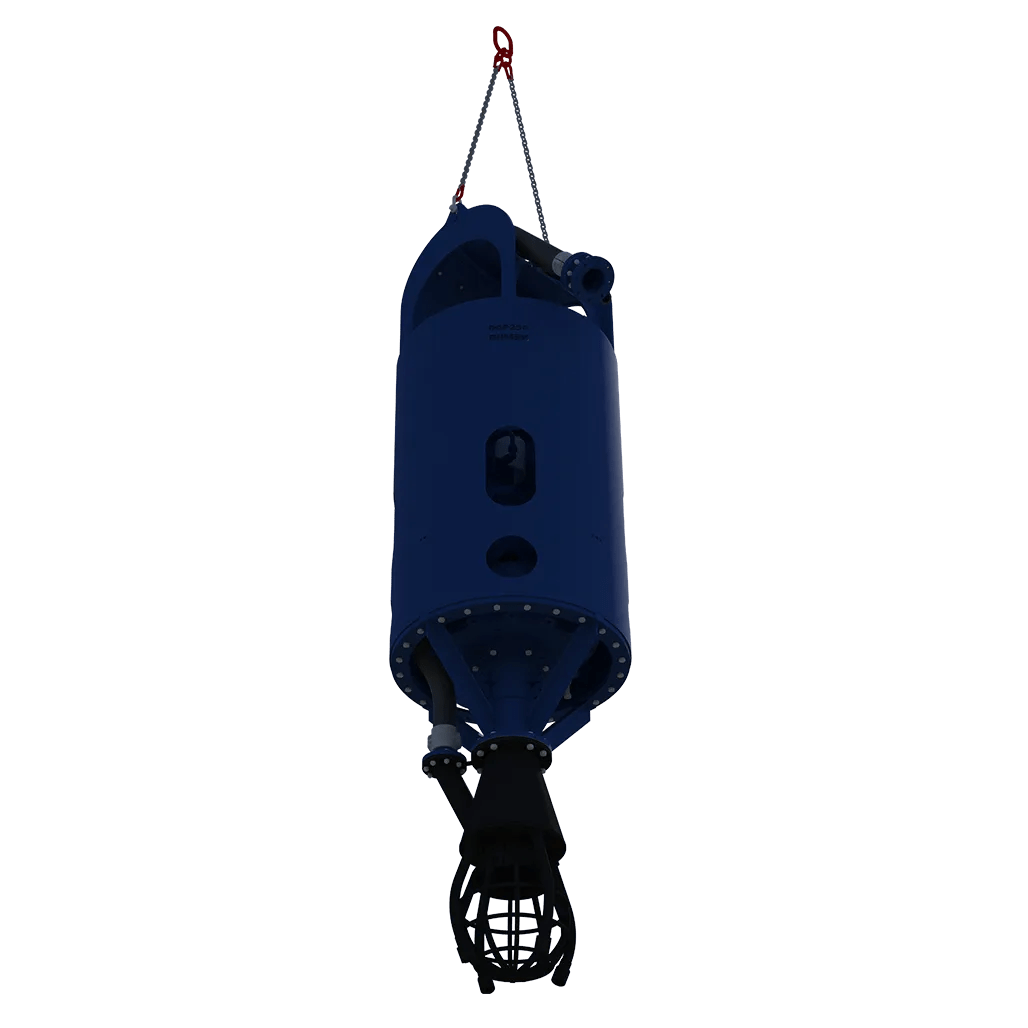

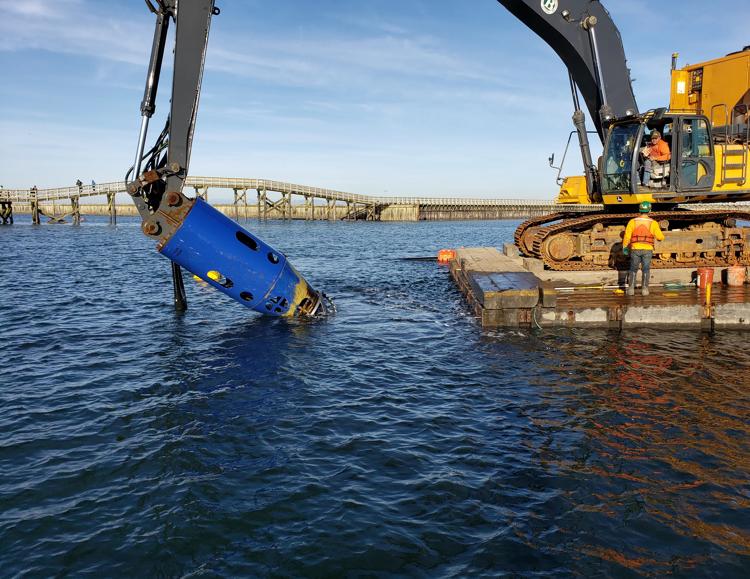

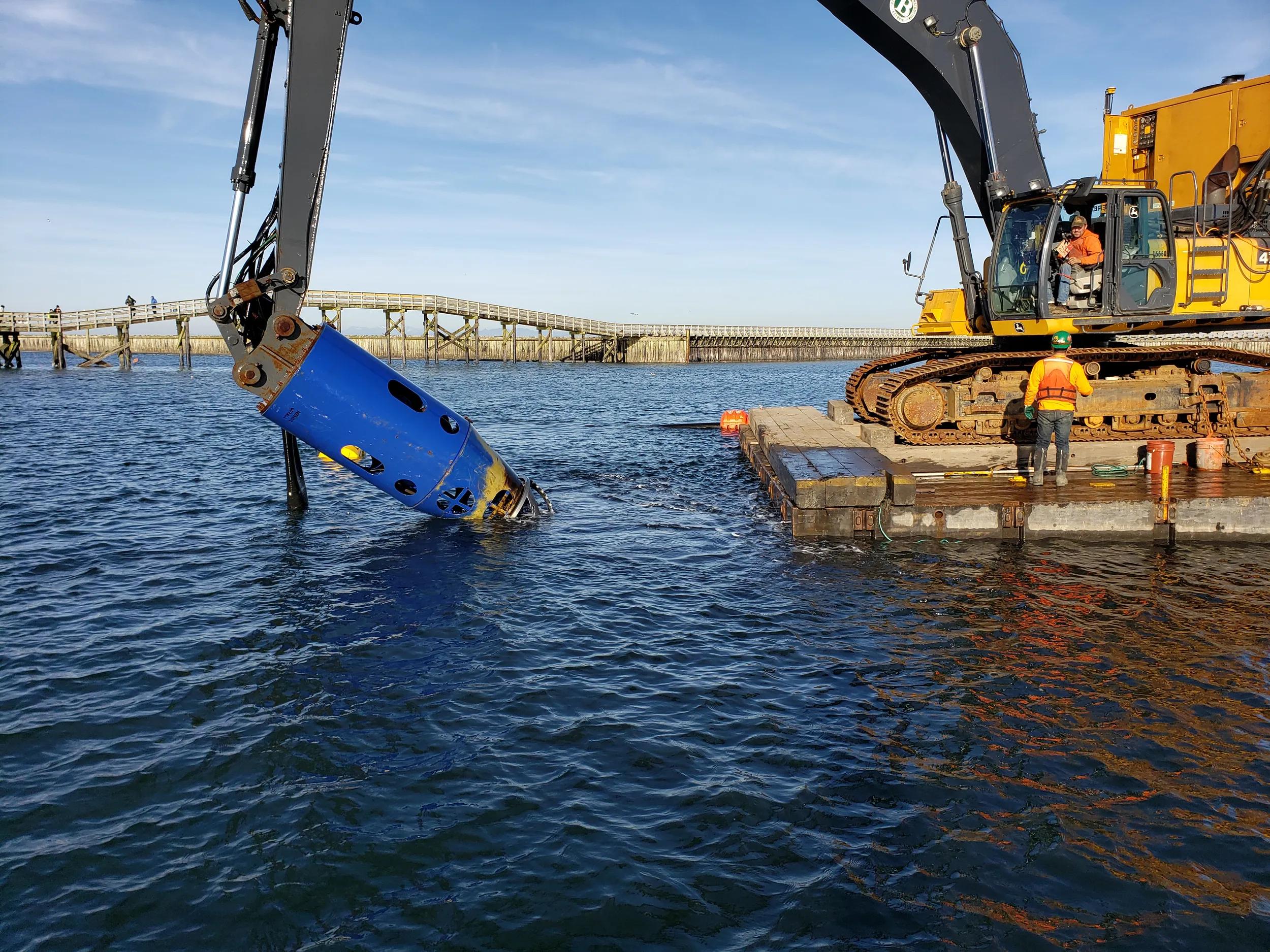

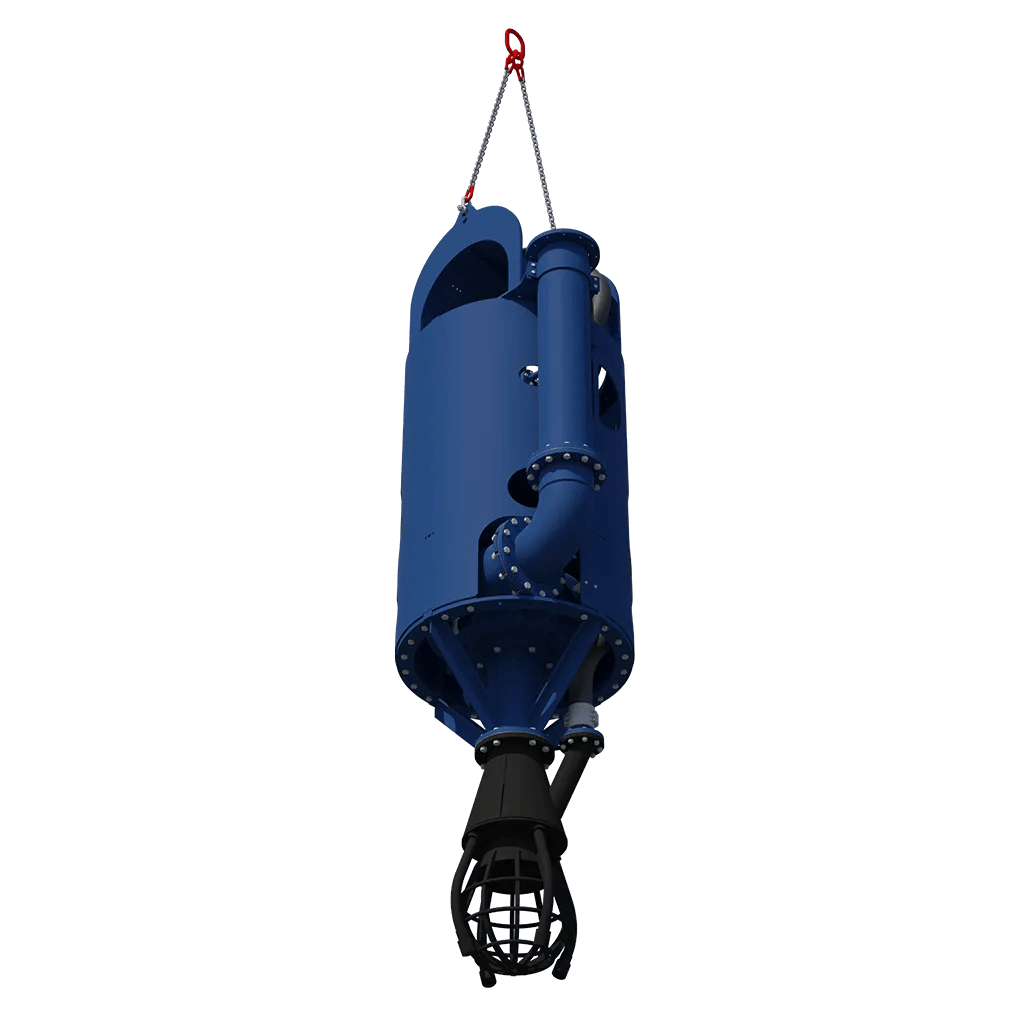

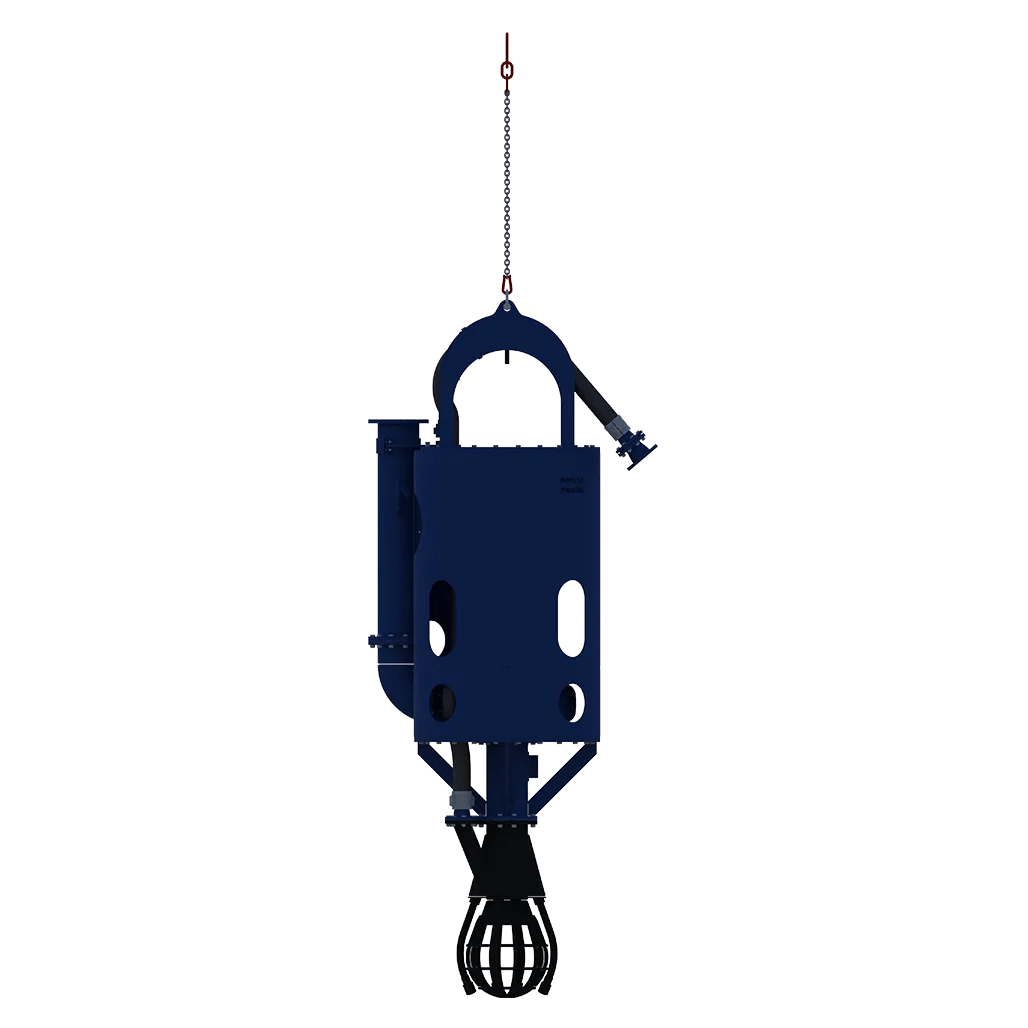

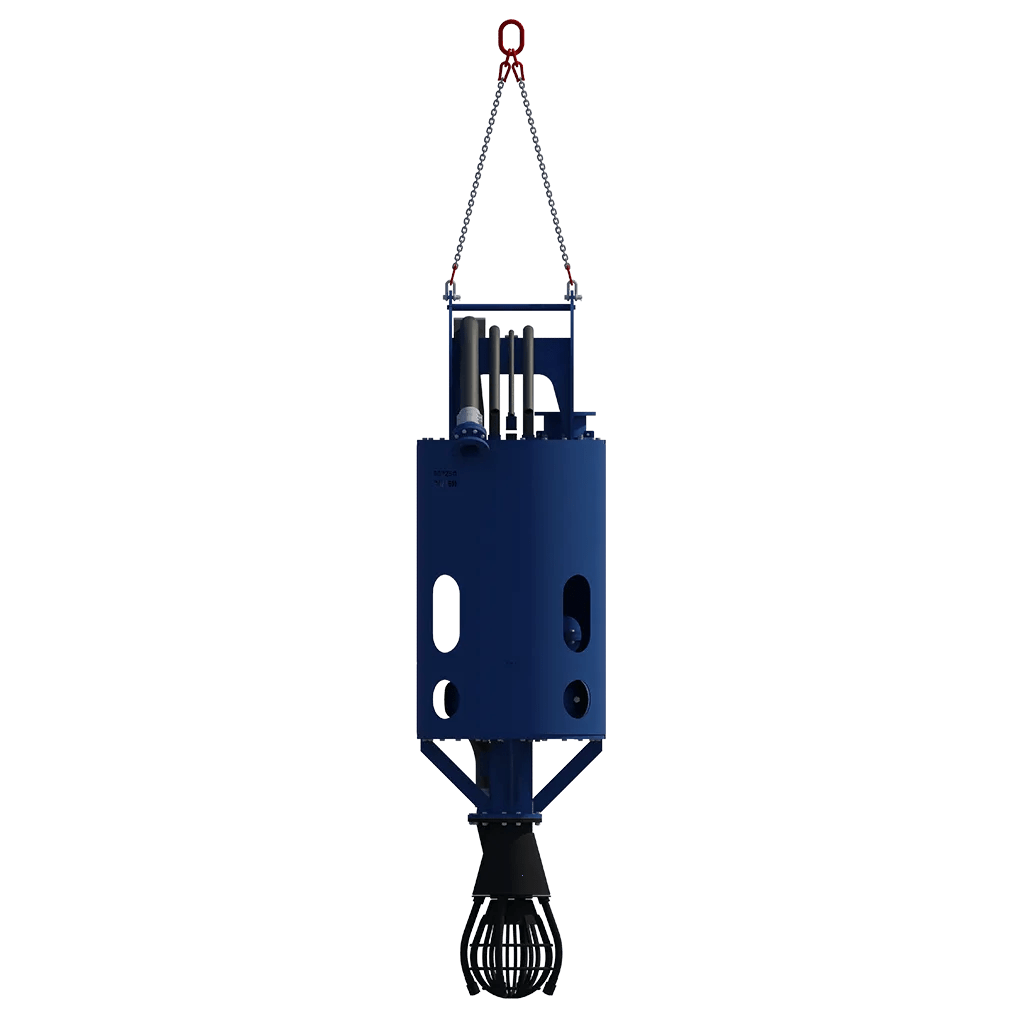

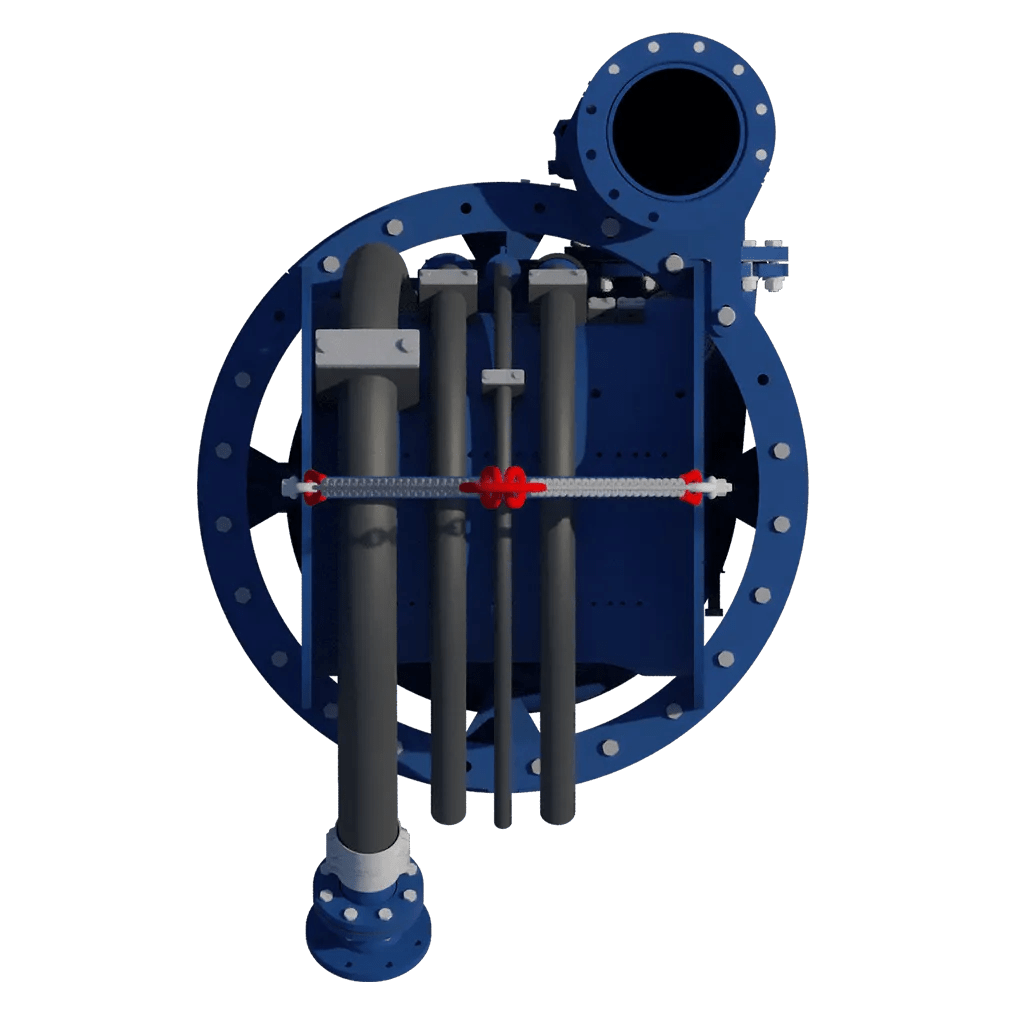

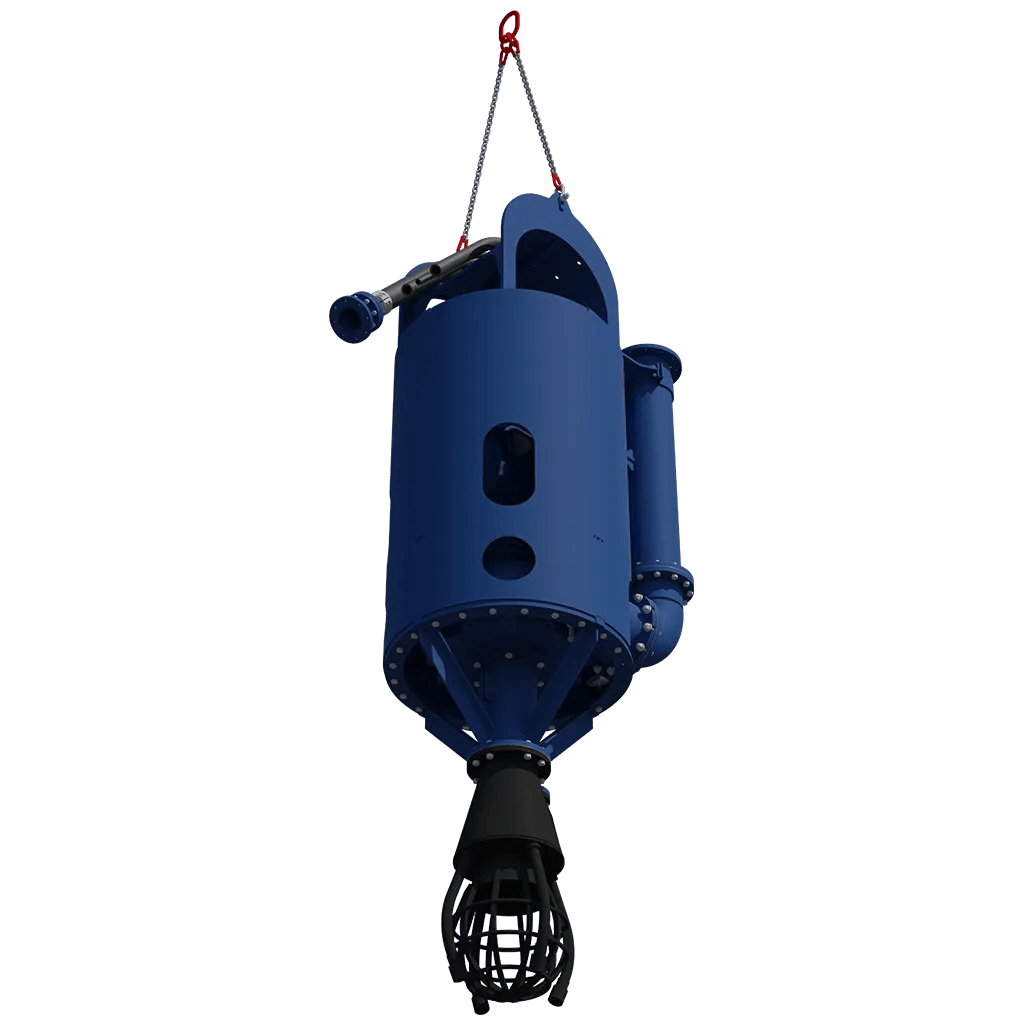

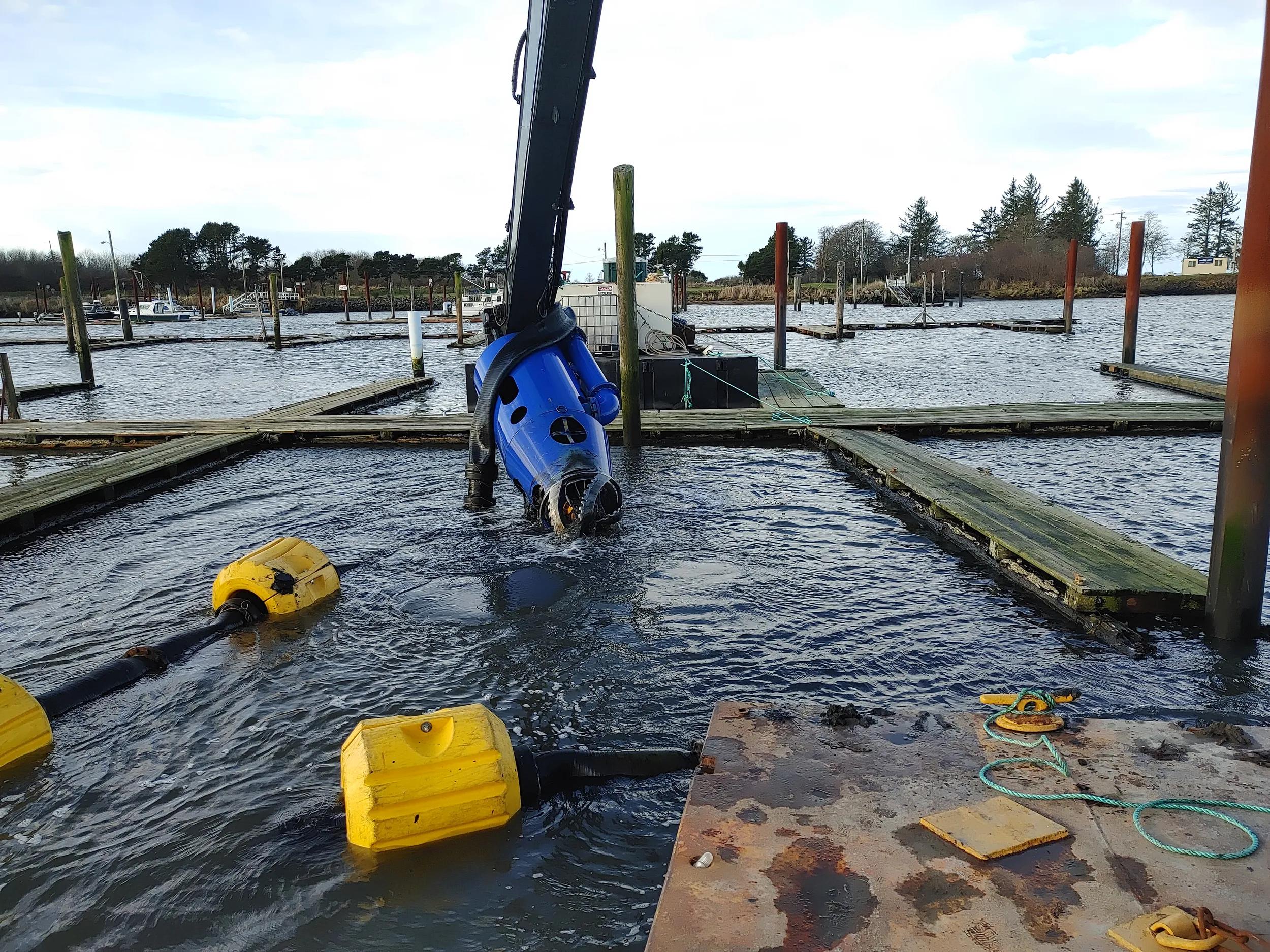

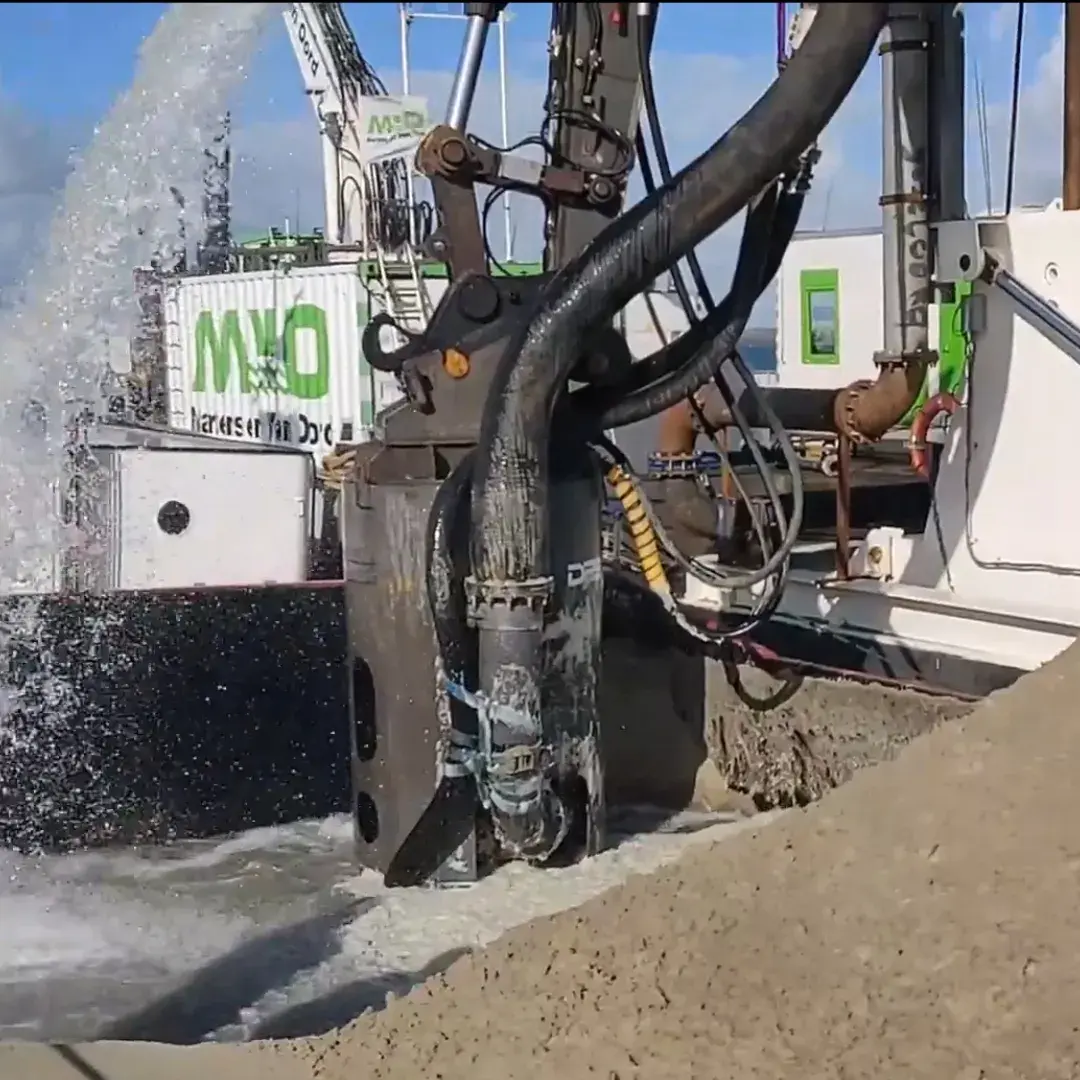

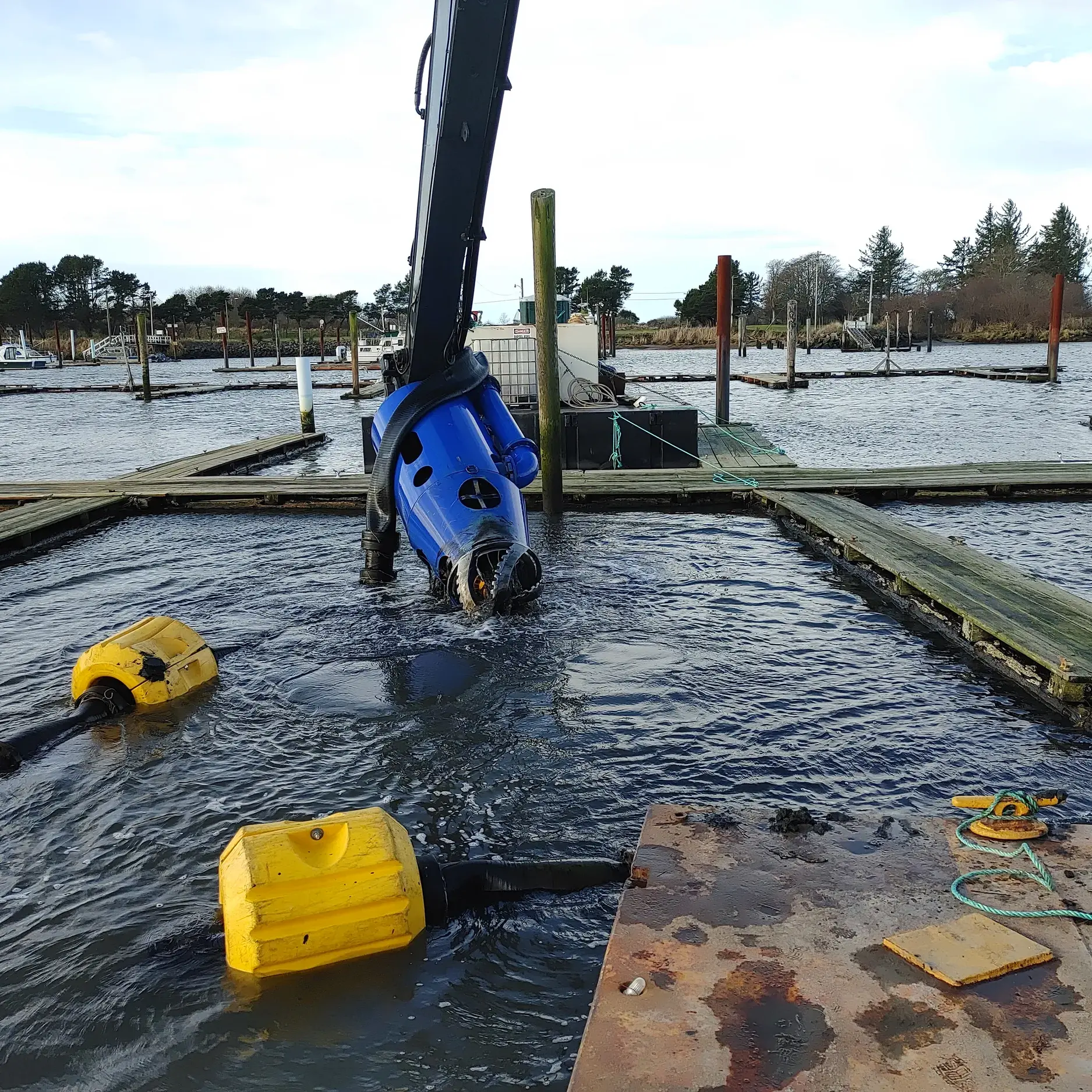

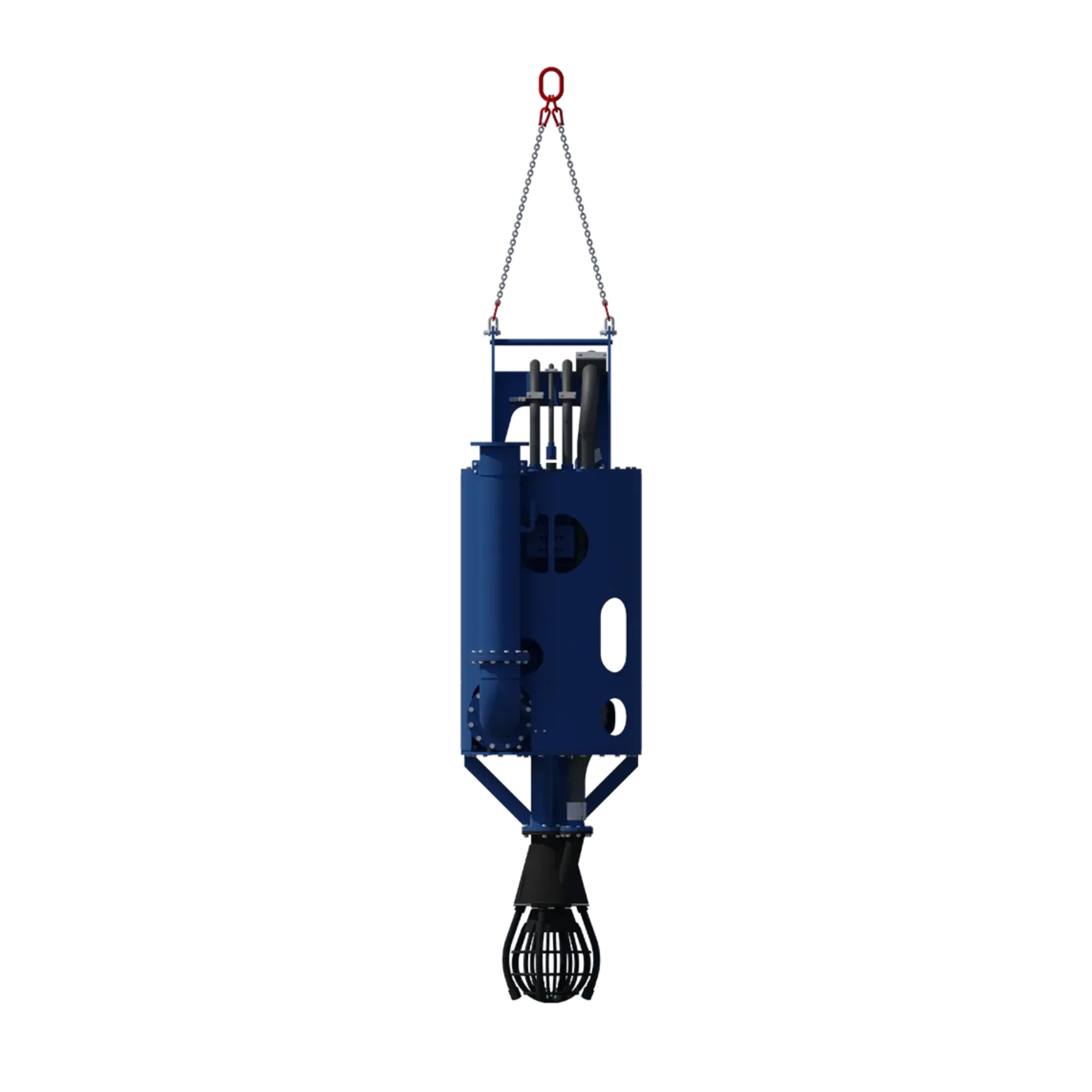

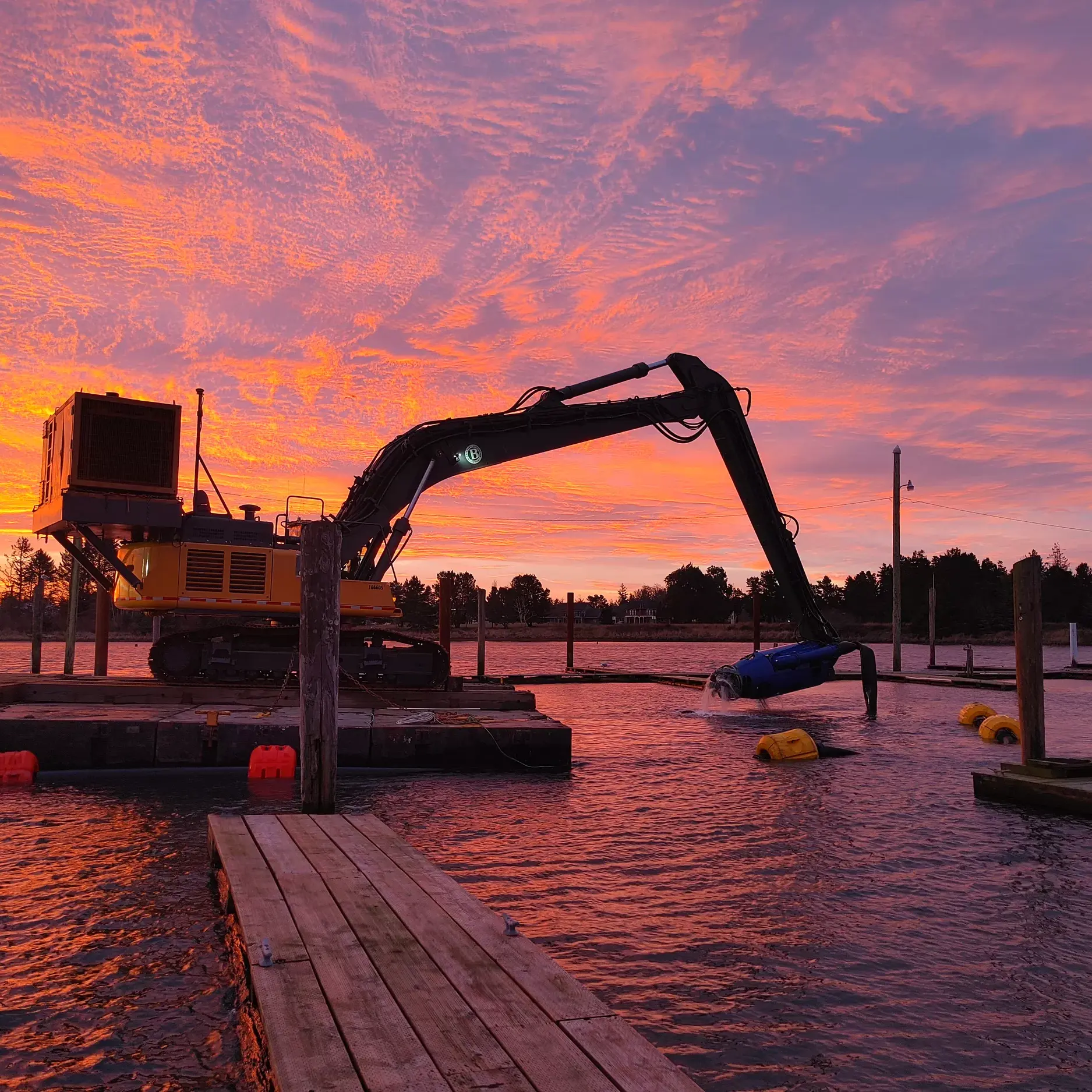

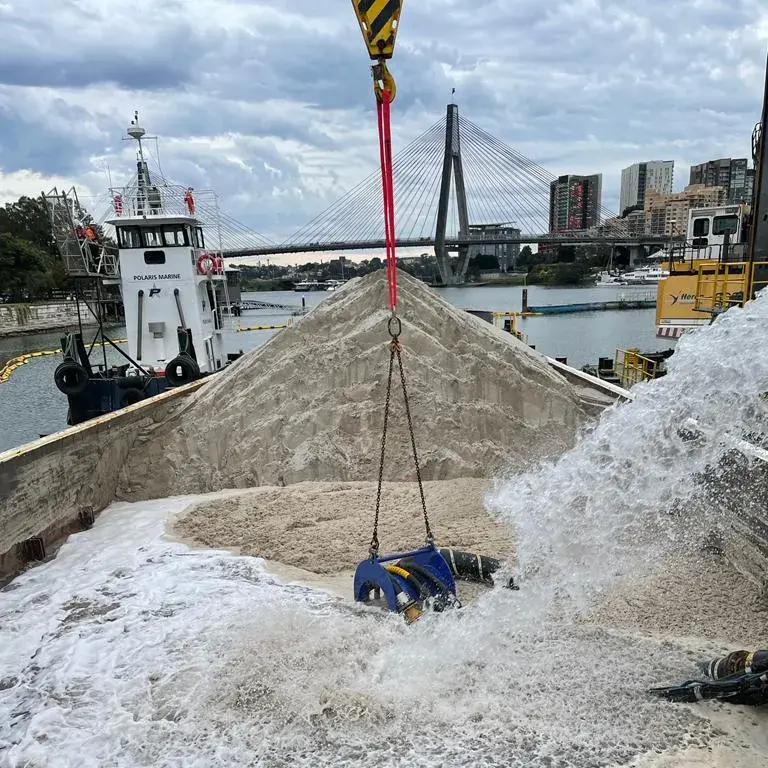

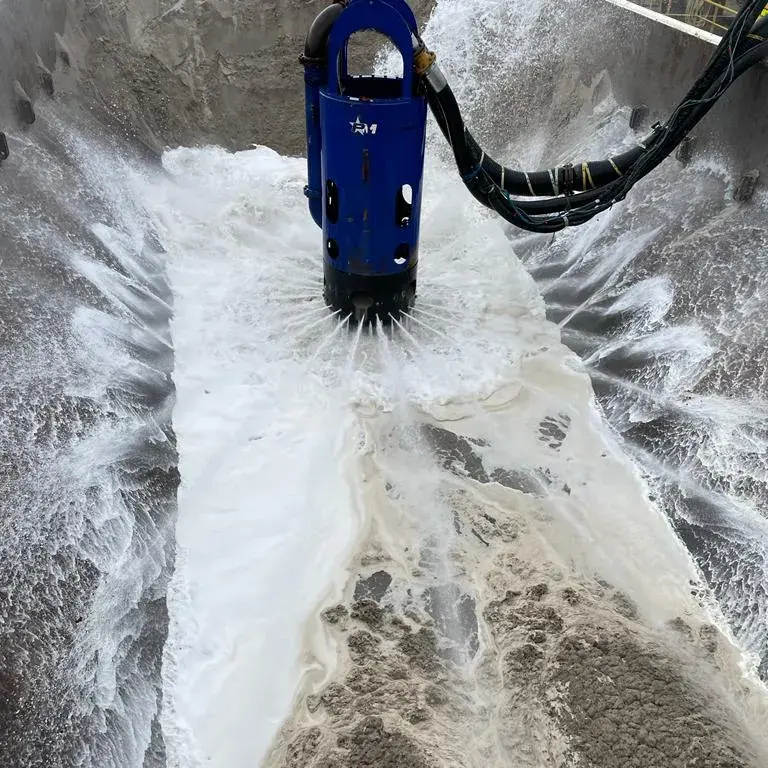

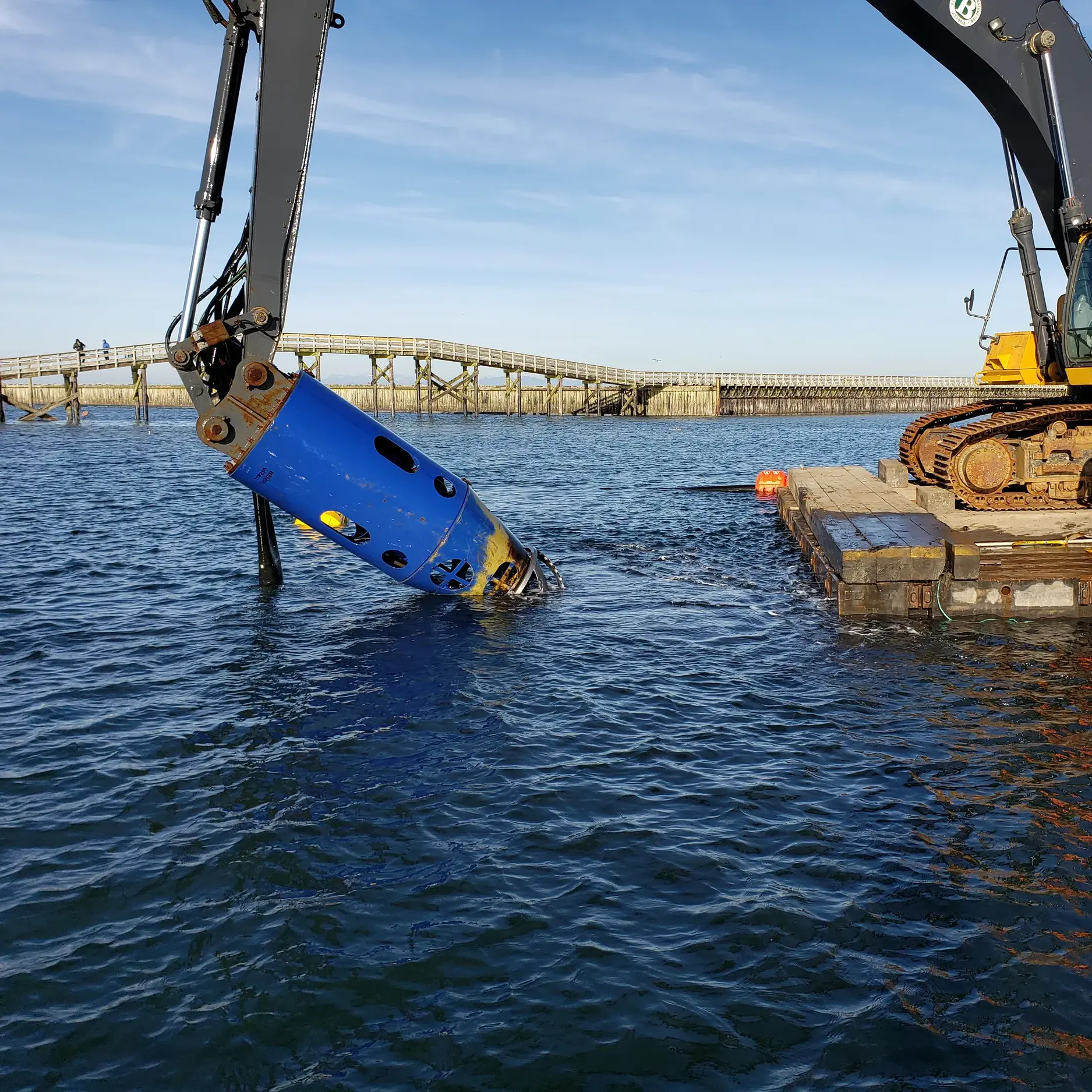

The DOP250 is a submersible dredge pump directly driven by a hydraulic motor. The dredge pump and drive are mounted in a robust protective steel casing and can be powered by the hydraulics of the excavator, or by a separate power pack. The top of the casing ensures practical mounting to the excavator’s boom, while the bottom rim is fitted out with a flange for an easy exchange of the various suction heads. These include a sand mining head, a barge unloader, cutter unit and an auger unit.
- Power packs
- Discharge hoses
- Jet packs
- Hydraulic hoses
Fuel flexible
- Diesel
- Electric
- Large ball passage maximising uptime
- Easy to handle and quick mobilisation
- Adaptable to any dredging job by changing the suction head
- Wear resistant white cast iron wear parts
Key figures
1250
5.3
250
2.43
130
Performance
- Mixture capacity
- 1250 m³/h
- Max head
- 5.3 bar
- Max pump speed
- 900 rpm
- Max power
- 195 kW
Requirements
- Hydr oil flow
- 483 l/min
- Hydr oil pressure
- 250 bar
- Jet water
- 300 m³/h
- Jet water pressure
- 8 bar
Dimensions
- Suction diameter
- 250 mm
- Discharge diameter
- 250 mm
- Max sphere passage
- 130 mm
- Unit weight
- 2425 kg
Compare similar DOP pumps
| Production (m³/h) | Max head (bar) | Pipe diameter (mm) | Weight (t) | Max sphere passage (mm) | ||
|---|---|---|---|---|---|---|
| DOP submersible dredge pump DOP250 | 1250 | 5.3 | 250 | 2.43 | 130 | |
| Electrical DOP submersible dredge pump E-DOP250 | 1250 | 5.3 | 250 | 3.975 | 130 | |
| DOP submersible dredge pump DOP350 | 2400 | 4.8 | 350 | 5.33 | 150 |
DOP submersible dredge pump DOP250
- Production (m³/h)
- 1250
- Max head (bar)
- 5.3
- Pipe diameter (mm)
- 250
- Weight (t)
- 2.43
- Max sphere passage (mm)
- 130
- Production (m³/h)
- 1250
- Max head (bar)
- 5.3
- Pipe diameter (mm)
- 250
- Weight (t)
- 3.975
- Max sphere passage (mm)
- 130
- Production (m³/h)
- 2400
- Max head (bar)
- 4.8
- Pipe diameter (mm)
- 350
- Weight (t)
- 5.33
- Max sphere passage (mm)
- 150
