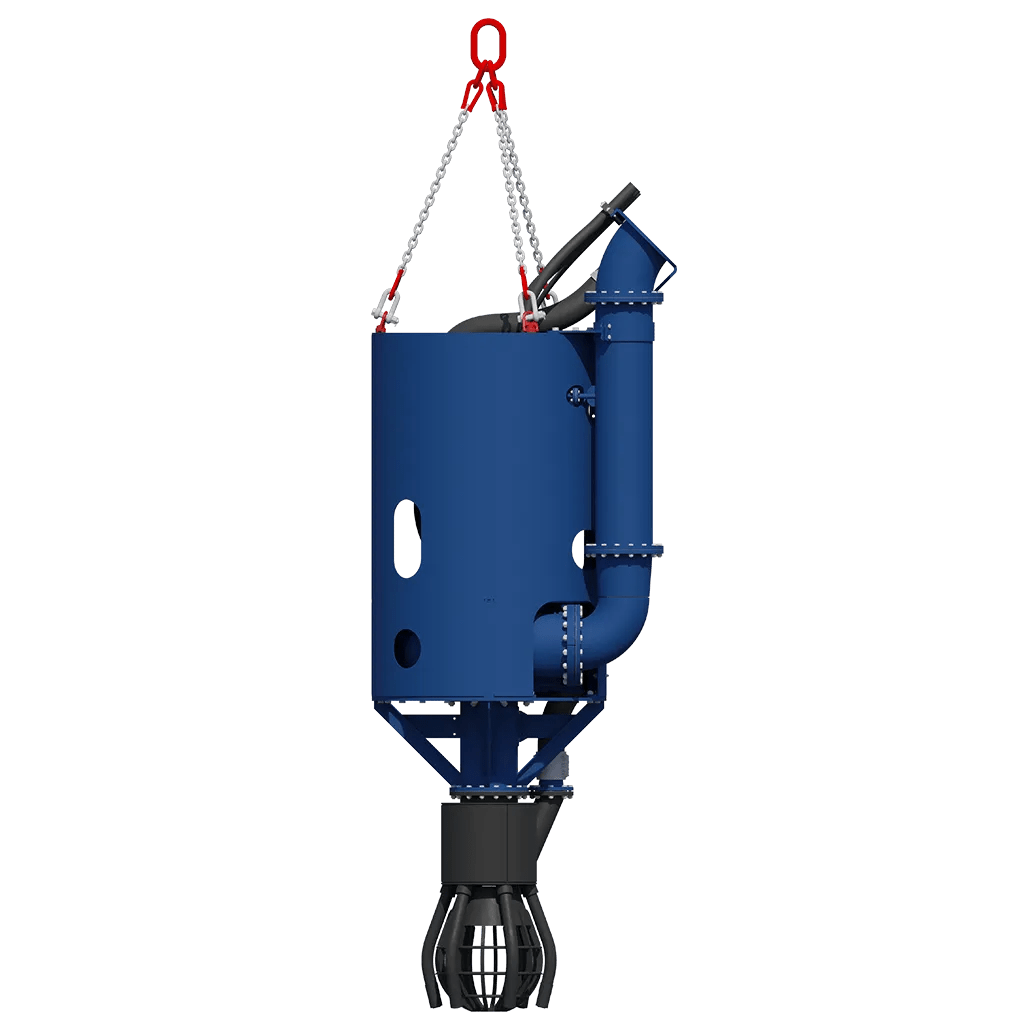

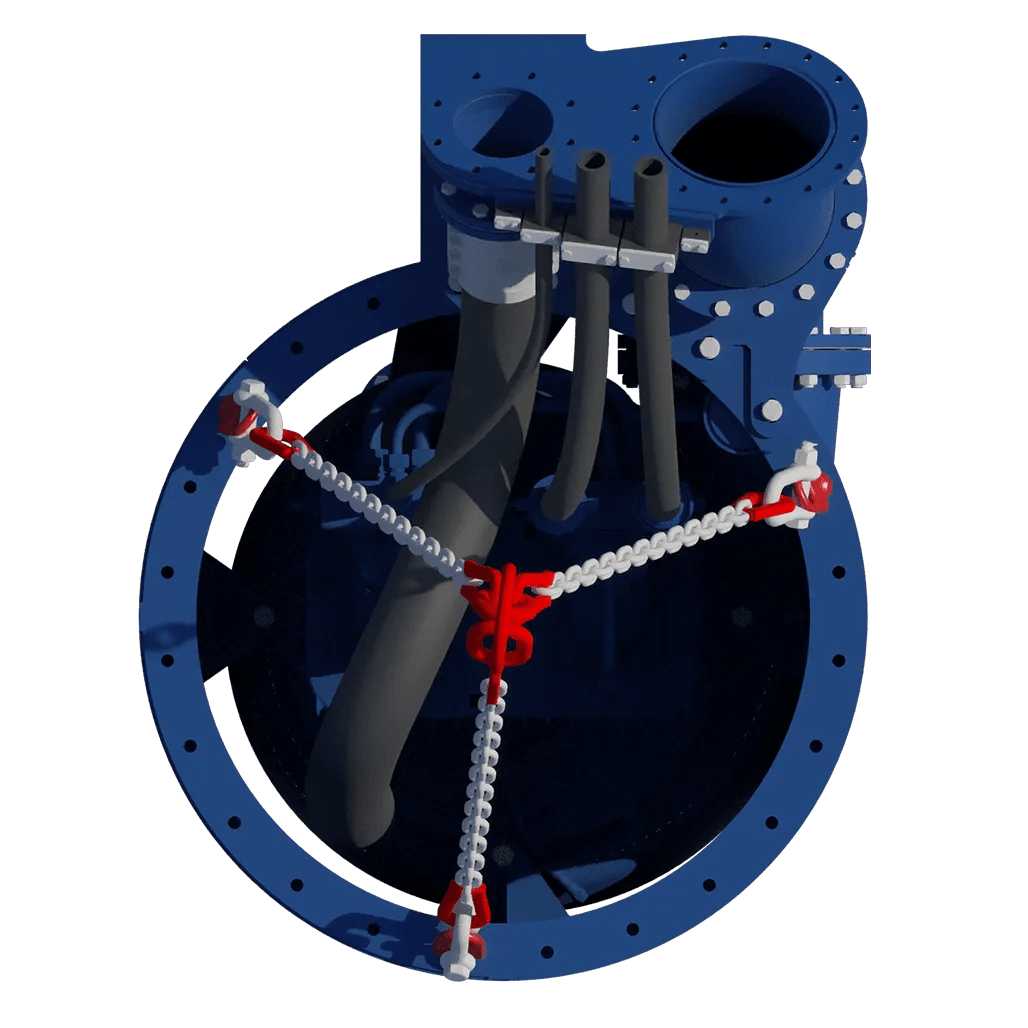

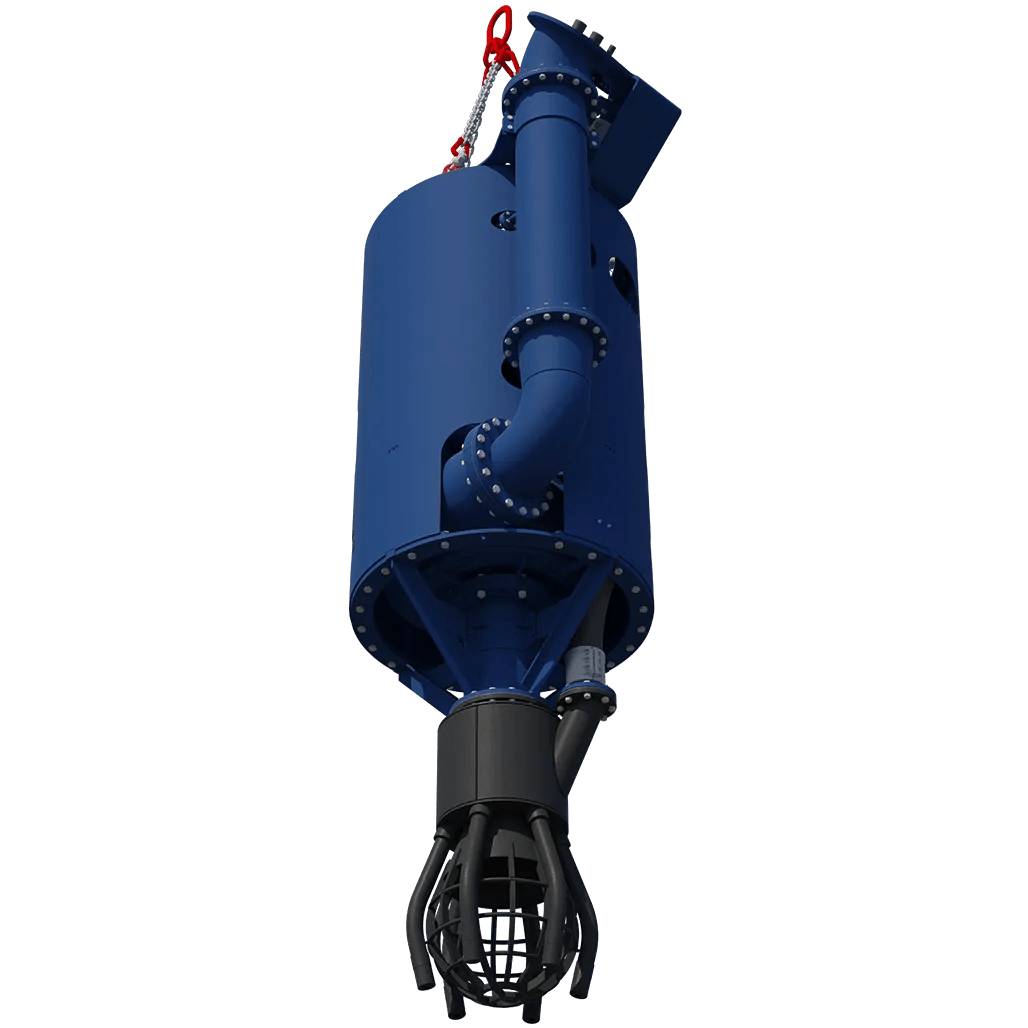

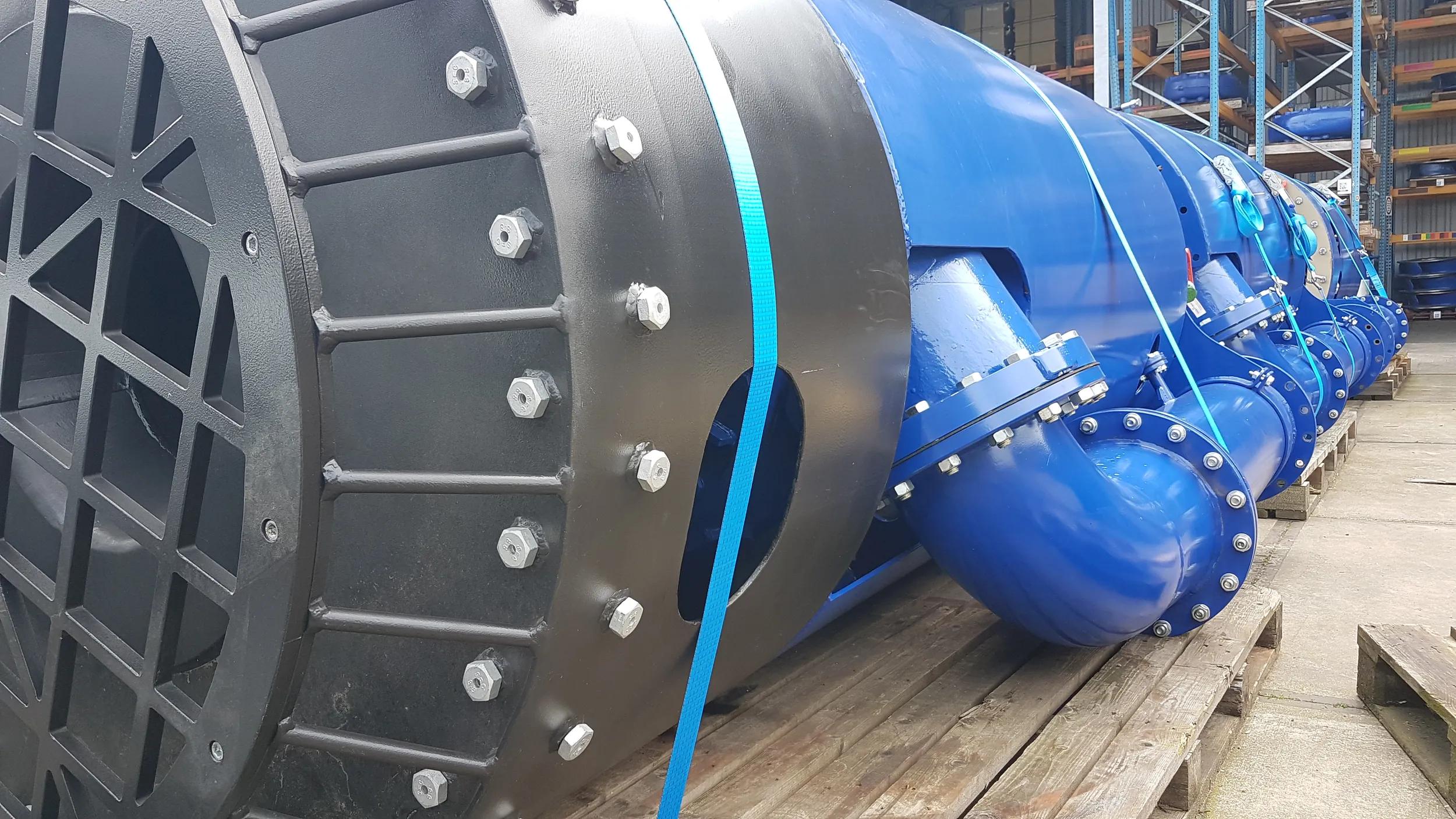

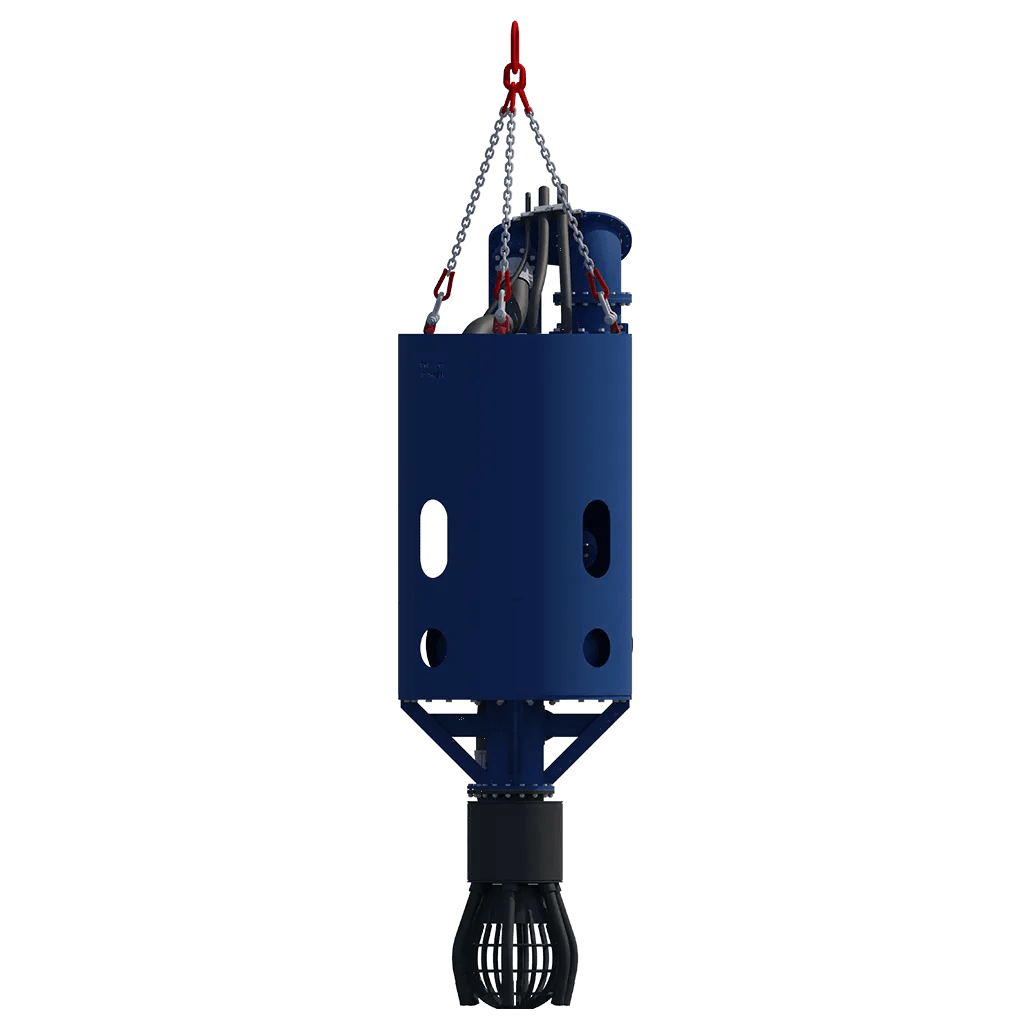

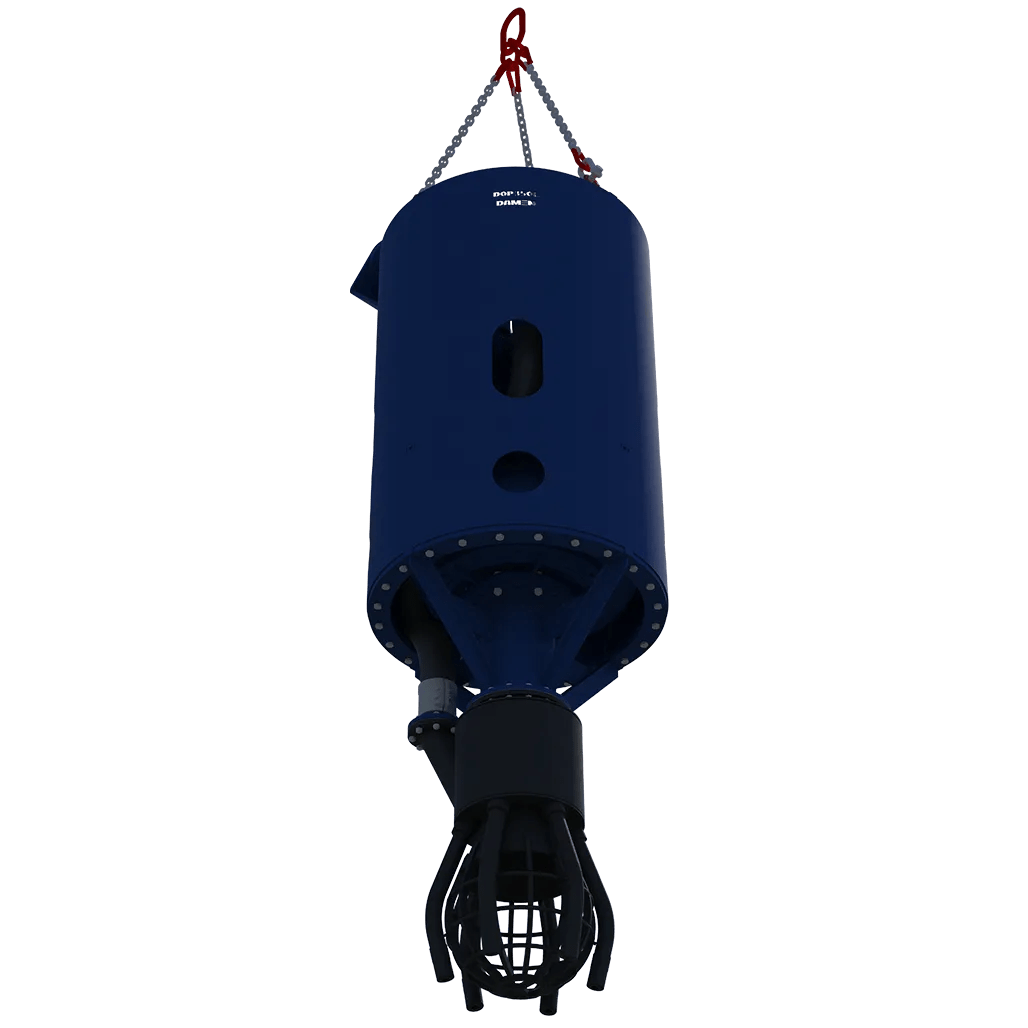

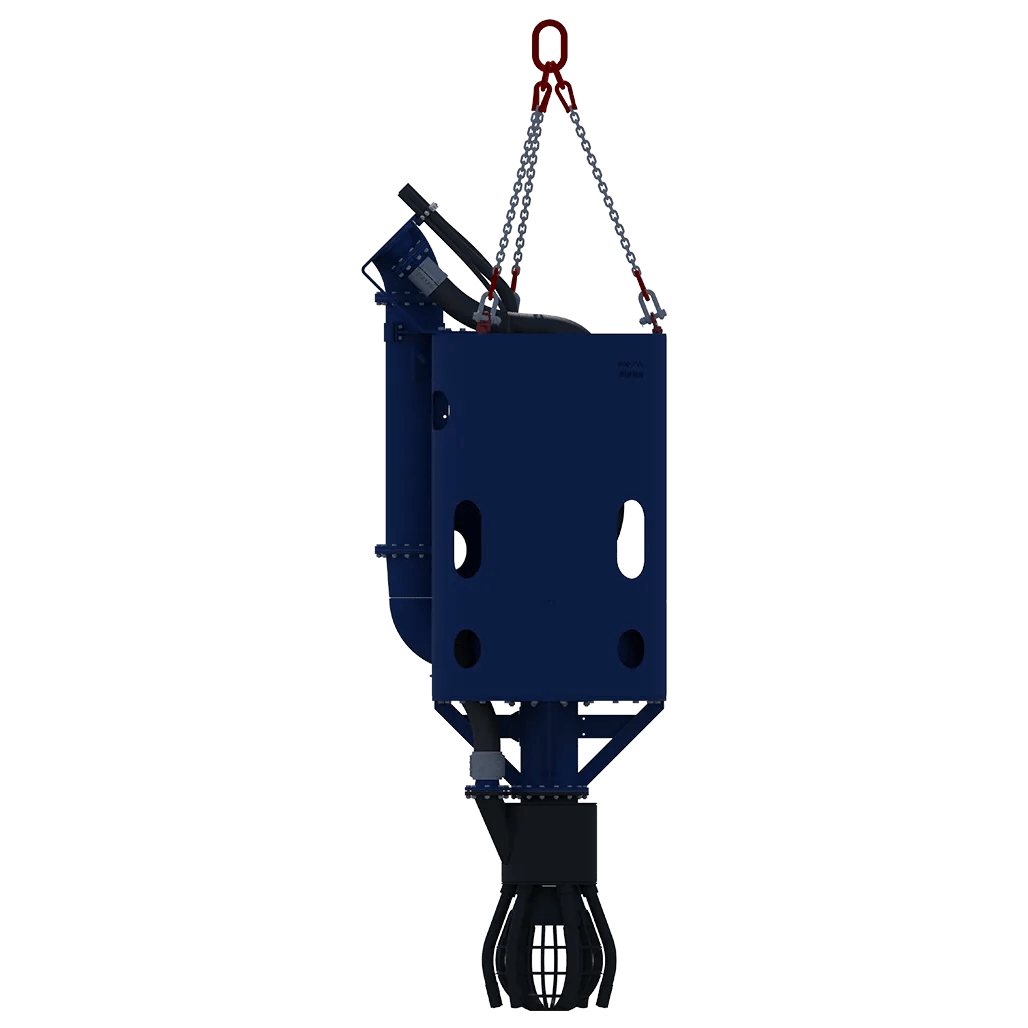

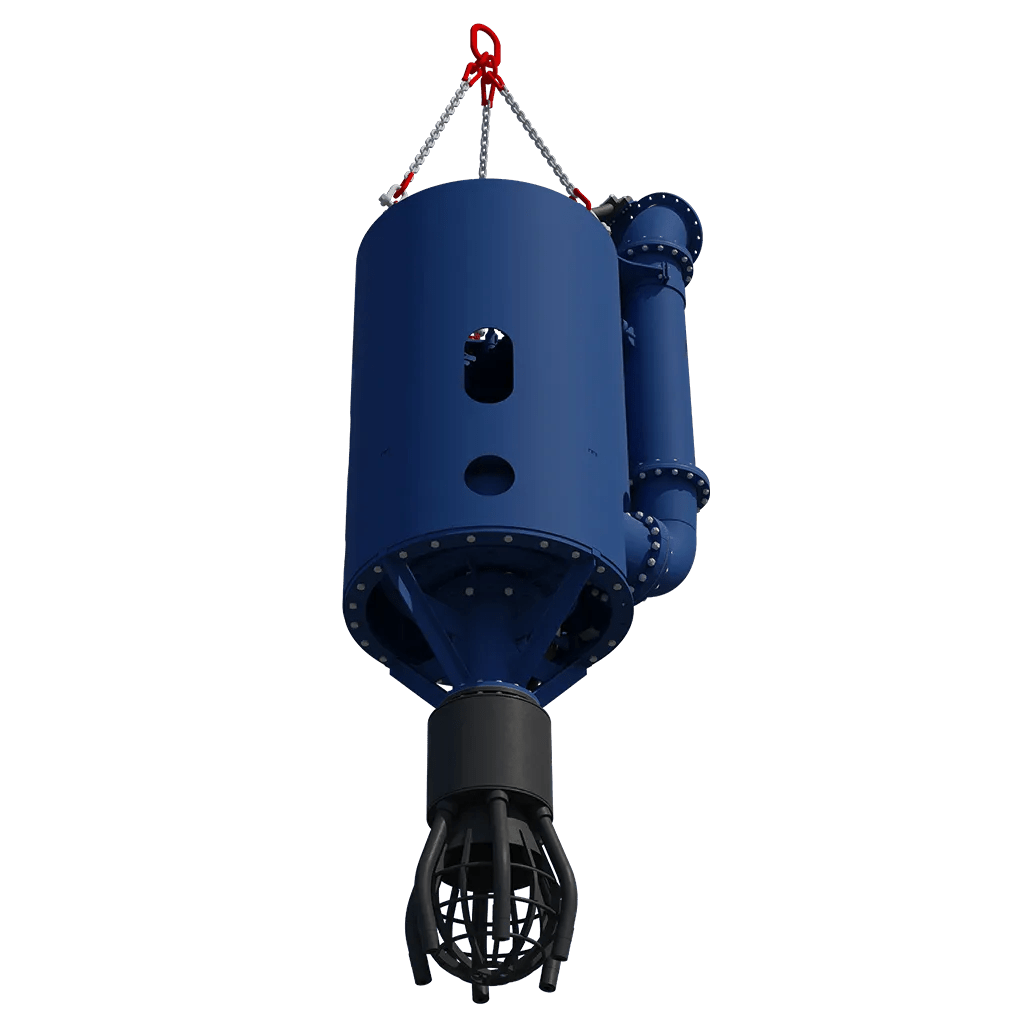

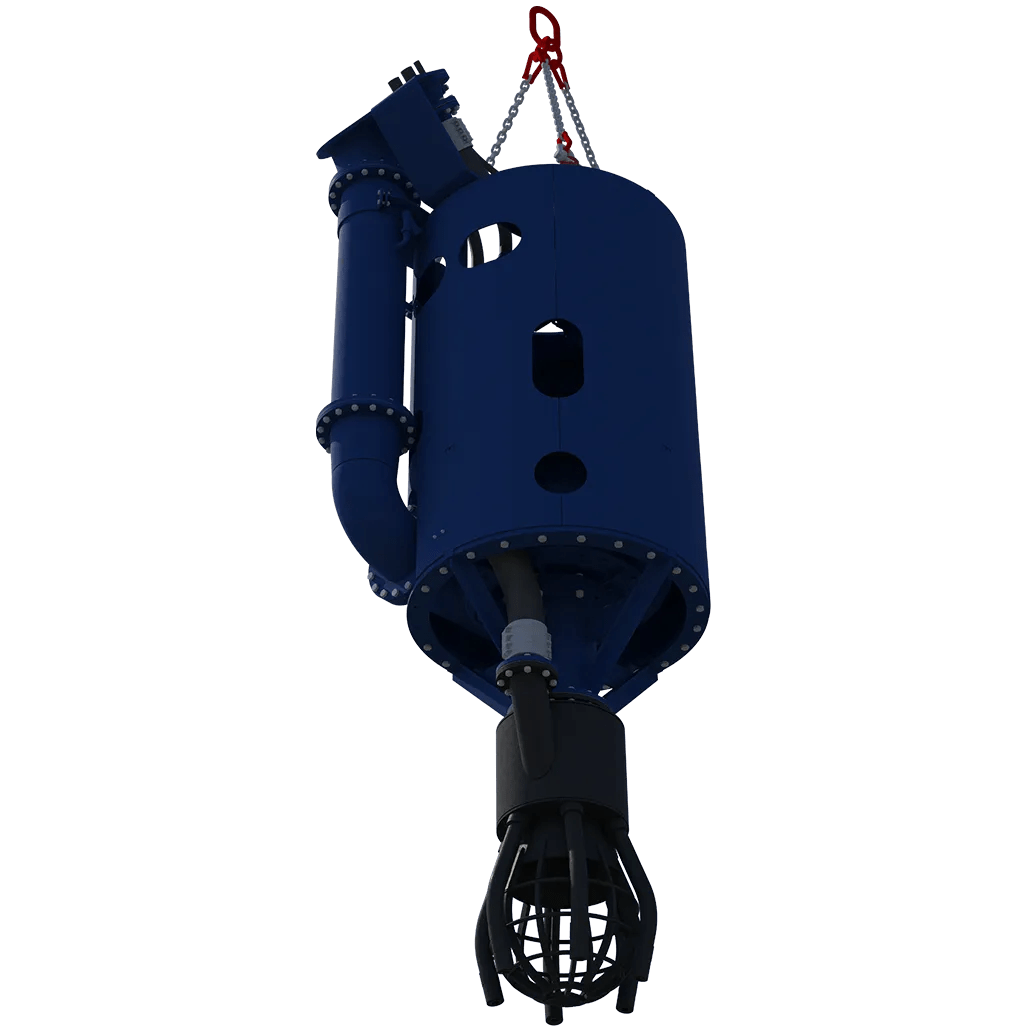

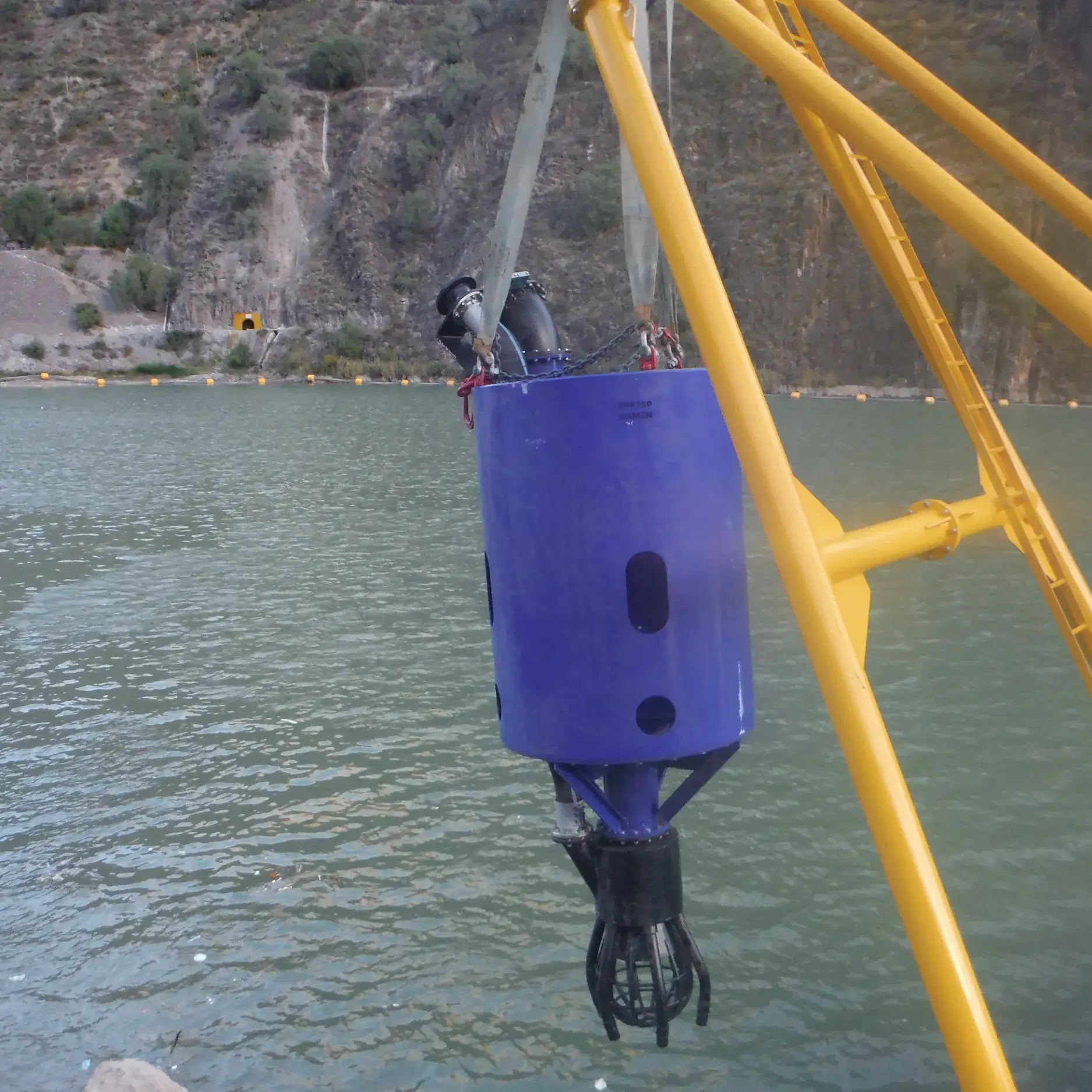

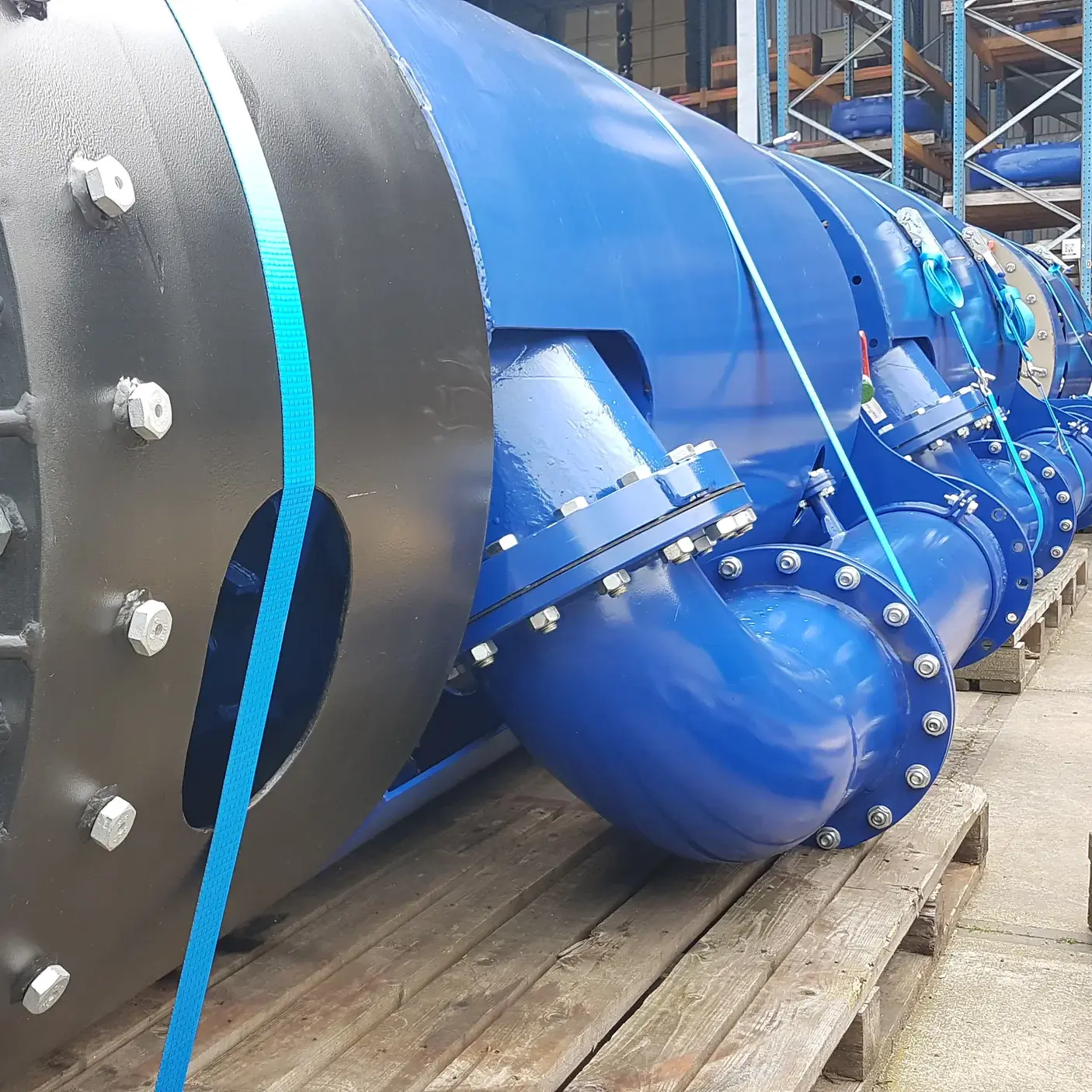

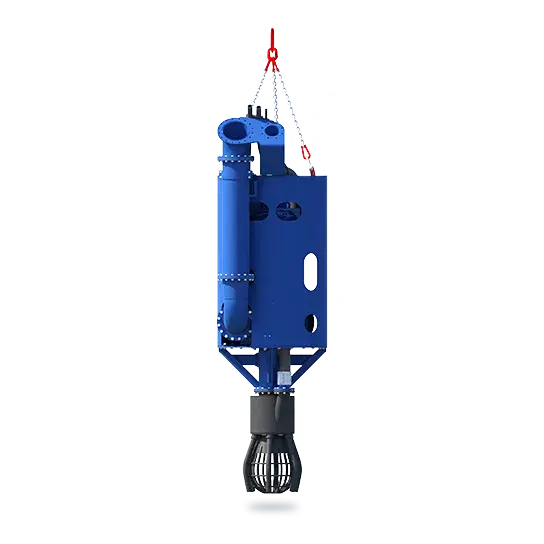

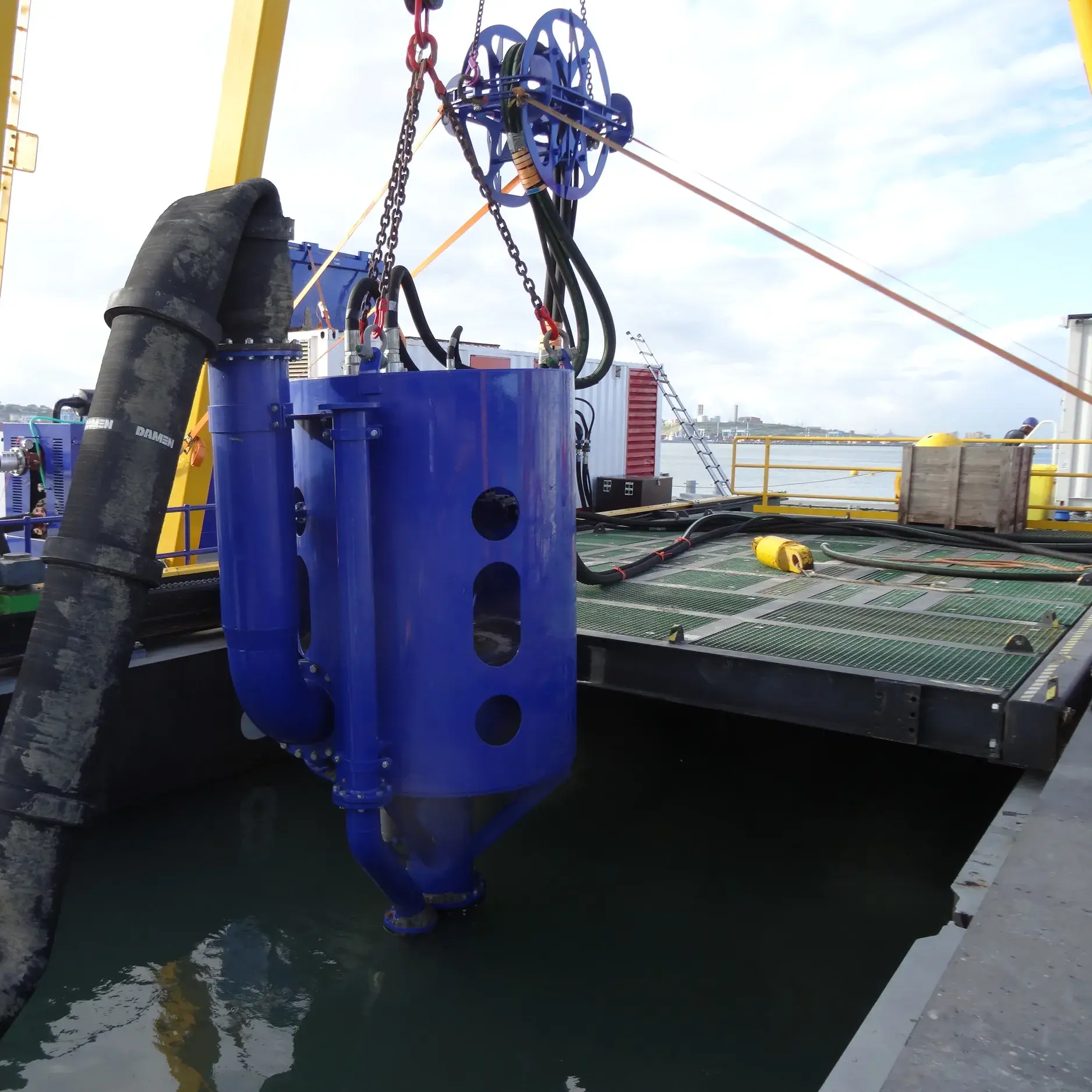

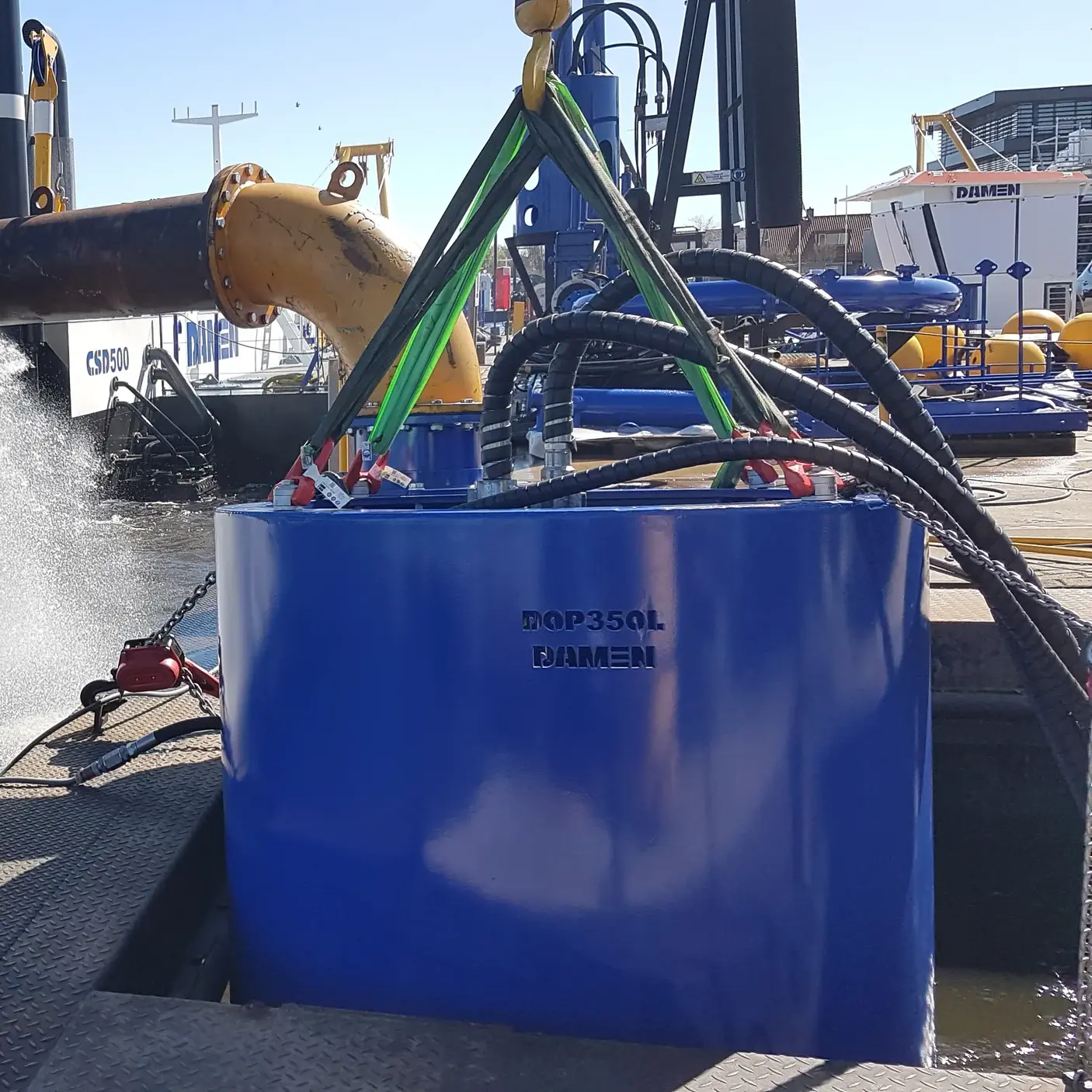

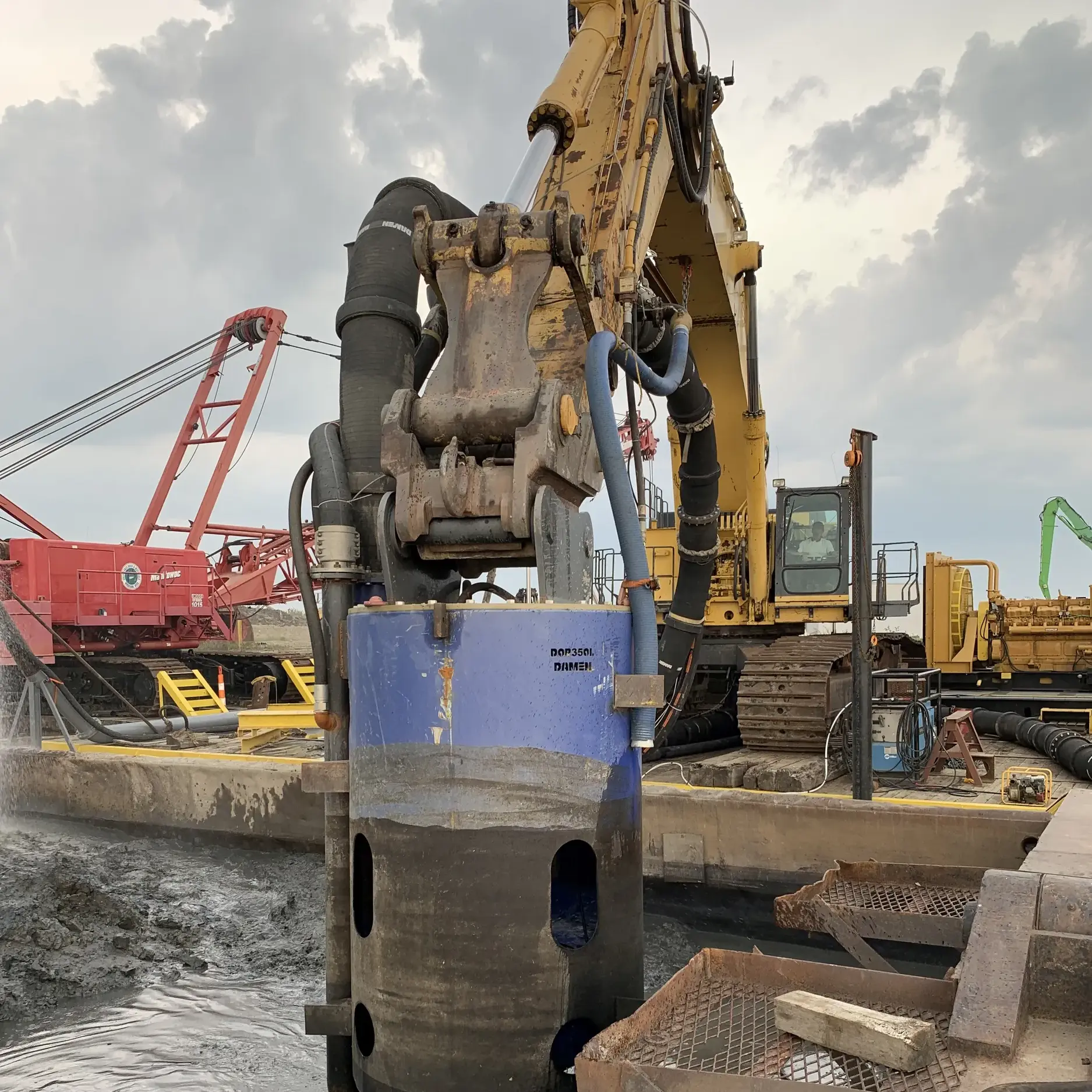

DOP submersible dredge pump DOP350L
DOP submersible dredge pump DOP350L

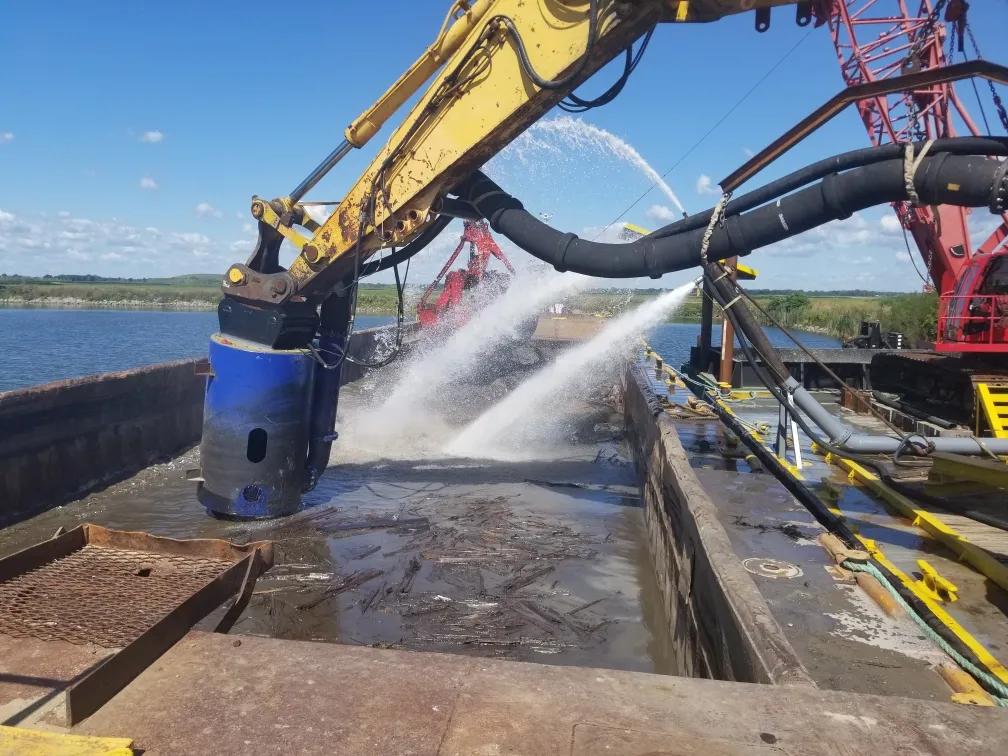

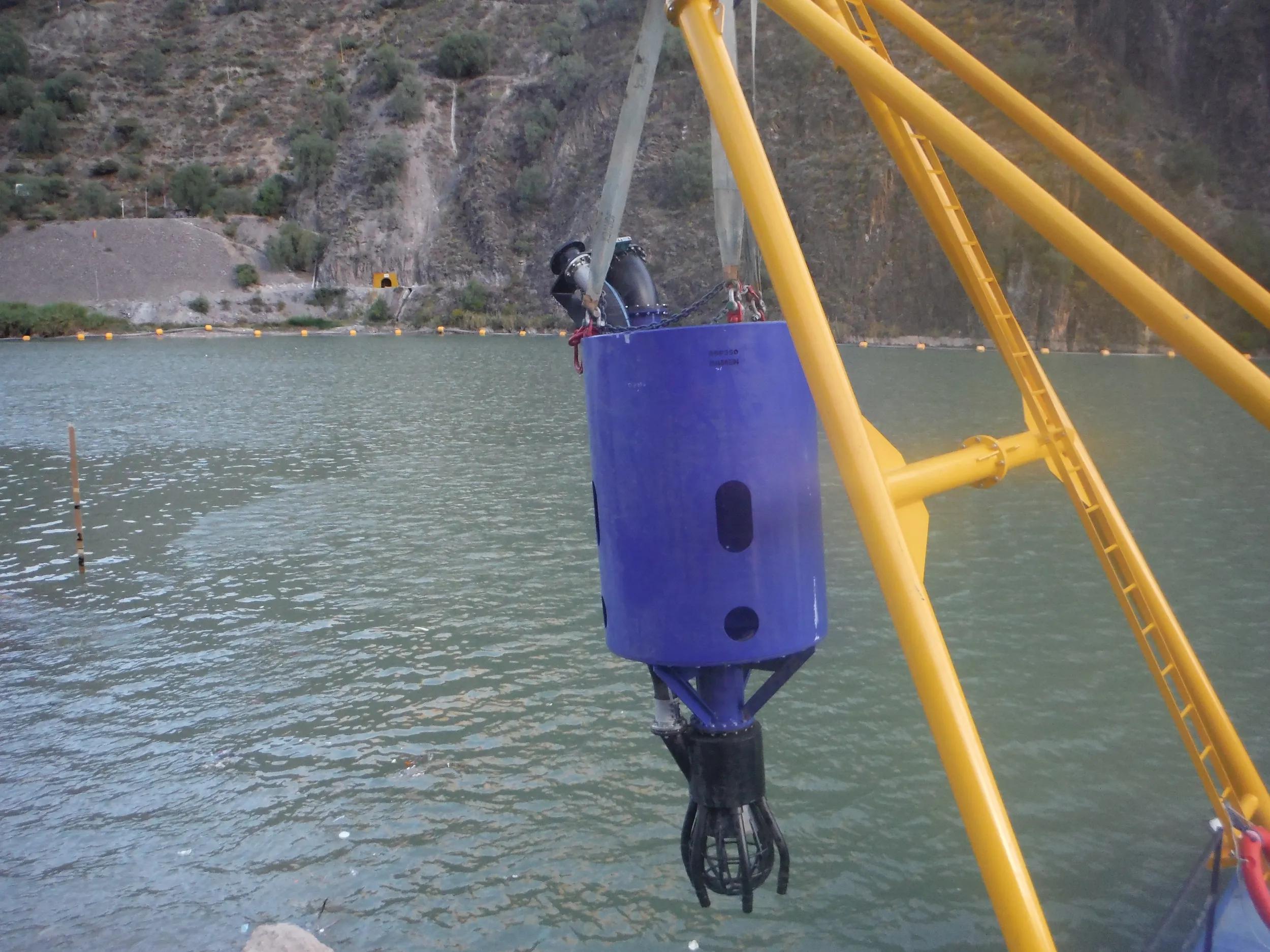

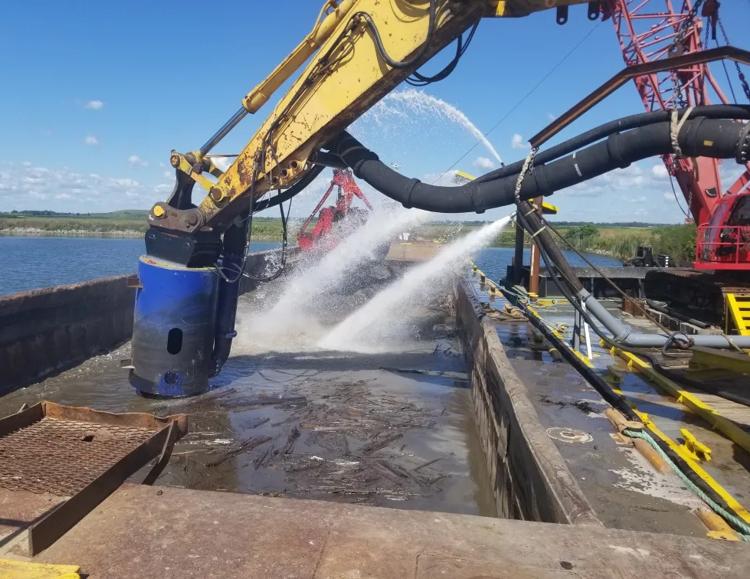

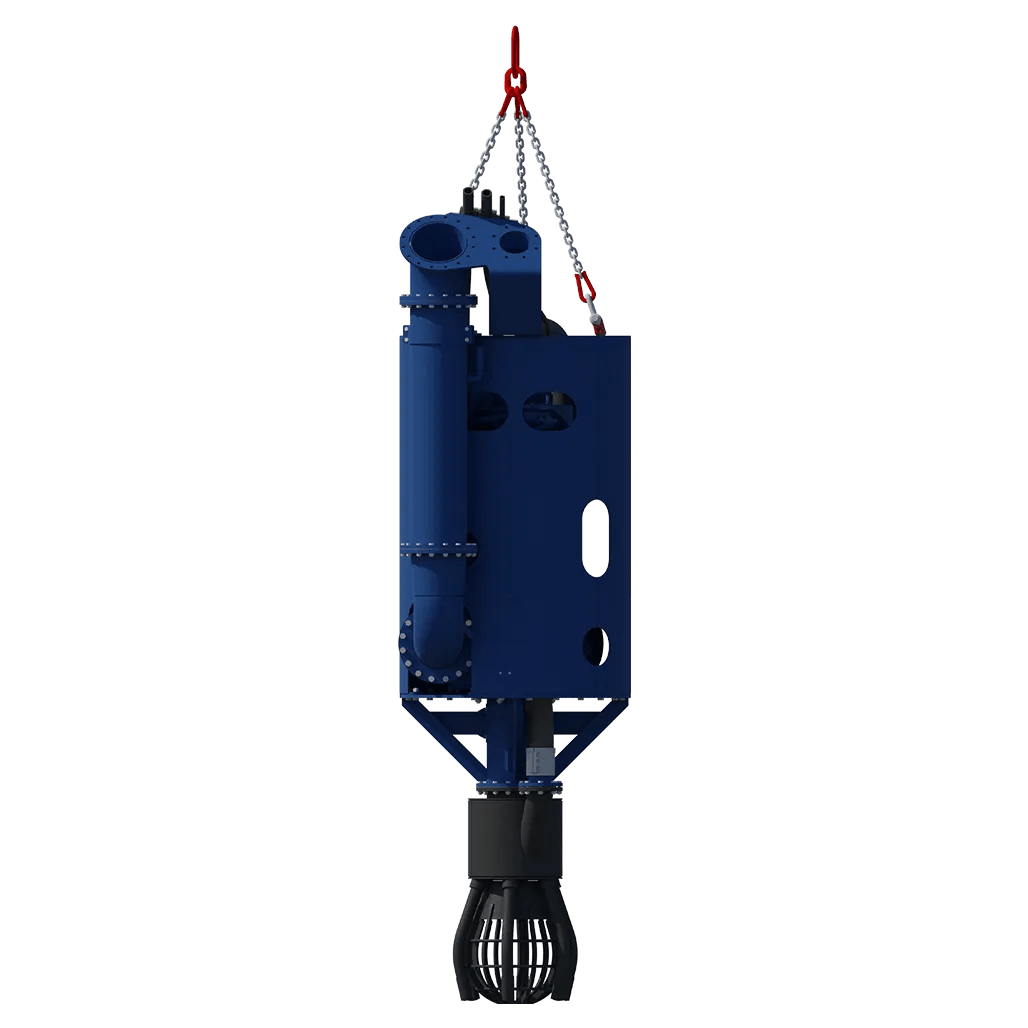

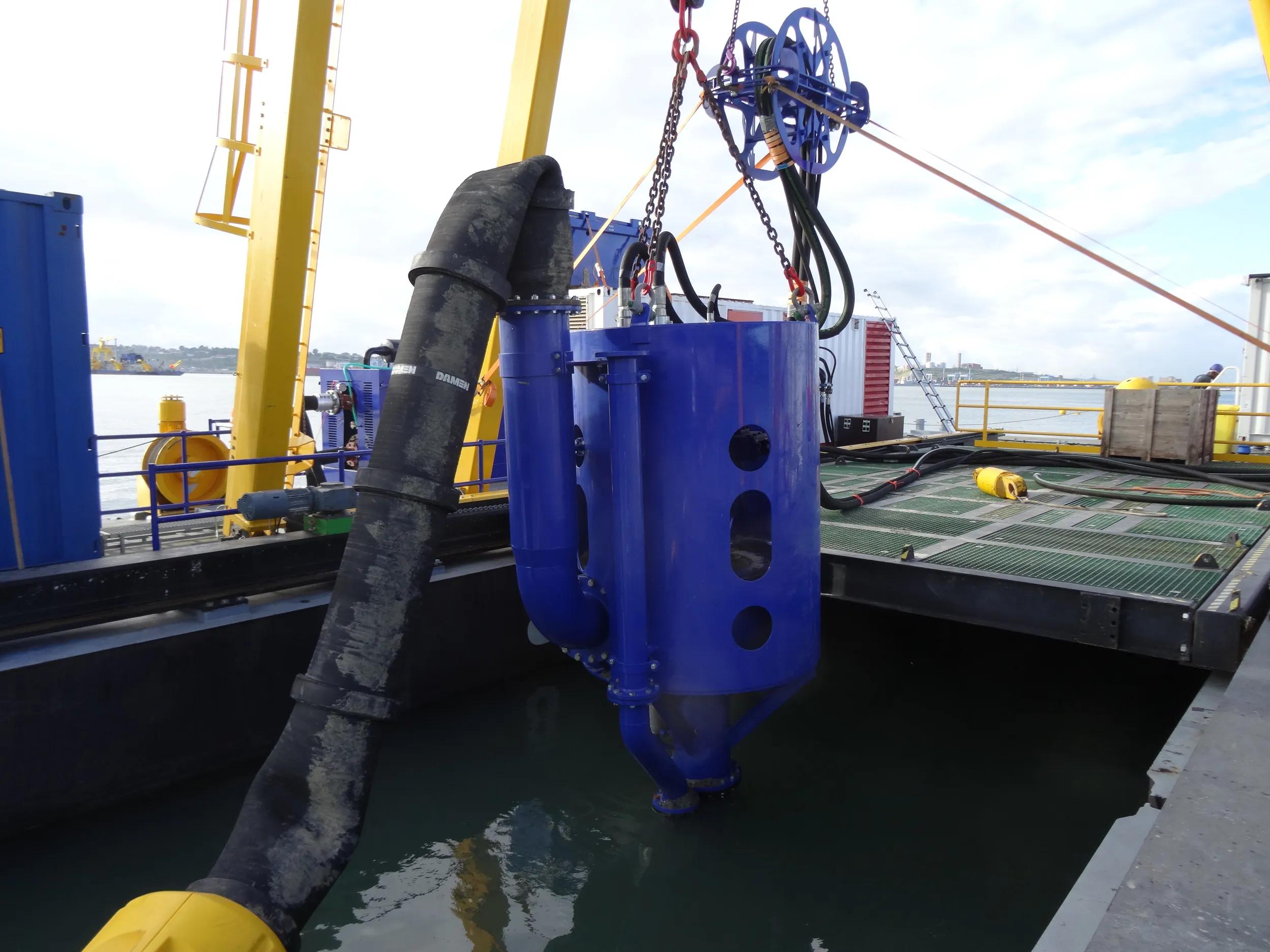

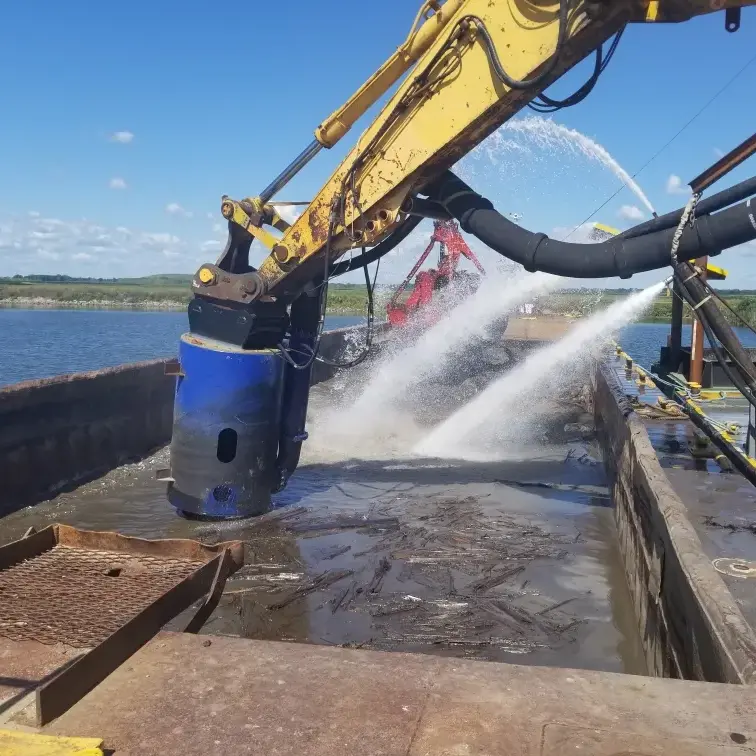

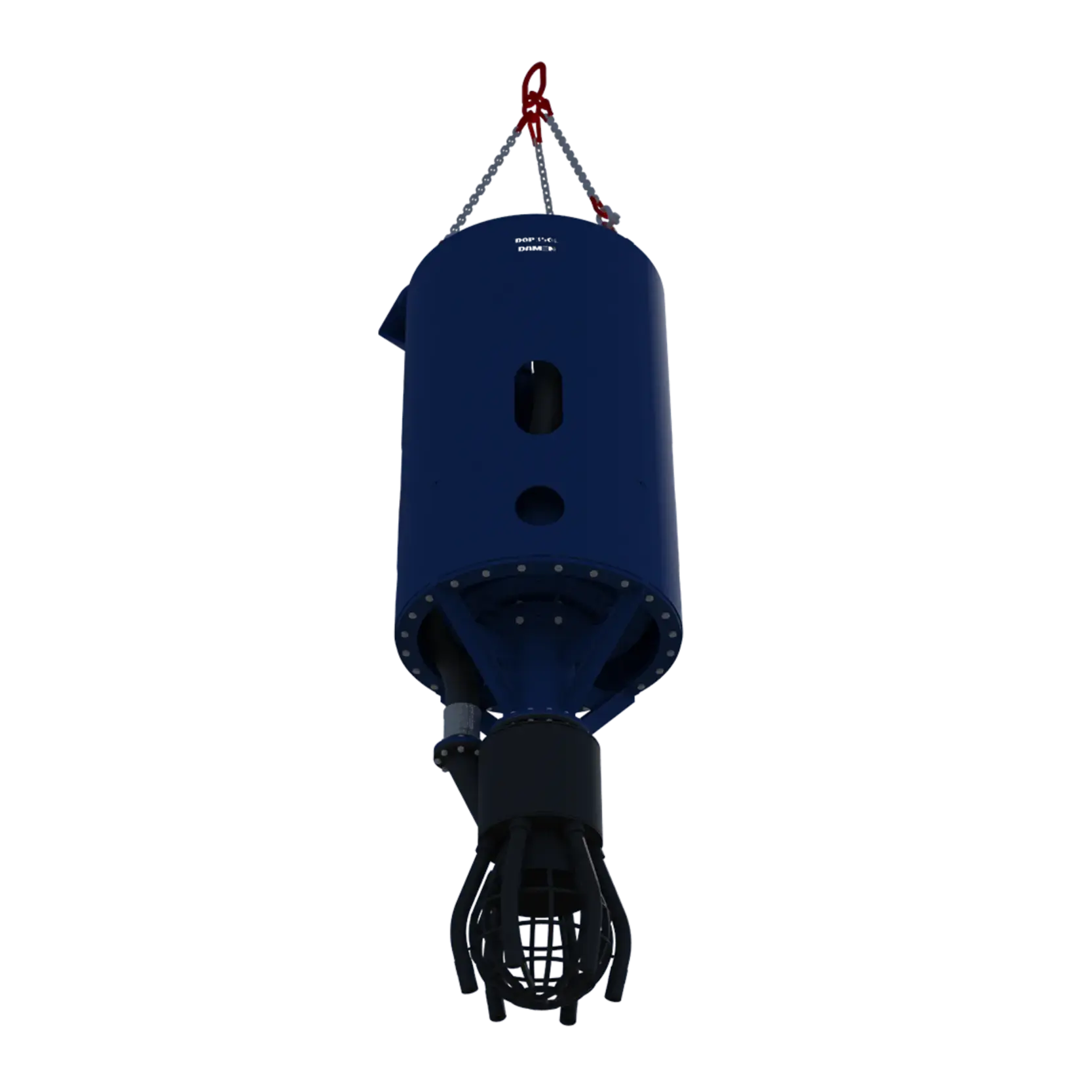

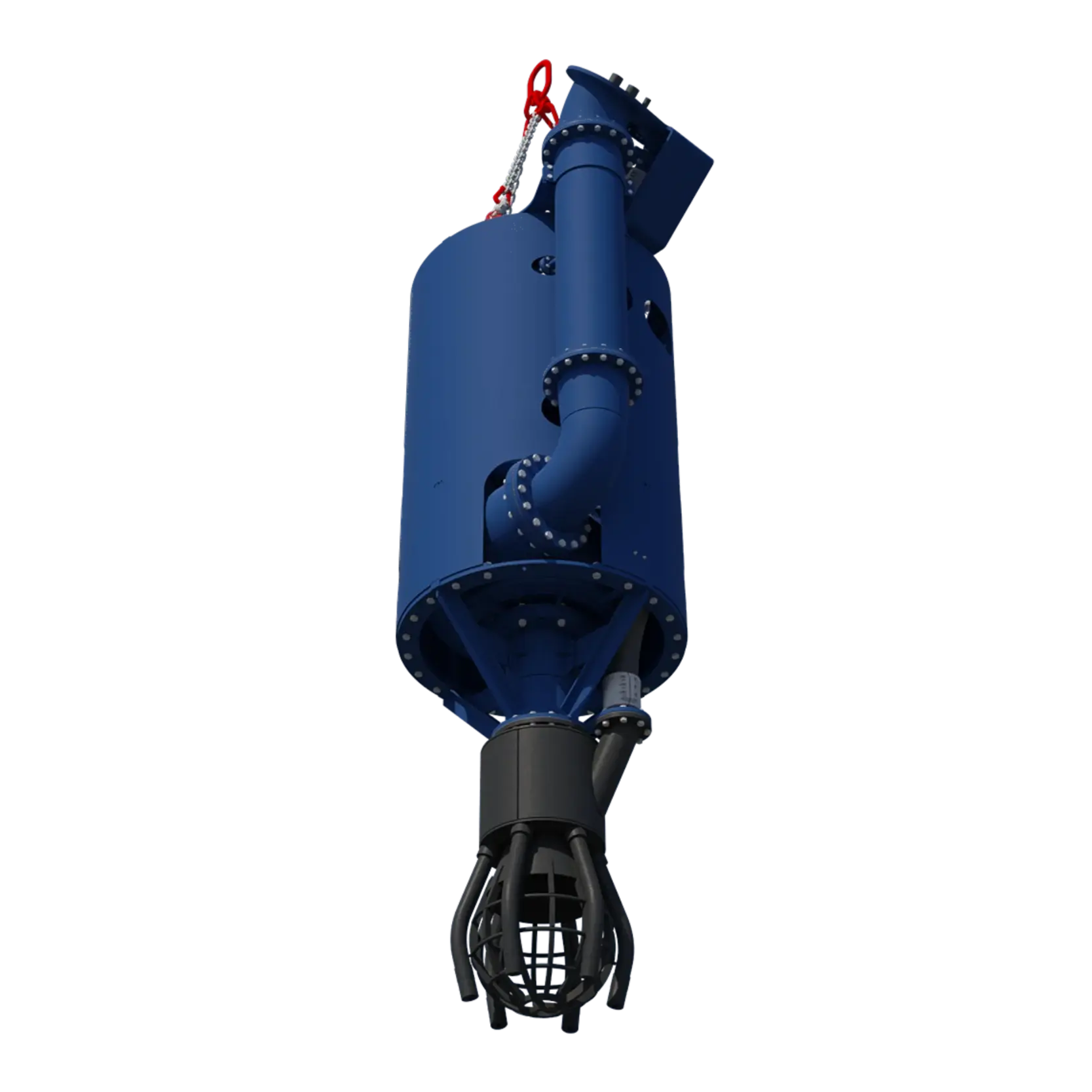

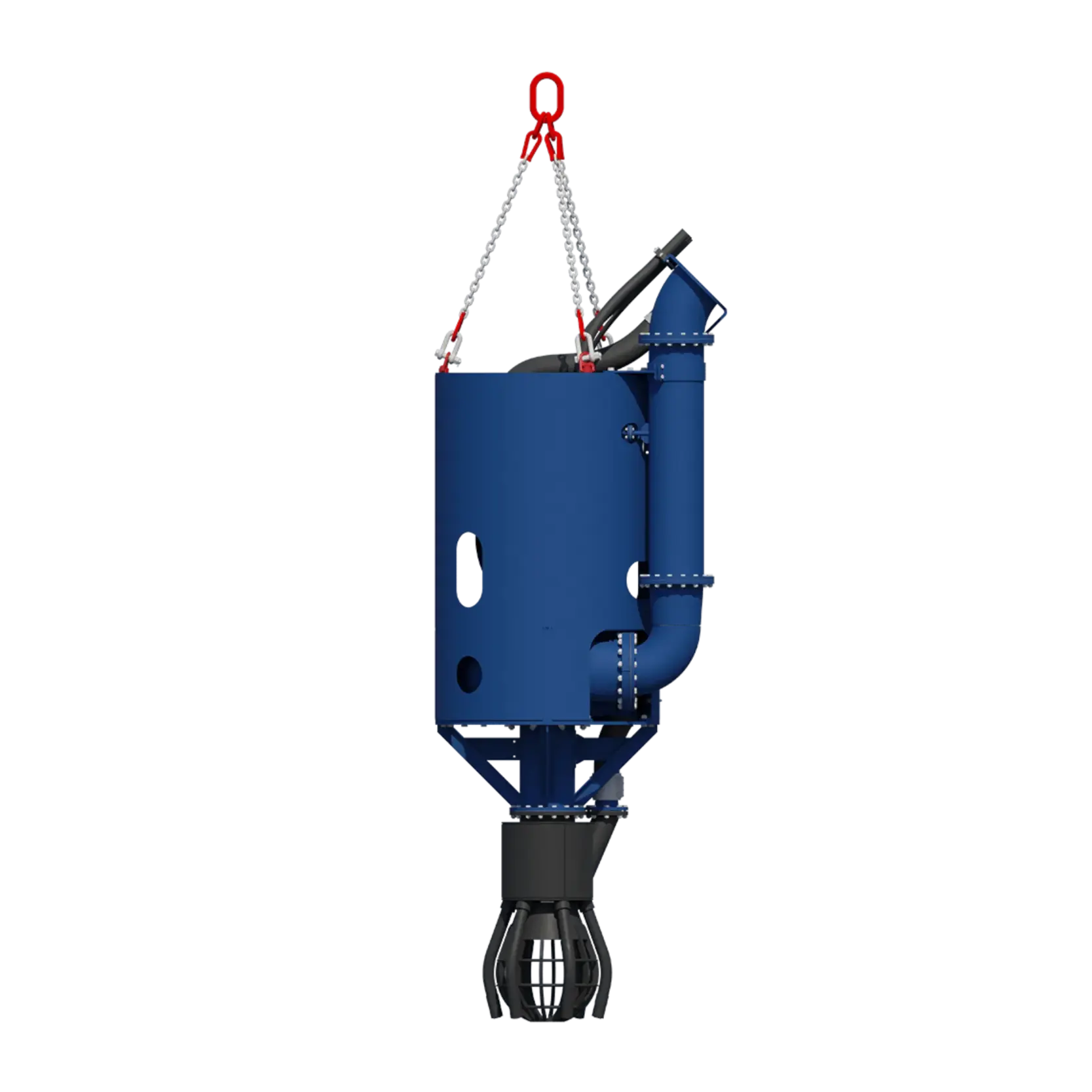

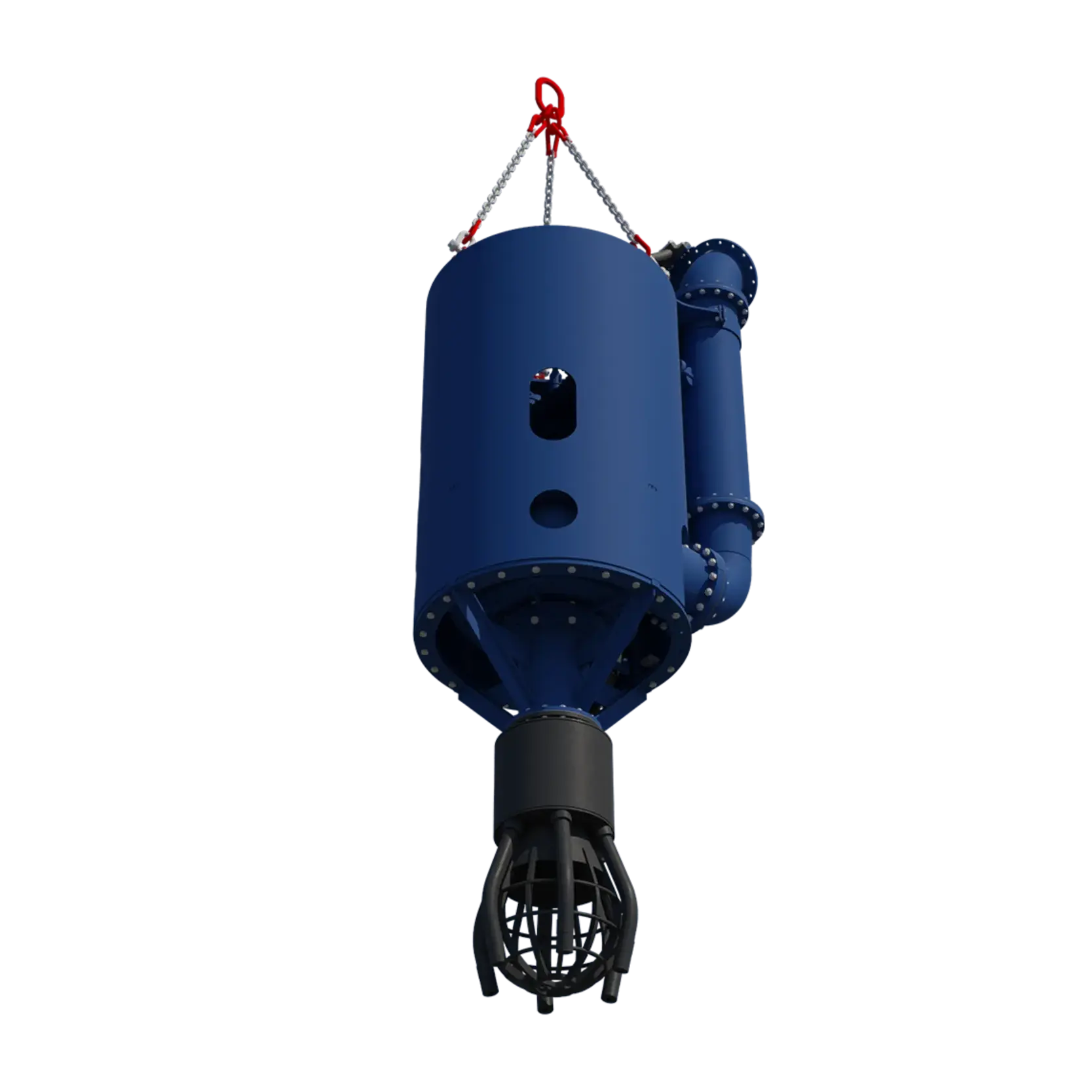

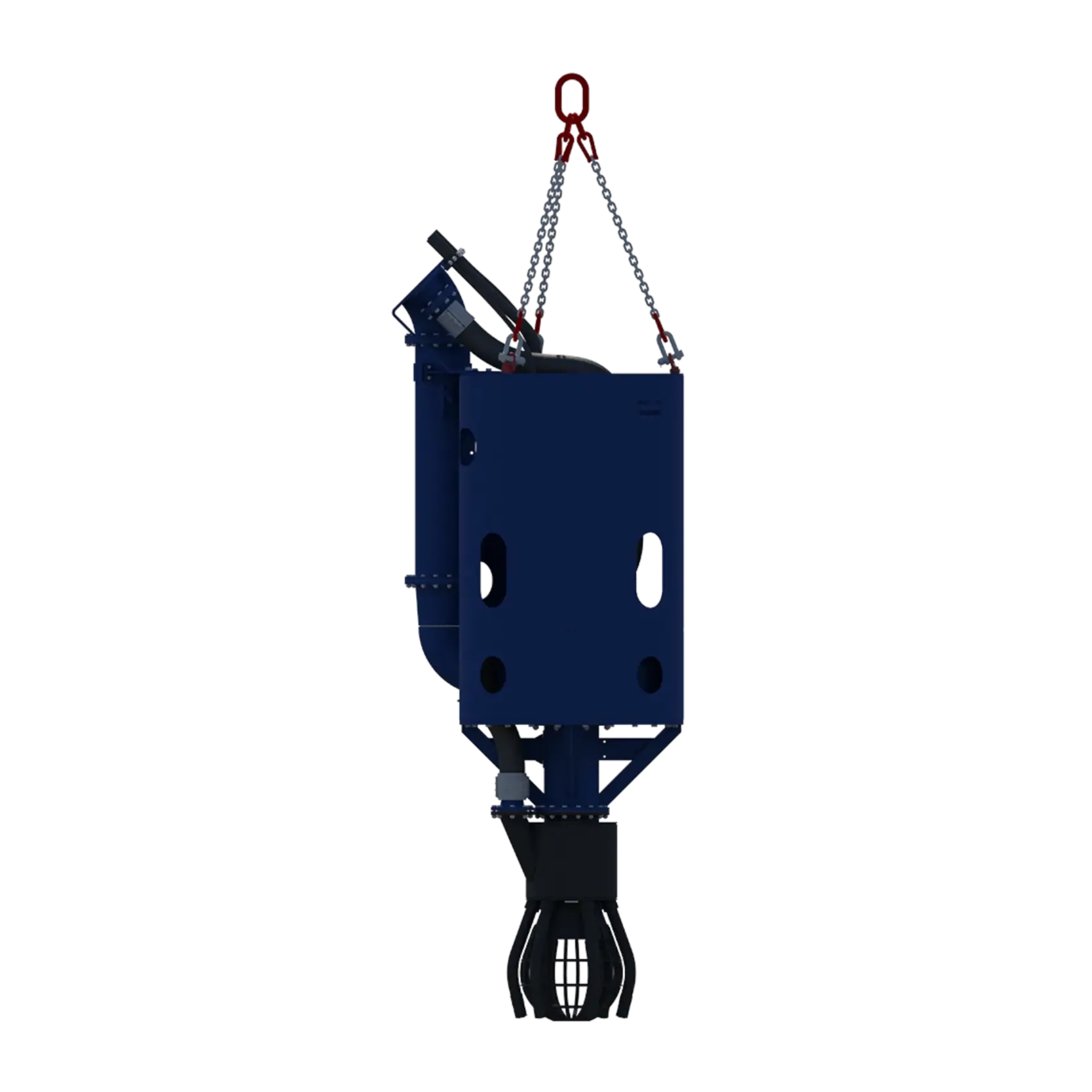

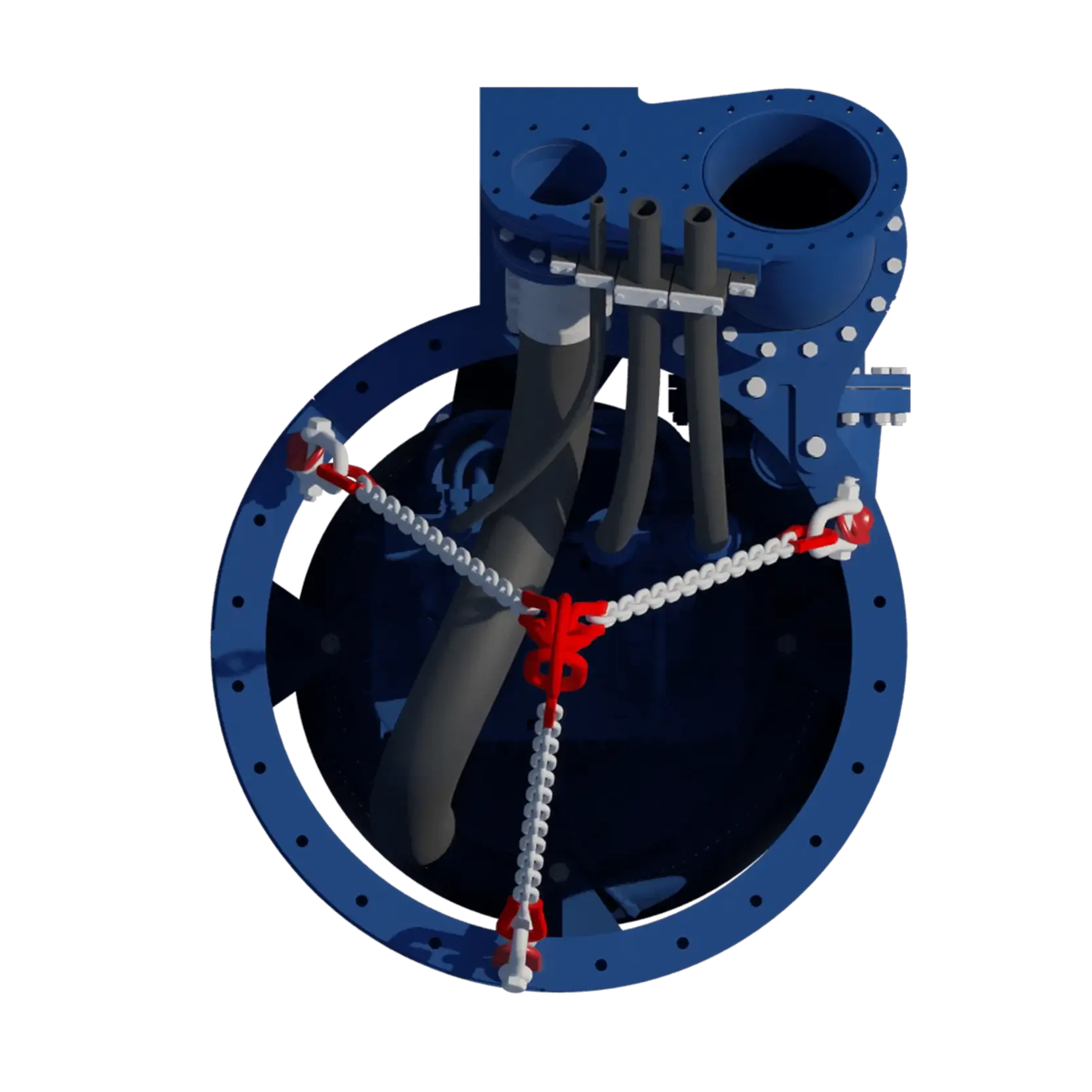

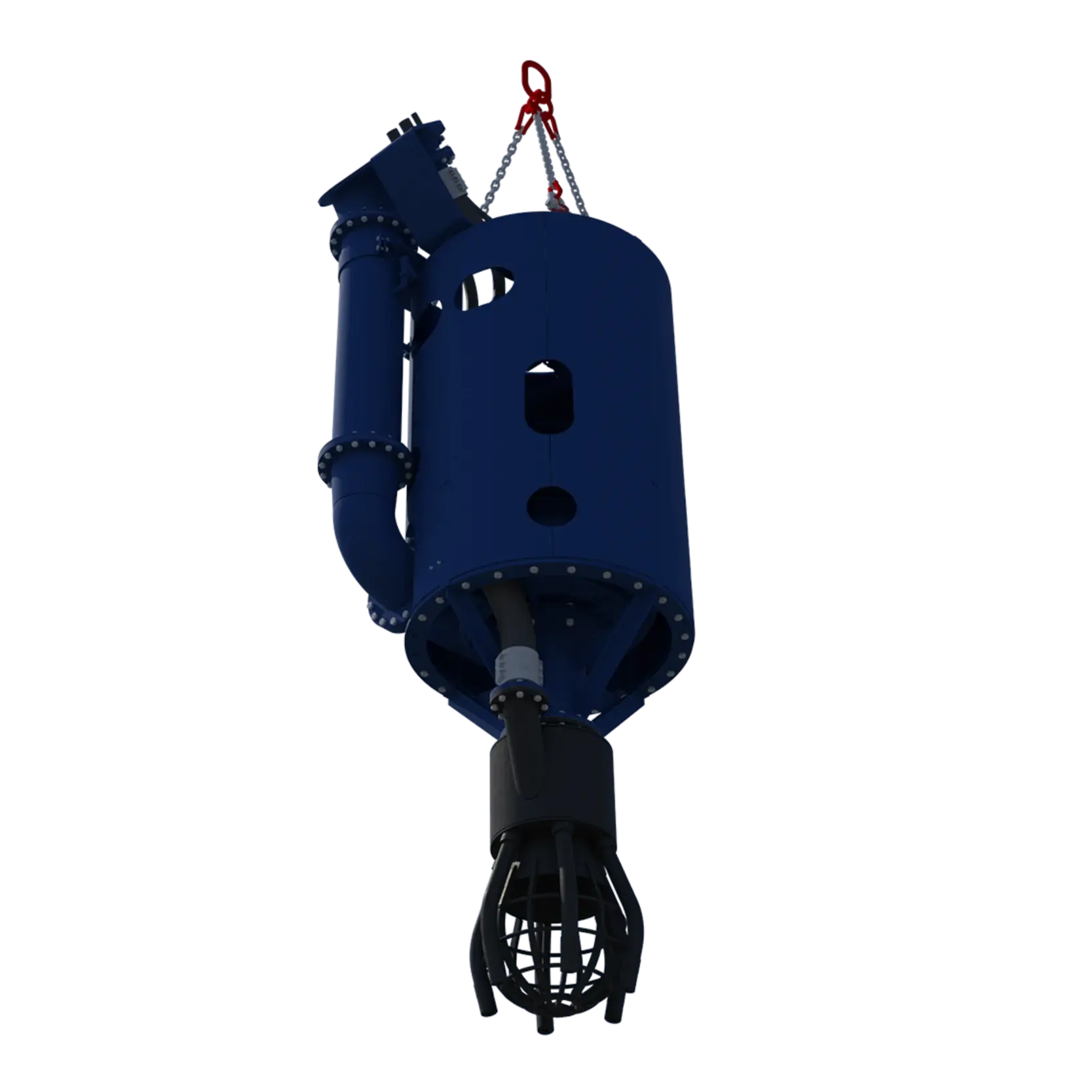

The DOP350L is a compact low-pressure submersible dredge pump. Its user-friendly ‘plug & play’ design results in fast mobilisation. Moreover, it is designed with a maximised ball passage, ensuring optimal uptime as debris is less likely to get clogged in the pump. The dredge pump wear parts are fit for the abrasive dredging environment, making the DOP pump ideal for the efficient transport of a sand/water mixture.
- Power packs
- Discharge hoses
- Jet packs
- Hydraulic hoses
Fuel flexible
- Diesel
- Electric
- Easy to handle and quick mobilisation
- Adaptable to any dredging job by changing the suction head
- Wear resistant white cast iron wear parts
- Large ball passage maximising uptime
Key figures
2400
3.2
350
4.58
200
Performance
- Mixture capacity
- 2400 m³/h
- Max head
- 3.2 bar
- Max pump speed
- 625 rpm
- Max power
- 240 kW
Requirements
- Hydr oil flow
- 600 l/min
- Hydr oil pressure
- 250 bar
- Jet water
- 600 m³/h
- Jet water pressure
- 8 bar
Dimensions
- Suction diameter
- 350 mm
- Discharge diameter
- 350 mm
- Max sphere passage
- 200 mm
- Unit weight
- 4580 kg
Do you want to know more?
Compare similar DOP pumps
| Production (m³/h) | Max head (bar) | Pipe diameter (mm) | Weight (t) | Max sphere passage (mm) | ||
|---|---|---|---|---|---|---|
| DOP submersible dredge pump DOP350L | 2400 | 3.2 | 350 | 4.58 | 200 | |
| Electrical DOP submersible dredge pump E-DOP350L | 2400 | 3.3 | 350 | 6.17 | 200 | |
| DOP submersible dredge pump DOP450L | 4000 | 3.5 | 450 | 7.4 | 165 |
DOP submersible dredge pump DOP350L
- Production (m³/h)
- 2400
- Max head (bar)
- 3.2
- Pipe diameter (mm)
- 350
- Weight (t)
- 4.58
- Max sphere passage (mm)
- 200
- Production (m³/h)
- 2400
- Max head (bar)
- 3.3
- Pipe diameter (mm)
- 350
- Weight (t)
- 6.17
- Max sphere passage (mm)
- 200
- Production (m³/h)
- 4000
- Max head (bar)
- 3.5
- Pipe diameter (mm)
- 450
- Weight (t)
- 7.4
- Max sphere passage (mm)
- 165
