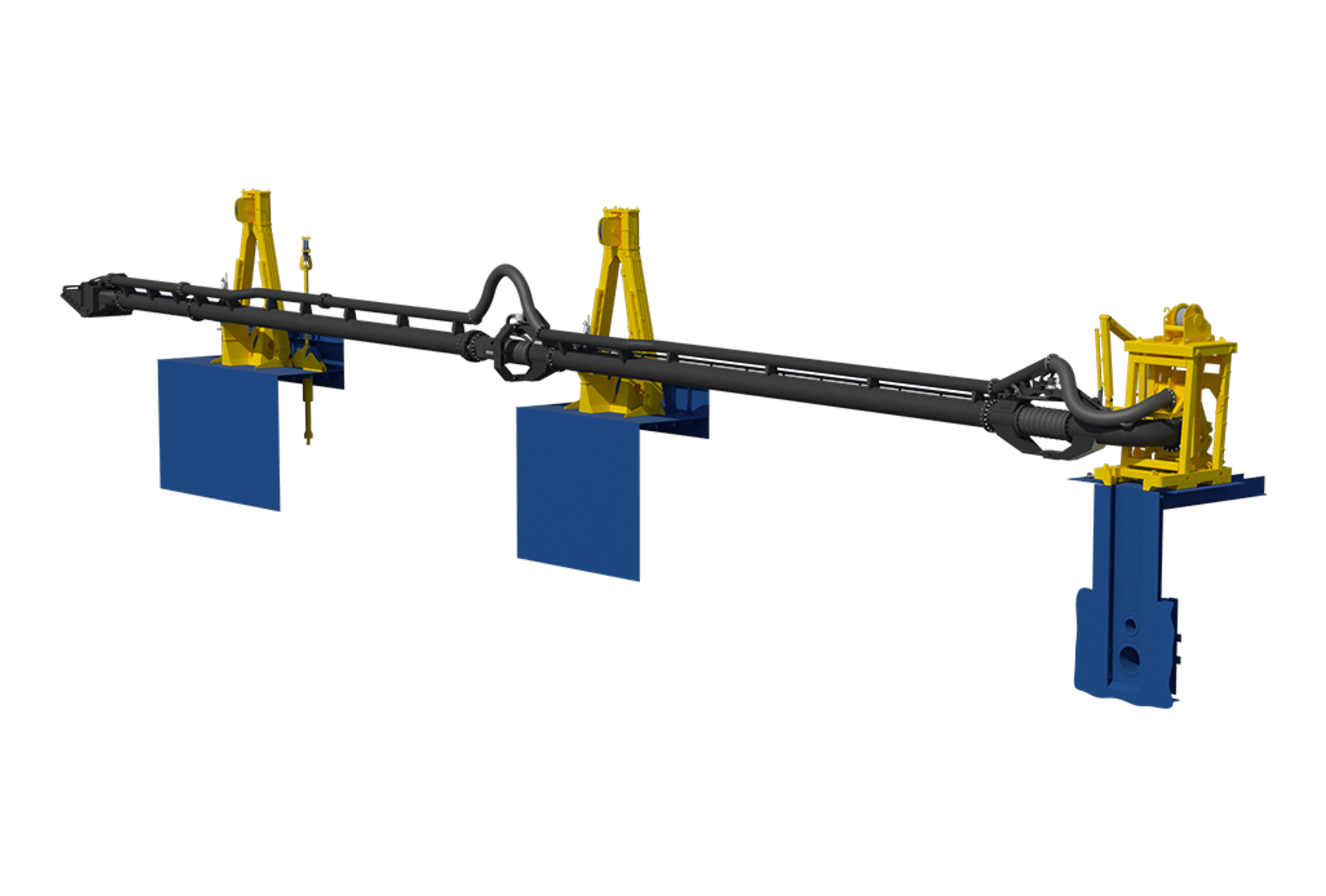

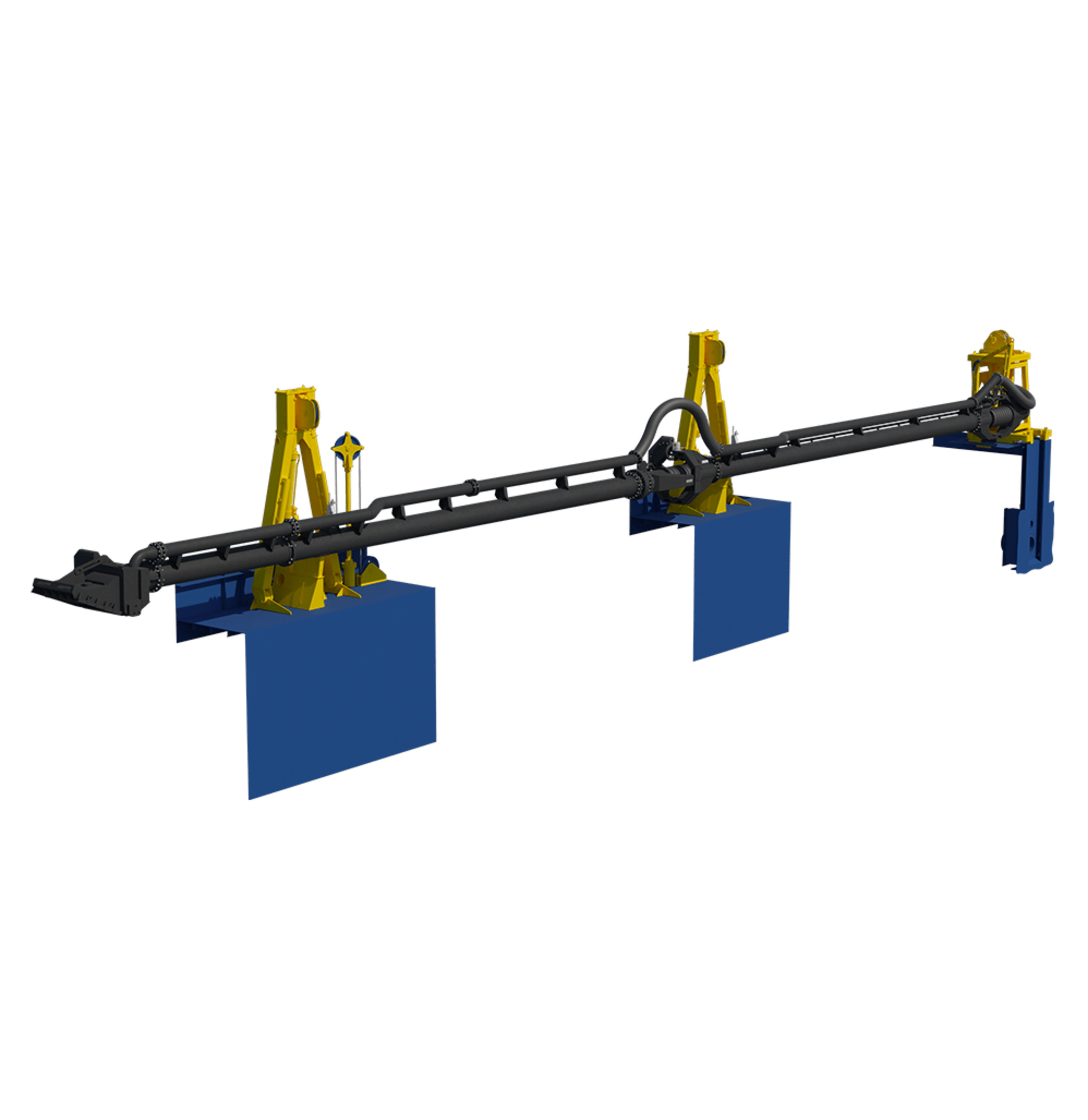

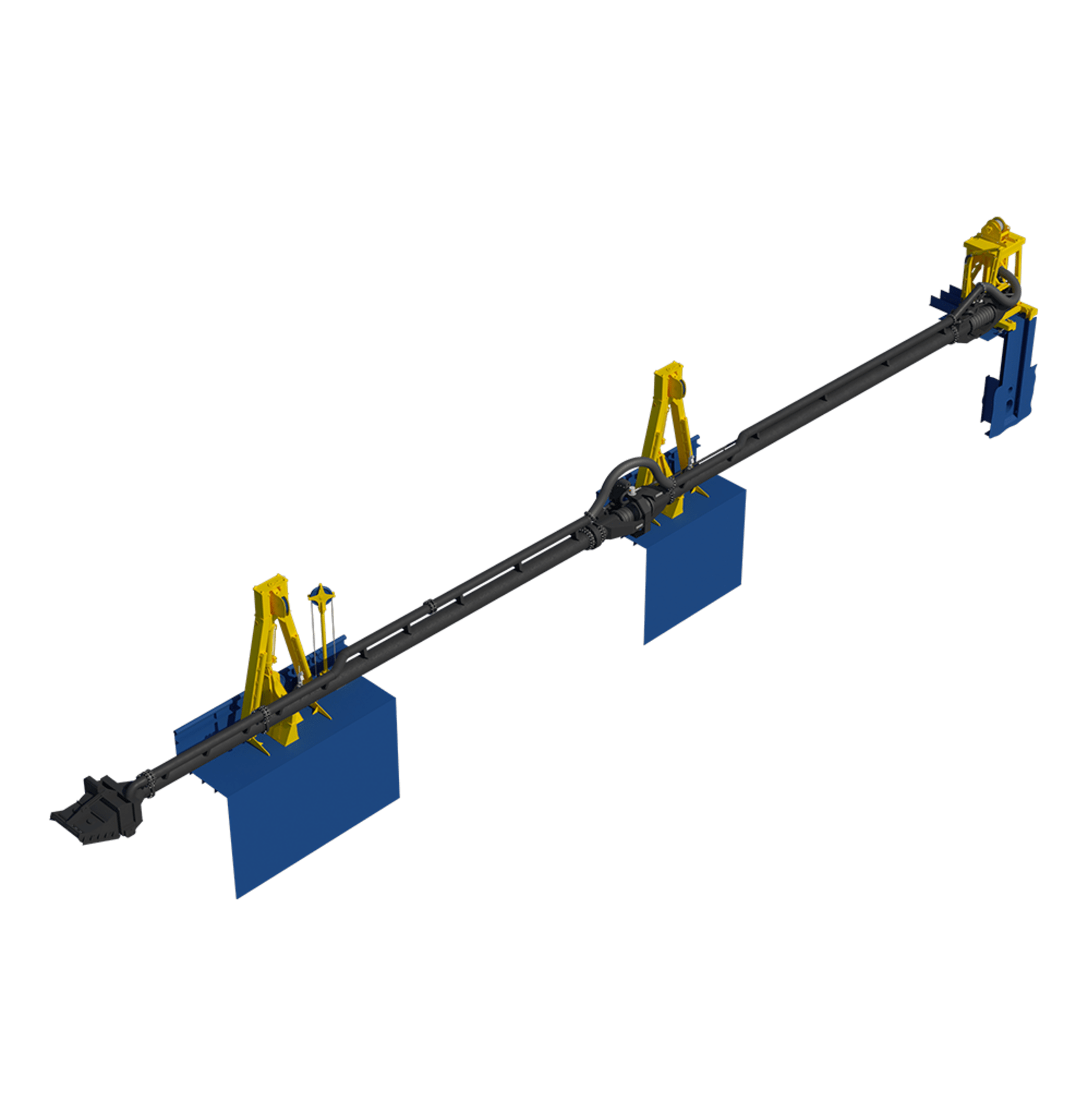

Trailing Suction Pipe TSP400
Trailing Suction Pipe TSP400

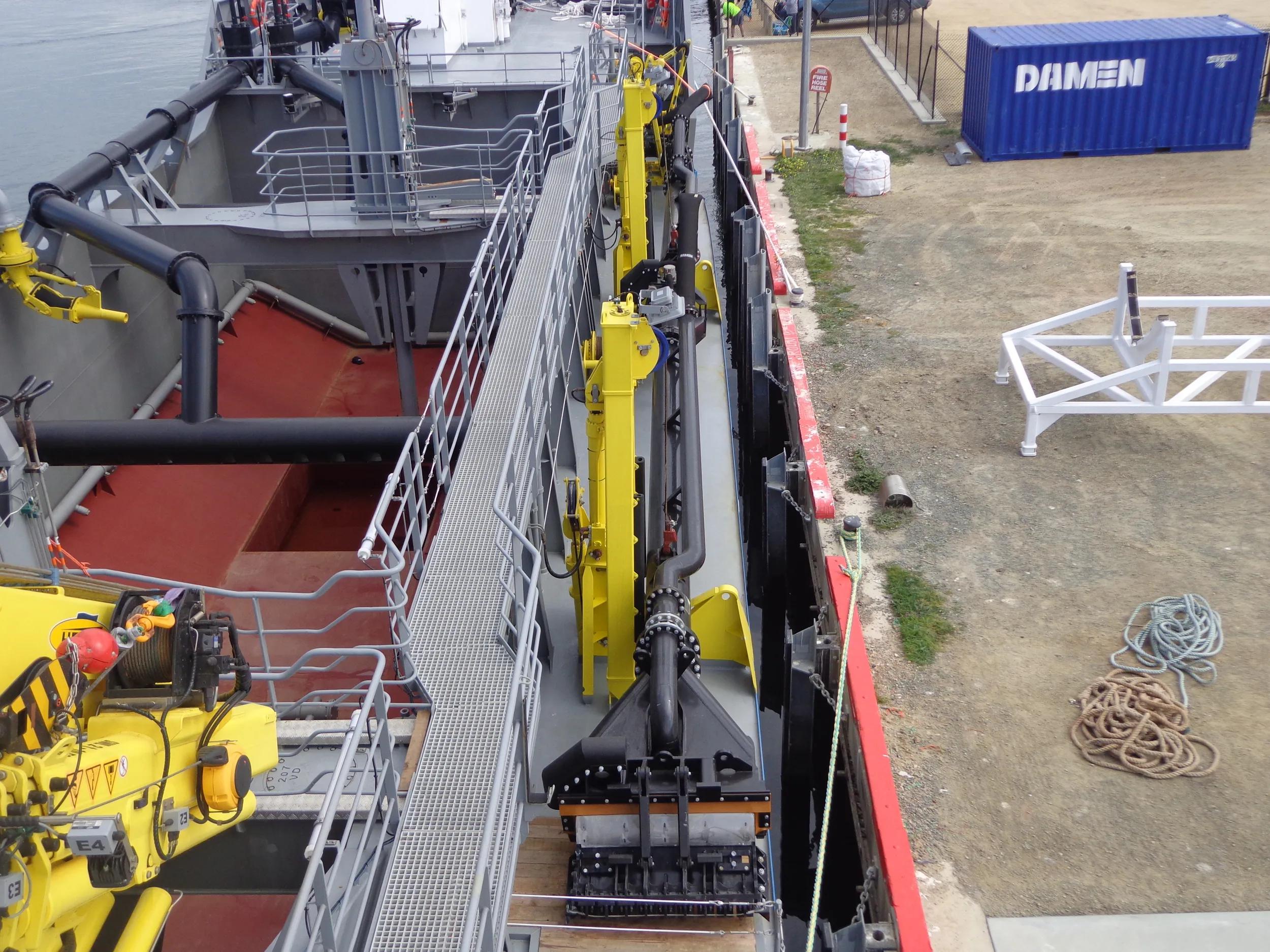

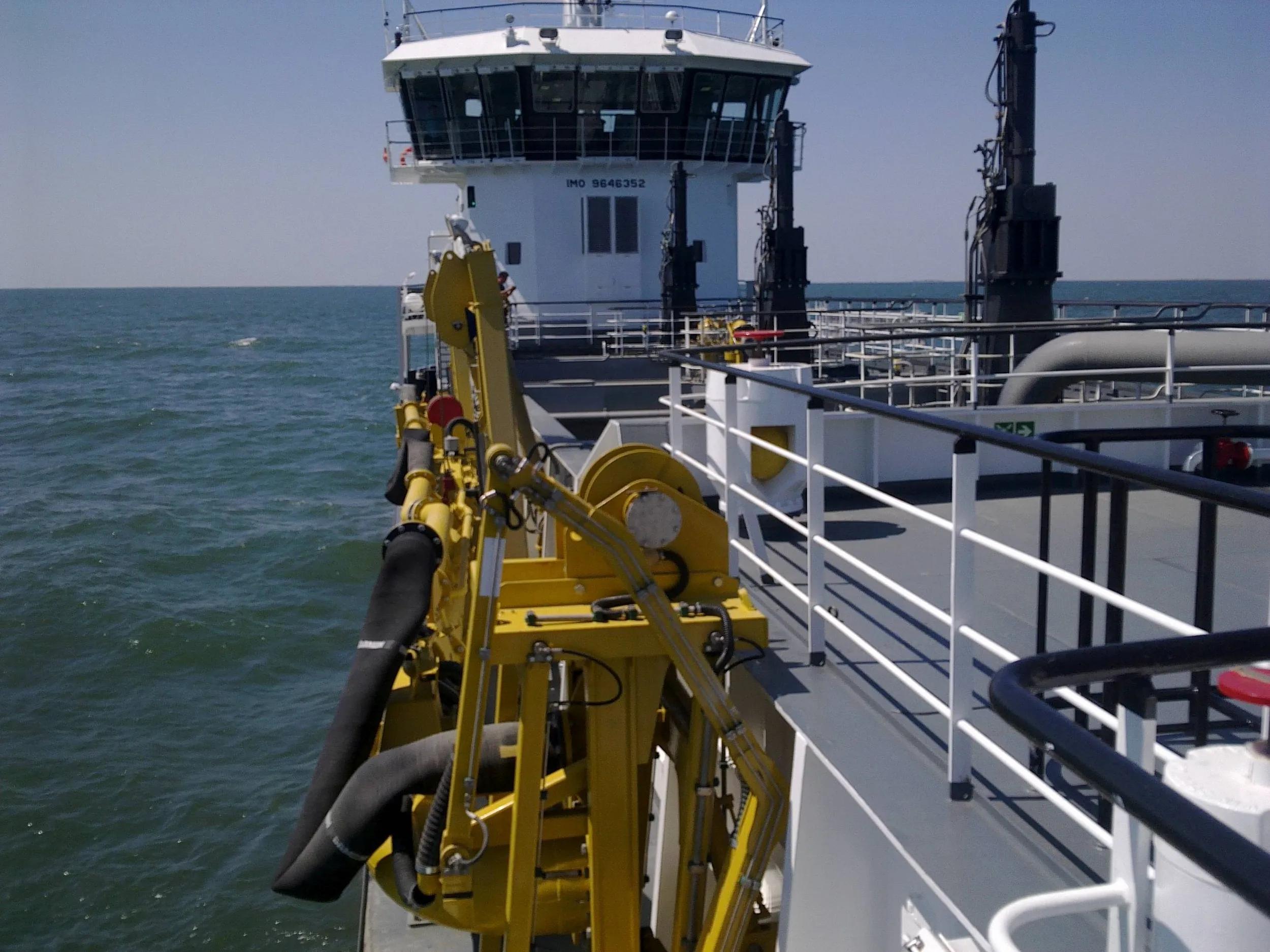

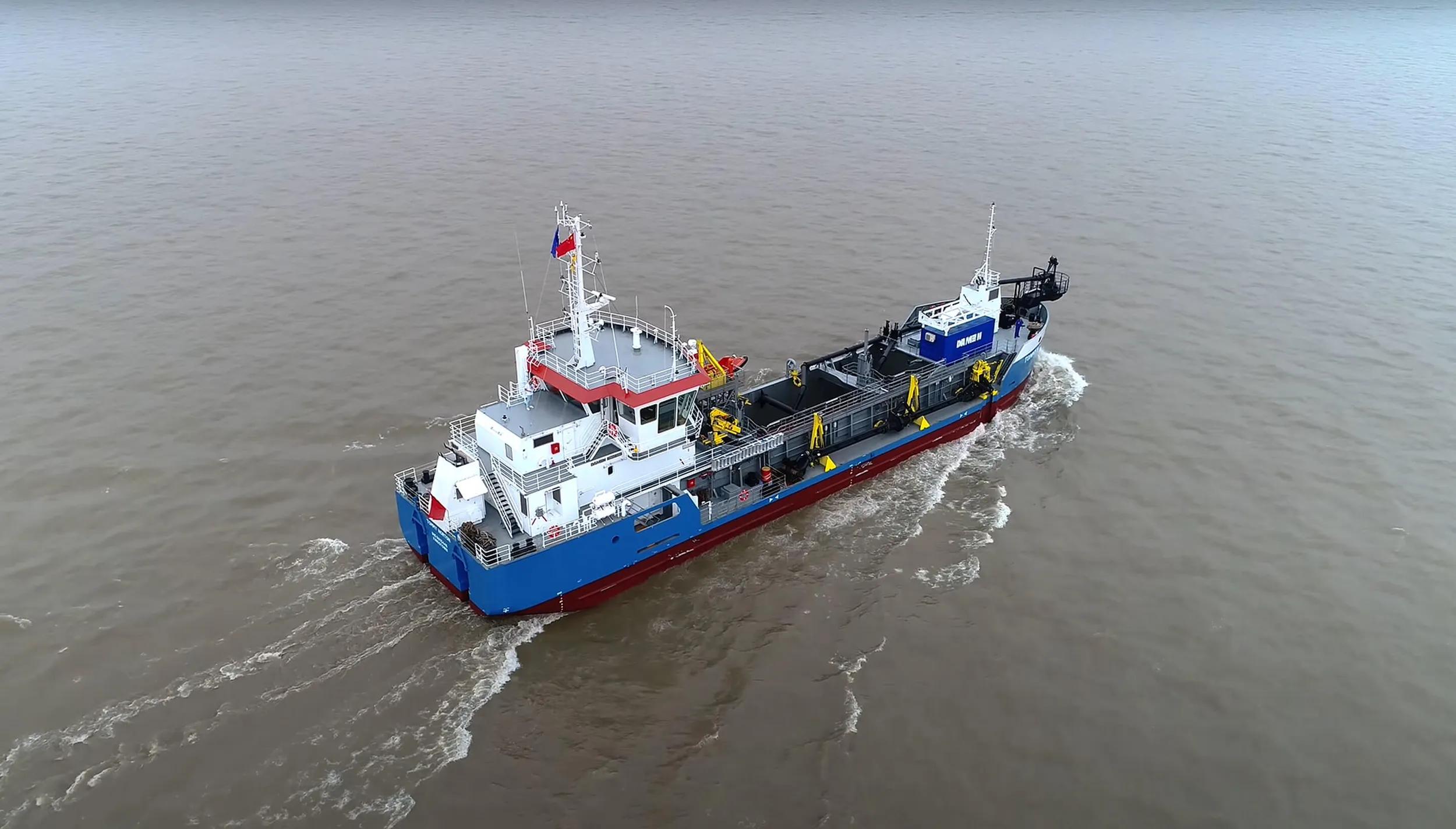

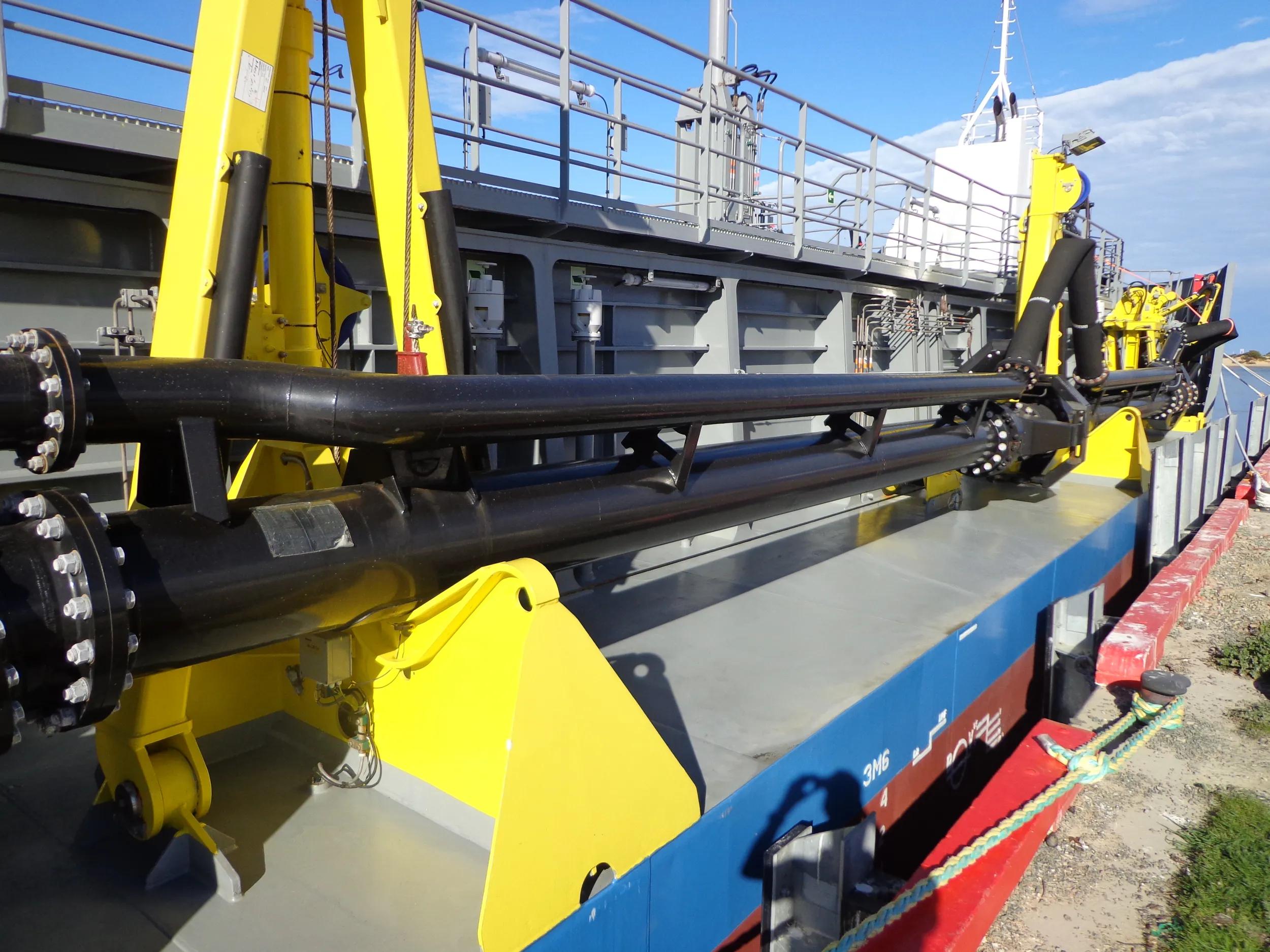

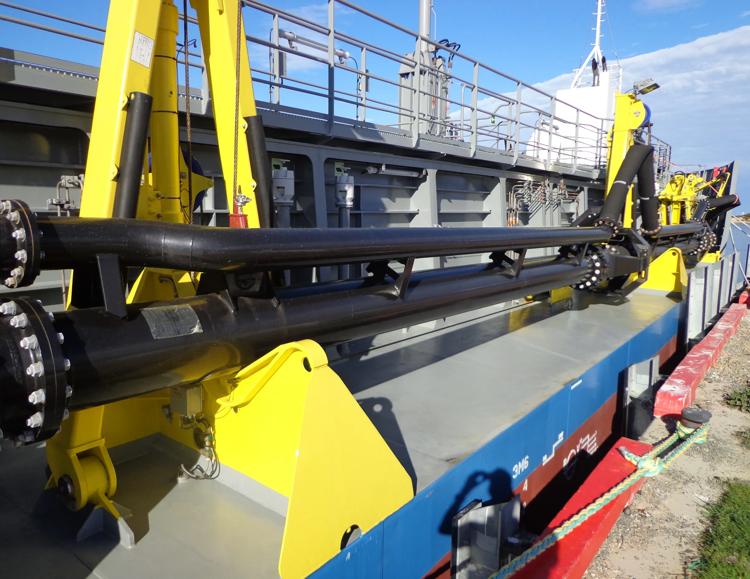

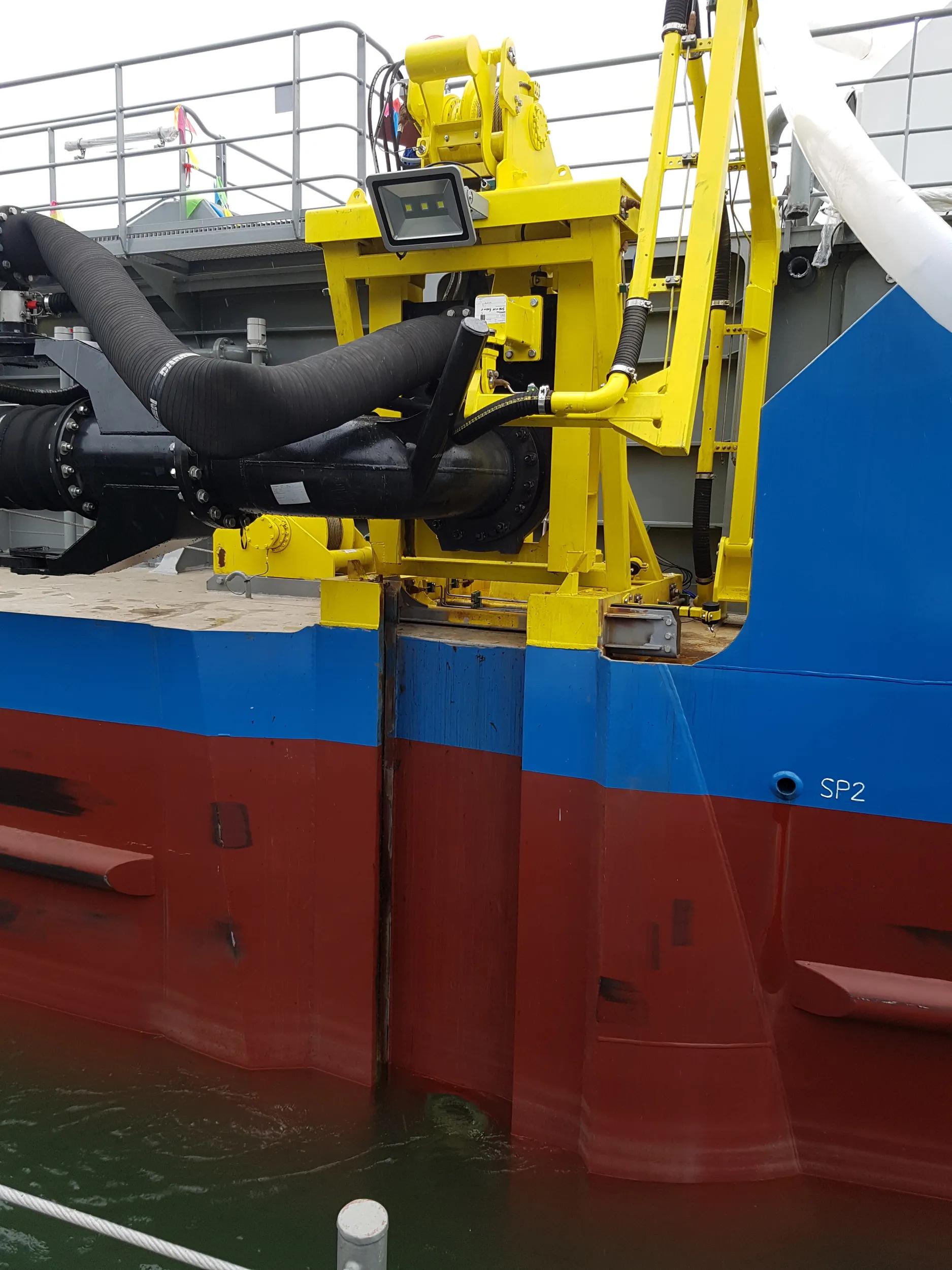

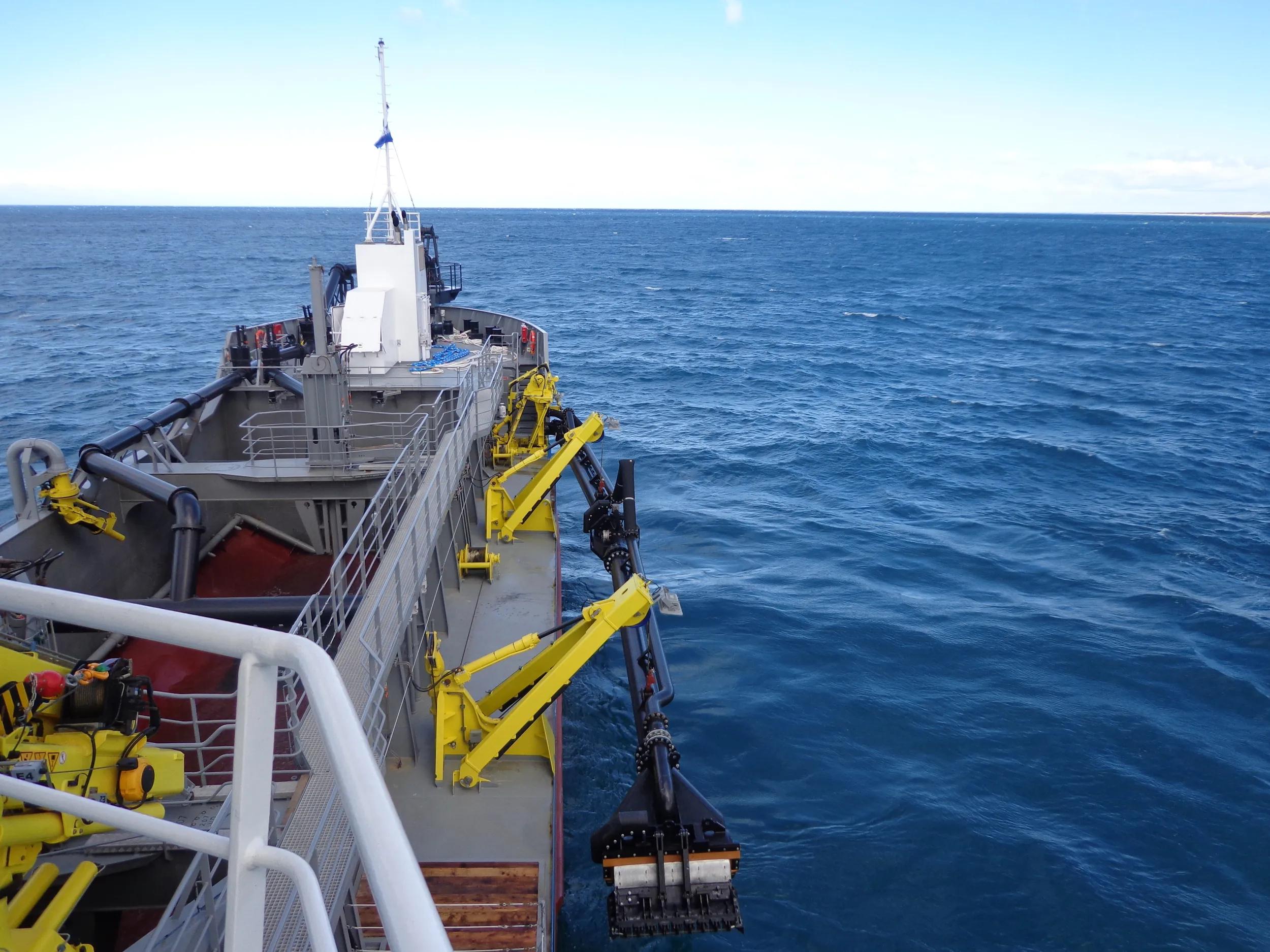

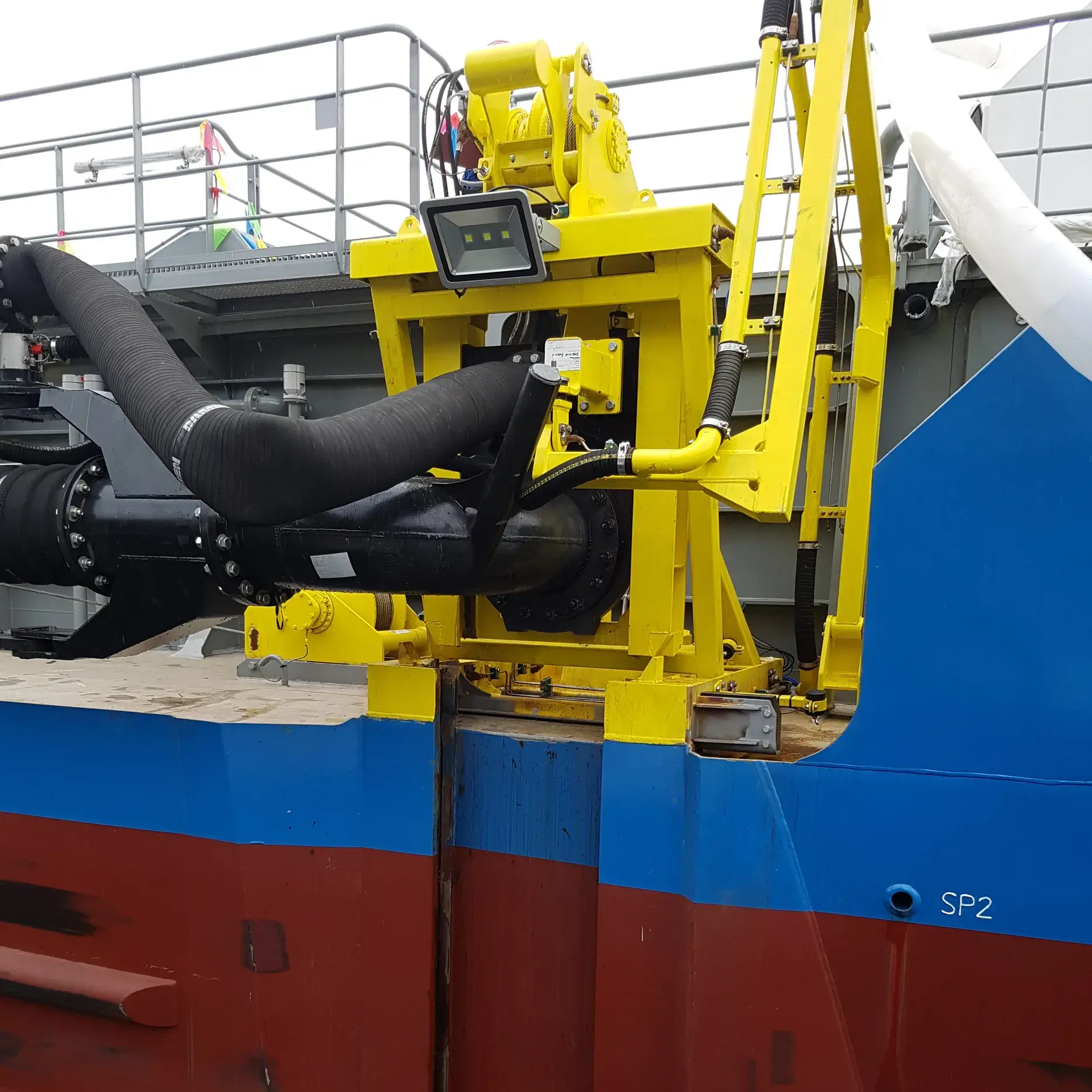

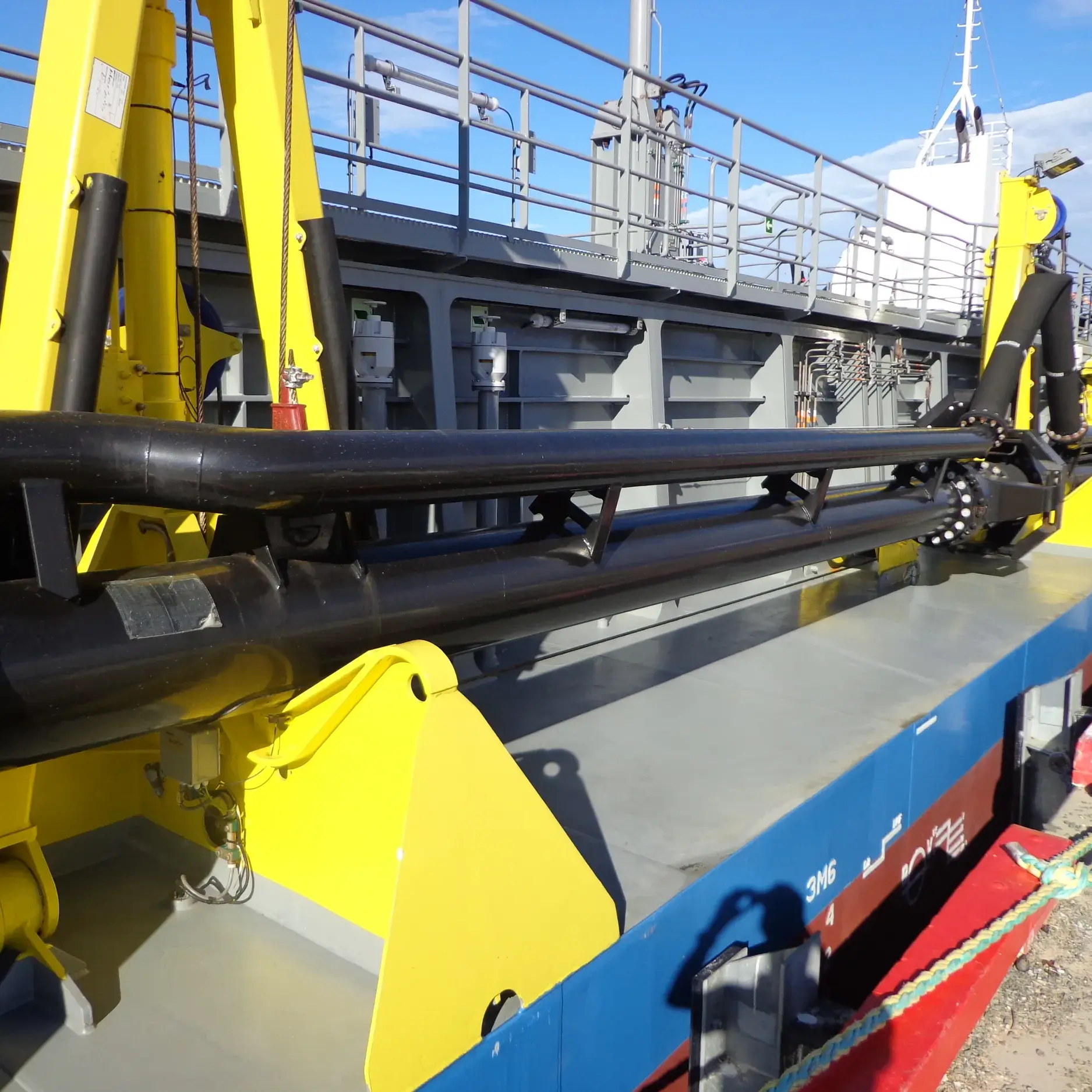

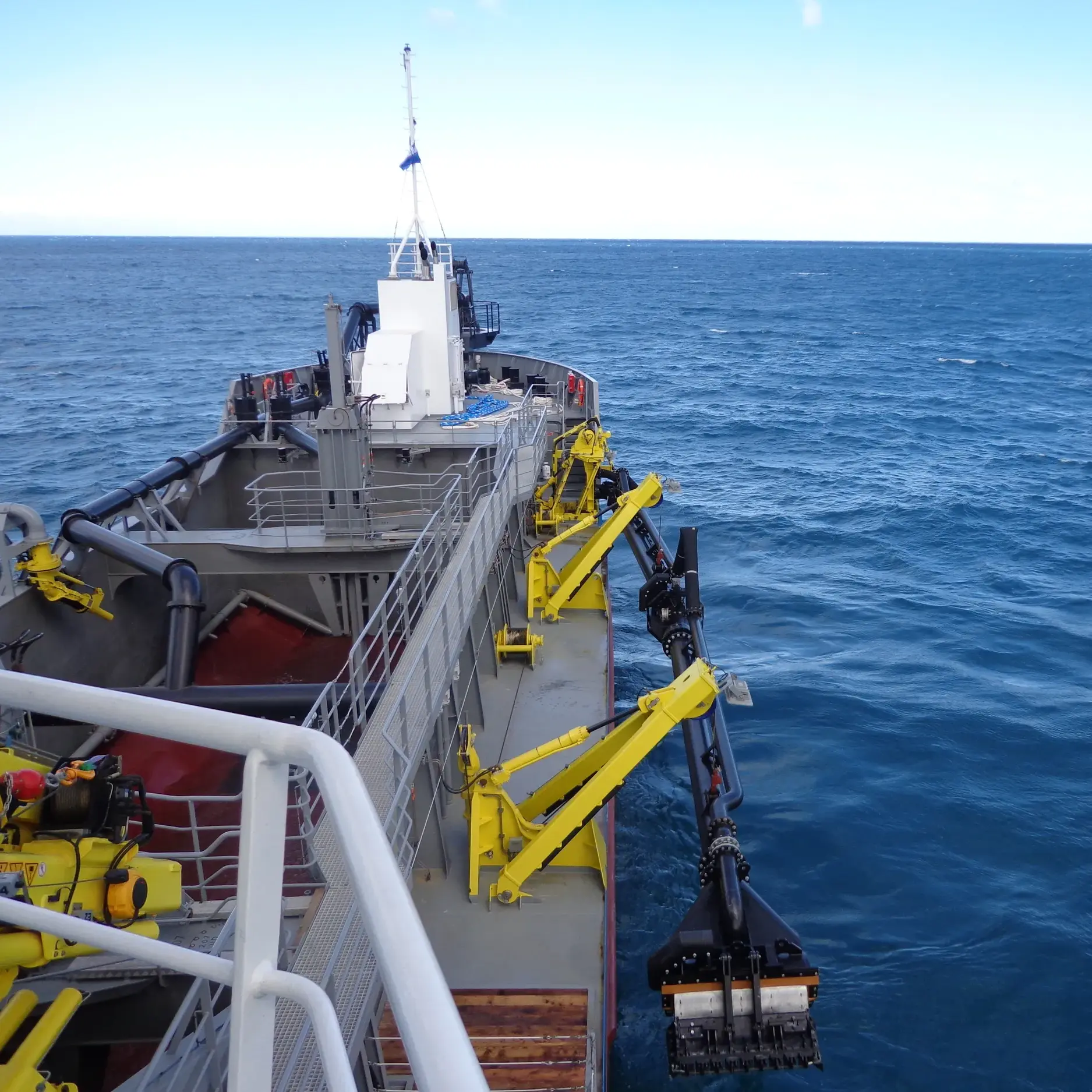

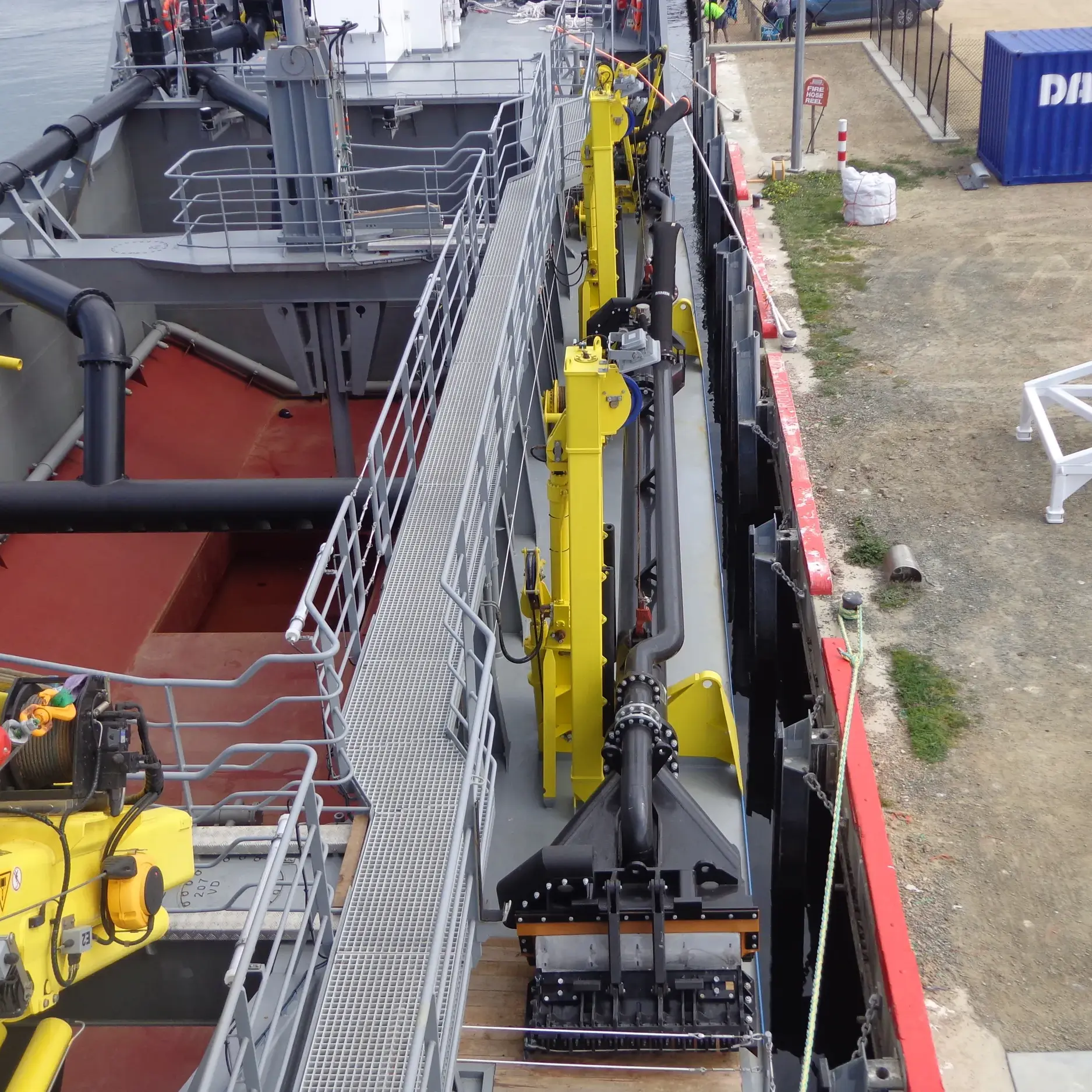

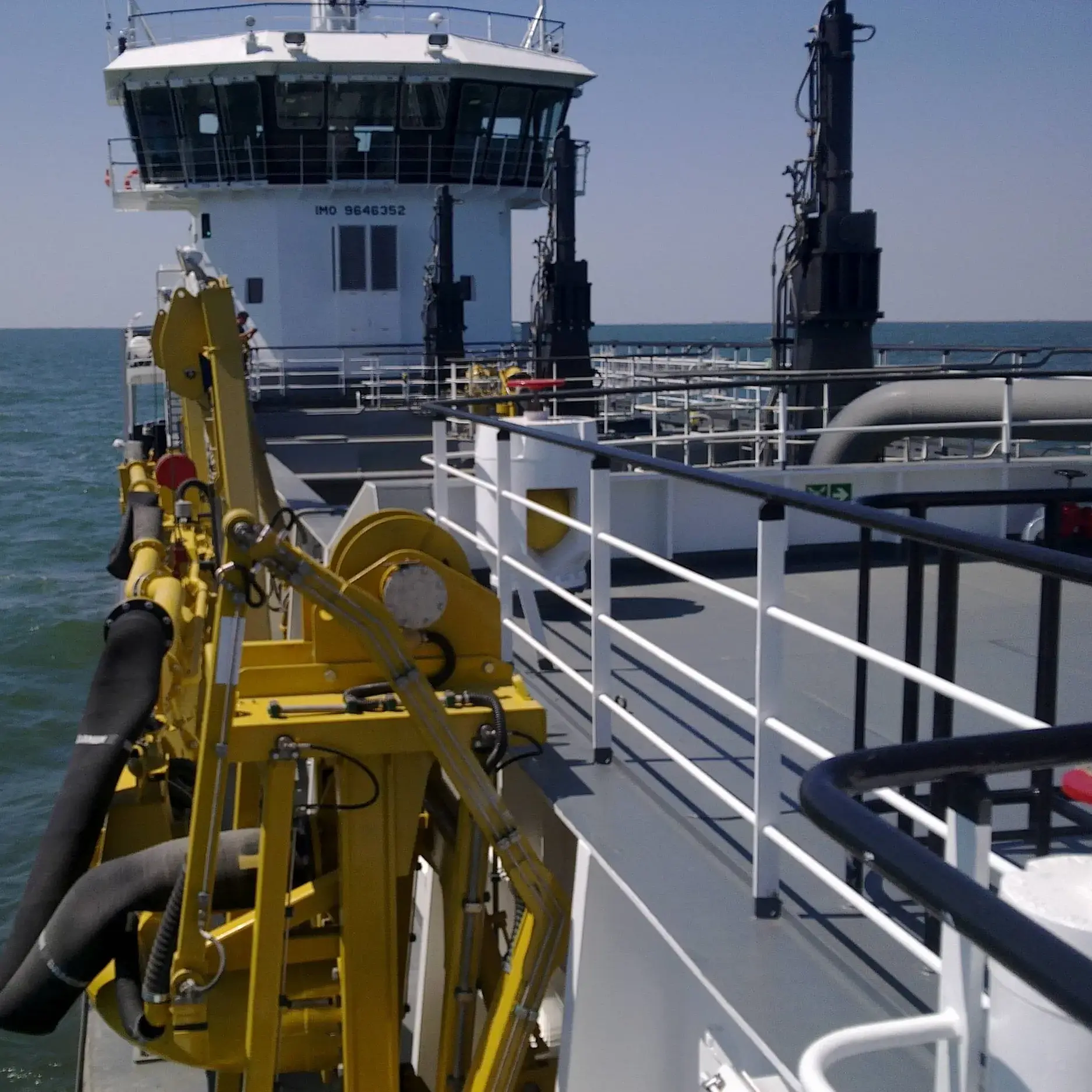

TSHDs should be able to reach every corner of the port during maintenance dredging. Optimise your dredging performance by using a TSP400. Damen can supply you with a customised dredging equipment package. The complete dredging system will be fully integrated in your vessel, whether it is a newbuild or retrofit. A tailored dredging equipment package may include the trailing suction pipe complete with its gantries and winches and swell compensator. The dredge equipment can be completed by loading and discharging systems such as a dredge pump, dredge valves etc. Our flexible project approach and technical support ensure an efficient building or conversion process.
- Dredge valves
- Dredge pumps

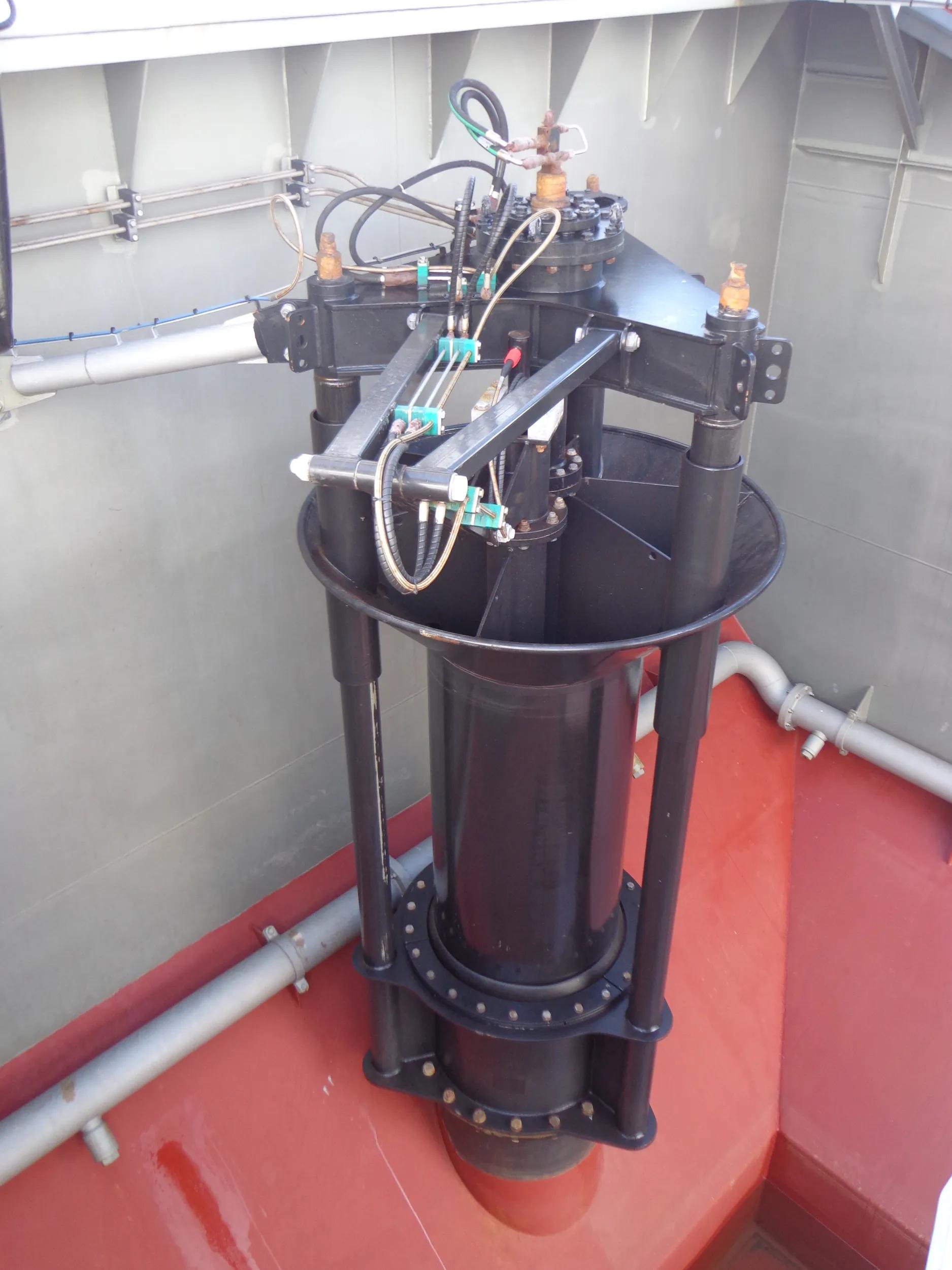

- Overflows
- Jet water monitors
- Flexible design adapted to your TSHD
- From a single component to a complete system
- Perfectly integrated in your Trailing Suction Hopper Dredger
- TSHD dredger upgrade enhances your efficiency
Key figures
400
15
2250
500
Dimensions
- Dredge pipe diameter
- 400 m

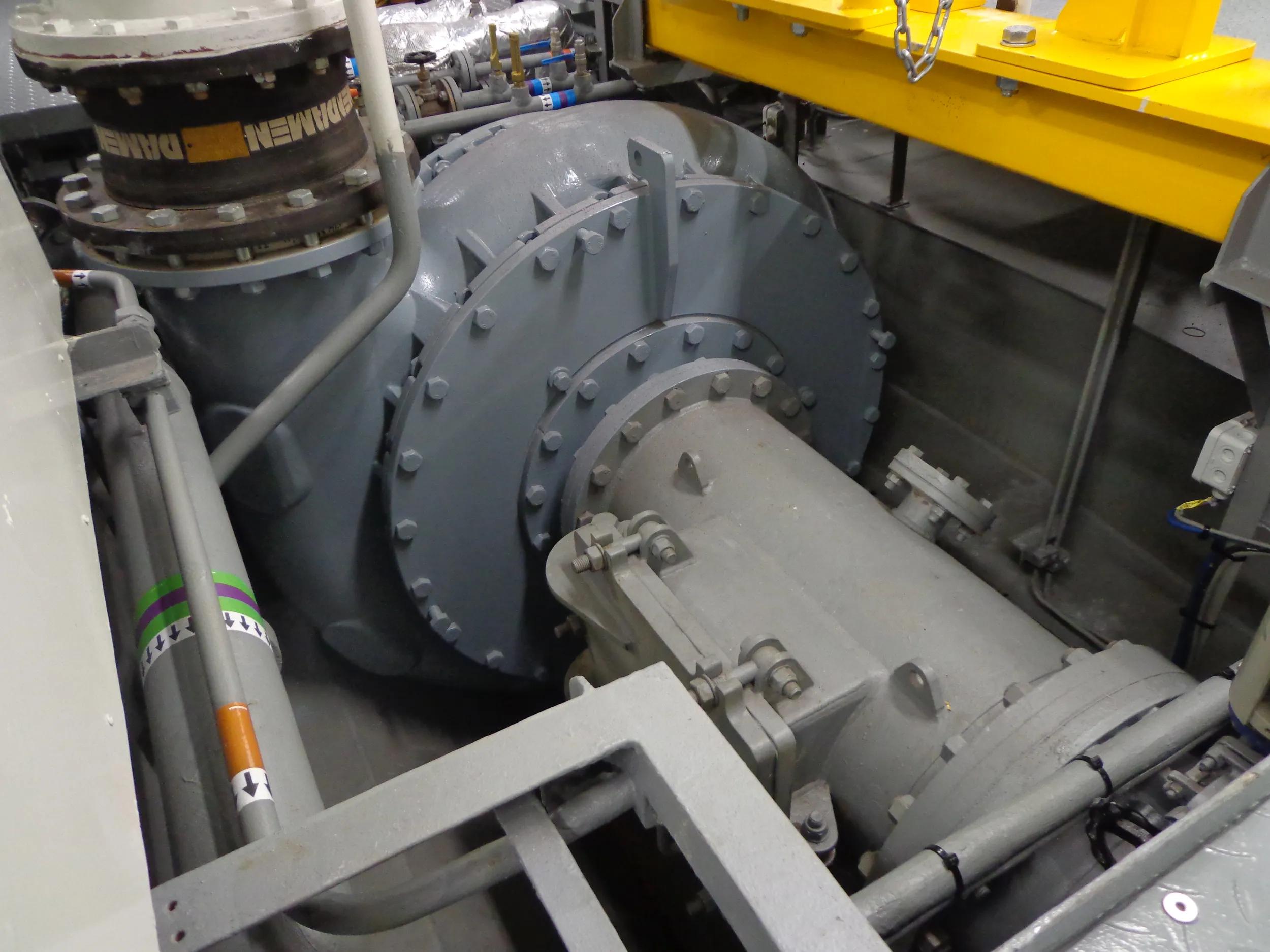

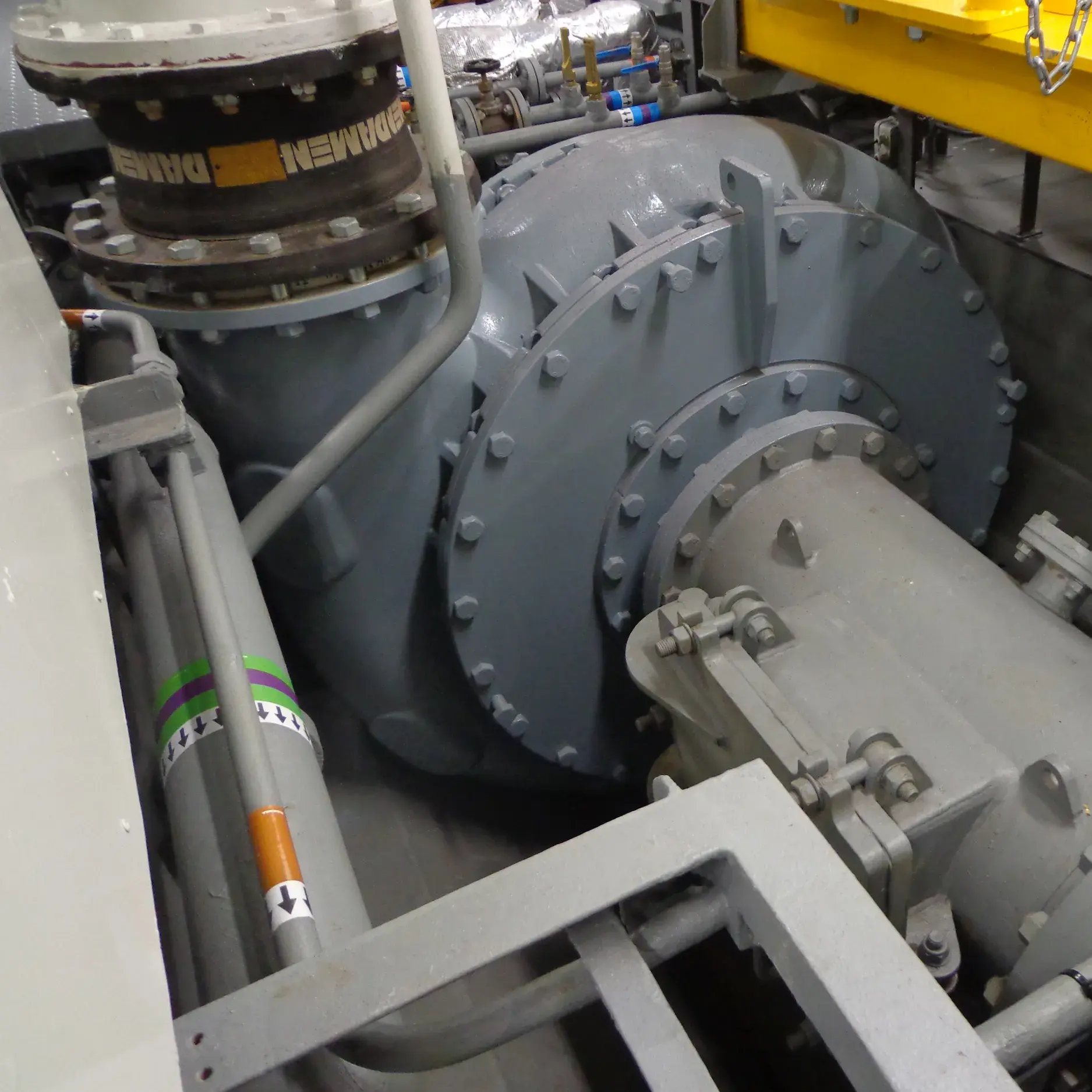

- Dredge pump
- BP4035LD
- Max wave height
- 2 m
Capacities
- Pump capacity
- 2250 m³/h
- Hopper capacity
- 500 m³
- Loading time
- 20 minutes
Dredging depth
- Minimum depth
- - 5.5 m
- Average depth
- - 15 m
- Maximum depth
- - 25 m
Do you want to know more?
Compare similar suction pipe systems
| Dredge pipe diameter (mm) | Av dredging depth (m) | Mixture capacity (m³/h) | Hopper capacity (m³) | ||
|---|---|---|---|---|---|
| Trailing Suction Pipe TSP400 | 400 | 15 | 2250 | 500 | |
| Trailing Suction Pipe TSP500 | 500 | 20 | 3550 | 1000 | |
| Trailing Suction Pipe TSP600 | 600 | 20 | 5100 | 1500 |
Trailing Suction Pipe TSP400
- Dredge pipe diameter (mm)
- 400
- Av dredging depth (m)
- 15
- Mixture capacity (m³/h)
- 2250
- Hopper capacity (m³)
- 500
- Dredge pipe diameter (mm)
- 500
- Av dredging depth (m)
- 20
- Mixture capacity (m³/h)
- 3550
- Hopper capacity (m³)
- 1000
- Dredge pipe diameter (mm)
- 600
- Av dredging depth (m)
- 20
- Mixture capacity (m³/h)
- 5100
- Hopper capacity (m³)
- 1500
