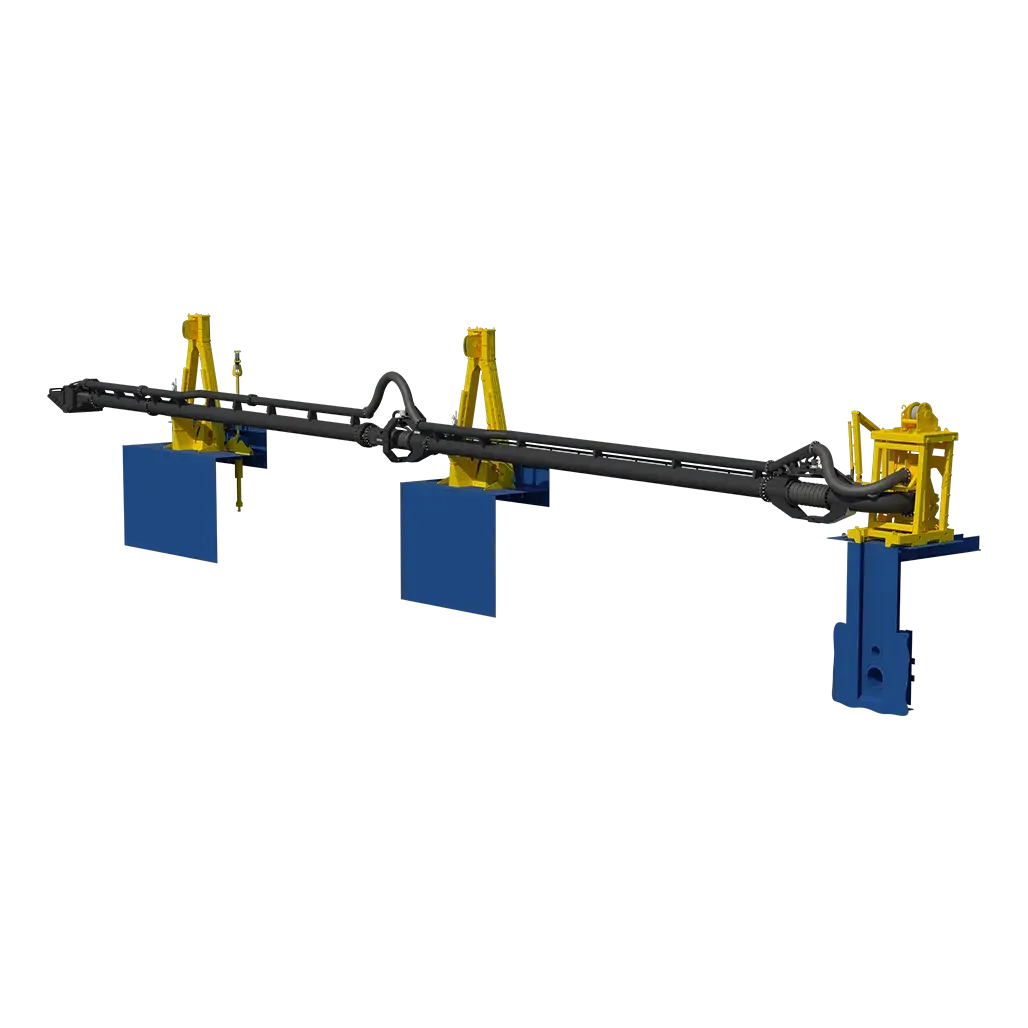

Trailing Suction Pipe TSP600
Trailing Suction Pipe TSP600

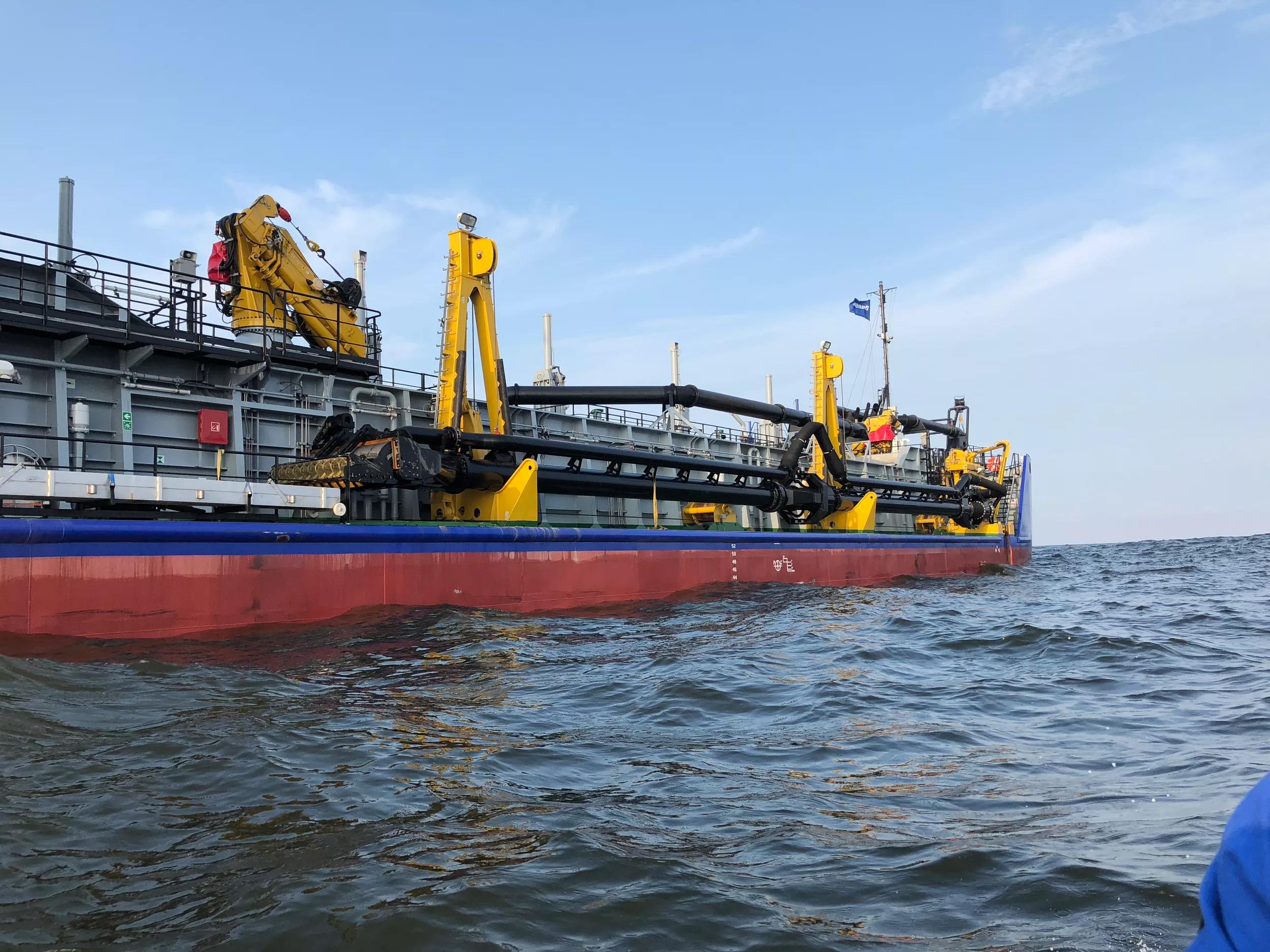

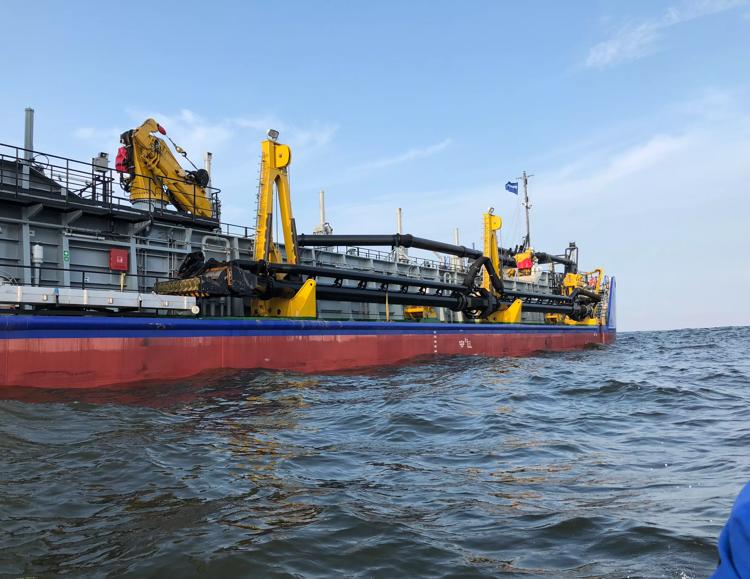

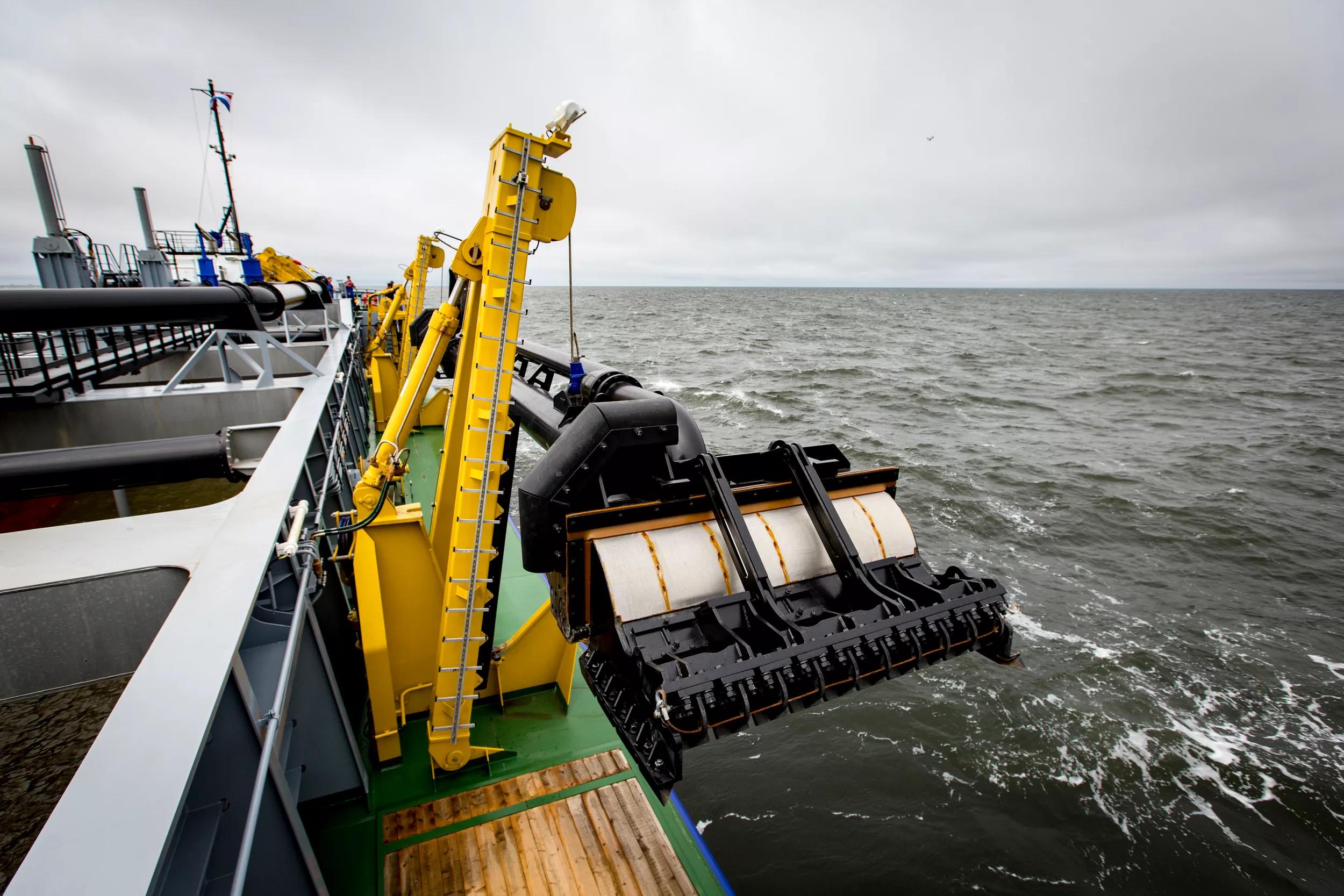

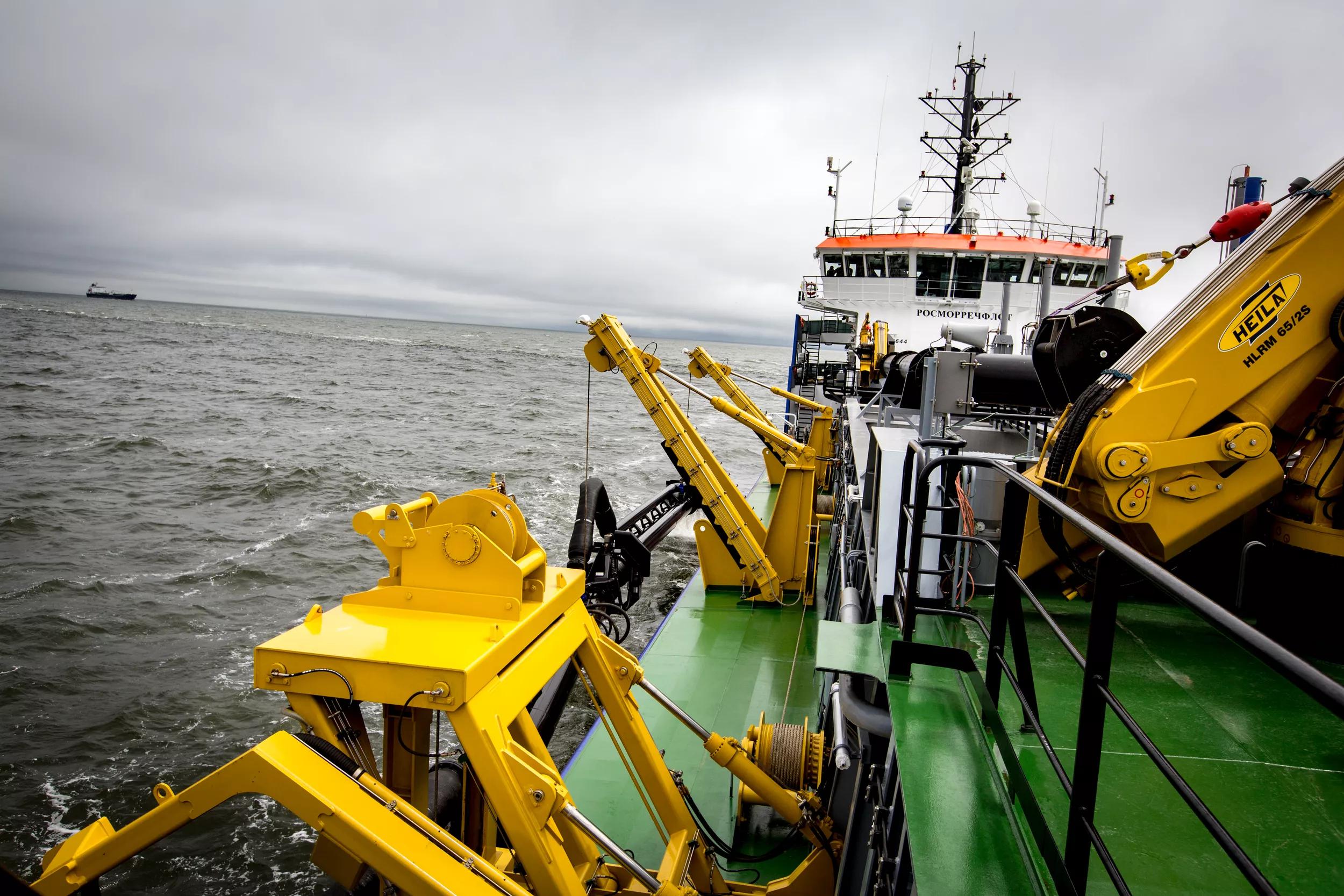

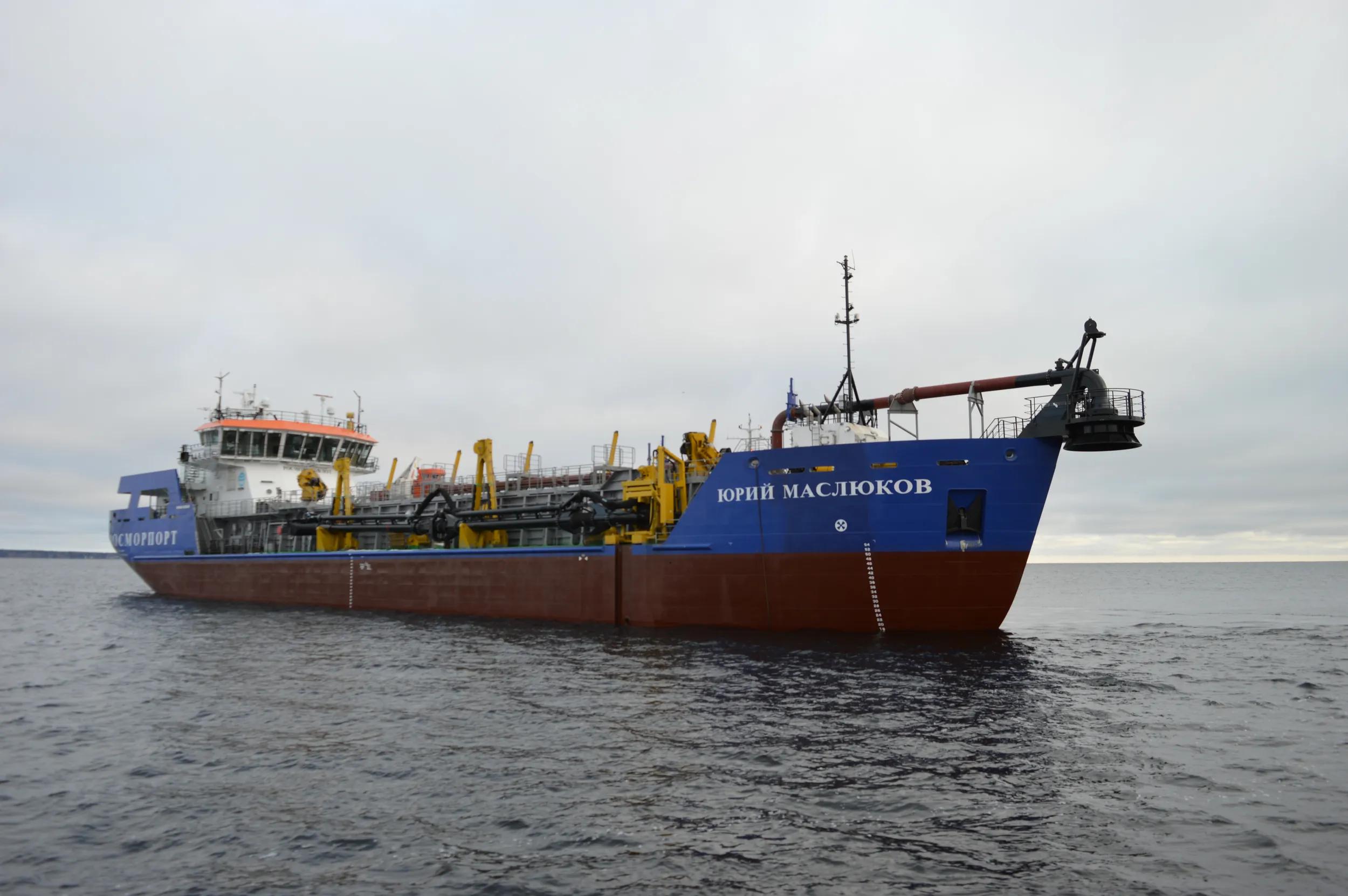

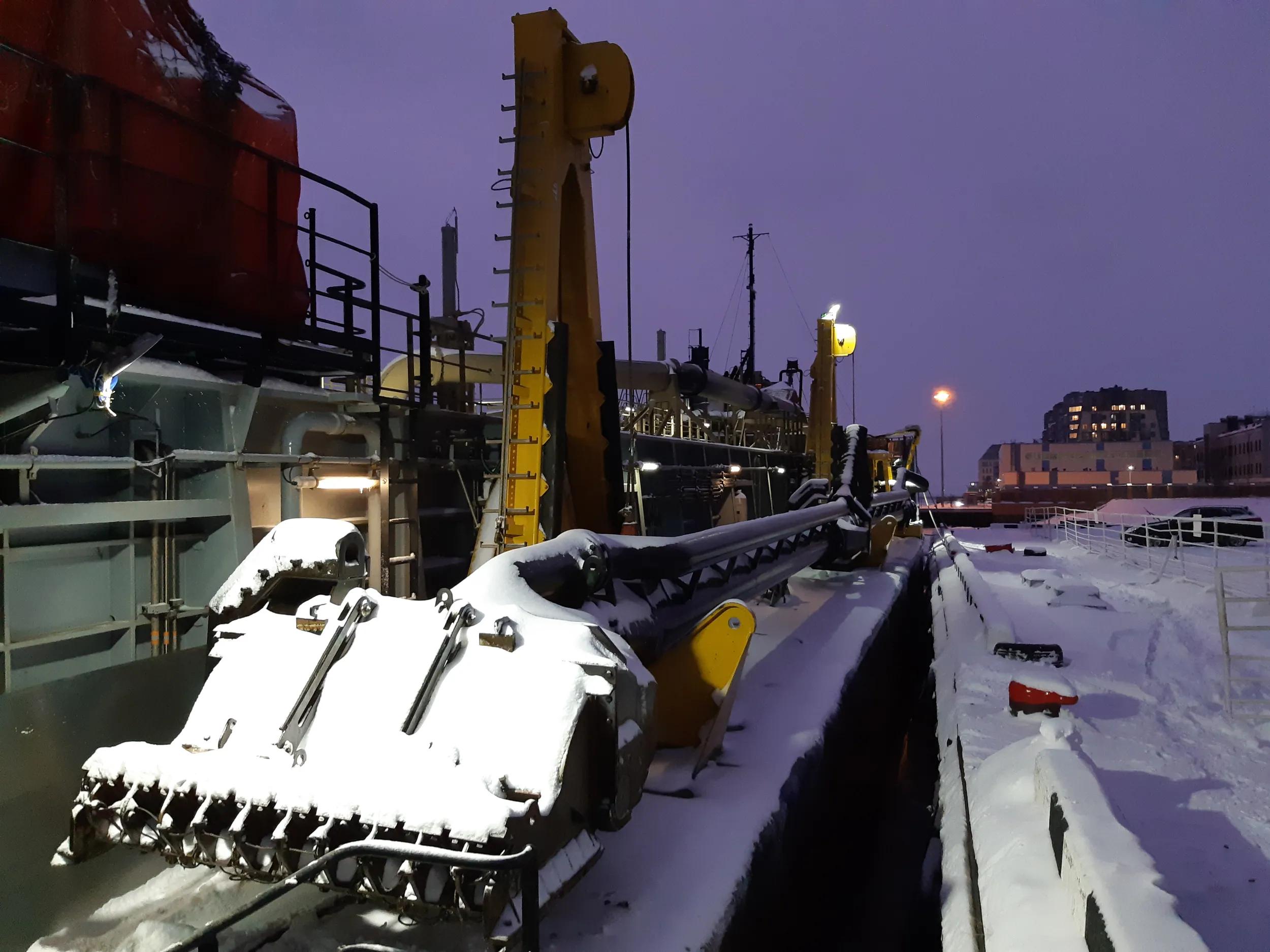

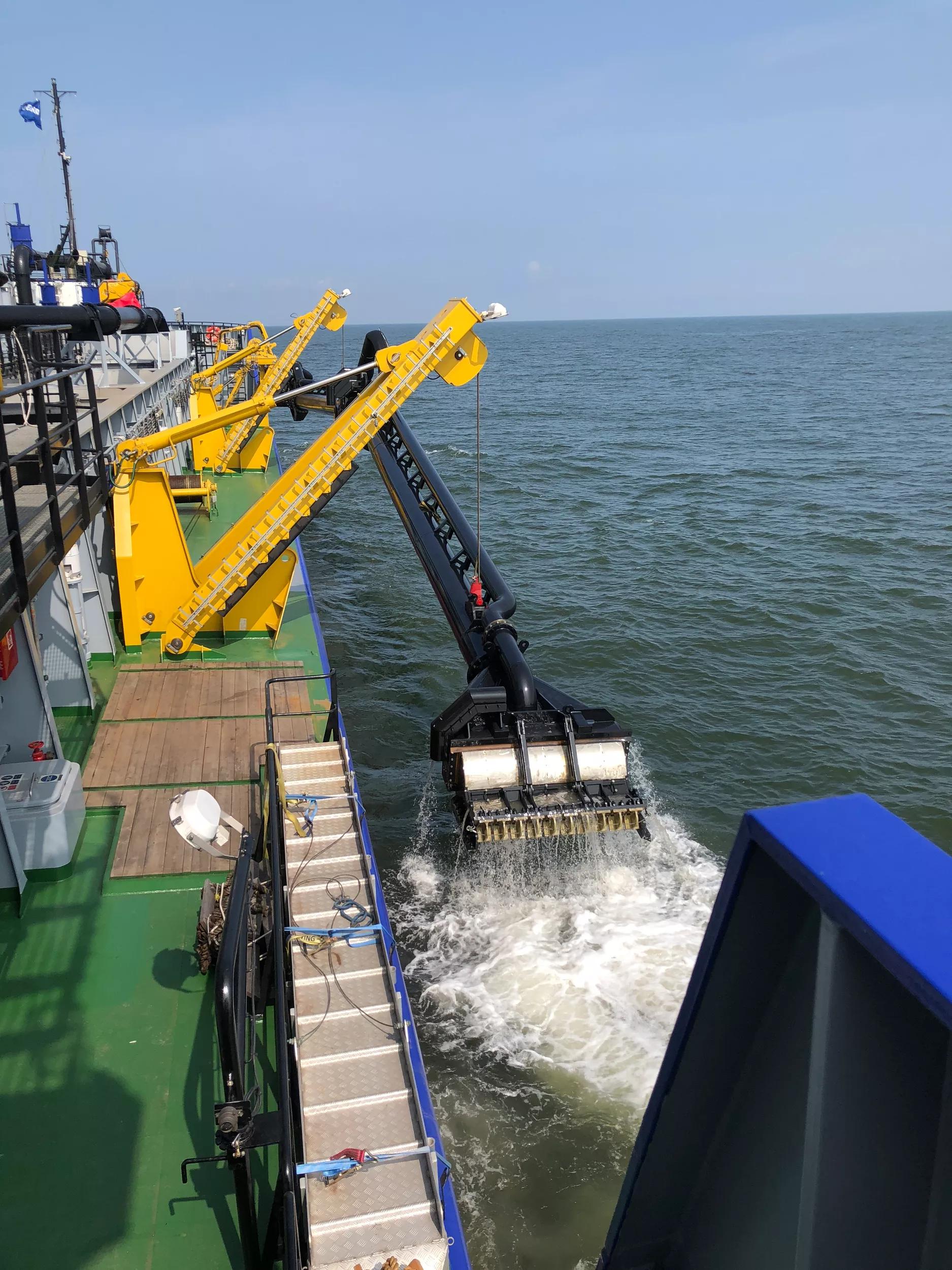

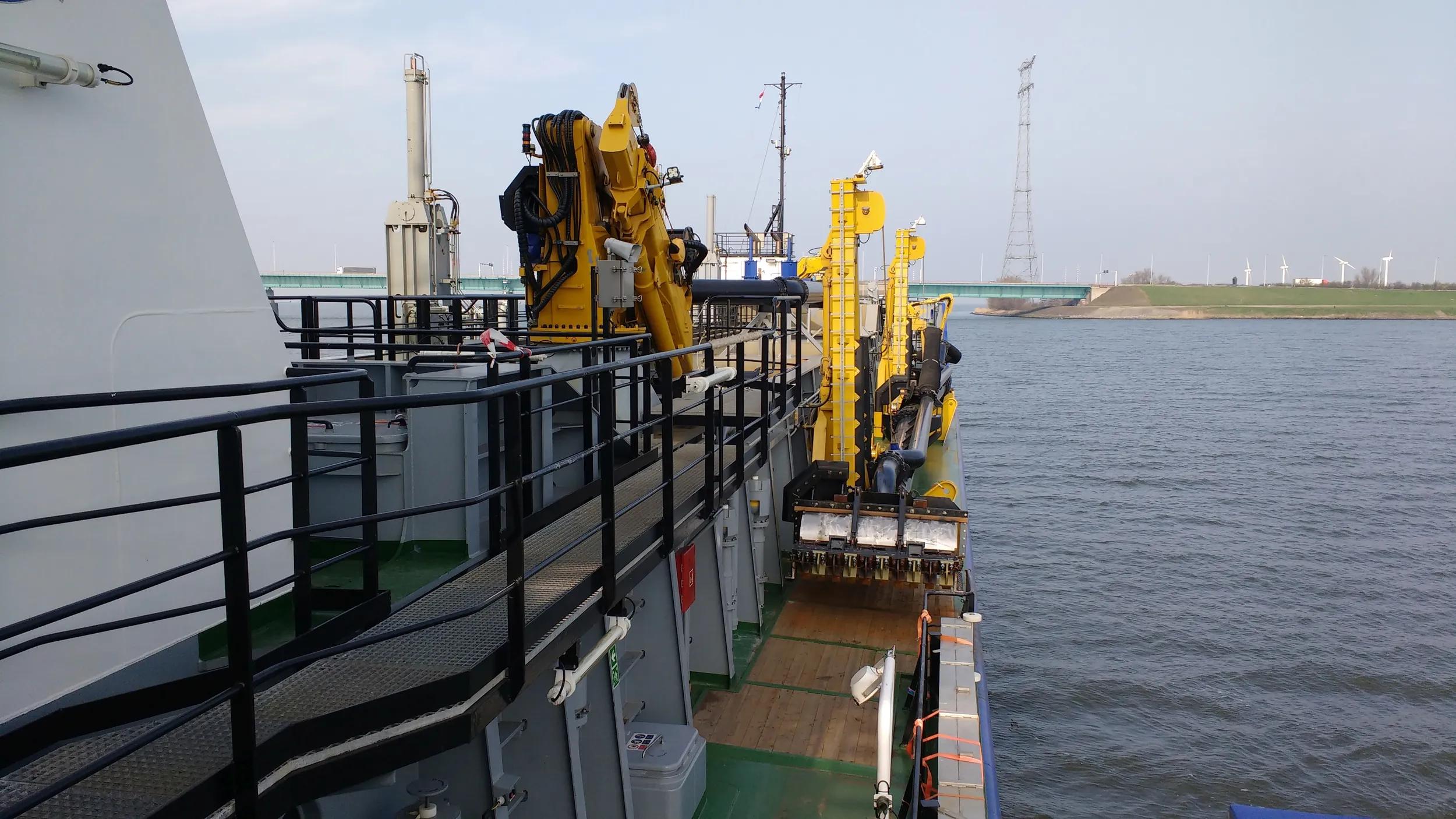

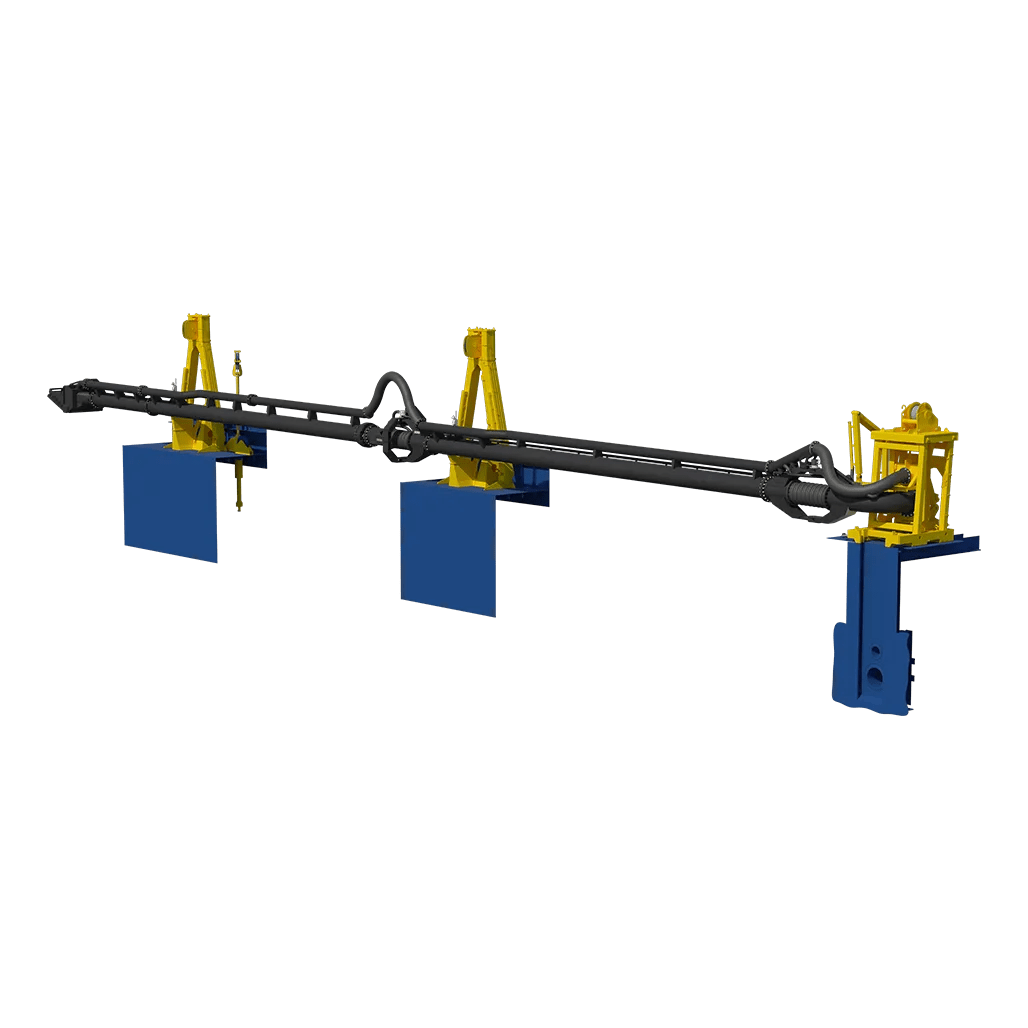

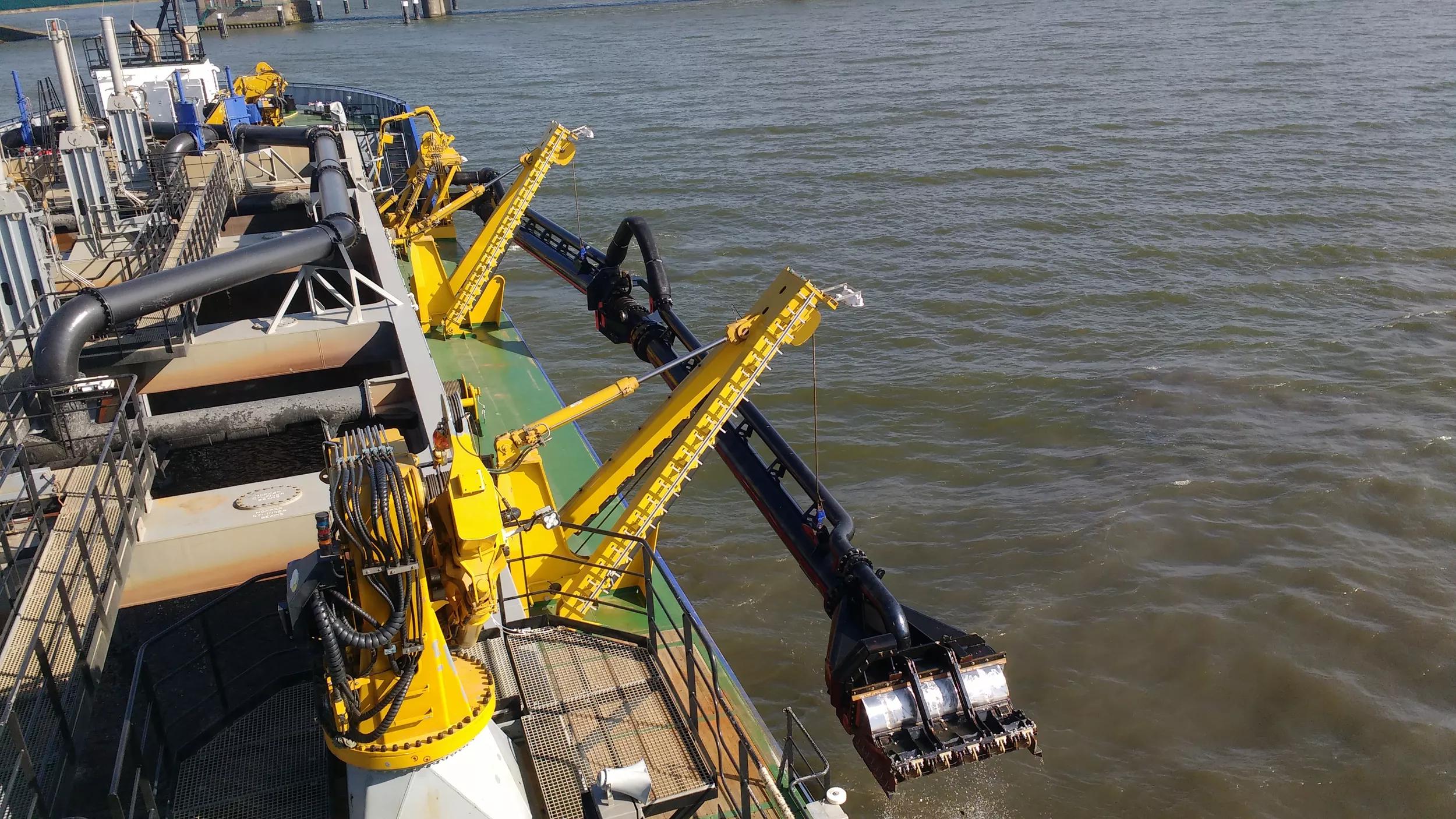

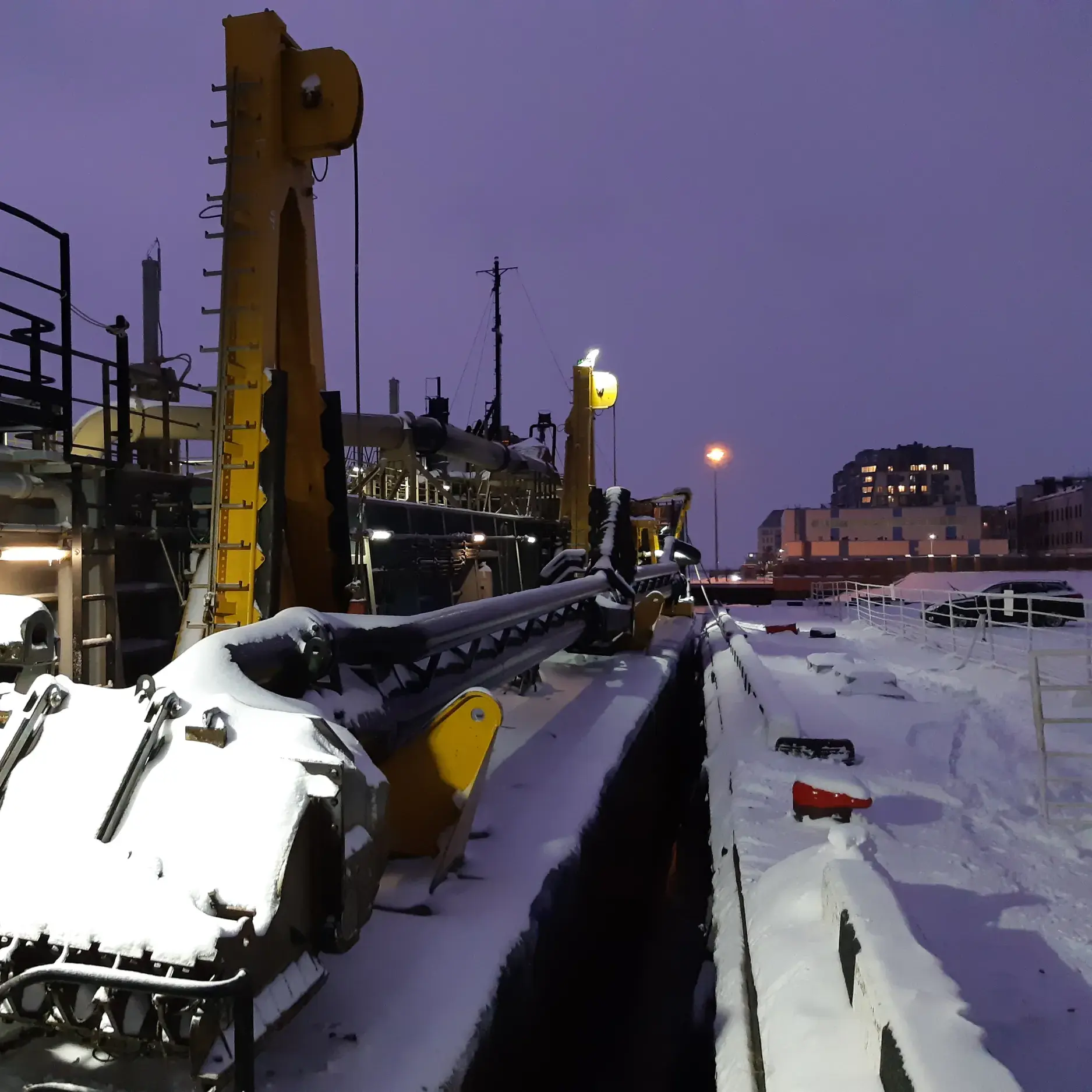

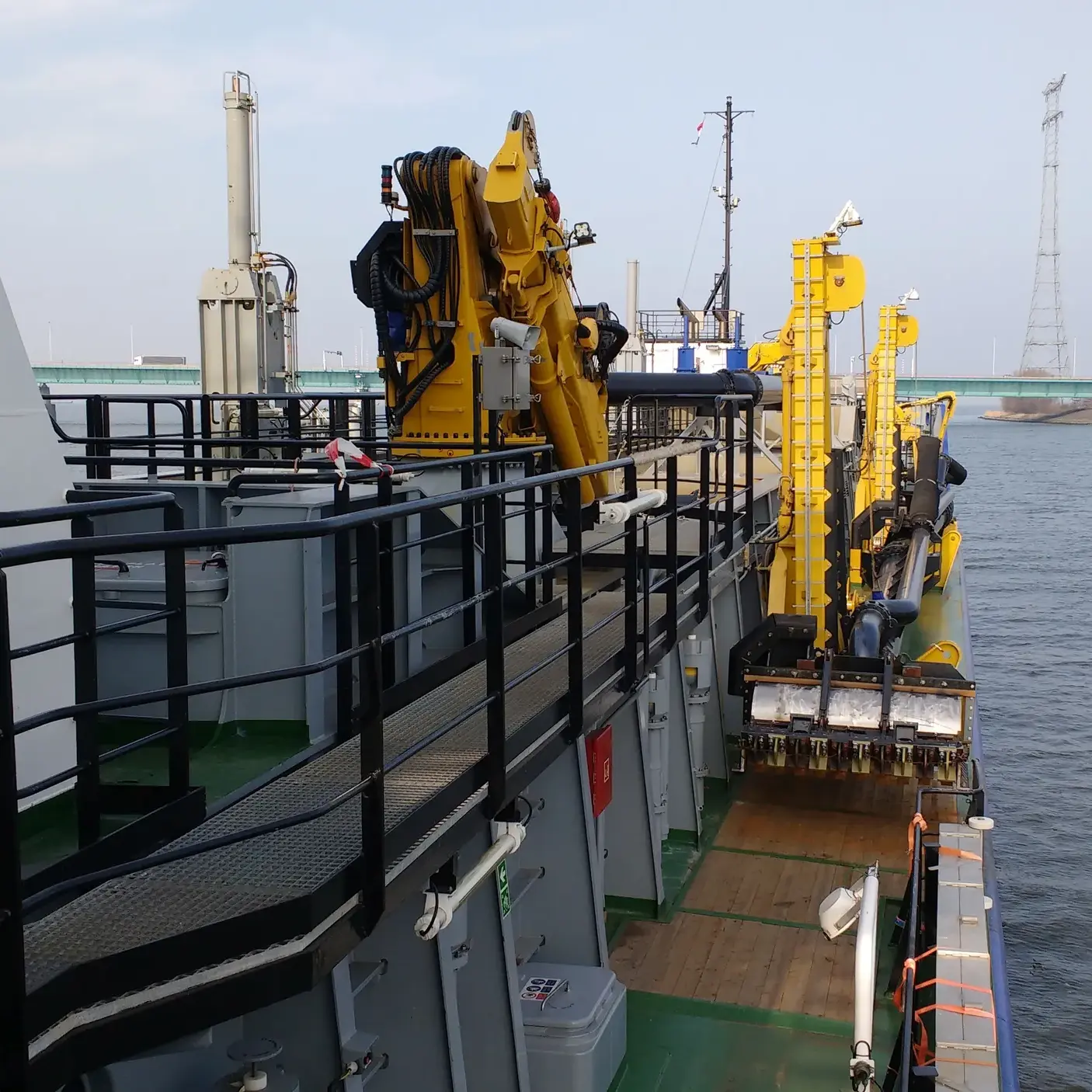

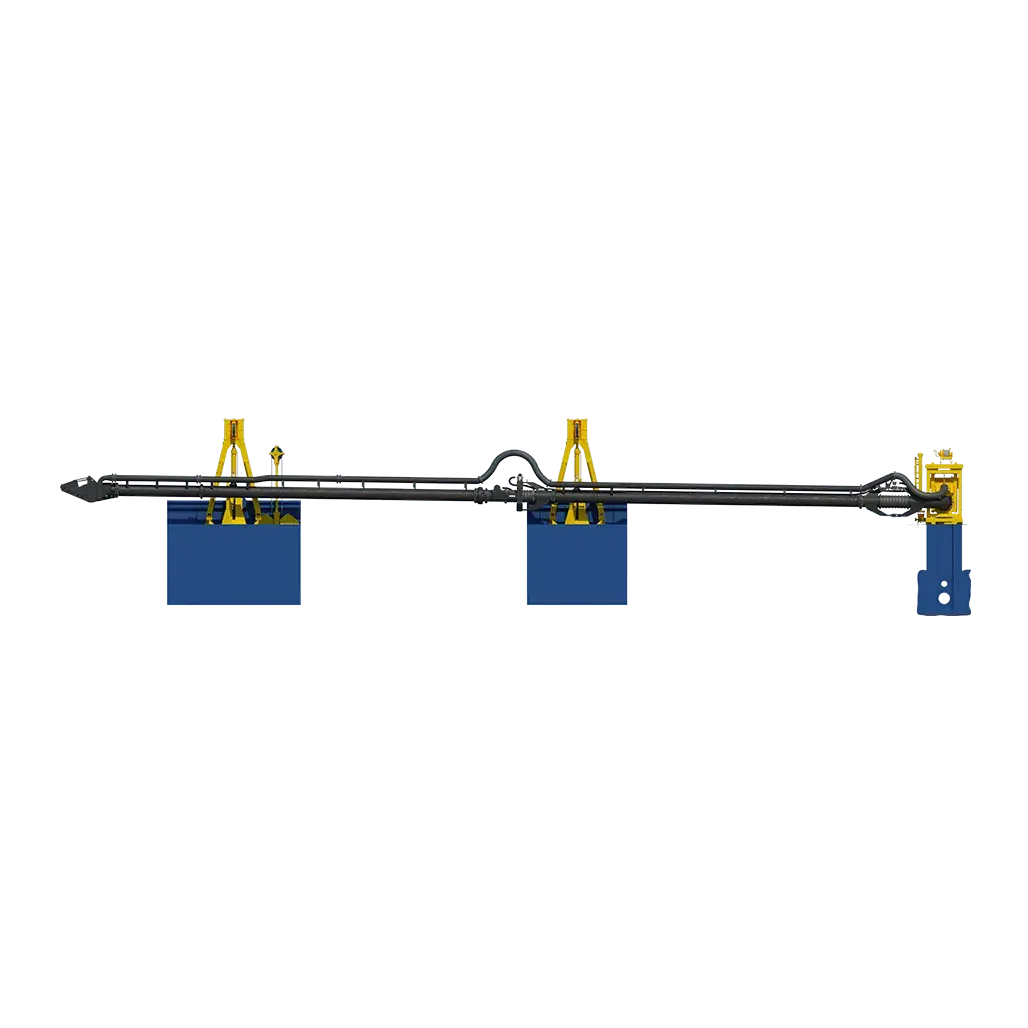

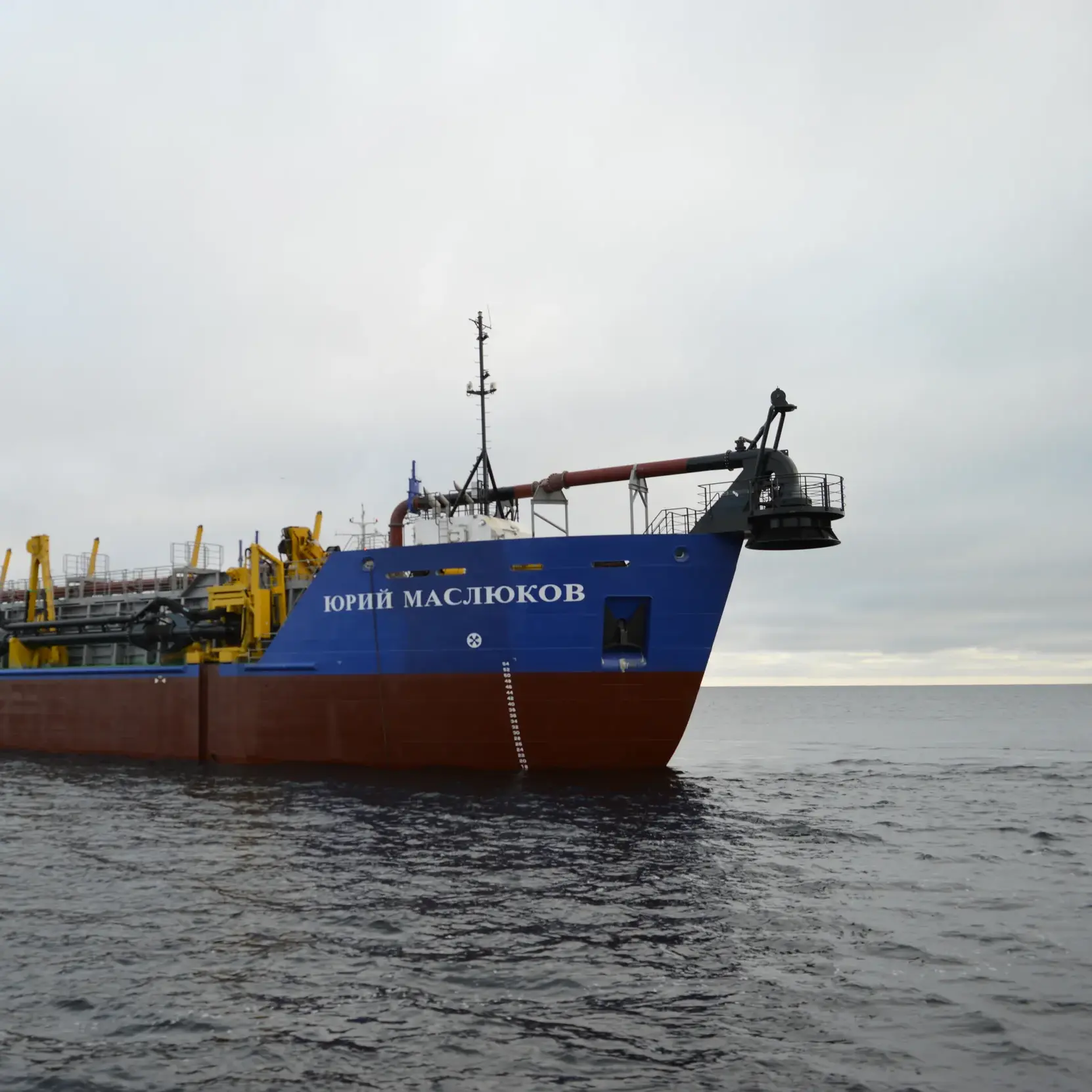

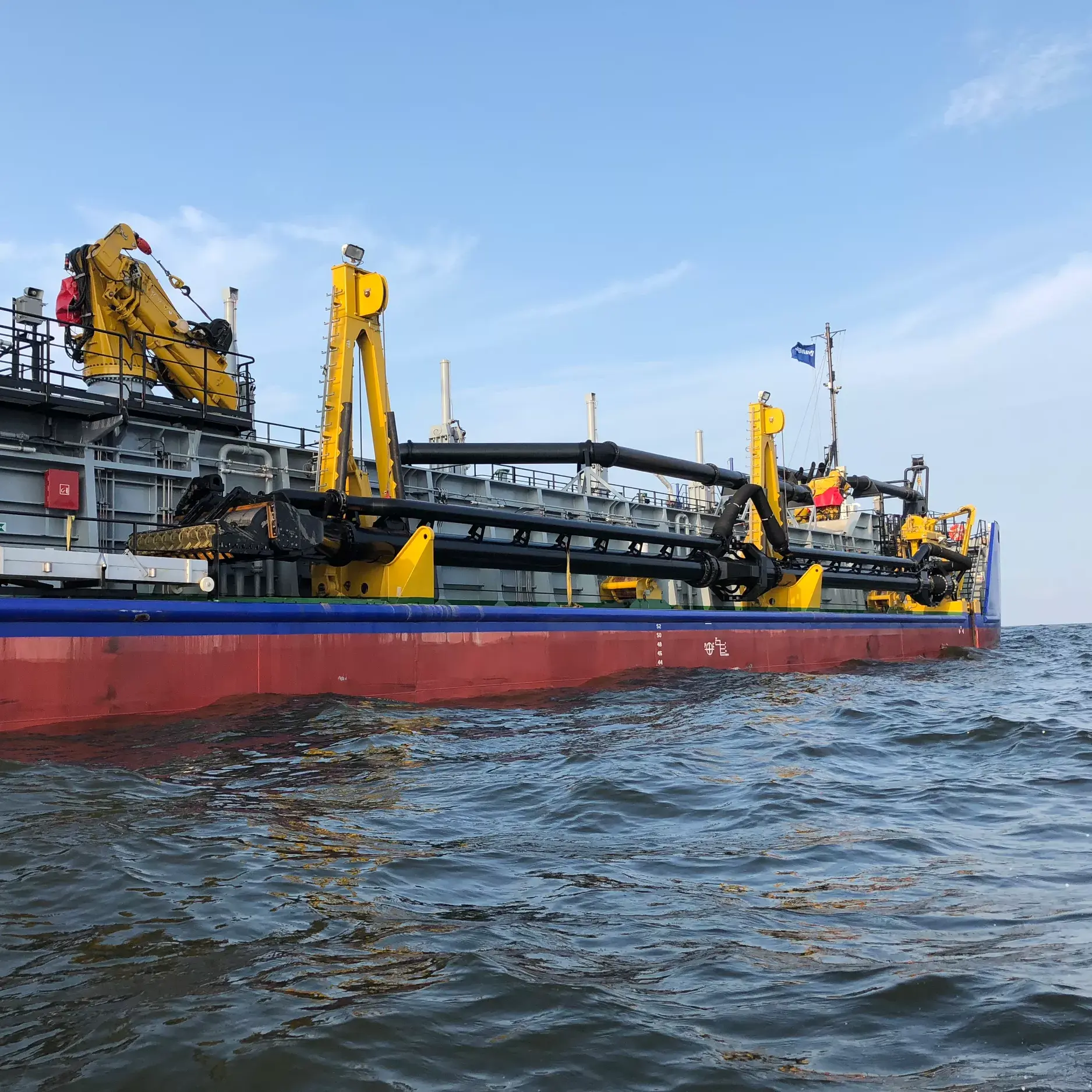

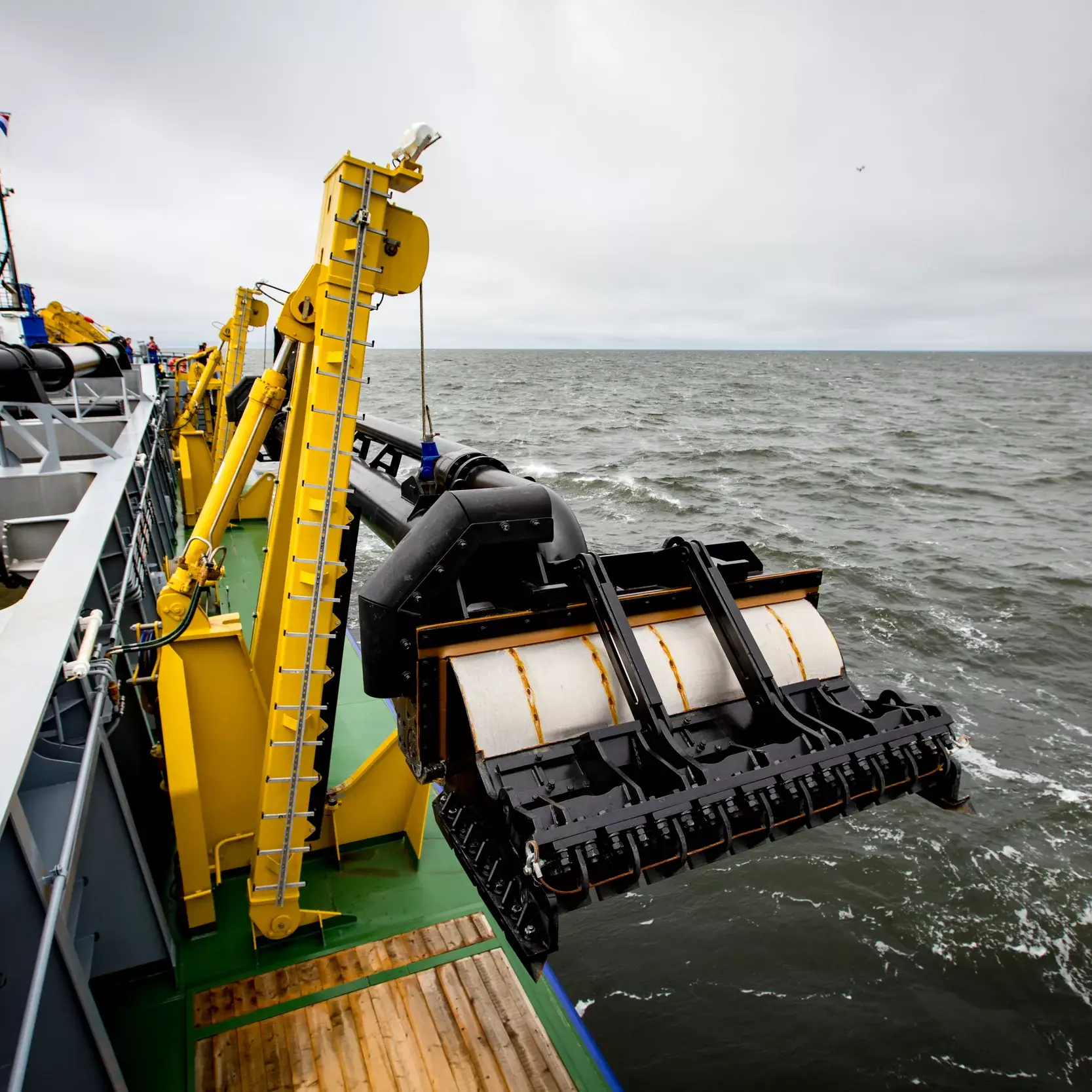

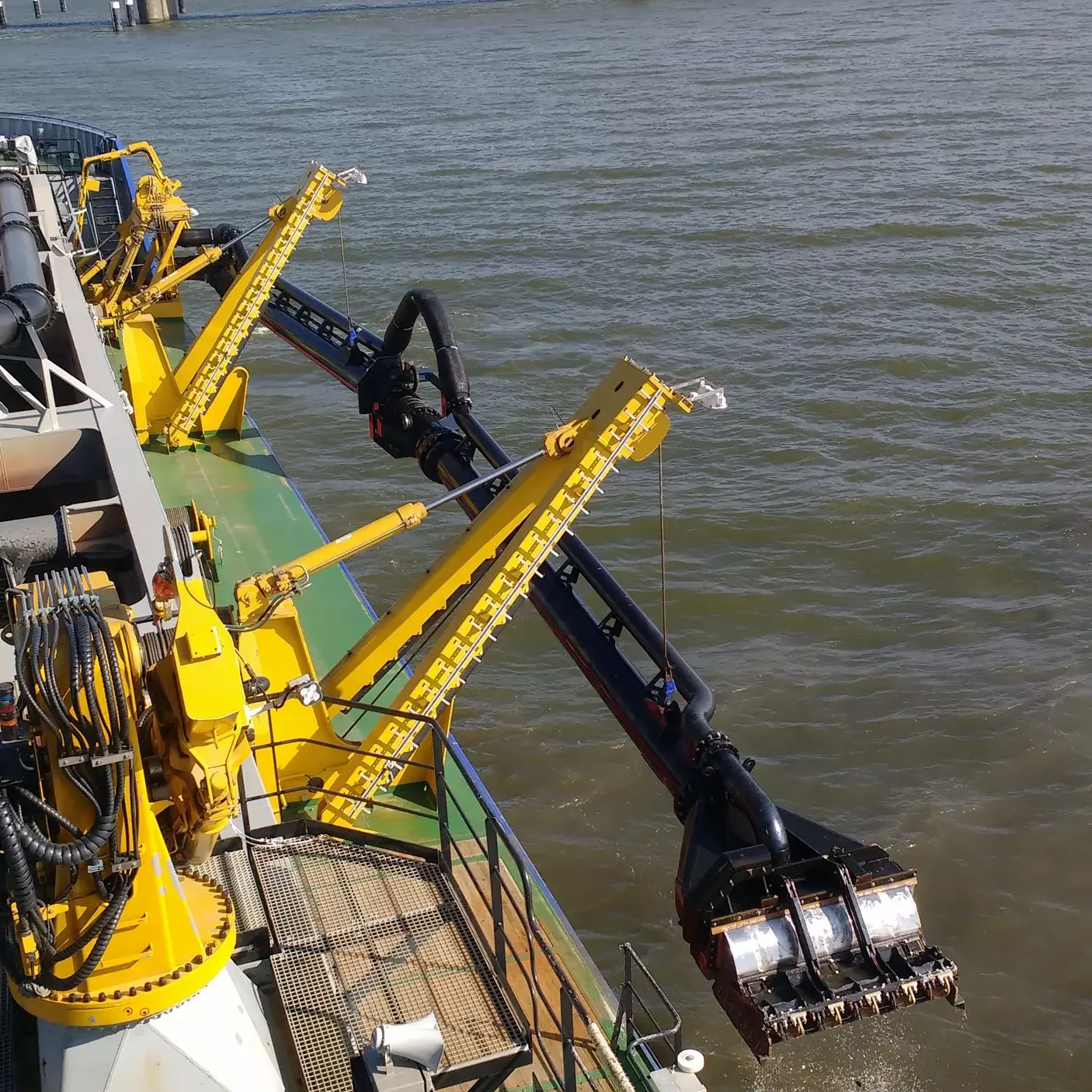

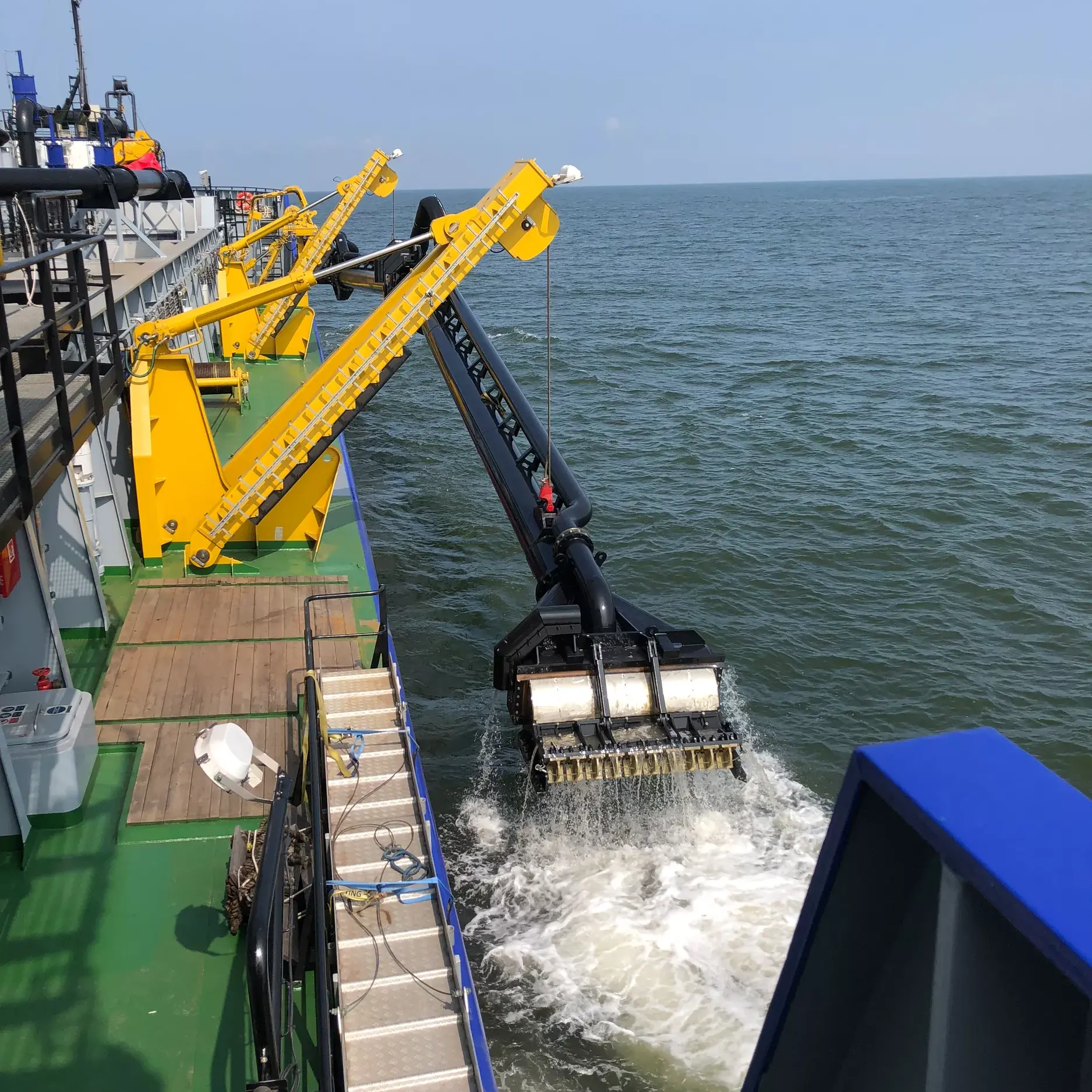

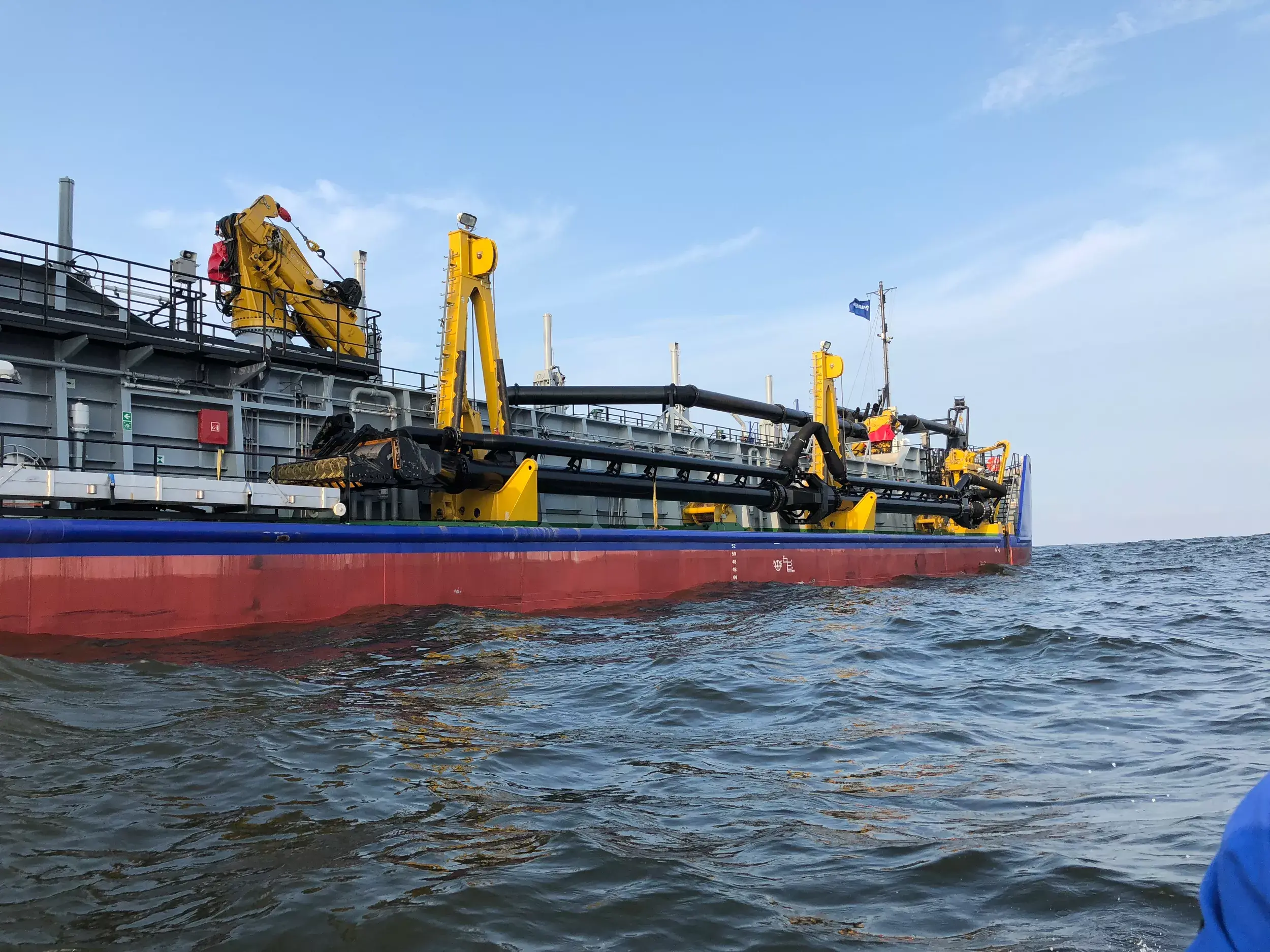

The robust trailing pipe system links the hopper dredger and the seabed. A TSHD with this flexible suction pipe can handle various dredging projects: maintenance dredging to keep harbours accessible, sand dredging for beach replenishment etc. As each hopper dredger is designed for its job, Damen's dredge package is tailored to your vessel, ensuring optimal system integration. Our flexible approach guarantees top-notch equipment packages and technical support for dredge yards and operators worldwide.
- Dredge valves
- Dredge pumps
- Bottom doors
- Dredging instrumentation
- Seamless vessel integration
- One-stop shop dredge equipment package
- Tailored to your dredging operation
- Reliable and robust dredge component designs
Key figures
600
20
5100
1500
Dimensions
- Dredge pipe diameter
- 600 m
- Dredge pump
- BP6055LD
- Max wave height
- 2.5 m
Capacities
- Pump capacity
- 5100 m³/h
- Hopper capacity
- 1500 m³
- Loading time
- 20 minutes
Dredging depth
- Minimum depth
- - 7.5 m
- Average depth
- - 20 m
- Maximum depth
- - 35 m
Do you want to know more?
Compare similar suction pipe systems
| Dredge pipe diameter (mm) | Av dredging depth (m) | Mixture capacity (m³/h) | Hopper capacity (m³) | ||
|---|---|---|---|---|---|
| Trailing Suction Pipe TSP600 | 600 | 20 | 5100 | 1500 | |

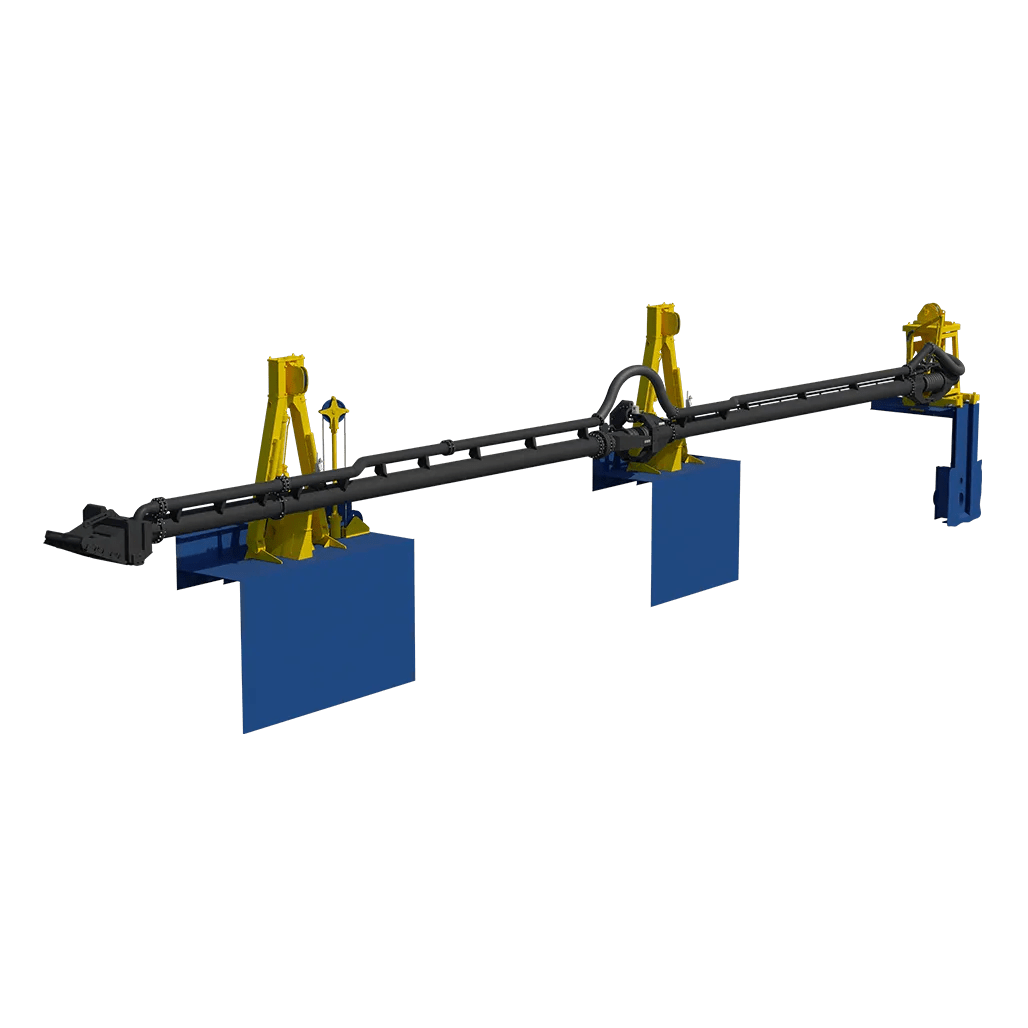

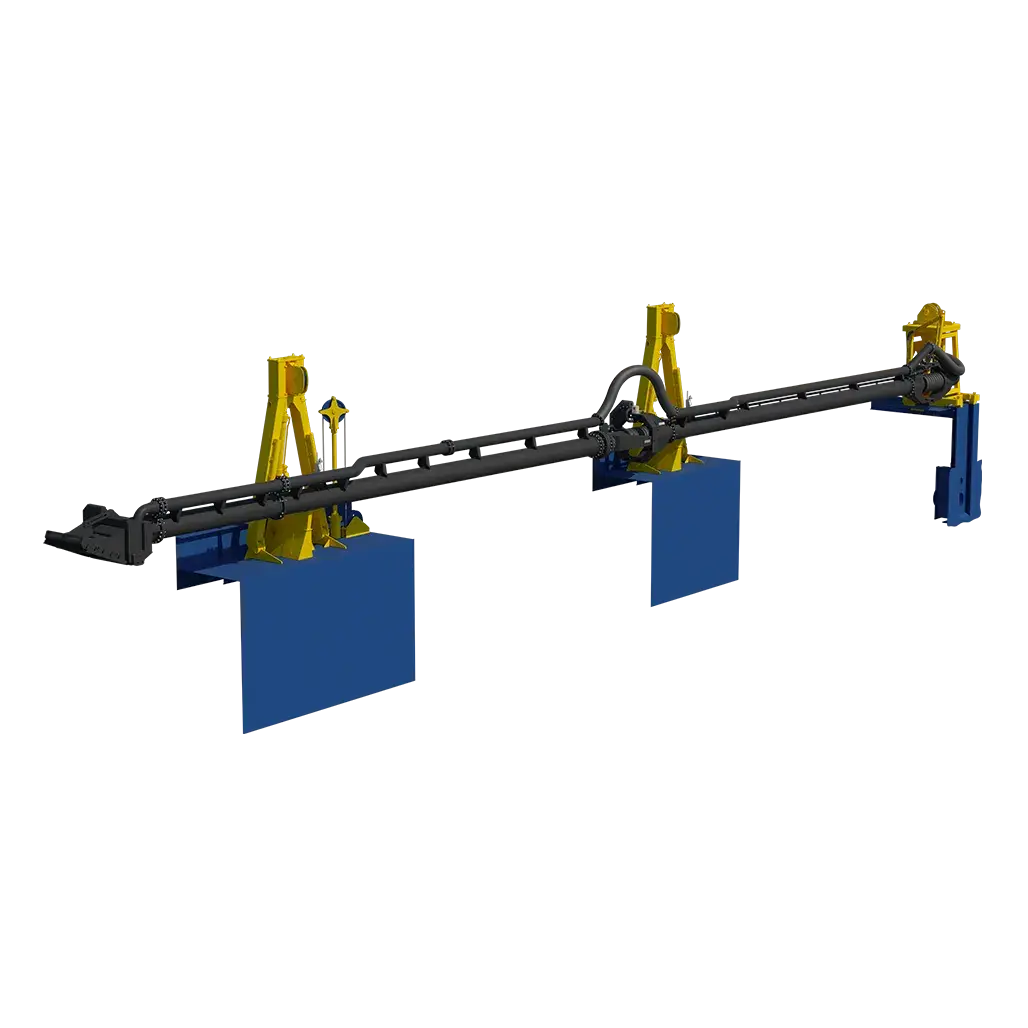

| Trailing Suction Pipe TSP500 | 500 | 20 | 3550 | 1000 | |
| Trailing Suction Pipe TSP700 | 700 | 25 | 6950 | 2000 |
Trailing Suction Pipe TSP600
- Dredge pipe diameter (mm)
- 600
- Av dredging depth (m)
- 20
- Mixture capacity (m³/h)
- 5100
- Hopper capacity (m³)
- 1500
- Dredge pipe diameter (mm)
- 500
- Av dredging depth (m)
- 20
- Mixture capacity (m³/h)
- 3550
- Hopper capacity (m³)
- 1000
- Dredge pipe diameter (mm)
- 700
- Av dredging depth (m)
- 25
- Mixture capacity (m³/h)
- 6950
- Hopper capacity (m³)
- 2000
Damen solutions
Lifecycle supportFrom delivery onwards, Damen Services supports you, every step of the way.Learn more
Trade-in your current vesselExplore our options for vessel trade-in at Damen Trading. Our in-house shipbroker.Learn more
Transform your TSHD
Dredging solutions

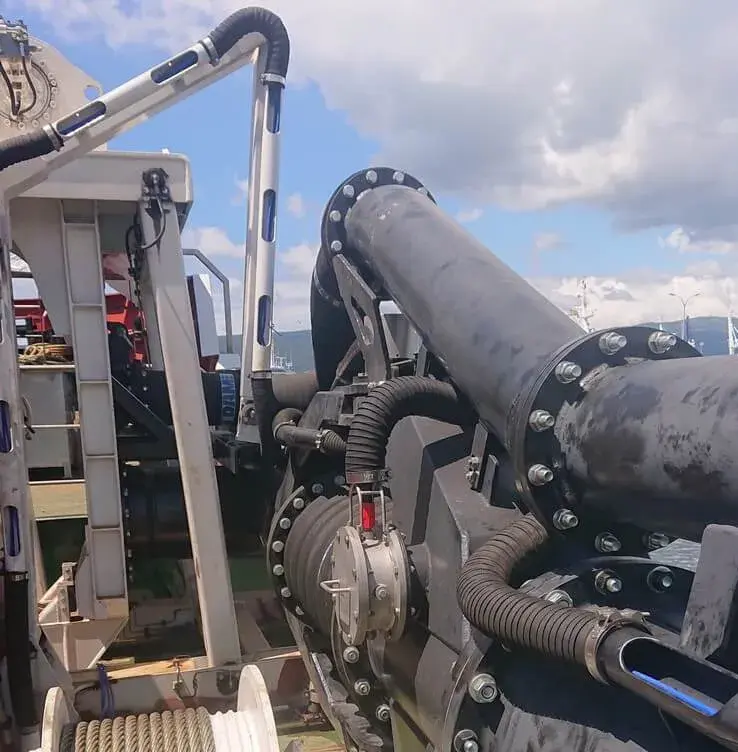

Dredging equipment to boost your dredger’s operation.
Dredging news & insights
8 Jan 2025

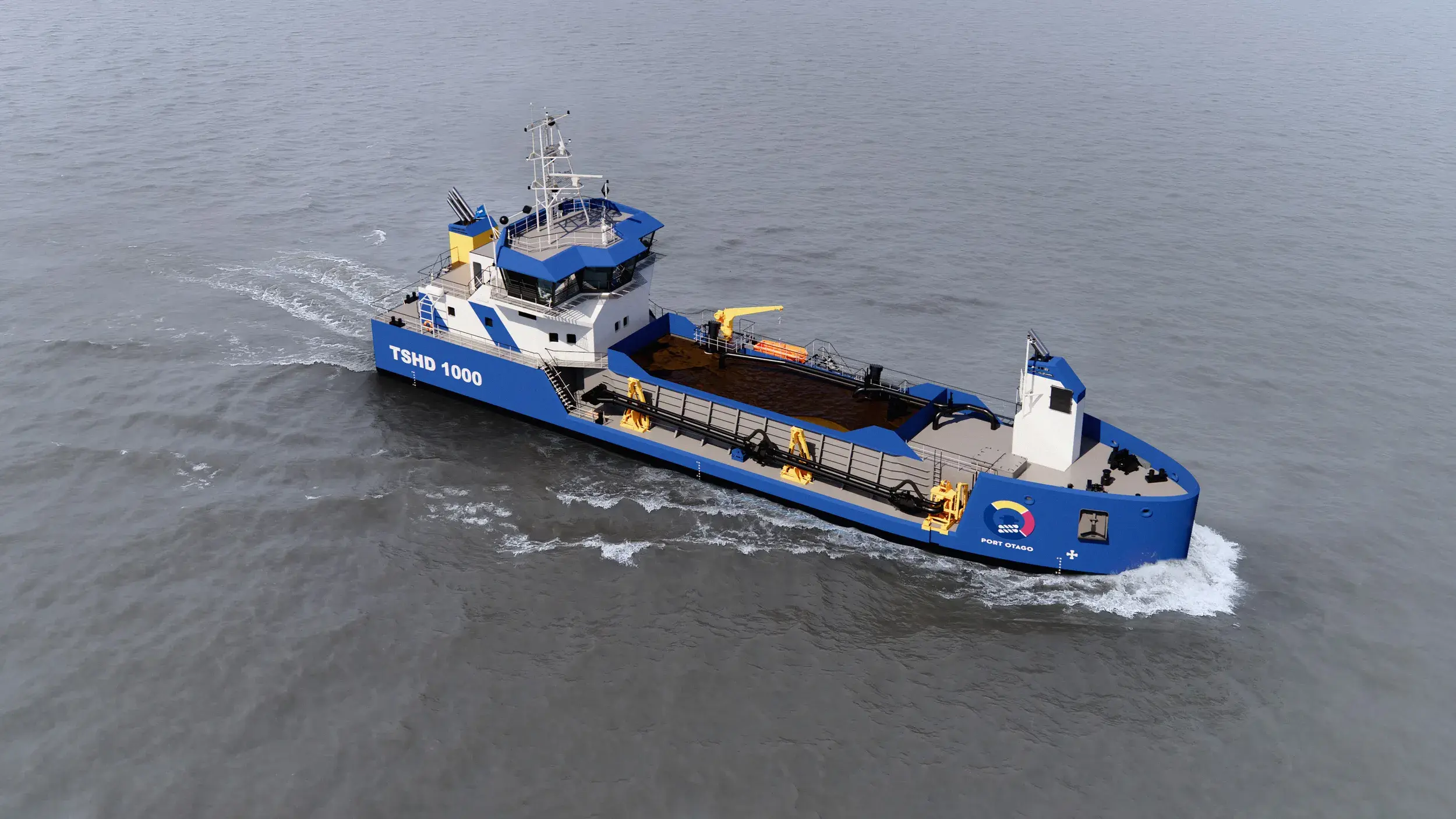

Damen signs contract with New Zealand’s Port Otago and partner Napier Port for delivery of TSHD 1000
7 Nov 2023

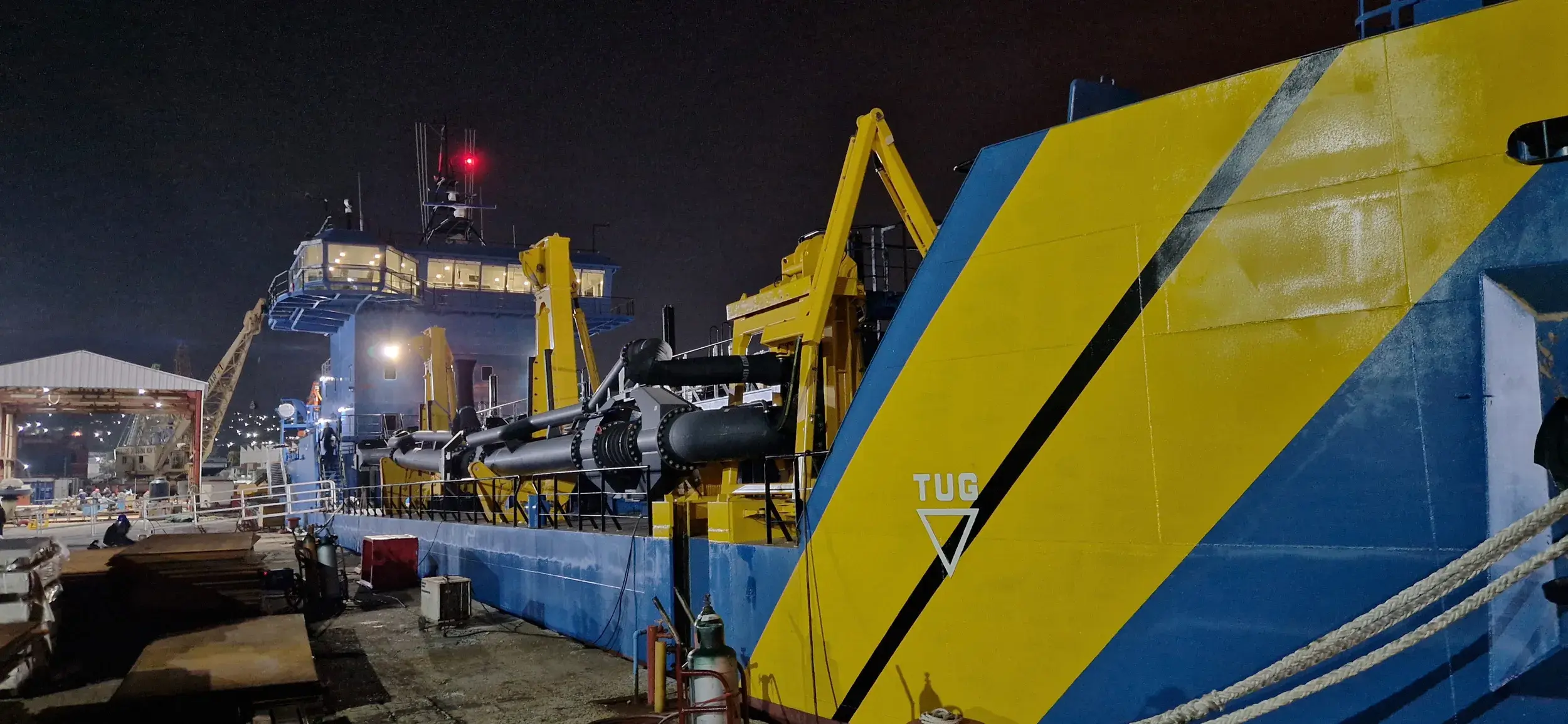

Damen delivers dredge packages to Mexico
16 Sep 2022

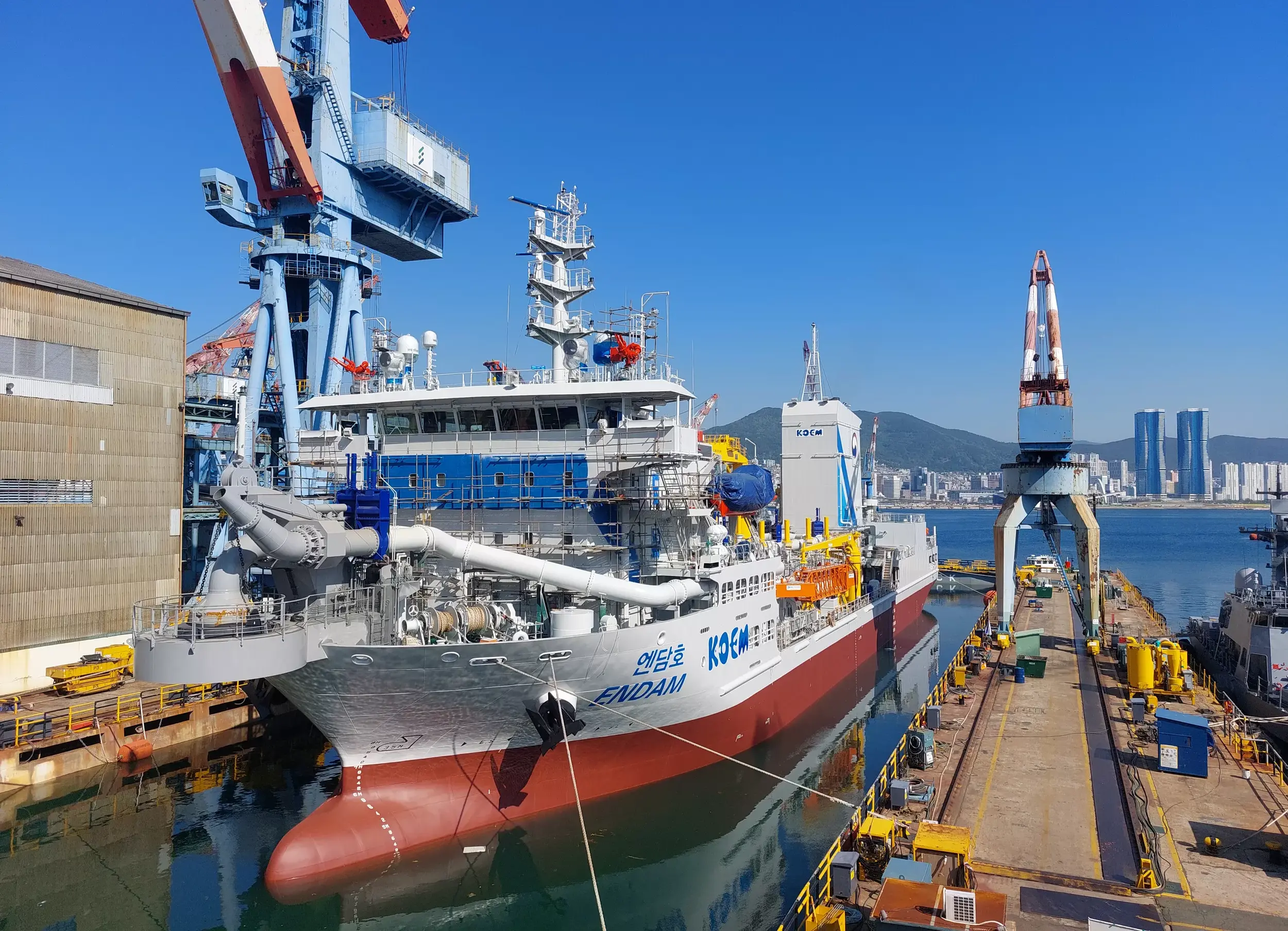

Damen delivers complete mission equipment package for KOEM multipurpose vessel
