Combi Freighter 12000 (ICE)

    Combi Freighter 12000 (ICE)

    Combi Freighter 12000 (ICE)

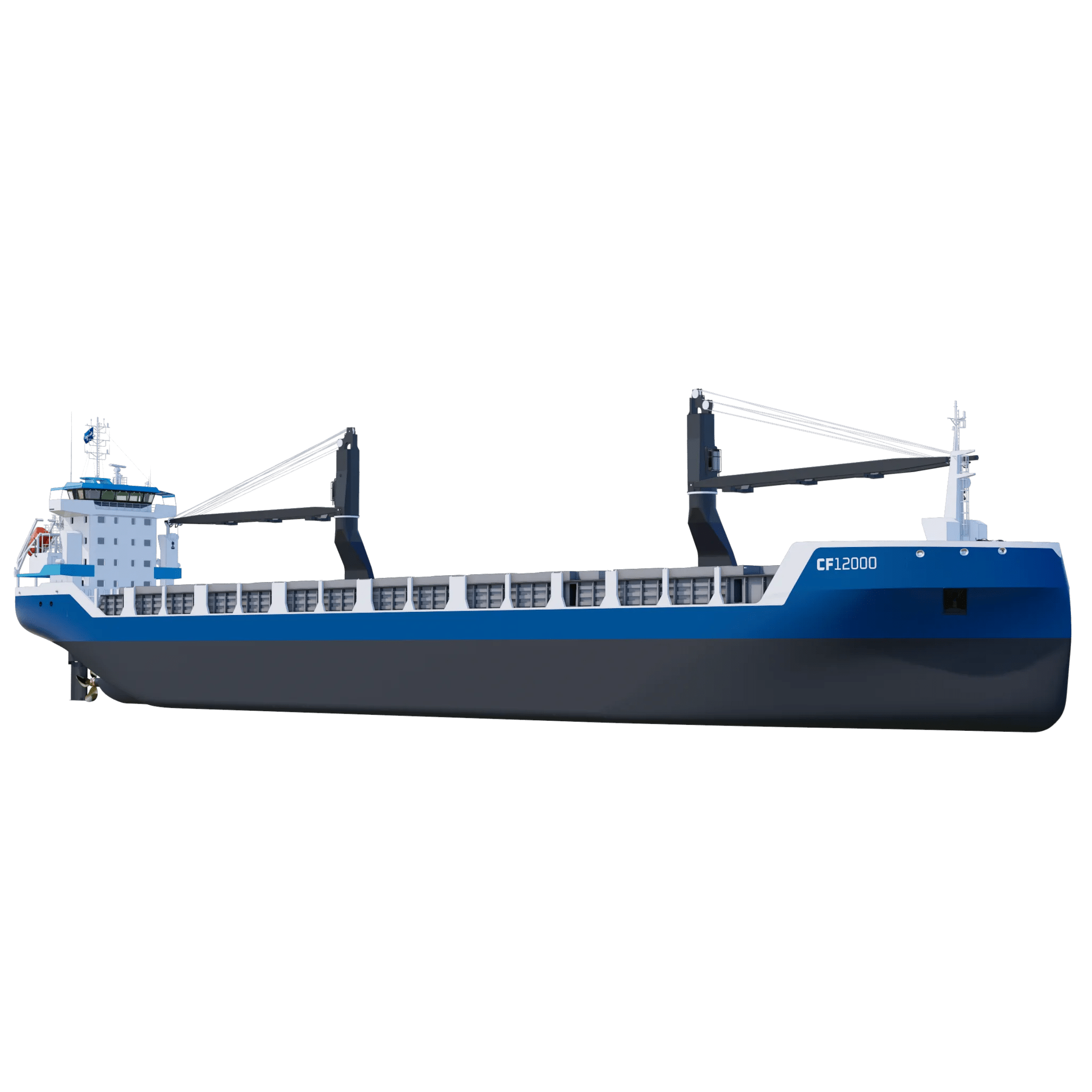

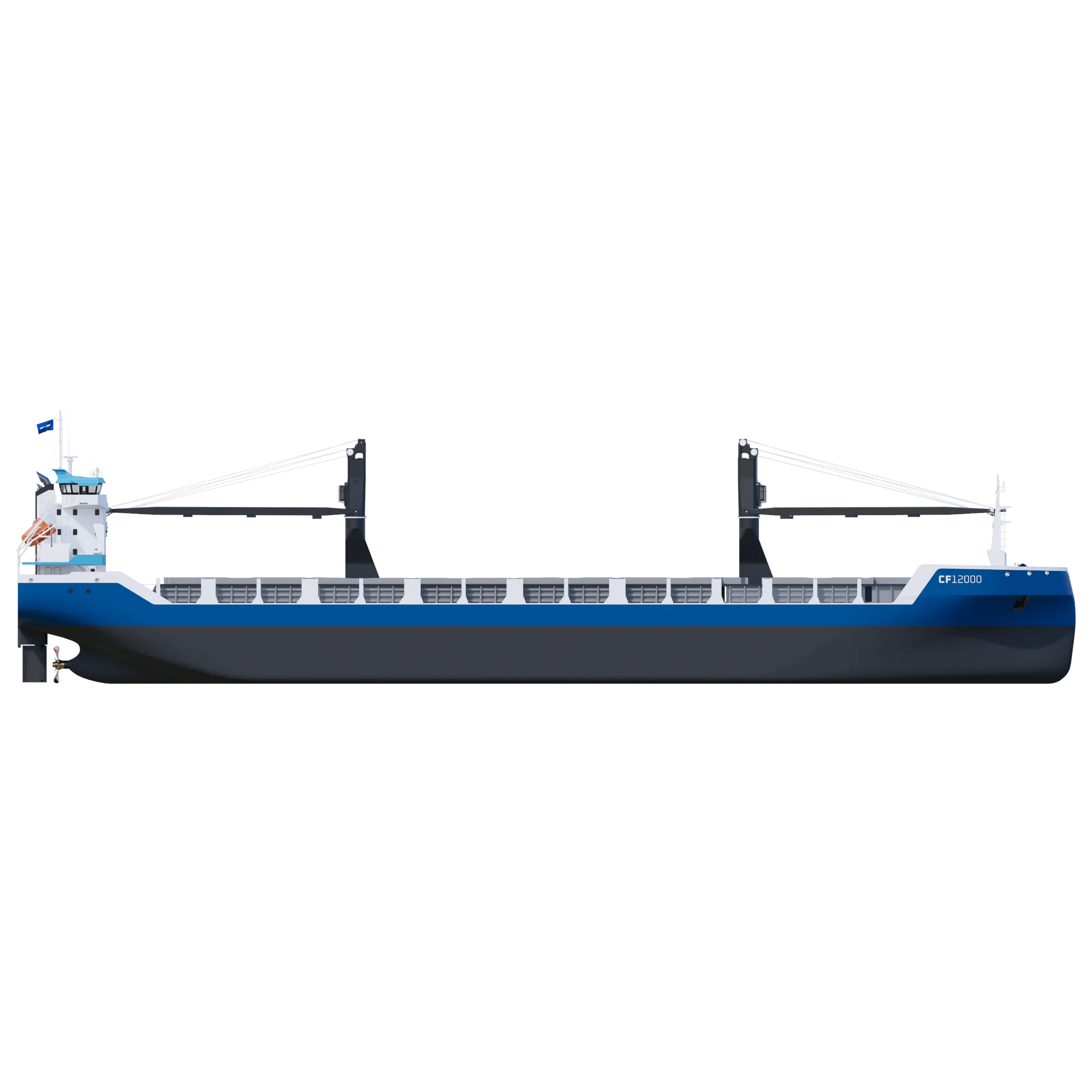

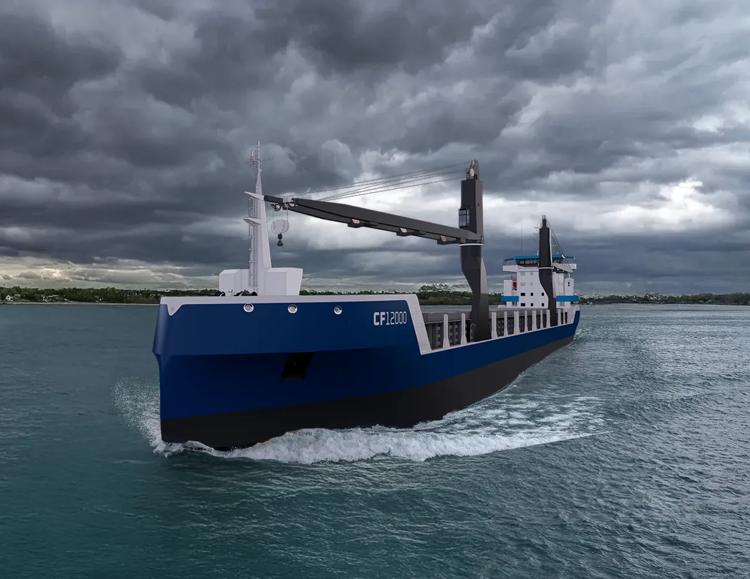

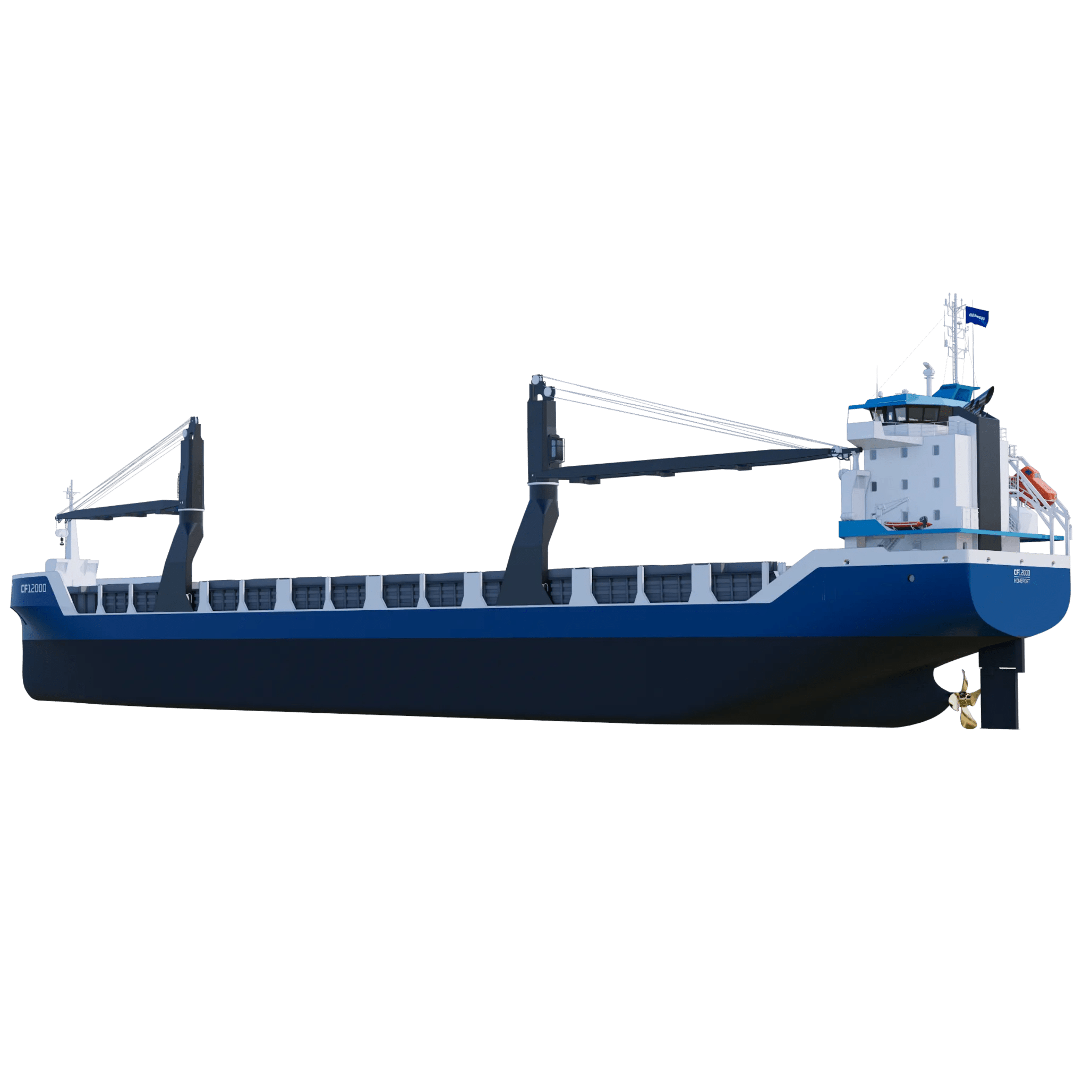

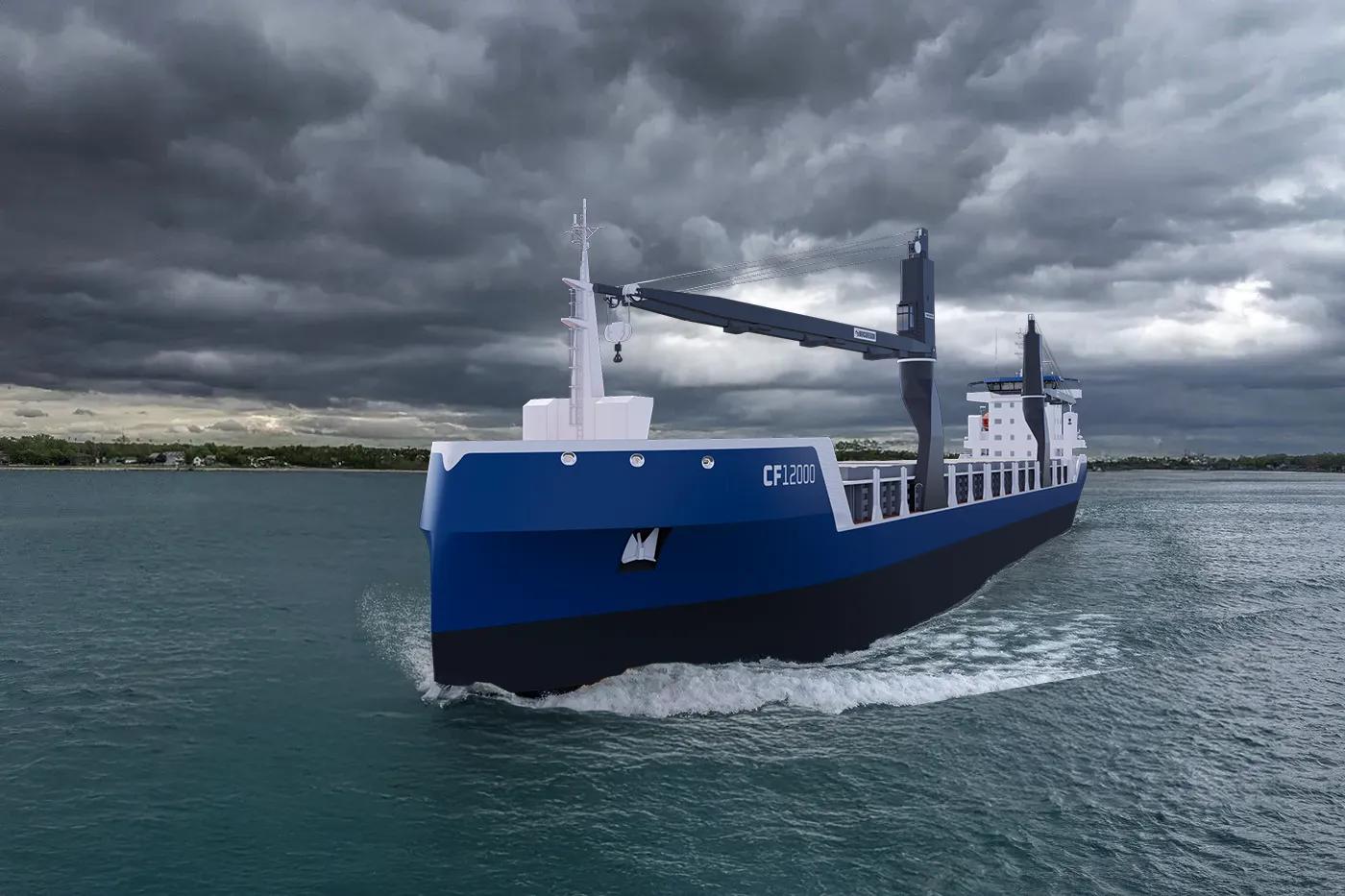

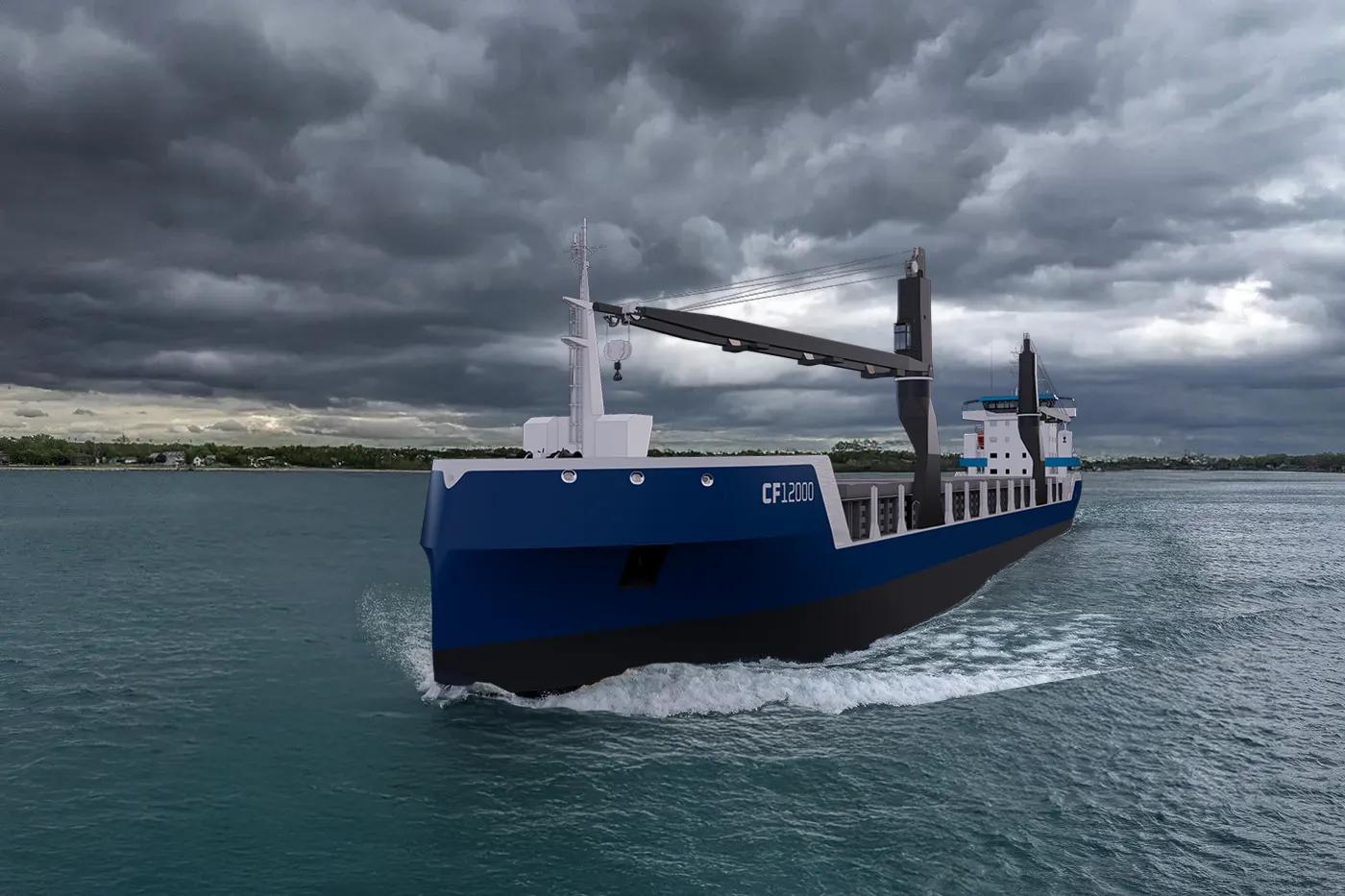

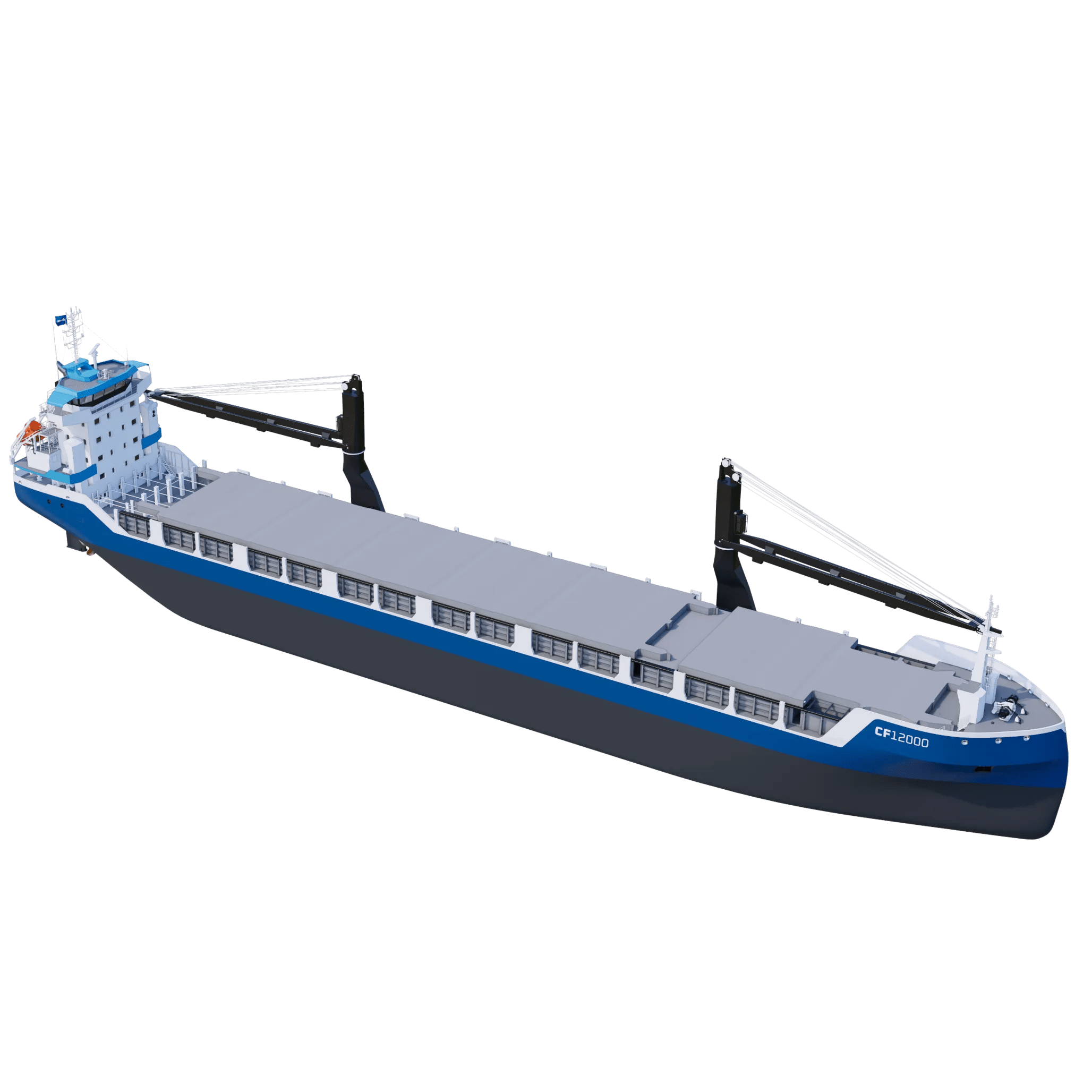

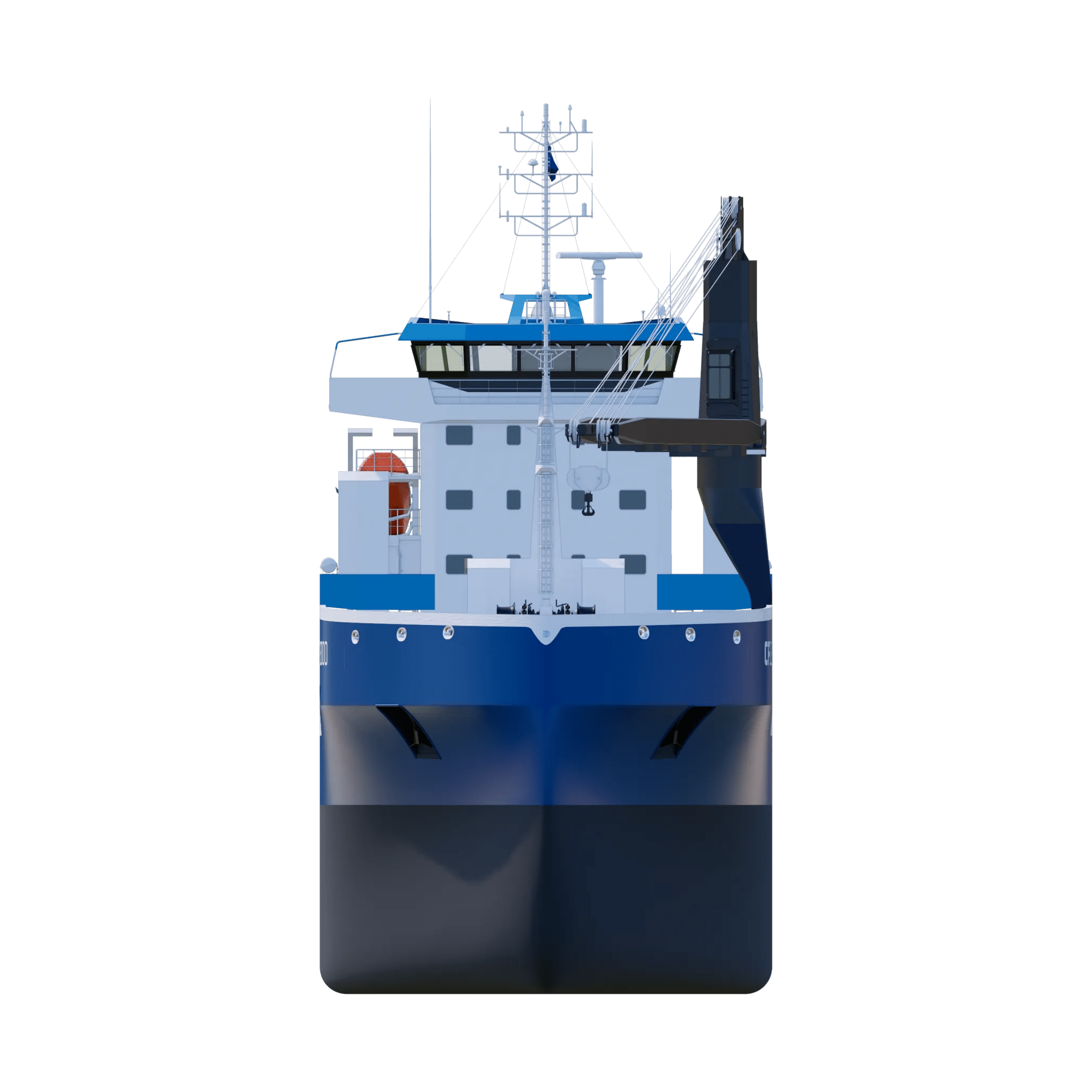

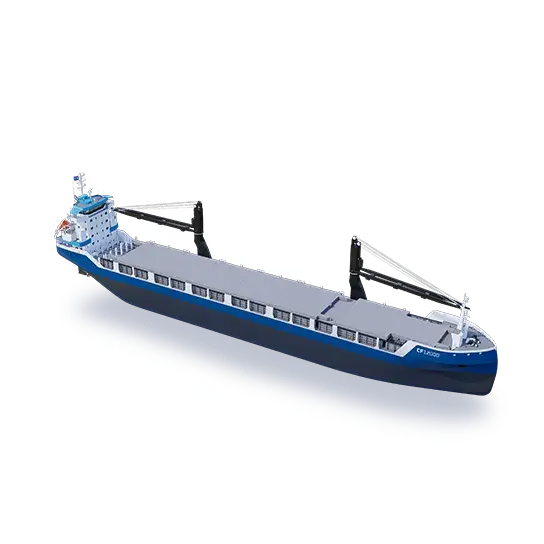

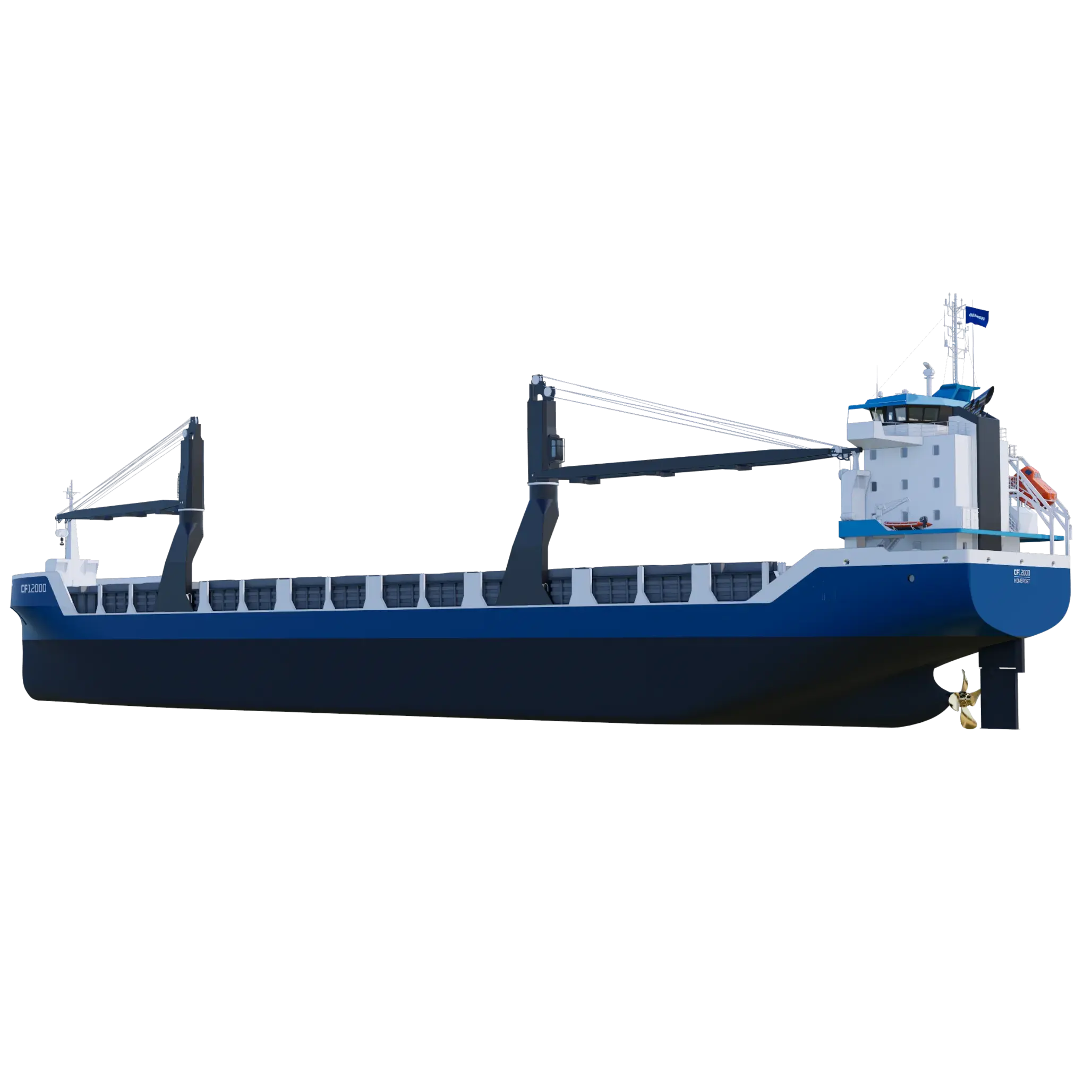

    The Combi Freighter 12000 is ready for tomorrow. In addition to its optimised, modern hull, which offers enhanced fuel efficiency, the vessel is prepared for a whole range of sustainable options. Grain bulkheads in the box-shaped hold can be configured multiple ways for flexible loading and transportation. The vessel also features a tween deck to enable transportation of different cargoes simultaneously.

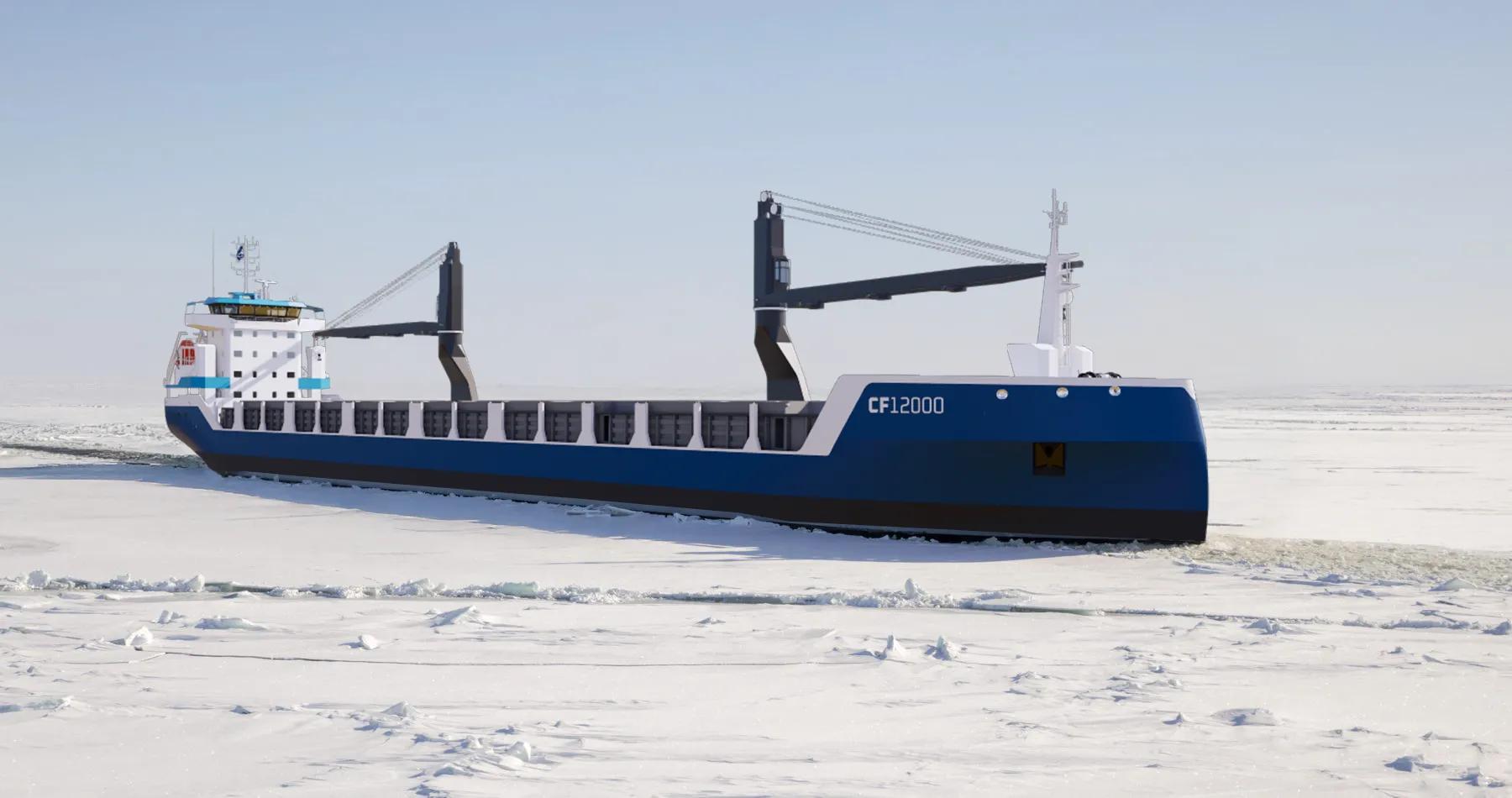

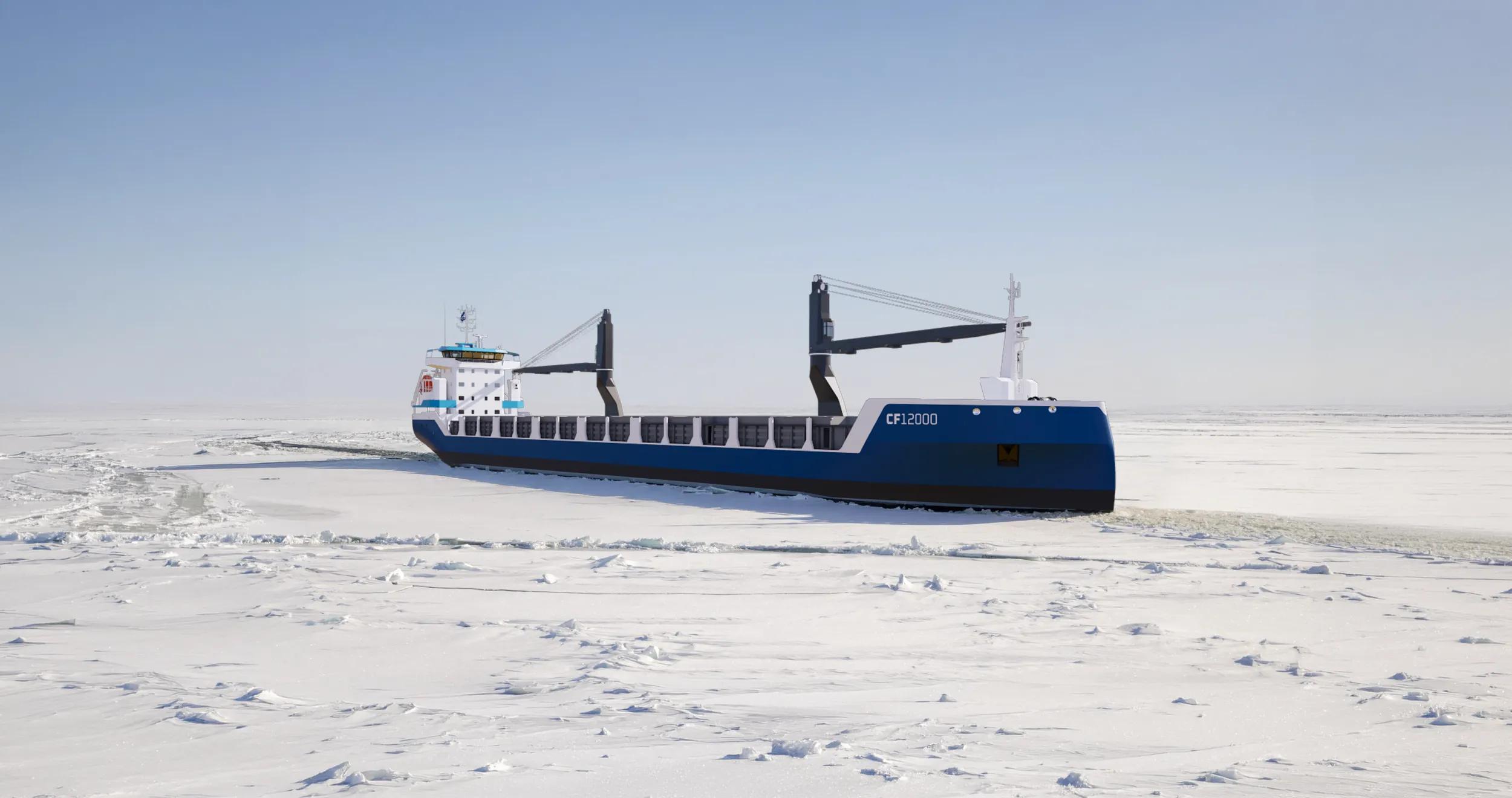

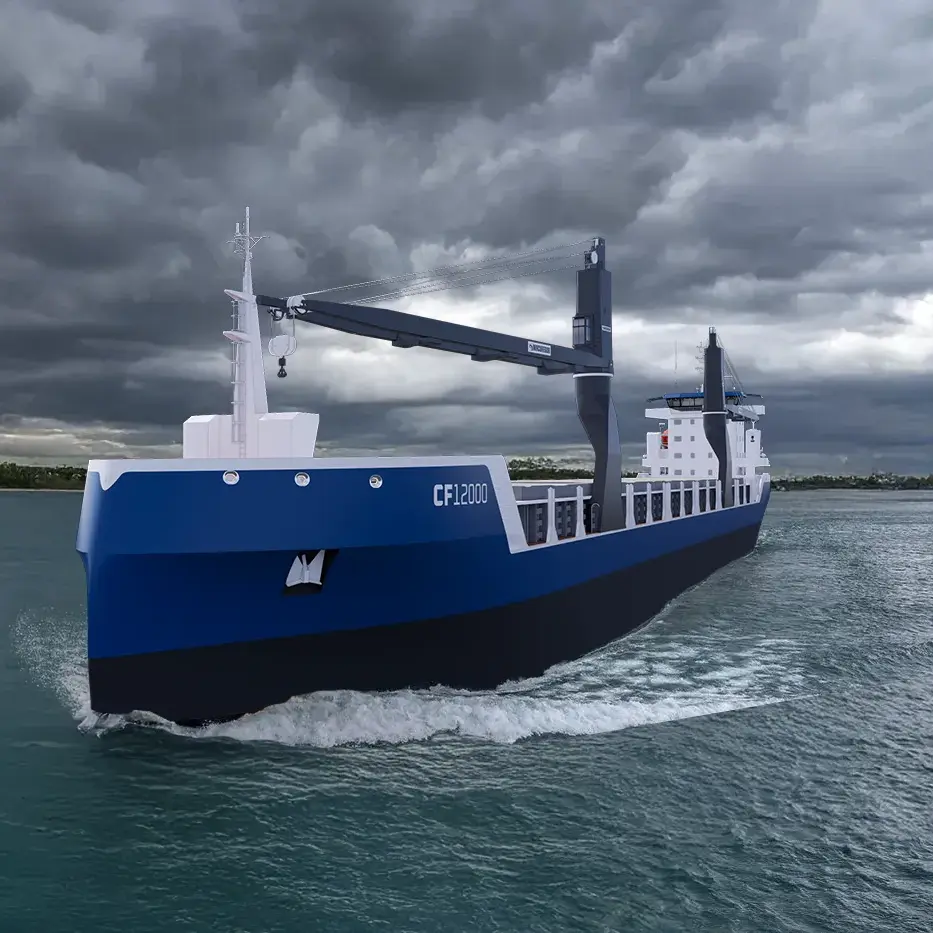

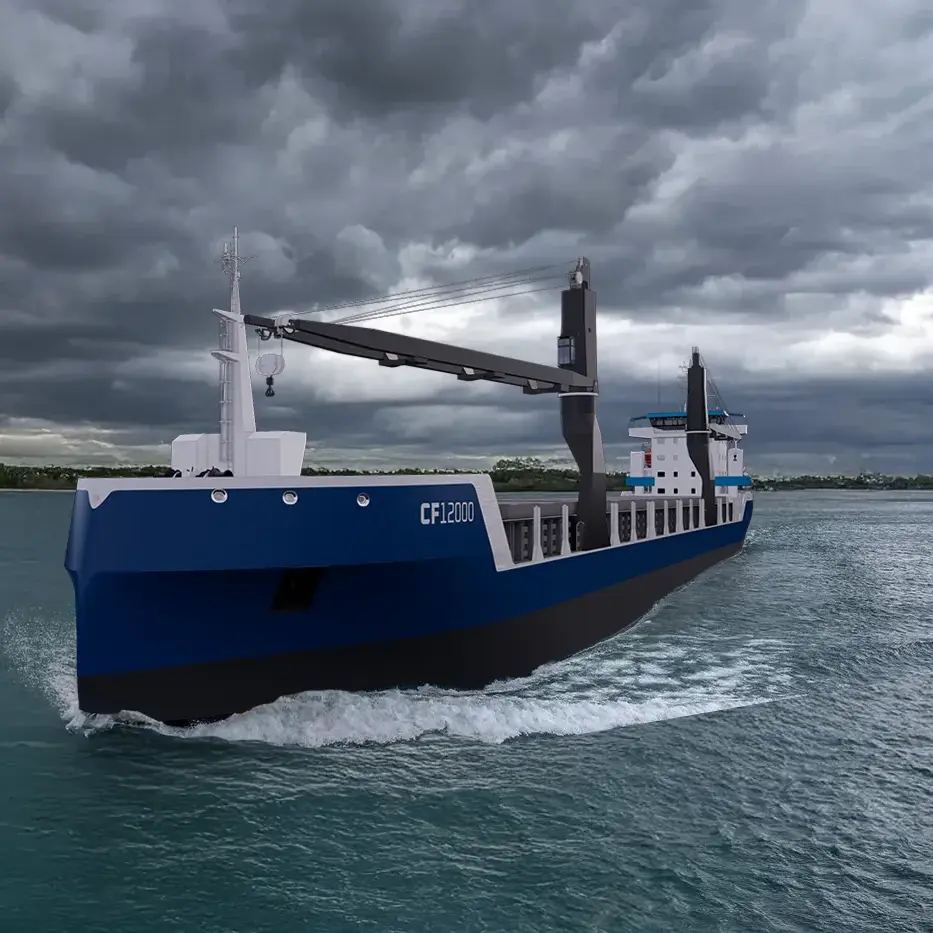

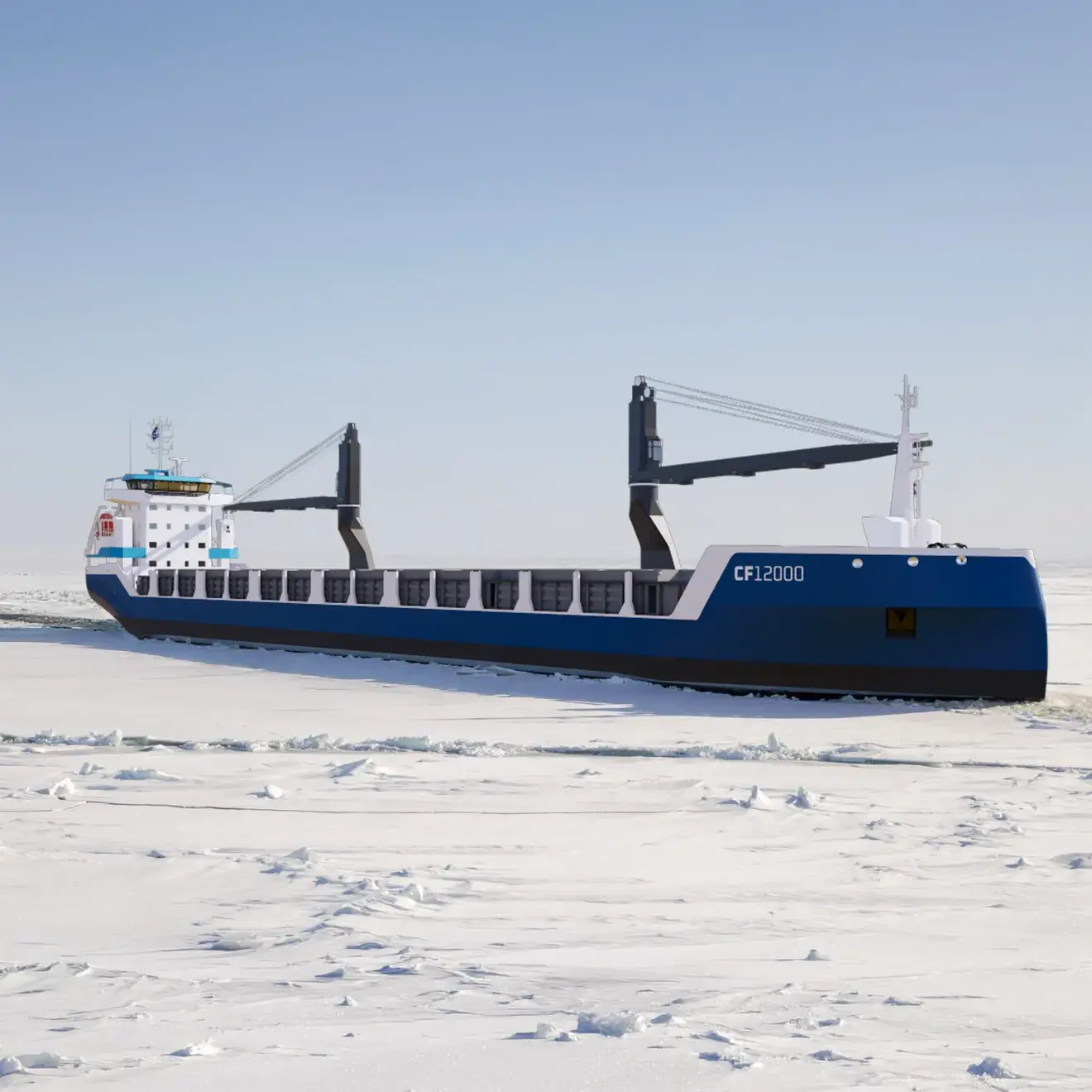

    • Modern hull design for optimal performance in open water and ice conditions
    • Suitable for Various Cargoes
    • Design ready for sustainable features
    • Damen quality, build in Asia, warranty from the Netherlands

    Key figures

    12000

    144.95

    19.3

    7.9

    17250

    Cargo dimensions

    Tonnage
    9300 GT
    Hold length
    97 m (Hold 1 +2)
    Hold beam
    15.8 m
    Hold height
    12.1 m
    Dimension (cuft)
    609,00

    Performances / Capacities

    Speed
    14 kn
    Propulsion
    4000
    Propellor
    4950
    Bow thruster (kW)
    700, fixed pitch
    Generator (kWe)
    3 x 450, 1x1000, 1x130

    Available options

    Propulsion
    PTO/PTI system Wake equalizing duct
    Energy storage
    Upgrade energy storage system
    Battery setup
    Battery container
    Fuel option
    Bio diesel
    Cargo hold flexibility
    Tween deck panels
    Class
    Class 1 dangerous goods (explosives)
    Do you want to know more?

    Compare similar vessels

    Deadweight (t)Length (m)Beam (m)Draught (m)Hold (m³)
    Combi Freighter 12000 (ICE)12000144.9519.37.917250
    Combi Freighter 7000 (ICE)6900110.4715.26.559400
    Combi Freighter 8200 (ICE)8100118.1415.97.2110795
    Combi Freighter 12000 (ICE)
    Deadweight (t)
    12000
    Length (m)
    144.95
    Beam (m)
    19.3
    Draught (m)
    7.9
    Hold (m³)
    17250
    Combi Freighter 7000 (ICE)
    Deadweight (t)
    6900
    Length (m)
    110.47
    Beam (m)
    15.2
    Draught (m)
    6.55
    Hold (m³)
    9400
    Combi Freighter 8200 (ICE)
    Deadweight (t)
    8100
    Length (m)
    118.14
    Beam (m)
    15.9
    Draught (m)
    7.21
    Hold (m³)
    10795
