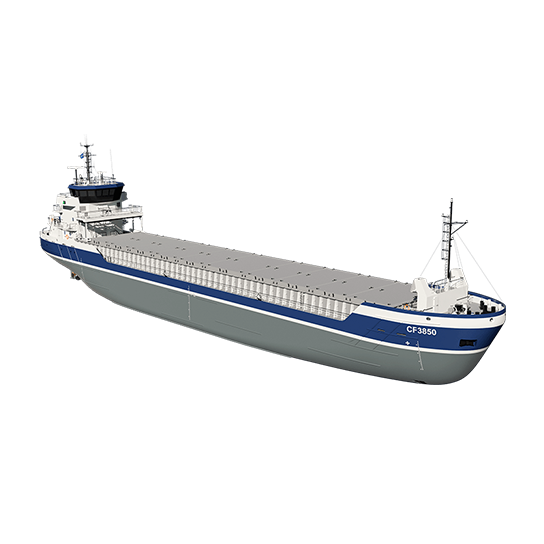

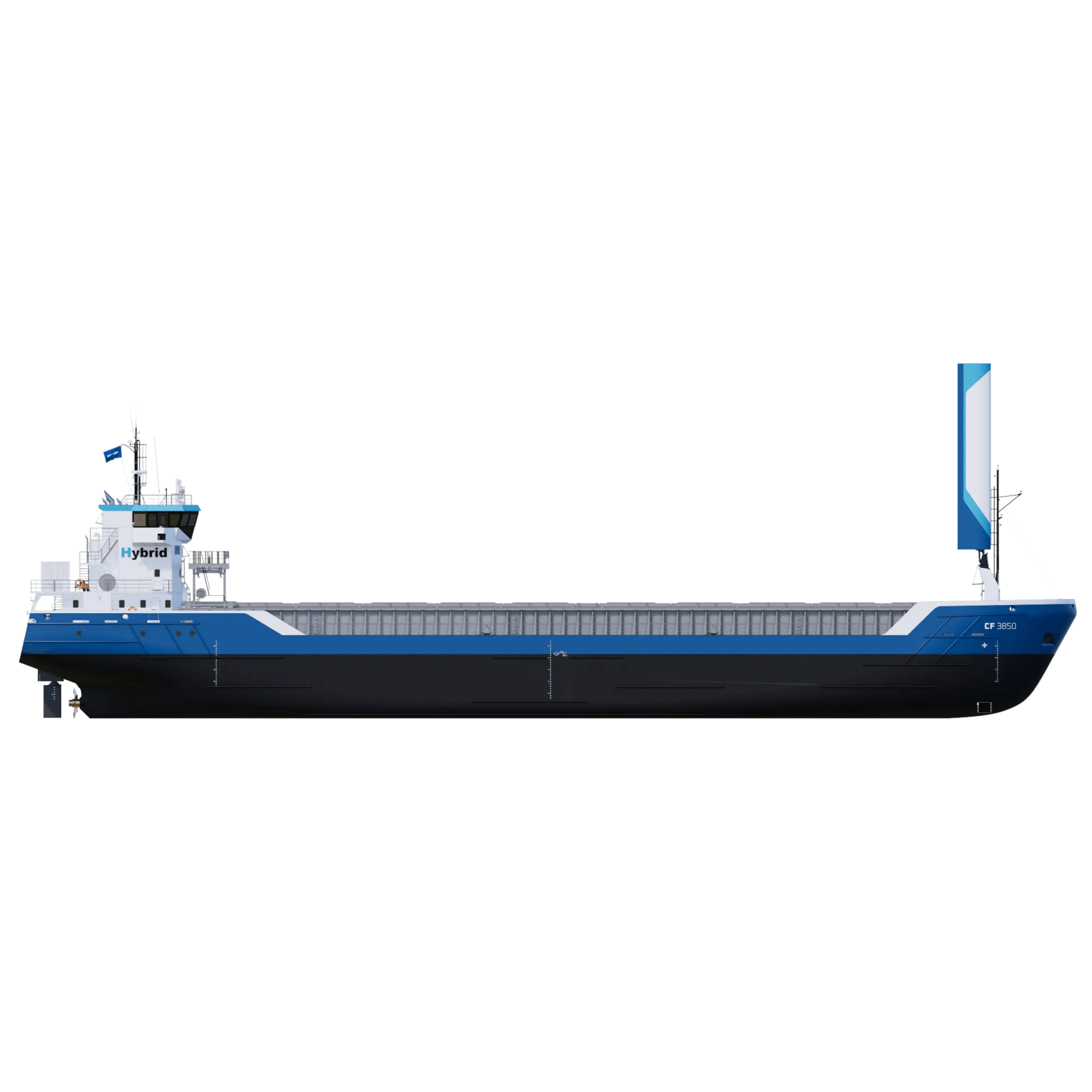

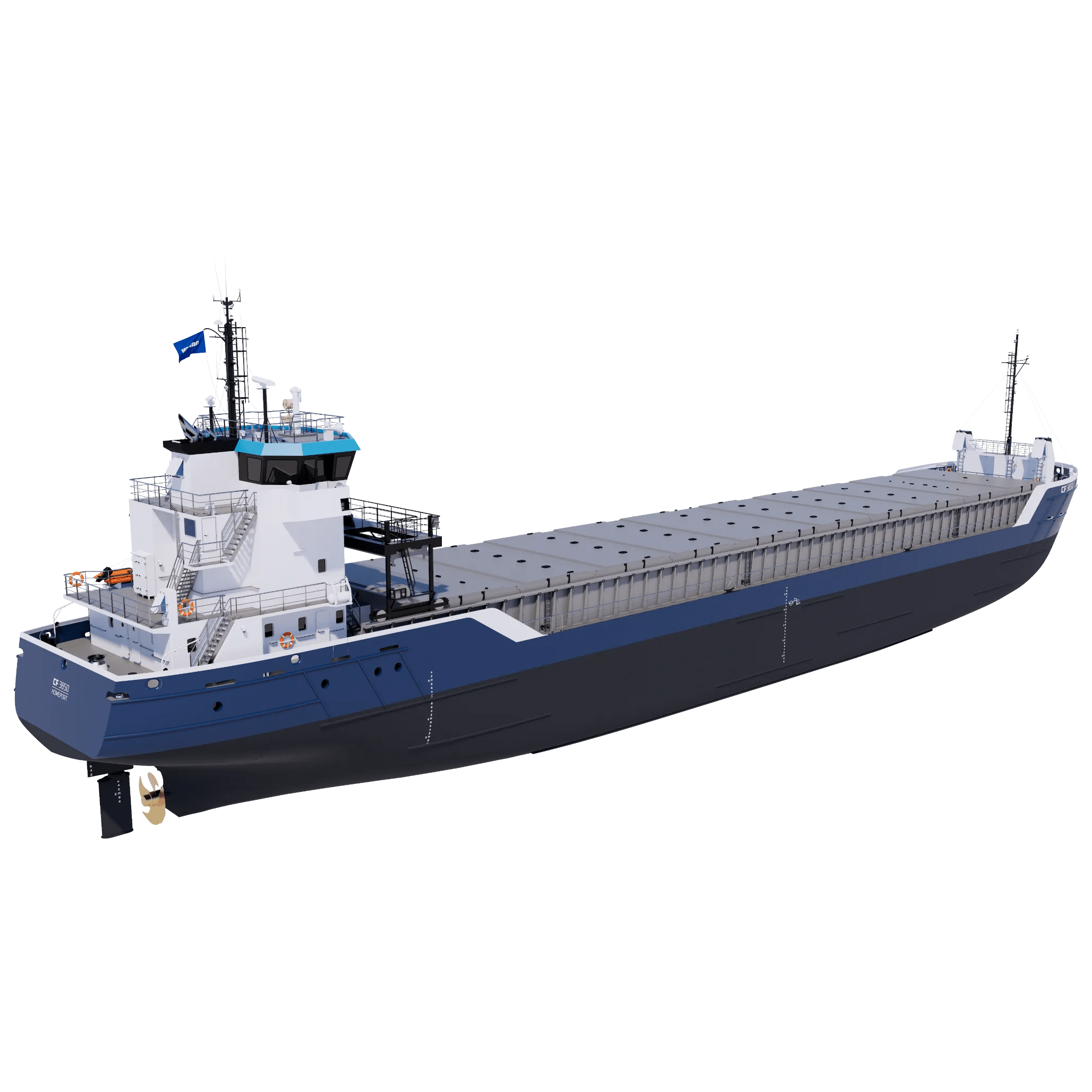

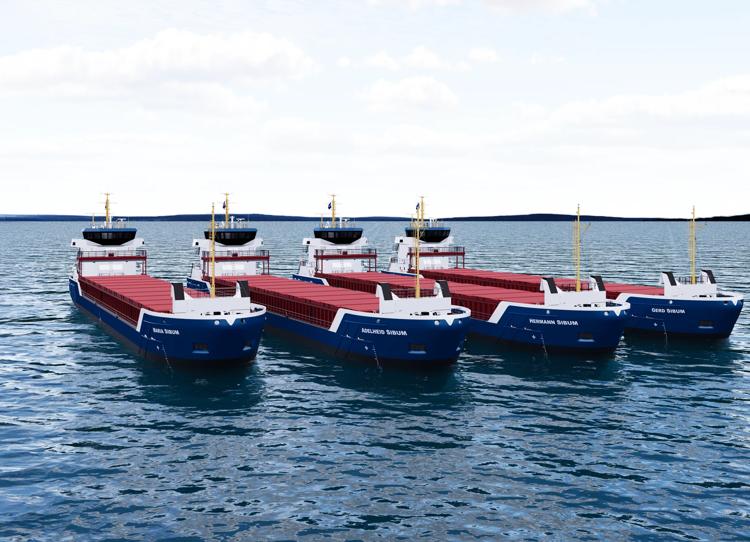

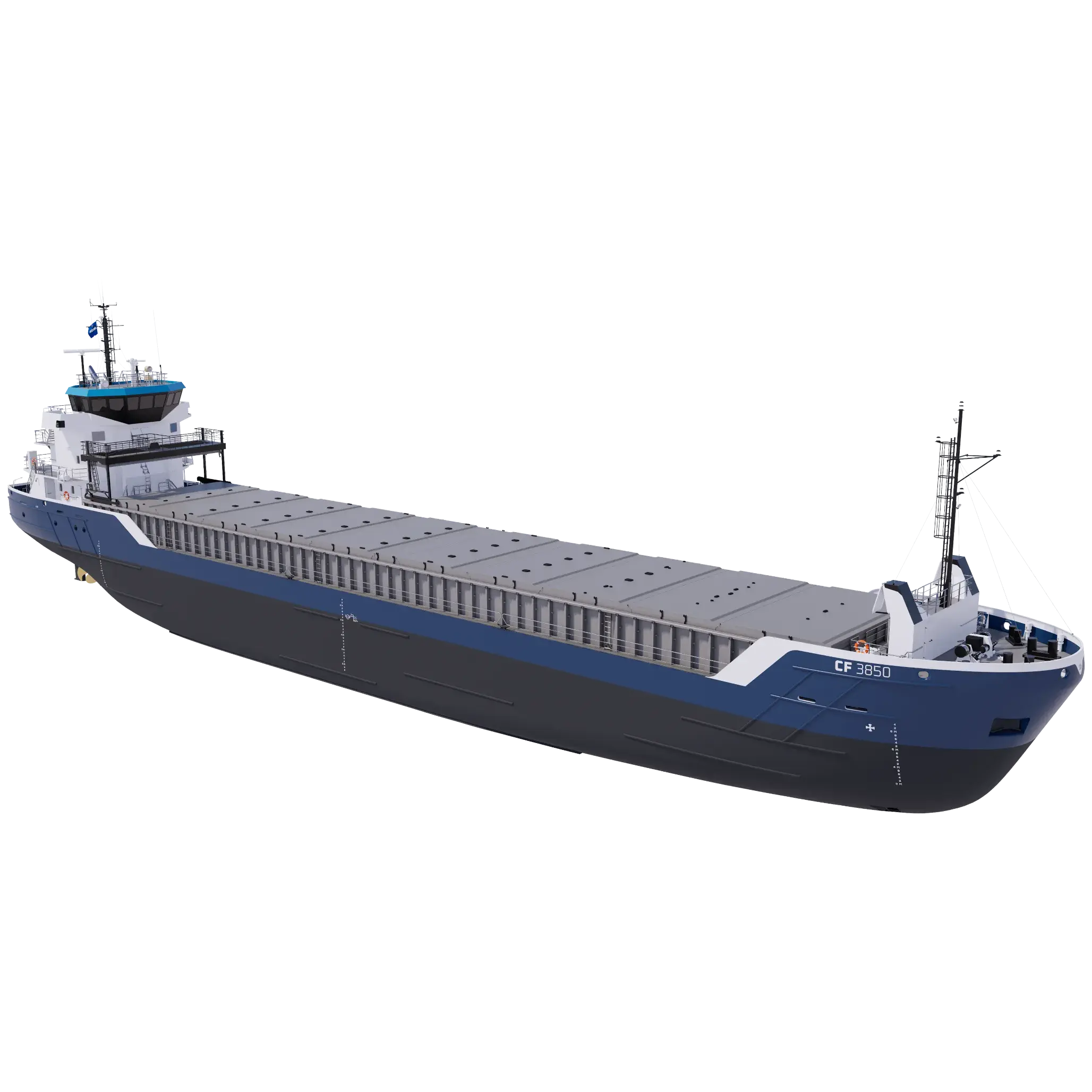

Combi Freighter 3850

3800

89.70

12.50

5.48

5250

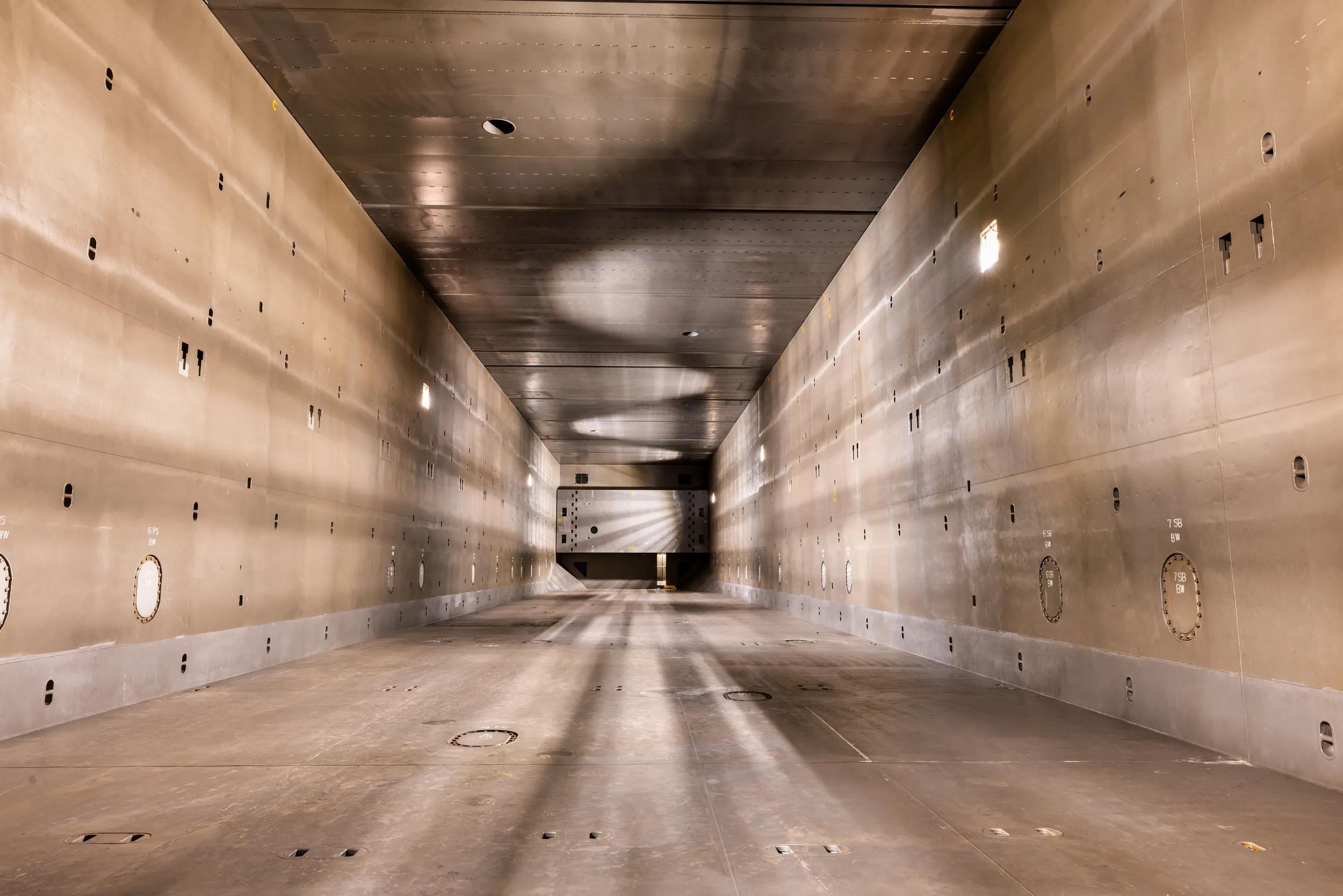

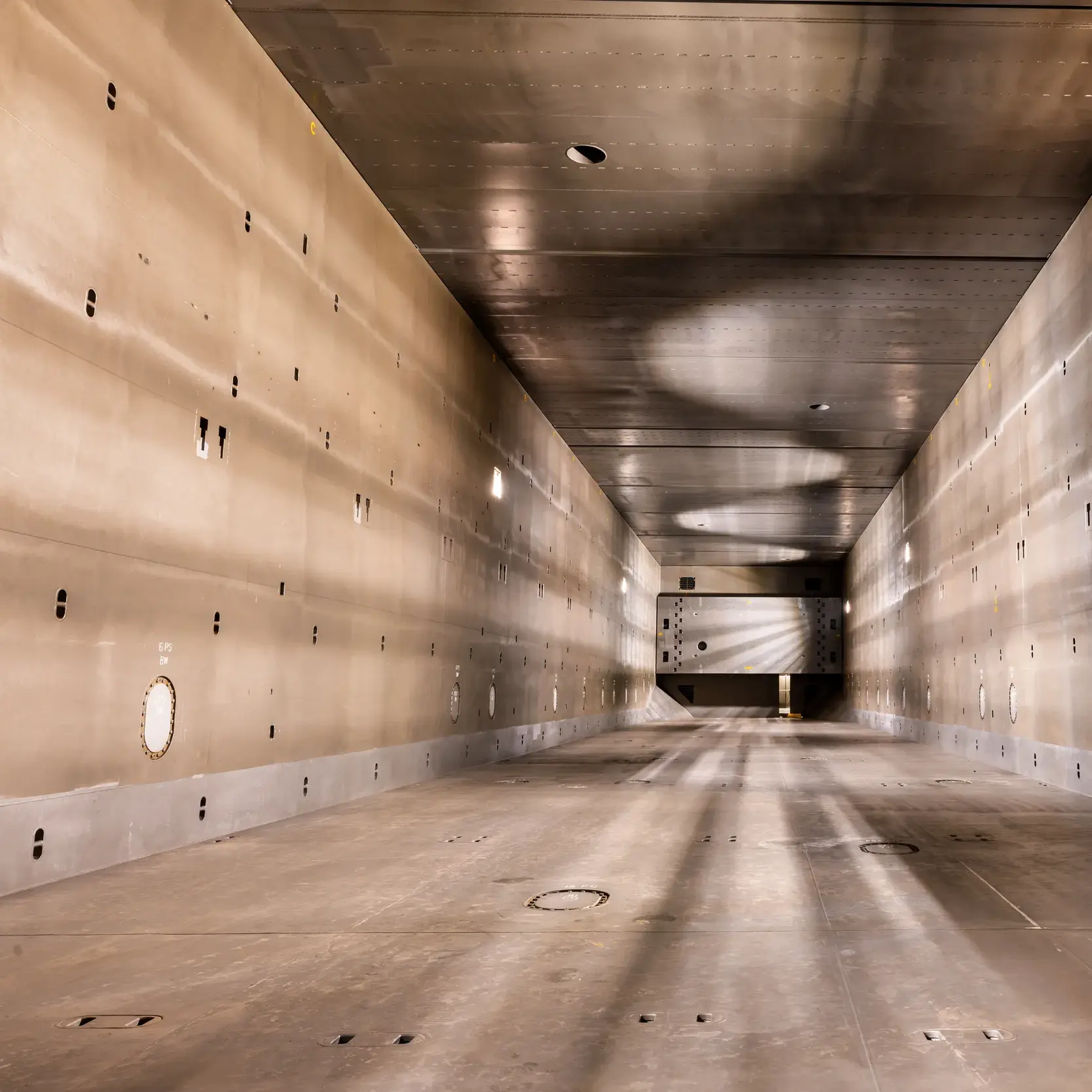

The hull form is based on a long tradition of building and testing various bow shapes. This shape has been successful in the deep sea markets and has proved to be fuel efficient. The vessel has been adapted to meet the latest stability requirements of SOLAS / IMO regulations. Its ballast tank division makes it possible to create a single hold optimised for homogenous loading. A box shaped hold with multiple position options for the two grain bulkheads. The tween deck gives full flexibility for bulk and break bulk cargo. With securing eyes all over the longitudinal bulkheads the cargo can be fixed exactly as required.

Gallery

Key figures

Dimensions

Length o.a.
89.70 m
Length b.p.p
84.97 m
Beam
12.50 m
Draught max
5.48 m
Speed
(draught 3.0 m, engine output of 1104 kW) 11.8 kn
Gross tonnage
2570 gt

Capacities

Deadweight
3800 t
Hold
5250 m³ (185400 cuft)
Dimensions hold (lxbxh)
62.50 x 10.10 x 8.40 m
