Combi Freighter 7000 (ICE)

    Combi Freighter 7000 (ICE)

    Combi Freighter 7000 (ICE)

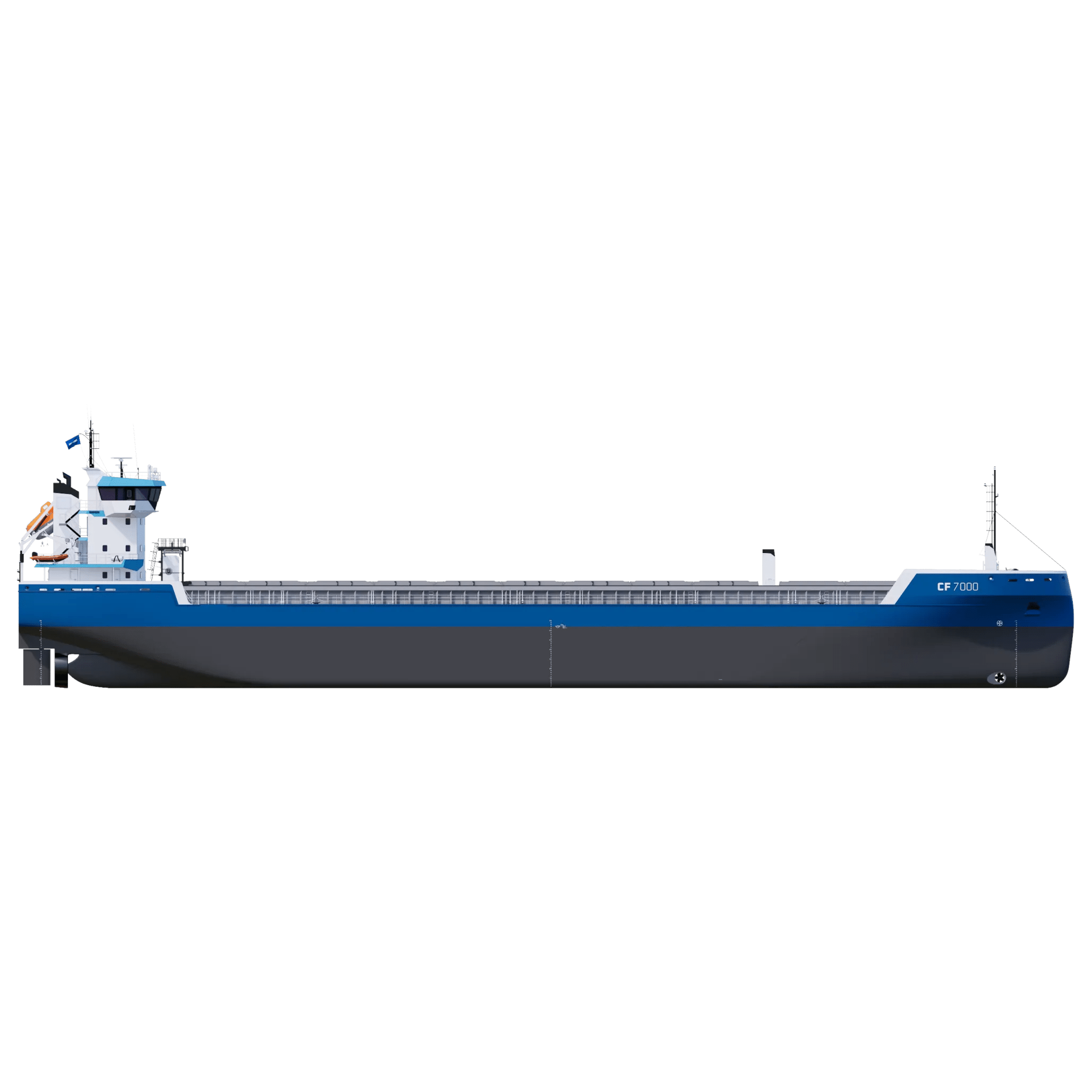

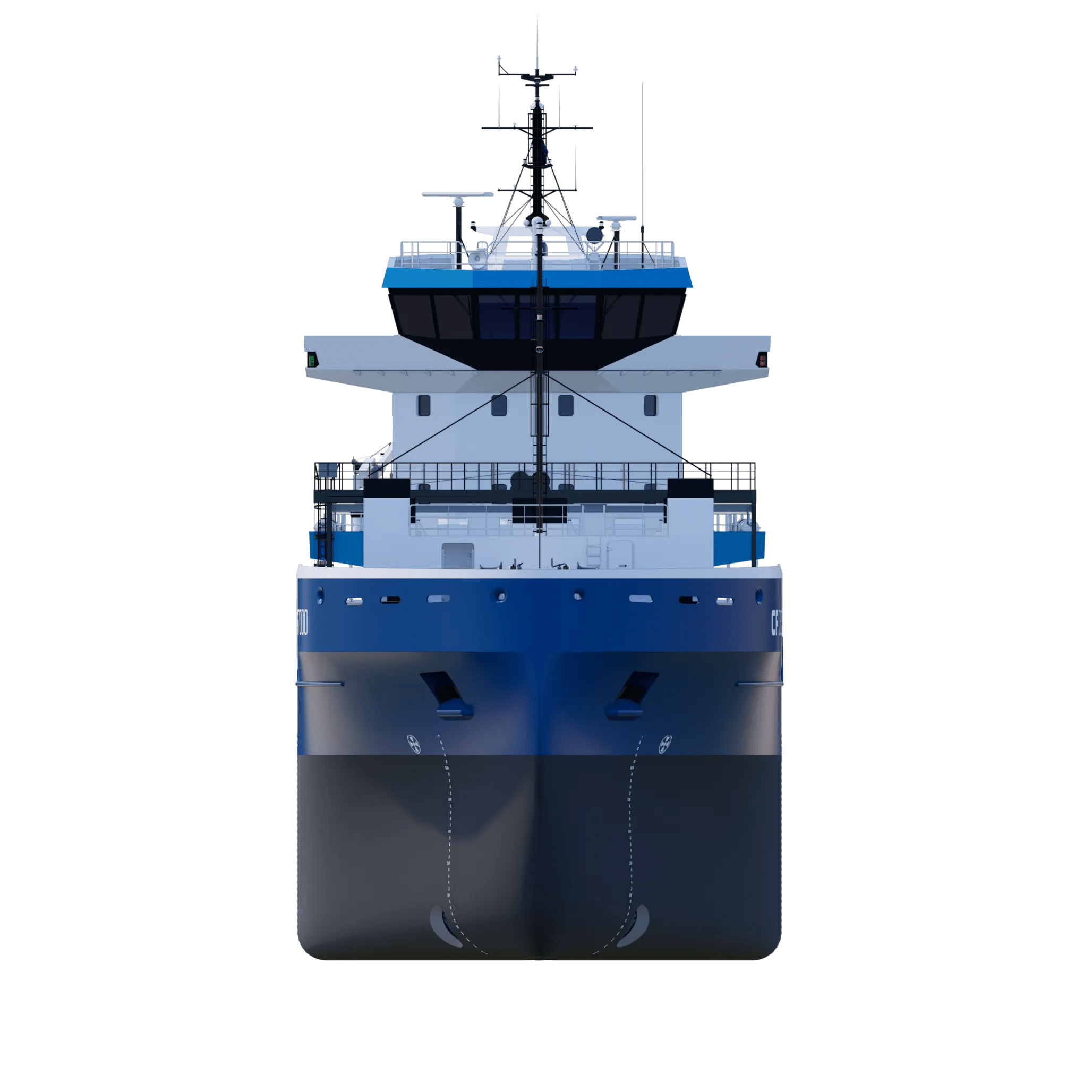

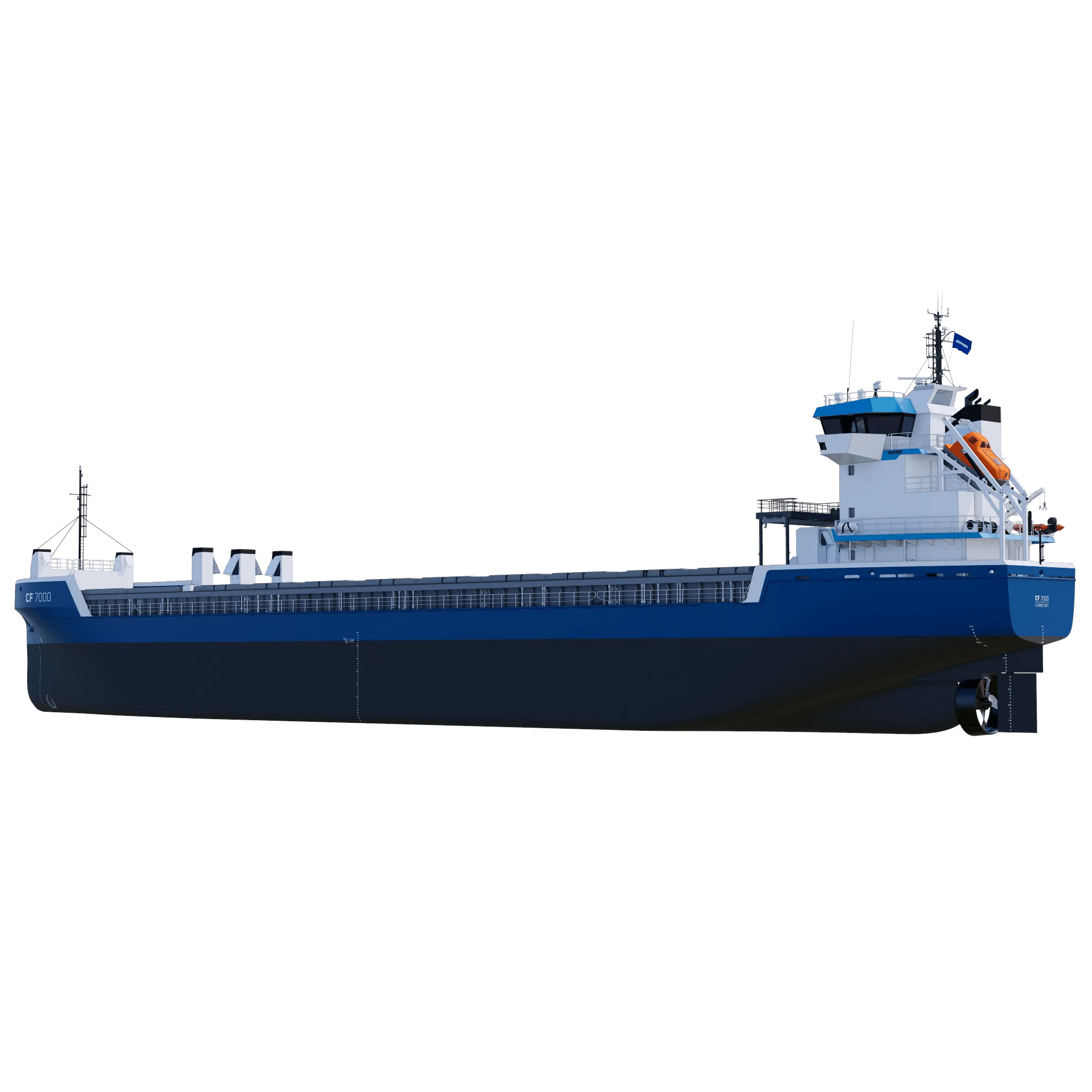

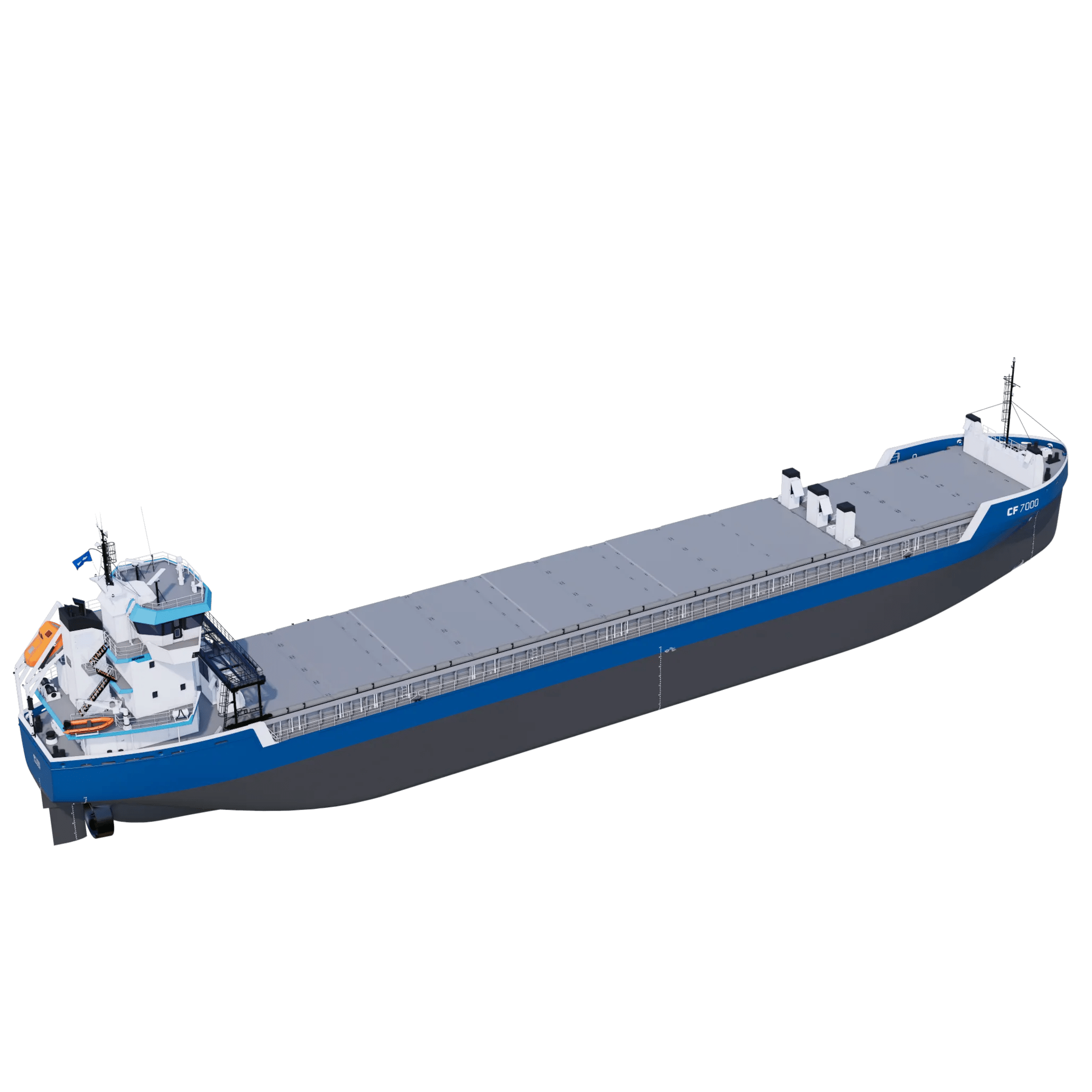

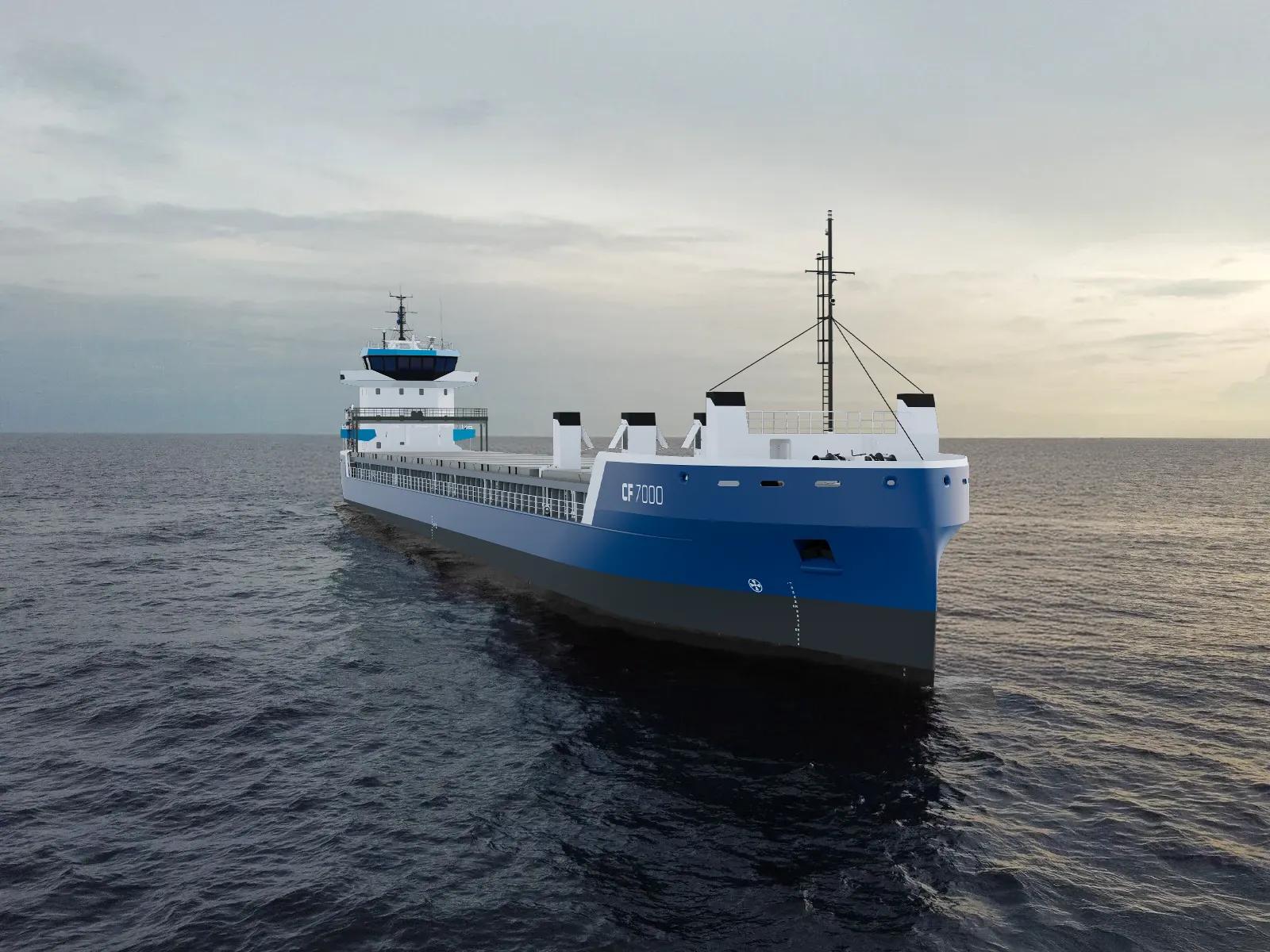

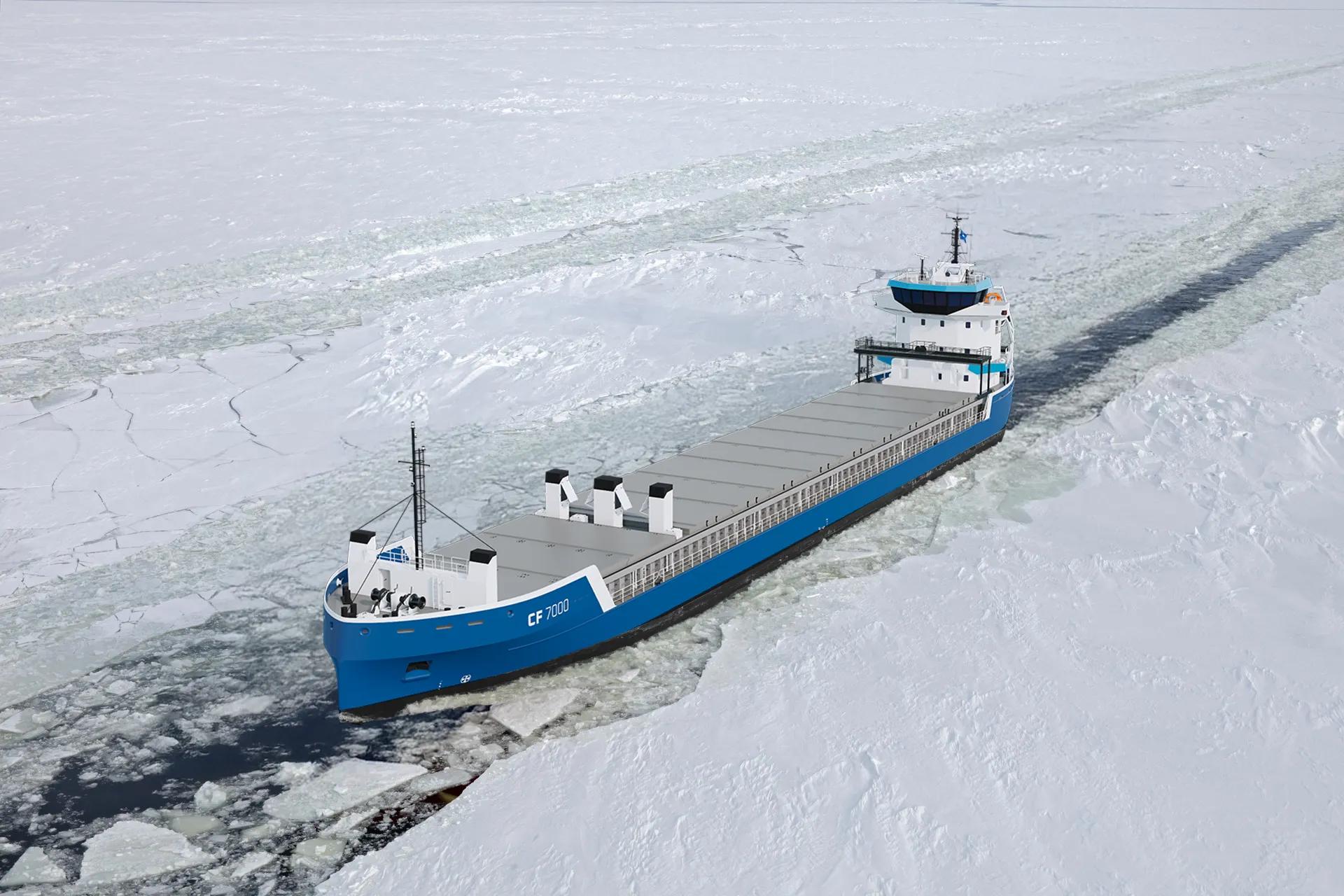

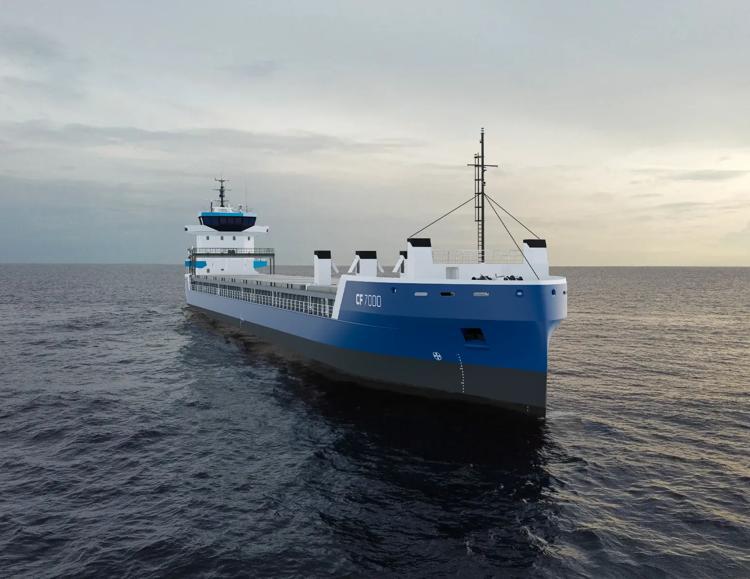

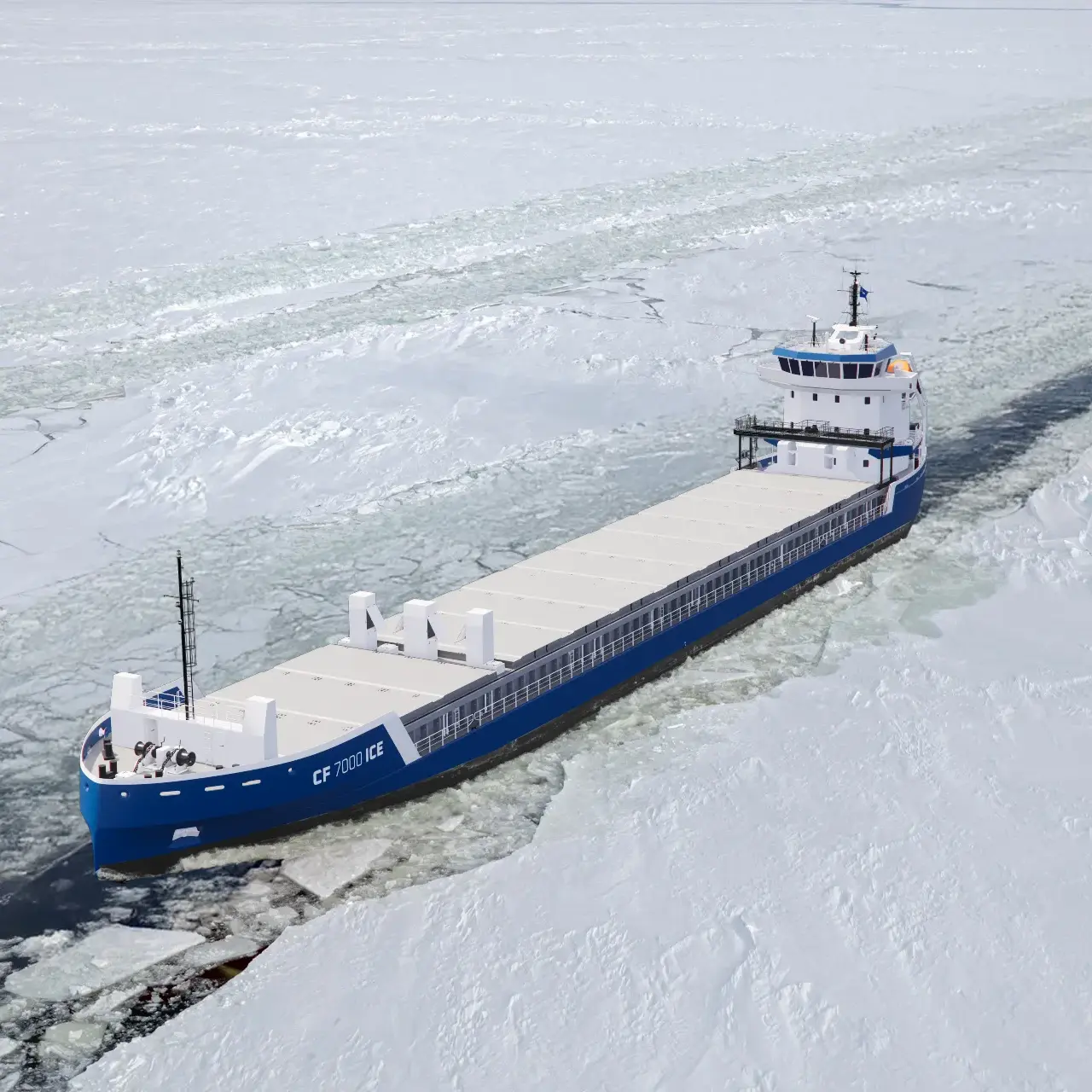

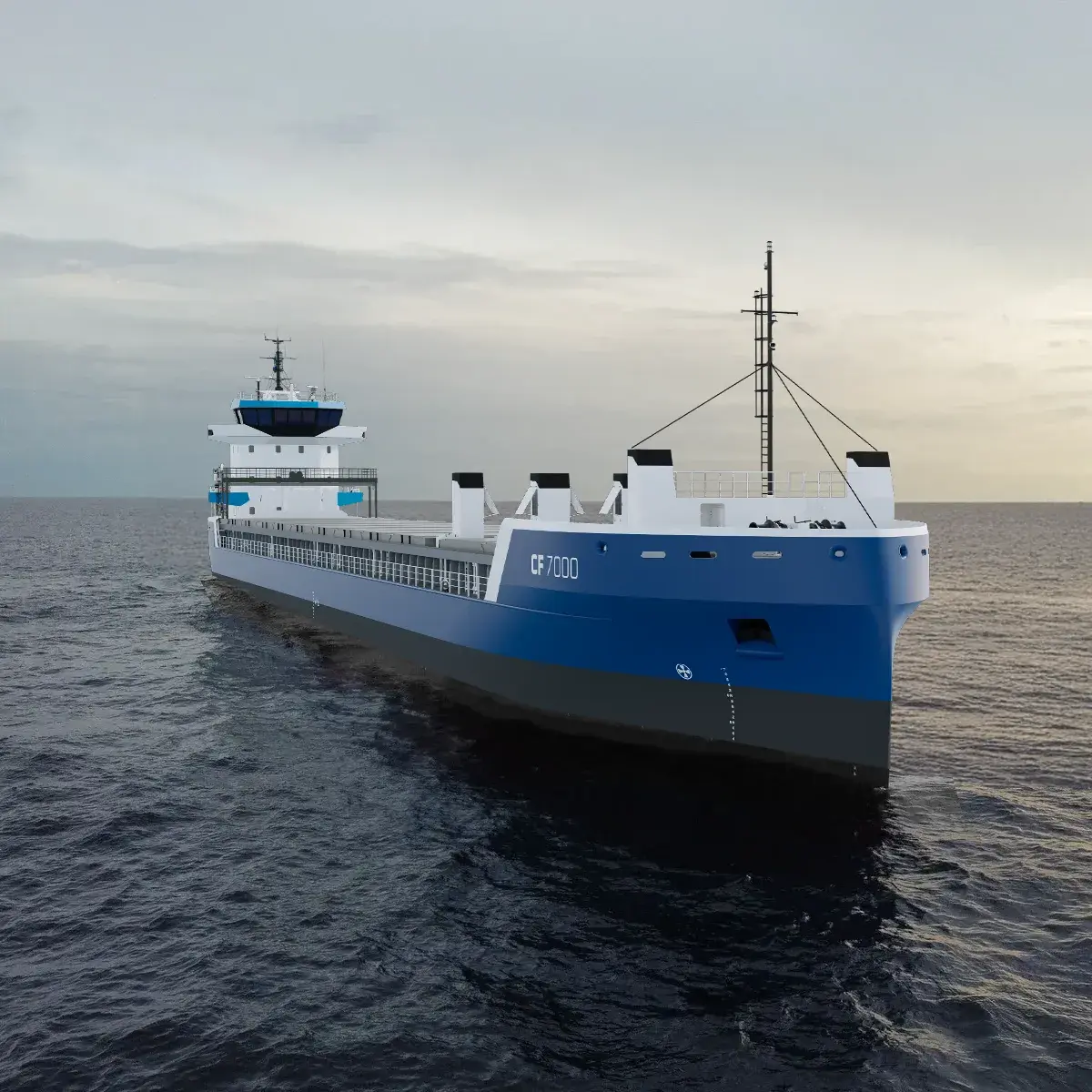

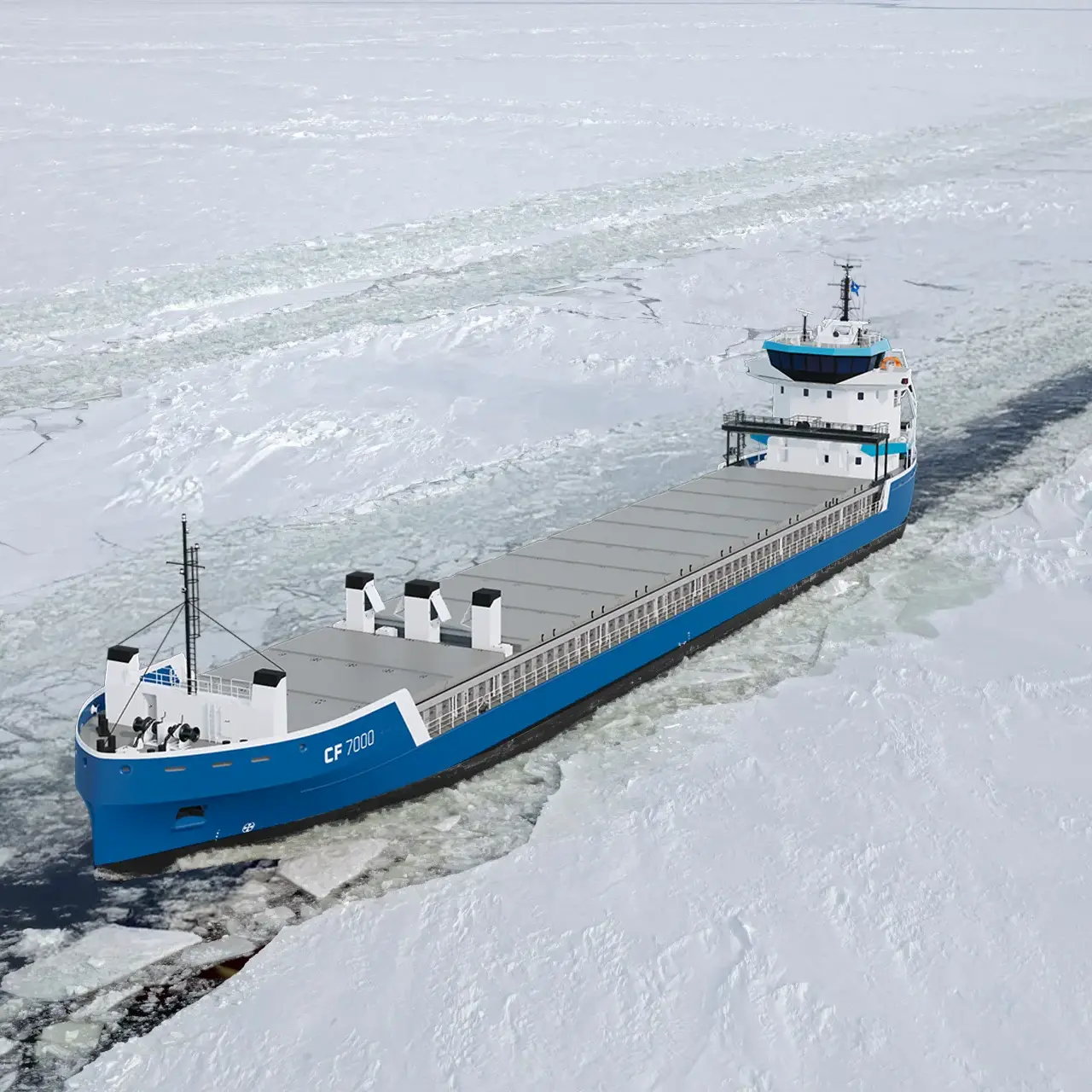

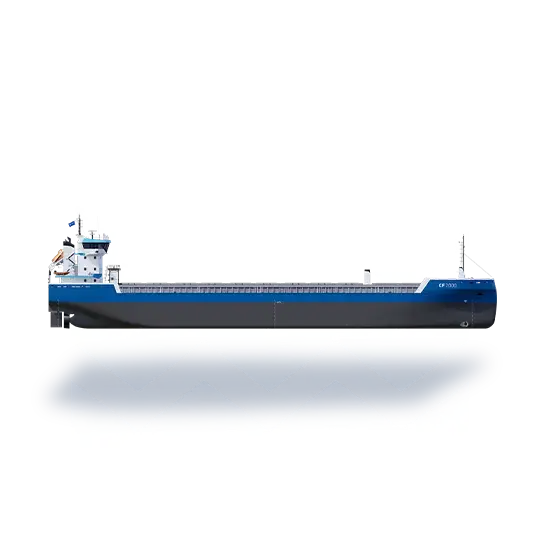

    The Combi Freighter 7000 is designed for optimal cargo capacity, in the most efficient manner possible. The vessel is designed to meet IMO Type 1 dangerous good requirements. It features an evolved hull form, with smooth lines, offering minimal resistance in the water. At the same time, its bow is able to pierce the waves, ensuring minimal fuel consumption and significantly reduced emissions. The vessel is available in conventional and Ice Class versions. In Ice Class operations, power is generated externally, thereby ensuring ample power for the vessel to operate in open waters, at varying draughts, including deep seas. Multiple positions are available for the two grain bulkheads in the box-shaped hold, while a tween deck provides for bulk and breakbulk flexibility. Lashing eyes along the longitudinal bulkheads allow precise fixation of cargo.
    • Modern hull design for optimal performance in open water and ice conditions
    • Suitable for various cargoes, flexible loading options for optimal positioning
    • Design ready for sustainable features
    • Damen quality, build in Asia, warranty from the Netherlands

    Key figures

    6900

    110.47

    15.2

    6.55

    9400

    Cargo dimensions

    Tonnage
    4450 GT
    Hold length
    81.36 m (Hold 1 +2)
    Hold beam
    12.6 m
    Hold height
    9.6 m
    Dimension (cuft)
    334,600

    Performances / Capacities

    Speed
    11 kn
    Propulsion
    1,326
    Propellor
    3500
    Bow thruster (kW)
    280
    Generator (kWe)
    1x 360, 1x 119, 1x 111

    Available options

    Propulsion
    PTO/PTI system Wake equalizing duct
    Energy storage
    Upgrade energy storage system
    Battery setup
    Battery container
    Fuel option
    Bio diesel
    Cargo hold flexibility
    Tween deck panels
    Class
    Class 1 dangerous goods (explosives)
    Do you want to know more?

    Compare similar vessels

    Deadweight (t)Length (m)Beam (m)Draught (m)Hold (m³)
    Combi Freighter 7000 (ICE)6900110.4715.26.559400
    Combi Freighter 6000 (ICE)603898.8415.26.658200
    Combi Freighter 8200 (ICE)8100118.1415.97.2110795
    Combi Freighter 7000 (ICE)
    Deadweight (t)
    6900
    Length (m)
    110.47
    Beam (m)
    15.2
    Draught (m)
    6.55
    Hold (m³)
    9400
    Deadweight (t)
    6038
    Length (m)
    98.84
    Beam (m)
    15.2
    Draught (m)
    6.65
    Hold (m³)
    8200
    Deadweight (t)
    8100
    Length (m)
    118.14
    Beam (m)
    15.9
    Draught (m)
    7.21
    Hold (m³)
    10795
