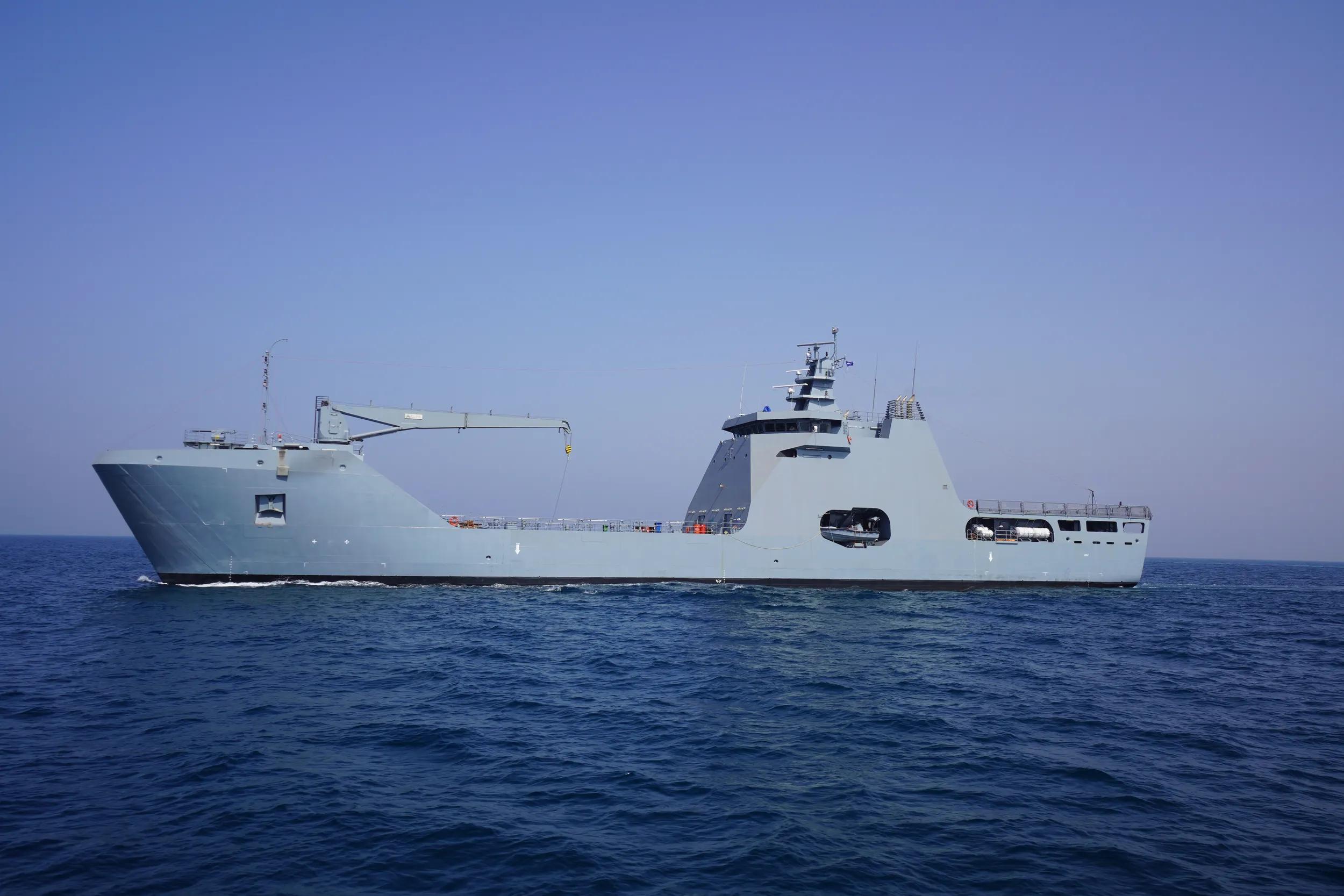

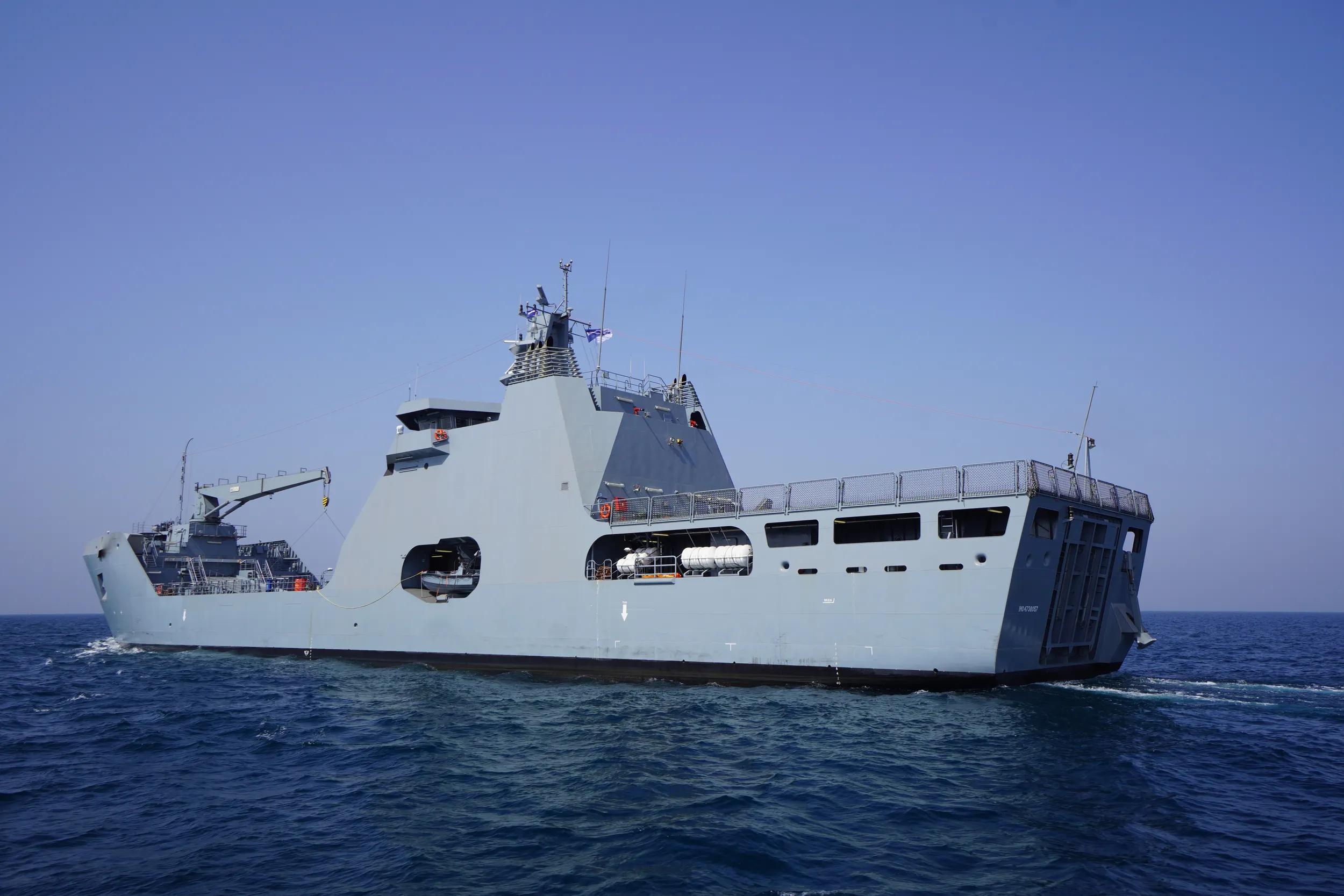

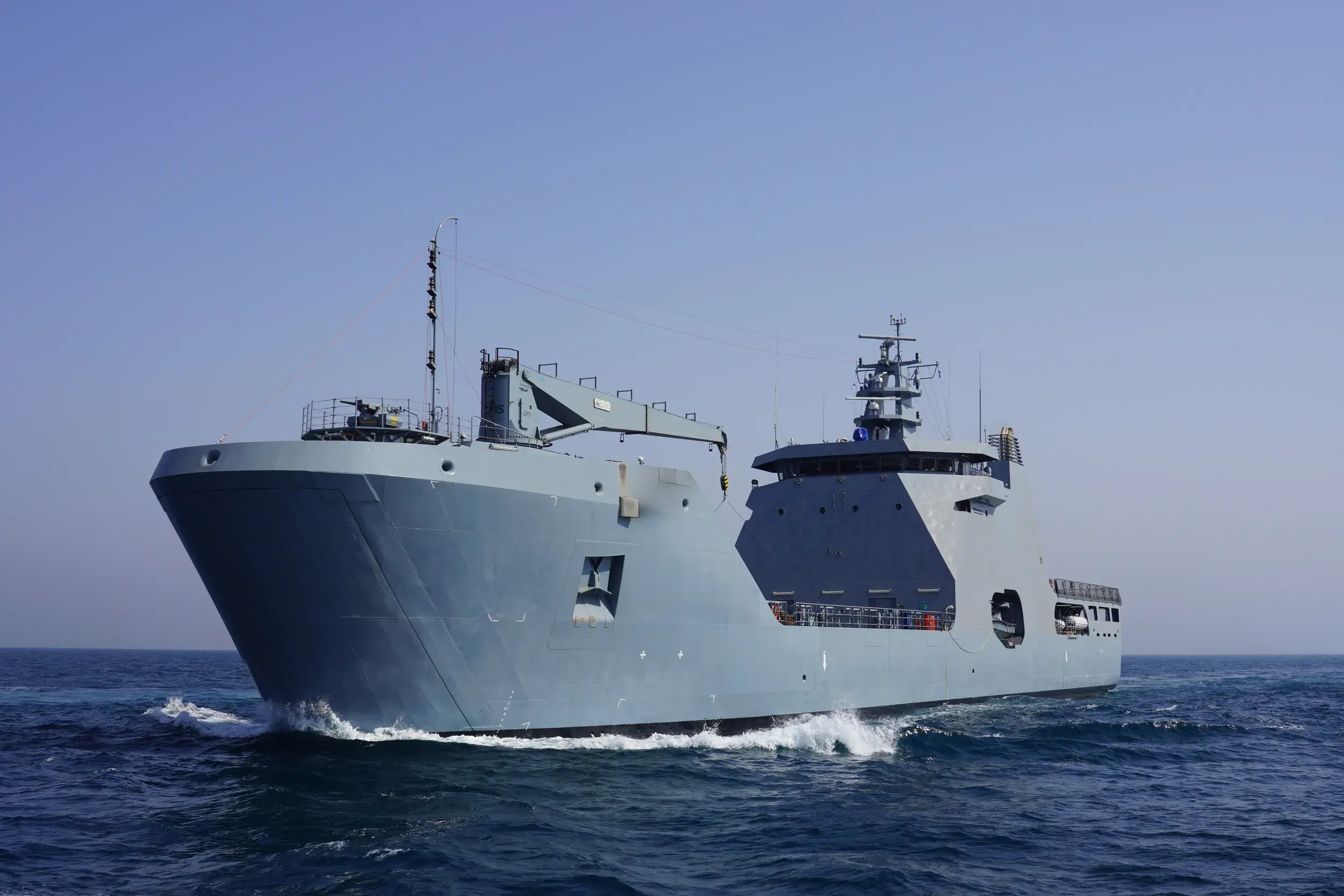

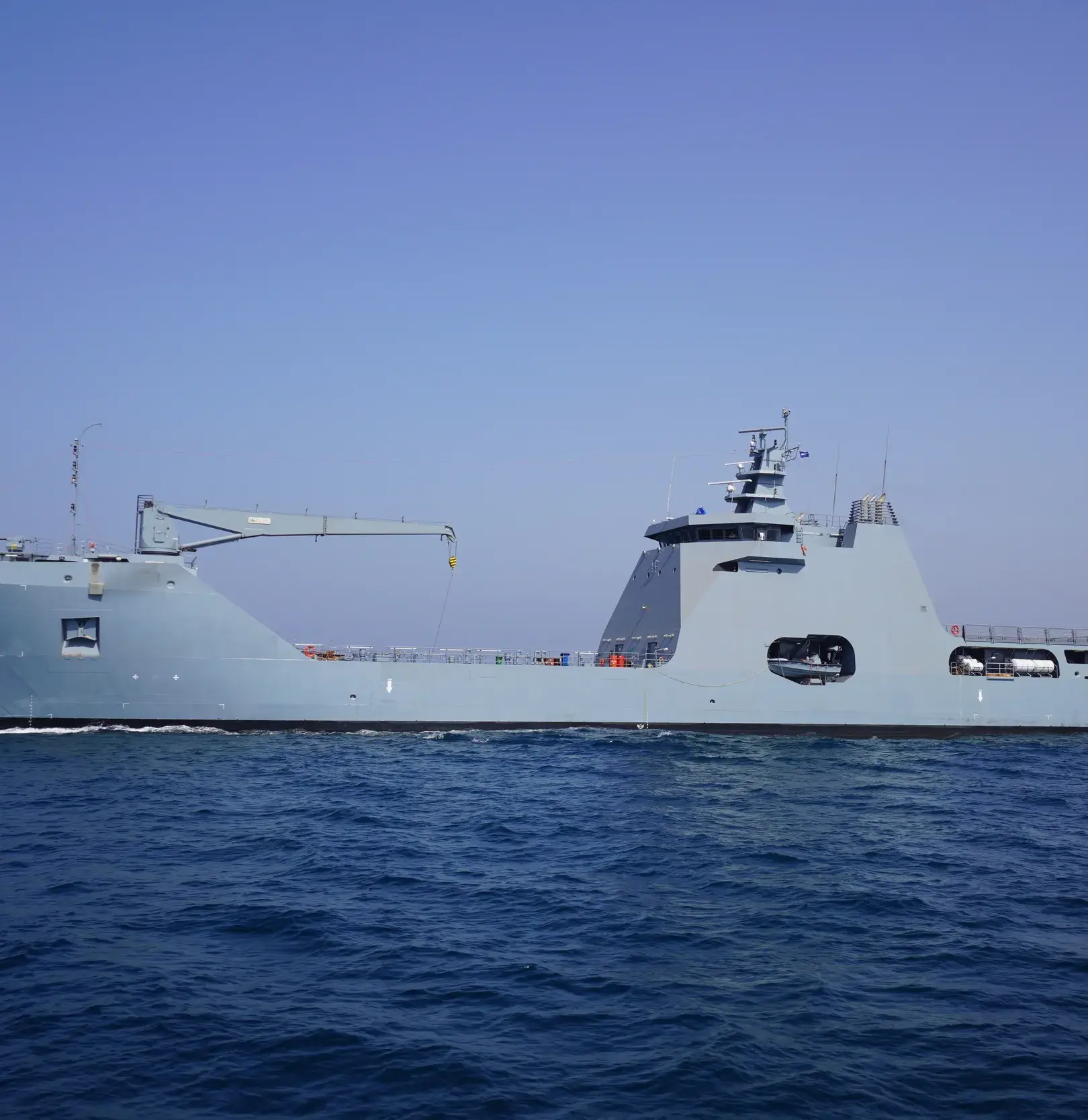

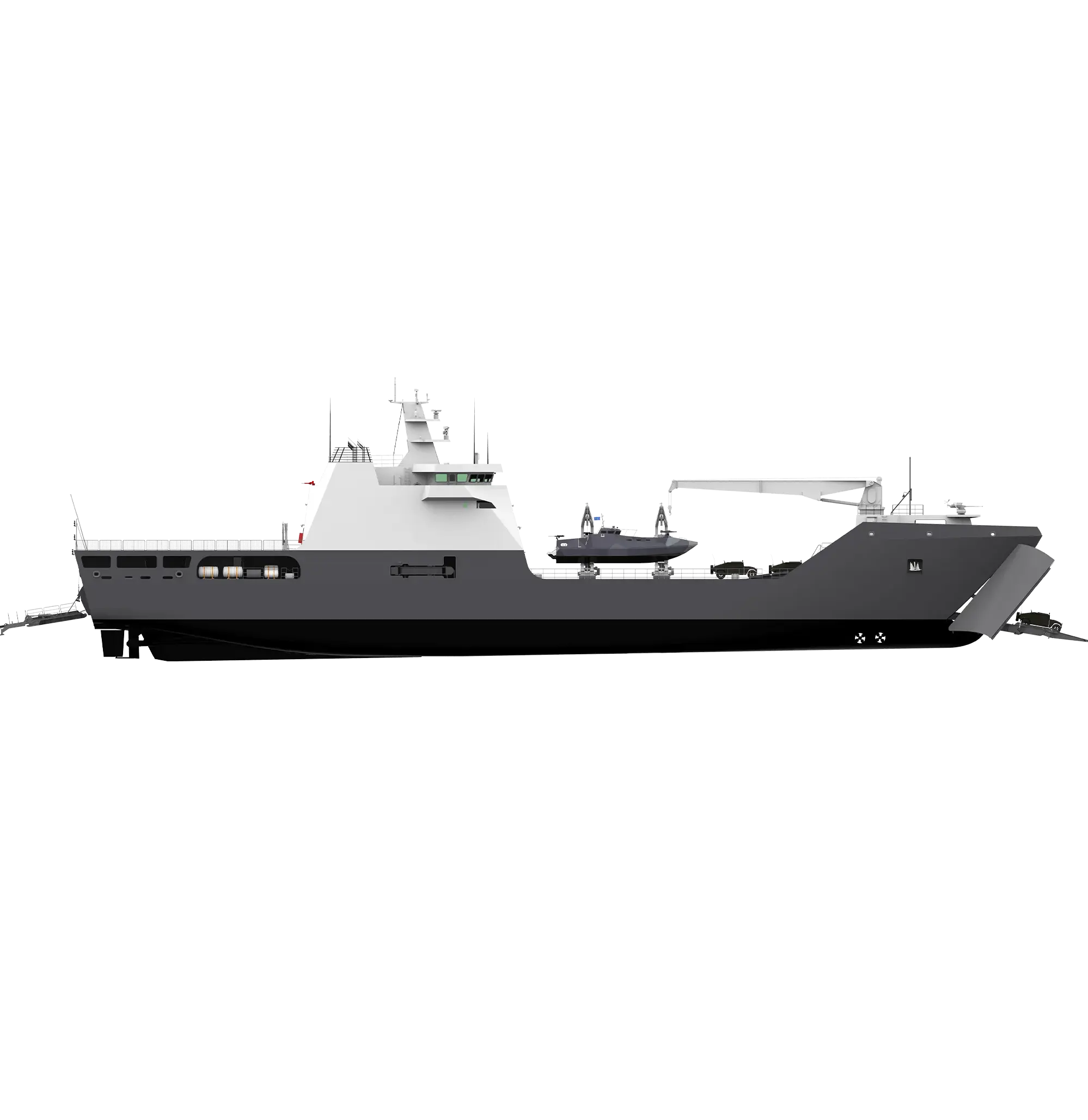

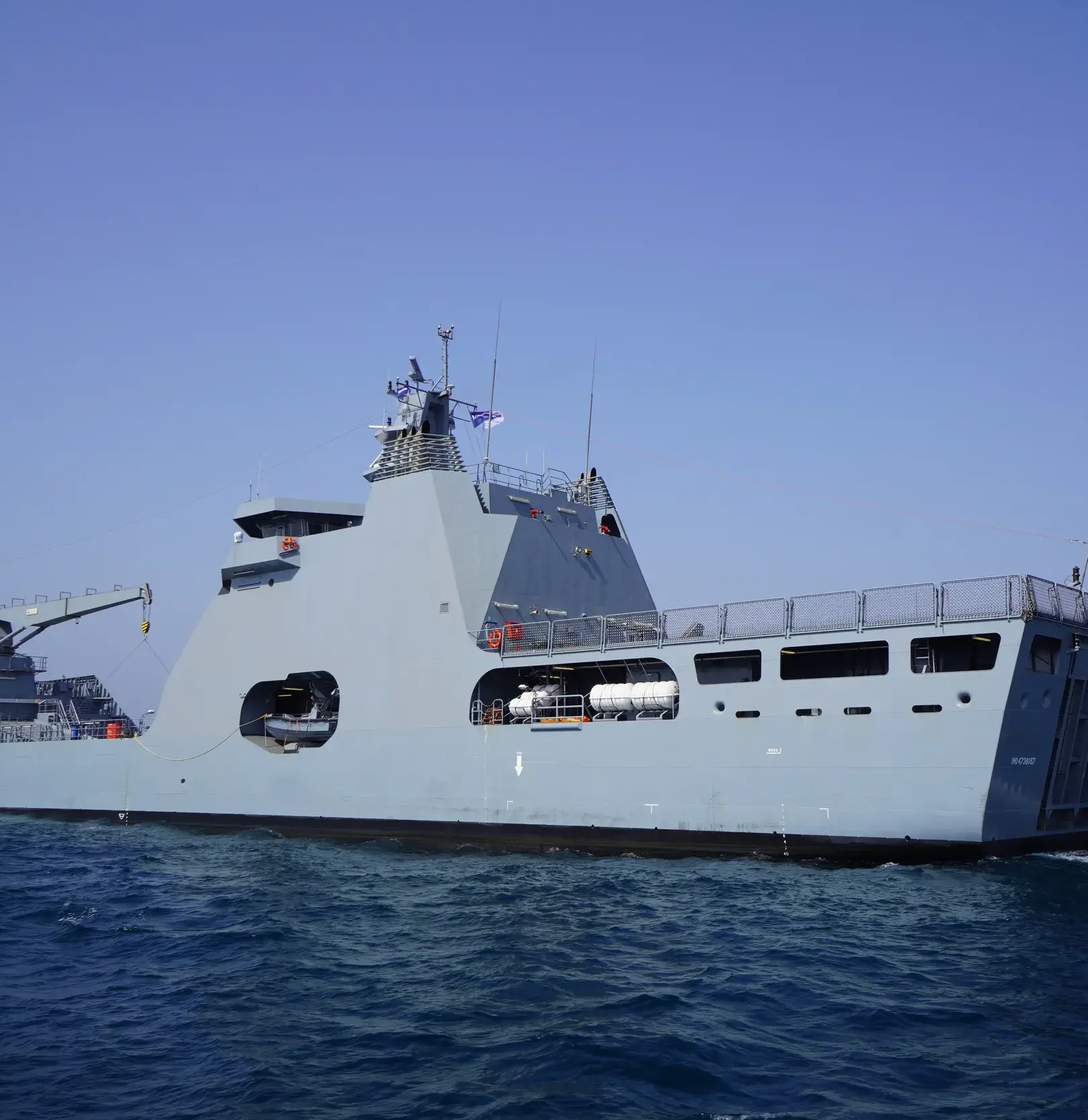

Landing Ship Transport LST 100

100

16

3,5 - 3,9

4000

18

The LST100 delivers a high payload onto a secured beach and provides a flexible base platform for various operations. The NATO amphibious Ship to Objective Manoeuvre (STOM) involves the movement of landing forces from over the horizon directly to their objective. This is often supported/supplemented by a limited or temporary build-up of combat power on a beach. Once the beach is secure, the LST100 can rapidly provide an unmatched amount of operational assets. This capability makes an LST a ‘force multiplier’ in STOM operations as part of an Amphibious Task Group. Alternatively, LSTs can operate independently and conduct amphibious operations using their reconnaissance capability to secure a beach for the main force on board.

Specifications

Key figures

Dimensions

Length
100 m
Breadth
16 m
Draft
3,5 - 3,9 m
Deadweight
900 - 1400 t

Capacity

Accommodation
18 persons (troops/EMF 234)
RoRo space
1020 m²
Speed
15 kn

Specifications

Operational profile
Long term flexibility & mission modularity Amphibious operations Transport & logistics Maritime security operations Humanitarian aid and disaster relief Counter-piracy operations Over The Horizon - Special Forces (OTH-SF) operations Combat Search and Rescue (CSAR) support Operations command Stand-off Mine Counter Measures (MCM) operations support Rapid Environmental Assessment (REA) support Hydrographic survey operations support
LST 100 unique design features
Aft deckhouse, protected internal cargo deck and flexible, open upper deck configuration Optimised route for personnel, supplies and cargo Helicopter/UAV deck aft (Optional) Helicopter hangar Large troop/special personnel accommodation Blue water capable Optimised internal routing and access for personnel, supplies and cargo Flexible internal cargo deck with stern and bow ramps for drive-through configuration for payloads up to 70 tons Large open upper deck for cargo with crane and Ro-Ro access to the beach Suitable to carry a variety of assault craft in davits Large helideck to support UAV operations, stowage of mission module containers or helicopter landing and take-off Robust troop/special personnel accommodation
