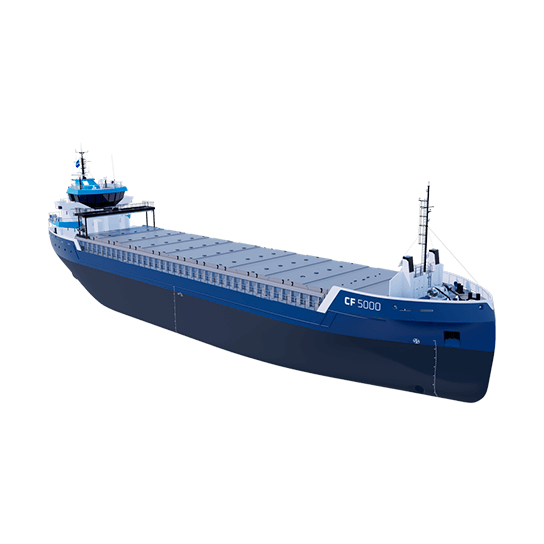

Combi Freighter 5000

    Combi Freighter 5000

    Combi Freighter 5000

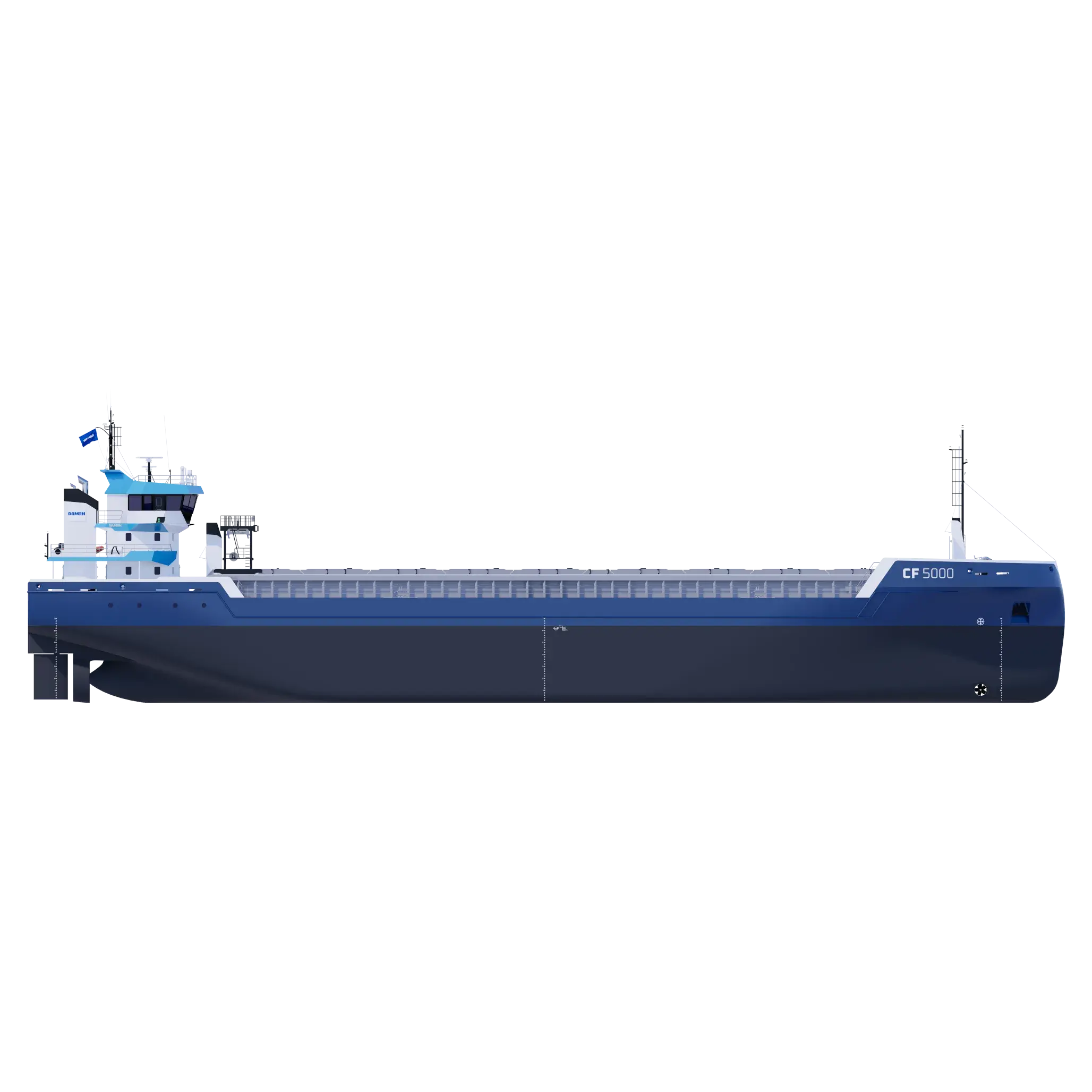

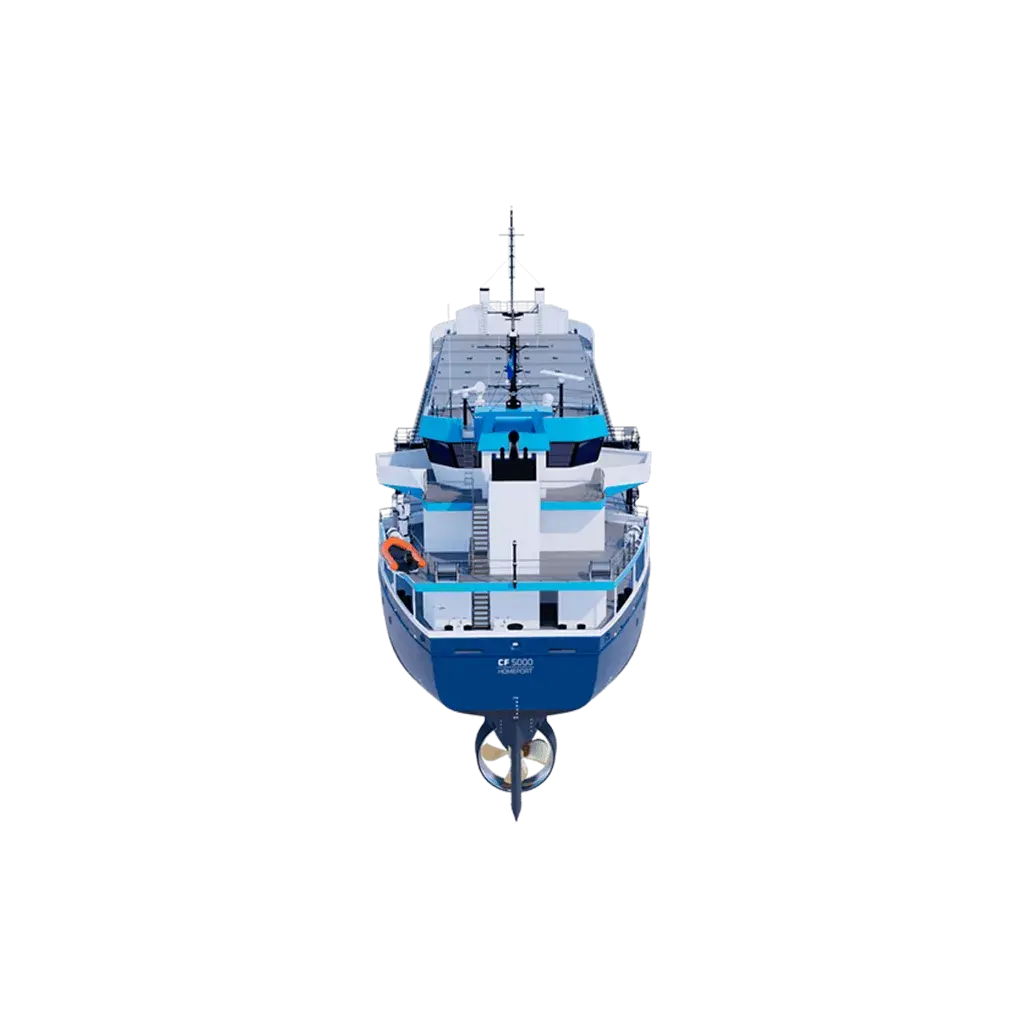

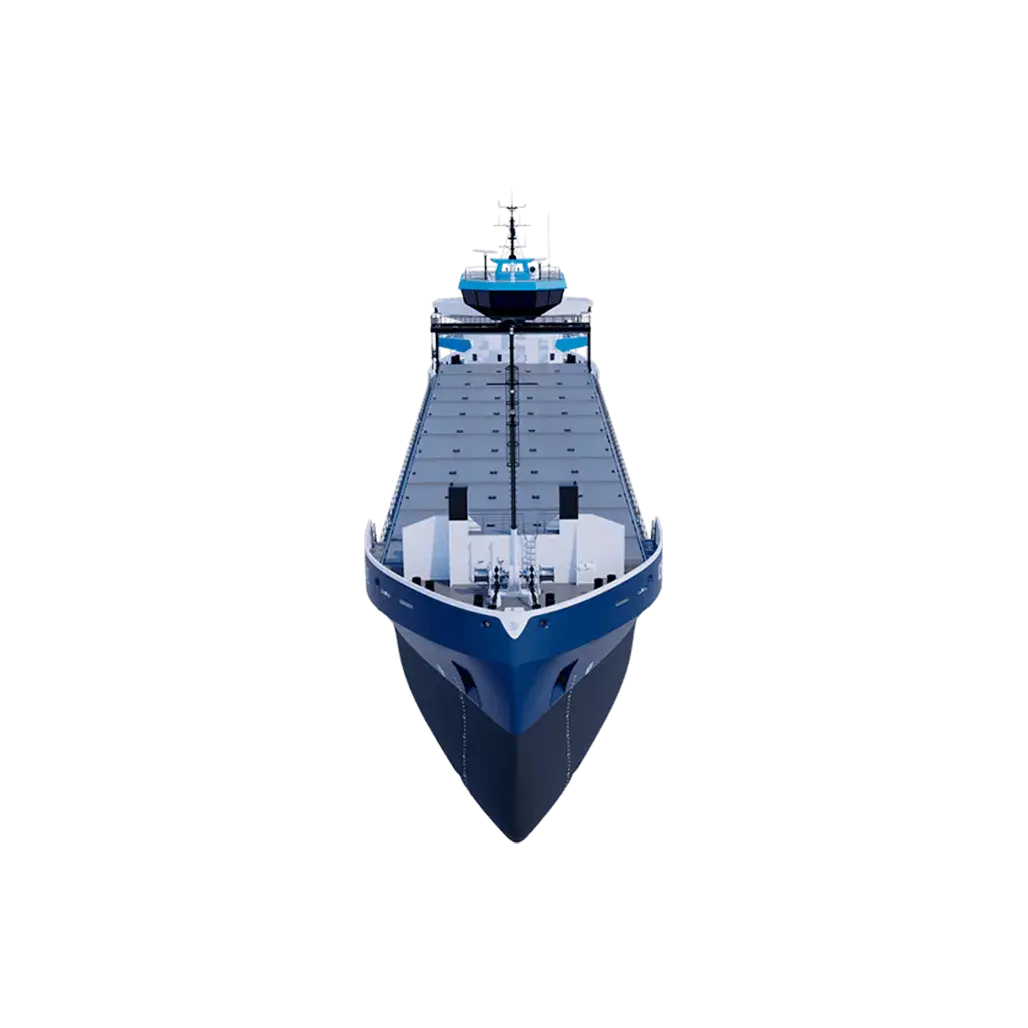

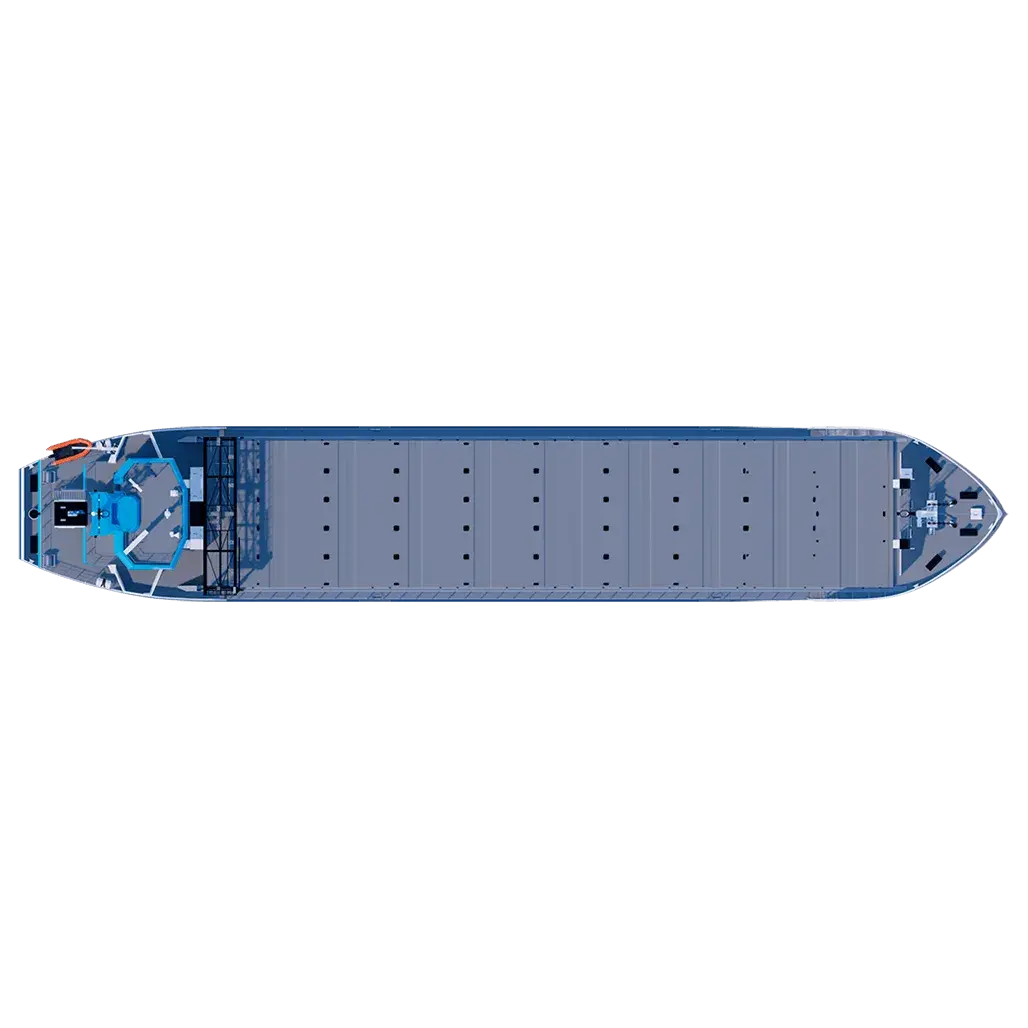

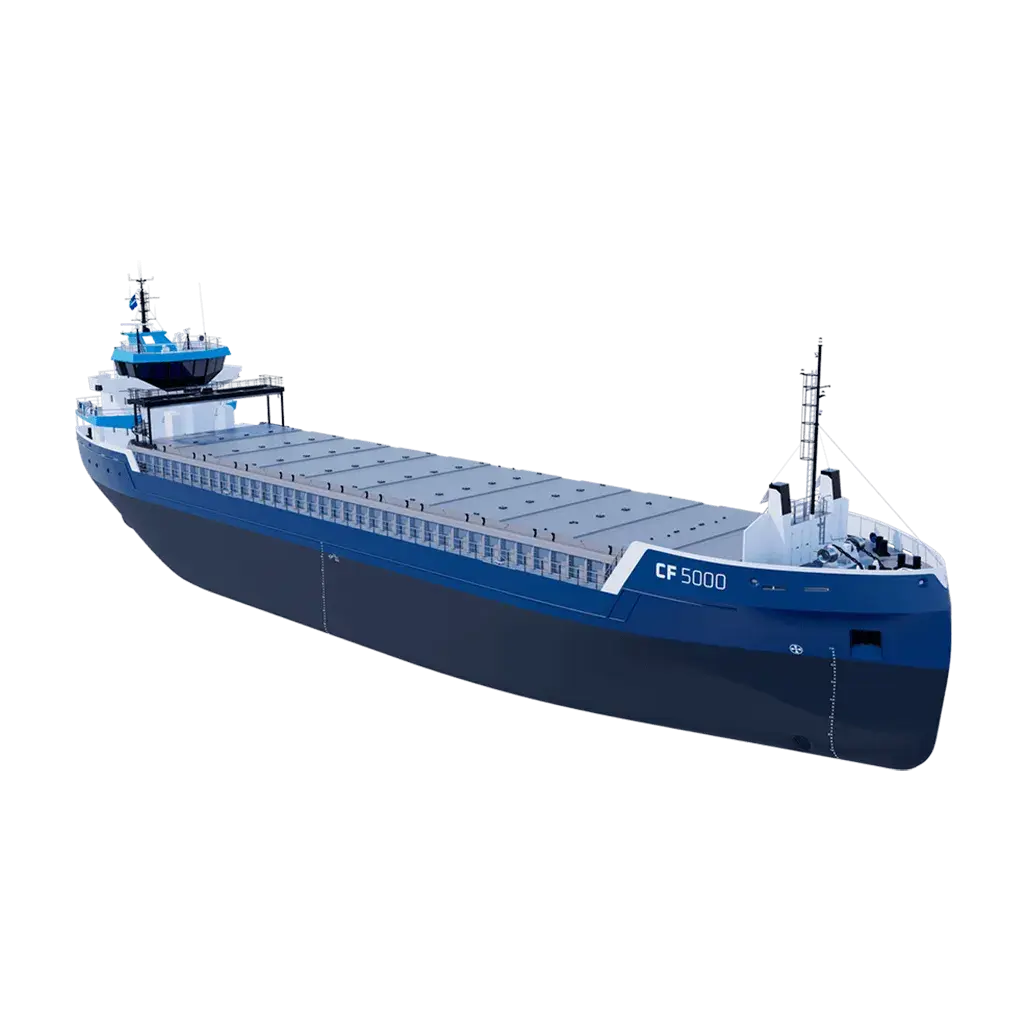

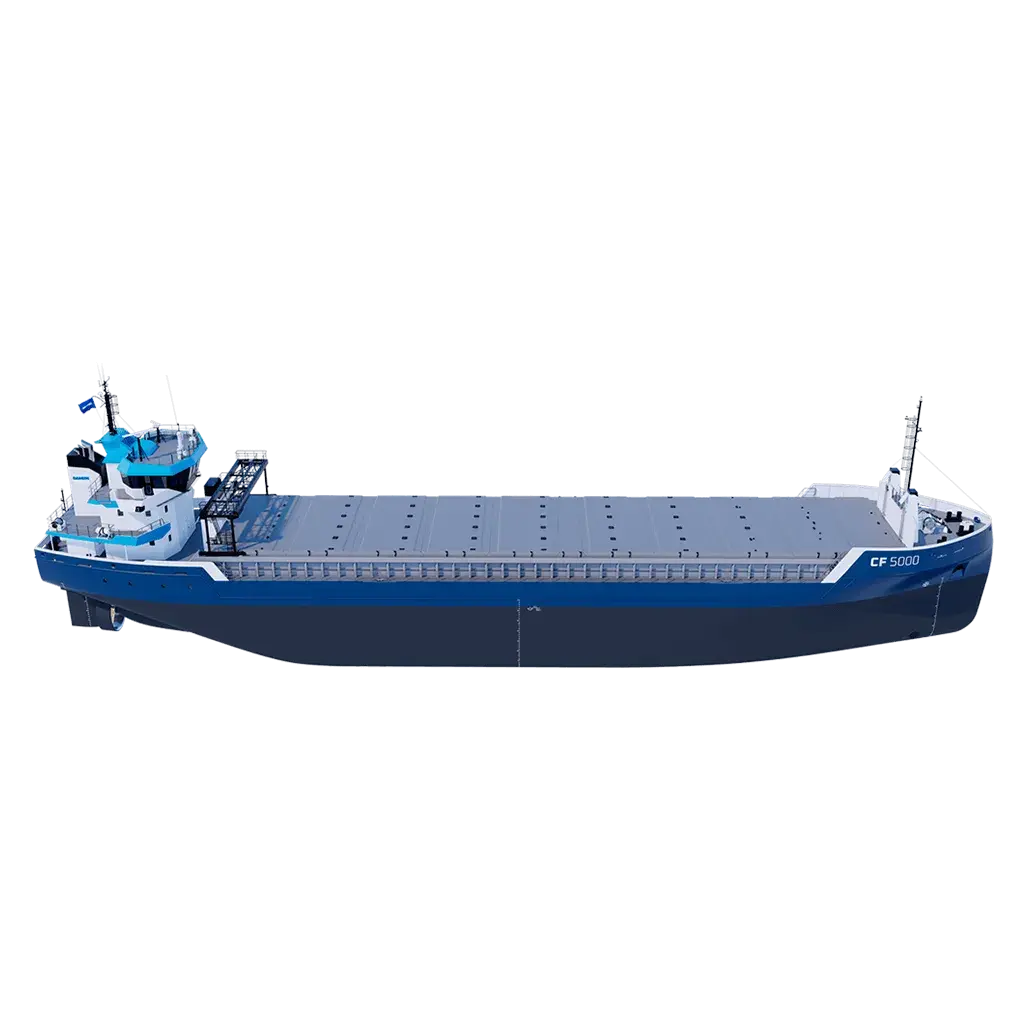

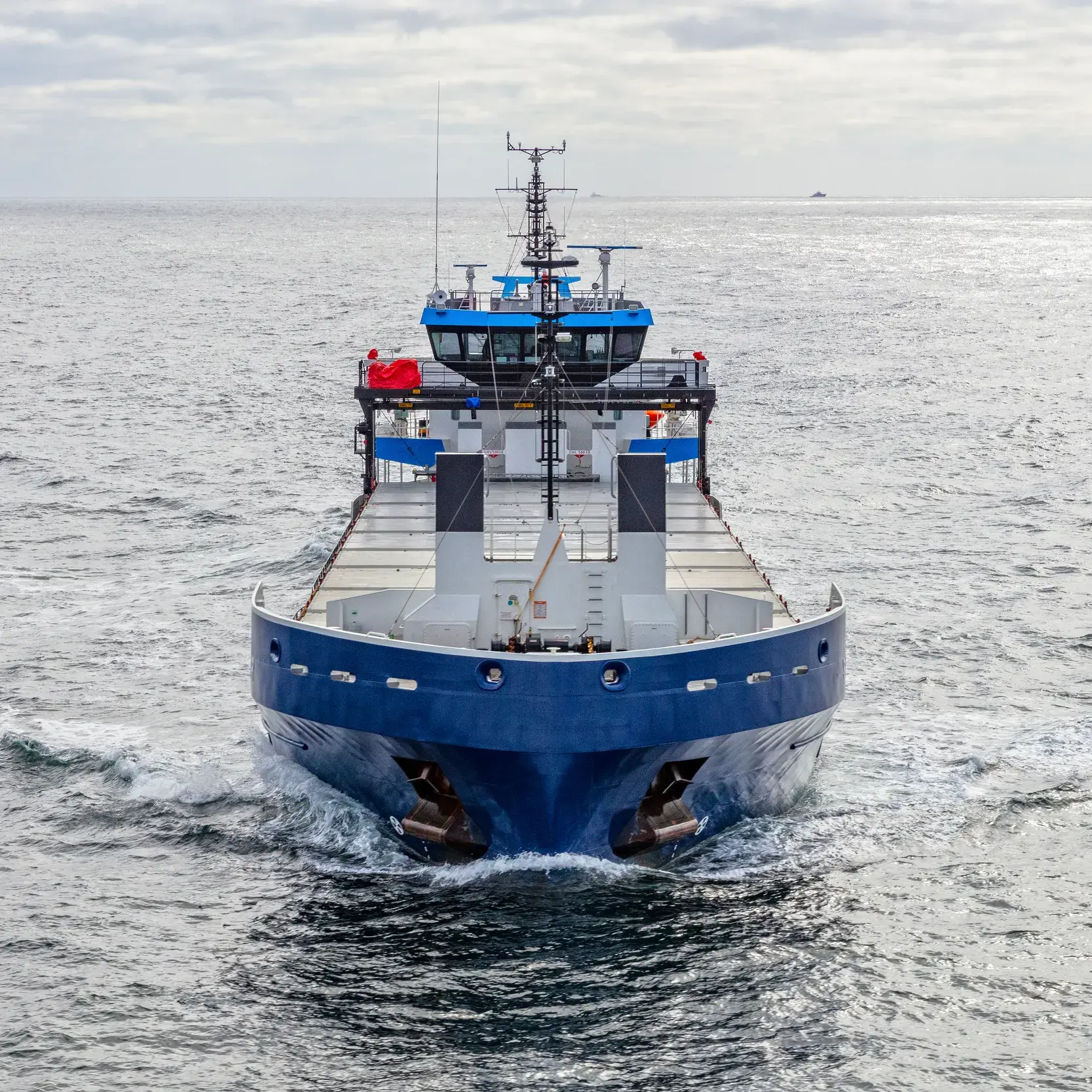

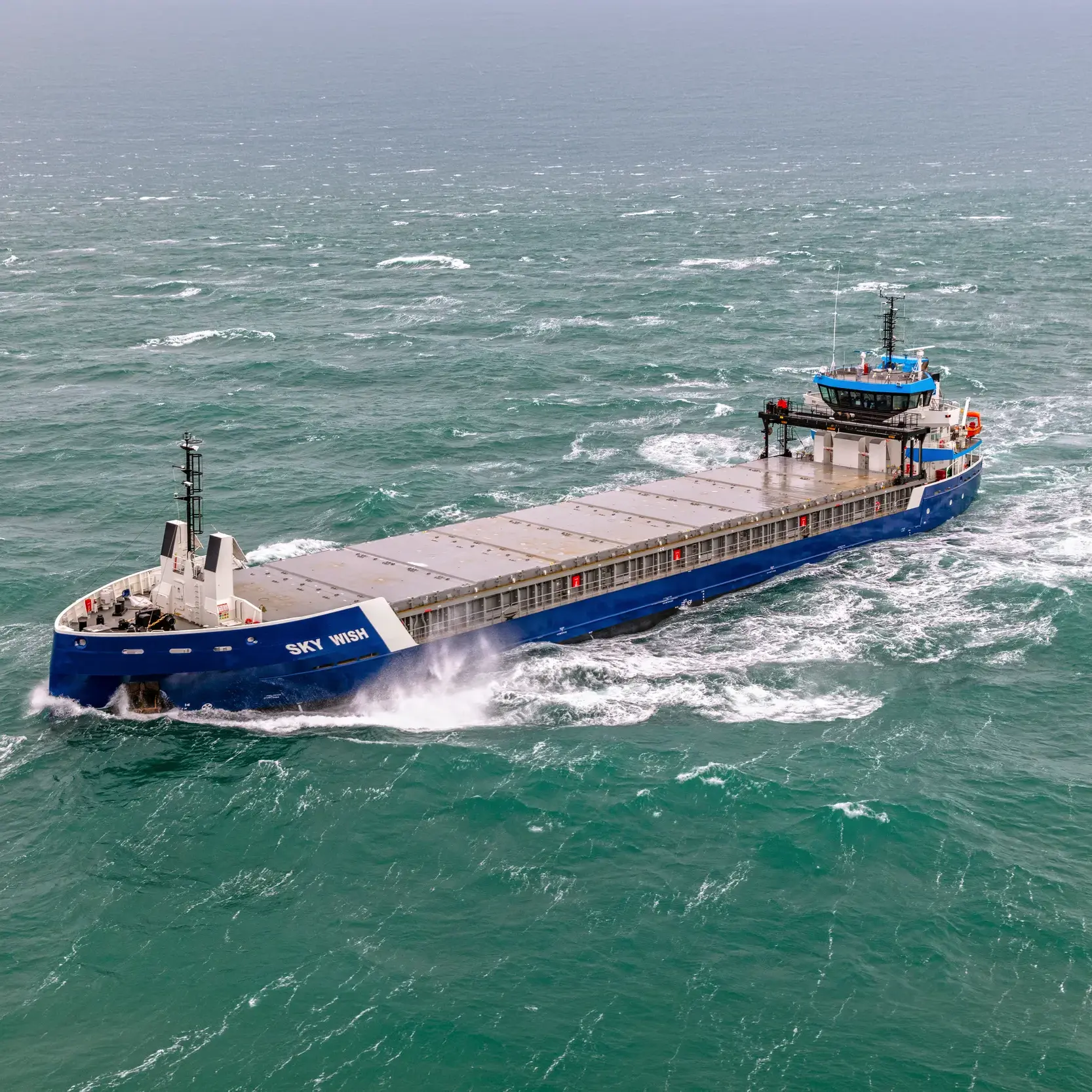

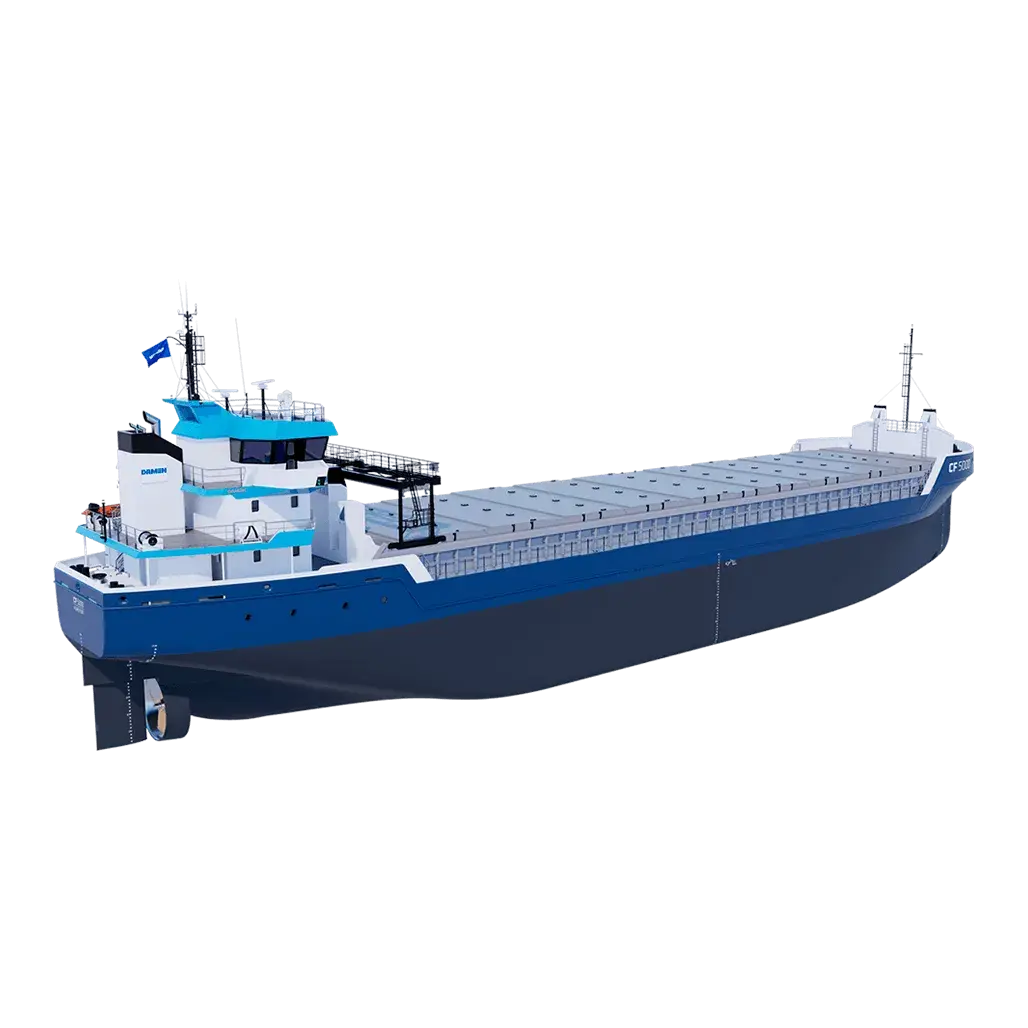

    The vessel features a box-shaped hold with multiple positions for grain bulkheads and a tween deck for flexibility in bulk and break bulk cargo. Lashing eyes along the longitudinal bulkheads ensure precise cargo fixation. The modern hull is designed for fuel efficiency and optimized for various drafts and deep-sea performance. The bow's wave-piercing ability enhances vessel efficiency. The vessel meets the latest SOLAS/IMO stability requirements.
    • Modern hull design for optimal fuel consumption & performance at various drafts
    • Suitable for various cargoes, flexible loading options for optimal positioning
    • Design ready for sustainable features
    • Damen quality, build in Asia, warranty from the Netherlands

    Key figures

    5130

    86.60

    15.20

    6.55

    7001

    Cargo dimensions

    Tonnage
    3339 GT
    Hold length
    60.35 m
    Hold beam
    12.6 m
    Hold height
    9.59 m
    Dimension
    247,238 cuft

    Performances / Capacities

    Speed
    12 kn
    Propulsion
    1326 kW
    Propellor
    3500 mm, fixed pitch
    Bow thruster
    1x 280 kW
    Generator
    1x 348, 1x 118, 1x 82 kWe

    Available options

    Propulsion
    PTO/PTI system Wake equalizing duct
    Energy storage
    Upgrade energy storage system
    Battery setup
    Battery container
    Fuel option
    Bio diesel
    Cargo hold flexibility
    Tween deck panels
    Class
    Class 1 dangerous goods (explosives)
    Do you want to know more?

    Compare similar vessels

    Deadweight (t)Length (m)Beam (m)Draught (m)Hold (m³)
    Combi Freighter 5000513086.6015.206.557001
    Combi Freighter 3850380089.7512.505.485250
    Combi Freighter 6000 (ICE)603898.8415.26.658200
    Combi Freighter 5000
    Deadweight (t)
    5130
    Length (m)
    86.60
    Beam (m)
    15.20
    Draught (m)
    6.55
    Hold (m³)
    7001
    Combi Freighter 3850
    Deadweight (t)
    3800
    Length (m)
    89.75
    Beam (m)
    12.50
    Draught (m)
    5.48
    Hold (m³)
    5250
    Combi Freighter 6000 (ICE)
    Deadweight (t)
    6038
    Length (m)
    98.84
    Beam (m)
    15.2
    Draught (m)
    6.65
    Hold (m³)
    8200

    Damen solutions

    Finance your vesselA reliable partner from start to finish. Explore solutions of Damen Financial Services.Learn more
    Lifecycle supportFrom delivery onwards, Damen Services supports you, every step of the way.Learn more
    Build your vessel locallyBuild a proven Damen design, at a location of your choice.Learn more

    Referrals

    24 Apr 2024

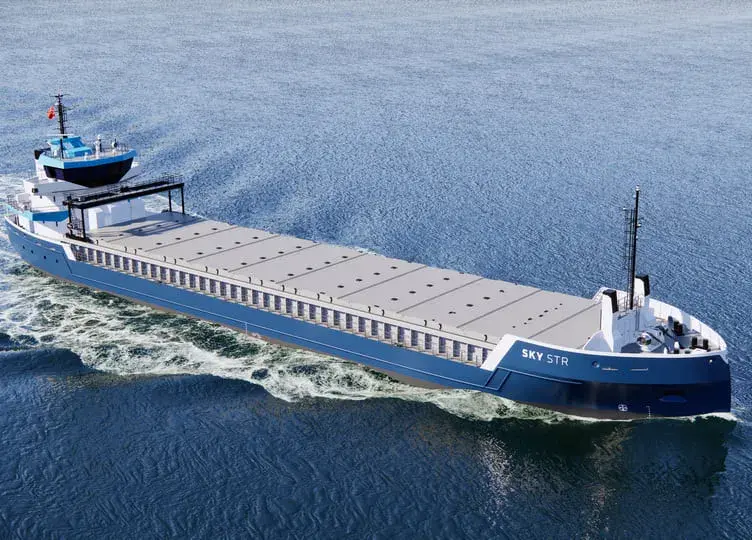

    Working together for the safety of the world

    21 Nov 2024

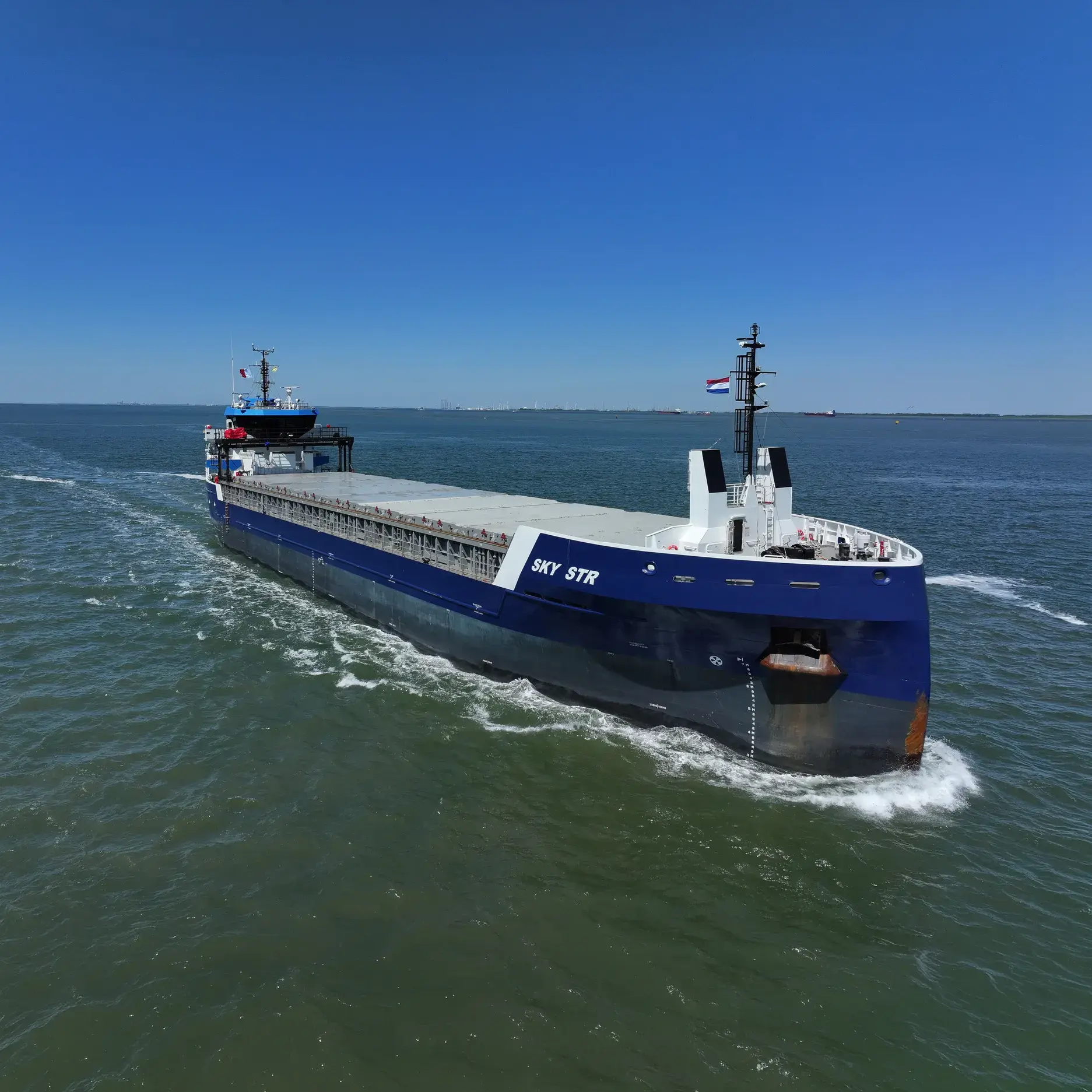

    First Damen Combi Freighters 5000 on maiden voyage to Squtrixo General Trading
