Combi Freighter 5000 (ICE)

    Combi Freighter 5000 (ICE)

    Combi Freighter 5000 (ICE)

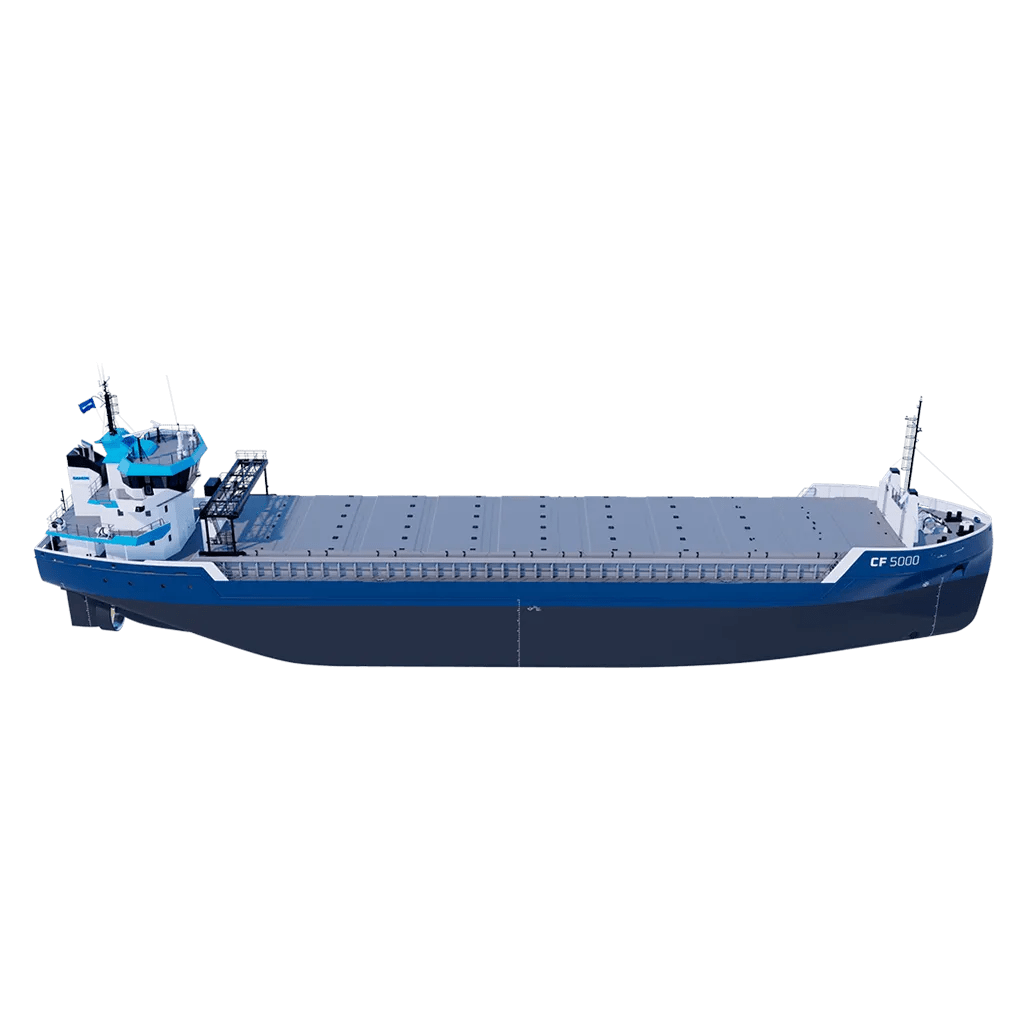

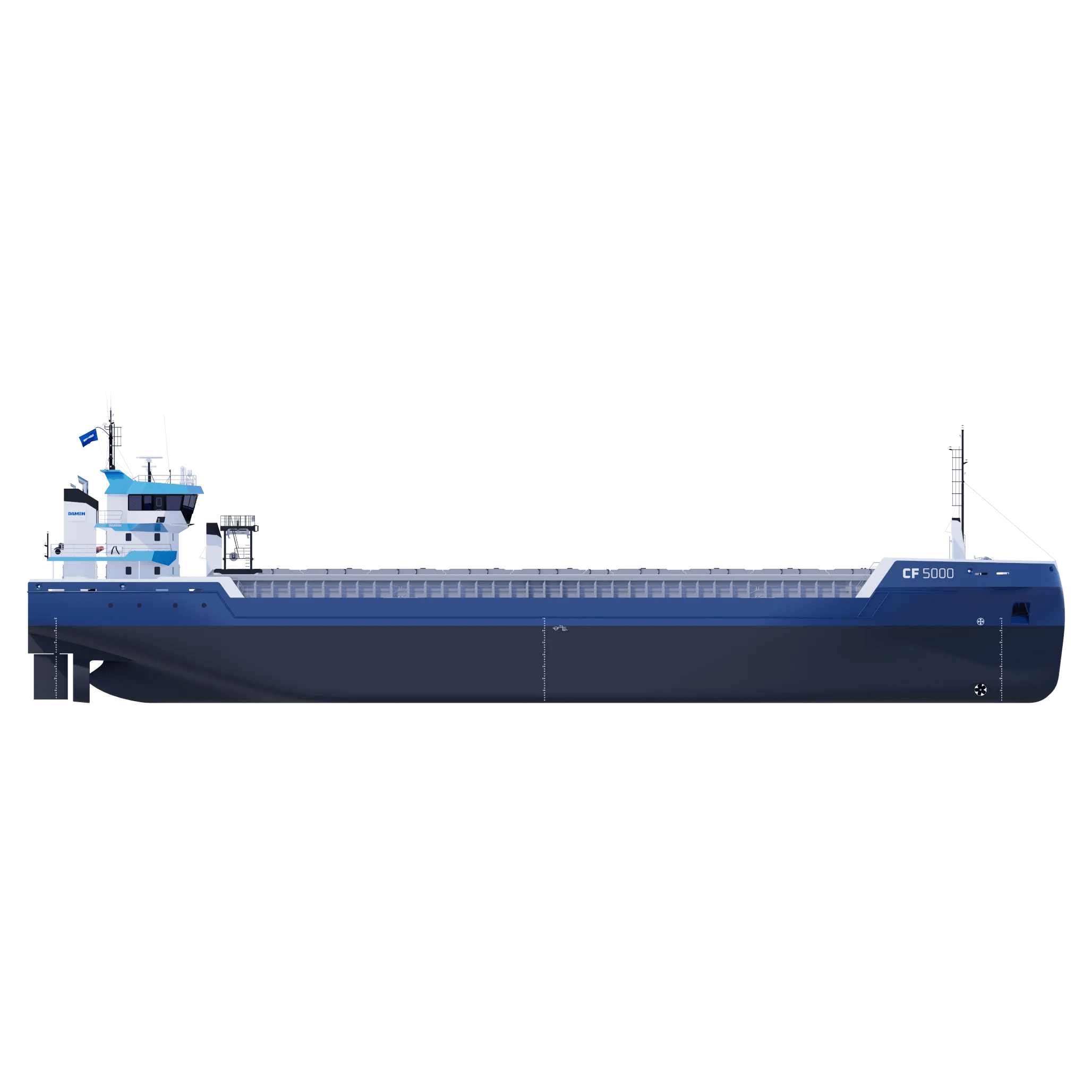

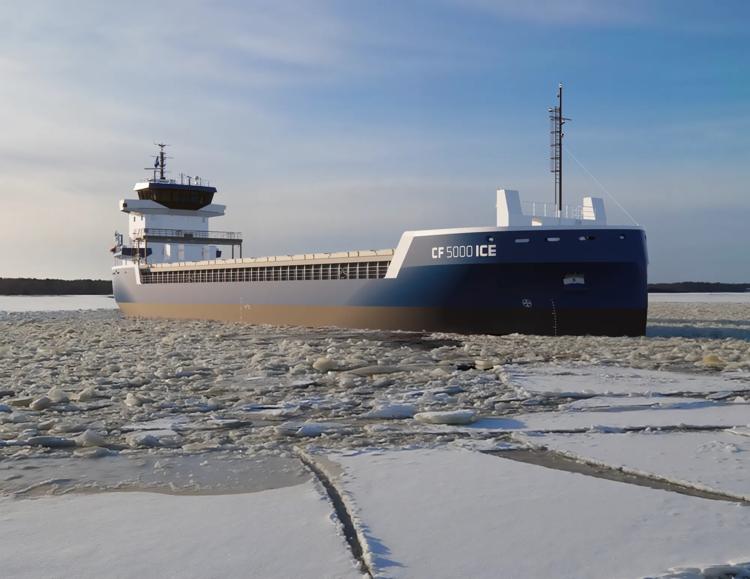

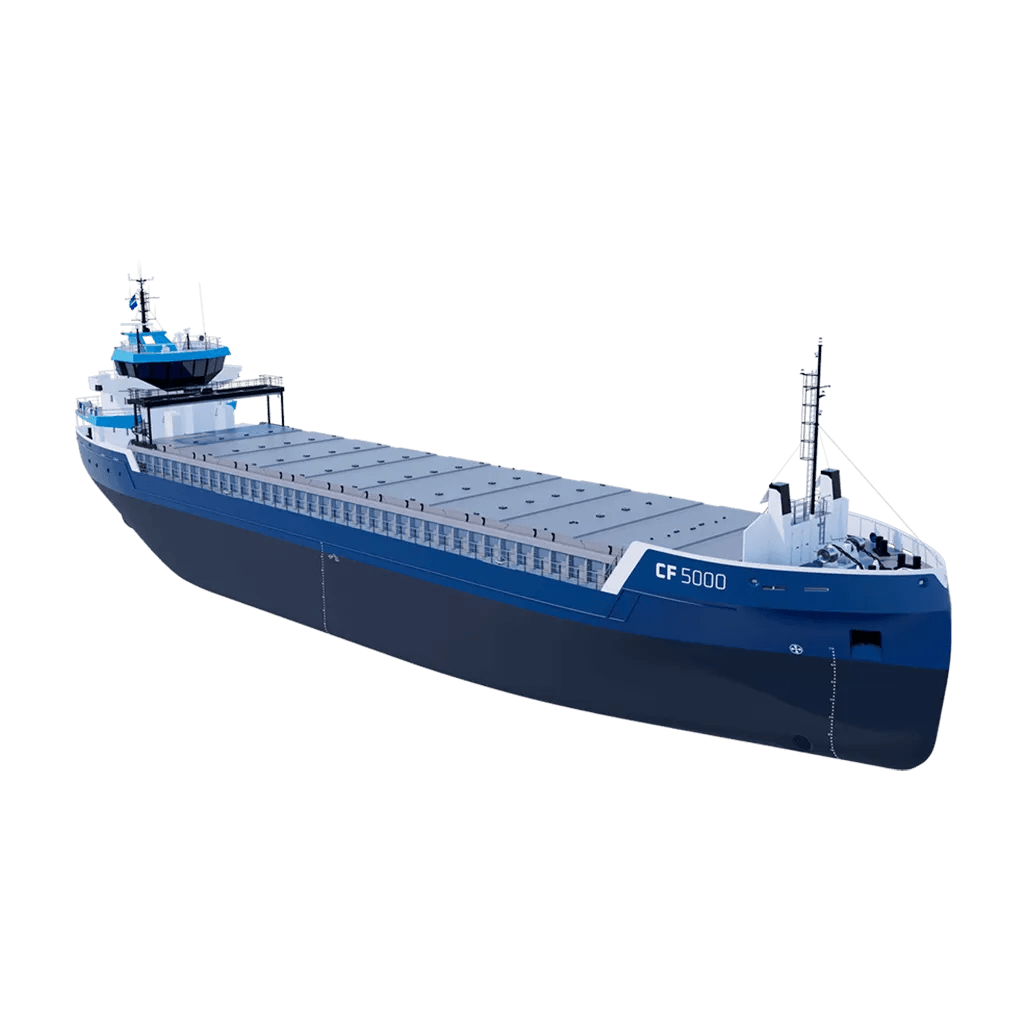

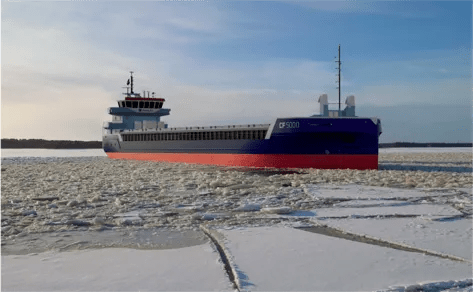

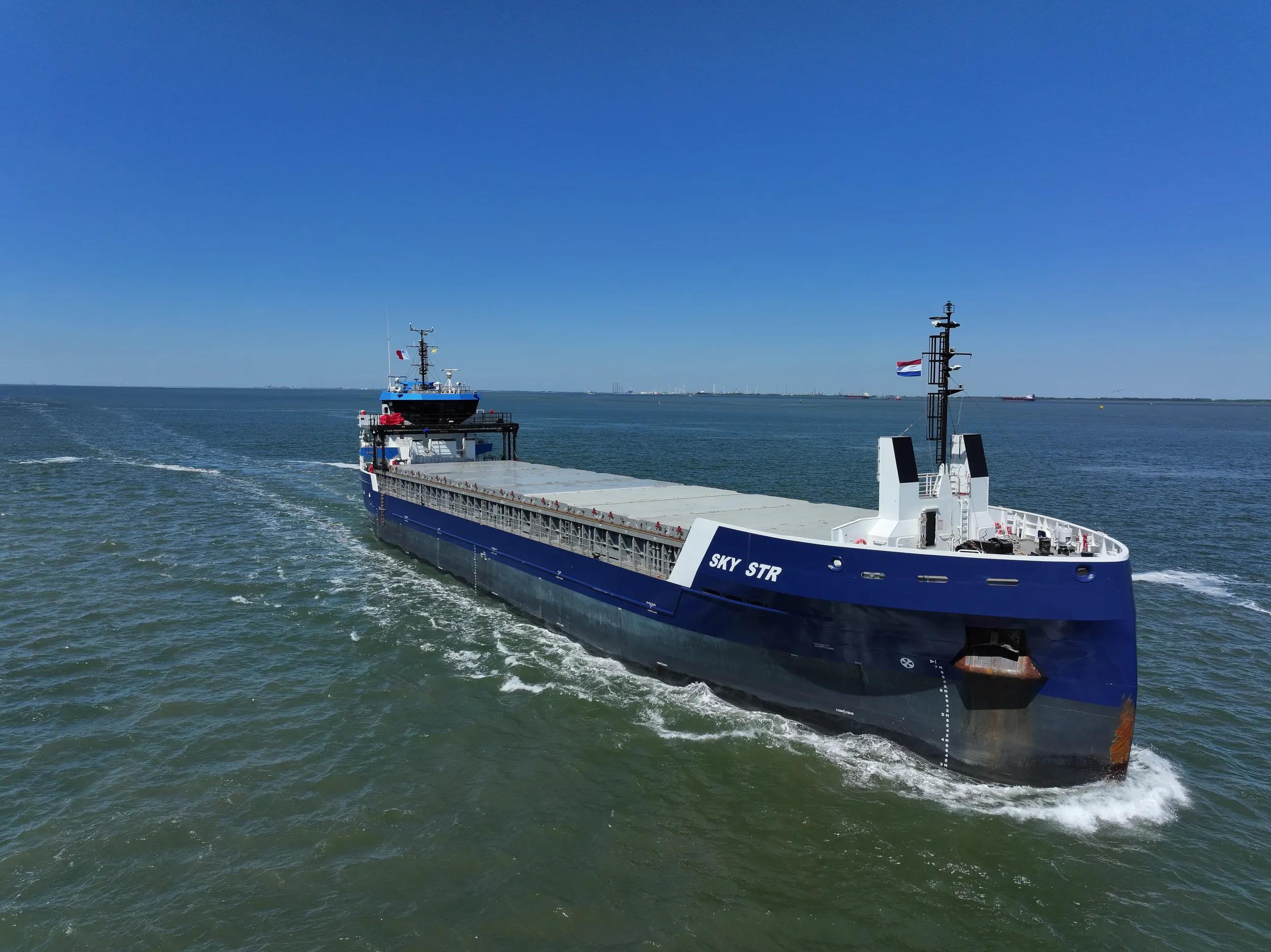

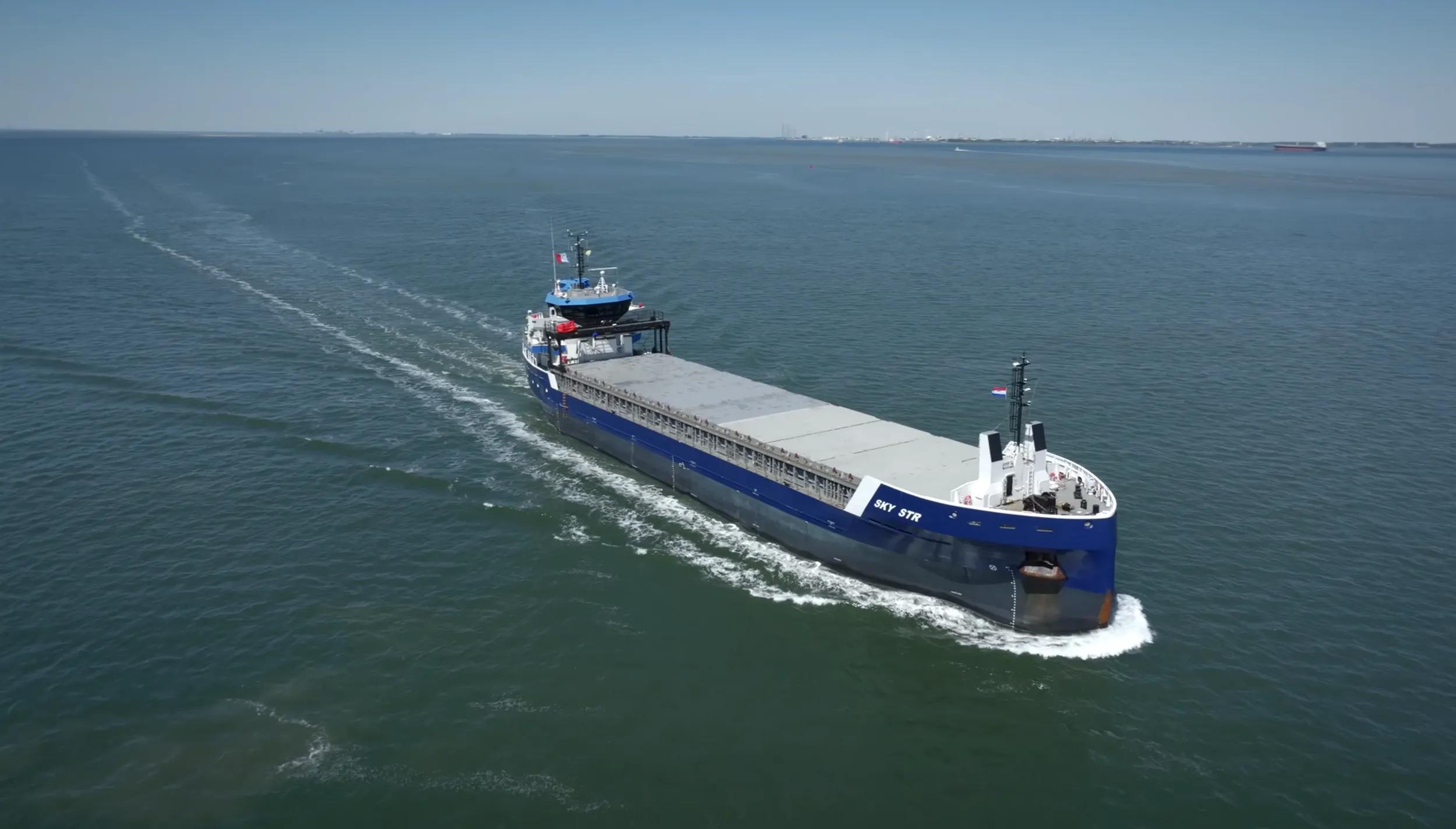

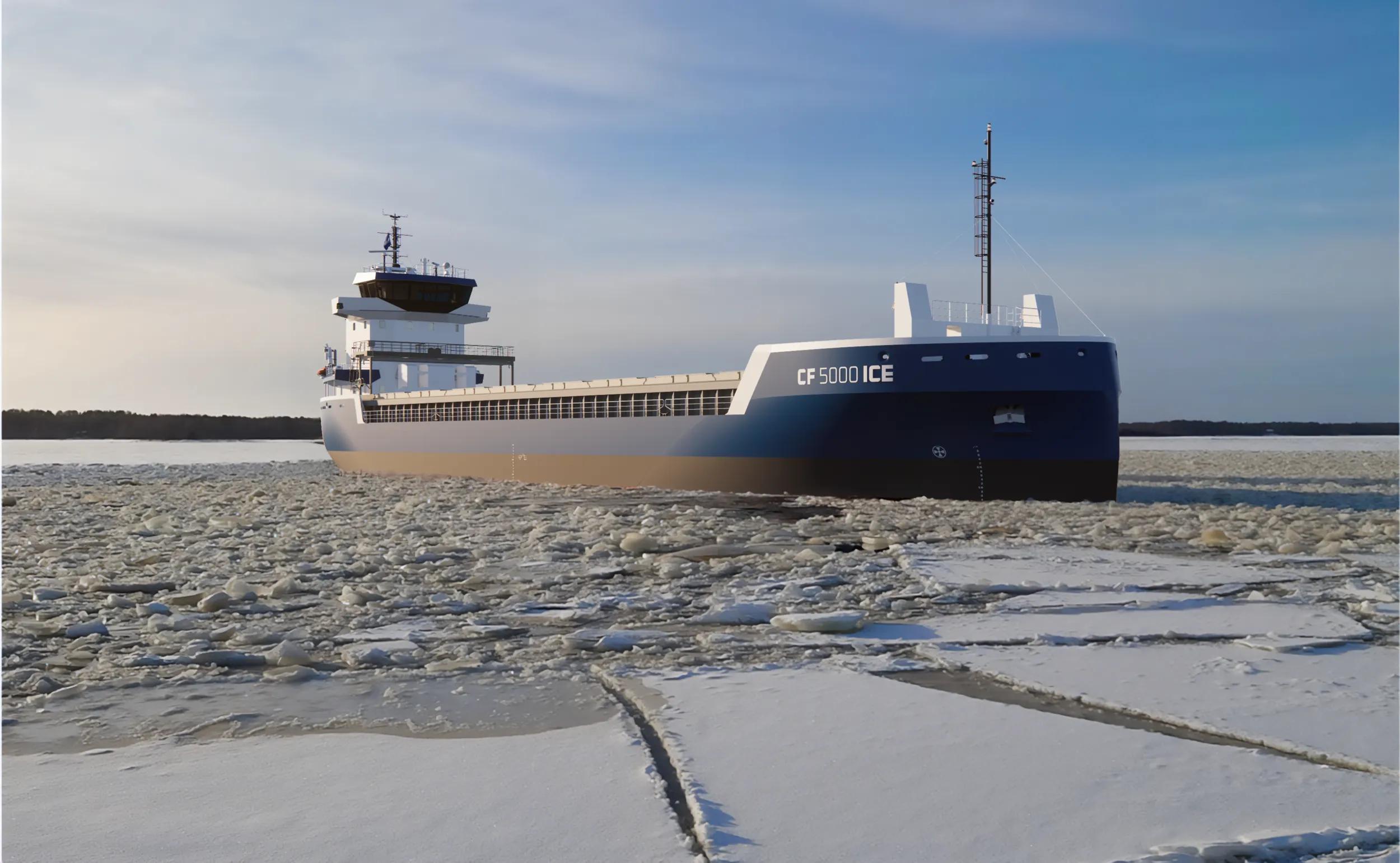

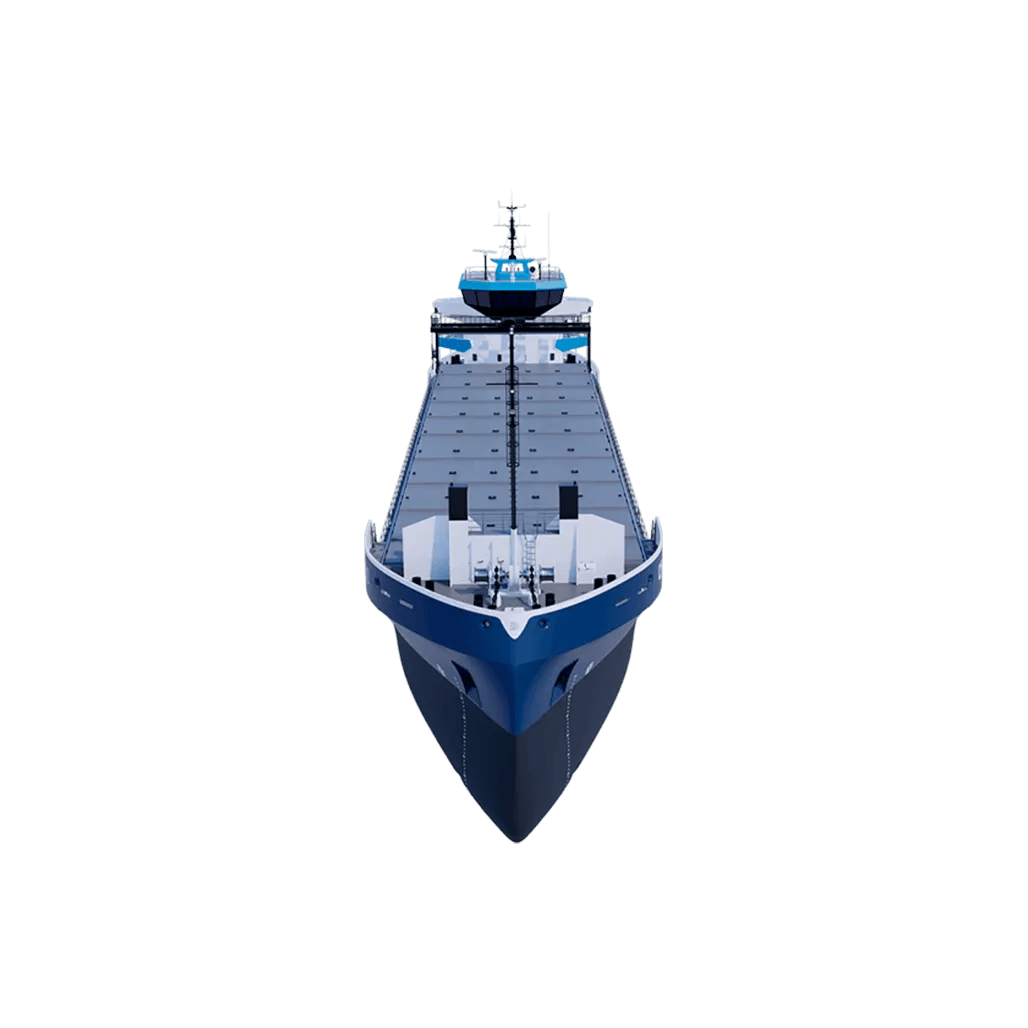

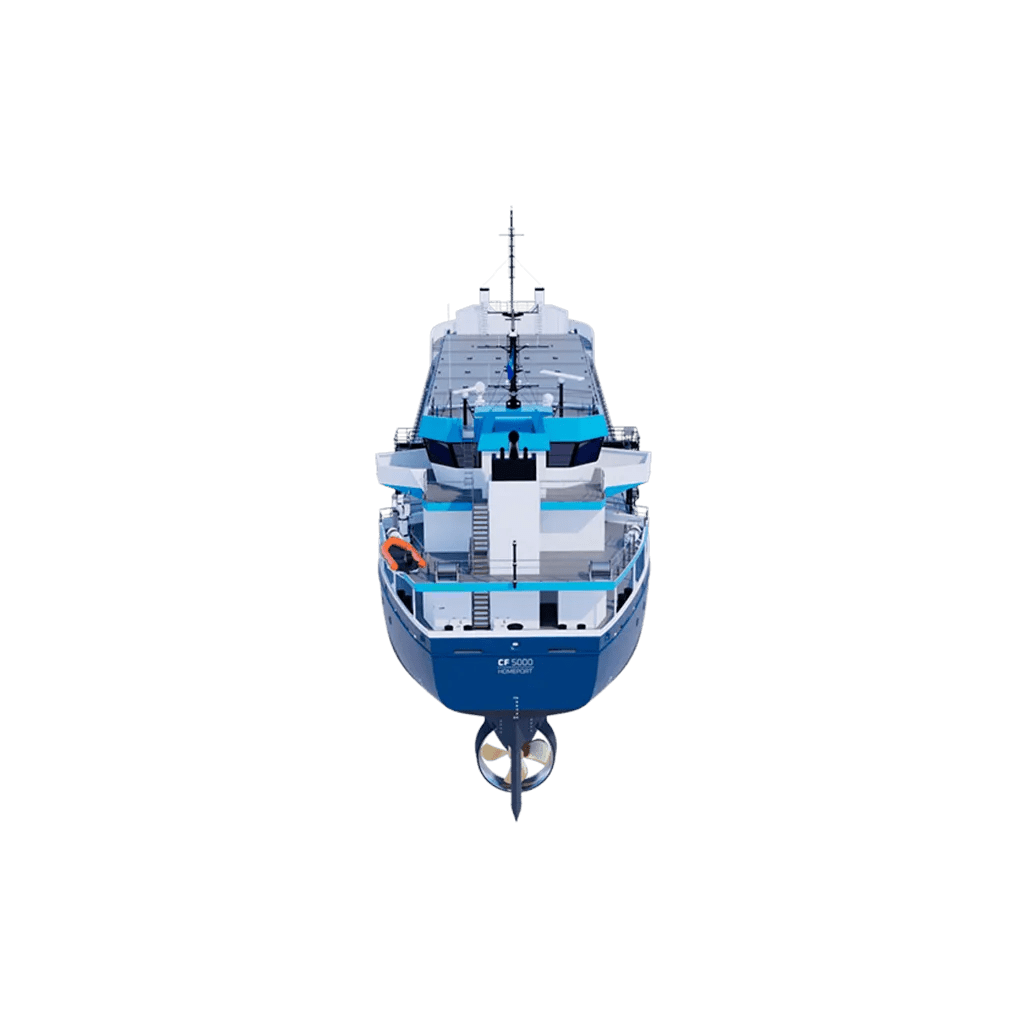

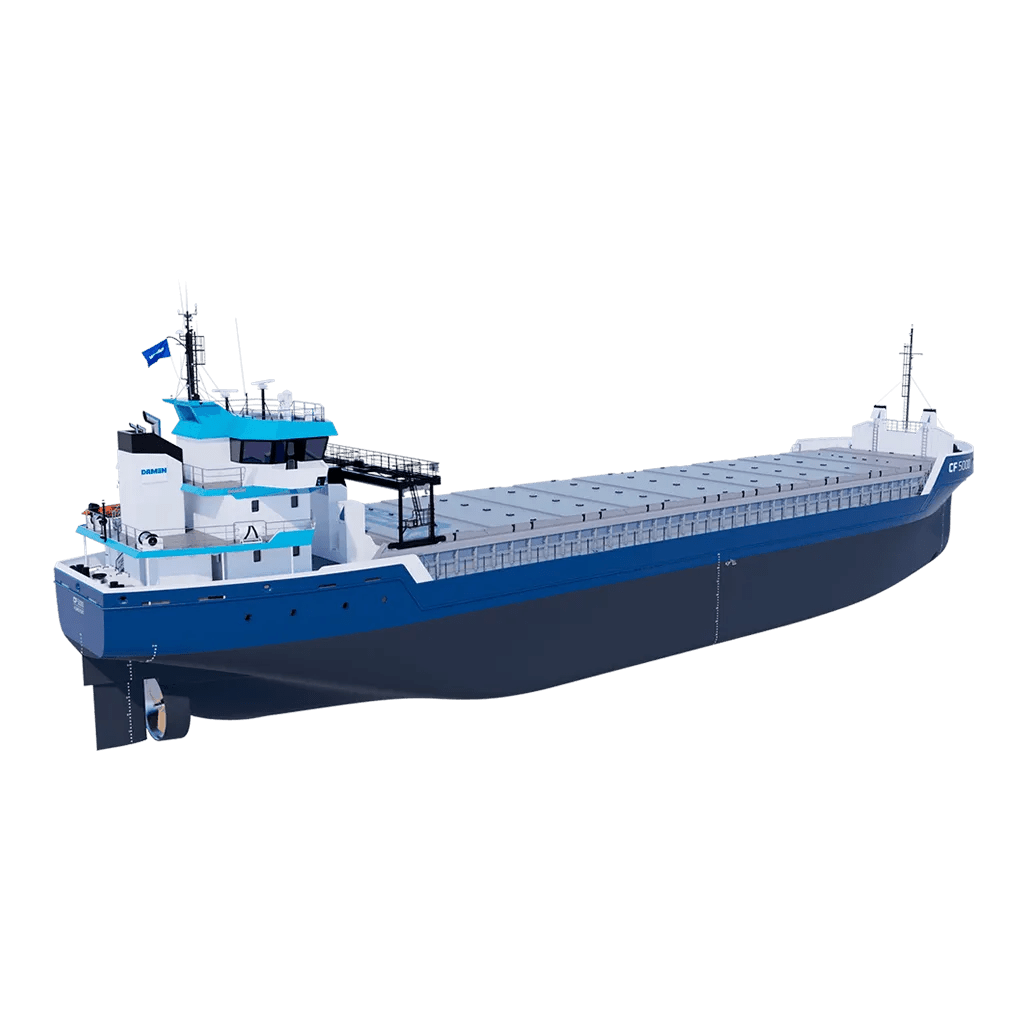

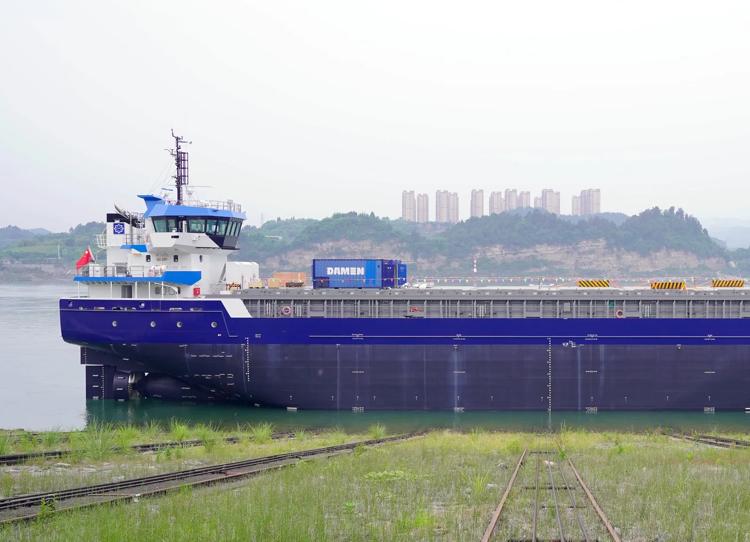

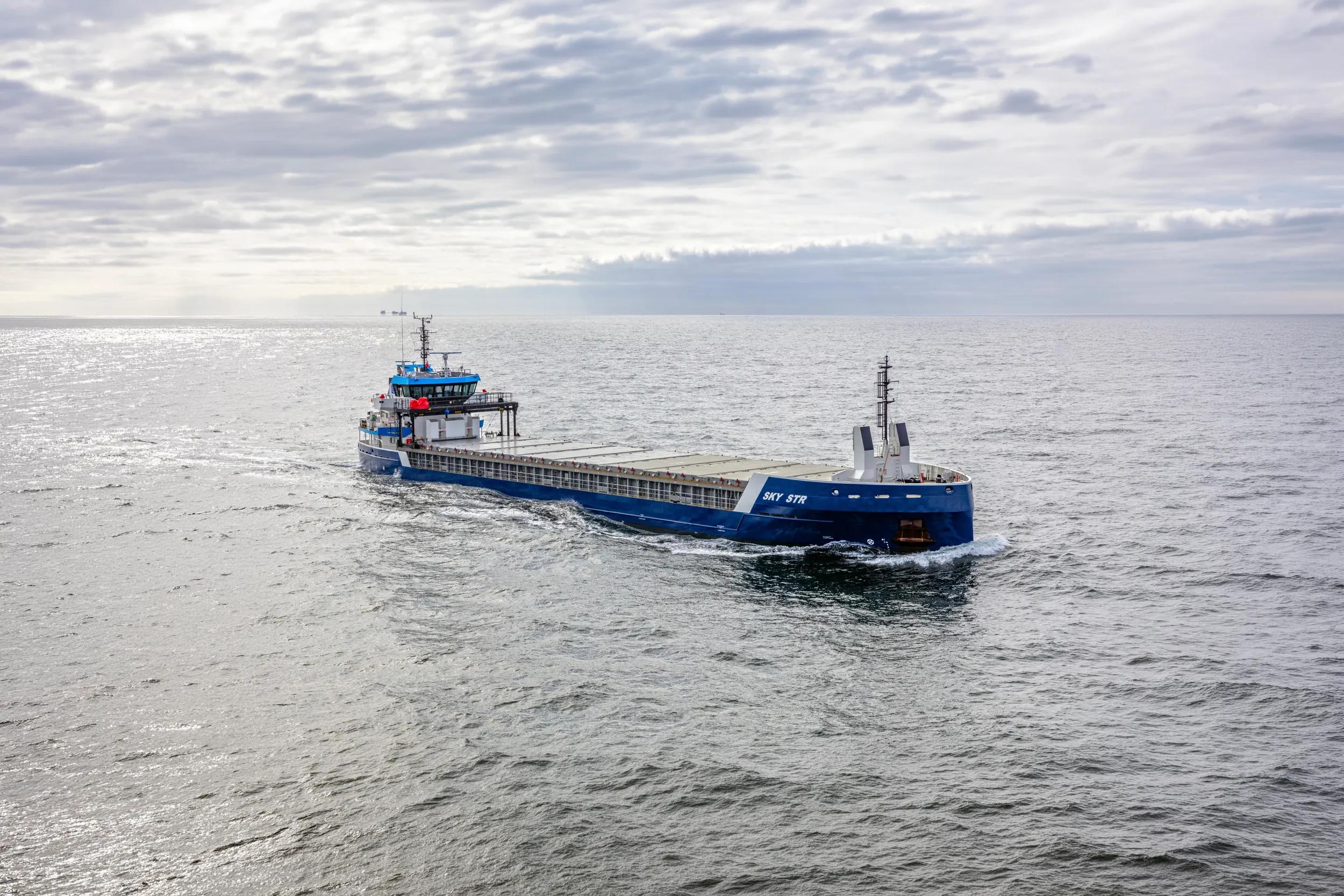

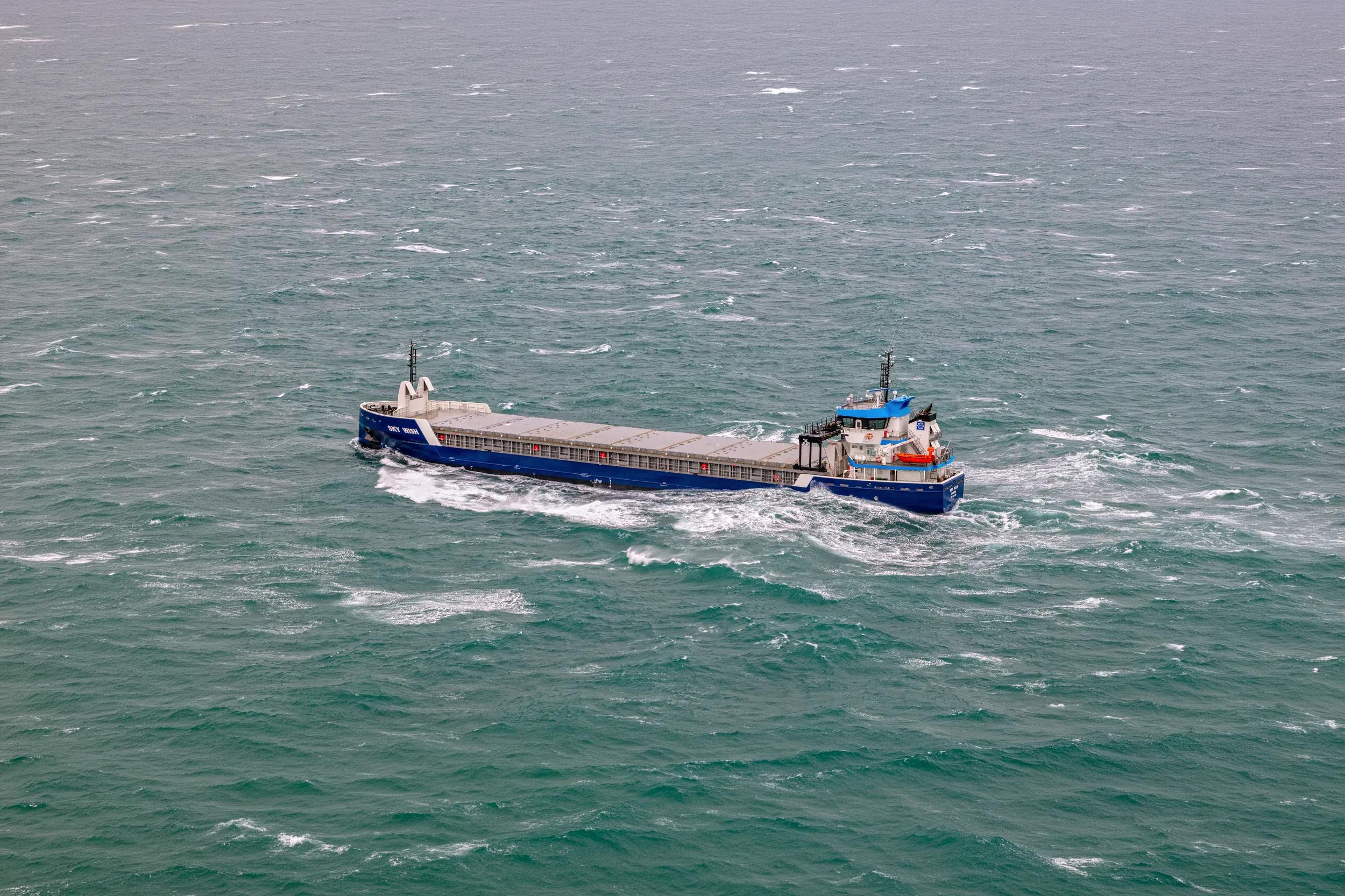

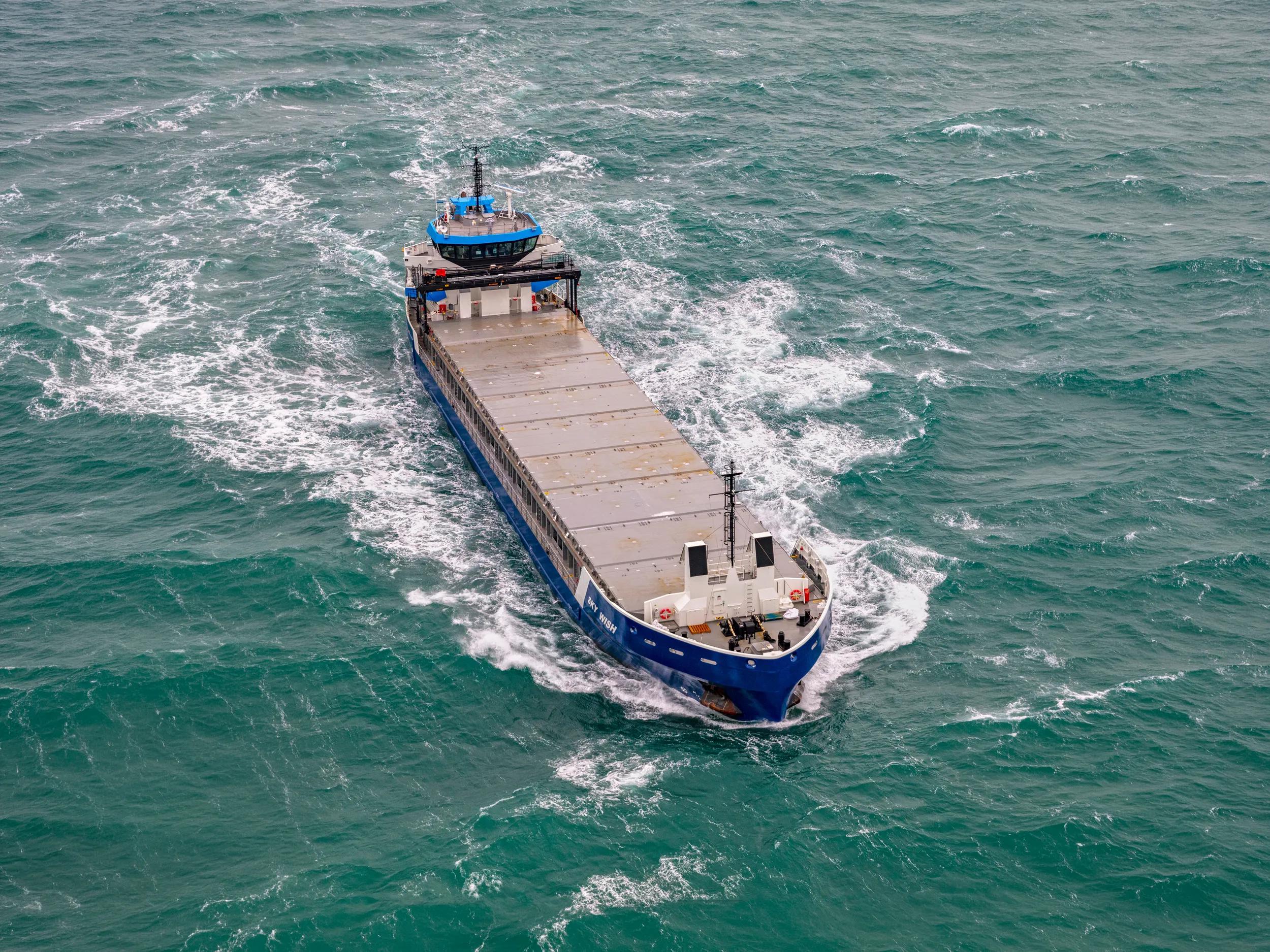

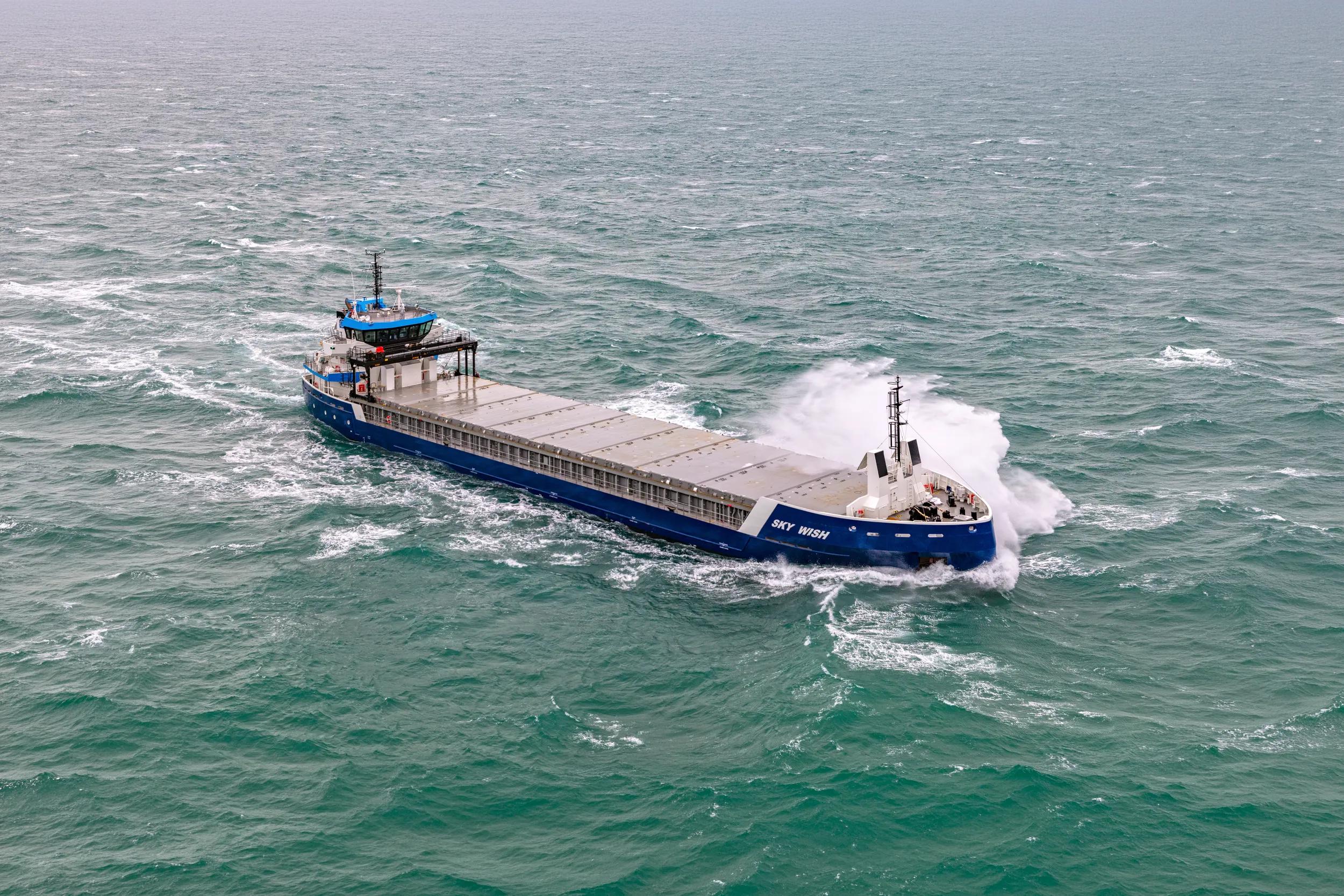

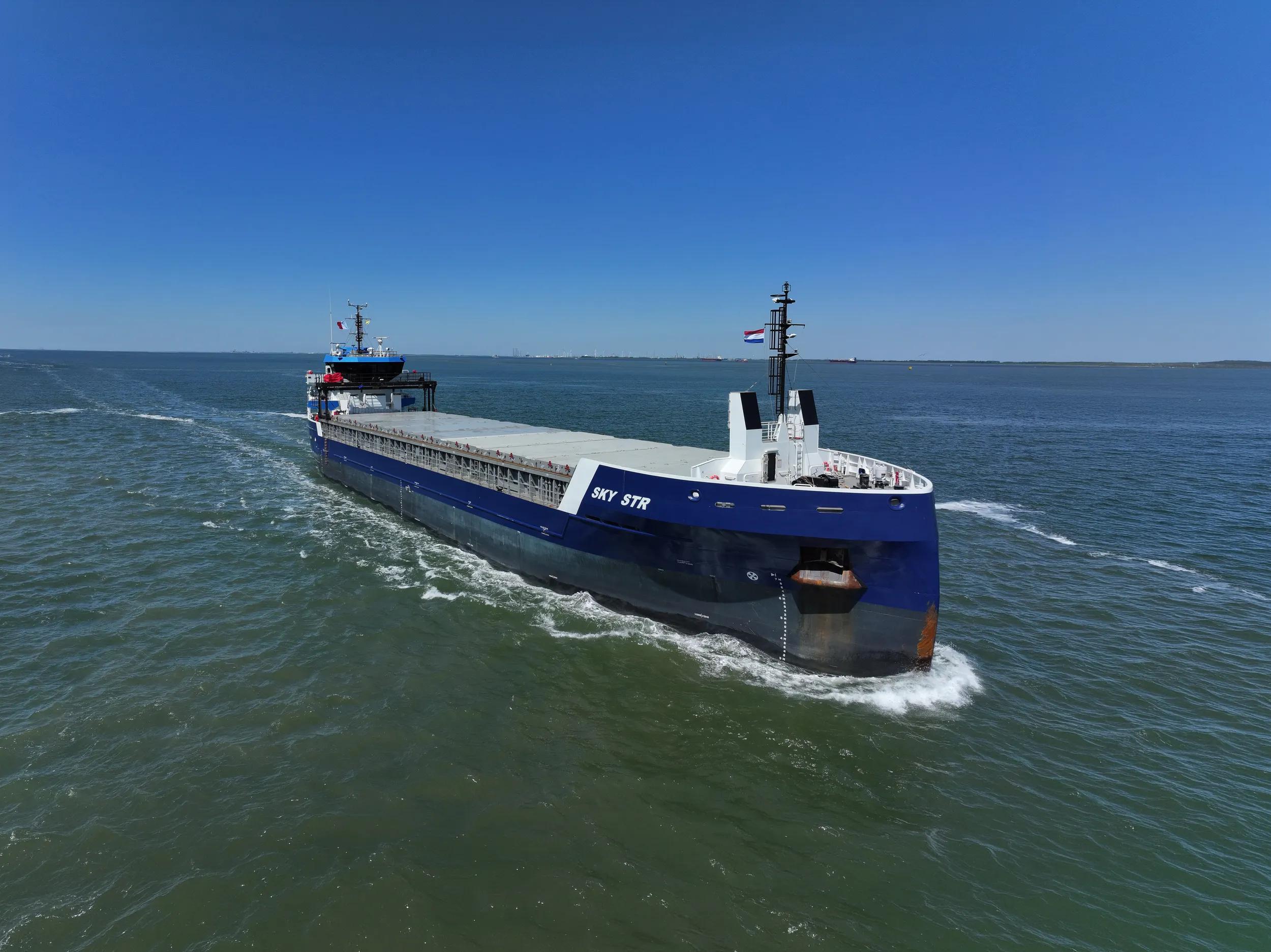

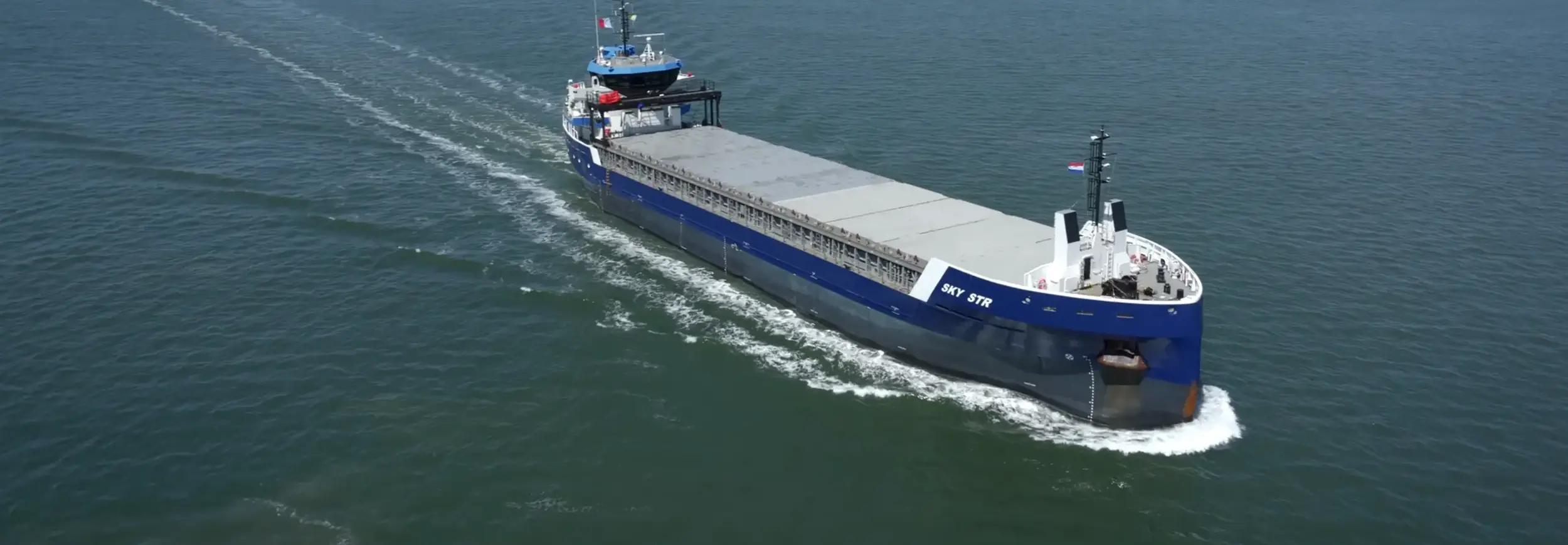

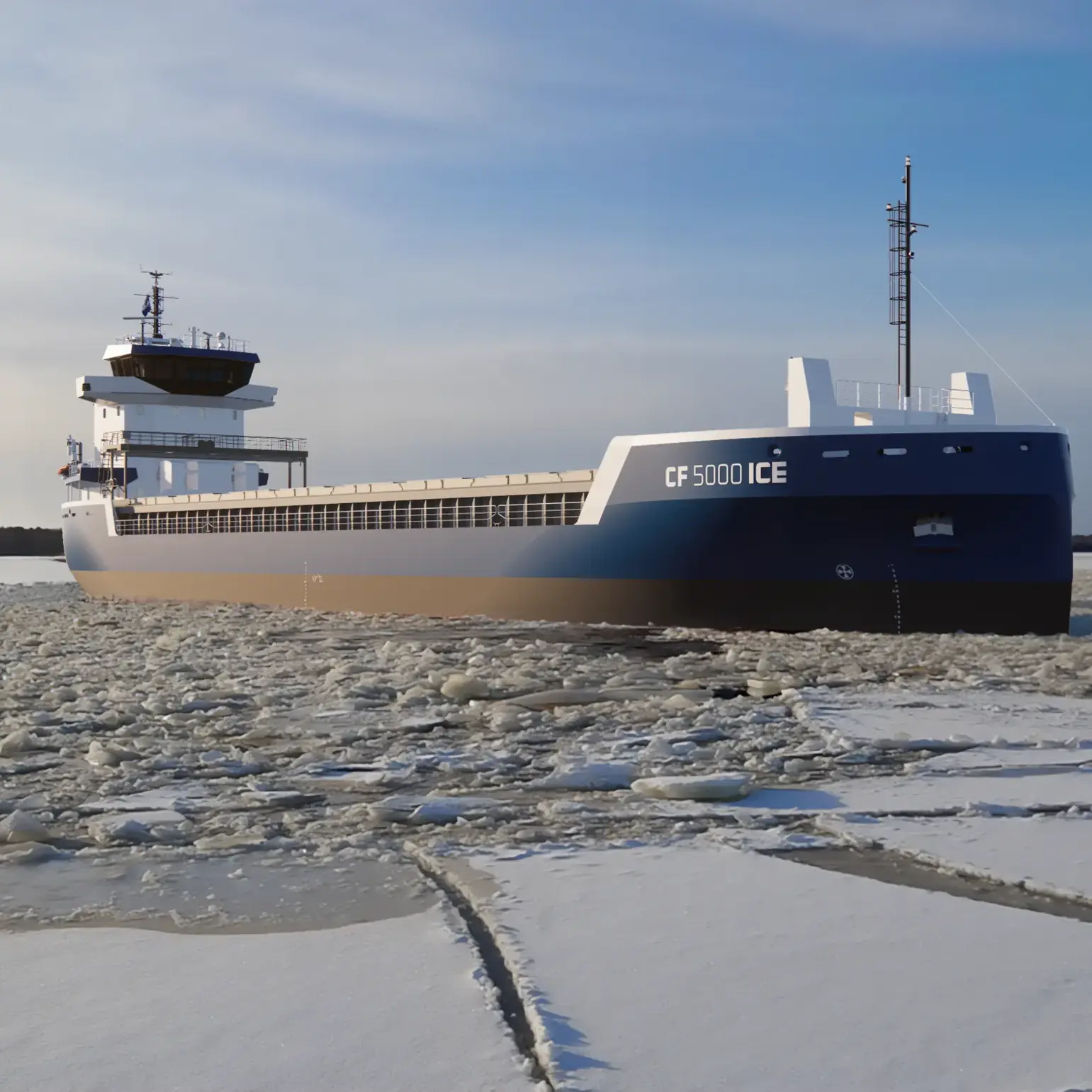

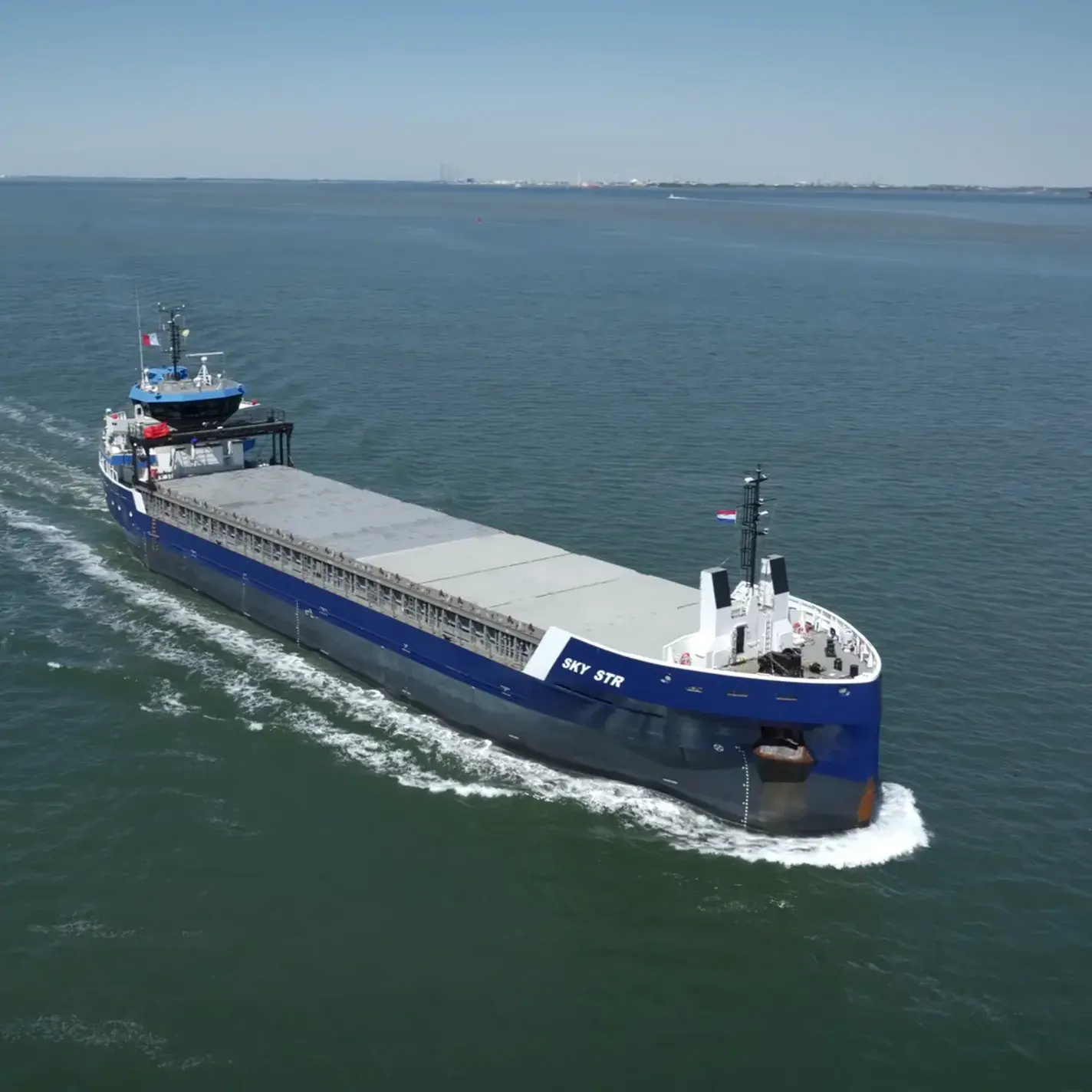

    The Combi Freighter 5000 has been designed to provide flexible cargo capabilities and high levels of efficiency. Its modern hull is designed for optimal performance in both open water and ice conditions. This, paired with the bow’s ability to pierce waves, offers high levels of fuel efficiency and low emissions. The vessel is additionally prepared for installation of a wide range of options that support further enhancements in efficiency. The CF 5000 is designed to meet IMO Type 1 dangerous good requirements. It features a box-shaped hold with multiple positions for its two grain bulkheads. A tween deck provides the flexibility for transport of both bulk and breakbulk cargoes, and cargo lashing points along the longitudinal bulkheads and container fittings in the tanktop to enable precise, flexible loading. As such, the vessel is optimised for maximal cargo intake with minimal ballast requirements, operating fully loaded at design draught. The vessel is available in both conventional and Ice Class versions. When operating under Ice Class, power is supplied externally, enabling the vessel to operate at optimal power in open water.
    • Modern hull design for optimal performance in open water and ice conditions
    • Suitable for various cargoes, flexible loading options for optimal positioning
    • Design ready for sustainable features
    • Damen quality, build in Asia, warranty from the Netherlands

    Key figures

    5160

    87.31

    15.2

    6.65

    7000

    Cargo dimensions

    Tonnage
    3518 GT
    Hold length
    60.48 m
    Hold beam
    12.6 m
    Hold height
    9.6 m
    Dimension (cuft)
    247,200

    Performances / Capacities

    Speed
    12 kn
    Propulsion
    1326
    Propellor
    3500
    Bow thruster (kW)
    1x 280
    Generator (kWe)
    1x 565, 1x 118, 1x 111

    Available options

    Propulsion
    PTO/PTI system Wake equalizing duct
    Energy storage
    Upgrade energy storage system
    Battery setup
    Battery container
    Fuel option
    Bio diesel
    Cargo hold flexibility
    Tween deck panels
    Class
    Class 1 dangerous goods (explosives)
    Do you want to know more?

    Compare similar vessels

    Deadweight (t)Length (m)Beam (m)Draught (m)Hold (m³)
    Combi Freighter 5000 (ICE)516087.3115.26.657000
    Combi Freighter 3850380089.7512.505.485250
    Combi Freighter 6000 (ICE)603898.8415.26.658200
    Combi Freighter 5000 (ICE)
    Deadweight (t)
    5160
    Length (m)
    87.31
    Beam (m)
    15.2
    Draught (m)
    6.65
    Hold (m³)
    7000
    Deadweight (t)
    3800
    Length (m)
    89.75
    Beam (m)
    12.50
    Draught (m)
    5.48
    Hold (m³)
    5250
    Deadweight (t)
    6038
    Length (m)
    98.84
    Beam (m)
    15.2
    Draught (m)
    6.65
    Hold (m³)
    8200
