Offshore Patrol Vessel 1800 Military

83.0

20-22

Up to 80

13.7

4 x 1765

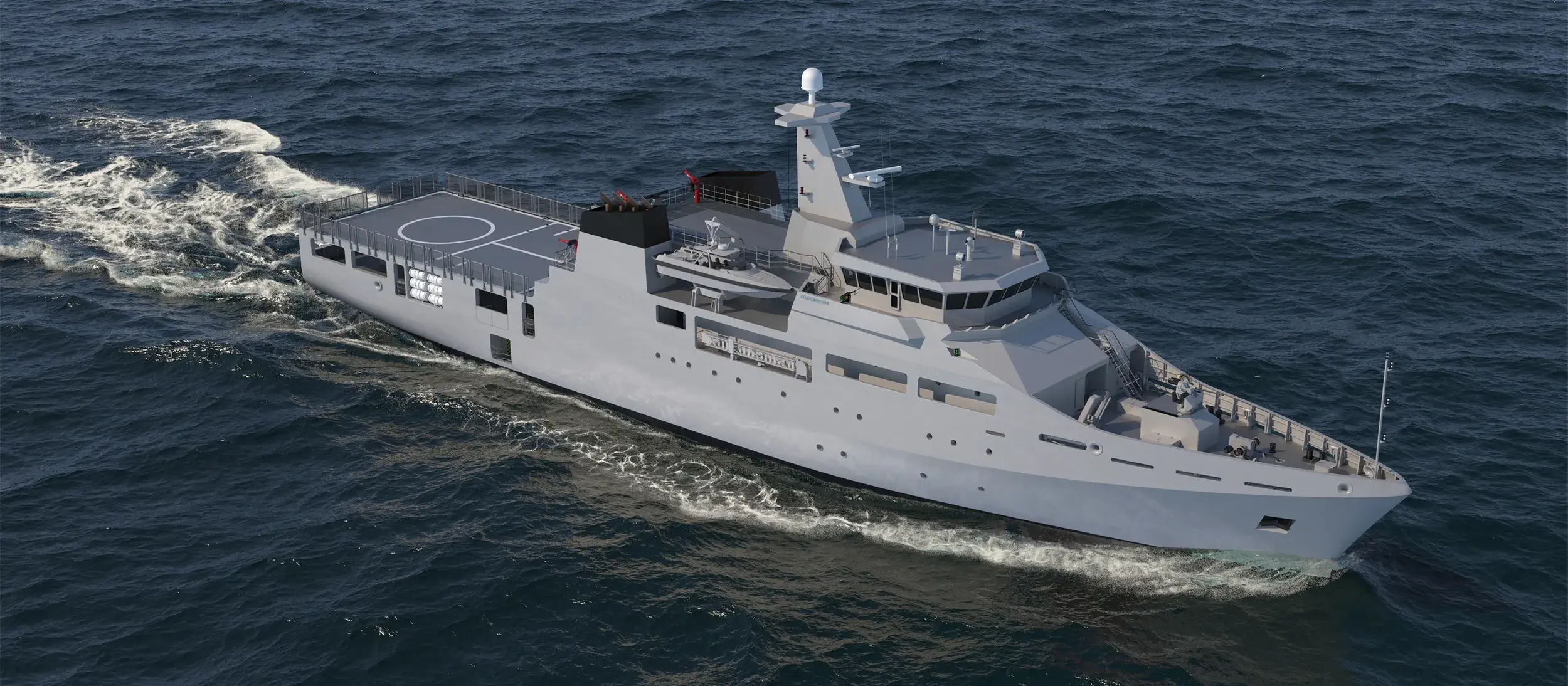

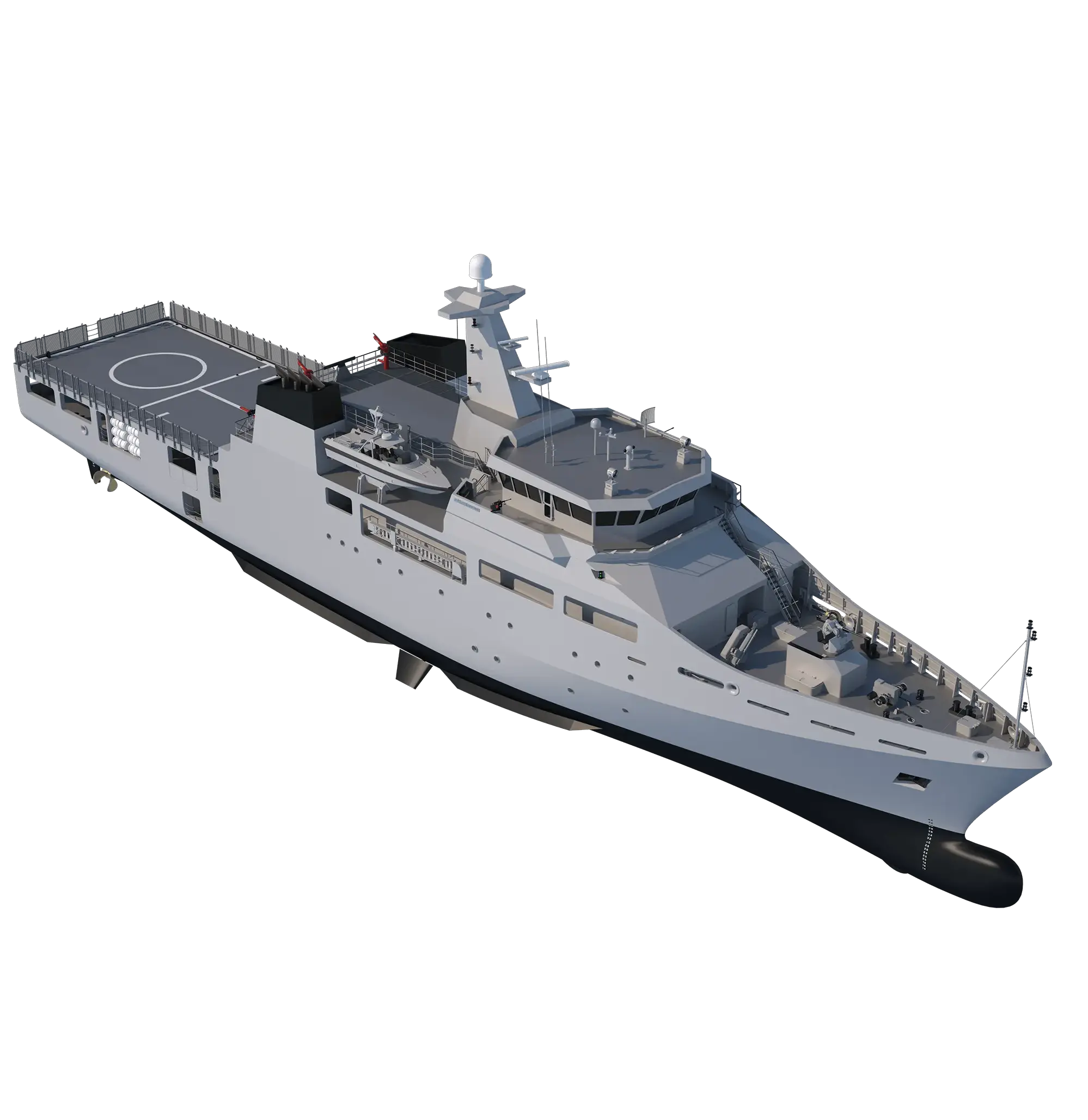

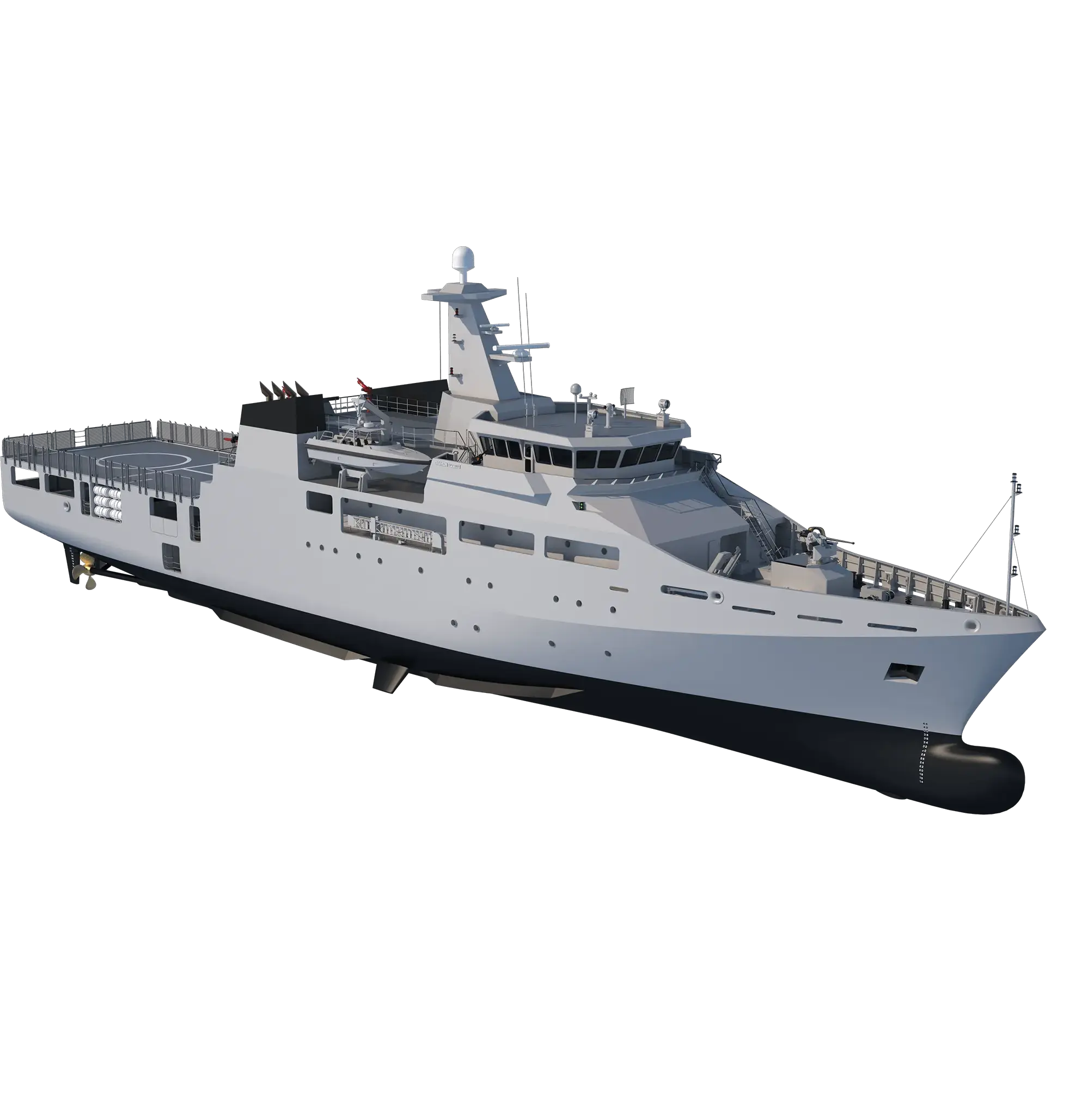

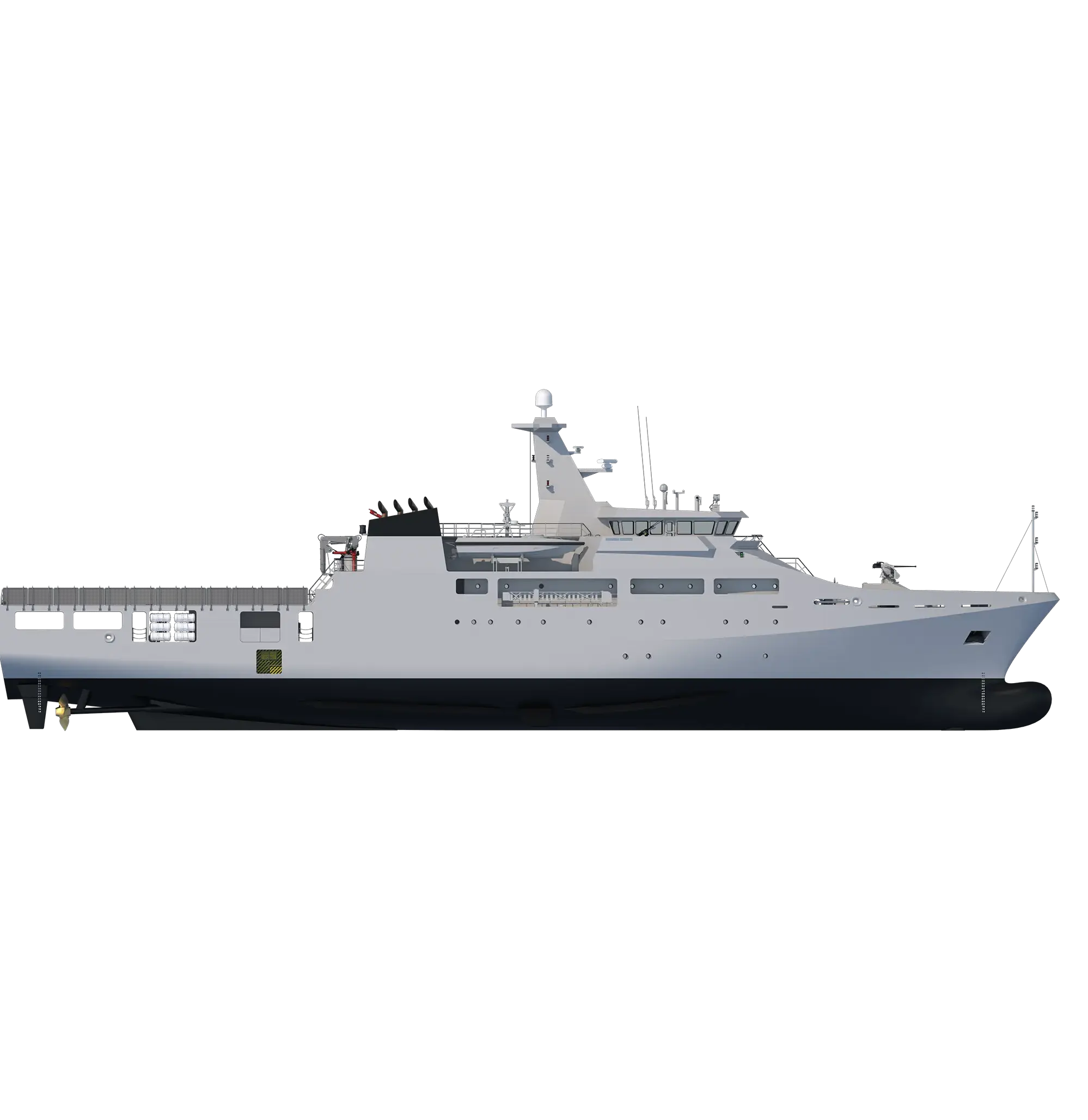

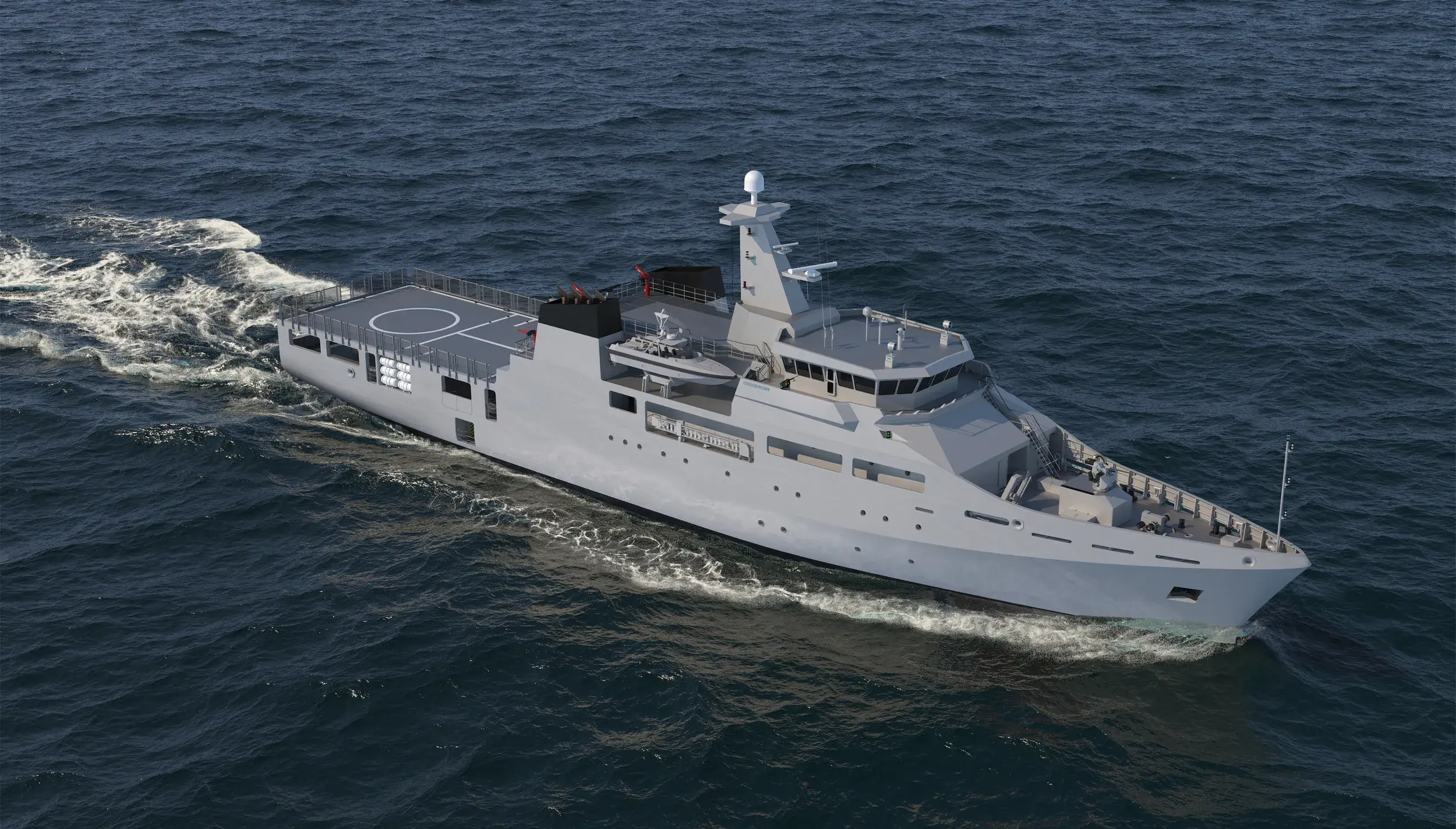

Known for its excellent power/speed ratios, the OPV 1800 offers high endurance on a fully capable offshore platform. It requires much less power than typical corvettes with a hull designed for more economical patrolling speeds. Equipped with four diesel engines with two controllable pitch propellers, it is also possible to run only two diesels at patrol speed to reduce fuel consumption and extend its range. The vessel has a hangar, flight deck and service space for a large helicopter of up to 11 tons.

Specifications

Key figures

Dimensions

Length
83.0 m
Beam
13.7 m
Draught
3.9 m
Displacement
1900 t

Performances

Range
4000 nm
Speed (kn)
20-22

Other

Accommodation
Up to 80
RHIBs
2x 8.5 m
HELO
1 x med. weight + hangar

Let us help you to suit your needs

Our Offshore Patrol vessels flourish in specific jobs: border and EEZ surveillance, control and interception, SAR, humanitarian aid, logistic support.
