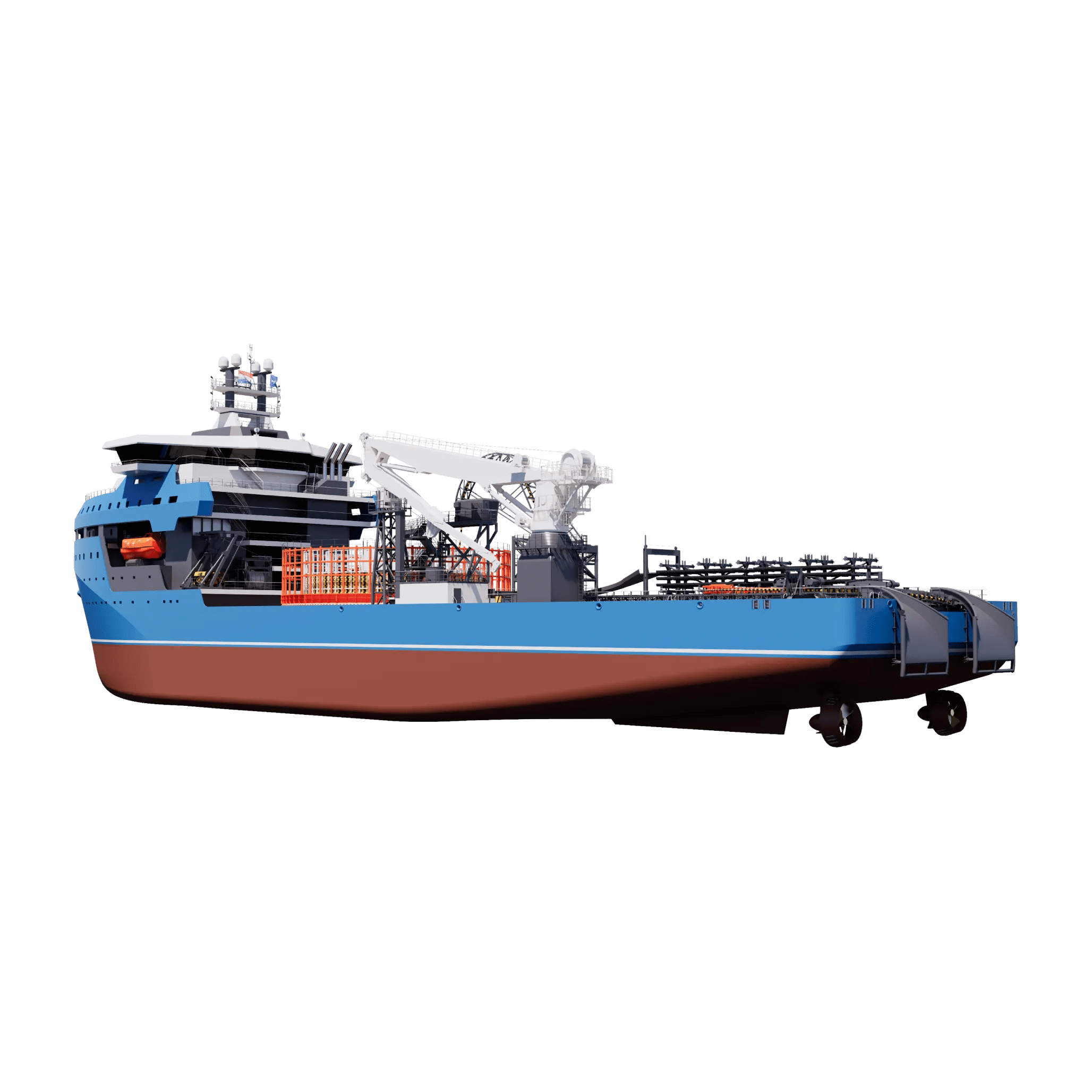

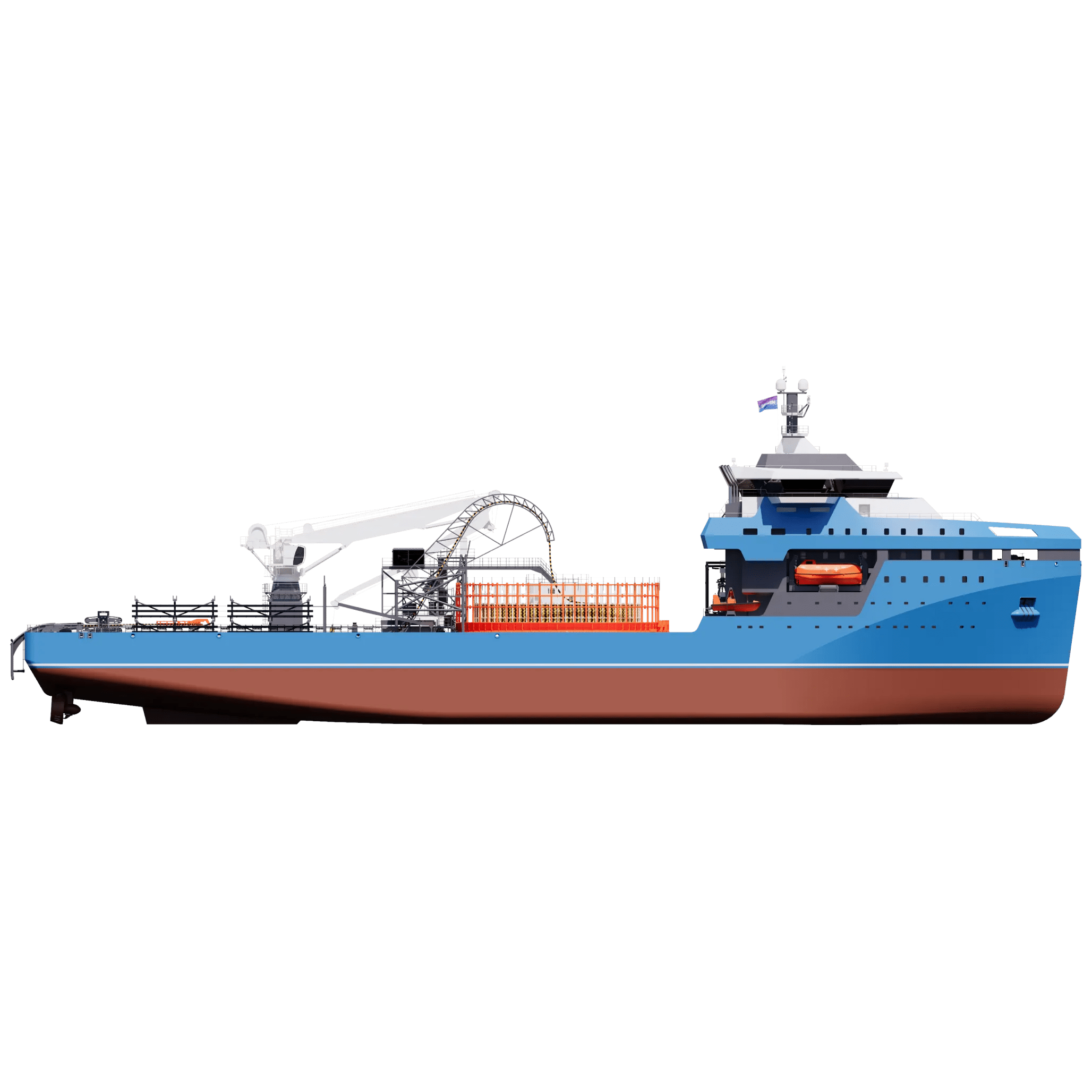

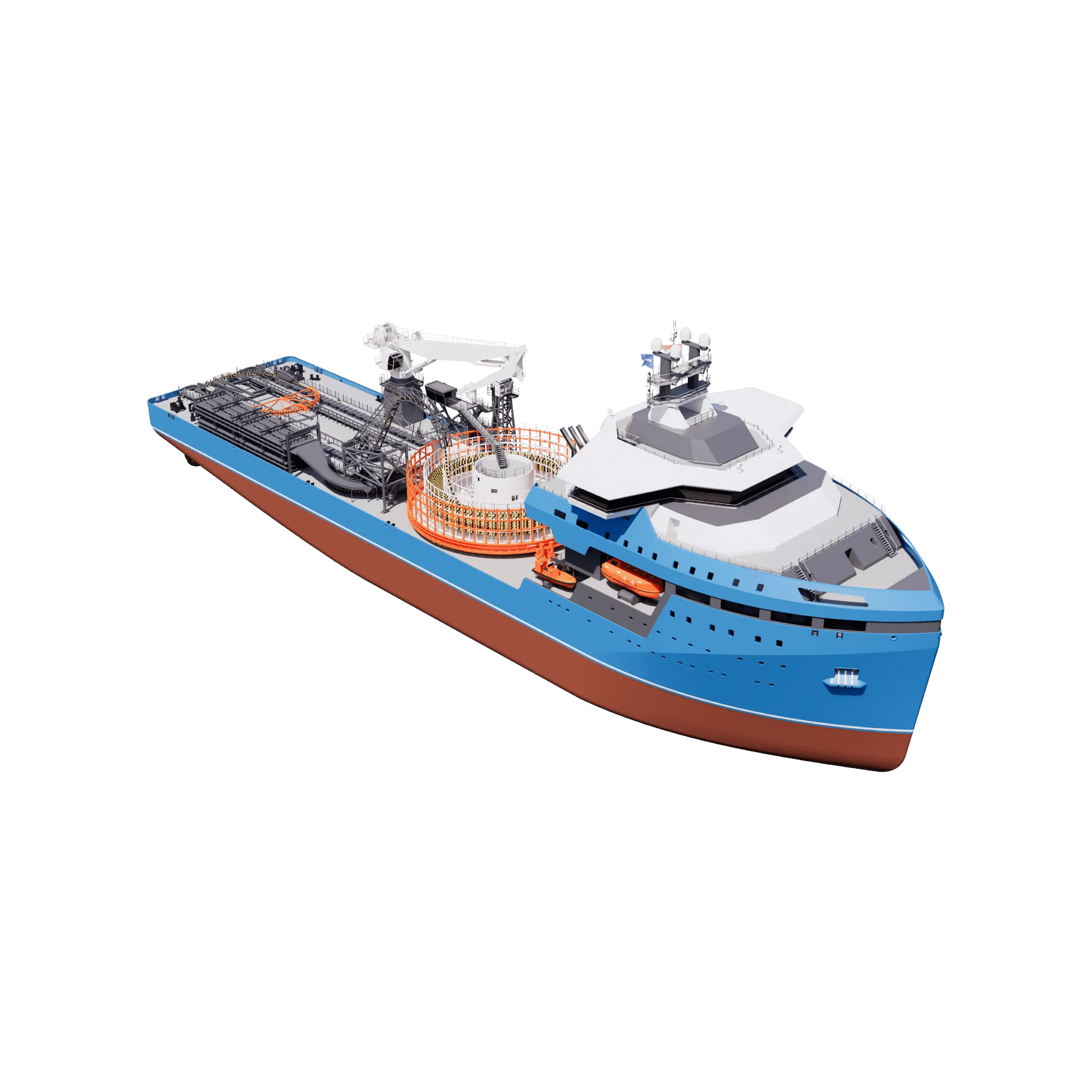

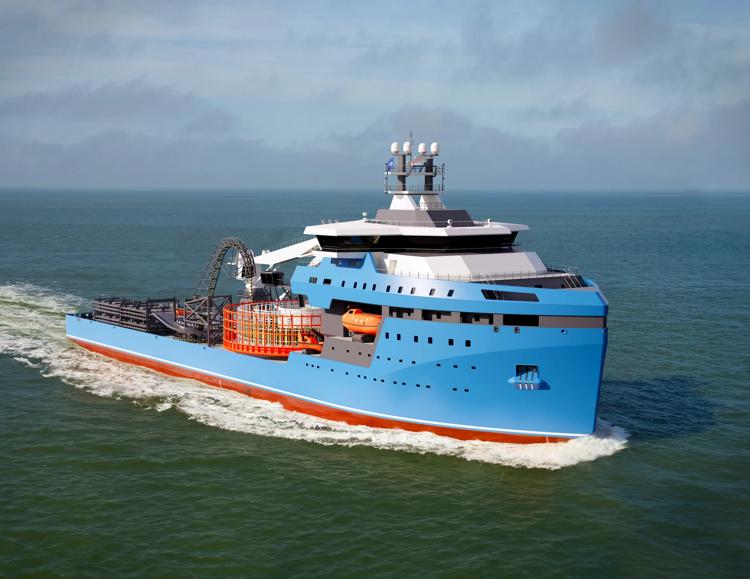

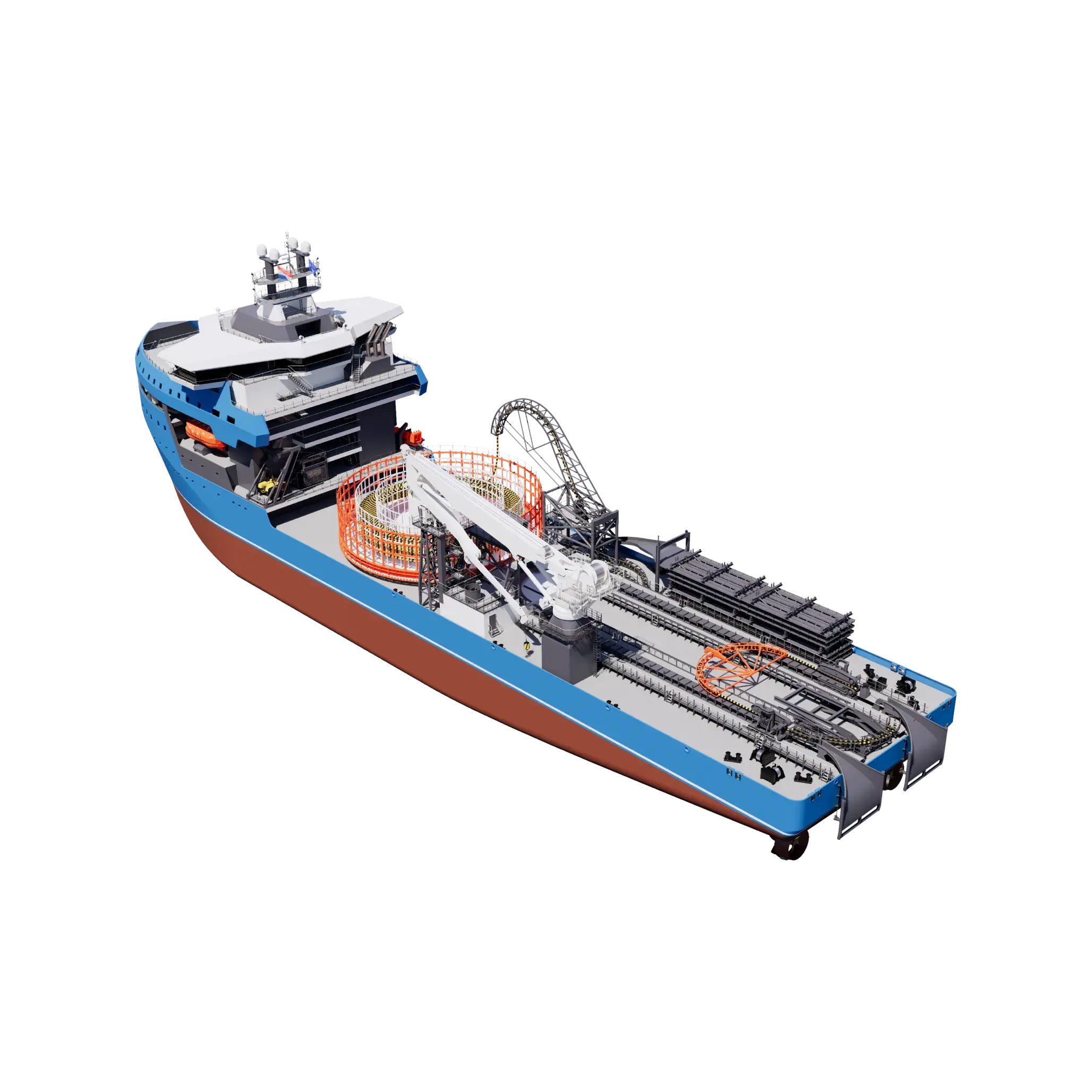

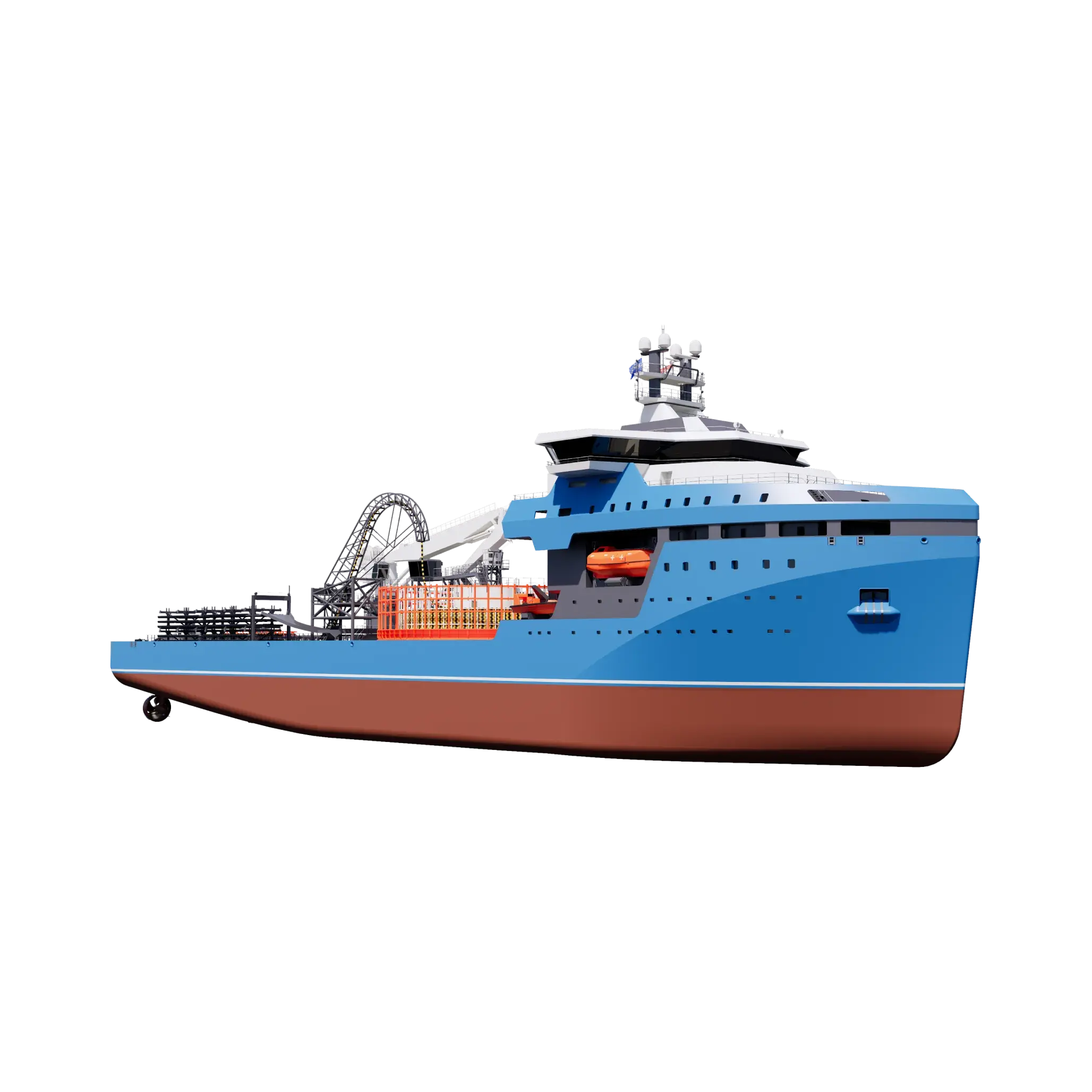

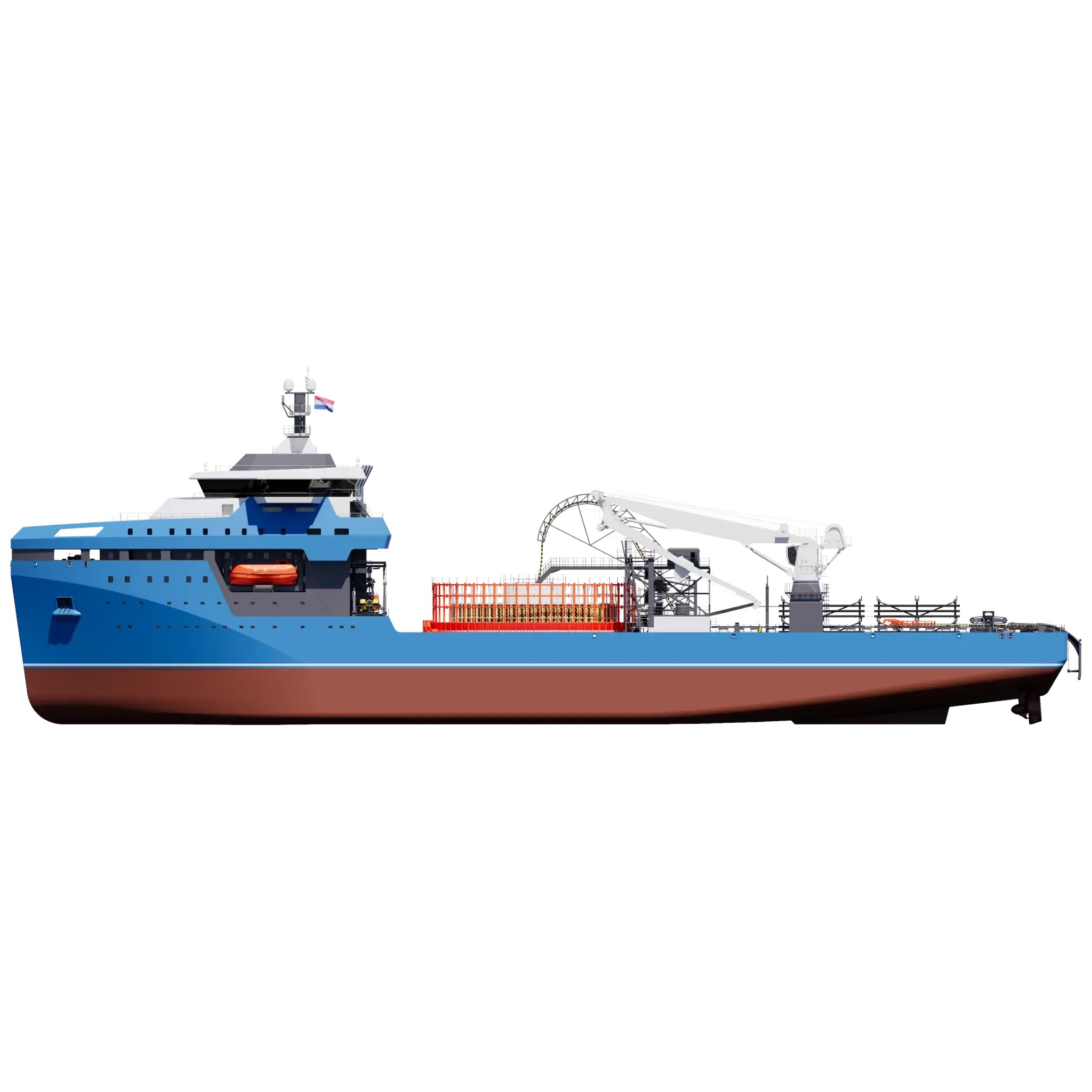

Cable Laying Vessel 8000
Cable Laying Vessel 8000

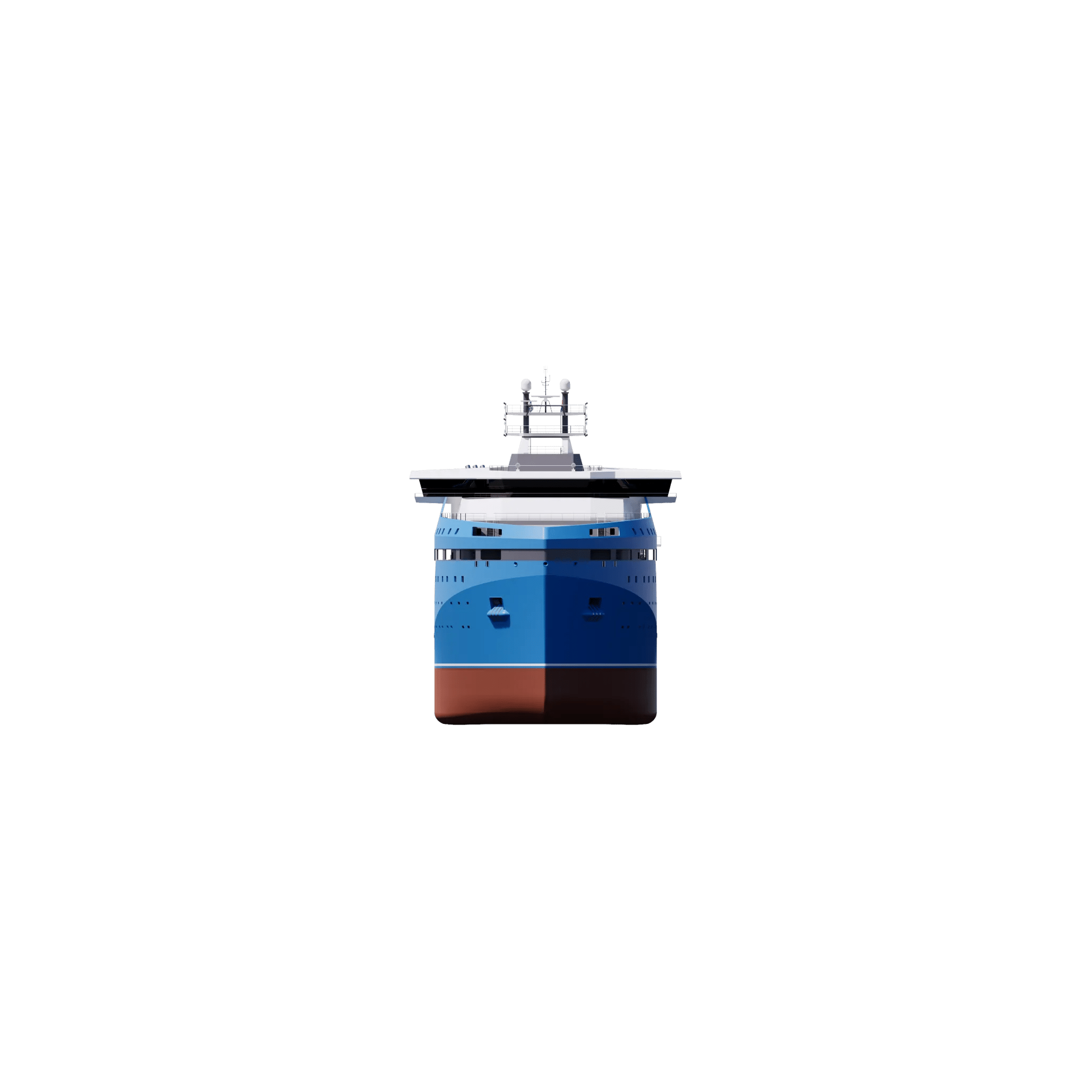

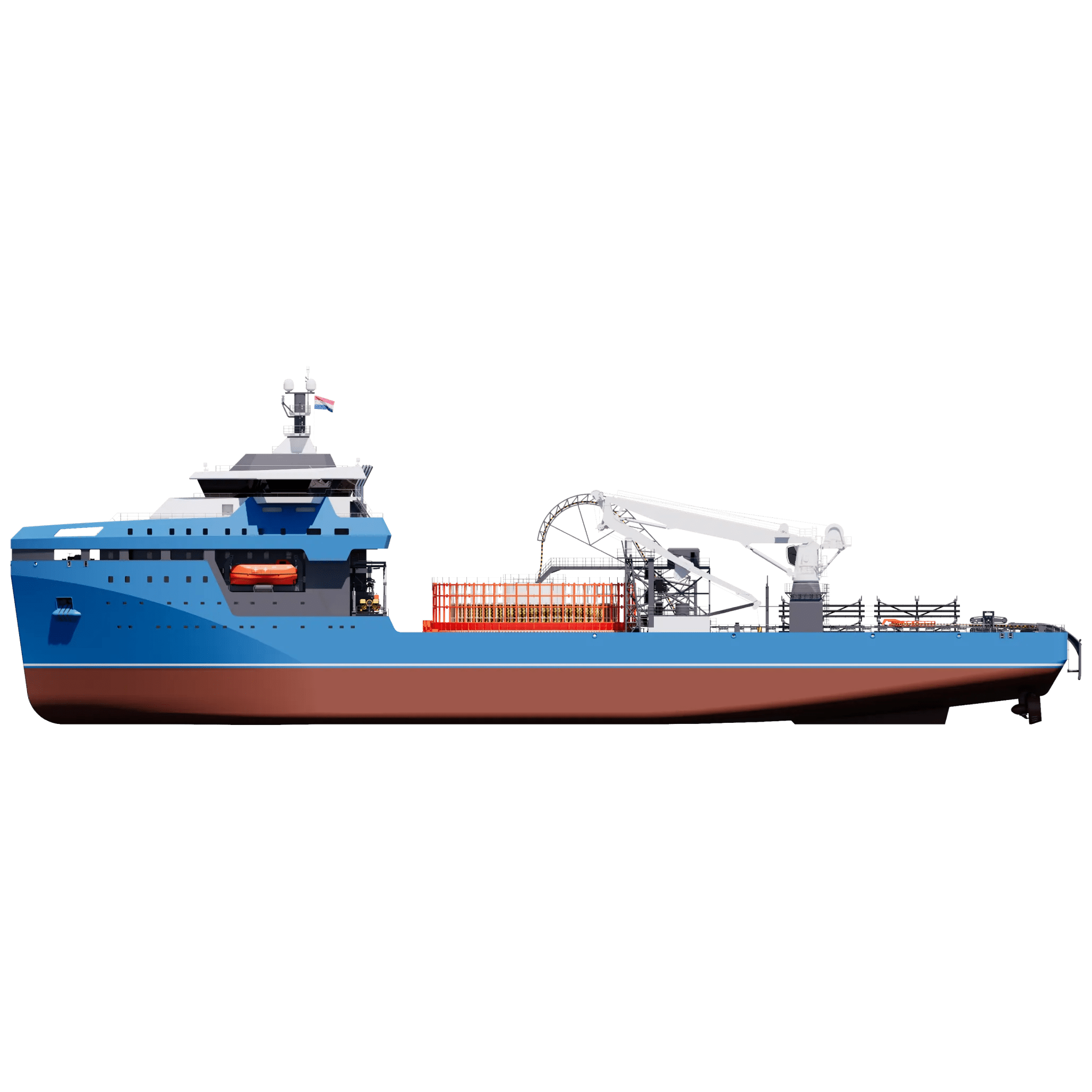

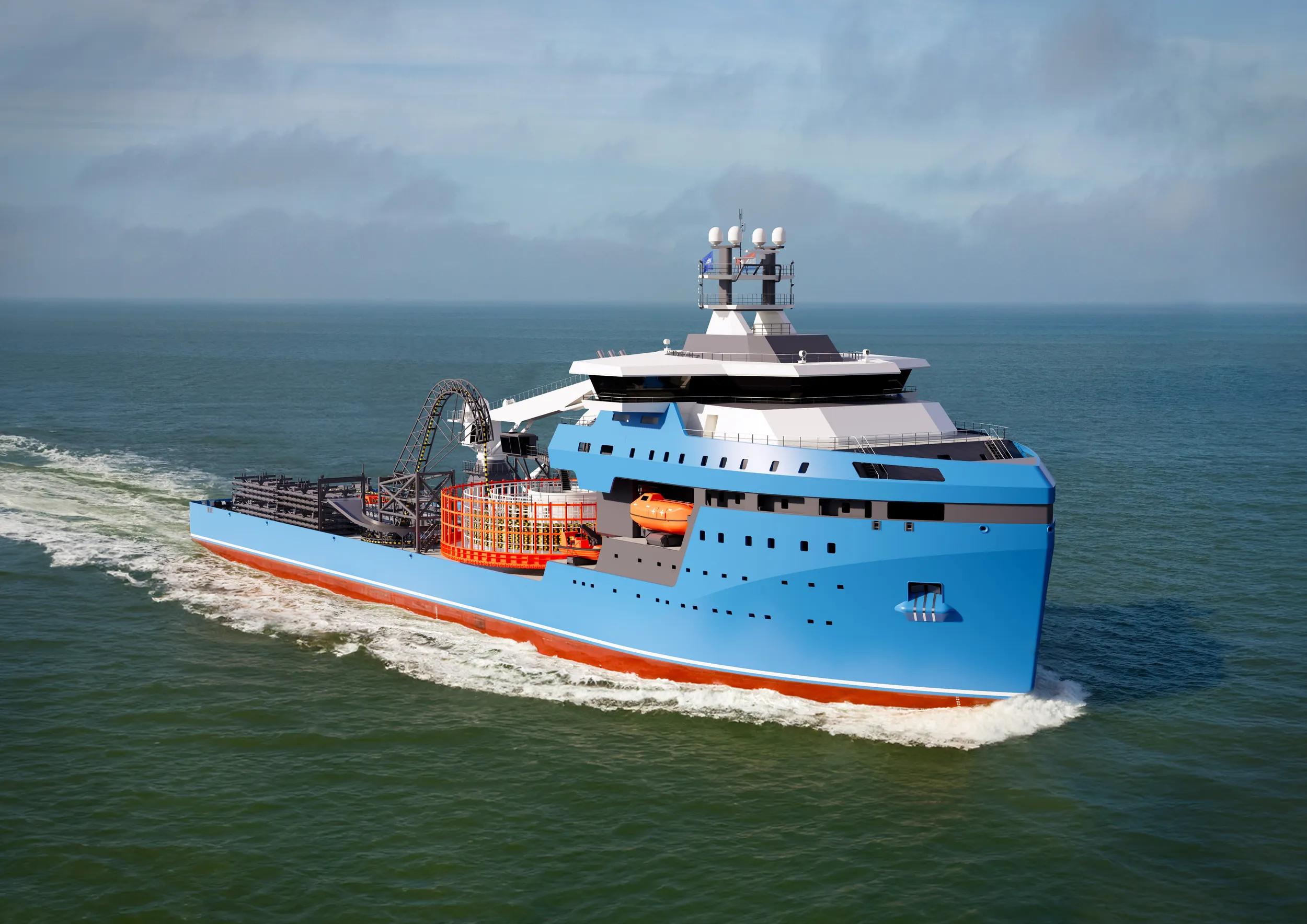

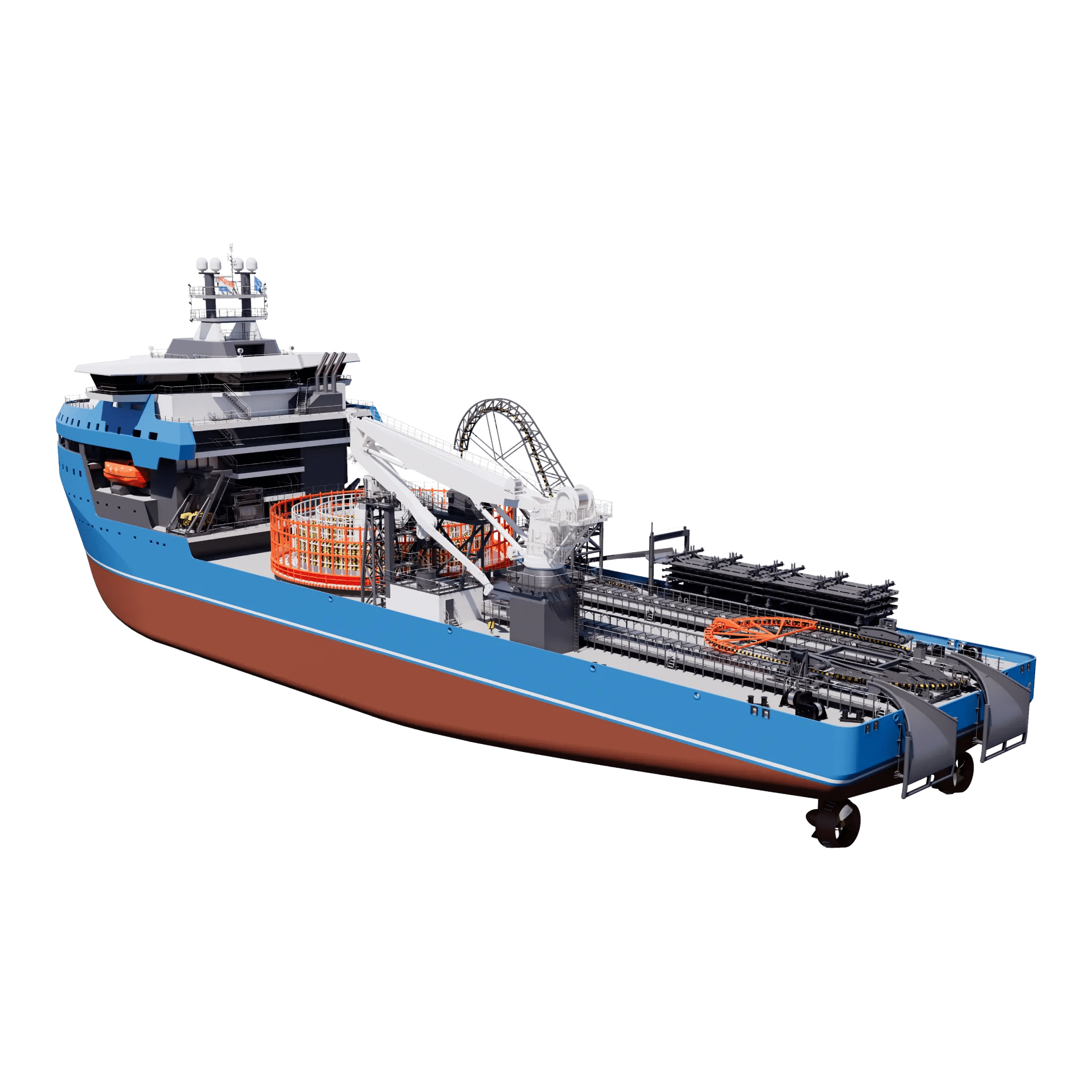

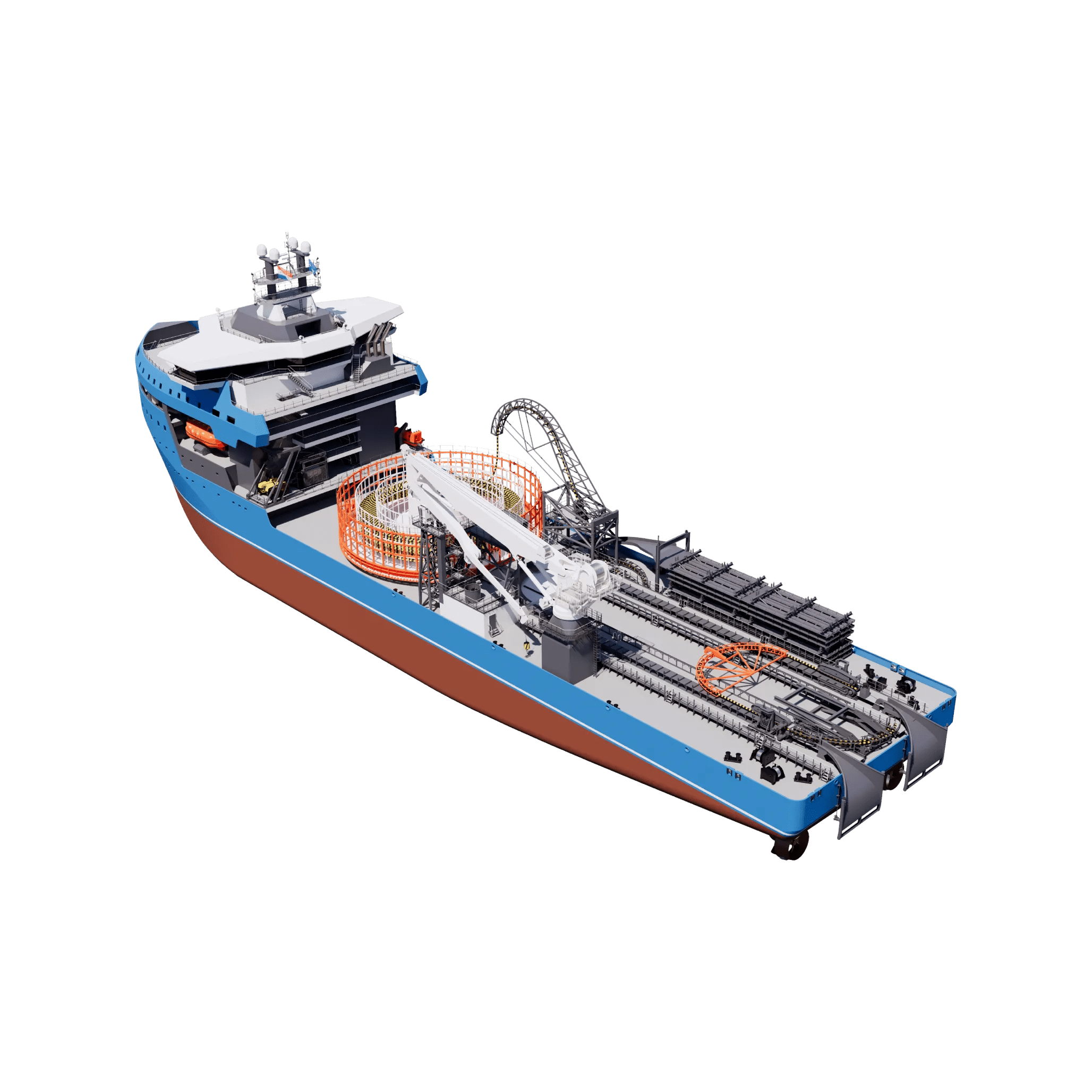

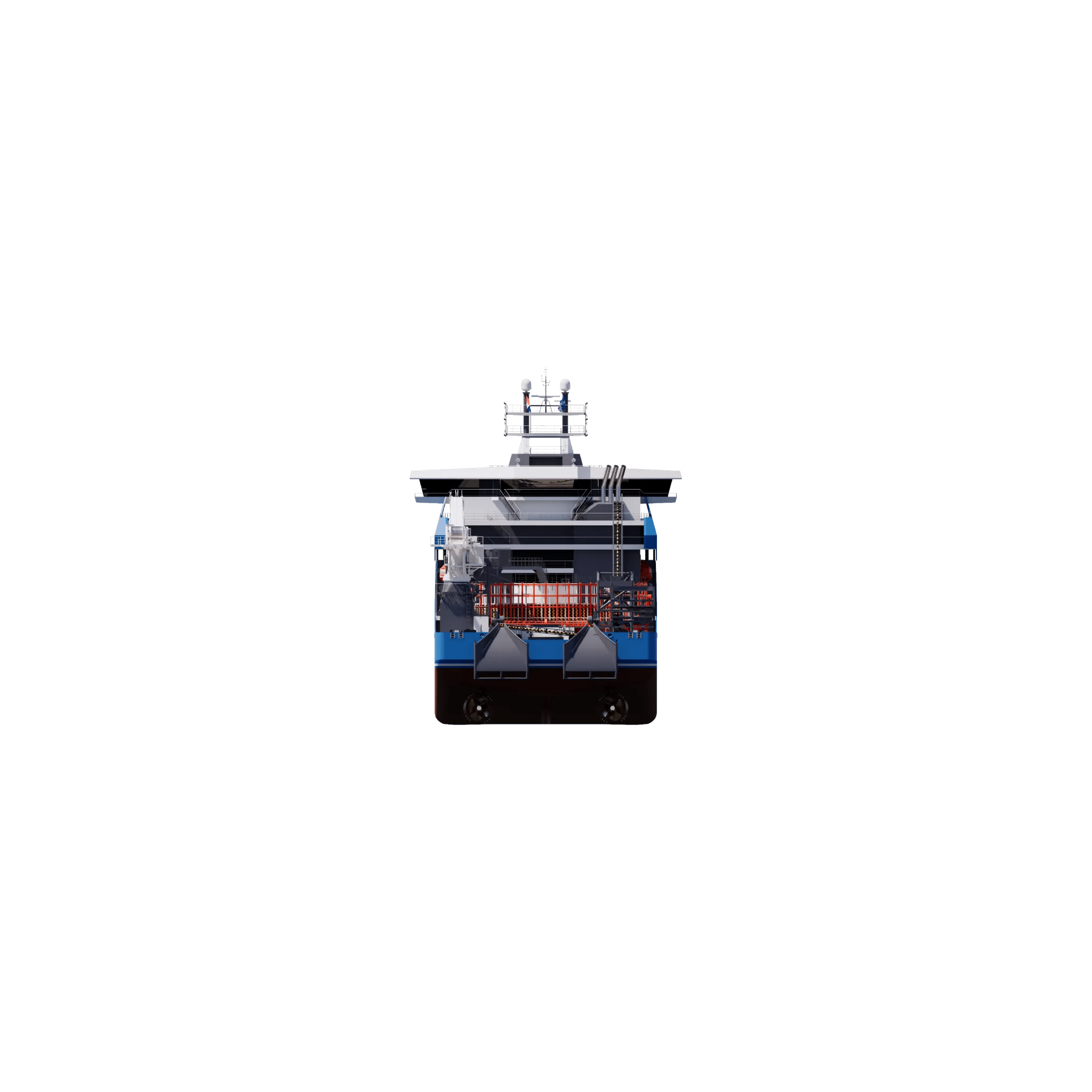

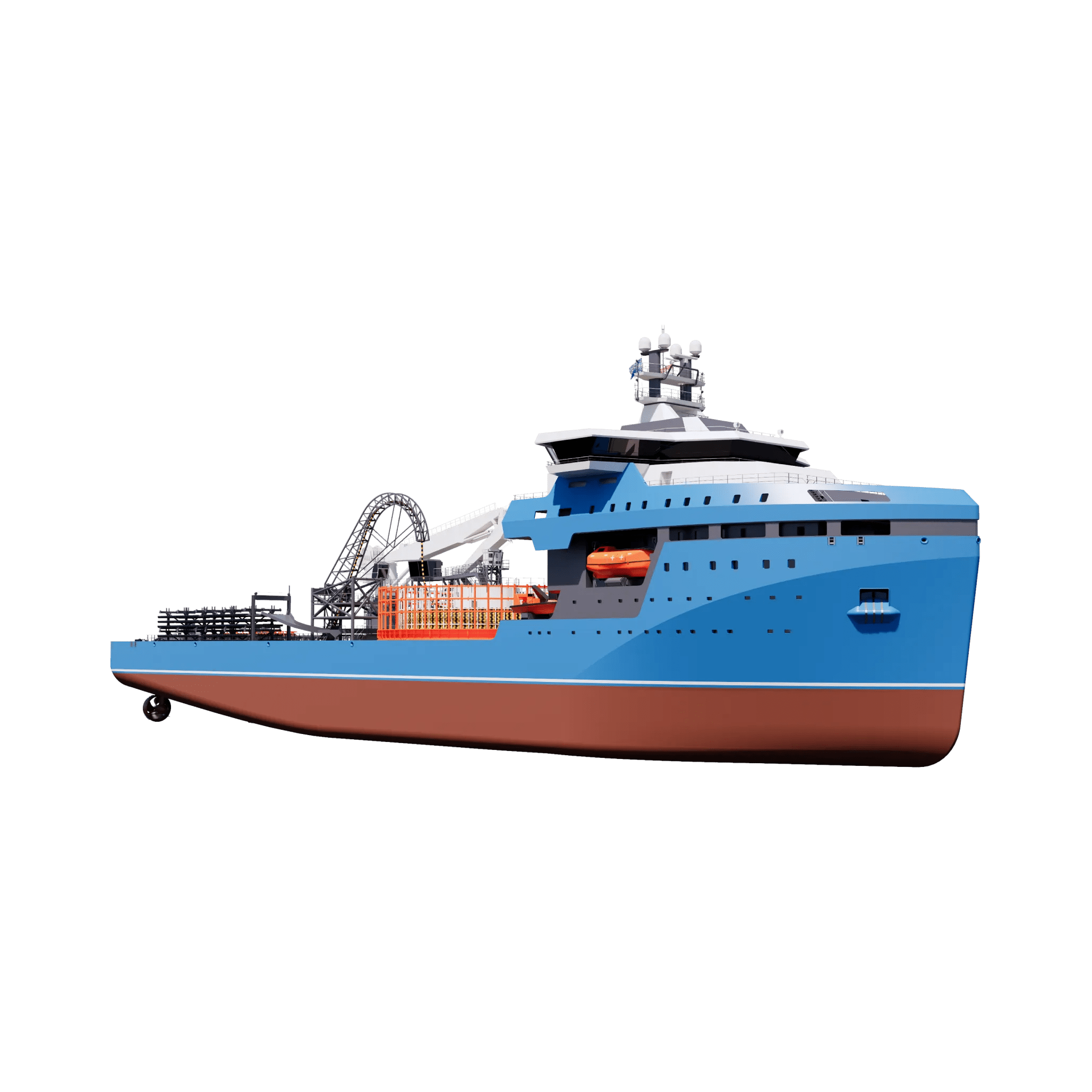

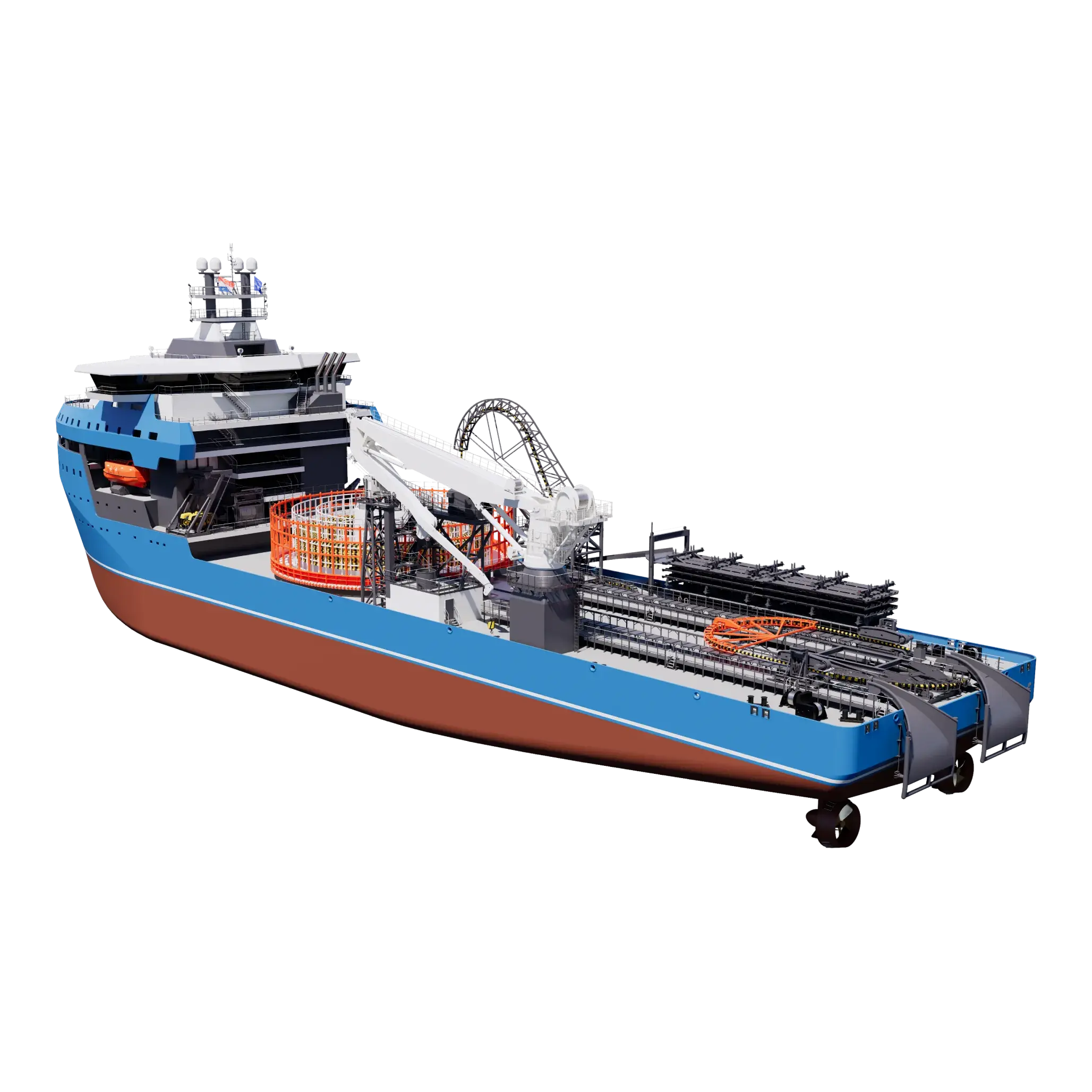

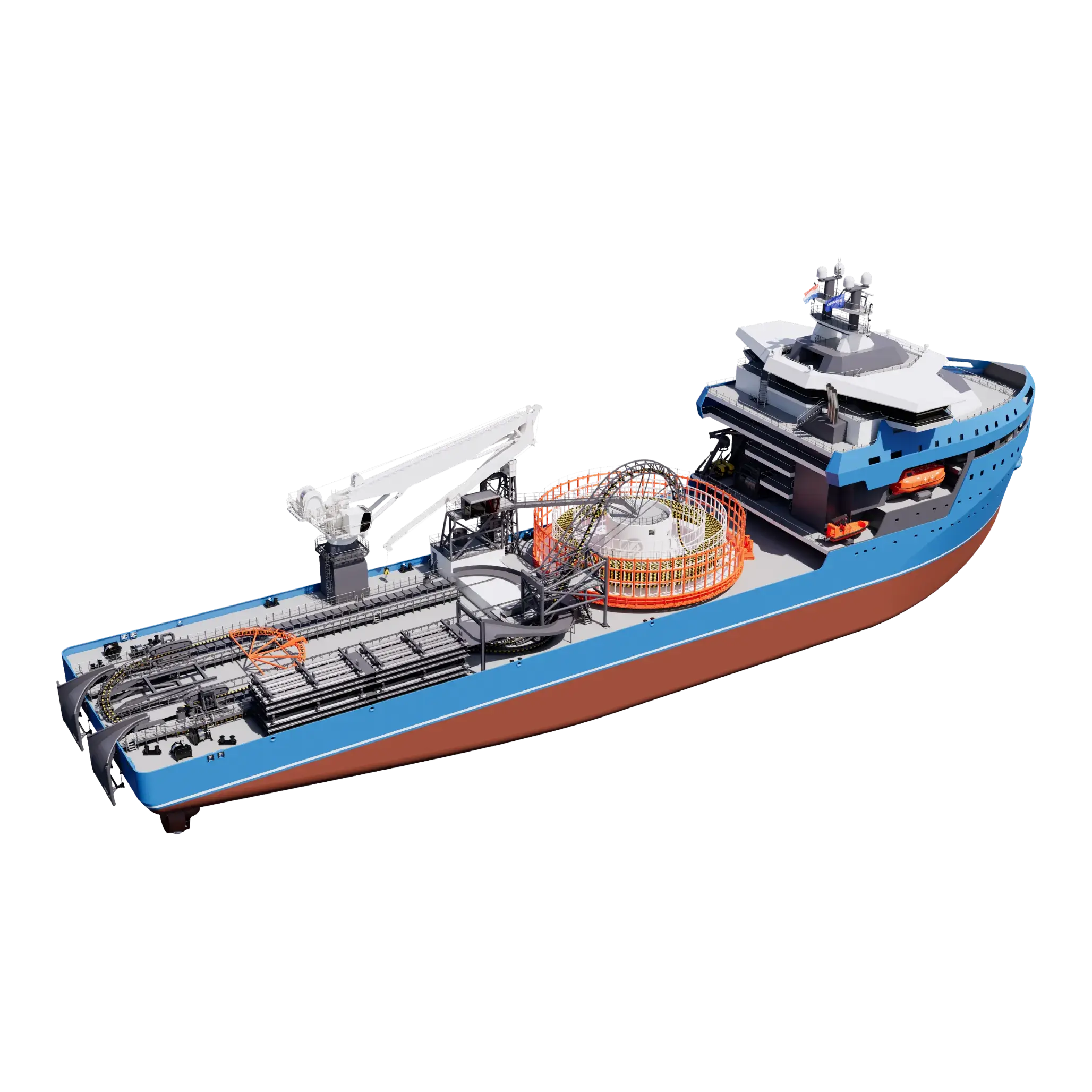

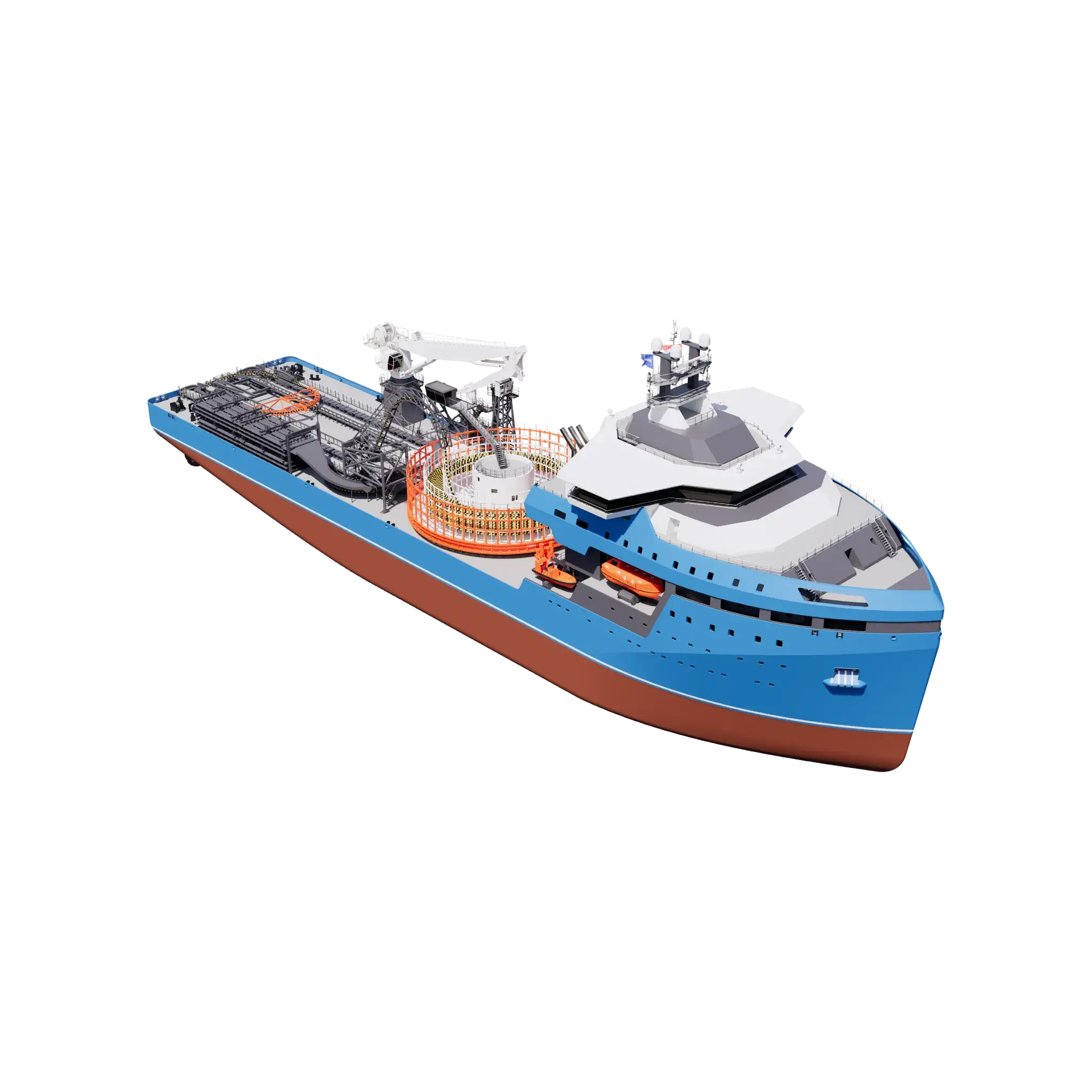

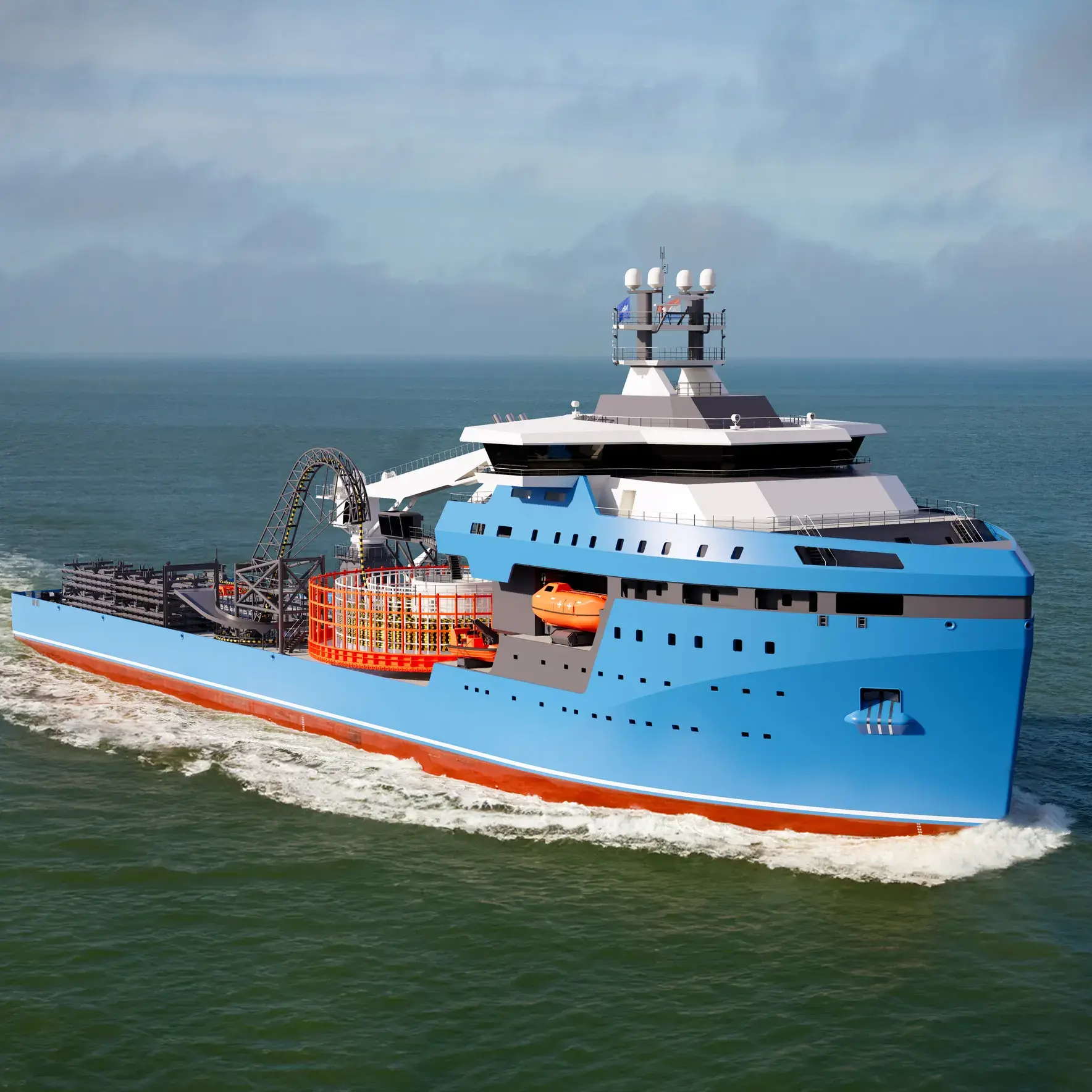

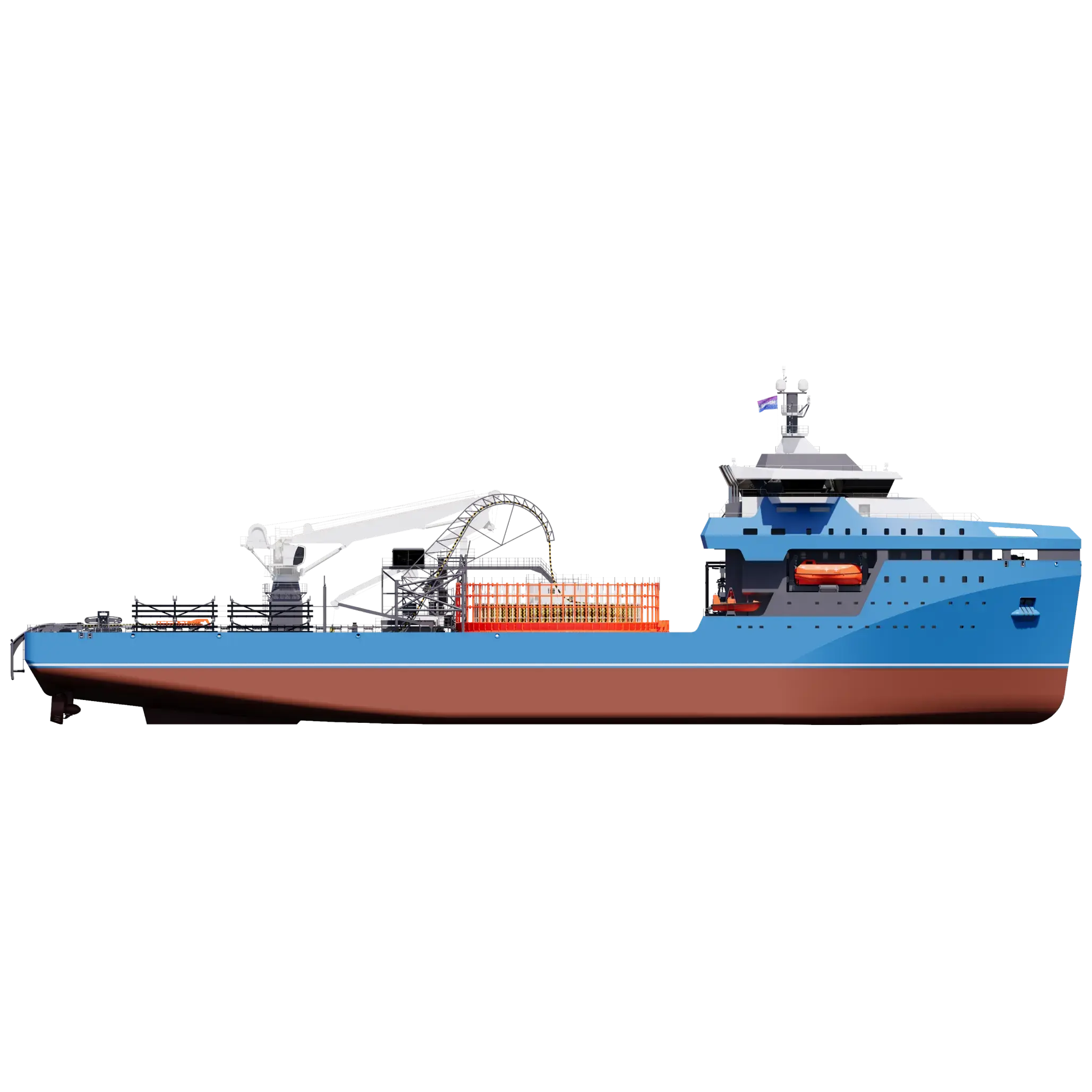

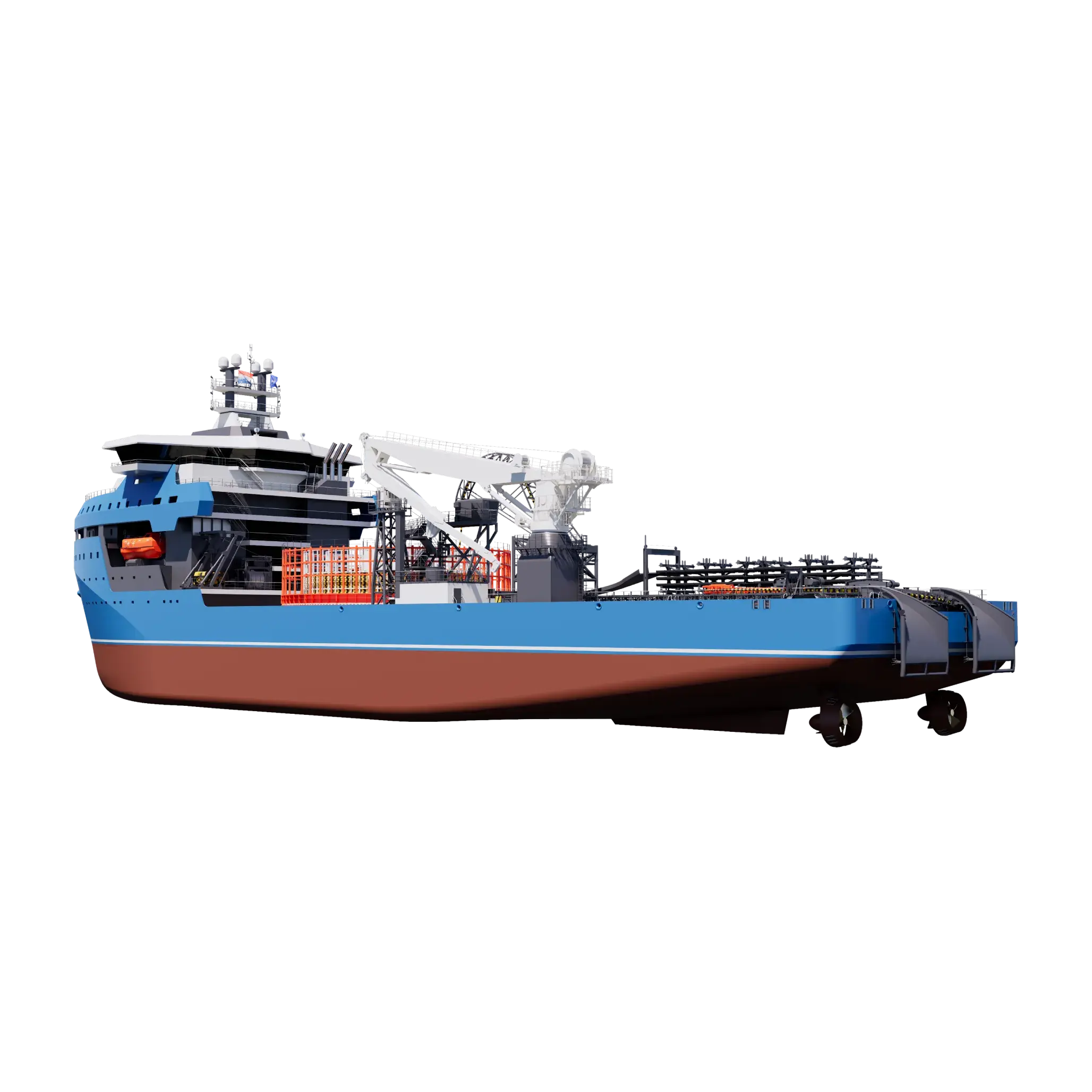

The Damen CLV 8000 is a next-generation cable laying vessel designed for the installation, maintenance and repair of inter-array, export and fibre optic cables — including dynamic (floating) cables. Built on proven offshore carrier technology, it combines high capacity, modular flexibility and superior seakeeping to meet the demands of tomorrow’s offshore wind and energy markets.

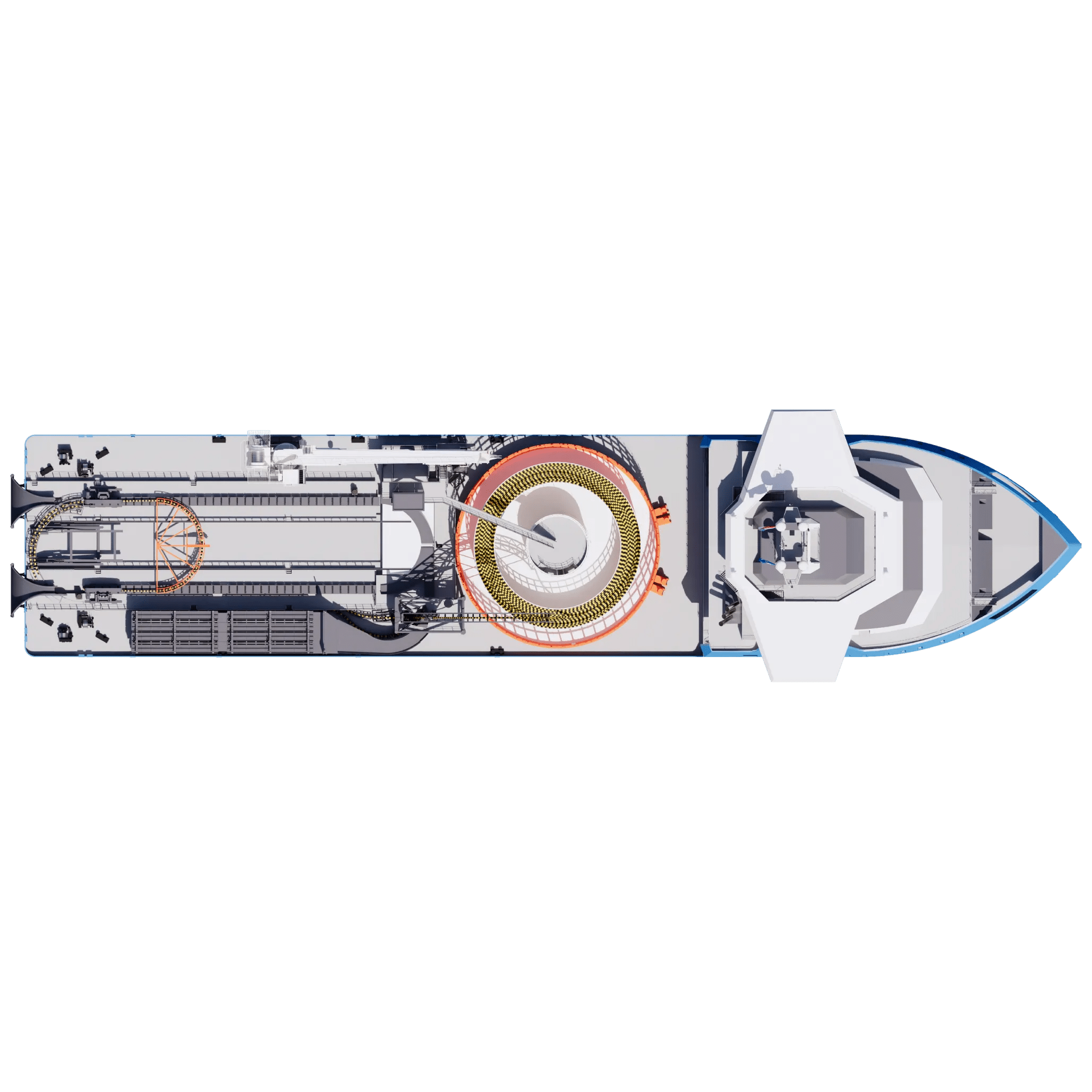

- Above and below deck carousels
- Efficient hybrid with peak shaving
- Great seakeeping with roll damping
- Exceptional sound reduction
Key figures
2100
90
5.7
28
85
Dimensions
- LOA
- 137.4 m
- Beam
- 28 m
- Draught base
- 5.7 m
- Deadweight incl equipment
- 12300 t
- Max cable load
- 8000 t
- Cargo deck area approx.
- 2100 m²
- Deck strength
- 10 t/m²
Performances
- Speed (approx.)
- 13.2 kn
- Bollard pull max
- 85 t
- Endurance
- 40 days
- DP capability L1
- 8, 7, 7, 6
Deck equipment
- Cable carousel capacity
- 2x 4000 t
- Deck сrane
- 80 t @ 13 m
- Auxiliary сrane
- 4 t @ 26 m
Do you want to know more?
Compare similar CLVs
| Deck area (m²) | Accommodation | Draught (m) | Beam (m) | Bollard pull (max.) approx. (t) | ||
|---|---|---|---|---|---|---|
| Cable Laying Vessel 8000 | 2100 | 90 | 5.7 | 28 | 85 | |
| Cable Laying Vessel 8000 | 2100 | 90 | 5.7 | 28 | 85 |
Cable Laying Vessel 8000
- Deck area (m²)
- 2100
- Accommodation
- 90
- Draught (m)
- 5.7
- Beam (m)
- 28
- Bollard pull (max.) approx. (t)
- 85
Cable Laying Vessel 8000
- Deck area (m²)
- 2100
- Accommodation
- 90
- Draught (m)
- 5.7
- Beam (m)
- 28
- Bollard pull (max.) approx. (t)
- 85
