Versatile Sea Axe 3307

    Versatile Sea Axe 3307

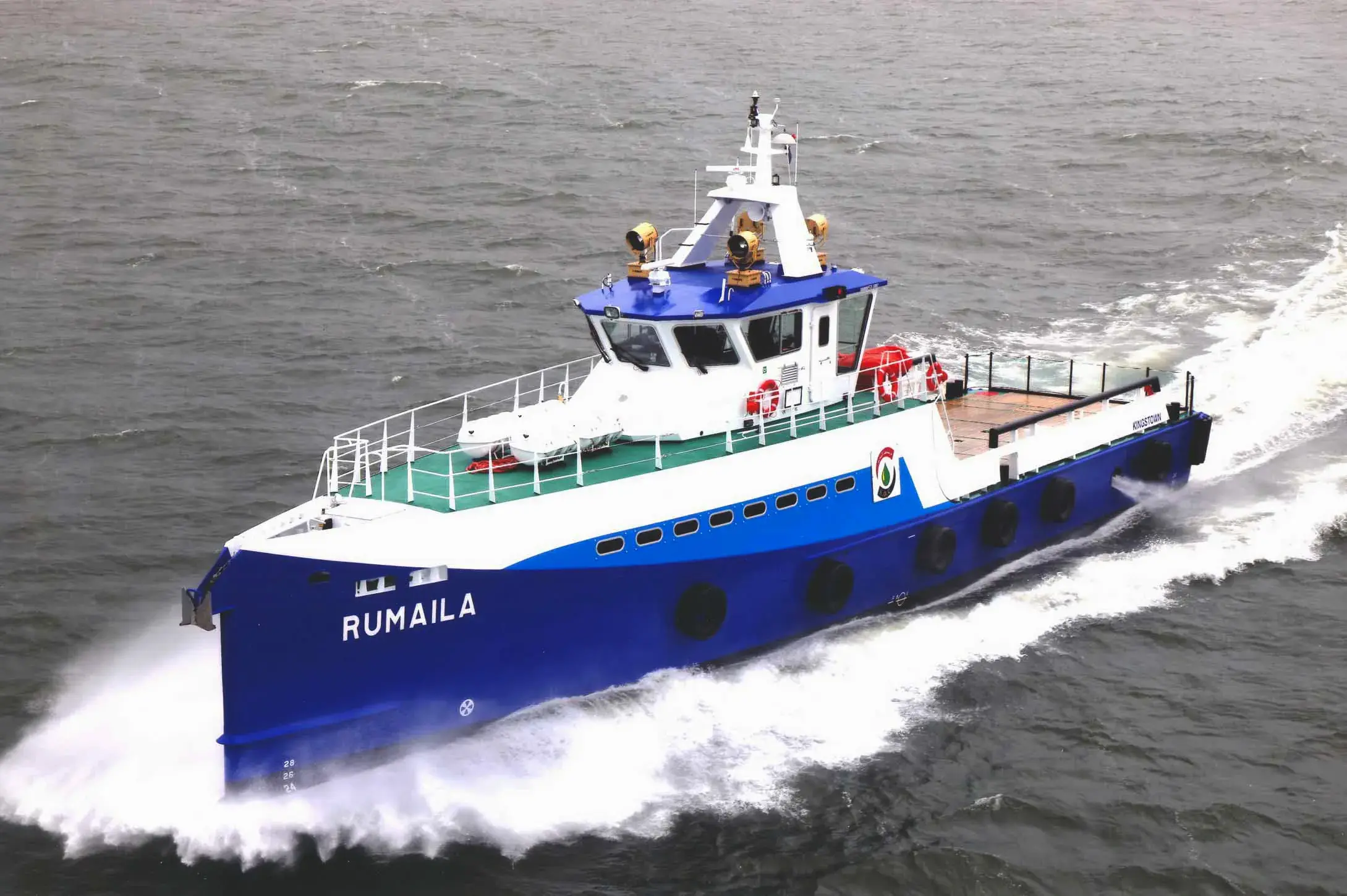

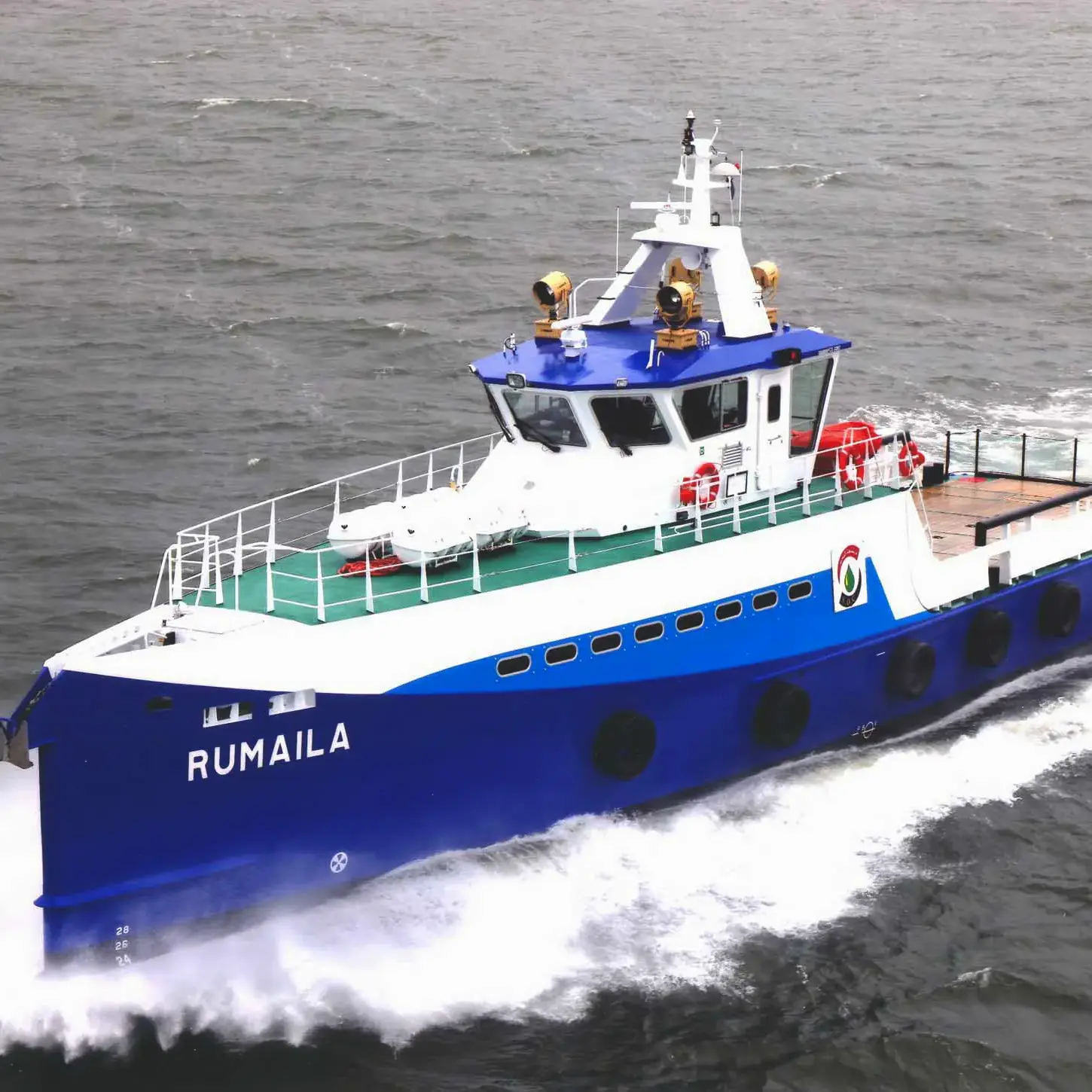

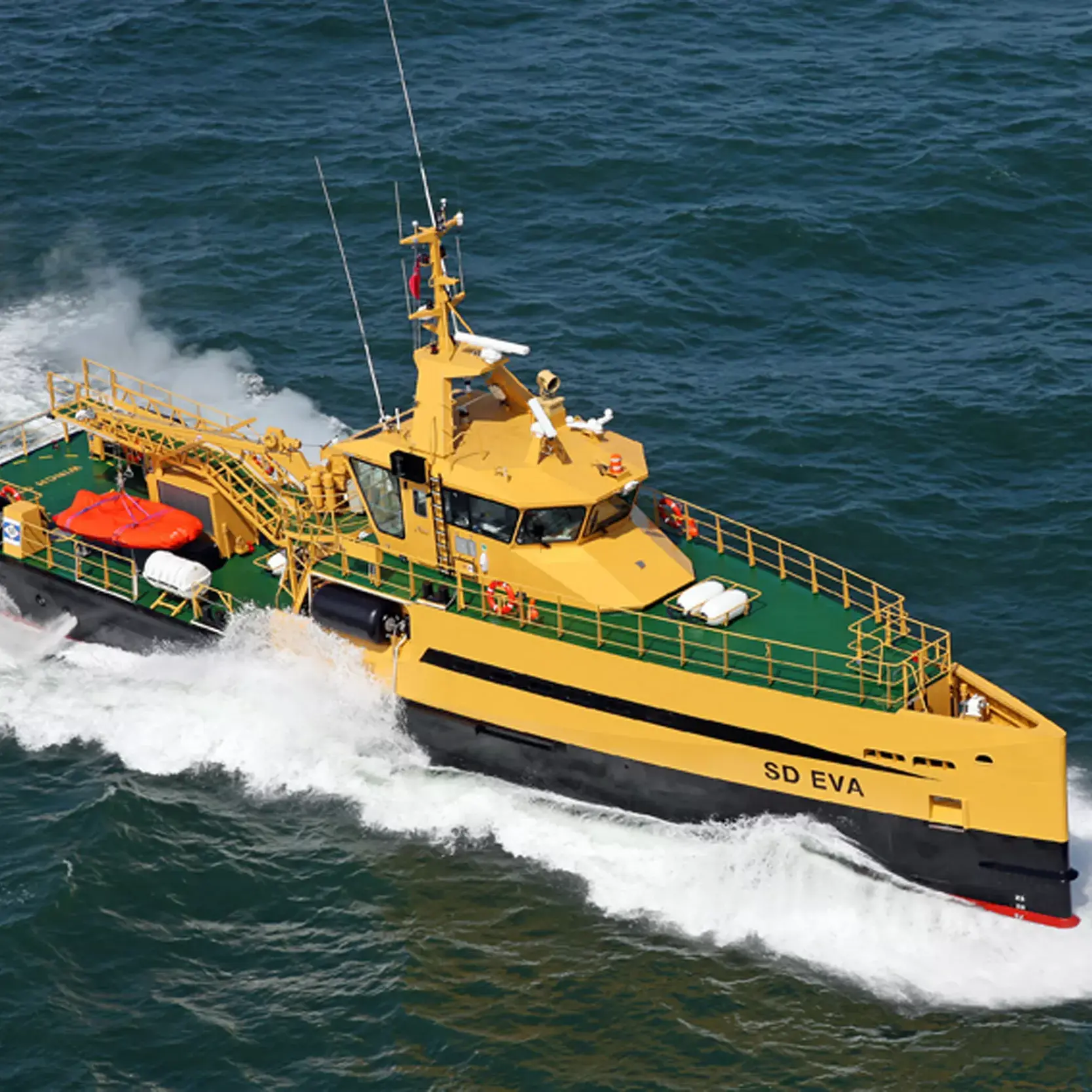

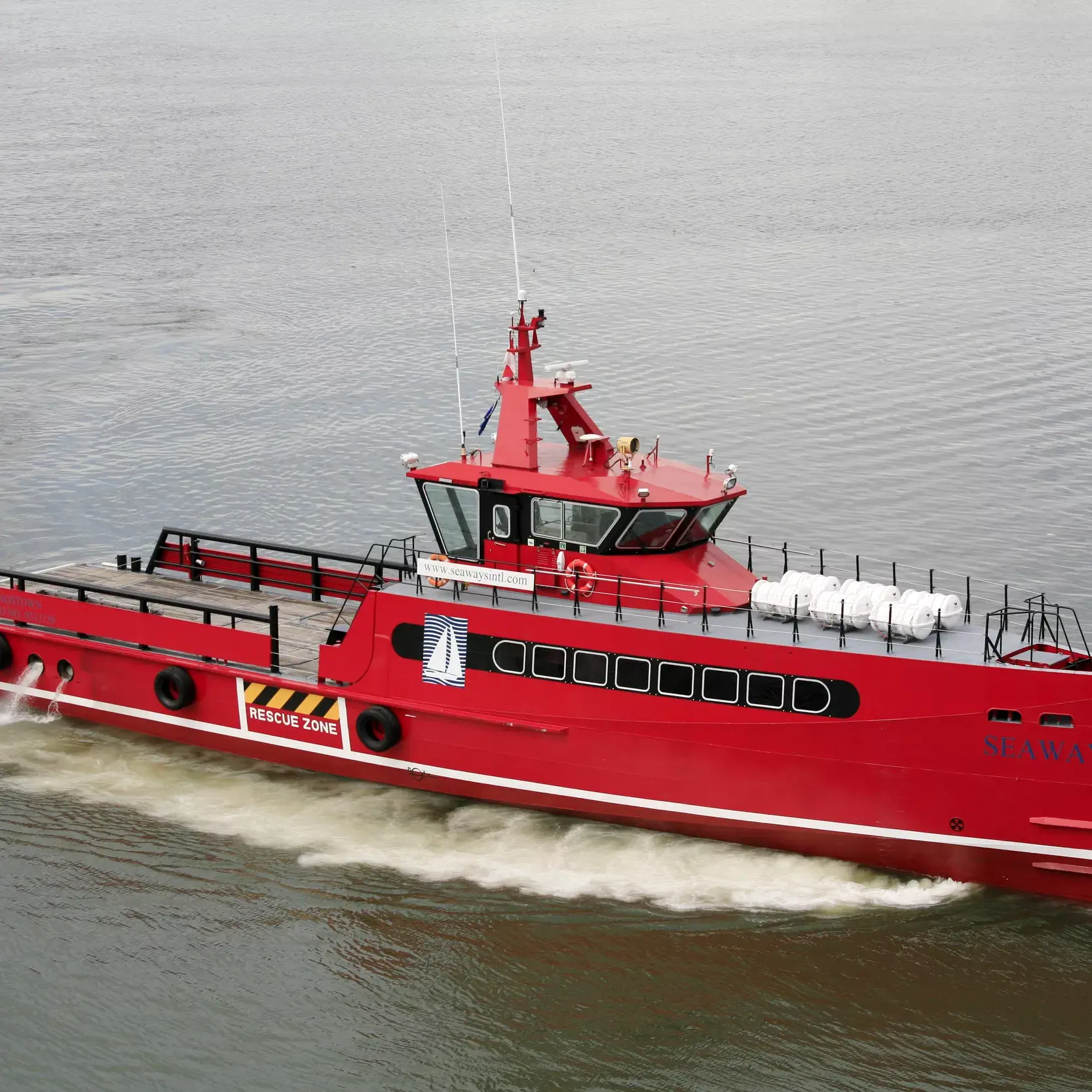

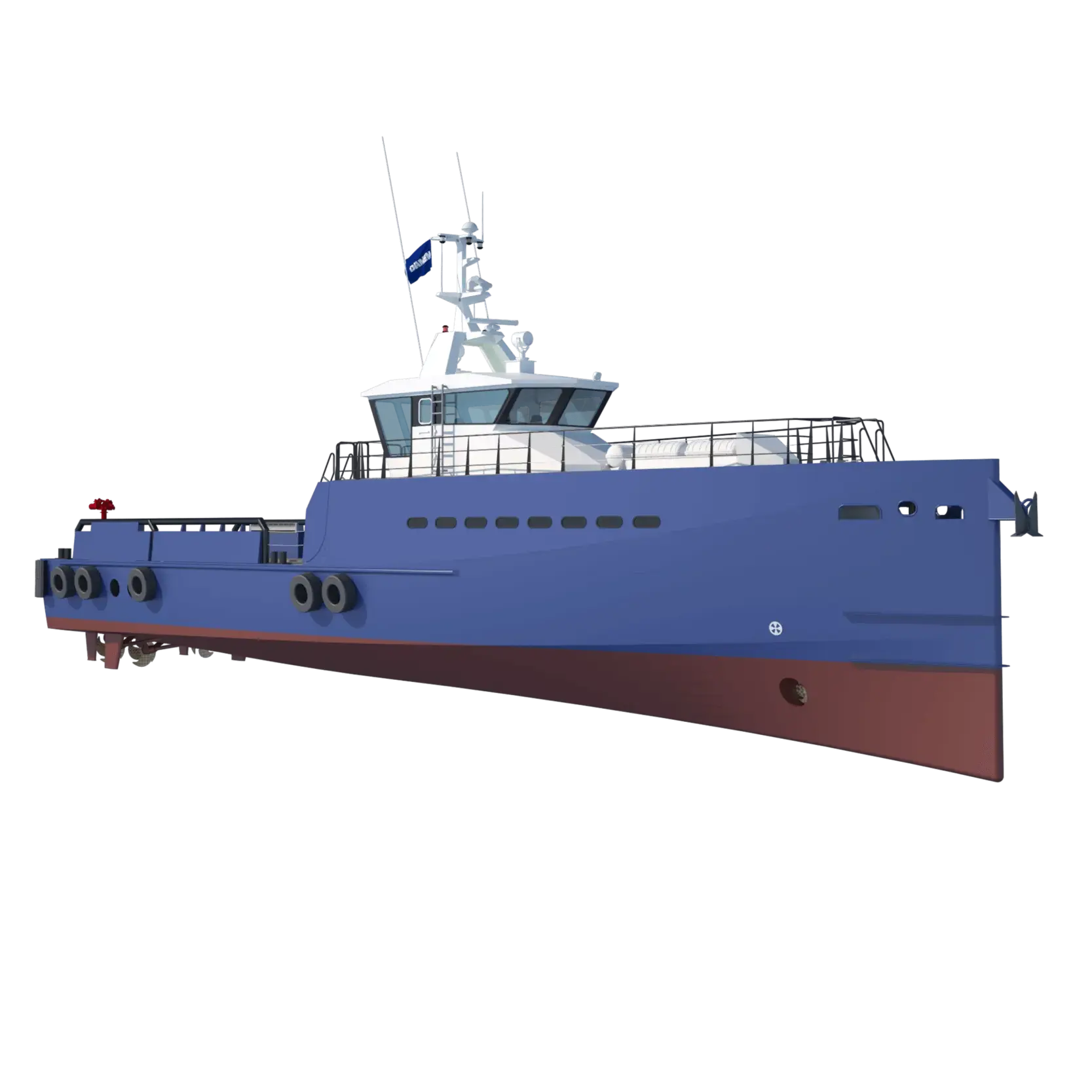

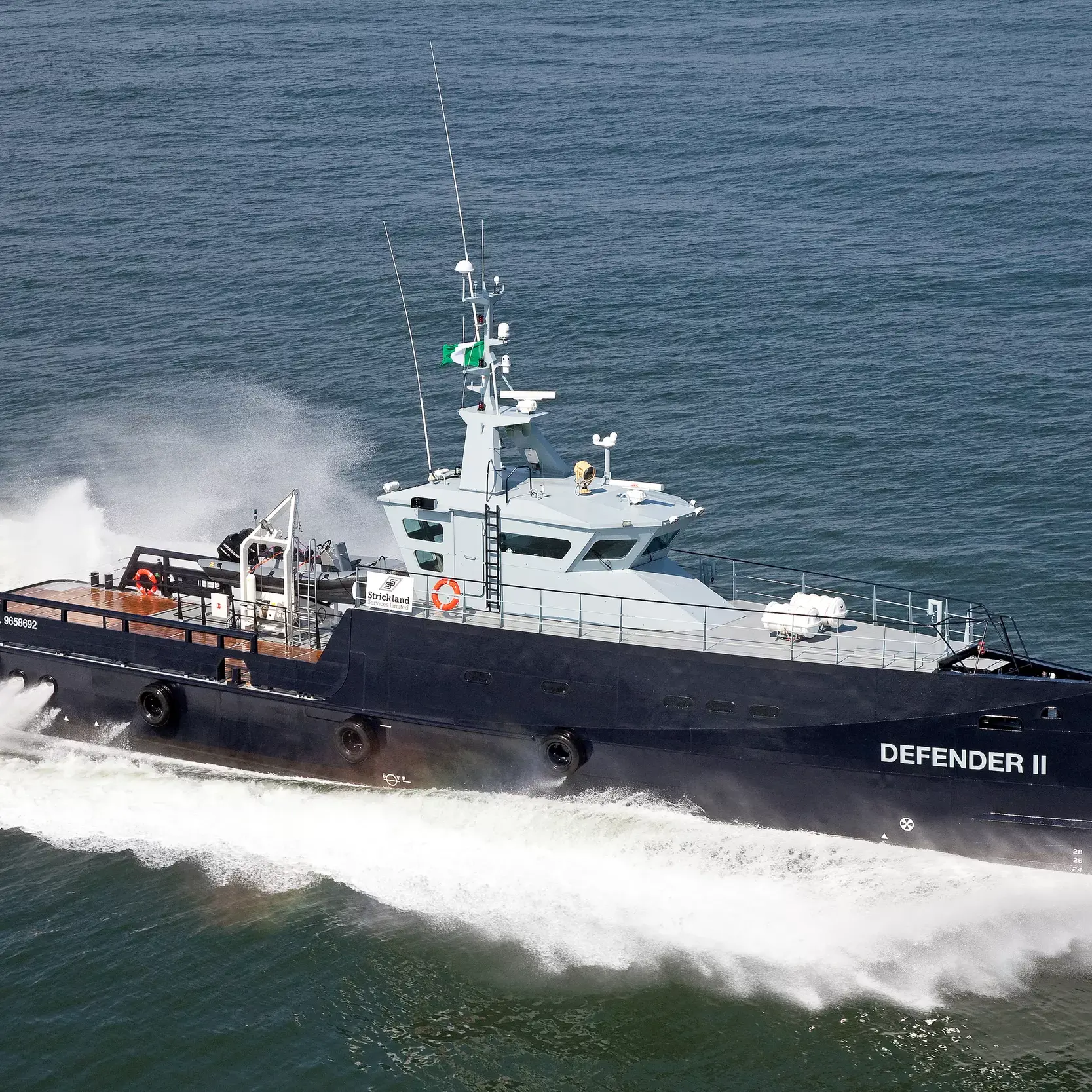

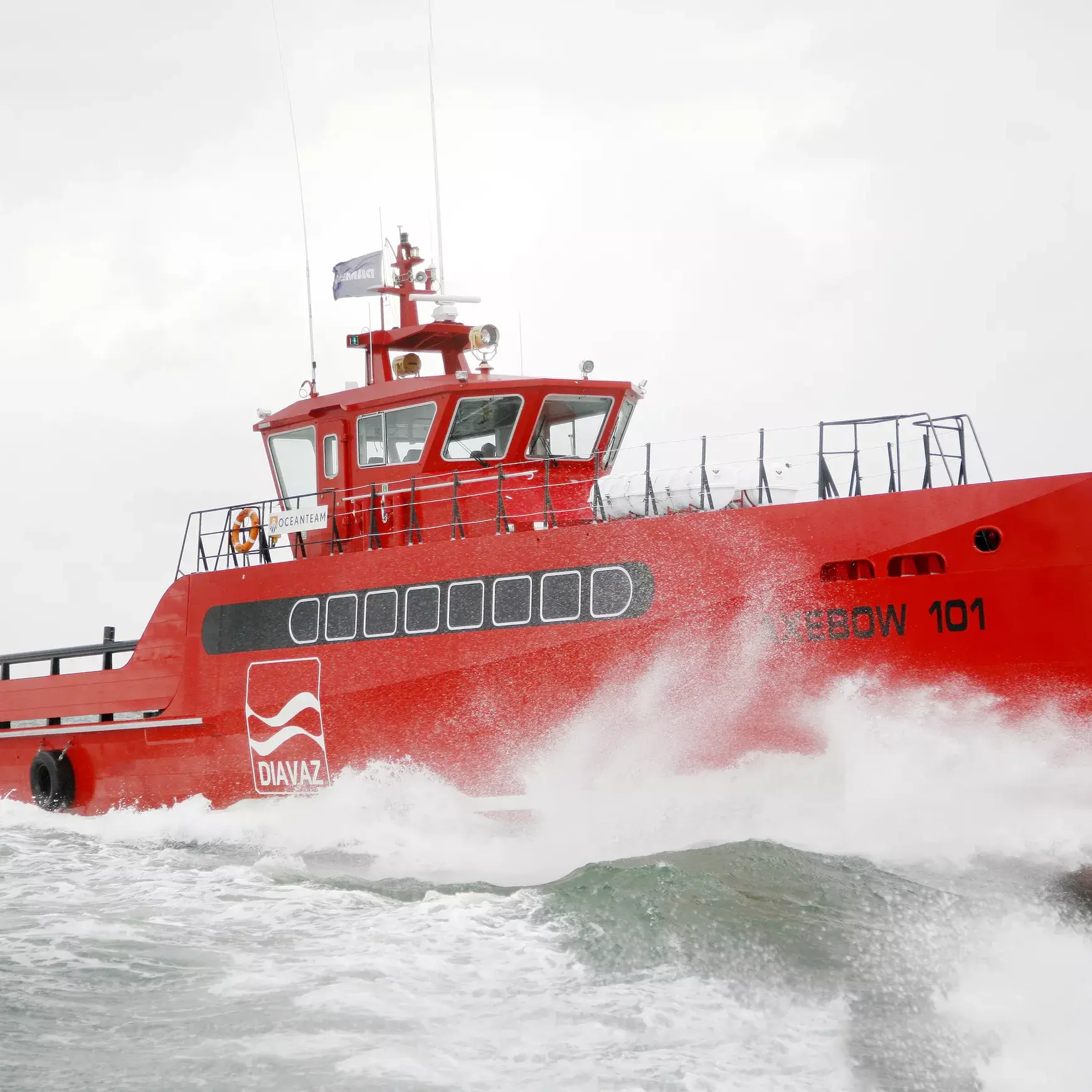

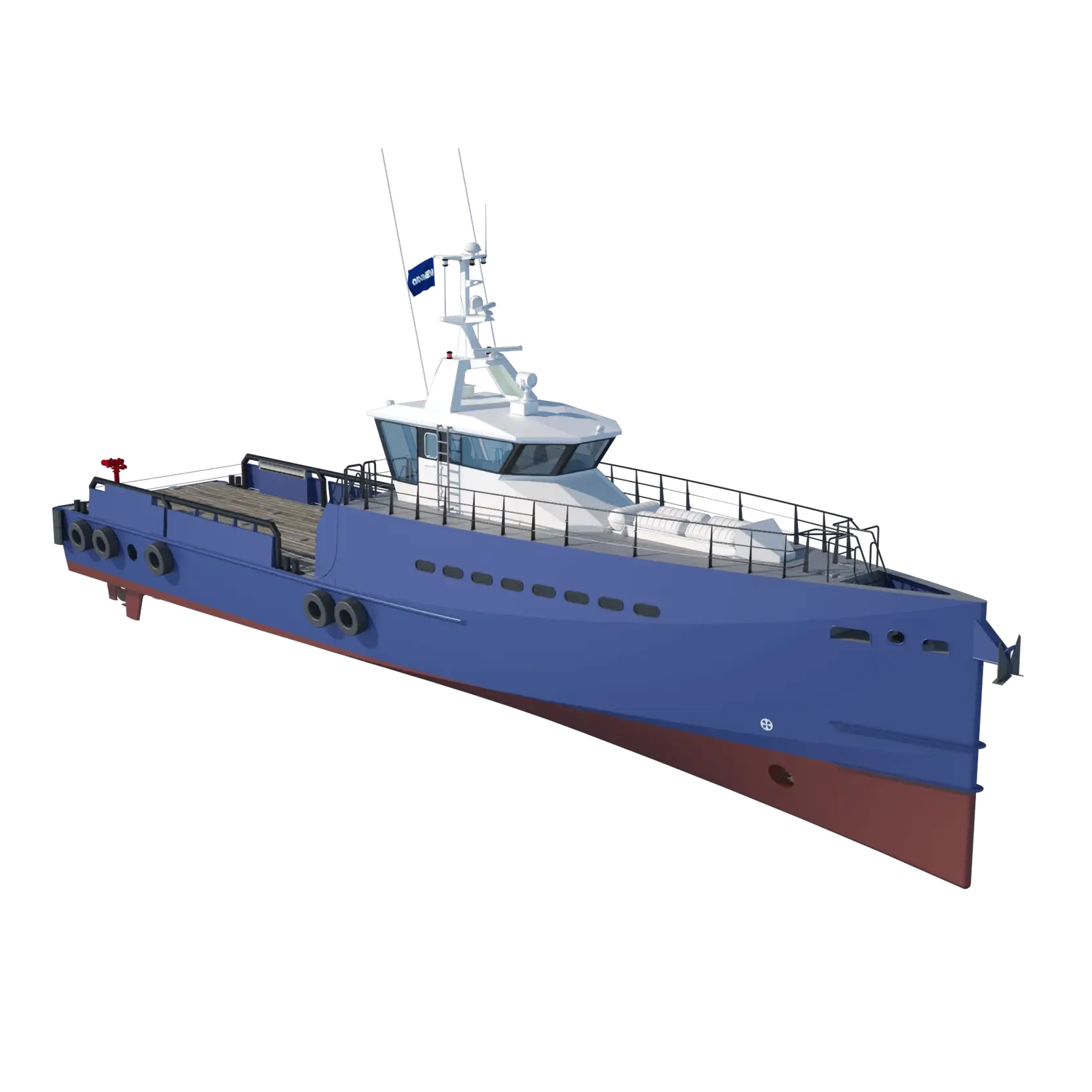

    The vessels provides safe and comfortable crew transport based on the improved seakeeping behaviour that comes courtesy of the Axe Bow. The main focus of the VSX 3307 is crew transfer, but thanks to the spacious aft deck it is also capable of carrying deck cargo. It can also handle a range of equipment such as cranes, fire-fighting apparatus, rescue craft and ballistic protection.
    • Rescue boat + davit
    • Deck crane
    • Fire fighting
    • GMDSS A3
    • Fuel consumption monitoring system
    More options? Configure your own CTV vessel. Configure your own
    • Safe and comfortable transportation of crew and cargo
    • Easily customised to available options
    • Best sea keeping and manoeuvrability available for offshore operations

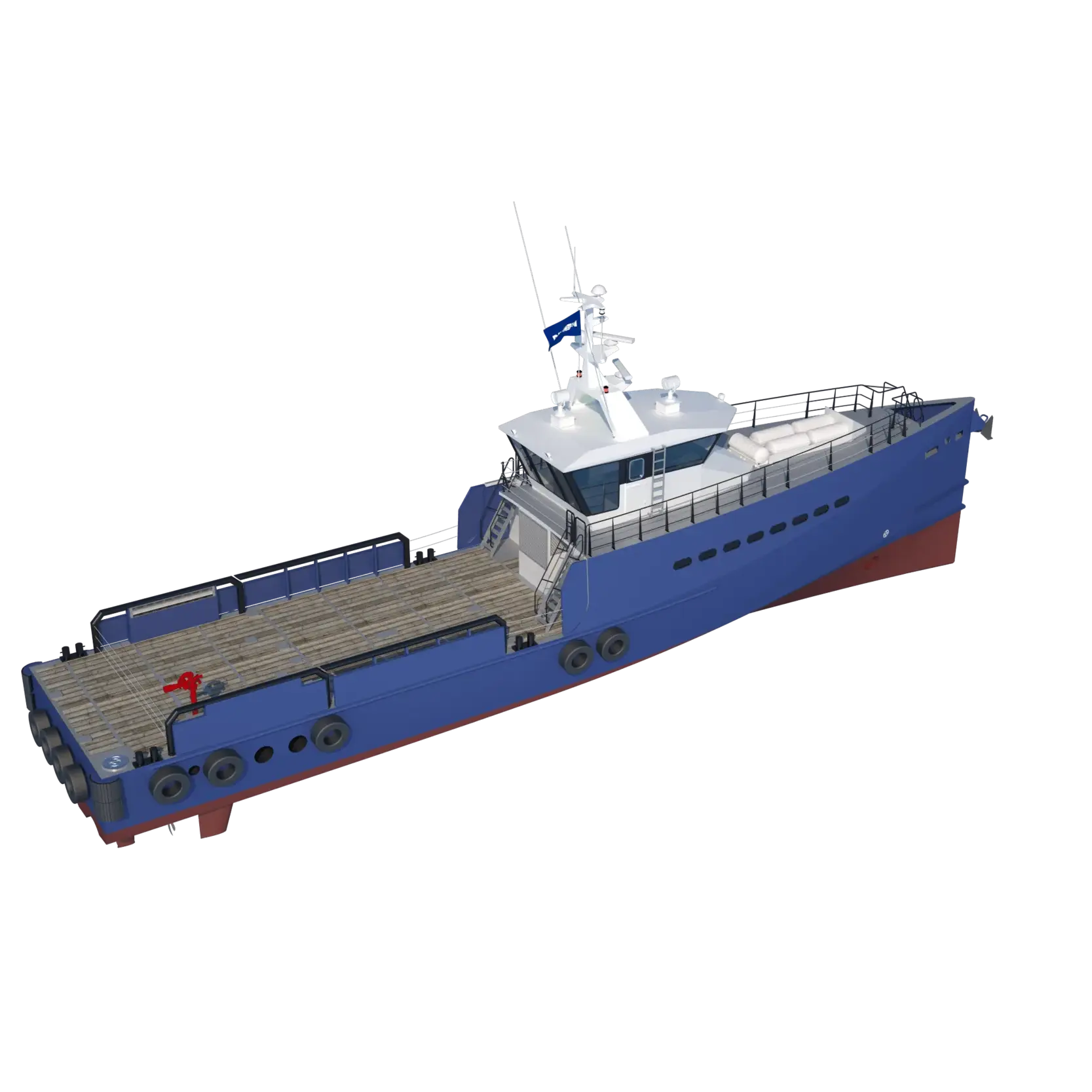

    • Large aft deck

    Key figures

    34.2

    28

    75

    75

    Aluminium

    Hull

    Length o.a.
    34.2 m
    Beam o.a.
    7.3 m
    Depth at sides
    3.3 m
    Draught max
    2.5 m
    Hull material
    Aluminium
    Superstructure
    Aluminium

    Capacities

    Crew
    Up to 6 persons
    Industrial personnel
    Up to 75 persons
    Fuel oil
    35.7 m³
    Fresh water
    2.5 m³
    Sewage
    4.9 m³
    Deck area
    75 m²
    Total deadweight
    65 t

    Performances

    Speed
    Up to 28 knots
    Range at max speed
    1,050 nm
    Length (m)34.242.253.2
    Speed max (kn)282624
    Deck area (m²)75120240
    Personnel7510080
    Hull constructionAluminiumAluminiumSteel
    ---
