Fit for any dredger

Dredge valves

Whatever the dredge pipe diameter

A complete range of dredge valves

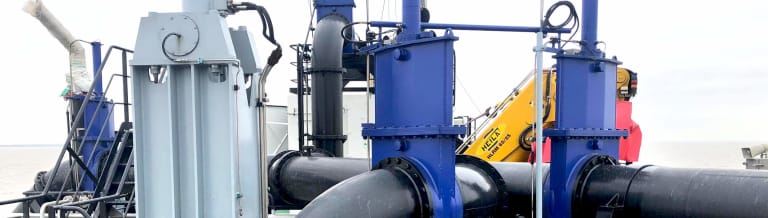

Dredge piping delivers the dredged slurry to the right spot. For this, dredge valves are indispensable on board of cutter suction dredgers and trailing suction hopper dredgers. Moreover, land discharge pipe lines need a robust dredge valve for reliable operations. The dredge valve delivery program covers a wide array of dredge pipe diameters and pressure stages.

Wear resistant rubbering gate valves

Reliable flow control

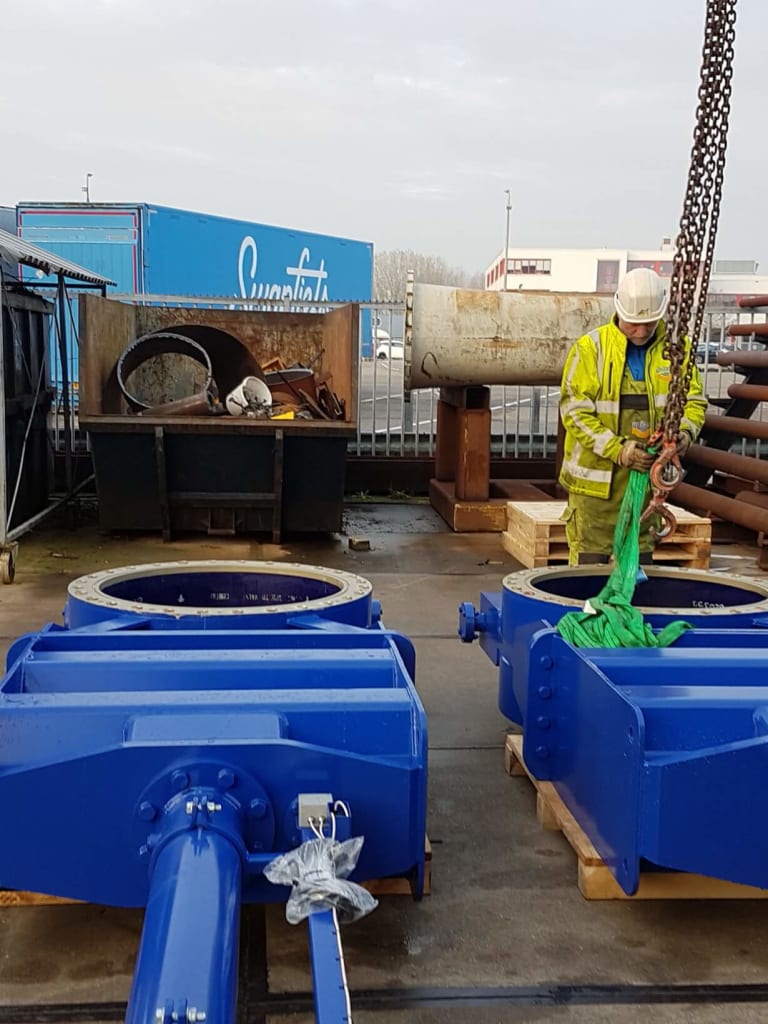

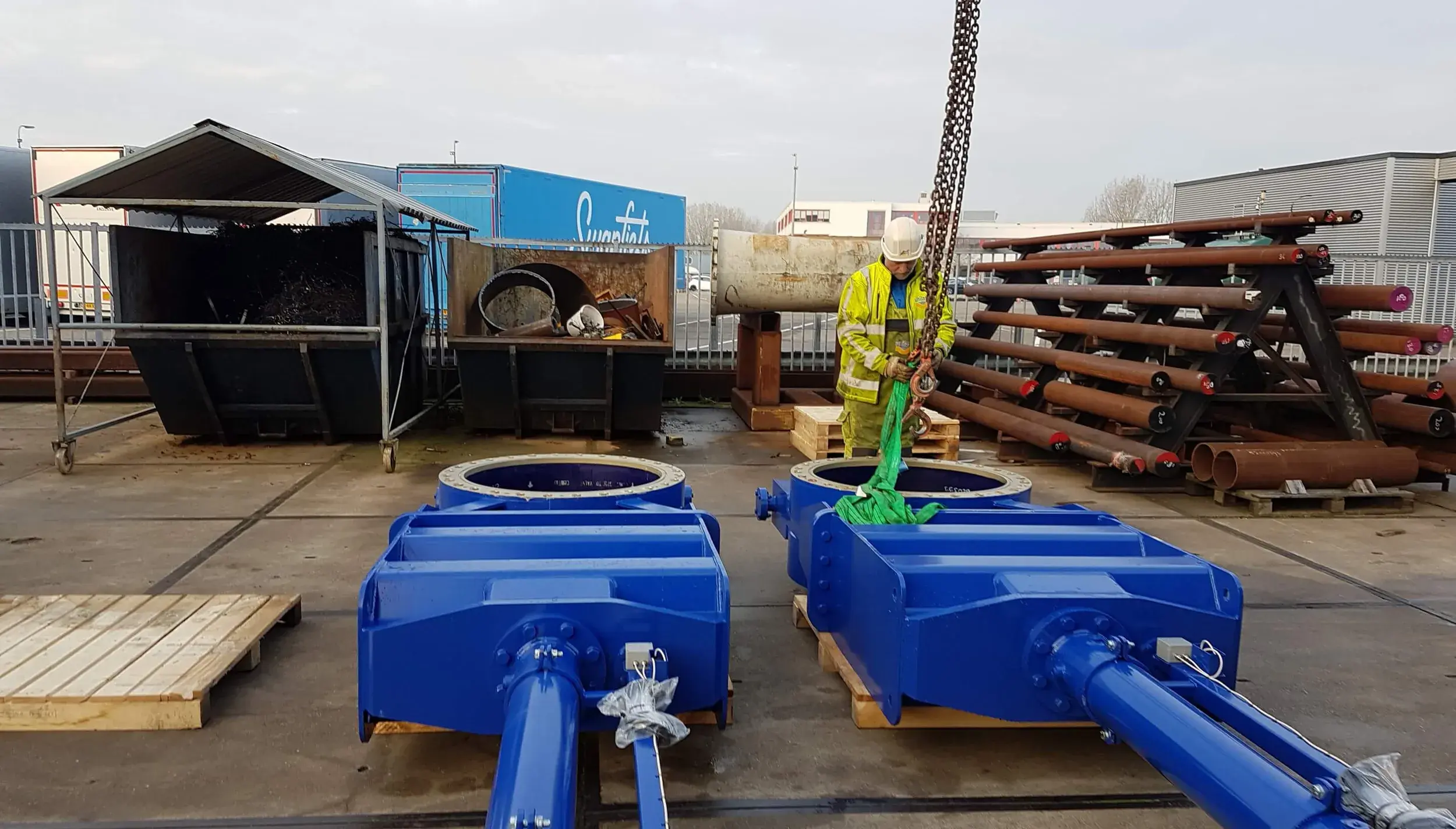

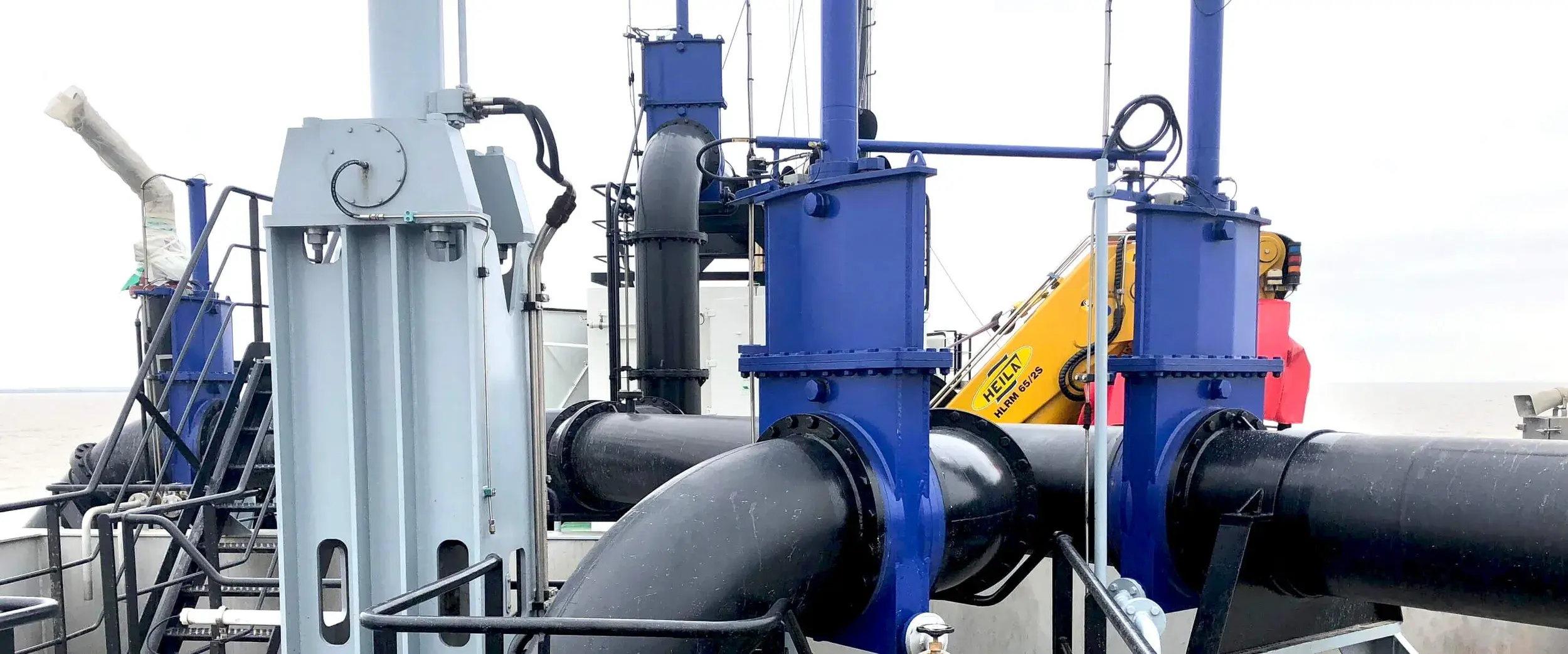

Damen offers a complete line of dredge valves which can be used in an array of dredging equipment. The robust sand and slurry valves have all been designed by the in-house R&D team, and are manufactured in the Netherlands. The rubbering gate valves are for use in suction and discharge piping transporting highly abrasive slurries.

Diameters range from 250 to 1000 mm

For all dredgers, great and small

Various pressure stages

Easily mounted into suction and discharge pipelines

Practical design

Swift installation and easy maintenance

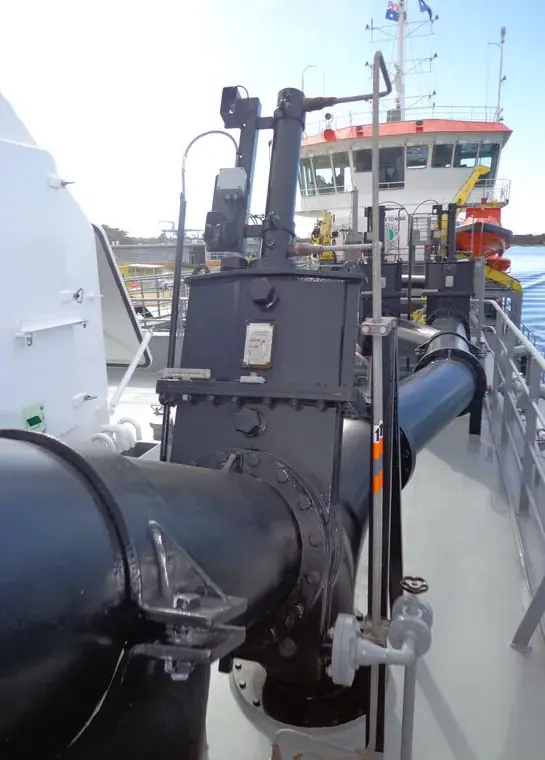

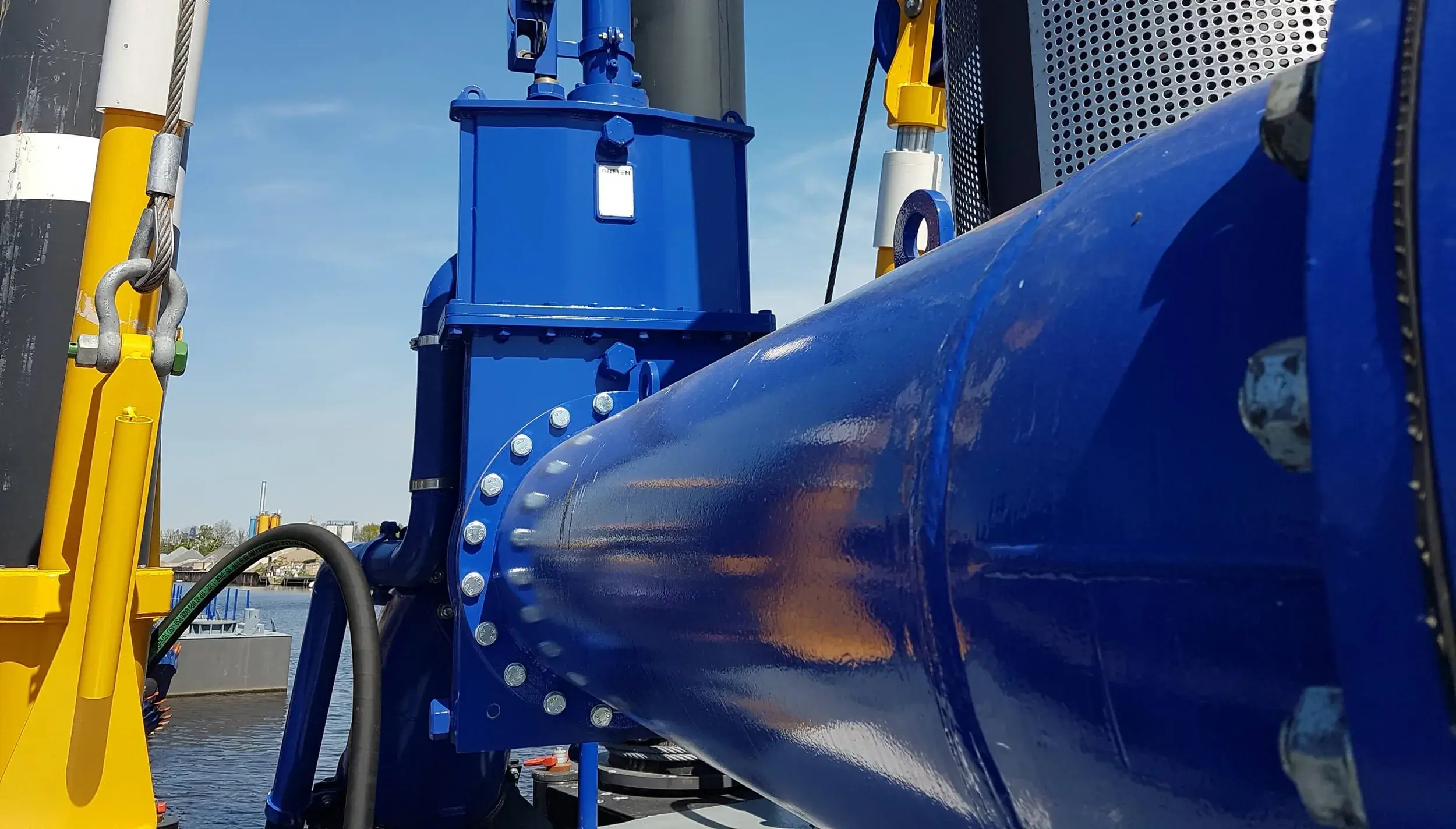

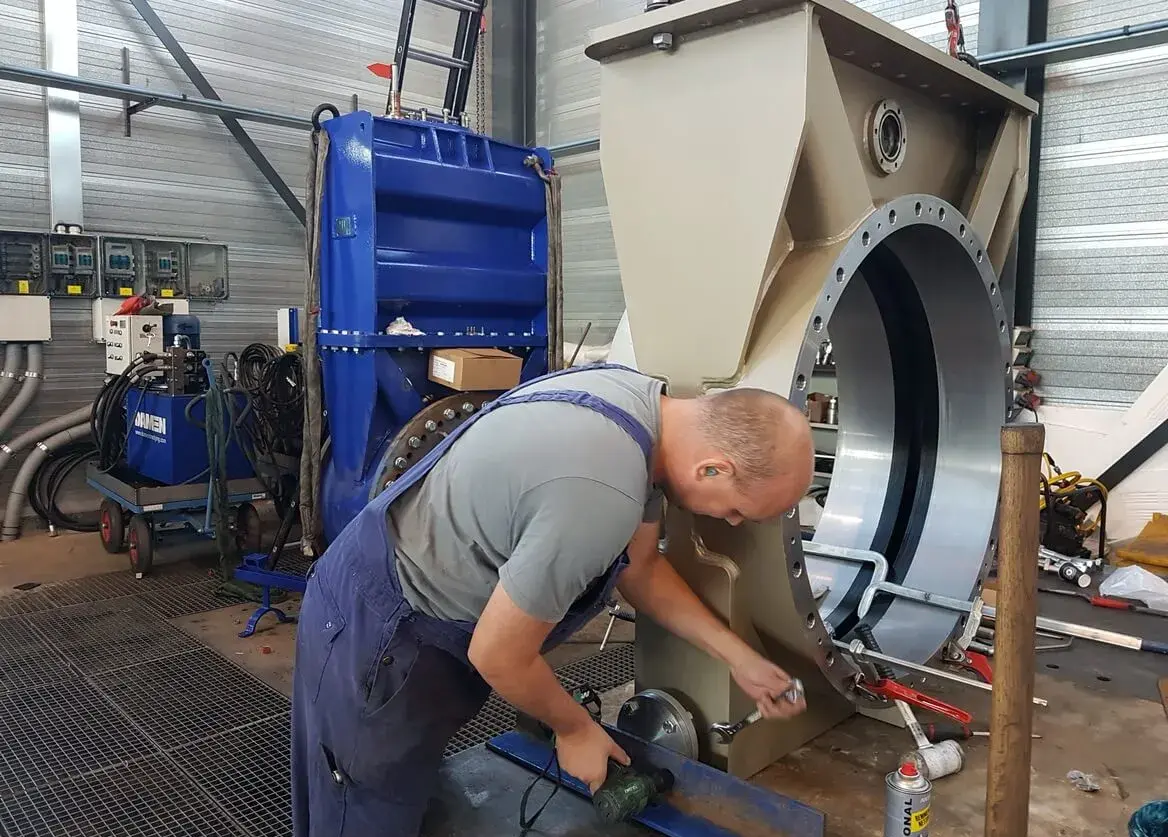

The dredge valve range has been designed to be flange-mounted in dredge pipe lines. The valve body has a bolted horizontal division. Moreover practical inspection and maintenance covers and flushing connections are provided in the lower body. The high tensile stainless steel valve slide is actuated by a hydraulic cylinder, fully opening or closing the dredge pipe.

Watertight slide seals

In open and closed position the dredge valve is fully watertight using wear-resistant polyurethane sealing rings. The easily replaceable sealing rings are pre-tensioned to provide a smooth and free passage of the mixture. The sealing rings close immediately after lifting the slide for minimal siltation of the valve body.

Full control

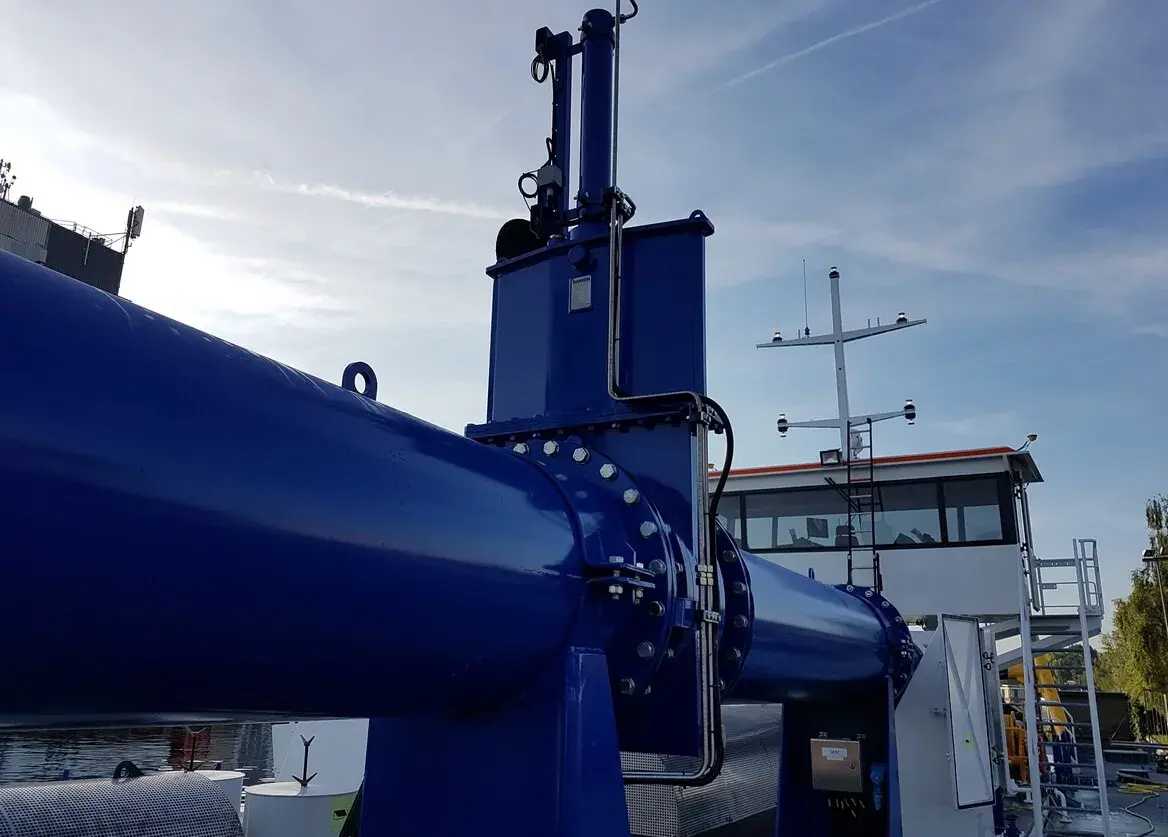

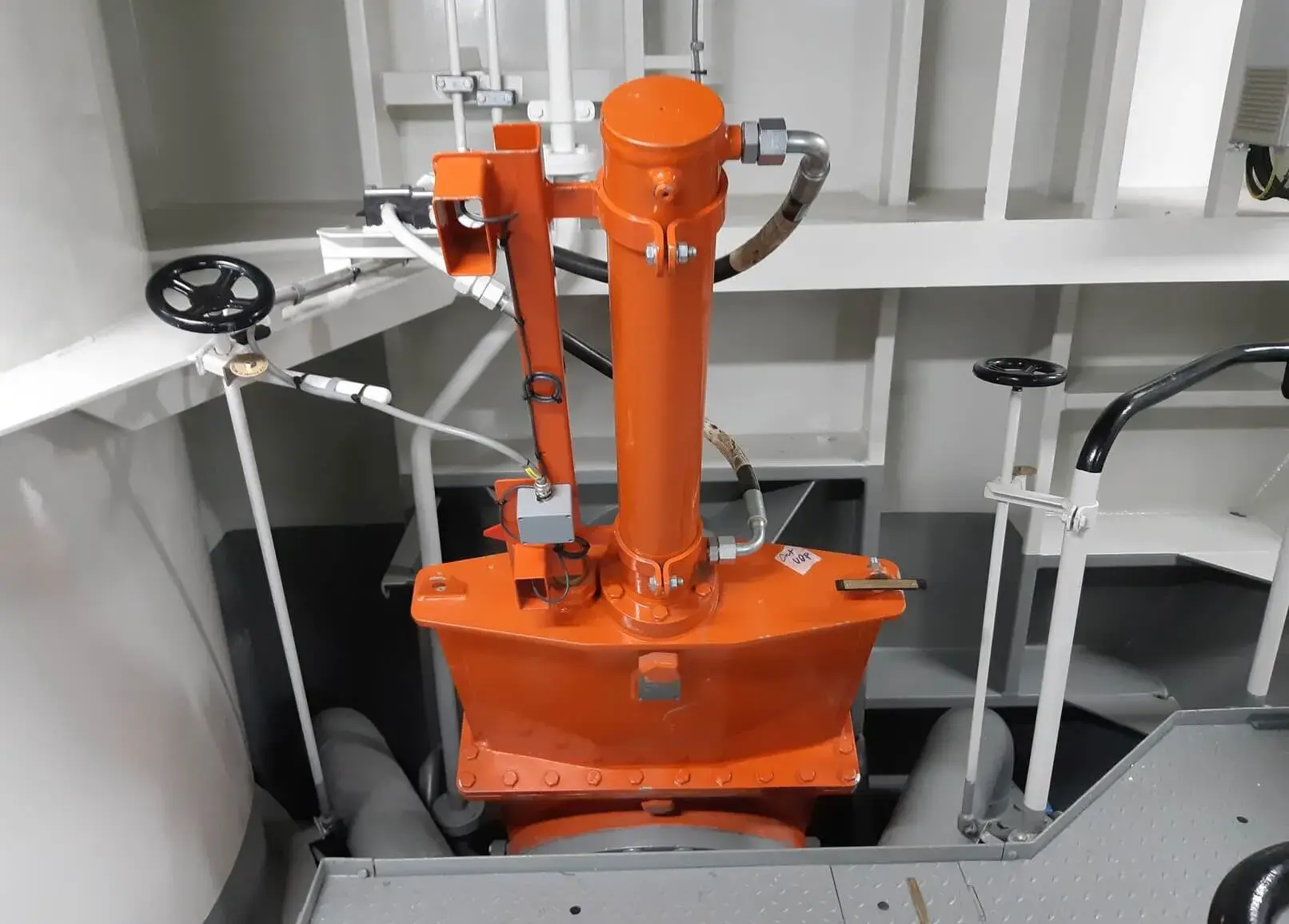

A double acting hydraulic cylinder operates the valve slide. It is mounted vertically on top of the upper body by a flange connection. The cylinder rod is connected to the slide, ensuring a completely open or fully closed position. This position is indicated both electrically and mechanically.

Minimal build-in length

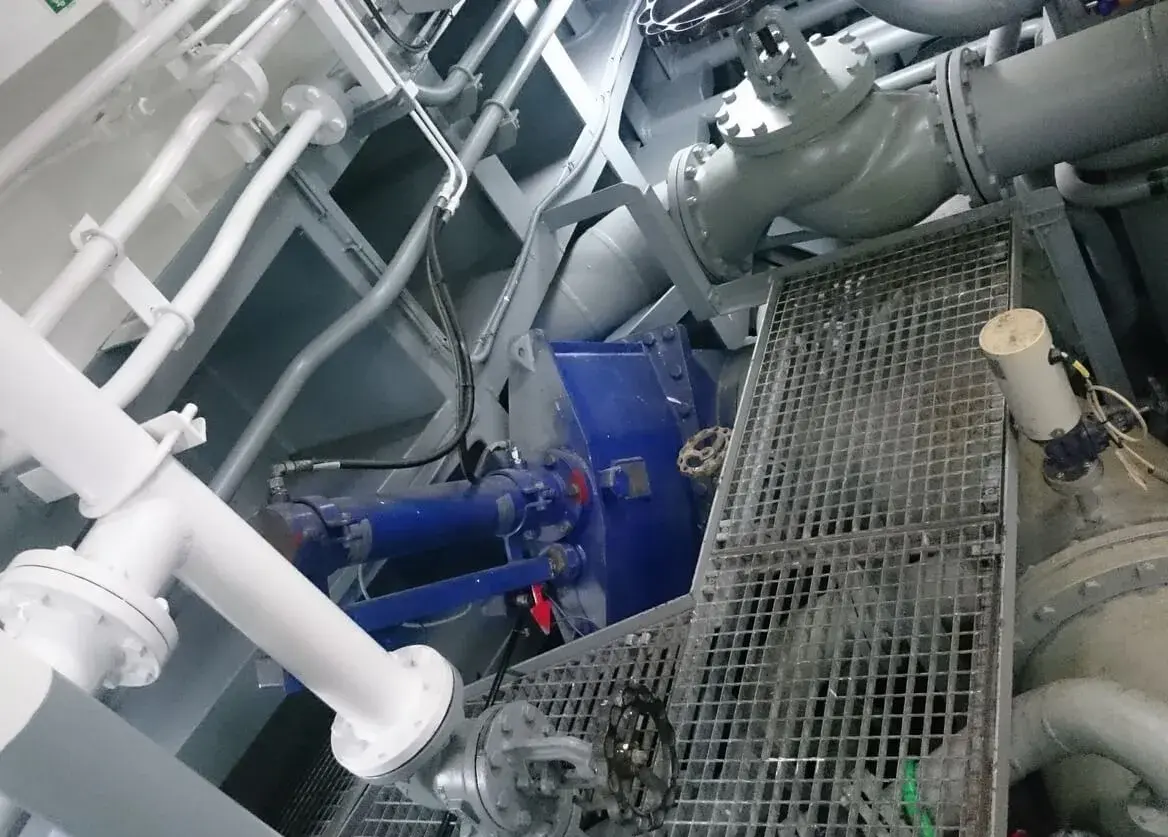

Space is limited on board of dredgers. Hence, our dredge valves have been designed as slim as possible. This ensures an easy fit of board of your suction dredger. Still, it has been robustly designed for flow control of slurry, sand, stones, aggregates and other abrasive materials – fit for purpose.

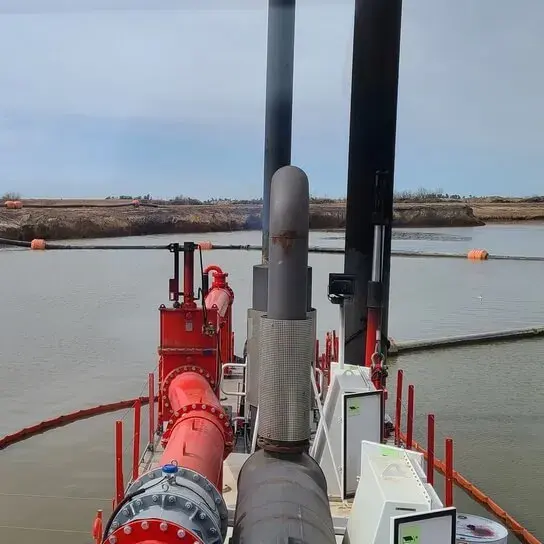

What dredge valve do you need?

Let’s check our stock!

Dredging Efficiency

Our success stories

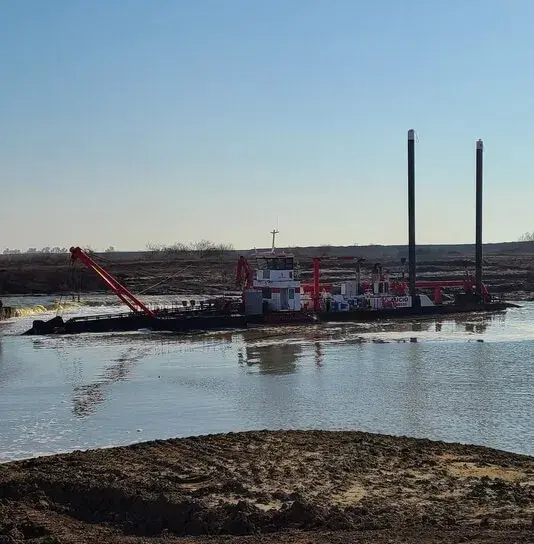

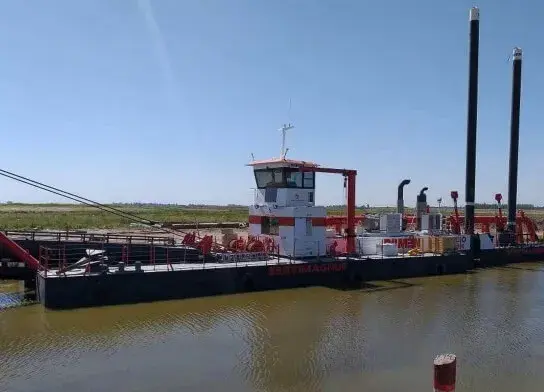

Cutter Suction Dredger 500 "Lucio"

The CSD500 Lucio has started its working life on the maintenance dredging job in the Rio Salado, in the Argentinian Buenos Aires province.

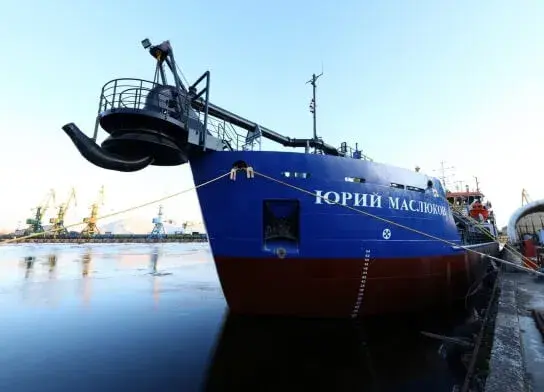

TSHD 2000 "Yuri Maslyukov"

Damen delivered a design package plus the dredging equipment for a TSHD2000. The hopper dredger has been built by Onega Shipyard, Russia.

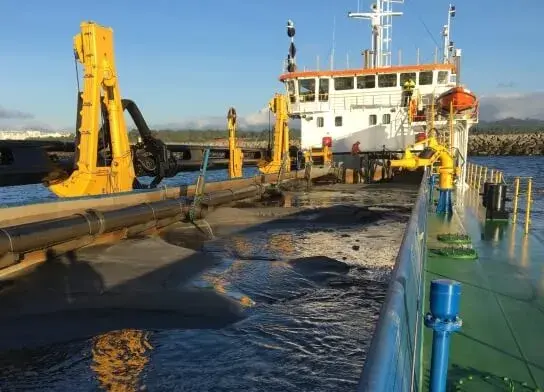

Trailing Pipe System 500 for "JOSE DUARTE"

A 500 mm trailing pipe, customised to work between -20 m and -40 m dredging depth, has been delivered to a Portuguese yard for a Portuguese contractor.

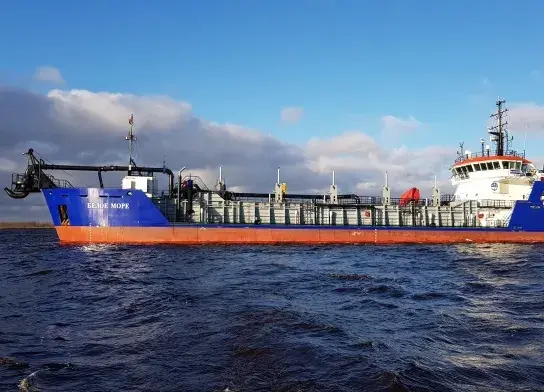

TSHD 2000 "Beloe More"

A Damen trailing Suction Hopper Dredger with a hopper capacity of 2.000 m3 has been delivered to ROSMORPORT. The hopper dredger has been fitted out with a 600 mm trailing pipe and will dredge at a max depth of -22 m.

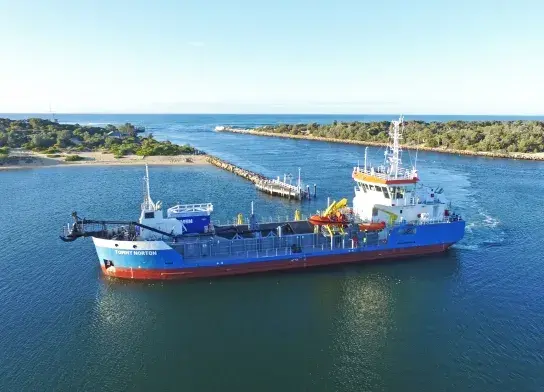

Damen TSHD 650 "Tommy Norton" begins operations at Gippsland Lakes, Australia

The Tommy Norton, a Damen Trailing Suction Hopper Dredger (TSHD) 650 built at Damen Shipyards Yichang has been officially delivered to her proud owner, Gippsland Ports.

TSHD 1000 "Kadosh"

The locally built dredgers, as a series of three vessels, are fitted out with a 500 mm trailing pipe and a grab crane to perform maintenance dredging in basins and access channels at several ports.

TSHD 1000 "Kronshlot"

The locally built dredgers, as a series of three vessels, are fitted out with a 500 mm trailing pipe and a grab crane to perform maintenance dredging in basins and access channels at several ports.

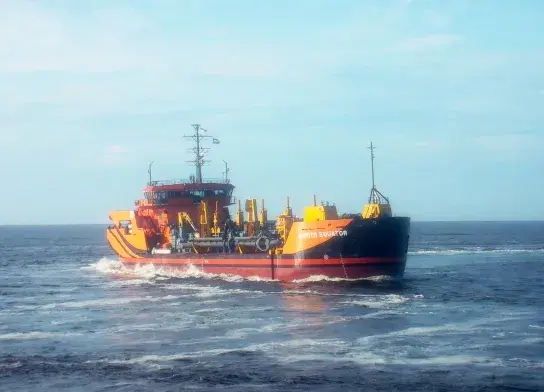

Largest Damen hopper dredger delivered in Borneo to PFNM
