Fit for purpose

Adaptable suction dredgers

Plug ‘n play customisation

Optimal dredging solutions

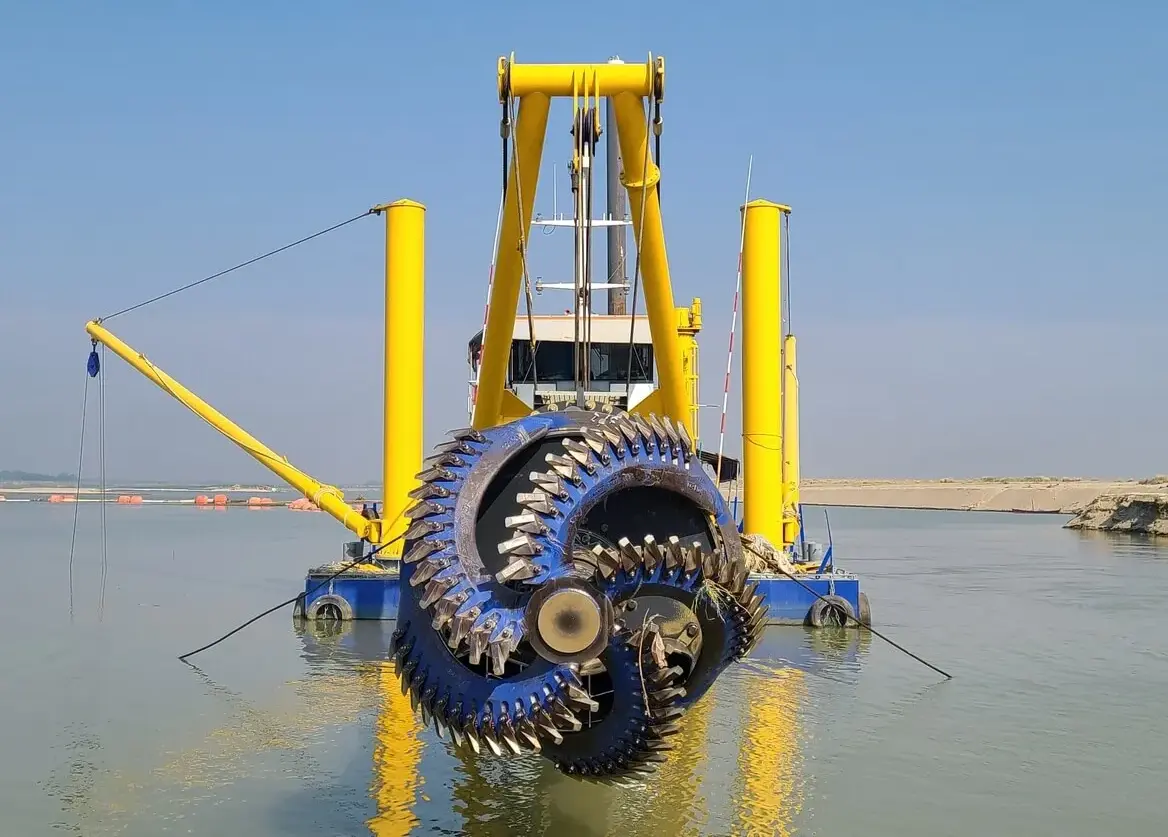

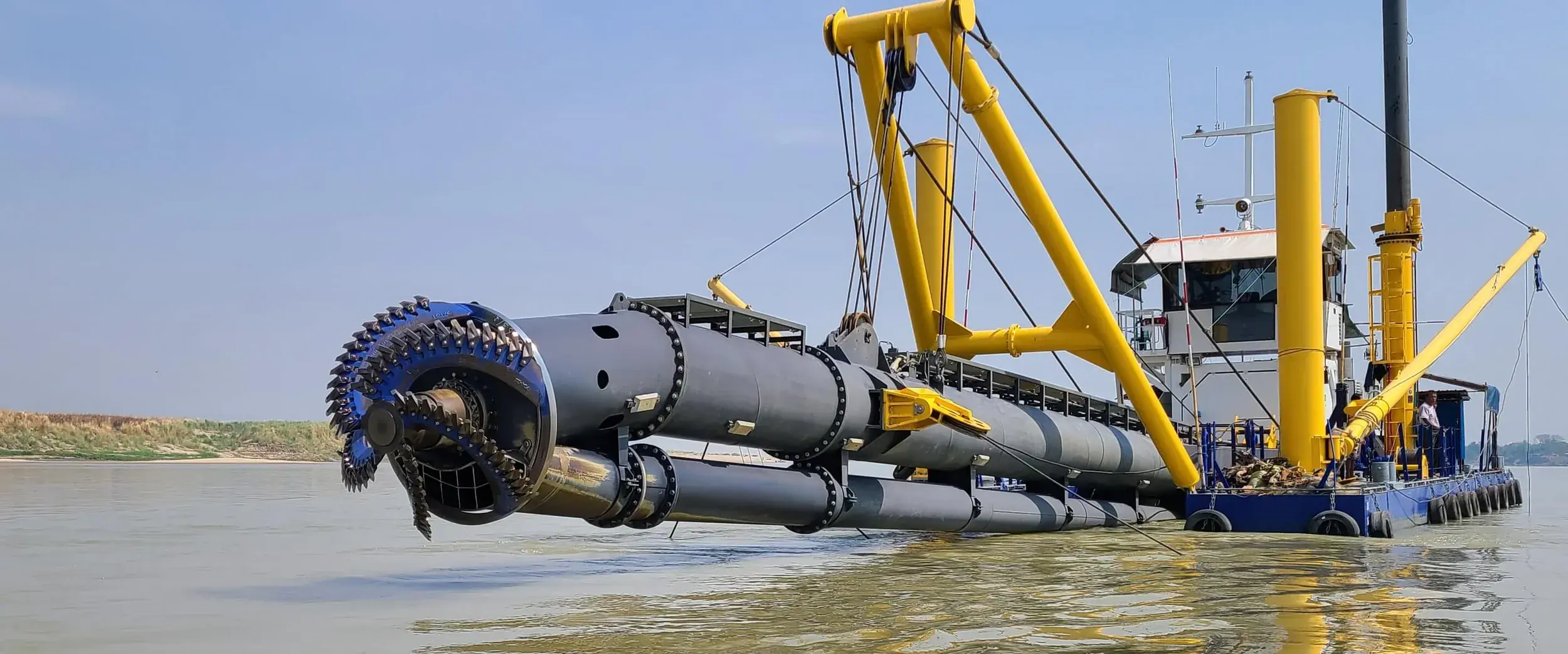

Deploying a cutter suction dredger is all about operational efficiency. Yet for stationary dredgers, one design does not fit all dredge jobs seamlessly. A sand dredger may be located in a mining pit during its entire lifetime, arriving kitted out as fits best. Most stationary dredgers though are relocated often. And every new dredge job offers a new challenge. For these dredgers Damen offers a range of CSD options which can be added to the dredger to optimise the dredge operation.

Dredging efficiency

Practical additions to your cutter suction dredger

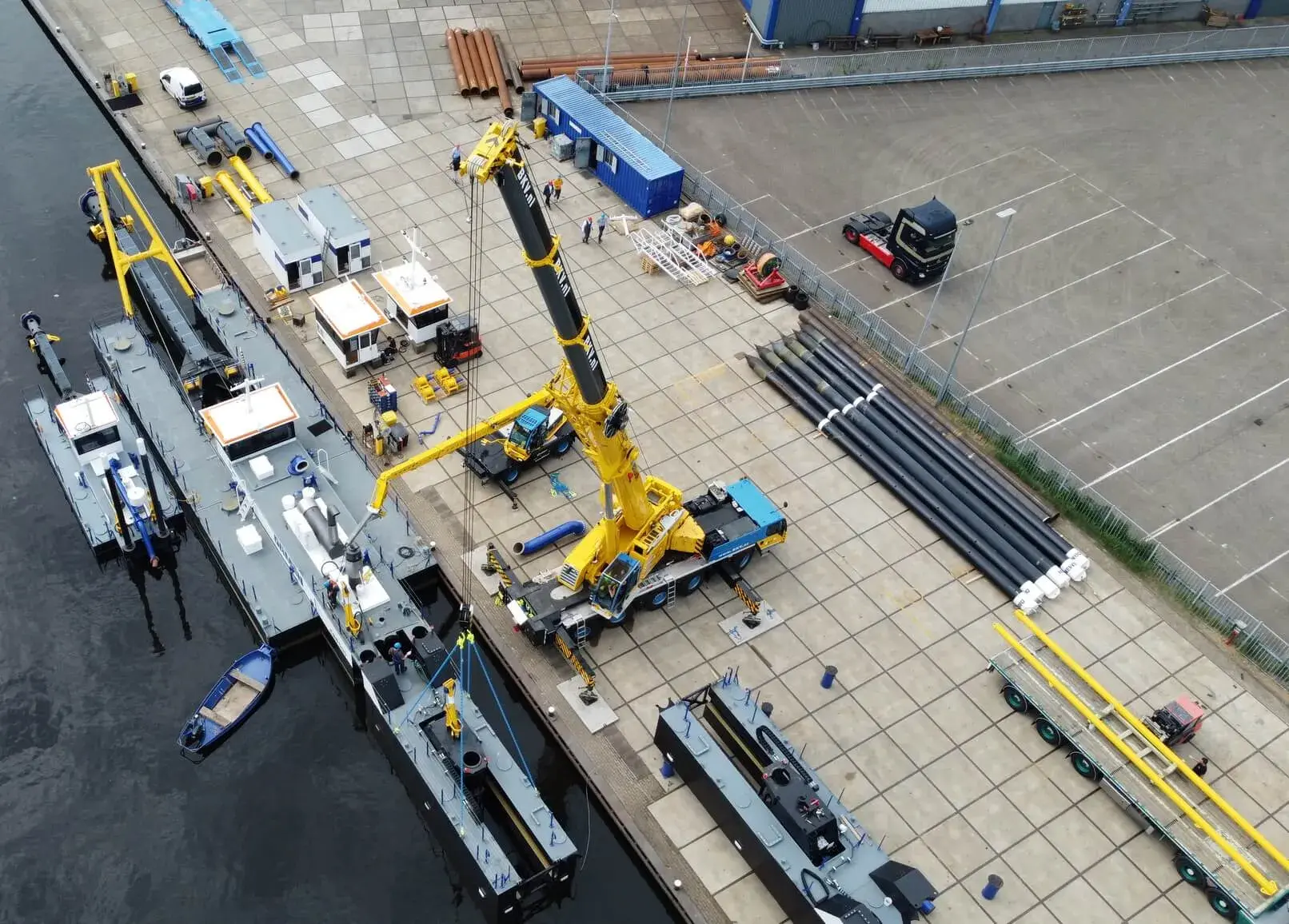

All our cutter suction dredgers are dismountable. This makes them easily transportable to the next dredging job. These dredging jobs may vary greatly, ranging from maintenance dredging in a small pond to capital dredging in a wide navigation channel of a busy port. Each dredging operation has its specific key to boost operational efficiency. The standard options for the cutter suction dredger range are available for exactly this purpose.

A wide range available

The full CSD range comes prepared

Practical installation

Modular designed dredge options

It’s all in the design

Easily adaptable dredgers

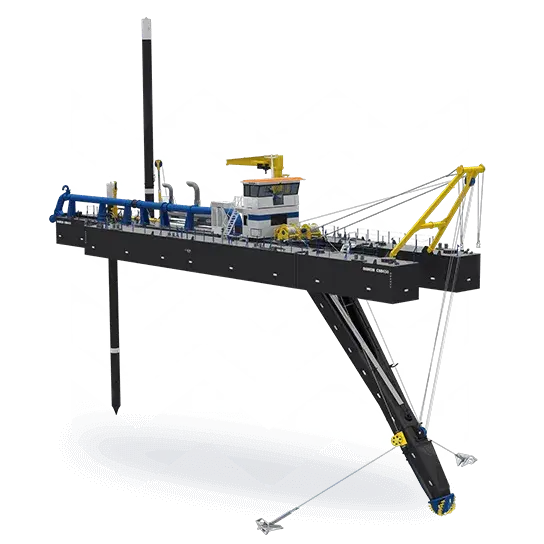

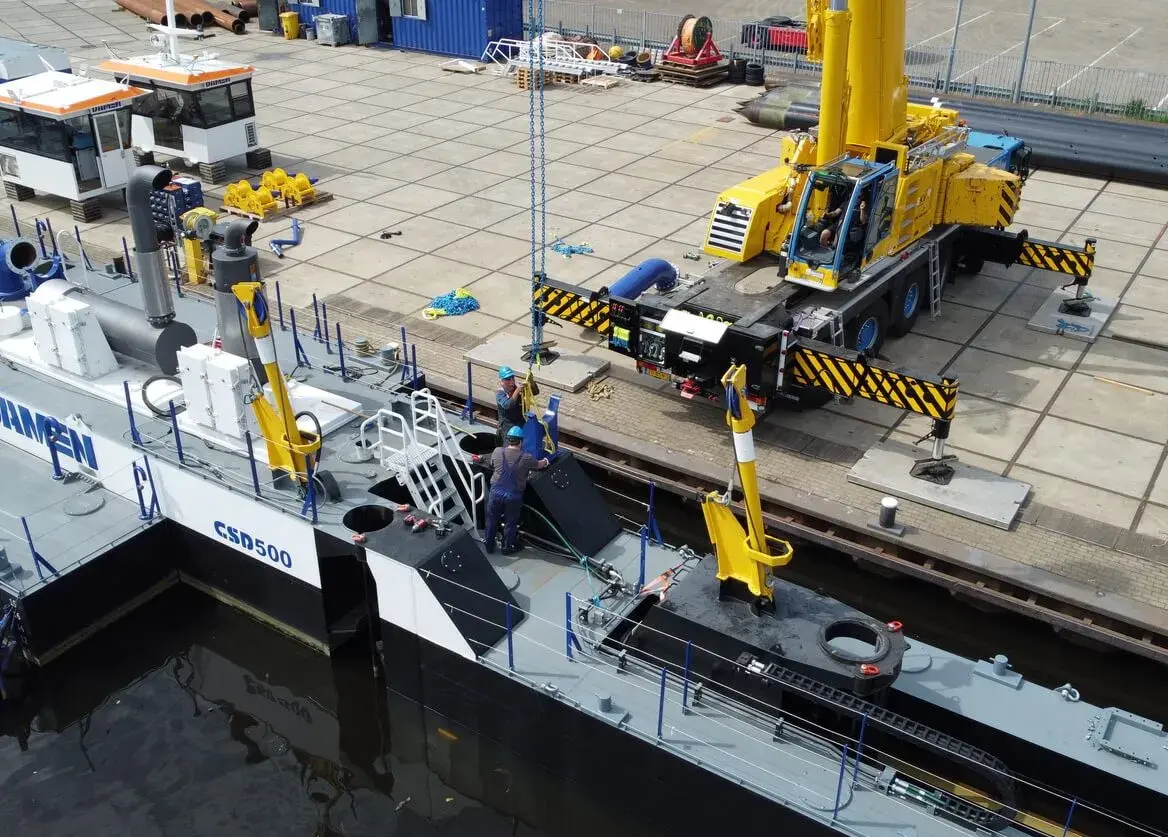

The entire Damen CSD, or Cutter Suction Dredger, range has been designed with smart customisation in mind. The basic dredgers have been fitted our with for instance an integrated pedestal for anchor booms or a deck crane, or with mounting strips for anchor boom winches. The design also accommodates space for an optional accommodation unit, to be located under the control cabin. In doing so, the suction dredger can be easily adapted to its next dredging project.

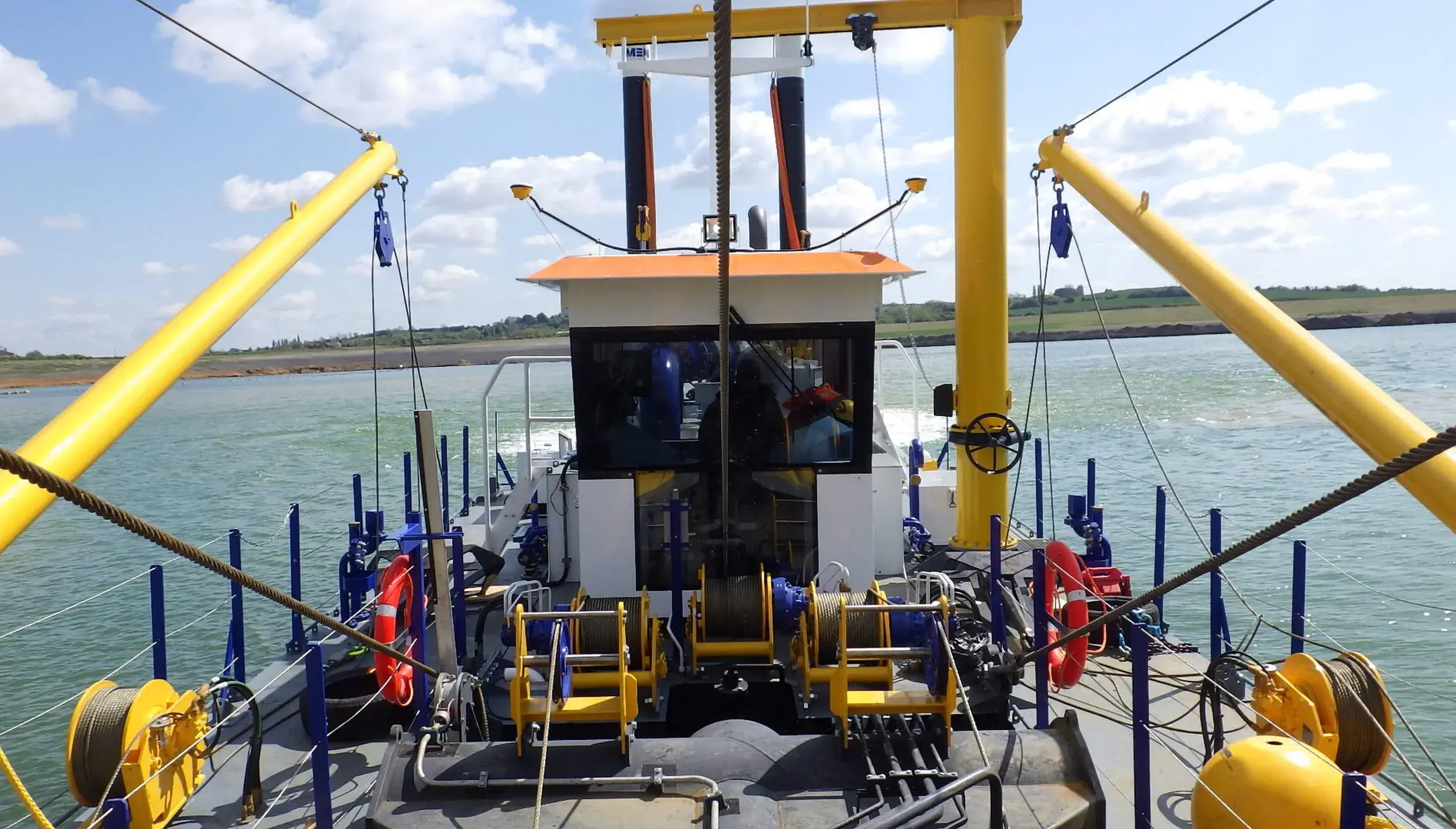

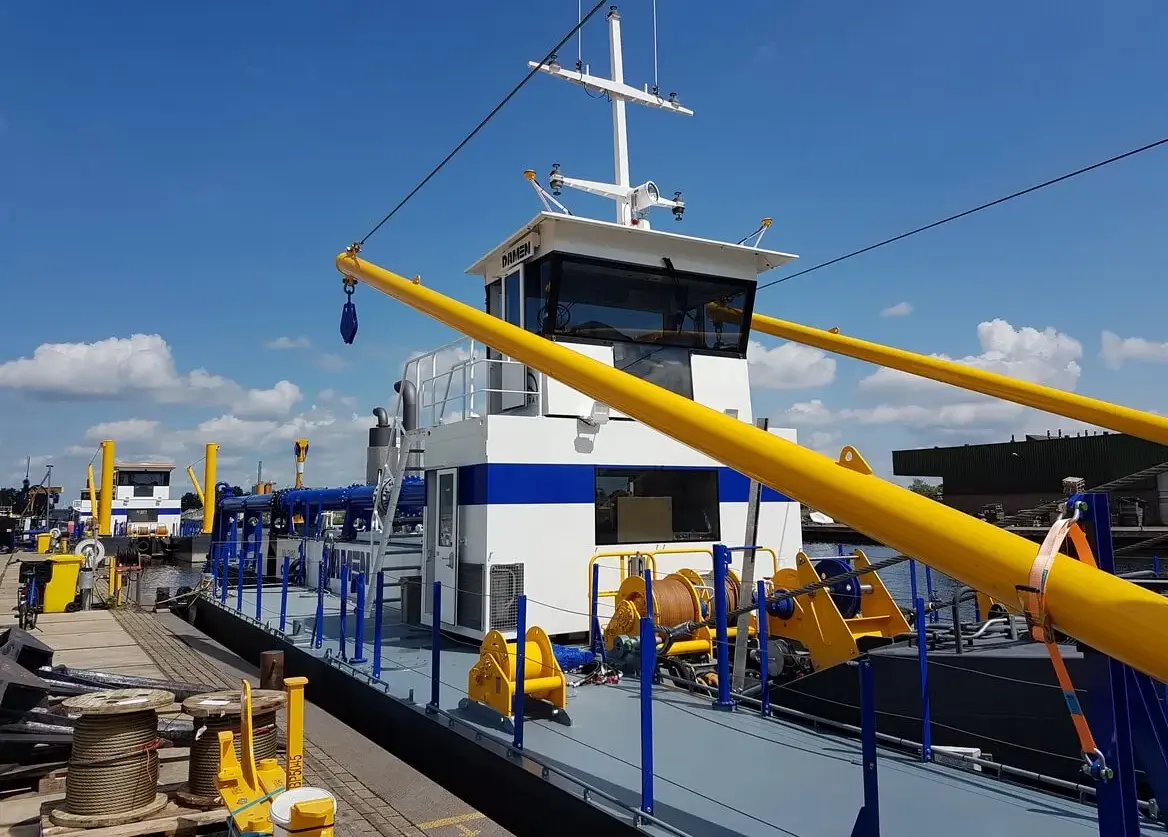

Anchor booms

A cutter suctions dredgers swings from starboard side to portside and back on its anchors. These anchors have to be relocated at regular intervals as the dredger moves forward. The process of repositioning the side wire anchors can be speeded up by adding anchor booms to the fore pontoons of the stationary dredger.

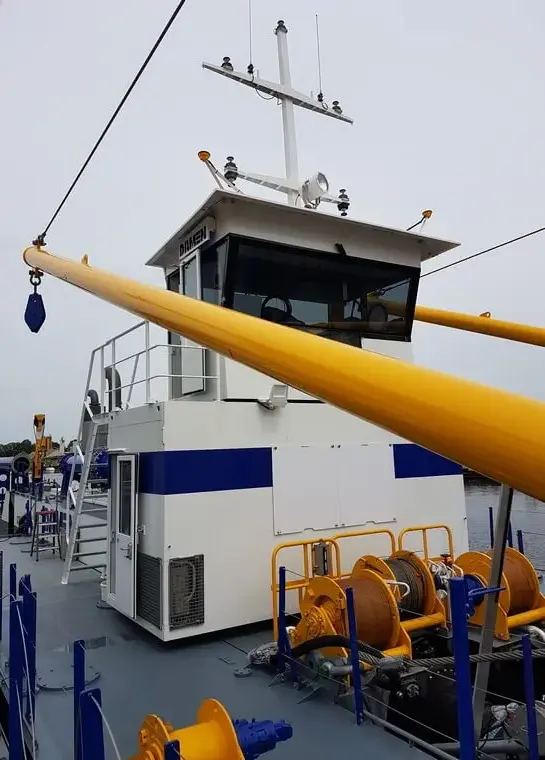

Accommodation unit

A CSD can be operated single-handedly. Yet on a dredge project, more crew will be present. These can be a mechanic, or the MultiCat skipper. To allow the dredge master and the other crew the room to sit down and have a meal, an accommodation unit can be added. When this option is chosen, the control cabin is placed on top of the accommodation. The dredge master will benefit from his high vantage point.

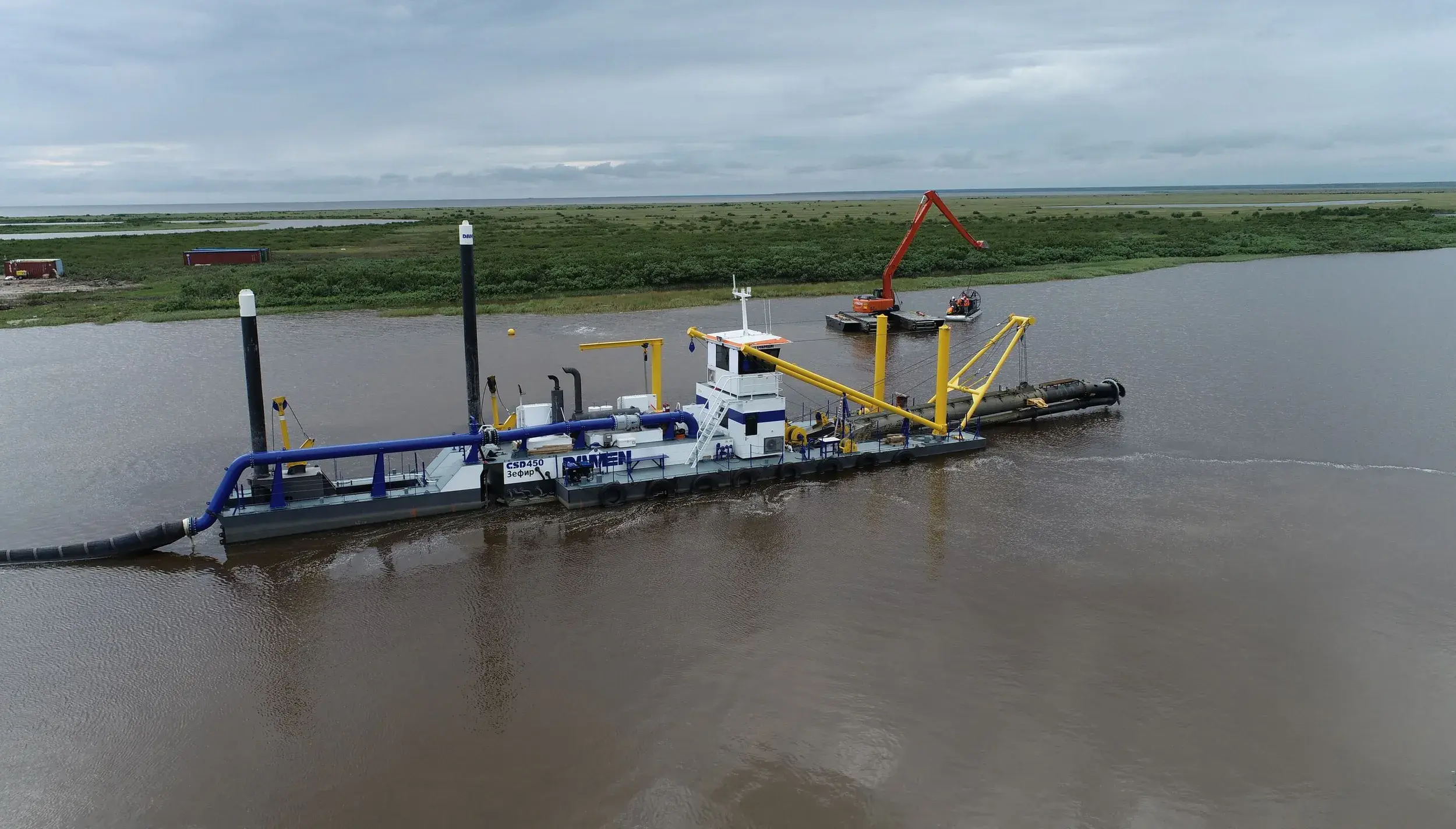

Spud carriage pontoon

A wide dredge job such as cleaning a navigation channel will benefit from a dredger with a large swing. The effective swing width of a stationary dredger can be enhanced by adding a spud carriage pontoon at the rear of the dredger. Increasing the overall length will increase the dredger’s swing and therefore the project efficiency.

Options dedicated for Damen CSDs

You may have noticed that we have mentioned that the options highlighted above are for Damen CSDs only. It is that our range has been fully prepared to add them when required. Without any actions of the cutting torch, the dredger is optimised for its next job. Should you wish to learn more on the complete CSDs, please check here.
Read more

Do you want to boost your operational efficiency?

Let’s discuss the best solution for you!

Dredging successes

Our dredging equipment

Cutter Suction Dredger 500 "Lucio"

The CSD500 Lucio has started its working life on the maintenance dredging job in the Rio Salado, in the Argentinian Buenos Aires province.

TSHD 2000 "Yuri Maslyukov"

Damen delivered a design package plus the dredging equipment for a TSHD2000. The hopper dredger has been built by Onega Shipyard, Russia.

Trailing Pipe System 500 for "JOSE DUARTE"

A 500 mm trailing pipe, customised to work between -20 m and -40 m dredging depth, has been delivered to a Portuguese yard for a Portuguese contractor.

TSHD 2000 "Beloe More"

A Damen trailing Suction Hopper Dredger with a hopper capacity of 2.000 m3 has been delivered to ROSMORPORT. The hopper dredger has been fitted out with a 600 mm trailing pipe and will dredge at a max depth of -22 m.

Damen TSHD 650 "Tommy Norton" begins operations at Gippsland Lakes, Australia

The Tommy Norton, a Damen Trailing Suction Hopper Dredger (TSHD) 650 built at Damen Shipyards Yichang has been officially delivered to her proud owner, Gippsland Ports.

TSHD 1000 "Kadosh"

The locally built dredgers, as a series of three vessels, are fitted out with a 500 mm trailing pipe and a grab crane to perform maintenance dredging in basins and access channels at several ports.

TSHD 1000 "Kronshlot"

The locally built dredgers, as a series of three vessels, are fitted out with a 500 mm trailing pipe and a grab crane to perform maintenance dredging in basins and access channels at several ports.

Largest Damen hopper dredger delivered in Borneo to PFNM

The delivery in early May of Trailing Suction Hopper Dredger (TSHD) Barito Equator demonstrates how Indonesia’s developing maritime industry is building ever more complex vessels.

Customised Dredging Systems

Your partner in dredging

Dredging requires more than just shipping a dredger. It requires more gear such as a booster station or dredging instrumentation to optimise the job. Moreover it requires crew training and project management to bring the operation to a successful conclusion. Damen can assist you during the full lifecycle of your dredger.

Dredge package

For each new dredging project goes that first class dredging equipment will allow you to do your dredge job in the most efficient way. We supply a wide array of dredging systems ranging from single components to complete dredging packages to ensure that your dredge operation will run smoothly.

Read more

Getting started

As well as shipping the dredging components to your yard, we can also send over our Field Service Engineer to assist the crew with installation and start-up. This will shorten the installation time, and give an opportunity for crew training.

Read more

Lifecycle support

For spares, repairs, alterations or additions to your dredge systems, our Service team is available 24/7.

Read more
