For retrofits and newbuilds

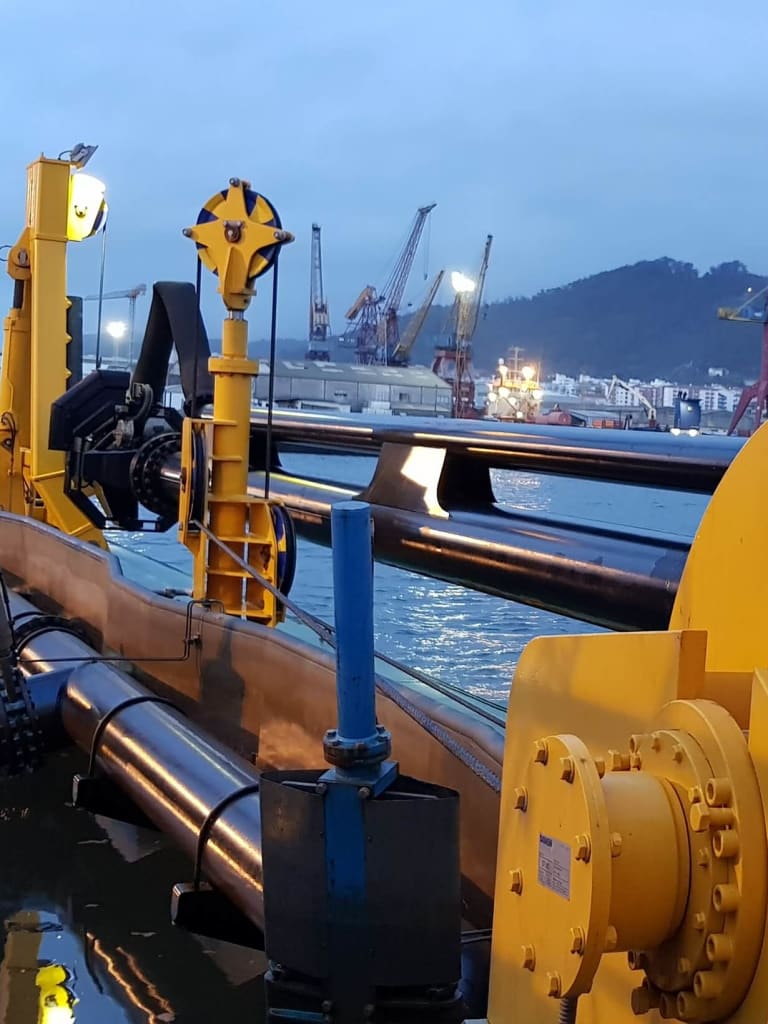

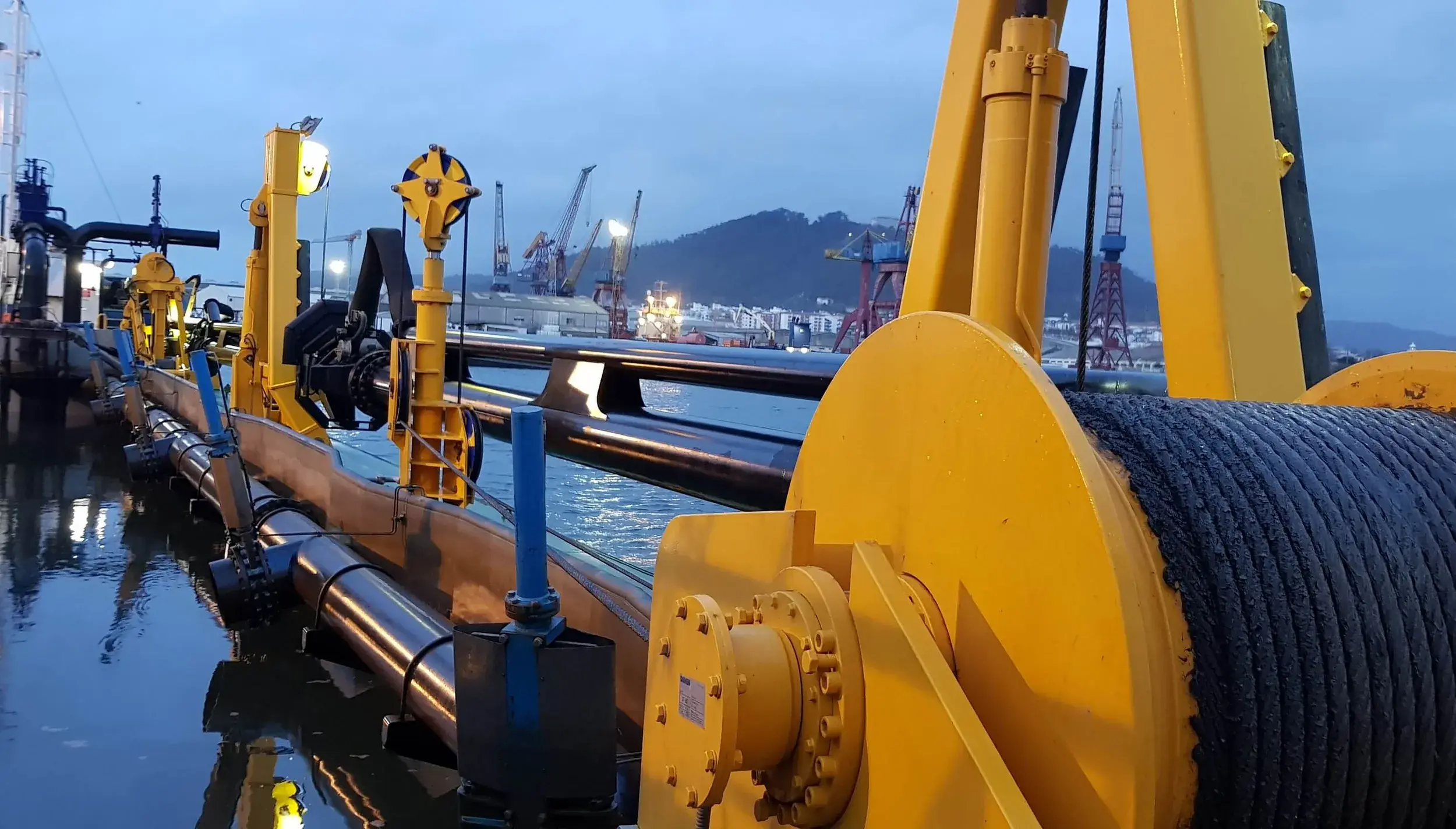

Trailing suction pipe components

Drag arm component renewal

A complete range of trailing pipe components

Whether you are a dredging contractor or dredge repair yard, you may need to replace trailing pipe components. These individual components are available for the replacement or upgrade of a suction pipe of a hopper dredger. A complete fit for purpose range of dredging equipment is available to ensure optimal production of your hopper dredge.

Enhance your dredging efficiency

Fit for purpose dredging components

A trailing suction pipe consist of a number of essential components to ensure optimal dredge production. Each of these components, whether it is a drag head, pipe hinge or turning gland, may need replacement. Damen offers a complete line of dredge components, all designed and manufactured in-house, made to boost your operational efficiency.

Diameters from 350 to 1000 mm

For all hoppers, great and small

Modular design

Practical shipment to your yard

Swift installation

Easy integration dredging components

Over the 80 years Damen has supplied dredging equipment, many hundreds of dredging components have been delivered to worldwide dredging contractors. These components include the elements of trailing suction pipe systems which ensure its flexibility and optimise the dredge production. The dredging components can be offered and made as single item or as part of a complete dredge system.

Boost your production

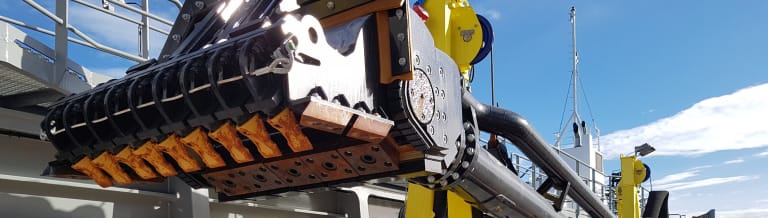

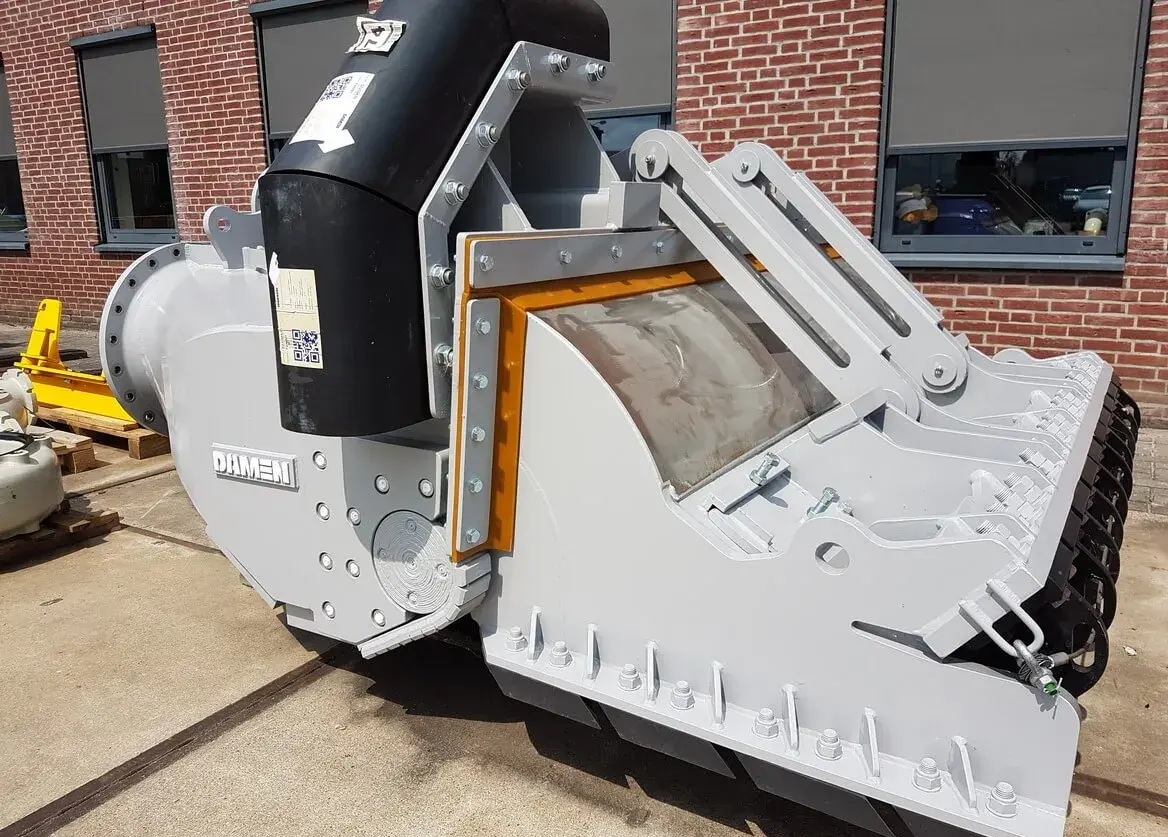

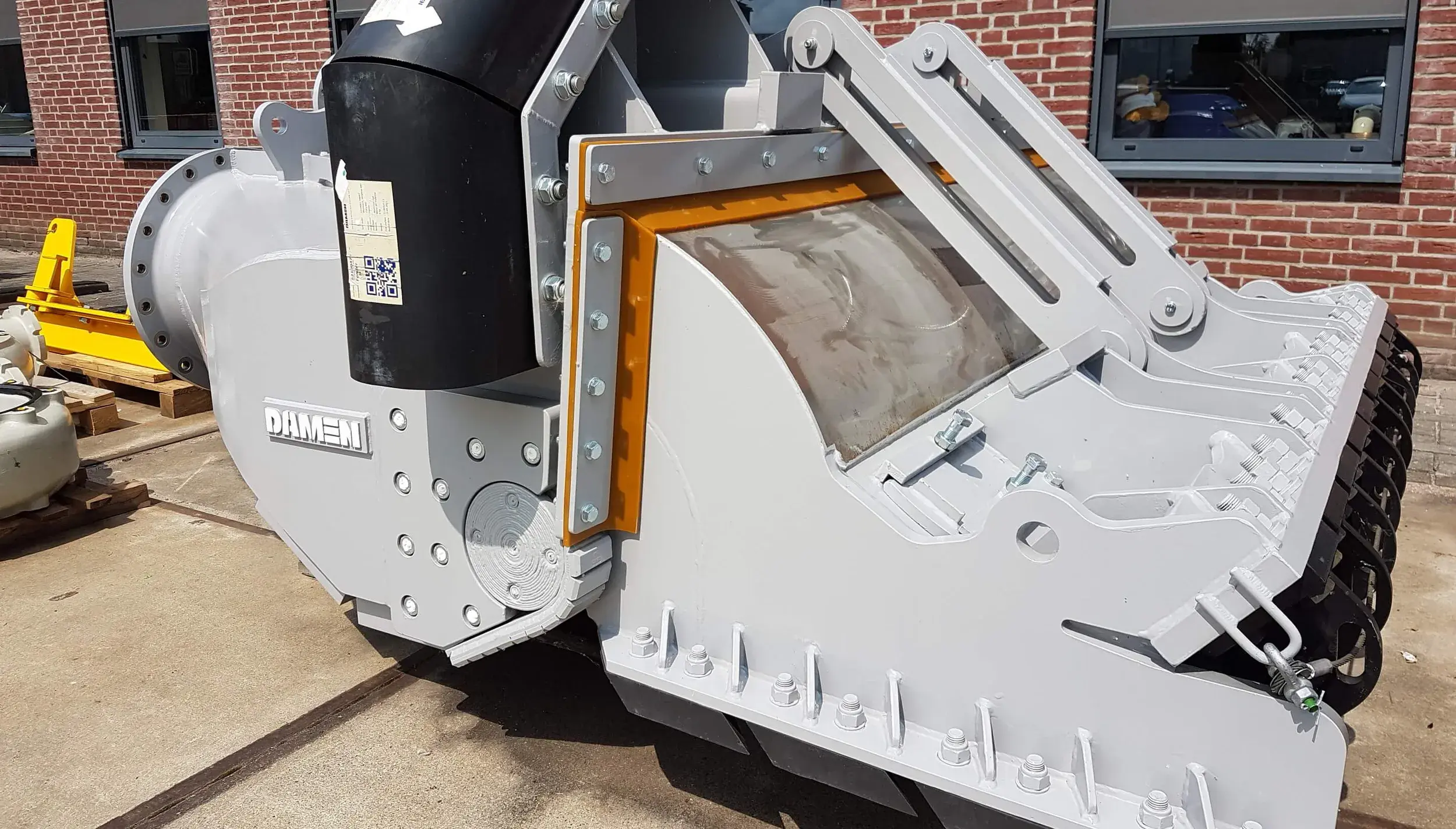

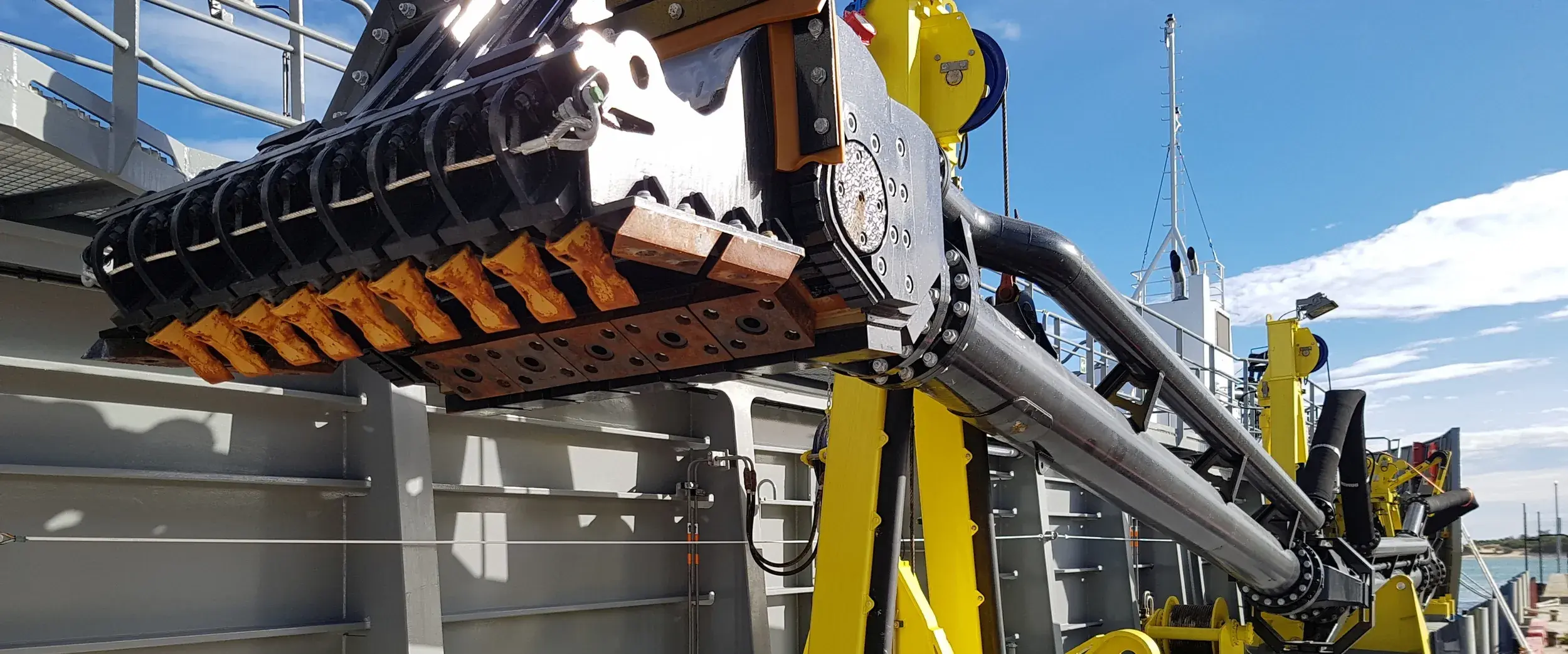

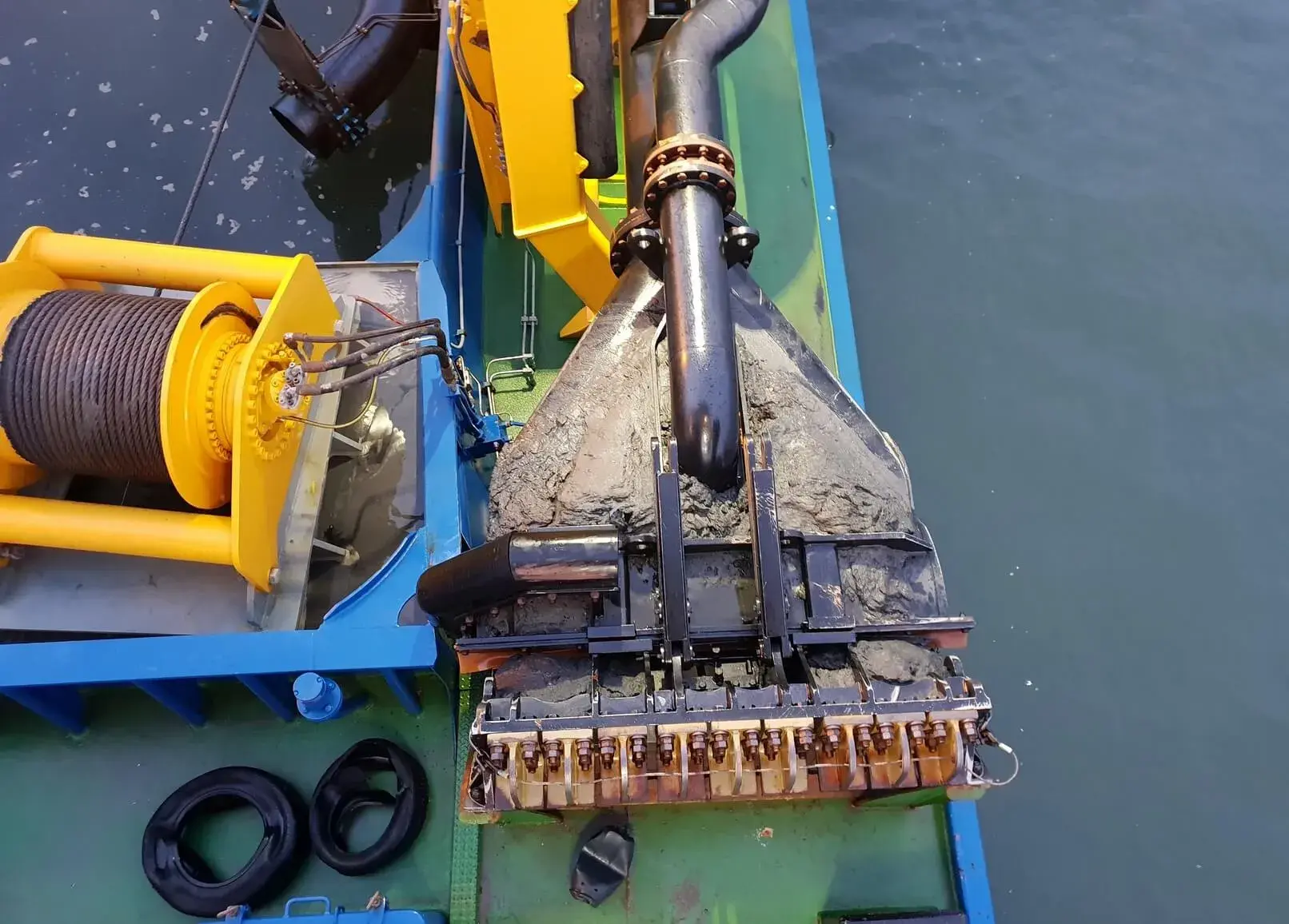

A drag head is a vital element in optimising the production of your dredger. The jet water assisted single visor drag head has been designed to achieve the best possible soil cutting properties, combined with an optimised mixture flow. The soil, whether from the sea bed or from a river bottom, is liquified by the water jets, and captured by the drag head for transport to the hopper hold. The wear resistant drag head has been fitted out with easily replaceable wear blocks and teeth. Mounting is practical due to the robust flange connections.

Full flexibility

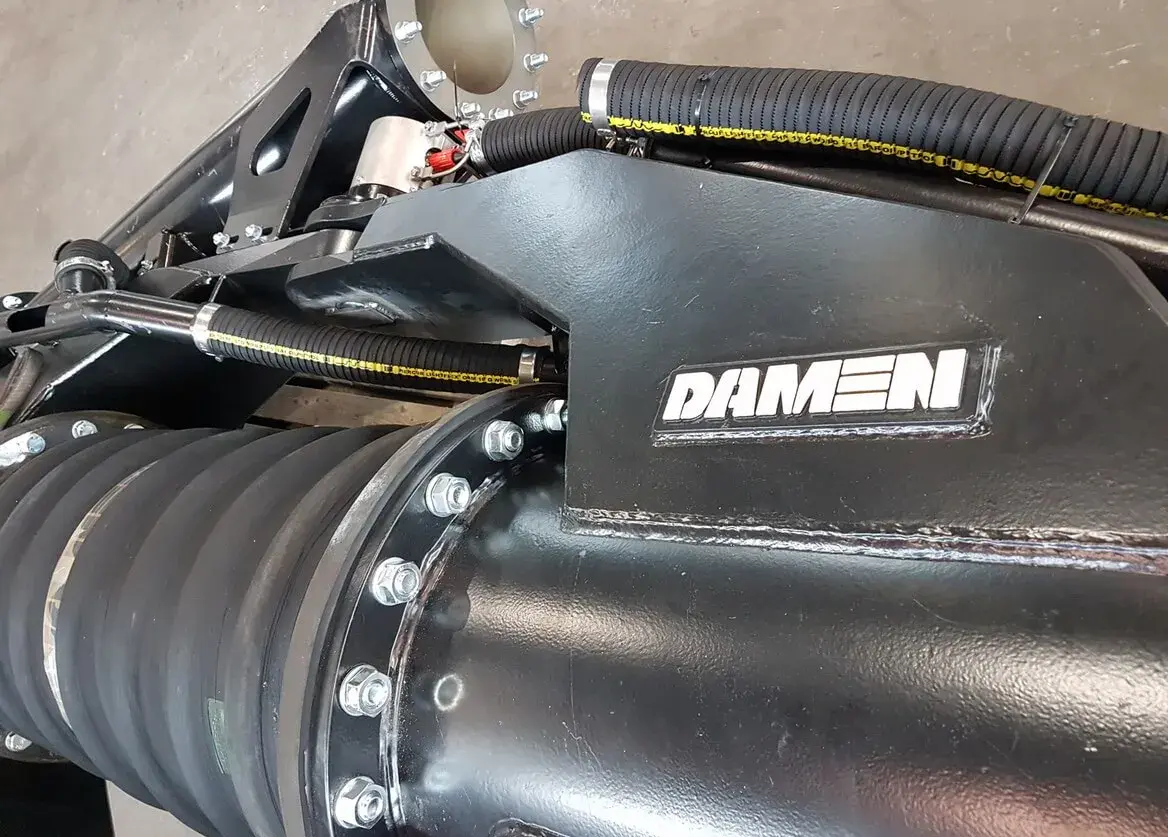

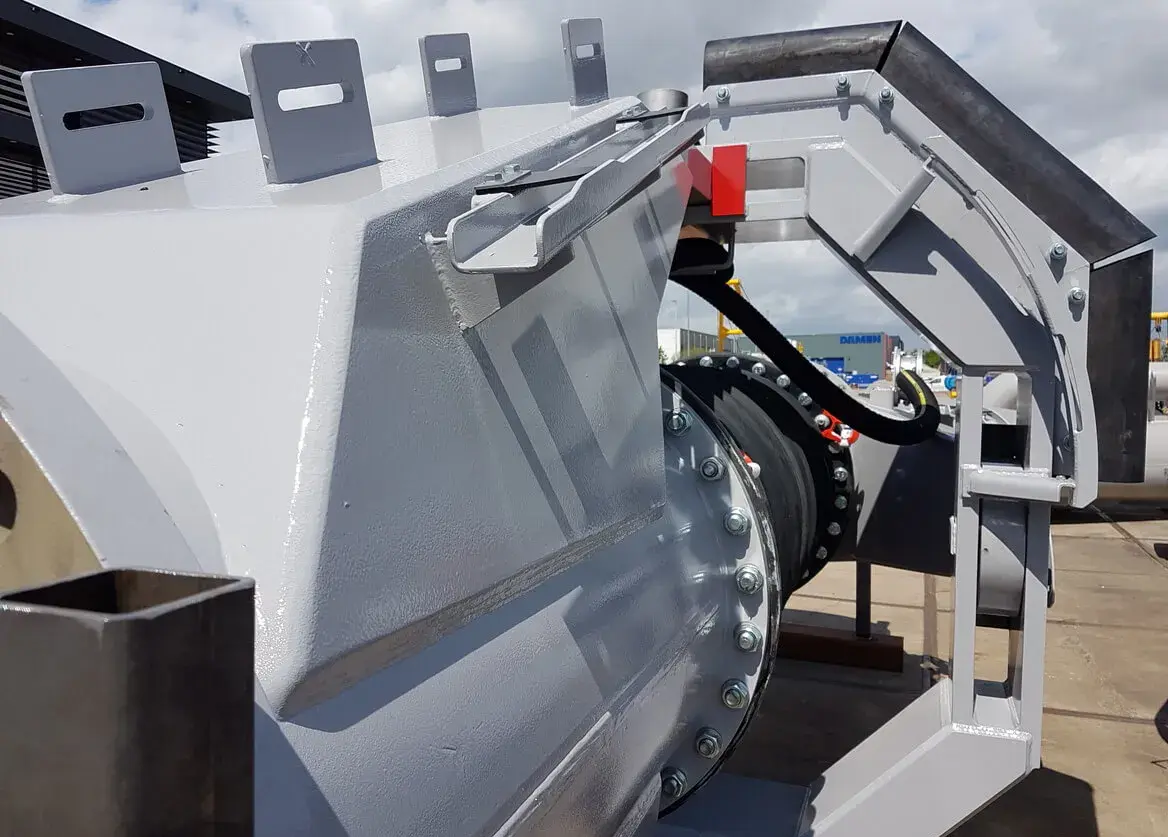

A trailing pipe needs flexibility; it is to be able to move freely relative to the hopper dredgers hull. A double hinge, situated approximately midway in the suction pipe, allows for both vertical and horizontal movement of the lower trailing pipe. The cardan hinge is fitted out with a robust hinge ring, a wear resistant suction hose and a jet water hose to bridge the hinge. For easy integration both pipe ends are fitted with heavy-duty flanges.

Safe distance

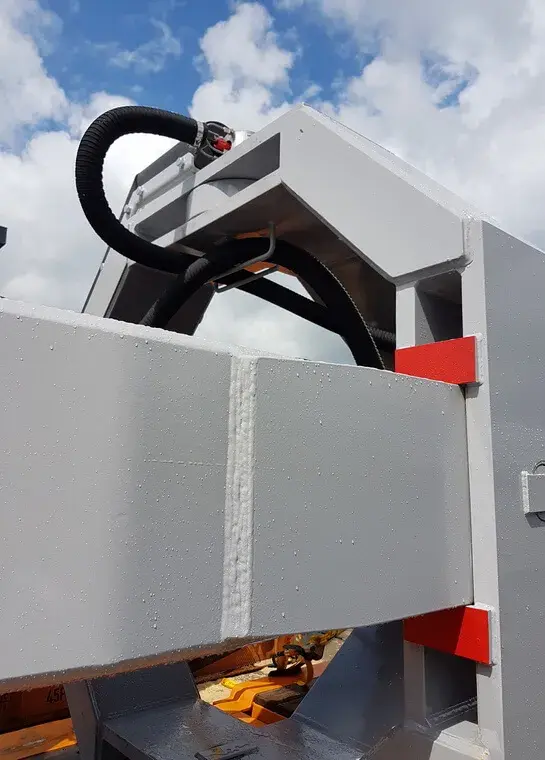

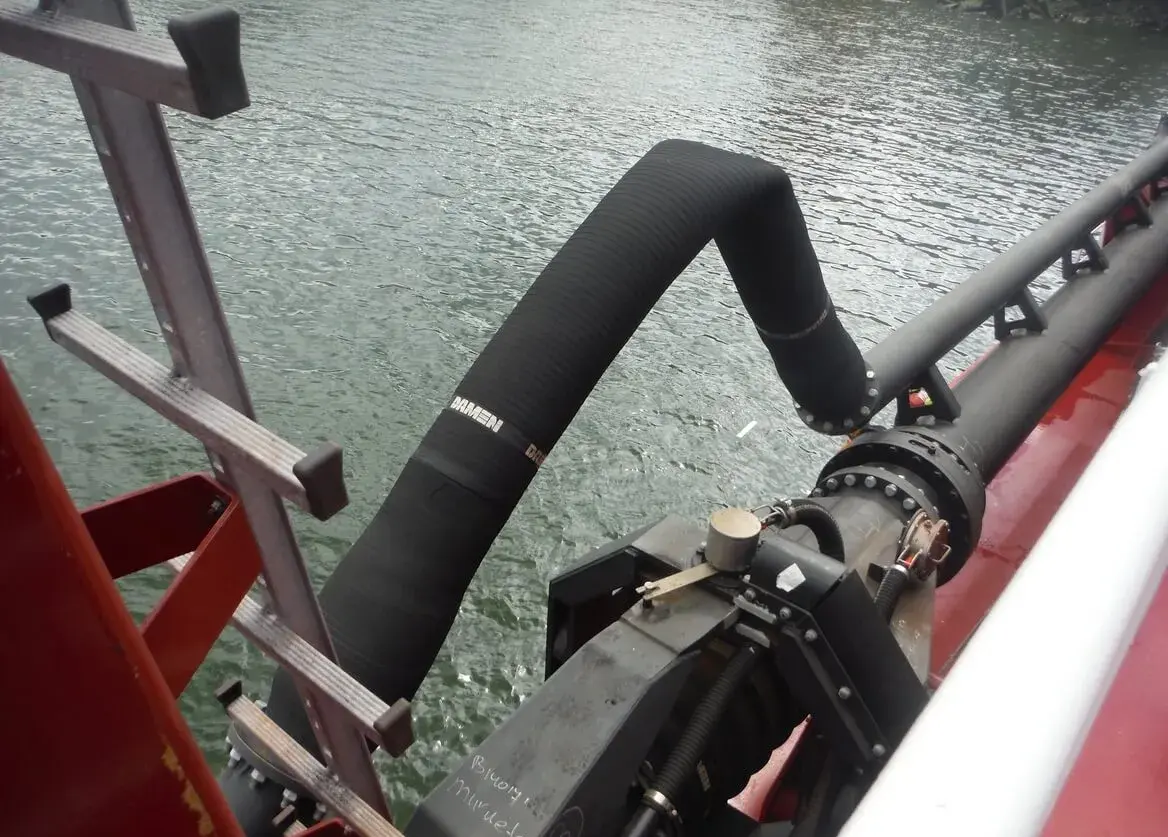

At the top of a trailing pipe, between the upper pipe and the hull connection, a single hinge is mounted. This single hinge ensures that the trailing pipe can move away from the hopper dredgers hull safely during dredge operations. A single hinge includes heavy duty mixture piping, a wear resistant suction hose, hinge arms and flanged connections.

Follow the profile

Allowing the drag head to follow the bottom profile ensures an optimal vacuum within the drag head. This movement around the pipe’s axis is ensured by a turning gland. The turning gland consists of two flanged pipe pieces turning on self-lubricating grey cast steel. Thus, the turning gland enhances maneuverability of the drag head, and contributes to safe and efficient dredging operations.

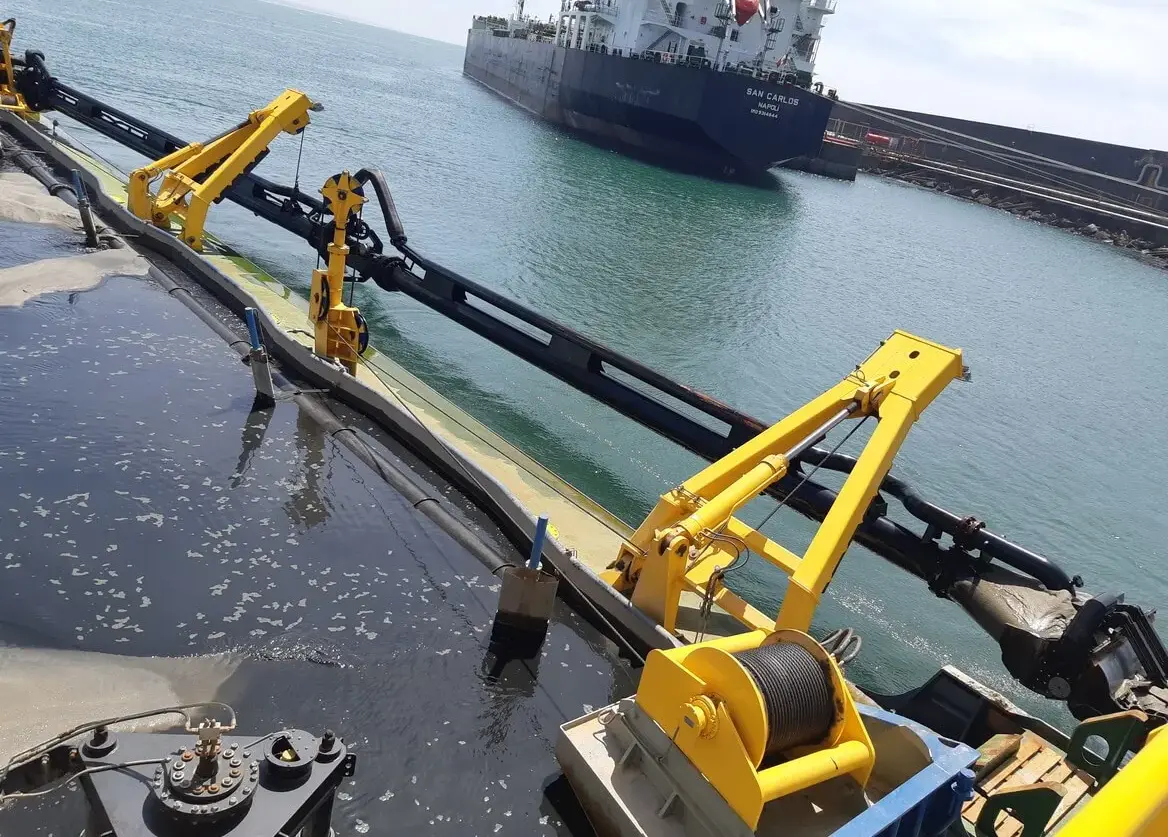

Dredge components equipment package

Trailing pipe components are delivered as single items as dredge pipe upgrade. Yet, a technical survey may reveal that the complete trailing pipe needs replacement. Whatever your requirements, whether a separate dredge component or a full dredging package, Damen is up for the job. Should you be interested in a complete hopper dredge package, please click here.

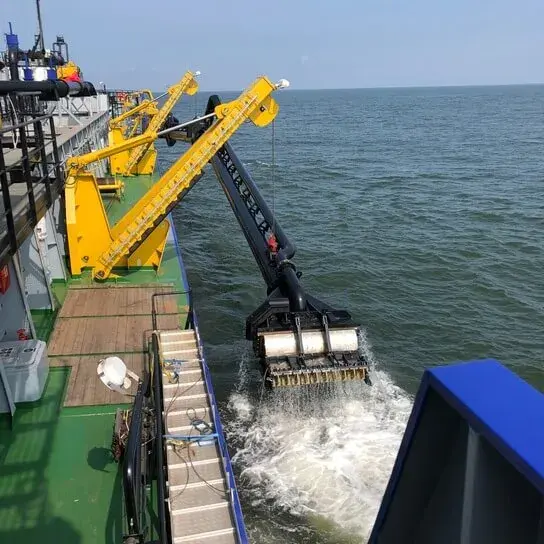

Discover our dredging components

Which dredge component do you need?

Let’s check our stock!

Dredging Efficiency

Our success stories

Cutter Suction Dredger 500 "Lucio"

The CSD500 Lucio has started its working life on the maintenance dredging job in the Rio Salado, in the Argentinian Buenos Aires province.

TSHD 2000 "Yuri Maslyukov"

Damen delivered a design package plus the dredging equipment for a TSHD2000. The hopper dredger has been built by Onega Shipyard, Russia.

Trailing Pipe System 500 for "JOSE DUARTE"

A 500 mm trailing pipe, customised to work between -20 m and -40 m dredging depth, has been delivered to a Portuguese yard for a Portuguese contractor.

TSHD 2000 "Beloe More"

A Damen trailing Suction Hopper Dredger with a hopper capacity of 2.000 m3 has been delivered to ROSMORPORT. The hopper dredger has been fitted out with a 600 mm trailing pipe and will dredge at a max depth of -22 m.

Damen TSHD 650 "Tommy Norton" begins operations at Gippsland Lakes, Australia

The Tommy Norton, a Damen Trailing Suction Hopper Dredger (TSHD) 650 built at Damen Shipyards Yichang has been officially delivered to her proud owner, Gippsland Ports.

TSHD 1000 "Kadosh"

The locally built dredgers, as a series of three vessels, are fitted out with a 500 mm trailing pipe and a grab crane to perform maintenance dredging in basins and access channels at several ports.

TSHD 1000 "Kronshlot"

The locally built dredgers, as a series of three vessels, are fitted out with a 500 mm trailing pipe and a grab crane to perform maintenance dredging in basins and access channels at several ports.

Largest Damen hopper dredger delivered in Borneo to PFNM

The delivery in early May of Trailing Suction Hopper Dredger (TSHD) Barito Equator demonstrates how Indonesia’s developing maritime industry is building ever more complex vessels.

Customised Dredging Components

Your partner in dredging

Dredging requires more than just shipping a dredge valve or drag head. It requires more gear such as dredge instrumentation to optimise the job. Moreover it requires crew training and project management to bring the works to a successful conclusion. Damen can assist you during the full lifecycle of your dredger.

Dredge package

Dredging components can be supplied as a single item, or as a complete dredge system or package. For a retrofit or newbuild, first class dredging components will allow you to do your dredge job in the most efficient way.

Read more

Getting started

As well as shipping the required dredging components to your yard, we can also send over our Field Service Engineer to assist the crew with installation and start-up. This will shorten the installation time, and give an opportunity for crew training.

Read more

Lifecycle support

For spares, repairs, alterations or additions to your dredge systems, our Service team is available 24/7.

Read more
