Combi Freighter 4200 (ICE)

    Combi Freighter 4200 (ICE)

    Combi Freighter 4200 (ICE)

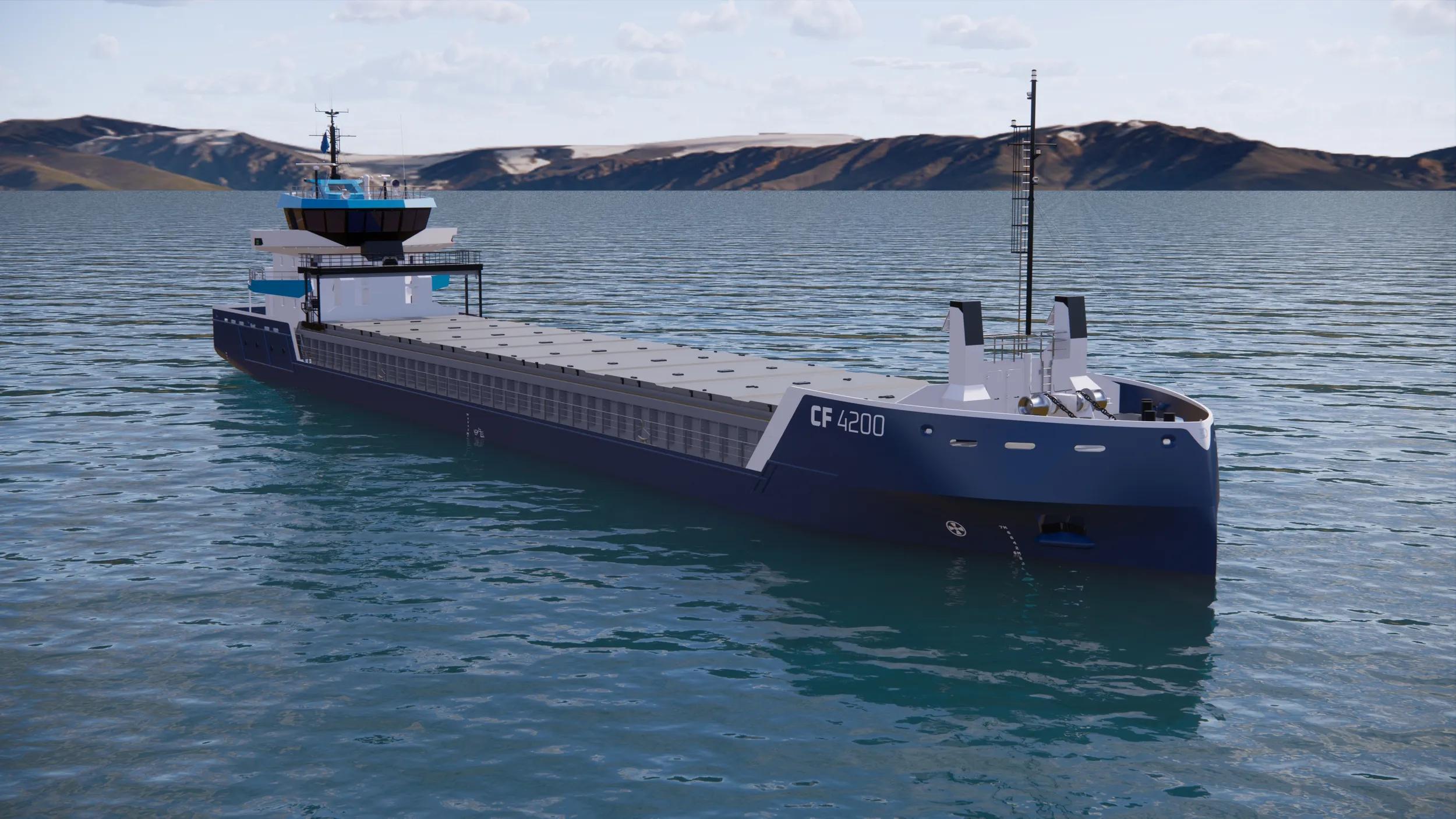

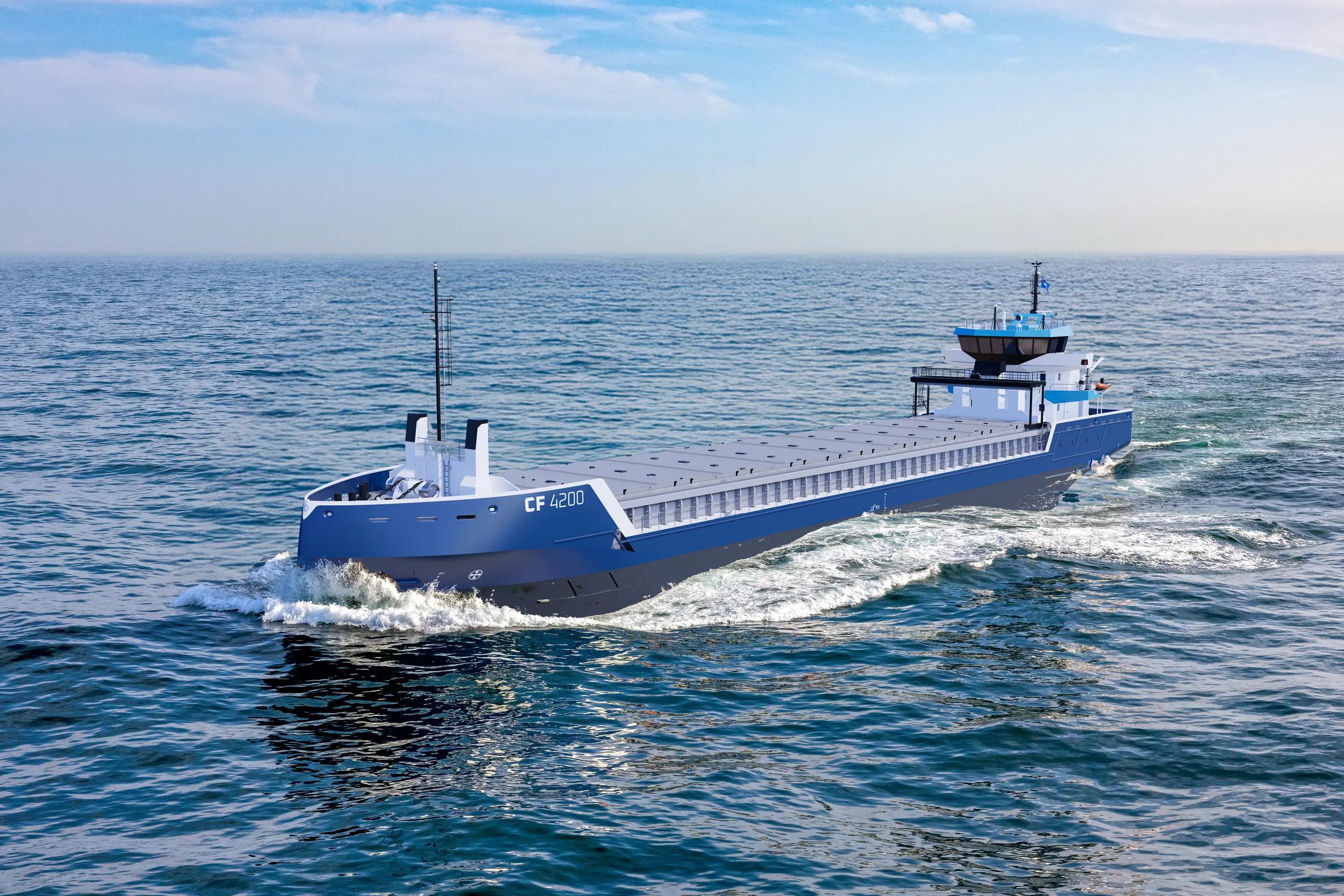

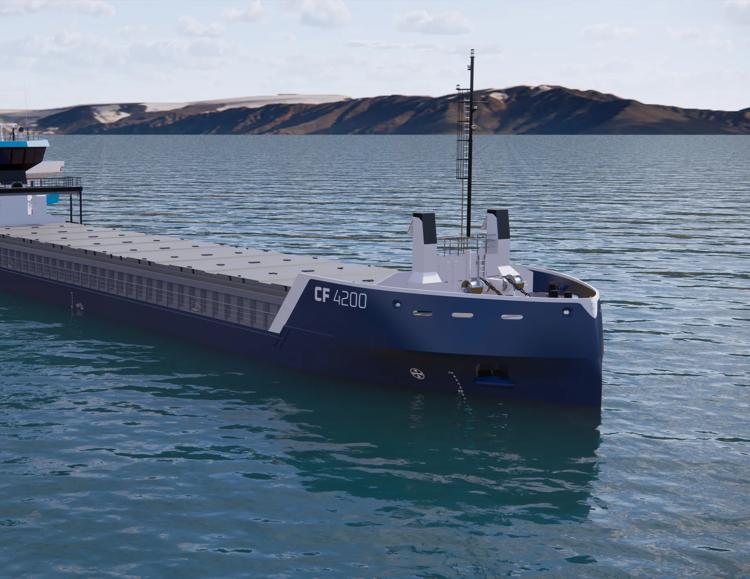

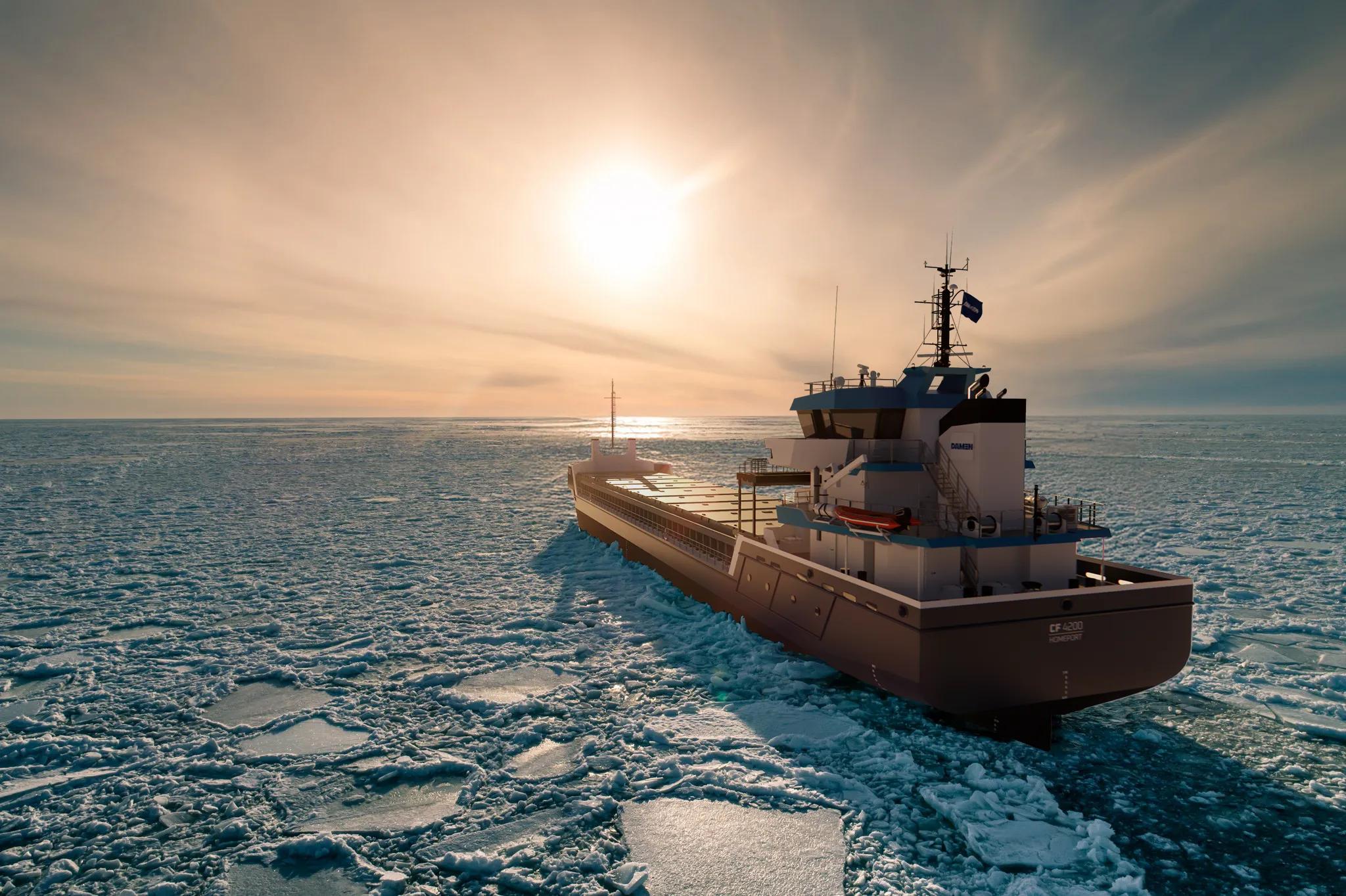

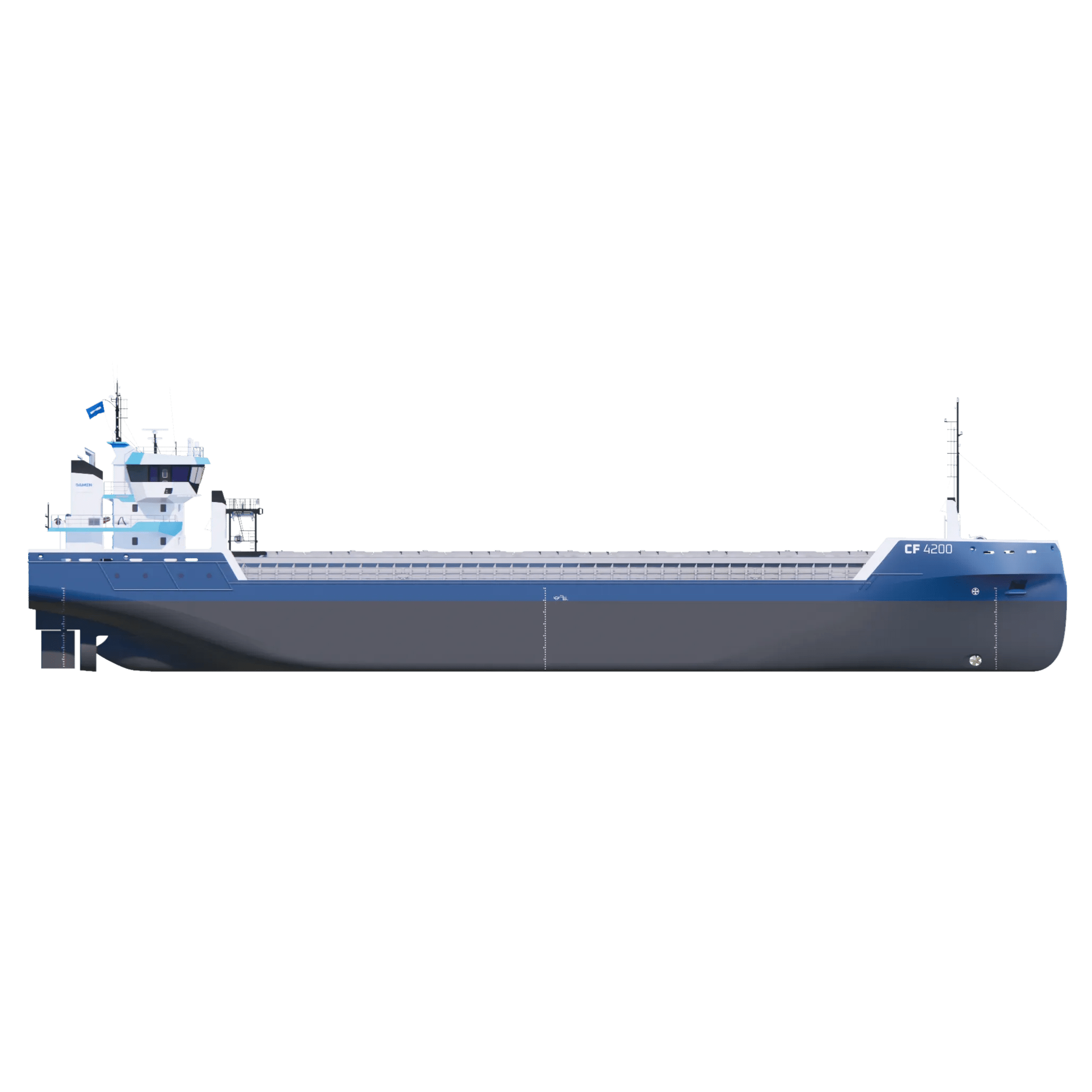

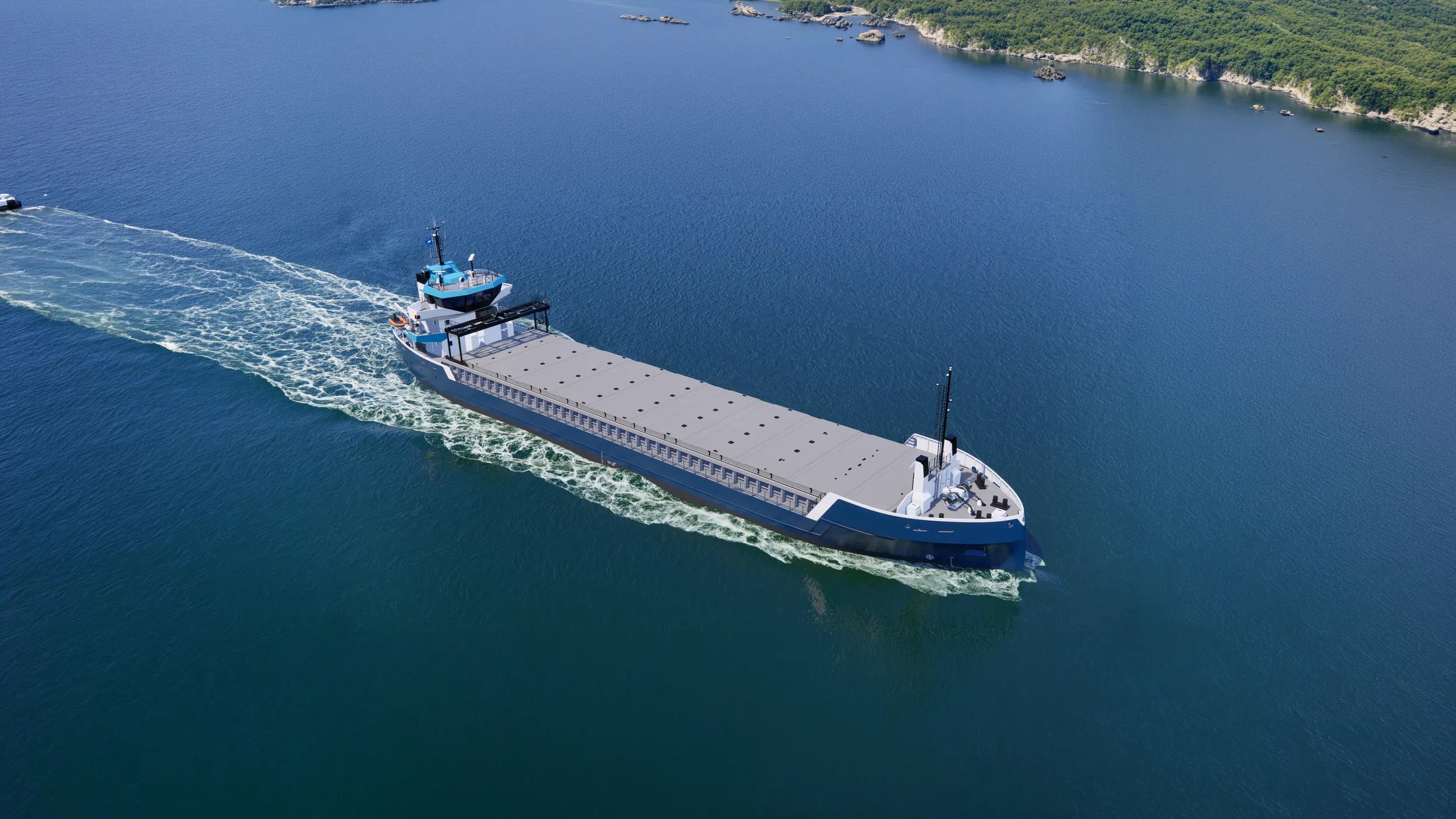

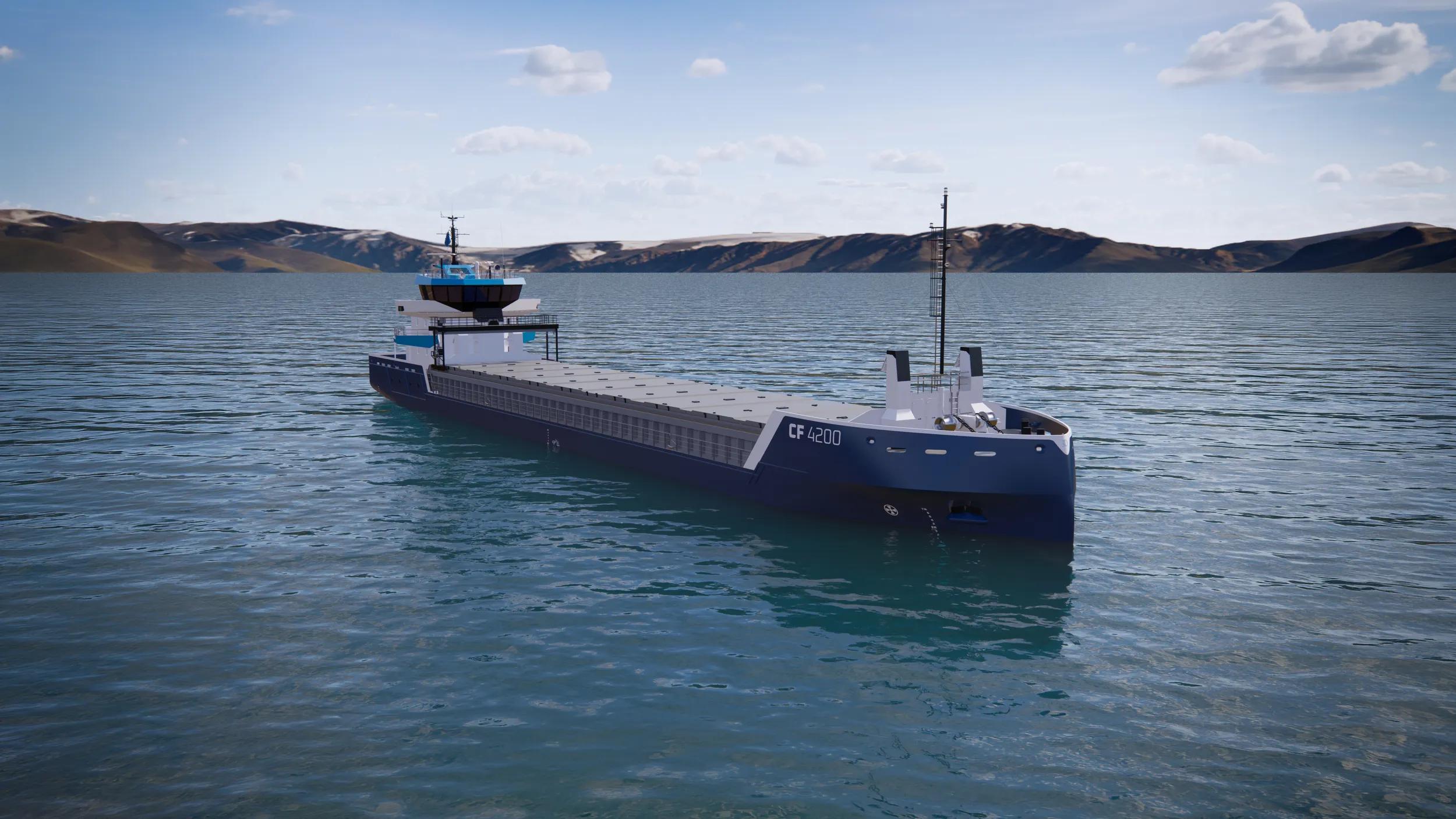

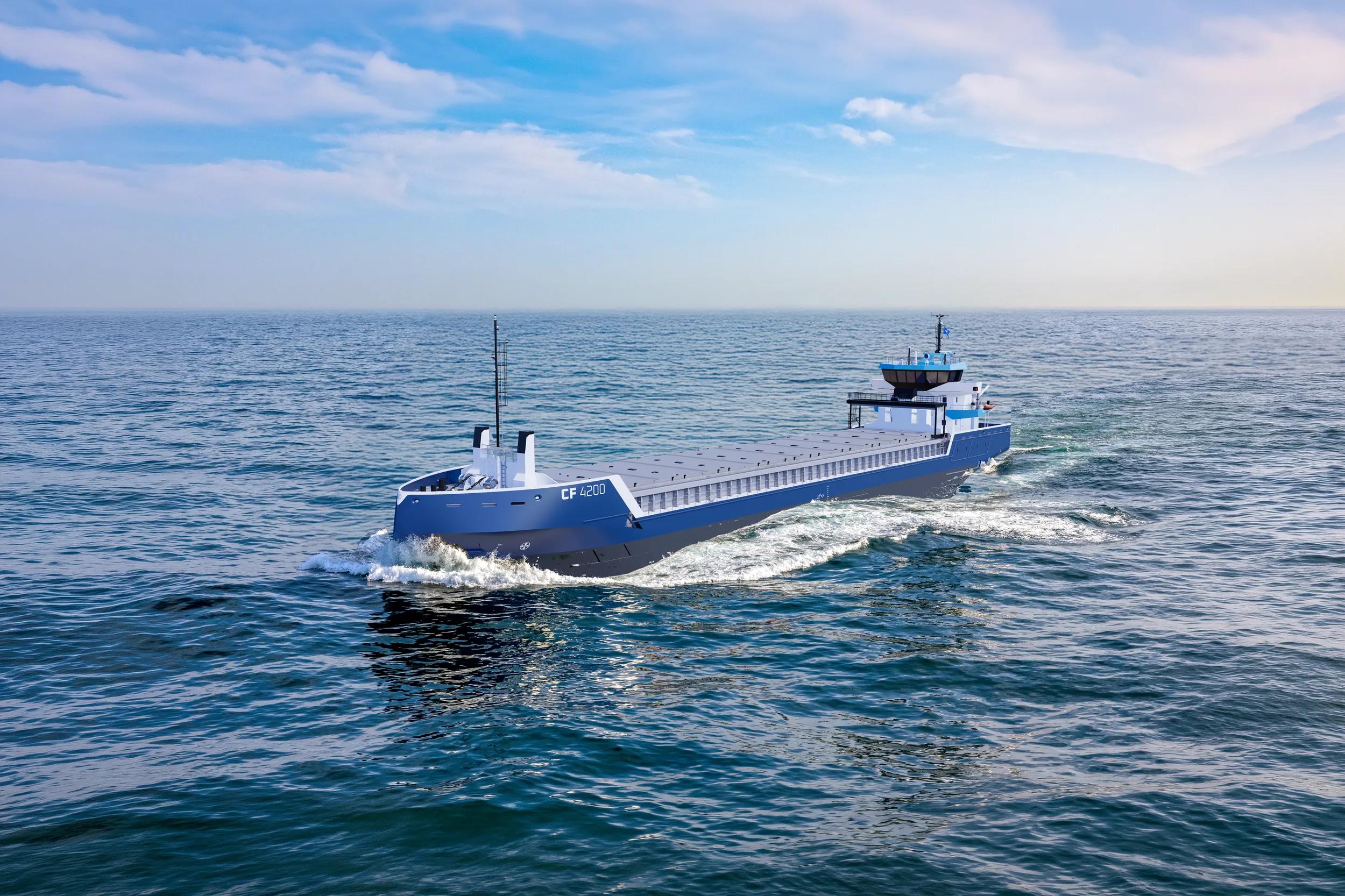

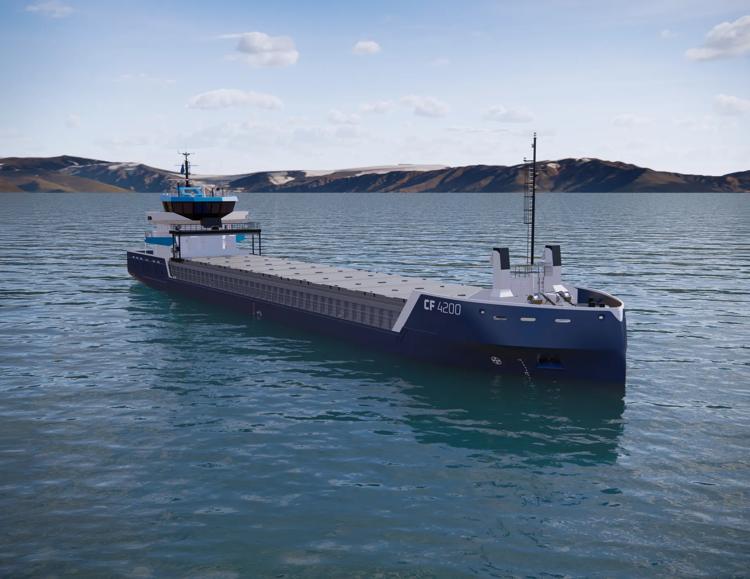

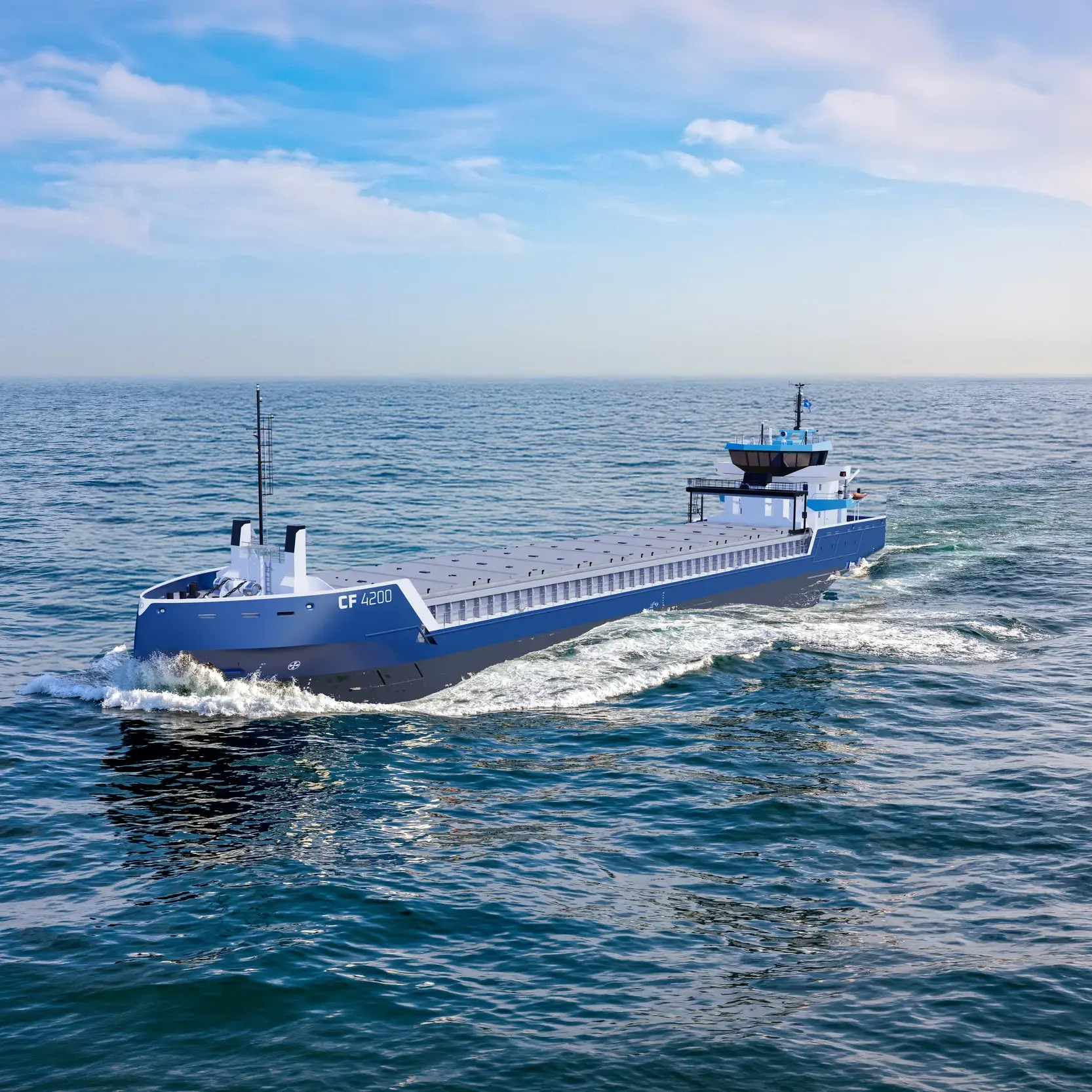

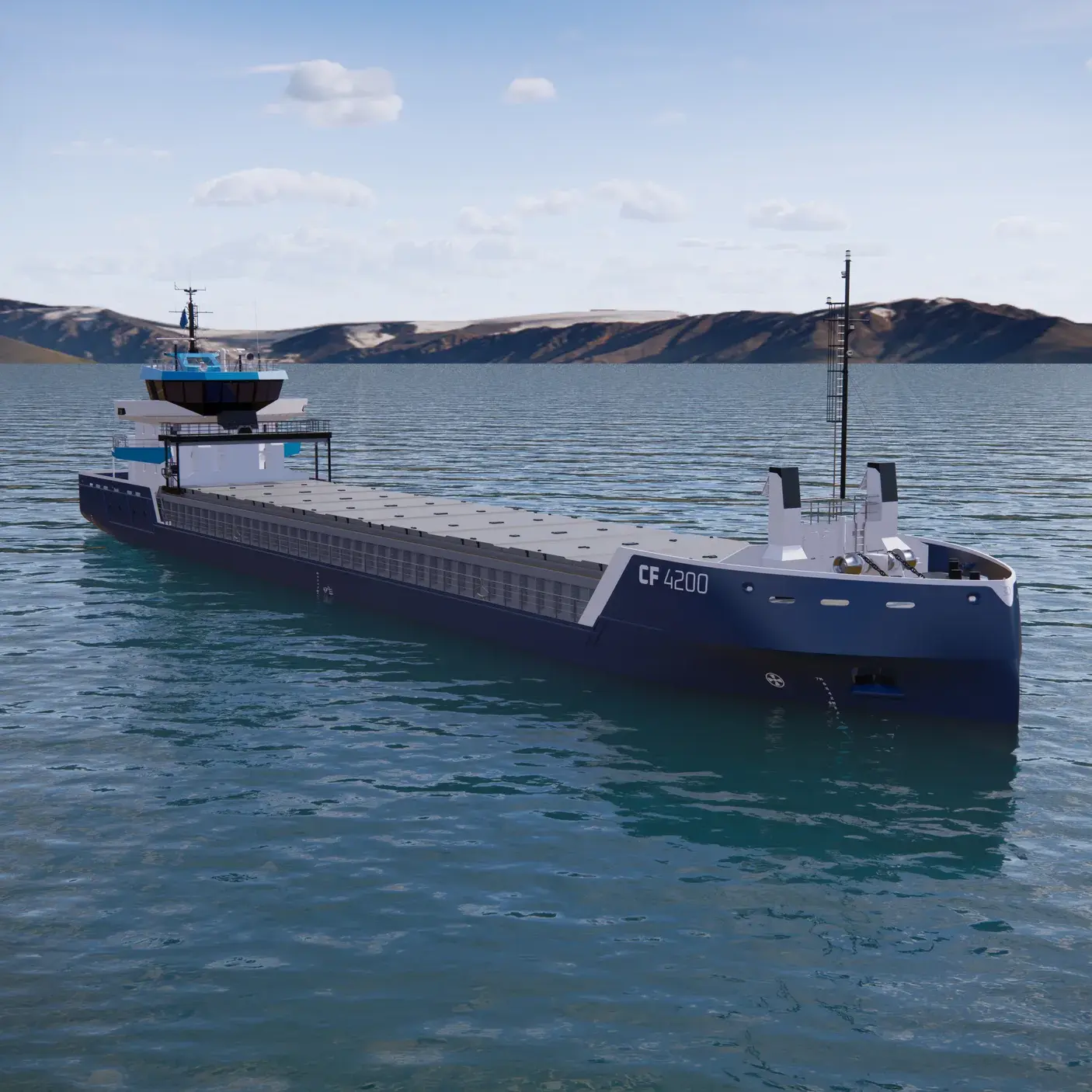

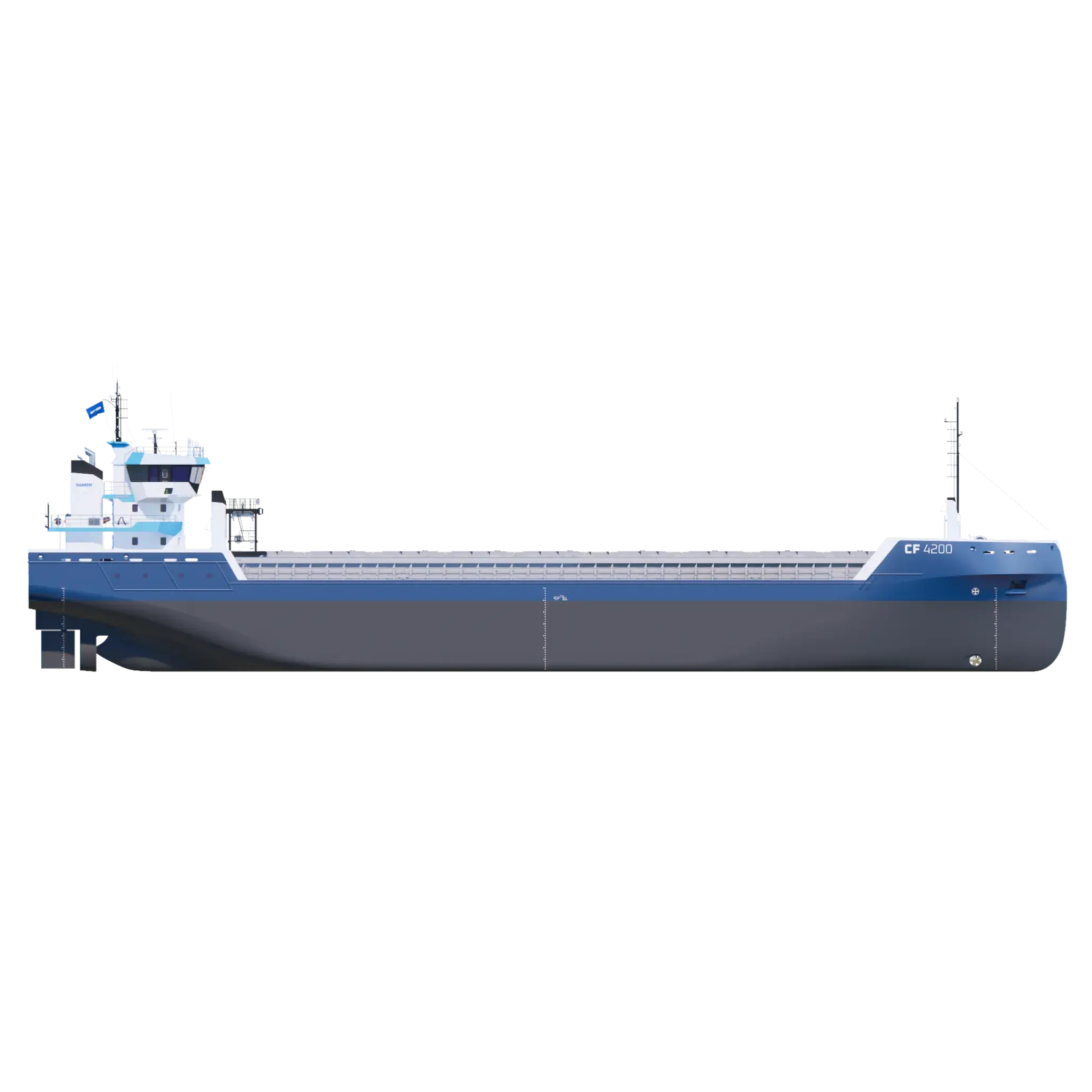

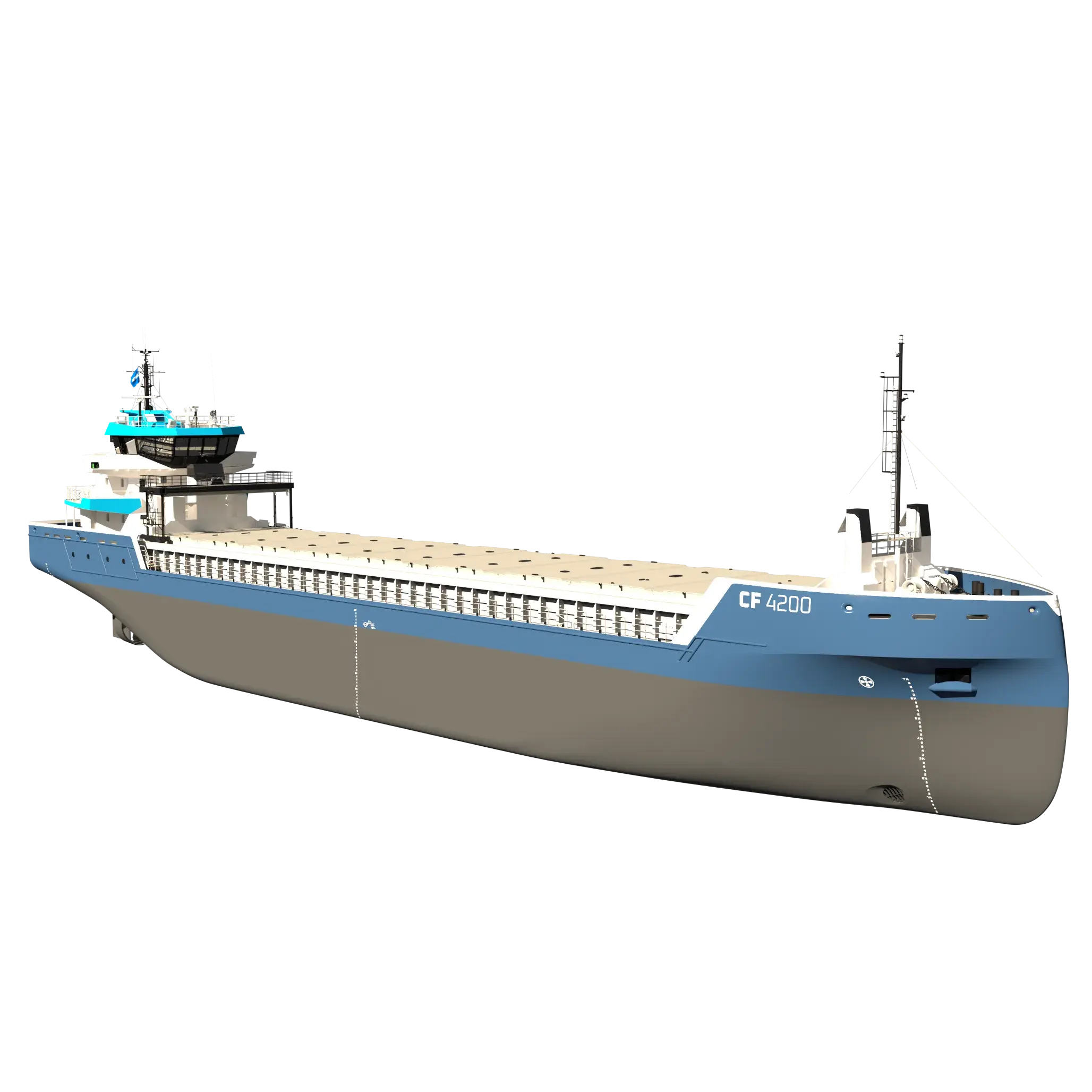

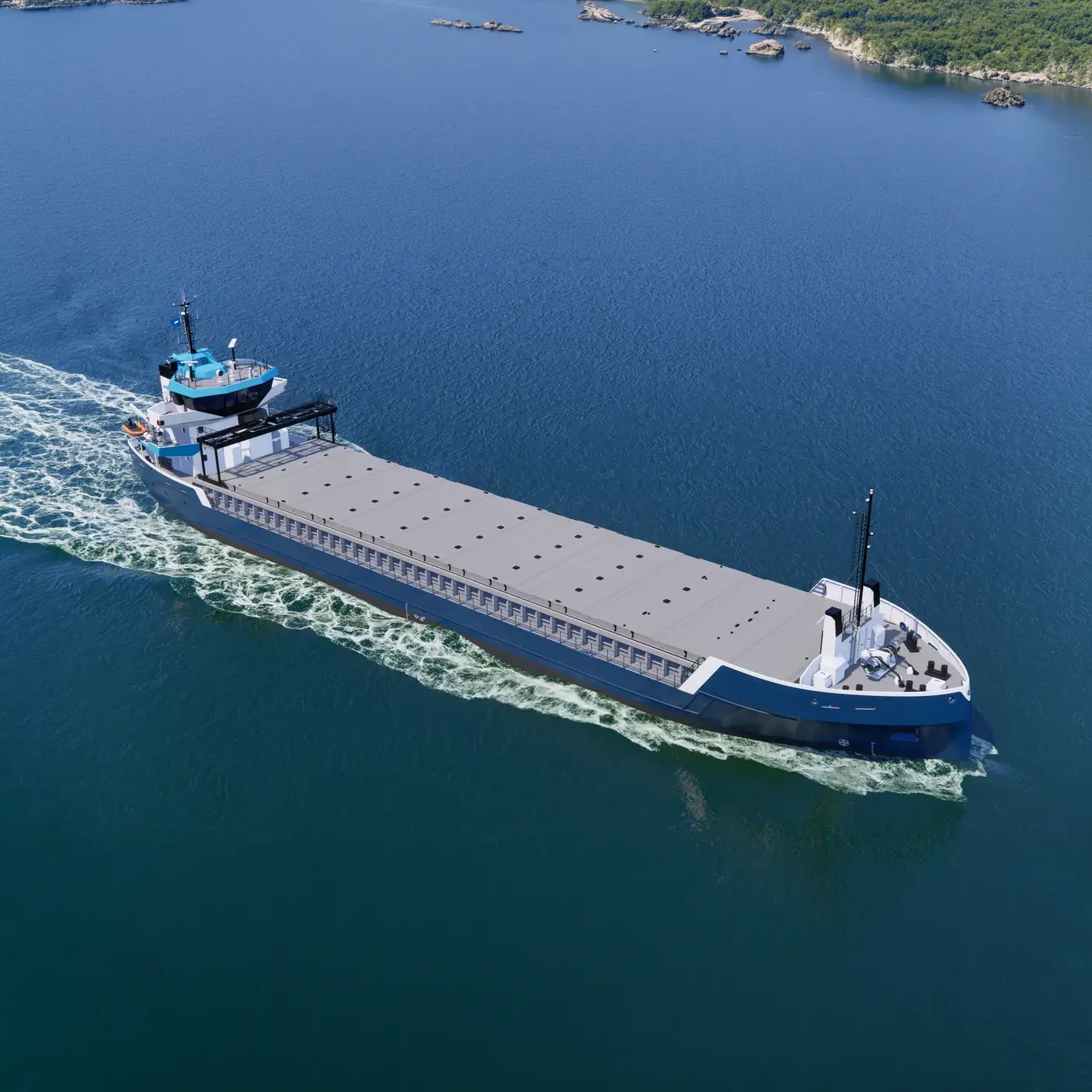

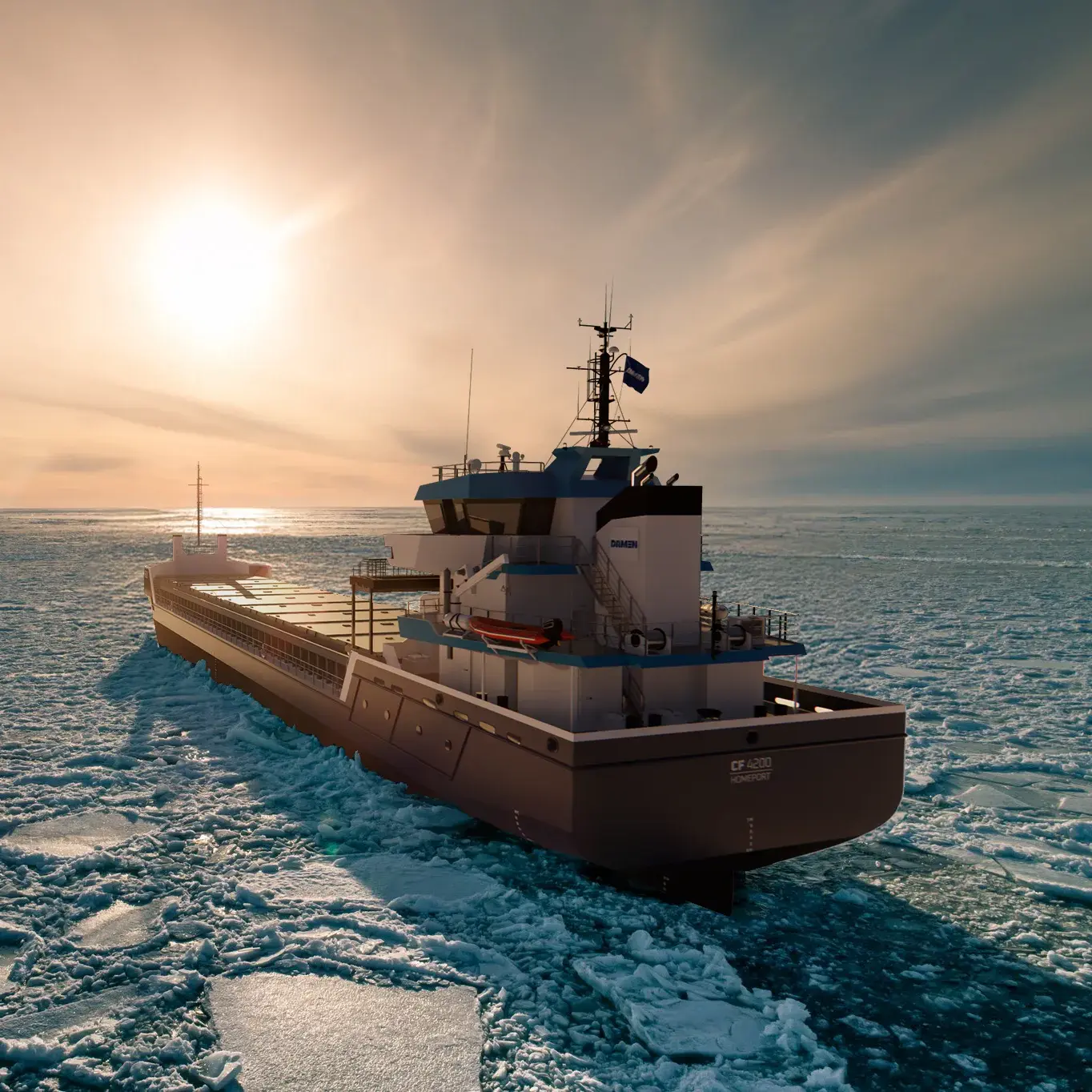

    The Combi Freighter (CF) 4200 offers operational flexibility. The vessel is available in both conventional and Ice Class versions, ensuring its capability to operate over a wide geographical area. Efficient performance results from the CF 4200 vessel’s modern hull, which is optimised balance efficient open-water sailing with minimal resistance in ice conditions. It includes fine entry angles at the bow and a large-diameter propeller within a nozzle for enhanced propulsion efficiency. The CF 4200 also offers cargo versatility with its box-shaped hold allowing multiple positions for its two grain bulkheads. A tween deck provides flexibility for transporting both bulk and breakbulk. Cargo can be precisely secured thanks to lashing eyes located along the longitudinal bulkheads.
    • Modern hull design for optimal performance in open water and ice conditions
    • Suitable for various cargoes, flexible loading options for optimal positioning
    • Design ready for sustainable features
    • Damen quality, build in Asia, warranty from the Netherlands

    Key figures

    4300

    87.9

    13.5

    6

    5700

    Cargo dimensions

    Tonnage
    2900 GT
    Hold length
    61.06 m
    Hold beam
    10.9 m
    Hold height
    8.69 m
    Dimension (cuft)
    201,300

    Performances / Capacities

    Speed
    11.3 kn
    Propulsion
    1326
    Propellor
    3100
    Bow thruster (kW)
    1x 280
    Generator (kWe)
    1x 465, 1x 118, 1x 111

    Available options

    Propulsion
    PTO/PTI system Wake equalizing duct
    Energy storage
    Upgrade energy storage system
    Battery setup
    Battery container
    Fuel option
    Bio diesel
    Cargo hold flexibility
    Tween deck panels
    Class
    Class 1 dangerous goods (explosives)
    Do you want to know more?

    Compare similar vessels

    Deadweight (t)Length (m)Beam (m)Draught (m)Hold (m³)
    Combi Freighter 4200 (ICE)430087.913.565700
    Combi Freighter 3850380089.7512.505.485250
    Combi Freighter 5000513086.6015.206.557001
    Combi Freighter 4200 (ICE)
    Deadweight (t)
    4300
    Length (m)
    87.9
    Beam (m)
    13.5
    Draught (m)
    6
    Hold (m³)
    5700
    Deadweight (t)
    3800
    Length (m)
    89.75
    Beam (m)
    12.50
    Draught (m)
    5.48
    Hold (m³)
    5250
    Deadweight (t)
    5130
    Length (m)
    86.60
    Beam (m)
    15.20
    Draught (m)
    6.55
    Hold (m³)
    7001
