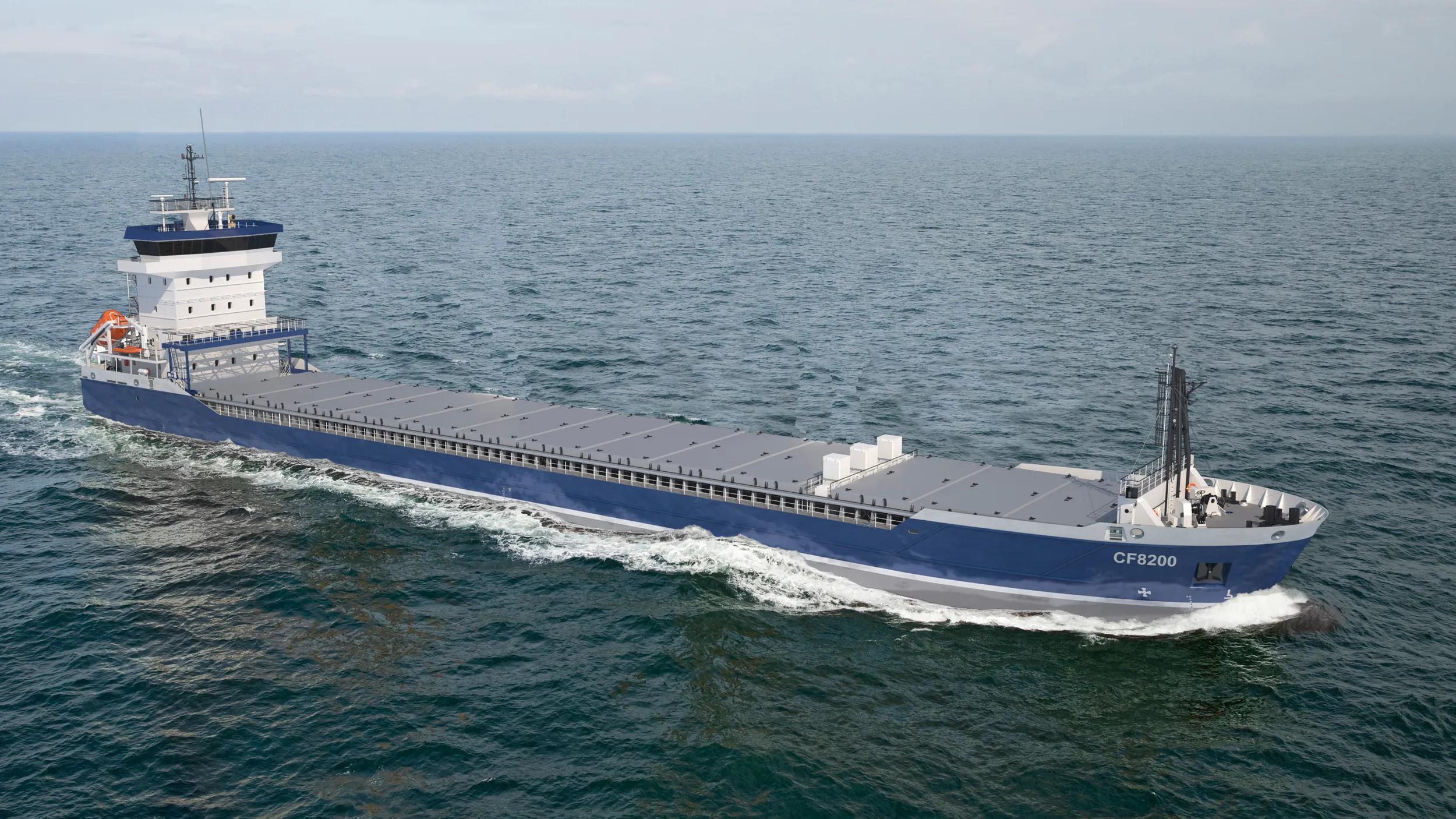

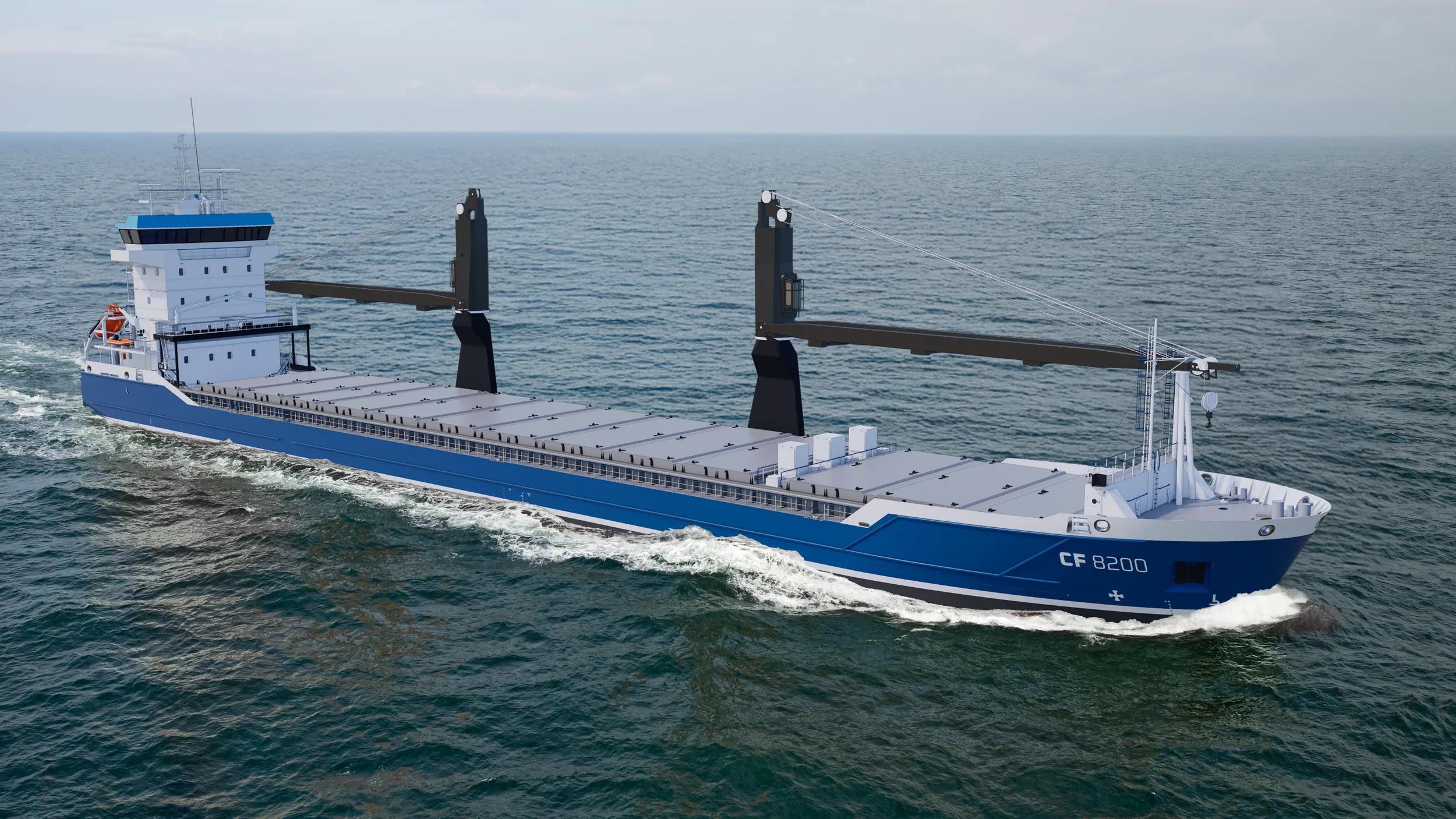

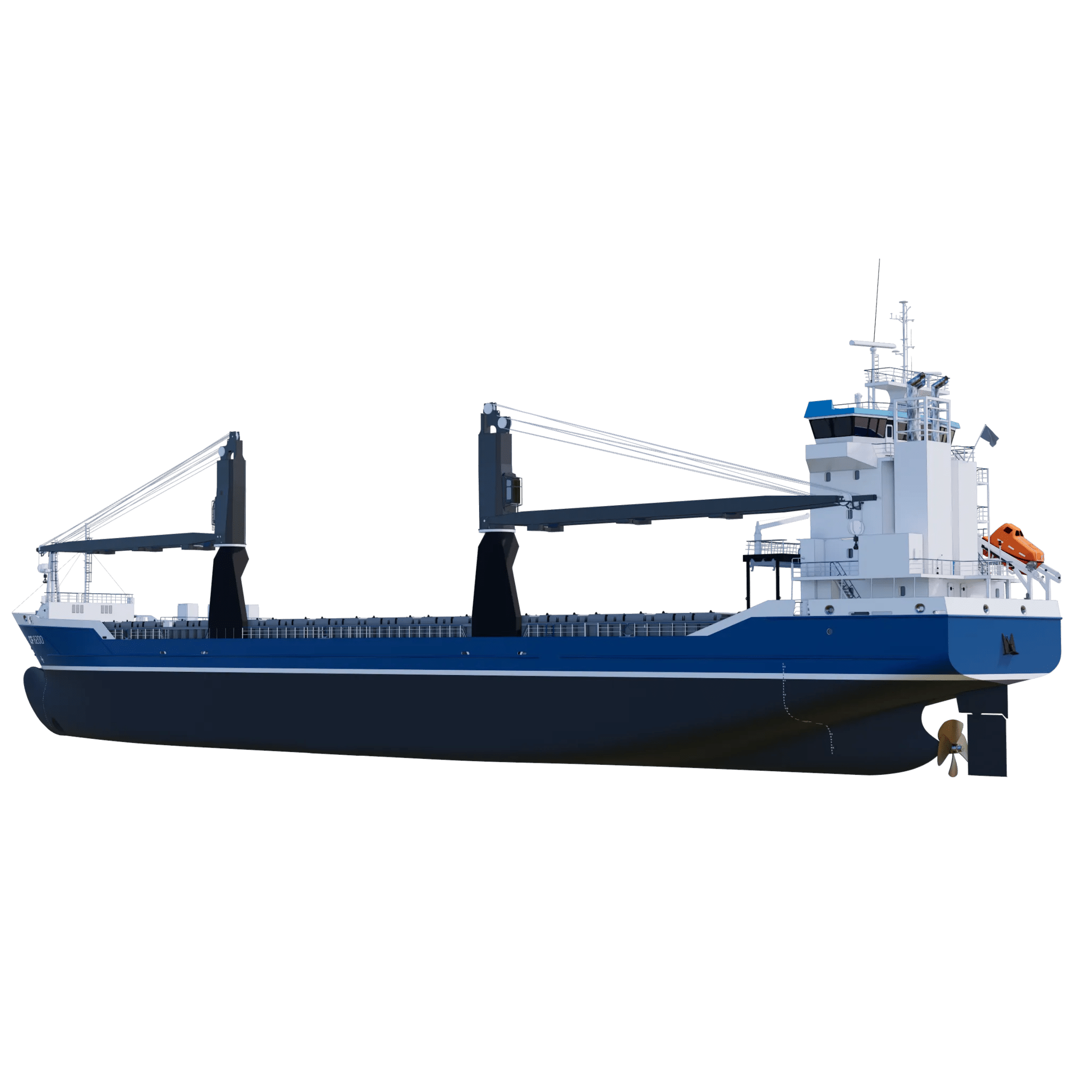

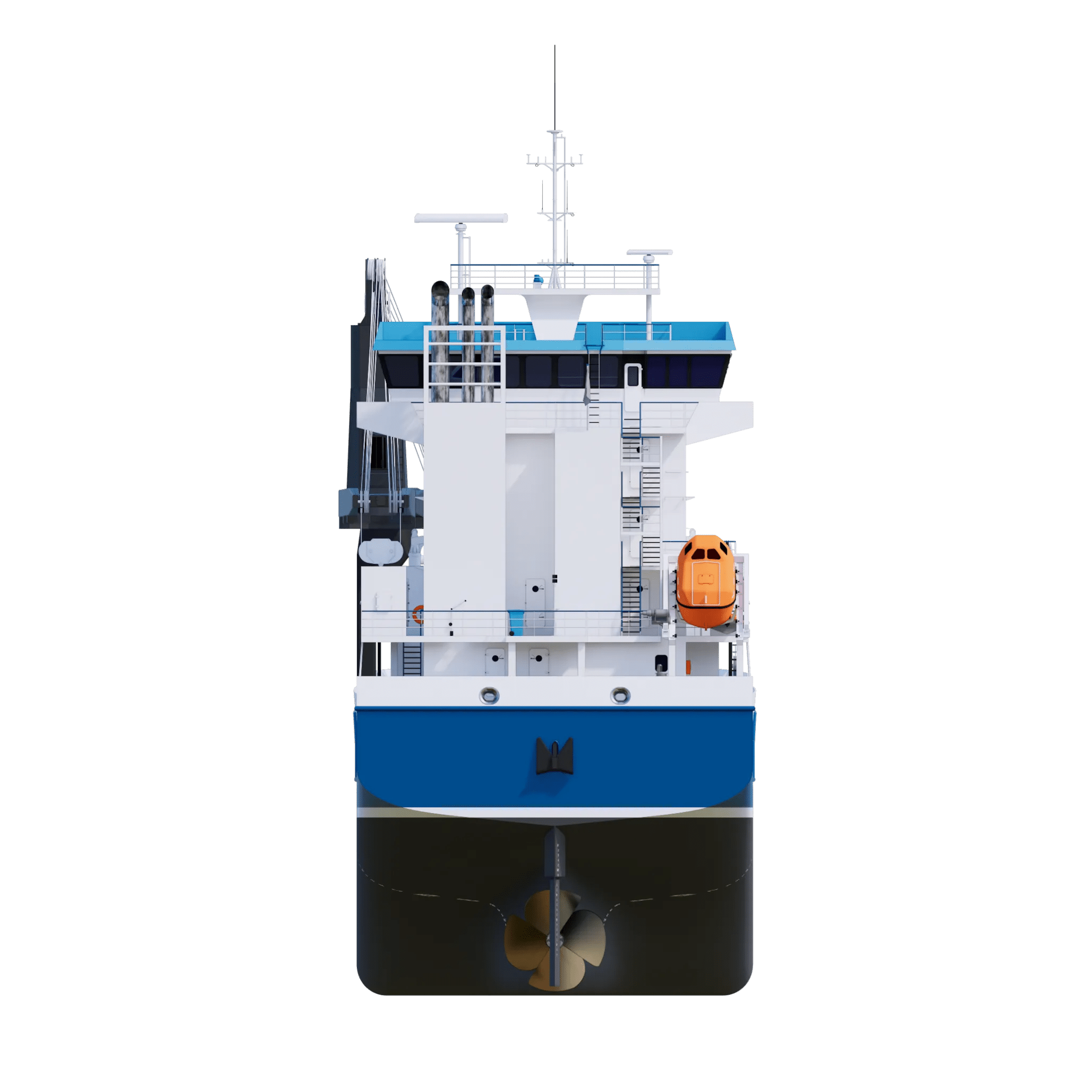

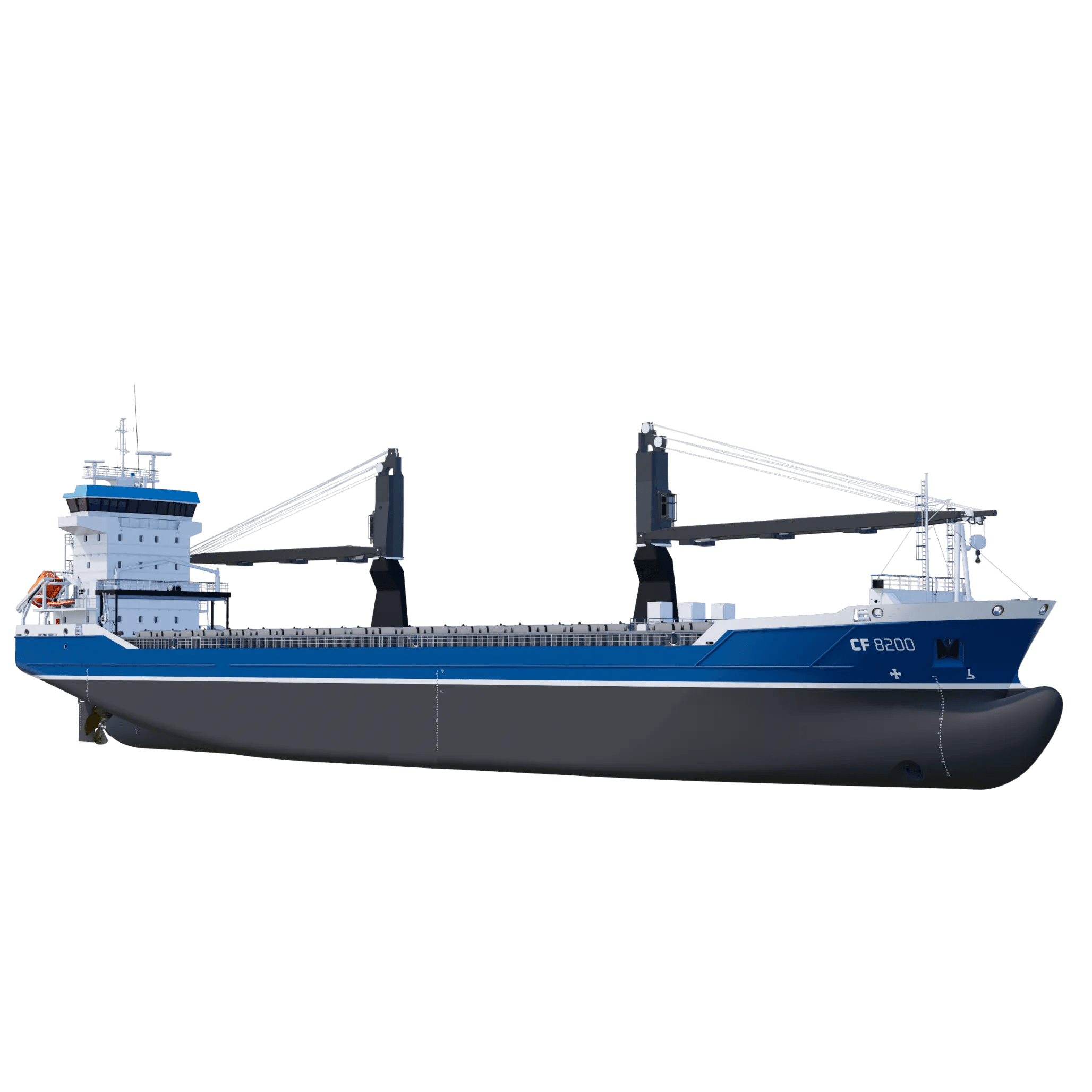

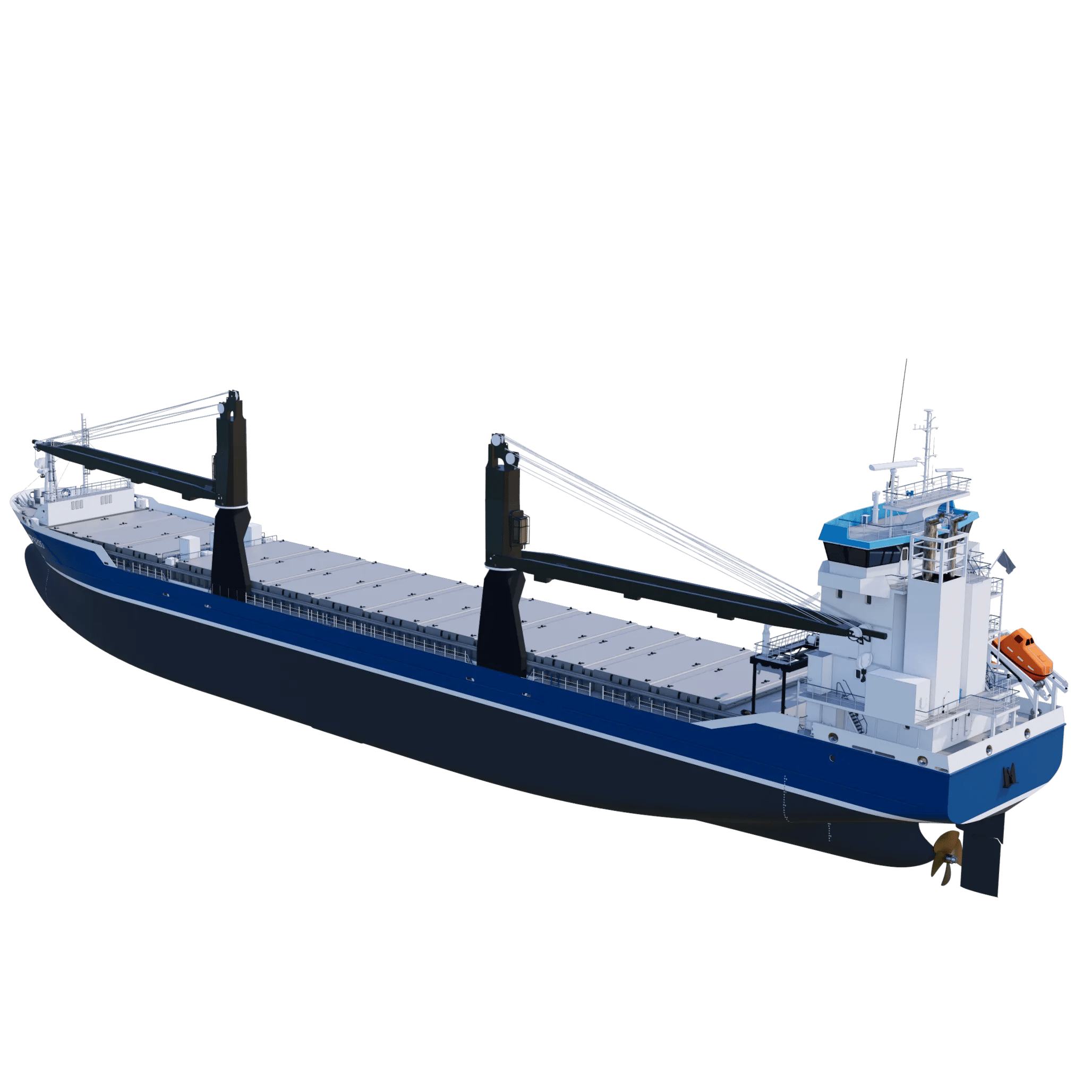

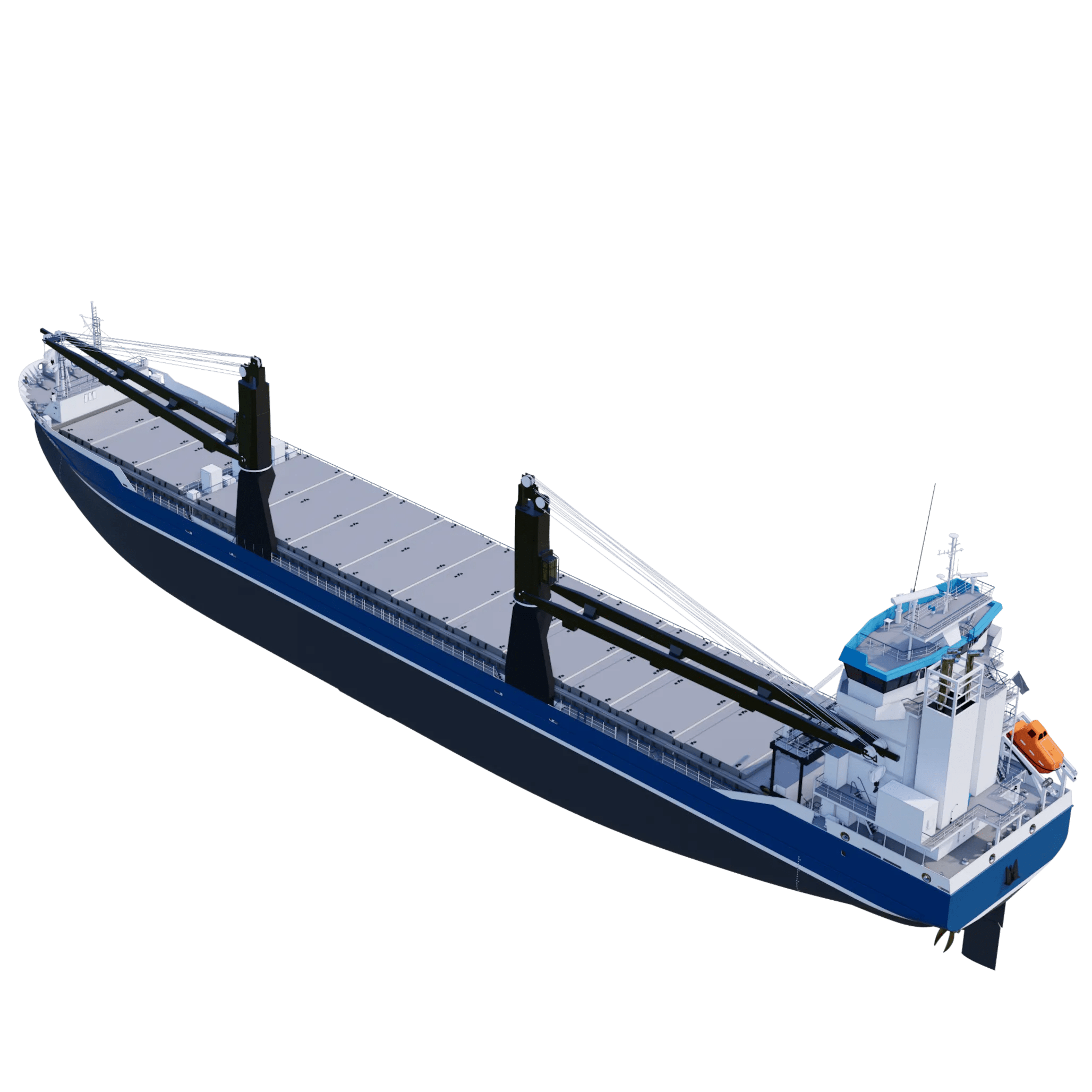

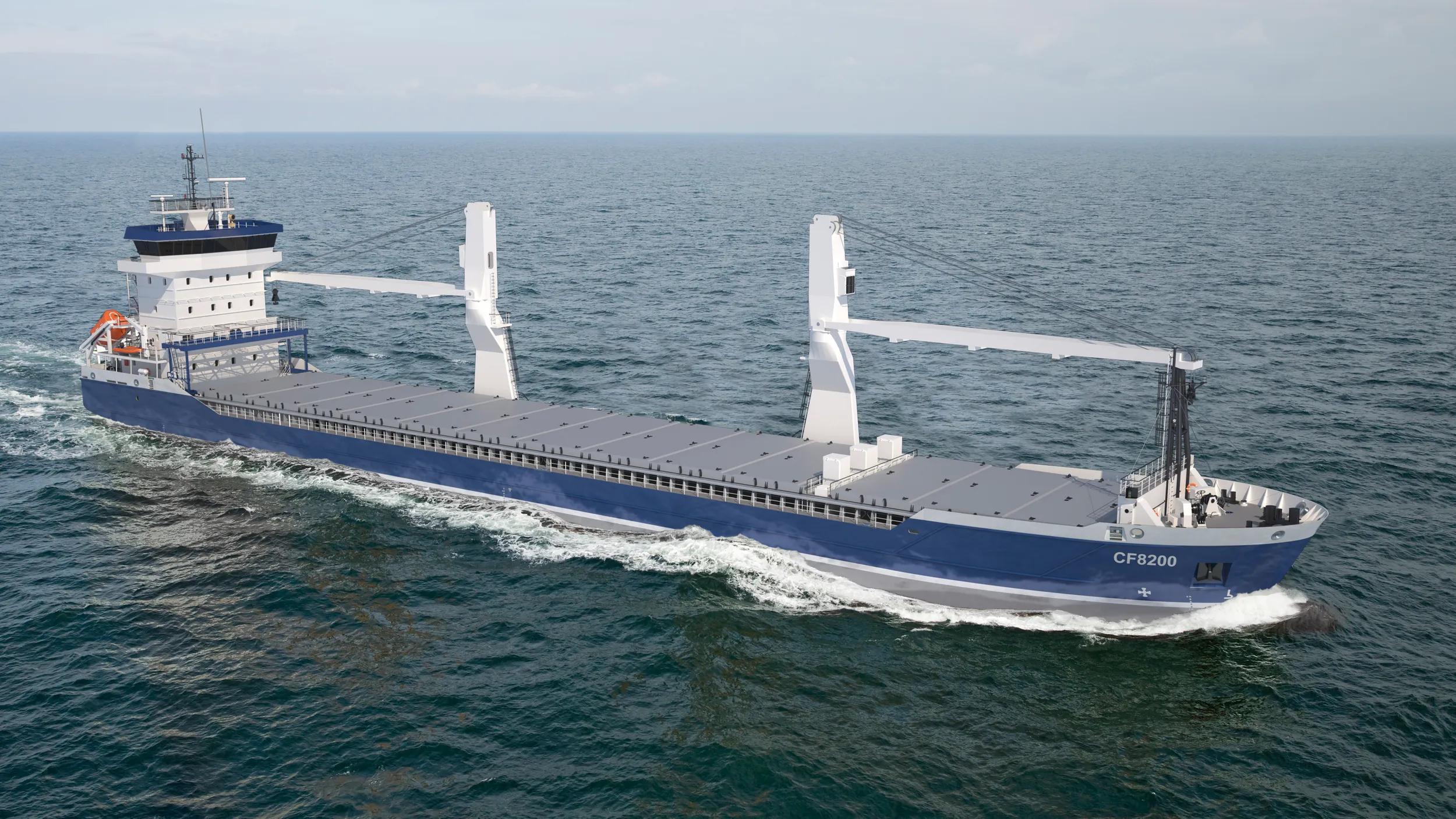

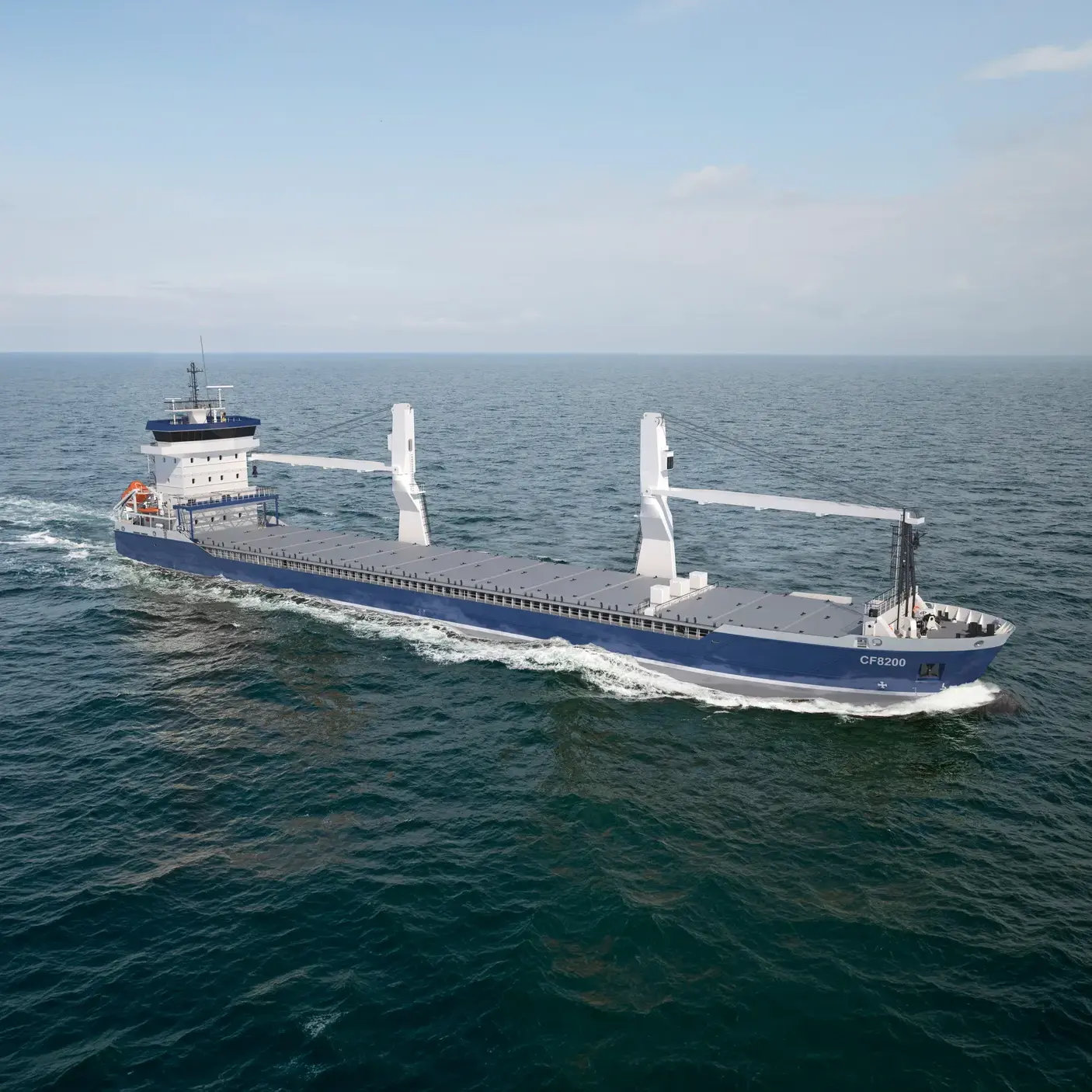

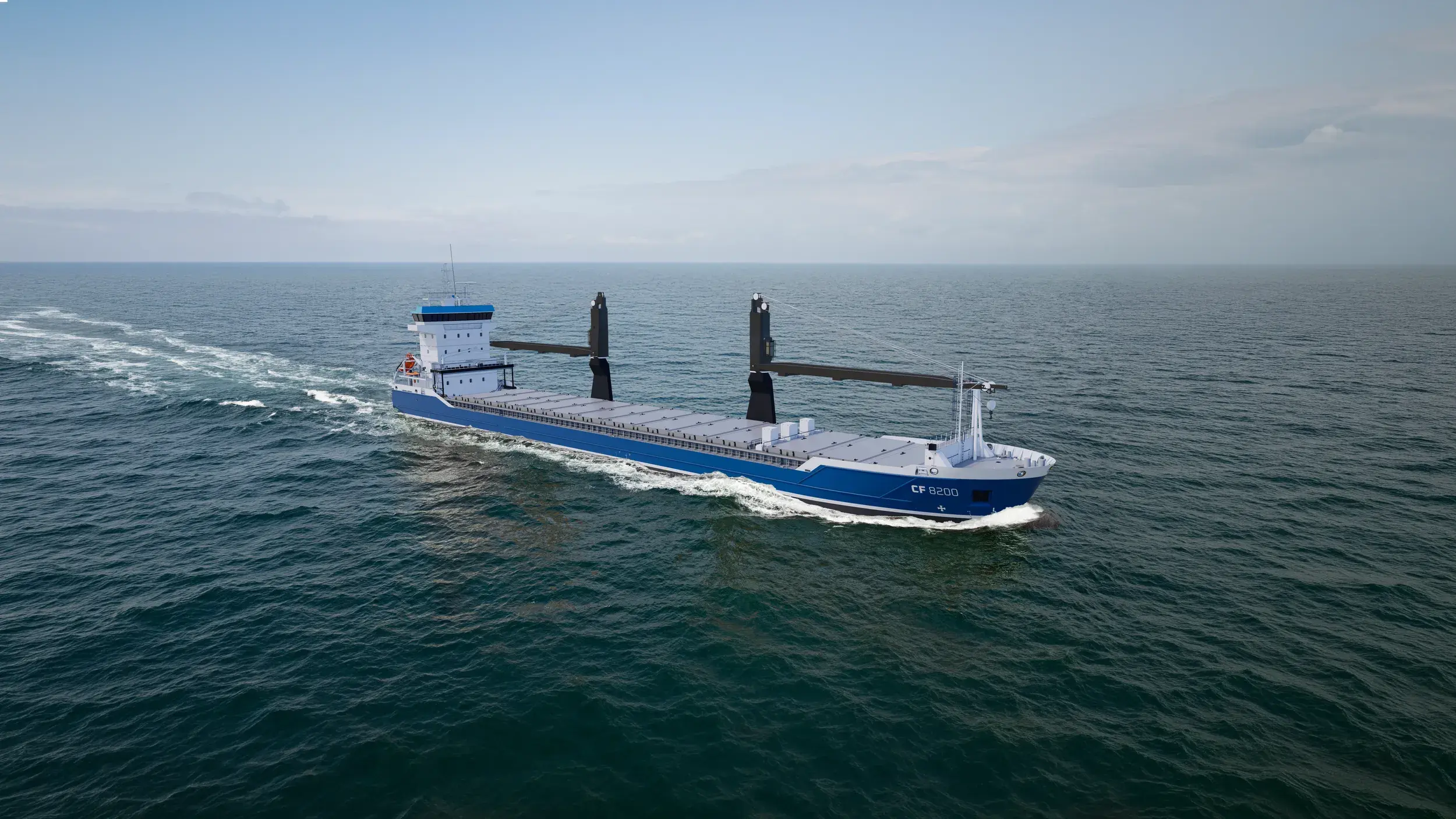

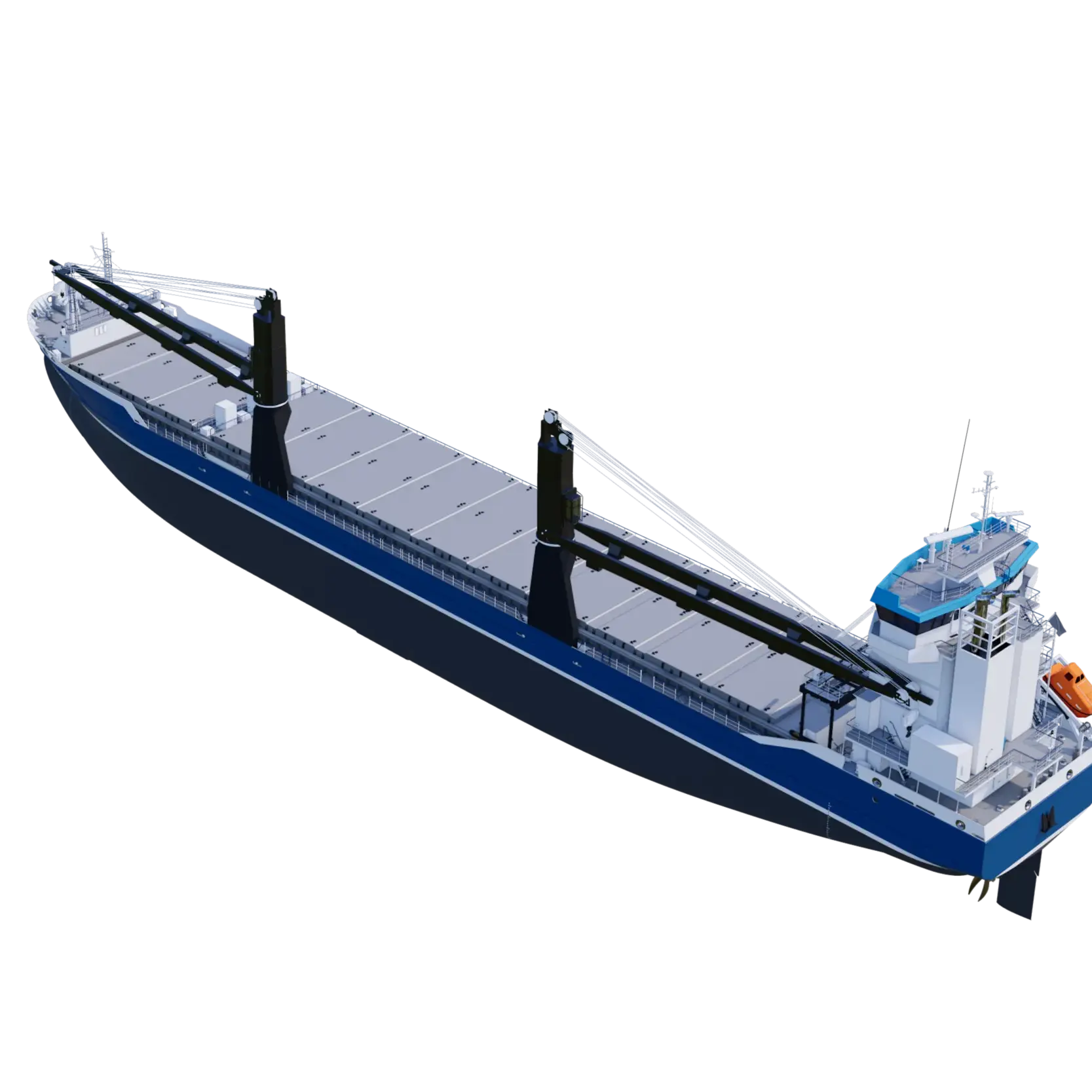

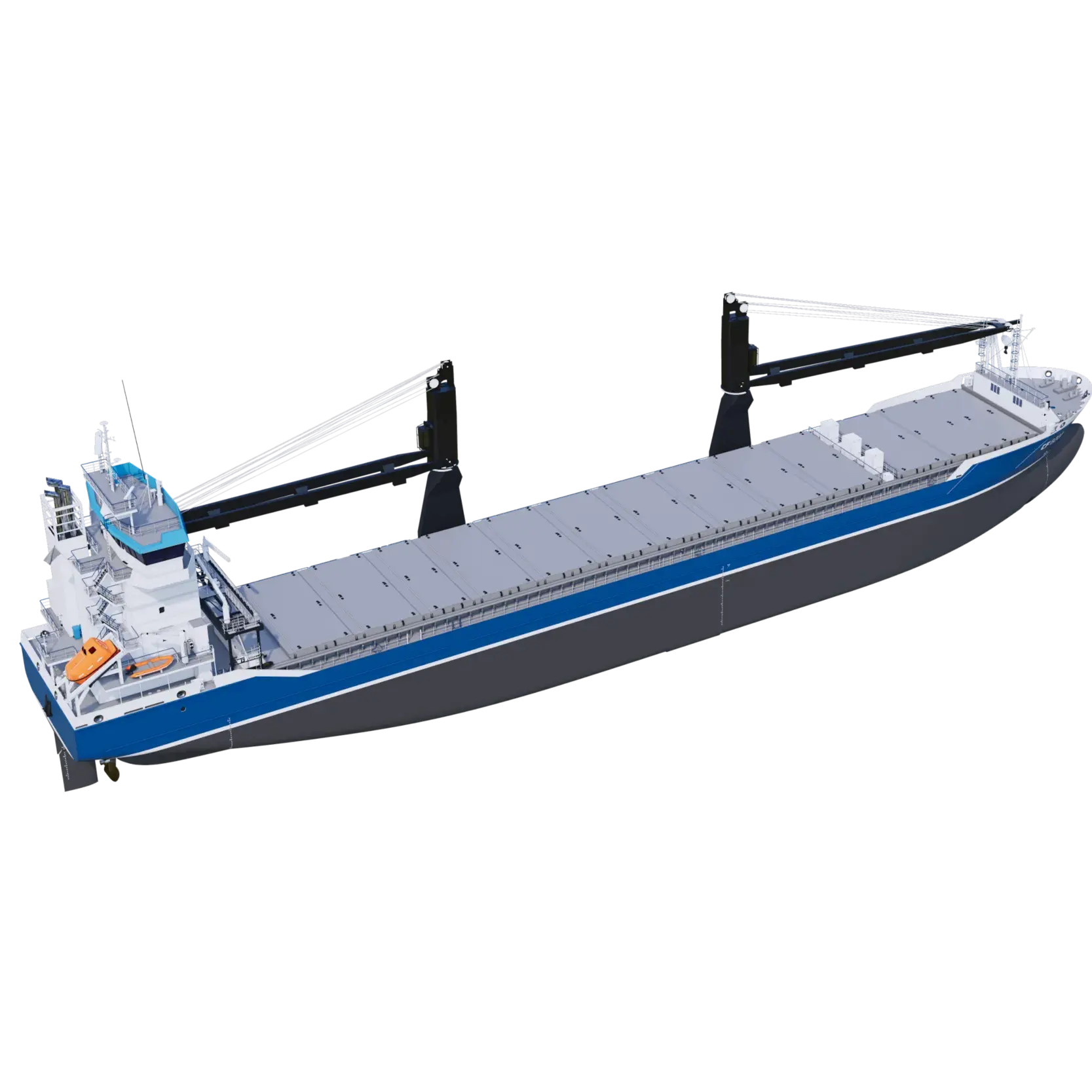

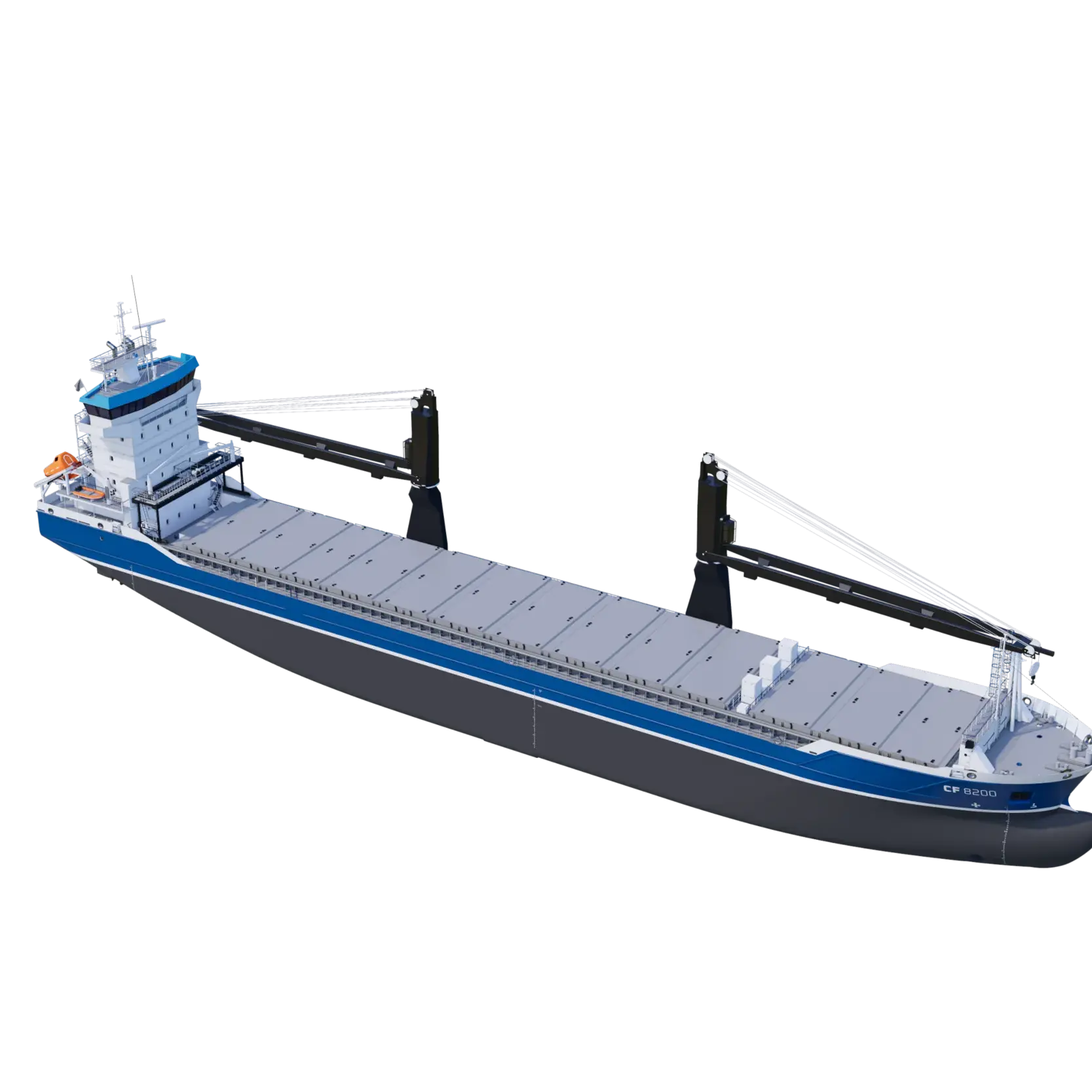

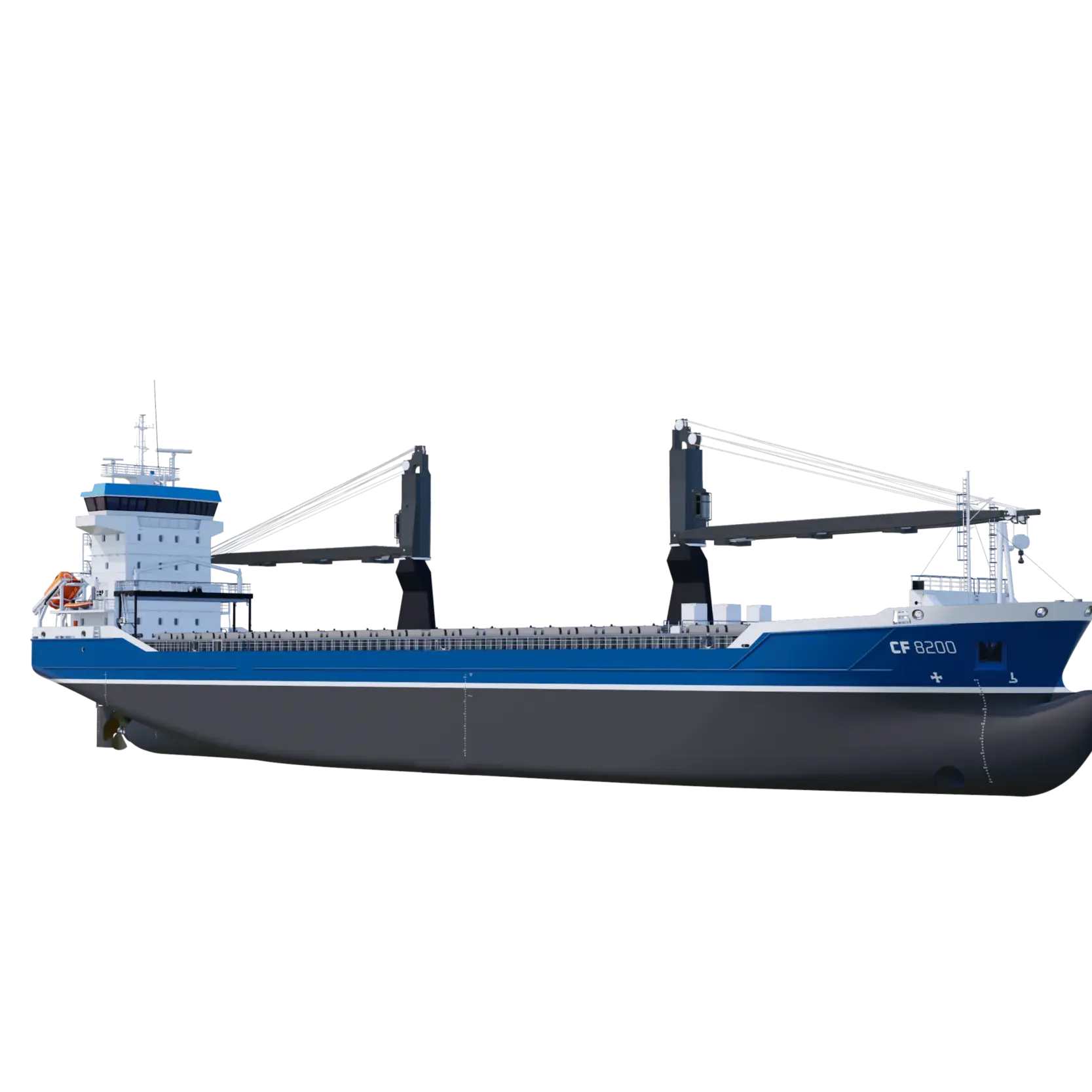

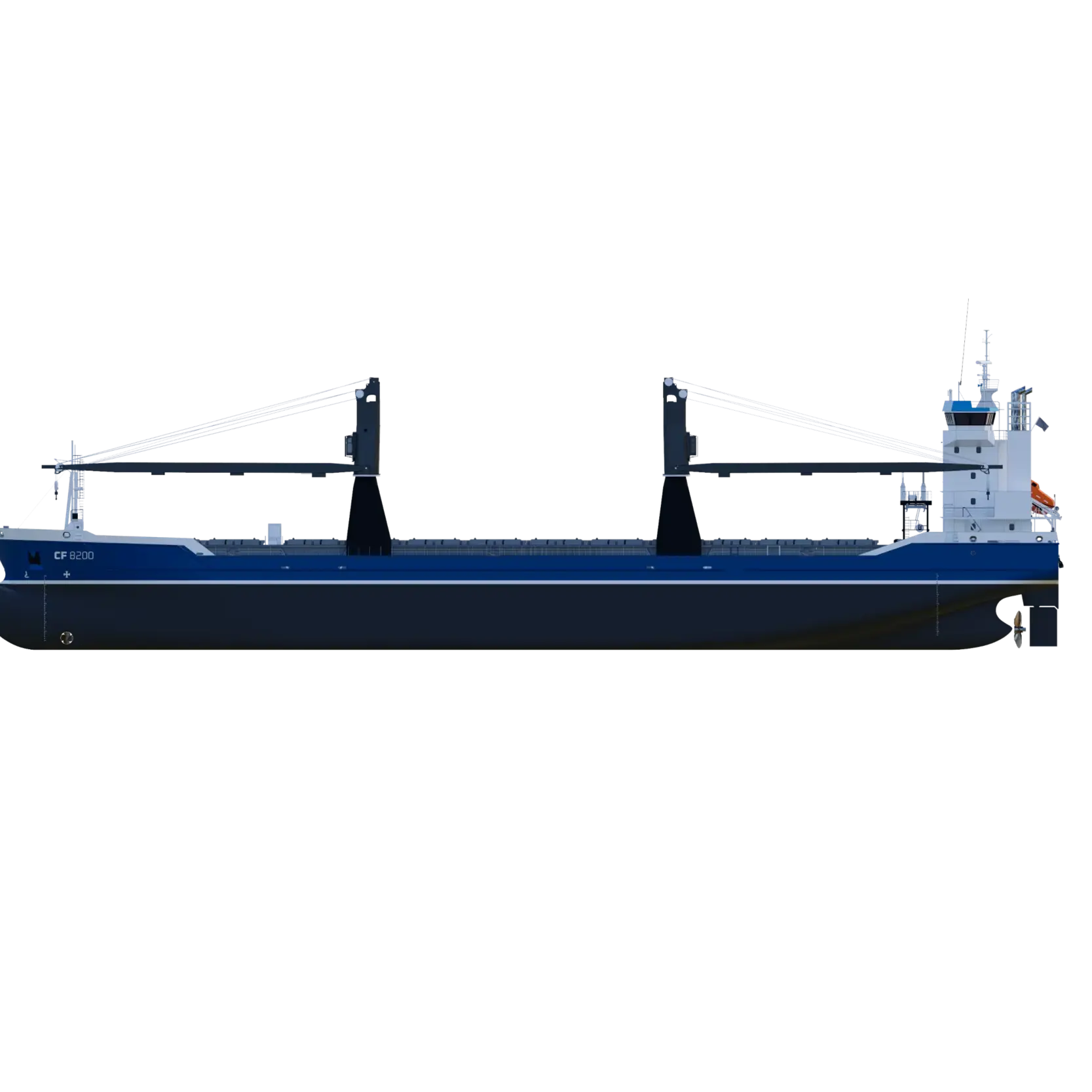

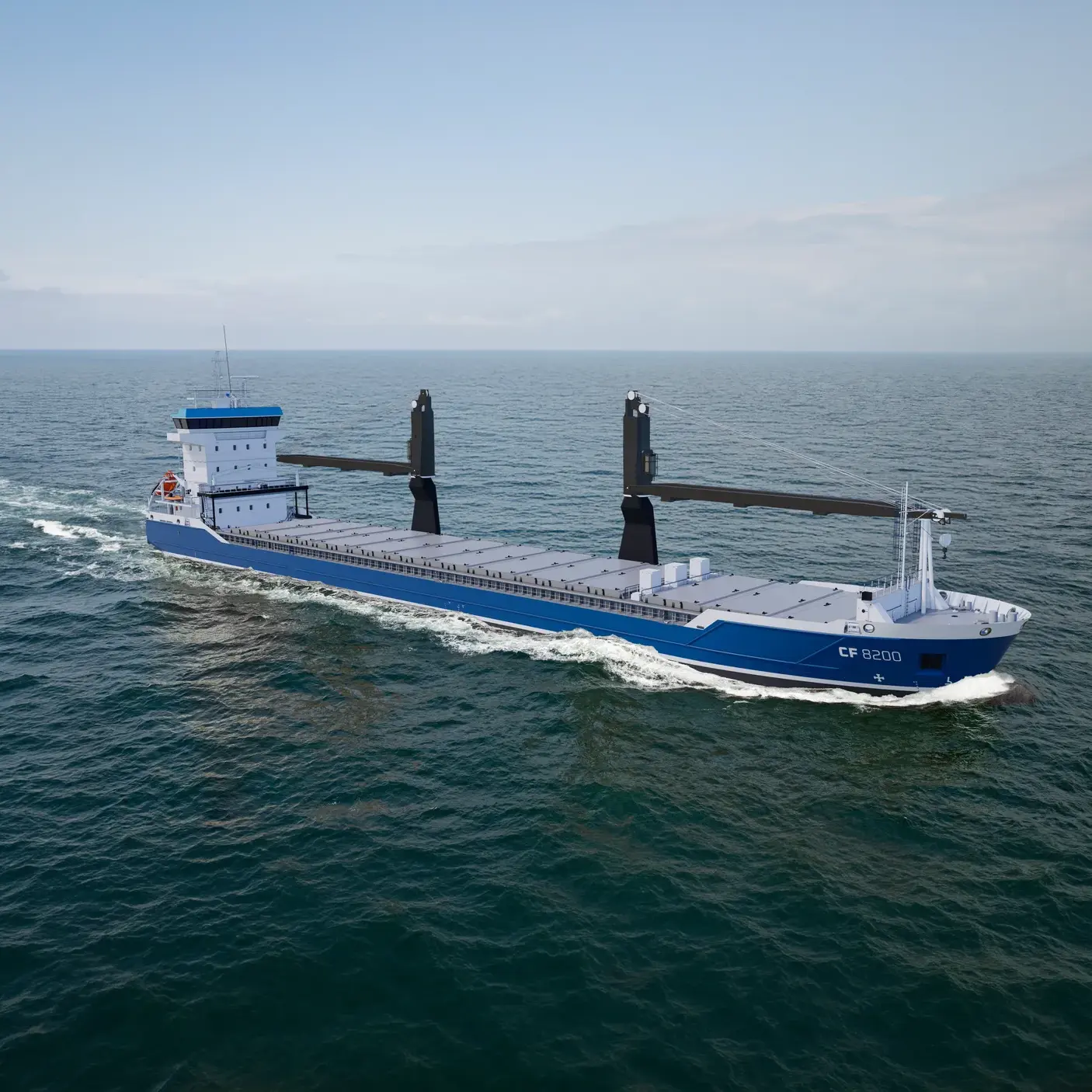

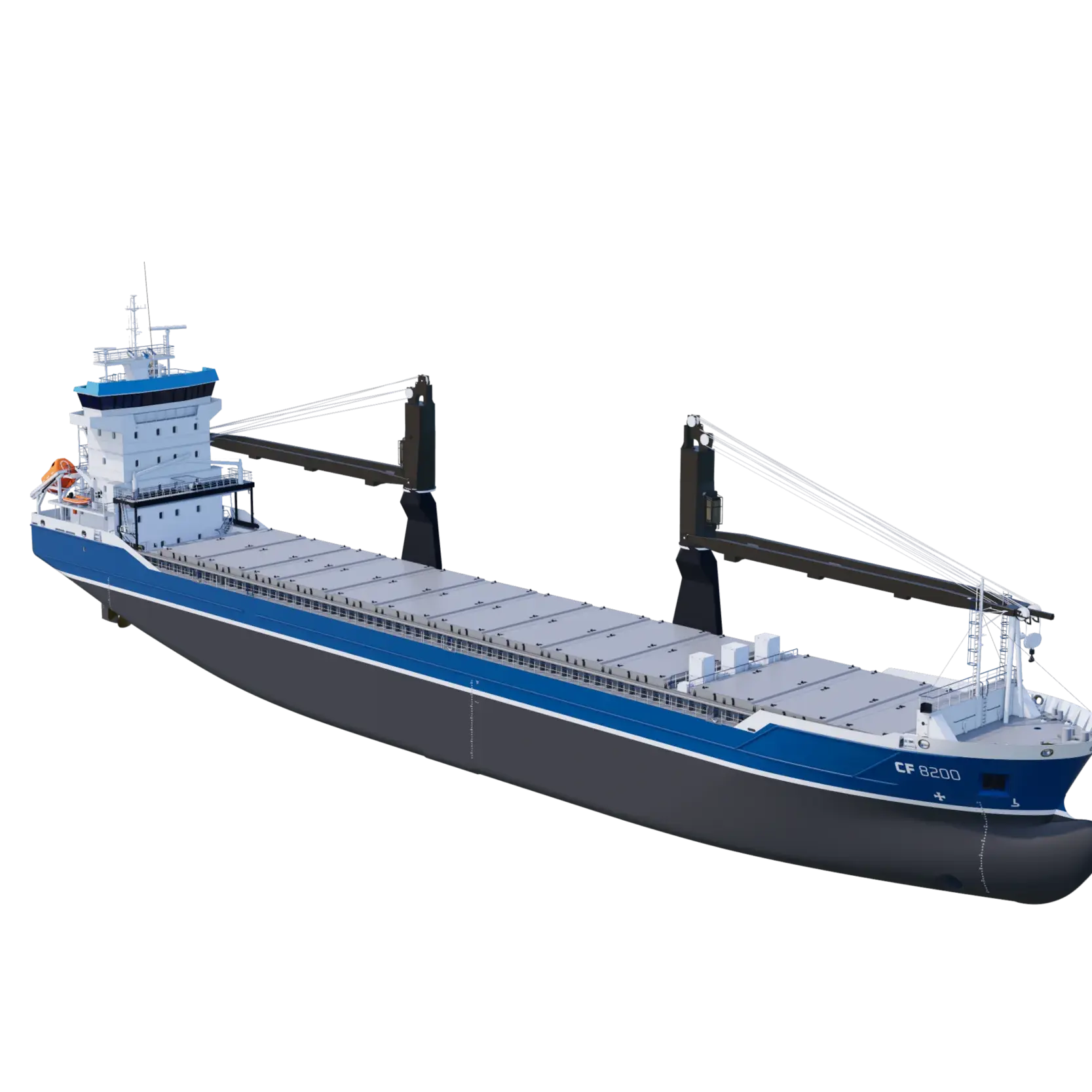

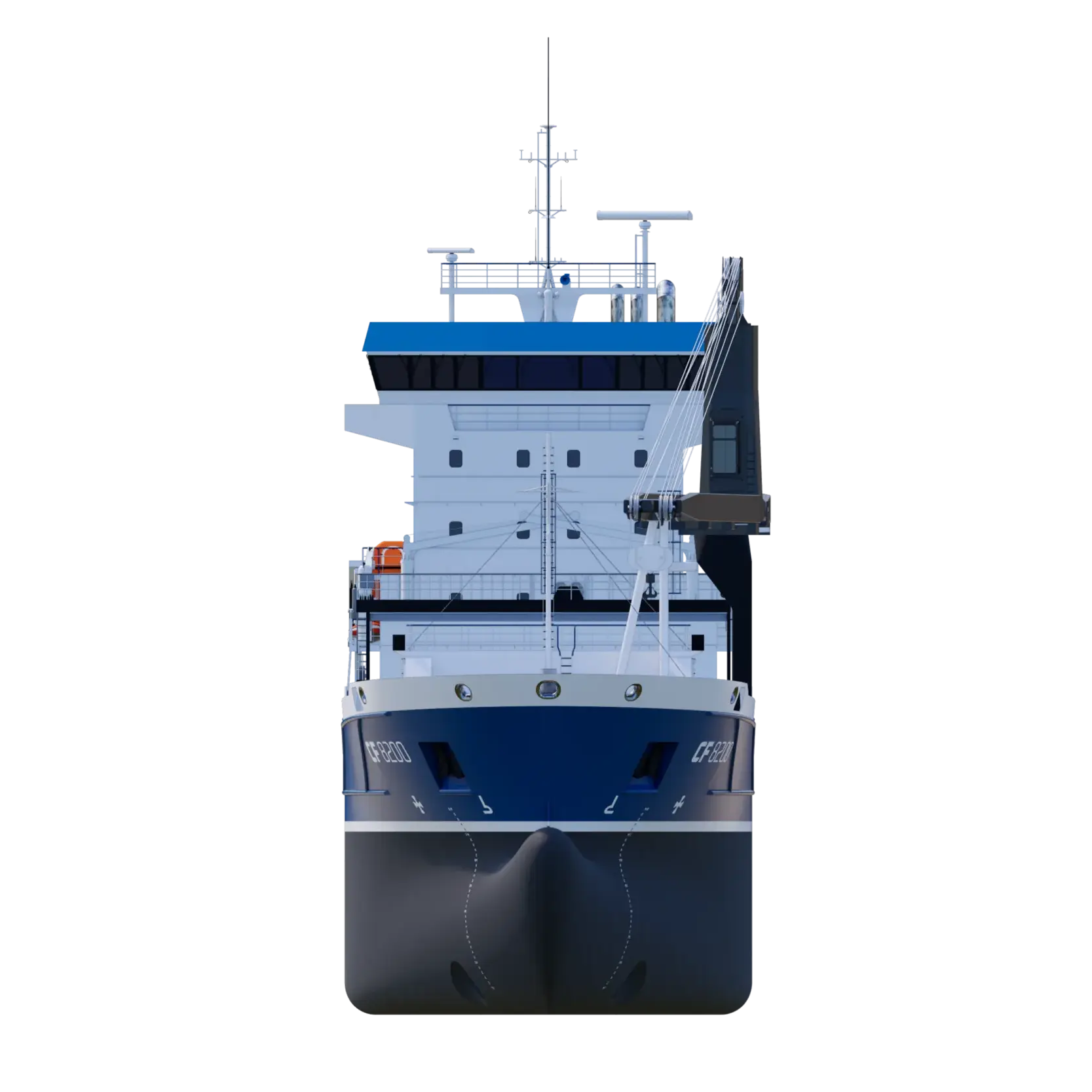

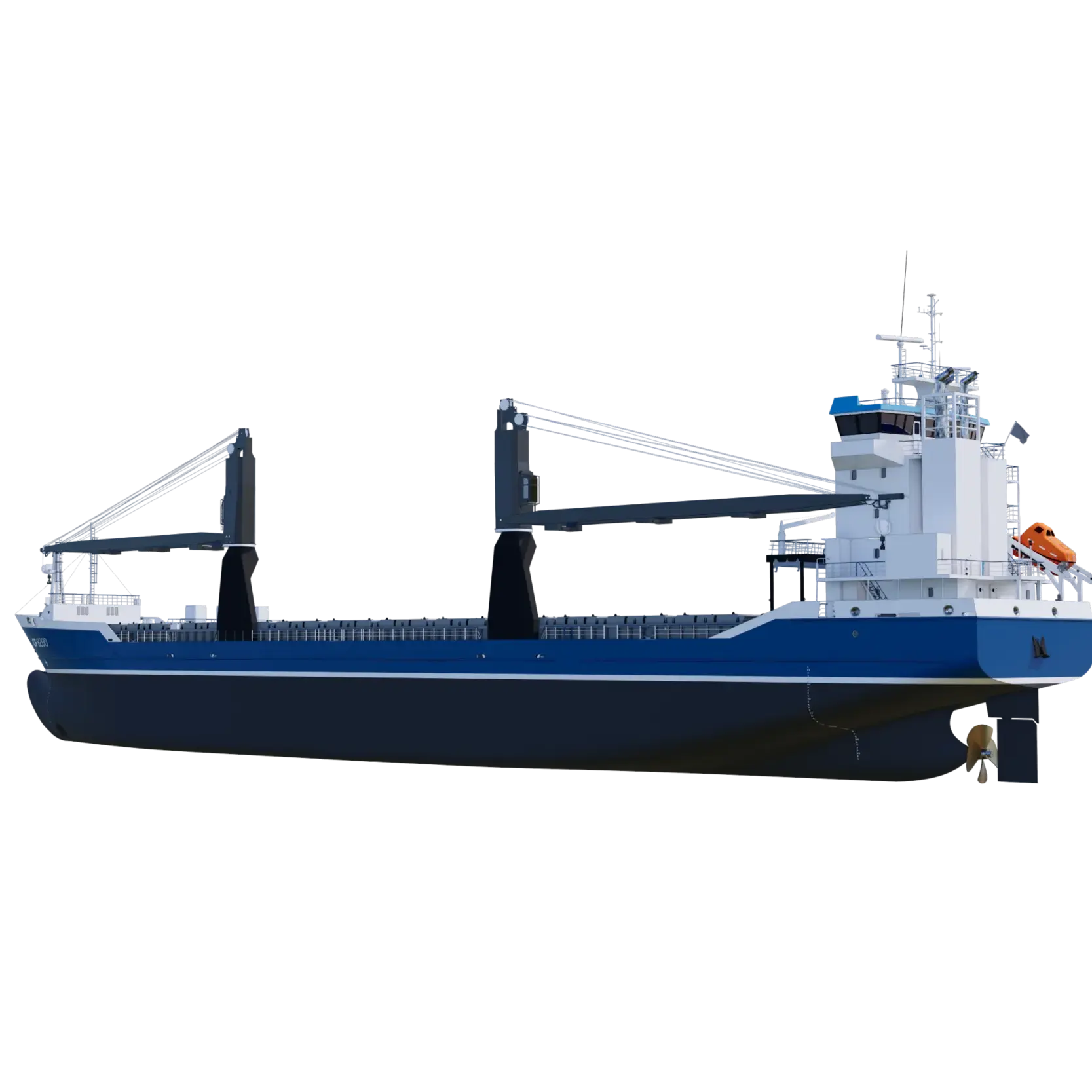

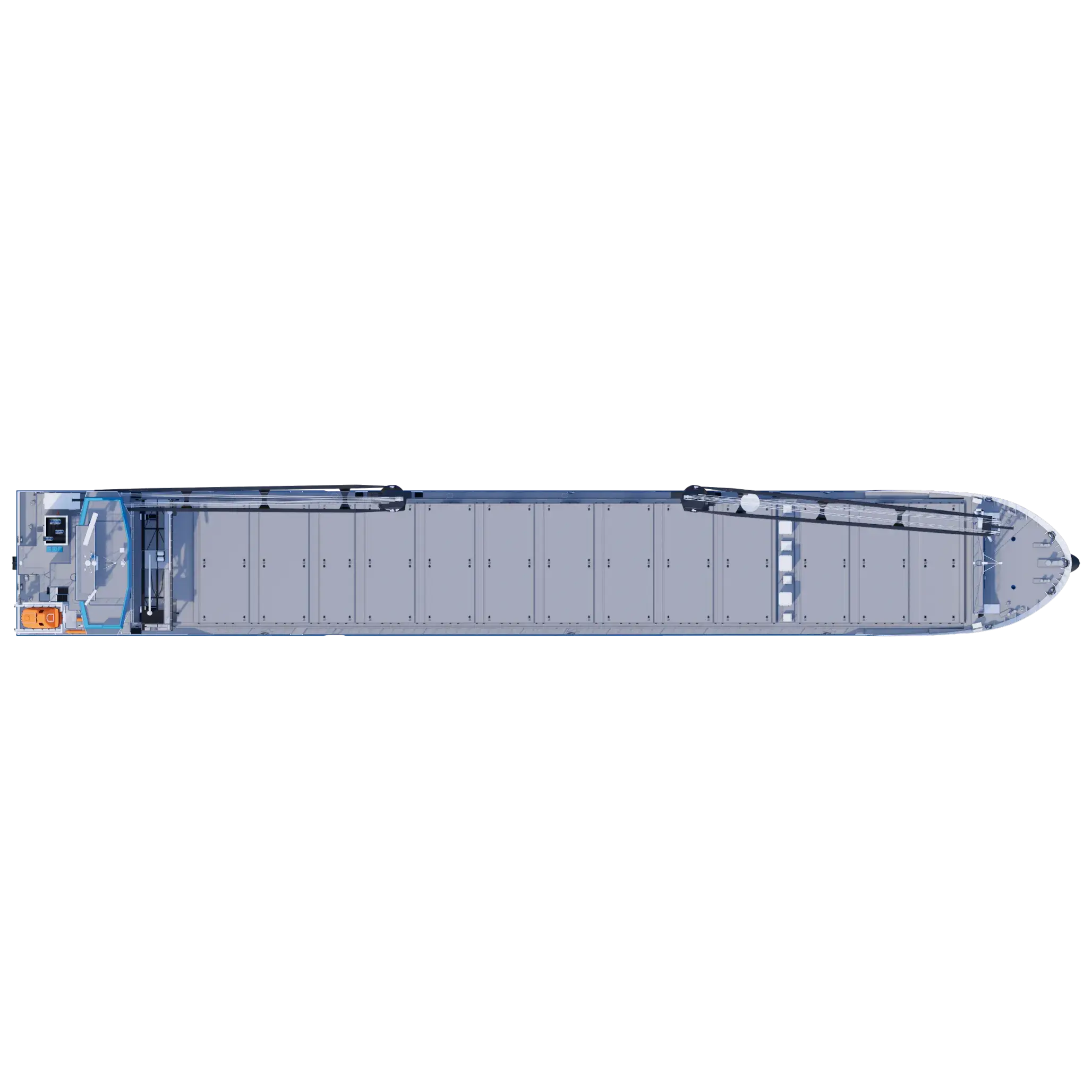

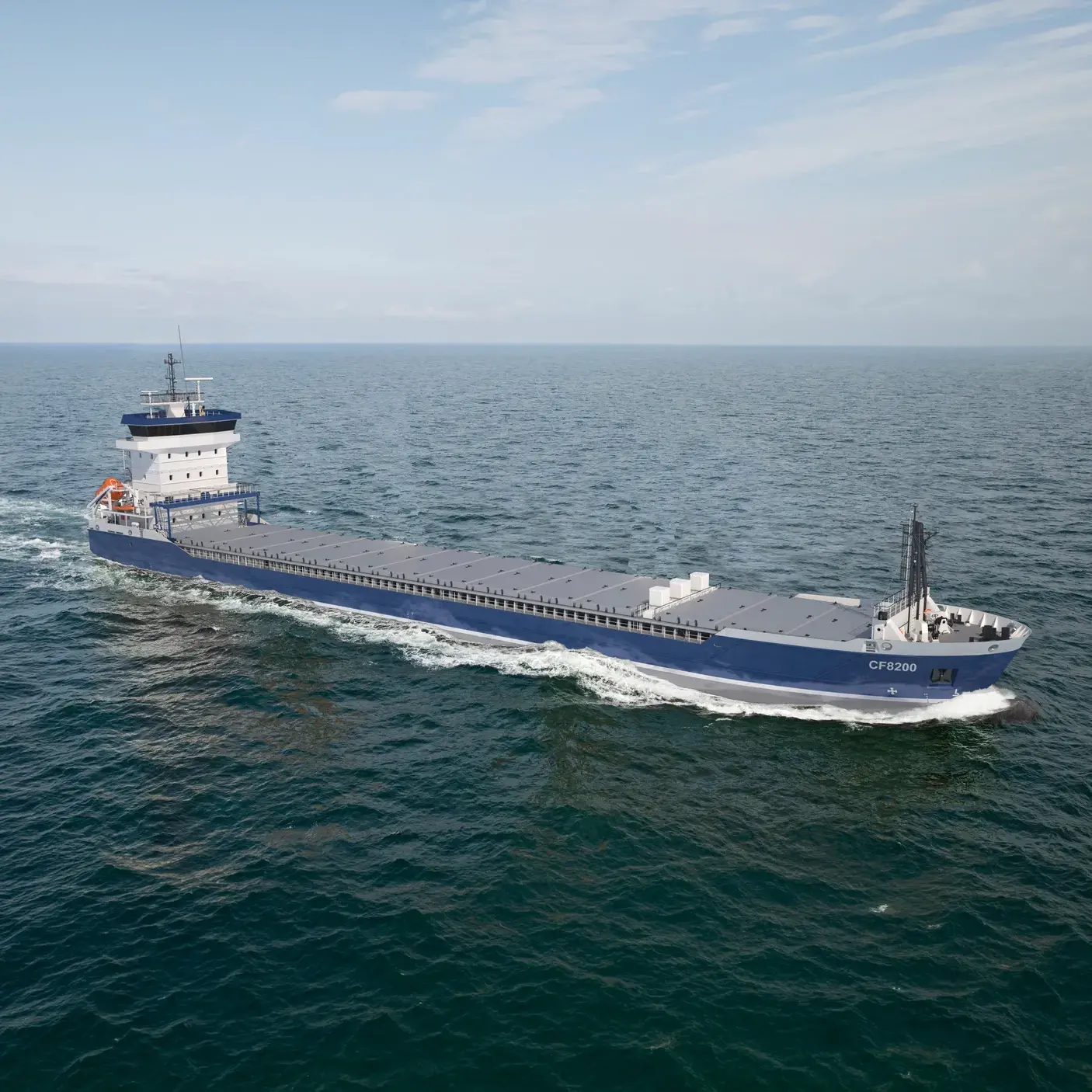

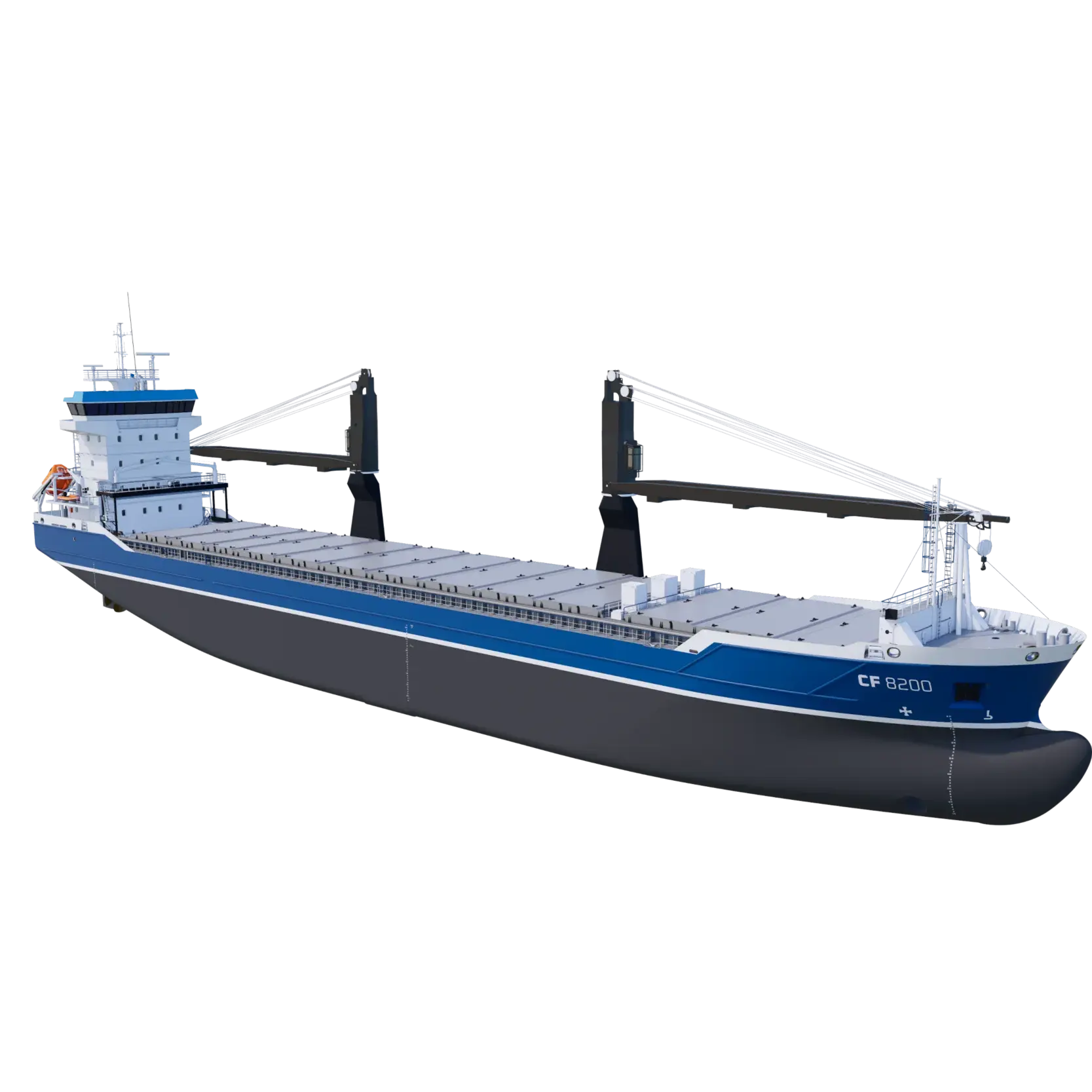

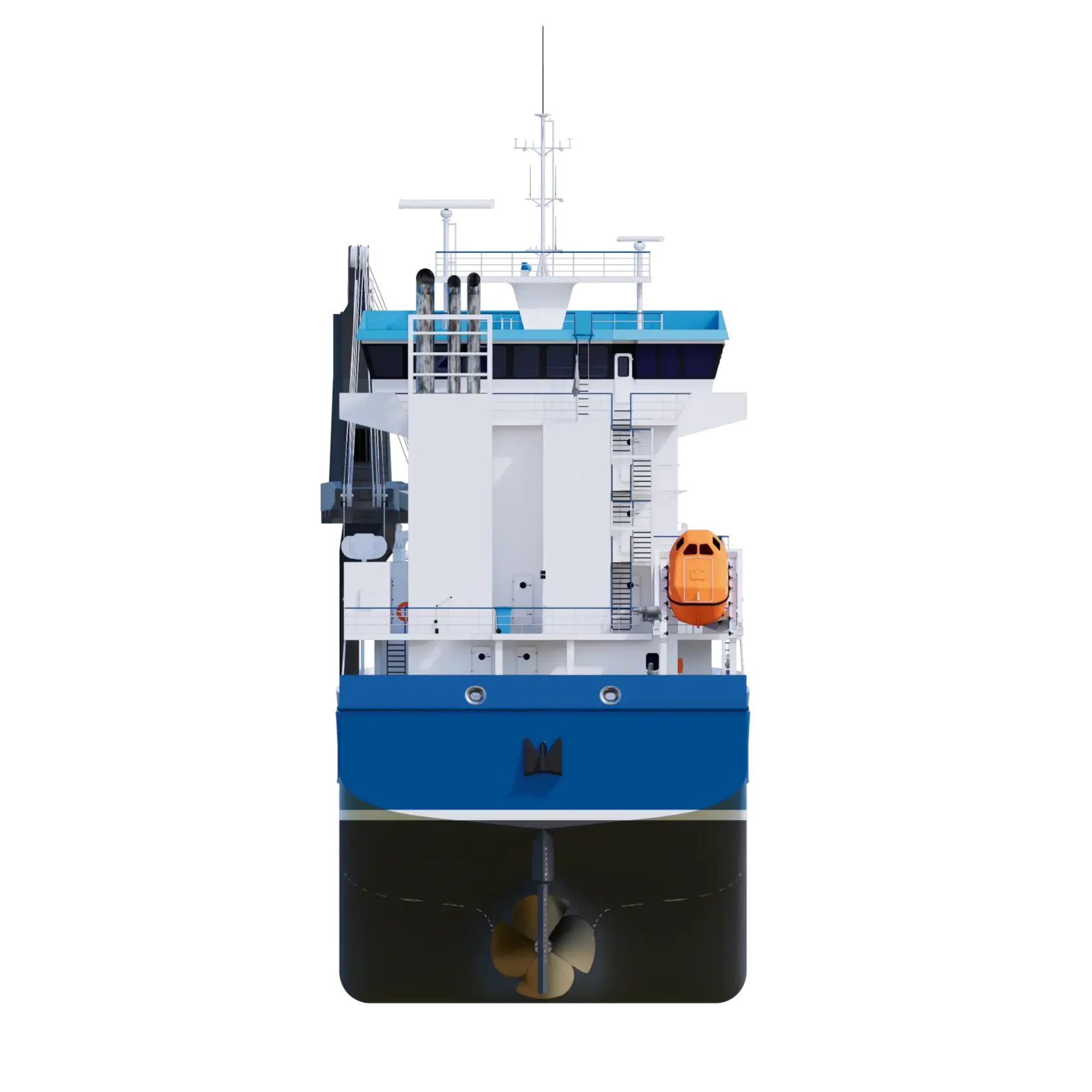

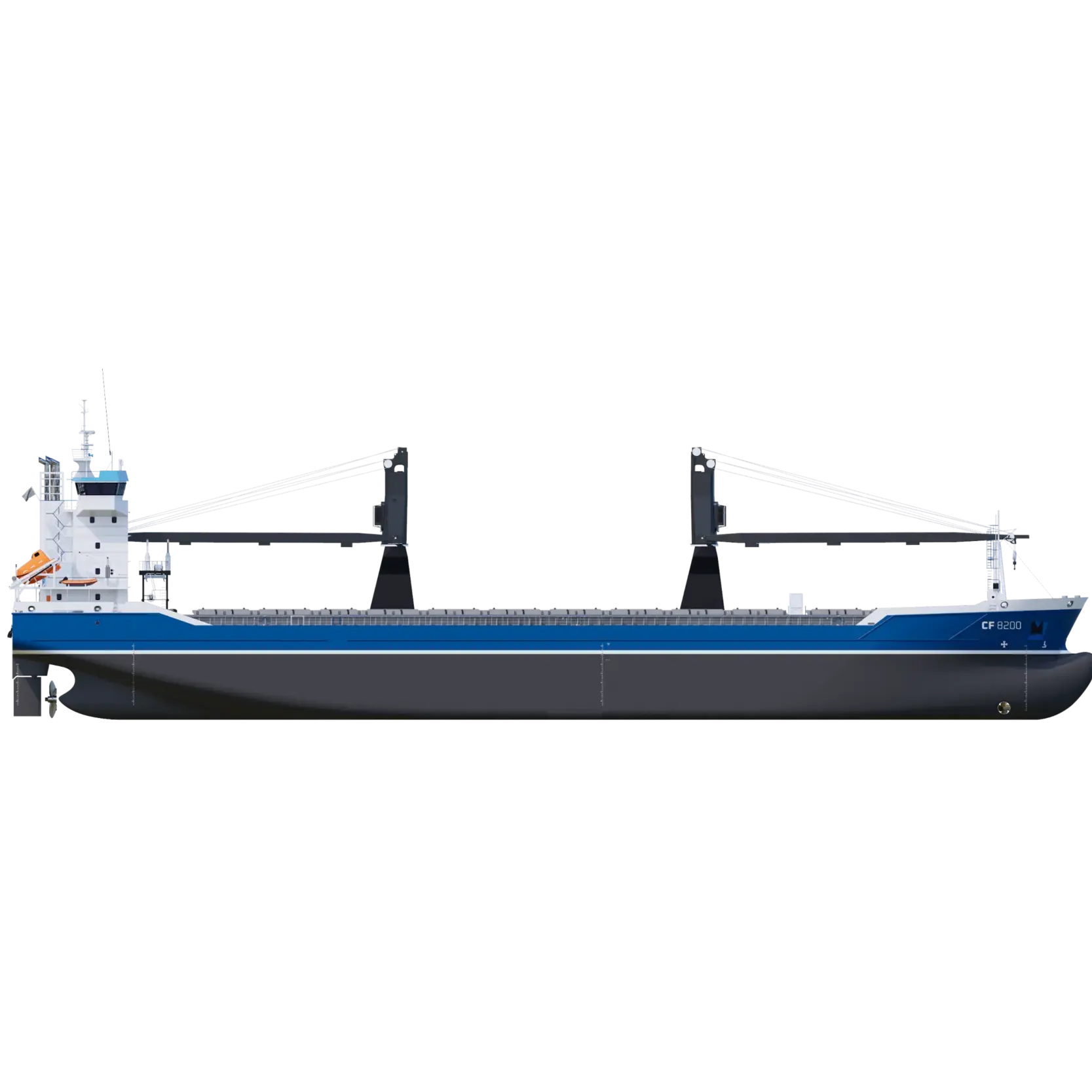

Combi Freighter 8200 (ICE)

    Combi Freighter 8200 (ICE)

    Combi Freighter 8200 (ICE)

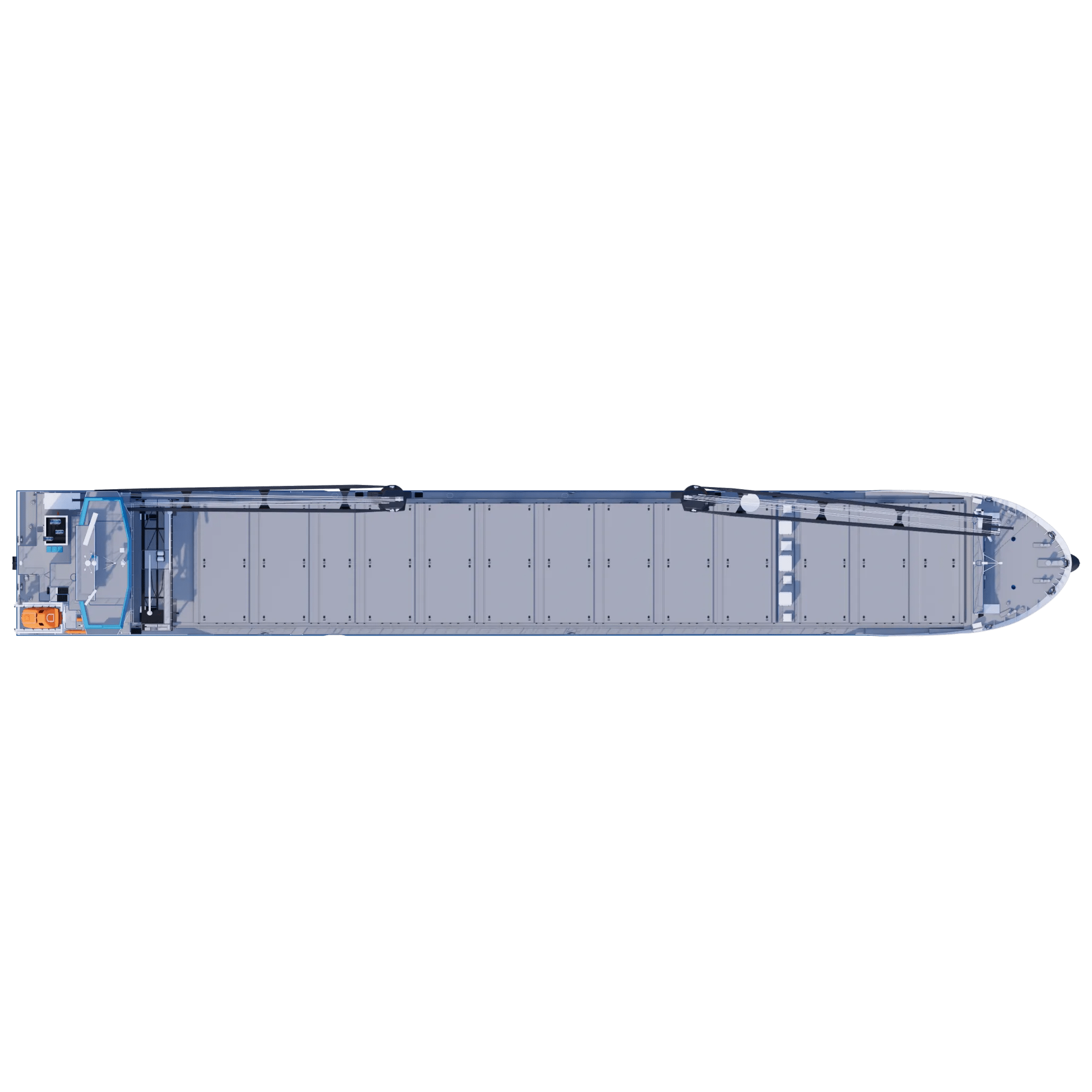

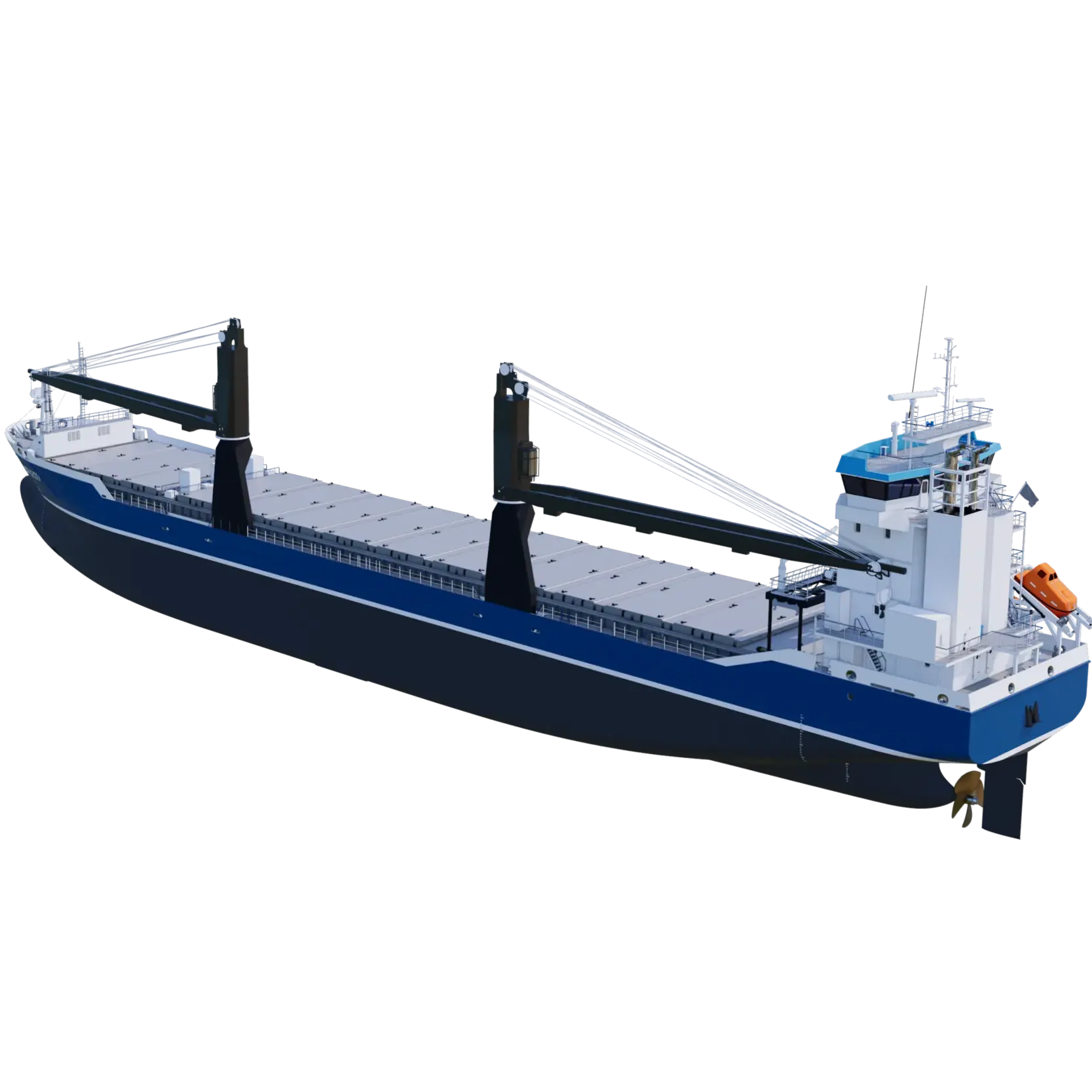

    Based on the proven capabilities of our cargo vessel series, and incorporating the latest techniques and innovation, the Combi Freighter 8200 combines cargo versatility with optimal efficiency. Its hull is optimised to enable fuel efficient operations in diverse waters, including deep seas. The vessel is prepared for installation of a wide range of additional options in order to enhance its efficiency further. The result is a vessel suited to the needs of the maritime industry both today and tomorrow. The grain bulkheads in the box-shaped hold can be configured in multiple ways and features a tween deck to enable transportation of bulk and breakbulk cargoes at the same time. Cargo can be safely and precisely fastened with lashing eyes along the longitudinal bulkheads.
    • Modern hull design for optimal performance in open water and ice conditions
    • Suitable for various cargoes, flexible loading options for optimal positioning
    • Design ready for sustainable features
    • Damen quality, build in Asia, warranty from the Netherlands

    Key figures

    8100

    118.14

    15.9

    7.21

    10795

    Cargo dimensions

    Tonnage
    5751 GT
    Hold length
    71.76 m (Hold 1 +2)
    Hold beam
    13.2 m
    Hold height
    10.05 m
    Dimension (cuft)
    381,220 (Hold 1 +2)

    Performances / Capacities

    Speed
    13 kn
    Propulsion
    2800
    Propellor
    4250
    Bow thruster (kW)
    1x 400
    Generator (kWe)
    1x 555, 1x119, 1x111

    Available options

    Propulsion
    PTO/PTI system Wake equalizing duct
    Energy storage
    Upgrade energy storage system
    Battery setup
    Battery container
    Fuel option
    Bio diesel
    Cargo hold flexibility
    Tween deck panels
    Class
    Class 1 dangerous goods (explosives)

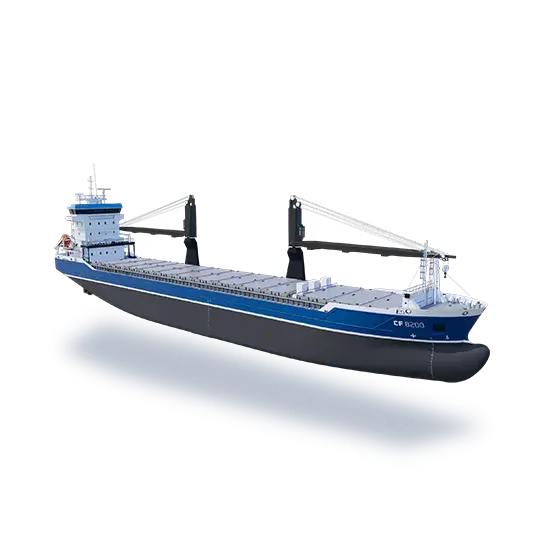

    Do you want to know more?

    Compare similar vessels

    Deadweight (t)Length (m)Beam (m)Draught (m)Hold (m³)
    Combi Freighter 8200 (ICE)8100118.1415.97.2110795
    Combi Freighter 7000 (ICE)6900110.4715.26.559400
    Combi Freighter 12000 (ICE)12000144.9519.37.917250
    Combi Freighter 8200 (ICE)
    Deadweight (t)
    8100
    Length (m)
    118.14
    Beam (m)
    15.9
    Draught (m)
    7.21
    Hold (m³)
    10795
    Deadweight (t)
    6900
    Length (m)
    110.47
    Beam (m)
    15.2
    Draught (m)
    6.55
    Hold (m³)
    9400
    Deadweight (t)
    12000
    Length (m)
    144.95
    Beam (m)
    19.3
    Draught (m)
    7.9
    Hold (m³)
    17250
