M-Frigates
122
3.300
14.4
6.2

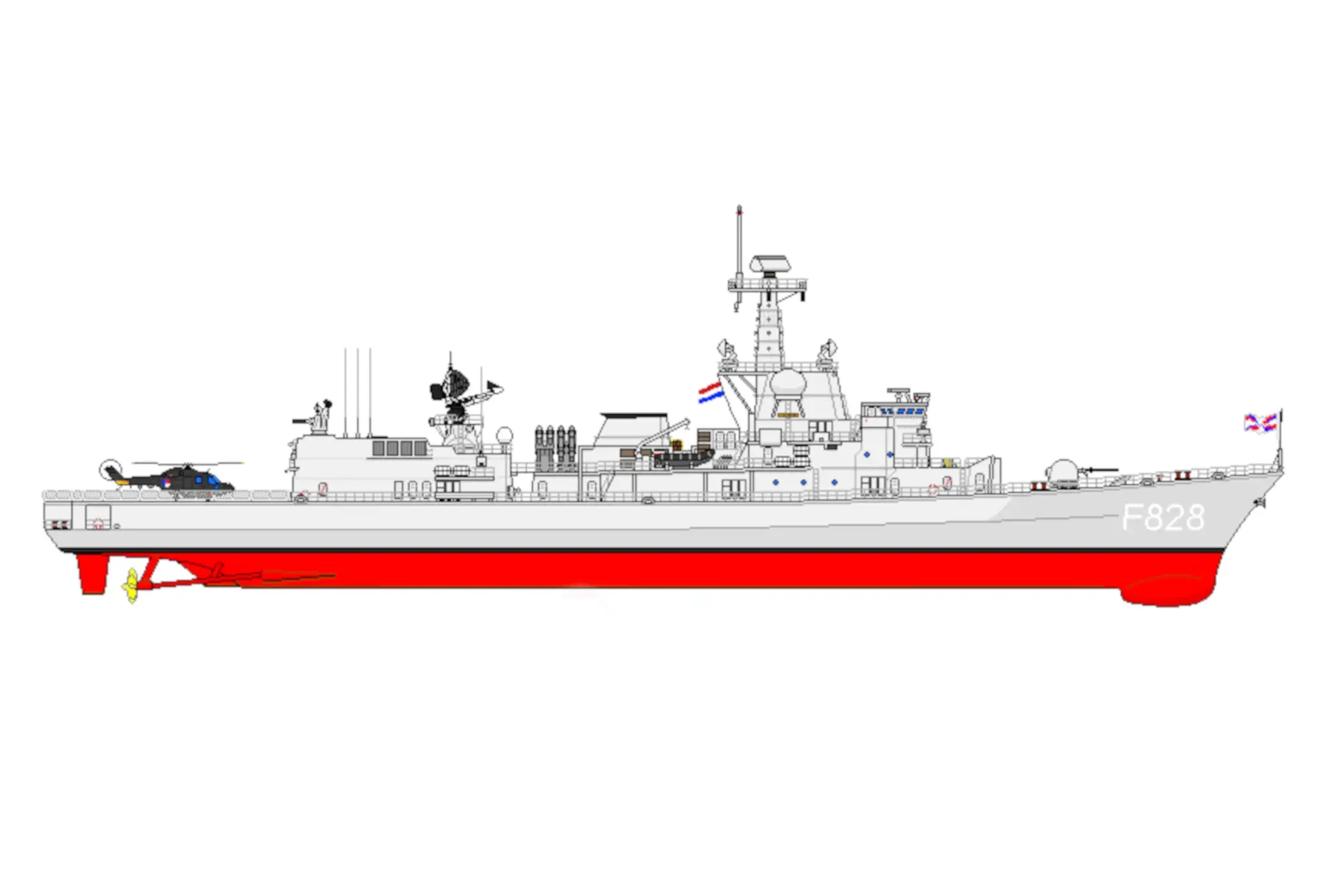

The eight Karel Doorman class frigates were built by Damen Naval and commissioned between 1991 and 1995. The class is also known as the Multi Purpose or M class. This class was the first introduction to the Royal Netherlands Navy of CODOG propulsion. The M class is able to operate in all the main warfare domains (surface, subsurface and anti-air warfare).
Specifications
Specifications
- Combat Data Systems
- CAMS/Force Vision Guardion CMS, Link 11/16/22, SATCOMS
- Missiles
- SSM, 8 Harpoon Block 1C; SAM, MK 48 16 cell VL, 16v RIM 7P Seasparrow
- Guns
- Oto Melara 76mm/62, Signaal Goalkeper CIWS, 2 x 12.7 mmMGs, 2 x 7.62 MS
- Torpedo’s
- 4 x 324 mm Mk32 Mod 9 twin tubes
- Countermeasures
- ESM/ECM Thales APX and 4x SRBOC Mk 36 IR/Chaff, SLQ Nixie towed torpedo decoy
- Radars
- Smart S long-range 3D radar, LW08 long-range surveillance radar, SeaWatcher 100 active phased array surface detection and tracking radar (NLD and BE ships only), Thales Scout radar, STIR 1.8, GateKeeper Electro-optical 360° survaillance system (NLD and BE ships only)
- Sonar
- PHS-36 hull-mounted sonar, Anaconda DSBV 61 VLF passive tactical towed array sonar and ULTRA Electronics Multi-static Low Frequency Active Passive Sonar (NLD ships only)
- Helicopter
- 1 x NH90
