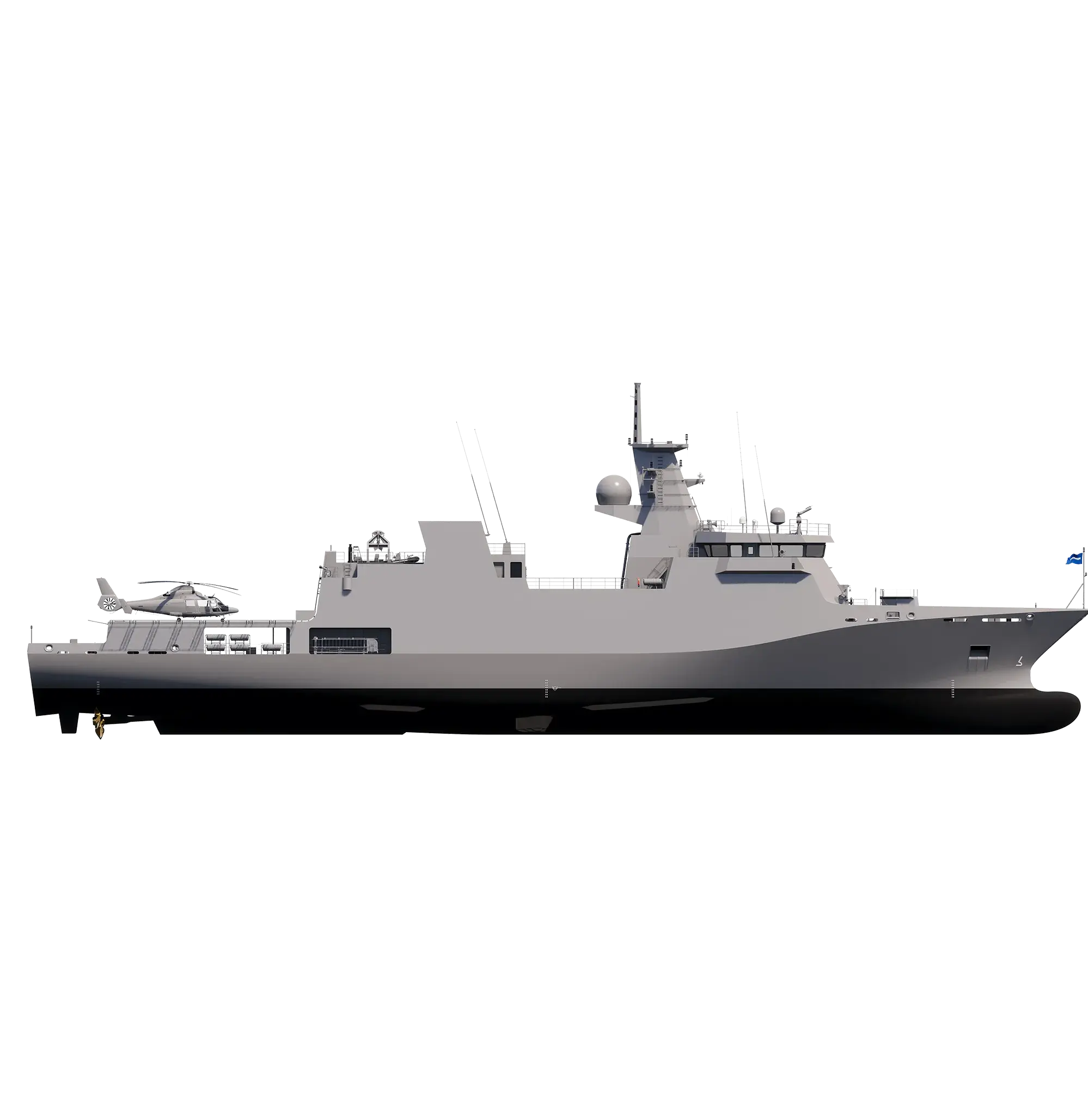

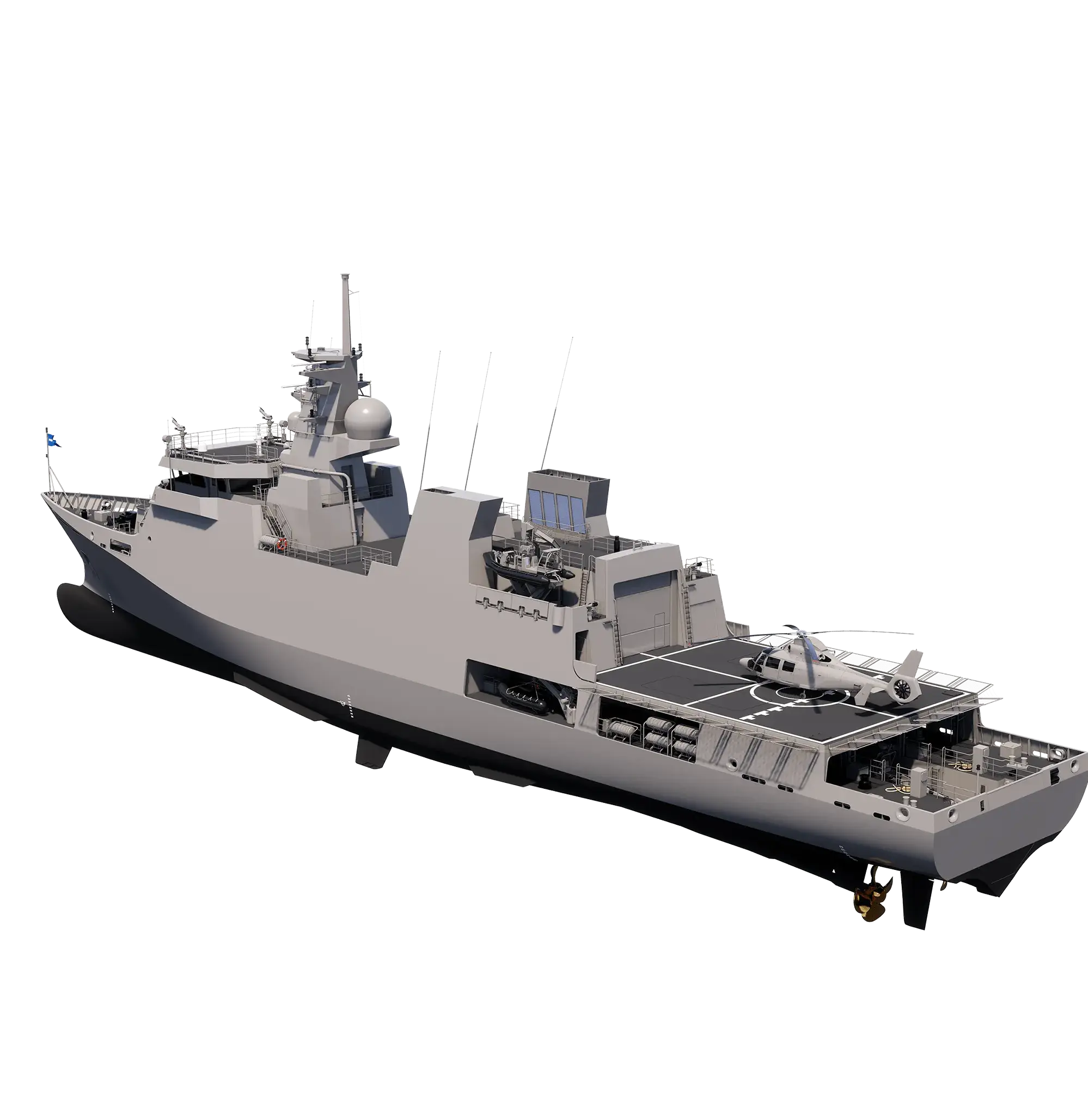

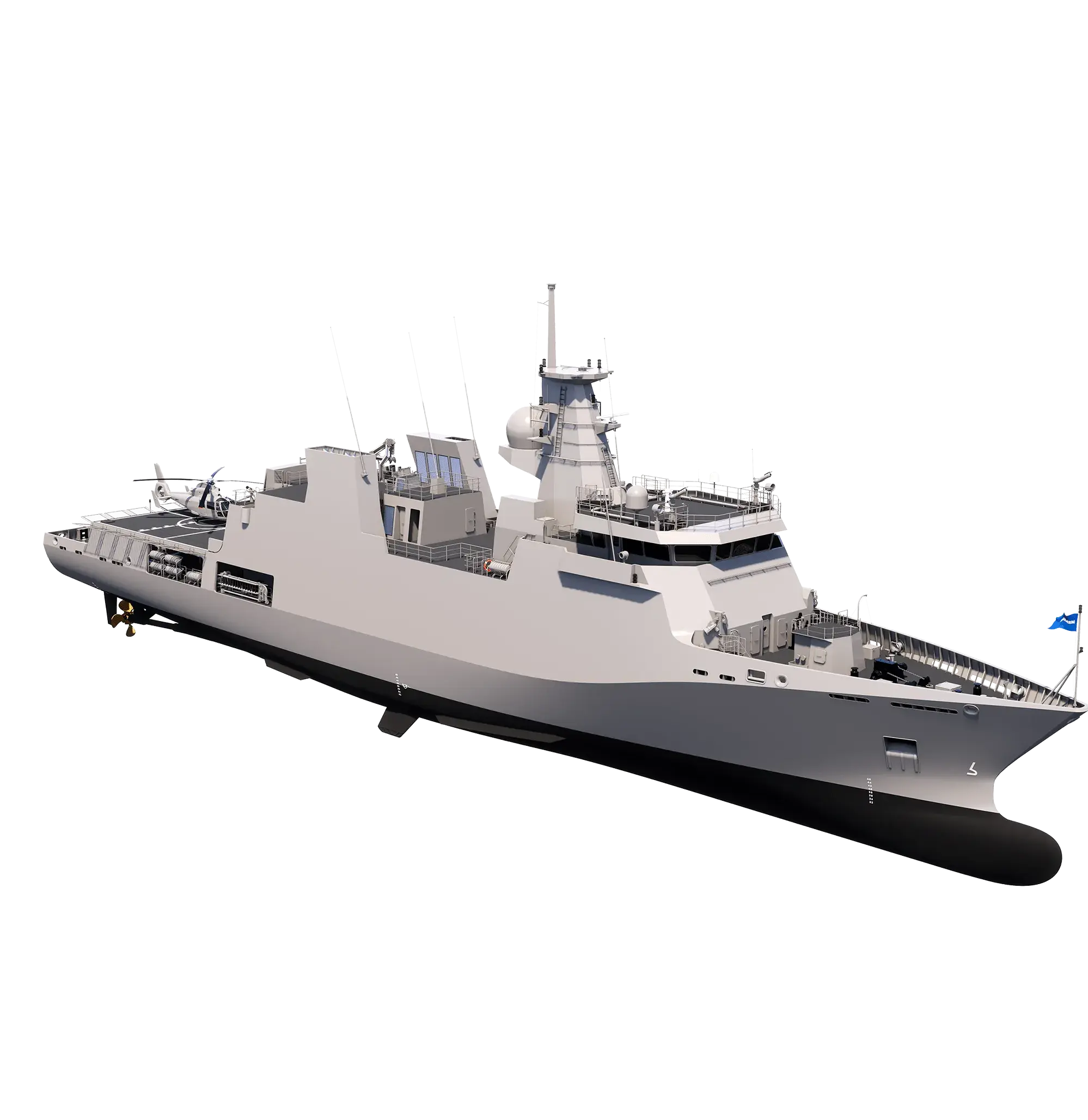

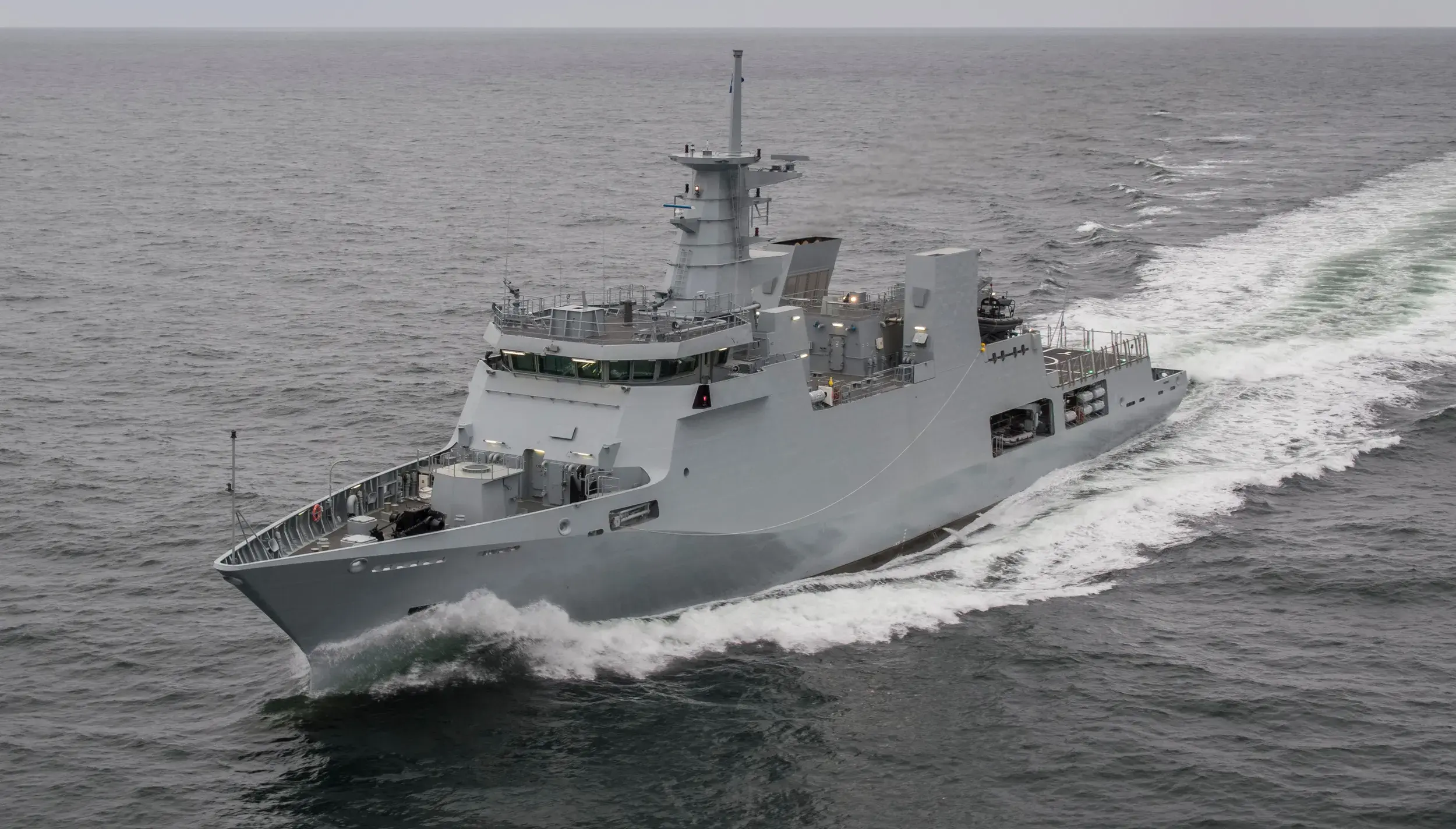

Offshore Patrol Vessel 2200 Military
91.2
22-25
Up to 100
14.0
4 x 2525
This OPV offers extended mission capabilities and an economic propulsion package. It is equipped with four diesel engines with two controllable pitch propellers but alternative propulsion packages are available such as twin diesels or diesel-electric. The vessel is suited for extensive weapons suites, including a main gun of up to 76 mm and secondary guns are available. It also has capacity for two additional mission modules such as ASW (side scan sonar), MCM, UAV/USV, pollution control, hospital facilities and more.
Specifications
Key figures
Dimensions
- Length
- 91.2 m
- Beam
- 14.0 m
- Draught
- 4.0 m
- Displacement
- 2200 t
Performances
- Range
- 4000 nm
- Speed (kn)
- 22-25
Other
- Accommodation
- Up to 100
- RHIBs
- 1 x 11.25 m + 1 x 6.5 m
- HELO
- 1 x med. weight + hangar
