Deeper dredging
Deeper dredging

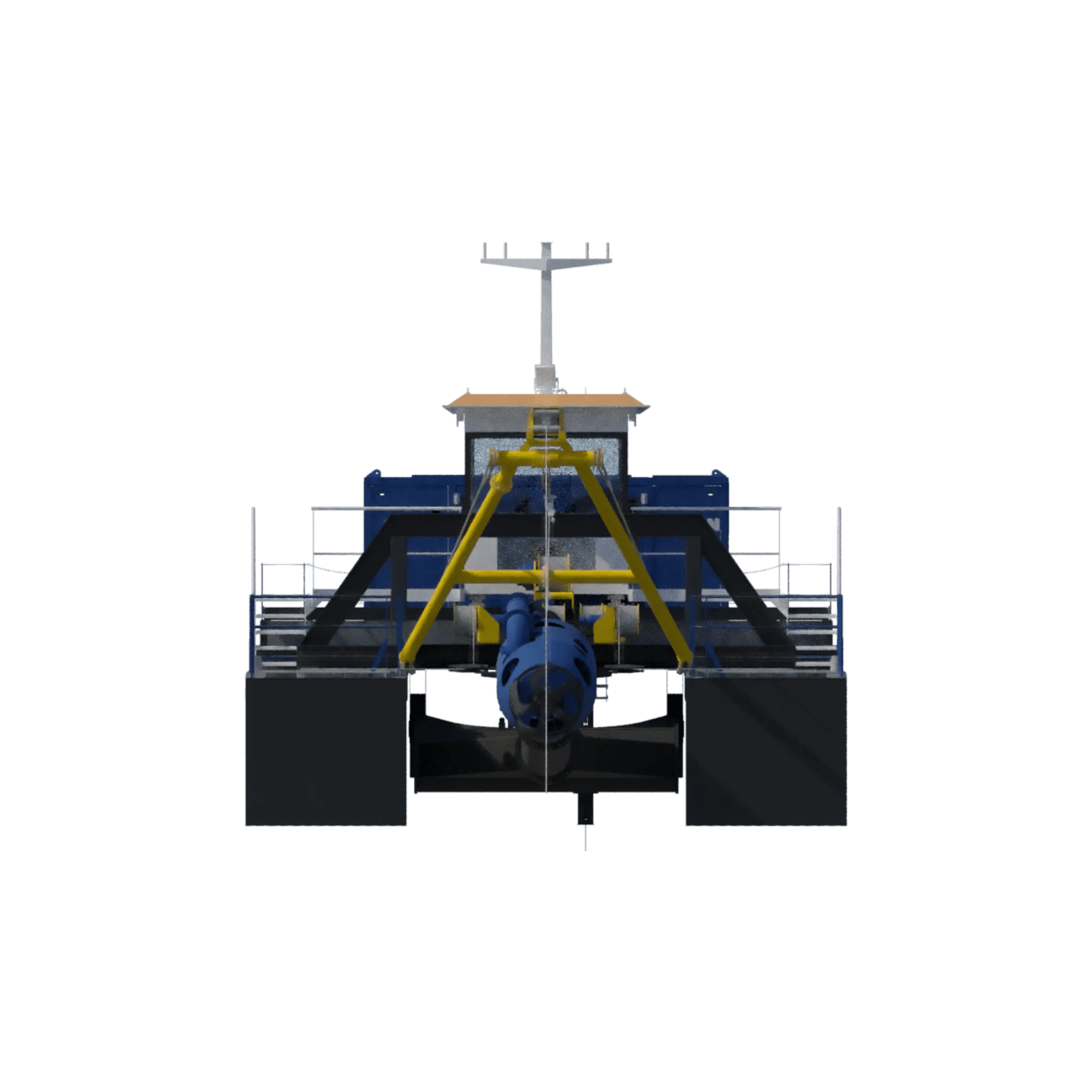

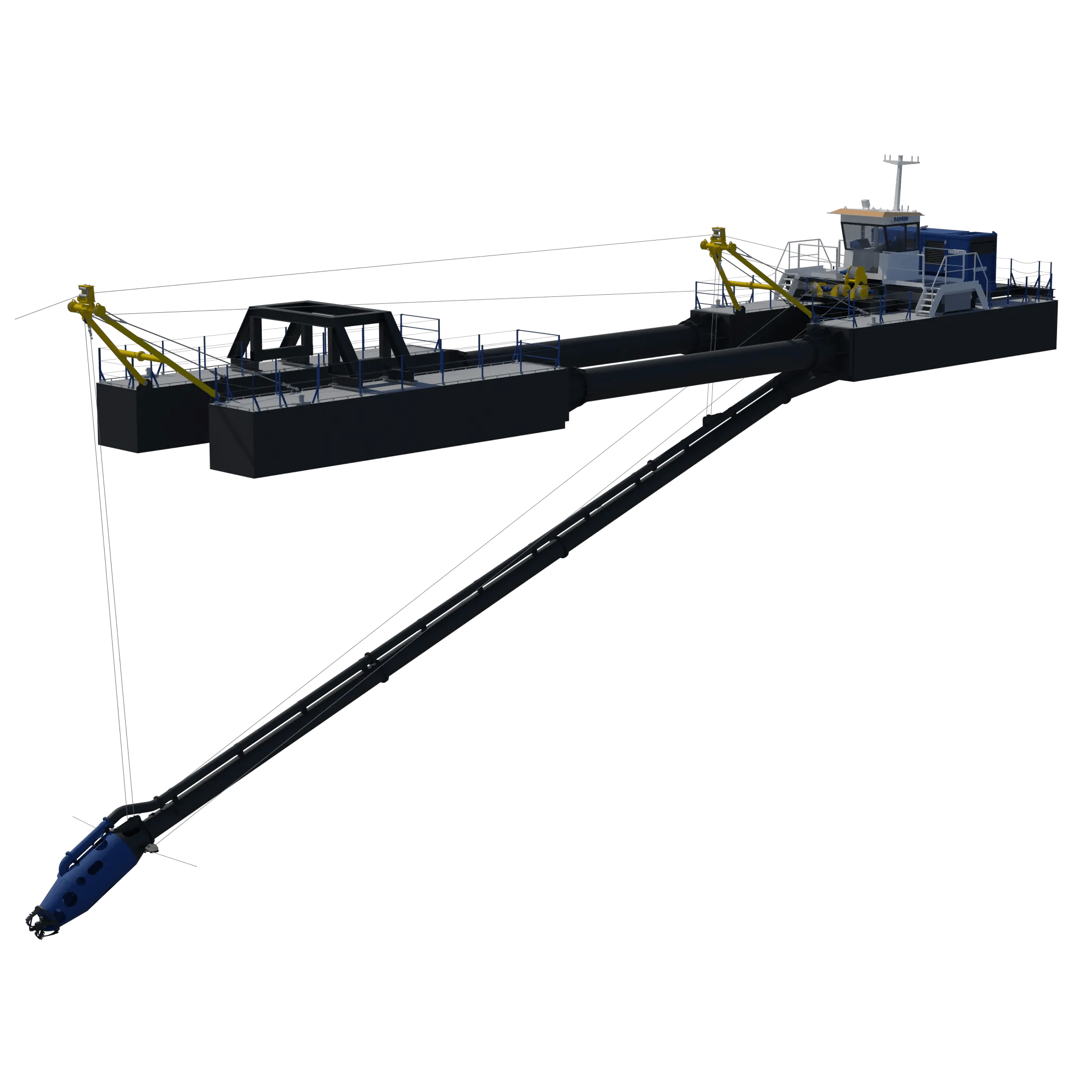

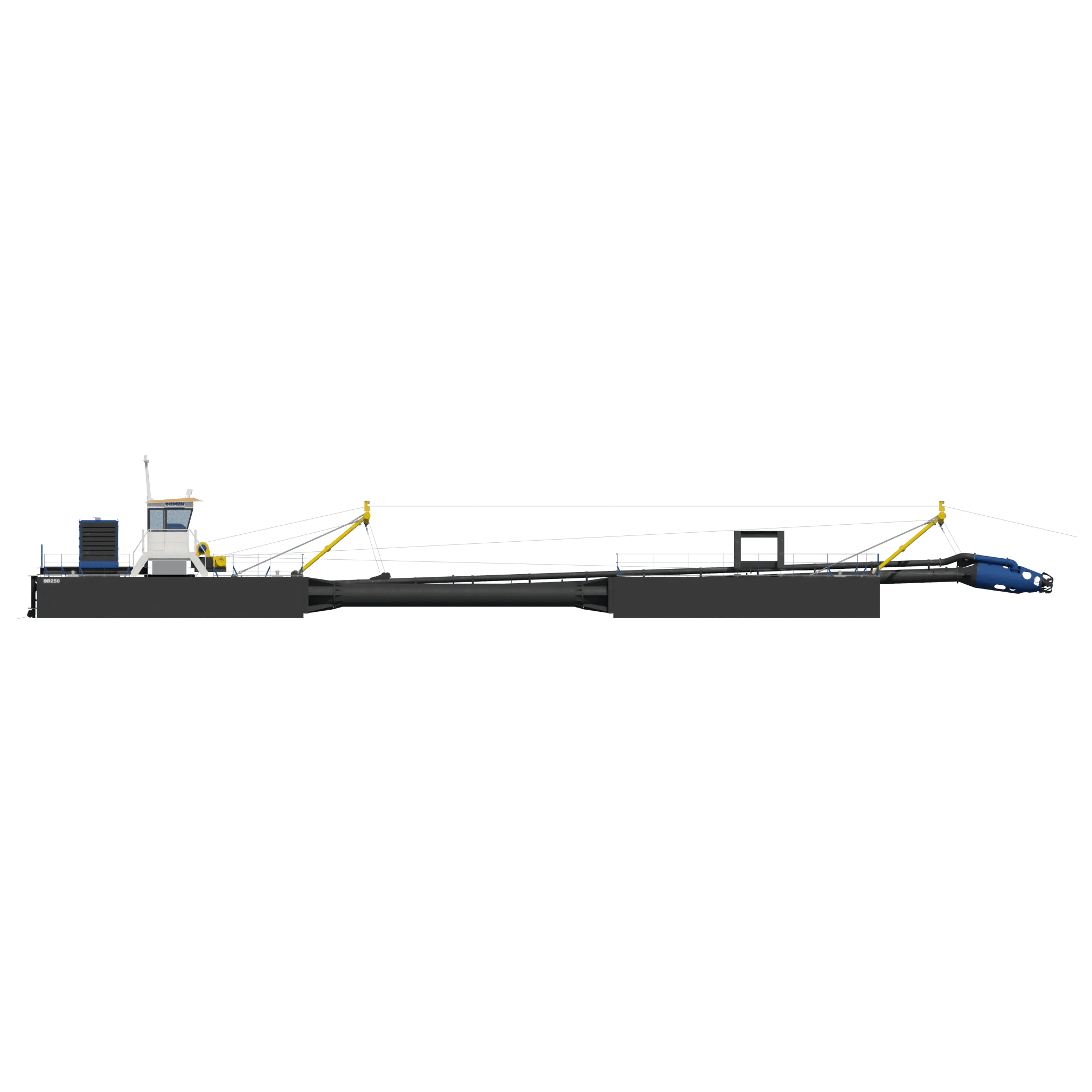

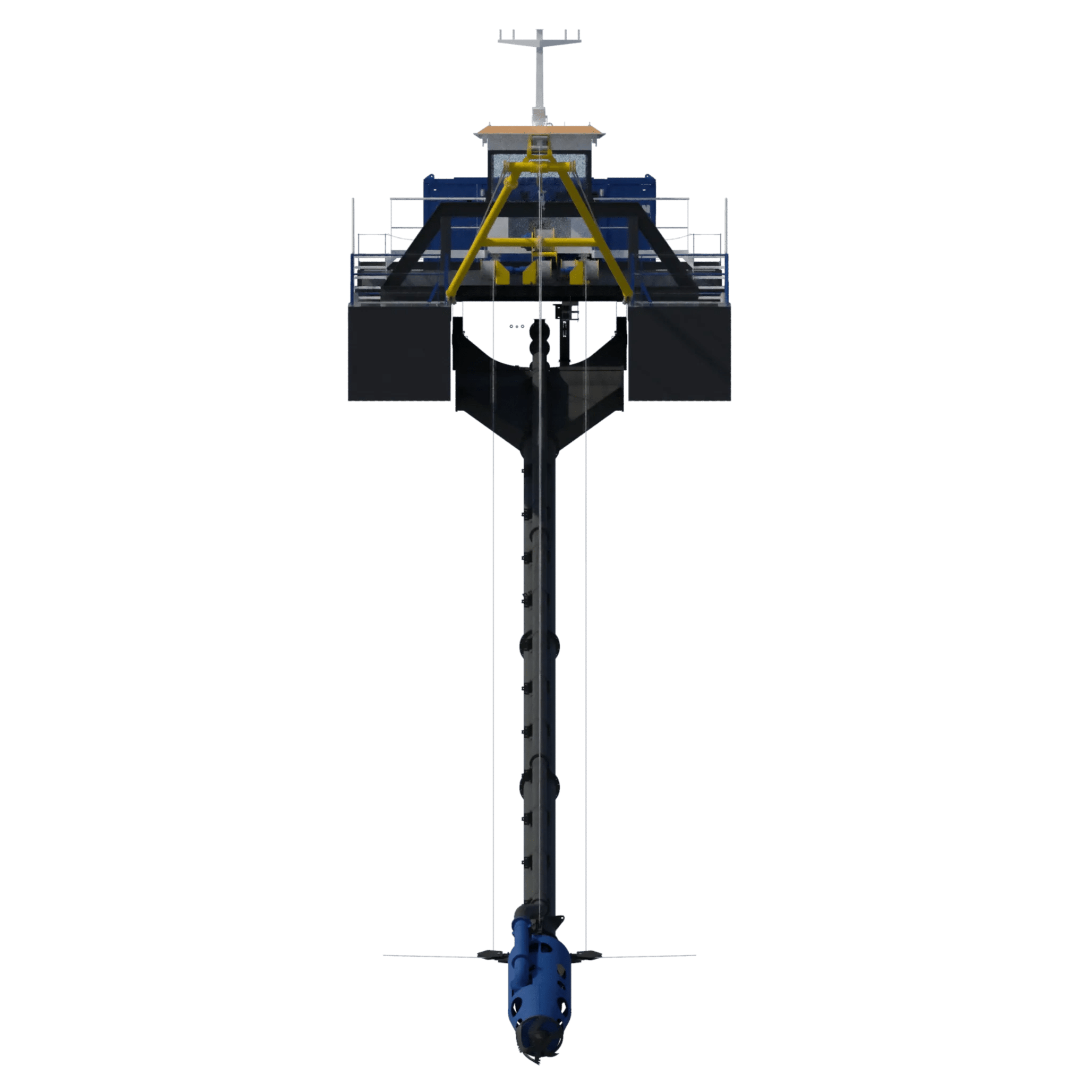

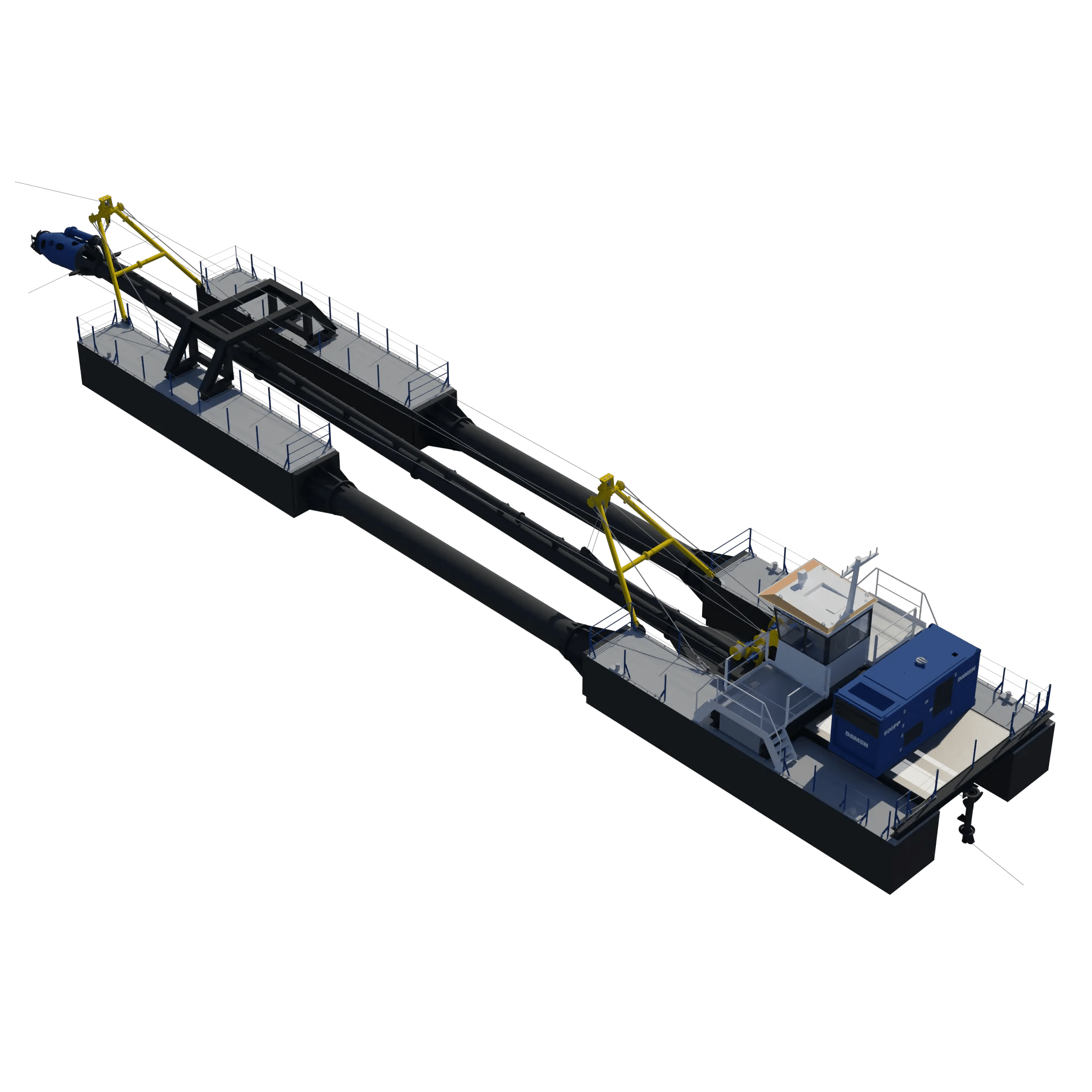

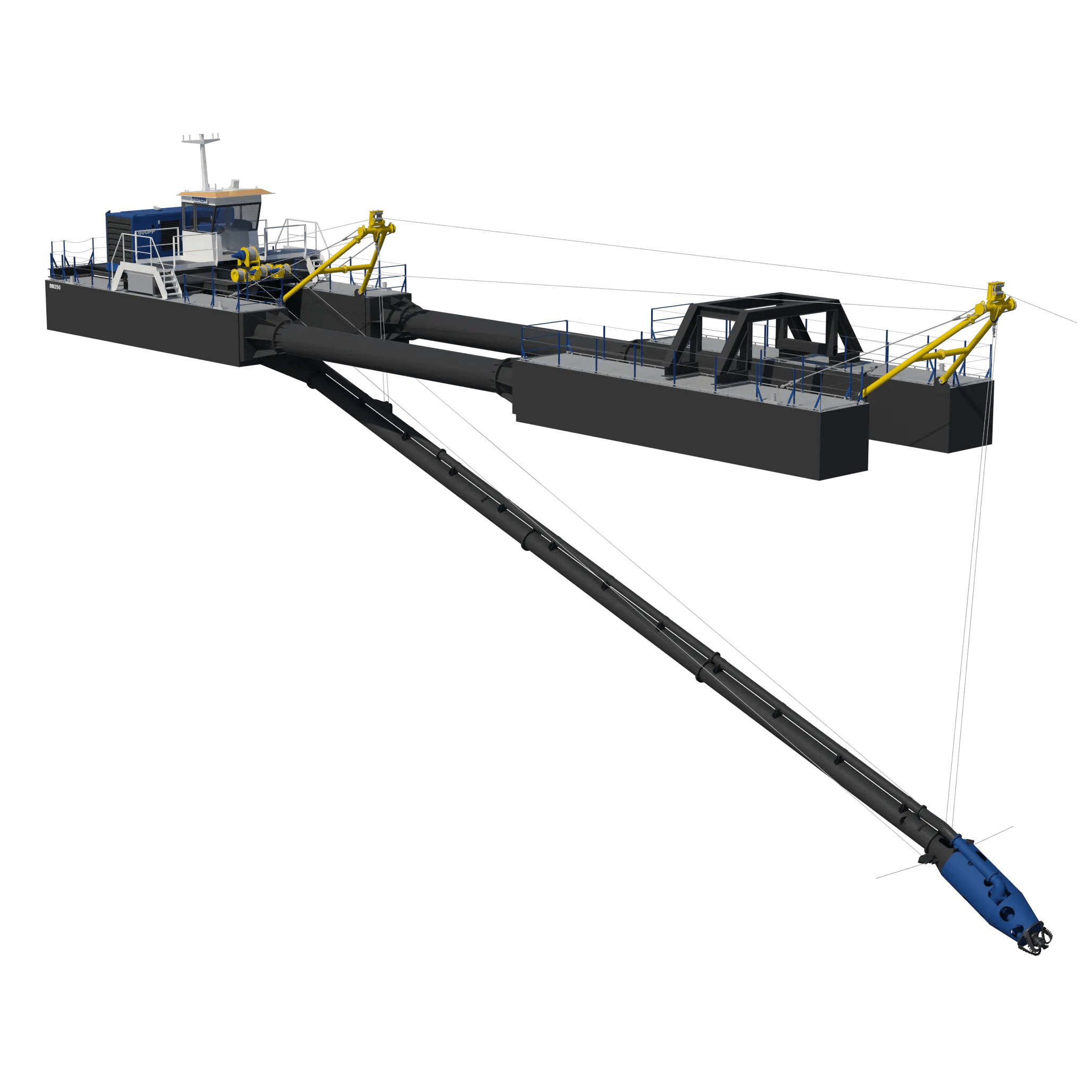

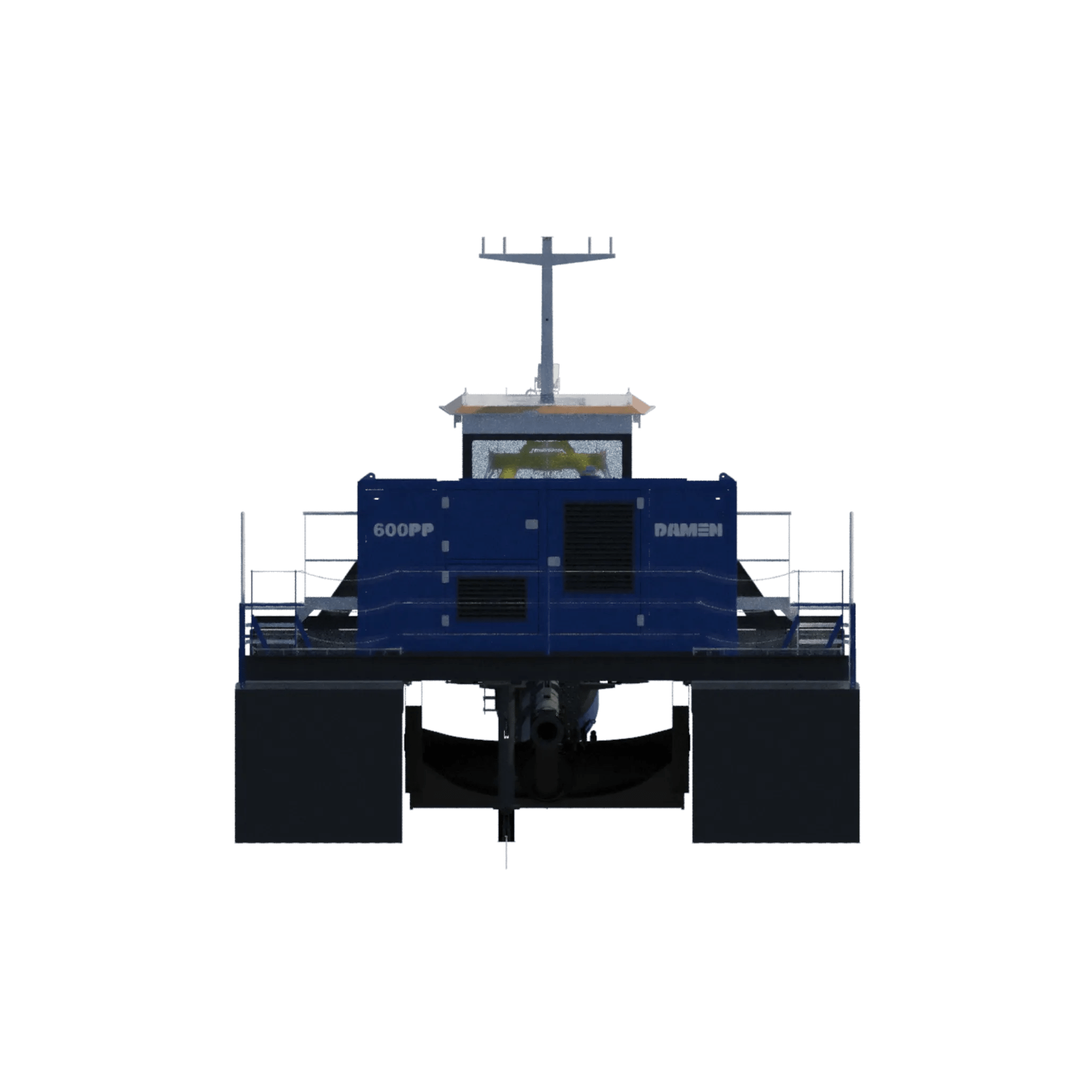

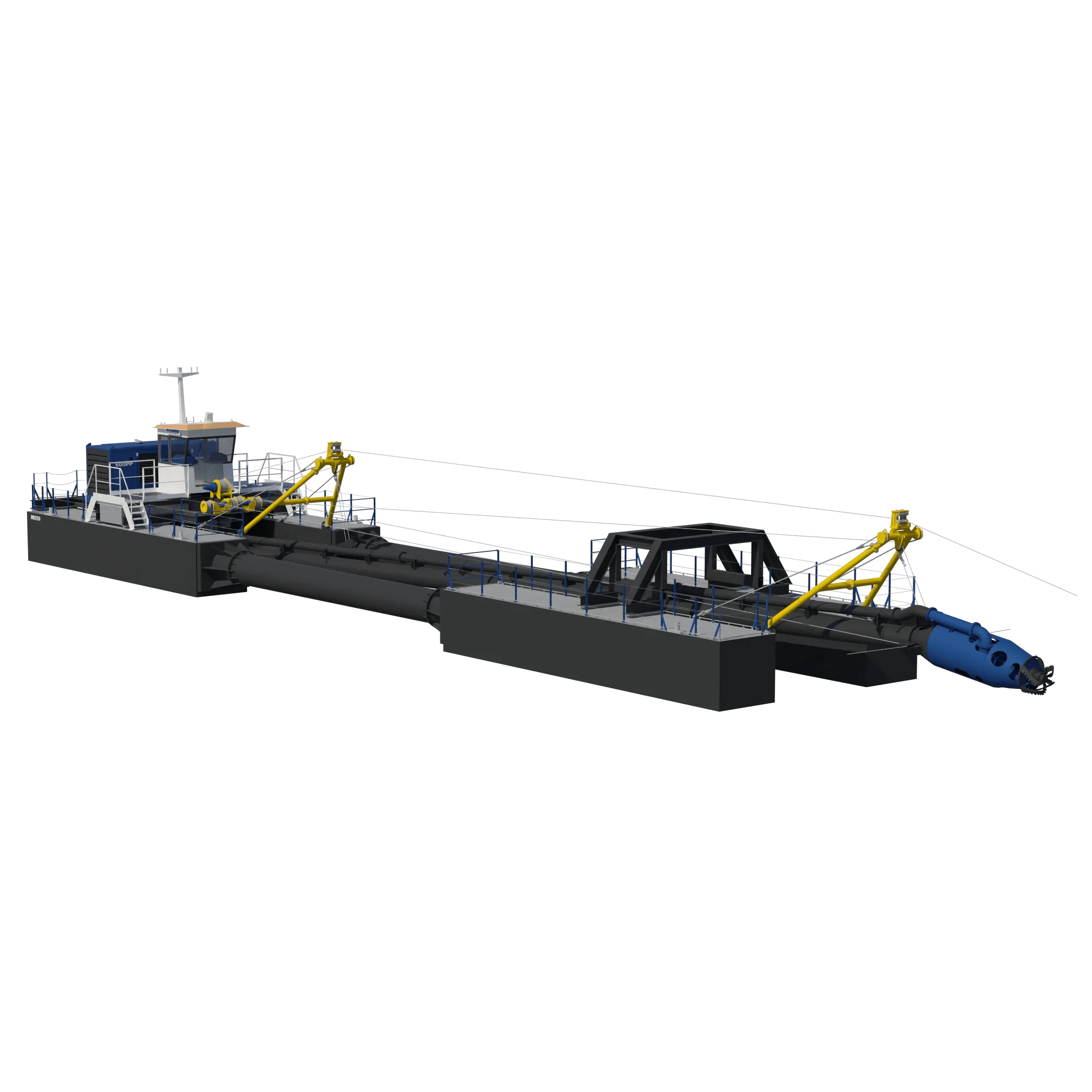

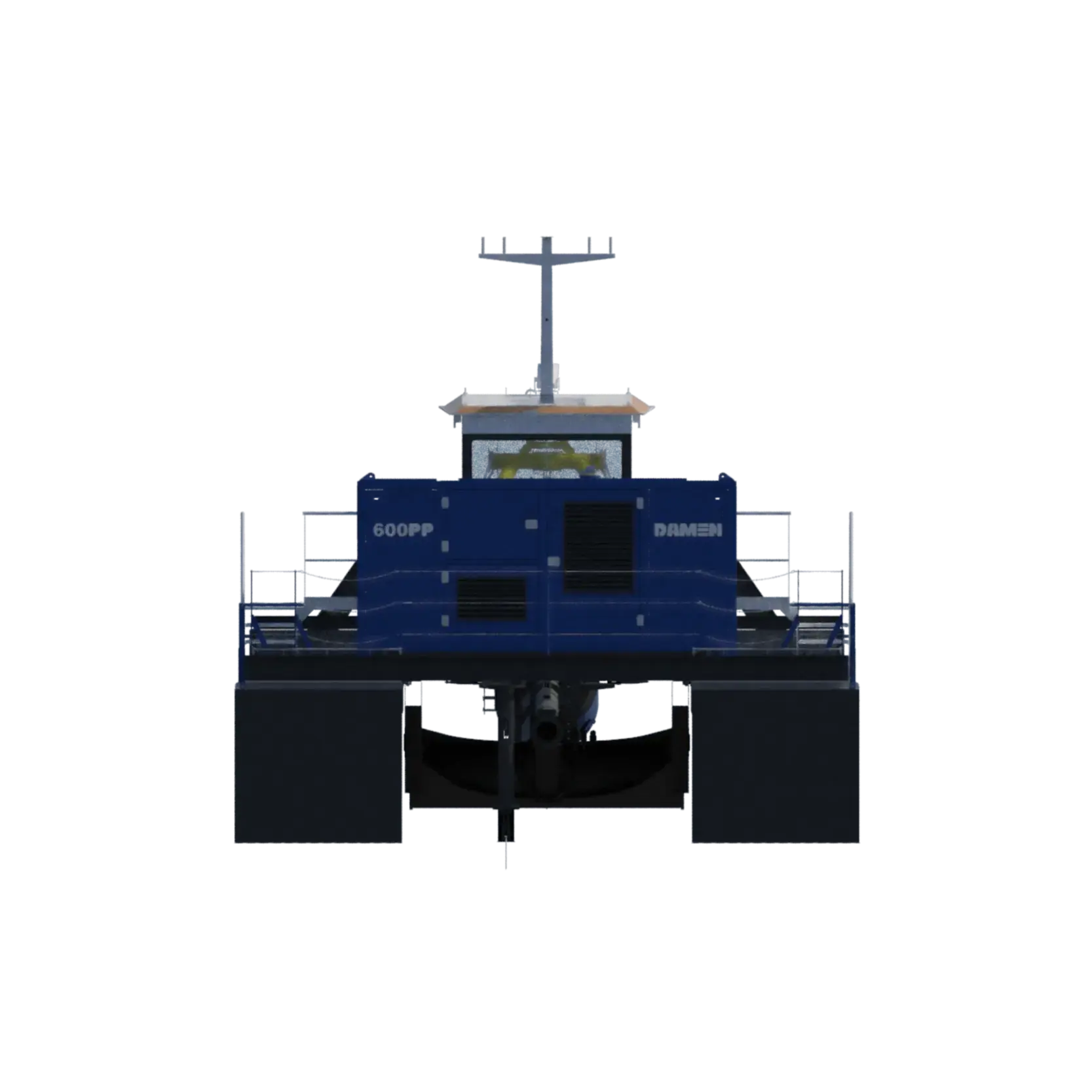

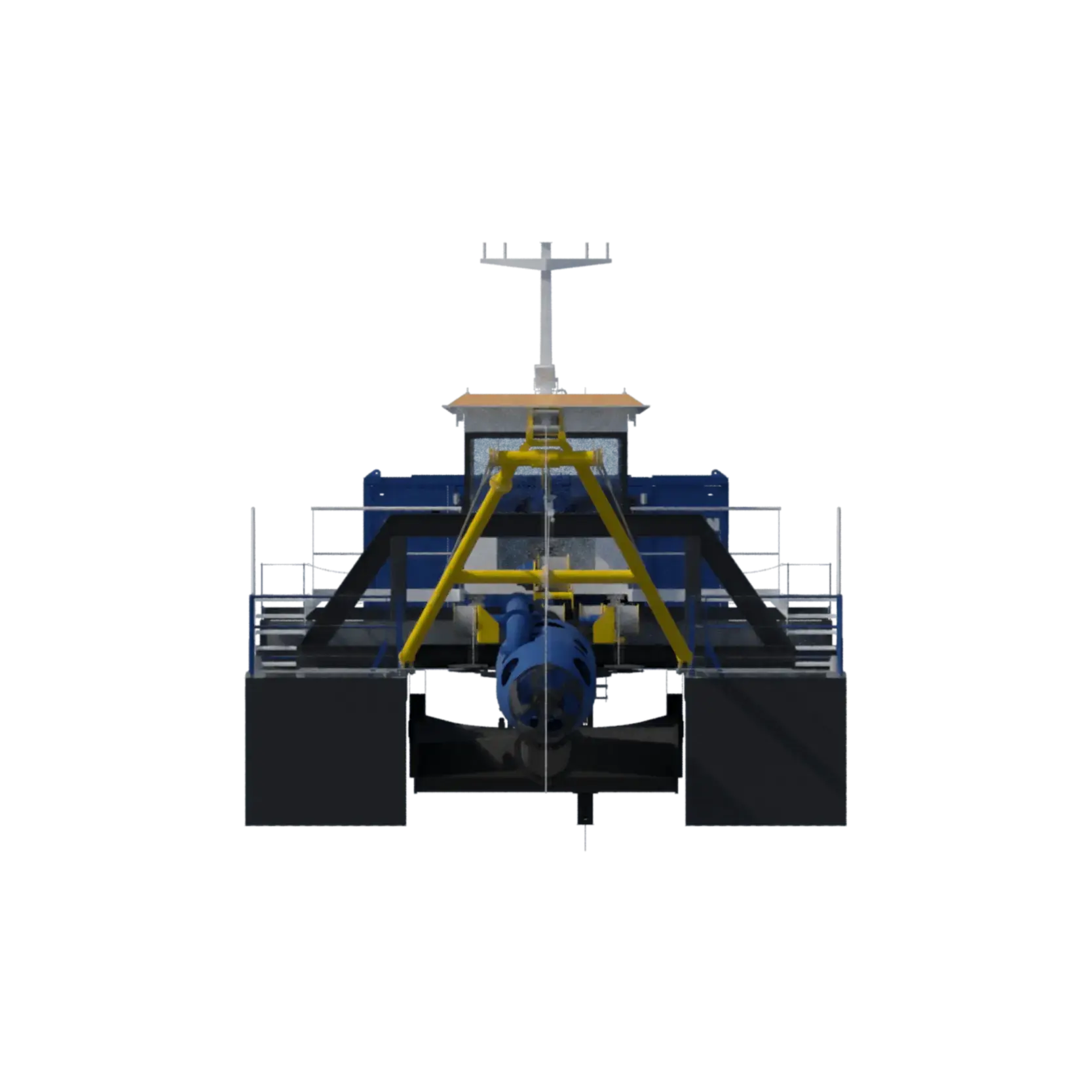

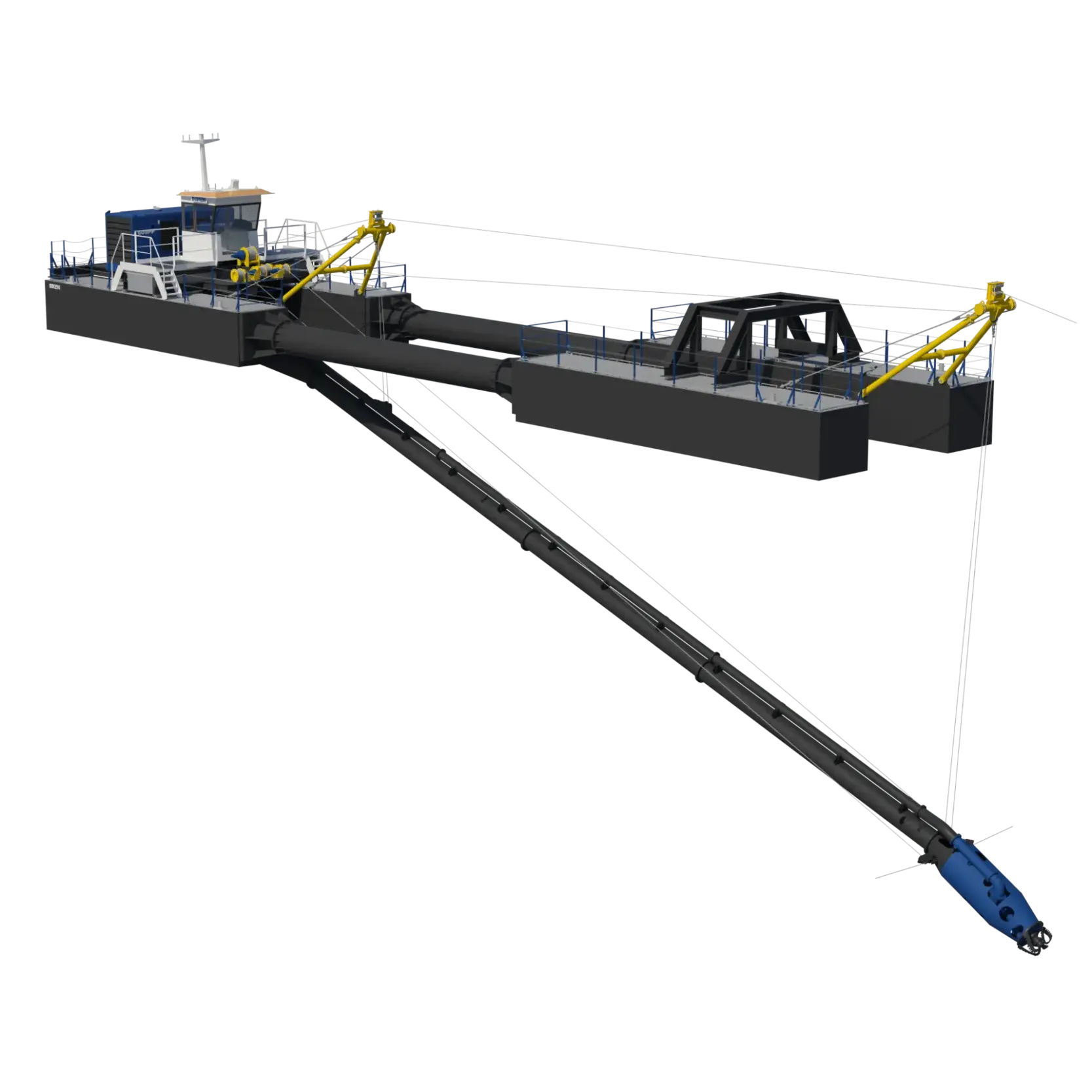

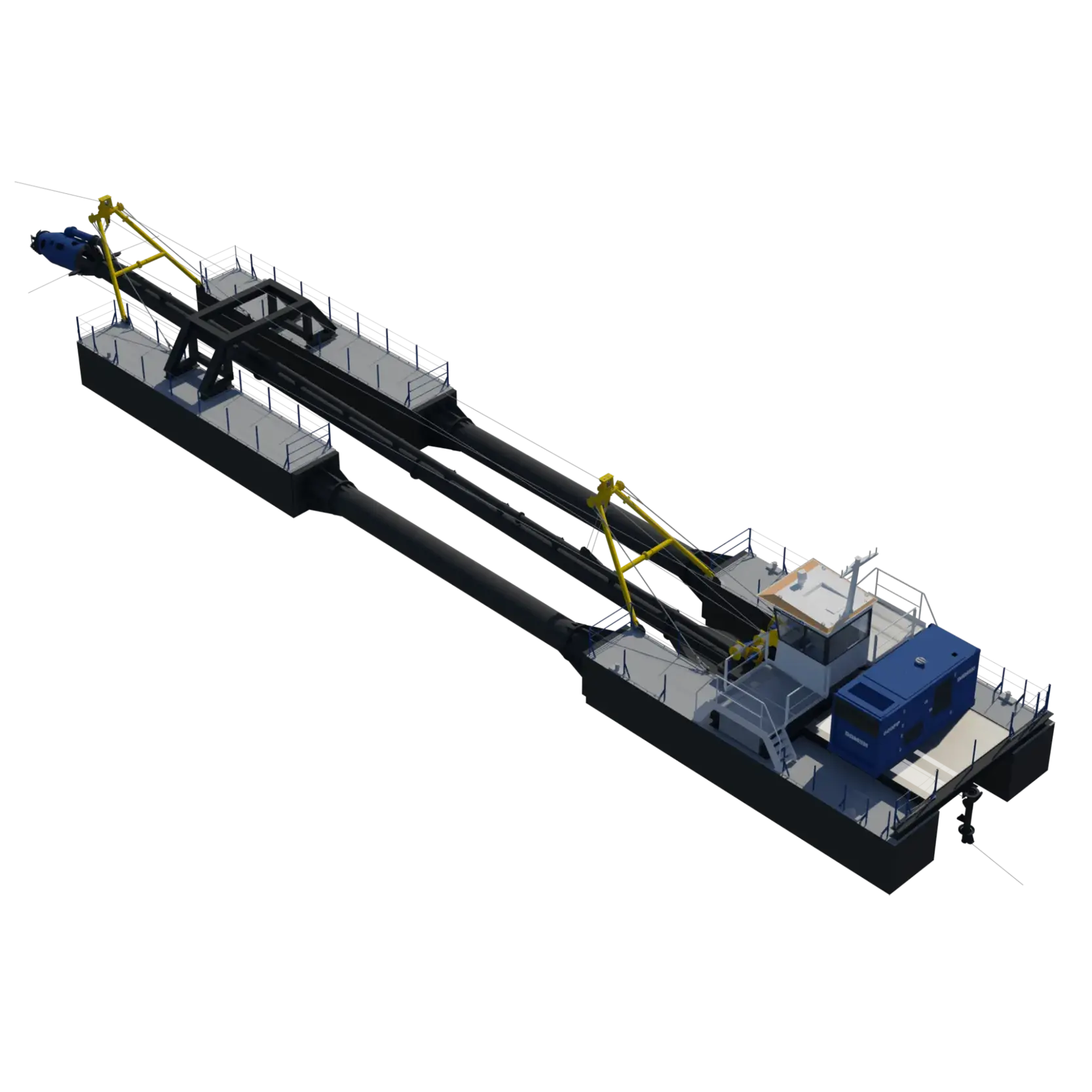

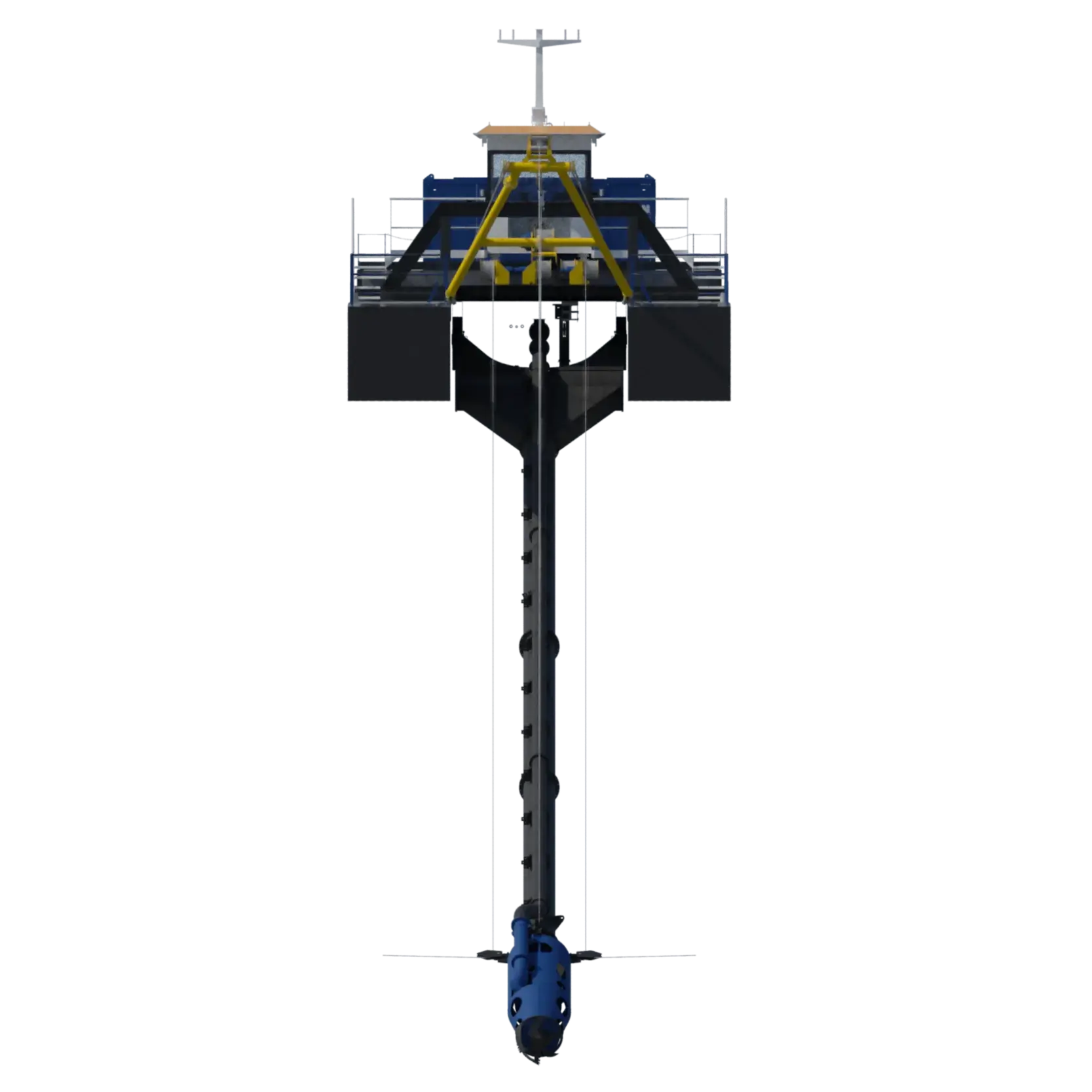

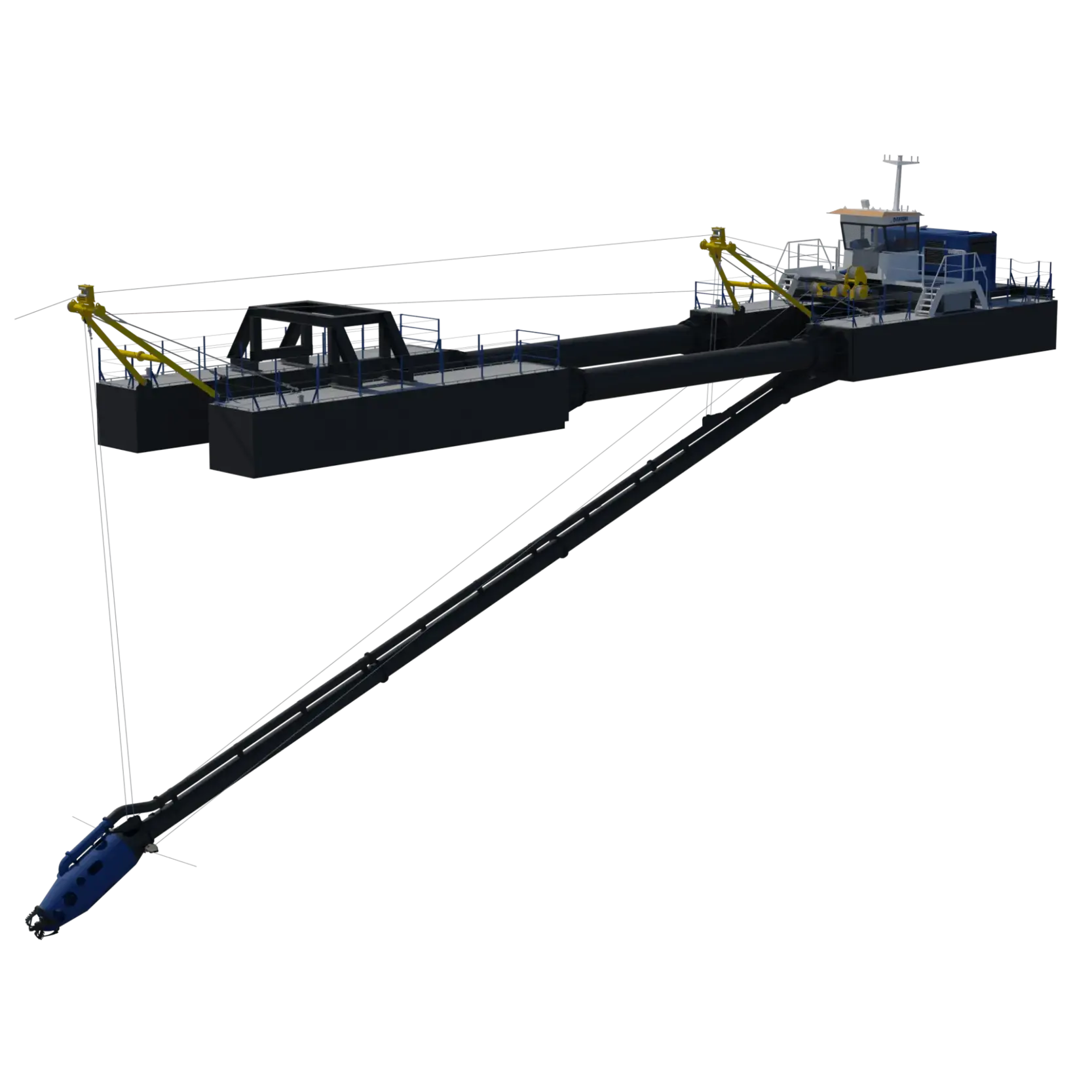

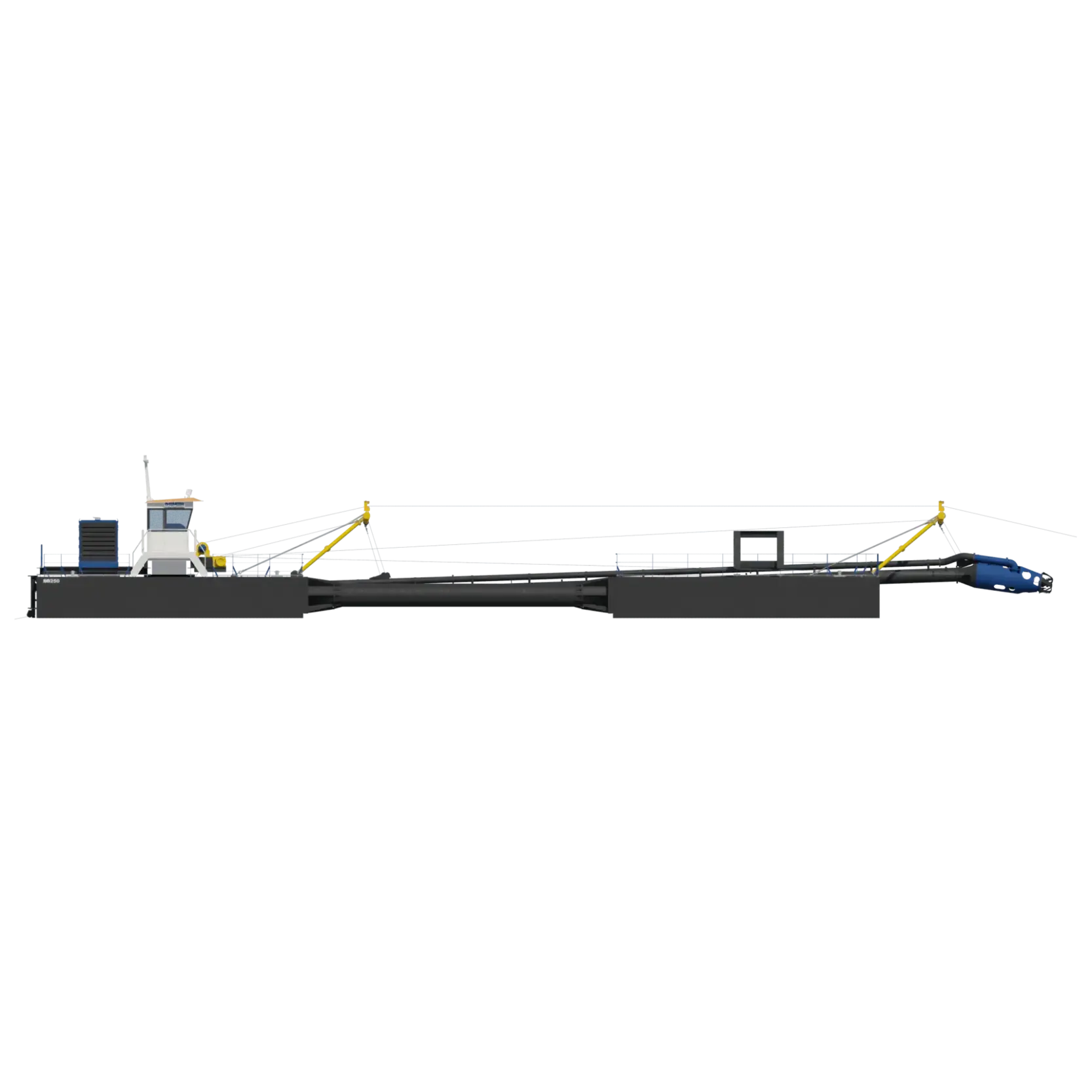

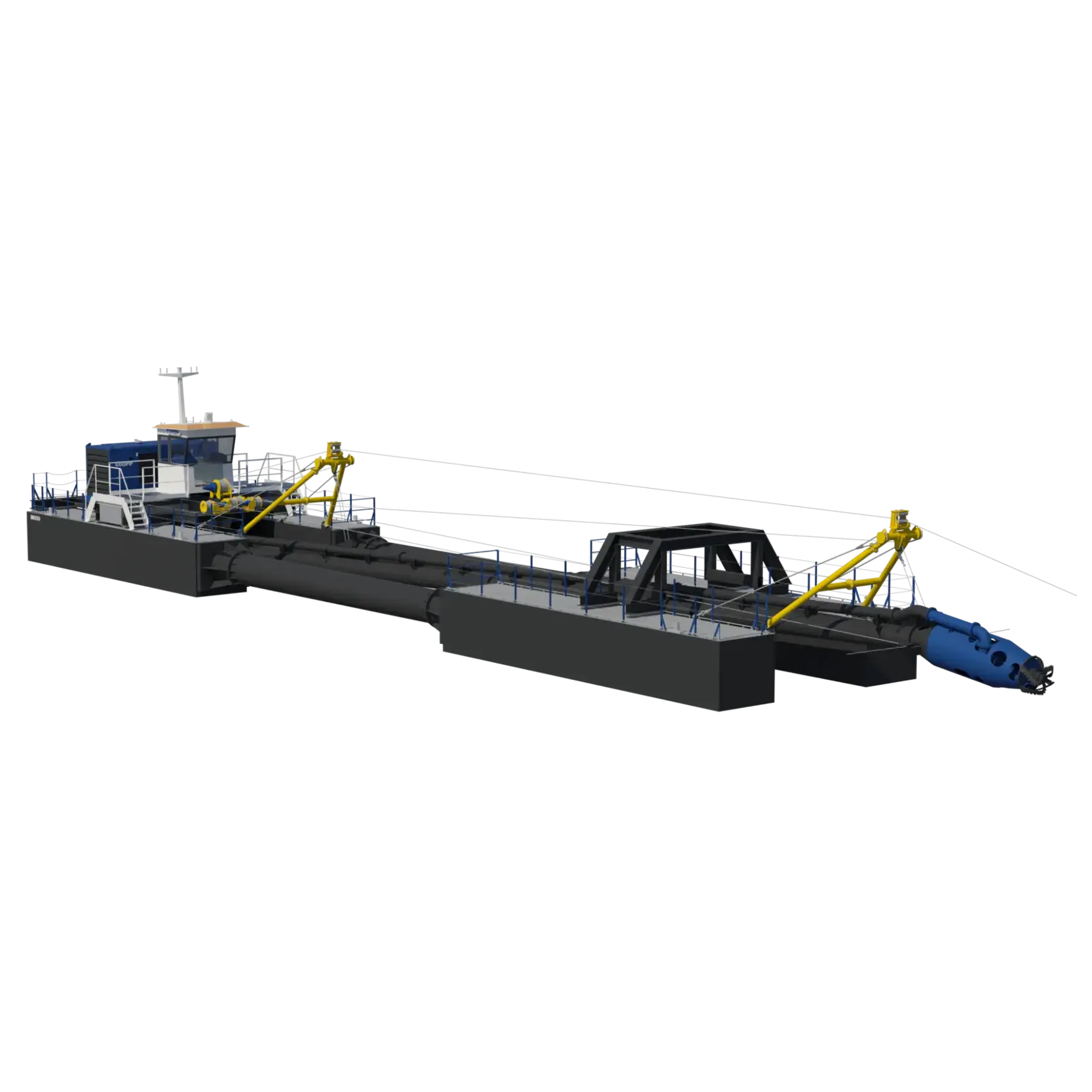

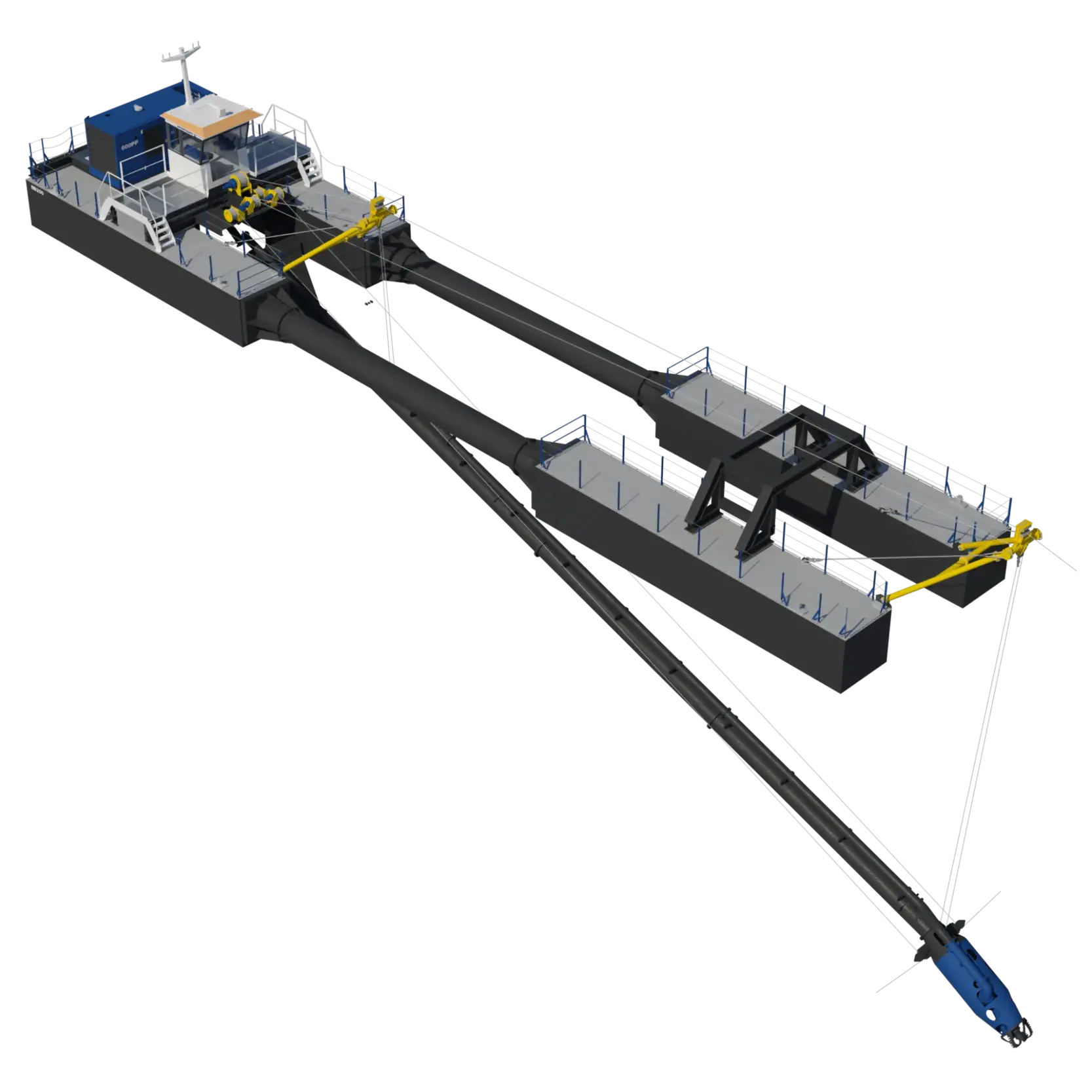

The stationary DOP dredger of the ‘deeper’ type has been designed to loosen compacted sand at a maximum 30 m dredging depth and to pump the dredged material ashore. The cutter head loosens the soil and the immersed DOP dredging pump ensures a high mixture concentration, resulting in an efficient dredging operation. The modular design ensures practical transport and simple assembly on site.
- Production measurement
- Position visualisation
- Communication & navigation package
- Floating & land pipe line
- Efficient mining due to submersed dredge pump
- Consolidated soils can be dredged due to cutter head
- Compact dredger for practical transport
- Pontoons can be built locally
Key figures
600 - 2400
-30
150 - 350
175 - 565
44 - 46
Dimensions
- Overall length
- 44 - 46 m
- Beam
- 7.35 m
- Depth pontoons
- 1.8 m
- Total weight
- 71 - 82 t
Engine installation
- Power pumpshaft
- 80 - 360 kW max
- Total installed power
- 175 - 565 kW
- Hydraulic power pack
- 252 - 972 I/min
- Cutter power
- 13 - 47 kW
- Fuel tank
- 5 m³
Dredge installation
- Dredge production
- 600 - 2400 m³/h
- Dredge pipe diameter
- 150 - 350 mm
- Max head
- 3.2 - 5.3 bar
- Max dredging depth
- -30 m

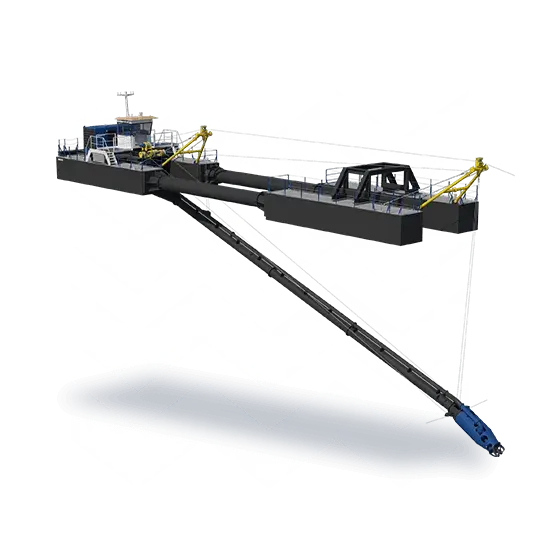

Do you want to know more?
Compare similar vessels
Production (m³/h) | Max dredging depth (m) | Pipe diameter (mm) | Power (kW) | Length (m) | ||
---|---|---|---|---|---|---|
Deeper dredging | 600 - 2400 | -30 | 150 - 350 | 175 - 565 | 44 - 46 | |
Deep dredging | 600 - 2400 | -20 | 150 - 350 | 175 - 565 | 30 - 32 | |
Cutting compacted sand | 600 - 2400 | -15 | 150 - 350 | 175 - 565 | 24 - 26 |
Deeper dredging
- Production (m³/h)
- 600 - 2400
- Max dredging depth (m)
- -30
- Pipe diameter (mm)
- 150 - 350
- Power (kW)
- 175 - 565
- Length (m)
- 44 - 46
- Production (m³/h)
- 600 - 2400
- Max dredging depth (m)
- -20
- Pipe diameter (mm)
- 150 - 350
- Power (kW)
- 175 - 565
- Length (m)
- 30 - 32
- Production (m³/h)
- 600 - 2400
- Max dredging depth (m)
- -15
- Pipe diameter (mm)
- 150 - 350
- Power (kW)
- 175 - 565
- Length (m)
- 24 - 26
