WID 500
  • Modular system
  • Fits any workboat

WID 500

WID 500

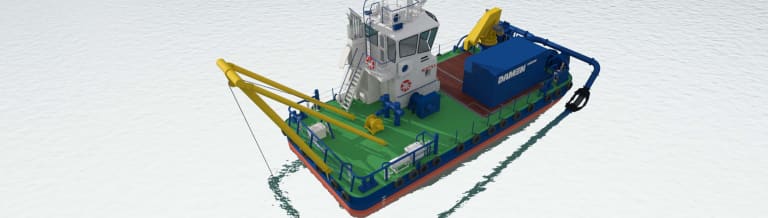

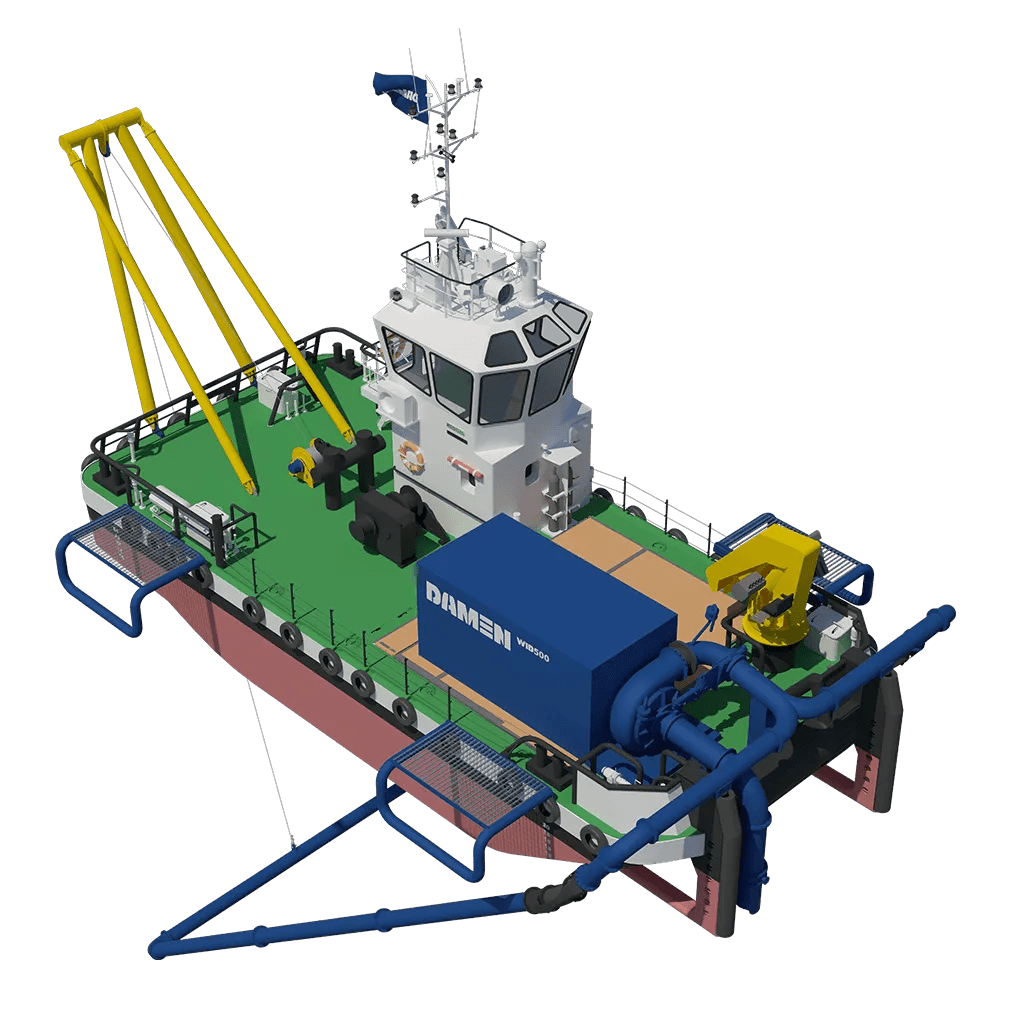

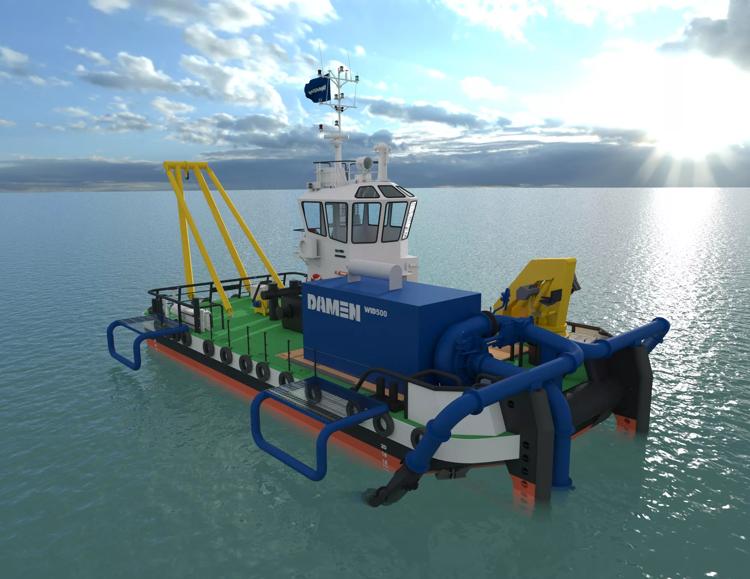

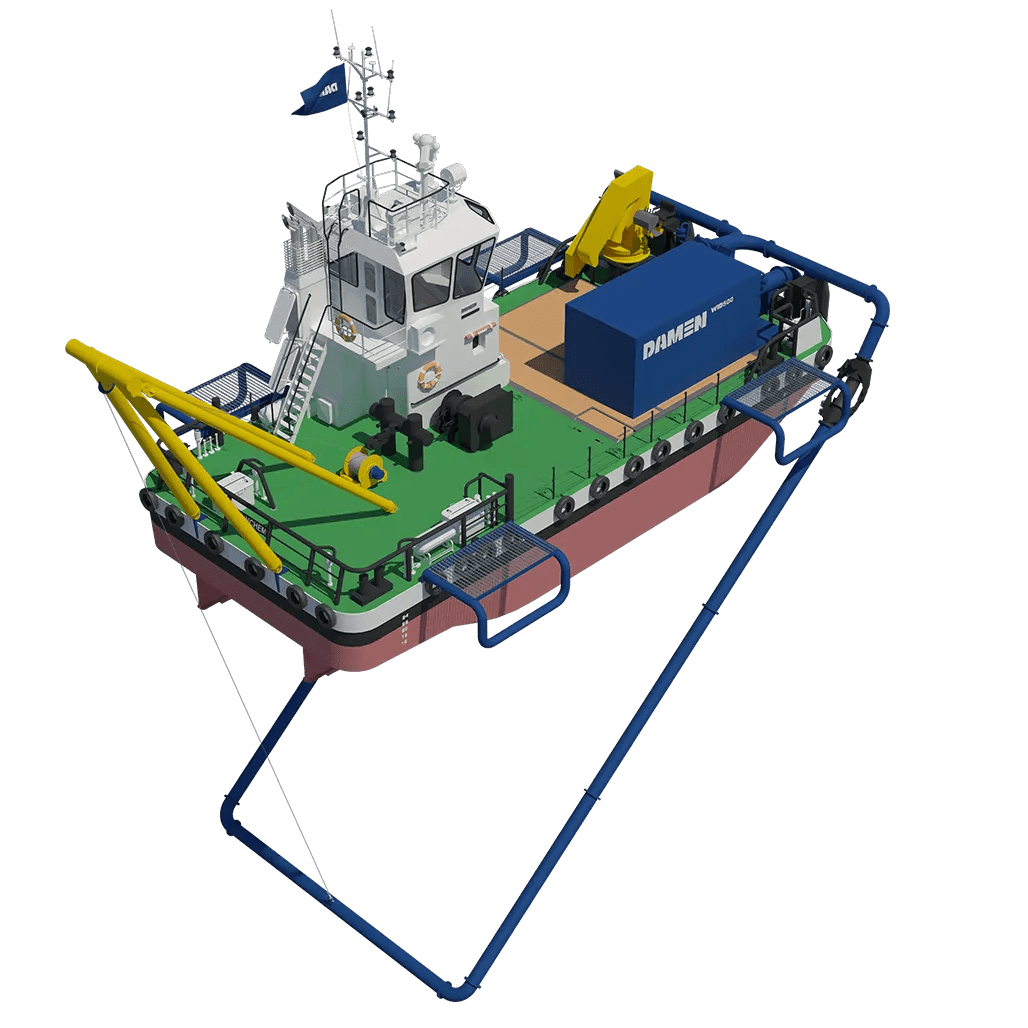

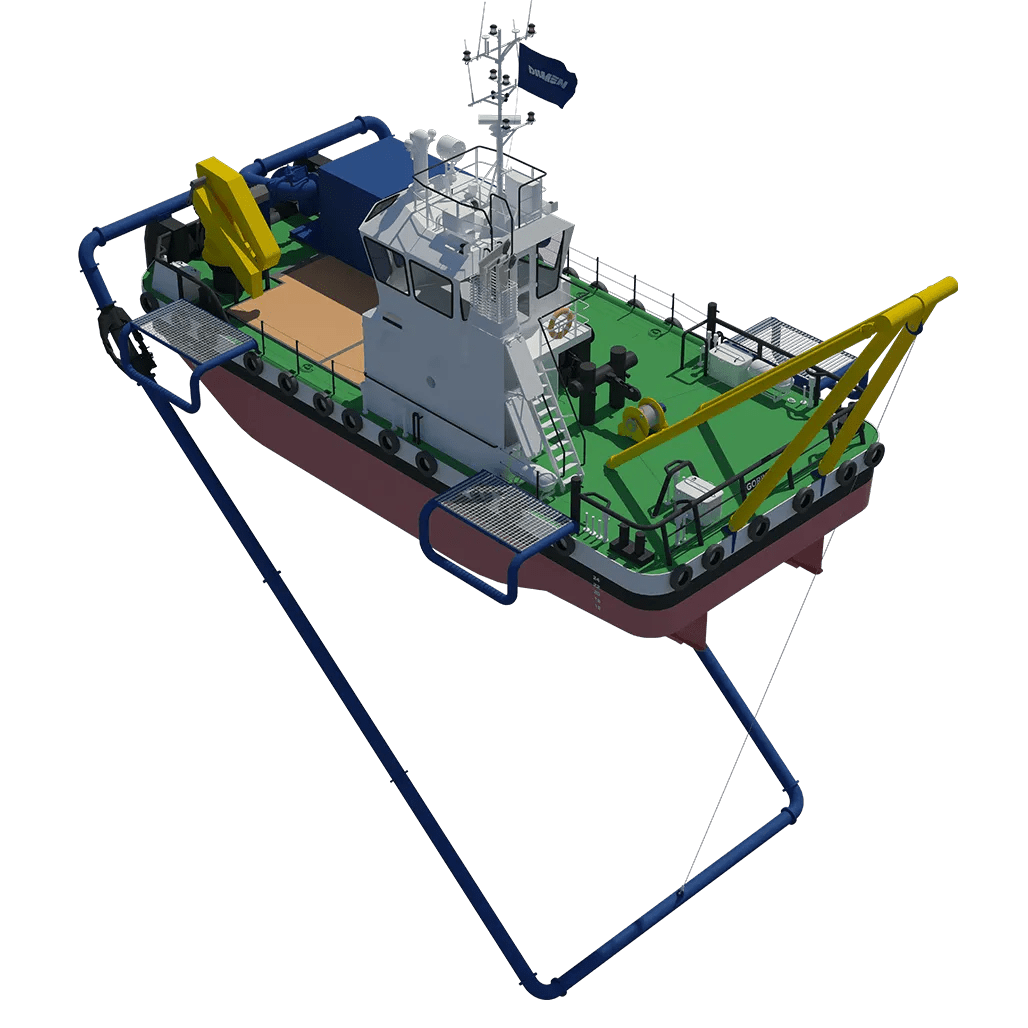

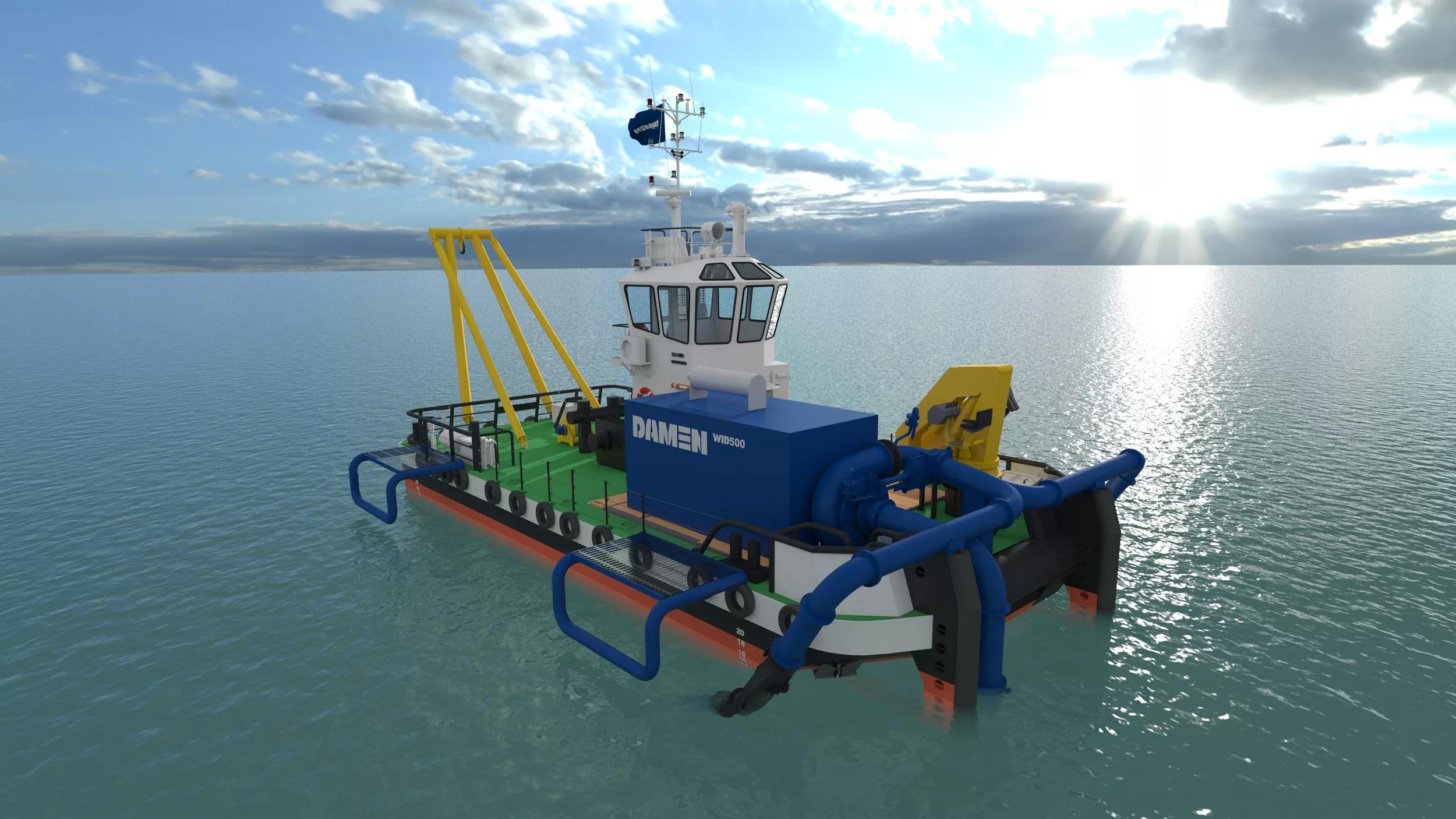

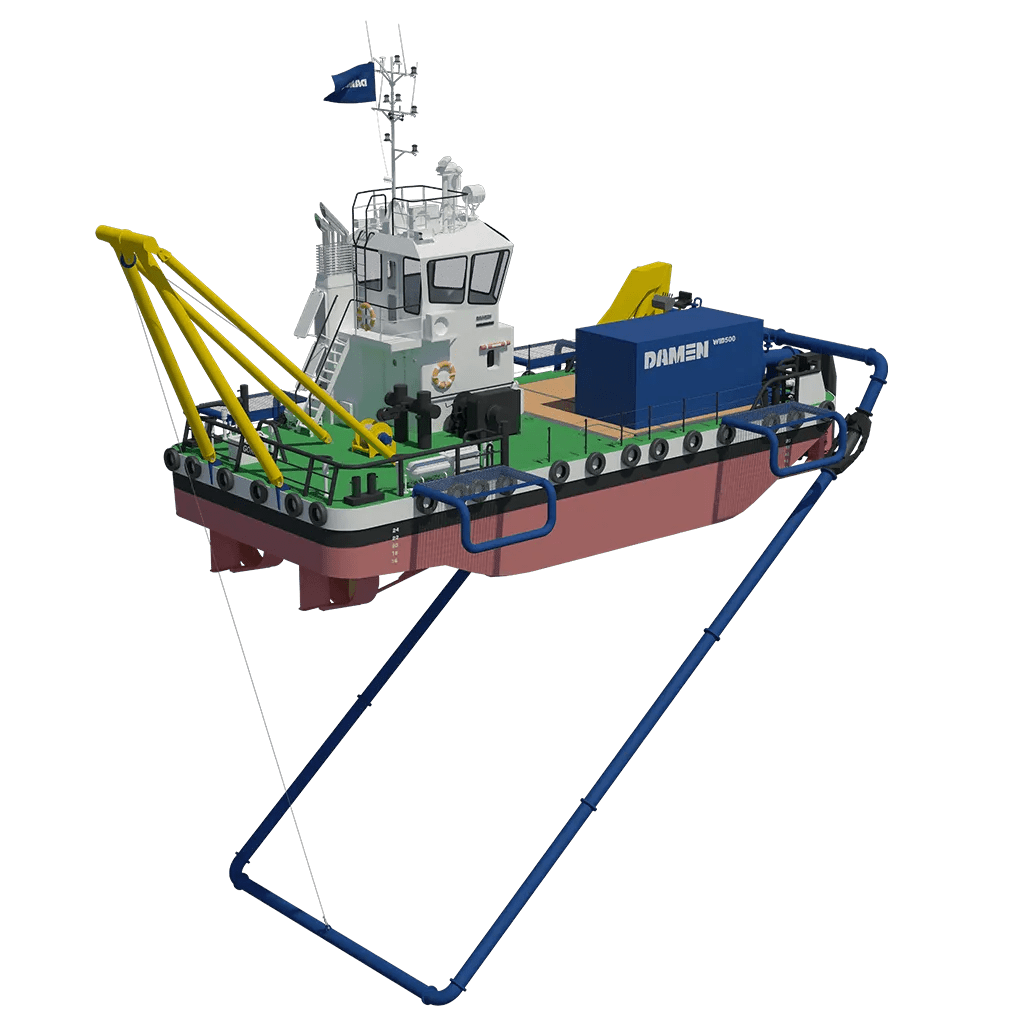

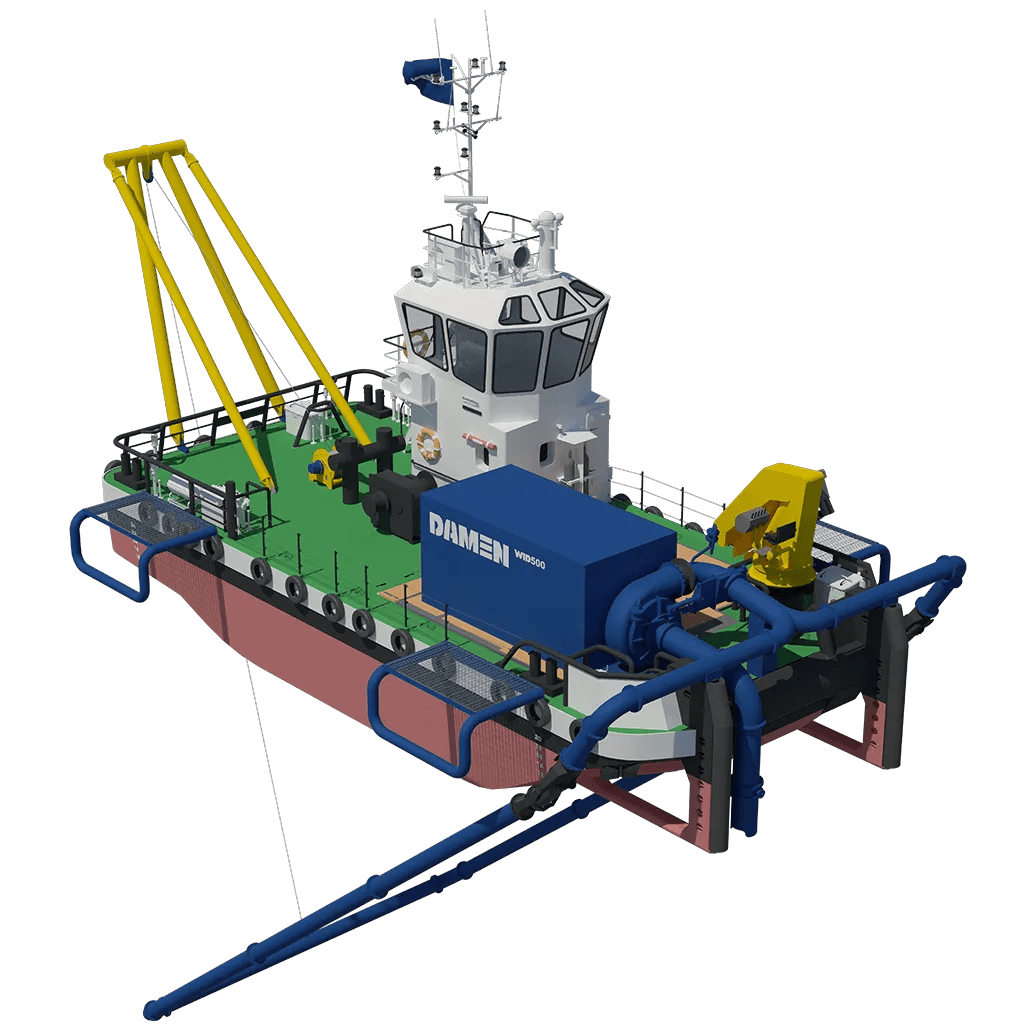

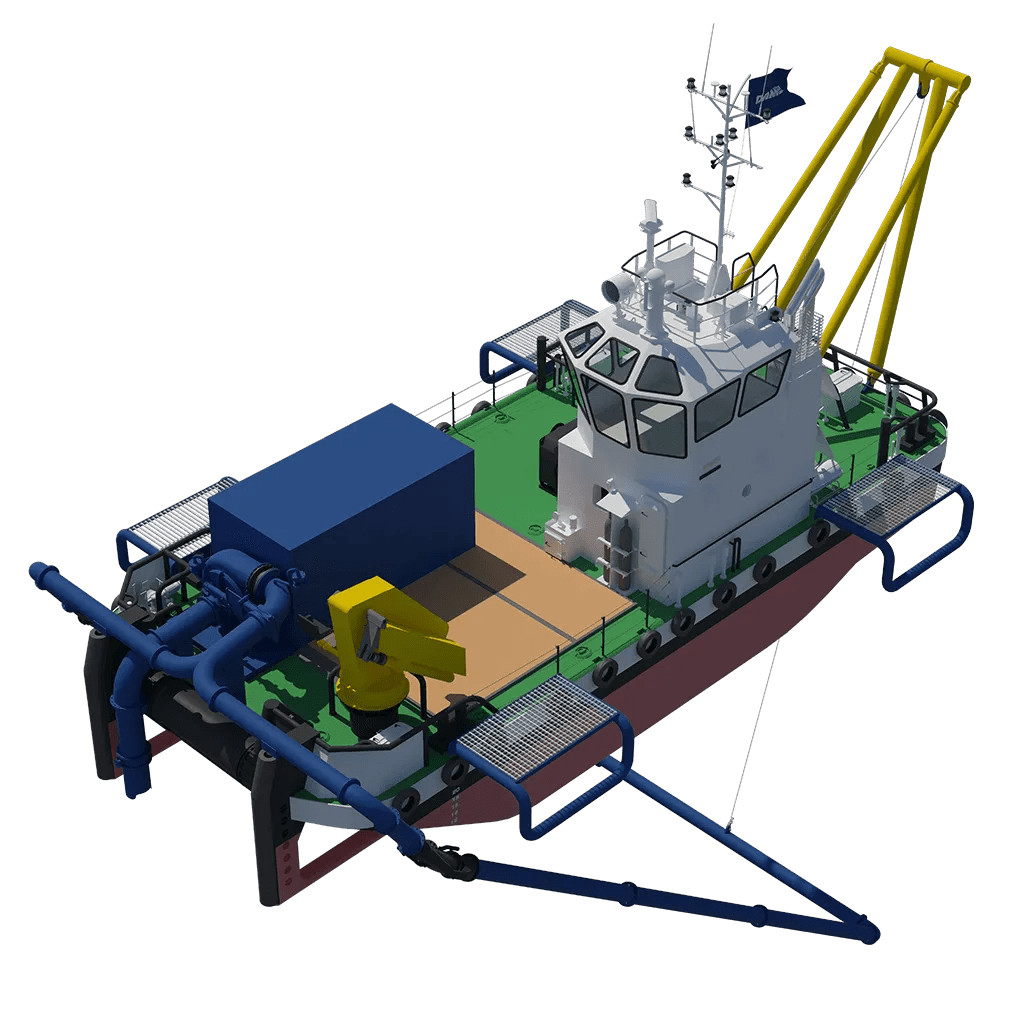

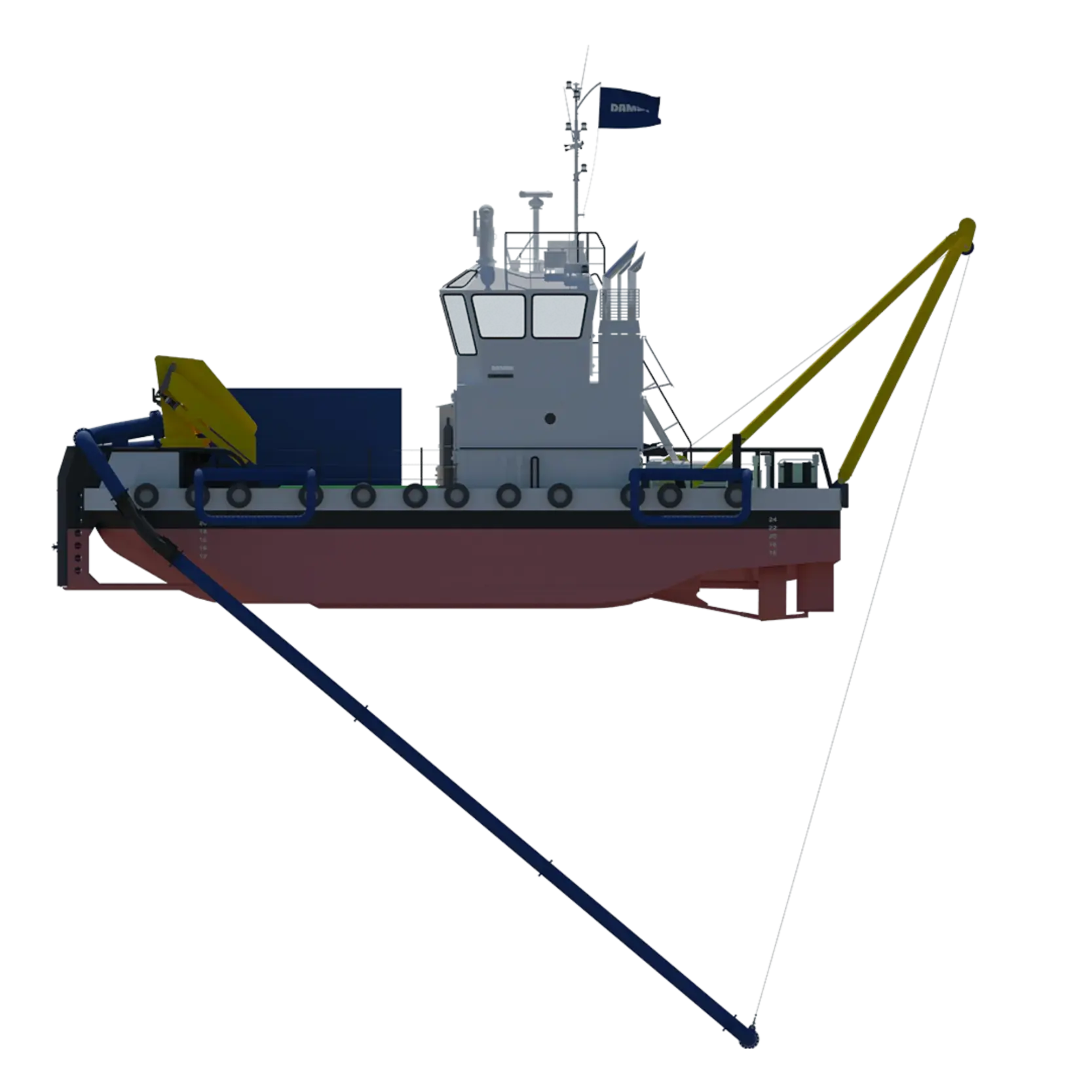

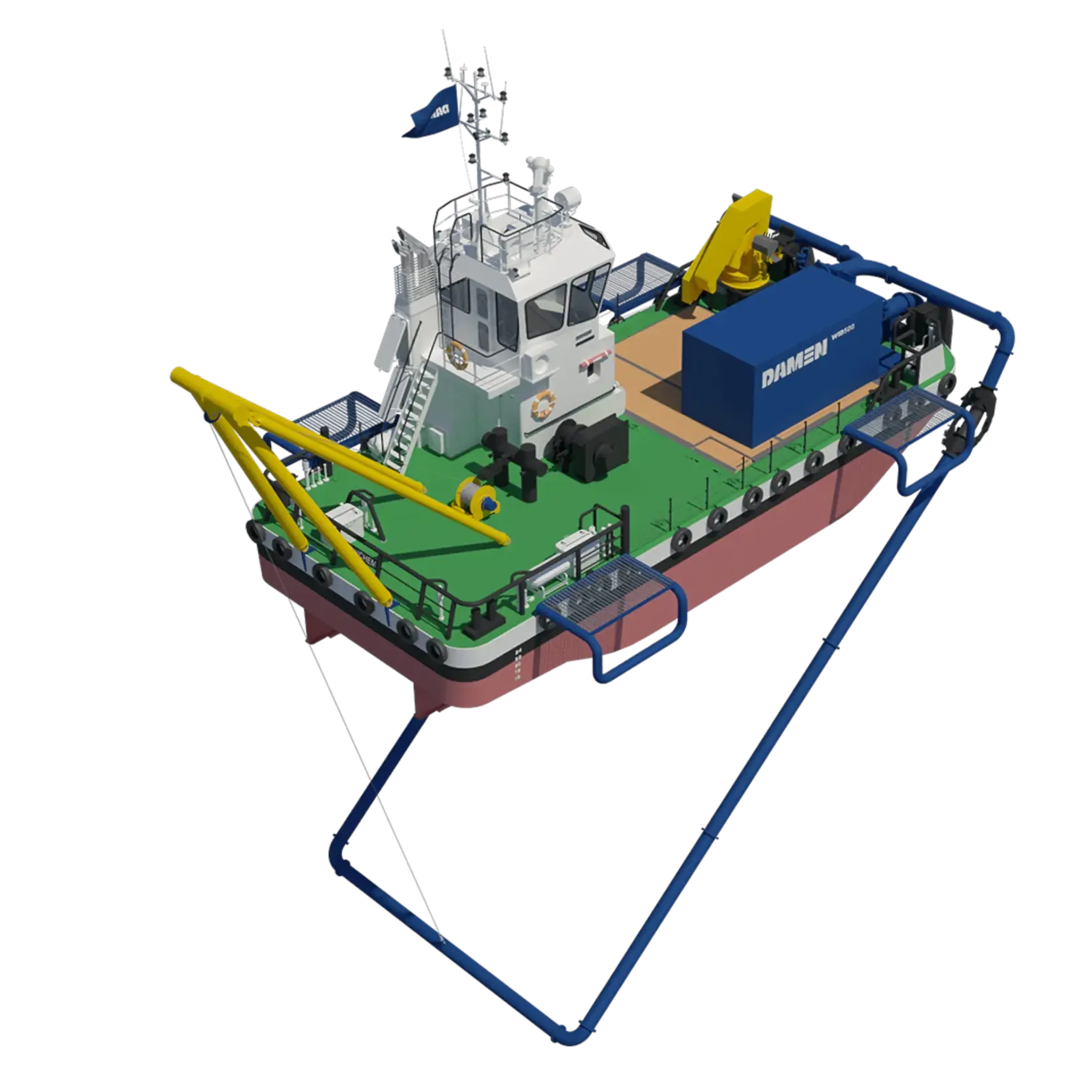

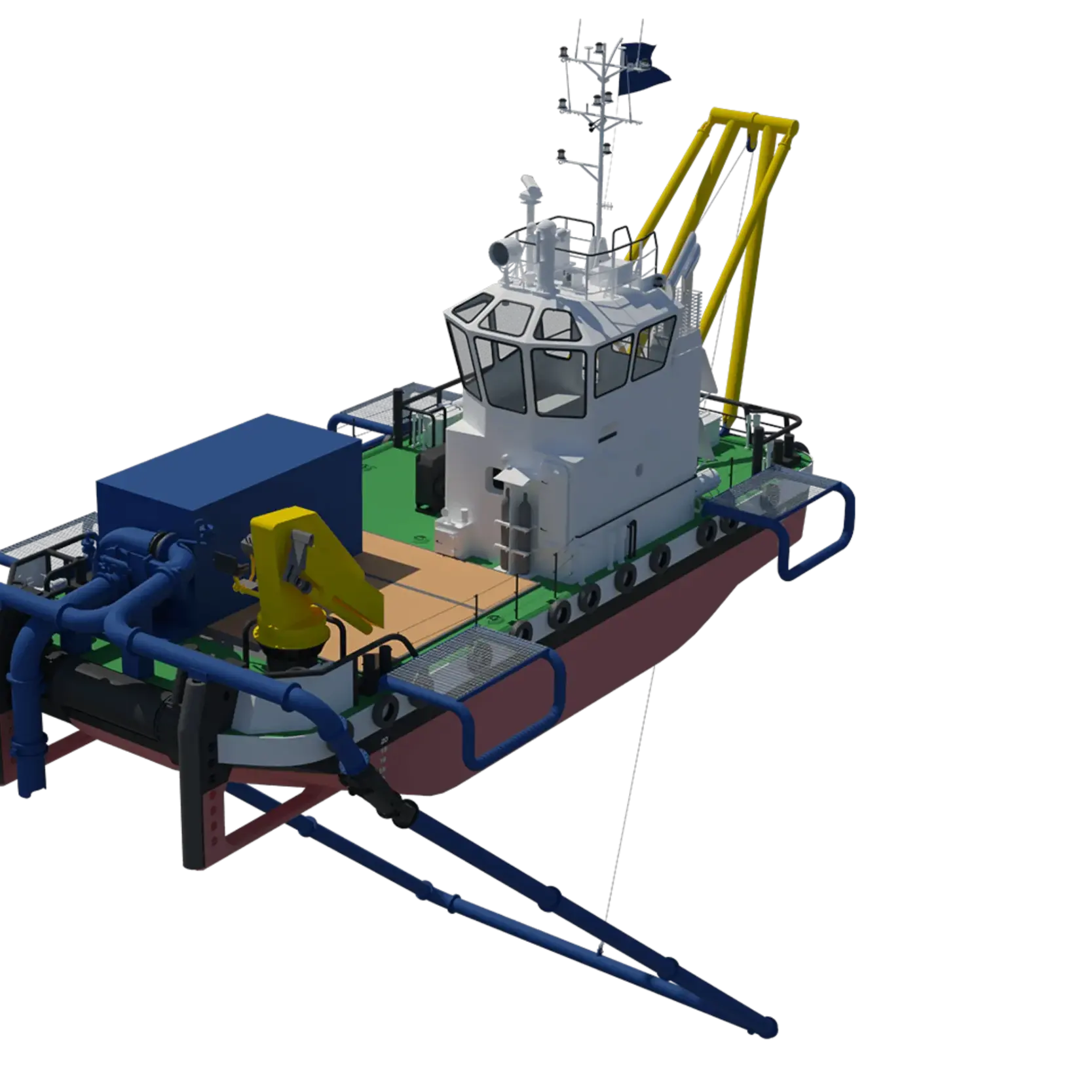

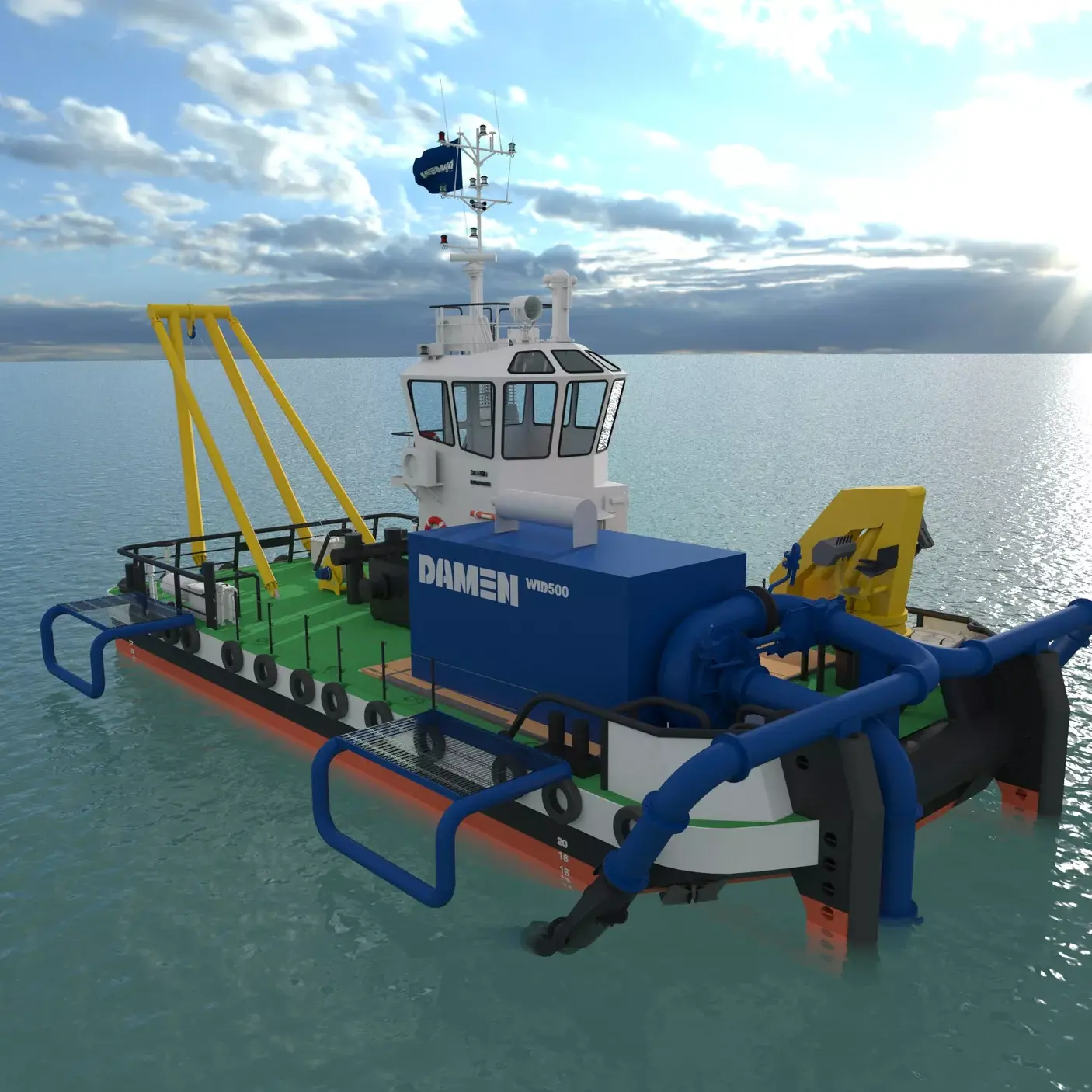

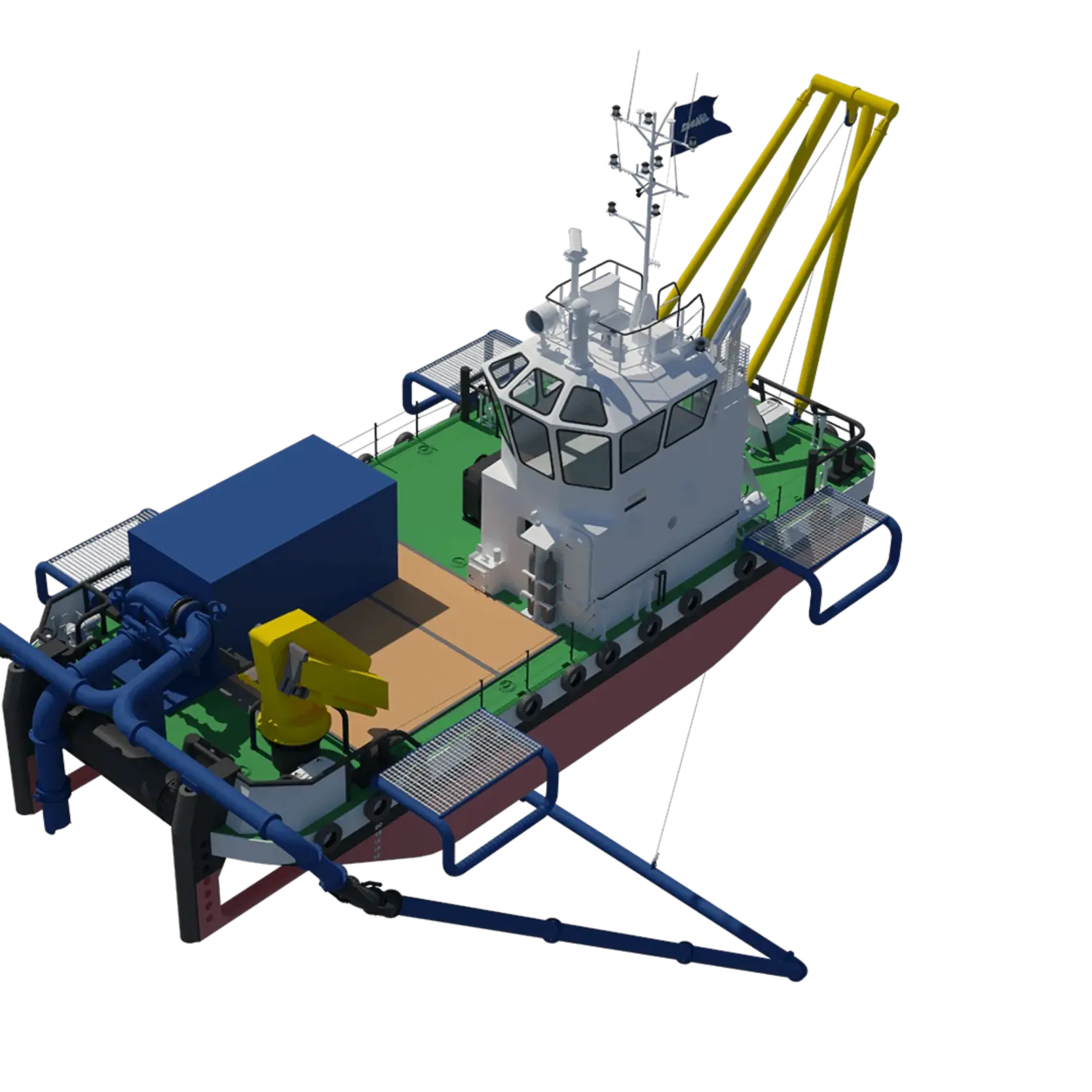

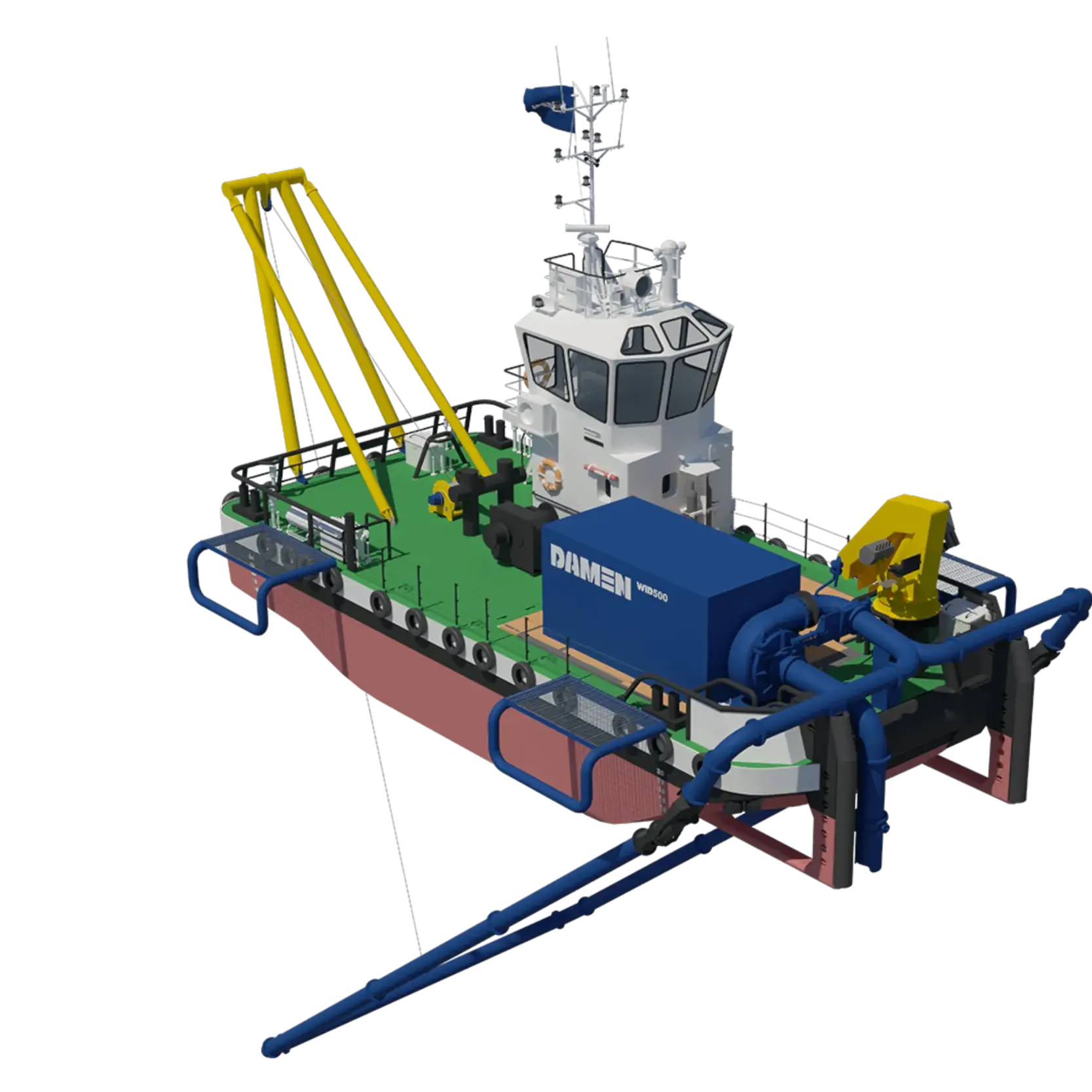

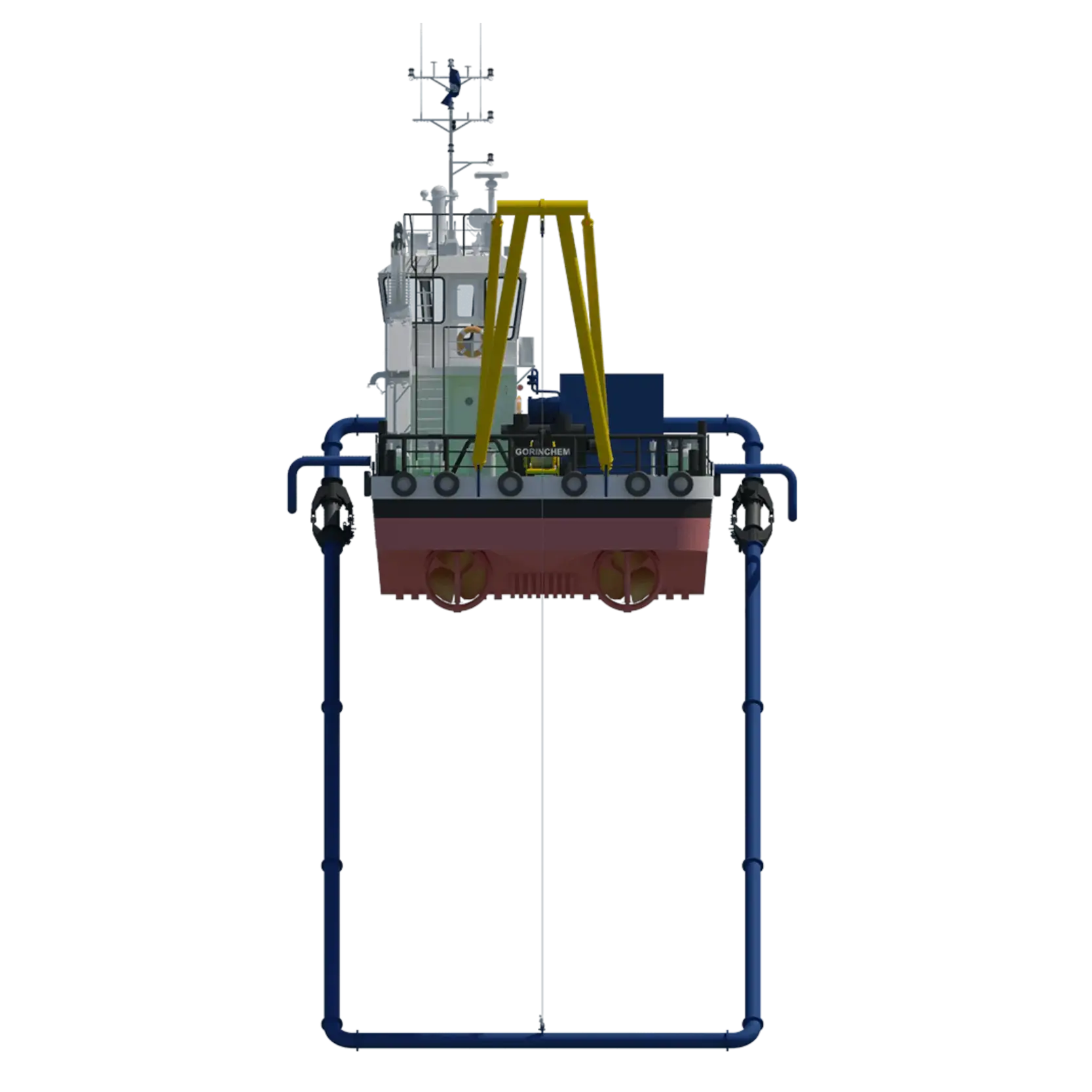

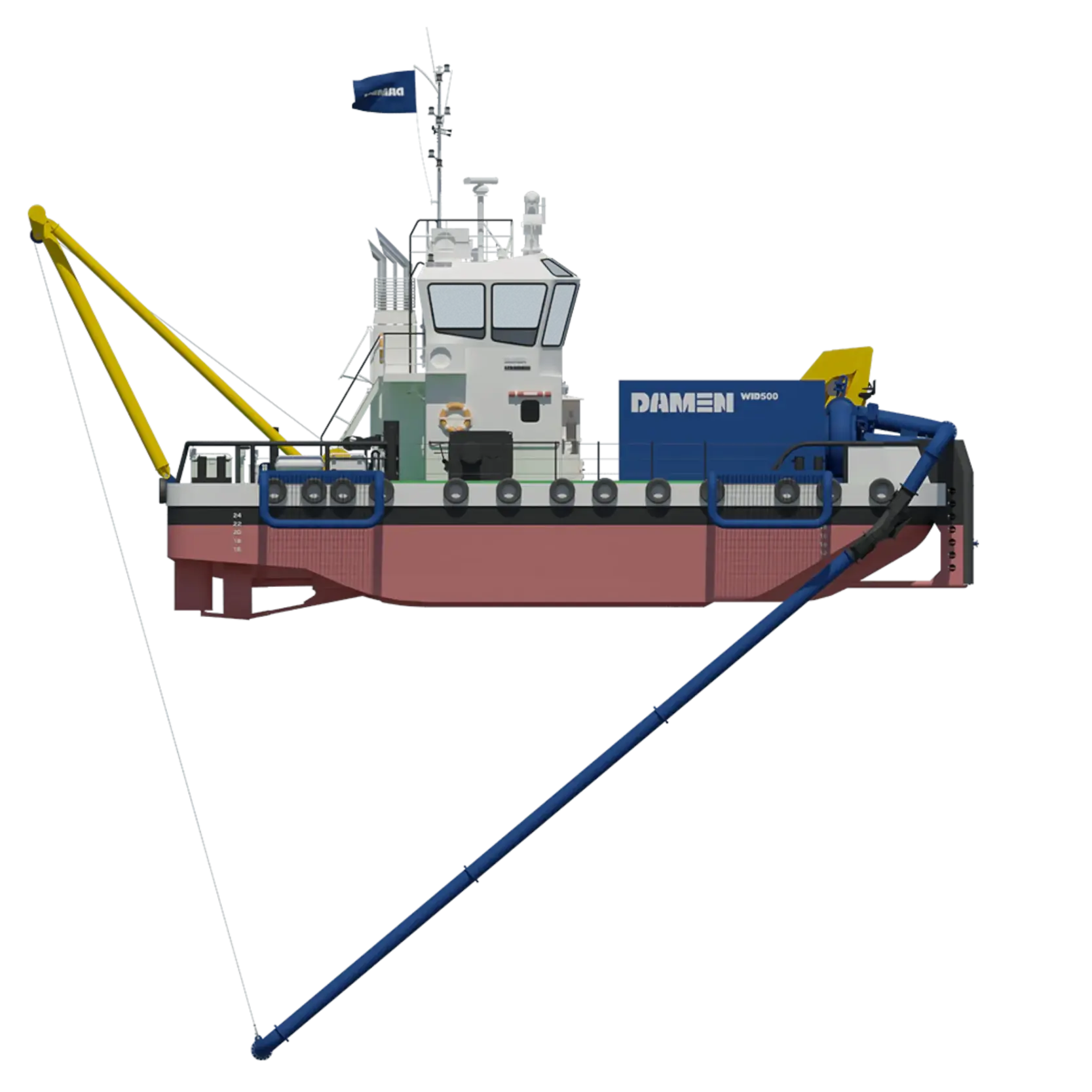

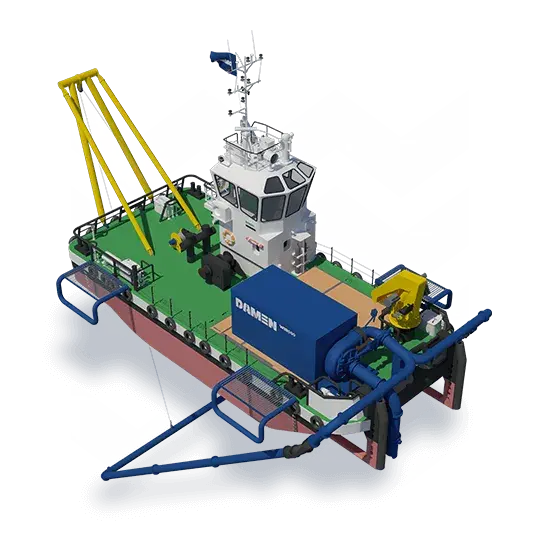

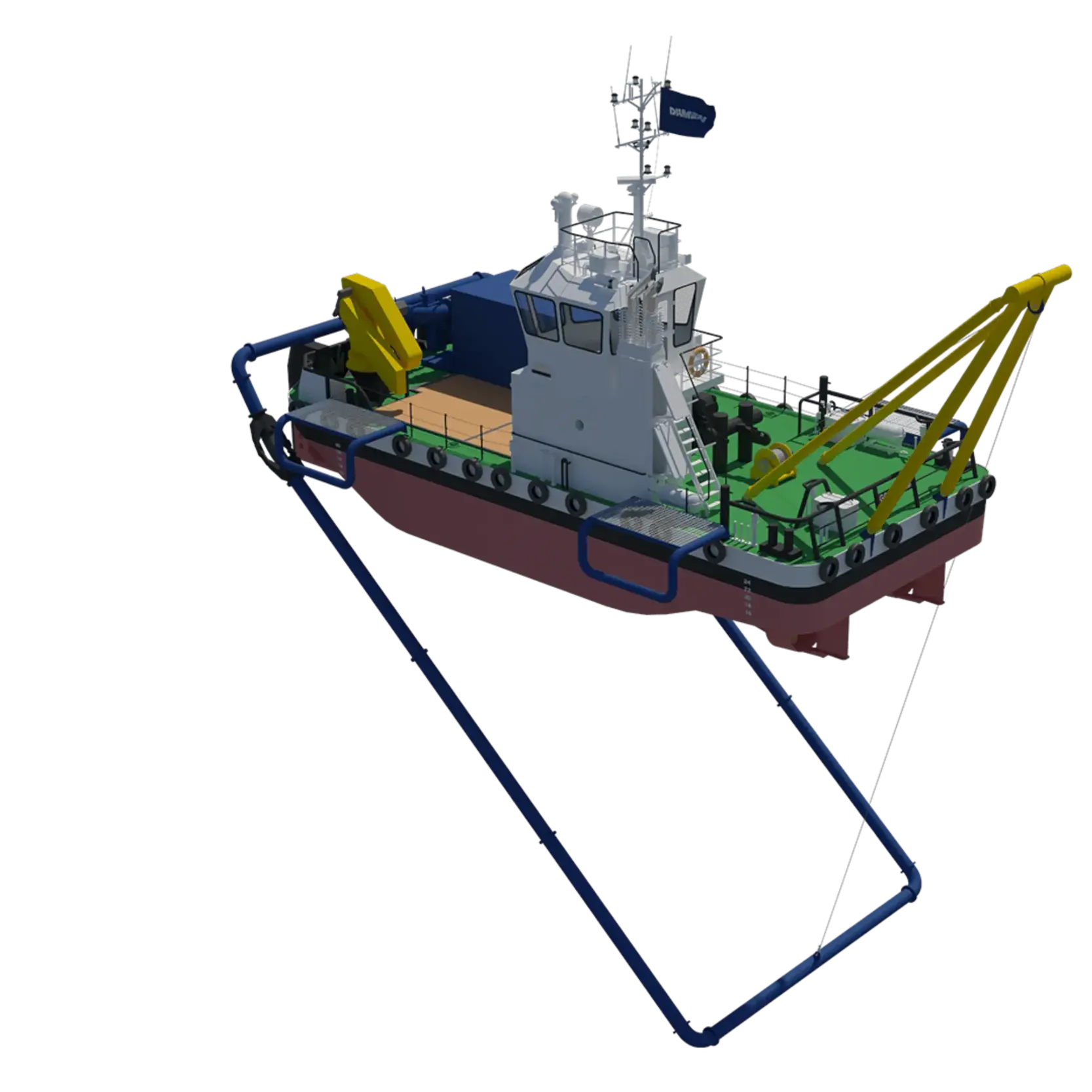

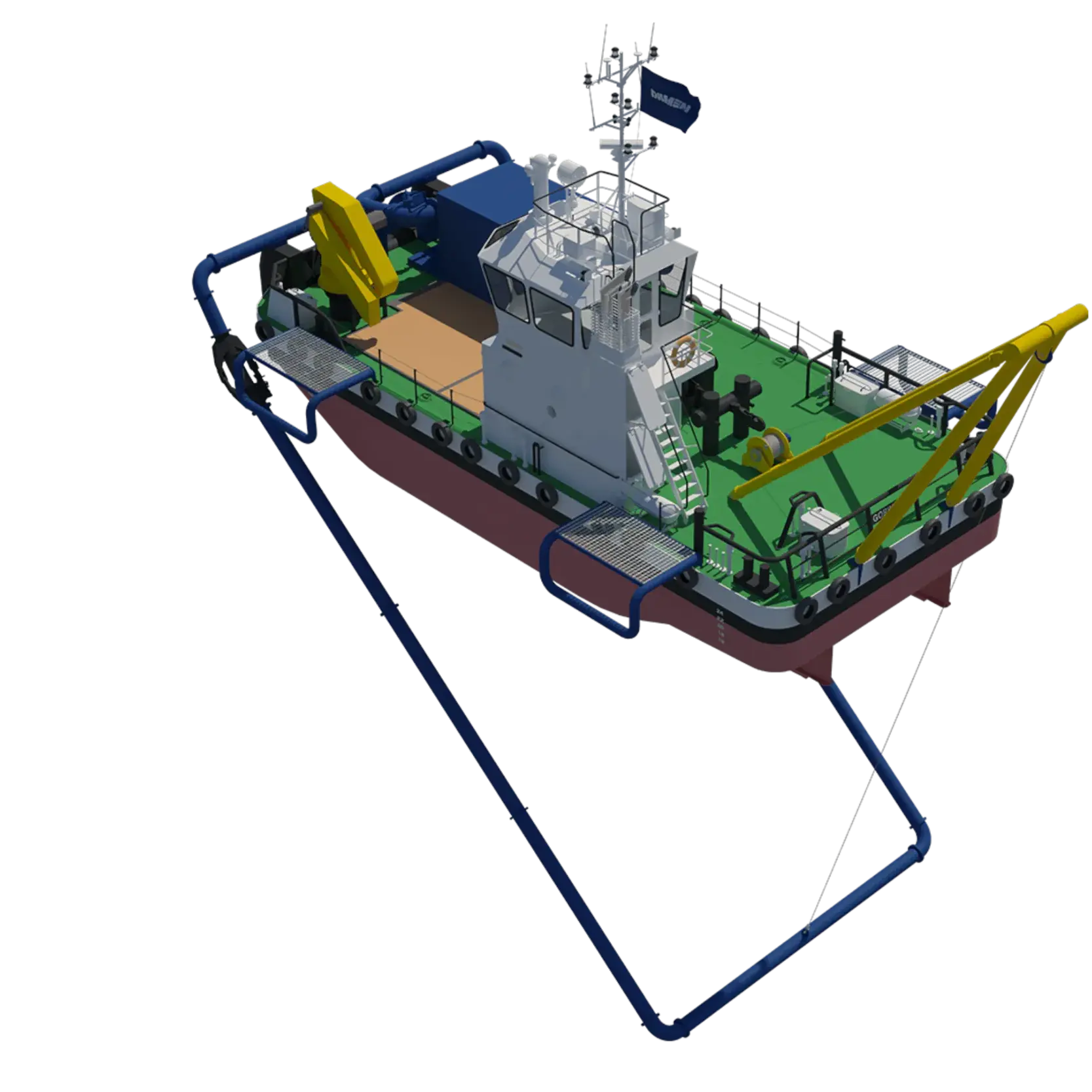

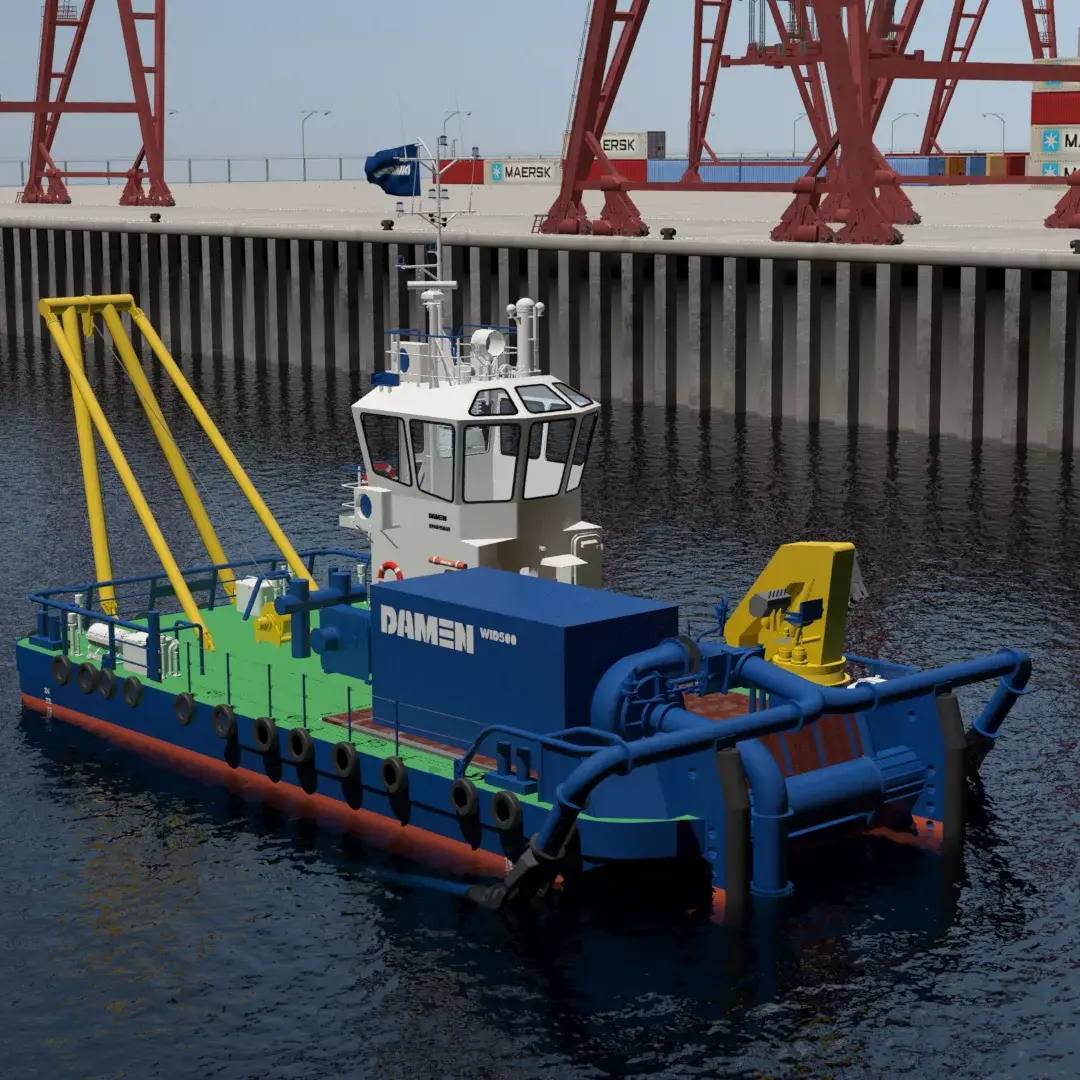

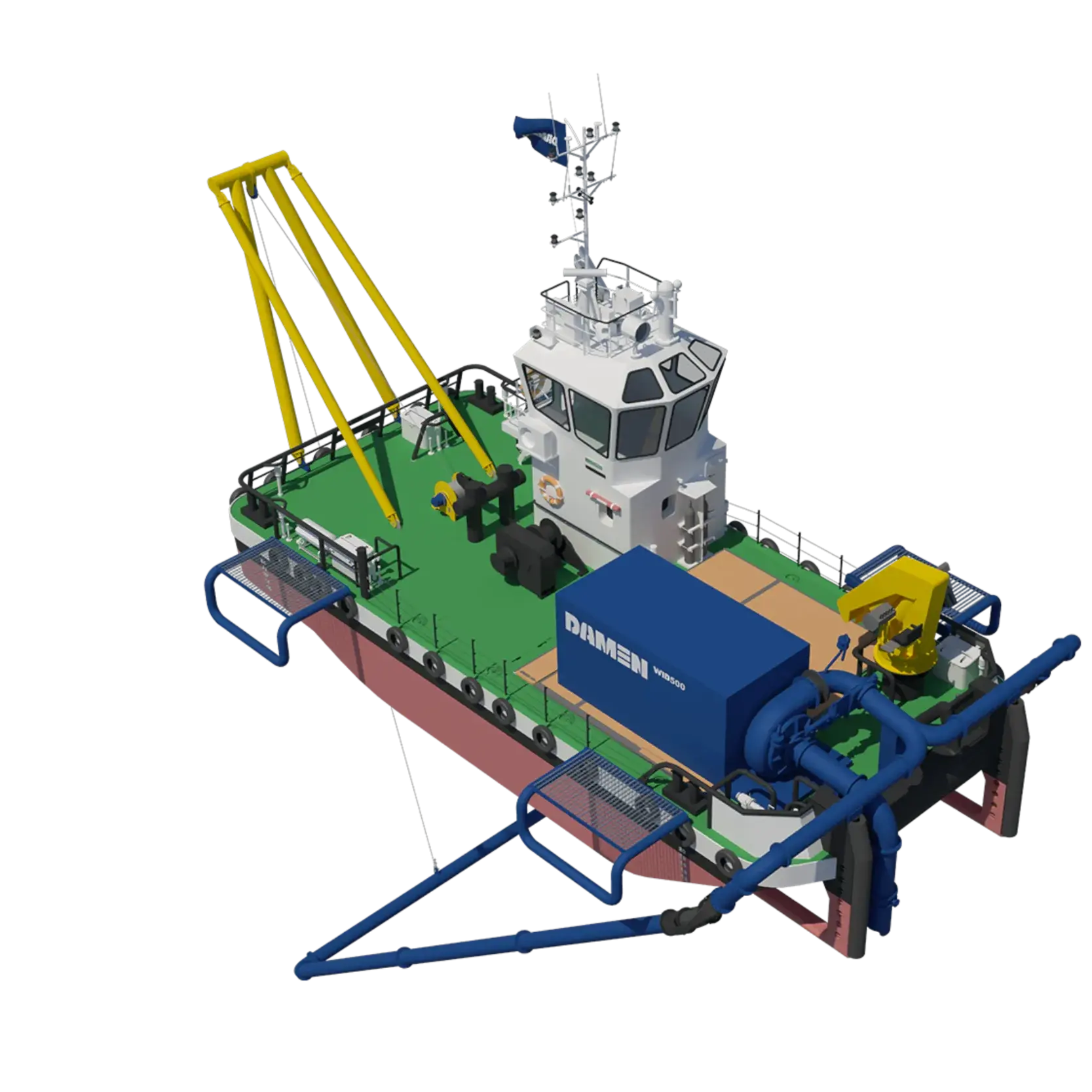

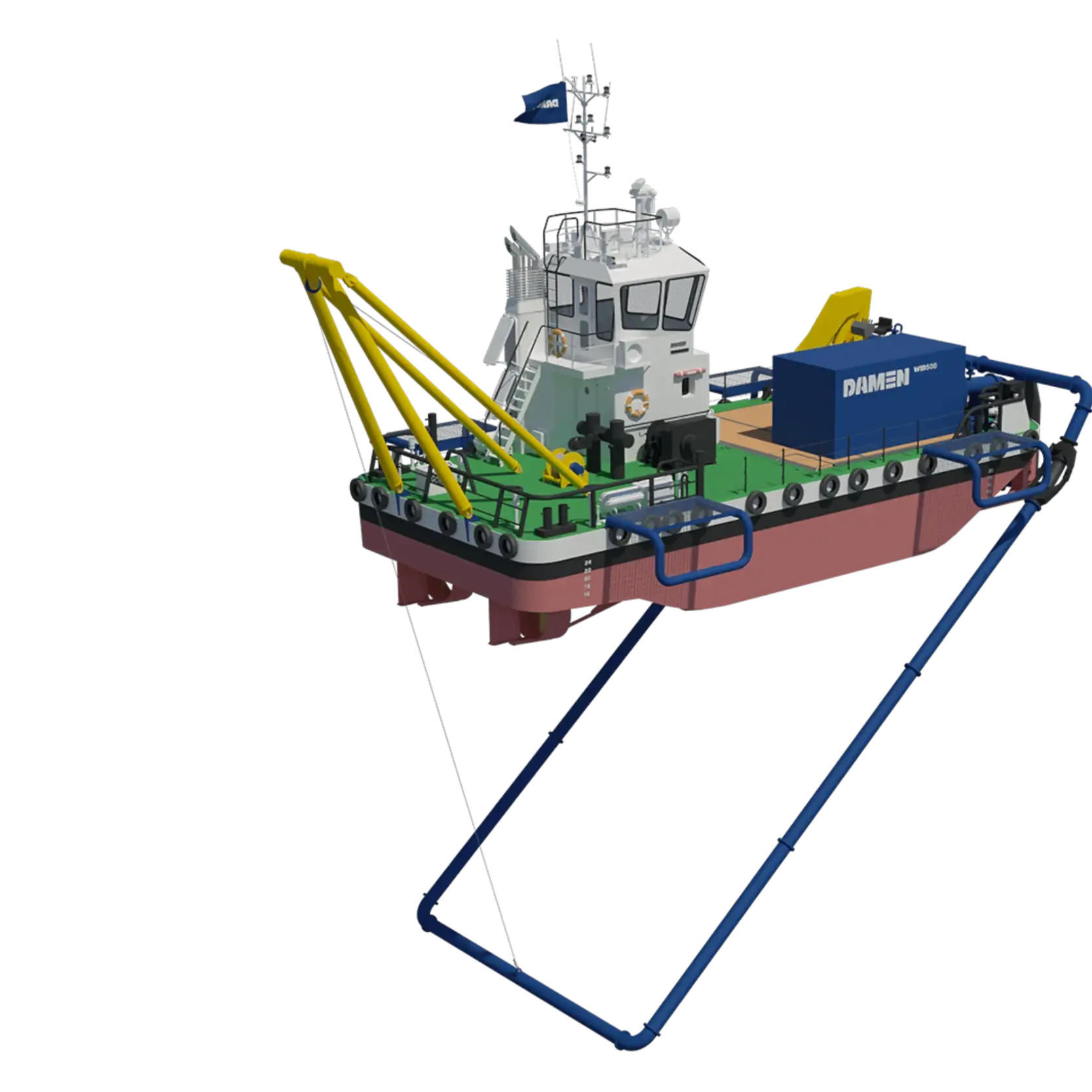

The dismountable Water Interjection Dredging kit is designed to transform any suitable workboat into a versatile dredger. The WID500 system is for instance easily installed on a Multi Cat 1908. All the components of the WID system are container sized for practical transport and quick mobilisation, not requiring dry docking. Water injection dredging is a highly effective and efficient maintenance dredge method making use of the natural power of tides and currents. Sedimented silt is relocated without the need for a disposal area.
  • Flow measurement
  • Position visualisation

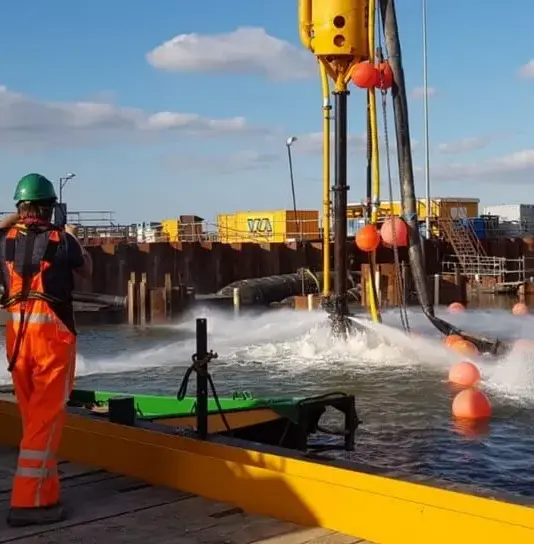

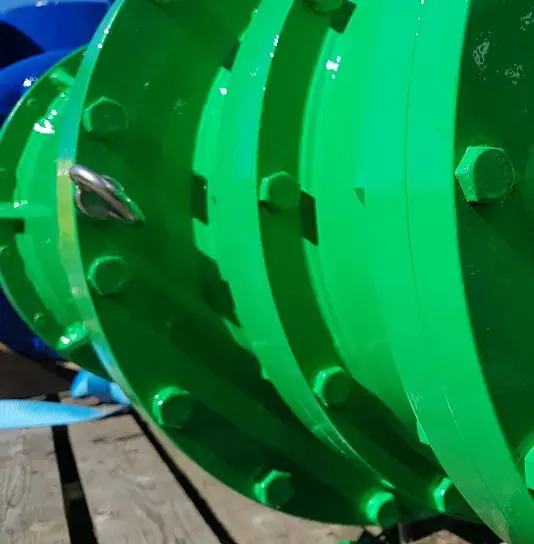

  • DOP submersible dredge pump
  • Plough
  • The WID system is of a modular plug and play design
  • Your work boat does not need structural changes nor drydocking
  • Water Injection Dredging system ready for immediate start up
  • Controlled from the bridge

Key figures

-12

4200

25

14

10

Dimensions

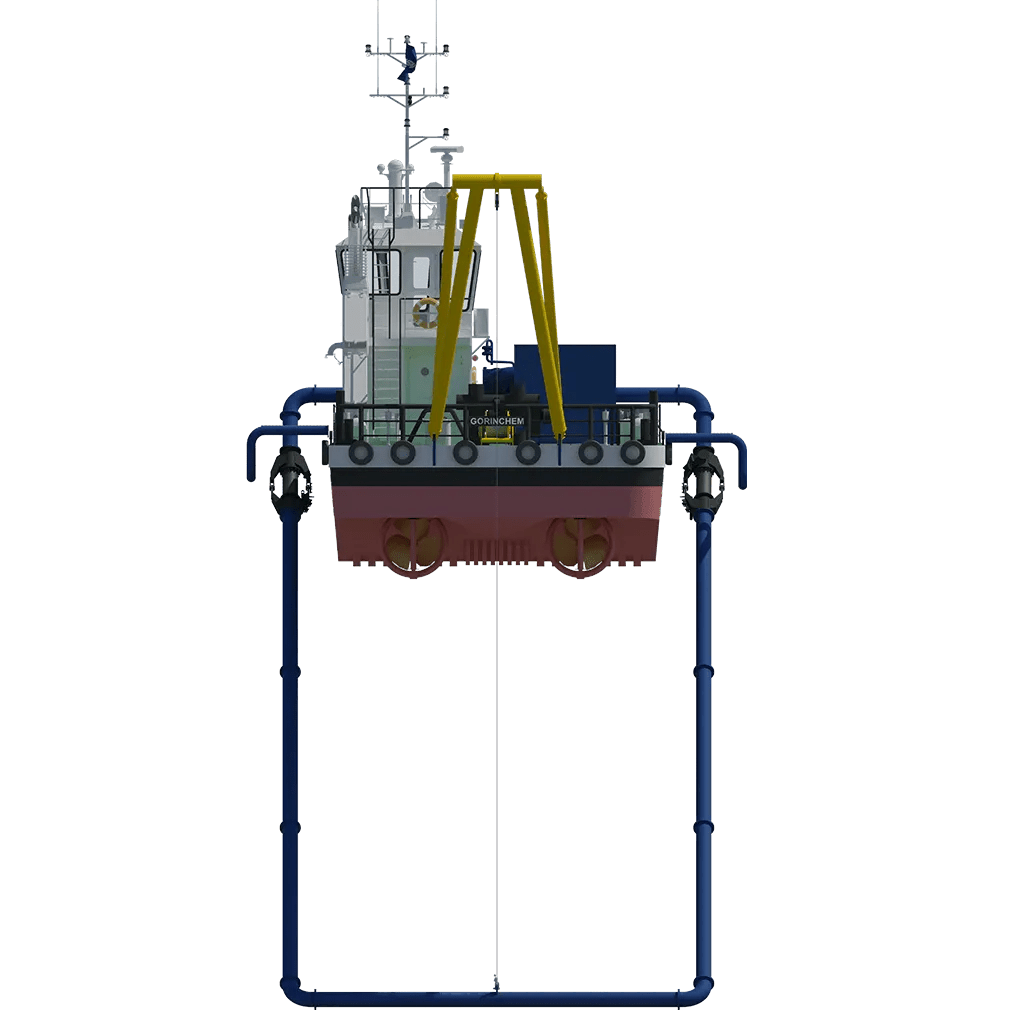

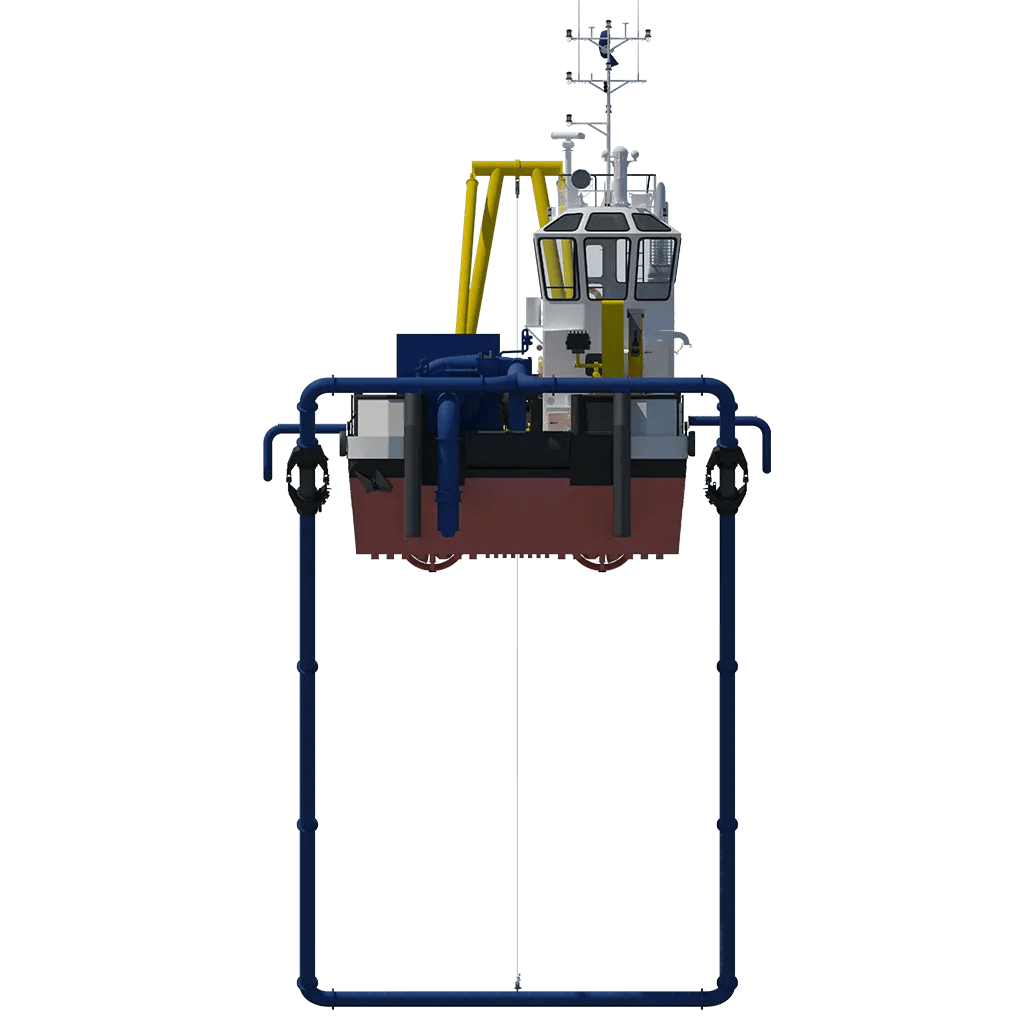

Width jet beam
10 m

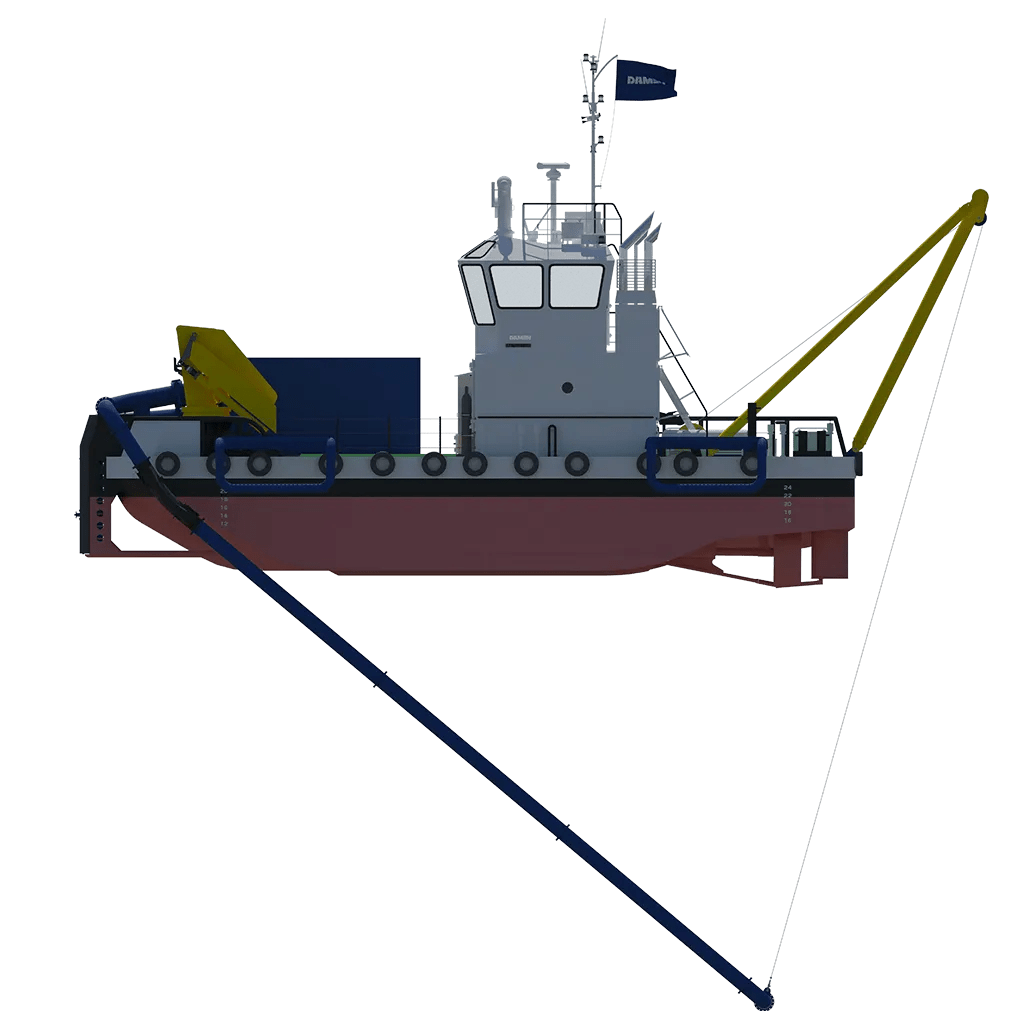

Length jet arm
17 m

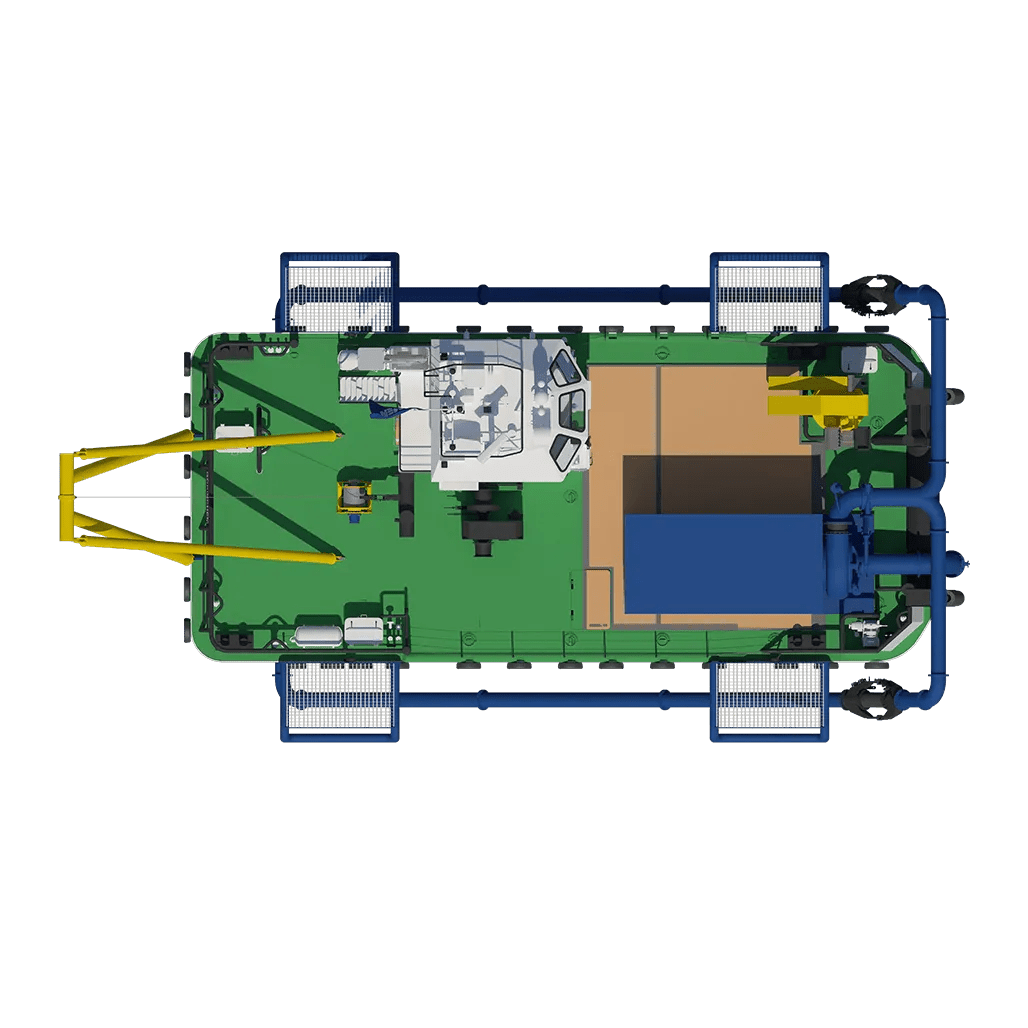

Footprint jet station
14
Total weight
25 t

Engine installation

Pump power
265 kW
Pump engine
Volvo
Start up system
priming unit

Dredge installation

Max dredging depth
-12 m
Max flow
4200 m³/h
Jet nozzles
35 pcs
Side hinges
2 x heavy duty
Do you want to know more?

Compare similar WID system

Dredging depth (m)Max flow (m³/h)Weight (t)Footprint (m²)Width jet beam (m)
WID 500-124200251410
WID 600-2010500602814.5
WID 500
Dredging depth (m)
-12
Max flow (m³/h)
4200
Weight (t)
25
Footprint (m²)
14
Width jet beam (m)
10
Dredging depth (m)
-20
Max flow (m³/h)
10500
Weight (t)
60
Footprint (m²)
28
Width jet beam (m)
14.5
