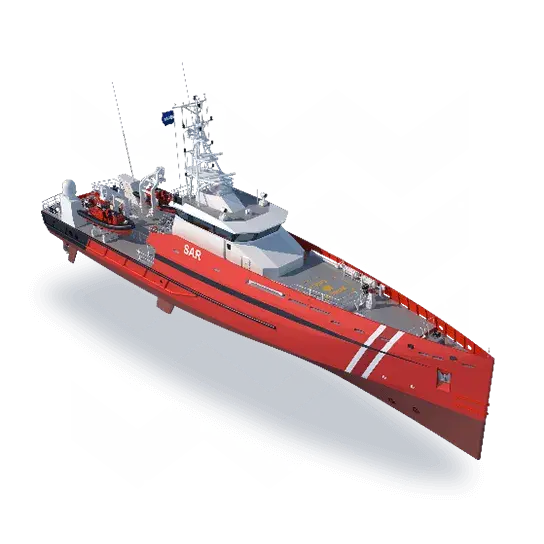

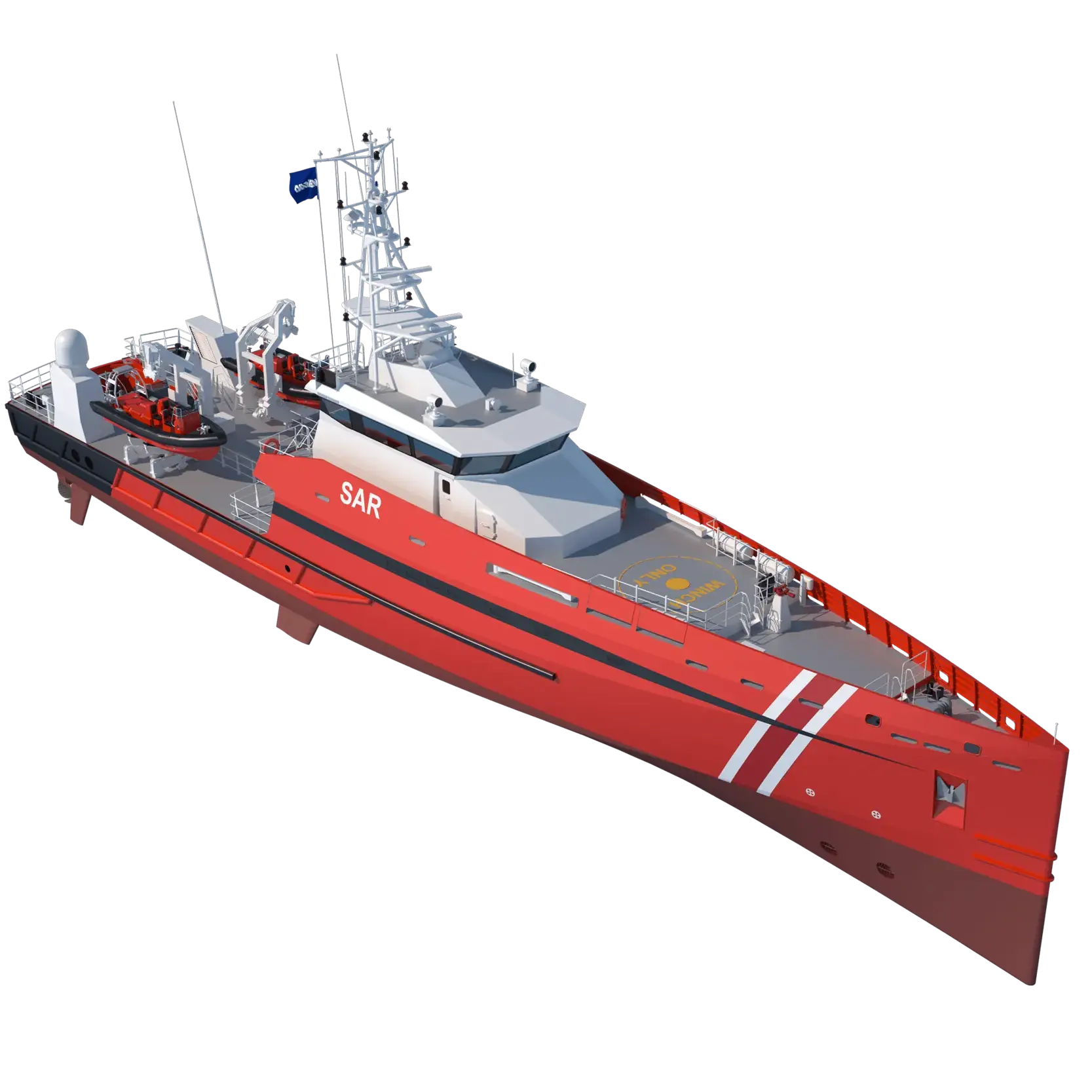

Search and Rescue Vessel 5009

50.1

29.5

75

Steel

4 x FRP

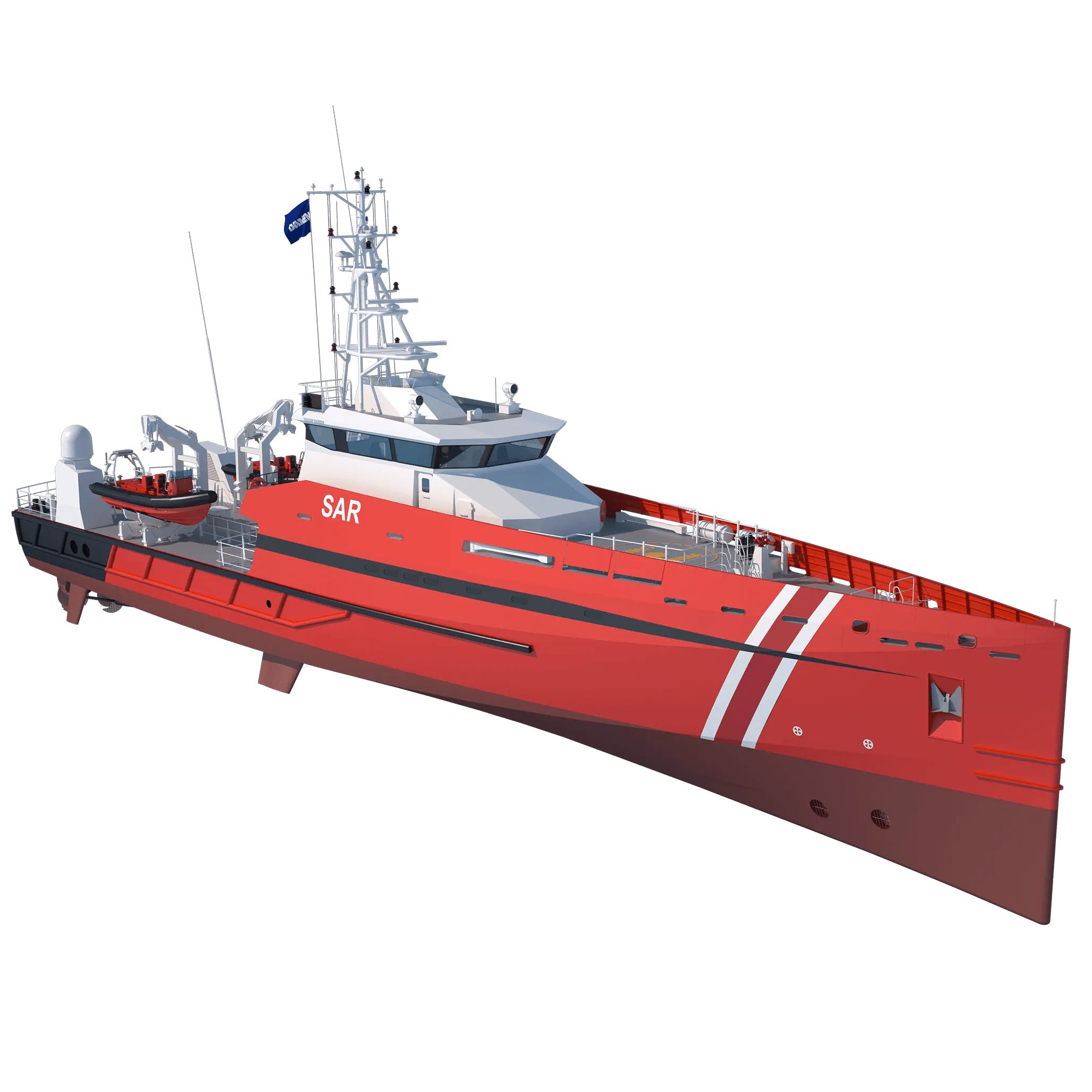

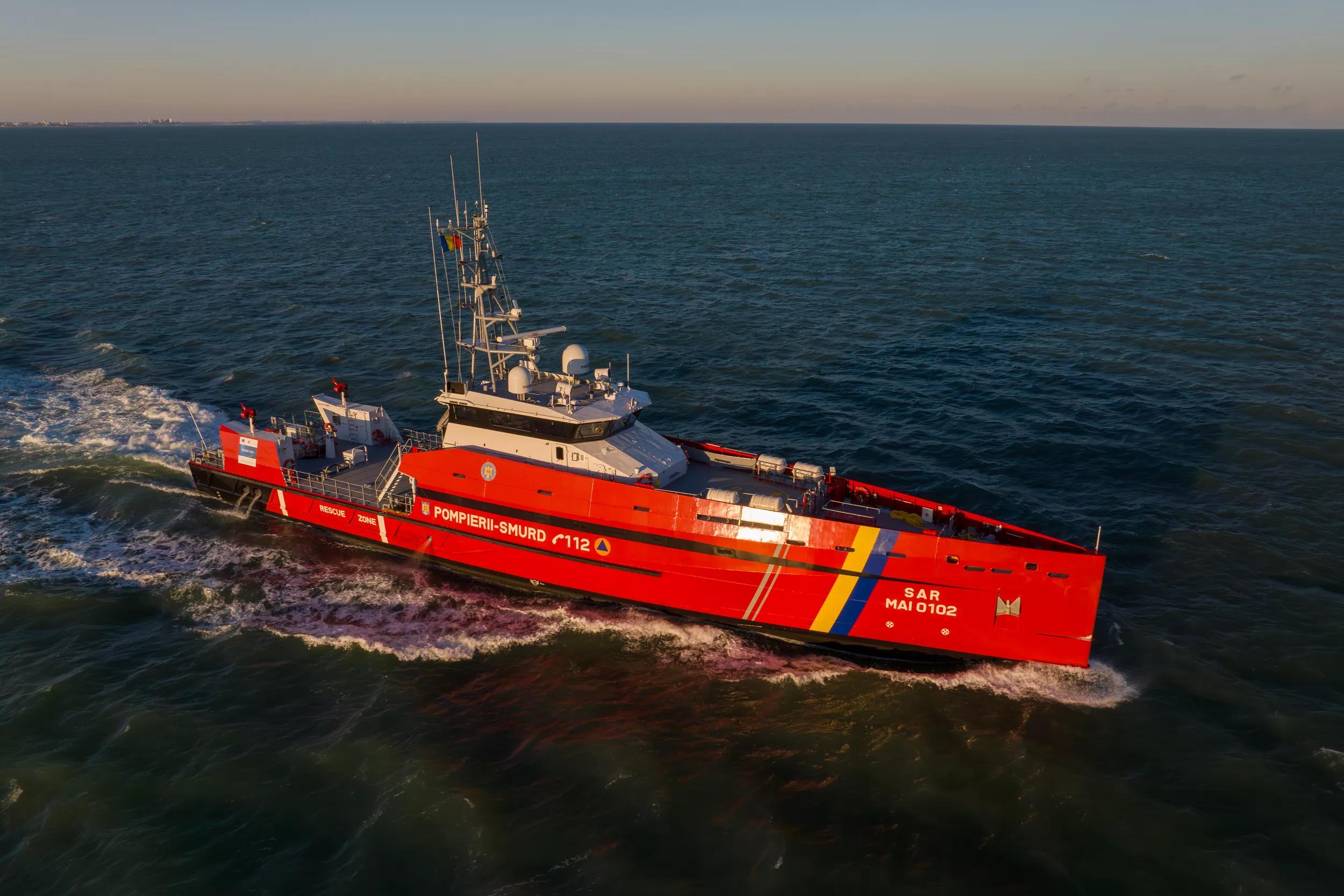

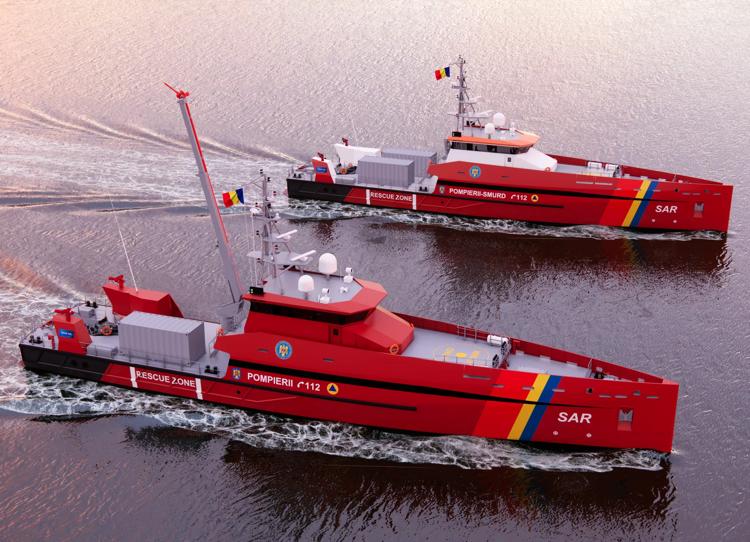

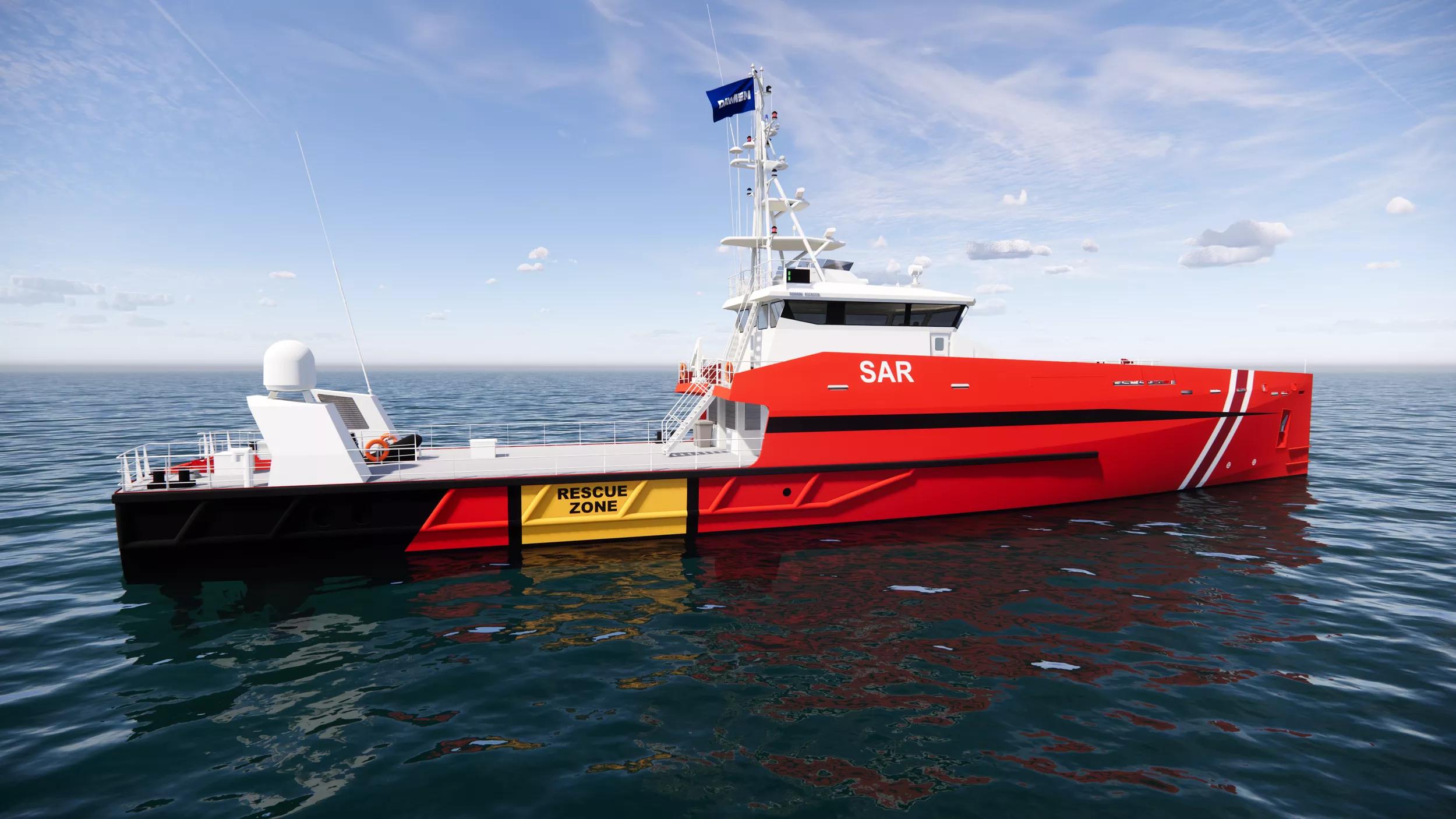

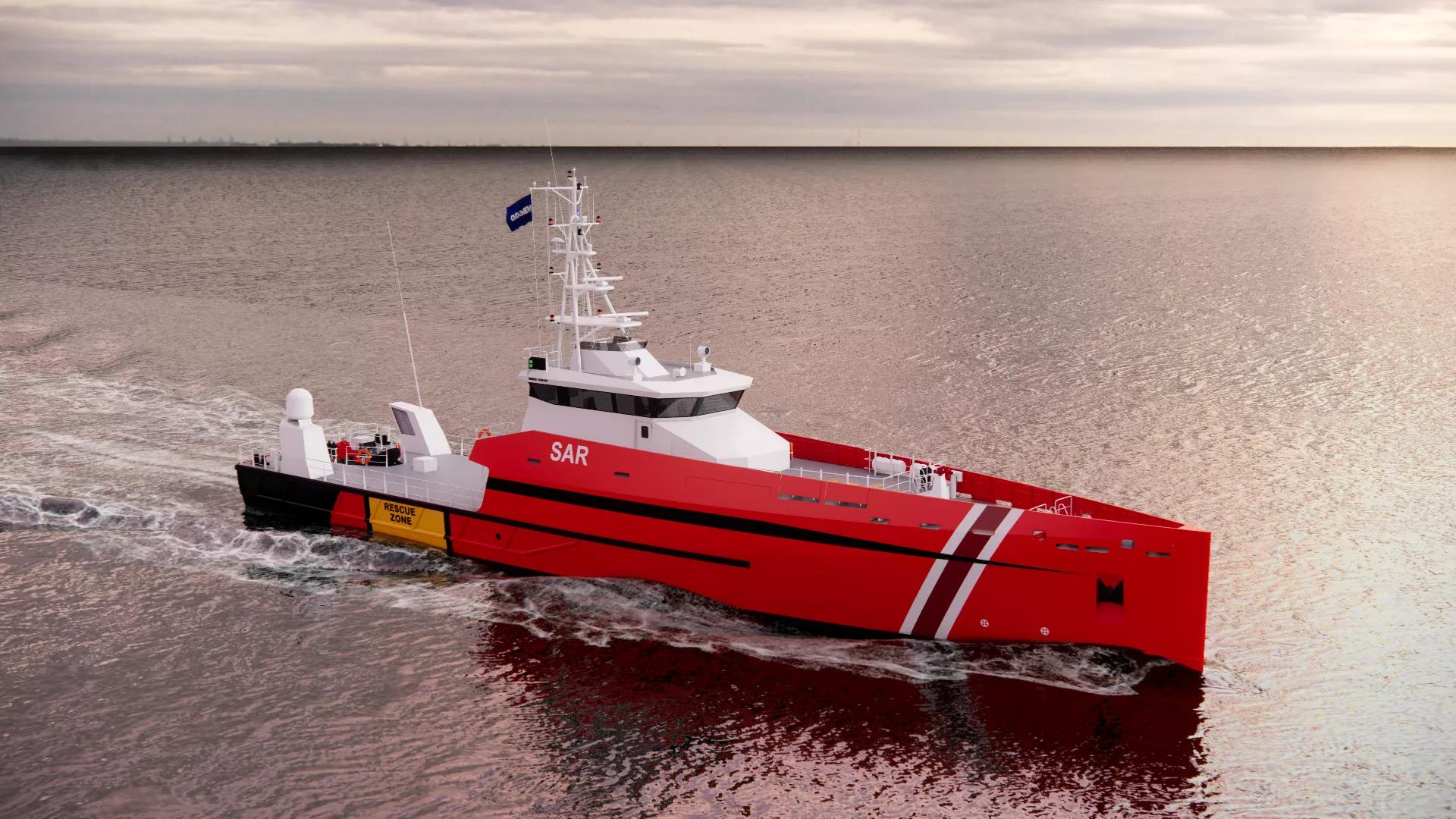

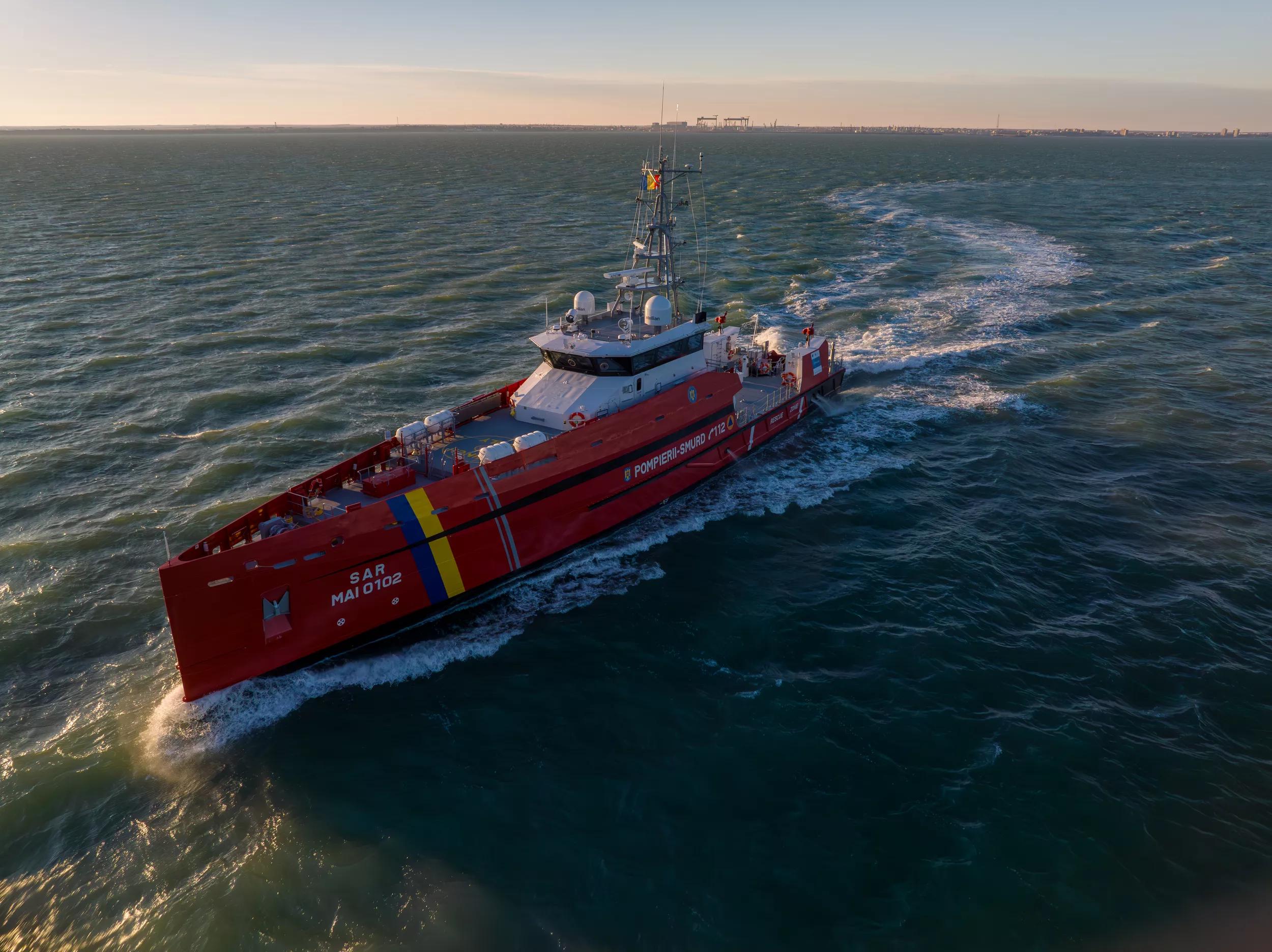

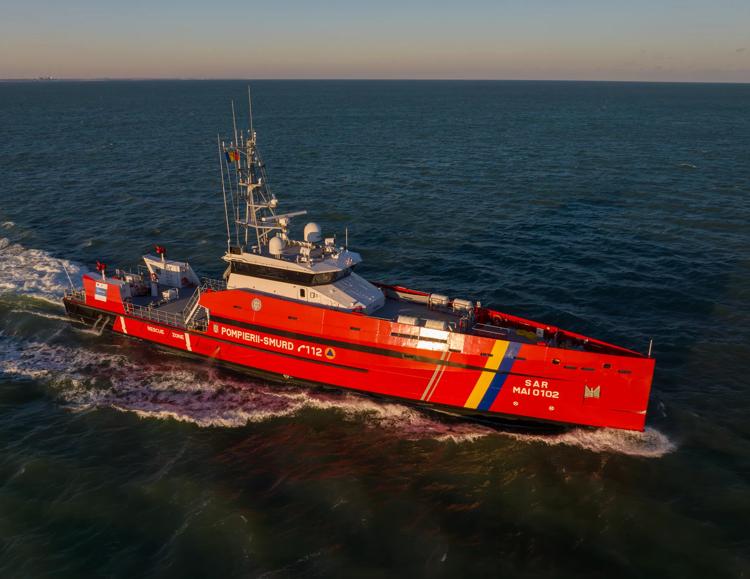

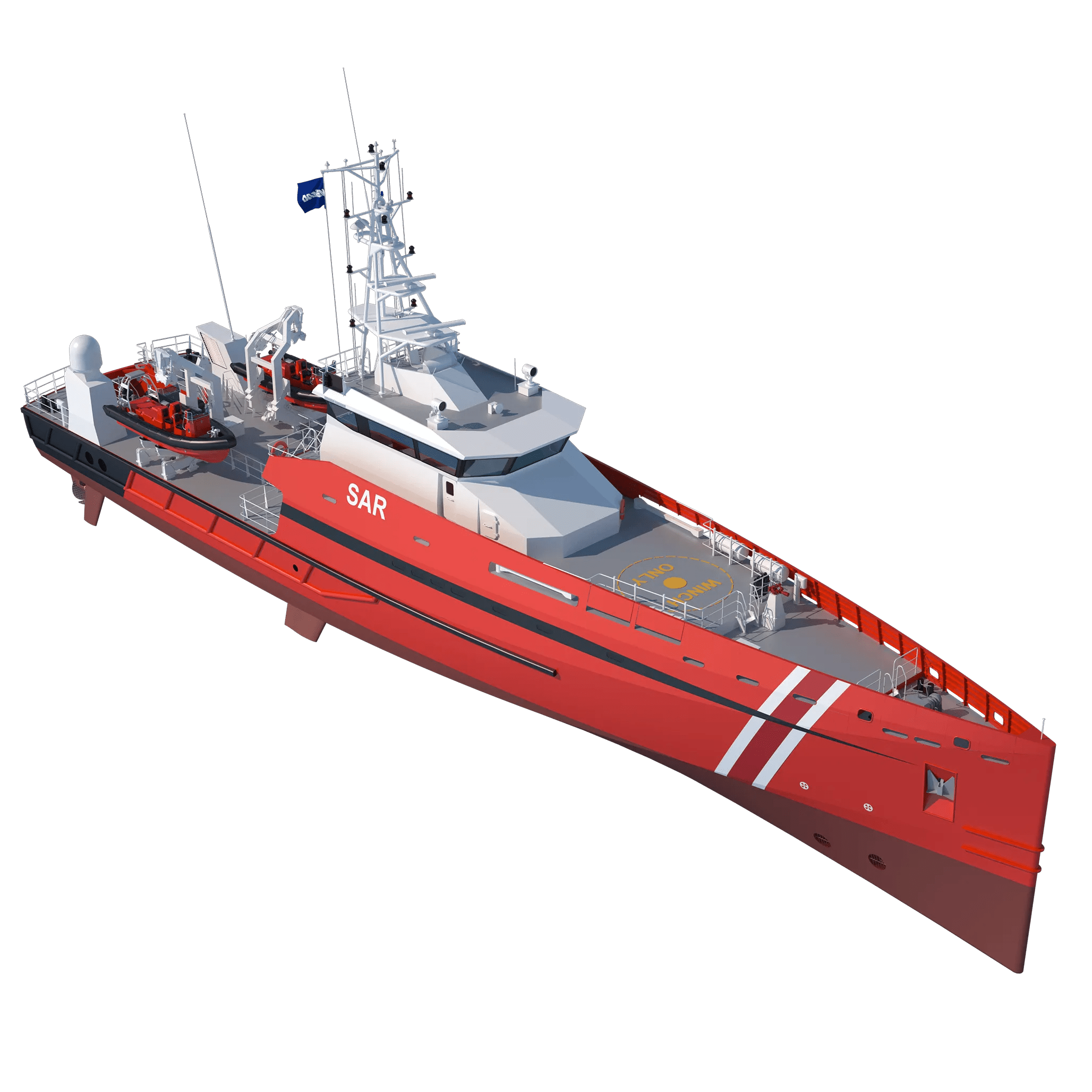

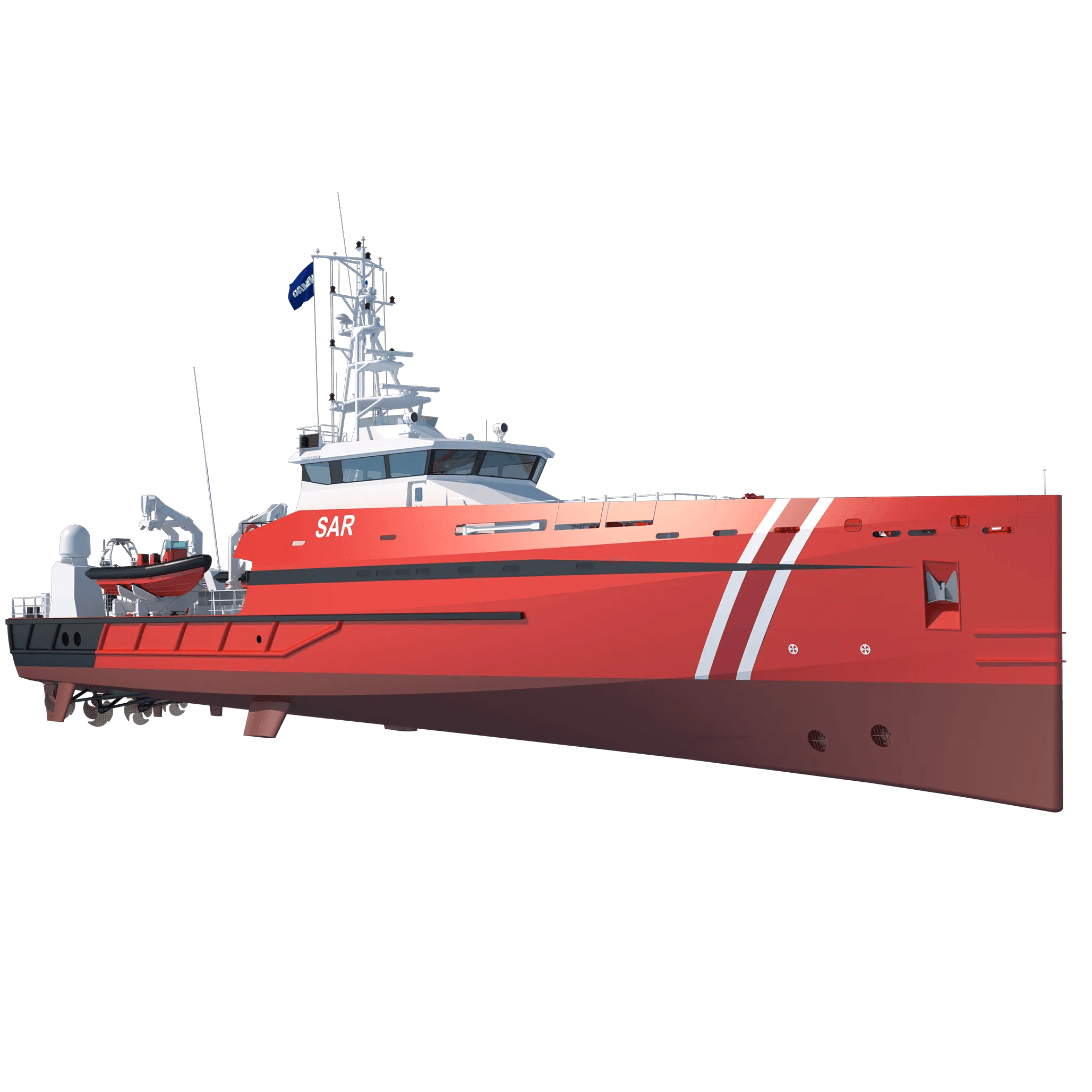

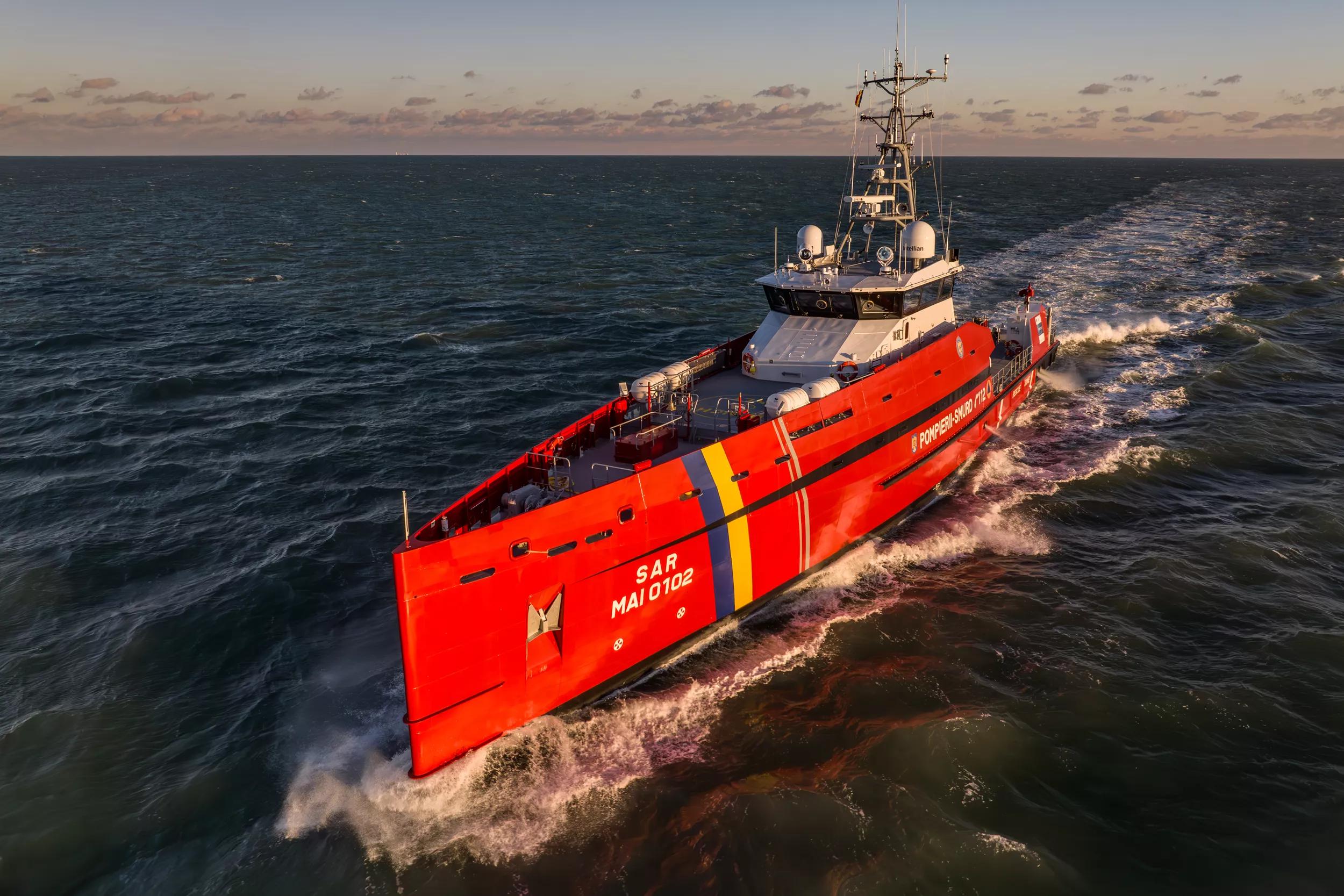

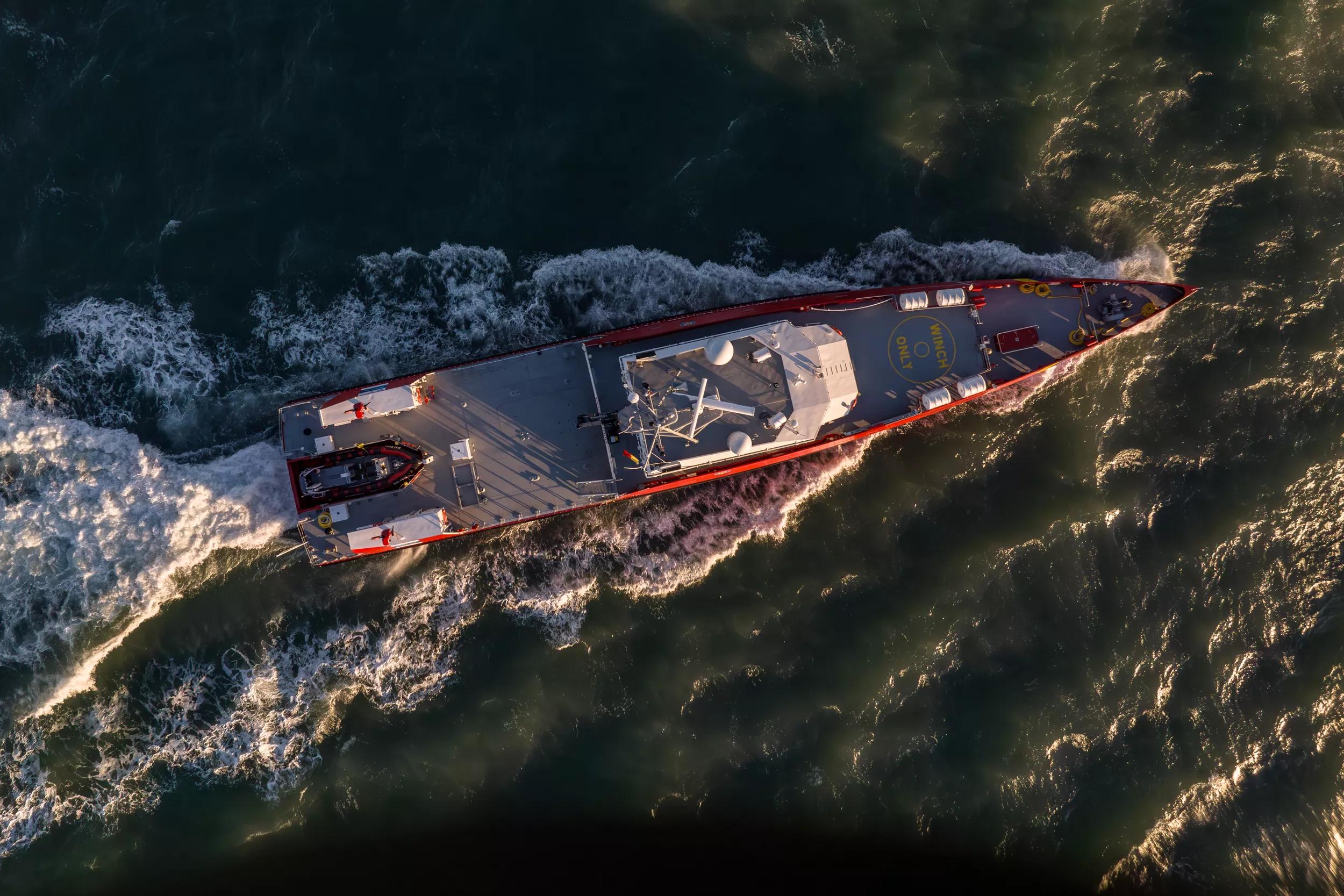

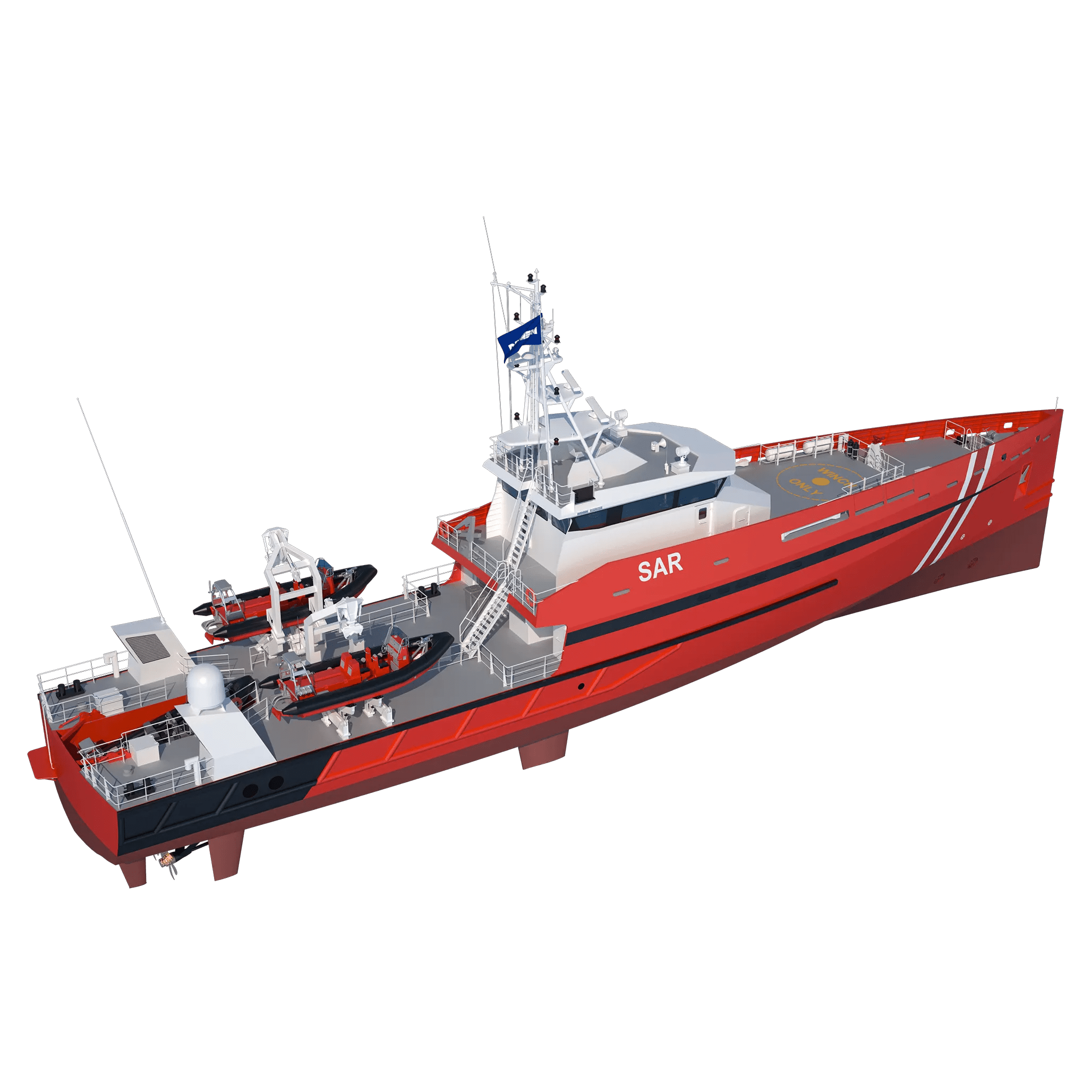

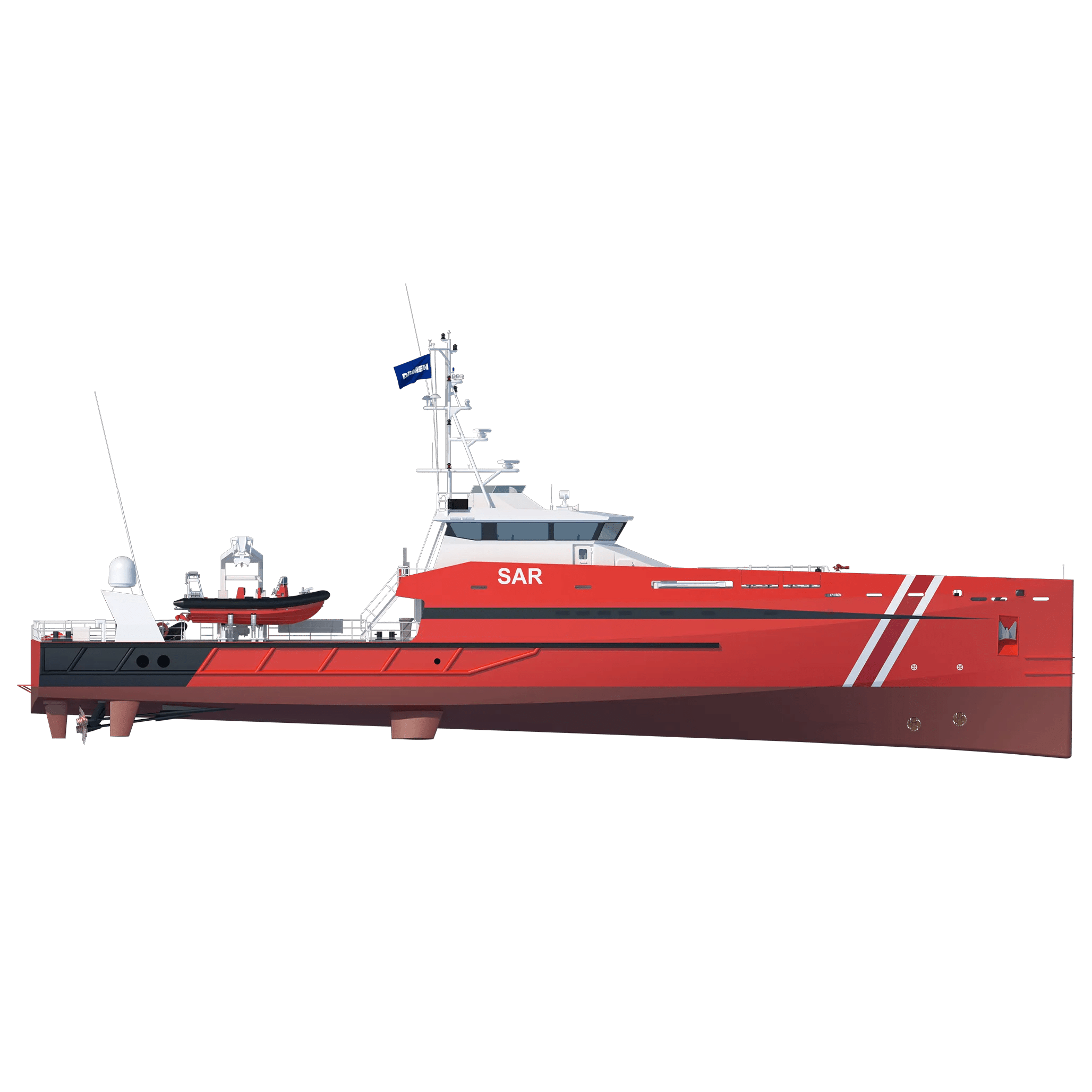

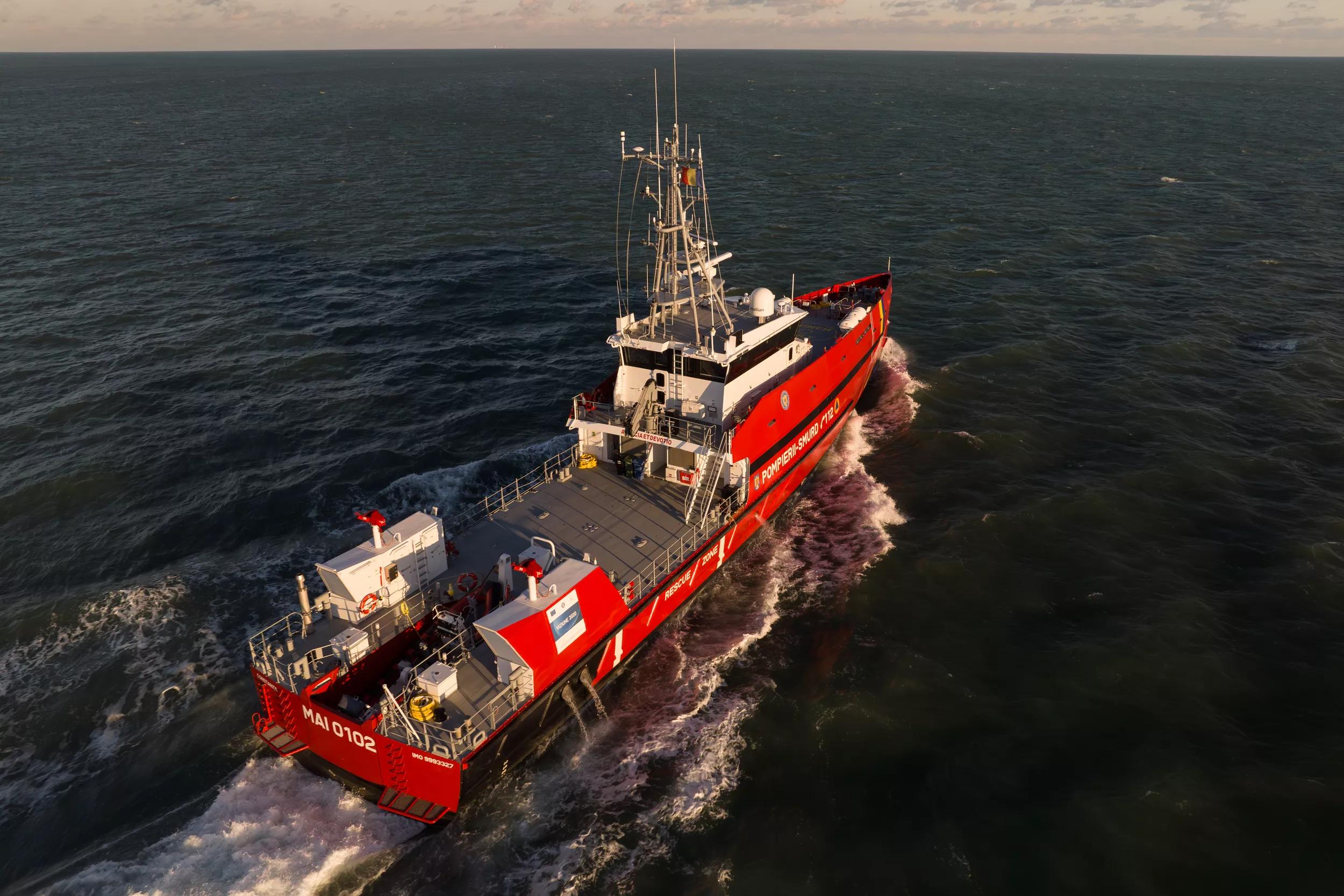

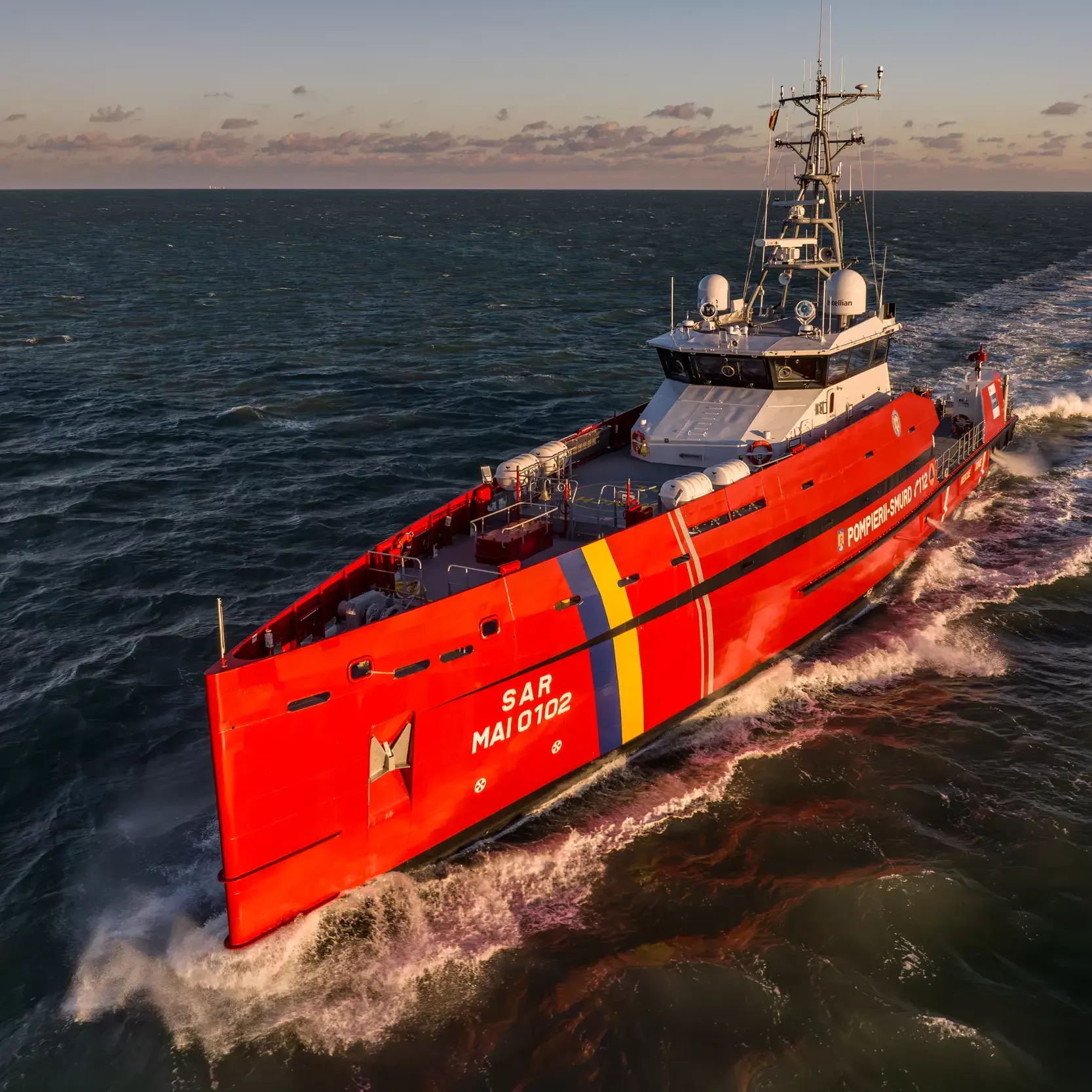

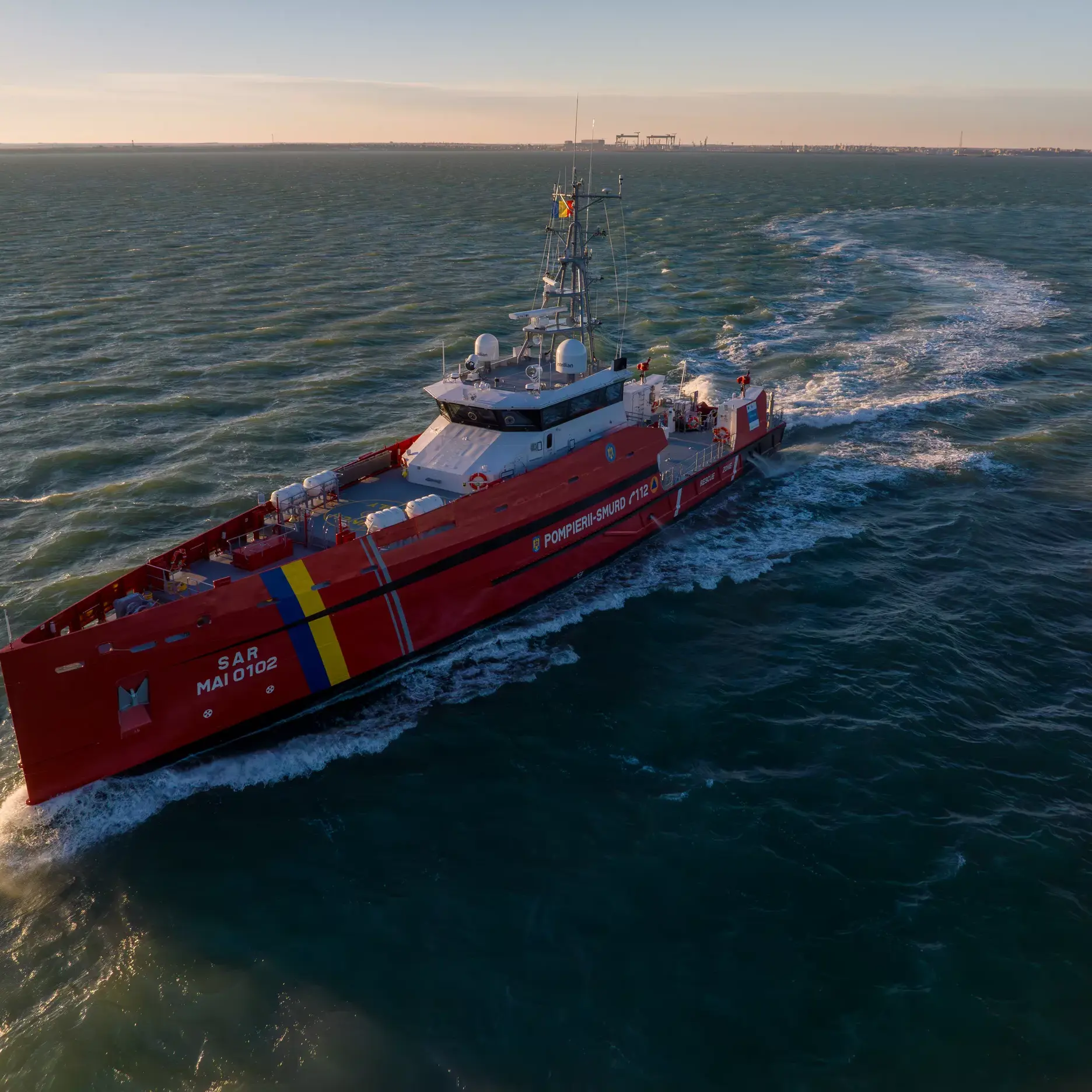

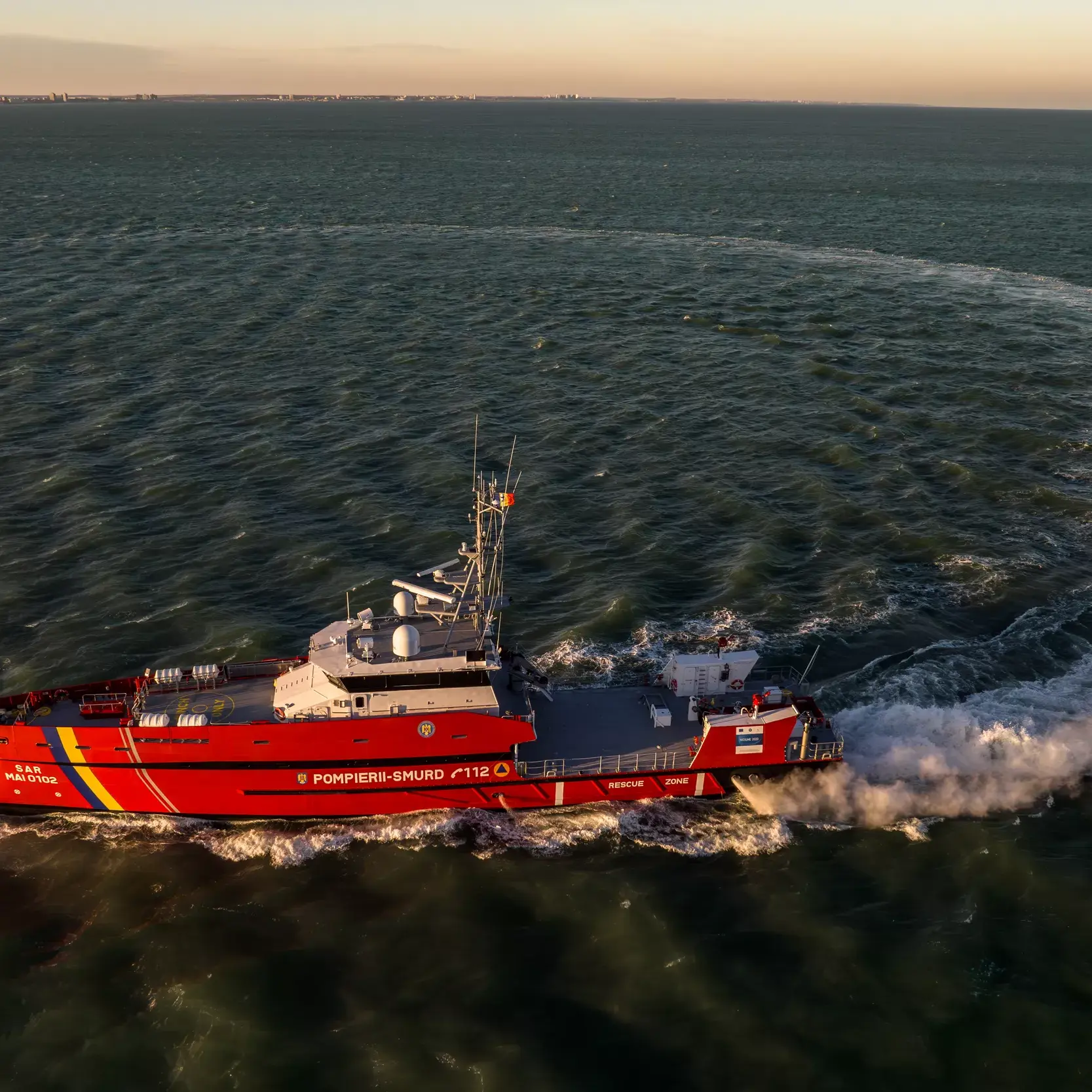

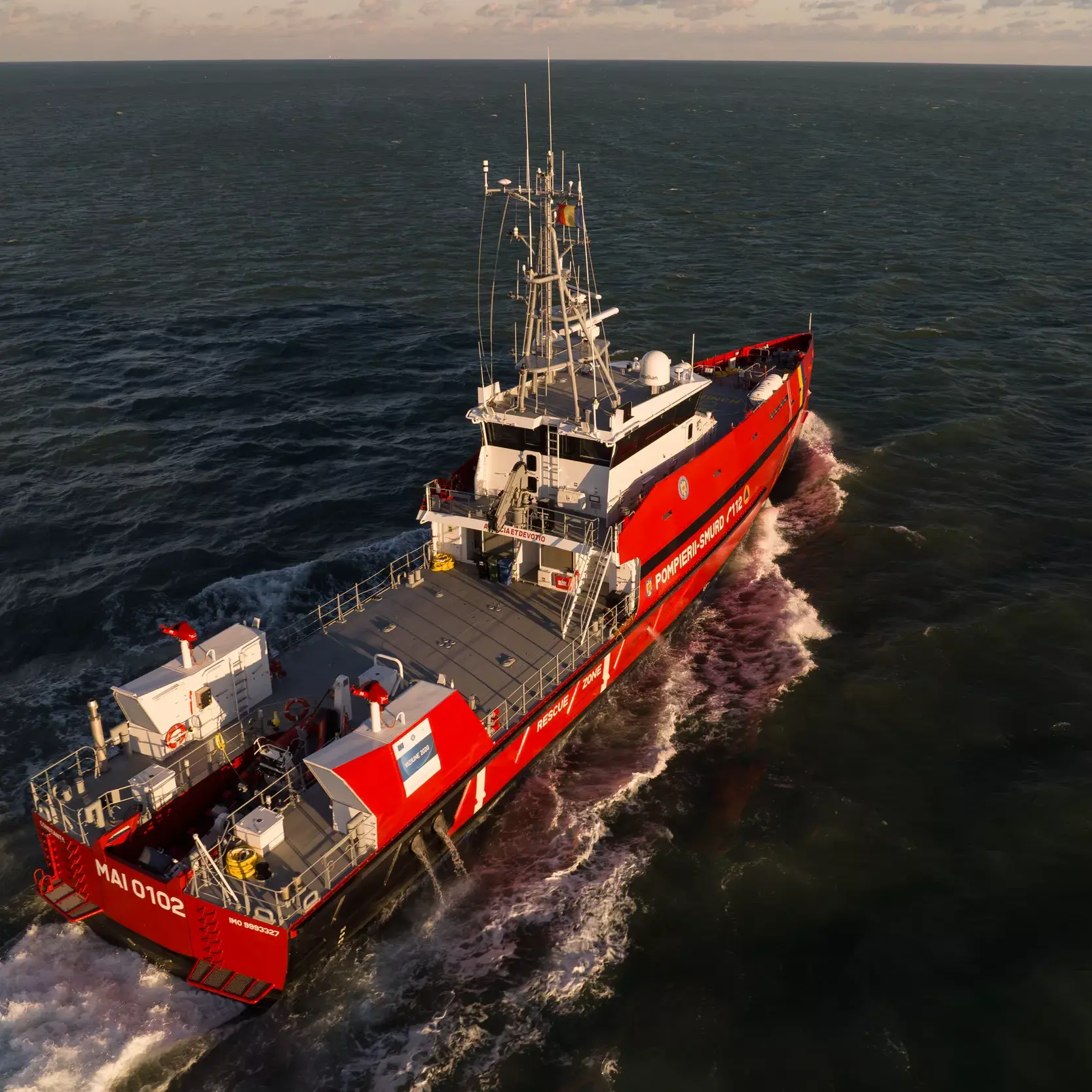

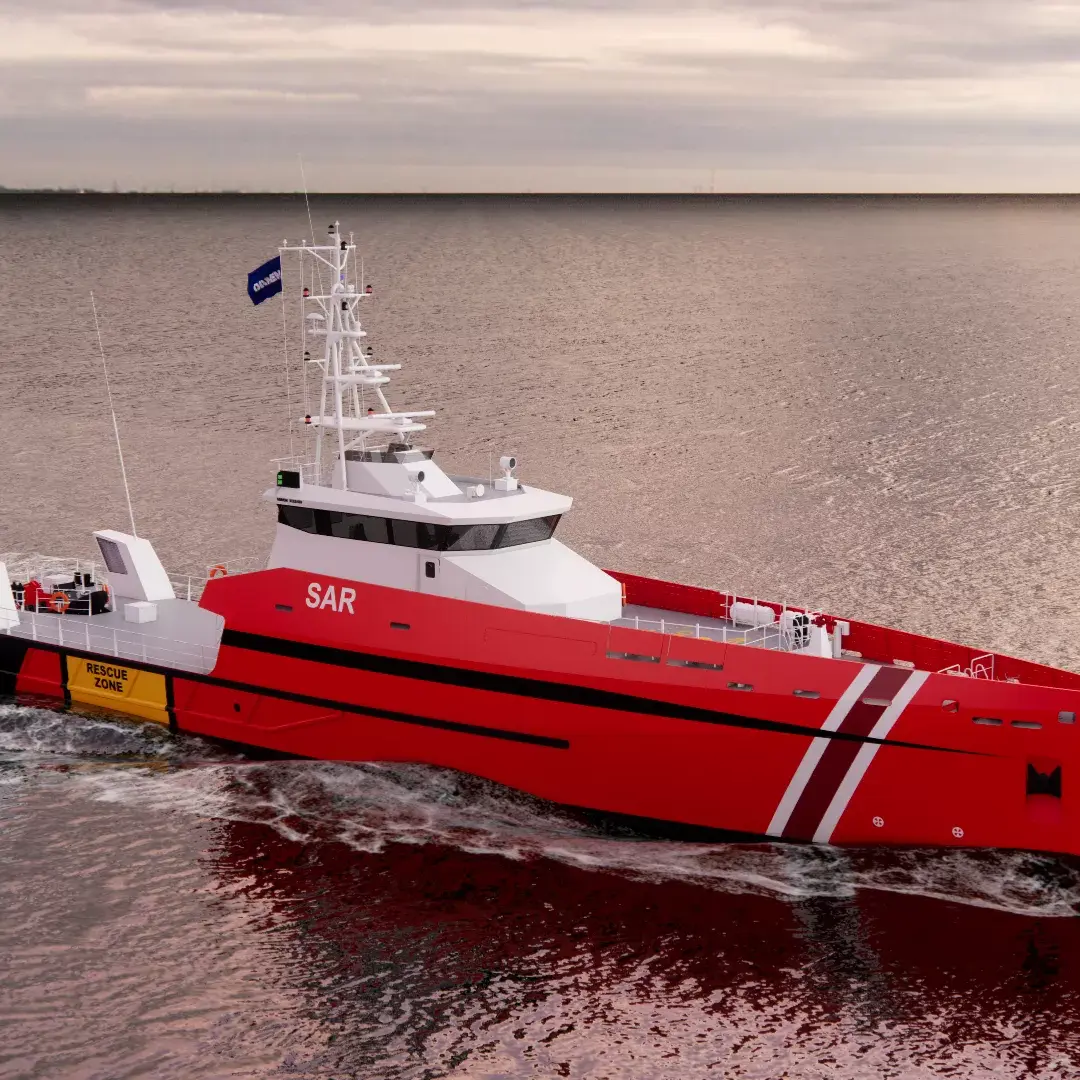

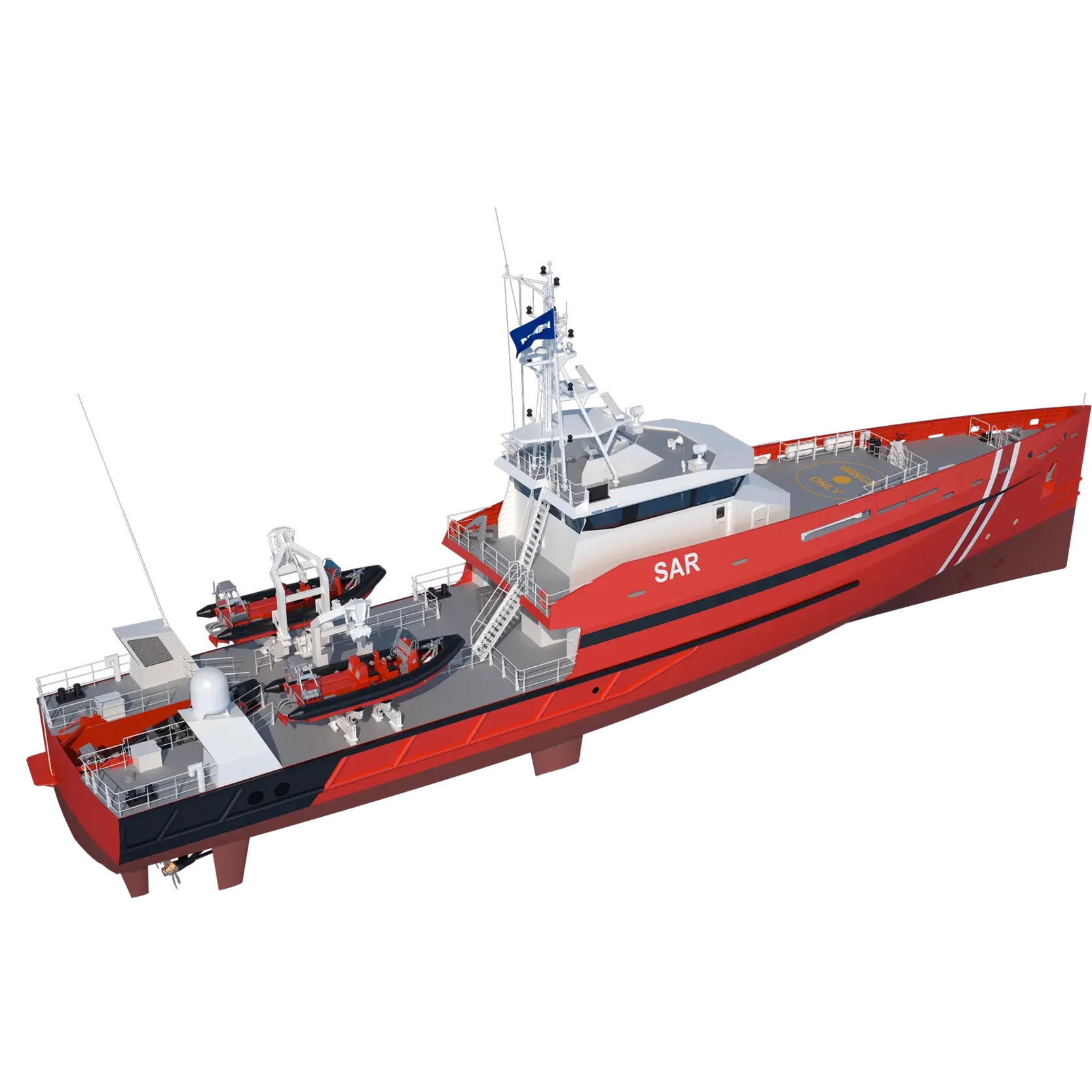

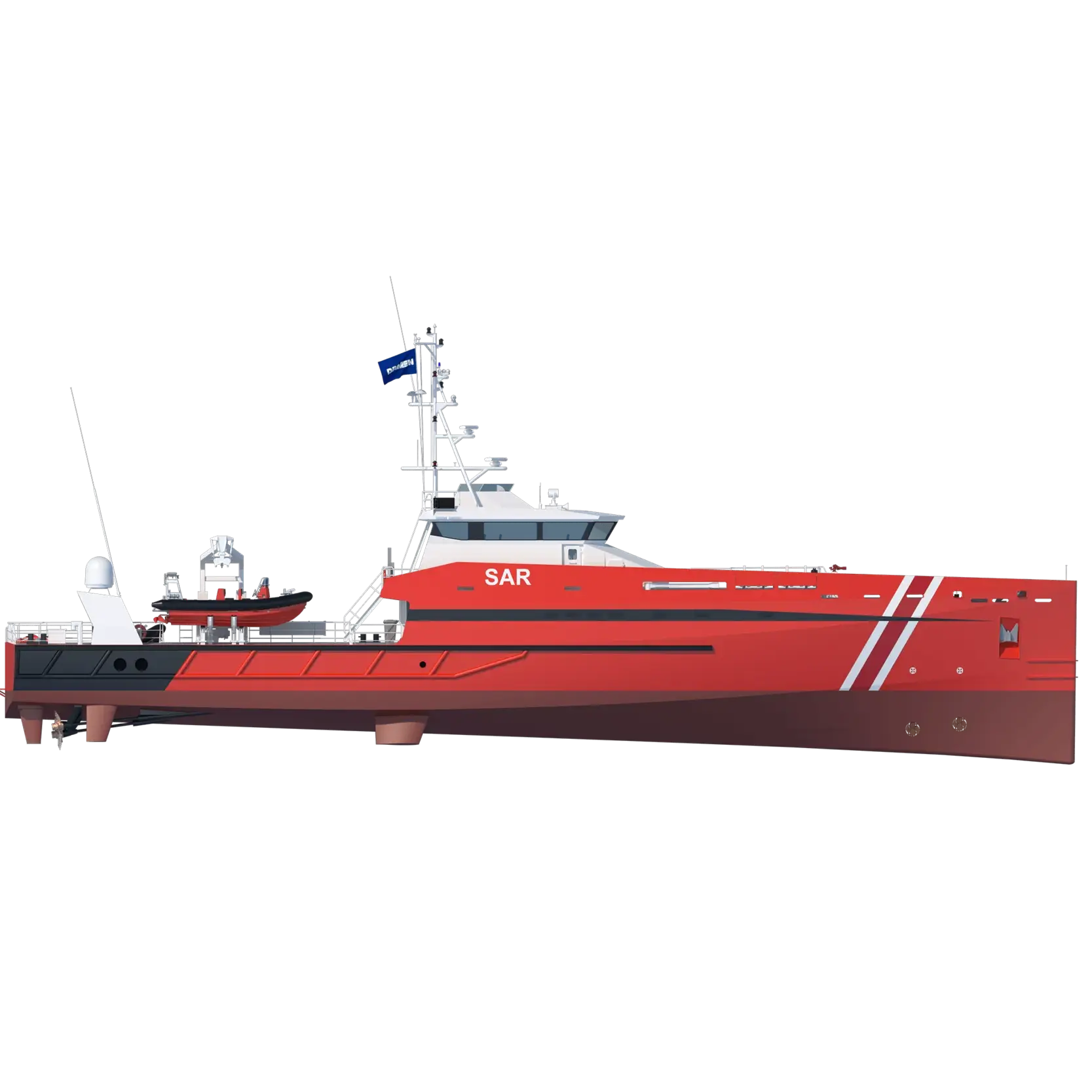

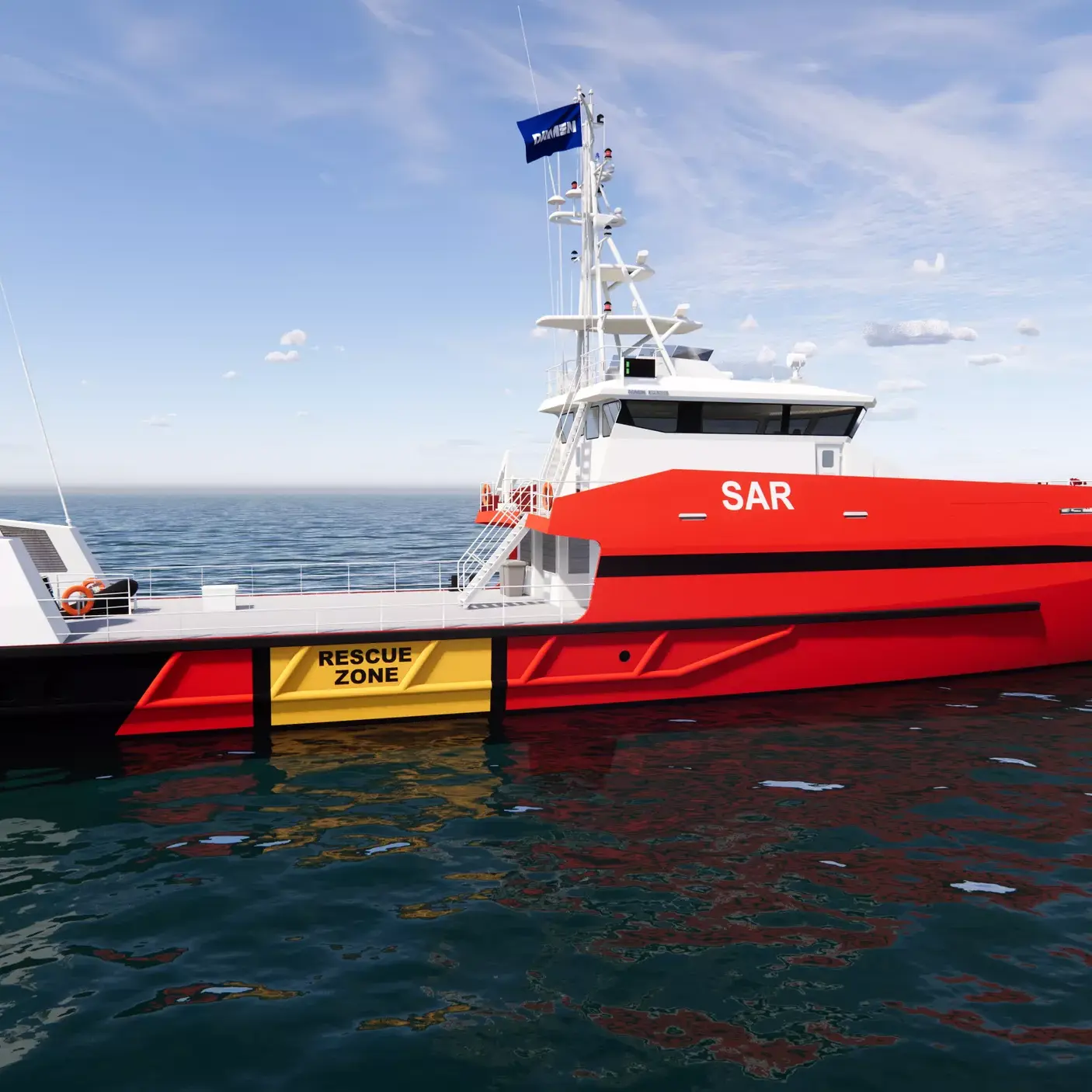

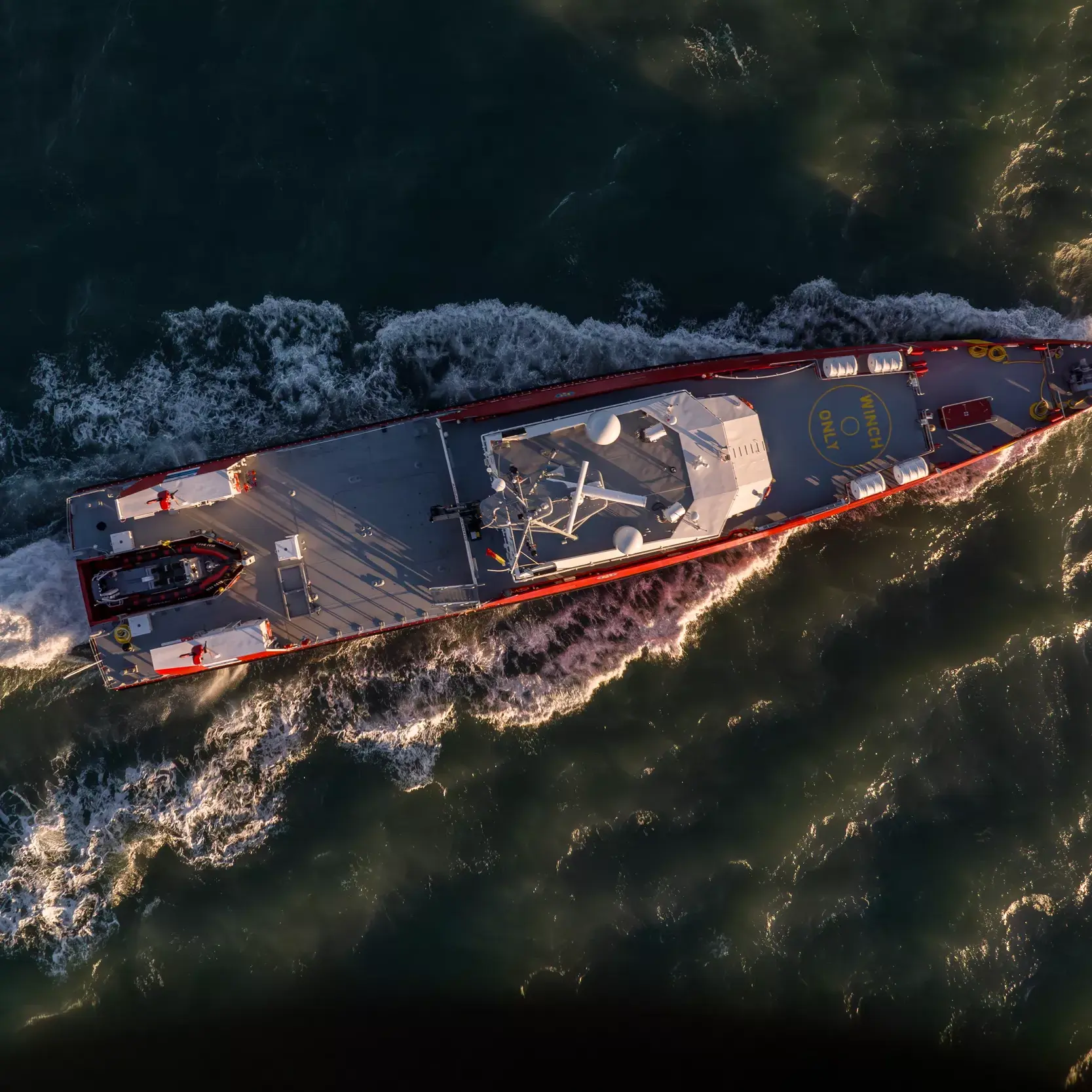

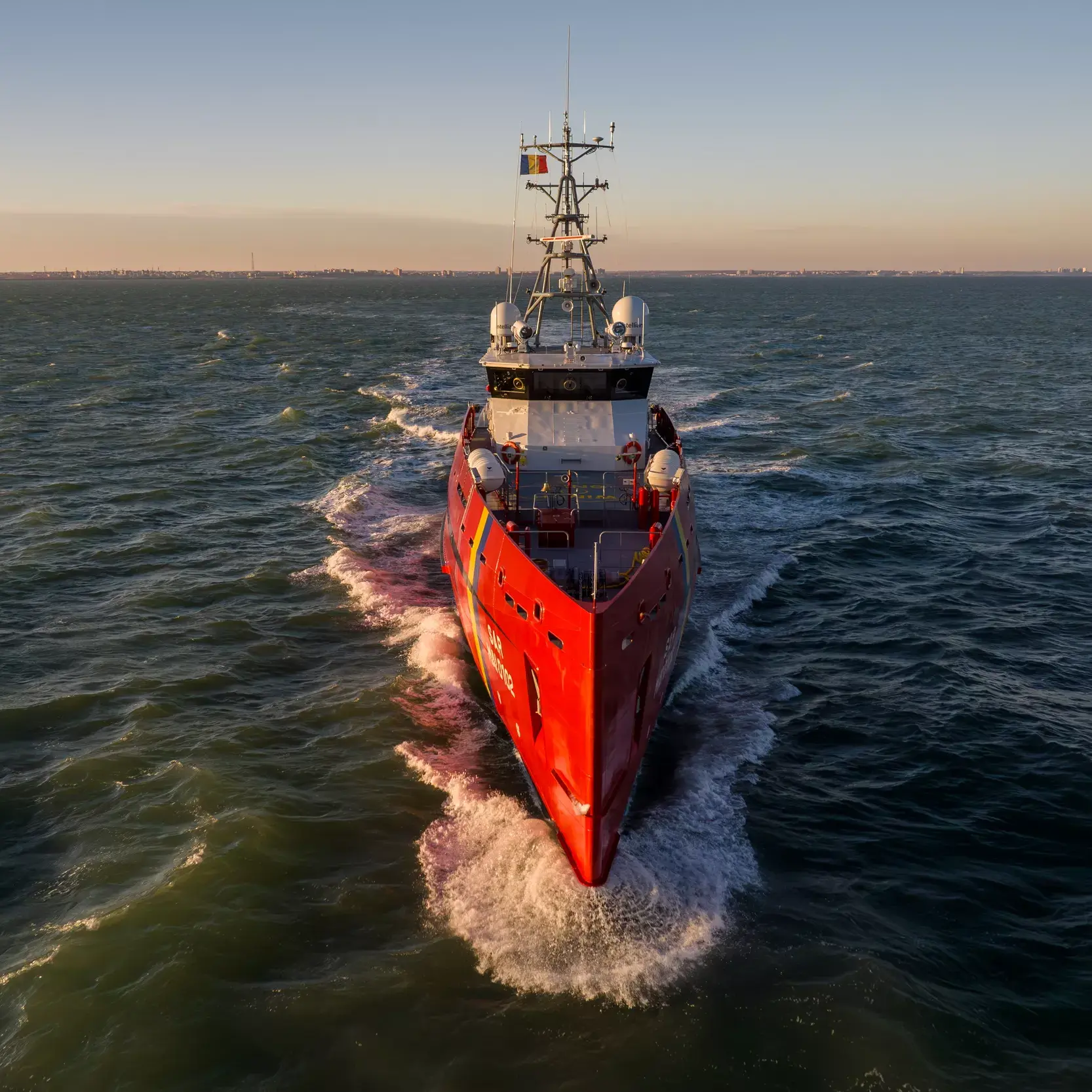

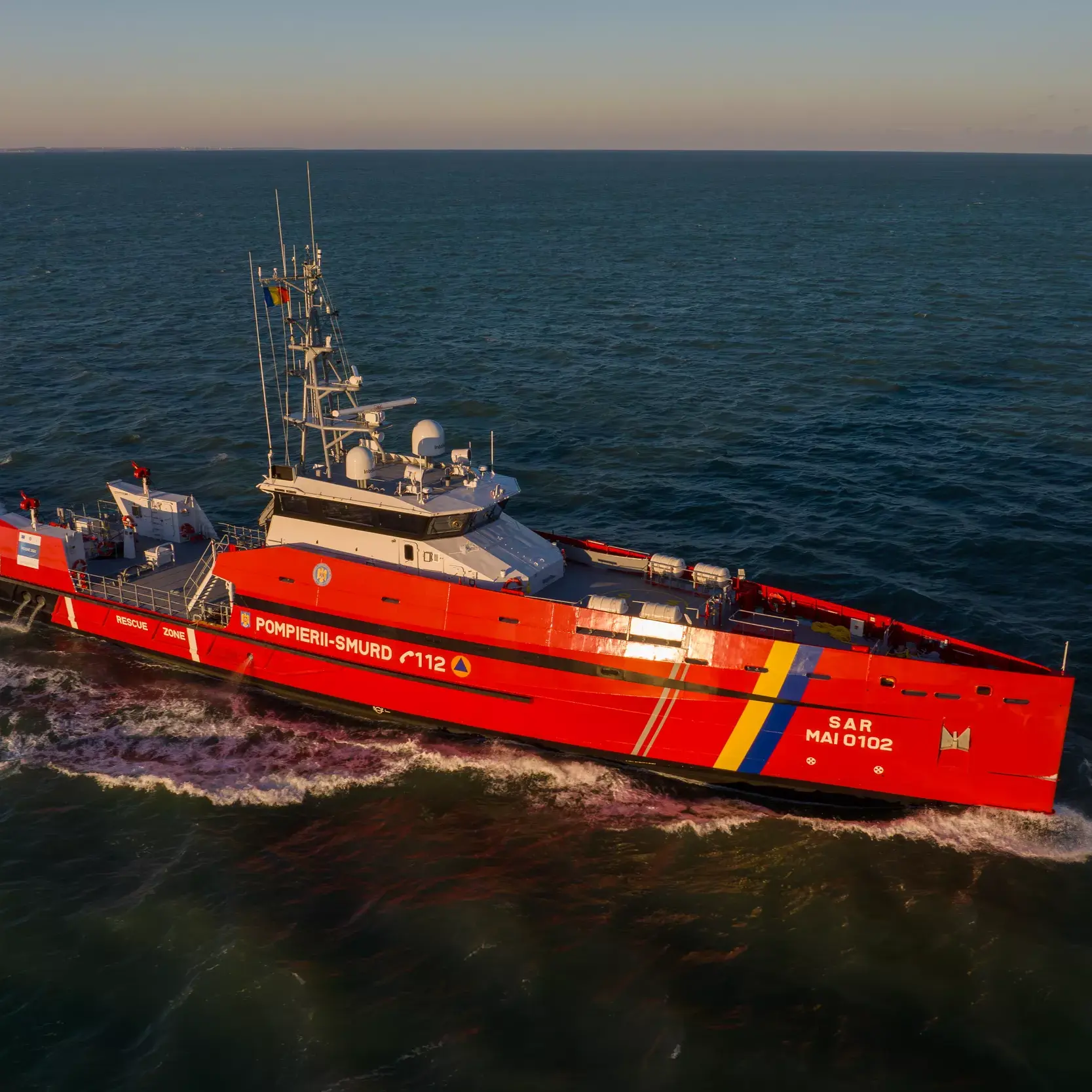

Damen’s SAR 5009 is the perfect platform for SAR duties on the high seas. The combination of superior seakeeping and the position of the wheelhouse results in the highest possible level of operability. The large aft deck, capable of accommodating up to three daughter craft, and a comfortable, spacious interior offer the space needed for effective large-scale SAR operations. Additionally, the long and slender Sea Axe hull offers exceptionally low resistance, delivering excellent fuel efficiency at all speeds.

Available options:
UAV/USV launch and recovery
Davit(s)
Interceptor(s)
Fire-fighting
Alternative layout main deck or lower deck

Specifications

Key figures

Dimensions

Length o.a.
50.1 m
Beam o.a.
9.4 m
Depth at sides
4.3 m
Draught
3.5 m
Hull material
Steel
Superstructure
Aluminium

Capacities

Crew
Up to 28 persons
Survivors
Up to 75 persons
Fuel oil
60.8 m³
Fresh water
26.6 m³
Bilge water / dirty oil
4.9 m³

Performance

Speed
Up to 29.5 knots
Range at max speed
Up to 2,900 nm
