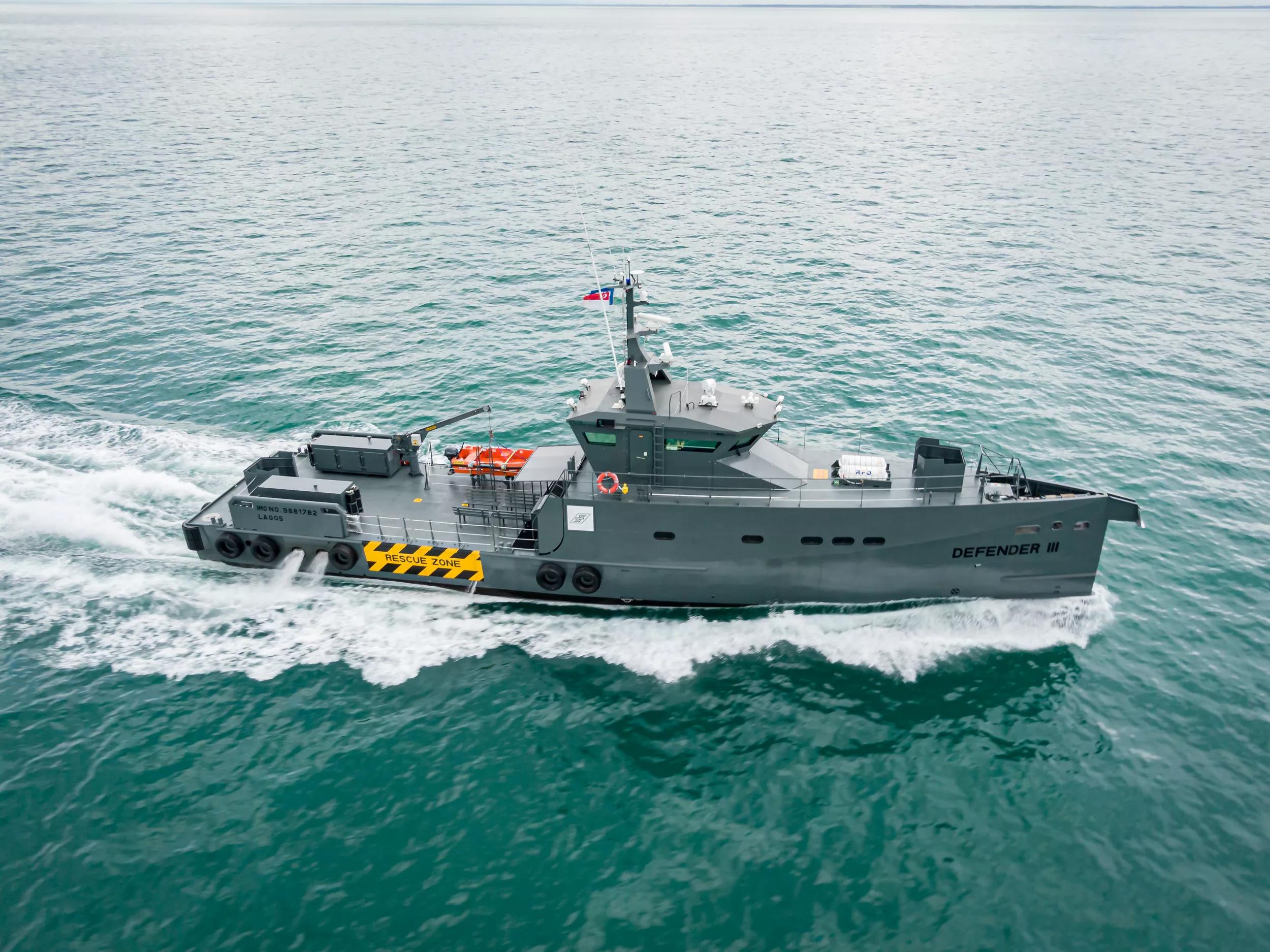

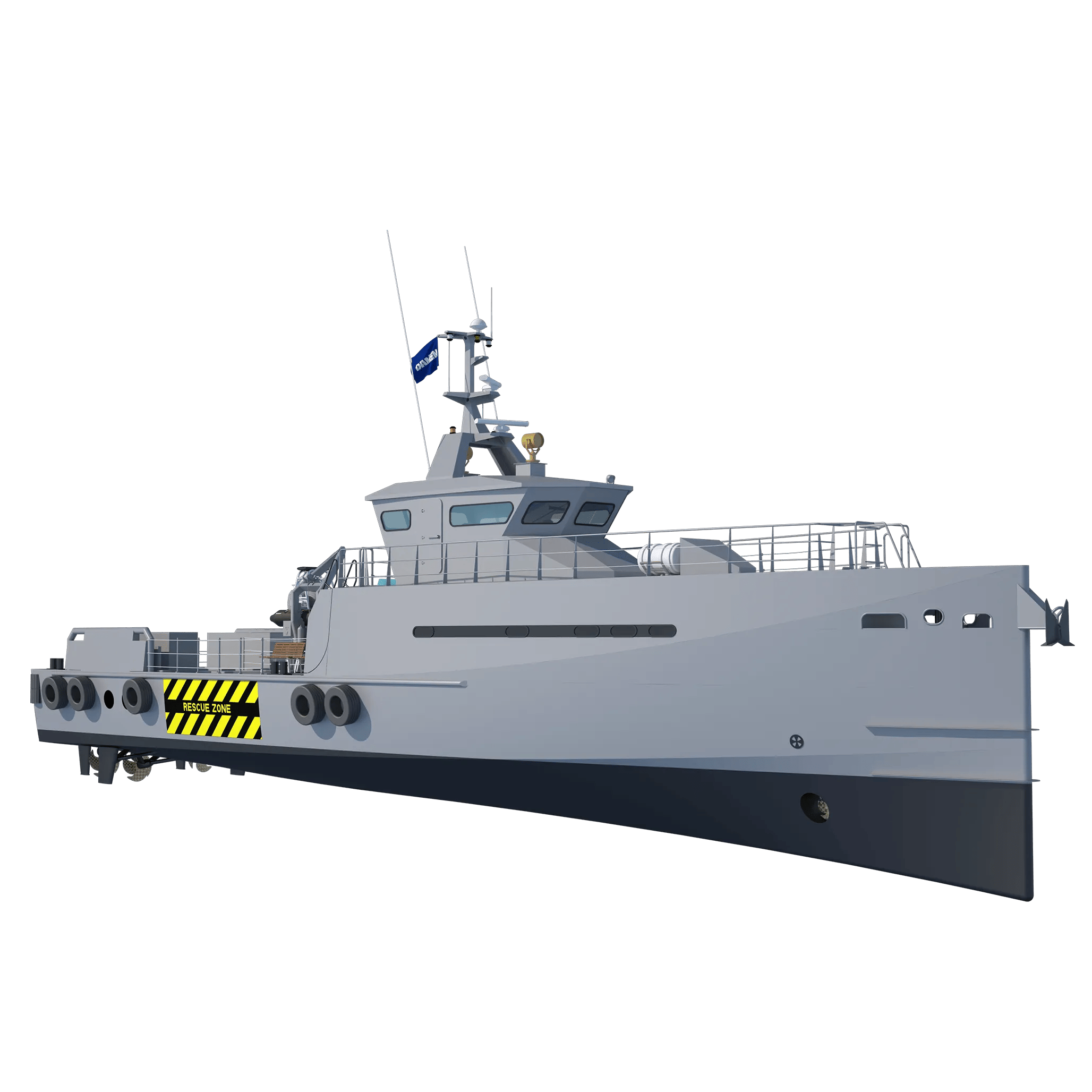

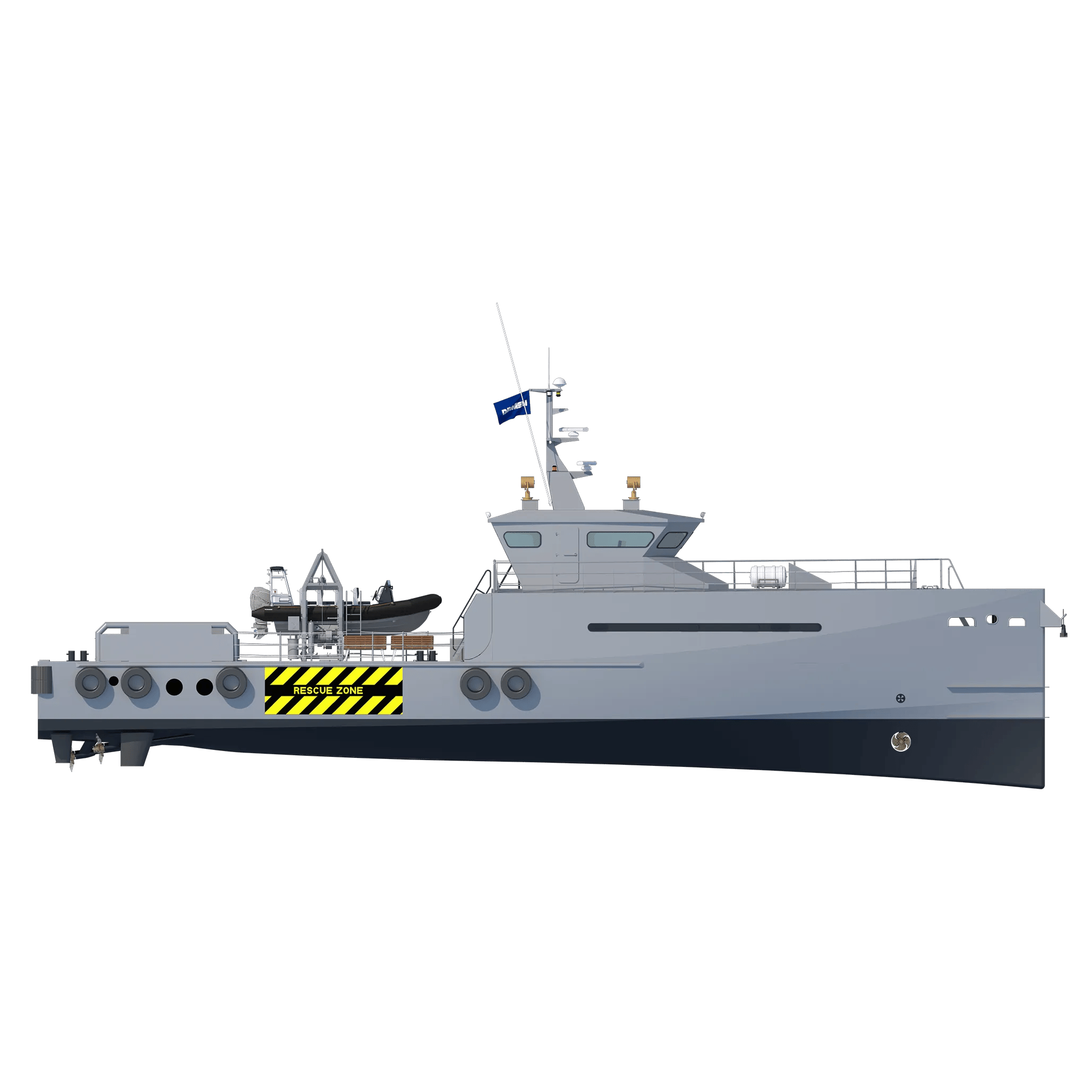

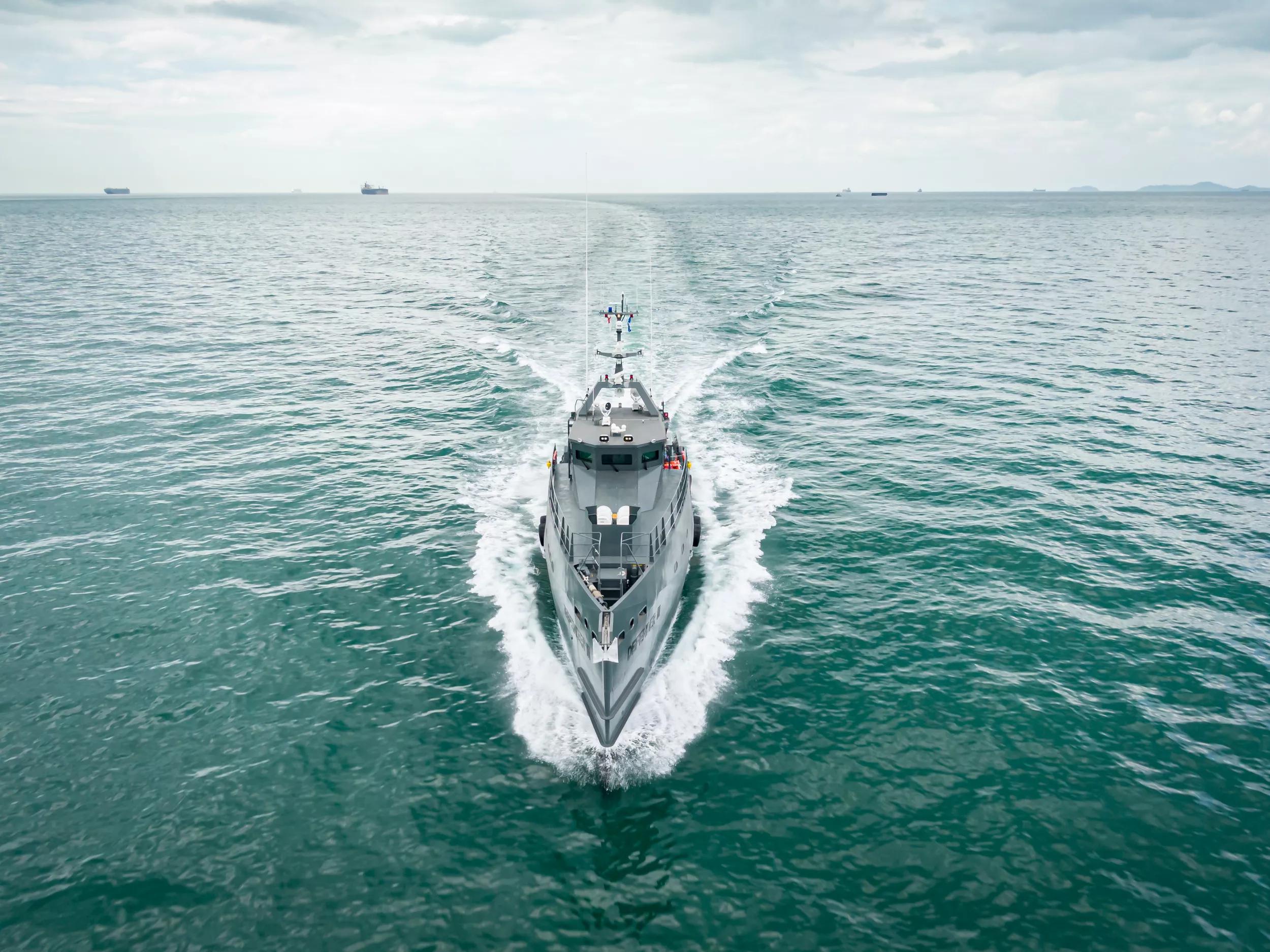

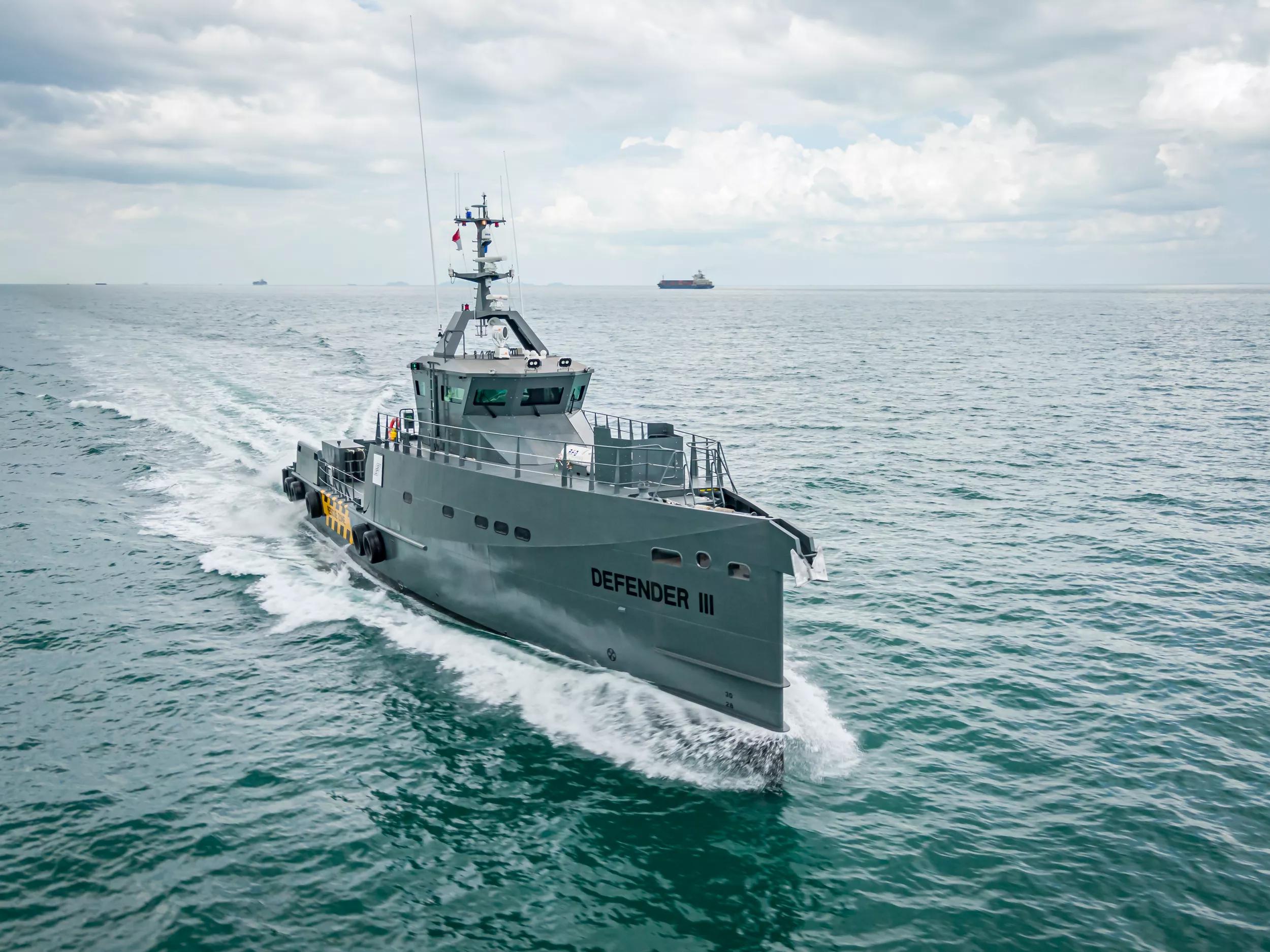

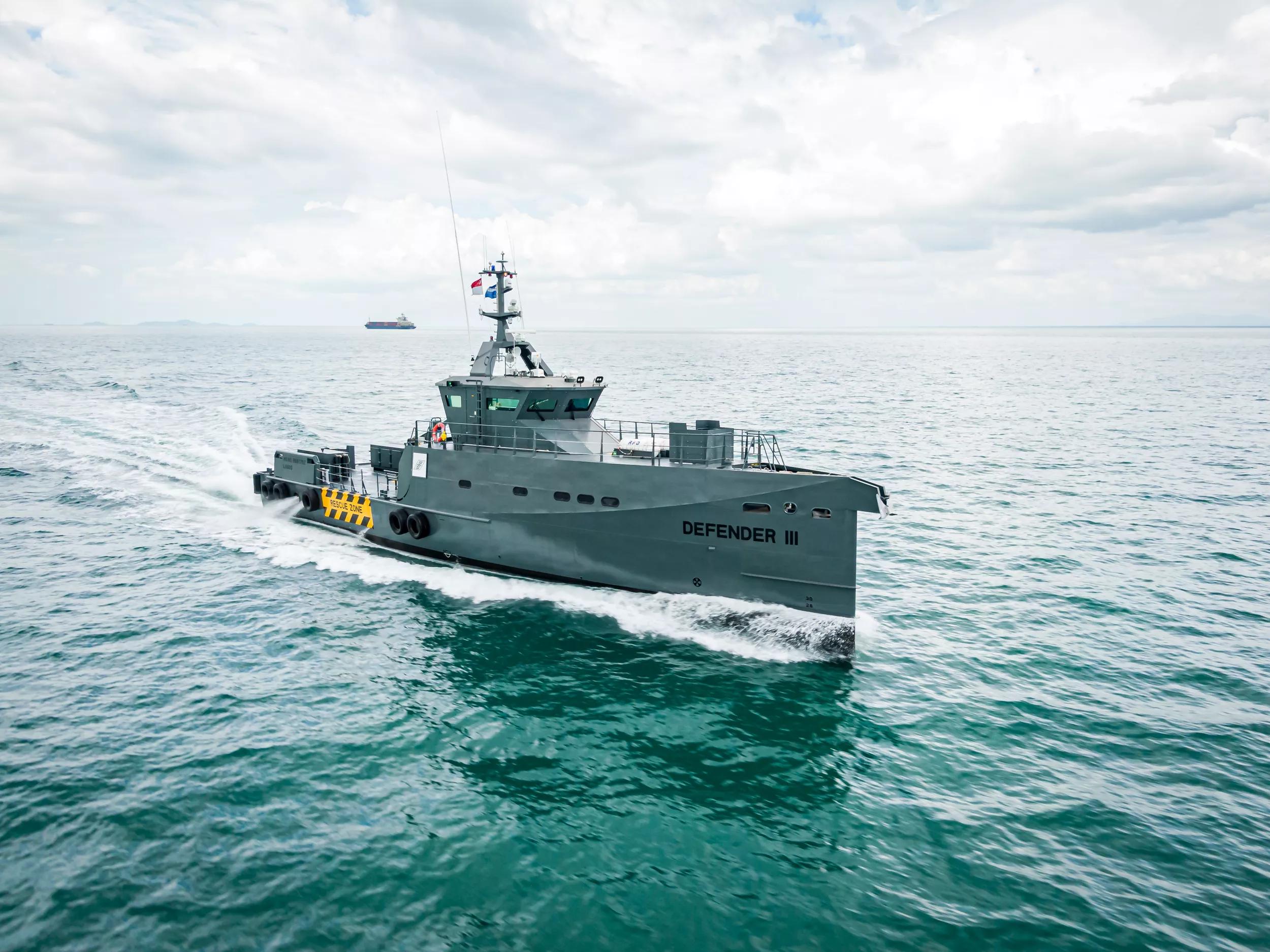

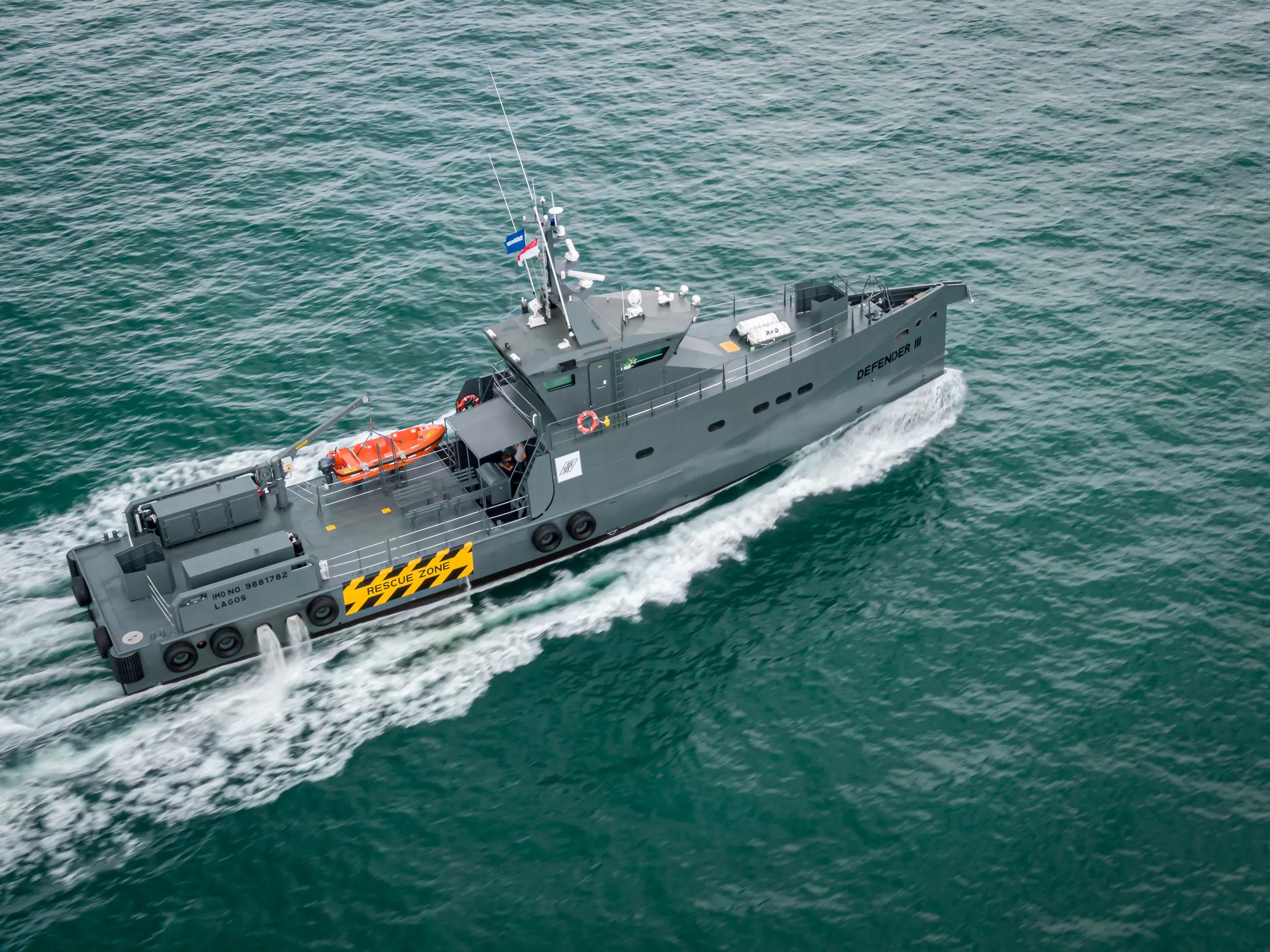

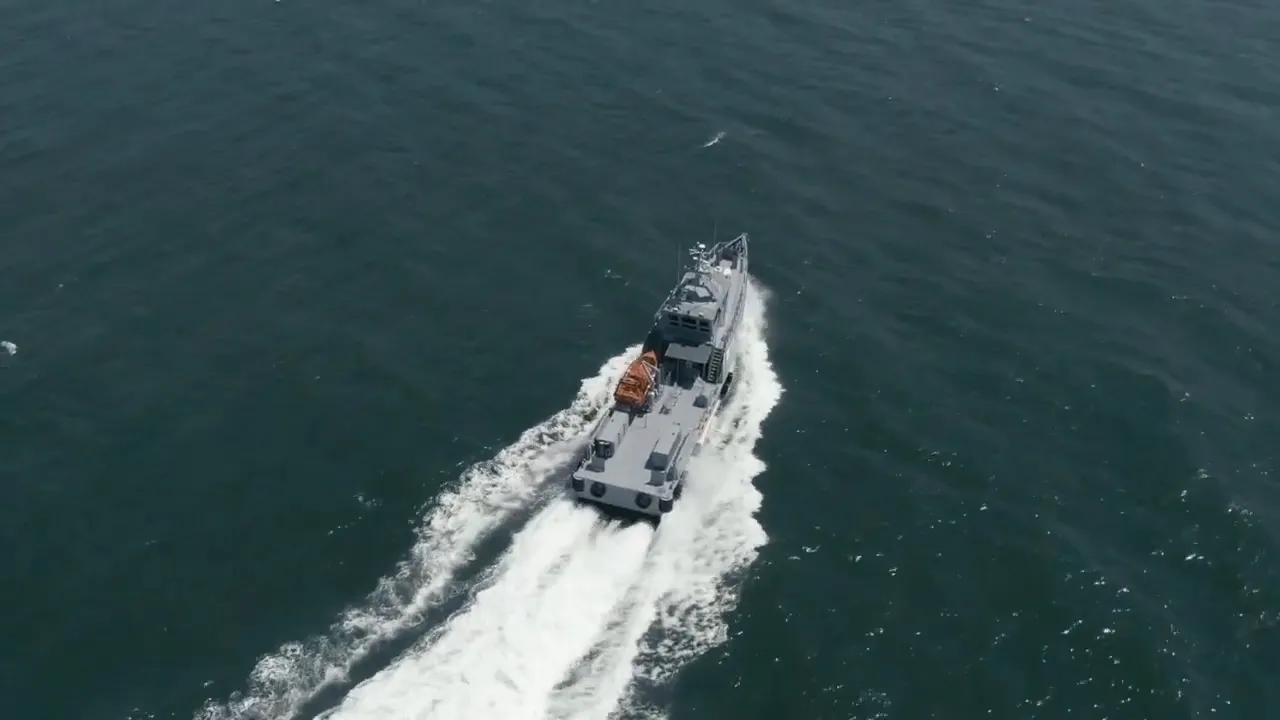

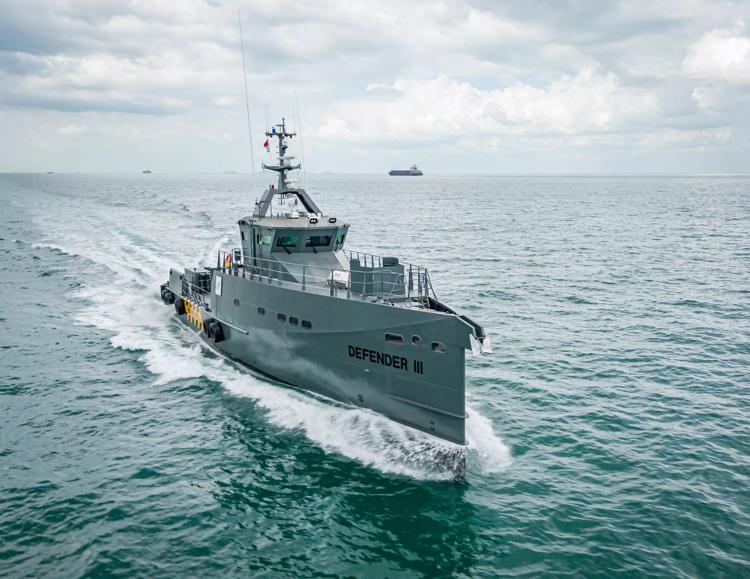

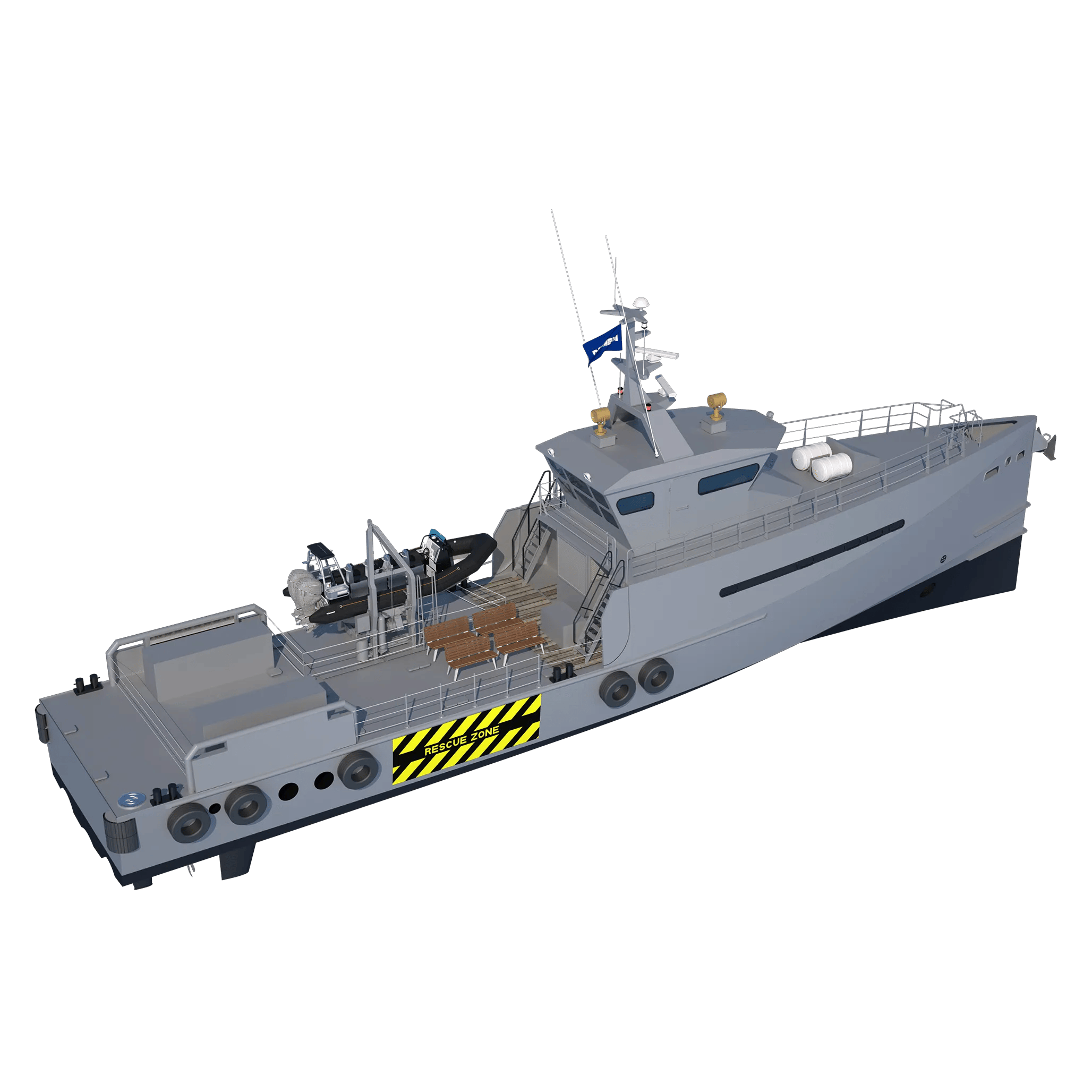

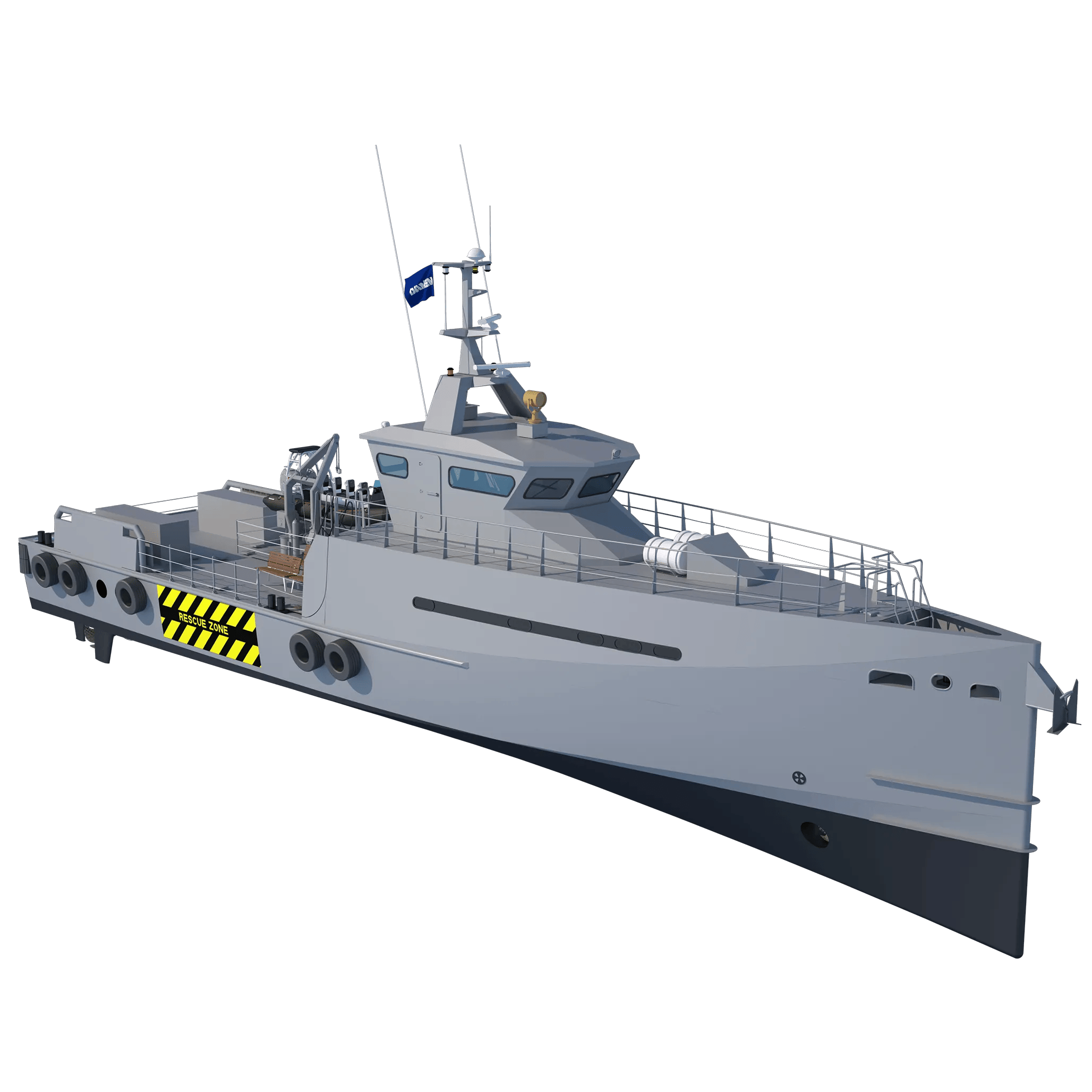

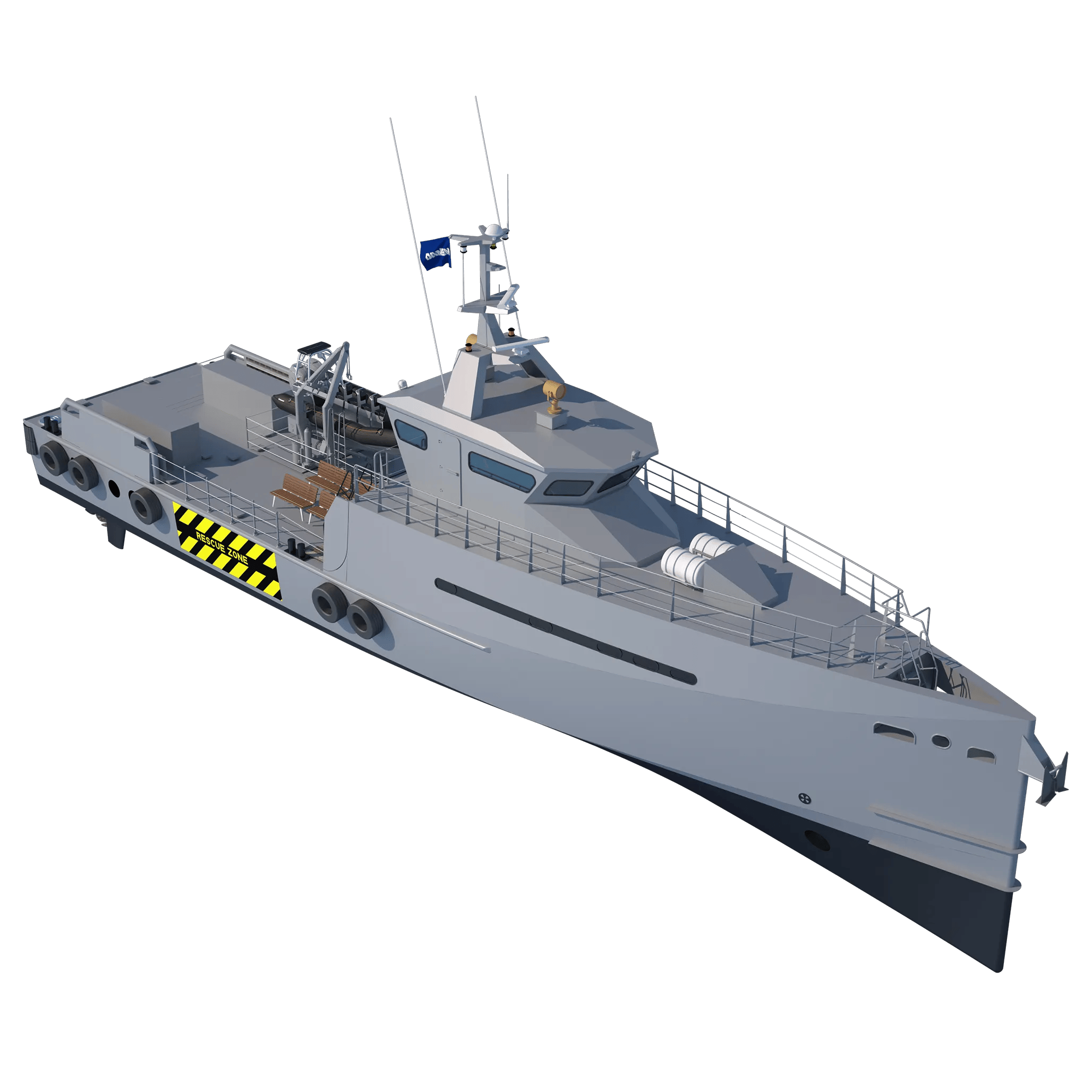

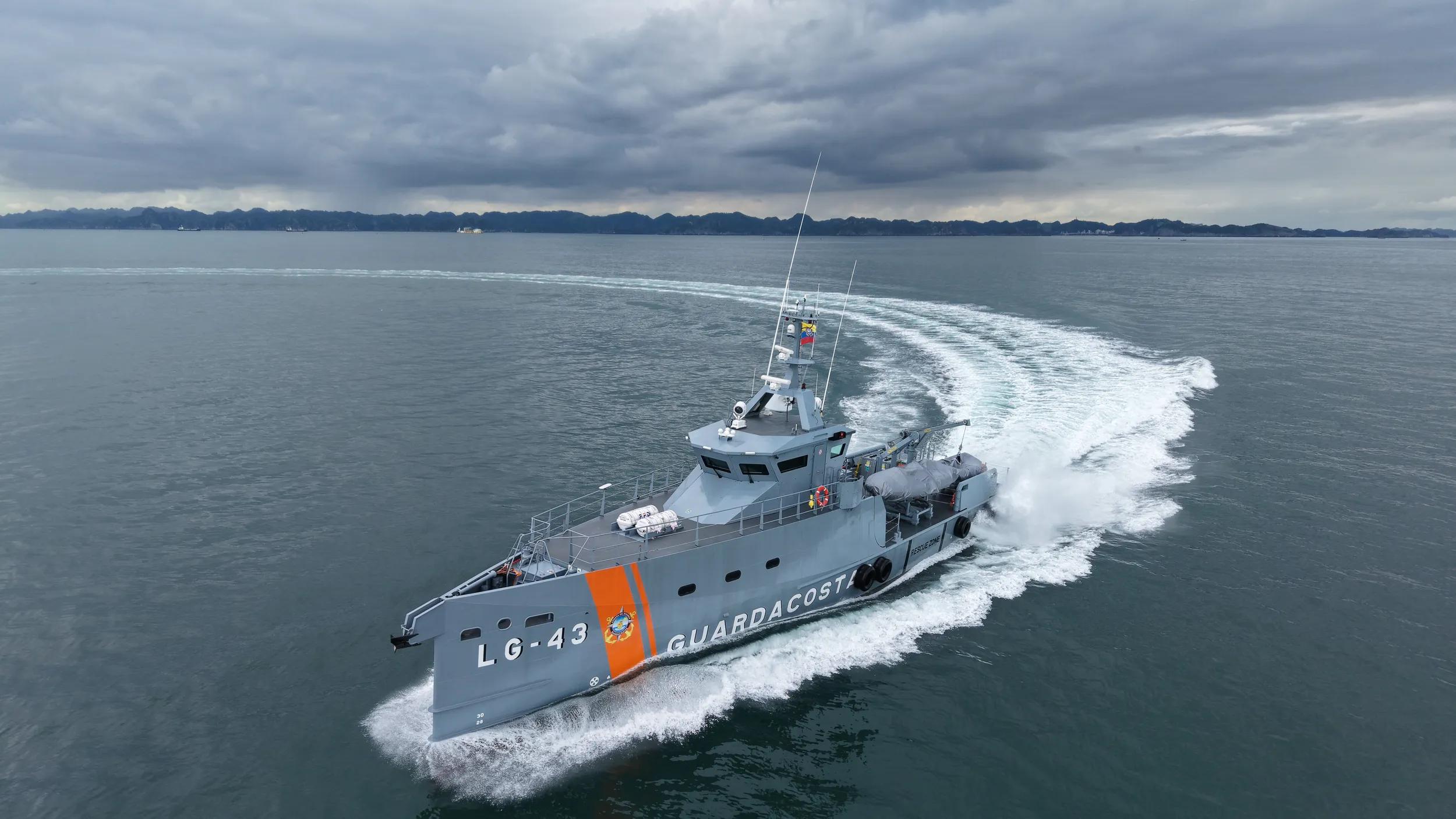

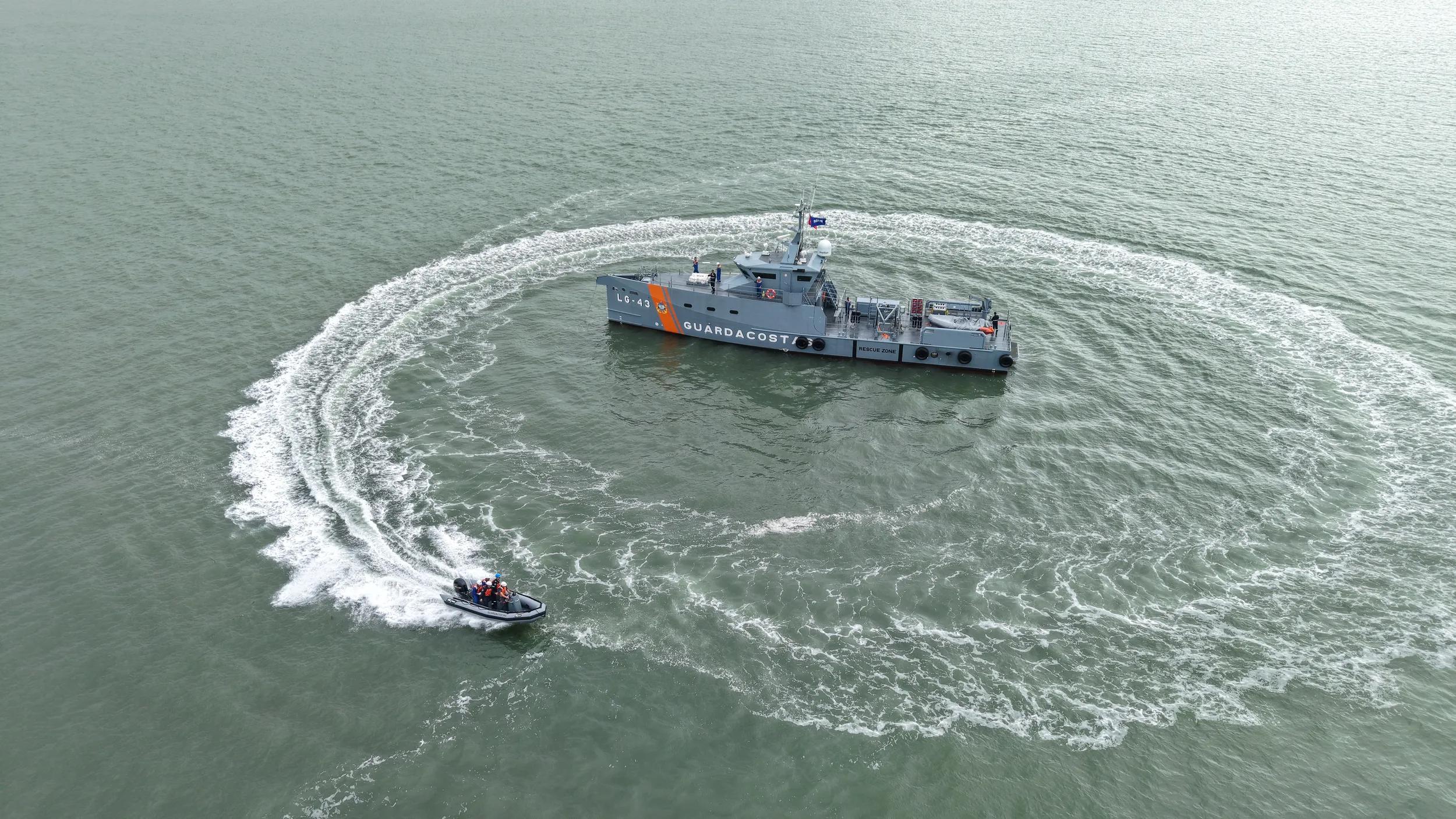

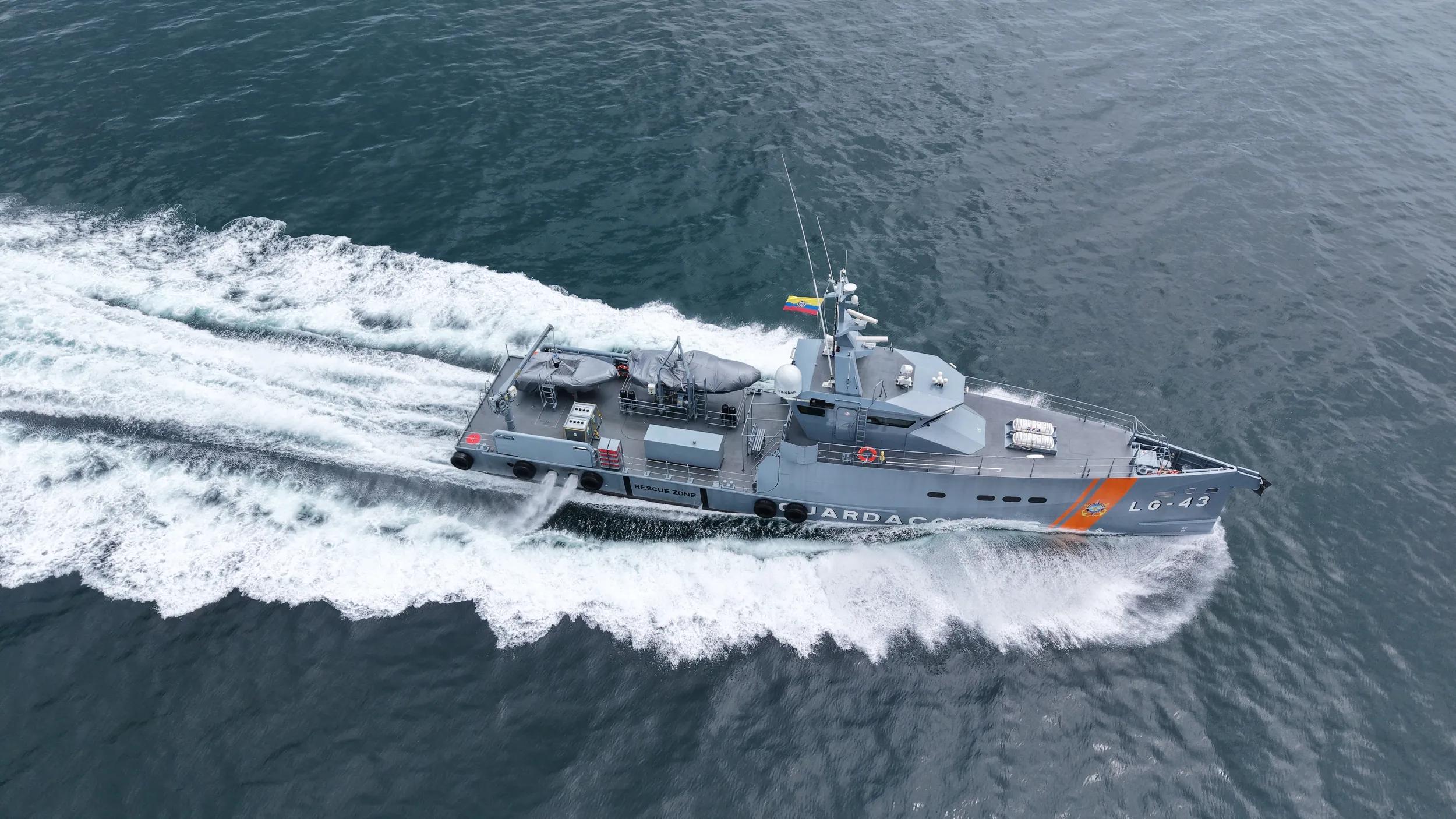

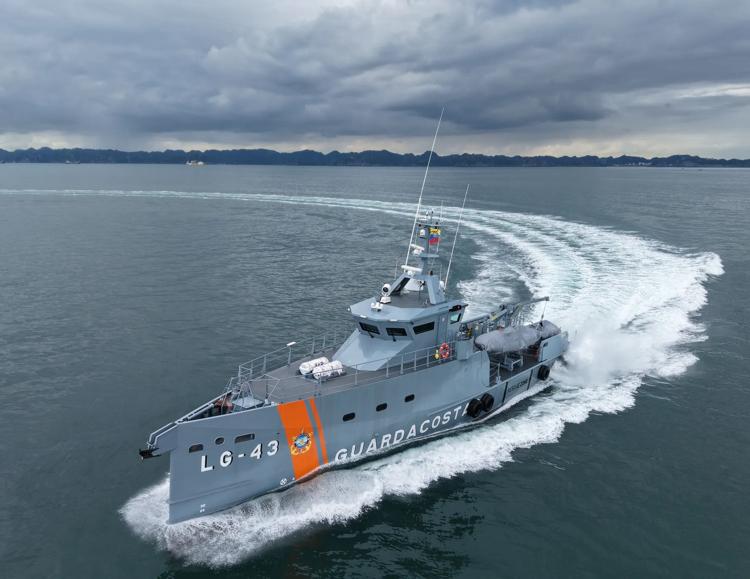

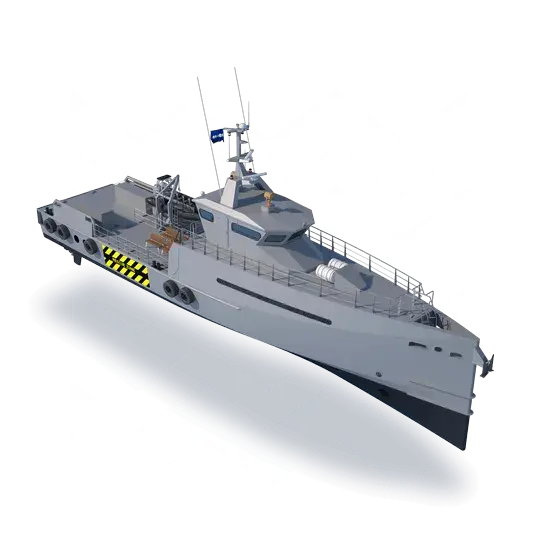

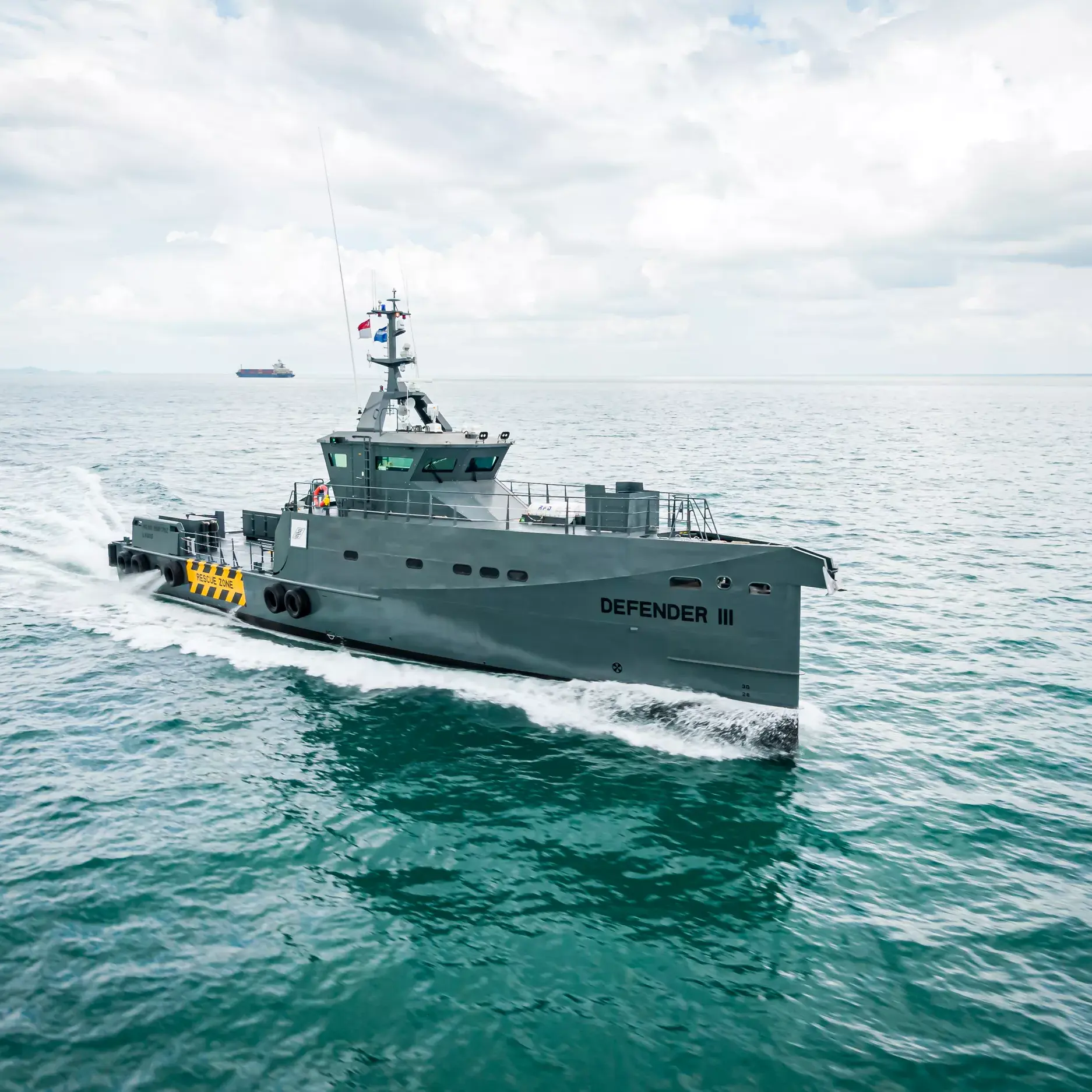

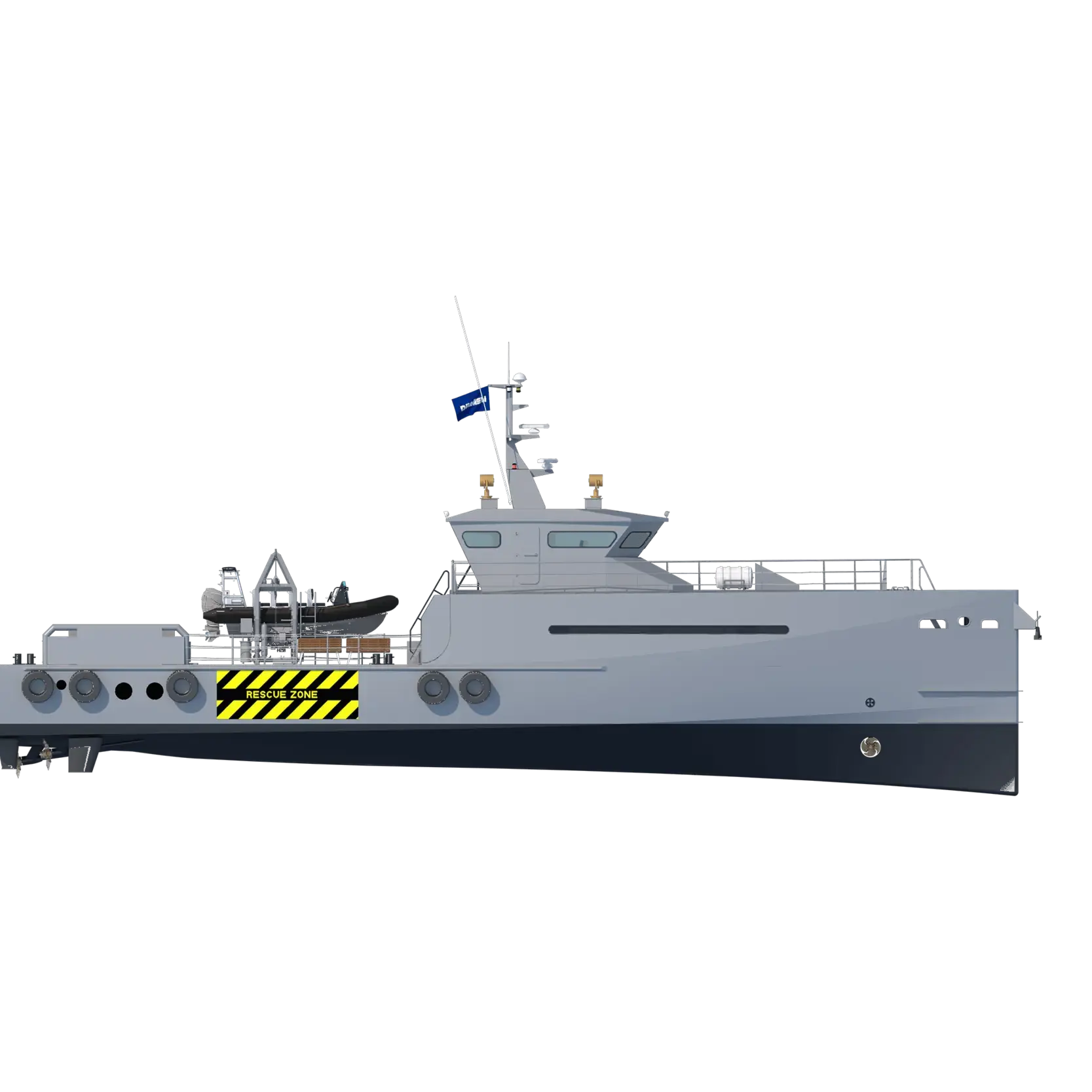

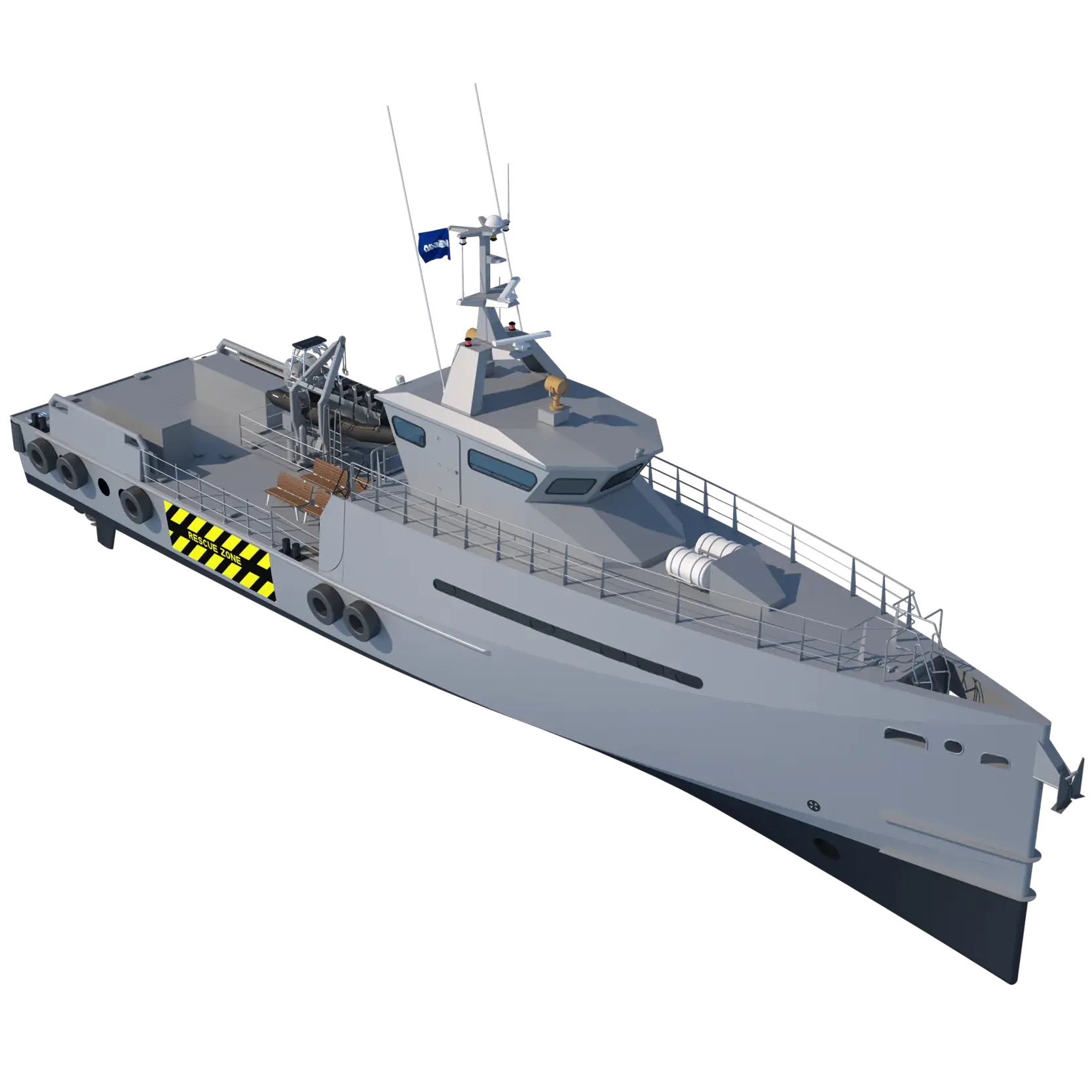

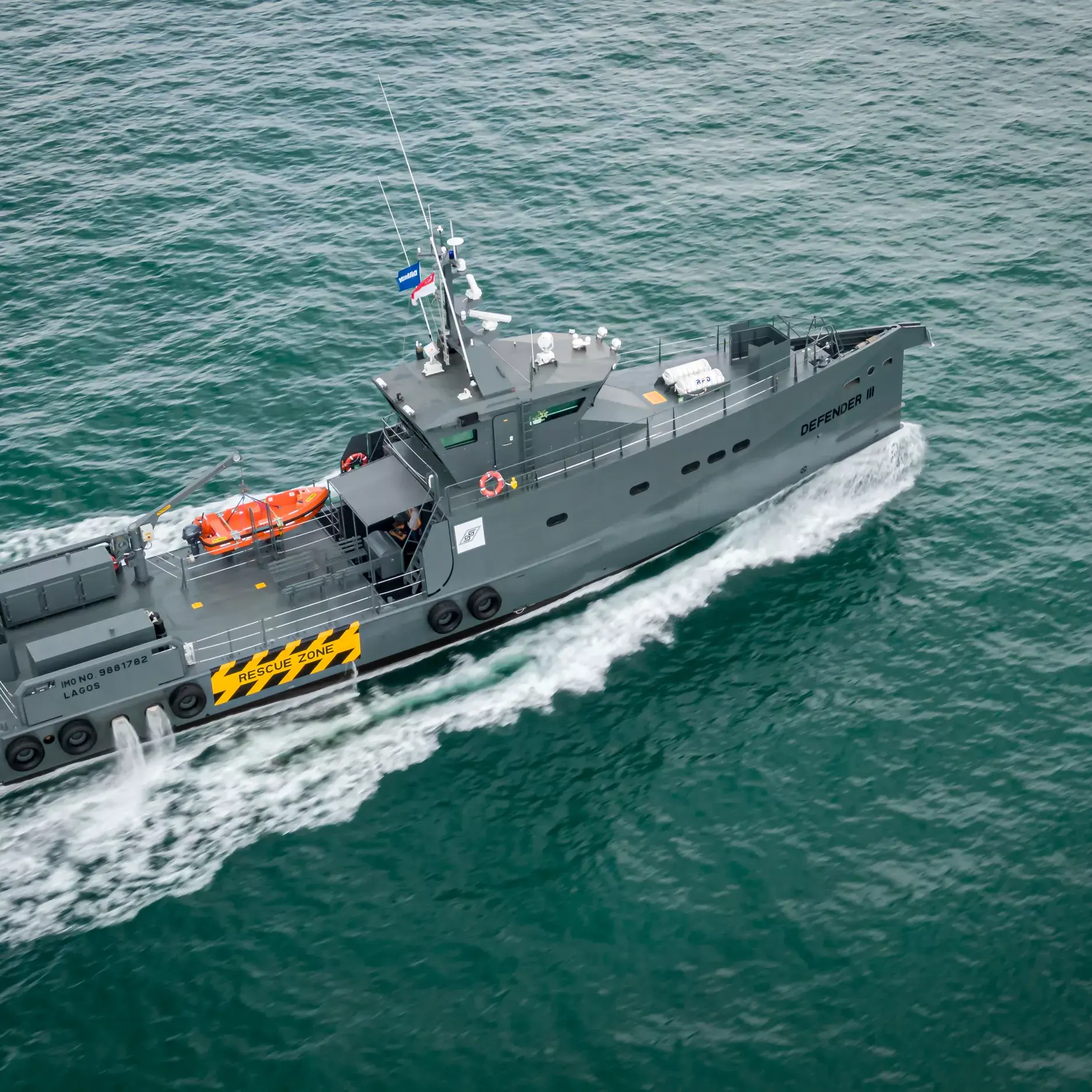

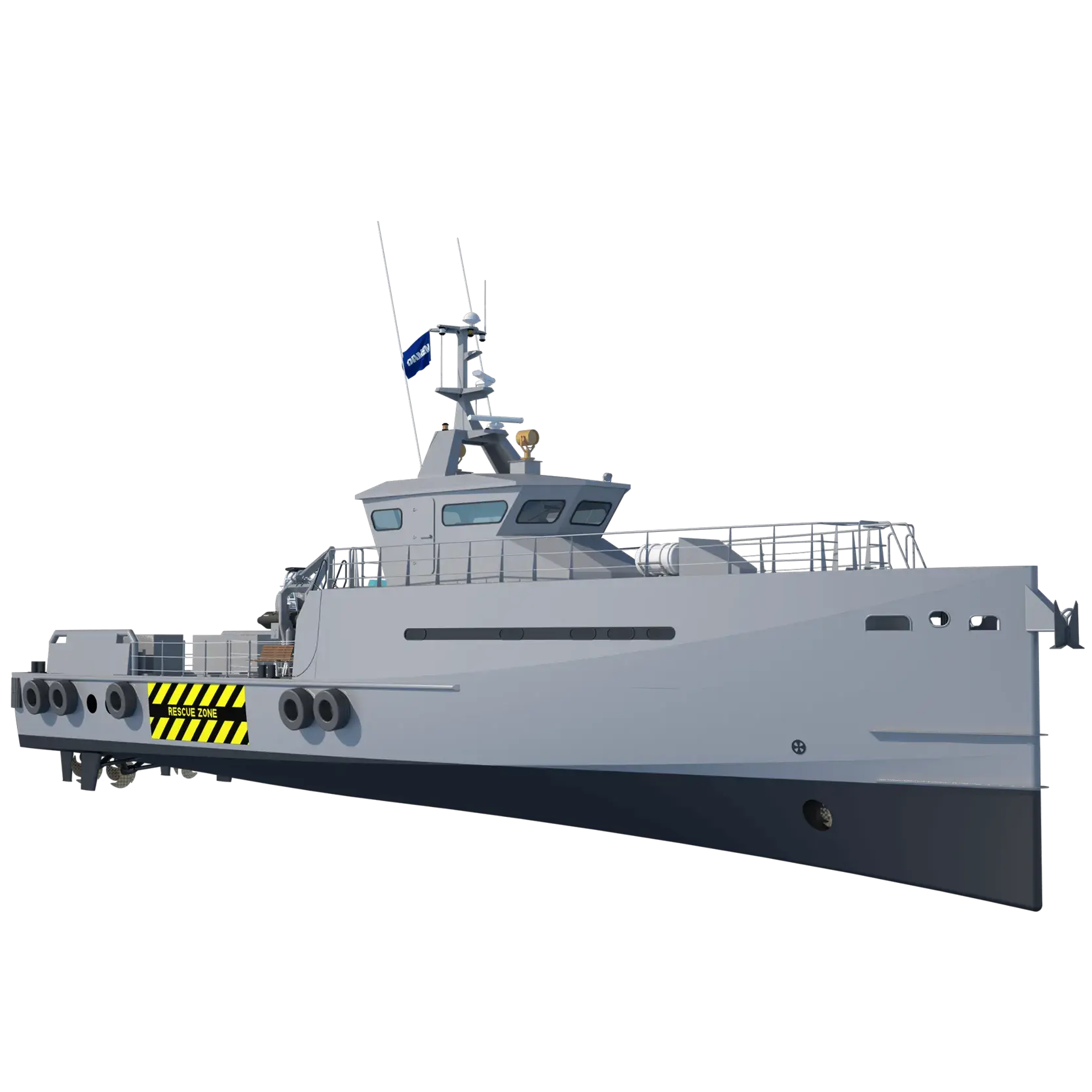

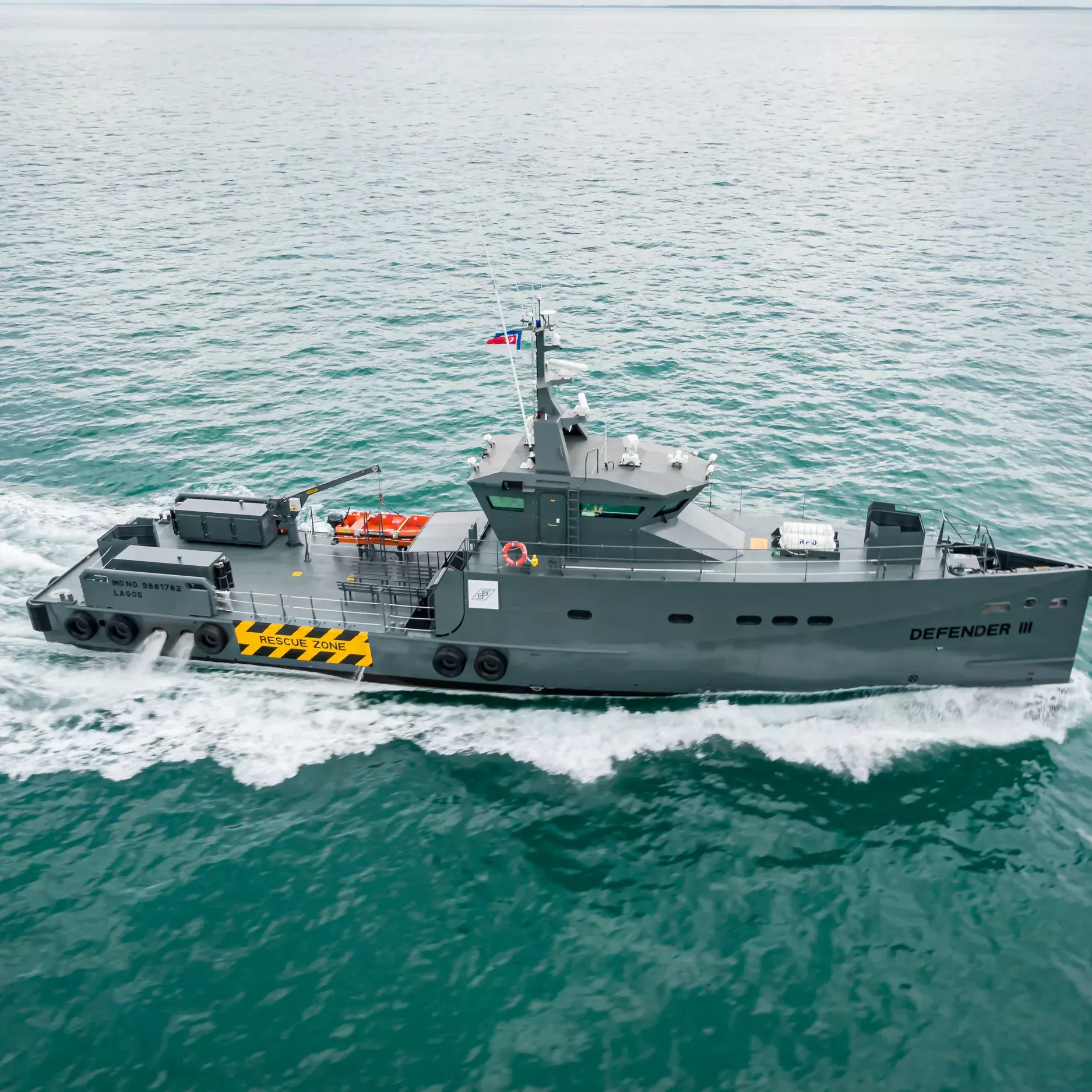

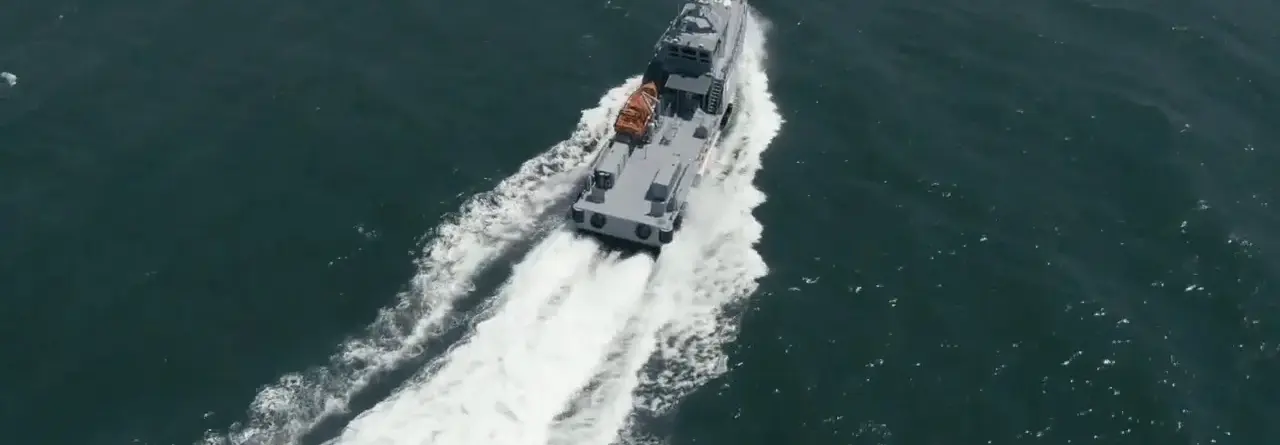

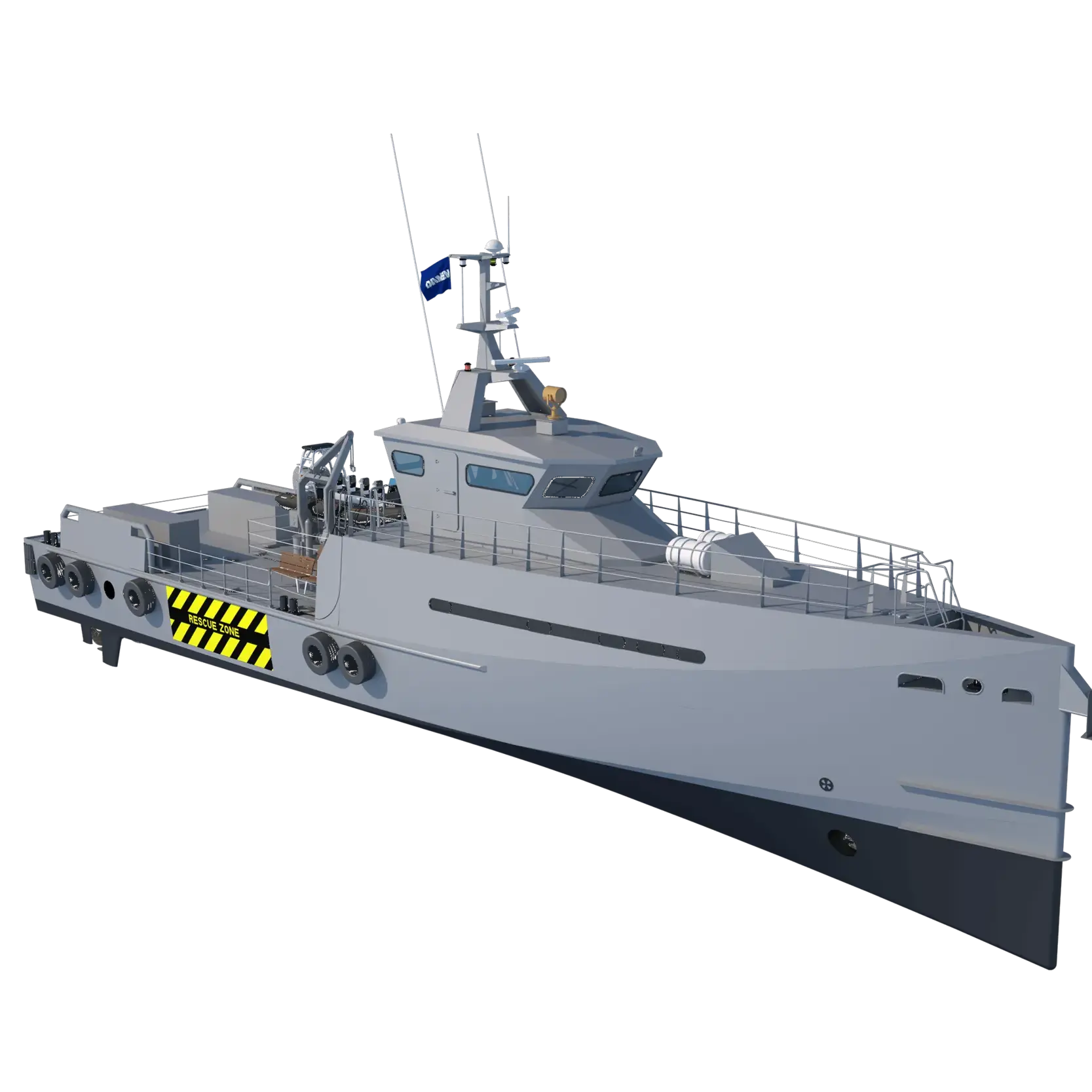

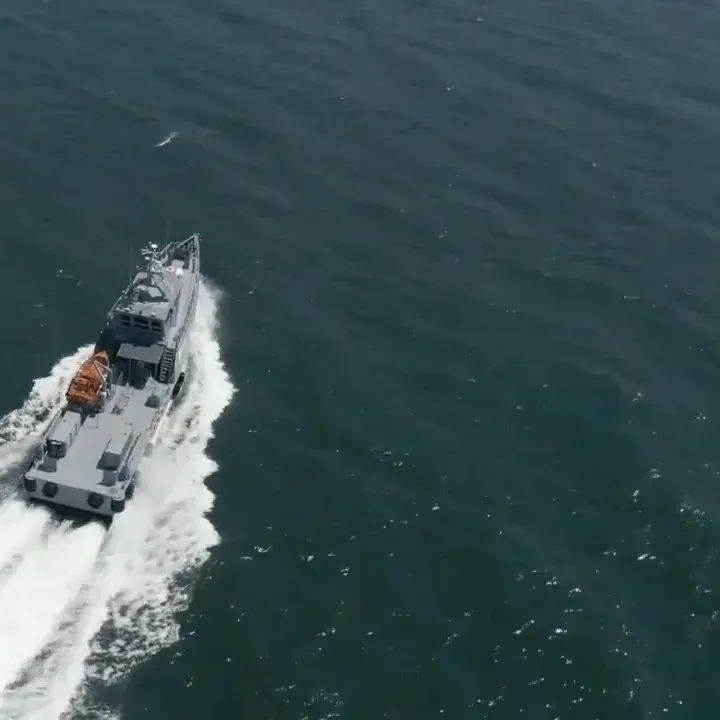

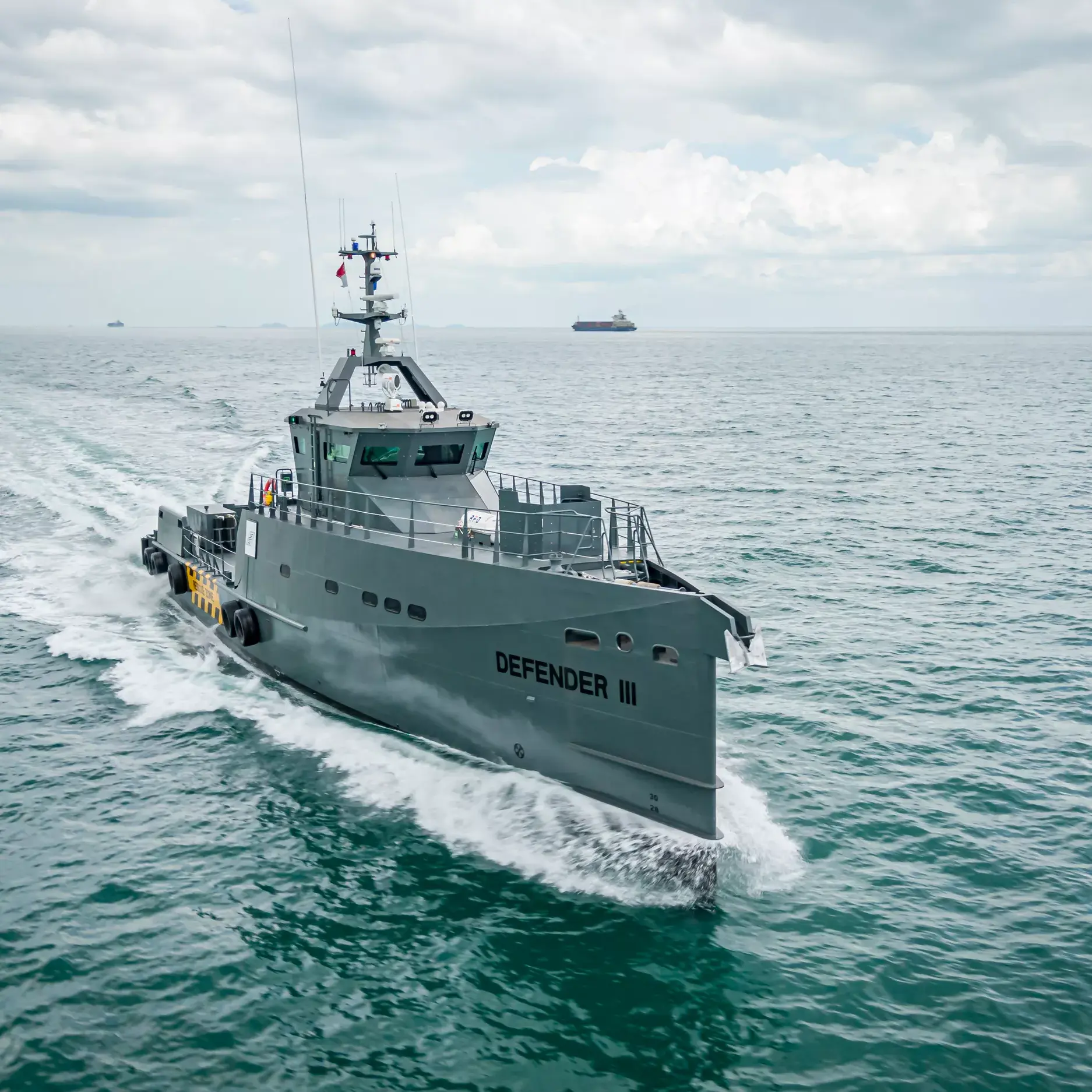

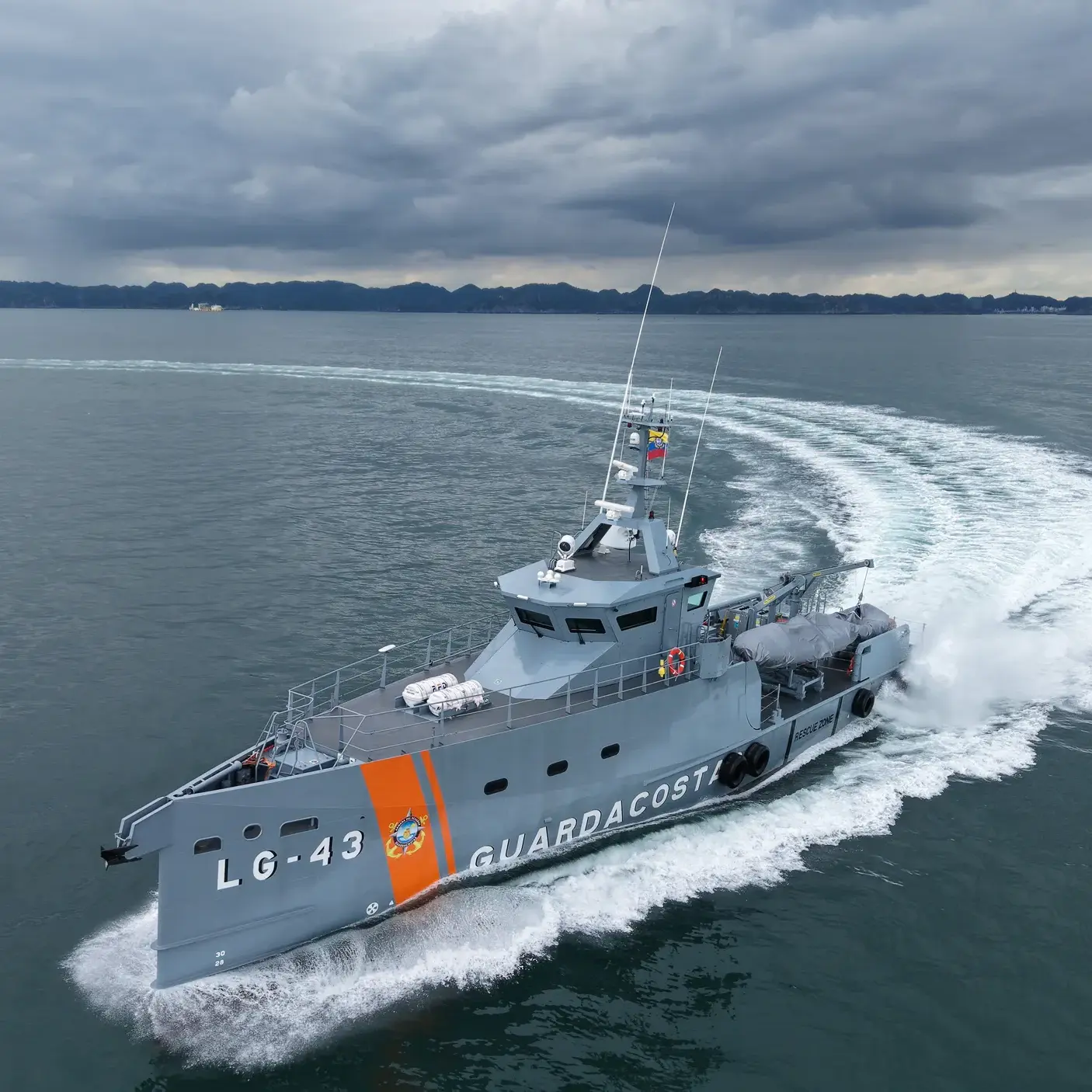

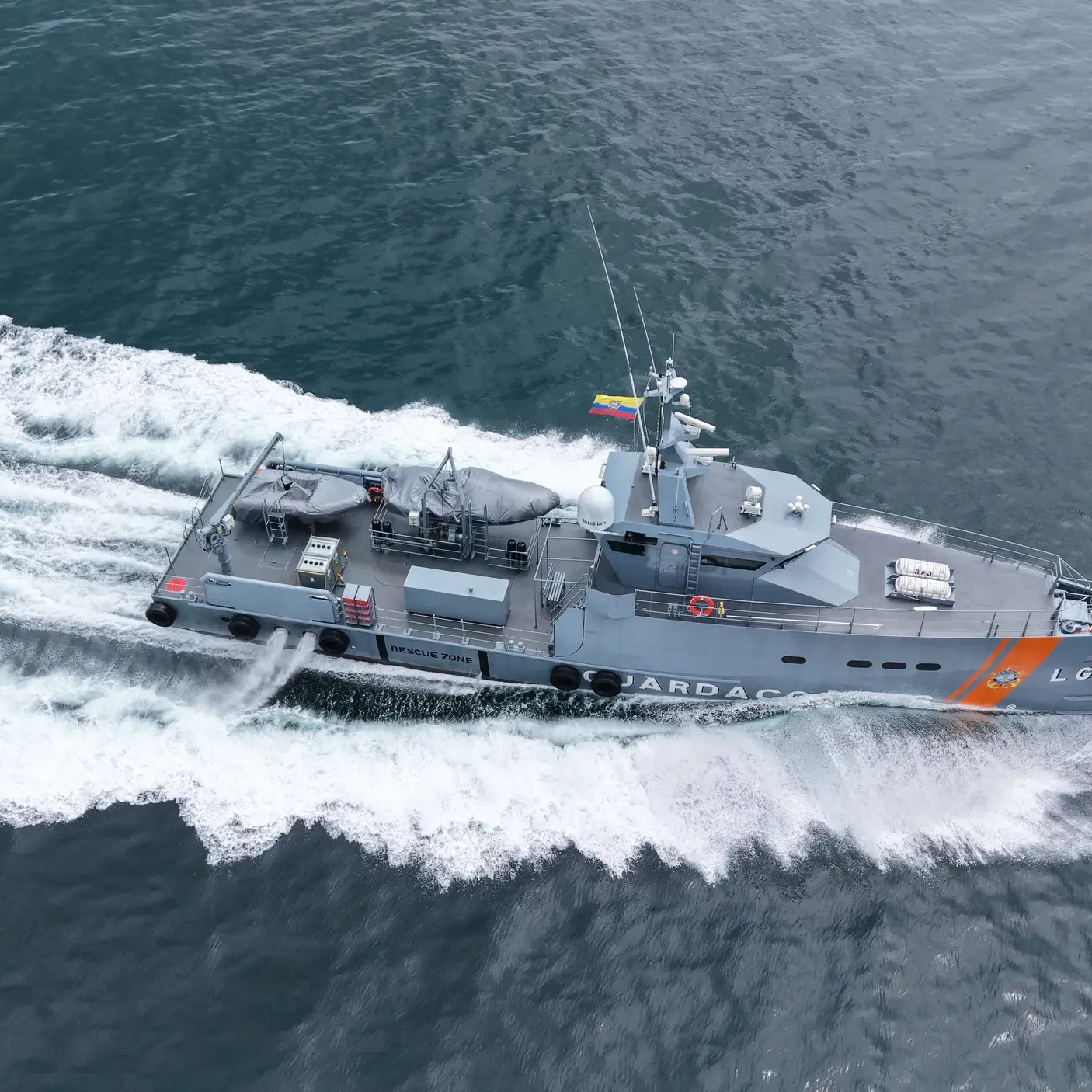

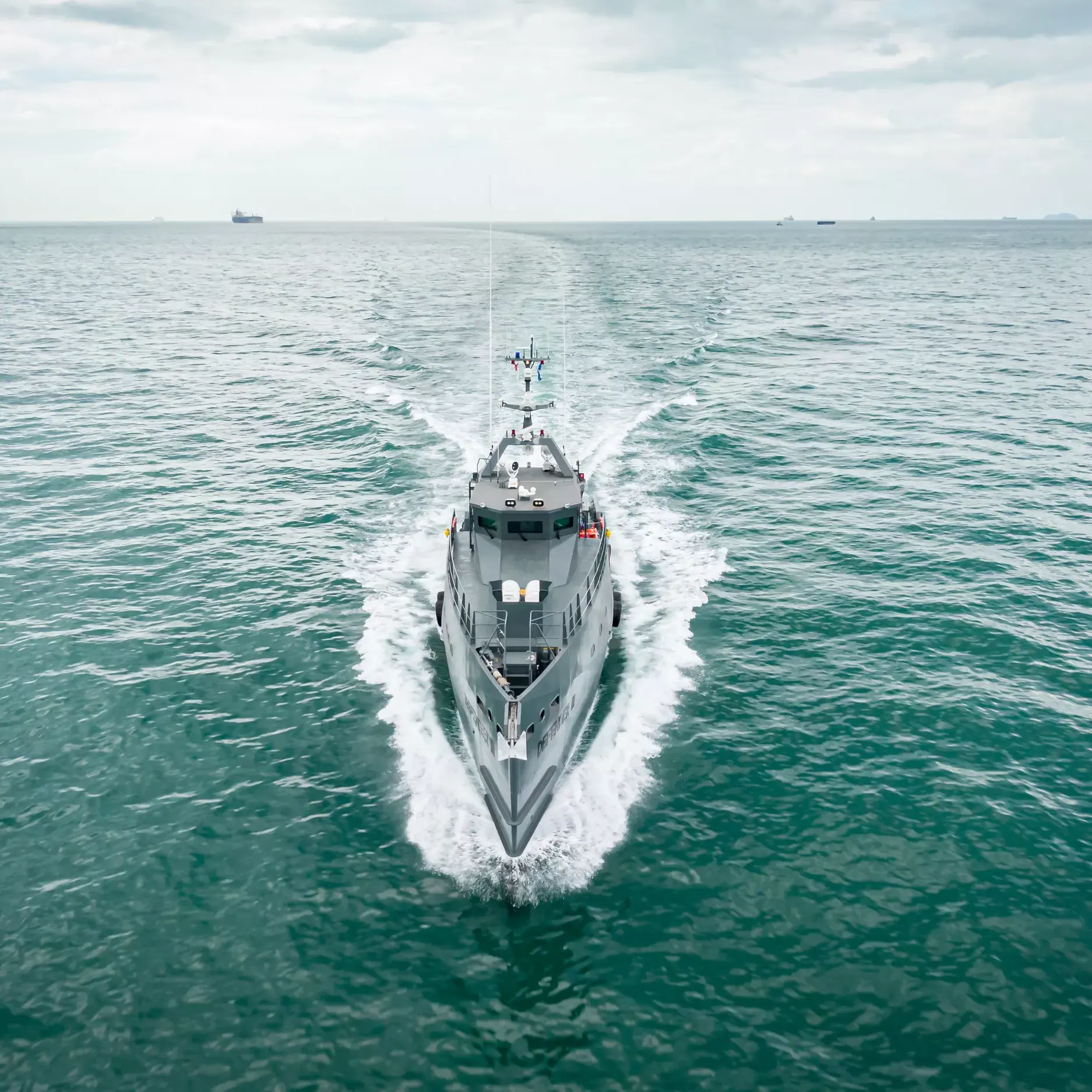

VSX 3307 Patrol
The VSX 3307 Patrol is highly fuel efficient and fully equipped for its role. The Sea Axe hull shape guarantees the best seakeeping performance at high speeds. The combination of superior seakeeping and the position of the wheelhouse results in the highest possible level op operability. The long and slender Sea Axe hull offers exceptionally low resistance, delivering excellent fuel efficiency at all speeds.
- Wooden aft deck
- Foldable deck crane

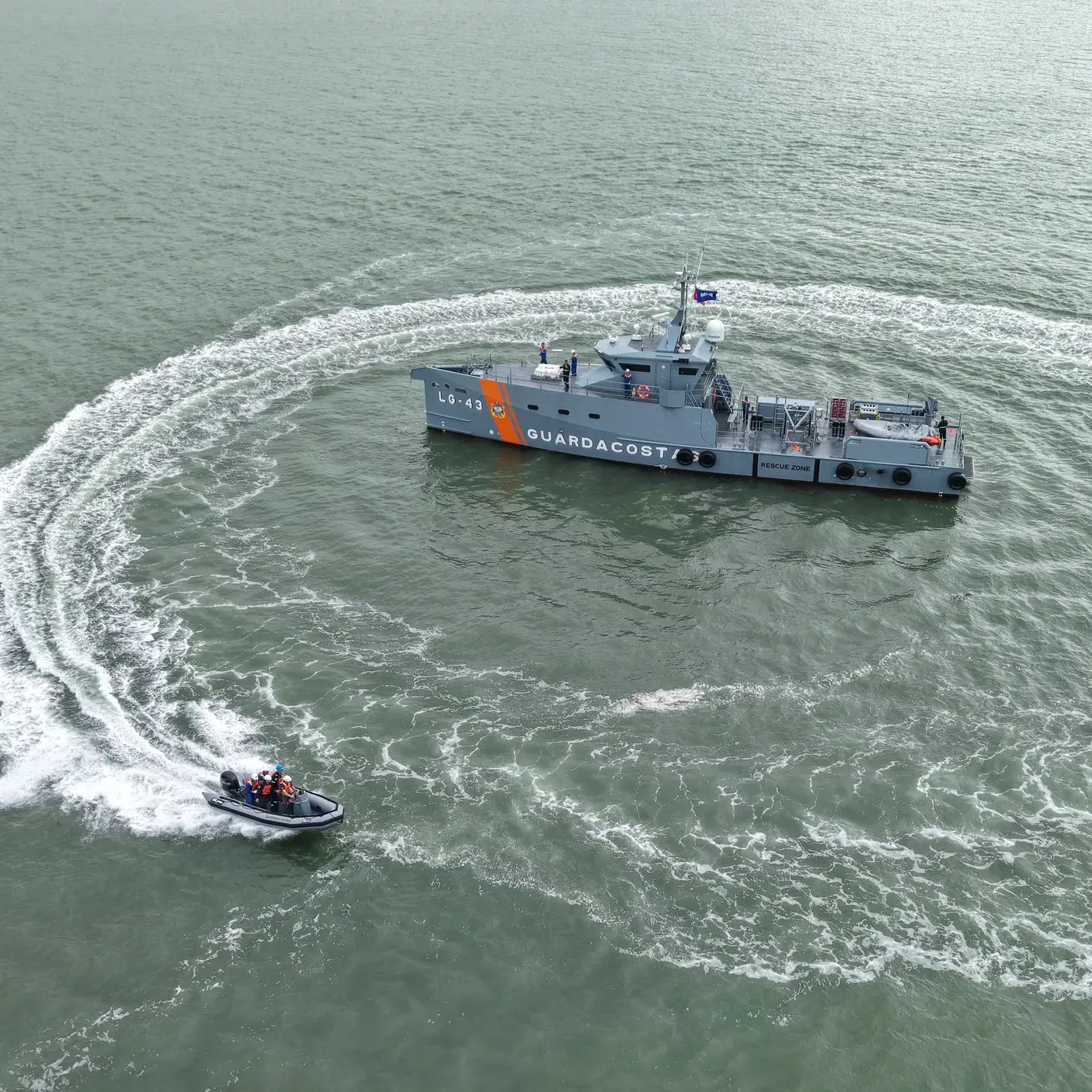

- Davit system and daughter craft
- GMDSS A3
- Fire fighting 180 m³/hr
More options? Configure your own patrol vessel. Configure your own
- Suitable for patrol duties, maritime safety, securing economical waters & coastal boundaries and search and rescue

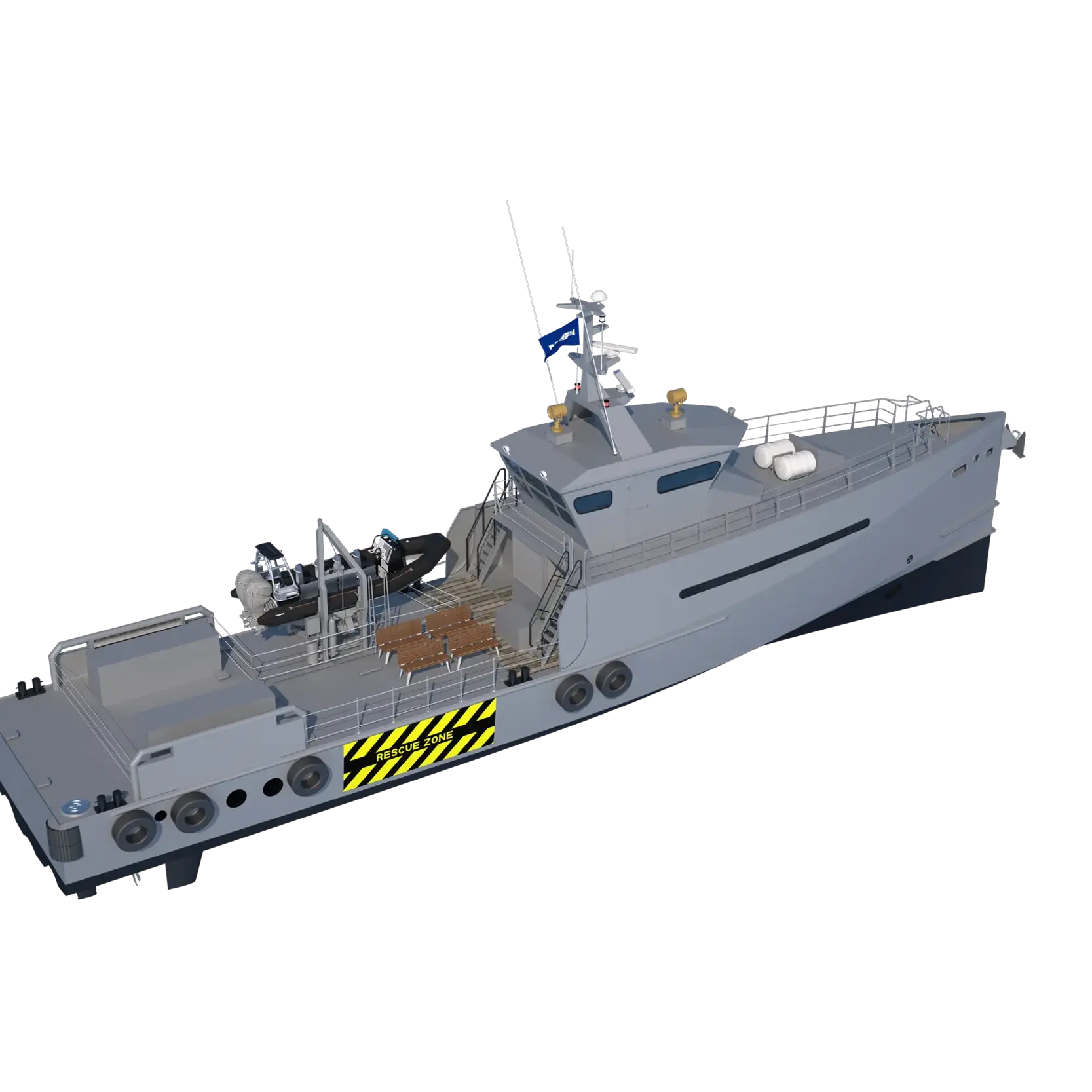

- The aft deck can be configured to meet multiple mission requirements
- Exceptional fuel efficiency in every sea condition
- More than 1000 patrol vessels delivered to police forces, coast guards and navies
Key figures
34.2
30
75
14
Aluminium
Dimensions
- Length o.a.
- 34.2 m
- Beam o.a.
- 7.3 m
- Depth at sides
- 3.3 m
- Draught
- 2.5 m
- Hull material
- Aluminium
- Superstructure
- Aluminium
Capacities
- Crew
- Up to 6 persons
- (Security) personnel
- Up to 14 persons
- Fuel oil
- 60.3 m³
- Fresh water
- 18.1 m³
- Sewage
- 4.9 m³
- Bilge water / dirty oil
- 1.4 m³
Performance
- Speed
- Up to 30 knots
- Range at max speed
- 1,700 nm
Do you want to know more?
Compare similar patrol vessels
| Length (m) | Speed max (kn) | Deck area (m²) | Patrol personnel | Hull construction | ||
|---|---|---|---|---|---|---|
| VSX 3307 Patrol | 34.2 | 30 | 75 | 14 | Aluminium | |
| VSX 4208 Patrol | 43.2 | 30 | 115 | 20 | Aluminium | |
| VSX 5209 Patrol | 53.2 | 24 | 240 | 18 | Steel |
VSX 3307 Patrol
- Length (m)
- 34.2
- Speed max (kn)
- 30
- Deck area (m²)
- 75
- Patrol personnel
- 14
- Hull construction
- Aluminium
- Length (m)
- 43.2
- Speed max (kn)
- 30
- Deck area (m²)
- 115
- Patrol personnel
- 20
- Hull construction
- Aluminium
- Length (m)
- 53.2
- Speed max (kn)
- 24
- Deck area (m²)
- 240
- Patrol personnel
- 18
- Hull construction
- Steel
